VDC system (amber)
(for versions/markets, where provided)
When the ignition key is turned to MAR, the warning
light turns on but should go off after a few seconds. If
the warning light does not go out, or if it remains lit up when dri-
ving, contact Alfa Romeo Authorized Services. A specific message
is displayed on certain versions. The warning light will flash while
driving to indicate that the VDC system is intervening.
ASR fault
When the ignition key is turned to MAR, the warning light turns
on but should go off after a few seconds. If the warning light does
not go out, or if it remains lit up when driving, contact Alfa Romeo
Authorized Services. A specific message is displayed on certain ver-
sions. The warning light will flash while driving to indicate that
the ASR system is intervening.
Hill Holder fault
This warning light comes on, on some versions together with the
*symbol and a message in the display, in the event of a Hill Hold-
er system fault. In this case, contact your nearest Alfa Romeo Au-
thorized Services.
á
NOTE (petrol engines only)
If the warning light is flashing, this indicates that the catalytic
converter may be damaged.
If the warning light comes on intermittently, release the accelera-
tor pedal to lower the speed of the engine until the warning light
stops flashing; continue the journey at moderate speed, trying to
avoid driving conditions that may cause further flashing and contact
an Alfa Romeo Authorised Service Provider as soon as possible.
Contact Alfa Romeo Authorized Services as soon as
possible if the
Uwarning light does not light up
or if, while travelling, the warning light comes on
either fixed or blinking (in combination with a message
on the display on some versions). The operation of the
U
warning light may be checked by traffic police using ap-
propriate equipment. Follow the laws in force in the coun-
try where you are driving.

13
GETTING
TO KNOW
YOUR CAR
SAFETY
STARTING
AND DRIVING
IN AN
EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
CONTENTS
Alfa Romeo CODE fault/
alarm fault (amber)
(for versions/markets, where provided)
The warning light (or symbol on the display) will come
on (on some versions, with a message on the display) to indicate
an Alfa Romeo CODE system or alarm fault(for versions/markets,
where provided): In this case, contact Alfa Romeo Authorized Ser-
vices.
Break-in attempt
If this warning light flashes or, on some versions, if the symbol
appears in the display (together with the associated message) this
indicates a break-in attempt. Contact Alfa Romeo Authorized Ser-
vices as soon as possible.
Y
Glow plug preheating
(diesel versions) (amber)
When the key is turned to MAR, the warning light
comes on and it will go out when glow plugs reach the
preset temperature. THE engine may be started immediately af-
ter the warning light goes out.
IMPORTANT In mild or high temperature conditions, the warning
light comes on for a very short time only.
Glow plugs preheating fault
(diesel versions)
The warning light will flash (a message in the display will appear
on the display, on some versions) to indicate a fault in the glow
plugs preheating system. Contact Alfa Romeo Authorized Services
as soon as possible to eliminate the fault.
m
Water in fuel filter
(diesel versions) (amber)
The warning light remains on constantly when driving
(together with a message in the display), to indicate the
presence of water in the diesel fuel filter.c
The presence of water in the fuel system circuit may
cause severe damage to the injection system and
irregular engine operation. If the
cwarning light
comes on in the instrument panel (together with a mes-
sage in the display) contact Alfa Romeo Authorized Ser-
vices as soon as possible to bleed the system. Water may
have entered the tank if this appears immediately after
refuelling: if this happens, switch the engine off immedi-
ately and contact Alfa Romeo Authorized Services.

14
GETTING
TO KNOW
YOUR CAR
SAFETY
STARTING
AND DRIVING
IN AN
EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
CONTENTS
Fuel reser ve – Limited range (amber)
This warning light comes on when about 8 to 10 litres
of fuel are left in the tank. A warning message will ap-
pear on the display (some versions only) when the re-
maining range less than approximately 50 km (or equivalent in
miles).K
If the warning light flashes with the car in motion,
contact Alfa Romeo Authorized Services.
Cruise Control (green)
(for versions/markets, where provided)
The warning light comes on when the key is turned to
MAR, but should go out after a few seconds if the Cruise
Control function is off. The warning light comes on when the Cruise
Control wheel is turned to the ON position (see the “Cruise Con-
trol” paragraph in this chapter). A specific message appears on the
display.Ü
DPF (particulate trap) cleaning in
progress (diesel versions with DPF
only) (amber)
When the ignition key is turned to MAR, the warning light
turns on but should go off after a few seconds. The warning light
stays on constantly to notify the driver that the DPF system needs
to eliminate captured pollutants (particulate) by the regeneration
process.
The warning light does not come on during every DPF regenera-
tion, but only when driving conditions require notification to the dri-
ver. The warning light will go off if the car stays in motion until
regeneration has been completed.
The process normally takes about 15 minutes. Optimal conditions
for completing the process are achieved by travelling at 60 km/h
with engine revs above 2000 rpm.
Operation of this warning light does not indicate a fault and the car
does not need to be taken to a workshop. A specific message will
appear on the display when the warning light comes on (for ver-
sions/markets where provided).
h

15
GETTING
TO KNOW
YOUR CAR
SAFETY
STARTING
AND DRIVING
IN AN
EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
CONTENTS
Speed limit exceeded (red)
(for versions/markets, where provided)
The warning light (for versions/markets where pro-
vided) comes on when the speed exceeds 120 km/h.
When the car exceeds the speed limit set in the setup Menu (e.g.
120 km/h), on some versions a message and a symbol are shown
in the display and an acoustic signal is activated.
X
Always drive at a speed appropriate to the traffic
conditions, the weather and the laws in force. The
engine may be turned off while the DPF light is on;
however, repeated interruption of the regeneration process
may result in premature degradation of the engine oil.
For this reason, it is always advisable to wait for the light
to go off before turning off the engine, following the in-
structions appearing above. It is not a good idea to com-
plete DPF regeneration with the vehicle stationary.Generic fault (amber)
(for versions/markets, where provided)
The warning light turns on in the following circumstances:
Contact Alfa Romeo Authorized Services as soon as possi-
ble to eliminate the fault.
Exterior lights fault
See the section on warning light 6.
Brake lights fault
See description in the “Brake lights fault” section.
Fuel cut-off
This warning light comes on when the fuel cut-off inertia switch is
triggered. A specific message will be shown on the display.
Start&Stop fault
(for versions/markets, where provided)
The warning light comes on when a fault is detected in the
Start&Stop system.
Rain sensor fault
(for versions/markets where provided)
The warning light comes on when a rain sensor fault is detected.
è

16
GETTING
TO KNOW
YOUR CAR
SAFETY
STARTING
AND DRIVING
IN AN
EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
CONTENTS
Parking sensor fault
(for versions/markets where provided)
See the section on warning light
t.
Rain sensor fault
(for versions/markets where provided)
This warning light comes on when a dusk sensor fault is detected.
AFS adaptive lights fault
(for versions/markets, where provided)
The warning light comes on when an AFS adaptive light fault is de-
tected (see “AFS adaptive lights” in this chapter). A specific mes-
sage will be shown on the display.
Anti-pinch system fault
The warning light will come on when an anti-pinch system fault
is detected. A specific message will be shown on the display.
Engine oil pressure sensor fault
The warning light turns on when an engine oil pressure sensor fault
is detected. A specific message will be shown on the display.
Rear fog lights (amber)
The warning light comes on when the rear fog lights
are on. The LED over 4 button will also light up.4
Fog lights (green)
The warning light comes on when the fog lights are
on. The LED over 5 button
5will also light up.5
Side lights (green)
This warning light comes on when the side lights are
turned on.
Follow me home (green)
The warning light comes on (in combination with a message on
the display) when this device is used (see “Follow me home de-
vice” in this chapter).
3

17
GETTING
TO KNOW
YOUR CAR
SAFETY
STARTING
AND DRIVING
IN AN
EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
CONTENTS

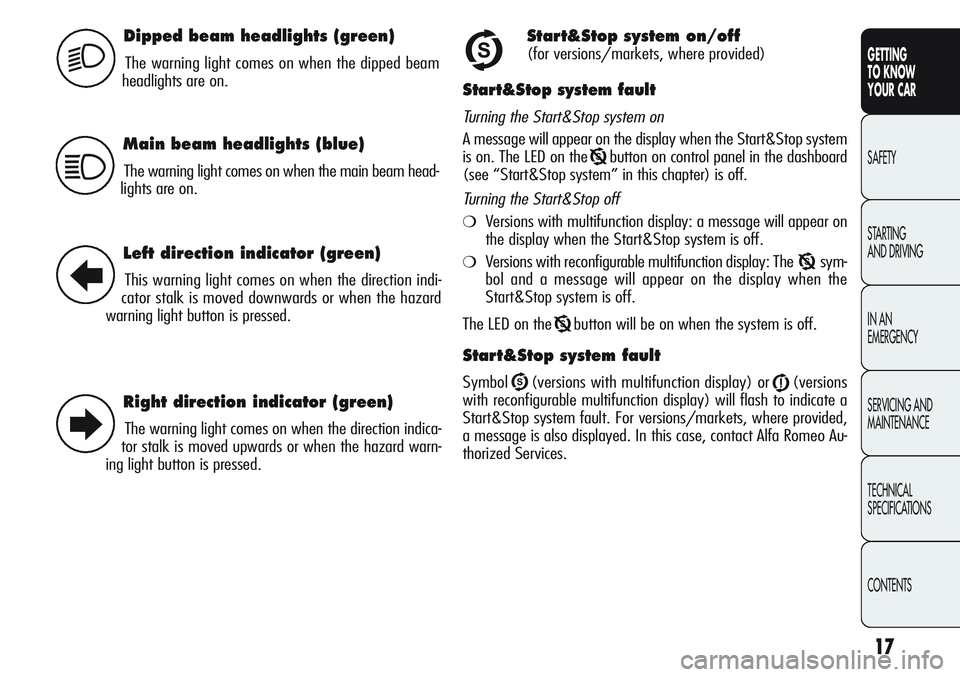

Dipped beam headlights (green)
The warning light comes on when the dipped beam
headlights are on.2U
Main beam headlights (blue)
The warning light comes on when the main beam head-
lights are on.1
Left direction indicator (green)
This warning light comes on when the direction indi-
cator stalk is moved downwards or when the hazard
warning light button is pressed.
Right direction indicator (green)
The warning light comes on when the direction indica-
tor stalk is moved upwards or when the hazard warn-
ing light button is pressed.
R
E
Start&Stop system on/off
(for versions/markets, where provided)
Start&Stop system fault
Turning the Start&Stop system on
A message will appear on the display when the Start&Stop system
is on. The LED on the
Tbutton on control panel in the dashboard
(see “Start&Stop system” in this chapter) is off.
Turning the Start&Stop off
❍Versions with multifunction display: a message will appear on
the display when the Start&Stop system is off.
❍Versions with reconfigurable multifunction display: The T sym-
bol and a message will appear on the display when the
Start&Stop system is off.
The LED on the
Tbutton will be on when the system is off.
Start&Stop system fault
SymbolU(versions with multifunction display) or j(versions
with reconfigurable multifunction display) will flash to indicate a
Start&Stop system fault. For versions/markets, where provided,
a message is also displayed. In this case, contact Alfa Romeo Au-
thorized Services.

18
GETTING
TO KNOW
YOUR CAR
SAFETY
STARTING
AND DRIVING
IN AN
EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
CONTENTS
Possible presence of ice on the road
On versions equipped with reconfigurable multifunc-
tion display, a message + symbol will appear when
the outdoor temperature falls to or below 3°C.
On versions with multifunctional display, only the message is shown.
IMPORTANT In the event of outdoor temperature sensor fault, dash-
es are shown on the display instead of the value.√
Fuel cut-off
On some versions the display will show a message +
symbol if the fuel cut-off trips. For the fuel cut-off sys-
tem reactivation procedure see paragraph “Fuel cut-off
system” in this chapter.s
Exterior lights fault
On some versions, a message + symbol will appear
on the display if a fault is detected in one of the fol-
lowing lights:
– daytime lights (DRL)
– sidelights/taillights
– direction indicators
– rear fog lights
– number plate lights.
The fault relating to these lights could be: one or more blown bulbs,
a blown protection fuse or a break in the electric connection.W
Boot open
On some versions, a message + symbol on the dis-
play are shown when the boot is open.R
Bonnet open
On some versions, a message + symbol on the display
are shown when the bonnet is open.S

19
GETTING
TO KNOW
YOUR CAR
SAFETY
STARTING
AND DRIVING
IN AN
EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
CONTENTS
Rain sensor fault
(for versions/markets where provided)
On some versions, a message + symbol will be shown
on the display if a dusk sensor fault is detected. 1
Parking sensor fault
(for versions/markets where provided)
On some versions, a message + symbol will be shown
on the display if a parking sensor fault is detected.
Rain sensor fault
(for versions/markets where provided)
On some versions, a message + symbol will appear on
the display if a rain sensor fault is detected. u
t
Brake lights fault
On some versions, a message + symbol will appear on
the display if a brake light fault is detected. The fault may be caused
by a blown bulb, a blown protection fuse or an interruption of the
electric connection.TDrive mode display (“Alfa DNA” system)
(for versions/markets, where provided)
On versions equipped with a reconfigurable multifunction display,
a message + symbol associated with the selected driving mode -
“DYNAMIC”, “NORMAL” or “ALL WEATHER” - is shown. A warn-
ing message is shown on the display if one of these driving modes
is not available.
On versions equipped with multifunction display, a letter (d or a)
associated with the selected driving mode is shown together with
a dedicated message.

20
GETTING
TO KNOW
YOUR CAR
SAFETY
STARTING
AND DRIVING
IN AN
EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
CONTENTS
DISPLAY
The car may be equipped with a multifunction display/ multi-
function reconfigurable display which, in accordance with the set-
tings made, can display useful information when driving.
With the ignition key removed, the display lights up and shows the
time and total odometer reading (in km or miles) for a few sec-
onds when a door is opened/closed.
MULTIFUNCTION DISPLAY “STANDARD”
SCREEN fig. 6
The following information is shown on the display:
A. Date
B. Odometer (distance covered in km or miles)
C. Driving mode selected using “Alfa DNA” (dynamic control sys-
tem) (for versions/markets, where provided)
– d = Dynamic
– n = Normal
– a = All Weather
D. Time (always displayed, even with the key extracted and the
front doors closed)
E Start&Stop function indicator (for versions/markets, where
provided)
F. Outside temperature
G Gear Shift Indicator (for versions/markets where provided)
H. Headlight alignment position (dipped headlamps on only)
fig. 6A0K1222g

21
GETTING
TO KNOW
YOUR CAR
SAFETY
STARTING
AND DRIVING
IN AN
EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
CONTENTS
RECONFIGURABLE MULTIFUNCTION
“STANDARD” DISPLAY fig. 7
The following information is shown on the display:
A. Time
B. Trip meter (km or miles)
C. Odometer (display of distance travelled in kilometres/miles)
D. State indicator (e.g. doors open, ice on road, etc.)/Start&Stop
function indicator (for versions/markets, where provided)/
Gear Shift Indicator (for versions/markets, where provided)
E. Headlamp alignment position (only with dipped headlamps
on).
F. Outside temperatureThe turbocharger pressure will appear on some versions when
“DYNAMIC” driving mode is selected (see “Alfa DNA system” in
this chapter), fig. 8.
fig. 7A0K0005mfig. 8A0K0006m
