The brake servo and the electrical power steering
will not work while the car is being towed. More
effort on the brake pedal and steering wheel will
therefore be required. Do not use wires for towing. Do not
jerk. Be careful not to damage parts in contact with the
car while towing. Respect the specific rules of the Highway
Code when towing the car, specifically in relation to the
towing device and conduct on the road. Do not start the
engine while towing the car. Clean the threaded seat care-
fully before fastening the hook. Make sure that the hook
is fully fastened in the seat before towing the car.The front and rear tow hooks must only be used
for emergency situations on the road. The car may
be towed for short distances when a dedicated de-
vice is used in compliance with the Highway Code (rigid
bar), and in order to move the vehicle on the road in
preparation for towing by a tow truck. Tow hooks MUST
NOT be used to tow vehicles off the road or where there
are obstacles and/or for towing operations using cables
or other non-rigid devices. Respecting the above condi-
tions, towing must take place with two vehicles (one tow-
ing, the other towed) aligned as much as possible along
the same centre line.

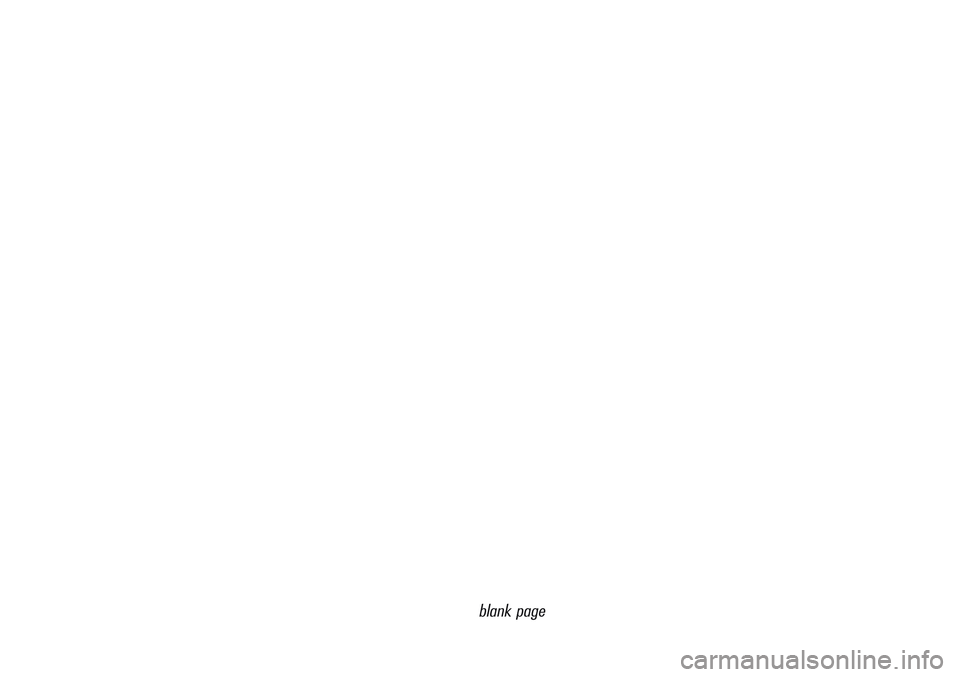

blank page

199
GETTING
TO KNOW
YOUR CAR
SAFETY
STARTING
AND DRIVING
IN AN
EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
CONTENTS
SERVICING AND MAINTENANCE
IMPORTANT NOTES
❍At 2000 km from the next service operation the display will
show a message.
❍Scheduled Servicing operations are required by the manufac-
turer. Failure to comply with the schedule may invalidate the
warranty.
❍It is advisable to inform Alfa Romeo Authorized Services of any
small faults without waiting for the next scheduled service.
SCHEDULED SERVICING
Correct maintenance is essential for ensuring long car life under the
best conditions.
For this reason, Alfa Romeo has prepared a series of checks and
service operations to be carried out every 30,000 kilometres (for
1.4 petrol versions) or every 35,000 kilometres (for 1750 Turbo
Petrol and diesel versions).
Check the items on the Scheduled Servicing Plan (e.g. periodical-
ly check level of liquids, tyre pressure, etc.) before 30,000/
35,000 km and between these services deadlines.
Scheduled Service operations should be carried out at Alfa Romeo
Authorized Services according to a set time schedule. If, during
each operation, in addition to the ones scheduled, the need aris-
es for further replacements or repairs, these may be carried out on-
ly with the explicit agreement of the Customer.
If your car is used frequently for towing, the interval between one
service operation and the next should be reduced.

200
GETTING
TO KNOW
YOUR CAR
SAFETY
STARTING
AND DRIVING
IN AN
EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
CONTENTS
SCHEDULED SERVICING PLAN
1.4 Turbo Petrol and 1.4 Turbo Multi Air VERSIONS
Thousands of miles
Thousands of km
Months
Check tyre condition/wear and adjust pressure if required
Check lighting system operation (headlights, direction indicators, hazard lights, passenger
compartment lights, boot lights, instrument panel warning lights, etc.)
Check windscreen wiper/washer operation
Check the position/wear of the windscreen/rear window wiper blades
Check condition and wear of front disc brake pads and
operation of pad wear indicator
Check rear disc brake pad condition and wear
Conditions and visual check: bodywork exterior, underbody protection,
pipes and hoses (exhaust - fuel system - braking system),
rubber elements (boots - sleeves - bushes - etc.)
Check cleanliness of bonnet and boot locks,
as well as cleanliness and lubrication of linkages
Check and top up, if required, fluid levels
(engine coolant, brake/hydraulic clutch fluid, windscreen washer fluid, battery fluid, etc)
Check the handbrake lever travel and adjust it, if necessary
Check condition of timing belt
Visually inspect the condition of accessory drive belt(s)
Check exhaust gas emissions
Check battery charge status and possibly recharge18 36 54 72 90 108
30 60 90 120 150 180
24 48 72 96 120 144
●●● ●●●
●●● ●●●
●●● ●●●
●●● ●●●
●●● ●●●
●●● ●●●
●●● ●●●
●●● ●●●
●●● ●●●
●●● ●●●
●●
●●
●●● ●●●
●●● ●●●

201
GETTING
TO KNOW
YOUR CAR
SAFETY
STARTING
AND DRIVING
IN AN
EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
CONTENTS
2 If the car is mainly used in cities or travels less than 10,000 km a year, change the engine oil and filter every 12
months.
18 36 54 72 90 108
30 60 90 120 150 180
24 48 72 96 120 144
●●● ●●●
●
●
●●● ●●●
●●●
●●● ●●●
●●●
●●● ●●●
1 For 1.4 Turbo Petrol and 1.4 Turbo Multi Air versions, in order to guarantee correct operation and prevent seri-
ous damage to the engine, it is essential to observe the following:
- only use spark plugs specifically certified for Turbo Petrol engines; all spark plugs should be of the same type and brand
(see the “Engine” paragraph in the “Technical Specifications” chapter);
- adhere strictly to the spark plug replacement intervals detailed in the Scheduled Servicing Plan;
- You are advised to go to Alfa Romeo Authorized Services to have the spare plugs replaced.
Thousands of miles
Thousands of km
Months
Check engine control system operation (using diagnosis socket)
Replace accessory drive belt(s)
Replace toothed timing drive belt (*)
Replace spark plugs 1
Replace air filter cartridge
Change engine oil and oil filter (or every 24 months) 2
Change brake fluid (or every 24 months)
Change pollen filter (or every 15 months)
(*) Regardless of the distance covered, the timing belt must be changed every 4 years for particularly demanding use (cold climates, city driving,
long periods of idling) or at least every 5 years.

21 42 63 84 105
35 70 105 140 175
24 48 72 96 120
●● ●●●
●● ●●●
●● ●●●
●● ●●●
●● ●●●
●● ●●●
●● ●●●
●● ●●●
●● ●●●
●● ●●●
●●
●●
202
GETTING
TO KNOW
YOUR CAR
SAFETY
STARTING
AND DRIVING
IN AN
EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
CONTENTS
1750 Turbo Petrol VERSIONS
Thousands of miles
Thousands of km
Months
Check tyre conditions/wear and adjust pressure if required
Check lighting system operation (headlights, direction indicators, hazard warning lights, passenger
compartment lights, boot lights, instrument panel warning lights, etc.)
Check windscreen wiper/washer operation
Check the position/wear of the windscreen/rear window wiper blades
Check condition and wear of front disc brake pads and operation of pad wear indicator
Check rear disc brake pad condition and wear
Conditions and visual check: bodywork exterior, underbody protection,
pipes and hoses (exhaust - fuel system - braking system),
rubber elements (boots - sleeves - bushes - etc.)
Check cleanness of locks, bonnet and boot and lever cleanness and lubrication
Check and top up, if required, fluid levels
(engine coolant, brake/hydraulic clutch fluid, windscreen washer fluid, battery fluid, etc)
Check the handbrake lever travel and adjust it, if necessary
Visually inspect the condition of the auxiliary drive belt
Visually inspect the condition of toothed timing belt

203
GETTING
TO KNOW
YOUR CAR
SAFETY
STARTING
AND DRIVING
IN AN
EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
CONTENTS
(*) Regardless of the distance covered, the timing belt must be changed every four years for particularly demanding use (cold climates, city driving,
long periods of idling) or at least every five years in all other cases.
(**) The engine oil and the oil filter must be changed when the instrument panel warning light comes on (see “Warning lights and messages” in “Get-
ting to know your car” chapter) or in any case every 12 months.
Thousands of miles
Thousands of km
Months
Check exhaust emissions
Check battery charge status and possibly recharge
Check engine control system operation (via diagnostic socket)
Replace accessory drive belt(s)
Replace toothed timing belt (*)
Replace spark plugs
Replace air filter cartridge
Change engine oil and oil filter (or every 12 months) (**)
Change brake fluid (or every 24 months)
Change pollen filter (or every 15 months)21 42 63 84 105
35 70 105 140 175
24 48 72 96 120
●● ●● ●
●● ●● ●
●● ●● ●
●
●
●●
●●
●●
●● ●● ●

204
GETTING
TO KNOW
YOUR CAR
SAFETY
STARTING
AND DRIVING
IN AN
EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
CONTENTS
Thousands of miles
Thousands of km
Months
Check tyre condition/wear and adjust pressure if required
Check operation of lighting system (headlights, direction indicators, hazard warning lights,
luggage compartment, passenger compartment, instrument panel warning lights, etc.)
Check windscreen wiper/washer operation
Check the position/wear of the windscreen/rear window wiper blades
Check condition and wear of front disc brake pads and operation of pad wear indicator
Check rear disc brake pad condition and wear
Conditions and visual check: bodywork exterior, underbody protection,
pipes and hoses (exhaust - fuel system - braking system),
rubber elements (boots - sleeves - bushes - etc.)
Check cleanliness of bonnet and boot locks, as well as cleanliness and lubrication of linkages
Check and top up, if required, fluid levels
(engine coolant, brake/hydraulic clutch fluid, windscreen washer fluid, battery fluid, etc)
Check the handbrake lever travel and adjust it, if necessary
Check exhaust fumes/emissions
Check battery charge status and possibly recharge
Visually inspect the condition of the auxiliary drive belt
Check engine control system operation (via diagnostic socket)21 42 63 84 105
35 70 105 140 175
24 48 72 96 120
●● ● ●●
●● ●● ●
●● ●● ●
●● ●● ●
●● ●● ●
●● ●● ●
●● ●● ●
●● ●● ●
●● ●● ●
●● ●● ●
●● ●● ●
●● ●● ●
●●
●● ●● ●
Diesel VERSIONS

205
GETTING
TO KNOW
YOUR CAR
SAFETY
STARTING
AND DRIVING
IN AN
EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
CONTENTS
21 42 63 84 105
35 70 105 140 175
24 48 72 96 120
●
●
●●
●●
●●
●●●● ●
Thousands of miles
Thousands of km
Months
Replace auxiliary drive belts
Replace toothed timing drive belt (*)
Replace fuel filter
Replace air filter cartridge
Change engine oil and oil filter (**)(or every 24 months)
Change brake fluid (or every 24 months)
Change pollen filter (or every 15 months)
(*) Regardless of the distance covered, the timing belt must be changed every 4 years for particularly demanding use (cold climates, city driving,
long periods of idling) or at least every 5 years.
(**) The engine oil and oil filter should be changed when the warning light on the dashboard comes on, or every 24 months.
If the car is mainly used in town, change the engine oil and filter every 12 months.

206
GETTING
TO KNOW
YOUR CAR
SAFETY
STARTING
AND DRIVING
IN AN
EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
CONTENTS
REGULAR CHECKS
Every 1,000 km or before long journeys, check and top up the fol-
lowing if necessary:
❍engine coolant level, brake fluid and windscreen washer fluid
❍tyre pressure and condition;
❍operation of lighting system (headlights, direction indicators,
hazard lights, etc.);
❍operation of the windscreen wiper/washer system, position
and wear of windscreen/rear window wiper blades;
Check and top up, if required, the engine oil level every 3,000 km.
DEMANDING USE OF THE CAR
If you use the car mainly under one of the following conditions:
❍trailer or caravan towing;
❍dusty roads;
❍short (less than 7-8 km) and repeated journeys in sub-zero
temperatures;
❍frequent engine idling, travelling long distances at low speeds
or long term inactivity;
perform the following inspections more frequently than shown on
the Scheduled Servicing Plan:
❍check front disc brake pad condition and wear;
❍check cleanliness of bonnet and boot locks, as well as cleanli-
ness and lubrication of linkages;
❍visually inspect the conditions of: engine, gearbox, transmis-
sion, pipes and tubes (exhaust - fuel - brakes), rubber parts
(boots, sleeves, bushes, etc.);
❍check battery charge and liquid level (electrolyte);
❍visually inspect the condition of auxiliary drive belts;
❍check and if necessary change engine oil and oil filter;
❍check pollen filter and replace it, if required;
❍check air filter and replace, if required.
