Page 94 of 292

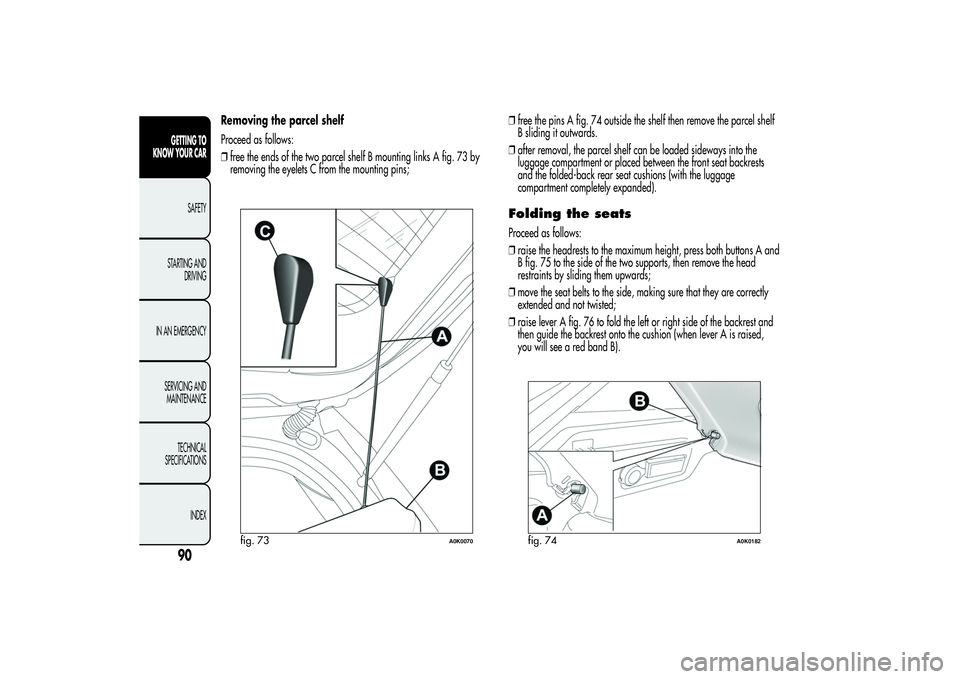

Removing the parcel shelf
Proceed as follows:
❒free the ends of the two parcel shelf B mounting links A fig. 73 by
removing the eyelets C from the mounting pins;❒free the pins A fig. 74 outside the shelf then remove the parcel shelf
B sliding it outwards.
❒after removal, the parcel shelf can be loaded sideways into the
luggage compartment or placed between the front seat backrests
and the folded-back rear seat cushions (with the luggage
compartment completely expanded).
Folding the seatsProceed as follows:
❒raise the headrests to the maximum height, press both buttons A and
B fig. 75 to the side of the two supports, then remove the head
restraints by sliding them upwards;
❒move the seat belts to the side, making sure that they are correctly
extended and not twisted;
❒raise lever A fig. 76 to fold the left or right side of the backrest and
then guide the backrest onto the cushion (when lever A is raised,
you will see a red band B).
fig. 73
A0K0070
fig. 74
A0K0182
90GETTING TO
KNOW YOUR CAR
SAFETY
STARTING AND
DRIVING
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
Page 288 of 292
– Front headrests ................................ 44
– Rear head restraints......................... 45
Hill Holder system ................................ 97Identification data
– bodywork paint plate....................... 203
– Chassis marking .............................. 203
– engine marking ............................... 203
– identification data plate ................... 202
Ignition device ..................................... 40
– Steering lock ................................... 40
Installation of electrical/electronic
devices .............................................. 108
Installing a Universal Isofix child seat ..... 127
Interior fittings ...................................... 76
Interiors (cleaning)................................ 200Jack................................................... 144Light clusters
– front light clusters
(changing a bulb)............................ 157
– rear light clusters
(changing a bulb)............................ 159
Lubricants (features).............................. 227
Luggage compartment .......................... 88
– Bag hooks ...................................... 92
– Closing the luggage compartment..... 89– Emergency luggage compartment
opening .......................................... 89
– Extending the luggage
compartment................................... 89
– Luggage compartment
initialisation .................................... 89
– Luggage retaining net ...................... 92
– Opening the luggage
compartment................................... 88
– Securing your load .......................... 92
Luggage compartment roof light
– bulb replacement............................. 163
M
ain beam headlights ....................... 64
– bulb replacement............................. 157
Maintenance and care
– heavy-duty use of the car ................. 184
– periodic checks ............................... 184
– scheduled servicing ......................... 177
– scheduled servicing plan .................. 178
Manual climate control ......................... 51
Menu options ....................................... 22
MSR system ......................................... 98
Multifunction display ............................ 18
N
umber plate lights
– bulb replacement............................. 161
Parking ............................................. 135– Handbrake ..................................... 135
Parking lights ....................................... 63
Parking sensors .................................... 109
Performance ........................................ 221
Plugs (type) .......................................... 206
Pollen filter........................................... 192
Power socket ........................................ 79
Preparation for "Isofix" child seat .......... 126
Preparation to install a portable
navigation system .............................. 108
Pretensioners........................................ 118
– Load limiters ................................... 118
Protecting the environment .................... 114
– Particulate filter (DPF)....................... 114
RAB system (Ready Alert Brakes) ......... 99
Radio transmitters and mobile phones.... 109
Rain sensor .......................................... 66
Raising the car ..................................... 174
Rear armrest ........................................ 78
Rear fog lights...................................... 73
Rear fog lights/reversing lights .............. 160
Rear roof light
– bulb replacement............................. 162
Rear view mirrors ................................. 46
– Door mirrors ................................... 47
– Internal mirror ................................. 46
