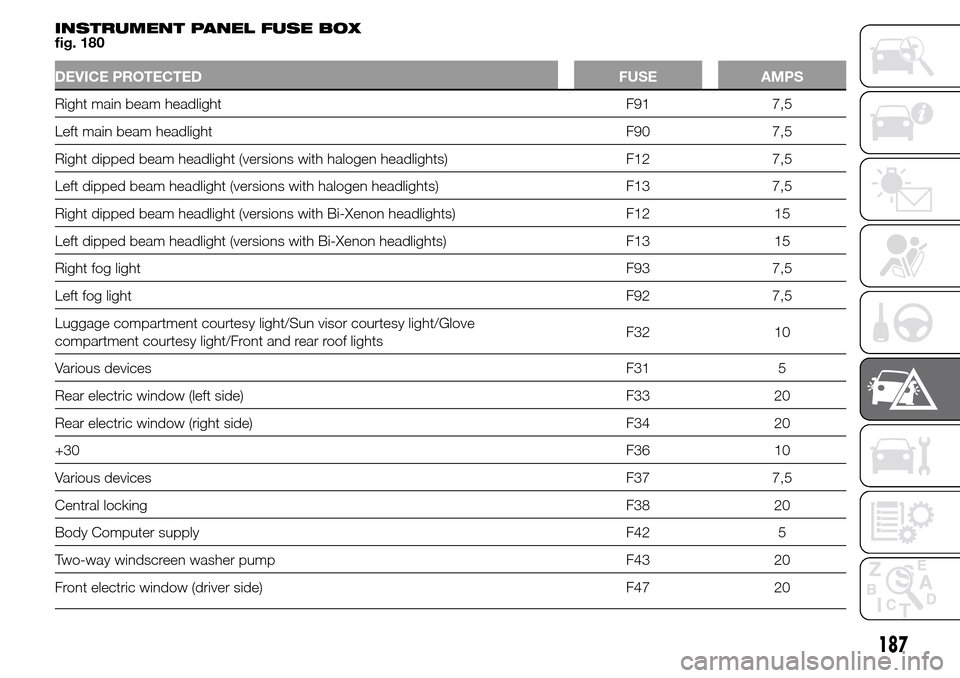

INSTRUMENT PANEL FUSE BOX
fig. 180
DEVICE PROTECTED FUSE AMPS
Right main beam headlight F91 7,5
Left main beam headlight F90 7,5
Right dipped beam headlight (versions with halogen headlights) F12 7,5
Left dipped beam headlight (versions with halogen headlights) F13 7,5
Right dipped beam headlight (versions with Bi-Xenon headlights) F12 15
Left dipped beam headlight (versions with Bi-Xenon headlights) F13 15
Right fog lightF93 7,5
Left fog lightF92 7,5
Luggage compartment courtesy light/Sun visor courtesy light/Glove
compartment courtesy light/Front and rear roof lightsF32 10
Various devicesF31 5
Rear electric window (left side) F33 20
Rear electric window (right side) F34 20
+30F36 10
Various devicesF37 7,5
Central lockingF38 20
Body Computer supply F42 5
Two-way windscreen washer pump F43 20
Front electric window (driver side) F47 20
187

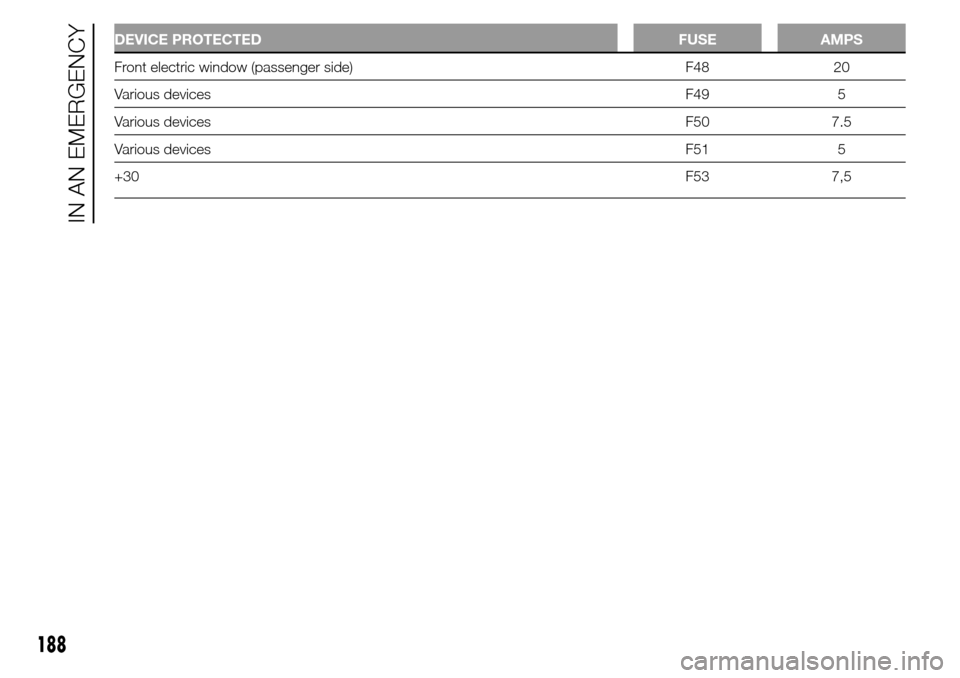

DEVICE PROTECTED FUSE AMPS
Front electric window (passenger side) F48 20
Various devicesF49 5
Various devicesF50 7.5
Various devicesF51 5
+30F53 7,5
188
IN AN EMERGENCY

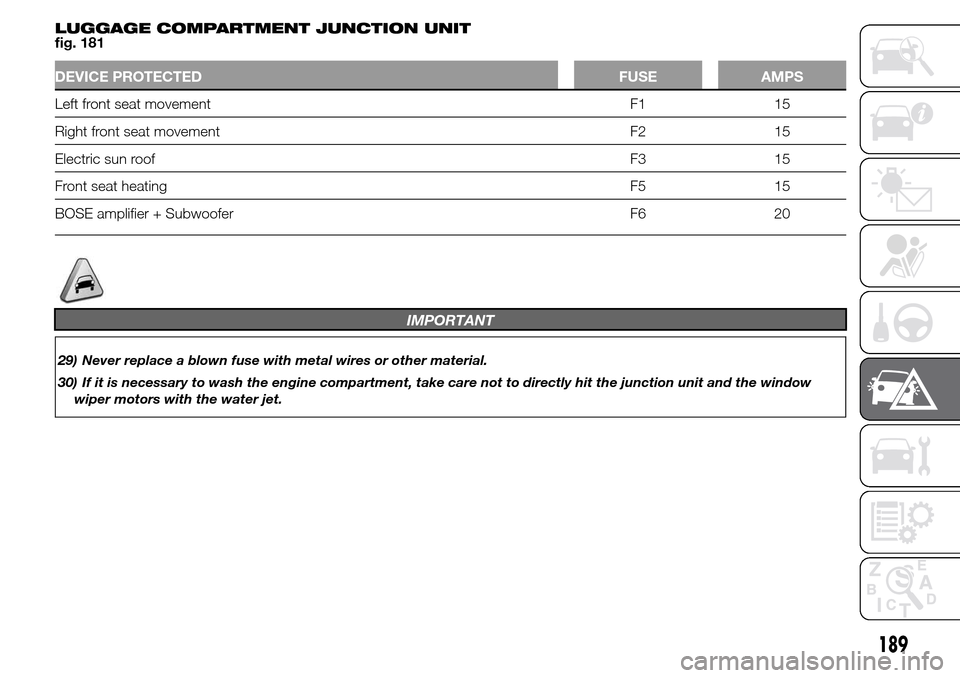

LUGGAGE COMPARTMENT JUNCTION UNIT
fig. 181
DEVICE PROTECTED FUSE AMPS
Left front seat movement F1 15
Right front seat movement F2 15
Electric sun roofF3 15
Front seat heating F5 15
BOSE amplifier + Subwoofer F6 20
IMPORTANT
29) Never replace a blown fuse with metal wires or other material.
30) If it is necessary to wash the engine compartment, take care not to directly hit the junction unit and the window
wiper motors with the water jet.
189

134) Contact an Alfa Romeo Dealership if a safety system (airbags, brakes), power unit system (engine, gearbox) or
steering system general protection fuse blows.
190
IN AN EMERGENCY

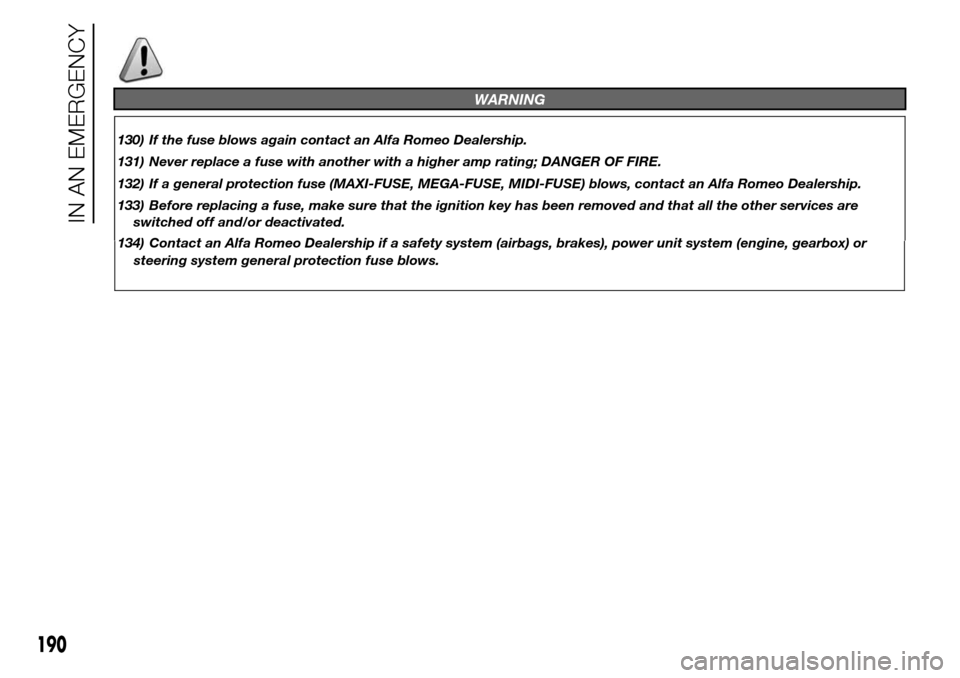

WARNING
130) If the fuse blows again contact an Alfa Romeo Dealership.
131) Never replace a fuse with another with a higher amp rating; DANGER OF FIRE.
132) If a general protection fuse (MAXI-FUSE, MEGA-FUSE, MIDI-FUSE) blows, contact an Alfa Romeo Dealership.
133) Before replacing a fuse, make sure that the ignition key has been removed and that all the other services are
switched off and/or deactivated.

BATTERY
RECHARGING
IMPORTANT The battery recharging
procedure is given as information only.
To carry out this operation contact
an Alfa Romeo Dealership.
IMPORTANT After turning the ignition
key to STOP and having closed the
driver's side door, wait at least one
minute before disconnecting and then
reconnecting the battery electrical
supply.
Charging should be slow at a low
ampere rating for approximately 24
hours. Charging for a longer time may
damage the battery.
VERSIONS WITHOUT
Start&Stop SYSTEM
(for versions/markets, where provided)
To recharge, proceed as follows:
❒disconnect the negative battery
terminal;
❒connect the charger cables to the
battery terminals, observing the
polarity;
❒turn on the charger;
❒when it is recharged, turn the charger
off before disconnecting it from the
battery;
❒reconnect the negative battery
terminal.VERSIONS WITH
Start&Stop SYSTEM
(for versions/markets, where provided)
To recharge, proceed as follows:

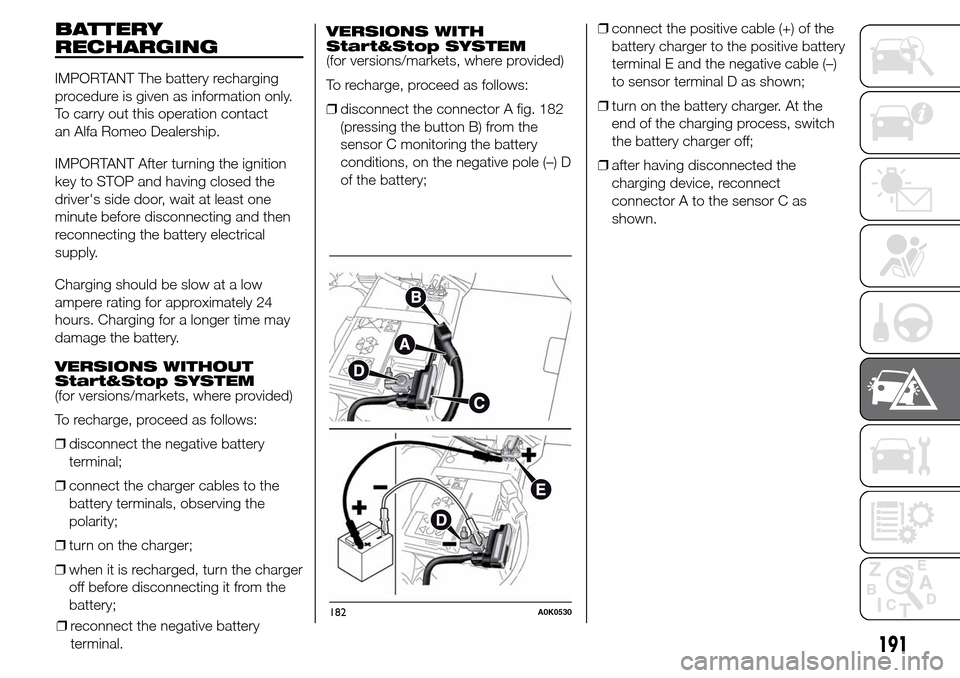

❒disconnect the connector A fig. 182
(pressing the button B) from the
sensor C monitoring the battery
conditions, on the negative pole (–) D
of the battery;❒connect the positive cable (+) of the
battery charger to the positive battery
terminal E and the negative cable (–)
to sensor terminal D as shown;
❒turn on the battery charger. At the
end of the charging process, switch
the battery charger off;
❒after having disconnected the
charging device, reconnect
connector A to the sensor C as
shown.
182A0K0530
191

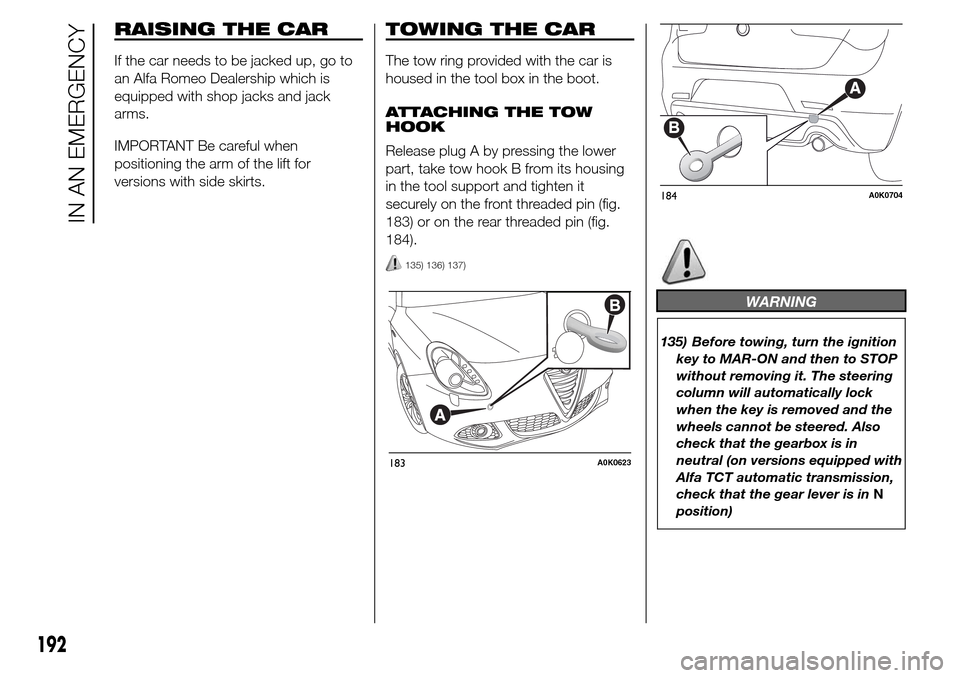

RAISING THE CAR
If the car needs to be jacked up, go to
an Alfa Romeo Dealership which is
equipped with shop jacks and jack
arms.
IMPORTANT Be careful when
positioning the arm of the lift for
versions with side skirts.
TOWING THE CAR
The tow ring provided with the car is
housed in the tool box in the boot.
ATTACHING THE TOW
HOOK
Release plug A by pressing the lower
part, take tow hook B from its housing
in the tool support and tighten it
securely on the front threaded pin (fig.
183) or on the rear threaded pin (fig.
184).
135) 136) 137)
WARNING
135) Before towing, turn the ignition
key to MAR-ON and then to STOP
without removing it. The steering
column will automatically lock
when the key is removed and the
wheels cannot be steered. Also
check that the gearbox is in
neutral (on versions equipped with
Alfa TCT automatic transmission,
check that the gear lever is inN
position)
183A0K0623
184A0K0704
192
IN AN EMERGENCY

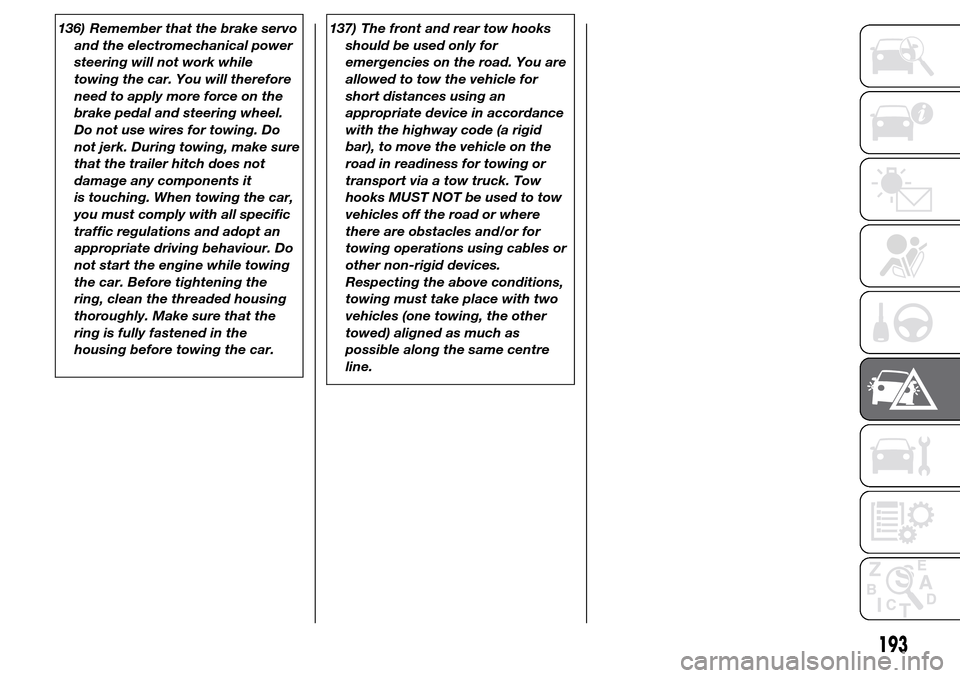

136) Remember that the brake servo
and the electromechanical power
steering will not work while
towing the car. You will therefore
need to apply more force on the
brake pedal and steering wheel.
Do not use wires for towing. Do
not jerk. During towing, make sure
that the trailer hitch does not
damage any components it
is touching. When towing the car,
you must comply with all specific
traffic regulations and adopt an
appropriate driving behaviour. Do
not start the engine while towing
the car. Before tightening the
ring, clean the threaded housing
thoroughly. Make sure that the
ring is fully fastened in the
housing before towing the car.137) The front and rear tow hooks
should be used only for
emergencies on the road. You are
allowed to tow the vehicle for
short distances using an
appropriate device in accordance
with the highway code (a rigid
bar), to move the vehicle on the
road in readiness for towing or
transport via a tow truck. Tow
hooks MUST NOT be used to tow
vehicles off the road or where
there are obstacles and/or for
towing operations using cables or
other non-rigid devices.
Respecting the above conditions,
towing must take place with two
vehicles (one towing, the other
towed) aligned as much as
possible along the same centre
line.
193

194
