Alfa Romeo Giulietta 2017 Owner's Manual

1.4 Turbo Petrol/LPG 120 HP
Prescribed fuels and original lubricants
litres kg
Fuel tank (Petrol/LPG) 60/38 –
Unleaded petrol not less than 95 RON (EN
228 specification)/LPG
Including a reserve of (petrol/LPG) 8 - 10/8 –
Engine cooling system (with climate control) 5.7 5.0Mixture of demineralised water and 50%
PARAFLU
UP(*)
Engine sump 2.75 2.3
SELENIA MULTIPOWER GAS 5W-40
Engine sump and filter 3.1 2.6
Transmission casing/differential 2.0 1.7 TUTELA TRANSMISSION GEARFORCE
Hydraulic brake circuit with ABS (Anti-lock
braking system)0.83 0.78
TUTELA TOP 4 or TOP 5
Windscreen/rear window/headlight washer
fluid reservoir
(**)2.8 (4.6) 2.5 (4.1)
Mixture of water and liquid PETRONAS
DURANCE SC 35
(*) When the vehicle is used in particularly harsh weather conditions, we recommend using a 60% mixture of PARAFLUUPand 40% demineralised
water.
(**) Values in brackets refer to versions with headlight washer
159

1750 Turbo Petrol 240 HP(*)Prescribed fuels and original lubricants
litres kg
Fuel tank 60 –
Unleaded petrol not less than 95 RON (EN
228 specification)
including a reserve of 8 - 10 –
Engine cooling system (with climate control) 6.4 5.7Mixture of demineralised water and 50%
PARAFLU
UP(**)
Engine sump 5.0 4.25
SELENIA SPORT POWER
Engine sump and filter 5.1 4.35
Automatic transmission casing 2.0 1.7 TUTELA TRANSMISSION GEARFORCE
Hydraulic brake circuit with ABS (Anti-lock
braking system)0.83 0.78 TUTELA TOP 4 or TOP 5
Windscreen/rear window/headlight washer
fluid reservoir
(***)2.8 (4.6) 2.5 (4.1)Mixture of water and liquid PETRONAS
DURANCE SC 35
(*) Where provided
(**) When the vehicle is used in particularly harsh weather conditions, we recommend using a 60% mixture of PARAFLUUPand 40% demineralised
water.
(***) Values in brackets refer to versions with headlight washer
160
TECHNICAL SPECIFICATIONS

1.6 JTDM2.0 JTDMPrescribed fuels and original
lubricants
litres kg litres kg
Fuel tank 60 – 60 –
Diesel for motor vehicles
(EN590 Specification)
including a reserve of 8 - 10 – 8 - 10 –
Engine cooling system (with
climate control)6.8 6.0 6.7 5.9Mixture of distilled water and
PARAFLU fluid
UP50%(*)
Engine sump 4.0 3.4 4.0 3.4
SELENIA WR FORWARD Engine sump (versions with Alfa
TCT)– – 4.4 3.6
Engine sump and filter 4.2 3.5 4.2 3.5
Engine sump and filter (versions
with Alfa TCT)– – 4.8 4.0
Transmission casing/differential 2.0 1.7 2.0 1.7TUTELA TRANSMISSION
GEARFORCE
Hydraulic brake circuit with ABS
(Anti-lock braking system)0.83 0.78 0.83 0.78 TUTELA TOP 4 or TOP 5
Windscreen/rear
window/headlight washer fluid
reservoir
(**)2.8 (4.6) 2.5 (4.1) 2.8 (4.6) 2.5 (4.1)Mixture of water and liquid
PETRONAS DURANCE SC 35
(*) When the vehicle is used in particularly harsh weather conditions, we recommend using a 60% mixture of PARAFLUUPand 40% demineralised
water.
(**) Values in brackets refer to versions with headlight washer
161

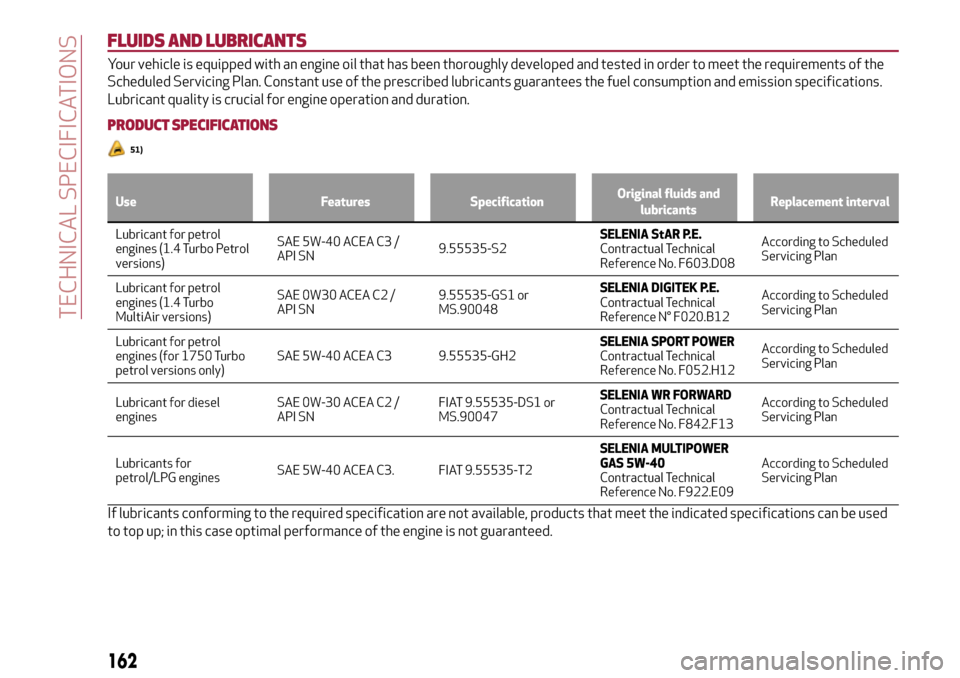

FLUIDS AND LUBRICANTS
Your vehicle is equipped with an engine oil that has been thoroughly developed and tested in order to meet the requirements of the
Scheduled Servicing Plan. Constant use of the prescribed lubricants guarantees the fuel consumption and emission specifications.
Lubricant quality is crucial for engine operation and duration.
PRODUCT SPECIFICATIONS
51)
Use Features SpecificationOriginal fluids and
lubricantsReplacement interval
Lubricant for petrol
engines
(1.4 Turbo Petrol
versions)SAE 5W-40 ACEA C3 /
API SN9.55535-S2SELENIA StAR P.E.
Contractual Technical
Reference No. F603.D08According to Scheduled
Servicing Plan
Lubricant for petrol
engines (1.4 Turbo
MultiAir versions)SAE 0W30 ACEA C2 /
API SN9.55535-GS1 or
MS.90048SELENIA DIGITEK P.E.
Contractual Technical
Reference N° F020.B12According to Scheduled
Servicing Plan
Lubricant for petrol
engines (for 1750 Turbo
petrol versions only)SAE 5W-40 ACEA C3 9.55535-GH2SELENIA SPORT POWER
Contractual Technical
Reference No. F052.H12According to Scheduled
Servicing Plan
Lubricant for diesel
enginesSAE 0W-30 ACEA C2 /
API SNFIAT 9.55535-DS1 or
MS.90047SELENIA WR FORWARD
Contractual Technical
Reference No. F842.F13According to Scheduled
Servicing Plan
Lubricants for
petrol/LPG enginesSAE 5W-40 ACEA C3. FIAT 9.55535-T2SELENIA MULTIPOWER
GAS 5W-40
Contractual Technical
Reference No. F922.E09According to Scheduled
Servicing Plan
If lubricants conforming to the required specification are not available, products that meet the indicated specifications can be used
to top up; in this case optimal performance of the engine is not guaranteed.
162
TECHNICAL SPECIFICATIONS

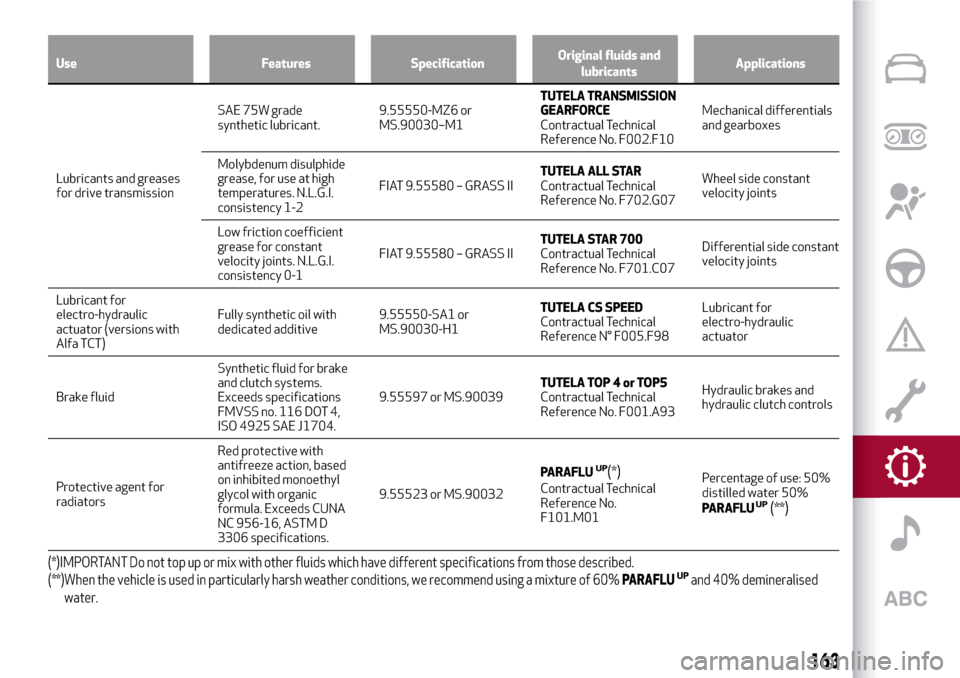

Use Features SpecificationOriginal fluids and
lubricantsApplications
Lubricants and greases
for drive transmissionSAE 75W grade
synthetic lubricant.9.55550-MZ6 or
MS.90030–M1TUTELA TRANSMISSION
GEARFORCE
Contractual Technical
Reference No. F002.F10Mechanical differentials
and gearboxes
Molybdenum disulphide
grease, for use at high
temperatures. N.L.G.I.
consistency 1-2FIAT 9.55580 – GRASS IITUTELA ALL STAR
Contractual Technical
Reference No. F702.G07Wheel side constant
velocity joints
Low friction coefficient
grease for constant
velocity joints. N.L.G.I.
consistency 0-1FIAT 9.55580 – GRASS IITUTELA STAR 700
Contractual Technical
Reference No. F701.C07Differential side constant
velocity joints
Lubricant for
electro-hydraulic
actuator (versions with
Alfa TCT)Fully synthetic oil with
dedicated additive9.55550-SA1 or
MS.90030-H1TUTELA CS SPEED
Contractual Technical
Reference N° F005.F98Lubricant for
electro-hydraulic
actuator
Brake fluidSynthetic fluid for brake
and clutch systems.
Exceeds specifications
FMVSS no. 116 DOT 4,
ISO 4925 SAE J1704.9.55597 or MS.90039TUTELA TOP 4 or TOP5
Contractual Technical
Reference No. F001.A93Hydraulic brakes and
hydraulic clutch controls
Protective agent for
radiatorsRed protective with
antifreeze action, based
on inhibited monoethyl
glycol with organic
formula. Exceeds CUNA
NC 956-16, ASTM D
3306 specifications.9.55523 or MS.90032PARAFLU
UP(*)
Contractual Technical
Reference No.
F101.M01Percentage of use: 50%
distilled water 50%
PARAFLUUP(**)
(*)IMPORTANT Do not top up or mix with other fluids which have different specifications from those described.
(**)When the vehicle is used in particularly harsh weather conditions, we recommend using a mixture of 60%PARAFLUUPand 40% demineralised
water.
163

Use Features SpecificationOriginal fluids and
lubricantsApplications
Diesel fuel additiveAntifreeze
additive for
diesel, with protective
action for Diesel enginesTUTELA DIESEL ART
Contractual Technical
Reference No. F601.L06To be mixed with diesel
(25 cc per 10 litres)
Washer fluid for
windscreen/rear
window/headlampsMixture of alcohol, water
and surfactants CUNA
NC 956-119.55522 or MS.90043PETRONAS DURANCE
SC 35
Contractual Technical
Reference No. F001.D16To be used diluted or
undiluted in windscreen
washer/wiper systems
IMPORTANT
51)The use of products with different specifications than those indicated above could cause damage to the engine that is not covered by the
warranty.
164
TECHNICAL SPECIFICATIONS

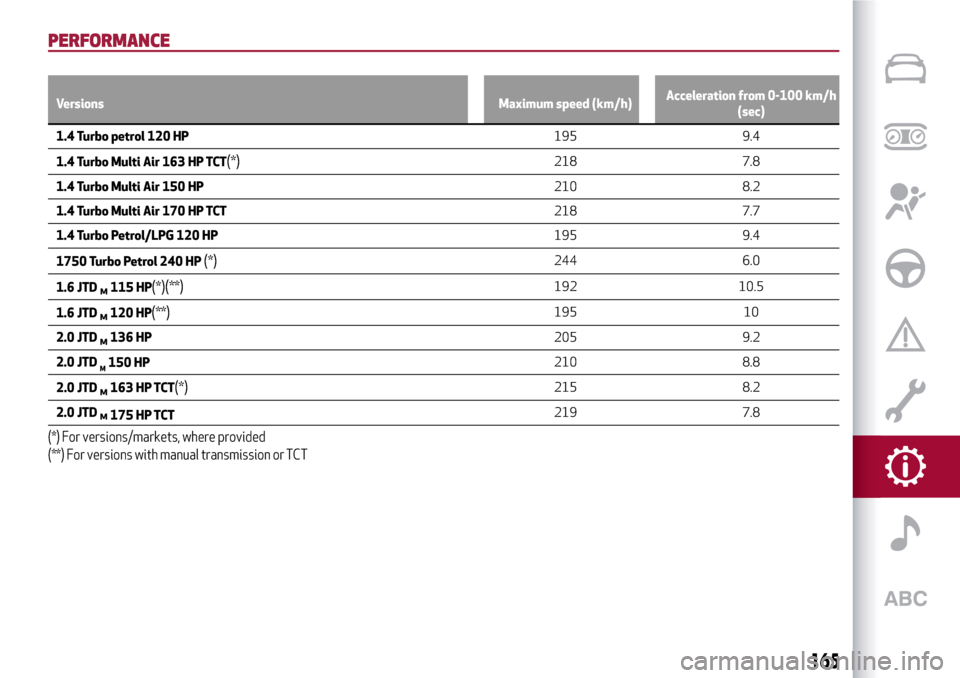

PERFORMANCE
Versions Maximum speed (km/h)Acceleration from 0-100 km/h
(sec)
1.4 Turbo petrol 120 HP195 9.4
1.4 Turbo Multi Air 163 HP TCT
(*)218 7.8
1.4 Turbo Multi Air 150 HP210 8.2
1.4 Turbo Multi Air 170 HP TCT218 7.7
1.4 Turbo Petrol/LPG 120 HP195 9.4
1750 Turbo Petrol 240 HP
(*)244 6.0
1.6 JTD
M115 HP(*)(**)192 10.5
1.6 JTD
M120 HP(**)195 10
2.0 JTD
M136 HP205 9.2
2.0 JTD
M150 HP210 8.8
2.0 JTD
M163 HP TCT(*)215 8.2
2.0 JTD
M175 HP TCT219 7.8
(*) For versions/markets, where provided
(**) For versions with manual transmission or TCT
165

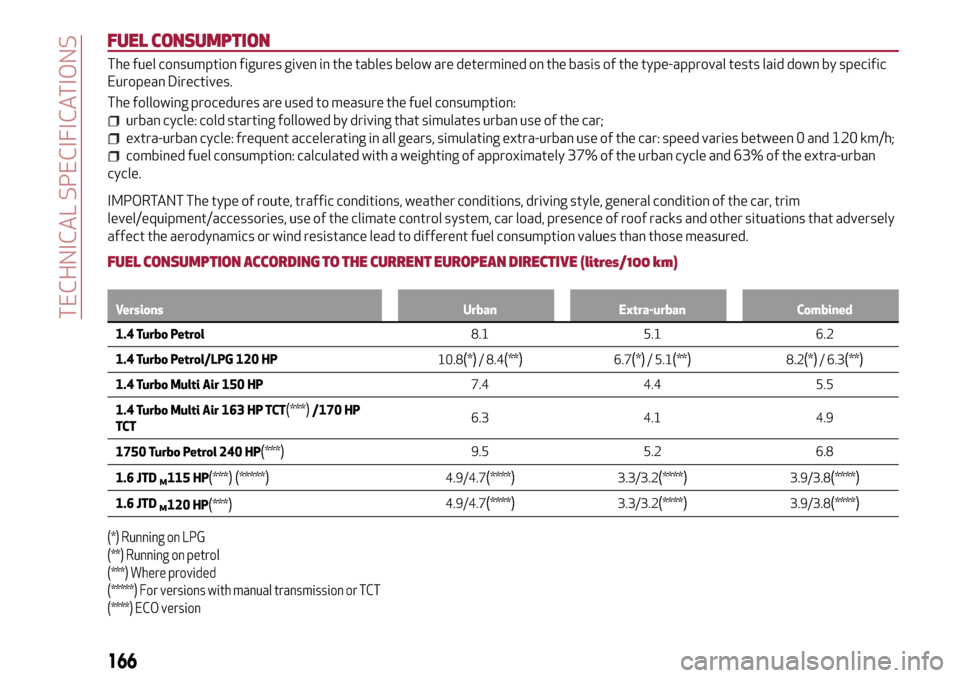

FUEL CONSUMPTION
The fuel consumption figures given in the tables below are determined on the basis of the type-approval tests laid down by specific
European Directives.
The following procedures are used to measure the fuel consumption:
urban cycle: cold starting followed by driving that simulates urban use of the car;
extra-urban cycle: frequent accelerating in all gears, simulating extra-urban use of the car: speed varies between 0 and 120 km/h;
combined fuel consumption: calculated with a weighting of approximately 37% of the urban cycle and 63% of the extra-urban
cycle.
IMPORTANT The type of route, traffic conditions, weather conditions, driving style, general condition of the car, trim
level/equipment/accessories, use of the climate control system, car load, presence of roof racks and other situations that adversely
affect the aerodynamics or wind resistance lead to different fuel consumption values than those measured.
FUEL CONSUMPTION ACCORDING TO THE CURRENT EUROPEAN DIRECTIVE (litres/100 km)
Versions Urban Extra-urban Combined
1.4 Turbo Petrol8.1 5.1 6.2
1.4 Turbo Petrol/LPG 120 HP
10.8
(*)/ 8.4(**)6.7(*)/ 5.1(**)8.2(*)/ 6.3(**)
1.4 Turbo Multi Air 150 HP7.4 4.4 5.5
1.4 Turbo Multi Air 163 HP TCT
(***)/170 HP
TCT6.3 4.1 4.9
1750 Turbo Petrol 240 HP
(***)9.5 5.2 6.8
1.6 JTD
M115 HP(***)(*****)4.9/4.7(****)3.3/3.2(****)3.9/3.8(****)
1.6 JTDM120 HP(***)4.9/4.7(****)3.3/3.2(****)3.9/3.8(****)
(*) Running on LPG
(**) Running on petrol
(***) Where provided
(*****) For versions with manual transmission or TCT
(****) ECO version
166
TECHNICAL SPECIFICATIONS

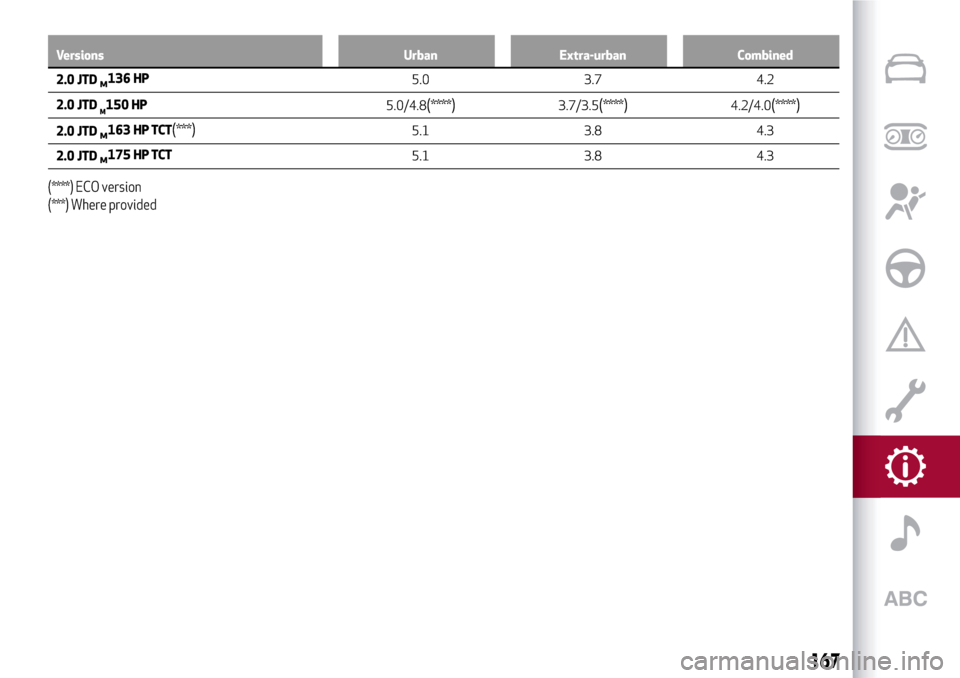

Versions Urban Extra-urban Combined
2.0 JTDM136 HP
5.0 3.7 4.2
2.0 JTD
M150 HP
5.0/4.8(****)3.7/3.5(****)4.2/4.0(****)
2.0 JTDM163 HP TCT(***)5.1 3.8 4.3
2.0 JTD
M175 HP TCT
5.1 3.8 4.3
(****) ECO version
(***) Where provided
167

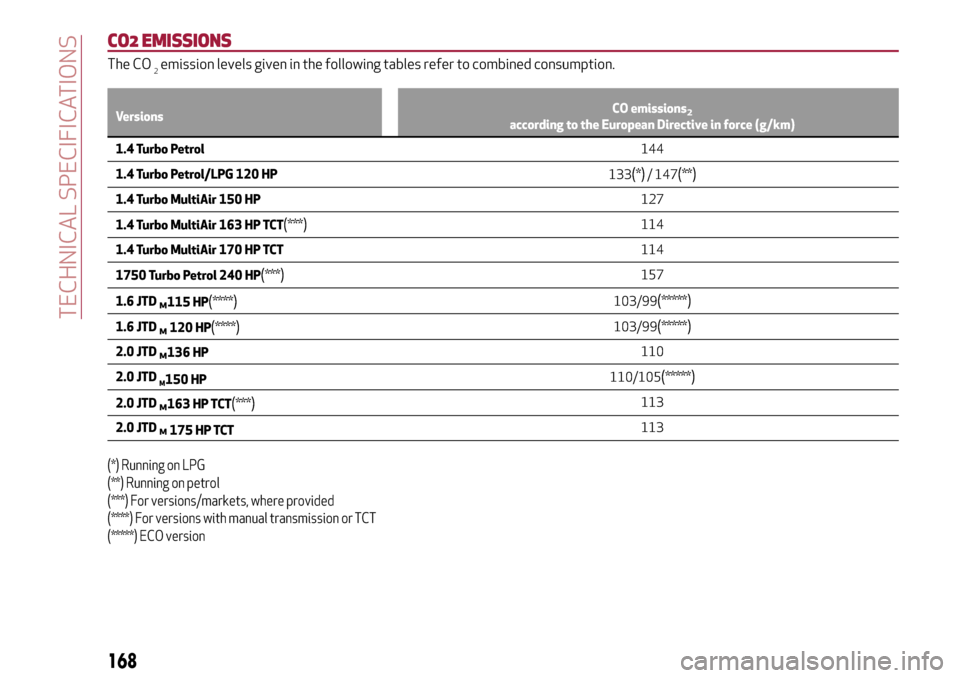

CO2 EMISSIONS
The CO2emission levels given in the following tables refer to combined consumption.
VersionsCO emissions2according to the European Directive in force (g/km)
1.4 Turbo Petrol144
1.4 Turbo Petrol/LPG 120 HP
133
(*)/ 147(**)
1.4 Turbo MultiAir 150 HP127
1.4 Turbo MultiAir 163 HP TCT
(***)114
1.4 Turbo MultiAir 170 HP TCT114
1750 Turbo Petrol 240 HP
(***)157
1.6 JTD
M115 HP(****)103/99(*****)
1.6 JTDM120 HP(****)103/99(*****)
2.0 JTDM136 HP110
2.0 JTD
M150 HP110/105(*****)
2.0 JTDM163 HP TCT(***)113
2.0 JTD
M175 HP TCT113
(*) Running on LPG
(**) Running on petrol
(***) For versions/markets, where provided
(****) For versions with manual transmission or TCT
(*****) ECO version
168
