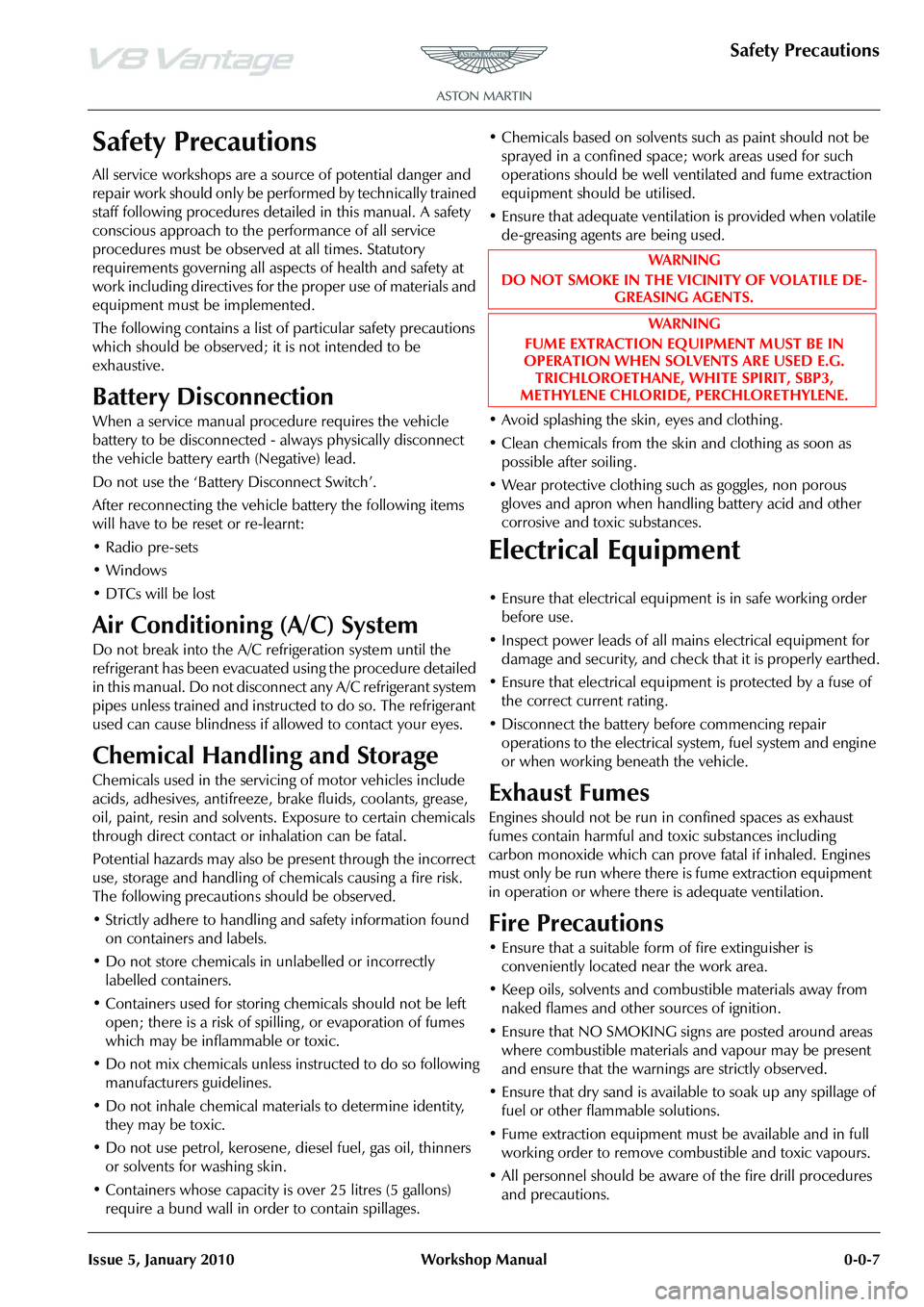

Safety Precautions
Issue 5, January 2010 Workshop Manual 0-0-7
Safety Precautions
All service workshops are a source of potential danger and
repair work should only be performed by technically trained
staff following procedures detailed in this manual. A safety
conscious approach to the performance of all service
procedures must be observed at all times. Statutory
requirements governing all aspects of health and safety at
work including directives for the proper use of materials and
equipment must be implemented.
The following contains a list of particular safety precautions
which should be observed; it is not intended to be
exhaustive.
Battery Disconnection
When a service manual procedure requires the vehicle
battery to be disconnected - always physically disconnect
the vehicle battery earth (Negative) lead.
Do not use the ‘Battery Disconnect Switch’.
After reconnecting the vehicle battery the following items
will have to be reset or re-learnt:
•Radio pre-sets
•Windows
• DTCs will be lost
Air Conditioning (A/C) System
Do not break into the A/C refrigeration system until the
refrigerant has been evacuated using the procedure detailed
in this manual. Do not disconne ct any A/C refrigerant system
pipes unless trained and instructed to do so. The refrigerant
used can cause blindness if allowed to contact your eyes.
Chemical Handling and Storage
Chemicals used in the servicing of motor vehicles include
acids, adhesives, antifreeze, brake fluids, coolants, grease,
oil, paint, resin and solvents. Exposure to certain chemicals
through direct contact or inhalation can be fatal.
Potential hazards may also be present through the incorrect
use, storage and handling of chemicals causing a fire risk.
The following precaution s should be observed.
• Strictly adhere to handling and safety information found on containers and labels.
• Do not store chemicals in unlabelled or incorrectly labelled containers.
• Containers used for storing chemicals should not be left open; there is a risk of spilling , or evaporation of fumes
which may be inflammable or toxic.
• Do not mix chemicals unless instructed to do so following manufacturers guidelines.
• Do not inhale chemical materials to determine identity, they may be toxic.
• Do not use petrol, kerosene, diesel fuel, gas oil, thinners or solvents for washing skin.
• Containers whose capacity is over 25 litres (5 gallons) require a bund wall in order to contain spillages. • Chemicals based on solvents such as paint should not be
sprayed in a confined space; work areas used for such
operations should be well ve ntilated and fume extraction
equipment should be utilised.
• Ensure that adequate ventilation is provided when volatile de-greasing agents are being used.
• Avoid splashing the skin, eyes and clothing .
• Clean chemicals from the skin and clothing as soon as
possible after soiling .
• Wear protective clothing such as goggles, non porous gloves and apron when handling battery acid and other
corrosive and toxic substances.
Electrical Equipment
• Ensure that electrical equipment is in safe working order before use.
• Inspect power leads of all mains electrical equipment for damage and security, and check that it is properly earthed.
• Ensure that electrical equipment is protected by a fuse of the correct current rating .
• Disconnect the battery before commencing repair operations to the electrical sy stem, fuel system and engine
or when working beneath the vehicle.
Exhaust Fumes
Engines should not be run in confined spaces as exhaust
fumes contain harmful and to xic substances including
carbon monoxide which can prove fatal if inhaled. Engines
must only be run where there is fume extraction equipment
in operation or where there is adequate ventilation.
Fire Precautions
• Ensure that a suitable form of fire extinguisher is conveniently located near the work area.
• Keep oils, solvents and combustible materials away from naked flames and other sources of ignition.
• Ensure that NO SMOKING signs are posted around areas where combustible materials and vapour may be present
and ensure that the warnings are strictly observed.
• Ensure that dry sand is availabl e to soak up any spillage of
fuel or other flammable solutions.
• Fume extraction equipment must be available and in full working order to remove combustible and toxic vapours.
• All personnel should be aware of the fire drill procedures and precautions. WAR NI NG
DO NOT SMOKE IN THE VICINITY OF VOLATILE DE- GREASING AGENTS.
WAR NI NG
FUME EXTRACTION EQUIPMENT MUST BE IN
OPERATION WHEN SOLVENTS ARE USED E.G. TRICHLOROETHANE, WHITE SPIRIT, SBP3,
METHYLENE CHLORIDE, PERCHLORETHYLENE.

Lifting and Jacking
Issue 5, January 2010 Workshop Manual 0-0-9
Lifting and Jacking
Safety
•Recommended procedures for lifting, jacking and
towing must be strictly ob served to ensure personal
safety.
• Always use a vehicle hoist, ramp or pit for working
beneath the vehicle in preference to jacking.
• Never rely on a jack to supp ort a car independently, use
axle stands or blocks carefu lly placed at jacking points
to provide rigid support.
• When working beneath a vehicle, chock wheels as well
as applying handbrake.
• Ensure vehicle is standing on firm, level ground before
jacking or lifting.
• Check lifting equipment has adequate capacity for load
being lifted and is in full working order.
Jacking Points
This vehicle jacking points are at positions shown.
May also be jacked on the front subframe front crossmember
Always use a jack with a rubber contact pad. Avoid use of
jacks with sharp contact pads which would damage floor
pan Always chock the opposite road wheels as well as
applying the handbrake when using a hydraulic jack.
To prevent body distortion, av oid single point or one side
jacking with the tunnel shear panel removed.
Lifting
Workshop Hoist
Use of a workshop hoist is recommended for all operations
where vehicles must be raised. Follow manufacturers
instructions. If using an adjustable arm type, ensure lifting
pads are correctly positioned at the four jacking points
before lifting.
Workshop Jack
To avoid any danger of bodywork damage when using a
hydraulic jack, the vehicle must only be lifted at the jacking
points.
Stands
When carrying out work (other than a wheel change) which
requires a wheel to be raised, a stand must be used, located
at the jacking point, to provide a secure support for the
vehicle.
00-00-001

1-1-2 Workshop Manual Issue 5, January 2010
RH/LH Seat Switchpack Assembly - Renew...........7-13
Lumbar Pump for the Front Seat (From 08MY)
- Remove and Install.............................................7-13
Lumbar Valve for the Front Seat (From 08MY)
- Remove and Install.............................................7-14
Lumbar Bladder for the Front Seat (From 08MY)
- Remove and Install.............................................7-14
Glass, Frame and Mechanism (01.11) .................. 1-8-1 Description .............................................................8-1 Frameless doors......................................................8-1
Specifications .........................................................8-1
Maintenance ...........................................................8-1 Glass Regulator - Renew .........................................8-1
RH/LH Door Glass - Renew ....................................8-2
Door Glass - Adjust/Reset .......................................8-3
Front Windshield - Renew ......................................8-3
Rear Windshield - Renew .......................................8-4
Quarter Window Glass - Renew .............................8-6
Passenger Window Lift Switch - Renew ..................8-6
Driver Window Lift Switch - Renew........................8-7
Instrument Panel (IP) (01.12)................................ 1-9-1 Specifications ..........................................................9-1
Maintenance ...........................................................9-1 Instrument Panel - Renew ......................................9-1
Airbag Panel and Door Assembly - Renew ..............9-6
Glovebox Assembly - Renew ..................................9-6
Instrument Centre Panel Asse mbly - Renew............9-7
Knee Protector - Renew .........................................9-7
Instrument Panel As sembly - Renew .......................9-7
Cluster Bezel Panel - Renew .................................9-10
Driver Panel Assembly - Renew ............................9-10
Instrument Panel Bezel A ssembly (With Sat. Nav.)
- Renew ...............................................................9-11
Instrument Panel Bezel Assembly
(Without Sat. Nav.) - Renew .................................9-11
Rear Console Panel Assembly - Renew .................9-12
Armrest Pad Assembly - Renew ............................9-13
Console Panel Assembly - Renew .........................9-13
RH/LH Rear Console Pa nel Assembly - Renew
(Roadster Only) ....................................................9-13
Centre Console Panel - Remove and Install
(Coupe Only) .......................................................9-15
Centre Console Panel - Remove and Install
(Roadster Only) ....................................................9-19
RH/LH Lower Quarter Panel Assembly - Renew
(Roadster Only) ....................................................9-29
Handles and Lock Mechanisms (01.14) .............. 1-10-1 Description ...........................................................10-1 Vehicle Key/Remote Transmitter...........................10-1
Central Locking System ........................................10-1
Remote Transmitter ..............................................10-1
Fuel Filler Assembly ..............................................10-1
Boot Emergency Release ....... ...............................10-1
Specifications ........................................................10-2
Maintenance .........................................................10-2 Ignition Cylinder Lock - Re new.............................10-2
RH/LH Front Door Latch As sembly - Renew .........10-2
Bonnet Latch Assembly - Renew...........................10-3
Hood Release Cable Assembly - Renew (Roadster Only) .................................................... 10-3
Bonnet Secondary Latch Asse
mbly - Renew ......... 10-4
Tailgate Latch and Cable Assembly - Renew ......... 10-4
Fuel Filler Actuator Assembly - Renew
(Roadster Only) .................................................... 10-4
Fuel Filler Release Cable - Renew (Roadster Only) 10-5
Fuel Flap Release Switch - Renew ........................ 10-6
RH/LH Tonneau Latch Motor - Renew
(Roadster Only) .................................................... 10-7
RH/LH Tonneau Latch - Renew (Roadster Only) ... 10-7
RH/LH Tonneau Cover Striker Assembly
- Renew (Roadster Only) ...................................... 10-8
Tailgate Latch Assembly-Renew (Roadster Only) ... 10-8
Wipers and Washer System (01.16) ....................1-11-1 Headlamp Washing .............................................. 11-1
Specifications ........................................................ 11-2
Maintenance ......................................................... 11-2 Windscreen Wiper Motor As sembly - Renew ....... 11-2
Wiper Linkage Assembly - Renew ........................ 11-2
Windshield Wash Tube - Renew .......................... 11-2
Windscreen Reservoir and Motor Assembly
- Remove and Install ............................................ 11-3
Low Level Water Sensor - Remove and Install ...... 11-4
Headlamp Wash Motor and Pump Assembly
- Renew ............................................................... 11-5
Headlamp Wash Tube Assembly - Renew ............ 11-5
Washer Fluid Reservoir - Renew........................... 11-6
Convertible Roof and Roof Opening Subsystem
(01.17)..................................................................1-12-1 System Description .............................................. 12-1
Maintenance ......................................................... 12-2 Hood Assembly-Renew ........................................ 12-2
Canopy Cover - Renew ........................................ 12-5
Header Latch Motor - Renew ............................... 12-9
Hydraulic Main Actuator Cy linder - Renew .......... 12-9
Hydraulic Tensrod Cylinder - Renew .................. 12-10
Hydraulic Tonneau Cylinder - Renew................. 12-11
Convertible Top ECU - Renew ........................... 12-13
Hydraulic Pump - Renew ................................... 12-13
Hydraulic Lock Valve - Renew............................ 12-16
RH/LH Front Cantrail Seal - Spare Part
- Renew ............................................................. 12-18
RH/LH Front Cantrail Seal Spare Part Kit
- Renew ............................................................. 12-18
RH/LH Middle Cantrail Seal Spare Part
- Renew ............................................................. 12-18
RH/LH Middle Cantrail Seal Spare Part Kit
- Renew ............................................................. 12-19
Rear Seal Spare Part Assembly Kit - Renew ......... 12-20
LH Fully Automatic Latching Kit - Renew............ 12-21
RH Fully Automatic Latching Kit - Renew ........... 12-22
Convertible Roof Hydraulic Pump
- Check Fluid Level ............................................ 12-23
Cantrail Cover Trim - Renew .............................. 12-25
B-Post Trim Cover - Renew ................................ 12-25
Tonneau Cover - Renew .................................... 12-27
LH Front Main Hydraulic Cylinder Pipe
- Renew ............................................................. 12-29
LH Rear Main Hydraulic Cylinder Pipe

Body Closures (01.03)
Body System (01.00)1-3-2 Workshop Manual May 2007
BonnetMaintenance
LH/RH Door Assembly-Renew
Removal
1. Battery isolation switch ‘OFF’.
2. Remove LH door assembly (see Workshop Manual procedure 01.03.FA Door Assembly - LH - Remove for
Access and Refit).
3. Remove bolts (x2) securing door handle assembly to door panel (see Figure 1).
4. Remove door handle trim plate, disconnect door catch inner release cable from handle and outer cable from
retaining plate.
5. Remove hand le assembly.
6. Remove access plug s from door frame.
7. Remove screw securing trimboard to upper front of door frame.
8. Remove bolts (x5) securing trimboard to door frame.
9. Raise trimboard out and up to release from door frame clips, disconnect multiplugs (x2).
Bonnet Standard (mm)
Torque Figures
DescriptionNm.
Hinge to Body 25





Repair Operation Time (ROT)
ItemCode
Door Assembly-Renew LH01.03.DB
Door Assembly-Renew RH01.03.CB
Figure 1
A0103136

Body Closures (01.03)
Body System (01.00)
May 2007 Workshop Manual 1-3-3
10. Disconnect door speaker multiplug (see Figure 2).
11. Remove bolts (x3), remove door speaker assembly.
12. Remove bolts (x4) securing door control module to door
panel (see Figure 3).
13. Disconnect multiplugs (x3), remove door control module. 14. Remove bolts (x3) securing side impact sensor mounting
plate, disconnect multiplug, remove plate assembly (see
Figure 4).
15. Pull fixed glass upwards and away from cheater panel, releasing rubber surround at top. Remove fixed glass.
16. Mark door glass around rear glass clamp.
17. Remove glass clamp bolts (x2), raise and remove door glass from door frame.
18. Disconnect multiplug from door glass regulator motor
(see Figure 5).
Figure 2
Figure 3
A010808
A191003
Figure 4
Figure 5
A012004
A011139

Body Closures (01.03)
Body System (01.00)1-3-4 Workshop Manual May 2007
19. Remove nuts (x4) and Torx screws (x3) securing door glass regulator to door frame (see Figure 6).
20. Carefully remove regulator mechanism through the larger door frame aperture.
21. Remove door mirror rubber cheater (see Figure 7).
22. Disconnect door mirror mult iplug, release harness fir
tree clips (x2) and self adhe sive clip (see Figure 8). 23. Remove Torx Bolts (x3) and screw from door glass
channel. Remove door mirror assembly.
24. Remove aperture seal from inner door frame.
25. Remove fir tree trim pins (x3), release/remove rear
weatherstrip from door frame/glass channel.
26. Disconnect door latch multiplug.
27. Release inner and outer cable from external door handle (see Figure 9).
28. Remove nuts (x3) securi ng external door handle,
remove door handle (see Figure 10).
29. Loosen upper nut, remove lower nut securing keylock mechanism to door frame.
Figure 6
Figure 7
Figure 8
A011139A
A0108144
A0108143
Figure 9
Figure 10
A0114138A
A0114138

Body Closures (01.03)
Body System (01.00)
May 2007 Workshop Manual 1-3-5
30. Remove Torx screws (x3) securing latch assembly to
door frame (see Figure 11).
31. Manoeuvre internal latch handle cable through inner door skin into door aperture.
32. Carefully remove latch and keylock mechanisms through door aperture.
33. Remove Torx screws (x4) securing trimboard support
brackets to door frame, remove brackets.
34. Drill out pop rivets (x2) securing rear trimboard support bracket, remove bracket.
35. Release door harness from inner door casing clips (x10) (see Figure 12). 36. Release door harness from outer door casing clips (x8)
(see Figure 13).
37. Release harness grommets (x2) from door casing.
38. Manoeuvre and remove ha rness from door casing.
39. With assistance, remove door from trolley (501 - F111).
40. Remove bolts (x2) securing hinges to door, remove
hinges (x2). Note fitted posi tions of shims (if fitted).
Installation
1. Carry out preliminary hinge setup.
2. Install hinges and shims (if fitted) on door, install bolts
(x2). Do not torque tighten at this stage.
3. With assistance, install door on vehicle.
4. Place a weight of 16 kg (to compensate weight of door fixings) hanging from inner door skin as illustrated.
5. Gently close door and check for an acceptable initial installation.
6. Align the door, manoeuvre the door to achieve correct gaps and flush fit (add / remove shims as required).
Open door, tighten bolts. Do not torque tighten bolts at
this stage.
7. Close door, re-check fitment and alignment.
8. Open door, torque tighten hinge bolts. Remove the door weight.
9. With assistance, remove door and install on door trolley
(501 - F111).
10. Manoeuvre and install harness in door, install grommets (x2).
11. Secure harness in door casing with clips (x18).
12. Position rear trimboard support bracket, secure with pop rivets (x2).
13. Position trimboard support brackets (x2), install and
tighten Torx screws (x4).
14. Install latch and keylock mechanisms in door.
15. Manoeuvre internal latch handle cable into position
16. Install and torque tighten latch Torx screws (x3).
17. Position keylock mechanism to door frame, install lower nut, torque tighten nuts (x2).
18. Install external door handle, install and torque tighten nuts (x3).
Figure 11
Figure 12
A0114142
A1801141
Figure 13
A011139B

Body Closures (01.03)
Body System (01.00)1-3-6 Workshop Manual May 2007
19. Install inner and outer cable to external door handle.
20. Connect multiplug to door latch.
21. Install rear weatherstrip to glass channel and door frame. Install fir tree trim pins (x3)
22. Install seal to inner door aperture.
23. Position door mirror, install and torque tighten Torx bolts (x3) and screw (glass channel).
24. Connect door mirror multip lug, secure harness with fir
tree clips (x2) and adhesive clip.
25. Install rubber cheater to door frame, secure with fir tree trim pins (x3).
26. Install glass regulator as sembly into door frame.
27. Install and torque tighten nuts (x4) and Torx screws (x3) securing regulator assembly to door frame.
28. Connect multiplug to glass regulator.
29. Install door glass, install clamp bolts (x2), align marks on glass to rear clamp. Do not torque tighten at this stage.
30. Install fixed glass, ensure rubber surround is correctly installed.
31. Connect multiplug to side impact sensor, position
mounting plate, install and torque bolts (x3).
32. Position door control modu le, connect multiplugs (x3).
Install and torque tighten bolts (x4).
33. Position door speaker, install and torque tighten screws (x3). Connect multiplug to speaker.
34. Position door trimboard, connect multiplugs (x2).
35. Install trimboard to door frame, secure in clips.
36. Install and tighten screws (x5).
37. Install LH door assembly (see Workshop Manual procedure 01.03.FA Door Assembly - LH - Remove for
Access and Refit).
38. Battery isolation switch ‘ON’.
39. Glass front door - LH - Adjust and reset (see Workshop Manual procedure 01.11.BD Glass - Front Door - LH -
Adjust and Reset).
RH/LH Door Assembly-Remove/Refit
Removal
1. Switch on ignition, set door glass to half-way down position (this is to access door glass screw clamps on
door renew - 01.05.CB).
2. Battery isolation switch ‘OFF’.
3. Raise vehicle on ramp.
4. Remove road wheel(s),
5. Release rear part of whee l arch liner, screws (x7),
disconnect door check rod.
6. Pull back sealing boot and disconnect door multiplug.
7. Loosen the door hinge Torx screws (x2). 8. With assistance, lift door off support studs.
9. Withdraw the door from the vehicle and install on Door
Service Trolley (501 - F111).
10. Remove and discard hinge Torx screws (Patchlok).
Installation
1. Protect vehicle bodywork.
2. Install new hinge Torx screws.
3. With assistance, remove door from trolley (501 - F111),
position door to vehicle.
4. Align door to upper and lower hinges and install on hinge studs.
5. Connect the door check rod and install wheel arch liner, screws (x7).
6. Tighten hinge Torx screws (x2) (torque).
7. Connect multiplug and install boot.
8. Battery isolation switch ‘ON’.
9. Install road wheel(s).
10. Lower vehicle on ramp.
Front Door Hinge (One Side) - Renew
Removal
1. Remove LH/RH door assemb ly (see Workshop Manual
procedure 01.03.FA/01.03.EA Door Assembly - LH/RH -
Remove for Access and Refit).
2. Remove bolts (x4) securing upper and lower door hinges to body.
3. Remove hinges, note position of shims (if fitted) collect
rubber seals (x2).
4. Remove bolts (x2) securing upper and lower hinges to door, remove hinges (x2). No te fitted position of shims
(if fitted).
Installation
1. Position hinges to body, install rubber seals (x2) and shims (if fitted).
2. Install bolts (x4) securing hi nges to body. Do not torque
tighten bolts at this stage.
3. Position hinges (x2) to door. Install bolts (x2). Do not torque tighten at this stage.
4. Install LH/RH door assemb ly (see Workshop Manual
procedure 01.03.FA/01.03.EA Door Assembly - LH/RH -
Remove for Access and Refit).
5. Carry out preliminary hinge set-up.
6. Gently close door and check for acceptable initial installation.
7. Align the door, manoeuvre the door to achieve correct gaps and flush fit; (add/remove shims as required).
8. Open door, tighten bolts. Do not torque tighten at this stage.
9. Close door, re-check fitment and alignment.Repair Operation Time (ROT)
Repair Operation Time (ROT)
ItemCode
Front Door Hinge (One Side) Renew 01.03.FB

Body Closures (01.03)
Body System (01.00)
May 2007 Workshop Manual 1-3-7
10. Open door, torque tighten bolts.
Front Door Check Arm Assembly -
Renew
Removal
1. Remove door assembly (see Workshop Manual procedure 01.03.EA/01.03.FA Door Assembly - RH/LH -
Remove for Access and Refit).
2. Disconnect door check arm from door.
Installation
1. Connect door check strap to door.
2. Install door assembly (see Workshop Manual procedure 01.03.EA/01.03.FA Door Assembly - RH/LH - Remove
for Access and Refit).
Boot Lid Assembly - Renew (Roadster
Only)
Removal
1. Open boot lid.
2. Remove bolt securing strap to boot lid and remove strap (see Figure 1).
3. Remove clip securing cable to release lever and remove cable.
4. Release clips (x8) and remove boot lid trim panel. 5. Release clip securing harn
ess to interior panel (see
Figure 2).
6. Remove bolts (x4) secu ring panel to boot lid.
7. Release multiplug from pa nel, disconnect multiplug
from antenna and remove panel (see Figure 3).
Repair Operation Time (ROT)
Repair Operation Time (ROT)
Figure 2
Figure 3

Body Closures (01.03)
Body System (01.00)1-3-8 Workshop Manual May 2007
8. Disconnect multiplugs from latch, boot lid release
switch, release solenoid and stop light (see Figure 4).
9. Release clips securing harn ess to boot lid, release
grommet and remove harness (see Figure 5). 10. Remove bolts (x2) securing harness to hinge and release
harness (see Figure 6).
11. Remove cable tie, remove bolts (x3) securing latch to boot lid and remove latch (see Figure 7).
12. Remove nuts (x2) securing stop light to boot lid and
remove stop light and recover washers (x2).
Figure 4
Figure 5
Figure 6
Figure 7
