AUDI A3 CABRIOLET 2015 Owners Manual

M N
" > co ,...., \!) 1.1'1 ,...., 1.1'1 ,....,

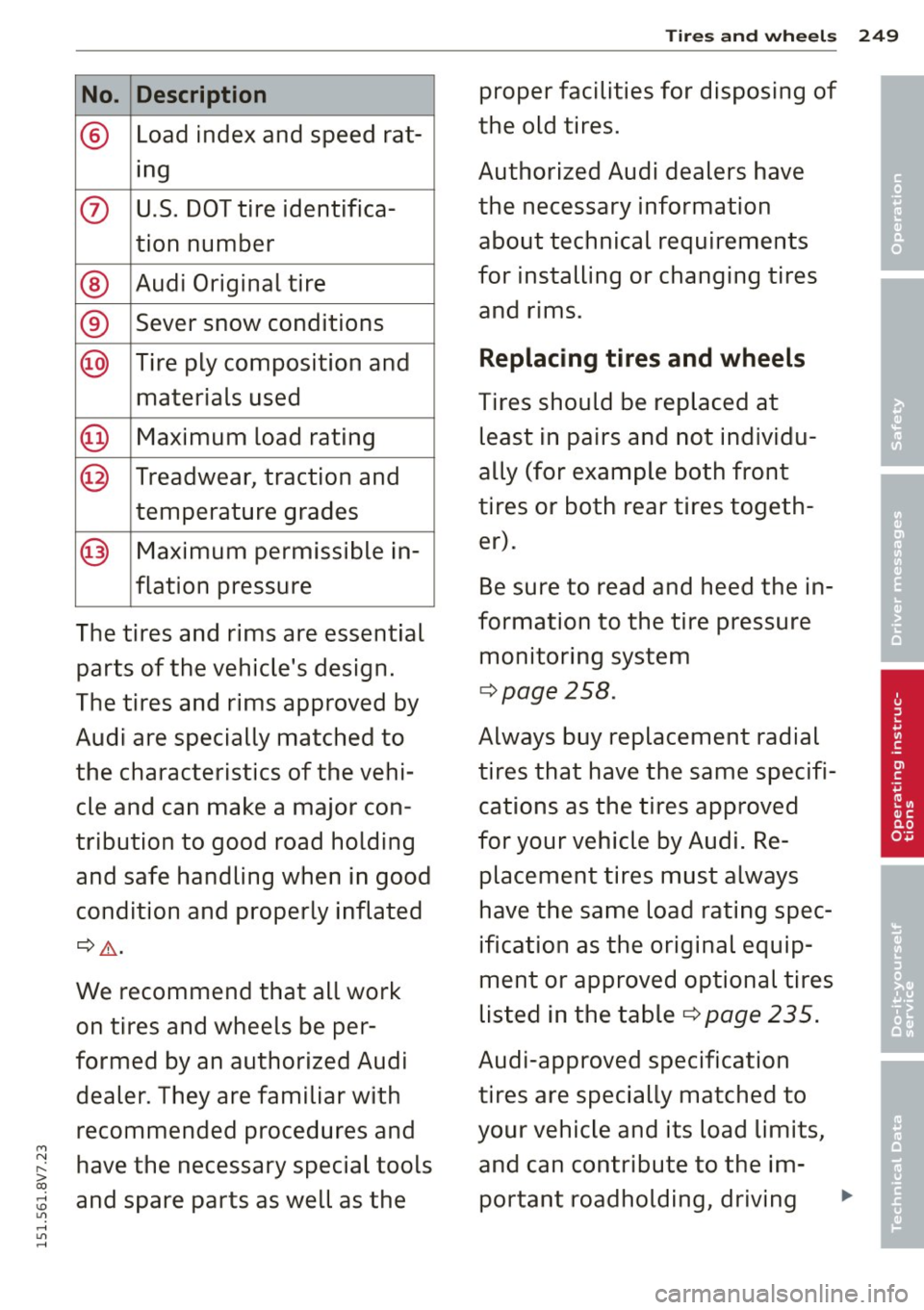

No. Description
® Load index and speed rat-
1ng
0 U.S. DOT tire identifica-
tion number
® Audi Original tire
® Sever snow conditions
@ Tire ply composition and materials used
@ Maximum load rating
@ Treadwear, traction and
temperature grades
@ Maximum permissible in-
flation pressure
The tires and rims are essential parts of the vehicle's design.
The tires and rims approved by
Audi are specially matched to
the characteristics of the vehi­ cle and can make a major con­
tribution to good road holding and safe handling when in good
condition and properly inflated
¢ &.
We recommend that all work
on tires and wheels be per­
formed by an authorized Audi dealer. They are familiar with
recommended procedures and
have the necessary special tools
and spare parts as well as the
Tires and wheels 249
proper facilities for disposing of
the old tires.
Authorized Audi dealers have
the necessary information about technical requirements
for installing or changing tires and rims.
Replacing tires and wheels
Tires should be replaced at least in pairs and not individu-
ally (for example both front
tires or both rear tires togeth- er).
Be sure to read and heed the in-
formation to the tire pressure
monitoring system
¢ page 258.
Always buy replacement radial
tires that have the same specifi-
cations as the tires approved
for your vehicle by Audi. Re- placement tires must always
have the same load rating spec-
ification as the original equip-
mentor approved optional tires
listed in the table¢
page 235.
Audi-approved specification
tires are specially matched to
your vehicle and its load limits, and can contribute to the im-portant roadholding , driving
' •
•
' •

250 Tires and wheels
characteristics, and safety of This contains the following in-
the vehicle. The table formation:
(¢ page 235) lists specifica-p Indicates the tire is for pas-
tions of the tires approved for
senger cars (where applica-
the Audi models covered by ble)
your Owner's Literature.
255 Nominal tire width in mm
The tire pressure label located
of the tire from sidewall
on dr iver's side B-pillar
edge to sidewall edge. In
(¢ page 235, fig. 173) lists the
general, the larger the num-
specifications of the original ber, the wider the tire
equipment tires installed on
40 Height/width ratio in per-
your vehicle at the time it was cent (aspect ratio)
manufactured.
R Tire construction: Radial
Federal law requires tire manu-
19 Rim diameter code (in in-
facturers to place standardized ches)
information on the sidewall of
100 Load rating code
all tires
¢fig. 176. This infor-H Speed rating letter code
mation identifies and describes
XL (or "xl", "EXTRA LOAD" or
the fundamental characteris- "RF") Indicates that the tire
tics, the quality grade of the is a "Reinforced" or an
"Extra
tire and also provides a tire Load" tire
identification number for safety
M+S (or "M/5") Indicates that
standard certification and in the tire
has some mud and
case of a recall. snow capability
Tire specifications The
tires could also have the in-
Knowledge of tire specifications formation of direction of rota-
tion
¢ page 229.
makes it easier to choose the
correct tires. Radial tires have
Tire manufacturing date
the tire specifications marked The manufacturing date is also
on the sidewall, for example: indicated on the tire sidewall
255/40 R 19 100 H XL (possibly only on the inner side
of the wheel):
...

M N
" > co ...... \!) 1.1'1
...... 1.1'1 ......
"DOT ... 2214 ... " means, for ex­
ample, the tire was produced in
the 22nd week of 2014.
Speed rating (letter code)
The speed rating letter code on
the wheels indicates the maxi ­
mum permissible road speeds
¢ &. in Winter tires on
page 255.
P up to 93 mph (150 km/h)
Q up to 99 mph (158 km/h)
R up to 106 mph (170 km/h)
S up to 110 mph (180 km/h)
T up to 118 mph (190 km/h) U up to 124 mph (200 km/h)
H up to 130 mph (210 km/h)
V up to 149 mph (240 km/h)1
)
Z over 149 mph (240 km/h)1
)
W up to 168 mph (270 km/h)1
)
Y up to 186 mph (298 km/h)1
)
Your vehicle is normally factory
equipped with tires, which pos­
sess excellent driving character­
istics and give your Audi opti­
mum driving comfort. An elec­
tronic speed limiter¢
page 30
will normally prevent your vehi-
1) For tires with a maximum speed ca­
pability over 149 mph (240 km/h),
tire manufacture rs sometimes use
the let ters "ZR."
Tires and wheels 251
cle from going faster than the
tire speed rating ¢
&.-
U.S. DOT Tire Identification
Number (TIN) and tire
manufacture date
This is the tire's "serial num­
ber". It begins with the letters
"DOT" and indicates that the
tire meets all federal stand­ ards. The next two numbers or
letters indicate the plant where
it was manufactured, and the
last four numbers represent the
week and year of manufacture.
For example, the numbers
2214 mean the tire was pro­
duced in the 22nd week of 2014. The other numbers are
marketing codes that may or
may not be used by the tire
manufacturer. This information
is used to contact consumers if
a tire defect requires a recall.
Audi Original tire
Tires with the identification "AO" or "RO" have been special­ly matched with your Audi. We
recommend using only these
' •
•

252 Tires a nd whee ls
tires beca use they meet the
h ighest standards regarding
safety and driving characteris ­
t ics when used correctly. Your
autho rized Audi dealer w ill
g lad ly provide you with more
information.
Tire ply composition and materials used
T he number of plies indicates
the number of layers of rubber­
coated fabric in the tire. In gen­
eral, the greater the number of
plies , the more weight a tire
can support . Tire manufactur­
ers also must indicate the ma­
ter ia ls in the tire, wh ich include
steel, nylon, polyester, and oth­
ers .
Ma ximum Load Rating
This number indicates the max­
imum load in kilograms and
pounds that can be carried by
the tire.
Tire quality grading for
treadwear, traction , and
temperature resistance
Tread wear, traction and tem­
perature grades¢
page 254.
Maximum Permissible
Inflation Pressure
This number is the greatest
amount of air pressure that
should ever be put in the tire
under normal driving condi­
tions.
A WARN ING
-Using incorrect or unmatch­
ed tires and/or wheels or improper tire and wheel
combinations can lead to loss of control, collis ion and
serious personal injury.
-Always use tires, rims and
wheel bolts that meet the
specifications of original
factory-installed tires or
other combinations that
have been specifically ap ­
proved by the vehicle manu­
facturer.
- Tires age even if they are
not being used and can fail
suddenly, especially at high
speeds. Tires that are more
than 6 years old can only be
used in an emergency and
then with special care and
at lower speeds.
-Never mount used tires on
your vehicle if you are not

Tires and wheels 253
sure of their "previous histo-and sudden deflation and
ry." Old used tires may have loss of control.
been damaged even though -Temperature grades apply
the damage cannot be seen to tires that are properly in-
that can lead to sudden tire flated and not over or un-
' •
•
failure and loss of vehicle derinflated.
control. -For technical reasons it is
-All four wheels must be fit- not always possible to use
ted with radial tires of the wheels from other vehicles -
same type , size (rolling cir-
in some cases not even
cumference) and the same wheels from the same vehi-
tread pattern. Driving with cle model.
different tires reduces vehi- -If you install wheel trim
cle handling and can lead to discs on the vehicle wheels,
a loss of control. make sure that the air flow
-If the spare tire is not the to the brakes is not blocked.
same as the tires that are Reduced airflow to the
mounted on the vehicle - for brakes can them to over-
example with winter tires - heat, increasing stopping
only use the spare tire for a distances and causing a col-
short period of time and lision.
drive with extra ca re. Refit -Run flat tires may only be
the normal road wheel as used on vehicles that were
soon as safely possible. equipped with them at the
-Never drive faster than the factory. The vehicle must
maximum speed for which have a chassis designed for
the tires on your vehicle are run flat tires. Incorrect use
rated because tires that are of run flat tires can lead to
driven faster than their rat- vehicle damage or acci-
ed speed can fail suddenly. dents. Check with an au-
-Overloading tires cause heat thorized Audi dealer or tire
' M • N
" build-up, sudden tire fail- specialist to see if your vehi-> co ......
ure, including a blowout cle can be equipped with ... \!) 1.1'1
...... 1.1'1 ......

254 Tires and wheels
run flat tires. If run flat tires
are used, they must be in­
stalled on all four wheels. Mixing tire types is not per­
mitted.
@) Note
-For technical reasons, it is not generally possible to
use the wheel rims from
other vehicles. This can hold
true for wheels of the same
vehicle type.
- If the spare tire is different
from the tires that you have mounted on your vehicle
(for example winter tires or
wide prof ile tires), then use
the spare tire for a short pe­
riod of time only and drive
with extra care. Replace the
flat tire with the tire match­ ing the others on your vehi­
cle as soon as possible.
- Never drive without the
valve stem cap . The valves
could get damaged.
@) For the sake of the environment
Dispose of old tires in accord­
ance w ith the local require­
ments.
Uniform tire quality grading
- Tread wea r
- Traction AA A B C
- Temperature ABC
Quality g rades can be foun d where applicab le
on the t ire s ide wall between t read sho ulder
and maximum section width
¢ page 248,
fig . 176 .
For example: Tread wear 200 , Traction AA,
Tempera ture A .
All passenge r ca r tir es must con fo rm to Feder ­
al Safety Req uirements in ad dition to these
grades.
Tread wear
T he tread we ar g rade is a c omparative r ati ng
b as ed on the wea r ra te of the tire when tes ted
u nder con tro lled cond itions o n a specifie d
government test course .
F o r ex am ple, a tire gr aded 1 S0 would wear
o n e and one h alf ( 11/ 2) times as well on the
government course as a tire gr aded 10 0 .
T he re lative per forman ce of tires depen ds
up on the actu al cond itions of the ir use, h ow­
ever, and m ay dep art s ignific antly from the
no rm due to va ria tions i n driving ha bits, se rv ­
ice p ractices and differe nces in road c haracter­
ist ics and climate.
Traction
The tr actio n gr ad es, fro m hig hest to lowest,
are AA, A, Ban d
C. Those grades represent t he
ti re 's ability to stop on wet pavement as
measured unde r cont rolled conditions on
specified g overnment test surfaces of aspha lt
and co ncrete. A t ire mar ked C may have poor
traction performance
¢ A .
Temperature
The temperature g rades are A (the highest),
B, an d C, represe nting the tire's resistance to
the generation of heat and its ab ility to dissi­
pate heat when tested unde r controlled condi­
t ions on a specif ied ind oor l abo rato ry test
whee l.

M N
" > co ,...., \!) 1.1"1 ,...., 1.1"1 ,....,
Sustained high tem perature can cause the
materia l of the tire to degenerate and reduce
tire life, and excessive temperature can lead
to sudden tire failure <=>,& .
The grade C corresponds to a level of per form­
ance which a ll passenger car tires must meet
under the Federa l Motor Veh icle Safety Stand­
ard No. 109. Grades Band A represent higher levels of performance on the laboratory test
wheel than the m inimum required by law.
_&. WARNING
The traction grade assigned to this t ire is
based on stra ight-ahead b raking t raction
tests, and does not include acceleration,
c o rnering, hydrop lan ing o r peak tr actio n
character istics .
_&. WARNING
The temperature grade for this t ire is es­
tablished for a ti re that is p roperly inflated
and not overloaded . Excessive speed, un­
derinflation, or excessive loading, either
separately or in combination, can cause
heat buildup and possible tire fa ilure.
Winter tires
Winter tires can improve vehicle handling on
snow and ice. At temperatures below 45 °F
(7 °C) we recommend changing to winter
tires .
In some heavy snow areas, loca l governments
may require true winter or "snow" tires, those
with very deeply cut tread. These tires shou ld
only be used in pa irs and be installed on all
four wheels. Make sure you pu rchase snow
tires that are the same size and const ruct ion
type as t he other tires on your ve hicle.
If your vehicle is equipped with all-wheel
d rive*, this will improve tract ion during winte r
d riving, eve n w it h the standard t ires. Howev­
e r, we strong ly recommend t hat you a lways
eq uip a ll four wheels on yo ur vehicle wi th cor­
rectly fitted win ter t ires or a ll-season tires,
when winter road conditions are expected .
Tires an d wheel s 255
This also improves the veh icle's b rak ing per ­
formance and reduces stopping distances.
Summe r ti res prov ide les s gr ip on i ce and
snow.
Winter t ires (snow tires) must always be fitted
o n all fo ur whee ls.
Ask your authorized Audi dealer or qualified
workshop for permitted winter tire sizes. Use
o nl y rad ial winter t ires.
Winter tires lose their effectiveness whe n the
tread is worn down to a depth of0 .157 inch
(4 mm) .
Only drive w ith w inter t ires under w inter con­
dit ions. Summer t ires handle better when
there is no snow or ice on the roads and the
temperature is above 45 °F (7 °() .
If you have a flat tire, see notes on spare
whee l¢
page 248.
Please a lways remember that winter tires may
have a lower speed rating t han the tires o rigi­
nally installed on your vehicle at the time it
was manufactured. P lease see¢
page 251,
Speed rating (letter code)
for a listing of the
speed rating le tter codes and the max imum
speed at which the tires can be d rive n.
The speed rating letter code(¢
page 233) is
o n the side wall of the tire ¢
page 248.
_&. WARNING
Winter t ires have maximum speed limits
that may b e lower than yo ur vehicle's max­
imum speed. Always know the max imum
speed before dr iv ing off. Never dr ive faster
than the speed permitted for yo ur spe cific
win ter tires . This wi ll ca use damage to the
tires leading to an accident and ser ious
personal injury to you and your passen­
gers.
_&. WARNING
Driving faster than the maximum speed
for which the winter tires on your ve hicle
were designed can cause t ire fail ure in­
cluding a blowout and sudden d eflation,
-
•
•
•

256 Tires and wheels
loss of control, crashes and serious per­
sona l injuries . Have worn or damaged tires
replaced immediate ly.
- Winter tires have maximum speed rating
that may be lower than your vehicle's
maximum speed .
- Never drive faster than the speed for
which the winter or other tires installed
on your vehicle are rated.
A WARNING
Always adjust your driving to the road and
traffic conditions. Never let the good ac­
celeration of the winter tires and all-wheel
drive tempt you into taking extra risks. Al­
ways remember:
- When braking, an all-wheel drive vehicle
handles in the same way as a front drive
vehicle .
- Drive carefully and reduce your speed on
icy and slippery roads, even winter tires
cannot help under black ice conditions.
@) For the sake of the environment
Use summer tires when weather condi­
tions permit. They are quieter, do not wear
as quickly and reduce fuel consumption.
Snow chains
Snow chains may be fitted only to the front
wheels, and only to certain tire sizes. Ask your
authorized Audi dealer on which tire sizes
snow chains can be used.
If you are going to use snow chains, then you
must install them on the front wheels at
l east.
The snow chains must have low-profile links
and must not be thicker than 0.53 inch
(13.5 mm), including the lock.
Remove wheel center covers and trim discs
before putting snow chains on your vehicle
q 0 . For safety reasons cover caps must then
be fitted over the wheel bolts. These are avail­
able from authorized Audi dealers.
A WARNING
Using the wrong snow chains for your vehi­
cle or installing them incorrectly can in­
crease the risk of loss of control leading to
serious personal injury.
- Snow chains are available in different
sizes . Always make sure to follow the in­
structions provided by the snow chain
manufacturer.
- When driving with snow chains never
drive faster than the speed permitted for
your specific snow chains.
- Always observe local regulations.
@ Note
-Remove snow chains before driving on
roads not covered with snow to avoid
damaging tires and wearing the snow
chains down unnecessarily .
- Snow chains, which come into direct con­
tact with the wheel rim, can scratch or
damage it. Therefore, make sure that the
snow chains are suitably covered. Check
the position of the snow chains after
driving a few yards and correct if neces­
sary. Follow the instructions from the
snow chain manufacturer when doing so.
@ Tips
Where snow chains are mandatory on cer­
tain roads, this normally also applies to
vehicles with all-wheel drive .
Wheel bolts
Wheel bolts must always be tightened to the
correct torque.
The design of wheel bolts is matched to the
factory installed rims. If different rims are fit­
ted, the correct wheel bolts with the right
length and correct ly shaped bolt heads must
be used. This ensures that wheels are fitted
securely and that the brake system functions
correctly . .,..

M N ,....
> co ,...., \!) 1.1'1 ,...., 1.1'1 ,....,
In certain circumstances, you may not use
wheel bo lts from a different vehicle -
even if it
i s the same mode l
Qpage 284.
A WARNING
Improperly tightened or maintained wheel
bolts can become loose caus ing loss of
control, a collision and ser ious personal in­
jury .
- Always keep the wheel bolts and the
threads in the wheel hubs clean so the
wheel bolts can turn easily and be prop­
erly t ightened.
- Never grease or oil the wheel bolts and
the threads in the wheel hubs. They can
become loose w hile d riving if greased or
o iled,
even if tightened to the spec ified
torq ue.
- Only use wheel bo lts that belong to the
rim being ins talled.
- Never use different whee ls bolts on your
vehicle .
- Always maintain the correct tightening
torque fo r the wheel bolts to reduce the
risk of a wheel loss. If the tigh teni ng tor­
que of the wheel bolts is too low, they
can loosen and come out when the vehi­
cle is moving . If the tightening torque is
too high, the whee l bolts and threads
can be damaged and the wheel ca n be­
come loose .
(D Note
The specified torque for the wheel bo lts is
90 ft lb (120 Nm) w ith a tolerance of
± 7,4 ft lb(± 10 Nm). Torque whee l bolts
diagonally. After changing a wheel, the
torque must be checked as soon as possi­
b le with a torque wrench -prefe rably by an
author ized Audi dealer or qualified wo rk­
shop.
Low aspect ratio tires
Your Audi is factory-equipped with low aspect
ratio tires . These tires have been thorough ly
tested and been selected spec ifically for your
model for the ir superb performance, road feel
Tire s an d wheel s 257
and handling under a variety o f driving condi ­
tions. Ask your authorized A udi dealer for
more details .
T he low aspec t ratio of these tires is ind icate d
by a numera l of
55 or le ss in the tire's size
designation. The numera l represents the ratio
of the t ire's sidewa ll height in relation to its
tread width expressed in percentage.
Conven­
tiona l tires have a he ight/w idth rat io of 60 or
more .
The performance of low-a spect-ratio tire s is
particularl y sens it iv e to improper inflation
pressure. It is therefore important that low
a spect ratio tir es are inflated to the specified
pre ssure and that the inflation pr essure i s
regularly checked and ma intain ed . Tire pr es­
s ure s should be checked at lea st on ce a
month and alway s bef ore a long trip
~ page 240 , Checking tire pressure .
A Word about Low Aspect Ratio and High
Performance Ti res
Hig h pe rformance tires are des igned for bet­
ter performance and handling in warm cli­
mates. When driving in cold, snowy or icy
weather, you sho uld equ ip your vehicle w it h
four all-season or winter tires, which
offer
better traction under those condit ions. We
suggest you use the Audi recommended win­
te r or a ll-season tires specified for you r Audi.
High performance tires a lso have a lower as ­
pect ratio that aids performance and han­
dling . Driving over rough or damaged road
surfaces, as well as debr is, cu rbs and other
obstacles can cause serious damage to
whee ls, tires, vehicle body, and suspens ion
parts . B e carefu l to avo id road hazards and re­
du ce your speed , espec ia lly if your vehicle is
equipped wi th low prof ile tires .
Please a lso remember when making your se­
lection that, wh ile these tires deliver respon­
s ive handling, t hey m ay ride less comfo rtably
and make more noise than o thers . Finally,
these tires may wear more quickly than other
c h oices.
IJJ>
•
•
•

258 Tires and wheels
It is important that the inflation pressu re is
regularly checked and maintained at recom­
mended levels .
Fo r more informat ion please ask your A udi
dealer for more details .
What you can do to avoid tire and rim
damage
L ow aspect ratio tires can be damaged more
easi ly by impact with potho les, curbs, gu llies
or ridges on the road, particularly if the tire is
underinflated.
I n o rder to minim ize the occurrence of impact
damage to the tires of your vehicle, we recom­
mend that you observe the following precau­
tions:
- Always maintain recommended inflation
pressures. Check your tire pressure every
2,000 miles (3,000 km) and add air if neces­
sary.
- Drive carefu lly on roads with potholes, deep
gullies or ridges. The impact from driving
through or over such obstacles can damage
your tires. Impact with a curb may also cause damage to your tires.
- After any impact, immediately inspect your
tires or have them inspected by the nearest
authorized Audi dealer . Replace a damaged
t ir e as soon as possible.
- Inspect your tires every 2,000 miles (3,000
km) for damage and wear . Damage is not al­
ways easy to see. Damage can lead to loss of
air and underinflation, wh ich could eventu­
ally cause t ire failure.
If you believe that a
t ir e may have been damaged, replace the
tire as soon as possible.
- T hese tires may wea r more quickly than oth­
ers.
- Please a lso remember that, while these tires
deliver respons ive handling, they may ride
less comfortably and make more noise than
other choices.
Reduced performance in winter/cold
season conditions
All tires are designed for certain purposes.
The low aspect ratio, ultra high performance ti
res or iginally installed on your vehicle are in­
tended for maximum dry and wet road per­
formance and handling. They are not suitable
for cold, snowy or icy weather conditions. If
you drive under those circumstances, you
should equ ip your vehicle with all-season or
winter tires, which offer better traction unde r
those conditions. We suggest you use the rec­
ommended snow o r all-season tires specified
for your vehicle, or thei r equivalent.
Refer to~ page
255 for more detailed infor­
mation regarding winter tires.
Tire pressure
monitoring system
ill General notes
Each tire, including the spare (if provided),
shou ld be checked monthly when co ld and in­
flated to the inflat ion pressure recommended
by the vehicle man ufactur er on the veh icle
placard or tire inflation pressure labe l. (If your
vehicle has tires of a different size than the
size indicated on the vehicle placard or tire in ­
flation pressure label, you should determine
the proper t ire inflation pressure for those
t i res).
As an added safety feature, your vehicle has been equipped with a tire pressure monitoring
system (TPMS) that illuminates a low tire
pressure telltale when one or more of your
t ir es is signif icantly under-inflated. According­
ly, when the low tire pressure telltale illumi­
nates, you shou ld stop and check you r tires as
soon as possible, and inflate them to the
proper p ressure. Driving on a sign ificantly un ­
der -inflated tire causes the tire to overheat
and can lead to tire fa ilure . Under-inflation al­
so reduces fuel eff iciency and tire tread life,
and may affect the vehicle's handling and
stopp ing ability.
Please note that the TPMS is not a substitute
for proper tire maintenance, and it is the driv­
er's responsibility to maintain correct tire
pressure, even if under-inflation has not
