Page 11 of 340
Controls and equipment
--------------- ~
Page 12 of 340
Instruments and controls

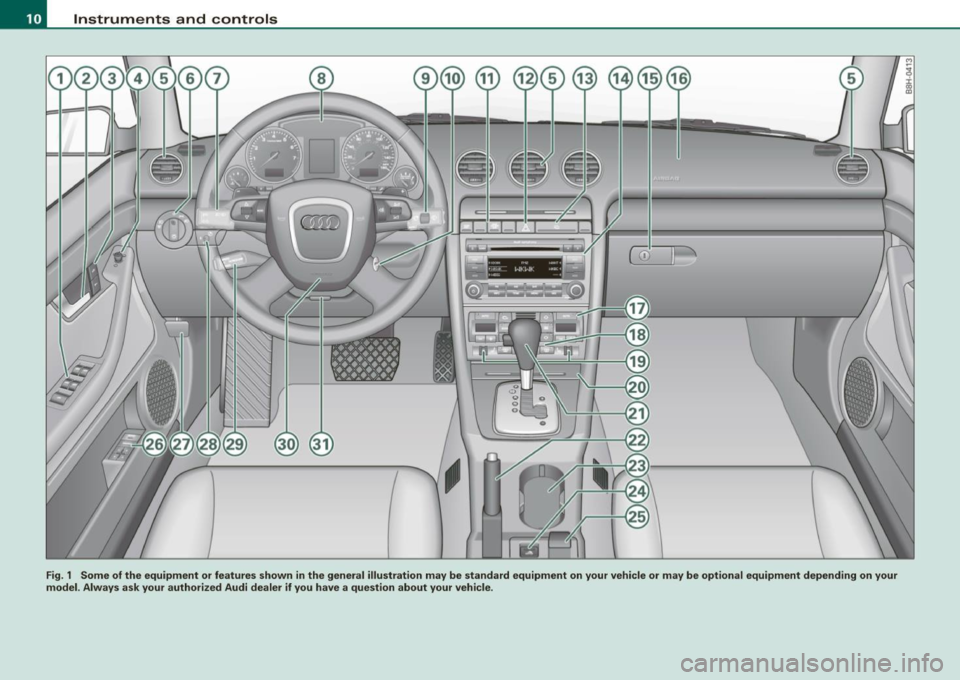

Fig. 1 Some of the equipment or features shown in the general illustration may be standard equipment on your vehicle or may be optional equipment depending on your
model. Always ask your authorized Audi dealer if you have a question about your vehicle .
Page 13 of 340
Instruments and controls
General illustration
G)
0
©
©
©
©
0
©
G)
Power window switches
Door handle
Power locking switch . ..... .. .... .... .... ...... .
Adjuster control for outside mirrors .............. .
Air outlets ...... .. ......... .... .. .. .... .. ..... .
Light switch .. ...... .... ...... .... ... .. .... ... .
Turn signal and high beam .. .... .... ..... ...... .
Instrument cluster ... ...... ... .. ..... ... .... ... .
Switches for
- Windshield wiper/washer ......... ...... ...... .
- Driver information display ........... .... ..... .
- Operation trip computer .. .... ... .... .... .. ... .
- Adjusting and storing the tire pressure" ........ .
@ Steering lock/ignition/starter switch ....... .... ... .
@ Depending on options :
@
@
@
@
@
@
@
@
@
@
@
-Electronic Stabi lization Program (ESP) switch .....
- Warning light for deactivated front passenger airbag
Emergency flasher . ...... ...... .... ... .. ... .... .
Storage compartment for sma ll objects
Sound System
Glove compartment ( lockable) . .... .... .... .... .. .
Front passenger airbag ........................ . .
Climate controls ........ ... .... .... .... .. ..... .
Rear window defogger switch .......... ..... ... .
Switch for seat heating . .... .. .... .. ... .. .... ... .
Ashtray .. ....... .... ... .... .... .... .... .... .. .
Se lector lever (automatic transmission) ....... ... . .
Parking brake lever ....... .. ... ... .. ...... .... . .
Controls and equip
ment
59
54
89
115
76
83
12
85
36,37
38
43
119
212
82
108
107
172
111
116
116
104
131
121
Instruments and controls
@ Cupholder ............ ...... ... .. .... ..... .. .. .
@ Power top switch .............................. .
@) Power outlet . .... ...... ... .. .... .... .... .... .. .
@ Memory buttons (driver seat) .. .... .... .... .... .. .
@ Release lever for the engine hood .............. .. .
@ Coming home/leaving home activation ...... ...... .
@ Cruise control .... .... .... .... ... ........ .... .. .
@ Steering wheel with :
- Horn
- Driver airbag .... .... .... ... .. ...... .... .... . .
@ Adjustable steering column ..................... .
[ i ] Tips
A separate brochure is provided for your factory-insta lled audio
system and/or the Audi Navigation System. •
104
61
106
101
249
80
123
172
118
Page 14 of 340
Instruments and warning/indicator lights
Instruments and warning/indicator lights
Instruments
Instrument cluster and controls
The instrument cluster is your central source of information.
Fig. 2 Overview of the instrument cluster
G) Coolant temperatu re gauge .. ..... ... ... .... ... . . 13 - Clock and date display .. .... ........ .... ... .. .
® Tachometer with time and date display . ....... ... . 13, 14 -Instrument cluster illumination ... .... .... ... .. .
® Warning/indicator l ights .. ... ....... ... ........ . 18 0 Driver information system ...... .... ....... .... . .
© Spe edometer with odometer . .... ...... ..... .. . . 15 © CHECK system button .......... ........... ..... .
© Fuel gauge ...... .... ....... ........ ........ .. . 16 © Reset but ton for Service indicator ................ .
© Buttons to set the: @ Reset button for trip odome ter .................. .
14
15
24
16
17
18 ~
Page 15 of 340
The instrument cluster illuminates whenever you switch on the igni
tion with the
vehicle headlights off. The instrument cluster illumina
tion dims automatically as the daylight begins to fade away. It goes
out completely when the outside light is very dim. The reason for
this is to remind you to turn on the headlights when the light condi
tions become poor. •
Engine coolant temperature gauge
The engine coolant gauge~ page 12, fig. 2 G) only works when the
ignition is on . To prevent damage to your engine, please note the
following important points:
Engine cold
As long as the needle remains at the left end of the gauge, the
engine still has not reached its operating temperature . Avoid high
engine speeds, heavy engine loads and heavy throttle.
Normal temperature
When the engine has reached its operating temperature, the needle
will move into the middle of the gauge and remain there. If the
engine is working hard at high outside temperatures, the needle
may turn further to the right . This is no cause for concern as long as
the
- F-warning light in the instrument cluster does not illuminate.
When the
-L warning light starts to flash, this can mean one of two
things: either the coolant
temperature is too high, or the coolant
level is too low~ page 31.
_& WARNING
• Always observe the warning in ~ page 242, "Engine compart
ment" before opening the engine hood and checking the engine
coolant level.
• Never open the engine hood if you see or hear steam, or if you
see engine coolant dripping from the engine compartment. You
Controls and equip
ment
Instruments and warning/indicator lights
& WARNING (continued)
could burn yourself. Let the engine cool off first so that you cannot
hear or see any steam or engine coolant.
0 Note
• Mounting additional lights or accessories in front of the air inlets
reduces the cooling effect of the radiator. At high outside tempera
tures or high engine load, the engine could overheat.
• The front spoiler has been designed to properly distribute the
cooling air when the vehicle is moving. If the spoiler is damaged,
this could reduce the cooling effect and the engine could then over
heat. Ask your authorized Audi dealer for assistance. •
Tachometer (engine rev counter)
The tachometer indicates the engine RPM (revolutions per
minutes).
The tachometer ®~ page 12, fig. 2 is the left one of the two large
clock -type displays.
The engine turns at a speed
1,000 times the single digit in the
display, e.g. if the needle points at the "2", the engine turns at
2,000 RPM.
If the engine RPMs drop below 1,500, you should downshift to the
next lower gear. The red area at the end of the scale indicates
maximum permissible engine RPMs after the break-in period.
Before reaching this area, you should either shift into the next
higher gear or ease your foot off the accelerator pedal.
0 Note
The tachometer needle should not move into the red range. If it
does, then only for a very short period of time. You could damage
your engine by driving at high RPM! _.
Page 16 of 340
Instruments and warning/indicator lights
ffi For the sake of the environment
Upshifting early saves fuels and reduces engine noise .•
Digital clock with date display
Your vehicle is equipped with either a quartz clock or a
digital clock.
Setting the hour
Fig. 3 Instrument
cluster with the digital
clock
- Press the "MODE" button; the hour display starts to flash.
- Press the"+" button to turn the hour forward .
- Press the"-" button to turn the hour back.
Setting the minute
- Press the "MODE" button repeatedly until the minute
display starts to flash.
- Press the"+" button to turn the minutes forward.
- Press the"-" button to turn the minutes back.
Setting the date (day, month and year)
-Press the "MODE" button often until the date display
starts to flash.
- Press the"+" button or the"-" button to set the day.
- Press the "MODE" button again; the month display starts to flash.
- Press the"+" or the" -" button to set the month.
- Press the "MODE" button again; the year display starts to
flash.
- Press the"+" or"-" button to set the year.
Switching off the date display
-Press the "MODE" button repeatedly until the complete
date display starts to flash.
- Press the" -" button; the date display switches off.
Switching on the date display
- Press the "MODE" button repeatedly until the complete
date display starts to flash.
- Press the"+" button; the date display will reappear.
When the date display stops flashing, this means the time and date
have been successfully stored .
When the ignition is switched off, the odometer reading and the
digital clock with date display can be switched on for a few seconds
by pressing the CHECK button =>
page 12, fig. 2 @ . •
Page 17 of 340
Instrument cluster illumination
It is possible to adjust the instrument cluster illumination.
9:36
02 .11.200
Fig. 4 In strum ent
c lus ter illum inat io n
- Press the"+" button to increase the brightness.
Press the"-" button to dim the br ightness.
A light sensor in the instrument cluster controls the illumination for
the instrument cluster, the center conso le and the displays.
The illumination for the instrument cluster lights up whenever you switch on the ignition with the
ve hic le head lights off. As the
daylight fades, the instrument c luster illumination likewise dims
automatically and wi ll go out complete ly when the outside light is
very low . This feature is meant to remind you to switch on the head
lights when the outside light conditions become poor. •
Controls and eq uip
ment
In st ru m ent s a nd w arning /indi cator li ght s
Speedometer with odometer
The speedometer shows you the vehicle speed, and the
odometer shows you how many miles (kilometers) you
have driven .
0 1mUc::1 Uni3
Fi g. 5 Odome ter
di sp la y in side s pee d
o m eter
The odometer and trip odometer are located inside the speedom
eter.
• USA models - Miles
• Canada models - Ki lometers
Lo wer odomet er
The lower odometer shows the tota l number of miles (ki lometers)
driven.
Upp er odom ete r (t rip odo m ete r)
The upper odometer shows the total number of miles (kilometers)
driven since you last reset the odometer to zero. You can use this
odometer when you want to keep track of how many miles (kilome
ters) you have driven for a single trip or errand. The last digit indi cates 1/10 of a mile (100 meters). You can set the trip odometer back
to zero by pressing the reset button
~ fig. 5. _,.
~ehicle care Technical data
Page 18 of 340
Inst rum ents and warnin g/indi cato r li ghts
M alfu nction message
If there is a malfunction somewhere in the ins trument cluster, dE F
will appear in the trip odometer and will stay on. Contact your
authorized Audi dea ler to have the prob lem corrected.
Im mob ilizer
Each time you switch on the ignition, the data stored in the vehicle
key are e lectronically scanned to verify that key data and vehicle
data match. If a non -coded or a defective vehic le key is used, the
word
S A FE wi ll appear and remain lit in the upper (trip) odometer
display . If this happens, the vehicle cannot be started=>
page 49. •
Fuel gauge
The fuel gauge works only when the ignition is on .
When the needle reaches the red area, the warning light in the instrument cluster wil l illuminate =>
page 33 [). This means you
have approx imately 2.4 gallons (9 liters) of fuel left in the tank.
Time
t o refu el!
The total tank capacity of your vehicle is listed in=> page 314.
0 Note
Never run the tank completely dry! An irregular supply of fuel can
cause engine misfiring and fuel could enter into the exhaust
system. The catalytic converter could then overheat and be
damaged. •
[ CHE CK] button
You can perform different functions with this button.
I S2YY
0
Fig. 6 C HECK butto n in
th e ins tru men t c lu ste r
The [ CHECK] button performs the following functions:
S wi tch ing on t he cl ock and odome ter
With the ignition is switched off, the odometer and digital clock with
date disp lay can be switched on for a few seconds by pressing the
[CHECK] button=> fig. 6.
Sta rtin g t he A uto-Che ck se qu ence
The Auto-Check system=> page 28 consistently monitors certain
individual functions and componen ts of the vehicle when the igni
tion is turned on and when the vehicle is moving.
With the ignition switched on, you can start the" Auto-Check
sequence" by pressing the [
CHECK I button. You can perform an
Auto -Check sequence both when the vehic le is at a standstill and
the ignition is switched on or when the veh ic le is mov ing not faster
than 3 mph (5 km/h).
Ca lling up th e dri ver inform ation
When a first priority symbol starts to flash=> page 28 or when a
defective light bulb=>
page 35, has been detected, you can press
the
! CHECK] button to display the driver information. For example:
S witch off engine and chec k oi l le vel
Page 19 of 340
The information disappears after approximately 5 seconds.
Setting the speed warning
By pressing the [ CHECK I button you can set speed warning 1
=> page 36 while the vehicle i s moving .
Speed warning 2* => page 36 can only be set with the ignition
switched off. •
Service interval display
The service interval display reminds you when your next
service is due.
Display remaining distan ce
Fig. 7 Serv ice interval
display in the in stru
men t cluster
With the ignition on, briefly push button G) to display the distance
remaining (miles/kilometers) until the next service is due . You can
recall the service countdown with the engine in id le or while driving
at a slow speed up to
3 mph (5 km/h). The remaining distance will
be updated every
300 miles (500 km) :
On a new vehicle, or immediately after a service has been
performed, the following message will be displayed:
Service in ···· mi (km) ··· days
For the the first 300 miles (500 km) of driving after a service , the
display will keep showing dashes. This is
NOT a malfunction. Rather,
Contro ls and eq uip
ment
Instruments and warning /indicator lights
the system needs the mileage to (re-Jodjust to your driving style . Only
then can it start generating and updating figures for the distance and
days until the next scheduled service.
Service reminder
As soon as less than 1,200 miles (2,000 kilometers) of driving are left
before the next due service, the following message will be displayed
when you switch on the ignition :
Service in 1,200 mi (2,000 km)··· days
After about five seconds the display switches back. Each time you
switch on the ignition, the distance will be updated until the next
service date is reached.
Service due
If service is due immediately, Service! will appear in the display
immediately after switching on the ignition . The display switches
back after about five seconds.
Resetting the display
Your authorized Audi dealer will reset the display after performing
the scheduled service. If the service is not performed by an autho
rized Audi dealer, the display must then be reset as follows:
• Switch off the ignition.
• Press and ho ld the Service button
G)=> fig. 7, then switch on the
ignition . One of the fol lowing messages appears in the display:
Service in ···· miles or Service!.
• Press the reset button @ until either of the the following
messages appears in the display:
Service in ····miles··· days or
Service!
After about five seconds the display switches back.
[ i ] Tips
• Do not reset the display between service intervals. Doing so will
resu lt in an incorrect display.
~
~ehicle care irechnical data
Page 20 of 340
Instruments and warning /indicator lights
• The service display information will remain intact even if the
battery is disconnected .
• If a priority 1 malfunction is detected (red symbol), you cannot
display the distance remaining. •
Reset button
The "0.0" button=> page 17, fig. 7 @ performs the following func
tions :
Resetting the trip odometer
The upper odometer (trip odometer) => page 15 can be reset back to
zero by pressing the reset button.
Resetting the service interval
The service interva l display=> page 17 can be reset by pressing the
reset button (first select the "reset" mode in the service indicator
display). •
Warning /indicator lights
Overview
The warning/indicator lights indicate different functions
or a possible malfunction.
Fig. 8 Instrument clu ste r: complete set of warning /indi cator symbols (USA
models)
Your vehicle is equipped with several important warning and indi
cator lights to help you monitor the continued reliable operation of
your vehic le~
& -
AIR
BAG
USA models :
Malfunction Indicator lamp (MIU
Canada models:
Malfunction lndictor Lamp (MIU
Airbag sys tem
~ page 19
~ page 19
~ page20
