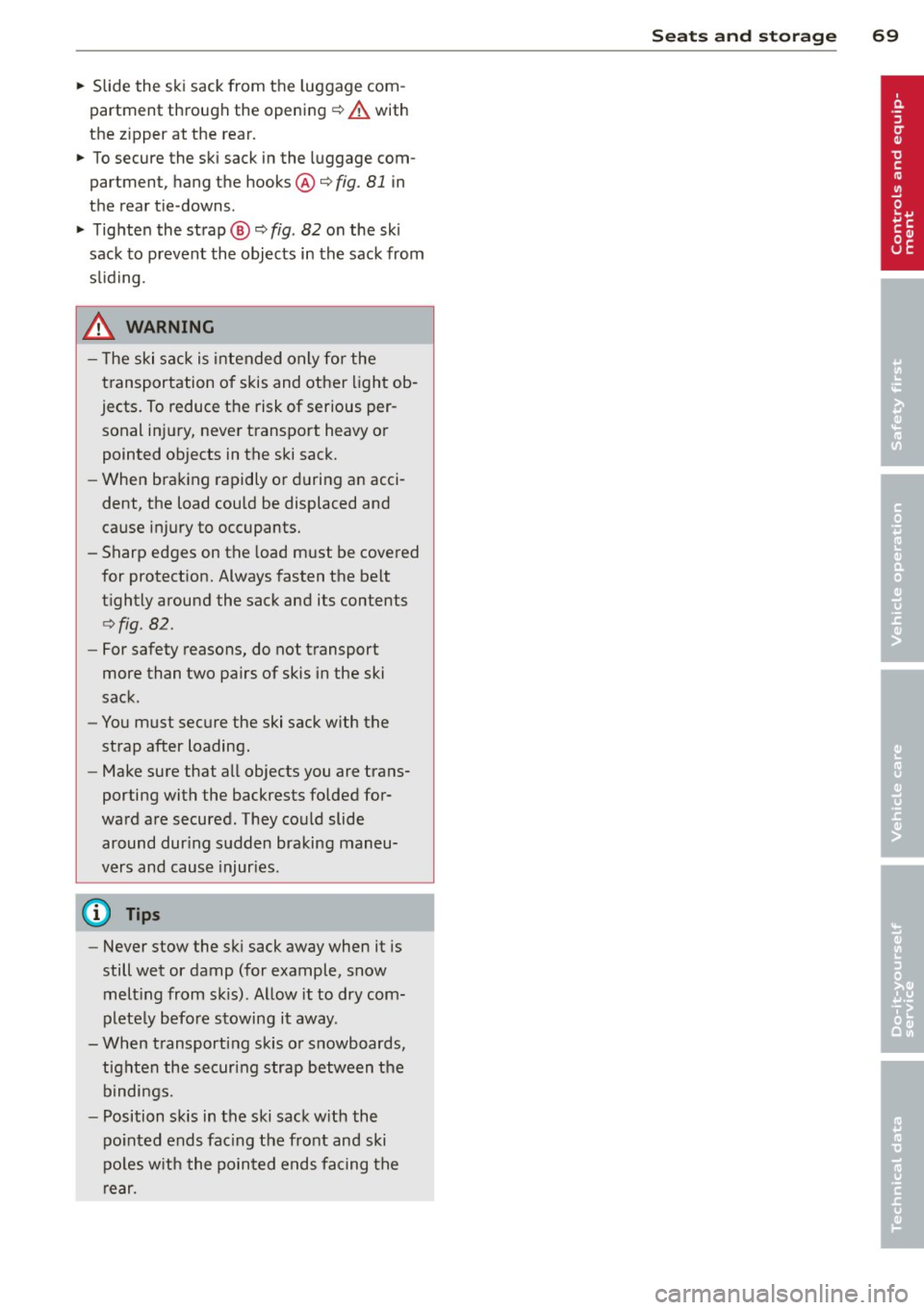

~ Slide the ski sack from the luggage com­
partment through the opening¢
A with
the z ipper at the rear.
~ To secure the ski sack in the luggage com­
partment, hang the hooks@¢
fig. 81 in
the rear tie -downs.
~ Tig hten the strap@¢ fig. 82 on the sk i
sack to prevent the objects in the sack from
s li ding.
& WARNING
-
- T he ski sack is intended only for the
transportation of skis and other light ob­
jects. To reduce the risk of serious per­
sonal inj ury, never transport heavy or
pointed objects in the ski sack.
- When braking rapidly or during an acci­
dent, the load could be displaced and
cause injury to occupants.
- Sharp edges on the load must be covered
for protect ion. Always fasten the belt
t ightly around the sack and its contents
¢ fig . 82 .
-For safety reasons, do not transport
more than two pairs of skis in the ski
sack.
- You must secure the ski sack with the
strap after loading.
- Make sure that all objects you are trans­
porting with the backrests folded for­
ward are secured . They could slide
around dur ing sudden braking maneu­
vers and cause injur ies .
(D Tips
-Never stow the sk i sack away when it is
still wet or damp (for example, snow melt ing from skis) . Allow it to dry com­
plete ly before stowing it away .
- When transporting skis or snowboards, tighten the securing strap between the
bindings.
- Position skis in the ski sack w ith the
po inted ends fac ing the front and ski
po les w ith the pointed ends facing the
rear.
S eat s an d sto rage 69

70 Warm and cold
Warm and cold Climate controls
Description
The climate control system warms, cools and
adds humidity to the air in the vehicle interior.
It is the most effect ive when the windows and
sunroof are closed . If there is a build-up of
heat inside the vehicle, ventilation can help to
speed up the cooling process.
I n all heating mode functions except
defrost,
the blower on ly switches to a higher speed
once the engine coolant has reached a certain
temperature.
Condensat ion from the cooling system can
drip and form a puddle of water under the ve­
hicle. This is normal and does not mean there
is a leak.
Pollutant filter
The pollutant filter removes pollutants s uch
as dust and pollen from the air.
The air pollutants filter must be changed at
the intervals spec ified in you r Warranty
&
Maintenance booklet, so that the air condi­
tioner can properly work.
If you drive your vehicle in an area with h igh
a ir po llution, the fi lter may need to be
changed more frequently than specified in
your Aud i Wa rranty
& Ma intenance booklet. If
in doubt, ask your authorized Audi Service Ad ­
visor for advice .
Key coded settings
The climate control settings are automat ically
stored and assigned to the remote control key
that is in use. These settings are different
when the power top is open or closed .
A WARNING
Reduced visibility is dangerous and can
cause accidents. -
- For safe driving it is very important that
all windows be free of ice, snow and con­
densation.
- Comp letely familiarize yourself with the
proper use and function of the heating
and ventilation system and especially how to defog and defrost the windows.
- Never use the windshield wiper/washer
system in freez ing weather unt il you
have warmed the windshield first, using
the heating and ventilation system. The
washer solution may freeze on the wind­ shie ld and reduce visib ility.
(D Note
- If you suspect that the air conditioner has been damaged, switch the system
off to avoid further damage and have it
inspected by a qualified dealership.
- Repairs to the Audi air conditioner re­
quire special technical know ledge and
special tools. Contact an authorized Aud i
dea ler fo r assistance.
@ For the sake of the environment
By reducing the amount of fuel you use,
you also reduce the amount of pollutants
emitted into the air.
(D Tips
- Keep the air intake s lots (in fro nt of the
w indshield) free from ice, snow and de ­
bris in order to maintain the proper func­
tion of the climate control system.
- The energy management system may
switch the seat heating* or rear window
defroster off temporarily . These systems
are available again as soon as the energy
balance has been restored.
- Air escapes through vents under the rear
window. When placing items of clothing
on the luggage compartment cover, en­
sure that the openings are not covered.

Warm and cold 71

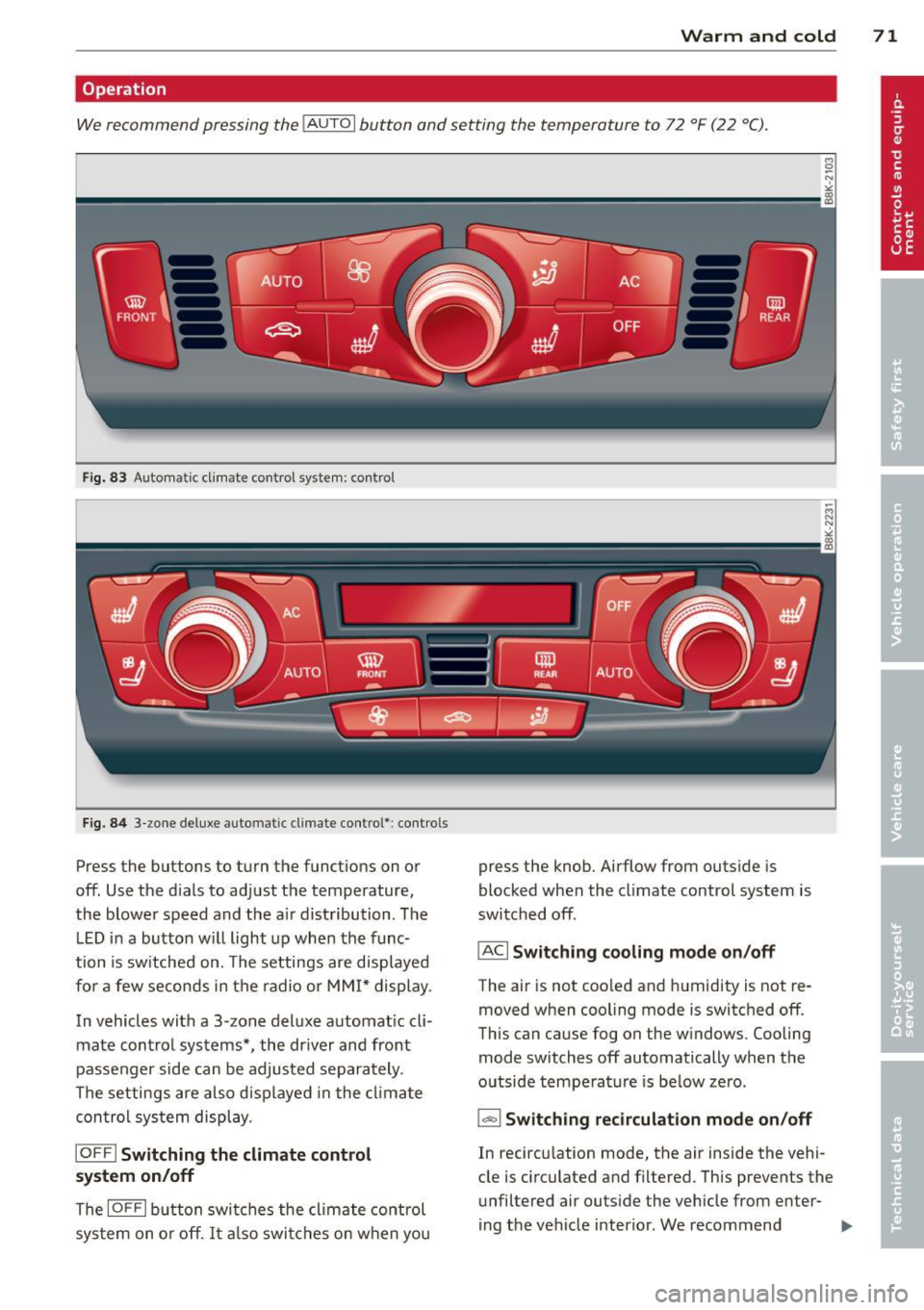

Operation
We recommend pressing the IAUTO I button and setting the temperature to 72 °F (22 °C) .
Fig. 83 Automa tic cl imate control system : con trol
Fig. 8 4 3-zone de luxe auto matic cl imate contro l': co ntro ls
Press the buttons to turn the function s on or
off. Use the d ials to adjust the temperature,
the blower speed and the a ir distribution . The
L ED in a button will light up when the func­
tion is sw itched on. The settings are displayed
for a few seconds in the radio or MMI* display .
In vehicles with a 3 -zone deluxe automat ic cl i­
mate control systems *, the dr iver and front
passenger side can be adjusted separately.
The settings are also d isplayed in the cl imate
con trol system display .
IOFFI Switching the climate control
system on /off
The IOF FI button switches the climate control
sys tem on o r off .
It also swi tches on when you press the knob. Airflow from outs
ide is
blocked when the climate control system is
switched off .
IACI Switching cooling m ode on /off
The a ir is not coo led and h umidity is not re­
moved when cooling mode is switched off .
This can cause fog on the w indows. Cooling
mode switches off automatically when the
outside temperature is be low zero .
1- 1 Sw itching recirculati on mode on /off
In recircu lation mode, the air inside the vehi ­
cle is circulated and filtered. This prevents the
unfiltered air outs ide the veh icle from enter­
ing the vehicle interior . We recommend

72 Warm and cold

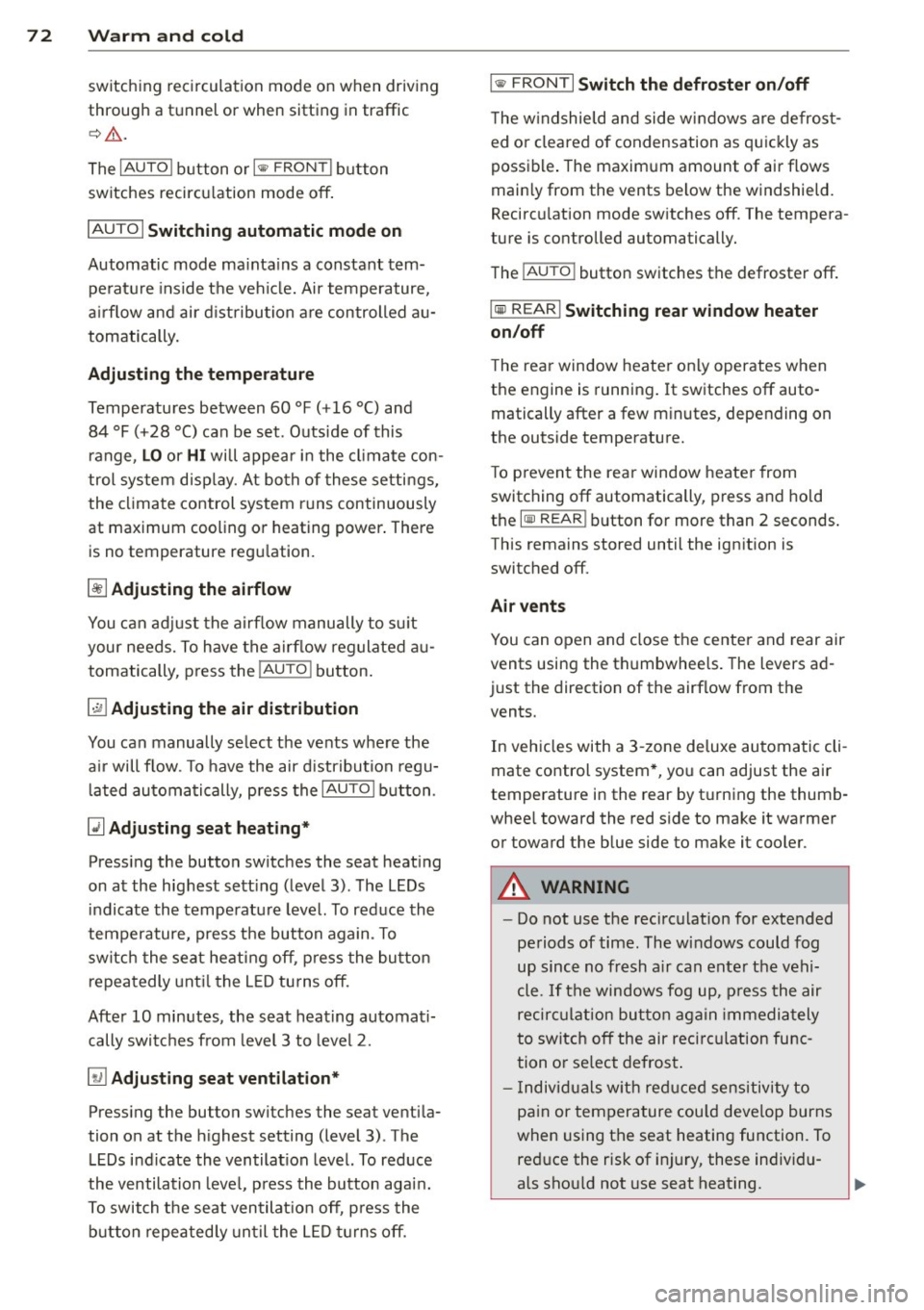

switching rec irculat ion mode on when driving
throug h a t unnel or when sitting in traffic
c:::> &. .
The IAUTOI button or I@ FRONT I butt on
switches recircu lation mode off .
IAUTO I Switching automatic mode on
Automatic mode ma inta ins a constant tem­
perature inside the vehicle. Air temperature,
airflow and air distribution are controlled au­
tomatically.
Adjusting the temperature
Temperatures between 60 °F (+16 °C) and
84 °F (+28 °C) can be set . Outside of this
range,
LO or HI will appea r in the climate con­
trol system disp lay. At both of these settings,
the climate control system runs continuously
at maximum cooling or heating power . There
is no temperature regu lation.
~ Adjusting the airflow
You can adjust the a irflow manually to su it
your needs . To have the airflow regulated au­
tomatically, press the
!AUTO ! button.
~ Adjusting the air distribution
You can manually select the ve nts where the
a ir will flow. To have the air d istribution regu­
la ted automatically, press the
IAUTOI button .
~ Adjusting seat heating*
Pressing the button switches the seat heat ing
on at the highest sett ing (level 3) . The LEDs
indicate the tempe rature leve l. To reduce the
temperature, press the button again. To
switch the seat heating off, press the button
repeatedly until the LED turns off.
After 10 minutes, the seat heating automati­
cally switches from level 3 to leve l 2.
[ill Adjusting seat ventilation*
Pressing the button switches the seat ventila­
tion on at the highest setting (level 3) . The
LE Ds indicate the ventilat ion level. To reduce
the ventilation leve l, press the button again.
To switch the seat ventilat ion off, p ress the
b utton repeatedly until the LED turns off.
I@ FRONT I Switch the defroster on /off
T he w indshield and side windows are defrost­
ed or cleared of condensation as quickly as
possible . The maximum amount of air flows
mainly from the vents below the windshield.
Recircu lation mode switches off. The tempera­
ture is controlled automatically.
The
i AUTO I button switches the defroster off.
lliil REARI Switching rear window heater
on/off
T he rear window heater only operates when
the engine is running. It switches off auto­
matically after a few minutes, depending on
the outside temperature.
T o p revent the rear window heater from
switching off automatically, press and hold
the
l oo REARI button for more than 2 seconds.
This remains stored until the ignition is
switched off.
Air vents
You can open and close the center and rear air
vents using the thumbwheels. The levers ad­
just the direction of the airflow from the
vents.
In veh icles with a 3-zone deluxe automatic cli­
mate control system*, you can adjust the air
temperature in the rear by turning the thumb­
whee l toward the red side to make it warmer
or toward the blue side to make it cooler.
A WARNING
-- Do not use the recirculation for extended
pe riods of time . The windows could fog
up since no fresh a ir can enter the vehi­
cle. If the windows fog up, p ress the air
recirc ulation button again immediately
to switch off the air recirc ulation func­
tion or se lect defrost .
- I ndividuals w ith reduced sensitivity to
pain or temperature could develop burns
when using the seat heating function. To reduce the risk of injury, these individu ­
als shou ld not use seat heating.

(D Note
To avoid damage to the heating elements in the seats, do not kneel on the seats or
place heavy loads on a small area of the
seat.
(D Tips
The seat heating only works when the seat
detects body weight on it. Placing objects
on the seat could create enough weight to
switch seat heating on.
Setup
The basic climate control settings can be ad­
justed in the radio or MM!* .
.. Se lect: I CARI funct ion button> A/C control
button. Or
.. Se lect:
I CARI function button > Car sys-
tems *
control button > AC.
Automatic recirculation*
When switched on, automatic recirculation
controls the recirculation mode automat ica lly.
If the windows fog up, press the
l FRONTI
button.
Synchronization*
When synchronization is switched on, the
same settings are applied to both the driver
and front passenger, except for the seat heat­
ing/ventilation*. Synchroni zation switches off
when you adjust the settings on the front pas­
senger's side.
You can also switch synchronization on by pressing and holding the knob on the driver's
side.
Supplementary heater
The supplementary heater warms the interior
of vehicles with flexible fue l engines more
quickly . The supplementary heater is control­
led automatically in the
Auto setting.
Warm and cold 7 3
Upper cabin heating
Applies to vehicles: with upper cabin heating
Fig. 85 Driver 's seat: ve nt for upper cabin heating
Fig. 86 Driver's seat: upper cabin heating button
I (I) m
The upper cabin area of the front seats can be
heated at three levels when the engine is run­
ning.
.. Press the~ button to switch the upper cab­
in heating on. The LED illuminates.
.. Press the~ button repeatedly until the LED
goes out to switch the upper cabin heating
off.
A WARNING
-
The output from the upper cabin heating
system may be very hot temporarily if the
air vents in the seats
r::!;>fig. 85 are cove red
by cloth ing or other objects when the sys­
tem is switched on. This can cause burns
on unprotected skin exposed direct ly to
the vents .
{!) Tips
-Upper cabin heating always switches on
at the highest level. You can red uce the
heat output with the~ button and in­
crease it with the~ button as needed.

7 4 Warm and cold
-Energy management ¢ page 185 may
reduce the heat output
if the battery
vo ltage is too low .

On the road
Steering
Manually adjustable steering wheel
The steering wheel position is fully adjustable
up and down and forward and back .
Fig. 87 Lever under the stee ring column
First, adjust the driver's seat correctly.
• Pull the lever
¢fig . 87 ¢ Lo,.
• Move the steering wheel to the desired po­
s it ion.
• Push the lever against the steering col umn
u ntil it locks.
There must be at least 10 inches (25 cm) be­
tween your chest and the center of the stee~
ing wheel.
If you cannot sit more than 10 in­
ches (25 cm) from the steering wheel, see if
adaptive equipment is available to help you
reach the peda ls and increase the distance
from the steering wheel.
F or detailed information on how to adjust the
driver's seat, see
¢ page 62.
& WARNING
Improper use of steering wheel adjust­
ment and improper seating position can
cause serious personal injury .
- Adjust the steering whee l co lumn on ly
when the vehicle is not moving to pre­
vent loss of vehicle control.
- Adjust the driver's seat or steering wheel
so that there is a minimum of 10 inches
(25 cm) between your chest and the
steering wheel¢
fig. 132. If you cannot
On th e road 7 5
maintain this minimum distance, the air­
bag system cannot protect you properly.
- If physical limitations prevent you from
sitting 10 inches (25 cm) or more from
the steering wheel, check with your au­
thorized Audi dealer to see if adaptive equipment is available .
- If the steering wheel is aligned with your
face, the supplementa l driver's a irbag
cannot provide as much protection in an
accident . Always make sure that the
steer ing whee l is al igned w ith your
chest .
- Always hold the steer ing whee l w ith your
hands at the 9 o'clock and 3 o'clock posi­
tions to reduce the risk of persona l injury
if the driver's airbag dep loys .
- Never hold the stee ring wheel at the 12
o'clock position or wi th your hands inside
the stee rin g wheel rim or on the steering
wheel hub. Holding the steering wheel
the wrong way can cause serious injuries
to the hands, arms and head if the driv­
er's airbag deploys.
Ignition lock
Starting engine with the key
App lies to vehicl es: wi th igni tion lo ck
The ignition is switched on and the engine
started with the ignition key .
Fig. 88 Igni tion key
St arting th e engin e
• Insert the key into the ignition lock .
• Step on the brake pedal and move the selec-
tor lever to the P or N pos ition. ..,.

76 On the road
• Press the key¢ fig. 88 -the engine will
start.
Switching the ignition on /off
If you wou ld like to switch the ignition o n
witho ut starting the eng ine, follow these
steps:
• Insert the key into the ignition lock.
• Press the key b riefly
without p ress ing the
brake pedal.
• To switch the ignition off, press the key
again .
When starting the engine, major e lectr ica l
l oads are swit ched off temporarily.
You can only remove the key w ith the ignition
switched off.
If the engine should not start immediately,
the starting process is automatically stopped
after a short time. Repeat starting procedure.
A WARNING
- N ever allow the engine to ru n in confined
spaces - dange r of asphyxiation.
- Never remove the ign ition key from the
ignition look whi le the vehicle is mov ing.
Ot herw ise, the stee ring lo ck coul d sud­
denly engage and you would not be ab le
to steer the vehicle .
- Always ta ke t he key wi th yo u wheneve r
yo u leave your vehicle. Otherwise, the
engine could be started or e lectrica l
equipment such as the power windows
cou ld be operated. This can lead to seri­
ous injury.
- Never leave children or persons requiring
assistance unattended in the vehicle. The
doors can be locked using the remote
transmitter, preventing people from es­
caping from the vehicle on their own in
the event of an eme rgency . Depend ing
on the time of year, people inside the ve­ hicle c an be exposed to very h igh or ve ry
low temperatures.
(D Note
Avoid high engine rpm, fu ll throttle and
heavy engine loads unti l the engine has
reached operating tempe rat ure - other­
wise you risk eng ine damage.
@ For the sake of the environment
Do not let the engine run w hile pa rked to
warm up. Begin dr iving immediately. Th is
reduces u nnecessary emissions.
(D Tips
- If the key cannot be removed from the
ign ition lock, you have to pull the me­
chanical key out of the master key in or­
der to be able to lock the vehicle
¢page 34 .
-After starting a cold engine, there may
be a brief pe riod of increased noise be­
cause the oil pressure must fi rst bu ild up
in the hydraulic valve ad juste rs. This is
normal and not a cause for concer n.
- If you leave the ve hicle w ith the ignition
sw itched on, the ig nit io n w ill sw itch off
afte r a cer tain per iod of t ime. Please
no te that electri cal eq uipment such as
exterior ligh ts will sw itch off as well
w hen that happens .

Starting the vehicle with the emergency
key
Applies to vehicles: with ignitio n lock
You can use the emergency key as an ignition
key in an emergency.
Fig . 89 G lo ve compar tment: A dapt er fo r em ergen cy
key
Fig. 90 In ser t emergen cy key in to the adapter
.,.. Take the adapter for the emergency key out
of the glove compartment
c:> fig . 89 .
.,.. Push the emergency key~ fig . 90 fully into
the adap ter . Make sure that the Audi r ings
are facing up.
.,.. Press the emergency key in the adapter
down un til it latches audibly .
.,.. Insert the adapter with the emergency k ey
forwa rd into the ignition swit ch . T he eng ine
can now be sta rted a s usual.
Stopping the engine
App lies to vehicles: with ig ni tion loc k
.,.. Bring the vehicle to a full stop .
.,.. Automatic transmission : Move the selector
lever to the P or N pos ition .
.,.. Press on the ignition key. The engine is
tu rned off.
.,.. You can now remove the key.
On th e road 77
Ste ering lock
The steering locks when yo u remove the ig ni­
tion key . The lo cked steering helps prevent ve ­
hicle theft .
Emergency off
If it is necessary in unus ual circumstances, the
engine can be switched off while the veh icle is
moving. The engine will be switched off if you
press on the key for an extended period .
A WARNING
-Never turn off the engine before the ve­
hicle has come to a comp lete stop. The
full funct ion of the brake booster and the
power steering is not guaranteed . You
must use more force to turn or brake if
necessary . Because you cannot steer and
brake as you usually wo uld, this could
lead to crashes and ser ious injuries.
- For safety reasons , you should always
pa rk your vehicle w ith the selector lever
in P . Otherwise, the vehicle could inad ­
verten tly roll away .
- The radiator fan can continue to run fo r
up to 10 minutes even after you have
turned off the engine and removed the ignition key. The radiator fan can a lso
turn on again if the engine coo lant heats
up because of intense sunlight or heat
build-up in the engine compartment.
- Always take the key with you whenever
you leave your vehicle. Otherw ise, the
engine could be started or electrical
equ ipment such as the power windows
could be operated . This can lead to seri­
ous injury.
- Never leave children or persons requiring
assistance unattended in the vehicle. The
doors can be locked using the remote
transmitter, preven ting people from es­
caping from the veh icle on their own in
the event of an emergency. Depending
on the time of year, peop le inside the ve­
hicle can be exposed to very high or very
low temperatures .

78 On the road
(D Note
If the engine has been under heavy load
for an extended period, heat builds up in
the engine compartment after the engine
is switched off -there is a risk of damaging
the engine. Allow the engine to run at idle
for about two minutes before switching it
off.
Convenience key
Starting the engine
Appl ies to vehicles: w it h co nve nience key
The I STAR T ENGINE S TOP! button switches
the ignition on and starts the engine .
Fig. 91 Cente r conso le: S TART ENGINE S TOP butto n
Starting the engine
.. Step on the brake peda l and move the selec­
tor lever to P or N
q &, .
.. Press on the ,..., 1s==T=--= A-=R ==T:-=:E~N ~G-;-,IN ;-;--;:::: E--;: S:-::;T =-::O :;-;: P:;-,I butto n
q fig. 91 -the engine w ill start .
Switch ing the ignition on /off
If yo u wou ld like to switch the ignition on
without starting the engine, follow these
steps:
.. Press the
!S TAR T ENGINE STOP! button
without pressing the brake peda l.
.. To switch the ignition off, press the button
again.
If the engine should not start immediately,
the starting process is automatically stopped after a short time . Repeat starting procedure.
When starting the engine, major e lectr ica l
loads are switched off temporarily. After a cold engine is started, there may be a
brief period of increased noise beca use oil
pressure must first bu ild up in the hydrau lic
valve adjusters. This is normal and not a cause
for concern .
A WARNING
=
-Never allow the engine to run in confined
spaces -danger of asphyx iat ion.
- Never turn off the e ngine until the vehi­
cle has come to a complete stop.
- Always take the key with you whenever
you leave your veh icle . Otherw ise, the
engine could be started or electrical
equ ipment such as th e power windows
could be ope rated. Th is can lead to seri­
ous injury.
- Never leave children or persons req uiring
a ssis tance u nattended in t he vehi cle. The
doors can be locked usi ng the remote
transmitter, preventing people from es ­
caping from the veh icle on the ir own in
the event of an emergency . Depending
on the time of year, peop le inside the ve­
hicle can be exposed to very high or very
low temperatures.
(D Note
- Avoid high engine rpm, full thrott le and
heavy eng ine loads unt il the eng ine has
reached operating temperature -other­
w ise you risk engine damage.
® For the sake of the env ironment
Do not let the engine run wh ile parked to
warm up. Begin dr iving immediately. This
reduces unnecessary emissions .
¢j) Tips
- After starting a co ld engine, there may
be a brief period of increased noise be­
cause the oil pressure must fi rst bu ild up
in the hydraulic valve ad justers. This is
normal and not a cause for concern .
- If you leave the veh icle with the ignition
switched on, the ignit ion w ill switch off
afte r a certain per iod of t ime . Please
1JJ1,
