AUDI A5 COUPE 2010 Owners Manual

Button( sl
!OFF]
IAUTOI
-
Temperature regu­
lator
1 a l
Temperature regu­
lator 2a>
-
1-= 1bi
Mea nin g
Turns on and off
Automatic operation -
driver's side/ front pas-
senge r's side
-
Temperature selection -
driver's side
Temperature selection -
front passenger's side
-Fan -dr iver's side/ front
passenger's side
Recirculation mode
Air distribution -driver's
side / front passenger's
si de
Defrost
Rear window defogger
Turns cooling system on
and off P
ag e
=> page 99
=> page 99
=> page 100
=> page 100
=> page 701
=> page 701
=> page 702
=> page 102
=> page 102
-
al The regu lator is a lso used to set the fan speed, air distr ibution and seat
he ating .
bl The symbol may appear sl ightly differen t in some mo dels .
[ i J Tip s
• The gril le on the controls=> page 98, fig. 106 must remain unob­
structed and must not be taped over. Measuring sensors are located
behind it. •
Controls and equip ­
ment
W arm and cold
Ap plies to veh ic les : with D elux e a uto mat ic clim ate co ntr ol plus
Turning the climate control on and off
Briefly press [ OFF], or press [AUTO I to turn the climate
contro l
on.
- Press the I OFF] button for at least 2 seconds to t urn the
climate control
off and to block the air supply from the
outside.
"OFF" appears in the d isp lay.
Climate contro l turns on again when you press the te mp era tur e
re gulat or•
Ap plies to v ehicles : wit h De luxe aut om at ic c lim ate co ntro l plu s
Automatic mode [AUTO)
The standard operating mode for all times of the year.
Turning on automat ic mod e
Set the temperature between 60 °F (+ 16 °C) and 84 °F
(+28 °C).
- Press the [AUTO I button.
Automatic mode ensures constant temperatures in the interior and
dehumidifies the air inside the vehic le. Air temperature, volume and
distr ibution are controlled automatica lly to reach or ma intain the
desired interior temperature as quick ly as possible . Fluctuations in
exterior temperature and the effects of temperature from the posi ­
tion of the sun are compensated for automatically .
This opera ting mode works on ly in an adjustab le te mperature range
of 60°F ( + 16°C) to 84 °F ( +28 °C). If a temperature below 60°F ( + 16 °C)
is selected ,
LO appears in the display . At temperatures above 84° F
( + 28°C),
HI is displayed. At both extreme settings, climate control
runs continuously at maximum cooling or heating power . There is
no temperature regulation .•
I • •

• ..__w_ a_ r_m _ a_ n_d_ c_ o_ ld __________________________________________________ _
Applies to vehicles: with Delu xe automatic c limate con tro l p lus

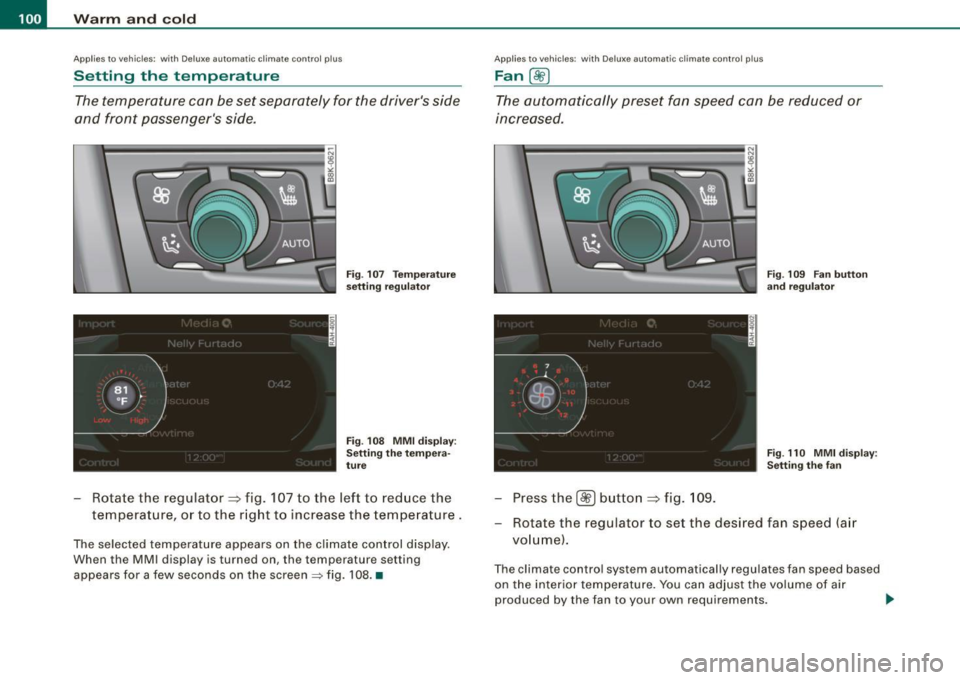

Setting the temperature
The temperature can be set separately for the driver's side
and front passenger's side.
Fig . 107 Temperature
setting regulator
Fig . 108 MMI display:
Setting the tempera­
ture
- Rotate the regulator=> fig. 107 to the left to reduce the
temperature, or to the right to increase the temperature.
The selected temperature appears on the climate control display.
When the MMI display is turned on, the temperature setting
appears for a few seconds on the screen~ fig. 108. •
Applies to vehic les : with Deluxe automatic climate co ntrol plu s
Fan ~
The automatically preset fan speed can be reduced or
increased.
Press the [Sf? ] button => fig. 109.
Fig. 109 Fan button
and regulator
Fig . 110 MMI display:
Setting the fan
Rotate the regulator to set the desired fan speed (air
volume).
The climate contro l system automatically regulates fan speed based
on the interior temperature. You can adjust the volume of air
produced by the fan to your own requirements . .,_

___________________________________________________ W_ a_ r_m _ a_ n_d_ c_ o_ ld _ __._
When the MM I display is turned on, the fan speed setting appears
for a few seconds on the screen =>
page 100 , fig.110.
[ i J Tips
• It is possible that the fan speed may change automatically . This
occurs to ensure that the desired temperature se tting is reached as
quickly as possible.
• The fan speed cannot be regulated separa tely for the driver and
front passenger. •
Applie s to ve hic les: with D elux e a utom atic c lim ate co ntrol plu s
Recirculation mode[~)
The recirculation mode prevents polluted outside air from
entering the vehicle interior.
Turning on recirculation mode
-Press the lo'.;)] ~ & button.
Turning off recirculation mode
- Press the~ button again, or
press the (AUTO ] button.
In recirculation mode , air is drawn from the vehicle interior, filtered
and recirculated. We recommend selecting recirculation mode
under the following conditions:
When driving through a tunnel or in a traffic jam so that exhaust
fumes and odors cannot enter the vehic le interior.
& WARNING
You should not use the recirculation mode for an extended period
since no fresh air is drawn in. W ith the air-conditioning switched
Con tro ls and eq uip­
ment
& WARNING !continued )
off, the windows can fog up, which increases the risk of an
accident! •
Applies to vehic les : with De lu xe autom atic c lima te cont rol plu s

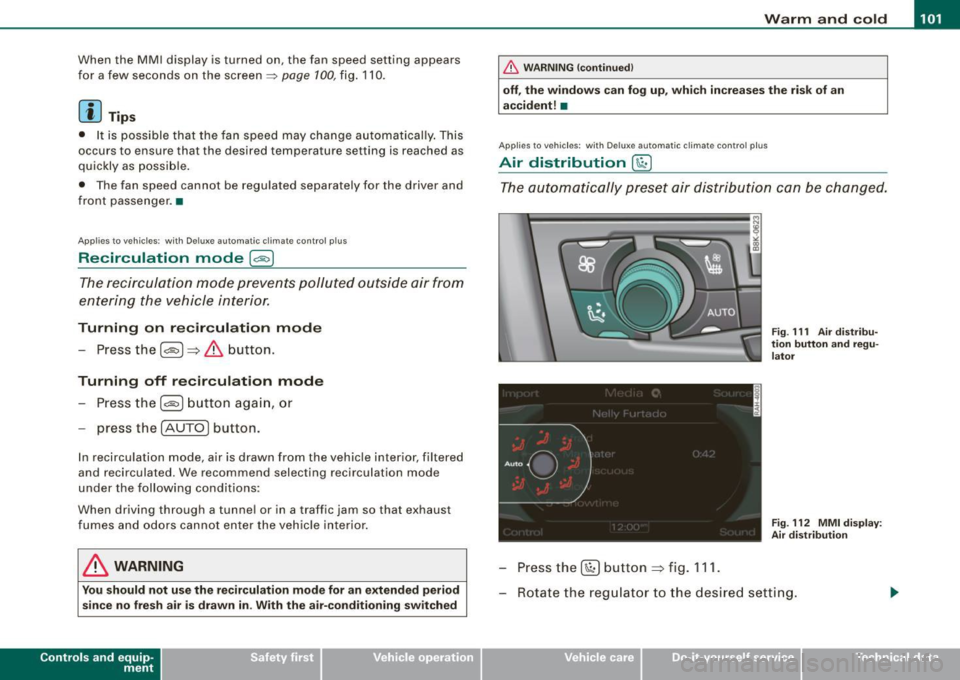

Air distribution I &-I
The automatically preset air distribution can be changed.
Press the[~) button ~ fig. 111.
Fig . 1 11 Air distribu­
tion button and regu­
lator
Fig. 112 MMI display:
Air distribution
Rot ate the regulator to the desired setting.
Vehicle care I I irechnical data

• .___w __ a _r _m _ a _n_d_ c_ o _ ld __________________________________________________ _
You can adjust the air distribution so that air flows from specif ic
vents. In position
:0 air flows only to the windows, in position :J, it
flows to the driver or passenger , and in position
!-0 it flows to the
footwell. There are additional combinations available to adjust air
dis tribution as needed .
To regulate a ir distribution automat ically, switch to [AUTO] .
When the MMI display is turned on, the air distribution setting appears for a few seconds on the screen=>
page 101, fig. 112. •
Applies to ve hicles: w ith Delu xe automa tic c lima te con tro l plus
Defrost [@ I
The windshield and side windows are defrosted or cleared
of condensation as quickly as possible.
- Press the 1@ 1 button to turn on the defroster .
- Press the
[@ j button again, or press the [ AUTO j button to
turn it off.
Temperature is controlled automatically. The maximum amount of
air flows mainly from the vents below the windshield.
Pressing the [@] button switches off recirculation mode. •
Applies to ve hicles: w ith Deluxe au to m ati c cli mate con tro l plus
Rear window defogger [CiWj
The rear window defogger clears the rear window of
condensation.
- Press the ICiW ] button to turn the rear window defogger on
and off.
The rear window defogger works only when the engine is running.
The indicator light in the button illuminates when the rear window
defogger is on. The
rear window defogger is switched off automatically after 10 to
20 minutes, depending on the outside temperature.
The rear window defogger can be turned on permanently by
pressing the
[Cial] button for more than two seconds. This remains
stored until the ignition is switched off . A rear window defogger that
was switched on also remains stored for 15 m inutes after the igni ­
tion is switched off.
If the engine is restarted within these 15 minutes , the rear window
defogger is activated for 10 to 20 minutes, depending on outside
temperature. When a vehicle is parked for a short time , the rear
window defogger does not need to be manually activated again.
~ For the sake of the environment
As soon as the rear window is clear, you should switch the rear
window defogger off. The reduced power consumption has a bene­
ficial ef fect on fuel consumption .•
Ap plies to veh ic les: w ith Delux e au tomatic c limate co ntrol p lu s
AC mode [AC ]
Turning AC off
- Press the IACI button.
Turning AC on
- Press the IACj button again.
The cooling system is turned on in AC mode. The heating and v enti ­
lation system is controlled automatically .
[ i] Tips
If the LED in the switch does not illuminate after AC mode has been
turned on( = turning th e AC off), there is a fault in an air -conditioning .,_

___________________________________________________ W_ a_ r_m _ a_ n_d_ c_ o_ ld _ __.11111
component. Please consult a authorized dealership if there is an
operating problem. •
Applies to v ehicl es: with De lux e autom atic c lim ate contro l plus

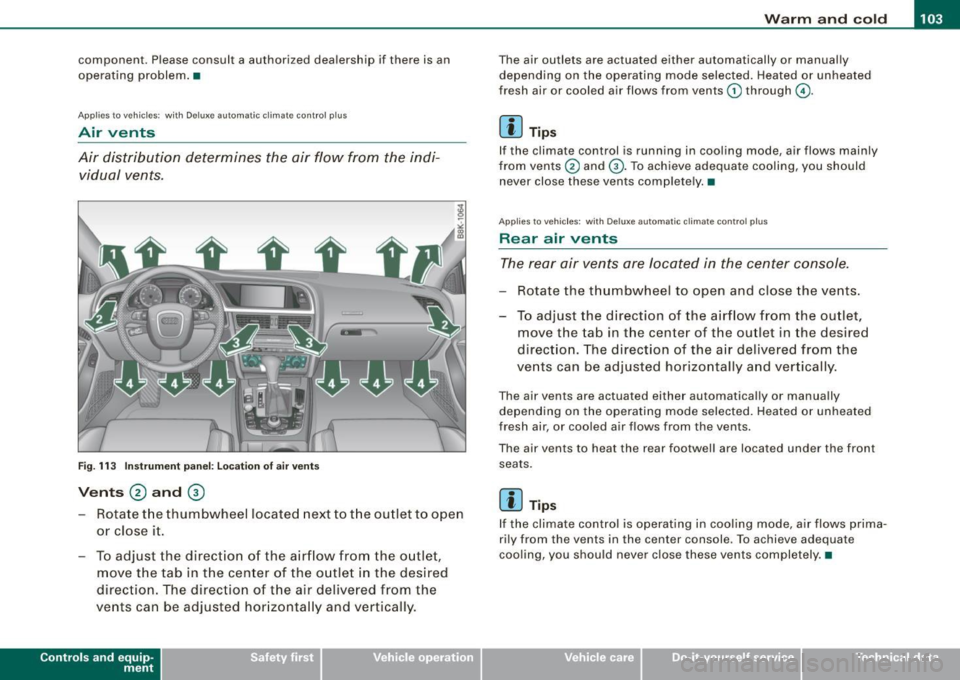

Air vents
Air distribution determines the air flow from the indi­
vidual vents.
Fig. 113 Instrument panel: Locat ion of air vents
Vents @ and ®
- Rotate the thumbwheel located next to the outlet to open
or close it.
- To adjust the direction of the airflow from the outlet,
move the tab in the center of the outlet in the desired
direction . The direction of the air delivered from the
vents can be adjusted hor izontally and vertically .
Contro ls and eq uip­
ment
The air outlets are actuated either automatically or manual ly
depending on the operating mode selected. Heated or unheated
fresh air or cooled air flows from vents
G) through G).
[ i ] Tips
If the climate control is running in cooling mode, air flows mainly
from vents
0 and G). To achieve adequate cooling, you should
never close these vents comp lete ly. •
Applies to ve hic les : with Deluxe automa tic clima te cont ro l p lus
Rear air vents
The rear air vents are located in the center console.
Rotate the thumbwheel to open and close the vents.
To adjust the direction of the airflow from the outlet,
move the tab in the center of the outlet in the desired
direction. The direction of the air delivered from the
vents can be adjusted horizontally and vertically.
The air vents are actuated either automatically or manually
depending on the operating mode selected. Heated or unheated
fresh air, or cooled air f lows from the vents.
The air vents to heat the rear footwell are located under the front
seats .
[ i ] Tips
If the climate control is operating in cooling mode, air flows prima­
rily from the vents in the center console . To achieve adequate
cooling, you should never close these vents completely. •
Vehicle care I I irechnical data

• .___w __ a _r _m _ a _n_d_ c_ o _ ld __________________________________________________ _
Applies to vehic les: with Deluxe automatic c limate con tro l plu s
Economical use of the climate control system
Economical use of the climate control system helps save
fuel.
When the climate control system is working in cooling
mode, engine performance is reduced and fuel consump­
tion is affected. To keep the time the climate control system
is on as short as possible, you should do the following:
- To save fuel, turn off cooling mode by pressing the AC
button (indicator light goes out).
- In addition, if you open the window or the panoramic
sliding/tilting sunroof * while driving, turn off cooling
mode by pressing the AC button (indicator light goes
outl.
- If the vehicle is extremely hot due to the heat of the sun,
briefly open doors and windows.
c£> For the sake of the environment
When you save fuel, you reduce emissions from the vehicle. •
Deluxe automatic climate control
plus - basic settings
Applies to vehic les : with Deluxe automatic climate contro l plus
General information
The basic climate control settings can be adjusted in the
radio or
MM/* .
Fig . 114 MMI display:
Setup climate control
- Select: Function button [CAR]> Control button AC.
The following functions can be selected:
• Automatic recirculat. =>
page 104
• Synchronization=> page 105 •
Applies to veh icles: w ith Deluxe automatic clima te co ntrol p lus
Automatic recirculation
An air quality sensor detects increased concentrations of
pollutants in the outside air and automatically switches
to recirculation mode.
We recommend that you always keep automatic recirculati on ON to
prevent polluted outside air from entering the vehicle interior. .,_

___________________________________________________ W_ a_ r_m _ a_ n_d_ c_ o_ ld _ __.lffllll
If the a ir qu alit y se nsor located in the climate control system
detects polluted outside air, the sensor decides whether the air
pollution can be reduced by the factory -ins tal led pollutant filter or
whether it is necessary to switch to recirculation. With heavy
concentrations of pollutants, the climate control system is switched
automatically to rec irculation mode and the supply of outside air is
b locked. As soon as the concentration of pollutants in the outs ide
air drops , fresh air is supplied to the vehicle interior again.
In the event that the w indows fog up during automatic recirculation,
press the
[ liW ) button immediately.
Under certain operating conditions, automatic recirculation is
switched off automatically. When outside temperatures are below
about 50 °F
( + 10 °C), automatic recirculation is limited to
30 seconds . When outs ide temperatures are below about 30 °F (-
1 °Cl, automatic r ecirculation is limited to 15 seconds .•
Ap plies to vehicles: with D eluxe auto matic cl imate con trol plus
Synchronization
One climate control setting for all seats.
After Synchronization is set to On , all of the subsequent cl imate
c ontrol se ttings (excep t for seat heating *) for the driver are trans­
ferred to the front passenger .
Synchronization is canceled when settings are adjusted on the front
passenger's side. •
Contro ls and eq uip­
ment
Seat heating
Ap plies to vehi cles : wit h front sea t heat ing
Front seat heating~
The seat cushion and the seat back of the front seats can
be heated electrically.
Press the~ button.
Fig. 115 Seat heat ing
b utt on and re gul ato r
Rotate the reg ulator to the desired setting .
In position 0, seat heating is turned off . T he control range is from 1
to 6.
Seat heating only functions when the seats are loaded with body
we ight . If a person is no t si tting on the front seats, seat heating
should be switched off to prevent unin tentiona l heating of the seat
surfaces.
(D Note
To avoid damage to the heating elements in the seats, do not kneel on the seats or place heavy loads on a small area of the seat. .,,_
Vehicle care I I Technical data

• .___w __ a _r _m _ a _n_d_ c_ o _ ld __________________________________________________ _

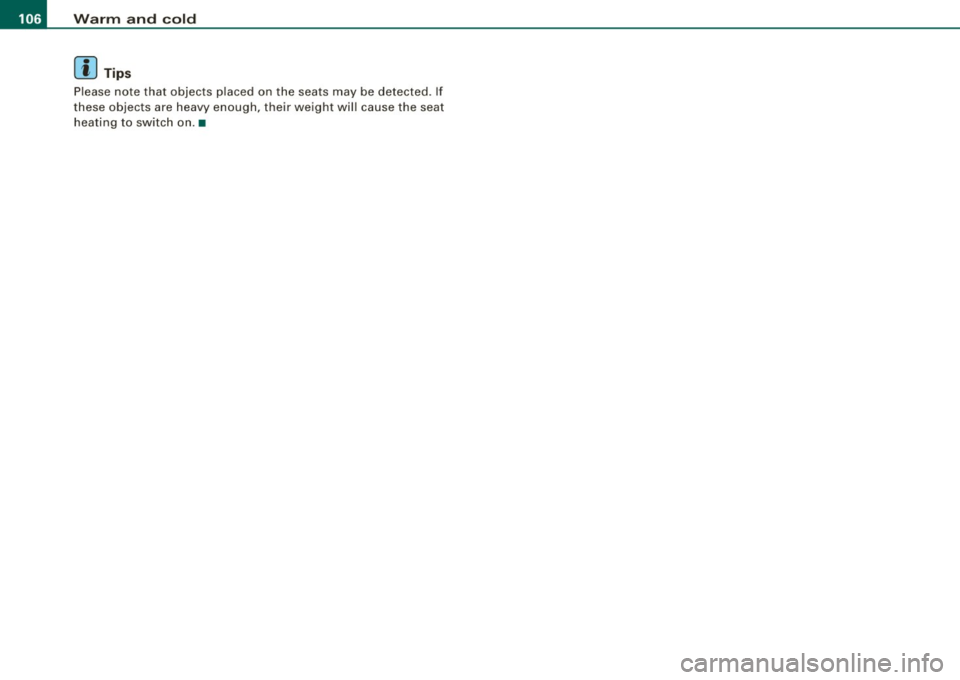

[ i ] Tips
P lease no te that objects p laced on the seats may be detected. If
these objects are heavy enough, their weight wil l cause the seat
h eating to switc h on.•

----------------------------------------------~O~n~t:!..h~ e:...!.:ro~a~d!._ _J-
On the road
Steering
Manually adjustable steering wheel
The height and reach of the steering wheel can be
adjusted.
First, adj ust t he drive r's seat correct ly.
F ig . 116 L ev er unde r
th e steeri ng col umn
- Pull the lever~ fig . 11 6 -A rrow- ~ /n..
- Move the steering wheel to the desired position.
Push the lever against the steering column until it locks.
T here must be at l east 10 inches (25 cm) between your chest and the
center of the steering wheel. If you cannot sit more than 10 inches
(25 cm) from the steering wheel, see if adaptive equipment is avail­
able to help you reach the pedals and increase the distance from the
steering wheel.
F or detailed information on how to ad just the driver's seat, see
=> page 72.
Con tro ls and eq uip­
ment
The steering wheel can be adjusted even when the ignition is turned
off. For vehicles with seat memory, the individual positions for the
steering whee l can be stored along with the seat position.
& WARNING
Improper u se of ste ering wheel adju stme nt and improper se ating
po sition can cau se seriou s per sonal injury .
• Adju st the steering wheel column onl y when the vehi cle is not
moving to preven t los s of vehicl e control.
• Adjust the dr iver' s se at or steering wheel so that there is a
minimum of 10 inch es (25 cm ) b etwe en your che st and the
s tee ring wheel
=> pag e 170 , fig. 1 8 0. If you cannot maintain th is
minimum di stance, the airbag sy ste m cannot protect you prop ­
erly .
• If physical limitation s prevent you from sitting 1 O inche s (25
c m ) or mo re from the steering whee l, check with your authori zed
Audi dealer t o see if adaptive equipment i s available .
• If the stee ring whe el i s a ligned with you r fa ce, the supple ­
men tal driver' s airbag cannot provide as much prot ect ion in an
a c cident . A lw ays m ake sure that the steering wheel i s aligned with
your chest .
• Alway s hold t he steer ing wheel with yo ur h and s at the 9 o'c lock
a nd 3 o'clock po sition s to reduce the ri sk of per son al injury if the
dri ver' s airb ag dep lo ys .
• Neve r hold the steering wheel at the 12 o'clock po siti on or with
your hand s insid e the steeri ng wheel rim or on the steer ing wheel
hub. H olding the steerin g wheel th e wrong way can cause seri ous
i nj urie s to the h ands , arm s and head if the dr iver' s a irbag
deploy s.•
Vehicle care
I I irechnical data

• ..__O_ n_ t_h _ e_ r_ o_ a_ d ____________________________________________________ _
Ignition lock and ignition switch
Starting engine with the key
The ignition is switched on and the engine started with
the ignition key.
Fi g. 11 7 Ignit ion key
Insert the key into the ignit ion lock .
Manual transmission : Fully depress the clutch pedal a nd
move t he shi ft lever to the neutra l posi tion .
Automatic transmission*: Step on the brake peda l and
move the selector lever to the
P or N posit ion.
Press the key=::> fig . 117 -the eng ine will sta rt.
By pressing the key w ithout stepping on the clutch or the brake, the
ign ition is switched on and off. With the ignition on, the steering
whee l is unlocked.
You can only remove the key with the ignition switched off. To do
this, you have to press on the key again. With an automatic trans­ mission, the selector lever m ust be in the
P position.
When starting the engine, major electrical loads are switched off
temporarily. After starting a cold engine
, there may be a brief period of increased
noise because the o il pressure must first build up in the hydraulic
valve adjusters . This is normal and not a cause for concern .
I f the engine should not start immediately, the starting process is
automatically stopped a fter a short t ime . Repeat starting procedure.
Driv er me ssage in the instrument clust er di spl ay
Pre ss b rake ped al to s ta rt engine
This message appears if you do not step on the brake pedal to start
the engine on a vehicle with an automatic transmission .
Press clut ch pedal to sta rt engine
T his message appears if you do not step on the c lutch peda l to start
the engine on a vehicle with a manua l transmission .
Engage N or P to start engine
This message appea rs when attempting to start the engine if the
selector lever for the automatic transmission is not in the
P or N
position . The engine can only be started with the selec tor in these
positions.
S hift to P, othe rwis e veh icle can roll away. Doors do not lock if le ver
is not in
P.
This message appears for safety reasons along with a warning
signal. It appears if the selector lever for the automatic transmiss ion
is not in the
P p o sition after the ign it ion is switched off. Move the
selector lever to the
P position, otherwise the vehicle is not secured
aga inst ro lling away. You a lso cannot l ock the vehicle using the
locking bu tton on the door handle or using the remote key .
& WARNING
• Always take the key with you wheneve r you leave yo ur vehi cle .
Otherwi se , the engine could be start ed or electr ical equipment
s u ch as the po wer windows could be oper ated . Th is ca n lead to
seri ous injury.
