& WARNING (continued)
vehicle. Always drive at speeds which are suited to the road condi­
tions -risk of crash. •
Energy management
Starting ability is optimized
Energy management controls the distribution of electrical
energy and thus optimizes the availability of electrical
energy for starting the engine .
If a vehicle with a conventional energy system is not driven for a
long period of time , the battery is discharged by idling current
consumers (e.g . immobilizer) . In certain circumstances it can result
in there being insufficient energy available to start the engine.
Intelligent energy management in your vehicle handles the distribu ­
tion of electrical energy. Starting ability is markedly improved and
the life of the battery is extended.
Basically, energy management consists of
battery diagnosis, idling
current management
and dynamic energy management .
Battery diagnosis
Battery diagnosis continuously determines the state of the battery.
Sensors determine battery voltage, battery current and battery
temperature. This determines the current state of charge and the
power of the battery.
Idling current management
Idling current management reduces energy consumption while the
vehicle is standing . With the ignition switched off, it controls the
energy supply to the various electrical components. Data from
battery diagnosis is considered.
Controls and equip­ ment Safety first Vehicle operation
Intelligent technology
Depending
on the battery's state of charge, individual consumers
are gradually turned off to prevent excessive discharge of the
battery and thus maintain starting capability.
Dynamic energy management
While the vehicle is being driven, dynamic energy management
distributes the energy generated according to the needs of the indi­
vidual components. It regulates consumption, so that more elec­
trical energy is not being used than is being generated and ensures
an optimal state of charge for the battery.
[ i] Tips
• But even energy management cannot negate the limits of
physics. Consider that the power and life of a battery are limited.
• If starting ability is threatened, you are informed by a warning
~ page 242, "Driver notification in the instrument cluster
display". •
What you should know
The highest priority is given to maintaining starting capa­
bility.
The battery is severely taxed in short-distance driving, in city traffic
and during the cold time of year. Abundant electrical energy is
required, but only a little is generated. It is also critical if the engine
is not running and electrical components are turned on. In this
instance energy is being consumed but none is being generated.
It is in precisely these situations that you will notice energy manage ­
ment actively regulating the distribution of energy.
Vehicle stands for an extended period
If you do not drive your vehicle over a period of several days or
weeks, electrical components are gradually cut back or switched off.
This reduces energy consumption and maintains starting capability
over a longer period.
Vehicle care Do-it-yourself service Technical data

llffl __ ln_ t _e_ ll-'"ig ...,_ e_ n_t _t_ e_ c_ h _ n_o _ l_o _,.g= y,_ __________________________________________ _
Take into consideration that when you unlock your vehicle, some
convenience functions, such as the remote key or power seat
adjustment, may not be available. The convenience functions will be
available again when you turn on the ignition and start the engine.
With the engine turned off
If you listen to the radio, for example, with the engine turned off or
use other MMI functions, the battery is being discharged .
If starting capability is jeopardized due to energy consumption, the
following warning appears in the MMI display :
Please start engine, otherwise system will switch off in
3 minutes.
The warning indicates that the system will be turned off automati­
cally after 3 minutes. If you wish to continue using the functions,
you have to start the engine .
With the engine running
Although electrical energy is generated when the vehicle is being
driven, the battery can become discharged. This happens mostly
when little energy is being generated and a great deal consumed and the battery's state of charge is not optimal.
To bring the energy balance back into equilibrium, consumers
which require especially large amounts of energy are temporarily
cut back or switched off. Heating systems in particular require a
great deal of energy. If you notice, for example, that the heated
seats* or the heated rear window are not heating, they have been
temporarily cut back or switched off. These systems will be available
again as soon as the energy balance has been restored.
You will also notice that engine idle speed has been increased
slightly . This is normal and not a cause for concern. By increasing
engine idle speed the additional energy required is generated and
the battery is charged.
Driver not ification in the instrument cluster
d isplay
If battery power drops into the range where it can limit the ability of
the engine to start, this is shown in the instrument cluster display
with the following driver message:
'-' Low battery charge: battery will be charged while driving
This notification reminds you that the starting capability of the
engine may be limited. As soon as you start driving again, the
battery will be recharged and the notification will go out.
Driver notification appears and goes out again
If this driver notification appears after the ignition is turned on or
while driving and it goes out again after a while, the battery has
been adequately recharged.
Driver notification appears and does not go out again
If this driver notification appears after the ignition is turned on or
while driving and does not go out again, the battery's state of
charge is not in the optimal range . Starting ability is restricted . Have
the battery checked as soon as possible by an authorized Audi
dealer or qualified workshop. •

Driving and environment
The first 1,000 miles (1,500 km) and afterwards
!\Jew engine
The engine needs to be run-in during the first 1,000 miles
(1,500 km).
F o r th e fir st 600 mil es (1,000 kilomet ers):
Do not use full throttle.
- Do not drive faster than 3/4 of the top speed marked on
the speedometer.
- Avoid high engine speeds .
From 600 t o 1,000 mil es (1,000 t o 1,500
kil om eter s):
- Speeds can gradually be increased to t he maximum
permiss ible road or engine speed .
During and aft er br eak-in p eri od
- Do not rev the engine up to high speeds when it is cold. This applies whether the transm ission is in N (Neutral) or
1n gear.
Aft er the br eak-in p eriod
- D o not exceed max imum e ngine speed unde r any
circumstances.
- Upshift into the next higher gear before reaching the red
area at the end of the tachome ter scale
~ page 8 .
Controls and equip­
ment Safety first Vehicle operation
Dri
ving and environm ent
During the first few hours of driving, the eng ine's internal friction is
higher than later when all the moving parts have been broken in.
How well this break -in process is done depends to a considerable
extent on the way the vehicle is driven during the first 1,000 miles
(1,500 ki lometers).
0 Not e
Extreme ly high engine speeds are automatically reduced. However,
these rpm limits are programmed for an engine well run-in, not a
new engine .
~ For the sake of the environment
Do not drive with unnecessarily high engine speeds -upshifting
early saves fuel, reduces noise and protects the environment .
New tires
If your v ehic le is running on new tires, drive very careful ly
for the first 350 mi les (500 k ilometers) after fitt ing .
& WARNING
New tir es tend to be slipp ery and mu st al so be "broken -in ". B e
su re to r ememb er thi s during th e fir st 350 m ile s ( 50 0 k ilome te rs).
Brak e gen tly. Av oid follow ing close ly behind other vehicl es or
o the r s ituati ons that mig ht requi re su dde n, har d b raking.•
Vehicle care Do-it-yourself service Technical data

___ D_ r_ iv_ i_ n-' g"'""'- a_ n_d_ e_ n _ v_i_r _ o _n_ m_ e_ n_t _____________________________________________ _
New brake pads
Remember that new brake pads do not have a full braking
effect during the first 250 miles (400 kilometers) after they
are installed .
New brake pads have to be "burnished in" before they have optimal
grab =>& .
During the break -in period, you shou ld avoid putting severe loads
on the brakes . Severe loads include, for examp le, sudden hard
braking, in particular at very high speeds or, for example, on moun ­
tain passes .
& WARNING
New brake pad s don' t have the b est sto ppin g powe r and mu st b e
" brok en-in " during the initi al 100 to 15 0 mile s (150 t o 200 kil ome ­
t e rs) of n orm al cit y dri ving . You can co mpen sa te for thi s by
p re ss ing the brak e ped al mor e firmly . Th is also app lies la ter whe n
n ew pad s are in sta lled.
:J
Avoid damaging the vehicle
------------
When you are driving on poor roads , or over curbs, steep ramps ,
etc., make certain that low -lying parts such as spoilers and exhaust
system parts do not bottom out and get damaged.
This is especially true for vehicles with low -slung chassis (sports
chassis) * and fully loaded vehic les.
Driving through water on roads
Note the fo llowing to avoid vehicle damage when driving through
water , for example on flooded roads: • T
he water must not be any higher than the bottom of the vehicle
body .
• Do not drive faster than wa lking speed.
& WARNING
Aft er d riv in g throu gh water, m ud, s lus h, et c., the br akes ma y be
s low t o take eff ect beca use of w et br ake r otor s and p ad s. Dr y the
br ak es fir s t by br aking caref ully to r estor e th e full br aking effe ct.
0 Note
Vehicle components such as the engine, transmission, suspension
or e lectrica l system can be severe ly damaged by driving through
water .
[ i ] Tip s
• Check the depth of the water before d riving th rough it .
• Do not stop the vehic le, drive in reverse or switch the engine off
wh en driving through wat er.
• Keep in mind that oncoming vehicles may create waves that
raise the water level and make it too deep for your vehicle to drive
through safely.
• Avoid driving through salt water because it can cause
corrosion. •
Catalytic converter
It is very important that your emission control system
(catalytic converter) is functioning properly to ensure that
your vehicle is running in an environmentally s ound
manner.
- Always use lead -free gasoline ~ page 265, "F uel supply" . .,_

-Neve r run the tank down a ll the way to empty .
- Never put too much motor oil in your engine=>
page 275,
"Adding engine oil 'l:::r.".
-Never try to push- or tow-start your vehic le .
The catalytic converter is an efficient "clean -up" device built into the
exhaust system of the vehicle. The cata lytic converter burns many
of the po llutants in the exhaust gas before they are released into the
atmosphere.
The exclusive use of un leaded fuel is critica lly important for the life
of the catalytic converter and proper functioning of the engine .
& WARNING
• Do not par k or operat e the vehicle in areas w here the ho t
ex haust sys te m m ay come in conta ct w ith d ry grass, bru sh , fu el
s pill or other mater ial which can cause a fire.
• Do not ap ply ad diti ona l u nd erc o ati ng or ru stpro ofing on o r
n ea r th e ex haust m an ifold, exhau st pipe s, ca talytic convert er or
h eat s hield s. Dur ing drivin g, the sub sta nce use d for und ercoa ting
c ould o verh eat and cause a fir e.
0 Note
• Be aware that just one tank filling with le aded fue l wil l a lready
seriously degrade the performance of the catalytic converter.
• Do not exceed the correct engine oil level
~ page 275.
• Do not drive until the fuel tank becomes completely empty. The
engine could misf ire. Unburned fuel could also get into the exhaust
system and this could cause the catalytic converter to overheat.
• Do not turn off the ignit ion whi le the vehicle is moving.
• Do not continue to operate your vehicle under these conditions,
as otherwise fuel can reach the cata lytic converter. This could result
in overheating of the converter, requiring its rep lacement .
Controls and equip­
ment Safety first Vehicle operation
Dri
ving and environm ent
• To assure efficient operation of the Emission Control System:
- Have your vehic le maintained properly and i n accordance w ith
the service recommendations in your Warranty
& Maintenance
booklet .
- Lack of proper maintenance as wel l as improper use of the
vehic le wi ll impair the function of the em ission control system
and could lead to damage .
Even when the Emission Control System is operating properly, the
exhaust gas can have a sulfur-like exhaust gas smell under some
operating states . This depends on the su lfur content of the fuel
bei ng used. Using a different brand of fue l may help, or fil ling the
tank with lead-free super grade gasoline .
Operate your vehicle economically
and minimize pollution
General
Your personal style of driving will determine the economy
of your vehicle, as well as exhaust and noise levels .
Fuel economy, environmental impact, and wear on your engine,
brakes and tires largely depend on three factors:
• your persona l driving style
• operating conditions
• technica l limitations
If you anticipate what you need to do next and drive economica lly,
you can easily cut your fuel consumpt ion by 10-15 percent . This
section wil l give you some tips on how you can help the environ-
ment and your pocketbook . ...
Vehicle care Do-it-yourself service Technical data

___ D_ r_ iv _i_ n-' g"'""'- a_ n_d_ e_ n _ v_i_r _ o _n_ m_ e_ n_t _____________________________________________ _

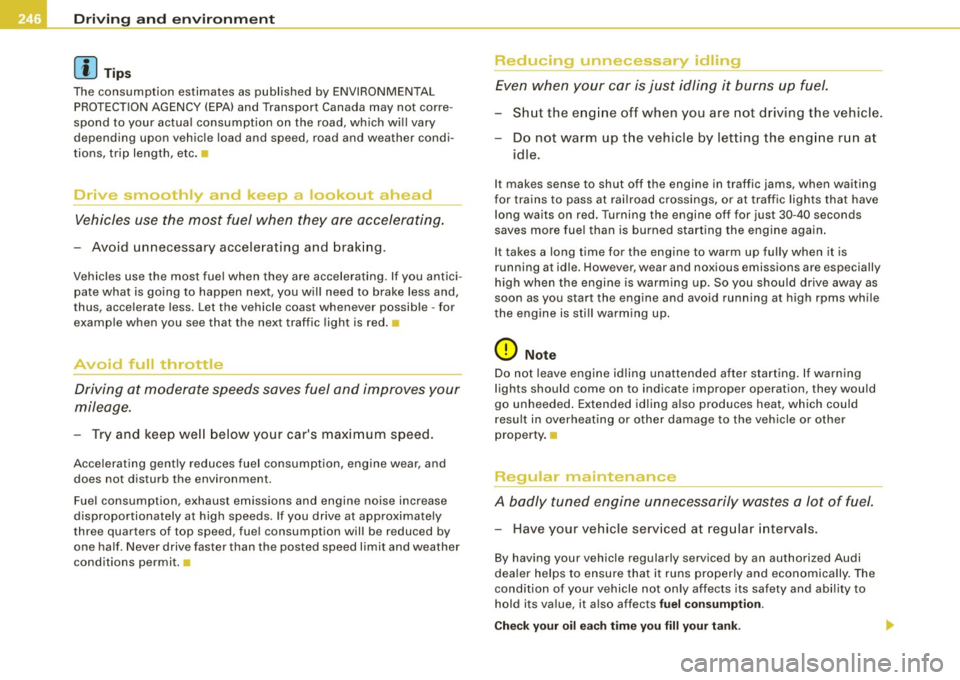

[ i ] Tip s
The consumption estimates as published by ENVIRONMENTAL
PROTECTION AGENCY (EPA) and Transport Canada may not corre ­
spond to your actua l consumption on the road, which wi ll vary
depending upon vehic le load and speed, road and weather condi­
tions, trip length, etc .•
Drive smoothly and keep a tookout ahead
Vehicles use the most fuel when they are accelerating.
- Avoid unnecessary accelerating and brak ing.
Vehicles use the most fuel when they are accelerating . If you antici ­
pate what is going to happen next, you will need to brake less and,
thus, accelerate less. Let the vehicle coast whenever possible -for
examp le when you see that the next traffic ligh t is red .
Avoid full thrott e
Driving at moderate speeds saves fuel and improves your
mileage.
- Try and keep we ll below your car's maximum speed.
Acce lerating gently reduces fuel consumption, engine wear, and
does not disturb the environment .
Fuel consumption, exhaust emissions and engine noise increase
disproportionately at high speeds. If you drive at approximate ly
three quarters of top speed, fuel consumption will be reduced by
one half. Never drive faster than the posted speed limit and weather
conditions permit. •
Reducing unnecessary idling
Even when your car is just idling it burns up fuel.
- Shut the engine off when you are not driving the vehicle.
-Do not warm up the vehicle by letting the eng ine run at
idle.
It makes sense to shut off the engine in traffic jams, when waiting
for trains to pass at rai lroad crossings, or at traffic lights that have
long waits on red. Turning the engine off for just 30-40 seconds
saves more fuel than is burned starting the engine again .
It takes a long time for the engine to warm up fully when it is
running at idle. However, wear and noxious emissions are especially
high when the engine is warming up. So you should drive away as
soon as you start the engine and avoid running at high rpms while
the engine is sti ll warm ing up .
0 Note
Do not leave engine idling unattended after starting. If warning
lights should come on to indicate improper operation, they would
go unheeded . Extended id ling a lso produces heat, which could
resu lt in overheating or other damage to the vehicle or other
property .•
Regular maintenance
A badly tuned engine unnecessarily wastes a lot of fuel.
- Have your vehicle serviced at regular intervals.
By having your vehicle regularly serviced by an authorized Audi
dea ler helps to ensure that it runs properly and economically. The
condition of your vehicle not only affects its safety and abi lity to
hold its value, it also affects
f ue l co nsu mpti on.
C hec k your o il e ach tim e y ou fill your ta nk.

The amount of oil used is related to engine load and speed .
It is normal for the oil consumption of a new engine to reach its
lowest va lue after a certain mileage has been driven.
You must drive your vehicle about 3,000 mi les (5,000 kilometers)
before you can properly assess oil consumption.
This also applies to fuel consumption and engine output.
0 Note
• Have your vehicle maintained properly and in accordance with
the service recommendations in your Warranty
& Maintenance
booklet. Lack of proper maintenance as well as improper use of the
vehic le wi ll impair the function of the emission control system and
cou ld lead to damage.
• Do not alter or remove any component of the Emiss ion Contro l
System unless approved by the manufacturer.
• Do not alter or remove any device, such as hea t shields,
switches, ignition wires, valves, which are designed to protect your
vehicle's Emission Control System and other important vehicle
components. •
Fewer short trips
~-----------------
Fu e I consumptio n will always be relat ively high on short
tri ps.
- Try to avo id driving s hor t distan ces wit h a cold engine.
The engine and catalytic converter have to reach their optimal oper­
ating t emper ature
to reduce fuel consumption and noxious emis­
sions effective ly .
Just after starting, a cold engine in a mid-size car only achieves a
fue l economy of 6 -8 miles per gallon (30 -40 1/100 km). After about a
half a mile, fuel economy climbs to 12 mpg (201/100 kml. After about
2.5 miles (4 km), the engine is at its proper operating temperature
Controls and equip­
ment Safety first Vehicle operation
Dri
ving and environm ent
and fuel economy has reached a normal level. So you can see that
you sh ould avoid short trips whenever possib le .
The
o ut side t emper atu re is also critical in this regard. Your car
consumes more fuel in the winter than in the summer .•
Vehicle care Do-it-yourself service Technical data

Trailer load d is trib ut ion
Be sure the load in the trailer is held securely in place to prevent it
from shifting forward, backward or sideways.
Ne ver allo w a passen ger to rid e i n a tr ailer => & in "Driving instruc ­
tions" on
page 249.
En gin e c ool ing syst em
Towing a trailer makes the engine work harder. It is important that
the cooling system 's performance is up to the additiona l load. Make
sure that the cooling system has enough flu id.
Ti re press ure
When towing a trailer, inflate the tires of your vehicle to the cold tire
pressure listed under "Full load" on the labe l located either on the
driver's side B-pillar (visible when the door is open} or inside the fuel
filler flap . Inflate trailer tires to trai ler and tire manufacturers' spec ­
ifications.
Ligh ts
The headlight settings should be checked with the trailer attached
before driving off . Check to make sure both vehicle and trailer lights
are working properly .
Safe ty c hain s
Be sure trailer safety chains are properly connected from the trailer
to the hitch on the vehicle. Leave enough slack in the chains to
permit turning corners. When you install safety chains, make sure
they will not drag on the road when you are driving.
The chains should cross under the trailer tongue to prevent it from dropping in case of separation from the hitch.
Controls and equip­
ment Safety first Vehicle operation
Tr
aile r t owing
Driving instructions
Driving with a trailer always requires extra care and
consideration.
To obtain the best possible handling of veh icle and trailer,
please note t he following :
Do not tow a loaded trailer when your car itself is not
loaded .
- Be especia lly careful when passing other vehicles .
Observe speed l imits .
Do not drive at the maximum permissible speed.
Always apply brakes early.
Monitor the temperature gauge.
W eight distrib utio n
Towing a loaded trailer with an empty car results in a h ighly
unstable distribution of weight . If this cannot be avoided, drive at
very low speeds only to avoid the risk of losing steering control.
A "balanced" rig is easier to operate and control. This means that
t he tow vehicle should be loaded to the extent possible and permis ­
sible, while keeping the trailer as light as possib le under the circum ­
stances . Whenever possible, transfer some cargo to the luggage
compartment of the tow vehicle whi le observing tongue load
requirements and vehicle loading considerations.
S pee d
The higher the speed, the more difficu lt it becomes for the d river to
control the rig. Do not drive at the maximum permissible speed.
Reduce your speed even more if load, weather or wind conditions
are unfavorable -particularly when going downhill .
Reduce vehicle speed
i mmed iatel y if the trailer shows the slightest
sign of swaying .
Do not try to st op the swa ying b y accelerating.
Vehicle care Do-it-yourself service Technical data

___ T_ r _a_ il_e _r_ t_ o_ vv_ in__... g,_ __________________________________________________ _

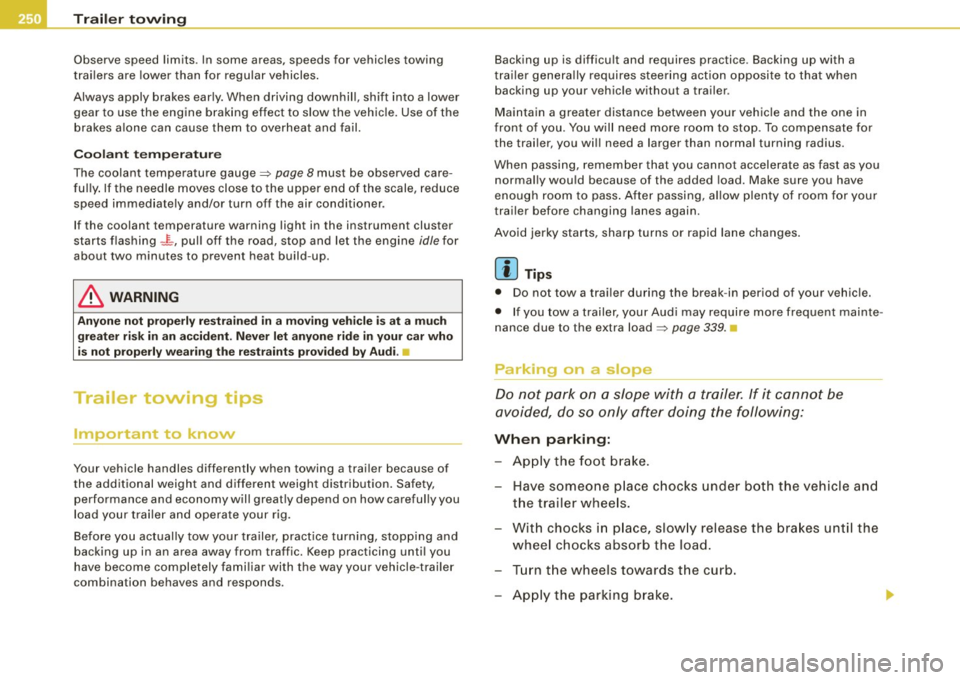

Observe speed limits. In some areas, speeds for vehicles towing
trailers are lower than for regular vehicles.
Always apply brakes early. When driving downhill, shift into a lower gear to use the engine braking effect to slow the vehicle. Use of the
brakes a lone can cause them to overheat and fail.
Coolant temperature
The coolant temperature gauge=> page 8 must be observed care­
ful ly . If the needle moves close to the upper end of the scale, reduce
speed immediately and/or turn off the air conditioner .
If the coolant temperature warning light in the instrument cluster
starts flashing
-F- , pul l off the road, stop and let the engine idle for
about two minutes to prevent heat build-up .
& WARNING
Anyone not properly restrained in a moving vehicle is at a much
greater risk in an accident. Never let anyone ride in your car who
is not properly wearing the restraints provided by Audi . •
Trailer towing tips
Important to know
----------------
Your vehicle handles differently when towing a trailer because of
the additional weight and different weight distribution. Safety,
performance and economy will great ly depend on how careful ly you
load your trailer and operate your rig.
Before you actual ly tow your trailer, pract ice turning, stopping and
backing up in an area away from traffic. Keep practicing unti l you
have become completely familiar with the way your vehicle -trailer
combination behaves and responds . Backing
up is difficult and requires practice . Backing up with a
t rai ler genera lly requires steering action opposite to that when
backing up your vehicle without a trailer .
Maintain a greater distance between your vehicle and the one in
front of you. You will need more room to stop . To compensate for
the trai ler, you wi ll need a larger than norma l turning radius.
When passing, remember that you cannot accelerate as fast as you
normally would because of the added load. Make sure you have
enough room to pass. After passing, al low plenty of room for your
trai ler before changing lanes again .
Avoid jerky starts, sharp turns or rapid lane changes.
[ i ] Tips
• Do not tow a trailer during the break -in period of your vehicle.
• If you tow a trailer, your Audi may require more frequent mainte­
nance due to the extra load=>
page 339. •
Parking on a s•ope
Do not pork on a slope with a trailer. If it cannot be
avoided, do so only ofter doing the following:
When parking:
Apply the foot brake.
- Have someone p lace chocks under both the vehicle and
the trailer wheels.
With chocks in place, slow ly release the brakes until the
wheel chocks absorb the load.
- Turn the wheels towards the curb.
- Apply the parking brake.

-Place an automatic transmission* in P, respectively a
manual transmission in first or reverse gear.
When restarting after parking :
- Apply the foot brake .
- Start the engine.
- Move t he selector lever to
D, respectively a manual trans-
mission in first gear.
- Release the parking brake and slowly pull out and away
from the wheel chocks.
- Stop and have someone retrieve the wheel chocks .
[ i ] Tips
If you move the selector lever of the automatic transmission * to P
before applying the parking b rake and before blocking the wheels,
you may have to use more force later to move the lever out of the P
position .•
Controls and equip­
ment Safety first Vehicle operation
Trailer towing
Vehicle care Do-it-yourself service
Technical data
