.. Secure the items of luggage with the cargo
net* or with non-elastic retaining straps to
the tie-down rings*¢
page 69.
A WARNING
-Loose objects in the luggage compart­
ment can slide about suddenly and alter
the vehicle's handling characterist ics.
- Loose objects in the passenger compart­
ment can fly forward during abrupt ma­
neuve rs or accidents and injure occu­
pants.
- Always store objects in the luggage com­ partment and use su itab le straps, partic­
ularly with heavy objects.
- When you transport heavy objects, al­
ways remembe r that a change in the cen­
ter of gravity may resul t in a change in
the vehicle's handling characterist ics.
- Follow a ll warnings¢
page 144, Driving
Safely.
(D Tips
The tire pressure must be adjusted to the
load -see the tire pressure sticker on the
edge of the driver's door.

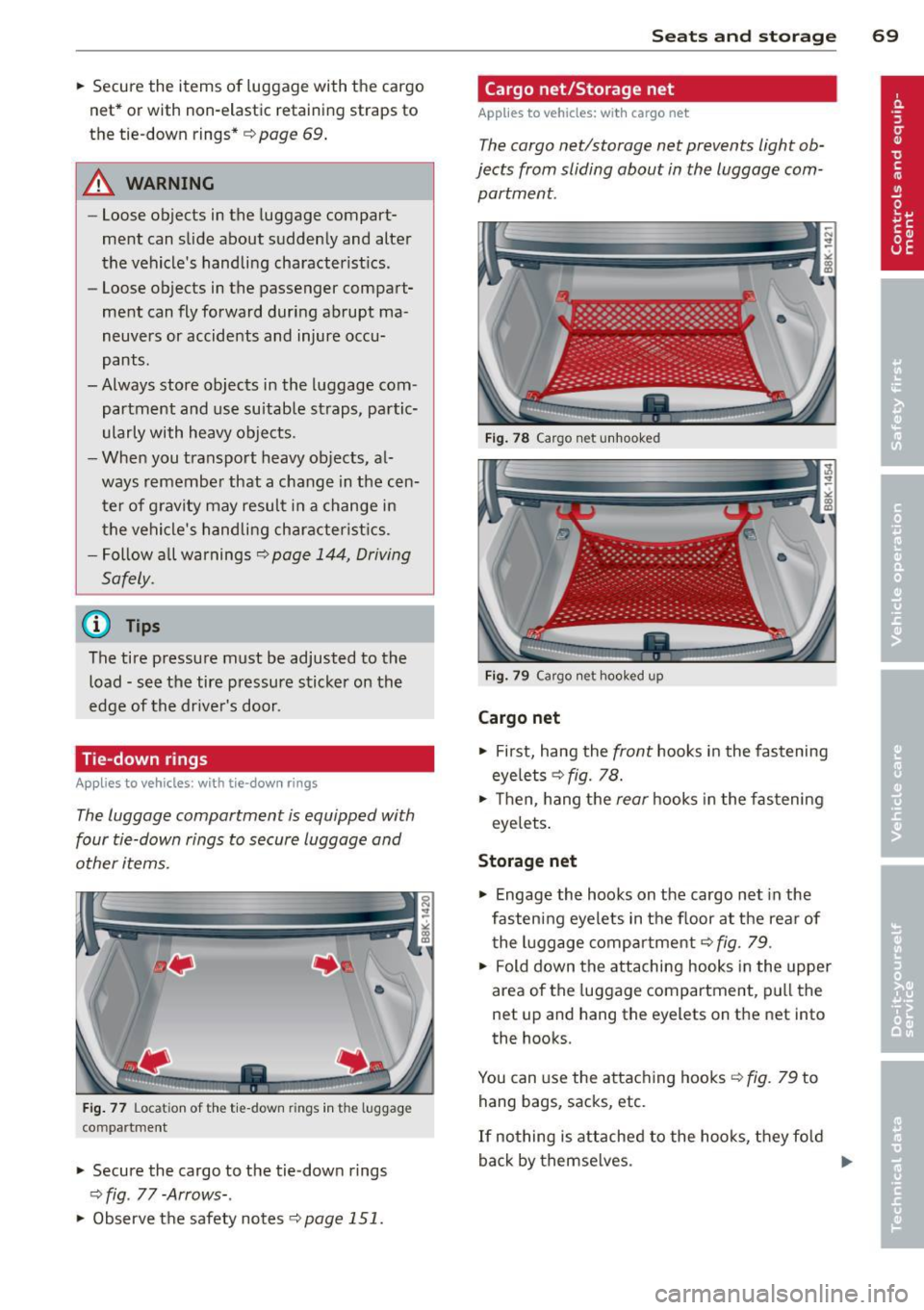

T ie -down rings
A ppl ies to vehicles: with tie -dow n rings
The luggage compartment is equipped with
four tie-down rings to secure luggage and
other items.
F ig . 77 Locat ion of the tie-down rings in the luggage
compartment
.. Secure the cargo to the tie-down rings
¢fig . 77-Arrows- .
.. Observe the safety notes ¢page 151.
Sea ts a nd s to rage 69
Cargo net/Storage net
Applies to vehicles : wi th cargo net
The cargo net/storage net prevents light ob­
jects from sliding about in the luggage com­ partment.
Fig . 78 Cargo n et unhooked
Fi g. 79 Cargo net hooked up
Cargo net
.. First, hang the front hooks in the fastening
eyelets ¢
fig. 78.
.. Then, hang the rear hooks in the fas tening
eyelets .
Storage net
.,. Engage the hooks on the cargo net in the
fastening eyelets in the floor at the rear of t he luggage compartment¢
fig . 79 .
.. Fold down the attaching hooks in the upper
area of the luggage compartment, pull the
net up and hang the eyelets on the net into
the hooks.
You can use the attaching hooks ¢
fig. 79 to
hang bags, sacks, etc.
If no thing is attached to the hooks, they fold
back by themse lves .
Ill>-

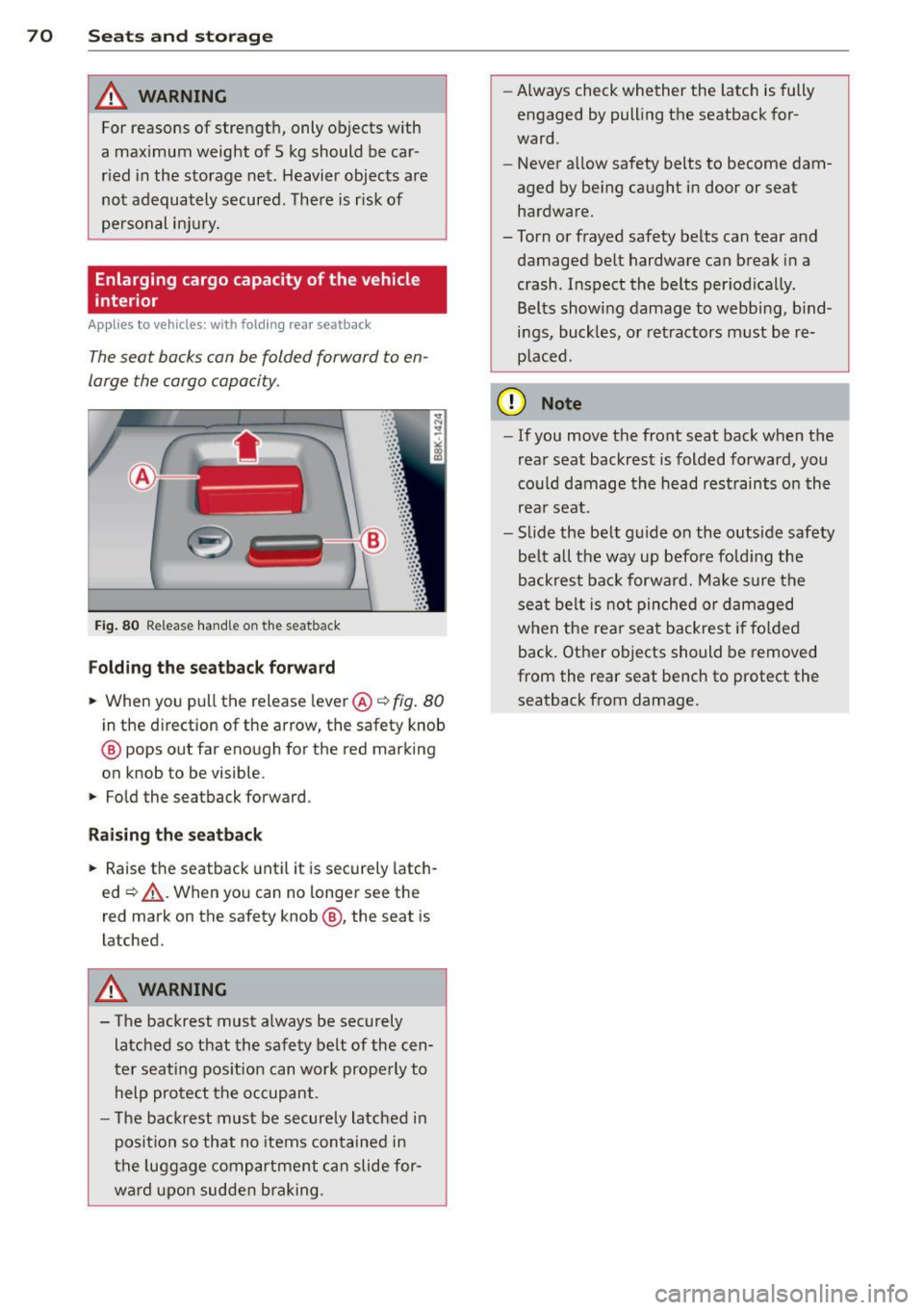

70 Seats and storage
A WARNING
For reasons of strength, only objects with
a maximum weight of 5 kg should be car­
ried in the storage net. Heavier objects are
not adequately secured. There is risk of
personal injury.
Enlarging cargo capacity of the vehicle
interior
Appl ies to vehicles: with folding rear seatback
The seat backs can be folded forward to en­
large the cargo capacity.
Fig. 80 Release handle on the seatback
Folding the seatback forward
., When you pull the release lever @ c::> fig. 80
in the direction of the arrow, the safety knob
@ pops out far enough for the red marking
on knob to be visible .
., Fold the seatback forward.
Raising the seatback
., Raise the seatback until it is securely latch­
ed ~,&.. . When you can no longer see the
red mark on the safety knob@, the seat is
latched.
A WARNING
- The backrest must always be securely
latched so that the safety belt of the cen­
ter seating position can work properly to
help protect the occupant.
- The backrest must be securely latched in
position so that no items contained in
the luggage compartment can slide for­
ward upon sudden braking . -
Always check whether the latch is fully
engaged by pulling the seatback for­
ward.
- Never allow safety belts to become dam­
aged by being caught in door or seat hardware.
-Torn or frayed safety belts can tear and
damaged belt hardware can break in a
crash . Inspect the belts periodically.
Belts showing damage to webbing, bind­
ings, buckles, or retractors must be re­
placed.
(D Note
- If you move the front seat back when the
rear seat backrest is folded forward, you
could damage the head restraints on the
rear seat.
- Slide the belt guide on the outside safety
belt all the way up before folding the
backrest back forward. Make sure the
seat belt is not pinched or damaged
when the rear seat backrest if folded
back. Other objects should be removed
from the rear seat bench to protect the
seatback from damage.

Enlarging cargo capacity of the luggage
compartment
Applies to vehicles: with fold ing rear sea tback
The seat backs can be folded forward to en­
large the cargo capacity .
Fig. 81 Release lever in cargo area
'
-
-
. -~ .
Fig. 82 Safety knob
•
·:: ·:: ·:: · : : ·::
· ::
... : :·: ·::
· ::
·:: ·:: · ::
· ::
· :: ·:: ~: :
· ::
· ::
· ::
· :: ... .. ...
Unlocking and tipping seatback forward
.. When you pu ll the release lever c::> fig . 81 in
the direction of the arrow, the safety knob
@ c::>
fig. 82 pops out far enough for the red
marking on knob to be visible.
.. Tilt the seatback forward .
Raising the seatback
.. Raise the seatback until it is securely latch­
ed
c::> _& . When you can no longer see the
red mark on the safety knob @c::>
fig. 82,
the seat is Latched.
The correct ly Latched seatback (basic pos ition)
can be Locked and unlocked with the mechani­
cal key. This prevents any entry from the vehi­
cle inter ior into the Luggage compartment.
Enlarging the cargo capacity of the luggage
compartment is only possible when the seat­ back has not been locked with the mechanical
key .
Seats and storage 71
A WARNING
-The backrest must always be secure ly
latched so that the safety belt of th e cen­
ter seating position can work properly to
he lp protect the occupant.
- The backrest must be securely Latched in
position so that no items contained in
the Luggage compartment can slide fo r­
ward upon sudden braking.
- Always check whether the Latch is fully
e ngaged by pull ing the seatback for­
ward.
- Never allow safety belts to become dam­
aged by being caught in door or seat
hardware.
- Torn or frayed safety be lts can tear and
damaged belt hardware can break in a
crash. Inspect the belts periodically.
Belts showing damage to webbing, bind­
ings, buckles, or retractors must be re­
placed.
(D Note
- If you move the front seat back when the
rear seat backrest is folded forward, you
co uld damage the head restraints on the
rear seat .
- Slide the be lt guide on the outside safety
belt all the way up before folding the
backrest back forward. Make sure the
seat belt is not pinched or damaged
when the rear seat backrest if folded
back . Other objects should be removed
from the rear seat bench to protect the
seatback from damage.

7 2 Seats and storage
locking the seatback
Appli es to vehicles: with fold ing rear seatback
Fig. 83 Lock ing seatback
.. ... ,:: ·:: ·: : ·:: • :: ... ,: ·: ... .. ·::
· ::
•: : ·:: · :: ·:: · ::
· ::
· ::
· :: ·:: ·:: · :: ...
The correctly latched seatback (basic pos ition)
¢ A in Enlarging cargo capacity of the lug­
gage compartment on page 71
can be locked
and unlocked with the mechanical key next to
the release hand le . This prevents any entry
from the vehi cle inter io r i nto the luggage
compartment.
.. Turn the mechanical key¢
fig. 83 to the
r ight to
loc k the seatback .
.. Turn the mec hani cal key to the left to
un­
lock
the seatba ck.
Parcel shelf
The parcel shelf behind the rear seatback can
be used to carry light items of clothing.
A WARNING
N o heavy or ha rd objec ts shou ld be placed
on the parcel she lf . They are a hazard to
the vehicle occupants during sudden brak­
ing. The is a r is k of injury .
(D Note
Please ma ke s ure that the heating wires
for the rear window defogger are no t dam ­
age by abrasive objects .
@ Tips
To ensure problem-free ventilation, the
ventilation s lots between the rear window
and the parce l shelf must not be cove red.
Ski sack
Applies to vehicles: w ith ski sack
The ski sack can be carried in the interior with
the help of the pass-through .
Fig . 84 In t he rear seat bench: Opening the pass ­
through
Opening the trunk p ass-through
.. Fold the center armrest in the rear forward
and out.
.. Pull the release handle¢
fig. 84 -Arrow­
and fold dow n the cover of the pass -through
in the vehicle inte rior .
.. Open the rea r lid.
.. Push the ski sa ck through the opening from
the l uggage compar tment.
.. Secure the ski sack¢
page 73.
Closing the trunk pass -through
.. Open the rear lid .
.. Remove the ski sack from the trunk pass­
through .
.. Push the pass-through cover up inside the
veh icle until it latches.
.. Raise the center armrest in the vehicle
aga in .
.. Close the rear lid.
A WARNING
=
Objects must only be transported in the ski
sack s ince the ski sack can be secured. In­
d iv idual objects cannot be secured. There
i s a risk of in ju ry.
@ Tips
- You can open the pass-through from the
luggage compartment. Push the release
II>

button down and push the cover for­
ward.
- The pass-through can be locked and un­
l ocked with the vehicle mechanical key
r=;, fig. 84.
Securing the ski sack
Applies to vehicles: with ski sack
The ski sack must be secured in the luggage
compartment.
F ig. 85 Luggage compartment : Securing the bag
Fig. 86 Securing the objects in t he ski sack
Securing the ski sack in the luggage
compartment
.,. The ski sack has two belts with hooks on the
underside . Hang the hooks to the rear fas­
tening eyelets in the luggage compartment
¢ fig . 85.
Securing the objects in the ski sack
.,. Pull the safety belt taut ¢ fig. 86 at the free
end of the be lt.
(D Tips
Make sure that the ski sack is not stored
wet.
Seats and storage 73
Roof rack
Description
Additional cargo can be carried with a roof
luggage rack .
If luggage or cargo is to be carried on the
roof, you must observe the following:
- Your vehicle has aerodynamic rain gutters
molded into the roof . This is why conven­
tional roof luggage racks cannot be used .
We recommend using roof racks from the
Aud i original accessories program .
- These approved roof racks are the basis for a
complete roof rack system. Additional at­
tachments for the basic roof rack are neces ­
sary to safely transpo rt luggage, bicycles,
surf boards, skis or sma ll boats. All necessa­
ry hardware for these systems is available at
your authorized Audi dealer.
- We recommend that you keep the installa­
tion instructions for your roo f rack system
together with your Owner's literature in the
vehicle.
When should the roof rack be removed?
-Before going through an automatic car wash
(it is best to ask the car wash operator for
advice).
- When not in use, to reduce fuel consump­
tion, wind noise and to guard aga inst theft.
8_ WARNING
- Use of an unapproved roof rack or incor­
rect mounting of an approved roof rack
can cause the roof rack or the items at­
tached to it to fall off the roof onto the
road.
- Objects falling from the roof of a vehicle
can cause a crash and personal in jury.
- Only mount the system between the
markings shown in
r=;, page 74, fig. 87 .
- The roof rack system must be installed
exactly according to the instructions pro-
-
vided. .,,.

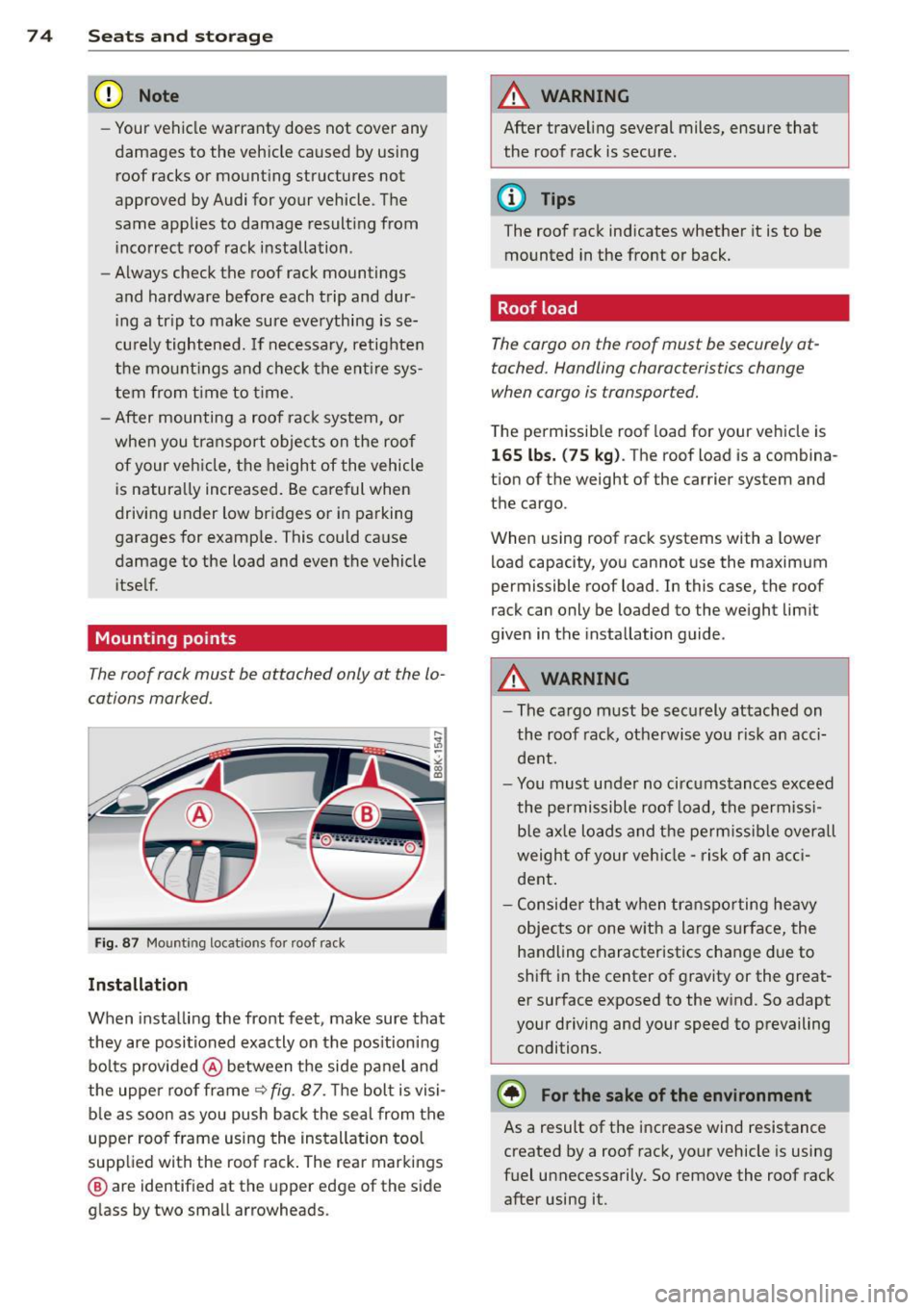

7 4 Seats and storage
(D Note
- Your vehicle warranty does not cover any
damages to the vehicle caused by using
roof racks or mounting structures not
approved by Audi for your vehicle . The
same applies to damage resulting from incorrect roof rack installation .
- Always check the roof rack mountings
and hardware before each trip and dur ­
ing a trip to make sure everything is se­
curely tightened. If necessary, retighten
the mountings and check the ent ire sys­
tem from time to time.
- After mounting a roof rack system, or
when you transport objects on the roof
of your vehicle, the height of the vehicle
is naturally increased. Be careful when
driving under low bridges or in parking
garages for example. This could cause
damage to the load and even the vehicle itself.
Mounting points
T he roof rack must be attached only at the lo­
cations marked .
Fig. 87 Mounting locations for roof rack
Installation
When installing the front feet , make sure that
they are positioned exactly on the positioning
bolts provided @between the side panel and
the uppe r roof frame¢
fig . 87. Th e bolt is visi ­
ble as soon as you push back the seal from the
upper roof frame using the installation tool
supplied with the roof rack . The rear markings
@ are identified at the upper edge of the side
glass by two small arrowheads.
A WARNING
-After traveling several miles, ensure that
the roof rack is secure.
(D Tips
The roof rack indicates whether it is to be mounted in the front or back.
Roof load
The cargo on the roof must be securely at­
tached. Handling characteristics change
when cargo is transported.
The permissible roof load for your vehicle is
165 lbs. (75 kg) . The roof load is a combina­
tion of the weight of the carrier system and the cargo.
When using roof rack systems with a lower
load capacity, you cannot use the maximum
permissible roof load . In this case, the roof
rack can only be loaded to the weight limit
given in the installation guide.
A WARNING
- The cargo must be securely attached on
the roof rack, otherwise you risk an acci­
dent.
- You must under no circumstances exceed
the permissible roof load, the permissi­
ble axle loads and the permissible overall
weight of your vehicle -risk of an acci­
dent.
- Consider that when transporting heavy
objects or one with a large surface, the
handling characteristics change due to
shift in the center of gravity or the great­
er surface exposed to the wind. So adapt
your driving and your speed to prevailing conditions.
~ For the sake of the environment
As a result of the increase wind resistance
created by a roof rack, your vehicle is using
fuel unnecessarily. So remove the roof rack
after using it.

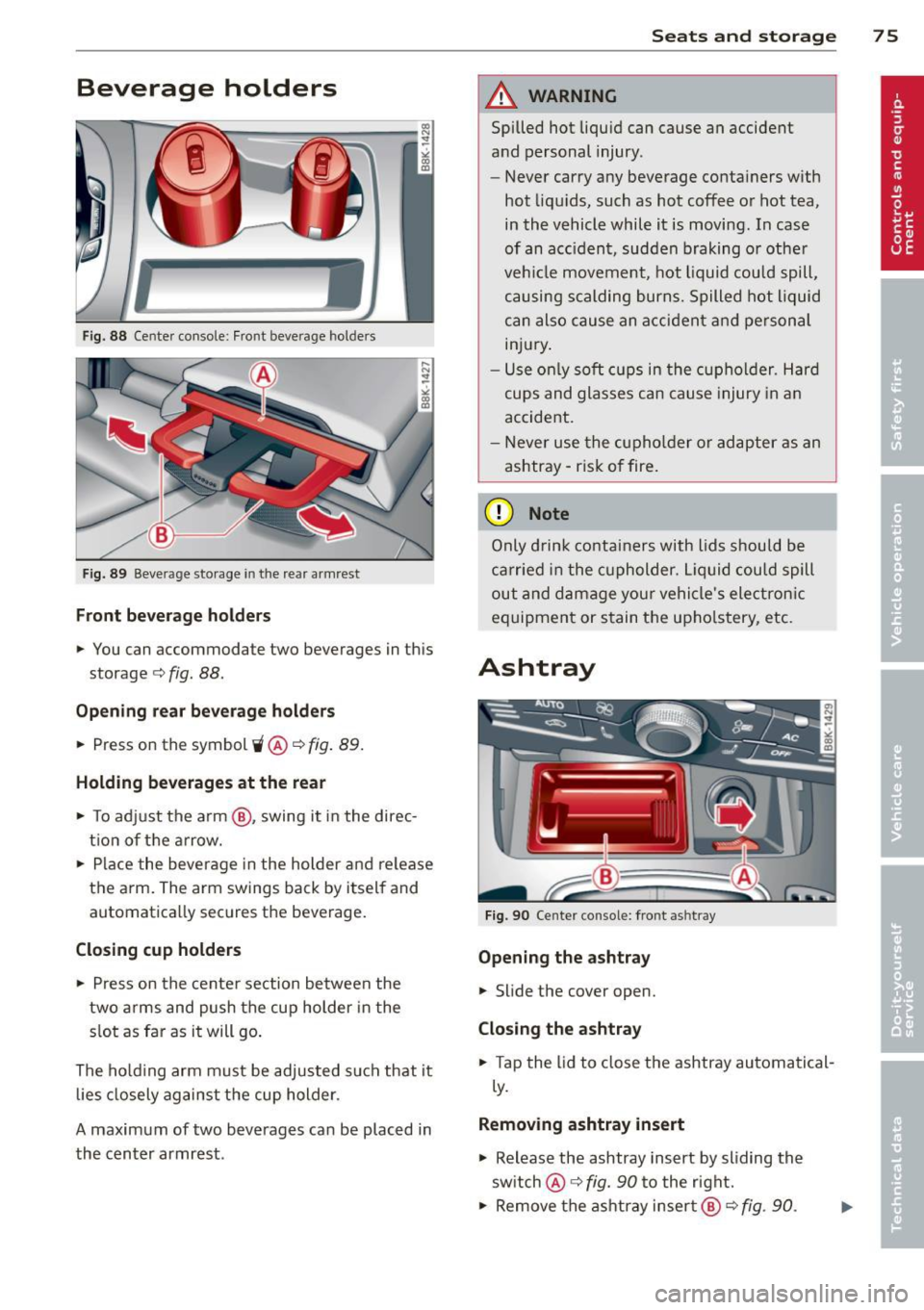

Beverage holders
Fig. 88 Center console: Front beverage holders
Fig. 89 Beve rage storage in the rear armrest
Front beverage holders
... You can accommodate two beverages in this
storage c::>
fig. 88.
Opening rear beverage holders
... Press on the symbol~ @c::> fig. 89.
Holding beverages at the rear
.,. To adjust the arm @, swing it in the direc­
tion of the arrow .
.,. Place the beverage in the holder and release
the arm. The arm swings back by itself and
automatically secures the beverage.
Closing cup holders
.,. Press on the center section between the
two arms and push the cup holder in the
slot as far as it will go.
The holding arm must be adjusted such that it
lies closely against the cup holder.
A maximum of two beverages can be placed in
the center armrest .
Seats and storage 75
A WARNING
Spilled hot liquid can cause an accident
and personal injury.
- Never carry any beverage containers with
hot liquids, such as hot coffee or hot tea,
in the vehicle while it is moving. In case
of an accident, sudden braking or other
vehicle movement, hot liquid could spill,
causing scalding burns. Spilled hot liquid
can also cause an accident and personal
injury.
- Use only soft cups in the cupholder. Hard
cups and glasses can cause injury in an
accident.
- Never use the cupholder or adapter as an
ashtray -risk of fire.
(D Note
Only drink containers with lids should be
carried in the cupholder. Liquid could spill
out and damage your vehicle's electronic
equipment or stain the upholstery, etc.
Ashtray
Fig. 90 Center console: front ashtray
Opening the ashtray
... Slide the cover open.
Closing the ashtray
.,. Tap the lid to close the ashtray automatical­
ly.
Removing ashtray insert
.,. Release the ashtray insert by sliding the
switch @ c::>
fig. 90 to the rig ht .
.,. Remove the ashtray insert@ c::>
fig. 90 .

76 Seats and storage
Reinst alling ashtray insert
> Press the ashtray insert into its holder .
A WARNING
Never put waste paper in the ashtray. Hot
ashes or other hot objects in the ashtray
co uld set waste paper on fire.
Cigarette lighter/outlet
Cigarette lighter
Fig . 9 1 Open front asht ray
Using th e cig arett e light er
> Open the lid of the front ashtray .
> Push the knob on the cigarette lighter in.
> Wait until the knob pops out slightly .
> Remove the cigarette lighter immediately.
> Light your cigarette from the red-hot heat -
ing coil of the cigarette lighter .
> Return the cigarette ligh ter to its socket.
Using the socket
> Remove the cigarette lighter.
> Insert the plug of the electrical device into
t h e ciga rette lighter socket .
The socket of the cigarette lighter may be
used for 12-volt appliances with max imum
consumption of up to 100 watts, such as a
flash light, small vacuum cleane r, etc.
Before you purchase any accessories, always
read and follow the information in
¢ page 295, Additional accessories and parts
replacement.
A WARNING
-
- Use care when using the c igarette light-
er . Inattent ive or unsuperv ised use of the
cigarette lighter can ca use burns -risk of
in jur y!
- The cigarette lighter works when the ig­ nition is switched off o r with the ignition
key removed. Child ren shou ld never be
left unsuperv ised in the vehicle, or the re
co uld be risk of fire!
- T he power outlets and therefore the
elec tric al accessor ies connec ted to them
operate only with t he ignit ion on. Im­
p roper use of the outlets or of elect rical
accessories can lead to serious i nju ries or
cause a fire . For th is reason, children
should never be left unattended in the
veh icle -they could be injured!
(D Note
- To avoid damagi ng the socket, only use
plugs that fit proper ly.
- Only use the cigarette lighter socket as a
power source for e lectr ica l accessories
for short durations. Use the sockets * in
the vehicle when a power source is need­
ed for longer du rat io ns.
(!) Tips
When the engine is off and accessories are
still plugged in and are on, the vehicle bat­
tery can still be d rained.
Storage
General overview
T here are numerous places to store items in
your vehicle.
Glove compartment
Storage compartment in the roof
Coat hooks
-Storage in the trim panels in
the luggage compartment
i:>page 77
i:>page 7 7
i:>page 77

_& WARNING
-Always remove objects from the instru­
ment panel. Any items not put away
could slide around inside the vehicle
whi le driving or when accelerating or
when applying the brakes or when driv­
ing around a corner.
- When you are driving make sure that
anything you may have placed in the cen­
ter console or other storage locat ions
cannot fa ll out into the footwells. In case
of sudden braking you would not be able
to brake, depress the clutch or acceler­
ate.
- Any pieces of clothing that you have
hung up must not interfere with the driv ­
er's v iew. The coat hooks are designed
only for lightweight clothing. Never hang
any clothing with hard, pointed or heavy
objects in the pockets on the coat hooks.
During sudden braking or in an accident -
especially if the airbag is deployed -
these objects cou ld injure any passen­
gers inside the vehicle.
Glove compartment
The glove compartment is illuminated and
can be locked.
F ig . 92 G love compartme nt
To open glove compa rtment
.. Pu ll the hand le in the direction of the a rrow
~ fig . 92 and swing the cover down to open.
T o clos e glo ve compartm ent
.,. Push the glove compartment lid upward un­
t il the lock engages .
Sea ts a nd s to rage 77
There are holders for a pen and a pad of paper
in the glove compartment lid.
On the right s ide in the glove compartment is
a holde r with the key body into which the
emergency key must be clipped to be able to
start the vehicle.
A WARNING
To reduce the risk of personal injury in an
accident or sudden stop, always keep the
glove compartment closed while driving.
Storage compartment in the roof
"'" CfJ:' 11111
.8=5: ~I
Fig . 93 Storage pocket in the roof
.,. To open the lid yo u have to touch the bar
~ fig. 93 (Arrow). The lid opens automati­
cally.
.. To close the lid, push it up until it engages.
A WARNING
-
Always keep the lid closed while driv ing to
reduce the risk of injury during a sudden
braking mane uver or in the event of an ac­
cident.
Coat hooks
The coat hooks are located on the side on the
pillar in the rear .
A WARNING
--Ma ke sure that hanging clothing does
not obscure the view to the rear.
- Hang only lightweight clothing and be
sure that there are no heavy o r sharp­
edged objects in t he pockets.
-

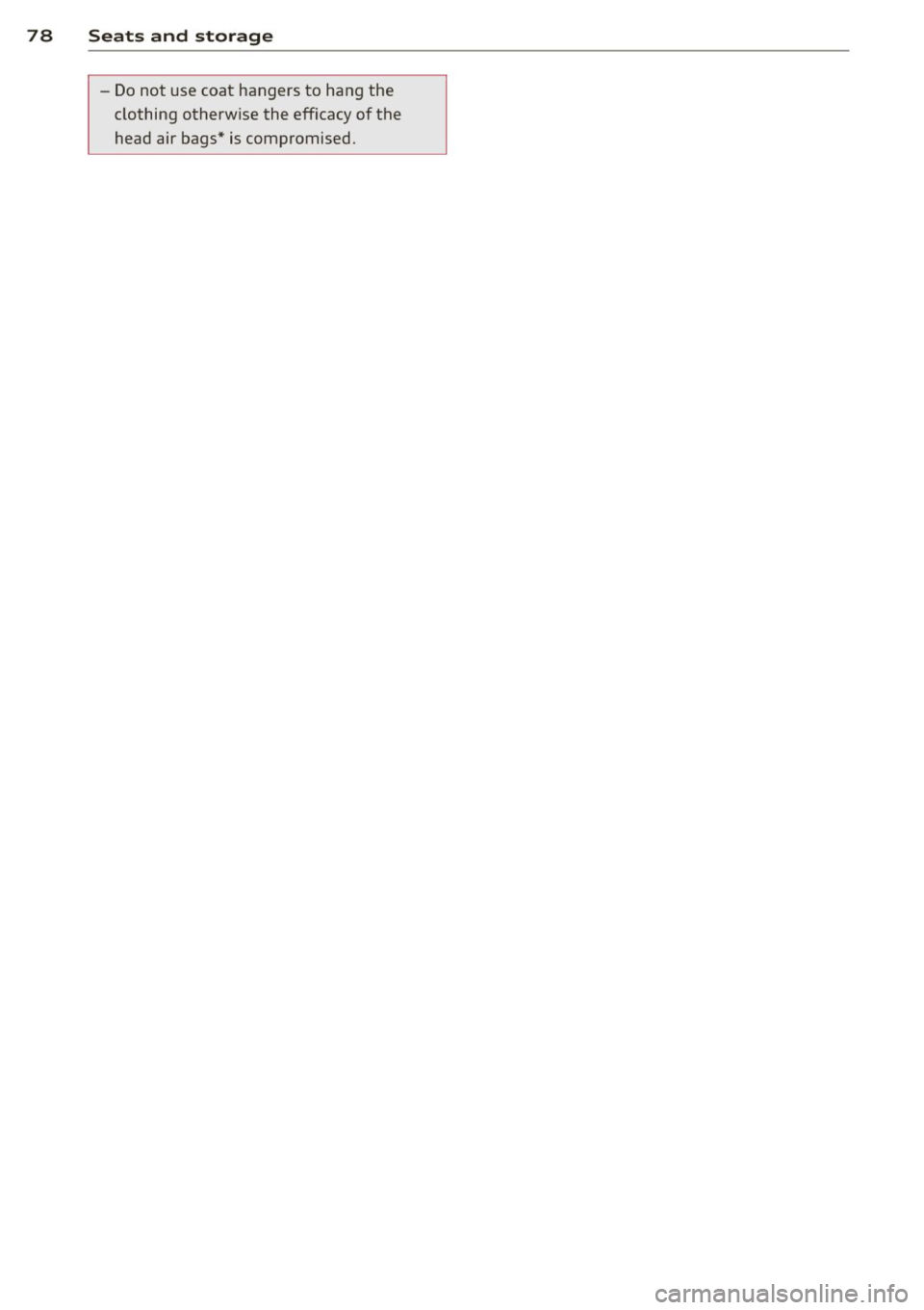

78 Seats and stor age
- Do not use coat hangers to hang the
clothing otherw ise the efficacy of the
head air bags* is compromised.
