AUDI A5 COUPE 2016 Owners Manual

- Never place or attach accessories or other objects (such as cupholders, telephone
brackets, la rge, heavy or bulky objects) on
t h e doors, over or near th e area marked
"AIRBAG" on t he s teering wheel, instru­
ment pane l, seat backrests or between
those areas and you rself. These objects
cou ld cause injury in a crash, especially
when the airbags inflate.
- Never re cline the front passenger's seat to
transport objects. Items can also move into
the area of the side airbag or t he front a ir ­
bag during braking or in a sudden maneu­
ver . Objects near the airbags can become
projectiles and cause injury, particular ly
when the seat is reclined.
A WARNING
The fine dust created when airbags deploy can
cause breathing problems for people w ith a
history of asthma or other breathing condi­
tions.
-To reduce the risk of breathing problems, those w ith asthma or other respiratory con­
ditions should get fresh air right away by
gett ing out of the veh icle o r opening w in­
dows or doo rs.
- If you are in a collision in which airbags de­
ploy, wash your hands and face with mild
soap and wa ter before eat ing.
- Be careful not to get the dust into your eyes,
o r in to any cuts or s cratches.
- If the resid ue should get into your eyes,
flush them with water.

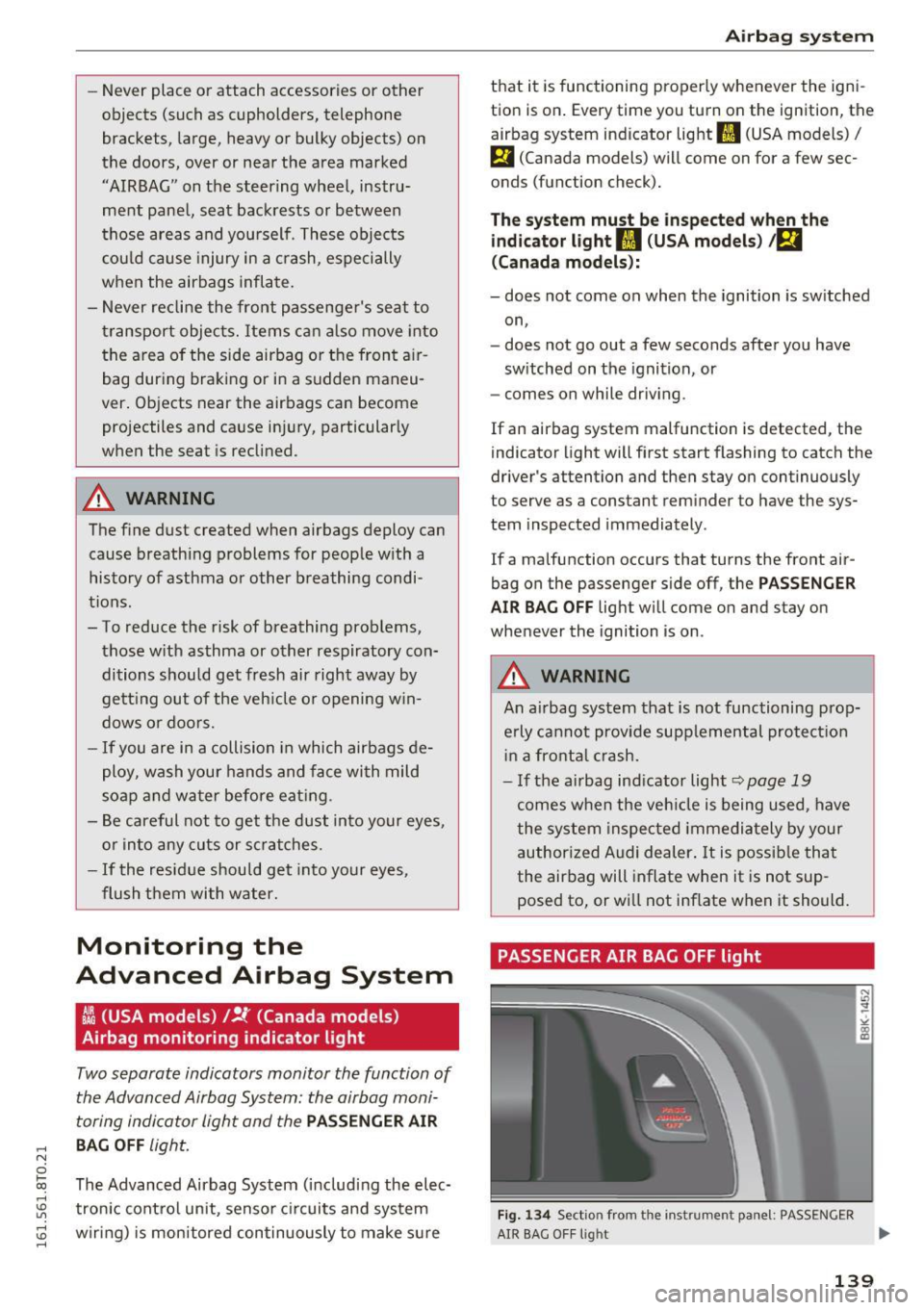

Monitoring the
Advanced Airbag System
fA (USA models) /!f (Canada models)
Airbag monitoring indicator light
Two separate indicators monitor the function of
the Advanced Airbag System: the airbag moni­
toring indicator light and the
PASSENGER AIR
,..., BAG OFF
light. N
0
~ The Advanced Airbag System ( includ ing the elec-,...,
~ tro nic control un it, senso r cir cuits and system
~ w iri ng) is monitored continuously to make su re ......
Airb ag sys tem
that it is functioning properly whenever the igni­
tion is on . Every time you turn on the ignition, the
airbag system indicator light
fl (USA models)/
El (Canada models) will come on for a few sec­
onds (function check).
The system must be in spected when the
indicator light
II (USA models) , m
(Canada models ):
- does not come on when the ignition is sw itched
on,
- does not go out a few seconds after you have
sw itched on the ignit ion, or
- comes on while driv ing .
If an airbag system malfunction is detected, the
indicator light will first start flashing to catch the
driver's attention and then stay on continuously
to serve as a constant rem inder to have the sys­
tem inspected immediately.
If a malfunction occurs that turns the front air­
bag on the passenger side off, the
PAS SENGER
AIR BAG OFF
lig ht will come on and stay on
whenever the ignition is on .
A WARNING
f-
An airbag system that is not functioning prop-
e rly cannot provide supplemental protect ion
in a fronta l crash.
-If the ai rbag ind icator light~ page 19
comes when the veh icle is being used, have
the system inspec ted immedia tely by your
author ized Audi dealer. It is possi ble that
the air bag will inflate when it is not sup ­
posed to, or w ill not inflate when it should.
PASSENGER AIR BAG OFF light
Fig. 1 34 Sect ion from the instrument panel: PASSENGER
AIR BAG O FF light ...
139

Airbag system
The PASSENGER AIR BAG OFF light is located in
the center of the instrument panel
r::;, fig. 134.
The PASSENGER AIR BAG OFF light will come on
and stay on to tell you when the front Advanced
Airbag on the passenger side has been turned off
by the electronic control unit. Each time you turn
on the ignition, the
PASSENGER AIR BAG OFF
light will flash for a few seconds and:
- will stay on if the front passenger seat is not
occupied,
-will stay on if there is a small child or child re­
straint on the front passenger seat,
- will go out if the front passenger seat is occu­
pied by an adult as registered by the weight­
sensing mat.
The
PASSENGER AIR BAG OFF light must come
on and stay on
if the ignition is on and
- a car bed has been installed on the front seat,
or
- a rearward-facing child restraint has been in­
stalled on the front passenger seat , or
- a forward-facing child restraint has been instal­
led on the front passenger seat, or
- the weight registered on the front passenger
seat is equal to or less than the combined
weight of a typical 1 year-old restrained in one
of the rear-facing or forward-facing infant re­
straints listed in Federal Motor Vehicle Safety
Standard 208 with which the Advanced Airbag
System in your vehicle was certified.
If the front passenger seat is not occupied, the
front airbag will not deploy, and the
PASSENGER
AIR BAG OFF
light will stay on. Never install a
rearward-facing child restraint on the front pas­
senger seat, the safest place for a child in any
kind of child restraint is at one of the seating po­
sitions on the rear seat
r::;, page 130, Child re­
straints on the front seat -some important
things to know
and <=> page 151, Child safety.
If the PASSENGER AIR BAG OFF light comes on
when one of the conditions listed above is met,
be sure to check the light regularly to make cer­
tain that the
PASSENGER AIR BAG OFF light
stays on continuously whenever the ignition is
on . If the
PASSENGER AIR BAG OFF light does
140 not appear and not stay on all the
time, stop as
soon as it is safe to do so and
- reactivate the system by turning the ignition
off and then turning it on again ;
- remove and reinstall the child restraint. Make
sure that the child restraint is properly instal­
led and that the safety belt for the front pas­
senger seat has been correctly routed around
the child restraint as described in the child re­
straint manufacturer's instructions;
- make sure that the convertible locking retrac­
tor on the safety belt for the front passenger
seat has been activated and that the safety belt
has been pulled tight. The belt must not be
loose or have loops of slack so that the sensor
below the safety belt latch on the seat can do
its job
r::;, page 160 .
-make sure that things that may increase the
weight of the child and child safety seat are not
being transported on the front passenger seat;
- make sure that the safety belt tension sensor is
not blocked . Shake the safety belt latch on the
front passenger seat back and forth;
- If a strap or tether is being used to tie the child
safety seat to the front passenger seat, make
sure that it is not so tight that it causes the
weight-sensing mat to measure more weight
than is actually on the seat.
If the PASSENGER AIR BAG OFF light still does
not come on
and does not stay on continuously
(when the ignition is switched on),
- take the child restraint off the front passenger
seat and install it properly at one of the rear
seat positions. Have the airbag system inspect­
ed by your authorized Audi dealer immediately.
- move the child to a rear seat position and make
sure that the child is properly restrained in a
child restraint that is appropriate for its size
and age.
The
PASSENGER AIR BAG OFF light should NOT
come on when the ignition is on and an adult is
sitting in a proper seating position on the front
passenger seat.
If the PASSENGER AIR BAG OFF
light comes on and stays on or flashes for about
5 seconds while driving, under these circumstan-
ces, make sure that:
1111>

.... N

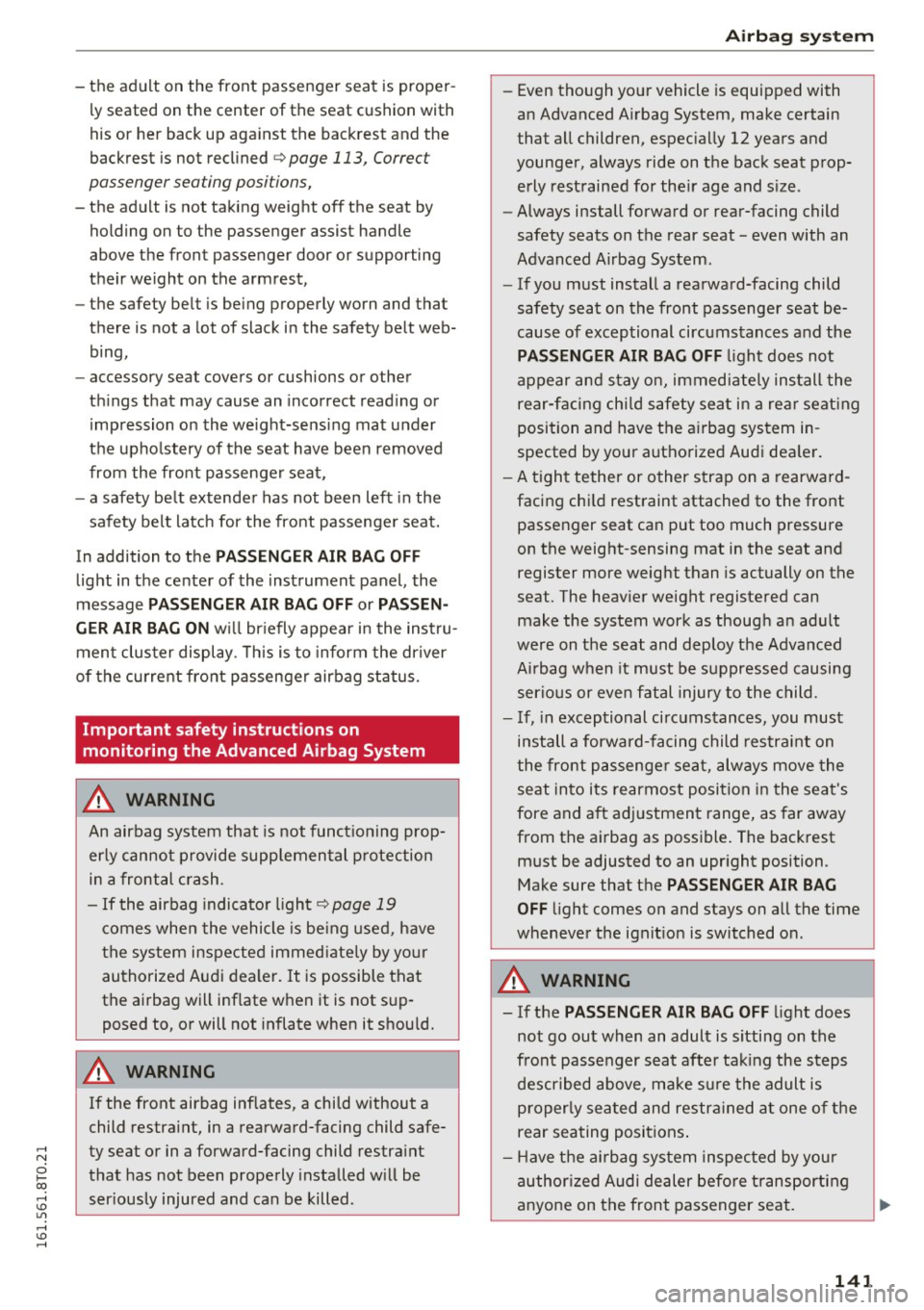

0 I­co .... .... -the adult on the front passenger seat is proper­
ly seated on the center of the seat cushion with
his or her back up against the backrest and the
backrest is not reclined
9page 113, Correc t
passenger seating positions,
- the adult is not taking weight off the seat by
holding on to the passenger assis t handle
above the front passenger door or suppor ting
their weight on the armrest,
- the safety bel t is being properly worn and that
there is not a lot of slack in the safety belt web­
bing,
- accessory seat covers or cushions or other
things that may cause an incorrect reading or
impression on the weight-sensing mat under
the upholstery of the seat have been removed
from the front passenger seat,
- a safety belt extender has not been left in the
safety belt latch for the front passenger seat.
In addition to the
PASSENGER AIR BAG OFF
light in the center of the instrument panel, the
message
PASSENGER AIR BAG OFF or PASSEN­
GER AIR BAG ON
will briefly appear in the instru­
ment cluster display . This is to inform the driver
of the current front passenger airbag status.
Important safety instructions on
monitoring the Advanced Airbag System
A WARNING
An airbag system that is not functioning prop­ erly cannot provide supplemental protection
in a frontal crash .
- If the airbag indicator light
9 page 19
comes when the vehicle is being used, have
the system inspected immediately by your
authorized Audi dealer. It is possible that
the airbag will inflate when it is not sup­
posed to, or will not inflate when it should.
A WARNING
If the front airbag inflates, a child without a
child restraint, in a rearward-facing child safe­
ty seat or in a forward-facing child restraint
that has not been properly installed will be
seriously injured and can be killed.
Airbag system
-Even though your vehicle is equipped with
an Advanced Airbag System, make certain
that all children, especially 12 years and
younger, always ride on the back seat prop­ erly restrained for their age and size .
- Always install forward or rear-facing child
safety seats on the rear seat -even with an
Advanced Airbag System .
- If you must install a rearward-facing child
safety seat on the front passenger seat be­
cause of exceptional circumstances and the
PASSENGER AIR BAG OFF light does not
appear and stay on, immediately install the
rear-facing child safety seat in a rear seating
position and have the airbag system in­
spected by your authorized Audi dealer.
-A tight tether or other strap on a rearward­
facing child restraint attached to the front passenger seat can put too much pressure
on the weight-sensing mat in the seat and
register more weight than is actually on the
seat . The heavier weight registered can
make the system work as though an adult
were on the seat and deploy the Advanced
Airbag when it must be suppressed causing
serious or even fatal injury to the child.
- If, in exceptional circumstances, you must
install a forward-facing child restraint on
the front passenger seat, always move the
seat into its rearmost position in the seat's
fore and aft adjustment range, as far away
from the airbag as possible. The backrest must be adjusted to an upright position .
Make sure that the
PASSENGER AIR BAG
OFF
light comes on and stays on all the time
whenever the ignition is switched on.
A WARNING
-- If the PASSENGER AIR BAG OFF light does
not go out when an adult is sitting on the
front passenger seat after taking the steps
described above, make sure the adult is
properly seated and restrained at one of the rear seating positions.
- Have the airbag system inspected by your
authorized Audi dealer before transporting
anyone on the front passenger seat .
141

Airbag system

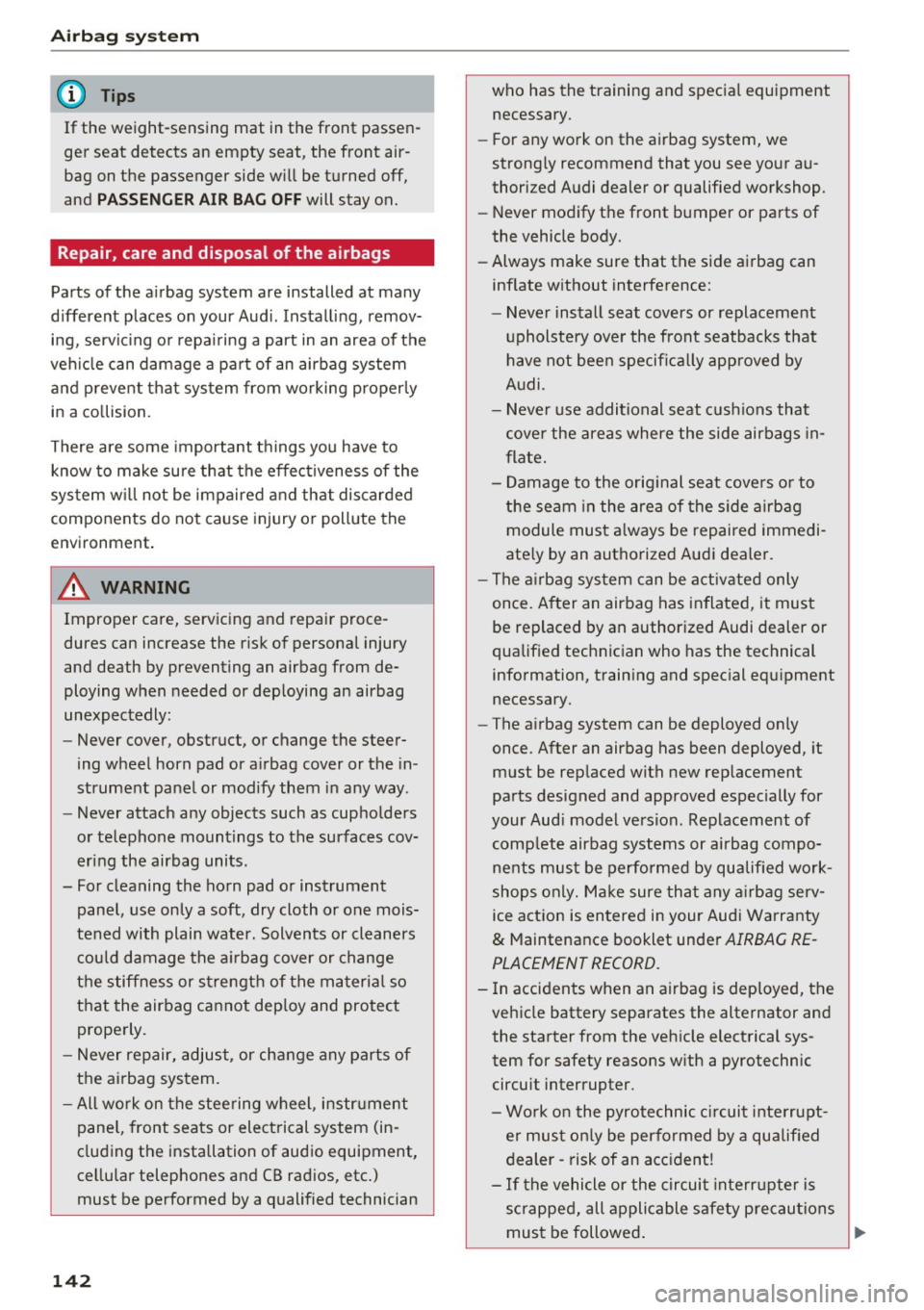

(D Tips
If the weight-sensing mat in the front passen­
ger seat detects an empty seat, the front air­
bag on the passenger side will be turned off,
and
PASSENGER AIR BAG OFF will stay on.
Repair , care and disposal of the airbags
Parts of the airbag system are installed at many
different places on your Audi. Installing , remov­
ing, servicing or repairing a part in an area of the
vehicle can damage a part of an airbag system and prevent that system from working properly in a collision.
There are some important things you have to
know to make sure that the effectiveness of the
system will not be impaired and that discarded
components do not cause injury or pollute the
environment.
A WARNING
Improper care, servicing and repair proce­
dures can increase the risk of personal injury
and death by preventing an airbag from de­
ploying when needed or deploying an airbag
unexpectedly:
-
- Never cover, obstruct, or change the steer­
ing wheel horn pad or airbag cover or the in­
strument panel or modify them in any way .
- Never attach any objects such as cupholders
or telephone mountings to the surfaces cov­
ering the airbag units.
- For cleaning the horn pad or instrument panel, use only a soft, dry cloth or one mois­
tened with plain water. Solvents or cleaners could damage the airbag cover or change
the stiffness or strength of the material so
that the airbag cannot deploy and protect properly.
- Never repair, adjust , or change any parts of
the airbag system.
- All work on the steering wheel, instrument
panel, front seats or electrical system (in­
cluding the installation of audio equipment,
cellular telephones and CB radios, etc.)
must be performed by a qualified technician
142
who has the training and special equipment necessary.
- For any work on the airbag system, we
strongly recommend that you see your au­
thorized Audi dealer or qualified workshop .
- Never modify the front bumper or parts of
the vehicle body.
- Always make sure that the side airbag can
inflate without interference:
- Never install seat covers or replacement
upholstery over the front seatbacks that
have not been specifically approved by
Audi .
- Never use additional seat cushions that
cover the areas where the side airbags in­
flate.
- Damage to the original seat covers or to
the seam in the area of the side airbag
module must always be repaired immedi­
ately by an authorized Audi dealer .
- The airbag system can be activated only
once . After an airbag has inflated, it must
be replaced by an authorized Audi dealer or
qualified technician who has the technical
information, training and special equipment
necessary.
- The airbag system can be deployed only
once . After an airbag has been deployed, it
must be replaced with new replacement
parts designed and approved especially for
your Audi model version. Replacement of complete airbag systems or airbag compo­
nents must be performed by qualified work­
shops only. Make sure that any airbag serv­
ice action is entered in your Audi Warranty
& Maintenance booklet under AIRBAG RE­
PLACEMENT RECORD.
- In accidents when an airbag is deployed, the
vehicle battery separates the alternator and
the starter from the vehicle electrical sys­
tem for safety reasons with a pyrotechnic
circuit interrupter.
- Work on the pyrotechnic circuit interrupt­
er must only be performed by a qualified
dealer - risk of an accident!
- If the vehicle or the circuit interrupter is
scrapped, all applicable safety precautions
must be followed.
llll-

,-1 N
0 1-CX)
,-1 I.Cl U"I
,-1 I.Cl ......
@ For the sake of the environment
Undep loyed airbag modu les and pretension­
ers might be classified as Perchlorate Materi­
al -special handling may apply, see
www.dtsc .ca.gov/hazardouswaste/perchlo­
rate . When the veh icle or parts of the re­
straint system including airbag modules safe­
ty belts with pretensioners are scrapped, all
app licable laws and regulations must be ob­
served. Your authorized Audi dealer is familiar
w ith these req uirements and we recommend
that you have your dealer perform this service
for you.
Other things that can affect Advanced
Airbag performance
Changing the vehicle's suspension system can
change the way that the Advanced Airbag System pe rforms in a crash. For examp le, using tire-r im
comb inat ions not approved by Audi, lowering the
veh icle, chang ing the stiffness of the suspens ion,
including the springs, suspension struts, shock
absorbers etc . can change the forces that are
measured by the airbag sensors and sent to the
e lectronic control unit . Some suspension changes
can, for example, increase the force levels meas­
ured by the sensors and make the airbag system
deploy in crashes in wh ich it would not deploy if
the changes had not been made . Other kinds of
changes may reduce the fo rce levels measured by
the sensors and prevent the airbag from deploy­ ing when it should.
A WARNING
Changing the vehicle's suspension including
use of unapproved tire-rim combinations can
change Advanced Airbag performance and in­
crease the risk of serious personal injury in a
crash.
- Never install suspens ion components that
do not have the same performance charac­
teristics as the components or iginally instal­
led on your veh icle.
- Never use tire-rim combinations that have
not been approved by Audi.
Airb ag sys tem
A WARNING
-Items stored between the safety belt buckle
and the center console can cause the sensors
i n the buckle to send the w rong information
to the electronic contro l modu le and prevent
the Advanced A irbag System from wo rking
p roperly.
- Always make sure that nothing can interfe re
with the safety belt buckles and that they are not obstructed.
Knee airbags
Description of knee airbags
Appl ies to vehicles: with knee airbags
The knee airbag system can provide supplemen­
tal protection to properly restrained front seat
occupants.
Fig. 13S D river 's knee ai rbag
T he driver knee airbag is in the ins trumen t panel
u nderneath t he steer ing whee l~
fig. 135, the
knee a irbag for the passenger is at abou t the
same height in the instrument pane l underneath
the g love compartment.
T he knee airbag offers add itiona l protec tion to
the driver's and passenger's knees and uppe r and
lower thigh areas and supp lements the protec­
tio n provided by the safety belts .
If the front airbags deploy, the knee airbags also
deploy in fron tal coll is io ns when the deploymen t
th reshold stored in the cont rol un it is met
~ page 13 7, More important things to know
about front airbags.
In add ition to their norma l safety fun ct ion, safe-
ty belts he lp keep the driver or front passenge r in ..,_
143

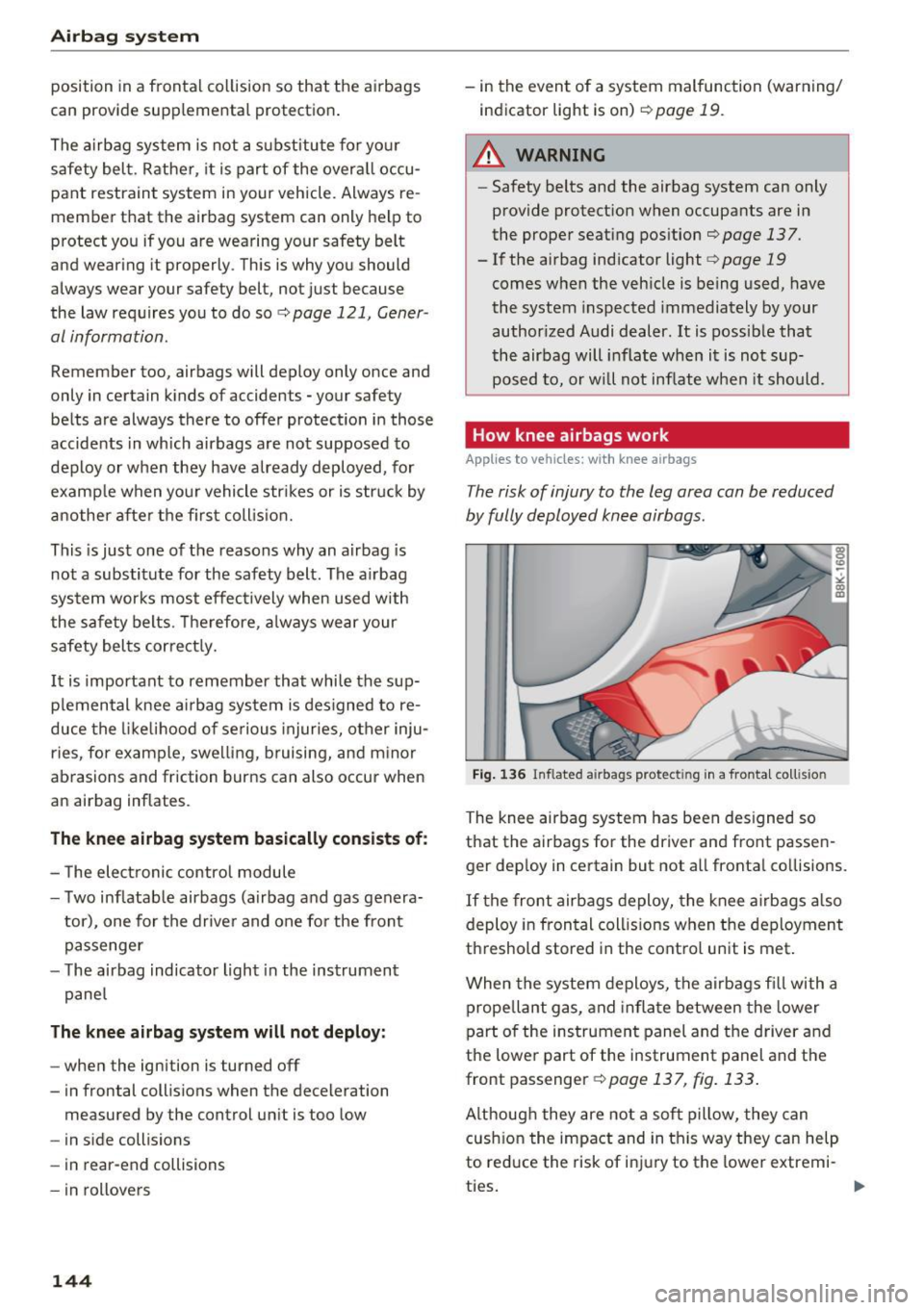

Airbag system
position in a frontal collision so that the airbags
can provide supplemental protection.
The airbag system is not a substitute for your
safety belt. Rather, it is part of the overall occu­
pant restraint system in your vehicle. Always re­
member that the airbag system can only help to
protect you if you are wearing your safety belt
and wearing it properly . This is why you should
always wear your safety belt, not just because
the law requires you to do soc::>
page 121, Gener ­
al information.
Remember too, airbags will deploy only once and
only in certain kinds of accidents - your safety
belts are always there to offer protection in those
accidents in which airbags are not supposed to
deploy or when they have already deployed, for
example when your vehicle strikes or is struck by
another after the first collision.
This is just one of the reasons why an airbag is
not a substitute for the safety belt. The airbag
system works most effectively when used with
the safety belts. Therefore, always wear your
safety belts correctly.
It is important to remember that while the sup­
plemental knee airbag system is designed to re­
duce the likelihood of serious injuries, other inju­
ries, for example, swelling, bruising, and minor
abrasions and friction burns can also occur when
an airbag inflates .
The knee airbag system basically consists of:
- The electronic control module
- Two inflatable airbags (airbag and gas genera-
tor), one for the driver and one for the front
passenger
- The airbag indicator light in the instrument
panel
The knee airbag system will not deploy:
- when the ignition is turned off
- in frontal collisions when the deceleration
measured by the control unit is too low
- in side collisions
- in rear-end collisions
- in rollovers
144
- in the event of a system malfunction (warning/
indicator light is on)
c::> page 19.
A WARNING
-Safety belts and the airbag system can only
provide protection when occupants are in
the proper seating position
r::;> page 13 7.
- If the airbag indicator light
c::> page 19
comes when the vehicle is being used, have
the system inspected immediately by your
authorized Audi dealer. It is possible that
the airbag will inflate when it is not sup­
posed to, or will not inflate when it should.
How knee airbags work
App lies to vehicles: with knee airbags
The risk of injury to the leg area can be reduced
by fully deployed knee airbags.
Fig. 136 Inflated a irbags prot ectin g in a frontal coll is io n
The knee airbag system has been designed so
that the airbags for the driver and front passen­
ger deploy in certain but not all frontal collisions.
If the front airbags deploy, the knee airbags also
deploy in frontal collisions when the deployment
threshold stored in the control unit is met.
When the system deploys, the airbags fill with a
propellant gas, and inflate between the lower
part of the instrument panel and the driver and
the lower part of the instrument panel and the
front passenger
c::> page 13 7, fig. 133.
Although they are not a soft pillow, they can
cushion the impact and in this way they can help
to reduce the risk of injury to the lower extremi­
ties.
..

,-1 N
0 1-CX)
,-1 I.Cl U"I
,-1 I.Cl ......

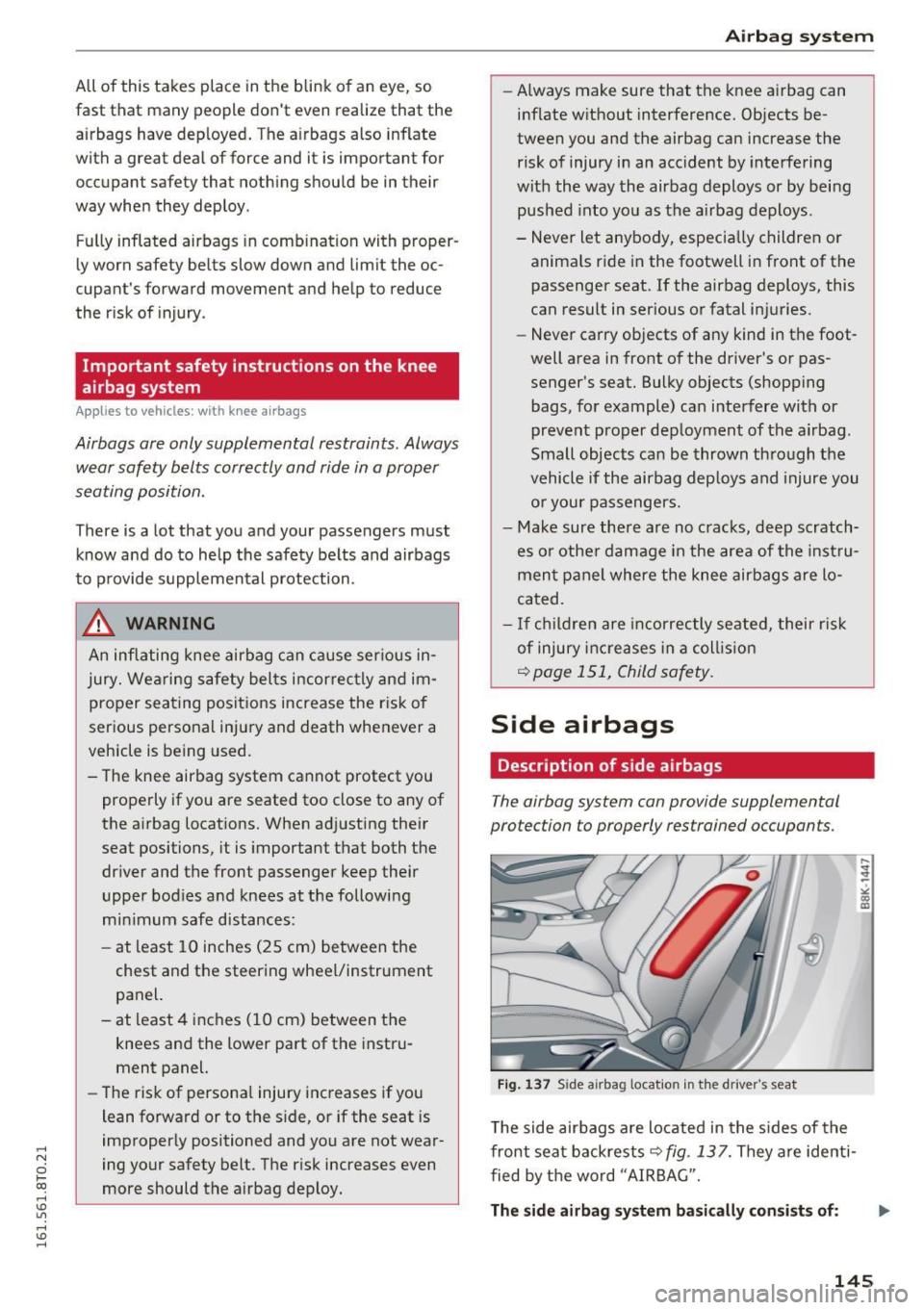

All of this takes place in the blink of an eye, so
fast that many peopl e don't even realize that the
airbags have deployed . The airbags also inflate
with a great deal of force and it is important for
occupant safety that nothing should be in their
way when they deploy .
Fully inflated airbags in comb ination with proper­
ly worn safety belts slow down and limit the o c­
cupant 's forward movement and help to reduce
the r isk of injury .
Important safety instructions on the knee
airbag system
Applies to vehicles: with knee airbags
Airbags are only supplemental restraints . Always
wear safety belts correctly and ride in a proper
seating position.
There is a lot that you and your passengers must
know and do to help the safety be lts and airbags
to provide supplemental protection .
& WARNING
An inflating knee airbag can cause ser ious in­
jury. Wearing safety bel ts incorrec tly and im­
proper seating positions increase the r isk o f
serious personal injury and death whenever a
vehicle is being used.
- The knee airbag system cannot protect you properly if you are seated too close to any of
the airbag locat ions. When adj usting their
seat positions, it is important that both the
driver and the front passenger keep their
upper bod ies a nd knees at the following
min imum safe distances :
- at least 10 inches (25 cm) between the
chest and the steering wheel/instrument
panel.
- at least 4 inc hes (10 cm) between the
knees and the lower part of the instru­
ment panel.
- The risk of persona l injury inc reases if you
lean forward or to the side, or if the seat is
improperly positioned and you are not wear ­
ing your safety belt. The r isk increases even
more should the a irbag deploy.
-
Airb ag sys tem
-Always make sure that the knee a irbag can
inflate w ithout interference. Objects be­
tween you and the airbag can increase the
risk of injury in an accident by interfering
with the way the airbag deploys or by being
pushed into yo u as the a irbag deploys .
- Never let anybody, especia lly children or
anima ls ride in the footwell in front of the
passenger seat. If the airbag deploys, this
can result in serious or fatal in juries.
- Never carry objects of any kind in the foot­
well area in front of the driver's or pas­
senger's seat. Bulky objects (shopp ing
bags , for example) can interfere with or
prevent proper deployment of the airbag .
Small objects can be thrown through the
vehicle if the airbag dep loys and injure you
o r your passengers.
- Ma ke sure there a re no c racks, deep scratch­
es o r othe r damage in the area of the i nst ru­
men t panel where the knee airbags are lo­
ca ted.
- If c hi ldren are incorrectly se ated, their ris k
of injury increases in a coll is io n
~ page 151, Child safety.
Side airbags
Description of side airbags
The airbag system can prov ide supplemental
protection to properly restrained occupan ts .
F ig. 137 Side a irbag locat io n in the dr ive r's seat
T he side airbags are located in the s ides of the
front seat b ackrests
~ fig . 13 7. They are identi­
fied by t he word "AIR BAG".
The side airbag sy stem basi cally con sist s of: .,._
145

Airbag syste m
-the e lectronic contro l modu le and external side
impact sensors
- the two side airbags located in the sides of the
front backrests
- the a irbag warning light in the inst rument cl us-
ter.
The airbag system is monito red elect ronically to
make certa in that it is functioning properly at all
times. Each time you t urn on the ignit ion, the air­
bag system ind icator light will come on for a few
seconds (self diagnostics).
The s ide a irbag system supplements the safety
be lts and can help to reduce the risk of injury to
the driver's and front passenger's upper torso on
the side of the vehicle that is struck in a side col­
lision. The airbag deploys on ly in side impacts
and only when the vehicle acceleration registered
by the control unit is high enough. If this rate is
below the reference value programmed into the
control u nit, the s ide a irbags will not be tr ig­
gered, even though the car may be badly dam­
aged as a result of the collision.
It is not possib le
to define an airbag triggering range that w ill cov­
er every poss ible angle of impact, since the cir ­
cumstances will vary considerably between one
collision and another. Important factors include,
for examp le, the nature (hard or soft) of the im­
pacting object, the ang le of impact, vehicle
speed, etc. ¢
page 147, Important safety in­
structions on the side airbag system .
Aside from their normal safety function, safety
belts work to help keep the driver or front pas­
senger in pos it ion in the event of a s ide collision
so that the side a irbags can provide protection .
The airbag system is
not a substitute for your
safety belt. Rather, it is part of the overall occu­
pant restraint system in your vehicle . Always re­
member that the s ide airbag system can only
he lp to protect you if you are wearing your safety
be lt and wearing it properly. This is another rea­
son why you should always wear yo ur safety
be lts, not just because the law req uires you to do
so ¢
page 121, General information.
It is important to remember that whi le the sup­
p lemental side a irbag system is des igned to re­
duce the likelih ood of se rious injuries, other inju-
146 ries, for example, swelling, bruis
ing, and minor
abrasions can also be associated with deployed s ide a irbags . Remember too, s ide a irbags wi ll de­
ploy only once and only in certain k inds of acci­
dents - your safety belts are always there to offer
protect ion.
Vehicle damage, repair costs or even the lack of
vehicle damage are not necessar ily an ind ication
of over-sens itive or fa iled airbag activat ion. In
some collisions, both front and side airbags may i nflate . Remember too, that a irbags w ill deploy
o nl y once and only in certai n kinds of collisions -
you r safety be lts are always there to offe r protec­
tion in those accidents in wh ich airbags are no t
supposed to deploy or when they have a lready
deployed .
The side airbag system will not deploy:
-when the ign it io n is tu rned off
- in side collisions whe n the acceleration meas-
ured by the sensor is too low
- in front -end coll is ions
- in rear-end co llisions
- in rollovers .
In some types of ac cidents the front ai rbags, side
curtain airbags and side a irbags may be triggered
together.
A WARNING
- Safety belts and the airbag system will only
provide protect ion when occupants are in
the proper seat ing pos ition¢
page 147.
- If the airbag ind icator light¢ page 19
comes when the veh icle is being used, have
the system inspected immediately by your
author ized Audi dealer . It is possible that
the airbag will inflate when it is not sup­
posed to, or will not inflate when it should.

,-1 N
0 1-CX)
,-1 I.Cl U"I
,-1 I.Cl ......

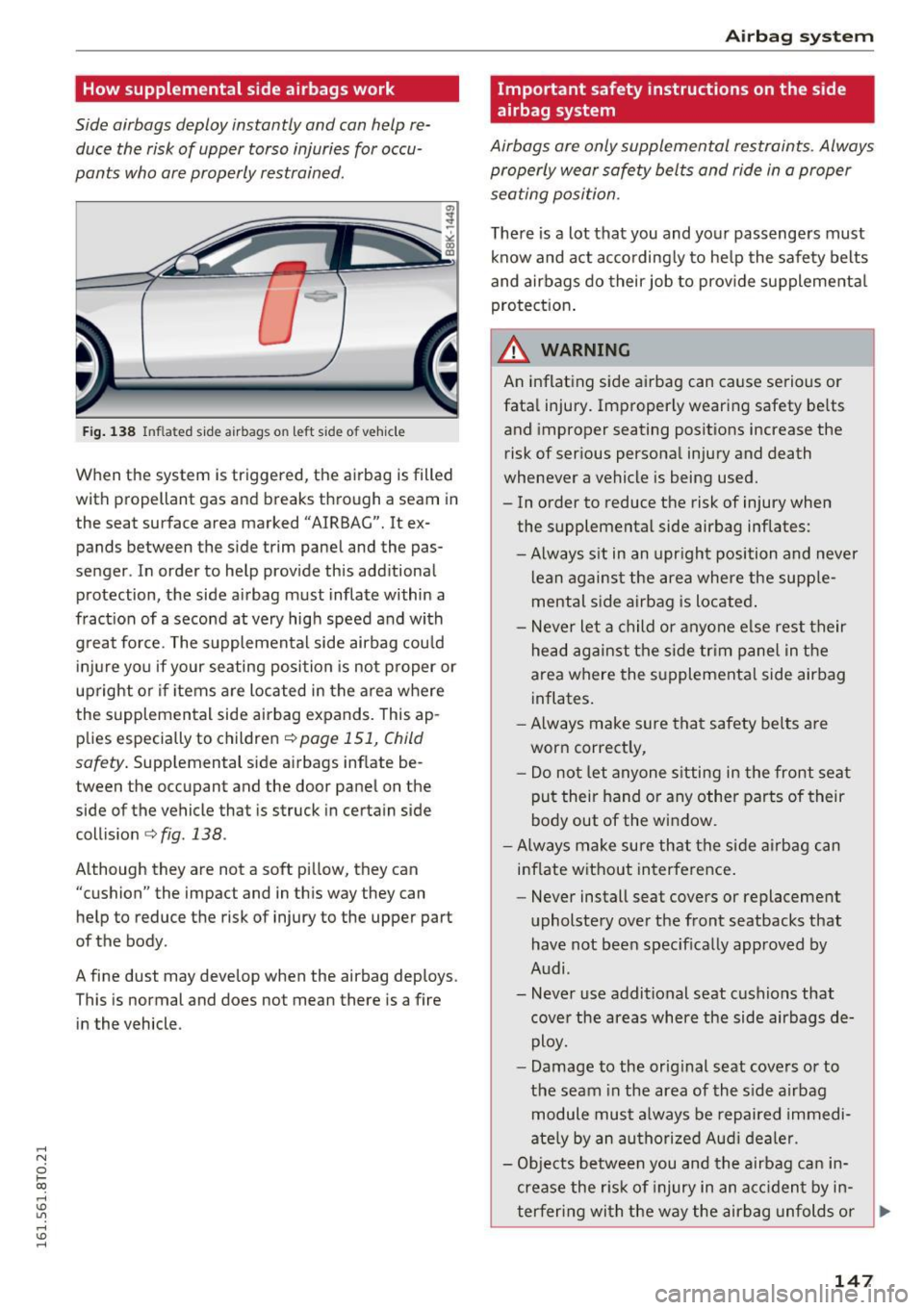

How supplemental side airbags work
Side airbags deploy instantly and can help re­duce the risk of upper torso injuries for occu­
pants who are properly restrained.
F ig . 138 Inflated side airbags on left side of vehicle
When the system is triggered, the airbag is filled
with propellant gas and breaks through a seam in
the seat surface area marked "AIRBAG". It ex­
pands between the side trim panel and the pas­
senger. In order to help provide this additiona l
protection, the side airbag must inflate within a
fract ion of a second at very high speed and with
great force. The s upplemental side airbag cou ld
injure you if your seating position is not p roper or
upright or if items are located in the area where
the supplemental side airbag expands. This ap­
plies especially to children
¢ page 151, Child
safety.
Supplemental side airbags inflate be­
tween the occupant and the door panel on the
side of the vehicle that is struck in certain side
collis ion
¢ fig . 138 .
Although they are not a soft pillow, they can
"cushion" the impact and in this way they can
help to reduce the risk of injury to the upper part
of the body .
A fine dust may develop when the airbag deploys .
This is normal and does not mean there is a fire
in the vehicle .
Airbag sys tem
Important safety instructions on the side
airbag system
Airbags are only supplemental restraints. Always
properly wear safety belts and ride in a proper
seating position .
There is a lot that you and yo ur passengers must
know and act according ly to he lp the safety belts
and airbags do their job to prov ide supplementa l
pro tect ion .
A WARNING
An inflating side airbag can cause serious or
fatal injury. Improperly wearing safety be lts
and improper seating posit ions increase the
risk of serious personal injury and death
whenever a vehicle is being used.
- In order to reduce the risk of injury when
the supplemental side airbag inflates:
- Always s it in an upr ight position and never
lean against the area where the supp le­
mental s ide airbag is located .
- Neve r let a child or anyone e lse rest their
head against the side tr im panel in the
area where the s upplementa l side airbag
inflates.
- Always make s ure tha t safety belts are
worn correctly,
- Do no t let anyone s itting in the front seat
put their hand or any other parts of their
body out of the window .
- Always make sure that the side airbag can
inflate without interference .
- Never install seat covers or replacement
upholste ry over the front seatbacks that
have not been specif ically approved by
Audi.
- Never use additional seat cu shions that
cover the areas where the side airbags de­ ploy.
- Damage to the orig inal seat covers or to
the seam in the area of the s ide airbag
module must a lways be repaired immedi­
ate ly by an authorized Audi dealer .
-
-Objects between you and the a irbag can in­
crease the r is k of injury in an ac ciden t by in­
terfering with the way the airbag unfolds o r _,.
147

Airbag syste m
by being pushed into you as the airbag in­
flates.
- Never p lace or attach accessories or other
objects (such as cupho lders, telephone
brackets, or even large, bulky objects) on
the doors, over or near the area marked
"AIRBAG" on the seat backrests.
- Such objects and accessories can become
dangerous projectiles and cause in ju ry
when the supplemental side airbag de­ ploys.
- Never carry any objects or pets in the de­ ployment space between them and the
airbags or allow children or other passen­
gers to travel in this position.
- Always use the built-in coat hooks only for
lightweight clothing . Never leave any heavy
or sharp-edged objects in the pockets that
may interfere w ith side airbag deployment
and can cause personal i njury in an accident.
- Always prevent the side airbags from being
damaged by heavy objects knocking against
or hitting the sides of the seatbacks.
- The airbag system can only be triggered
once . If the airbag has been triggered, the
system must be replaced by an author ized
Audi dealership .
- Damage (cracks, deep scratches etc .) to the
original seat covers or to the seam in the
area of the side a irbag mod ule m ust always
be repa ired immed iate ly by an authorized
Audi dealer .
- If children are sea ted improperly, their r is k
of injury increases in the ca se of an ac cident
~ page 151, Child safety .
-Never attempt to modify any components of
the a irbag system in any way.
- In a side collision, side a irbags w il l not fu nc­
t ion properly if sensors cannot correct ly
measure increasi ng a ir pressure ins ide the
doo rs when air escapes through larger, un­
closed openings in the door panel.
- Never drive with inter io r door tr im panels
removed .
- Never drive when parts have been re ­
moved from the inside doo r panel and the
open ings they leave have not been proper­
ly closed.
148
- Never drive when loudspeakers in the
doors have been removed unless the
speaker holes have been properly closed.
- Always make certain that openings are
covered or filled if additional speakers or
other equipment is installed in the inside
door panels.
- Always have work on the doors done by an
authorized Aud i dealer or q ualified work­
shop.
Side curtain airbags
Description of side curtain airbags
The side curtain airbag system can provide sup­
plemental protection to properly restrained oc­
cupants .
Fig. 139 Sid e curt ain system , drive r's s ide : side curtai n air ­
bag loca tion
The side curtain airbags are located on both sides
of the inter ior above the fro nt and rear side win­
dows ~
fig. 139. They are identified by the word
"AIRBAG" on the windshie ld frame and the cen­
ter roof p illar .
The side curtain airbag system supplements the
safety belts and can help to reduce the risk of in ­
jury for occupants' heads and upper torso on the s ide of the vehicle that is struck in a side coll i­
sion. The side curta in a irbag inf lates in side im­
pacts and only when the vehicle accelera tion reg­
iste red by the control unit is high enough. If th is
rate is be low the refere nce value prog rammed in­
to the control unit, the side airbags will no t be
trigge red, even though the car may be badly
damaged as a resu lt of the co llision .
It is not pos­
sible to define an airbag triggering range that
will cover every possible angle of impact, since ..,.
