high outside temperatures and heavy en­
gine load .
- The front spoiler also he lps to distribute
cooling air correctly while driving. If the
spoiler is damaged, the cooling effect will
be impaired and the risk of the engine over­
heating will increase. See an authorized
Audi dealer or authorized Audi Service Fa­
cility for assistance.
Tachometer
The tachometer displays the engine speed in rev­
olutions per minute (RPM) .
You should shift to the next lowest gear when
the engine speed is below 1,SOO RPM . The begin­
ning of the red zone in the tachometer indicates
the maximum permissible engine speed for all
gears once the engine has been broken in and
when it is warmed up to operating temperat ure.
Before reaching the red zone, you shou ld shift in­
to the next higher gear, choose the Dor S selec­
tor lever position, or remove your foot from the
accelerator pedal.
CD Note
The needle in the tachometer @Q page 8,
fig. 3 may only be in the red area of the gauge
for a short time or there is a risk of engine
damage.
@ For the sake of the environment
Upshifting ea rly helps you to save fuel and re­
duces operating noise.
Fuel level
The fuel level indicator only operates when the
ignition is switched on.
The
tD ¢ page 15 turns on if the reserve quan ­
tity of fue l is reached.
The fuel tank capacity of your vehicle is listed in
the
Technical Data section ¢ page 210.
CD Note
Never drive until the tank is completely emp­
ty. The irregular supply of fuel that results
Instruments and indicator lights
from that can cause engine misfires . Uncom­
busted fuel will then enter the exhaust sys­
tem. This can cause overheat ing and damage
to the catalytic converter.
Odometer
Fig. 4 I n st ru me nt cluster : odometer
Trip odometer and odometer
The trip odometer @ shows the distance driven
since it was last reset. It can be used to measure
short distances.
T he trip odometer can be reset to zero by press­
ing the
10.01 reset button @~ page 8, fig. 3.
The odometer @shows the total distance that
the vehicle has been driven.
Malfunction indicator
If there is a malfunction in the instrument clus­
ter,
DEF will appear in the trip odometer display.
Have the malfunction corrected as soon as possi­
ble.
Time/date display
You can switch between the quartz clock or the
GPS controlled clock* depending on the vehicle
equipment. For more information, refer to your
MMI Operating Manual.
Outside temperature display
The instrument cluster display shows the outside
temperature. At temperatures below 42 °F ( +S
°C), a snowflake symbol appears in front of the
temperature display . .,.
9

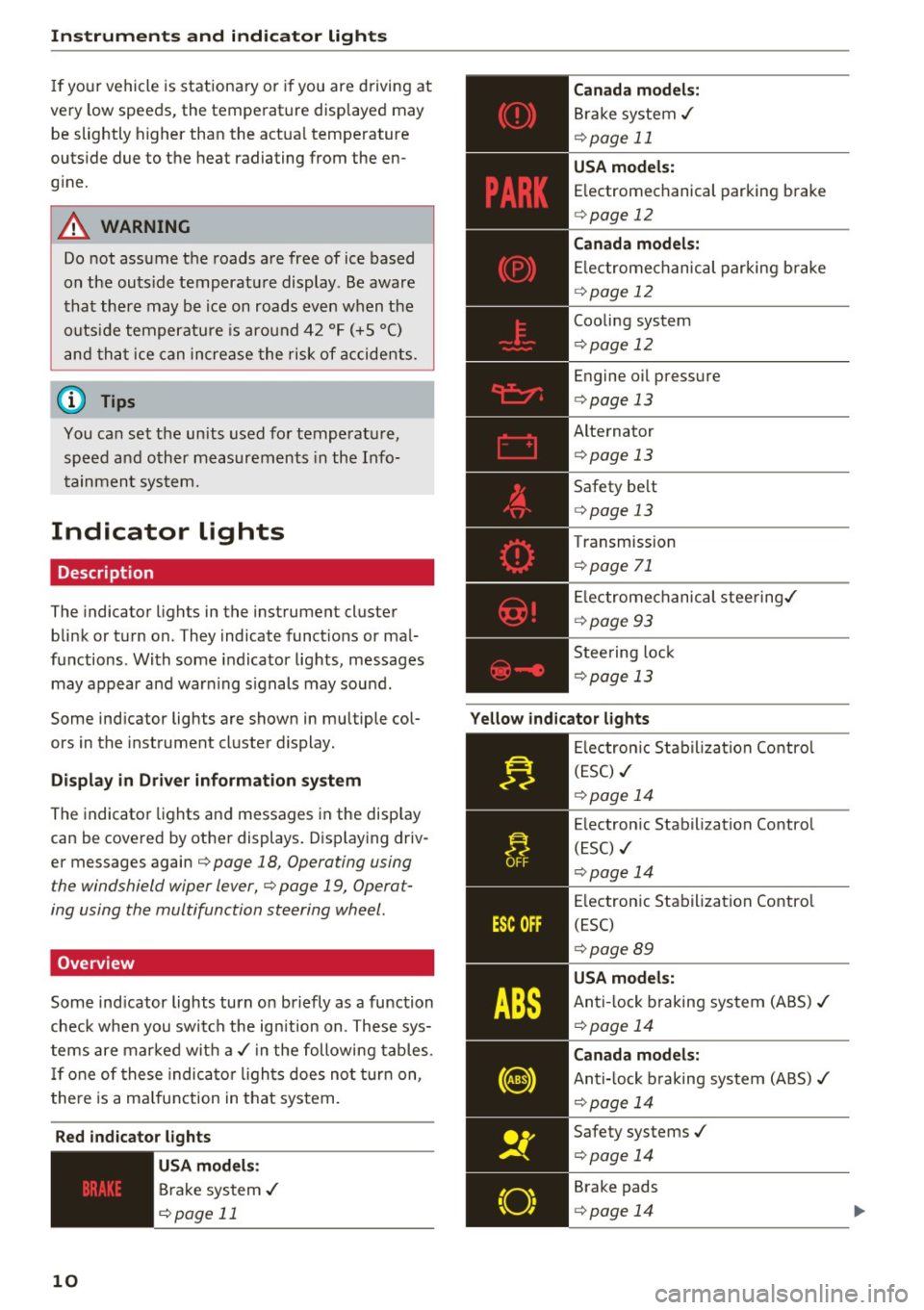

Instruments and indicator lights
If your vehicle is stationary or if you are driving at
very low speeds, the temperature displayed may
be slightly higher than the actua l temperature
outside due to the heat radiating from the en­
g ine.
A WARNING
Do not assume the roads are free of ice based
on the outs ide temperat ure display . Be aware
that there may be ice on roads even when the
outside temperature is around 42 °F (+5 °C)
a nd that ice can increase the risk of accidents .
You can set the un its used for temperat ure,
speed and other measurements in the Info­
tainment system.
Indicator lights
Description
The indicator lights in the instrument cluster
blink or turn on . They indicate funct ions or ma l­
functions . With some indicator lights , messages
may appear and war ning signals may sound .
Some indicator lights are shown in multiple col­
ors in the instrument cluster display.
Di splay in Driver informat ion sy st e m
The indicato r lights and messages in the disp lay
can be covered by other displays. Disp laying driv­
er messages again¢ page 18, Operating using
the windshield wiper lever,¢ page 19, Operat­
ing using the multifunction steering wheel.
Overview
Some ind icator lights turn o n briefly as a function
check when you switch the ign ition on. These sys­
tems are mar ked wit h a./ in the following tables .
I f one of these indica to r li gh ts does not turn on,
the re is a ma lfunction in that system.
Red indicator lights
10
--------------
US A mod els:
Brake system ./
¢ page 11
Canada model s:
Brake system ./
¢page 11
USA model s:
E lectromechanical parking brake
¢ page 12
Canada model s:
Elec trome chanical parking b rake
¢ page 12
Cooling system
¢ page 12
Engine oil pressure
¢ page 13
Alternator ¢ page 13
Safety be lt
¢ page 13
T ransmission
¢ page 71
El ectrome chanical stee ring ./
¢ pag e 93
Stee ring lock
¢page 13
Yello w ind icator lights
--------------
El ectron ic Stabil ization Co ntro l
( E SC) ./
¢page 14
E lectron ic Stabilization Control
(ESC) ./
¢ page 14
E lectron ic Stabilization Contro l
(ESC)
¢ page 89
USA models:
Anti-lock braking system (ABS) ./
¢ page 14
Canada model s:
Anti- lock b raking system (ABS) ./
¢ page 14
Safety systems ./
¢ page 14
Brake pads
¢ page 14

0 co ......
"' ,....
"' ...... 0 0 :::,
00
E lect romechanical pa rking brake
¢ page 12
Tire Pressu re Monitoring System *
../
¢page 183
Tire press ure monitor ing system*
¢page 183
Elect ronic power control ../
¢ page 14
M alfunct ion Indica to r L amp (M IL)
../
¢ page 14
En gine speed limi tation*
¢page 15
E ng ine o il level
¢page 15
Eng ine oi l sensor
¢ page 15
Battery charge
¢ page 13
Tank system
e> page 15
Washer fluid level *
¢ page 15
E ng ine start system
¢page 15
E lect romechani cal s teer ing../
¢ page93
S teer ing lock
¢ page 13
Remote con trol key*
¢ pag e 63
Battery in remote control key
¢ page23
Bulb failure indicator
¢page 16
H eadlight range contro l system
¢ page 16
A daptive light *
¢ page 16
Li ght/rai n sensor *
¢ page 16
Instruments and ind icator lights
S usp ension contro l*
¢ page 16
USA models:
Speed warning system*
¢page
76
Canada models:
Speed wa rning system*
¢ page
76
Other indicator lights
--------------Turn s ignals
¢page 16
Trailer t urn signa ls*
¢ page 16
USA models:
Cruise control system
¢page
76
Canada models:
Cru ise control system
¢ page
76
Hill des ce n t assis t*
¢page 91
Remo te co ntro l key*
¢ page 63
High beams
¢ page34
Door open
¢ page 17
Hood open
¢ page 17
L u ggage compartment lid ope n
¢ page 17
BRAKE/(©) Brake system
If this indica to r li ght tur ns on, t here is a malf unc­
tion in the brake system.
llll vehicle and check brake fluid level
Stop t he vehicle and check the brake fl uid level.
See a n author ized Audi dealer or author ized A udi
Service Facility for assis tance if necessa ry .
1111 (USA models ) /. (Canada models)
Brake: malfunction! Please park vehicle safely .,.
11

Instruments and indicator lights
If the ABS indicato r light LtiiJ (U SA mode ls)/ li]
(Canada models) , the ESC ind icator light
Dl and
the brake system ind icator light
1111 ( U SA mod­
els)/ . (Canada models) all turn on and this
message appears , then the ABS, ESC and braking
d istr ibut io n are malfunctioning ¢,&. .
Do not cont inue driving . See an autho rized Aud i
dealer or authori zed Aud i Serv ice Facility for as­
sistance ¢,&. .
1111 (USA models )/. (Can ada model s) Park­
ing brake: System fault! See owner 's manual
-If the indica tor l ight and the message appear
when the vehicle is stationar y or after sw itch­
ing the ignitio n on ,
check if you can release the
parking b rake.
If you cannot re lease the park­
ing brake, see an authori zed Aud i dea ler or au­
thori zed Audi Serv ice Facility. If you can rele ase
the parking brake and the message still ap ­
pears, see an autho rized Aud i dealer or author­
ized Audi Service Facility immed iately to have
the malfunction corrected.
- If the indicator l ight and message appea r while
dri vin g ,
the hill start assist or emergency brak­
ing func tion may be malfunctioning. It may not
be possib le to set the parking brake or release
it once it has been set . Do not park your veh icle
on hi lls. See an authorized Audi dealer or au­
thorized Audi Service Facility for assistance .
Applies to: USA models
If t he 1111 and EiJ indicator lights turn on a t the
same time, the brake pads are worn out
¢ page 14.
& WARNING
-Read and follow the warn ings in
¢ page 155, Working in the engine com­
partment
before open ing the hood and
check ing the b rake fl uid level.
- If the brake system indicator light does not
turn off or it t urns on while driv ing, the
brake fluid level in the reservoir is too low ,
and this increases the risk of an acc ident .
Stop the vehicle and do not continue dr iv­
ing. See an author ized Audi dealer or au­
tho rized Aud i Serv ice Facility fo r ass ist ance.
12
- If the brake system indicator light t urns on
together w ith the ABS and ESC indicator
lights, the ABS/ESC regu lating function may
be malfunct ion ing . Fu nctions that stabilize
the vehicle are no longer available . This
could cause the vehicle to swerve, which in­
creases the risk that the vehicle will slide.
Do not co nt inu e d rivi ng. See an autho rize d
Aud i dea ler or a uthorized Aud i Serv ice Facili ­
ty for ass istance .
PARK/<®) Electromechanical parking brake
If the -(USA mode ls) I. (Canada models)
i ndicato r light turns on, the parking brake was
set.
- (USA model s) /. (Can ada model s) Pre ss
brake pedal to r ele a se parking brake
To release the parking brake , press the brake
pedal and press the(®) button at the same t ime
or start driving with hill start assist¢
page 65,
Starting from a stop.
f p j Pa rking brake: S ystem faul t! See owner' s
manual.
T here is a ma lfunction in the parking brake. Drive
to an authori zed Aud i dea ler or a uthori zed Audi
Service Facility immediate ly to have the malfunc­
tion corrected.
(D Tips
For additional informat ion on the parking
brake, see
¢ page 63.
-F-Cooling system
• Turn off engine and ch eck coolant level.
The coolant level is too low.
Do not continue driving and switch the engine
off. Check the coolant level ¢
page 162.
-If the coo lant level is too low, add coolant
¢
page 162 . Only continue driving on ce the in­
dica tor ligh t turns off .
• Coolant temperature! Let engine run with
v e hicle stationar y.

0 co ......
"' ,....
"' ...... 0 0 :::,
00
L et the engine run at idle for a few minutes to
cool off, until the indicator light turns off.
- If the indicator light does not turn off, do not
continue driving the vehicle. See an authorized
Audi dealer or authorized Audi Service Facility
for assistance .
A WARNING
-Never open the hood if you can see or hear
steam or coolant escaping from the engine
compartment. This increases the risk of
burns. Wait until you no longer see or hear
steam or coolant escap ing .
- The engine compartment in any veh icle can
be a dangerous area. Stop the engine and
allow it to cool before working in the engine
compartment. Always follow the informa­
tion found inc::>
page 155, Working in the
engine compartment.
(D Note
Do not continue driving if the. indicator
light turns on as this increases the risk of en­
gine damage.
• Turn off engine! Oil pressure is too low.
Stop the eng ine and do not continue dr iving .
Check the engine oil leve l c::>
page 160.
- If the engine oil level is too low, add engine oil
c::>page 160. Only cont inue driv ing once the in­
dicator light turns off.
- If the engine oil level is correct and the indica ­
tor light st ill turns on, turn the eng ine off and
do not continue driving. See an authorized Audi
dealer or authorized Audi Service Facility for as­
s istance.
(D Tips
The oi l pressure warning is not an o il level in­
dicator. Always check the oil level regularly.
0 Generator/vehicle battery
• Alternator fault: Battery is not being charg­
ed.
Instruments and indicator lights
T he re is a malfunct ion in the a lternator or the ve­
hicle e lectrical system.
Drive to an authorized Audi dealer or authorized
Audi Service Facility immediately. Because the ve­
hicle battery is discharging, turn off all unneces­
sary electrical equipment such as the radio. See
an authorized Aud i dea ler or authorized Audi
Service Facility if the battery charge level is too low.
[•] Low battery charge: Battery will be charged
while driving.
T he starting ability may be impaired.
If this message turns off after a little while, the
vehicle battery cha rged enough while driving.
If the message does not turn off, have an author­
ized Audi dealer or author ized Audi Service Facili­
ty repair the malfunction .
,{,_ Safety belt
The . indicator light stays on until the dr iver's
and front passenge r's safety belts are buckled.
Above a certa in speed, there will a lso be a warn­
ing tone .
(D Tips
For additional informat ion on safety belts,
see c::>
page 106.
@-Steering lock
• Steering fault! Do not drive vehicle!
There is a malfunction in the electron ic steering
lock. You cannot turn the ign ition on.
Do
not tow your vehicle because it cannot be
stee red. See an author ized Audi dealer or author­
ized Audi Service Facility for assistance .
!II Steering lock: System fault! Please contact
dealer.
There is a malfunction in the e lectronic steering
lock.
Drive to an authorized Audi dealer or authorized
Audi Service Facility immediate ly to have the
malfunction corrected.
Ill>
13

Instruments and indicator lights
A WARNING
Do not tow your vehicle when there is a mal ­
function in the electronic steering lock - this
increases the risk of an accident.
f;,.1 [.} Electronic Stabilization Control (ESC)
-
lfthc bl indicator light blinks wh ile driving, the
ESC or ASR (Anti-Slip Regu lation) is actively regu­
lating.
If the
bl indicator light turns on, the system has
sw itched the ESC off. In this case, you can switch
the ignition off and then on to switch the ESC on
again. The indicator light turns off when the sys­
tem is function ing fully.
If the
II i ndicator light turns on, ESC was
sw itched off using the~ OFF button
¢page
89.
Stabilization control (ESC/ABS): Fault! See
owner 's manual
If the bl indica to r li ght and the ABS indicator
light
fJ1m (USA models)/ [i] (Canada mode ls) turn
on and this message appea rs, the re is a ma lfunc­
tion in the ABS system or electronic differential
lock. T his also causes the ESC to ma lfunction.
The brakes st ill function with their normal power,
but ABS is not act ive .
Drive to an authorized Aud i dea ler or a uthorized
Aud i Serv ice Facility immediately to have the
malfunct io n corrected.
A WARNING
If the 11111 (USA models) /. (Canada mod­
els) brake system indicator light turns on to­
gether with the ABS and ESC indicator l igh ts,
the ABS and ESC regulat ing function may
have malfunctioned. Functions that stab ilize
the vehicle are no longe r available. This could
cause the vehicle to swerve, which increases
the risk that the vehicle will slide. Drive care­
fully to the nearest a uthorized Audi dea ler or
authorized Audi Service Fac ility and have the
ma lfunction corrected.
14
(D Tips
Fo r additional information on ESC and ABS,
r efe r to ¢ page
89.
!f Safety systems
The E,I indicator light mon itors the safety sys­
tems.
If the
E,I indicator light turns on or blinks, the re
i s a ma lfunction in a safety system.
Drive to an authorized A udi dealer or authorized
Audi Service Facility immediate ly to have the
malfunction cor rected.
A WARNING
Have the malfunction in the safety systems
inspected immed iately. Otherwise, there is a
risk that the systems may not activate during
a collision, wh ich increases the ris k of serious
injury or death .
(0) Brake pads
E+J Brake pads!
-
The brake pads are worn.
Drive to an authorized A udi dealer or authorized
Audi Service Facility immediate ly to have the
brake pads checked .
Applies to: USA mode ls
The E+J indicator lig ht turns on together with the
11111 indicator light.
EPC Engine control (gasoline engine)
App lies to: vehicles wit h gaso line e ngi nes
If the ~ indicator light turns on while driv ing,
there is an engine control malfunct ion.
Immediate ly drive slow ly to an authorized A udi
dealer or authorized A udi Service Fac ility to have
the malfunct ion corrected.
o Malfunction indicator lamp (MIL)
The ma lfunction ind icator lamp (MIL) is part of
the On-Board D iagnostic System (OBD II) . The .,.

¢4 symbol turns on when the ignit ion is swi tched
on and t urns off again once the engine is starte d
and running at a steady id le spee d. This i ndicates
that the MIL is functioning co rrectly.
The in dica to r lig ht turns on i f th ere is a mal func ­
tion in the en gine electronics . See an aut ho rize d
Au di dea le r or aut ho rize d Aud i Serv ice Facility to
have the ma lf u nction co rrected . For add it iona l
i nfo rmation, see ¢ page
17.
The indicato r light can also tur n on if t he f uel fi ll­
e r cap is not close d correct ly ¢ page
153.
!?) Engine speed limitation
App lies to: ve hicles with eng ine speed limitat ion
Ill Don't e xceed ma x. engine speed of XXXX
rpm
The engine spee d is automatically lim ite d to the
speed d isplayed in the driver info rmation system .
This protects the engine from ove rheatin g.
The engine spee d limitation deactivates once the
en gine is no longer in the c ritical tem perature
range and you have released the acce le rato r ped ­
al once.
I f the engine speed limitation was activate d by
an engine contro l ma lfunction , th e ~ indi cator
light also turns on . M ake su re that the speed
does not go above the speed d isplayed . D rive to
a n author ized Audi dealer or authorized A udi
Service Faci lity immediately to have the mal func­
tion cor rec ted.
'l=cr,. Engine oil level
• Check oil level.
Refill eng ine oi l as soon as possib le ¢ page 158 .
~ ..... Engine oil sensor
• Oil level sensor: System fault!
The senso r to c heck the engine oil level has
fa iled. Drive to an autho rized Aud i dea le r o r a u-
a thor ized Audi Se rvice Fac ility immed iate ly to have co
~ the ma lf u nct ion co rrected . ,....
N .... 0 0
:::,
00
Instruments and ind icator lights
iu Tank system
ta Please refuel
If the indicato r light turns on for the first time
and t he message appea rs , the re are about
1.8 -2.2 gallons (7 .0-8 .S lite rs) of fuel lef t in t he
tank .
ta Fuel tank system malfunction! Contact deal ­
er
Dr ive to an au thor ized A udi dealer or au thori ze d
Audi Se rvice Facility immed iate ly to h ave the
malfunction corrected.
(D Tips
F o r m ore i nfor mat ion on fu el ing, see
¢ pag e
153 .
o Washer fluid level
Appl ies to : vehicles wit h washer fluid level indicator
fl'I Please refill washer fluid.
Fill the w asher f lu id wi th t he ign iti on swit ched
o ff ¢page
165.
~ Engine start system
@-j i-:ngine start system: Malfunction! Please
contact dealer .
Do not switch the ignition o ff because you m ay
not be able to switch it on again.
Dr ive to an author ized A udi dealer or au thoriz e d
A udi Se rvice Facility immed ia te ly to h ave the
m alfu nct ion co rre ct ed .
Engine start system: Malfunction . Please con­
tact dealer.
The re is a ma lf u nct ion in t he engine sta rting sys­
tem .
D rive to an authorized A udi dealer or autho rized
Audi Se rvice Facility immed iate ly to have the
malfunction corrected .
15

Instruments and indicator lights
i§i Bulb failure indicator
If the J:j indicato r light turns on, a bu lb has
fa iled. The message ind icates the loca tion of the
bu lb .
Replace the bulb immediately .
Vehicl e lights: Sy stem fault!
There is a malfunction in the headl ights or the
light switch.
Drive to an a utho rized Aud i dea ler or a uthorized
Audi Service Facility immediately to have the
malfunctio n corrected .
A WARNING
-light bu lbs are under pressure and can ex­
plode when bulbs are replaced, which in­
creases the risk of injury.
- With HID headlights (xenon headlights)*, the h igh-voltage component must be han­
dled correctly. Otherw ise, there is a risk of
fatal injury .
~(D Headlight range control system
II Headlight range control Sy ste m fault!
There is a malfunction in the head light range
control system, which may cause glare for other
drivers.
Drive to an a uthorized Audi dea ler or a uthorized
Aud i Serv ice Facility immediately to have the
malfunct ion corrected.
~O Audi adaptive light
Applies to: vehicles with Audi adaptive light
rlJ Audi adapti ve light: System fault!
There is a malfunction in the adaptive lights . The
headlights still function.
D rive to an a uthorized Audi dea le r or a uthorized
Audi Service Facility immediately to have the
malfunct ion corrected.
16
· @. D Light/rain sensor
Applies to: vehicles with light/rain sensor
fl;I Automatic h eadlight s/wiper s: System fault!
The light/rain sensor is malfunctioning.
The low beams remain switched on at all times
for safety reasons when the light switch is in the
AUTO position. You can cont inue to turn the
lights on and off using the light switch . You can
still control all functions that are independent of
the rain senso r th rough the windsh ield wiper lev­
e r.
Drive to an authorized A udi dealer or authorized
Audi Se rvice Fac ility immediate ly to have the
malfunction corrected .
; Suspension control
Applies to: vehicles with Audi drive select and suspension con­
trol
B Su spension : Sy stem f ault!
There is a suspension contro l ma lf u nction.
Drive to an au thorized A udi dealer or authorized
Audi Se rvice Facility immediate ly to have the
malfunction corrected.
¢¢ Turn signals
If the R or 1B indicator light blinks, the turn
s ignals are activated. If both ind icator lights are
blinking, the emergency flashers are activated .
If an indicator light blinks twice as fast as usual ,
a turn signal bu lb has failed. Carefully drive to an
autho rized Aud i dea ler or authorized Aud i Serv ice
Facility immediate ly to have the malfunction cor­
rected .
¢1.~ Trailer turn signals
Applies to: vehicles with trailer hitch
When the. indicator light b links, then the turn
s ignals are activated in tra ile r mode . T he t ra iler
mus t have been con nected correct ly for this
¢ page 73.
If a tu rn s ignal o n the t railer or on the vehicle
fails while in trailer mode, the indicato r ligh t will
not blink twi ce as f ast to indic ate t his.

a
co
...... N r--. N .-< 0 0 ::, co
/fj/c::::::::;/ c::5 Door, hood or luggage
compartment lid is open
II-If the indicator light turns on, then one of
the doors is not closed .
f-j-If the ind icator light tu rns on , then the hood
is not closed.
§-j -If the ind icator light turns on, then the lug­
gage compartment lid is not closed.
On-Board Diagnostic
System (OBD)
Malfunction indicator lamp (MIL)
The malfunction indicator lamp (MIL) ¢.j in the
instrument cluster is part of the On-Board Diag­
nostic System (OBD II).
The warning/indicator light turns on when the ig­ nition is switched on and turns off once the en­
gine is started and is running in idle at a stab le
speed. This indicates that the MIL is functioning
correct ly.
If the light does not turn off after starting the
engine
or turns on while driving, this may indi­
cate there is a malfunction in the engine.
If the
indicator turns on, the catalytic converte r may be
damaged .
Drive
with reduced engine performance (avoid
high speeds for extended periods of time and/or
fast acceleration) and have the malfunction cor­
rected. See an authorized Aud i dealer or autho r­
ized Audi Service Facility.
The MIL may also turn on if the fuel filler cap i s
not cl osed correctly
¢ page 153.
Instruments and indicator lights
On-Board Diagnostics
Fig. 5 Location o f Data Li nk Con necto r (OLC)
On-Board Diagnostics monitors the components
of your emission control system. Each monitored
component in your engine system has been as­
s igned a code. In case of a malfunction , the com­
ponent will be identified and the fault sto red as a
code in the control module memory.
The MIL light may also illuminate if there is a
leak in the on-board fuel vapor recovery system.
If the light illuminates after a refueling, stop the
vehicle and make sure the fuel f iller cap is prop­
erly closed (only vehicles with gasoline engine)
r::'.>page 153 .
In order to make an acc urat e diagnosis, the stor­
ed data can only be displayed using special diag­
nostic equipment (generic scan tool for 080).
In order to connect the special d iagnost ic equip­
ment, push the p lug into the Data Lin k Connector
(DLC). The DLC is located to the right of the hood
release ¢
fig. 5.
Your authorized Aud i dea ler or qualified work­
shop can interpret the code and perform the nec­
essary repair.
_& WARNING ~
Do not use the diagnostic connector for per-
sona l use. Incorrect usage can cause malfunc­
tions, which can increase the risk of a colli­
sion!
17

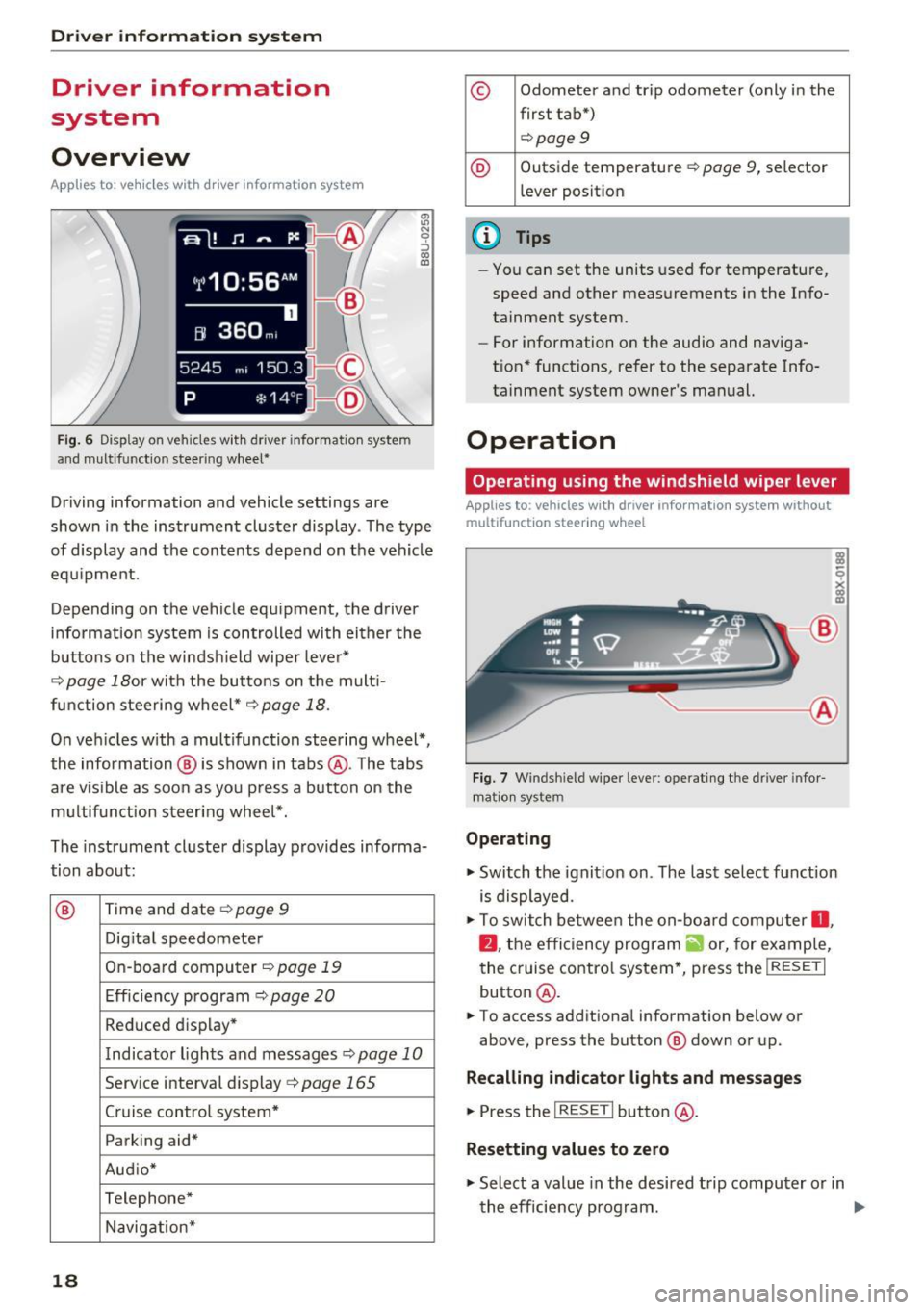

Driver information system
Driver information
system
Overview
A pp lies to: ve hicles w ith driver information system
Fig. 6 Display on veh icles wit h driver informat ion system
and m ultifunc tion steering wheel*
:ll N 9 ::i a, ID
Driving information and vehicle settings are
shown in the instrument cluster display . T he type
of display and the contents depend on the vehicle
equipment.
Depending on the vehicle equ ipment, the driver
information system is controlled with either the
buttons on the windsh ield wiper lever*
¢ page 18or with the buttons on the mult i­
function steering wheel*¢ page 18.
On vehicles with a multifunction steering wheel*,
the information ® is shown in tabs @. The tabs
are visible as soon as you press a button on the
multifunction steering wheel*.
The instrument cluster display provides informa­
tion about:
® Time and date
¢ page 9
Dig ital speedometer
On -board computer¢ page 19
Efficiency program¢ page 20
Reduced display*
Indicator lights and messages¢ page 10
Serv ice interval display ¢page 165
Cruise control system* Parking aid*
Aud io*
Telephone* Navigation*
18
© Odometer and trip odometer (only in the
first tab*) ¢page
9
® Outside temperature~ page 9, selector
l ever posit ion
{!) Tips
- You can set the units used for temperature,
speed and other measurements in the Info­
tainment system.
- For information on the audio and naviga ­
t ion* functions, refer to the separate Info ­
tainment system owner's manual.
Operation
Operating using the windshield wiper lever
Applies to : vehicles wit h dr iver infor mat ion system without
multif unct ion steer ing wheel
------ ®
Fig. 7 Windsh ie ld wipe r leve r: operating the drive r info r­
ma tion system
Operating
~ Switch the ignit ion on . The last select function
is displayed.
~ To switch between the on -board computer 0 ,
fJ , the efficiency program a, or, for examp le,
the cruise contro l system*, press the
I RESET I
button@.
~ To access additiona l information below or
above, press the button ® down or up.
Recalling indicator lights and messages
~ Press the I RESET I button @.
Resetting values to zero
~ Select a value in the desired trip computer or in
the efficiency program. ..,.
