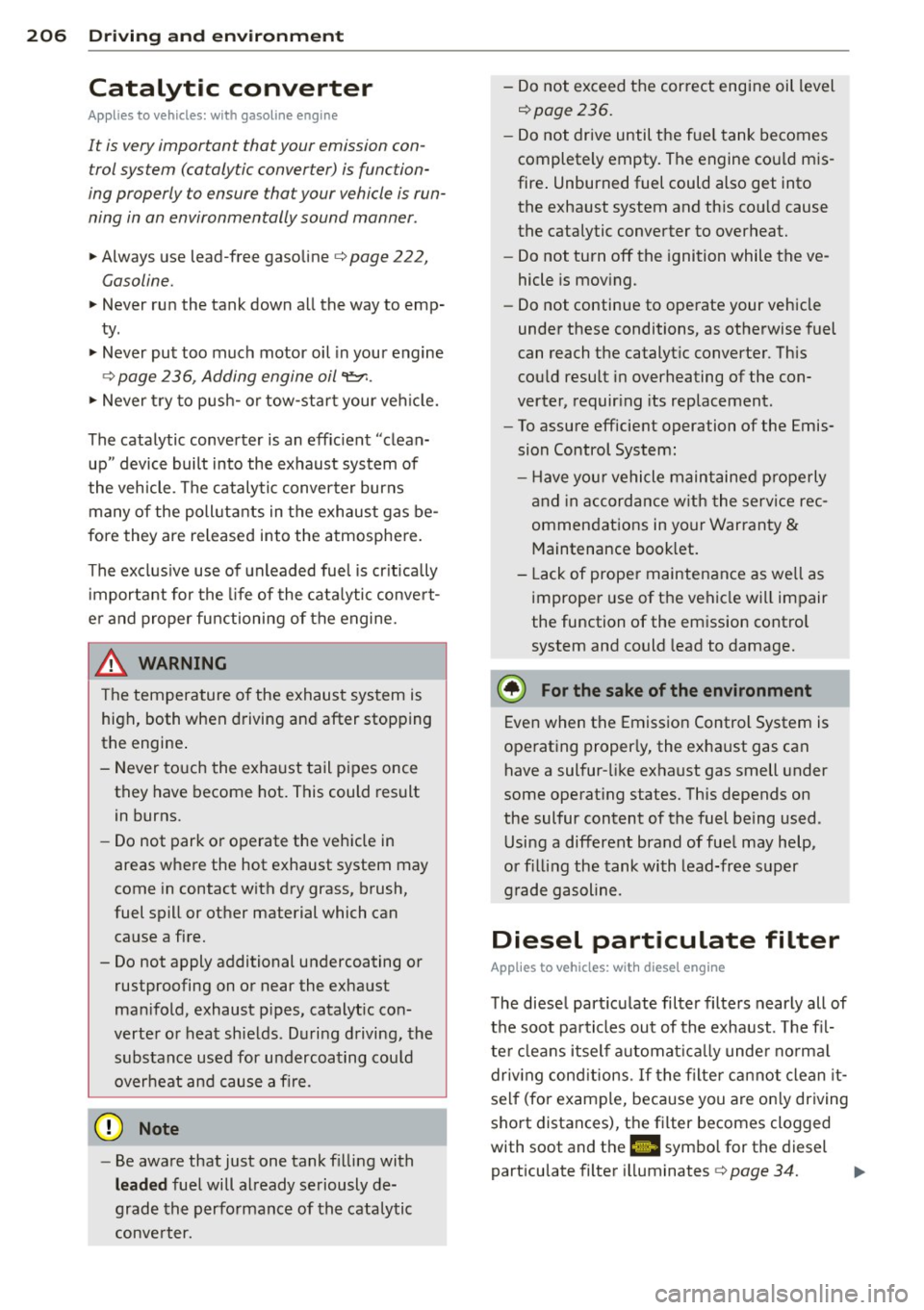

206 Driving and en vir onm ent
Catalytic converter
Appl ies to vehicles: with gasoline e ngin e
It is very important that your emission con­
trol system (catalytic converter) is function­
ing properly to ensure that your vehicle is run­
ning in an environmentally sound manner .
.. Always use lead-free gasoline i=> page 222,
Gasoline .
.. Never run the tank down all the way to emp-
ty .
.. Never put too much motor oil in your engine
¢ page 236, Adding engine oil 'l=r. .
.. Never try to push- or tow-start your veh icle.
The catalytic converter is an eff ic ient "clean­
up" device built into the exhaust system of
the vehicle. The catalyti c converter burns
many of the pollutants in the exhaust gas be­
fore they are released into the atmosphere.
The exclus ive use of unleaded fuel is cr itically
important for the l ife of the cata lytic convert­
e r and proper functioning of the engine.
A WARNING
T he temperature o f the exhaust system is
high, both when driving and after stopping
the engine .
- Never touch the exhaust tail pipes once
they have become hot. This could result
in burns.
- Do not park or operate the vehicle in
areas where the hot exhaust system may
come in contact with dry grass, brush,
fuel spill or other material which can
cause a fire.
- Do not apply additional undercoating or
rustproofing on or near the exhaust
man ifold, exhaust p ipes, catalytic con­
verter or heat sh ields . During driving, the
substance used for u ndercoating cou ld
overheat and cause a fire.
@) Note
- Be aware that just one tank f illing with
leaded fuel will already seriously de­
grade the perfo rmance of the cata lytic
conve rter. -
Do not exceed the correct engine oil level
i=>page 236.
-Do not drive until the fue l tank becomes
completely empty . The engine co uld m is­
fire . Unburned fuel could also get into
the exhaust system and this cou ld cause
the catalytic converter to overheat.
- Do not turn off the ignition while the ve­
hicle is mov ing .
- Do not continue to ope rate your vehicle
under these conditions, as otherwise fuel
can reach the catalyt ic converter. Th is
cou ld result in overheating of the con­
verter, requir ing its replacement .
- To assure efficient operation of the Emis­
sion Control System:
- Have you r vehicle maintained p roperly
and in accordance w ith the service rec­
ommendations in your Warranty & Maintenance book let.
- Lack of prope r maintenance as we ll as
improper use of the vehicle wi ll impair
the function of the em ission contro l
system and could lead to damage.
@) For the sa ke of the en vironment
Even when the Emission Control System is
ope rat ing properly, the exhaust gas can
have a sulfur-like exhaust gas smell under
some operat ing states. This depends on
the sulfur content of the fuel being used .
Usi ng a different brand of fuel may help,
or f illing the tank with lead-free super
grade gasoline.
Diesel particulate filter
Applies to vehicles: with diese l eng ine
The diesel part icu late filter filters nearly all of
the soot pa rticles out of the exhaust . T he fil­
te r cleans itself automat ica lly unde r no rma l
dr iv ing cond itions . If the filte r cannot clean it­
self (for example, because you are on ly driving
short distances), the filter becomes clogged
with soot and the
II symbol for the diesel
particulate filter i lluminates
i=> page 34. ..,.

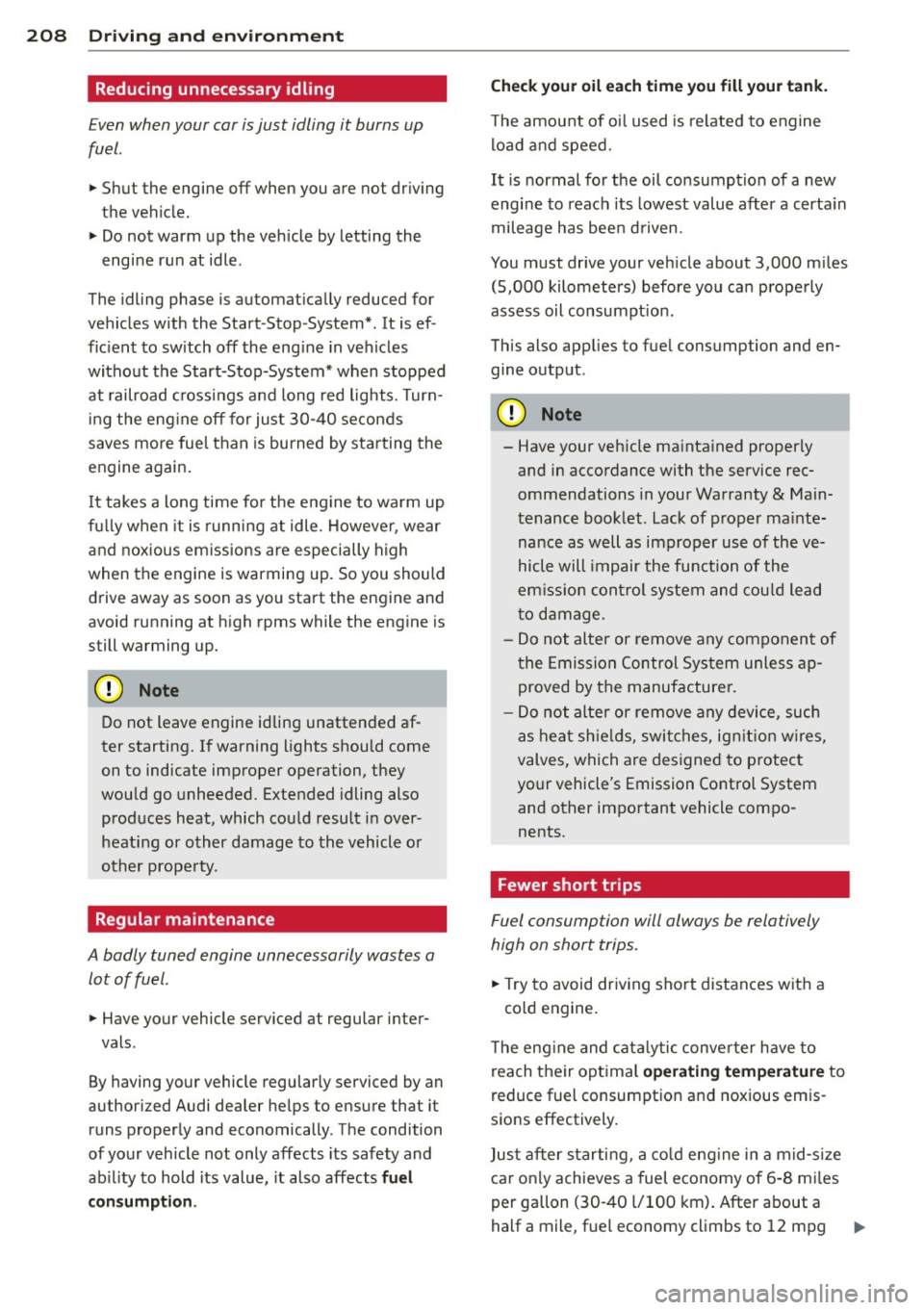

208 Driving and environment
Reducing unnecessary idling
Even when your car is just idling it burns up
fuel.
.,. Shut the engine off when you are not driving
the vehicle.
.,. Do not warm up the vehicle by letting the
engine run at idle .
The idling phase is automatically reduced for
vehicles with the Start-Stop -System* . It is ef­
fic ient to sw itch
off the eng ine in vehicles
without the Start-Stop-System* when stopped
at railroad crossings and long red lights. Turn­
ing the eng ine
off for just 30-40 seconds
saves more fuel than is burned by sta rting the
engine again .
It takes a long time for the engine to wa rm up
fu lly when it is running at idle. However , wear
and nox ious emissions are especially high
when the engine is warming up. So you should
drive away as soon as you start the engine and
avoid running at high rpms while the engine is
still warming up.
(D Note
Do not leave engine idling unattended af­
ter starting. If warning lights should come
on to indicate improper operation, they
would go unheeded. Extended idling also
produces heat, which could resu lt in over­
heat ing or other damage to the vehicle or
other property .
Regular maintenance
A badly tuned engine unnecessarily wastes a
lot of fuel .
.,. Have your vehicle serviced at regular inter-
vals.
By having your vehicle regularly serviced by an
author ized Audi dealer helps to ensure that it
runs properly and economically . The condition
of your vehicle not only affects its safety and
ab ility to hold its value, it also affects
fuel
consumption. Check
your oil each time you fill your tank.
The amount of oi l used is re lated to engine
load and speed.
It is normal for the oil consumption of a new
engine to reach its lowest value after a certa in
mileage has been driven .
You must drive your veh icle about 3,000 mi les
(5,000 kilometers) before you can properly
assess oil consumpt ion.
This also app lies to fuel consumption and en­
gine output .
(0 Note
- Have your veh icle ma inta ined properly
and in accordance with the service rec­
ommendations in your Warranty
& Ma in­
tenance booklet. Lack of proper ma inte­
nance as well as improper use of the ve­
hicle will impair the function of the
em iss ion control system and could lead
t o damage.
- Do not alter or remove any component of
the Emission Control System unless ap­
proved by the manufacturer.
- Do not alter or remove any device, such
as heat shie lds , switches, ignition wires,
valves, which are designed to protect
your vehicle's Emission Control System
and other important vehicle compo­
nents.
' Fewer short trips
Fuel consumption will always be relatively
high on short trips.
... Try to avoid driving sho rt distances w it h a
cold engine .
T he eng ine and catalytic converter have to
reach their optimal
operating temperature to
reduce fuel consumpt ion and nox ious emis­
sions effectively.
Jus t after starting, a cold engine in a mid-s ize
car only achieves a fuel economy of 6-8 mi les
per gallon (30 -40 l/100 km). After about a
half a mile, fuel economy climbs to 12 mpg .,..

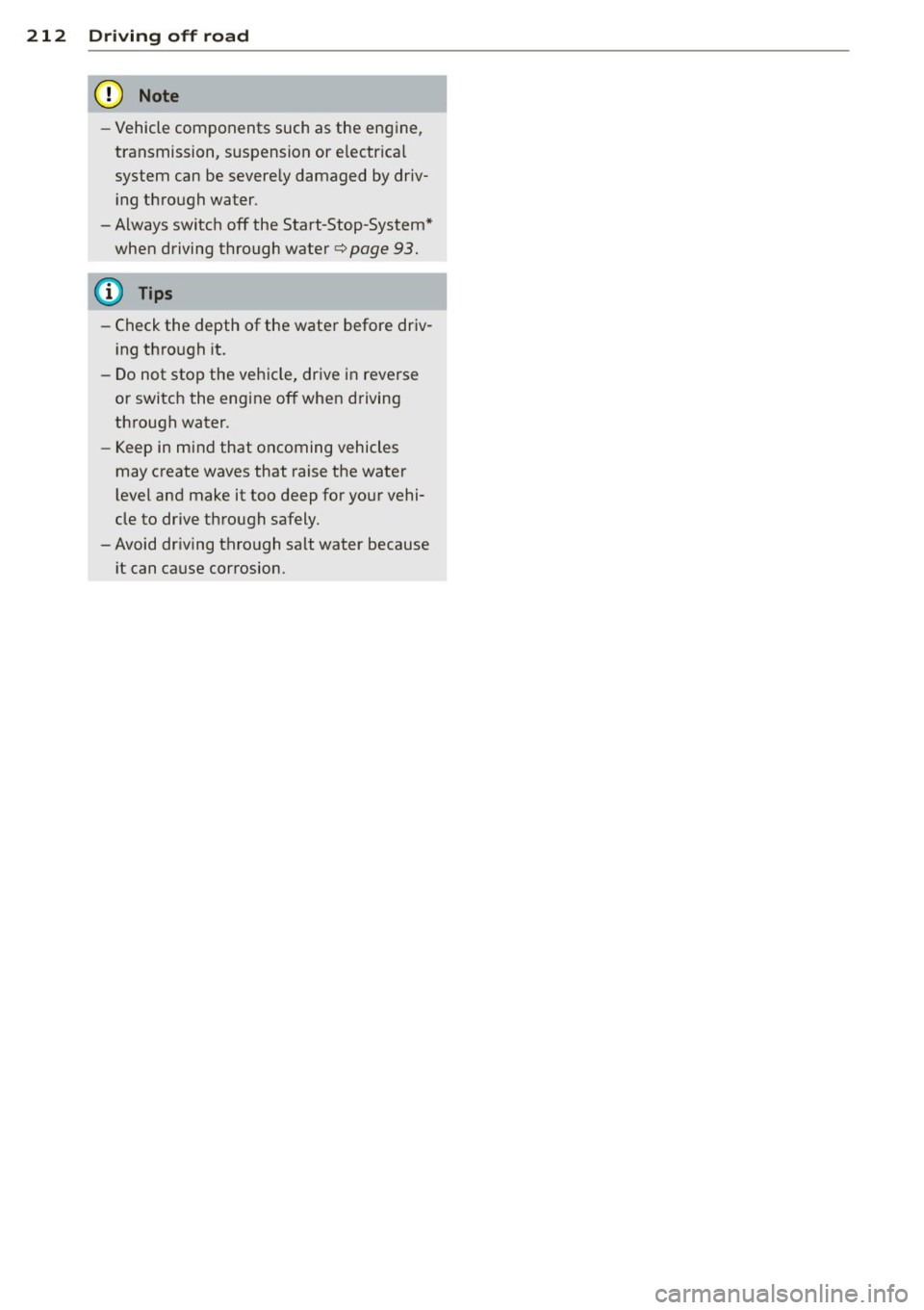

212 Driving o ff road
- Vehicle components such as the engine,
transmission, suspension or e lectr ica l
system can be severe ly damaged by driv­
i ng through water .
- Always switch off the Start-Stop-System*
when driving through water
c:> page 93.
@ Tips
-Check the depth of the water before driv­
i ng through it.
- Do not stop the vehicle, drive in reverse
or switch the engine off when driving
through water.
- Keep in mind that oncoming vehicles
may create waves that raise the water
level and make it too deep for your vehi­
cle to drive through safely.
- Avoid driving through salt water because
i t can cause corrosion.

~ Do not drive at the maximum permissible
speed.
~ Always apply brakes early.
~ Monitor the temperature gauge.

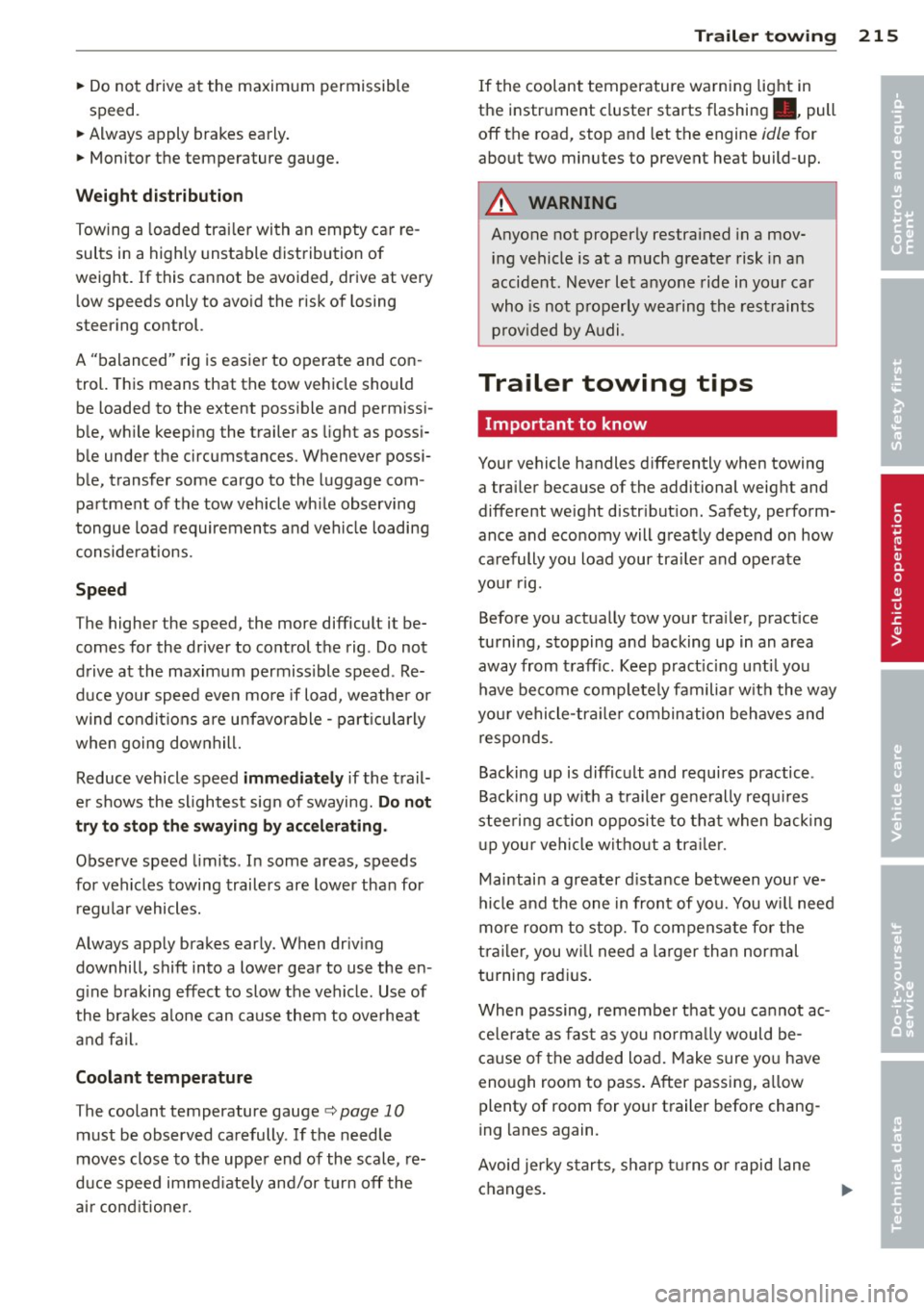

Weight distribution
Towing a loaded tra iler with an empty ca r re­
sults in a high ly unstable distribution of
weight. If this cannot be avoided, drive at very low speeds only to avoid the risk of losing
steering control.
A "balanced" rig is easier to operate and con ­
trol. This means that the tow vehicle should
be loaded to the extent possible and permiss i­
ble, while keeping the trailer as light as possi­
ble under the circumstances. Whenever possi­
ble, transfer some cargo to the luggage com ­
partment of the tow vehicle wh ile observing
tongue load requirements and vehicle loading
considerations .
Speed
The higher the speed, the more difficult it be­
comes for the driver to control the rig . Do not
drive at the maximum permissible speed. Re­
duce your speed even more if load, weather or
wind conditions are unfavorable -part icularly
when going downhill.
Reduce vehicle speed
immediately if the trail­
er shows the slightest sign of swaying.
Do not
try to stop the swaying by accelerating.
Observe speed limits. In some areas, speeds
for veh icles towing trailers are lower than for
regular vehicles.
Always apply brakes early . When driving
downhill, shift into a lower gear to use the en ­
g ine braking effect to slow the vehicle . Use of
the brakes alone can cause them to ove rheat
and fail.
Coolant temperature
T he coolant temperature gauge c:> page 10
must be observed carefully . If the needle
moves close to the upper end of the scale, re­
duce speed immed iate ly and/or turn off the
air cond itioner.
Trailertowin g 215
If the coolant temperature warning light in
the instr ument cluster starts flashing., pull
off the road, stop and let the engine
idle for
about two minutes to prevent heat build -up.
A WARNING
Anyone not properly restrained in a mov­
ing vehicle is at a much greater risk in an
accident. Never let anyone ride in your car
who is not properly wearing the restraints
prov ided by Audi .
Trailer towing tips
Important to know
Your vehicle handles differently when towing
-
a trailer because of the additional weight and
different weight distr ibut ion. Safety, perform­
ance and economy will greatly depend on how
carefully you load your trailer and operate
your rig.
Before you actually tow your tra iler, practice
turning, stopping and backing up in an area
away from traffic. Keep practicing until you
have become completely familiar w ith the way
your vehicle-tra ile r combination behaves and
responds.
Backing up is difficult and requires practice .
Backing up with a trailer generally requires
steering action opposite to that when backing
u p you r vehicle without a trailer.
Maintain a greater d ista nce between your ve­
hicle and the one in front of you. You w ill need
more room to stop. To compensate fo r the
trailer, you w ill need a larger than normal
turning radius.
When passing, remember that you cannot ac­
celerate as fast as you normally would be­
cause of the added load. Make sure yo u have
enough room to pass. After passing, a llow
plenty of room for your trailer before chang­
ing lanes again.
Avoid jerky starts , sharp t urns or rapid lane
changes.
•
•

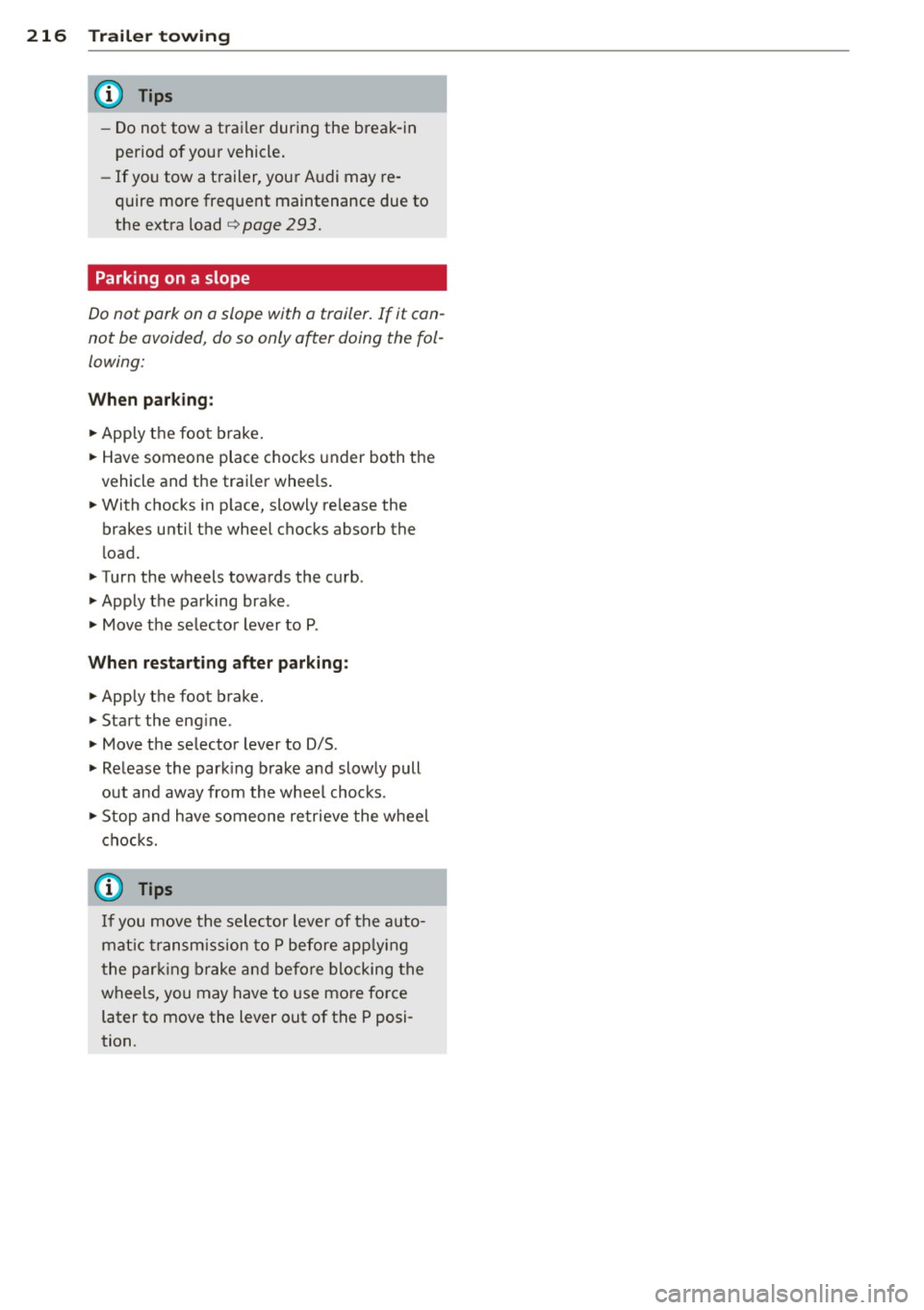

216 Trailertowing
-Do not tow a trailer during the break-in
period of your vehicle .
- If you tow a trailer, your Audi may re­
quire more frequent maintenance due to
the extra load
<=> page 293.
Parking on a slope
Do not park on a slope with a trailer. If it can­
not be avoided, do so only after doing the fol­
lowing:
When parking:
,,. Apply the foot brake.
,,. Have someone place chocks under both the
vehicle and the trai ler wheels.
,,. With chocks in place, slowly re lease the
brakes until the whee l chocks absorb the
load.
,,. Turn the wheels towards the curb .
,,. Apply the parking brake .
,,. Move the selector lever to P.
When restarting after parking:
,,. Apply the foot brake.
,,. Start the eng ine.
,,. Move the selector lever to D/S.
,,. Re lease the park ing brake and slowly pull
out and away from the wheel chocks.
,,. Stop and have someone retrieve the wheel
chocks.
@ Tips
If you move the selector lever of the auto­
mat ic transmission to P before applying
the parking brake and before blocking the
wheels, you may have to use more force
later to move the lever out of the P posi­
tion.

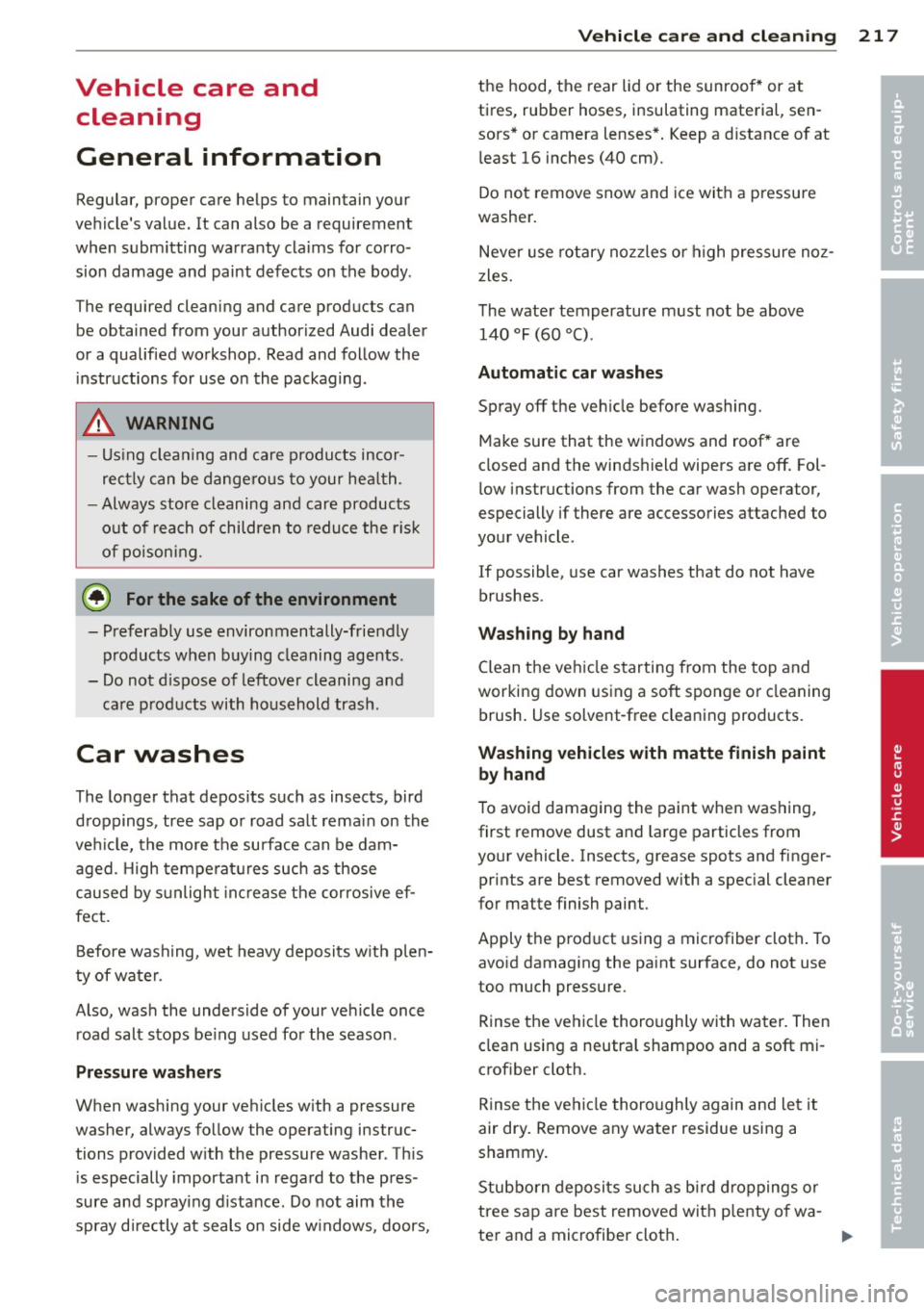

Vehicle care and clean ing
General information
Regular, proper care helps to maintain your
vehicle 's value. It can also be a requirement
when submitting warranty claims for corro ­
sion damage and paint defects on the body .
The required cleaning and care products can
be obtained from your authorized Audi dealer
or a qualified workshop . Read and follow the
instructions for use on the packaging.
A WARNING
-Us ing clean ing and care products incor­
rectly can be dangerous to your hea lth.
- Always store cleaning and care products
out of reach of children to reduce the risk
of poisoning.
@) For the sake of the environment
-Preferably use environmentally-friendly
products when buying cleaning agents.
- Do not d ispose of leftover cleaning and
care products with household trash .
Car washes
-
The longer that deposits such as insects, bird
droppings, tree sap or road salt remain on the
vehicle, the more the surface can be dam­ aged. High temperatures such as those
caused by sunlight increase the corrosive ef­
fect.
Before washing, wet heavy deposits w ith plen­
ty of water.
Also, wash the underside of your vehicle once road salt stops be ing used for the season.
Pressure washers
When washing your vehicles with a pressure
washer, always follow the operating instruc­
tions provided w ith the pressure washer . Th is
is especially important in regard to the pres ­
sure and spraying distance. Do not aim the
spray directly at seals on side w indows, doors,
Vehicle care and cleaning 217
the hood, the rear lid or the sunroof* or at
tires, rubber hoses, insulating material, sen­ sors* or camera lenses* . Keep a distance of at
least 16 inches (40 cm).
Do not remove snow and ice with a pressure
washer.
Never use rotary nozzles or high pressure noz­
zles.
The water temperature must not be above
140 °F (60 °C) .
Automatic car washes
Spray off the vehicle before washing.
Make sure that the windows and roof* are
closed and the windshield wipers are
off. Fol­
low instructions from the car wash operator,
especially if there are accessories attached to
your vehicle.
If possible, use car washes that do not have
brushes .
Washing by hand
Clean the vehicle starting from the top and
working down using a soft sponge or cleaning
brush. Use solvent-free cleaning products.
Washing vehicles with matte finish paint
by hand
To avoid damaging the paint when washing,
first remove dust and large particles from
your vehicle. Insects, grease spots and finger­ prints are best removed with a special cleaner
for matte finish paint.
Apply the product using a microfiber cloth. To
avoid damaging the paint surface, do not use
too much pressure .
Rinse the vehicle thoroughly with water. Then
clean using a neutral shampoo and a soft mi­
crof iber cloth.
Rinse the vehicle thoroughly again and let it
air dry . Remove any water residue using a
shammy.
Stubborn deposits such as bi rd droppings or
tree sap are best removed with plenty of wa-
ter and a microfiber cloth.
Ill-
•
•

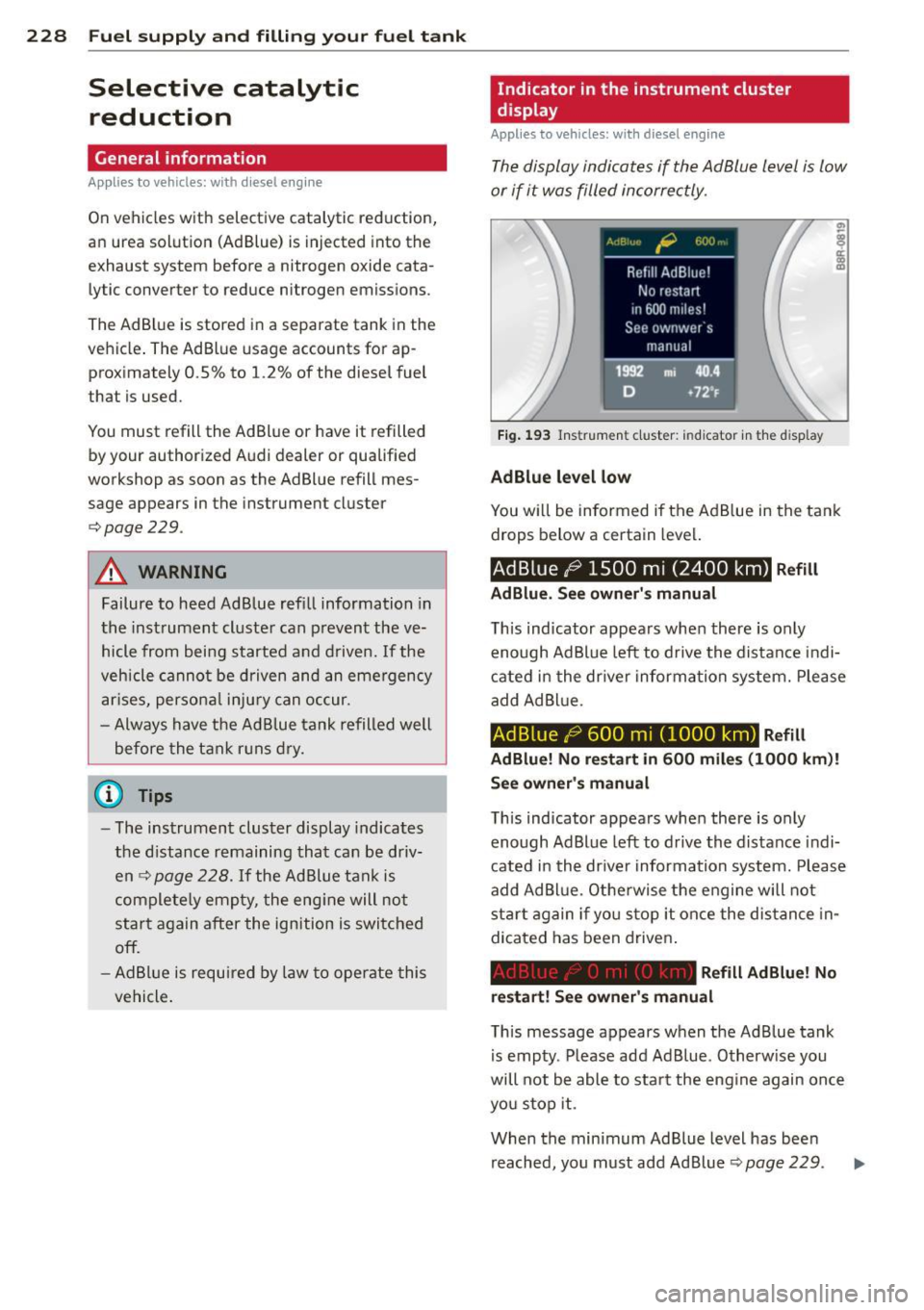

228 Fuel supply and filling your fuel tank
Selective catalytic
reduction
General information
Applies to vehicles: wit h diese l en gi ne
On vehicles with selective catalytic reduction,
an urea solution (Ad Blue) is injected into the
exhaust system before a nitrogen oxide cata­
lytic converter to reduce nitrogen emissions.
The Ad Blue is stored in a separate tank in the
vehicle . The Ad Blue usage accounts for ap­
proximately 0.5% to 1.2% of the diesel fuel
that is used.
You must refill the Ad Blue or have it refilled
by your authorized Audi dealer or qualified
workshop as soon as the AdBlue refill mes­ sage appears in the instrument cluster
c;,page229.
A WARNING
Failure to heed Ad Blue refill information in
the instrument cluster can prevent the ve­
hicle from being started and driven. If the
vehicle cannot be driven and an emergency
arises, persona l inju ry can occur.
- Always have the Ad Blue tank refilled well
before the tank ru ns dry.
@ Tips
-The instrument cluster display indicates
the distance remaining that can be driv­
en
c;, poge 228. If the Ad Blue tank is
completely empty, the engine will not
start again after the ignition is switched
off.
- AdBlue is required by law to operate this
vehicle.
Indicator in the instrument cluster
display
Applies to veh icles: w ith diesel en gine
The display indicates if the Ad Blue level is low
or if it was filled incorrectly.
Fig. 193 Ins trumen t cluster : in d icato r in the d isp lay
AdBlue level low
You w ill be informed if the Ad Blue in the tank
drops below a certain level.
Ad Blue l;) 1500 m i (2400 km) Refill
AdBlue. See owner's manual
This indicator appears when there is only
enough Ad Blue left to drive the distance indi­
cated in the driver information system. Please
add AdBl ue.
AdBlue l;; 600 mi (1000 km) Refill
AdBlue! No restart in 600 miles (1000 km)!
See owner 's manual
This indicator appears when there is only
enough Ad Blue left to drive the distance indi­
cated in the driver information system. Please
add Ad Blue. Otherwise the engine will not
sta rt again if you stop it once the distance in­
dicated has been driven .
Refill Ad Blue! No
restart! See owner's manual
This message appears when the Ad Blue tank
is empty. Please add Ad Blue. Otherwise you
will not be able to start the engine again once
you stop it.
When the minimum Ad Blue level has been reached, you must add Ad Blue
c;, page 229.

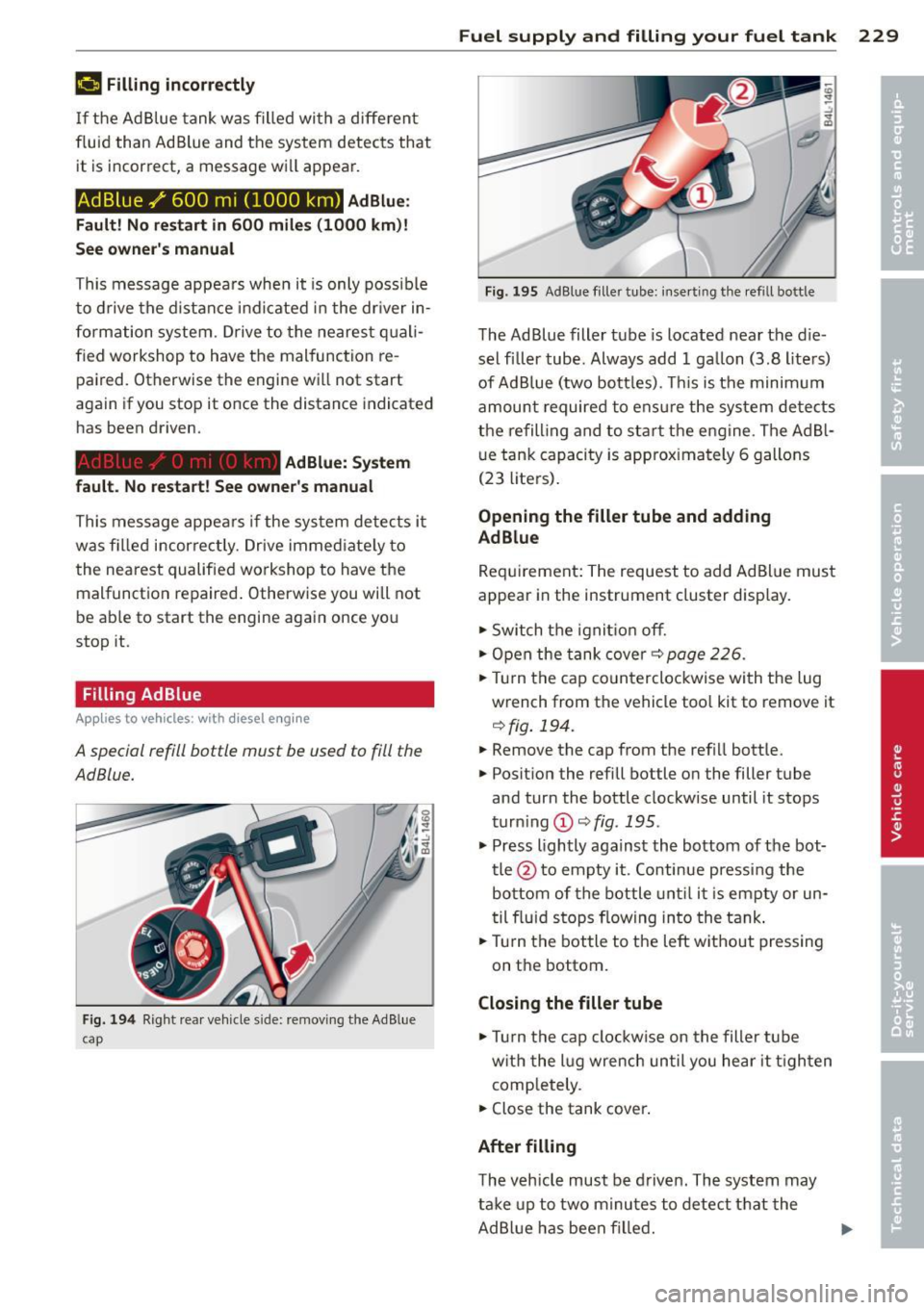

f-i Filling incorrectly
If the Ad Blue tank was filled with a diffe rent
f luid than Ad Blue and the system detects that
it is i ncorrect, a message wi ll appear.
Ad Blue -I' 600 mi (1000 km) Ad Blue :
Fault! No re start in 600 miles (1000 km)!
See owne r's manual
This message appea rs when it is only possib le
to drive the dist ance indicated in the dr iver in­
form ation system. Drive to the neares t qua li­
fied workshop to have the mal function re ­
pa ired. Otherwise the engine wi ll not start
again if you stop it once the distance indicated
has been driven.
AdBlue: Sy stem
fault. No restart ! See owner's manual
This message appea rs if the sys tem de te cts i t
was fil le d in cor re ctl y. Drive immed iate ly to
t he nearest qualified workshop to have t he
malfunct ion repaired . Otherwise you will not
be ab le to start the engine aga in once you
stop it.
Filling AdBlue
Ap plies to vehicles : wit h diesel e ngi ne
A special refill bottle must be used to fill the
AdBlue.
Fi g. 194 Right rea r ve hicle s ide: re m ov ing the Ad B lu e
cap
Fu el suppl y and filli ng your fuel t ank 229
Fig . 195 Ad B lue filler tube: inse rting th e refill bottle
The Ad Blue filler tube is located near the d ie­
sel filler tube . Always add 1 ga llon (3.8 liters)
of Ad B lue (two bott les). This is the minim um
amount required to e nsur e the system de tects
t he re fill ing and to star t the engine . The A d Bl­
u e tank capaci ty is approx imately 6 g allons
(23 lite rs) .
Opening the filler tube and adding
Ad Blue
Req uirement: The request to add Ad Bl ue must
appear in the instrument cluster display.
.,. Switch t he ignitio n off.
.,. Open the tank cove r
c::> page 226 .
.,. Tur n the cap co unterclockwise wi th t he lug
w rench from the vehicle too l kit to remove it
c::>fig . 194 .
... Remove the cap from the refill bottle.
... Posit ion the refill bottle o n the filler tube
and turn the bottle clockwise until it stops
turn ing
(D c::> fig. 195 .
.,. Press ligh tly aga ins t the bottom of the bot­
t le @ to empty i t. Continue press ing the
bo ttom of the bottle unt il it i s empty or un­
t il flui d stops flow ing in to the tank .
... Tu rn the bot tle to the left w ithout pressing
on the bottom.
Closing the filler tube
.,. Tur n the c ap clockwise on the fille r tub e
w it h t he l ug wrench un til you hear it ti gh ten
comp letely .
... Close the tank cover .
After filling
The vehicle must be d riven. The system may
ta ke u p to two m inu tes to detect t hat t he
Ad Bl ue has been f illed . .,..

-Always follow the operating instructions
provided by the battery charger manu­
facturer when charging your battery.
- Never charge a frozen battery.
It may ex­
plode because of gas trapped in the ice.
Allow a frozen battery to thaw out first.
- Do not reuse batteries which were fro­
zen. The battery housing may have
cracked and weakened when the battery
froze.
- Charge the battery in a well ventilated
area. Keep away from open flame or elec­
trical spark. Do not smoke . Hydrogen gas
generated by the battery is explosive.
- To reduce the danger of explosion, never
connect or disconnect charger cables
while the charger is operating.
- Fast charging a battery is dangerous and
should only be attempted by a compe­
tent technician with the proper equip­
ment.
- Battery acid that may spill during charg­
ing should be washed off with a solution
of warm water and baking soda to neu­
tralize the acid.
(D Note
Never use a fast charger as a booster to
start the engine. This will seriously dam­
age sensitive electronic components, such
as control units, relays, radio, etc., as well
as the battery charger.
Battery replacement
The new battery must have the same specifi­
cations and dimensions as the original equip­
ment battery.
Intelligent energy management in your vehi­
cle is responsible for distributing the electri­
cal energy throughout your vehicle
¢ page 203. The intelligent energy manage­
ment system will keep the engine battery
charged better then vehicles without this sys­
tem . To make sure the additional electrical en­
ergy is available once again after you have
changed the battery, we recommend that you
Checking and filling 245
install batteries of the same type and manu­
facture only (the same as those installed at
the time your vehicle was delivered). Specifi­ cations are listed on the battery housing . Your
authorized dealer must code the battery in
the energy management system to enable you
to use the energy management functions cor­
rectly after replacing the battery .
If it is not possible to use a battery of this
type , the new battery must have the same ca ­
pacity, voltage (12 volts), amperage, con­
struction and plug sealing .
When installing the battery, make sure the ig­ nition and all electrical consumers are turned
off .
(D Note
-Make sure the ventilation hose on the
side of the battery is connected, other­
wise fumes or battery acid can leak out .
- Vehicles with the Start-Stop-System* are
equipped with a special cycle-proof AGM
battery. Installing a different type of
battery can cause problems in the vehi­
cle electrical system. When replacing the
vehicle battery, always install one with
the same specifications as the original
battery.
@ For the sake of the environment
Because of the problem of proper disposal
of a battery, we recommend your author­
ized Audi dealer change the battery for
you. Batteries contain sulfuric acid and
lead and must always be disposed of prop­
erly in compliance with all environmental
regulations. Disposing of vehicle batteries
improperly is very dangerous to the envi­
ronment. •
•

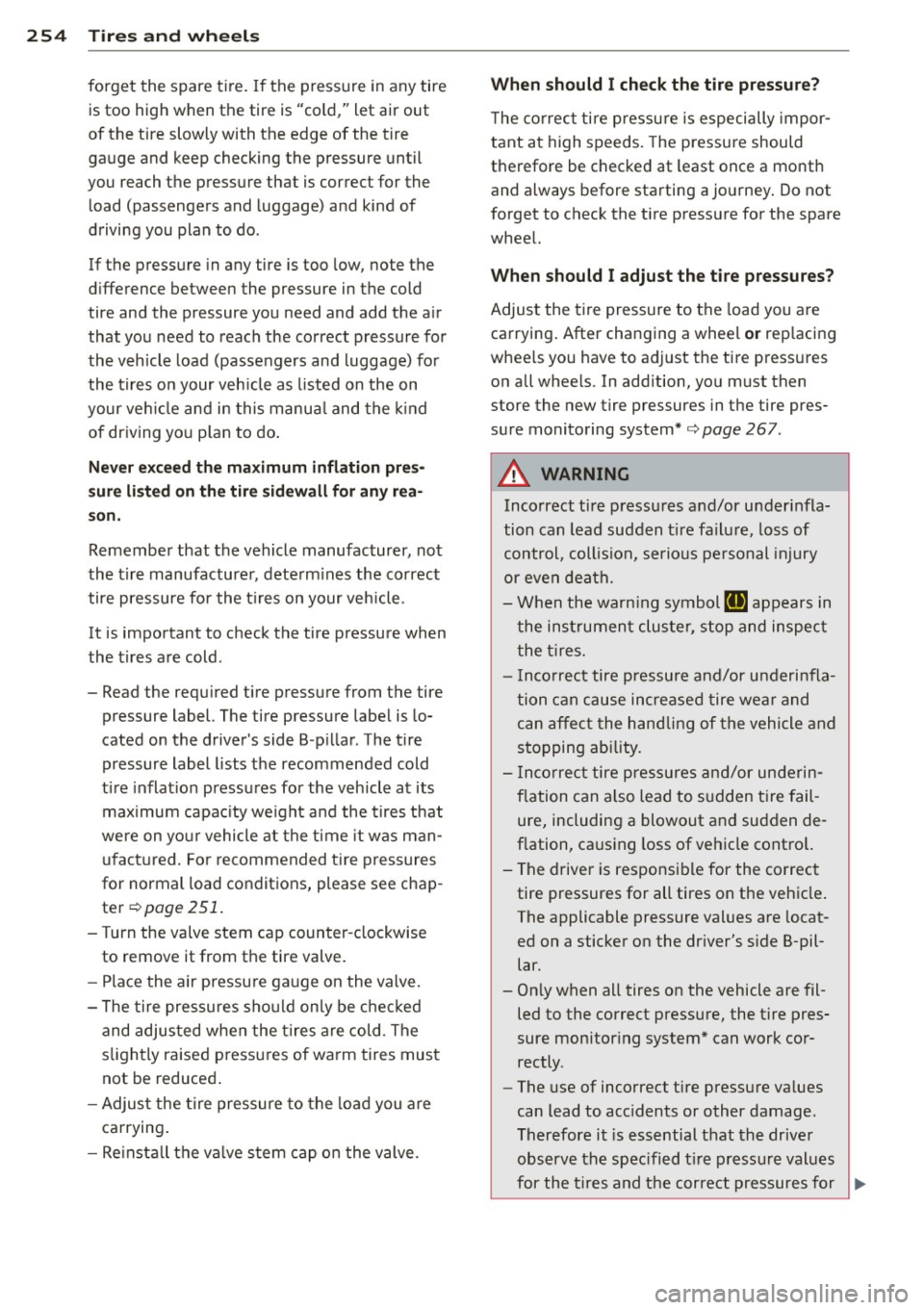

254 Tire s and wheel s
forget the spare tire. If the pressure in any tire
is too h igh when the tire is "cold," let air out
of the tire slowly with the edge of the tire
gauge and keep checking the pressure until
you reach the pressure that is correct for the
load (passengers and luggage) and kind of
driving you plan to do .
If the pressure in any tire is too low, note the
difference between the pressure in the cold
tire and the pressure you need and add the a ir
that you need to reach the correct pressure for
the vehicle load (passengers and luggage) for
the tires on your veh icle as listed on the on
your veh icle and in this manua l and the kind
of dr iving you p lan to do .
Never exceed th e ma ximum inflati on pres­
s ur e list e d on th e tir e s idewall f or an y re a ­
so n.
Remembe r that the vehicle manufacturer, not
the tire manufactu rer , determ ines the correct
tire pressure for the t ires on your vehicle .
It is important to check the tire pressure when
the tires a re cold .
- Read the requ ired t ire pre ssure from the tire
pressure label. The tire pressure label is lo­
cated on the driver's side 8 -p ill ar . The tire
pressure label lists the recommended cold
t ire inflat ion pressures for the vehicle at its
maximum capacity we ight a nd the tires that
were on your vehicle at the time it was man­
u factured. For recommended tire press ures
for normal load conditions, please see chap ­
ter
¢ page 251 .
-Turn the valve stem cap counter-clockwise
to remove it from the tire valve.
- Place the air pressure gauge on the valve.
- The tire pressures should only be chec ked
and adjus ted when the tires are cold . The
s li ghtly raised pressures of warm tires must
not be reduced .
- Adjust the tire pressure to the load you are
carrying .
- Re insta ll the va lve stem cap o n the valve .
When should I check th e tir e pre ssure ?
The correct tire pressu re is especially impor­
tant at high speeds. The pressu re should
therefore be checked at least once a month
and always before starting a jo urney . Do not
forget to check the tire pressure for the spare
wheel.
When should I adju st the ti re pre ssures?
Adjust the tire pressure to the load you are
carrying . After changing a whee l
or replacing
whee ls you have to adjust the tir e pressur es
on all wheels. In addition, you m ust then
store the new tire pressures in the tire pres­
sure monitoring system*¢
page 267.
A WARNING
-Incorrect tire pressures and/or underinfla-
tion can lead sudden tire fa ilure, loss of
control, collision, se rious pe rsonal injury
or even death.
- When the warn ing symbol
[DJ appears in
the instrument cluster, stop and inspect
the t ires.
- Inco rrect tire pressure and/or underinfla­
tion can cause increased tire wea r and
can affect the handling of the vehicle and
stopping ability.
- Incorrec t tire pressures and/or underin­
flation can a lso lead to s udden t ire fail ­
ure, including a blowout and sudden de­
flation, ca using loss of vehicle contro l.
- The driver is responsible for the correct
tire pressures for all tires on the vehicle .
The applicable pressure values are locat ­
ed on a sticker on the dr iver's s ide 8-pil­
lar.
- On ly when all tires on the vehicle are fil­
led to the correct pressure, the t ire pres­
sure mon itor ing system* can work cor­
rectly .
- The use of incorrect tire pressure values
can lead to acc idents or other damage .
Therefore it is essential that the drive r
observe the spec ified t ire pressure val ues
for the tires and the correct pressures for
II),
