The alarm also turns off when the alarm cycle
has expired.
Turn signals
When you unlock the vehicle, the turn signals
flash twice. When you lock the vehicle , the
turn signals flash once. If they do not flash,
one of the doors, the rear lid or the hood is
not locked.
Unintentionally locking yourself out
In the following cases there safeguards to
prevent you locking your remote master key in
the vehicle:
- The vehicle does not lock with the power
locking switch ¢
page 42 if the driver's
door is open.
- On vehicles with Convenience key* , if the
most recently used master key is in the lug­
gage compartment, the rear lid is automati­
cally unlocked again after it is closed.
Do not lock your vehicle with the
remote mas­
ter key or Convenience key*
until all doors
and the rear lid are closed. In this way you
avoid locking yourself out accidentally.
A WARNING
- When you leave the vehicle, always re­
move the ignition key and take it with
you. This will prevent passengers (chil­
dren, for example) from accidentally be­
ing locked in the vehicle should they acci­
dentally press the power locking switch
in the front doors .
- Do not leave children inside the vehicle
unsupervised . In an emergency it would
be impossible to open the doors from
the outside without the key.
@ Tips
- In the event of a crash with airbag de ­
ployment all locked doors will be auto­
matically unlocked to give access to the
vehicle occupants from the outside .
-If the power locking system should mal­
function, you can lock the driver's door
using the mechanical key ¢
page 42.
-
Opening and closing 39
- If the power locking system should fail,
you can still open the fuel tank flap in an
emergency ¢
page 22 7.
- You are well advised not to keep valua­
bles inside an unattended vehicle, visible
or not. Even a properly locked vehicle
cannot provide the security of a safe.
- If the LED in the upper edge of the driv­
er's door panel comes on for about
30
seconds after the vehicle is locked, there
is a malfunction in the power locking or
the anti-theft warning system . Have the
malfunction corrected by an authorized
Audi dealership or qualified repair facili­
ty.
Setting power locking
The driver can determine the functions for
power locking in the radio or in the
MM!*.
.,. Select: !CAR ! function button> Central lock­
ing .
Or
.,. Select:
...., ,c=-A ,....,Rc-, 1 function button> Car systems*
control button > Vehicle settings> (Central
locking)*.
Unlocking single door/Unlock doors -
you can
specify which doors unlock when you open the
vehicle.
- Selecting
Off/All and pressing the [®] button
on the remote control key unlocks the entire
vehicle.
- Selecting
On/Driver and pressing the~ but­
ton on the remote control key once unlocks
only the driver's door. In vehicles with a con­
venience key*, only the door whose handle
you pull will unlock. If you press the~ but­
ton twice, the entire vehicle will unlock. If
you press the~ button, the entire vehicle
will always lock .
Trunk lid/tailgate/Lock exterior trunk handle
-if you select On , the rear lid handle locks
¢
page 43, fig. 35 . In this case, the rear lid
can be opened with the
1£1 button on the mas­
ter key
¢ page 40, fig. 29 or with the 1£1
button in the driver's door ¢ page 43,
fig. 34.

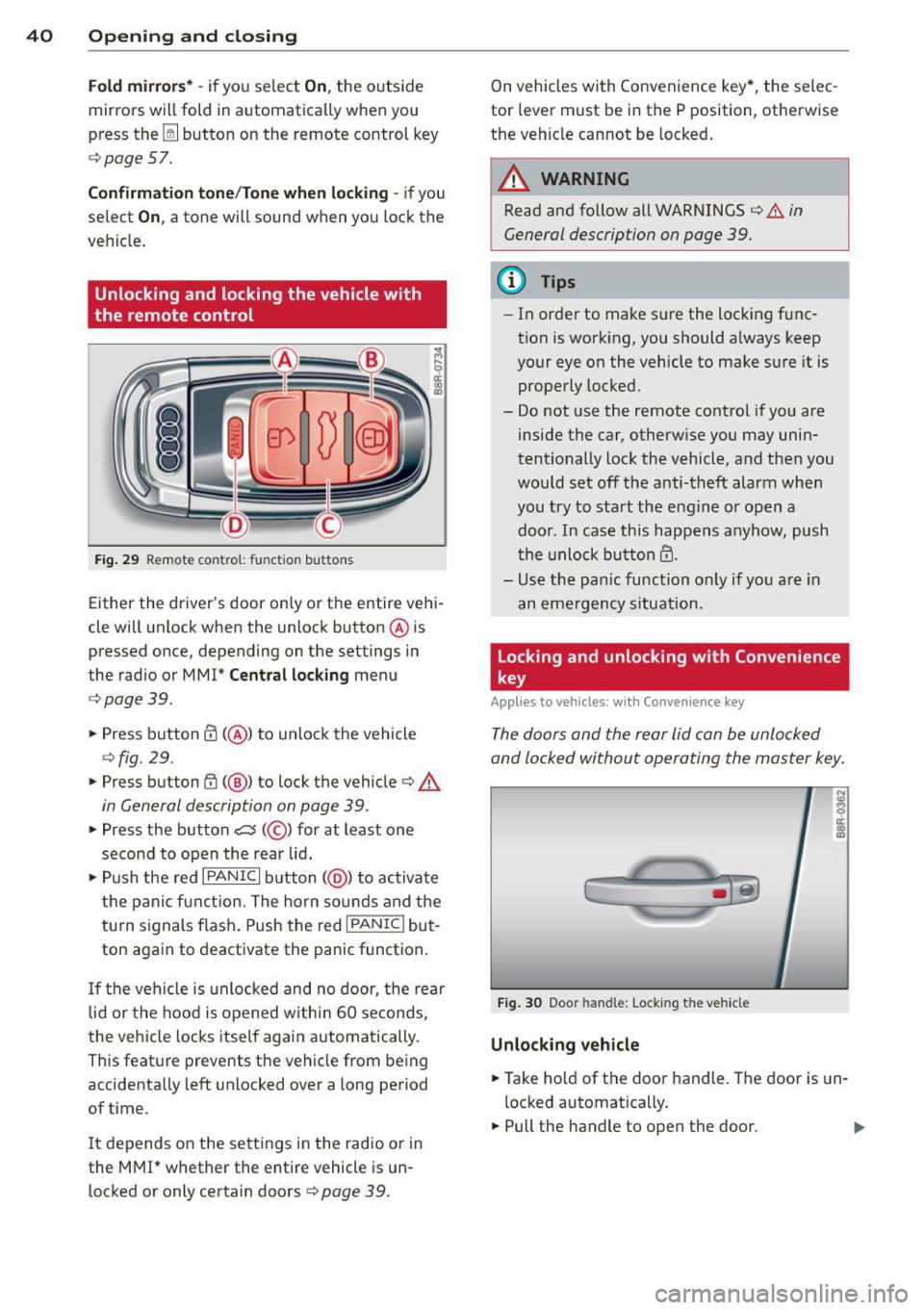

40 Opening and closing
Fold mirrors* -if you select On , the outside
mirrors will fold in automatically when you
press the
Iii button on the remote control key
c>page57.
Confirmation tone/Tone when locking -if you
se lect
On , a tone will sound when you lock the
vehicle .
Unlocking and locking the vehicle with
the remote control
Fig . 29 Remote co ntro l: fu nctio n buttons
Either the driver's door only or the entire vehi­
cle will unlock when the unlock button @ is
pressed once, depending on the settings in
the radio or MMI*
Central lock ing menu
c> page39.
.. Press button @(@ ) to unlock the vehicle
c>fig. 29.
.. Press button (I) (@ ) to lock the vehicle c> A
in General description on page 39 .
.. Press the button c::5 (@ ) for at least one
second to open the rear lid .
.. Push the red
I PANIC I button (@ ) to activate
the panic func tion. The horn sounds and the
tu rn s ignals flash. Push the red
I PANIC I but­
ton again to deactivate the panic function.
If the vehicle is unlocked and no door, the rear
lid or the hood is opened within 60 seconds,
the vehicle locks itself again automatically.
This feature prevents the vehicle from being
accidenta lly left unlocked over a long period
of time.
It depends on the settings in the radio or in
the MMI* whether the entire vehicle is un­
locked or only certain doors
¢ page 39.
On vehicles with Convenience key*, the selec­
tor lever must be in the P position, otherwise
the vehicle cannot be locked.
A WARNING
-Read and follow all WARNINGS c> .&. in
General description on page 39.
(D Tips
- In order to make sure the locking f unc­
tion is working, you should a lways keep
your eye on the vehicle to make sure it is
properly locked.
-
- Do not use the remote control if you are
inside the car, otherw ise you may unin­
tentionally lock the vehicle, and then you
would set off the anti-theft alarm when
you try to start the engine or open a
door. In case this happens anyhow, push
th e un lock button@.
- Use the panic function only if you are in
an eme rgency situation.
Locking and unlocking with Convenience
key
Appl ies to vehicles: wi th Conve nience key
The doors and the rear lid can be unlocked
and locked without operating the master key .
Fig. 30 Door handle: Lock ing the vehicle
Unlocking vehicle
.. Take hold of the door handle. The door is un­
locked automatically.
.. Pull the handle to open the door .

Locking v ehicle
• Move the selector lever to the P position
(automatic transmission), otherwise the ve ­
hicle cannot be locked.
• Touch the sensor at the door handle
c:> fig . 30 to lock the vehicle c:> A in General
description on page 39.
Do not reach inside
the door handle .
T he vehicle can be locked and unlocked at any
door. It depends on the settings in the radio
or in the
MM!* whether the entire vehicle is
unlocked or one of the doors
c:> page 39 . The
master key must be within a range of about
5 feet (1.5 meters) from the appropr iate door
or the rear lid .
It makes no difference whether
the master key is in your jacket pocket or in
your brief case.
If you grip the door handle while locking, this
can adversely affect the lock ing funct ion.
It is not possible to re -open the door for a
brief period directly after closing it . Th is al­
l ows you to ensure that the doors are properly
l ocked.
& WARNING
Read and follow a ll WARN INGS c:> &. in
General description on page 39.
@ Tips
-
If your vehicle has been standing for an ex­
tended period, please note the follow ing:
- The proximity sensors are deactivated af-
ter a few days to save power. You then
have to pull on the door handle once to
u nlock the veh icle and a second time to
open the veh icle.
- To prevent the battery from being dis­
charged and to preserve your vehicle's
ability to start for as long as possible,
the energy management system gradu­
ally switches off unnecessary conven­
ience funct ions. It is possible t hat you
will not be able to unlock your vehicle us­ i ng these conven ience functions .
Openin g an d clos ing 41
-For Declaration of Compliance to United
States FCC and Industry Canada reg ula·
t ions
c:> page 296.
Operating locks with the mechanical key
In the event of o failure of the power locking
system, the driver's door can locked and un­
locked with the mechanical key at the lock
cylinder.
Fig. 31 Key turns fo r open ing and clos ing
To unlo ck the vehicle
• Insert the mechan ical key into the lock of
the dr iver's door .
• Turn the mechanica l key to position @
c:>fig. 31 .
To lock th e vehicl e
• Move the selector lever to the P pos ition
(automat ic t ransm ission) .
• Close all windows and doors proper ly.
• Tu rn the mechanical key in the lock of the
d river's door to the lock position @
c:> A in
General description on page 39.
If the power lock ing system fails, there is
emergency lock ing for the passenger's doo r
and the rear doors
c:> page 42.
WARNING
Read and follow all WARNINGS c:> &. in
General description on page 39 .
(D Tips
-After the ignition is switched on, the
powe r locking system swit ch and the un­
locking button fo r th e rear lid~ in the
door are enab led .

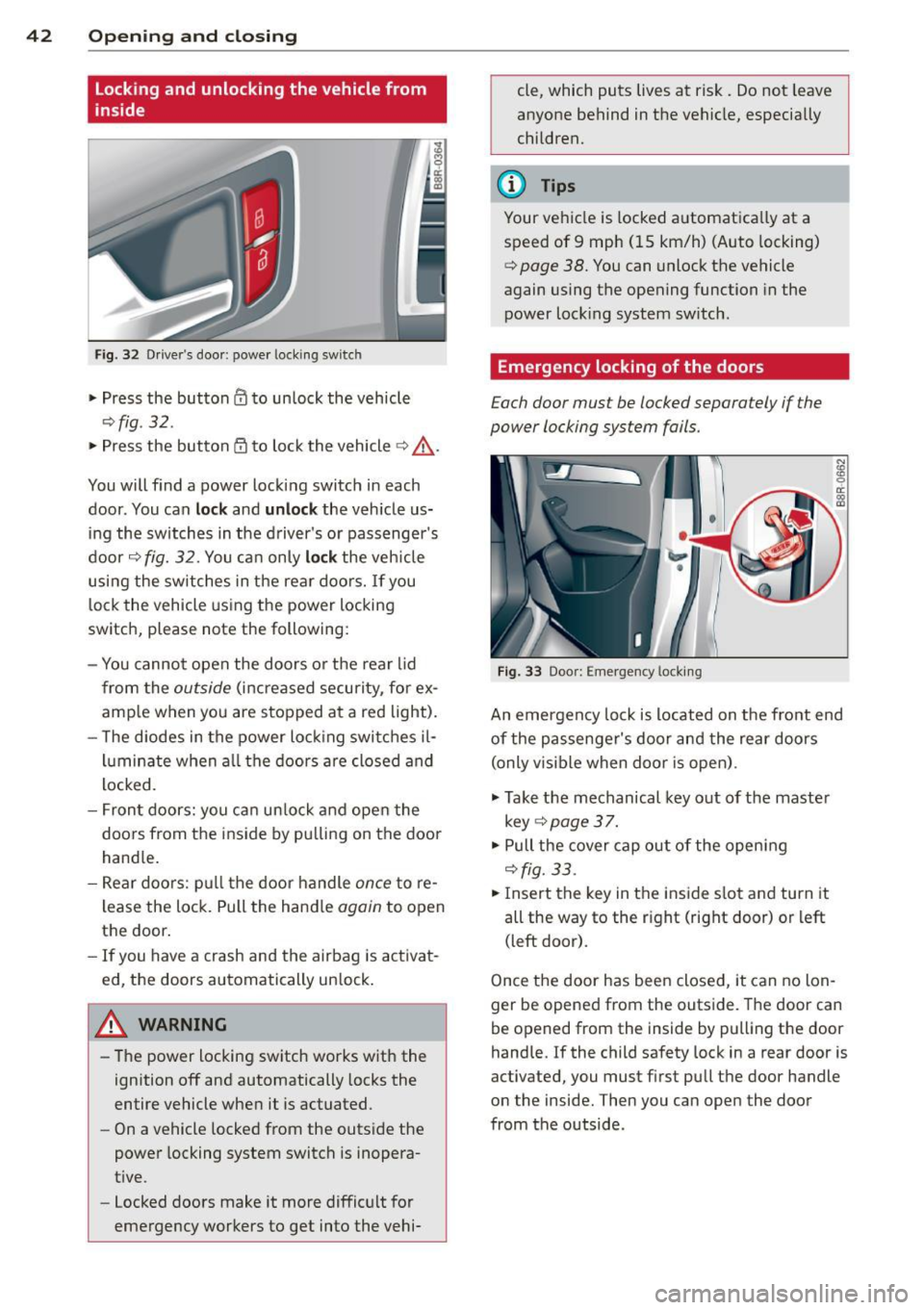

42 Opening and clo sing
locking and unlocking the vehicle from
inside
Fig . 32 Driver 's door : powe r locking switc h
.. Press the button CD to un lock the vehicle
<=:> fig . 32.
.. Press the button G'.l to lock the vehicle~&, .
You will find a power locking switch in each
door . You can
lo ck and unl ock the veh icle us­
ing the switches in the driver's or passenger's
door
r.:::> fig. 32. You ca n only loc k the veh icle
usi ng the switches in the rear doors. If you
l ock the vehicle using the power locking
switch, please note the following:
- You canno t open the doors o r the rear l id
from the
outside (increased security, for ex­
amp le when you are s topped at a red light).
- The diodes in the power lock ing swi tches il-
lu minate when a ll the doors are closed and
l ocked.
- Front doors: you ca n un lock and ope n the
doors from the inside by pu lling on the door
hand le .
- Re ar doors: p ull the door handle
once to re­
l ease the lock. Pull the hand le
again to open
the door .
- If you have a crash and the airbag is activat ­
ed, the doors automatically un lock .
A WARNING
-The power locking sw itch works with the
ignition off and automatically locks the
entire vehicle when it is actuated .
- On a vehicle locked from the outside the
power locking system switch is inopera­
t ive.
- Locked doors make it more diffic ult for
emergency workers to get into the vehi- cle, which puts lives at risk. Do not
leave
anyone behind in the vehicle, especially
children.
(D Tips
Your ve hicle is locked a utomat ica lly at a
speed of 9 mph (15 km/h) (Auto locking)
<=> page 38. You can unlock the vehicle
again using the opening function in the
power lock ing system sw itch.
Emergency locking of the doors
Each door must be locked separa tely if the
power locking system fails .
F ig. 33 Door: Em ergency locking
An emergency lock is located on the front end
of the passenge r's door and the rear doors
(only v isible when door is open) .
.. Take the mechanical key out of the maste r
key
r.:::> page 3 7.
.. Pull the cover cap out of the opening
r.:::> fig.33 .
.. Insert the key in the inside s lot and turn it
all the way to the r ight (right door) or left
(left door).
Once the door has been closed, it can no lon­
ger be opened from the outs ide. The door can
be opened from the inside by pulling the door
hand le.
If the child safety lock in a rear door is
activated, you must f irst pu ll the door handle
on the inside. Then you can open the door
from the outside .

Opening and closing rear lid
Fig . 34 Drive r's door: re m ote rear lid release
Fig. 35 Positi on of handle in the rear lid
Opening the luggage compartment l id
18 0 a:
"" a,
• Press the button c:s on the master key for at
least one second, or
• Pull the release button c:s in the dr iver's
door
~ fig. 34, or
• Press the handle in the Luggage compart-
ment Lid~
fig. 35.
• The Luggage compartment Lid unlocks.
Closing the luggage compartment lid
• Use the inside gr ip to pull the rear Lid down
and allow it to drop gently to close it~ &_ .
A WARNING
-After closing the rear lid, always pull up
on it to make sure that it is properly
closed. Otherwise it could open suddenly
when the vehicle is moving .
- To help prevent poisonous exhaust gas
from being drawn into the vehicle, al­
ways keep the rear Lid closed while driv­
ing . Never transport objects Larger than
those which fit completely into the lug-
Opening and closing 43
gage area, because then the rear Lid can­
not be fully closed.
- Never leave your vehicle unattended es­
pecia lly with the rear Lid left open. A
child could crawl into the car through the luggage compartment and pull the lid
shut, becoming trapped and unable to
get out. To reduce the risk of personal in­
jury, never Let children play in or around
your vehicle. Always keep the rear Lid as
well as the vehicle doors closed when not
in use.
- Always ensure that no one is within
range of the rear lid when it is moving, in
particular close to the hinges -fingers or
hands can be pinched.
@ Tips
When the vehicle is locked, the Luggage
compartment Lid can be unlocked sepa­
rately by pressing the button
c::> on the
master key . When the luggage compart­
ment lid is closed again, it locks automati ­
cally .

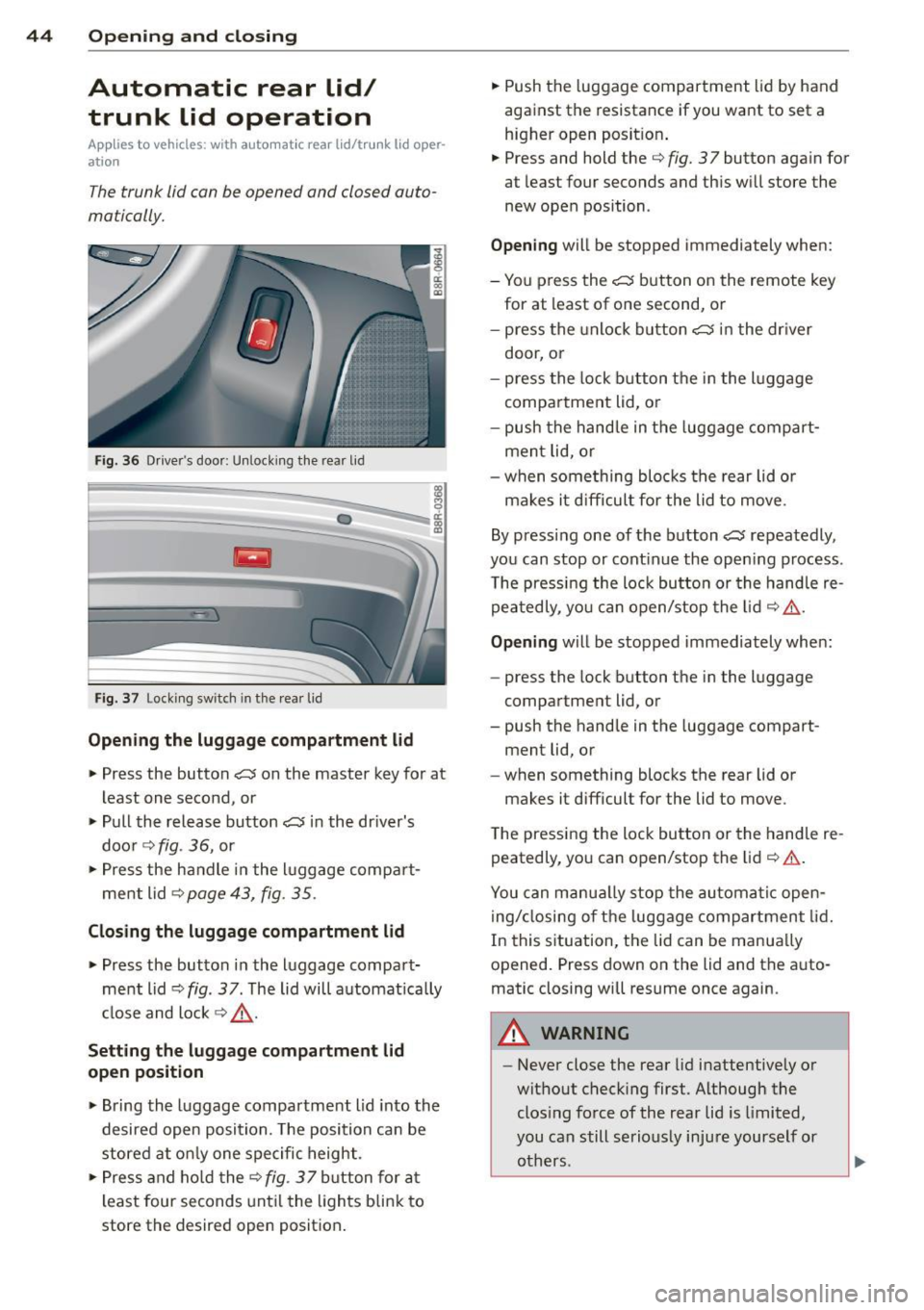

44 Opening and closing
Automatic rear lid/
trunk lid operation
App lies to vehicles: with automat ic rear l id/trunk lid oper ·
ation
The trunk lid con be opened and closed auto­
matically.
Fig. 36 Driver's doo r: Unlock ing the rear lid
Fig. 37 Locking switch in the rear lid
Opening the luggage compartment lid
.,. Press the button c::5 on the master key for at
least one second, or
.,. Pull the release button
c::5 in the dr iver's
door ~
fig. 36, or
.,. Press the handle in the lu ggage compart­
ment lid~
page 43, fig . 35 .
Closing the luggage compartment lid
.,. Press the button in the luggage compart­
ment lid
~ fig . 3 7 . The lid will automat ica lly
close and lock ¢.&, .
Setting the luggage compartment lid
open position
.,. Bring the luggage compartment lid into the
desired open position. The position can be
stored at only one specific height.
.,. Press and ho ld the ¢
fig. 3 7 button for at
least four seconds until the lights blink to
store the desired open position. .,.
Push the luggage compartment lid by hand
against the resistance if you want to set a
higher open posit ion .
.,. Press and hold the¢
fig. 37 button again for
at least four seconds and this will store the
new open position .
Opening will be stopped immediately when:
- You press the
c::5 button on the remote key
for at least of one second, or
- press the unlock button
c::5 in the dr iver
door, or
- press the lock button the in the luggage
compartment lid, or
- push the hand le in the luggage compart­
ment lid, or
- when something blocks the rear lid or
makes it d ifficul t for the lid to move.
By pressing one of the button
c::5 repeatedly ,
you can stop or continue the opening process .
The pressing the lock button or the handle re­
peatedly, you can open/stop the lid ¢
,&..
Opening will be stopped immediately when:
- press the lock button the in the luggage
compartment lid, or
- push the handle in the luggage compart­
ment lid, or
- when something blocks the rear lid or
makes it difficult for the lid to move .
The pressing the lock button or the handle re ­
peatedly, you can open/stop the lid ¢
& .
You can manua lly stop the automatic open­
ing/closing of the luggage compartment lid.
In this situation, the lid can be manually
opened. Press down on the lid and the auto­
matic closing will resume once again.
A WARNING
-- Never close the rear lid inattentively or
without checking first . Al though the
clos ing force of the rear lid is limited,
you can still seriously injure yourself or
others .
-

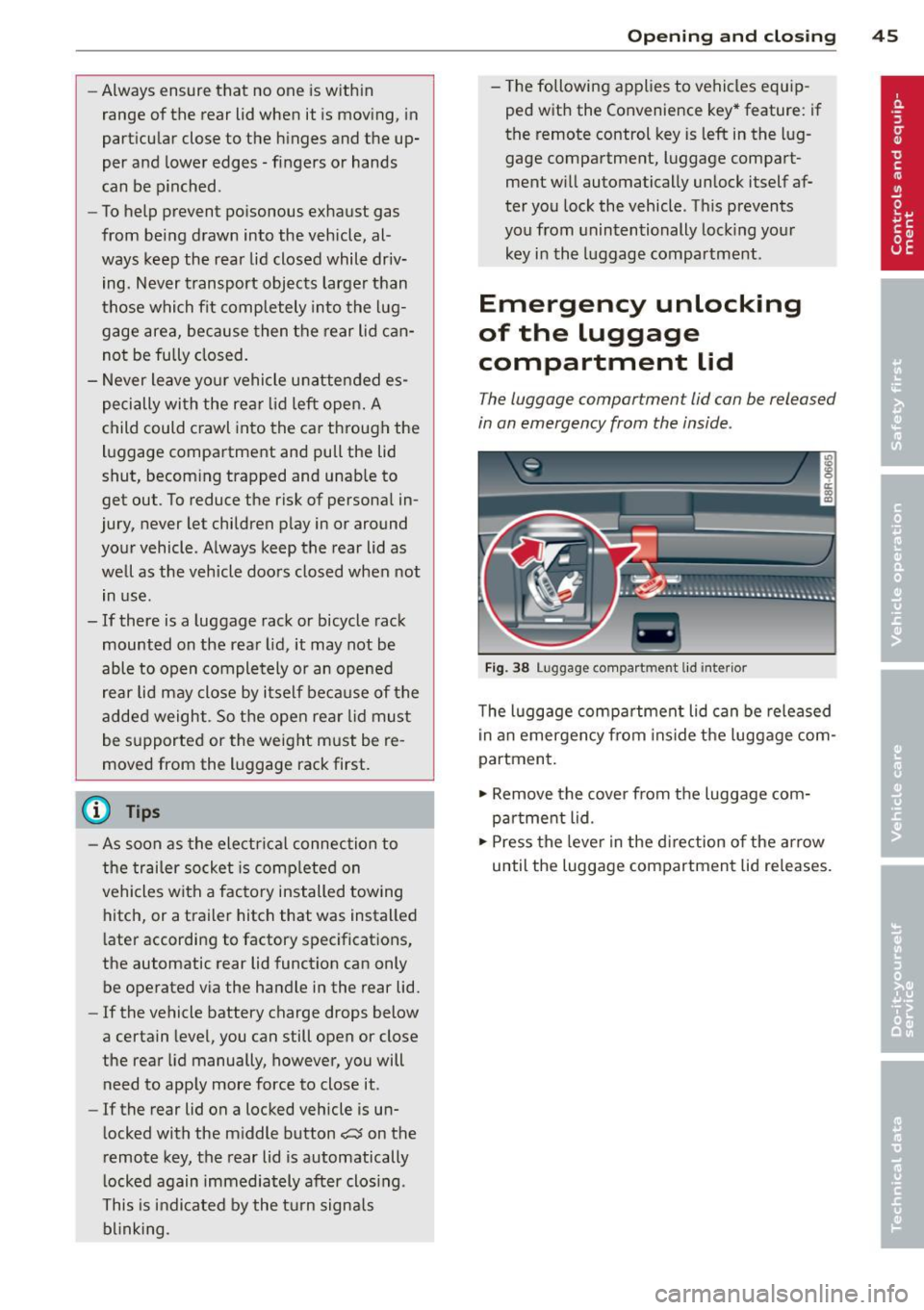

-Always ensure that no one is with in
range of the rear lid when it is mov ing, in
particular close to the h inges and the up­
per and lower edges - fingers or hands
can be p inched.
- To help prevent po isonous exhaust gas
from being drawn into the vehicle, al­
ways keep the rear lid closed while dr iv­
ing. Never transport objects larger than
those which fit comp letely into the lug­
gage are a, because then the rear lid can­
not be fully closed.
- Never leave you r vehicle unattended es­
pecially wi th the rear lid left open. A
child could crawl into the car through the
luggage compartment and pull the lid
shut, becom ing trapped and unab le to
get out. To reduce the risk of persona l in­
jury, never let children p lay in or around
your vehicle . A lways keep the rear lid as
well as the vehicle doors closed when not in use.
- If there is a luggage rack or bicycle rack mounted on the rear lid, it may not be
able to open completely or an opened
rear lid may close by itself because of the
added weight . So t he open rear lid must
be s upported or the weight must be re­
moved from the luggage rack first .
(1) Tips
-As soon as the electrical connection to
the trailer socket is completed on
vehicles with a factory installed tow ing
hitch, or a trailer hitch that was installed
l ater according to factory spec ifications,
the automatic rear lid function can only be operated via the handle in the rear lid.
- If the vehicle battery charge drops below
a certain level, you can still open or close
the rear lid manually, however, you will
need to apply more force to close it .
- If the rear lid on a locked vehicle is un­
locked with the m iddle button
c::; on the
remote key, the rear lid is automatically
l ocked again immediately after clos ing .
This is in dicated by the tu rn signals
bl inking .
Openin g an d clos ing 45
- The following applies to vehicles equip ­
ped with the Convenience key* feature: if
the remote control key is left in the lug­
gage compartment, luggage compart­
ment w ill automatically unlock itself af­
ter you lock the vehicle . Th is prevents
you from unintentionally lock ing you r
key in the luggage compartment.
Emergency unlocking
of the luggage
compartment lid
The luggage compartment lid can be released
in an emergency from the inside .
Fig. 38 Luggage compartment lid interior
The luggage compa rtmen t lid can be released
i n an emergency from ins ide the luggage com­
partment.
~ Remove the cover from the luggage com­
partment lid .
~ Press the lever in the direction o f the a rrow
until the luggage compartment lid releases.

46 Opening and clo sing
Child safety locks
Child safety locks in the rear doors
The child safety locks t prevent the rear
doors from opening from the inside .
Fig. 39 Child safety locks on th e rear doors
I ti:: 00 (0
The rear doors are equipped with c hild safety
l ocks . The lock is only v is ible when the door is
open . Take the mechan ica l key out of the mas­
ter key ¢
page 3 7.
Switching the child safety locks on
.,. Turn the key i n the direction of the ar row
Qfig. 39.
Switching the child safet y locks off
.. Turn the key in the opposite d irection of the
arrow .
When the child safety locks are activated, the
i n side door handles do not work and the doors
can only be opened from the outside .
Power windows
Controls
The driver can control all power windows.
Fig . 40 Sect io n of the driver's door: Controls
All power window switches are provided with
a two-position fun ction :
Opening the windows
.. Press the switc h to the fir st stop and ho ld it
until the window re aches the desired posi­
tion.
.. Press the switch briefly to the
second stop
to automatically open the window .
Closing the windows
.,. Pull the sw itch to the fir st stop and hold it
until the window reaches the desired posi­
tion .
.. Pull the switch briefly to the
s e cond stop to
automatically close the windo w.
Power window switches
@ Driver's door
® Passenger's door
© Left rear door
@ Right rear door
® Safety button
Child safety locks
When the safety button® Q fig. 40 is p ress ­
ed, the@symbo l in the button lights up. The
power window switches in the rear doors are
switched off.
A WARNING
-
-When you leave your vehicle -even if on-
ly br iefly -always remove the ignition
key . T his app lies pa rticularly when chil­
dren remain i n th e vehicle . Othe rwis e the
children could start the eng ine or ope r­
a te elec trical eq uipment (e.g. power win­
dows) . The power w indows are func tion­
al until the dr iver's door or passenge r's
door has bee n opened .
- Pay close attention when closing the win­
dows to p revent pinching of hands or
lim bs.
- When locking the vehicle from outside ,
the vehicle must be unoccupied since the
windows can no longer be opened in an
emergency.

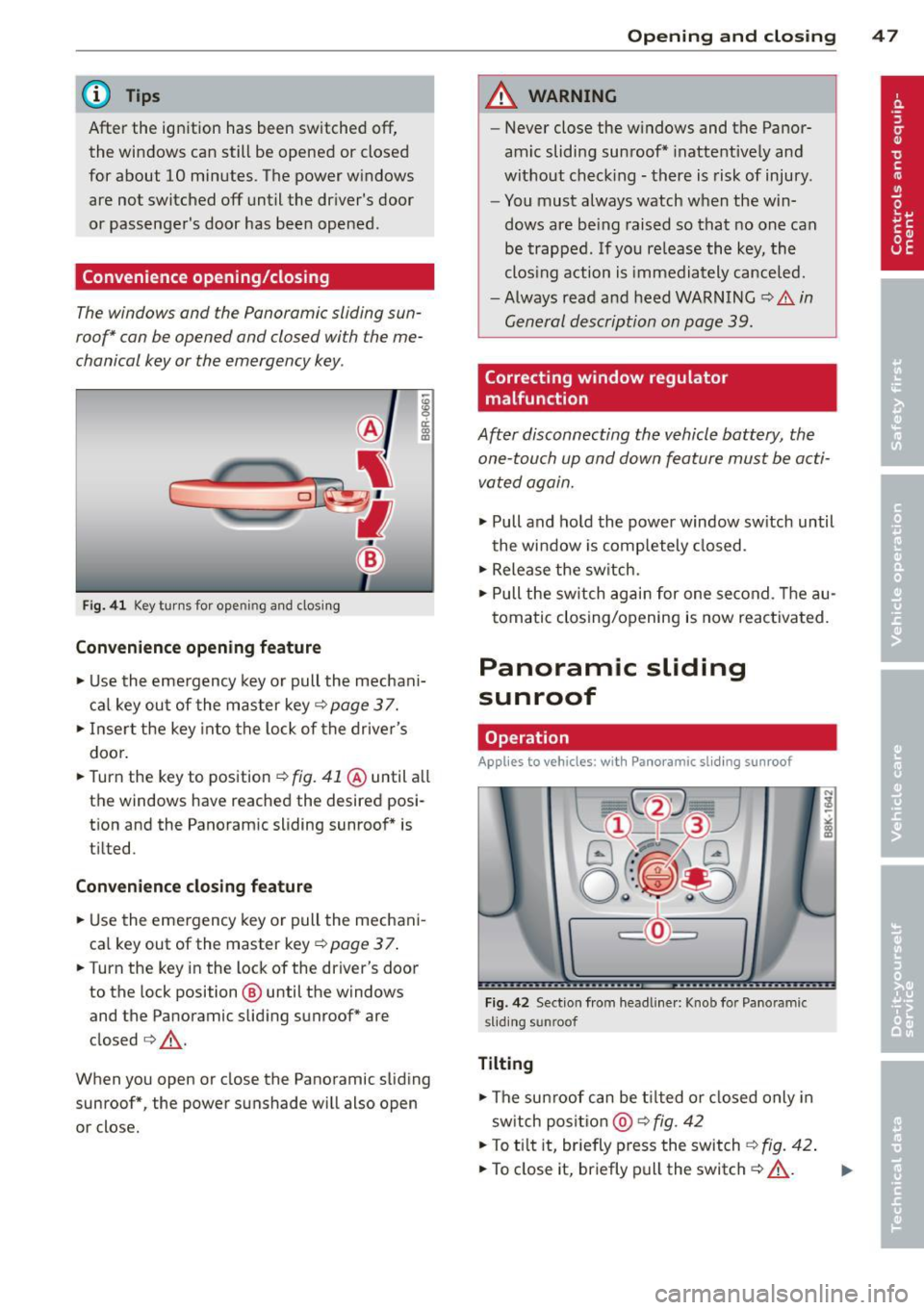

@ Tips
After the ignition has been switched off,
the windows can still be opened or closed
for about 10 minutes. The power windows
are not switched
off until the dr iver 's door
or passenger's door has been opened .
Convenience opening/closing
The windows and the Panoramic sliding sun­
roof* can be opened and closed wi th the me­
chanical key or the emergency key.
C
F ig. 41 Key turn s for ope ning and closin g
Convenience opening feature
§
ci: 0)
• Use the eme rgency key or pull the mechani­
cal key out of the master key¢
page 3 7.
• Inse rt the key into the lock of the driver's
door.
• Turn the key to position ¢
fig. 41 @ until al l
the windows have reached the desired pos i­
tion and the Panoramic sliding sunroof* is
tilted.
Convenience closing feature
• Use the emergency key or pull the mechani­
cal key out of the master key¢
page 3 7.
• Turn the key in the lock of the driver's door
to the lock position @ until the windows
and the Panoramic sliding sunroof* are
closed ¢_& .
When you open or close the Panoramic sliding
sunroof*, the power sunshade will also open
or close.
Opening and closing 47
A WARNING
- Never close the windows and the Panor­
amic sliding sunroof* inattentively and
without checking -there is risk of injury .
- You must always watch when the win­
dows are be ing raised so that no one can
be trapped. If you re lease the key, the
clos ing action is immediately cance led.
- Always read and heed WARNING
¢.&. in
General description on page 39.
Correcting window regulator
malfunction
After disconnecting the vehicle battery, the
one-touch up and down feature must be acti­
vated again.
• Pull and ho ld the power window sw itch until
the window is completely closed.
• Release the switch.
• Pull the switch again for one second. Th e au­
tomatic closing/opening is now reactivated.
Panoramic sliding
sunroof
Operation
Applies to vehicles: with Panoramic sliding sunroof
Fig . 42 Section from headliner: Knob fo r Pano ramic
s liding su nroof
Tilting
• The sunroof can be tilted or closed only in
sw itch position
@ ¢ fig. 42
• To tilt it, briefly p ress the switch ¢ fig. 42.
• To close it, briefly pull the switch ¢ _& . .,.
