AUDI Q5 2014 Manual Online

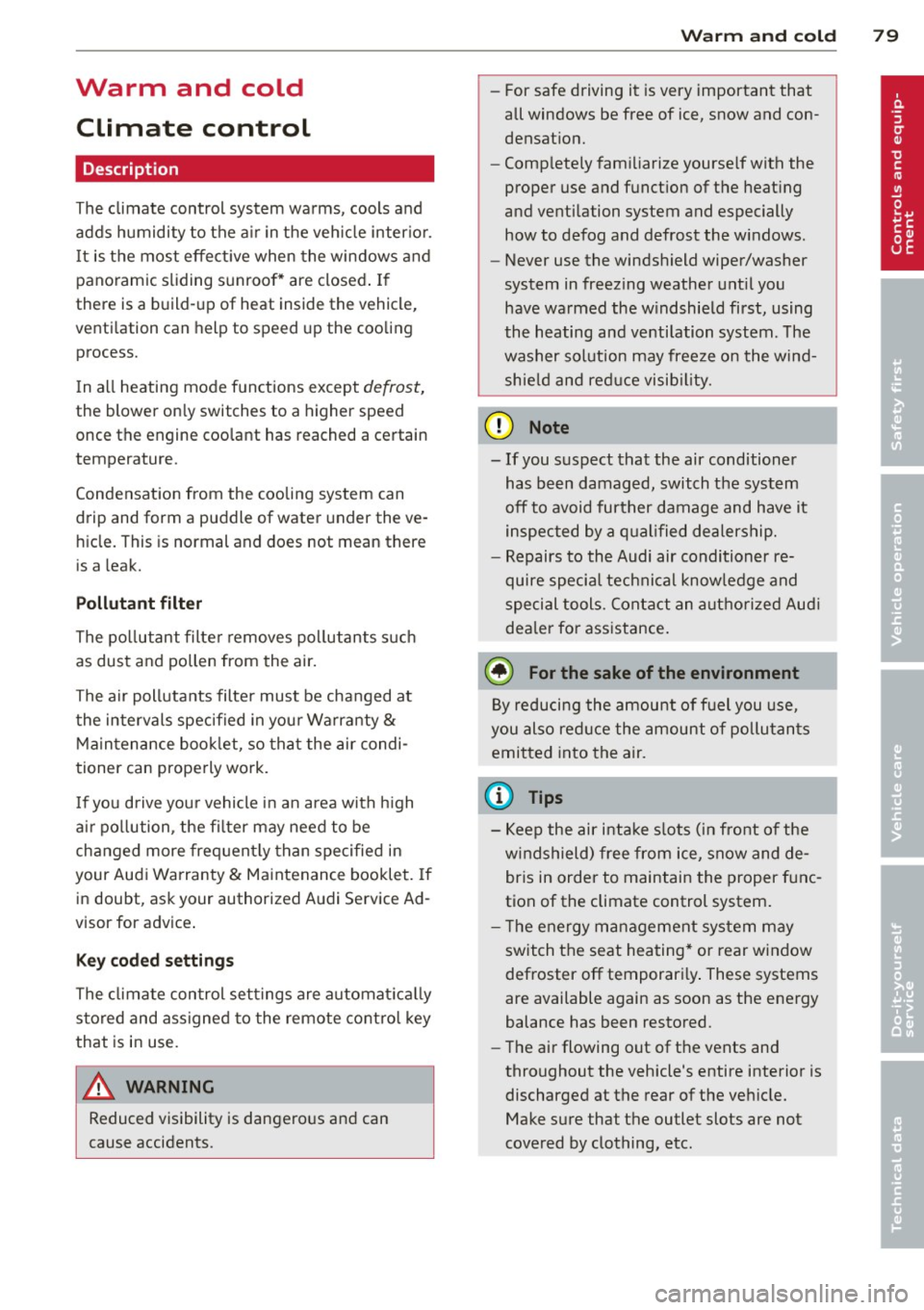

Warm and cold Climate control
Description
The climate control system warms, cools and
adds humidity to the a ir in the veh icle inter io r.
It is the most effect ive when the windows and
panoramic sliding sunroo f* are closed . If
there is a build-up of heat inside the vehicle,
venti lation can help to speed up the cooling
process.
I n all heating mode f unctions except
defrost,
the blower on ly switches to a higher speed
once the engine coolant has reached a certain
temperature.
Condensation from the cooling system can
drip and form a puddle of water under the ve­hicle. This is normal and does not mean there
is a leak.
Pollutant filter
The po llutant filte r removes po llutants s uch
as dust and pollen from the air.
The air pollutants filte r must be changed at
the in tervals specified in you r Wa rranty
&
Main tenance book let, so tha t the air condi­
tioner can properly work.
I f you drive you r vehicle in an area with h igh
a ir po llution, the fi lter may need to be
ch anged more freq uent ly than specified in
your Aud i Warranty
& Ma intenance booklet. If
i n doubt, ask your authorized A udi Service Ad­
visor for advice .
K ey coded settings
The climate con trol settings are automat ically
stored and assigned to the remote cont ro l key
that is in use .
& WARNING
Reduced visibility is dangero us and can
cause accidents . -
Warm and cold 79
-For safe driving it is very important that
all windows be free of ice, snow and con­
densat ion.
- Comp letely fam iliarize yourse lf with the
proper use and funct ion of the heat ing
and ve nti lation system and especially
how to defog and defrost the w indows.
- Never use the windshield wiper/washer
system in freez ing weather unt il you
have warmed the w indshield first, using
the heating and ventilation system. The
washer sol ution may free ze o n the wind­
shie ld and red uce visib ility.
(D Note
- If you suspect that the air conditioner has been damaged, switch the system
off to avoid furt her damage and have it
i n spected by a q ua lified dea lership.
- Repairs to the Audi air conditioner re­
quire specia l techni cal know ledge and
speci al tools. Contact an autho rized Aud i
dealer fo r ass istance.
@ For the sake of the environment
B y reduci ng the amou nt of f uel you use,
you also red uce the amount of pollutan ts
emitted in to the air.
(D Tips
- Keep the air intake s lots ( in fro nt of the
w indshield) free from ice, snow and de­
br is in order to maintai n the proper f unc ­
tion of the climate control system.
- T he energy management system may
switch the seat heating* or rear window
defroster off temporar i Ly . These systems
are available again as soon as the energy
balance has been restored.
- The air flowing out of the vents and
throughout the vehicle's entire interior is
discharged at the rear of the ve hicle.
Make sure that the outlet slots are not
covered by clothing, etc.

80 Warm and cold

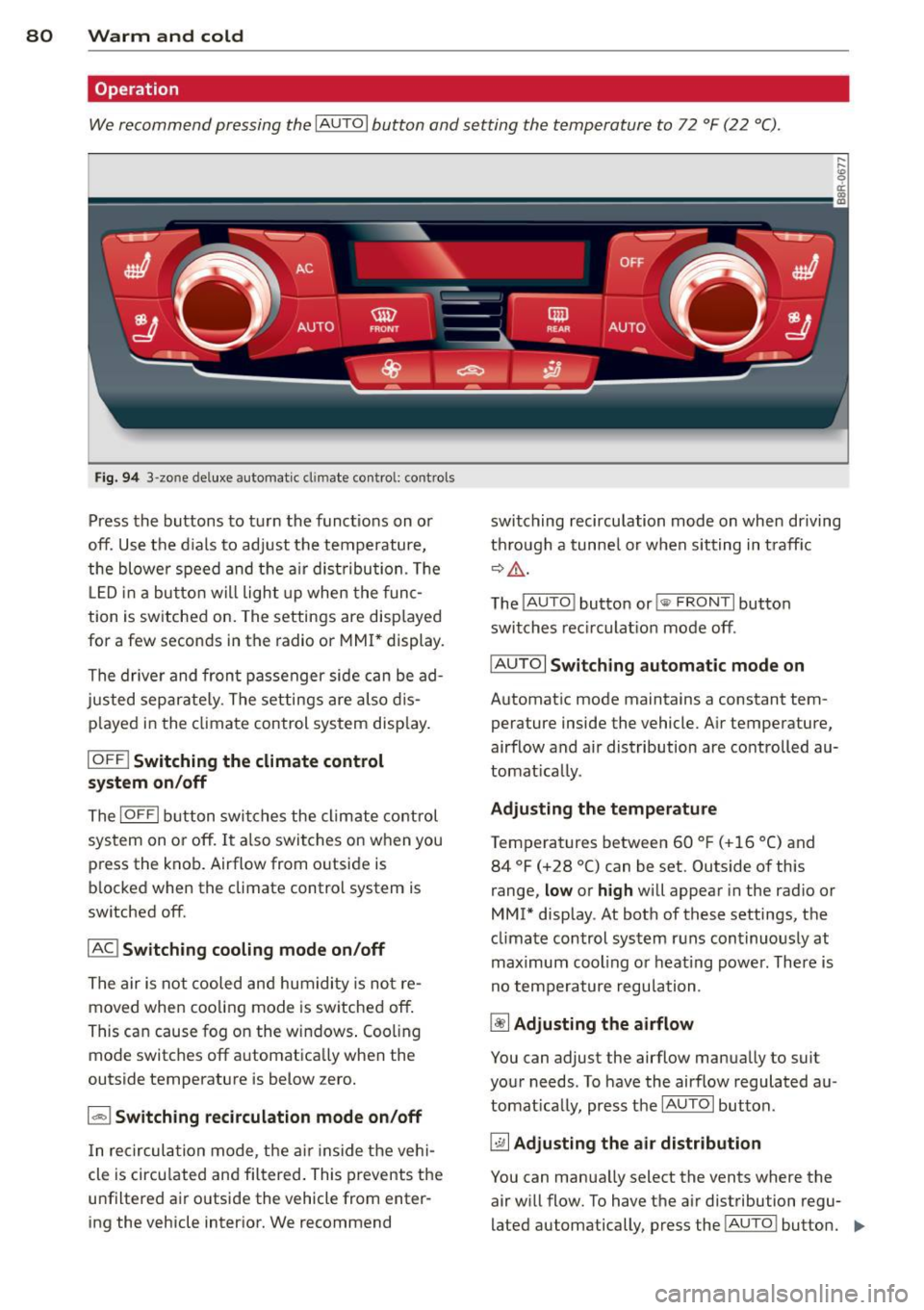

Operation
We recommend pressing the IAUTOI button and setting the temperature to 72 °F (22 °C) .
Fig. 94 3 -zo ne de luxe automat ic cl imate contro l: controls
Press the buttons to turn the functions on or
off. Use the d ials to adjust the temperature,
the blower speed and the air dist ribution . Th e
L ED in a button wi ll light up when the func­
tion is switched on. The settings are disp layed
for a few seconds in the radio or MMI* display.
The driver and front passenger side can be ad­
justed separately. The settings are also dis­
p layed in the climate control system disp lay.
IOFF I Switching the climate control
system on/off
The IOFFI button switches the climate control
sys tem on or off. It also switches on when you
press the knob. Airflow from o utside is
b locked when the climate control system is
switched off.
IAC ! Switching cooling mode on/off
The air is not cooled and humidity is not re­
moved when cooling mode is switched off.
This can cause fog on the windows . Cooling
mode switches off a utomatica lly when the
outside temperature is below zero.
1 - 1 Switching recirculation mode on/off
In recirculation mode, the air inside the vehi­
cle is circu lated and filtered . This prevents the
u nfiltered air outside the vehicle from enter­
ing the vehicle interior. We recommend switching
recirculation mode on when driving
th rough a tunnel or when sitting in traff ic
~&. -
The IAU TO I button or!@ FR ONT I button
switches recirculation mode off.
IAU TOI
Switching automatic mode on
Automatic mode maintains a constant tem­
perature inside the vehicle. Air temperature,
airflow and air distribution are controlled au­
tomatically.
Adjusting the temperature
Temperatures between 60 °F (+16 °C) and 84 °F (+28 °C) can be set. Outside of this
range,
low or high will appear in the radio or
MMI* display . At both of these settings, the
climate control system runs continuously at
maximum cooling o r heating power. There is
no temperature regulation .
~ Adjusting the airflow
You can adjust the airflow manually to suit
your needs . To have the airflow regulated au­
tomatically, press the IAUTOI button .
~ Adjusting the air distribution
You can manua lly select the vents where the
air will flow. To have the a ir distribution regu­
lated automatically, press the !AU TO ! button.
IIJ,,

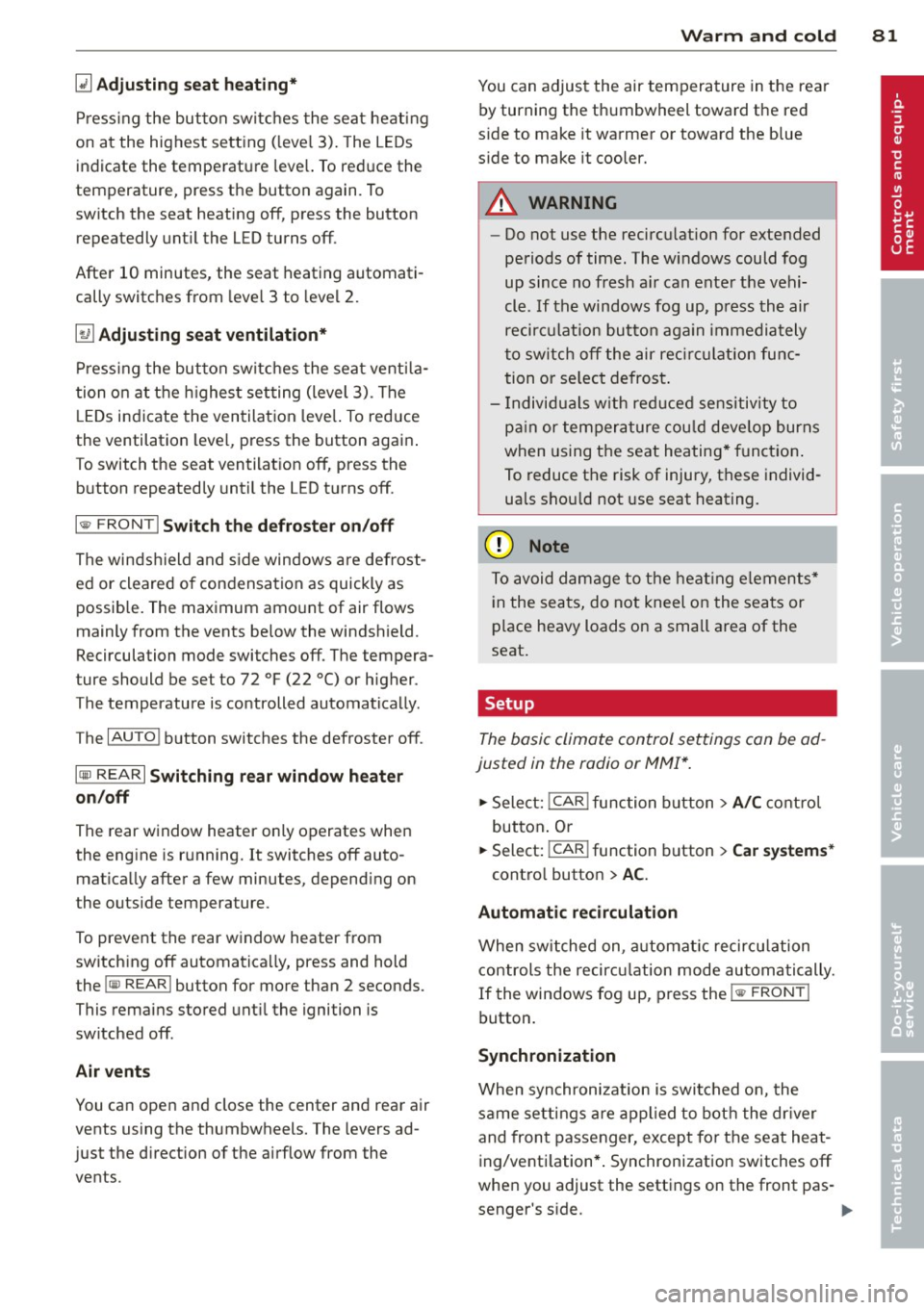

[i] Adj ustin g seat h eat ing *
Press ing the button switches the seat heating
on at the highest setting ( leve l 3) . The LEDs
indicate the temperature leve l. To reduce the
t e mperature, press the button again. To
switch the seat heating off, press the button
repeatedly unt il the LED turns off .
After 10 minutes, the seat heating automati­
cally switches from leve l 3 to leve l 2.
lil Adjusting seat ventilation *
Press ing the button switches the seat venti la­
tion on at the h ighest set ting (level 3) . The
L EDs indicate the ventilation leve l. To reduce
the ventilation leve l, press the button agai n.
T o switch the seat v entilat ion off, pr ess the
button repeatedly until the L ED turns off.
I.., F RON T I Switch th e defro ster on /off
The windshield and side windows are defrost­
ed or cleared of condensat ion as quickly as
poss ib le. Th e maximum amo unt of air flows
mainly from the vents below the windshield.
Rec irculation mode sw itches off . The tempera­
ture should be se t to 72 ° F (22 °C) or higher .
T he temperature is controlled automatically .
T he
IAU TO I button switches the defroster off.
llliil REAR I Switching rear window heat er
o n/o ff
The r ear window heater only operates when
the engine is running.
It switches off auto­
mat ically after a few minutes , depend ing on
t he outside tempera ture.
To prevent the rear window heater from
switch ing off automatica lly, press and hold
the
IQil) REAR I button for more than 2 seconds.
This remains stored unt il the ignition is
switched off .
Air vent s
You can open and close the center and rear air
vents using the thumbwheels. The levers ad ­
just the d irection of the airflow from the
vents .
Warm and c old 81
You can adjust the air temperature in the rear
by turning the thumbwheel toward the red
s ide to make it warmer or toward the blue
s ide to make it cooler.
A WARNING
- Do not use the recircu lation for extended
periods of time. The windows could fog
up since no fresh a ir can enter the vehi­
cle . If the windows fog up, p ress the air
recirc ulation button aga in immediately
to switch off the air reci rc u lation func­
tion or se lect defrost .
- I ndividuals w ith reduced sensitivity to
pa in or temperature cou ld deve lop burns
when using the seat heating* funct ion .
To reduce the risk of injury, these individ­ uals sho uld not use seat heating.
(D Note
To avoid damage to the heat ing e lements *
in the seats, do not kneel on the seats or
place heavy loads on a small area of the
seat.
Setup
The basic climate control settings can be ad ­
justed in the radio or MMI*.
.. Select: !CAR I function button> A /C cont ro l
button . Or
.. Select:
!CAR I function button > Car sy stem s*
contro l button > AC.
Automat ic recirculation
When sw itched on, a utomat ic recircu lation
controls the recircu lation mode automatically.
If the windows fog up , press the
I~ F RON T!
button.
Synch ronization
When synchronization is swi tched o n, the
same sett ings are appl ied to both the dr iver
and fron t passenger, except for the seat heat ­
ing/venti lation* . Synchronization switches off
when you adjust the settings on the front pas-
senger's s ide . .,.

82 Warm and cold

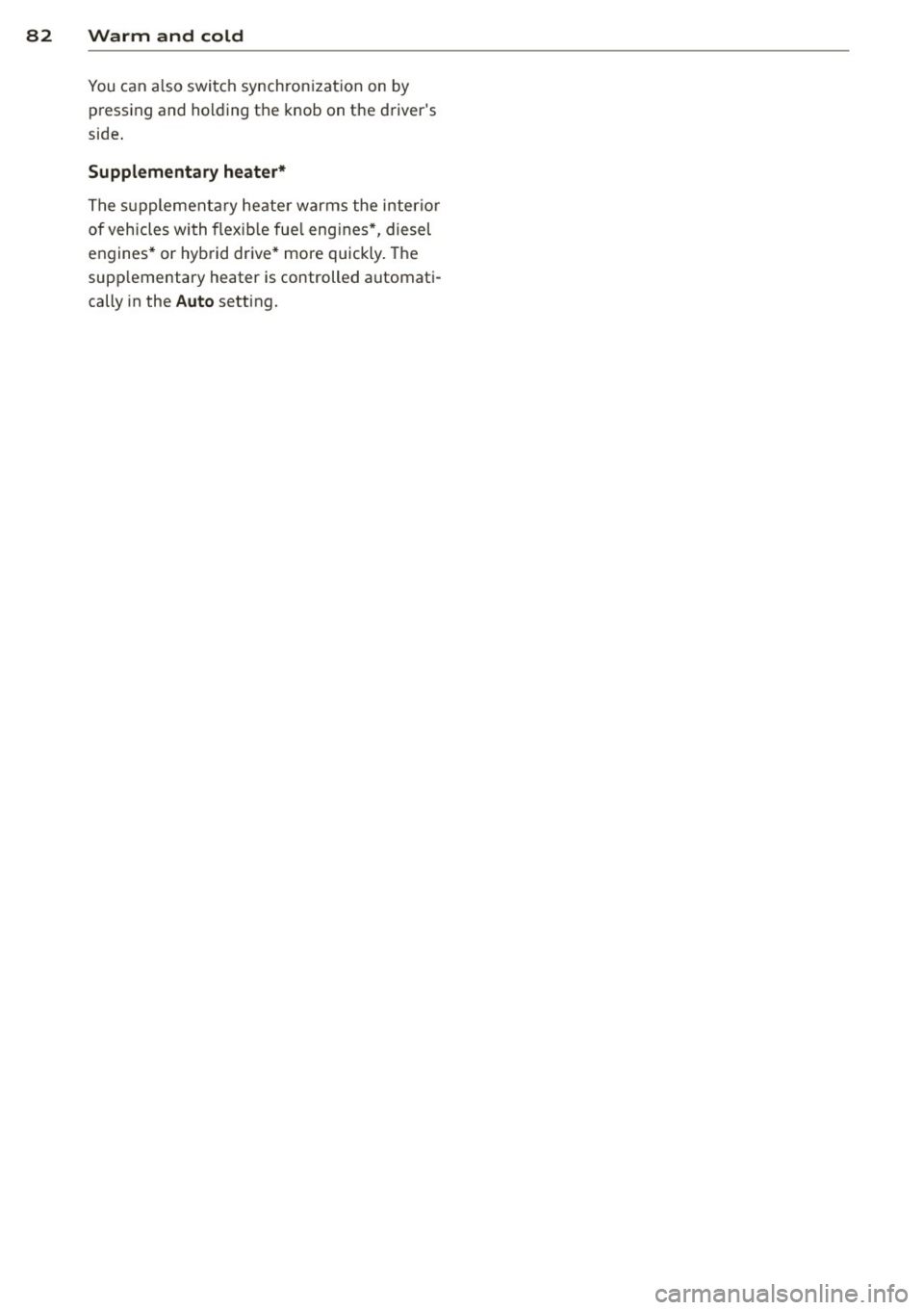

You can also switch synchron ization on by
pressing and holding the knob on the driver's
side .
Supplementary heater*
The supplementa ry heater warms the interior
of vehicles with flexible fuel eng ines*, diesel
engines* or hybrid drive* more quickly. The
supp lementary heater is controlled automati ­
cally in the
Auto setting.

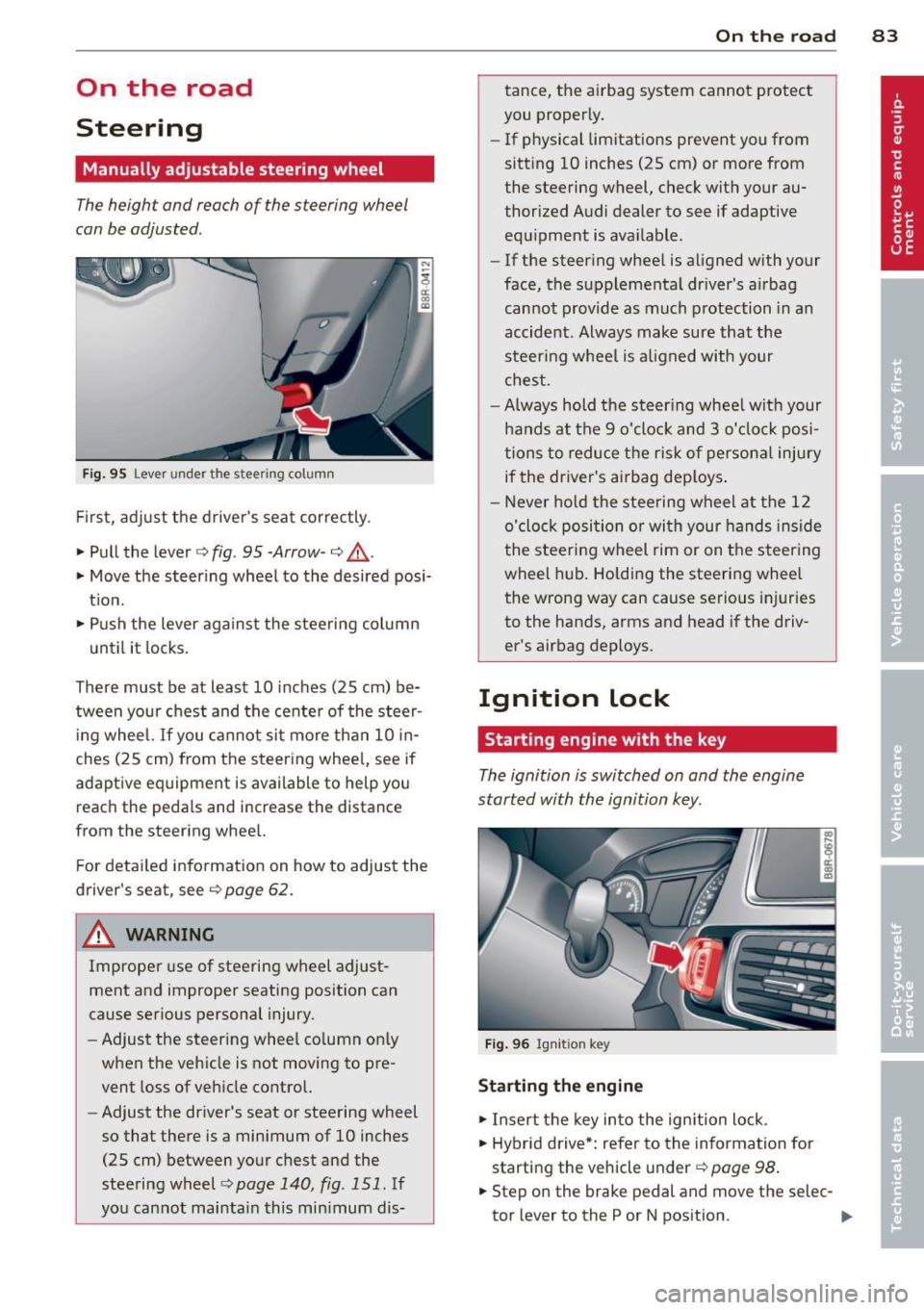

On the road
Steering
Manually adjustable steering wheel
The height and reach of the s teering wheel
can be adjusted .
Fig. 95 Lever under the stee ring column
First, adjust the driver 's seat correctly.
• Pull the lever¢
fig. 95 -Arrow -¢ A_.
• Move the steer ing wheel to the desired posi­
t ion.
• Push the lever against the steering column
until it locks.
There must be at least 10 inches (25 cm) be­
tween your chest and the center of the steer­ ing wheel.
If you cannot sit more than 10 in ­
ches (25 cm) from the steering wheel, see if
adaptive equipment is available to help you
reach the pedals and increase the distance
from the steering wheel.
F or detailed information on how to adjust the
driver's seat, see
¢ page 62.
& WAR NING
Improper use of steering wheel adjust­
ment and improper seating position can
cause serious personal injury .
- Adjust the steering whee l column on ly
when the vehicle is not moving to pre­
vent loss of vehicle control.
- Adjust the driver's seat or steering wheel
so that there is a minimum of 10 inches
(25 cm) between your chest and the
steering wheel
c> page 140 , fig . 151. If
you cannot maintain this min imum dis-
On th e road 83
tance, the airbag system cannot protect
you properly.
- If physical limitations prevent you from
sitting 10 inches (25 cm) or more from
the steering wheel, check with your au­
thorized Audi dealer to see if adaptive equipment is available .
- If the steering wheel is aligned with your
face, the supplementa l driver's a irbag
cannot provide as much protection in an
accident . Always make sure that the
steer ing whee l is a ligned with your
chest .
- Always hold the steer ing whee l w ith your
hands at the 9 o'clock and 3 o'clock posi­
tions to reduce the risk of persona l injury
if the driver's airbag dep loys .
- Never hold the stee ring wheel at the 12
o'clock position or wi th your hands inside
the stee rin g wheel rim or on the steering
wheel hub. Holding the steering wheel
the wrong way can cause serious injuries
to the hands, arms and head if the driv­
er's airbag deploys.
Ignition lock
Starting engine with the key
The ignition is switched on and the engine
started with the ignition key.
Fig . 96 Igni tion key
St arting th e engine
• Insert the key into the ign ition lock .
• Hybrid drive*: refer to the information for
starting the vehicle under
¢ page 98.
• Step on the brake pedal and mov e the selec-
tor lever to the P or N position. ..,.

84 On th e road
• Press the key¢ fig. 96 -the engine will
start.
• It is possible that there w ill be a slight delay
when start ing the engine for diesel vehicles*
in colder temperatures . Therefore, you must
hold the brake pedal down until the eng ine
starts. The indicator lamp
m i llum inates
when the eng ine is preheated .
Switching the ignition on /off
If you would like to switch the ignition on
without s tarting the engine, follow these
steps :
• Insert the key into the ignition lock.
• Press the key briefly
without press the brake
pedal.
• To switch the ignition off, press the key
again .
Diesel vehicles* are preheated while the igni­
tion is sw itched on .
When starting the engine, major e lectrica l
loads are switched off temporarily .
You can on ly remove the key with the ignition
switched off. To do this, you have to press on
the key again.
I f the engine should not sta rt immediately,
the starting process is automatically stopped
after a short time. Repeat starting procedure .
Start-Stop-System*:
Note the information on¢ page 91, Start ­
Stop-System.
.&_ WARNING
- Never allow the engine to run in confined
spaces -danger of asphyxiation.
- Never remove the ign ition key from the
ignition lock whi le the vehicle is moving .
Otherwise, the stee ring lock co uld sud­
denly engage and you would not be able
to steer the vehicle.
- Always take the key with yo u whenever
you leave your vehicle . Otherwise , the
engine could be started or e lectr ica l
equipment such as the power w indows could be operated
. This can lead to seri­
ous injury.
- Never leave children or persons req uiring
assistance unattended in the vehicle. The
doors can be locked using the remote
transmitter, preventing people from es­ caping from the veh icle on their own in
the event of a n emergency. Depending
on the time of year, peop le inside the ve­
h icle can be exposed to very high or very
low temperatu res.
0 Note
Avoid high eng ine rpm, full th rottle and
heavy engine loads unti l the engine has
r eached operating tempe rat ure -othe r­
wise you ris k eng ine damage.
@) For the sake of the environment
D o not let the engine run wh ile pa rked to
warm up. Begin dr iving immediately . Thi s
r educes u nnecessary emissions.
(D Tips
- If the key cannot be removed from the
ign ition lock, yo u have to pull t he me­
chanical key o ut o f the mas ter key in or­
der to be able to lock the vehicle
<:!>page 38.
-Aft er s tarting a col d engine, there may
be a brief period of inc reased noise be ­
cause the oil pressure must first bui ld up
in the hydraulic valve ad justers . This is
n ormal and not a cause for concern.
- If you leave the vehicle with the ignition
switched on, the ignit ion w ill switch off
after a certain per iod of t ime. Please
note that electrical equ ipment such as
exterior lights will sw itch off as well
when that happens .

Starting the vehicle with the emergency
key
You can use the emergency key as an ignition
key in an emergency.
Fig . 97 G love compar tme nt: Adapter for emergency
key
Fig. 98 Inse rt emergency key into the adapter
~ Take the adapter for the emergency key out
of the glove compartment
c:> fig . 97.
~ Push the emergency key c:> fig. 98 fully into
the adapter . Make sure that the Audi r ings
are facing up.
~ Press the emergency key in the adapter
down until it latches audibly .
~ Insert the adapter with the emergency key
forward into the ignition switch . The engine
can now be started as usual.
Stopping the engine
~ Bring the vehicle to a full stop .
~ Move the selector lever to the P or N pos i­
t ion .
~ Press on the ignition key. The engine is
turned off.
~ You can now remove the key.
On th e road 8 5
Steering lock
The steering locks when yo u remove the ig ni­
tion key. The lo cked steering helps prevent ve ­
hicle theft .
Emergency off
If it is necessary in unusual circumstances, the
engine can be switched off while the veh icle is
moving. The engine will be switched off if you
press on the key for an extended period .
A WARNING
-Never turn off the engine before the ve­
hicle has come to a comp lete stop. The
full funct ion of the brake booster and the
power steering is not guaranteed . You
must use more force to turn or brake if
necessary. Because you cannot steer and
brake as you usually would, this could
lead to crashes and ser ious injuries.
- For safety reasons, you should always
pa rk your vehicle with the selector lever
in P . Otherwise, the vehicle could inad ­
verten tly roll away.
- The radiator fan can continue to run fo r
up to 10 minutes even after you have
turned off the engine and removed the ignition key. The radiator fan can a lso
turn on again if the engine coo lant heats
up because of intense sunlight or heat
bu ild-up in the engine compartment.
- Always take the key with you whenever
you leave your vehicle. Otherw ise, the
engine could be started or electrical
equipment such as the power windows
could be operated . This can lead to seri­
ous injury.
- Never leave children or persons requiring
assistance unattended in the vehicle. The
doors can be locked using the remote
transmitter, preven ting people from es­
caping from the veh icle on their own in
the event of an emergency . Depending
on the time of year, peop le inside the ve ­
hicle can be exposed to very high or very
low temperatures.

86 On the road
(D Note
If the engine has been under heavy load
for an extended period, heat builds up in
the engine compartment after the engine
is switched off -there is a risk of damaging
the engine. Allow the engine to run at idle
for about two minutes before switching it
off.
Convenience key
Starting the engine
Applies to vehicles: with Conve nie nce key
The I STAR T ENGINE S TOP! button switches
the ignition on and starts the engine .
Fig. 99 Center console: S TART ENGINE STOP butto n
Starting the engine
.. Hybrid drive*: refer to the information for
starting the vehicle under
c;, page 98 .
.. Step on the brake pedal and move the selec­
tor lever to P or N
c;, ,& .
.. Press on the l ~s =T~ A_R_ T_ E_ N_ G _ I N_E_S_T_O_P~I button
¢ fig . 99 -the engine w ill start .
.. It is possible that there wi ll be a slight delay
when start ing the engine for diesel vehicles*
in colder temperatures. Therefore, yo u m ust
hold the brake pedal down until the engine
starts . The indicator lamp
lml illuminates
when the engine is preheated .
Switching the ignition on/off
If you wou ld like to switch the ignition o n
without starting the engine, follow these
steps :
.. Press the
I STAR T ENGINE S TOP! button
without pressing the brake peda l. ..
To switch the ignition off, press the button
again.
Diesel vehicles* are preheated while the ign i­
tion is switched on.
When starting the engine, major elect rical
loads are switched off temporari ly.
If the engine should not start immediately,
the start ing process is automat ica lly stopped
after a short t ime. Repeat start ing procedure.
Sta rt-Stop-System*:
Note the information on c;, page 91, Start­
Stop-System.
A WARNING
-
- Never allow the engine to run in confined
spaces -danger of asphyxiat ion.
- Always take the key w ith you whenever
you leave your veh icle. Otherw ise, the
engine could be sta rted or electrical
equ ipment su ch as the power windows
could be operated. This can lead to seri­
ous injury.
- Never leave children or persons requiring
assistance unattended in the vehicle. The
doors can be locked using the remote
transmitter, preventing people from es­
caping from the vehicle on their own in
the event of an emergency. Depending
on the time of year, people inside the ve­
h icle can be exposed to very high or very
low temperatures.
(D Note
Avoid high engine rpm, full throttle and
heavy engine loads until the engine has
reached operating temperature -other­
wise you risk eng ine damage .
@) For the sake of the environment
Do not let the engine run wh ile parked to
warm up. Begin driving immediately . This
reduces unnecessary emissions .

@ Tips
-After starting a cold engine, there may
be a brief period of increased noise be­
cause the o il pressure m ust first build up
i n the hydraulic valve adjusters. T his is
norma l and not a cause for concern.
- If you leave the vehicle with the ignition
switched on, the ignition will switch off
after a certain period of time. Please
note that electr ical equipment such as
exter ior lights wi ll switch off as well
when that happens.
Switching engine off
A ppl ies to vehicles: with Convenie nce key
.,. Bring your vehicle to a complete stop.
.,. Move the selector lever to the P or N posi­
tion.
.,. Press the
!START ENGINE STOPI button
c> page 86, fig. 99.
St eering lock
The stee ring locks when you turn the engine
off using the
I START ENGINE STOP I button
and open the driver's door . The locked steer­
ing helps prevent vehicle theft.
Emergency off
If necessary, the eng ine can be sw itched off
with the selector leve r in the R or D/S posi ­
tions . To do so, step on the brake peda l and
press and hold the
I START ENGINE STOP I but­
ton. The vehicle speed must be less than 6 mph/ 10 km/h.
A WARNING
- Never turn off the eng ine before the ve­
hicle has come to a complete stop. The
full function of the brake booste r and the
powe r steering is not guara nteed. You
must use mo re fo rce to turn or b rake if
necessary. Because yo u cannot steer and
brake as you usua lly would, this could
lead to c rashes and serious injur ies.
- F or safety reasons, you should always
par k your vehicle with the se lector lever
On th e ro ad 87
in P. Otherwise, the vehicle could inad­
vertently roll away.
- The radiator fan can continue to run for
up to 10 minutes even after you have
turned off the engine and removed the
ignit ion key. The radiator fan can a lso
turn on again if the engine coo lant heats
up because of intense sunlight or heat
bui ld-up in the engine compa rtment.
- Always take the key w ith you whenever
you leave your veh icle . Otherwise, the
eng ine could be sta rted or elect rical
equ ipme nt such as the power windows
co uld be ope rated. This can lead to seri­
ous injury.
- Never leave children or persons req uiring
assistance unattended in the vehi cle. The
doors can be locked using the remote
transmitter, preventing people from es­
caping from the veh icle on their own in
the event of an emergency. Depending
on the time of year, peop le inside the ve­
hicle can be exposed to very high or very
low tempe ratu res.
(D Note
If the engine has been under heavy load
for an extended period, heat bu ilds up in
the e ng ine compartment after the engine
i s sw itched off - there is a r isk of damag ing
the e ngine. A llow the engi ne to run at id le
for abo ut two minute s before switching it
off.
Driver messages
I g nition i s on
This message appears and a warning tone
sounds if you open the driver's door when the
ignition is sw itched on.
No key identified
This message appears when the
I S TART E NGINE STOPI* button is pressed if
there is no master key ins ide the veh icle or if
the system does not recognize it . For exam­
ple, the master key cannot be recognized if it
is covered by an object (e .g . aluminum brief ..,.

88 On the road
case) which screens the radio sig nal. Electron­
ic devices such as ce ll phones can also inter­
fere with the rad io signa l.
Press brake pedal to start engine
This message appea rs if you do not press the
brake pedal to start the engine.
Shift to N or P to start engine
This message appears when attempting to
start the engine if the selector lever for the
automatic transmission is not in the P or N
position . The engine can o nly be started w ith
the selector in these pos itions.
I!) Is the key in the vehicle?
This message appears in a veh icle with Con­
venience key* if the master key is removed
from the vehicle w ith the engine running . If
the master key is no longer in the vehicle, you
cannot switch on the ignition after stopping
the eng ine and you also cannot start the en­
g in e again. Moreover, you cannot lock the ve­
hicle from the o utside with the key .
Shift to P otherwise vehicle can roll away.
Doors do not lock if lever is not in P.
This message appears fo r safety reasons
a long w ith a warning signa l. It appears if the
selector lever for the automatic transm iss ion
is not in the P position when switch ing off the
ig nit ion. Move the selector lever to the P pos i­
tion, otherwise the veh icle is not sec ured
against rolling away. You also cannot lock the
vehi cle using the locking button* on the door
handle or using the remote key.
Turn off ignition before leaving car
This message appears if the driver's door is
opened while the ignition is switched on . Al­
ways sw itch off the ignition if you are leaving
the vehicl e. See also
~ page 92 .
Shift to P and turn off ignition, otherwise ve­
hicle can roll away
This message appears if the driver's door is
opened while the ignition is switched on and
the selector lever is not in the P position. Shift
the selector lever into the P position and switch off the
ignition when you exit the vehi­
cle. Otherwise the vehicle could roll . See also
~ page 92.
Convenience key defective! Use ignition lock
This message appears if the engine must be
sta rted o r stopped using the ign ition key and
not the
I START ENGINE STOP I* button .
Electromechanical
parking brake
' Operation
The electromechanical parking brake replaces
the hand brake.
Fig. 100 Center conso le: Par king brake
.,. Pull on the switch~ fig. 100 to apply the
parking brake. The indicator light in the
sw itch ill uminates.
.,. Step on the brake pedal or the accelerator
pedal and press the switch at the same time
to re lease the parking brake. The ind icator
light in the sw itch goes out.
Your vehicle is equipped with an electrome­
chanical parking brake. The parking brake is
designed to prevent the vehicle from rolling
unintentionally and replaces the hand brake.
In add ition to the normal functions of a tradi­
tiona l hand brake, the electromechanical
parking brake provides various convenience
and safety funct ions .
When starting from rest
-The integral starting assist helps yo u when
driving by automatica lly releasing the park-
ing brake
~ page 89, Starting from rest. .,.
