Audi adaptive cruise control and braking guard
Audi adaptive cruise
control
Description
Applies to vehicles: with Audi adaptive cruise control
Fig. 119 Detect ion range
What can adaptive cruise control do?
The adaptive cruise control works in conjunction
with a radar sensor installed in the front of the
vehi cle
¢ page 107, fig. 116, which is subject to
designated system limits¢
page 109 . Stationary
objects are disregarded.
On open roads w ith no traff ic, adaptive cruise
control wo rks like a reg ular cruise control system.
The stored speed is maintained . When approach­
ing a moving vehicle detected up ahead, the
adapt ive cruise control system automatically
slows down to match that vehicle's speed and
then maintains the distance that the driver previ­
ously stored. As soon as the system does not de­
tect a vehicle up ahead, adaptive cruise control
accelerates back up to the stored speed .
Which functions can be controlled?
When you switch adaptive cruise contro l on, you
can set the current speed as the "contro l speed"
¢ page 109, Switching on and off.
When driving , you can stop cruise control
¢
page 111 or change the speed ¢ page 110 at
any time.
You can also set the distance to the object ahead
and set the adaptive cruise control driving pro­
gram
¢ page 111. Switching on and off
Applies
to vehicles: with A udi adapt ive cru ise contro l
Fig. 120 Selector lever: switc hing on/off
Fig . 121 Instrume nt cluste r: adapt ive c ruise co ntro l
You can set any speed between 20 mph and
95 mph (30 and 150 km/h) .
Indicator lamps and messages in the instrument
cluster display inform you about the current sys­
tem status and settings .
Switching adaptive cruise control on
.,. Pull the lever toward you into position(!)
¢
fig. 120. ACC: Standby appears in the instru­
ment cluster display .
Setting the speed and activating regulation
.,. To set the current speed, press the ISETI button
¢
fig. 120. Th e set speed is shown in the tach­
ometer @and is also shown briefly in the dis­
play @¢
fig. 121.
Switching adaptive cruise control off
.,. Push the lever away from you into posit ion @
until it clicks into place. The message
ACC: Off
appears. .,..
109

Audi adapt ive cru ise control and brak ing gu ard

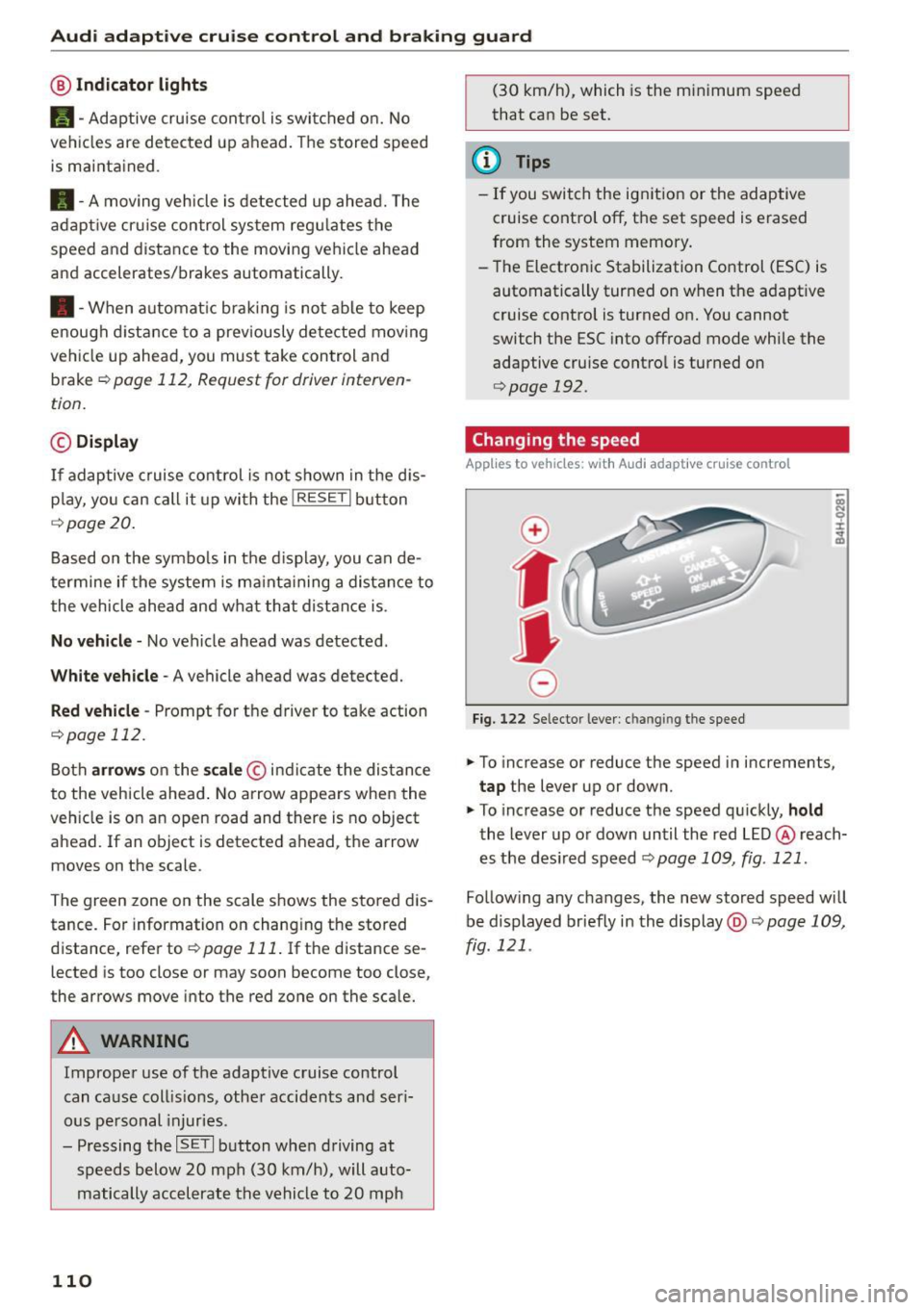

@ Indicator light s
Ill -Adaptive cruise contro l is switched on. No
vehicles are detected up ahead . The stored speed
is maintained .
• -A moving veh icle is detected up ahead. The
adaptive cruise control system regulates the
speed and distance to the moving vehicle ahead
and accelerates/brakes automatically.
• -When automat ic brak ing is not able to keep
enough d istance to a prev iously detected mov ing
ve hicle up ahead, you must take control and
brake
~ page 112, Request for driver interven­
tion.
© Di splay
If adaptive c ruise cont rol is not shown in the dis­
p lay, yo u can call it up with the
!RESET I button
r::!> page 20 .
Based on the symbo ls in the display, you can de ­
termine if the system is ma inta ining a distance to
the vehicle ahead and what that distance is .
N o ve hicle -No vehicle ahead was detected .
White vehicle -A vehicle ahead was detected.
Red vehicle -Prompt for the driver to take action
r::!> page 112.
Both arrows on the sca le © indi cate the dis tance
to the vehicle ahead . No arrow appears when the
ve hicle is on an open road and there is no object
ahead. If an object is detected ahead, the arrow
moves on the scale .
The green zone on the scale shows the stored dis ­
tance . For information on changing the stored
distance, refer to
~ page 111 . If the distance se­
lected is too close or may soon become too close,
the arrows move into the red zone on the scale.
A WARNING
Improper use of the adaptive cruise control
can ca use coll is ions, other accidents and ser i­
ous pe rsonal injuries.
- Pressing the
ISE TI button whe n driving at
speeds below 20 mph (30 km/h), will auto­ matically accelerate the vehicle to 20 mph
110
(30 km/h), which is the minimum speed
that can be set.
@ Tips
- If you switch the ign it ion or the adaptive
cruise contro l off, the set speed is erased
from the system memory.
- The Electronic Stabilization Control (ESC) is automatically turned on when the adapt ive
cruise control is turned on. You cannot
switch the ESC into offroad mode while the
adaptive cruise contro l is turned on
¢ page 192.
Changing the speed
App lies to vehicles: with A udi adapt ive cruise contro l
0
f
•
0
Fig. 122 Selector lever : ch an gin g the speed
.,. To increase or reduce the speed in increments,
tap the lever up or down.
.,. To increase or reduce the speed qu ickly,
hold
the lever up or down until the red LED@ reach­
es the des ired speed
~ page 109, fig . 121 .
Follow ing any changes, the new stored speed will
be displayed briefly in the display@r::!>
page 109,
fig . 121 .

M N
co ~ co ,...,
I.O
"' N
"' ,...,
Audi adapt ive crui se cont rol and bra king gu ard
Interrupting cruise control
Applies to vehicles: with Audi adaptive cruise control
Fig. 123 Selecto r lever
Requirement : adaptive cruise control must be
switched on ¢
fig. 123 (D.
Over rid in g crui se c ontr ol
• To accelerate man ually, press the accelerator
pedal. The message
ACC: overr ide appears.
• To resume adaptive cruise control, remove your
foot from the gas pedal. The system returns
again to the speed that was saved before .
• You can save a new speed at any time by press­
i ng the
ISET I button ¢ fig. 123.
Canceling c rui se control while driving
• Move the lever into posit ion @. The message
ACC: Standb y appears. Or
• press the brake pedal.
• To resume the stored speed, move the lever in­
to position @.
& WARNING
Never resume the s tored speed if the speed is
too high for prevailing road, traffic or weather
conditions .
Setting the distance
Applies to vehicles: wit h Audi adapt ive cr uise contro l
Fig. 124 Selector leve r: sett ing the distance
• Tap the switch to display the current set dis­
tance ¢
fig. 124.
• To increase or reduce the d istance by incre­
ments, tap the switch again to the left or right .
The distance between the two veh icles will
change i n the ins trumen t cluster display .
When app roach ing a mov ing vehicle up ahead,
the adaptive cruise control system bra kes to
mat ch that object's speed and then maintains
the s tored dis tance .
If the vehicle ahead acce ler­
ates, adaptive cruise control will also accelerate
up to the stored speed.
T he hig her the speed, the greater the d istance in
yards (meters) ¢&. .The
Di stan ce 3 setting is
recommended.
T he distances provided are specified values . De­
pending on the driv ing s ituation and the how the
vehicle ahead is driving, the actua l distance may
be more or less than these target distances .
T he various symbo ls for the time inc rements ap­
pear briefly in the info rmation line @
¢page 109, fig. 121 when yo u change the set­
tings .
,:;::::,_,:;::::, ___ Distan ce 1 : This setting cor responds
to a distance of 92 feet/28 meters when travel­ i ng at 62 mph (100 km/h), o r a time in terval of 1
second .
,:;::::, __ ,:;::::, __ Distan ce 2: This setting co rresponds
to a d istance of 118 fee t/36 meters when t ravel­
i ng at 62 mph (100 km/h), o r a time in terval of
1.3 seconds.
111

Audi adapt ive cru ise control and brak ing gu ard
c::::, ___ c::::,_ Distan ce 3: This setting corresponds
to a distance of 164 feet/SO meters when travel ­
ing at 62 mph (100 km/h), or a t ime interval of
1.8 seconds.
c::::, ___ _ c::::, Di stan ce 4: This setting corresponds
to a distance of 210 feet/64 meters when travel ­
ing at 62 mph (100 km/h), or a t ime interval of
2 .3 seconds.
_&. WARNING
Following other vehicles too closely increases
the risk of collisions and ser ious personal in­
jury .
- Setting short distances to the traffic ahead
reduces the time and d istance available to
br ing your vehicle to a safe stop and makes
it eve n mo re necessa ry to pay close atten­
t ion to traffic.
- Always obey applicable traffic laws, use
good judgment, and select a safe followi ng
distance for the traffic, ro ad an d wea ther
cond itio ns.
¢j) Tips
- Distance 3
is set automatically each time
you sw itch the ignit ion on.
- Your standard settings are automatically
stored and assigned to the remote contro l
k ey being used
~ page 36.
Setting the driving program
A ppl ies to veh icles: w ith Audi adaptive cruise co ntrol
Depending on the se lected dr iv ing program and
distance, driving behavior when acce le rat ing will
vary from dynamic to comfortab le .
Setting the driving program for vehicles
w ithout Audi dr ive s elect*
~ In the radio/MM! *, select: I CAR ! function but­
ton
> adaptive cruise control > Dri ving pro­
gram
> C omfort , Stan dard or Dynamic . Or
~ Select : ICARI funct ion button > Car s ystems *
control button > Driver ass ist > Adap tive crui se
contro l> Driving program > Comfort , Stand ­
ard or Dynamic .
112
Setting the driving mode for vehicles with
Audi drive se lect*
Refer to r:!> page 121.
(D Tips
Your settings are automat ica lly stored and as ­
signed to the remote control key being used
r:!> page 36 .
Request for driver intervention
App lies to vehicles: wit h Aud i adapt ive c ru ise contro l
Fig. 125 Instr um ent cl uster: reque st for driver interven­
t io n
In certa in situations, the system will prompt you
to take act ion . This could happen, for example , if
braking by the adaptive c ruise control system is
not enough to maintain enough distance to the
vehicle ahead .
The instrument cluster w ill warn you about the
dange r
r:!> fig. 125:
-A red vehicle is pictured in the display.
- The text
DISTANCE! appears in the status bar.
- The red indicator light . blinks.
- In addition, a wa rn ing tone so unds.

Audi adapt ive crui se cont rol and bra king gu ard
Audi braking guard
Description
Applies to vehicles: with Audi adaptive cruise co ntrol
F ig. 126 Instrument cluste r: app roac h warn ing
Braking guard uses a radar sensor. It also func­
tions within the limits of the system when adap­ tive cruise control is switched off .
What can bra king gu ard do ?
When detected in time, the system can assess
situations when a vehicle ahead brakes suddenly
or if your own veh icle is traveling at a high speed
and approaching a vehicle up ahead that is mov ­
ing more slowly . Braking guard does not react if it
cannot detect the s ituation.
The system advises you of various situations:
- The
di sta nce wa rning is given if you are too
close to the vehicle ahead for a long time.
If the
vehicle ahead brakes sharply, you will not be
able to avoid a collision. The indicator light .
in the d isplay comes o n.
- The
app roach warning is g iven when a detected
vehicle up ahead in your lane is moving much
more slowly than you are or if it brakes sharply .
When this warning is g iven, it may only be pos­
s ible to avoid a co llision by swerving or braki ng
sharp ly. The indicator light . and indicator in
t h e d isplay w ill warn yo u about the danger
¢ fig. 126. You wi ll also hear an acoust ic signa l.
If you do not react fast enough or do not react at
all to the situation, braking guard will intervene by bra king and the message
Br aking guard : A cti-
~ vat ed will appear. co ~ co
rl I.O
"' N "' 11
This is not ava ilable in som e count ries. rl
- If a collision is imminent, the system wi ll first
provide an
a cute war ning by brief ly and sharply
app ly ing the brakes.
- If you do not react to the acute warning, brak­
ing guard can brake within the limits of the sys­
tem. This reduces the veh icle speed in the event
of a collision.
- At speeds under 20 mph (30 km/h), the system
can initiate a comp lete deceleration shortly be­
fore a collisionl).
- If the braking guard senses that you are not
braking hard enough when a collision is immi­
nent, it can increase the braking force.
Which function s can b e cont roll ed ?
You can switch braking guard and the distance/
approach warning on or off in the radio/MMI*
¢ page 114, Settings in the radio/MM!*.
A WARNING
-
Lack of attention can cause collisions, other
accidents and serious personal injuries. The b raking guard is an ass ist system and cannot
p revent a coll is ion by itself. The dr iver must
a lways intervene. The driver is always respon­
s ib le for b ra ki ng at the corre ct time.
- Always pay close attent ion to traffic, even
when the b rak ing guard is switched on. Be
ready to intervene and be ready to take com ­
p lete control whenever necessary . Always
keep the safe a nd legal distance between
your vehicle and vehicles up ahead.
- Braking guard works within limits and will not respond outside the system limits, for
examp le when approaching a stopped vehi­
cle or stationary obstacle (end of a traffic
jam or vehicle that has broken down in traf­ f ic).
- Always remember that the radar sensor for
the braking guard works on ly w ithin defined
detection and range limits that may prevent
the prope r detection of other vehicles.
- The radar sensor's funct ion and range can
be reduced by ra in, snow and heavy spray.
Moving vehicles up ahead may not be
,.
113

Audi adaptive cru ise control and b ra king guard
promptly detected or may not be detected
at all.
- Reflective surfaces including cras h barriers
or tunnel entrances may impair the function
of the radar sensor.
(D Tips
- You can cance l the braking that is initiated
by the system by braking yourself, by accel­
erating noticeably or by swerving.
- Braking g uard error messages ¢page
114 .
-Keep in mind that braking guard can brake
unexpected ly . Always sec ure any cargo or
objects that you are transporting to red uce
the risk of damage or injury.
Settings in the radio/MMI*
Applies to veh icles: with Audi adaptive cruise control
.,. Se lect : I CAR I funct ion button > Audi brak ing
guard .
Or
.,. Select :
~ I C~ A~ R~ I funct ion button > Car sy stem s*
control button > Drive r ass is t> Audi braking
guard .
Syst em -
Sw itch braking guard On and Off . When
you switch the ign ition on, the message
Braking
guard : Off
appears if the system is switched off.
Earl y warning -The dis tance and appro ach war n­
ing s in the display can be sw itched
On/ Off.
(D Tips
-Your settings are automat ica lly stored and
assigned to the remote control key being used at the times the sett ings are made
¢ page
36 .
-If you restrict the ESC, the b raking guard al­
so switches itself off¢ page
192 .
-Switch brak ing guard off when you are load­
i ng the veh icle onto a vehicle carr ier, tra in ,
sh ip or other type of transpo rtation . Th is
can prevent undesired wa rnings from the
braking guard system.
Messages
Applies to vehicles: w ith Aud i adaptive cruise control
B raking guard: Off
114
This driver message appears if the system is
turned off via the radio/MM I *. Otherwise, if th e
system is turned off, the information appears ev­
ery time short ly after the s tart of the tr ip .
The driver message a lso appears if the system is
not available due to a malfunction or if the ESC is
not switched on ¢ page
192 . If th is is the case,
the system w ill not provide warn ings about a
poss ible collis ion.
B raking gu ard: Ac tivat ed
This dr iver message appears if sharp b rake pres­
sure was applied due to an a cute warn ing.
•••
Th ree white dots appear if a sett ing cannot be se­
l ected w ith the operating lever . For example, th is
happens if you want to raise/lower the speed
even though there was no prev ious ly saved
speed .
ACC: Sensor block ed
This messag e appears if th e sensor v iew is ob­
structed, for examp le by leaves, snow, heavy
spray or d i rt . Cle an the sensor ¢ page
10 7,
fig. 116 .
ACC: Una vailable
The driver message appears if, for example, the
brake temperature is too h igh. The adaptive
cru ise control is temporarily unavailable. A chime
sounds as a r emind er.
ACC: Not avail able
The driver message appears if there is a malfunc­
tion. The adaptive cruise cont ro l tu rns off . A
c hi me so unds as a rem inder. Have the system
che cked by an a utho riz ed Aud i dealer o r auth o r­
i zed Audi Serv ice Facility.
Shift lev er po sition!
T he driver message appears if the selector lever
i s sh ifted to the N pos it ion . The adaptive cru ise
control is not ava ilable while in this posit io n .
Stab ilizat ion control (ESC )
This message appears if the Elect ronic Stabiliza­
tion Contro l (ESC) is taking act ion to stabilize the .,..

M N
co
a:
co
,...., \!) 1.1'1
N 1.1'1 ,....,

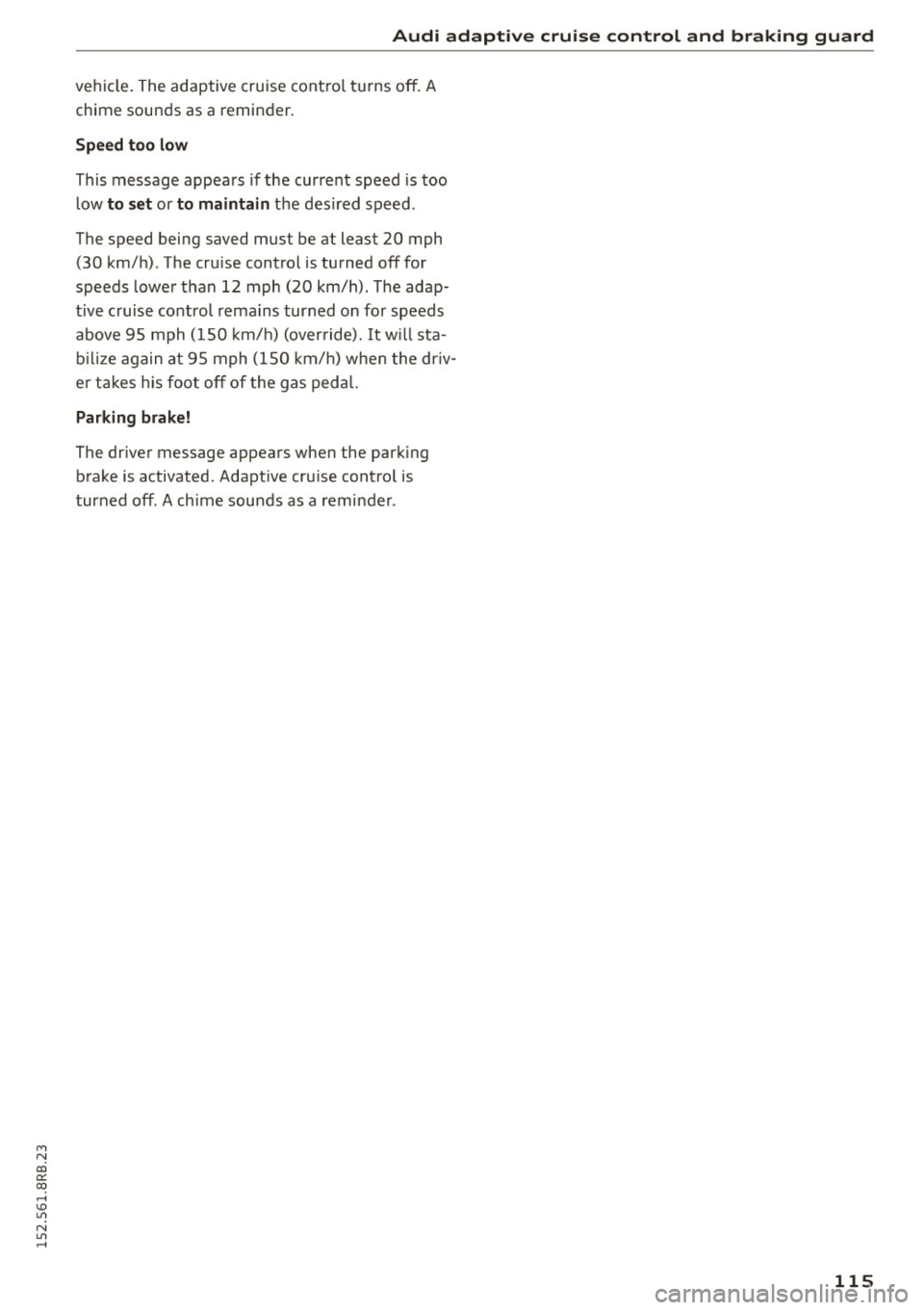

Audi adaptive cruise control and braking guard
vehicle. The adaptive cruise control turns off. A
chime sounds as a reminder.
Speed too low
This message appears if the current speed is too
l ow
to set or to maintain the des ired speed .
The speed being saved must be at least 20 mph (30 km/h) . The cru ise control is turned off for
speeds lower than 12 mph (20 km/h) . The adap­
tive cruise control remains turned on for speeds
above 95 mph (150 km/h) (override). It will sta­
bilize again at 95 mph (150 km/h) when the driv­
e r takes his foot off of the gas pedal.
Parking brake!
The driver message appears when the park ing
brake is activated. Adaptive cru ise control is
turned off . A chime sounds as a reminder.
115

Audi side assist
Audi side assist
Side assist
Description
Applies to vehicles: with Aud i side ass ist
Fig. 127 Sensor detec tion range
Fig . 128 Displa y on the exte rior mirro r
Side assis t helps you monitor your blind spot and
traffic behind your vehicle . Within the limits of
the system , it warns you about vehicles that are
coming closer or that are traveling with you with­
in sensor range(!)
c:> fig. 12 7. If a lane change is
classified as critical, the display @ in the exterior
mirror
i=> fig. 128 turns on.
The display in the left exterior mirror provides as­
sistance when mak ing a lane change to the left,
while the disp lay in the right exter ior mirror pro­
vides assistance when mak ing a lane change to
the right .
Information stage
As long as you do not activate the turn signal,
side assist
informs you about veh icles that are
detected and classified as critica l. The display in
the respective mirror turns on, but is dim.
116 The display rema
ins dim intentionally in the in­
formation stage so that your view toward the
front is not distu rbed .
Warning stage
If you activate the turn signal, s ide assist warns
you about vehicles that are detected and classi­
fied as critical. The display in the respective mir­ ror blinks brightly . If this happens , check traffic
by g lancing in the rearview mi rror and over your
shoulder
c:> .&. in General informa tion on
page 117 .
{!) Tips
-You can adjust the brightness of the display
@ i=>page 118.
-Please refer to the instructions for towing a
trailer located in
c:> page 117.

M N
co ~ co
rl I.O
"' N
"' rl
General information
Applies to vehicles: with Audi side assist
®
®
Fig. 1 29 Drivi ng sit ua tions
F ig. 13 0 Rea r of th e ve hicle: Pos it io n of the sensors
Side assist fu nctions a t spee ds above app rox i­
mate ly 19 mph (30 km/h).
@ Vehicles that ar e approaching
In certain cases, a vehicle will be classified as
cr itical for a lane chang e even if it is still some­
what far away . The faster a vehicle approa ches,
the sooner the d isplay i n the exter io r mir ro r will
turn on.
@ Vehicles traveling with you
Vehicles traveling w ith you a re indicated in the
exte rior m irror if they ar e classified as cr itical fo r
a lane change. All vehi cles detected by side assist
Aud i side assist
are indica ted by the time they en ter your "blind
spot ", at the latest.
@ Vehicles left behind
If you s low ly pas s a vehi cle that s ide ass ist has
de tec ted ( the di fference in speed between the ve ­
hicle an d you r vehi cle is less than 9 m ph o r
15 km/ h), the display in the exterio r mirror tu rns
o n as soo n as the vehicle enters your blind spot.
T he disp lay will not t urn on if you quickly pass a
vehicle th at side ass ist has de te cte d (t he differ­
ence in speed between the vehicle and you r vehi ­
cle is greater than 9 mph or 15 km/h).
Functional limitations
The radar senso rs are designed to detec t the left
and right adj ac ent lanes whe n the road lanes are
the norma l width . In cer tain s ituations, the dis­
play in the exterior mirror may turn on even
though there is no vehicle located in the area that
is cr itica l for a lane change . For example:
- if the lanes are narrow or if your are dr iving on
the edge of yo ur lane. If t his is the case, the
system may have detected the vehicle in anoth­
er lane that is
not adjacent to your current lane .
- if you a re dr ivi ng throug h a c urve . Side assist
may react to a vehicle that is one lane over from
the adjacent lane.
- if side assist reacts to othe r objects (such as
high or disp laced guard rails).
- In poor weather conditions . The side assist
fu nctions are limited.
D o no t cover the rad ar senso rs¢
fig. 130 with
stickers, depos its, bicycle w heels or other ob­
jects, because this will affect the function . Do not
u se side assist when towing a t railer . Fo r infor­
mation o n cleaning, refer to¢
page 208 .
A WARNING
-Always pay attent ion to traffic and to t he
area a round your ve hicle . Side assist cannot
replace a dr iver's atten tion . T he d river alone
is always responsible for lane c hanges and
sim ilar dr iv in g mane uvers.
117

Audi side a ssist
- Improper reliance on the side assist system
can cause collisions and serious personal in­
jury:
- Never rely only on side assist when chang­
ing lanes.
- Always check rear view mirrors to make sure that it is safe to change lanes.
- Side assist cannot detect a ll vehicles under
all conditions -danger of accident!
- Please note that side assist indicates there
are approaching vehicles, o r vehicles in your
blind spot, only after your vehicle has
reached a dr iv ing speed of at least 19 mph
(30 km/h).
- In certa in situations, the system may not
func tion or its funct ion may be lim ited. For
example:
- if vehicles are approaching or be ing left
behind very qu ickly. The display may not
turn on in time .
- in poor weather condit ions such as heavy
ra in, snow or heavy m ist .
- on very wide lanes, in tight curves or if
there is a rise in the road surface . Vehicles
in the adjacent lane may not be detected
because they ar e outside of the sensor
range.
(D Note
The sensors can be displaced by impacts or damage to the bumpe r, wheel housing and
unde rbody. This ca n affect the system. Have
your author ized A udi dealer or authori zed
Audi Service Facility c hec k their fu nction.
(D Tips
- If the window g lass in the d river's doo r or
front passenger's door has been tinted, the
display in the exterio r mirror may be misin­
terpreted.
- F or De clarat ion of Compliance to United
Sta tes FCC and Indus try Canada regula tions
q poge 284 .
118
Activating and deactivating
App lies to vehicles: wit h Aud i side assist
Fig. 131 Driver 's door : S ide assist button
.,. Press the button q A in General information
on page 117
to sw itch the system on/off . The
LED in the button tu rns on when side assist is
sw itched on .
Adjusting the display brightness
Applies to vehicles: with A udi side ass ist
The signal brightness can be set in the radio or
MMI*.
.,. Select: I CAR I function button > Audi s ide as sist .
Or
.,. Select: I CAR I function button > Car sy ste m s*
cont ro l button > Driv er a ssi st> Audi sid e as ­
s is t.
The display br ightness adjusts au tomatically to
the b rightness of the surroundings, both in the
i nforma tion and in the wa rni ng stage. I n ve ry
dark or very b rig ht s urround ings, the display is al­
ready set to the m inimum or maximum level by
the automatic adjustme nt. In such cases, yo u
may notice no change when ad justing the bright­
ness, or the change may on ly be noticeable once
the surroundings change.
Adjust the brightness to a level where the d isp lay
in the information stage will not disrupt yo ur
view forward . If yo u change the brightness, the
display in the exterior mirror will briefly show the brightness level in the information stage. The
brightness of the warning stage is linked to the
brightness in the information stage and is adjust­
ed along with the information stage adjustment .
liJI,
