Page 13 of 302
Warning light in th e instrument clus ter
di splay
If the . warning light in the instrument cluster
display flashes , this can mean one of two th ings:
either the coolant
t emperature is too high, or the
coolan t
level is too low 9 page 29.
If the needle is well in the upper area of the
gauge, the coo lant temperature is too high.
S top
the veh icle , switc h the engin e off, and allo w i t
to coo l.
If the warning light comes on again after
driving a short distance , contact an authorized
Aud i dealer or other q ualified workshop .
..&, WARNING
-Always observe the warni ng i n 9 page 221,
before opening the hood and chec king the
engine coolan t level.
- Never open the engine hood if you see o r
hear steam, or if you see engine coolant
dr ipping from the engine compartmen t. You
cou ld burn yourself . Let the engine cool off
first so that you cannot hear o r see any
steam or engine coo lant.
CD Note
- M ount ing additional lights or accesso ries in
front of the air inlets red uces the cooling ef
fect of the radiator . At high outside temper
atures or high engine load, the eng ine could
overheat .
- The front spoiler has been designed to prop
erly distribute the cooling air when the veh i
cle is moving . If the spoiler is damaged, this
could reduce the cooling effect and the en
gine could then overheat. Ask your author
i zed Audi dealer for assistance .
Tachometer (engine rev counter )
The tachometer indicates the engine RPM (revo
lutions per minutes) .
If engine RPM drops below 1,500 , you should
downshift to the next lower gear. The red area at
~ the end of the scale indicates max imum perm is -co
~ sible eng ine RPM after the break- in period . Be-
:;, fore reach ing th is area, move the selector lever to
"' N
"' ......
Ins trument s and indi cator ligh ts
position D/S or ease your foot off the acce le rator
pedal.
CD Note
The tachome ter needle @~ page 10, fig. 3
shou ld only brief ly be in the red zone: you
could damage your engine! The beginning of
the red zone varies depend ing on the engine .
@ For the sake of the envi ronment
Upshifting early saves fuel and reduces engine
noise .
~ button
Fig . 4 SET but ton in th e ins trume nt cluster
The !SE T! button pe rforms the following func
tio ns:
Switching on time, date, temperature
displ ay and odomet er
The display appea rs fo r approximate ly 30 sec
onds when yo u press the
!SE T! button ~ fig. 4
with the ignition off .
Starting the Auto-Check sequence
T he Auto-Chec k system ~ page 2 7 constantly
monitors ce rtain ind iv idual f unct ions and compo
nents of the vehicle when the ignition is turned
on and when the vehicle is moving .
With the ignition turned on, you can start the "Auto-Check seq uence" by pressing the
!S ET ! bu t
ton. You can perform an Auto-Check sequence
when the vehicle is stationary and the ign ition is
turned on or when the vehicle is moving slower
than 3 mph (5 km/h). ..,.
11
Page 17 of 302
M N
co
a:
co
,...., \!) 1.1'1
N 1.1'1 ,....,
USA models: Parking brake
¢page 18
Canada models: Parking brake
¢page 18
USA models: Brake malfunction
¢page 18
Canada models: Brake malfunc
tion
c> page 18
In vehicles with adaptive cruise control* addition
al indicator lights are displayed
c>page 109.
A WARNING
- Failure to heed warning lights and other im
portant vehicle information may result in
serious personal injury or vehicle damage.
- Whenever stalled or stopped for repair,
move the vehicle a safe distance off the
road, stop the engine, and turn on the emer
gency flasher
c> page 54.
- The engine compartment of any motor vehi
cle is a potentially hazardous area. Before
you check anything in the engine compart
ment, stop the engine and let it cool down.
Always exercise extreme caution when work
ing under the hood
c> page 221
@ Tips
Many functions are monitored by the Auto
Check system
c> page 2 7. Malfunctions or
faults will be identified either with a red sym
bol (priority 1 - Danger!) or with a yellow
symbol (priority 2 -Warning).
EPC Electronic power control
App lies to vehicles: with gaso line engine
This warning/indicator light monitors the elec
tronic power control .
The Ga warning/indicator light (Electronic Power
Control) illuminates when you turn on the igni
tion as a function check.
@ Tips
If this warning/indicator light illuminates
while you are driving, then there is a malfunc-
Instruments and indicator lights
tion in the engine electronics. Have the mal
function corrected as soon as possible by your
authorized Audi dealer or qualified workshop.
W Glow plug system
Applies to vehicles: wit h diese l eng ine
The control light illuminates when the glow plug
system is active.
If the II indicator light illuminates, the glow
plug system is active. You should start the engine
immediately after the indicator light switches off.
The indicator light only illuminates for approxi mately 1 second if the engine is warm or if the
outside temperature is above 46 QF (8 Q().
(D Tips
-If the glow plug indicator light illuminates
while driving, there is an engine control
malfunction. The engine should be checked
immediately.
- If the indicator light does not illuminate at
all when switching the ignition on, there
may be a malfunction in the glow plug sys
tem. The engine should be checked.
;;.ll/4 Electronic Stabilization Control (ESC)
If the Bl indicator light blinks while driving, the
ESC or ASR (Anti-Slip Regulation) is actively regu
lating.
If the
Bl indicator light turns on, the system has
switched the ESC off. In this case, you can switch
the ignition off and then on to switch the ESC on
again. The indicator light turns off when the sys
tem is functioning fully.
If the. indicator light turns on, ESC was re
stricted using the
!.P-O FF I button c> page 191.
Stabilization control (ESC/ABS): Fault! See
owner's manual
If the Bl indicator light and the ABS indicator
light
LtB (USA models) 1iJ (Canada models)
turn on and the message appears, the ABS or
electronic differential lock is malfunctioning . This
also causes the ESC to malfunction. The brakes ..,.
15
Page 19 of 302
M N
co
a:
co
,...., \!) ..,.,
N ..,., ,....,
@ Tips
For vehicles with a factory installed towing
hitch or a trailer hitch that was installed later
according to factory specifications, the trailer
turn signal assembly is actuated.
~ Safety belts
This warning/indicator light reminds you to put
on your safety belt.
The . warning/indicator light illuminates when
the ignition is switched on to remind the driver
and (on USA models only) any front passenger to
put on the safety belt. Additionally, an audible
warning tone will also sound .
For more Information ¢
page 144, Safety belt
warning light.
o Malfunction Indicator Lamp (MIL)
The Malfunction Indicator Lamp (MIL) is part of
the On -Board Diagnostic (OBD II) system . The
symbol ¢4 lights up when the ignition is turned
on and w ill turn off after the engine has started
and has settled at a constant idle speed. This in
dicates that the MIL is working properly .
The warning light illuminates when there is a
malfunction in the engine electronic system.
Contact your authorized Audi dealer and have the
mal funct ion corrected.
An improperly closed fuel filler cap may also
cause the MIL light to illuminate (only vehicles
with gasoline engine)
¢page 216.
For more informat ion ¢ page 26.
[D High beam
The . warning/ind icator light illuminates when
the high beams are on or when you use the head
light flasher. For more info rmation about using
the high beams, see
~ page 55.
Instruments and indicator lights
CRUISE/•(-) Cruise control
The (~jll)~i* (USA models) ;Bl (Canada models)
warning/ind icator light illuminates when the
cruise control is activated.
ABS/{ @) Anti-lock brake system (ABS)
This warning/indicator light monitors the ABS
and the electronic differential lock (EDL).
The~ (USA models) !(iJ (Canada mode ls)
warning/indicator light will come on for a few
seconds when the ignition is switched on. The
light will go out after an automatic check se
quence is comp leted .
There is a malfunction in the ABS when:
-The warning/indicator light does not illum inate
when you sw itch on the ignit ion.
- The warning/indicator light does not go out af
ter a few seconds.
- The warning/ indicator light illum inates while
driving .
The brake system will still respond even with·
out the assistance of the ABS system. See your
authorized Audi dealer as soon as possible to re
store full braking performance.
For more infor
mation regarding the ABS
~page 191.
The ABS warning light and the brake warning
light come on together . The ABS will not work
and you will notice a change in braking re
sponse and performance.
Malfunction in the brake system
If the brake warning light¢ page 18 and the
ABS warning illum inate
together there may be a
malfunction in the ABS, and there may also be a
malfunction in the brake system itself~ ,&..
In the event of a
malfunction in the brake sys
tem
the warning/ind icator light 1111 (USA mod
els)/ . (Canada mode ls) in the instrument clus
ter flashes. By press ing the
!SE TI button, you can
bring up a dr iver message which exp lains the
malfunction in more detail. Please note
~page 28.
17
Page 31 of 302
M N
co
a:
co
,...., \!) ..,.,
N ..,., ,....,
Stop vehicle and check b rake fluid l evel
"' Stop the vehicle.
"' Check the brake fluid level
o page 229.
"'Seek professiona l assistance if necessary .
Warning! Fault in brake system. Contact
worksho p
"'Drive carefu lly to the nearest authorized Audi
dealer or other qualified workshop and have
the malfunction corrected
o A .
Pa rking brak e system fault! See owner 's
m anual
"' If this symbol appears when the vehicle is sta
tionary or after the ignitio n is turned on, check
to see if the parking brake can be re leased.
Drive to an authorized Audi dealer or other
qualified workshop as soon as possible and
have the malfunct ion corrected. If the park ing
brake cannot be opened, then take it to an ex
pert at an authorized Audi dea ler.
"' If the symbol appears while you are driving, it is
poss ible that the trac tion control or the eme r
gency brake has malfunctioned. It is possible
that the parking brake cannot be applied.
It is
also possible that the parking brake cannot be
released after it has been applied. Drive to an
authorized Aud i dealer or other qualified work
shop to have the malfunction corrected.
If the ABS system malfunctions, the ABS warn ing/indicator light illuminates together with the
brake system malfunction warning/ind icator
light
o _&. .
A WARNING
-Always observe the wa rnings in
o page 221, before opening the hood and
c heck ing the b rake fluid.
- Driv ing with low b rake fluid is a safety haz
ard. Stop the car and get p rofess ional assis
tance.
- If the
111111 (USA models)/ . (Canada mod
els) brake system indi cator lig ht t urns on to
ge ther with the ABS an d ESC i ndica to r
lights, the ABS/ ESC regu lating function may
have failed. Functions that stab ilize the ve
hicle a re no longer avai lab le . This could
Dri ver information s ystem
cause the vehicle to swerve and increase the
risk of s liding. Drive carefully to the nearest
authorized Audi dealer or other qualif ied
workshop and have the malfunct ion correct
ed.
- L Engine cooling system malfunction
A malfunction in the engine cooling system must
be repaired as soon as possible.
If the . symbo l flashes in the disp lay, either the
engine coo lant
temperature is too high or the en
gine coolant
level is too low . A driver message
appears as we ll to explain the malfunct ion in
more detail. The d river warn ing goes out after
about 5 seconds, but it can be brought up at any
t ime by press ing the
ISET I button again.
Turn off engin e an d check coolant leve l
"'Pull off the road .
"' Stop the vehicle .
"' Turn
off the engine.
"' Check coolant level
o page 22 7 .
"' Add coolant if necessary ~ page 228.
"'Continue driv ing on ly afte r the engine coo lant
warning/indi cato r light goes out.
"' Con ta ct yo ur au thorize d Aud i dealer for assis
tance if necessary .
If the engine coolant level is correct, then the ra
diato r fan may be the cause of the malfunct io n.
A WARNING
- If your vehicle should brea k down for me
chan ica l or other reasons, pa rk at a safe d is
tance from moving traffic, turn
off the en
gine and turn on the hazard warning lights
o page 54, Emergency flashers.
- Never open the hood if you see or hear
steam or coo lant escaping from the eng ine
compartment -you risk being scalded. Wait
until you can no longer see or hear steam or
coo lant escaping.
- The engine compartment of any vehicle is a
dangerous area. Before you perform any
work in the eng ine compartment, turn of
the engine and a llow it to cool. Fo llow the
~
warn ing stickers o page 221. ~
29
Page 32 of 302
Driver information system
CJ) Note
Do not continue driving if the. symbo l ill u
m inates. There is a malfunct ion in the engine
cooling system -you could damage your en
gine.
9=:;r: Engine oil pressure malfunction
The red engine oil pressure warning symbol re
quires immediate service or repair. Driving with a
low oil pressure indication is likely to cause se
vere engine damage .
If the . symbol on the display flashes, the en
g ine oil pressure is too low. A driver message ap
pears as well to explain the malfunction in more
deta il. The dr iver warning goes out after about 5
seconds, but it can be brought up at any time by
p ress ing the
ISETI but to n again.
Turn off engine! Oil pressure too low
• Stop the vehicle .
• Turn the eng ine off .
• Check the eng ine oil level
c::, page 225.
• Contact your authorized Audi dealer for ass is -
tance if necessary.
Engine oil level too low
If the engine o il level is too low, add engine oi l
c::, page 225.
Engine oil level correct
If the symbol . flashes even though the engine
oil level is correct, please contact your nearest
authorized Audi Dealer for assistance. Do not
continue driving . Do not leave the engine running
idle, either.
(D Tips
- The engine oil pressure symbol. is not
an indicator for a low engine oil level. Do
not rely on it. Instead, check the oil level in
your engine at regular intervals, preferably each time you refuel, and always before
going on a long trip.
- The yellow oil level warning indication
Ill
requires oil refill or workshop service with
out delay. Do not wait until the red oil
30
pressure warning • starts to flash before
you respond to the low oil level warning
II. By then, your engine may already have
suffered serious damage.
~ ... Fill engine oil now
WARNING: Please add oil immediately
If the . symbol lights up , then the oil has to be
replenished right now
c::, page 225.
@-Steering malfunction
If there is a malfunction in the electronic steer
ing column lock, the steering cannot be un
locked.
If the . symbol in th e disp lay blinks, there is a
malfunction in the electronic steering co lumn
l ock. A driver message appears as well to exp lain
the malfunct ion in more deta il. The dr iver warn
i ng goes out after about 5 seconds, but it can be
brought up at any time by pressing the
ISE TI but
ton again .
Steering defective! Do not drive vehicle!
• Contact your nearest authorized Audi dealer.
• Do
not tow your vehicle .
A WARNING
Your vehicle must not be towed in the event
of a malfunction in the electronic steering co l
umn lock because it cannot be steered due to
the locked steering. If it is towed with the
steering locked, there is the risk of an acci
dent.
© -Ignition lock malfunct ion
A malfunction in the ignition lock must be re
paired immediately.
If the . symbo l in the display blinks, there is a
malfunction in the electronic ignition lock. A driv
er message appears as well to explai n the mal
funct ion in more deta il. The driver warning goes
out after about 5 seconds, but it can be brought
up at any time by pressing the
ISETI button again.
Ignition lock defective. Contact dealer! ll-
Page 33 of 302
M N
co
a:
co
,...., \!) 1.1'1
N 1.1'1 ,....,
~ Do not turn the engine off.
~ Drive immediately to an authorized Audi dealer
to have the malfunction corrected .
If there is a malfunction in the e lectronic ignition
l ock, the ignition cannot be turned off . Drive im
mediately to an authorized service facility to have
the cause of the ma lfunction corrected.
On vehicles with Convenience key*, the engine
should not be switched off using the Start/Stop
button because the engine cannot be started
again after the ignition has been switched off.
Yellow symbols
Fig. 24 Display: Ye llow warn ing symbo l
N M
9 a: a, a,
When a ye llow warning symbol appears, one
warning tone so unds . A driver message appears
as we ll to exp la in the malf unction in more detail.
The driver warning goes out after about S sec
onds, but it can be brought up at any time by press ing t he
ISETI button again.
Check the function d isp layed as soon as possible.
The yellow symbol w ill not go out aga in until the
reason for the malfunction has been corrected.
If several priority 2 malfunctions are present, the
symbols appear in succession and remain for
about 2 seconds.
Elect rom echan ica l steering, Dy
namic steering*
¢page 195
Worn brake pads
¢page32
Battery voltage
¢page33
Driver information system
Defective light bulb
¢ page 32
Fog lights
¢page 32
Rear fog lights
¢page 32
Check engine oil leve l
¢page 33
Engine oil sensor malf unc tion
¢page 33
Engine temperature*
¢page 214
Low fuel level
¢page 33
Refill Ad Blue*
¢page 218
AdBlue malfunction *
¢page 218
Windshield washer fluid level
low
¢page 33
Convenience key*
Key not in veh icle
¢ page 32
Light/rain sensor defective
¢page 32
Dynamic headlight range con
trol defective
¢ page 34
Battery in remote control key
¢page 37
Electromechanical parking
brake
¢page 91
Engine speed lim itation*
¢ page 33, ¢page 100

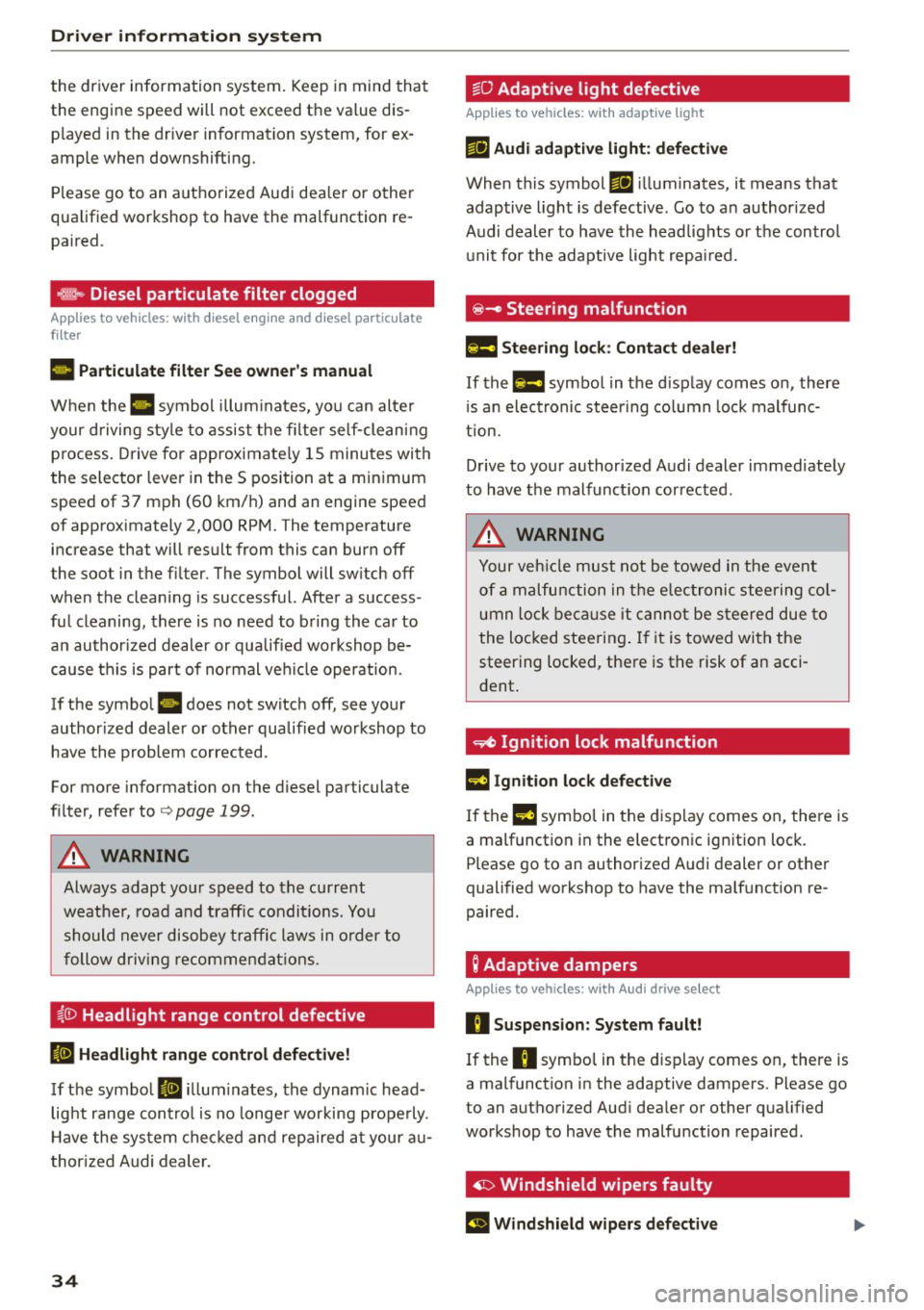

Diesel particulate filter* clog
ged
¢ page 34
Adaptive light defective*
¢page 34
Steering malfunction
¢page 34
31
Page 34 of 302
Driver inform ation system
Ignition lock malfunction
<=>page 34
Adapt ive dampers*
c:> page 34
W indshield wiper defective
c:>page34
Tire pressure monitoring sys
tem*
Loss of t i re pressure
c:>page253
Tire pressure monitoring sys
tem* System not avai lab le
c:>page253
Automatic t ransmission ma l
function
c:> page 12 7
H ybr id drive*
<=> page 100
The speed warnings warning threshold J IIIIJ
and warning thresho ld 2 llH are also yellow
symbo ls in some models . The warning is al
ways shown as a small symbo l in the upper
area of the d isplay
c:> page 94.
-?e Key not in vehicle
Applies to veh icles: w ith Convenience key
II Is the key in the vehicle ?
This reminder appears along with the II symbol
if the master key is removed from the vehicle
with the eng ine running. It is intended to remind
you (e .g. when changing drivers) not to continue
the journey without the master key .
If the master key is no longer in the vehicle, you
cannot switch off the ignit ion after stopping the
e ngine and you a lso cannot start the engine
aga in . You also cannot lock the veh icle from the
outsid e.
l ) - : USA models only
32
@ Light/rain sensor defective
£1 Automati c he adlight s/ auto mati c wi per s
defective
If the symbol illum inates, the light sensor has
failed. For safety reasons the low beams are
tu rned on permanently with the sw itch in
AUTO .
However, you can contin ue to turn the lights on
and off using the light sw itch. In the case of a de
f ect in the rain sensor, the windshie ld wiper lever
functions are still available. Have the light/rain
sensor checked as soon as possib le by an author
i zed Audi dealer.
(0) Worn brake pads
E+J Brake pad s!
If the warning light i lluminates, immediate ly
contact your author ized Audi dealer or qualified
workshop to have all brake pads inspected. On
USA mode ls the warning light
E+J comes on to
gether w ith the warning light
1111 . Both sets of
brake pads on an axle must always be replaced at
t h e same time.
.&_ WARNING
Driving w ith bad bra kes can cause a collision
and serious personal injury.
- If the warn ing lig ht E+J and the warn ing
light
llll1l with the message Brake pad s!
comes on in the instrument cluster display,
immed iate ly contact yo ur authorized Aud i
dea le r or q ualified workshop to have all
brake pads checked or rep laced if necessary.
~l}D10$ Defective light bulb warning
S:1 -If the indicator light turns on, a bulb has
failed. The message indicates the location of the
bulb .
Im-If a front fog lamp has fai led, the indicator
li ght turns on to indicate the location on the vehi-
cle.
~
Page 35 of 302
M N
co
a:
co
,...., \!) ..,.,
N ..,., ,....,
IJ-If a rea r fog lamp has failed , the indicator
light turns on to indicate the location on the vehi
cle.
Vehi cle light s: Sy stem fault!
If the message appea rs, there is a malfunct ion in
the head lights or light switch.
Drive to your authorized Aud i dea le r immediately
to have the malfunction corrected .
A WARNING
-Light bu lbs are pressurized and could ex
plode whi le they a re being changed causing
serious persona l injury.
-
- Wor k w ith due care when handling the high
voltage section of gas discharge (xenon) l igh ts *. Failure to do so could result in death
o r serious injury.
@ Tips
Have the bulb replaced or the connection re
pa ired by your authorized Audi Serv ice depart
ment.
<:;::> Windshield washer flu id level too low
llt Plea se refill wa sher fluid
If the symbol illuminates, add windshield washe r
fluid to the washer system and also to the head
light washer system¢
page 234 .
Bil Fuel supply too low
When the D symbol i llum inates, this means
there are about 2 .6 gallons ( 10 liters) of fue l left
in the fuel tank. Time to refuel!
¢ page 215.
If the symbo l lights up, even when the re is ample
fue l in the tank, and the text
Fuel tank sy stem
malfun ction! Contact dealer
appears in the dis
p lay, there is a fau lt in the system . Contact an a u
thor ized Audi dealer to have the fault rectified.
D Battery voltage
If battery power drops into the range where it
can limit the abil ity of the engine to sta rt, th is
the symbo l(•) ::ippears in the instrument cluster
Driver information s ystem
display with the following driver message Lo w
batter y: Batte ry will be charged while d riving.
While t his d river no tification is disp layed, you
have to be prepa red fo r limited star ting capabili
ty .
Driver message appears and goes out again
If this drive r message appears after the ign ition
is tur ned on or while d riving a nd it goes ou t again
after a wh ile, the ba ttery has been adequa tely re
charged .
Driver message appears and does not go out
again
If this drive r notific ation appea rs after the ign i
t ion is tu rned on or while dr iv ing and does not go
out again, the battery's state of charge is no t in
the optimal range. Start ing capability is restrict
ed. Have the battery checked at an authorized
Audi dealer or other qualified workshop as soon as possible.
~ Check engine oil
II Add oil, ma x x qt (l) . You may cont . driv .
When the Ill symbol and dr iver message appear,
add the amount of oil appear ing in the disp lay at
the next opportunity ¢
page 225.
'l:7;,.. Engine oil sensor defective
• Oil le vel! Sen sor defective
If the symbol illuminates, contact yo ur author
ized Audi dealer and have the oil sensor inspect
ed . Until you have this done, check the oil level
each time you ref uel just to be on the safe s ide
¢ page 225.
!? Engine speed limitation
Applies to vehicles: with engine speed limitation
II! Do not ex ce ed max . engine speed of XXXX
rpm
T he II! symbol illuminates when there is a n en
gine co ntro l malfunction . The indicato r light ~
i n t he i nstr ument cluster also illum inates. The
engine speed is limited to the speed displayed in .,,.
33
Page 36 of 302
Driver inform ation system
the dr iver information system . Keep in mind that
the engine speed will not exceed the va lue dis
p layed in the driver information system, for ex
ample when downshifting.
P lease go to an autho rized Audi dea le r or other
qualified workshop to have the malfunction re paired.
,m.. Diesel particulate filter clogged
Ap plies to veh icles: w ith diesel e ngi ne and d iesel pa rticu late
f ilt e r
II Particul ate filter Se e owne r's manu al
When the II symbol illum inates, you can alte r
your driving style to assist the fi lter self-clean ing
process . Drive for approximately 15 minu tes wi th
the selector lever in the S position at a minimum
speed of 37 mph (60 km/h) and an engine speed
of approximately 2,000 RPM. The temperature
increase that will result from this can burn off
the soot in the fi lter. The symbol will sw itch off
when the clean ing is successful. After a success
ful cleaning, there is no need to b ring the car to
an author ized deal er or qualified wo rkshop be
cause this is part of normal ve hicle operation.
If the symbo l
II does not switch off, see your
author ized dealer or other qualif ied wo rkshop to
have the problem corrected.
For more information on the d iesel particulate
fi lter, refer to
<=> page 199 .
A WARNING
Always adapt yo ur speed to the current
weather, road and traffic condit ions. You
should never disobey traffic laws in order to
follow driving recommendat ions.
~()) Headlight range control defective
II Headlight range contr ol d efec tiv e!
If the symbol II ill um inates, the dynam ic head
light range con trol is no longe r working prope rly .
H ave the system checked and repaired a t your au
thor ized Audi dealer.
34
~O Adaptive light defective
App lies to vehicles: wit h adaptive light
mil Audi adaptiv e light : defe ctiv e
When this symbol mil illuminates, it means that
adaptive light is defective. Go to an author ized
Audi dealer to have the headlig hts o r the control
unit for the adaptive light repa ired.
@ -Steering malfunction
El! Steering lock: Contact deal er!
If the El! symbol in the d isplay comes on, there
i s a n elect ronic steering co lumn lock malfunc
tion.
Drive to your authorized Audi dealer immed iately
to have the malfunct ion corrected.
A WARNING
Your veh icle must not be towed in the event
of a malfunction in the elec tronic steering co l
umn lock be ca u se it canno t be s teered due to
the locked steering . If it is towed with the
steering locked, there is the risk of an acci
dent .
~ Ignition lock malfunction
m Ignition lock defective
If the l3 symbo l in the d isplay comes on, there is
a malfunction i n the electronic ignition lock.
Please go to an authorized A udi dealer or other
qualified workshop to have the ma lf u nction re
paired.
; Adaptive dampers
App lies to vehicles: with Aud i drive se lect
R Suspension : Sy stem fault!
If the R symbo l in the disp lay comes on, there is
a mal function in the adaptive dampers. Please go
to an authorized Aud i dea ler or other qualified
workshop to have the malfunction repaired .
· ~ Windshield wipers faulty
El Windshield wipers d efective
Page 95 of 302
M N
co ~ co
rl I.O
"' N
"' rl

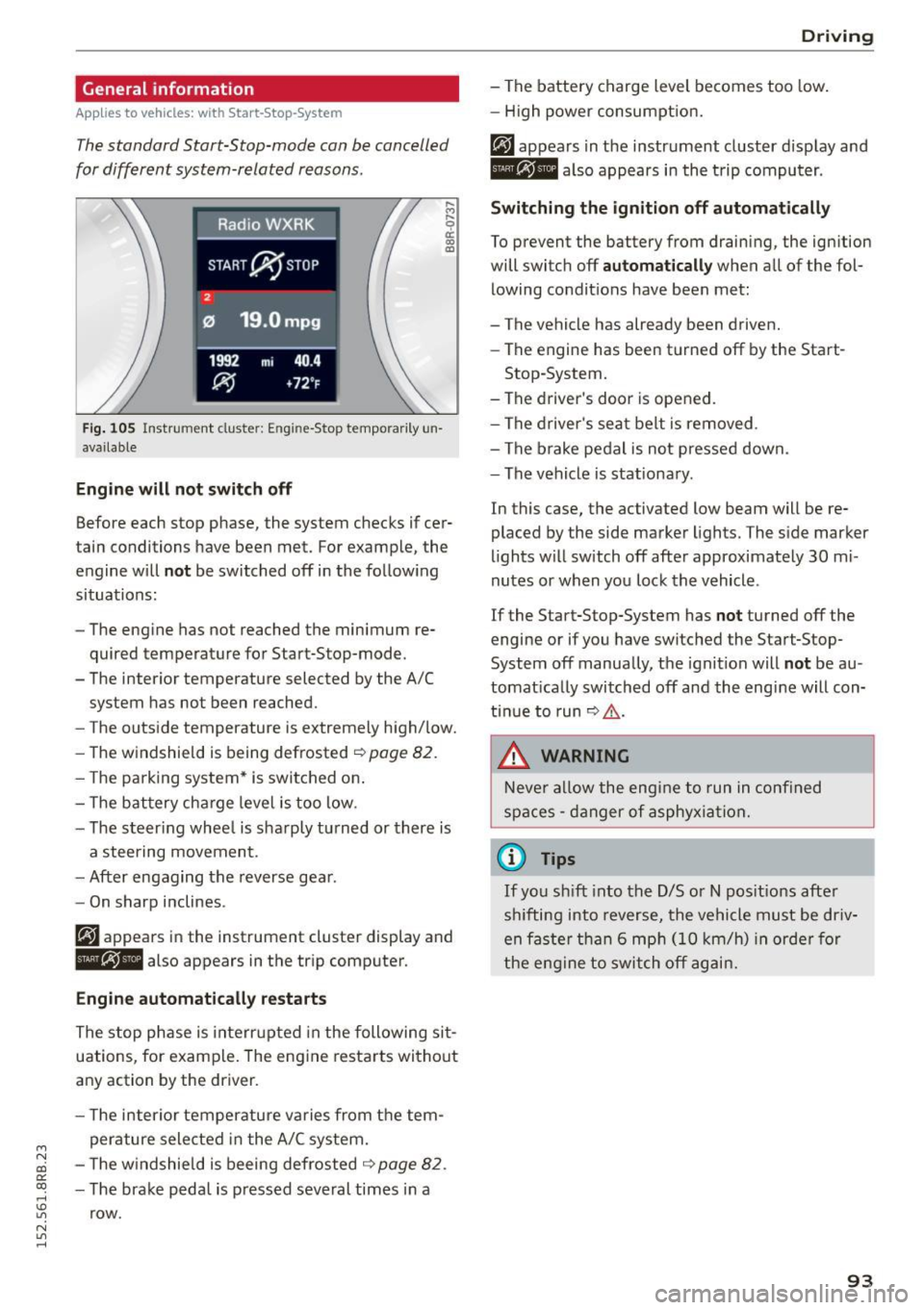

General information
Applies to vehicles: with Start-Stop-System
The standard Start-Stop-mode can be cancelled
for different system-related reasons.
Fig . 105 Instrument cluster: E ngin e-Stop tempo rarily un
available
Engine will not switch off
.... M
9 cc IX) ID
Before each stop phase, the system checks if cer
tain conditions have been met. For example, the
engine will
not be switched off in the following
situations:
- The engine has not reached the minimum re
quired temperature for Start-Stop-mode.
- The interior temperature selected by the A/C system has not been reached.
- The outside temperature is extremely high/low.
- The windshield is being defrosted ~
page 82.
-The park ing system* is switched on .
- The battery cha rge level is too low.
- The steer ing whee l is sharply turned or there is
a steering movement.
- After engaging the reverse gear.
Engine automatically restarts
The stop phase is interrupted in the following sit
uations, for example. The engine restarts without
any action by the driver.
- The interior temperature varies from the tem
perature selected in the A/C system.
- The windshield is beeing defrosted
~ page 82.
-The brake pedal is pressed several times in a
row.
Driving
- The battery charge level becomes too low.
Switching the ignition off automatically
To prevent the battery from draining, the ignition
will switch off
automatically when all of the fol
lowing condit ions have been met:
- The vehicle has already been driven.
- The engine has been turned off by the Start-
Stop-System.
- The driver's door is opened.
- The driver's seat belt is removed .
- The brake pedal is not pressed down.
- The vehicle is stationary .
In this case, the activated low beam will be re
placed by the side marker lights. The side marker
lights will switch off after approximately 30 mi
nutes or when you lock the vehicle .
If the Start-Stop-System has
not turned off the
engine or if you have switched the Start-Stop
System off manually, the ignition will
not be au
tomatically switched off and the engine will con
tinue to run~,&. .
A WARNING
Never allow the engine to run in confined
spaces - danger of asphyxiation.
(D Tips
-
If you shift into the D/S or N positions after
sh ifting into reverse, the vehicle must be driv
en faster than 6 mph (10 km/h) in orde r for
the engine to switch off again.
93
