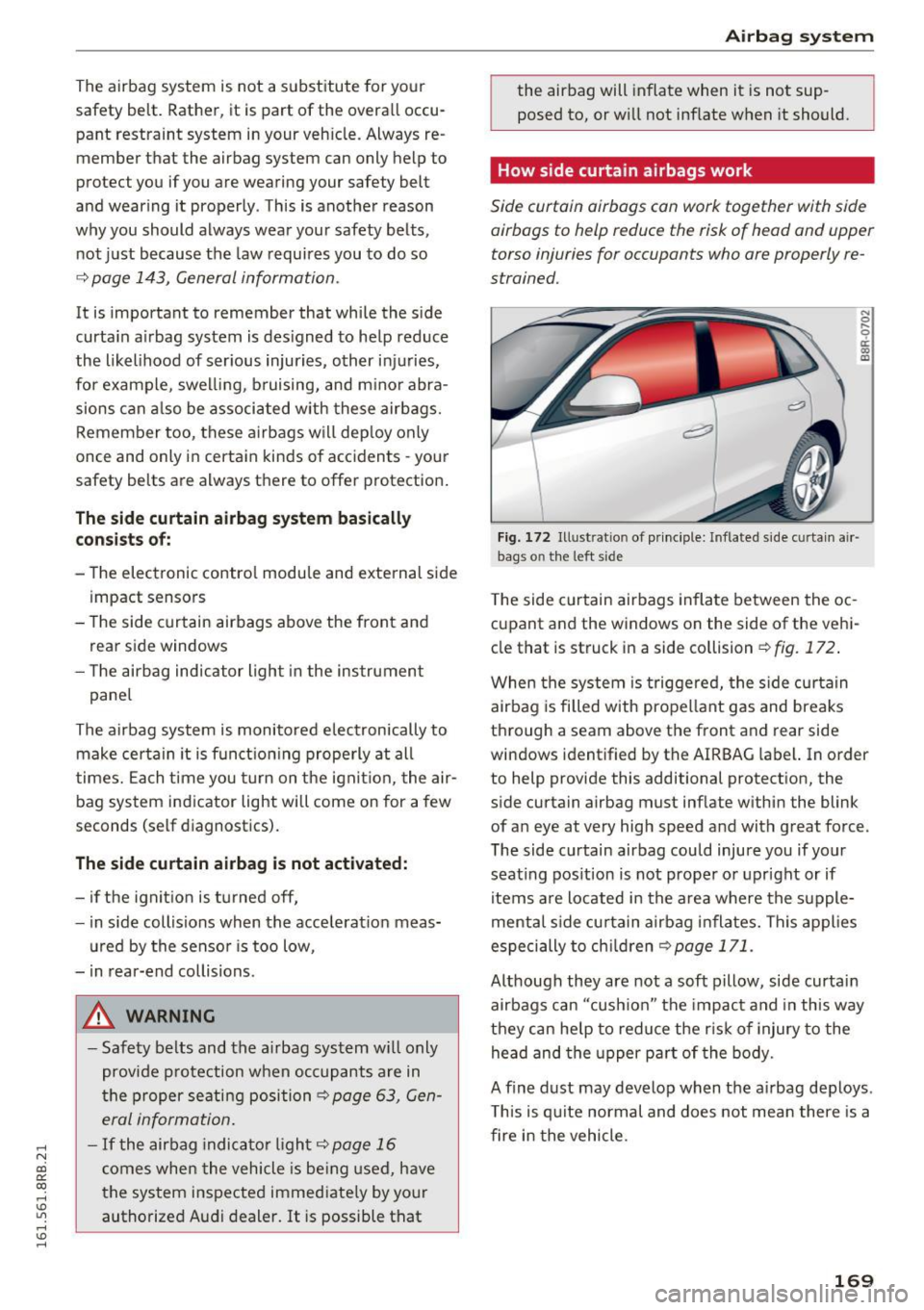

..... I.Cl ..... The airbag system is not a s
ubstitute for your
safety belt. Rather, it is part of the overall occu­
pant restraint system in your veh icle. Always re­
member that the airbag system can only help to
protect you if you are wearing your safety belt
and wearing it properly . This is another reason
why you should always wear your safety belts ,
not j ust because the law requires you to do so
¢ page 143 , General information .
It is important to remember that while the side
curtain a irbag system is des igned to help reduce
the likelihood of ser ious injuries, other injuries,
for example , swel ling , bruising, and m inor abra­
sions can a lso be associated with these airbags.
Remember too, these a irbags wi ll dep loy only
once and only in certain kinds of accidents -your
safety belts are always there to offer protection.
The side curtain airbag system basicall y
consi sts of:
- The electron ic contro l module and external side
impact sensors
- The side curtain airbags above the front and
rear side windows
- T he airbag indicator light in the instrument
panel
The airbag system is monitored electronically to make certain it is f unct ion ing properly at all
times. Ea ch time you t urn on the ign it ion , the air­
bag system indicator light will come on for a few
seconds (self d iagnostics).
The side curtain airbag is not activated:
- if the igni tion is turned off,
- in s ide collisions when the accelerat ion meas-
u red by the senso r is too low,
- i n rear-end collisions.
A WARNING
-Safety belts and the a irbag system w ill only
provide p rotection when occupants a re in
the proper seating position ¢
page 63, Gen­
eral information .
-If the airbag indica to r ligh t¢ page 16
cumes when the vehicle is be ing used, have
the system inspected immediate ly by your
authorized Audi dealer. It is possible that
Airb ag sys tem
the airbag will inflate when it is not sup­
posed to, or w ill not inf late when it should.
How side curtain airbags work
Side curtain airbags con work together with side
airbags to help reduce the risk of head and upper
torso injuries for occupants who are properly re ­
strained.
Fi g. 172 Illust ratio n of p rinciple: Inflated s ide cur tain air­
bag s on t he left s ide
The side cu rtain airbags inflate between the oc­
cupant and the windows on the side of the vehi­
cle that is struck in a side collision
~ fig. 172 .
N 0 ..... 0 ct (X) m
When the system is triggered, the s ide cu rtain
airbag is filled w ith propell ant gas and breaks
through a seam above the front and rear side
windows identified by th e AIRBAG label. In order
to help provide this additional protection, the
s ide curtain airbag must in flate w ithin the blink
of an eye at very high speed and with great force .
The side curtain airbag could injure you if your
seat ing pos ition is not prope r or upright or if
items are located in the area where the supple­
menta l s ide cu rtain a irbag inflates. This applies
especially to ch ild ren
~ page 171 .
Although they are not a soft pillow , side curtain
airbags can "cush io n" the impact and in this way
they can help to reduce the r isk of injury to the
head and the upper pa rt of the body.
A fine dust may develop when the a irbag deploys .
T his is q uite normal and does not mean there is a
fire in the vehicle.
169

Airbag system
Important safety instructions on the side
curtain airbag system
Airbags are only supplemental restraints. Always
properly wear safety belts and ride in a proper
seating position.
There is a lot that you and your passengers must
know and do to help the safety belts and airbags
do their job to provide supplemental protection.
A WARNING
Improperly wearing safety belts and improper
seating positions increase the risk of serious
personal injury and death whenever a vehicle
is being used .
- Never let occupants place any parts of their
bodies in the area from which the side cur­
tain airbags inflate.
- Always make sure that the side curtain air­
bags can inflate without interference. Un­
suitable accessories fitted inside the expan­
sion range of a head airbag can dangerously interfere with its function . A deploying head
airbag develops enough force to catapult
any piece of add-on component out of its
path of inflation and into the passenger
compartment. An occupant hit by such a
projectile can suffer serious injury or death
Q page 282, Technical Modifications.
- Do not swivel the sun visors to the side if
you have any objects clipped onto them (for example pens).
If the airbag should deploy,
you could be injured by these objects.
- Use the built-in coat hooks only for light­
weight clothing. Never leave any heavy or
sharp-edged objects in the pockets that may
interfere with airbag deployment and can
cause personal injury in an accident.
- Never use hangers to hang clothing from the hooks.
- Only use factory-installed sun shades or, in
the case of shades installed after the vehicle
leaves the factory, only Audi roll-up
sunscreens may be used
Q page 282, Addi­
tional accessories and parts replacement .
-Always sit in proper seating position and
wear safety belts while traveling so that the
170
side curtain airbags can help provide protec­
tion .
- The airbag system can only be triggered
once . If the airbag has been triggered, the
system must be replaced by an authori zed
Audi dealer or qualified workshop.
- Always have work involving the side curtain
airbag system, removal and installation of
the airbag components, or other repairs
performed by an authorized Audi dealer or
qualified workshop . Otherwise the airbag
system may not work correctly.
- Never attempt to modify any components of
the airbag system in any way.

,....,
N
co
er::
co

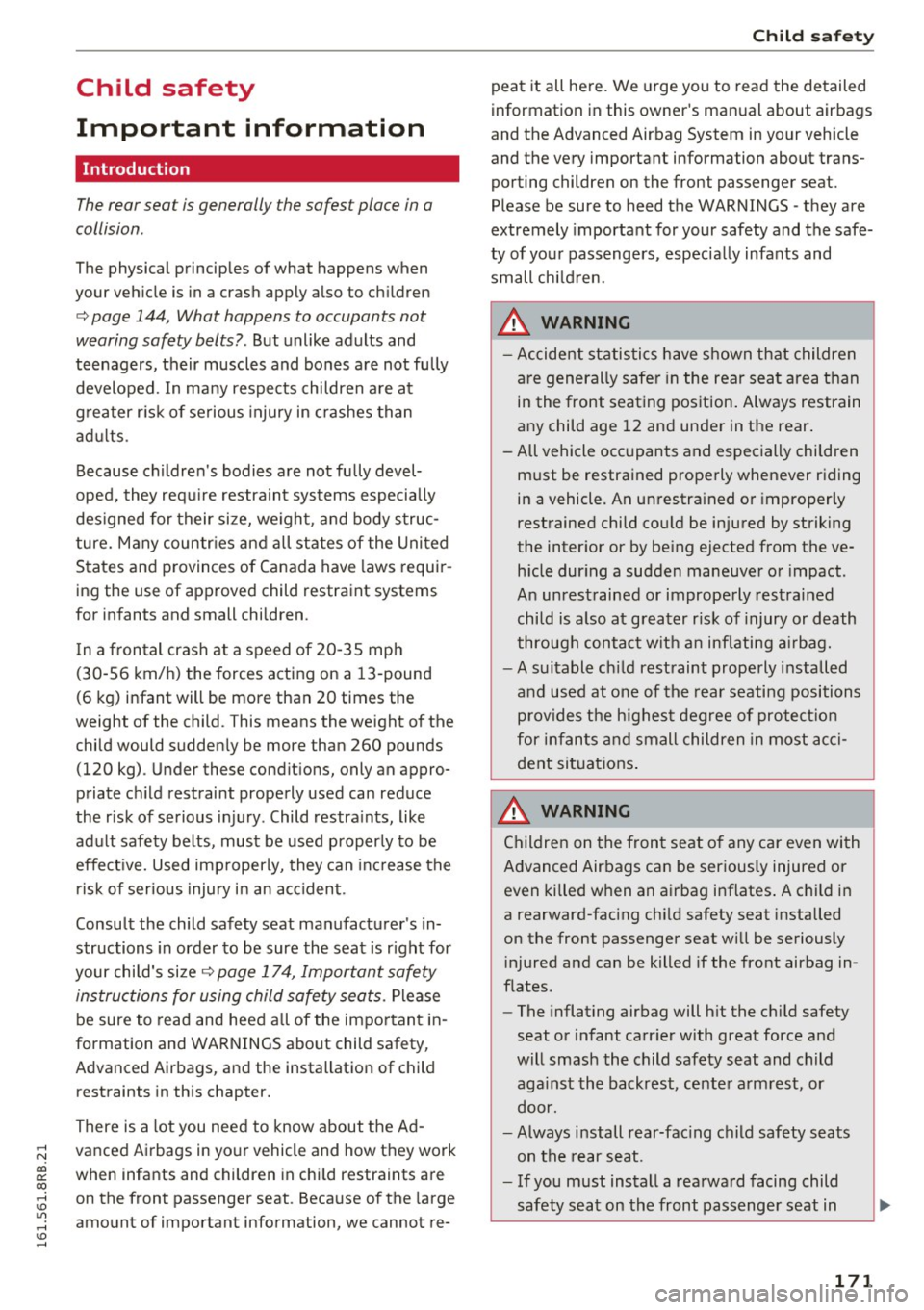

,...., Child safety
Important information
Introduction
The rear seat is generally the safest place in a
collision .
The physical principles of what happens when
your vehicle is in a crash apply also to children
c:> page 144, What happens to occupants not
wearing safety belts? .
But unlike adults and
teenagers, their muscles and bones are not fully
developed. In many respects children are at
greater r isk of serious injury in crashes than
adults .
Because children's bodies are not fu lly devel­
oped, they requ ire restraint systems especially
des igned for their size, we ight, and body struc­
ture. Many countr ies and all states of the United
States and provinces of Canada have laws requir­
ing the use of approved child restraint systems
for infants and small children .
In a frontal crash at a speed of 20-3 5 mph
(30-56 km/h) the forces acting on a 13-pound
(6 kg) infant will be more than 20 times the
weight of the child . This means the weight of the
child would suddenly be more than 260 pounds
(120 kg) . Under these conditions, only an appro­
priate child restraint properly used can reduce
the risk of serious injury . Child restra ints, like
adult safety belts, must be used properly to be
effect ive. Used improperly, they can increase the
risk of serious injury in an accident .
Consult the child safety seat manufacturer's in­
structions in order to be sure the seat is right for
your child's size
c:> page 174, Important safety
instructions for using child safety seats .
Please
be sure to read and heed all of the important in­
formation and WARNINGS about child safety,
Advanced Airbags, and the installation of child restraints in this chapter.
There is a lot you need to know about the Ad­
vanced Airbags in your vehicle and how they work
when infants and children in chi ld restraints are
on the front passenger seat . Because of the large
amount of important information, we cannot re-
Ch ild safety
peat it all here. We urge you to read the detailed
information in this owner's manual about airbags
and the Advanced Airbag System in your vehicle
and the very important information about trans­
porting children on the front passenger seat.
Please be sure to heed the WARNINGS -they are
extremely important for your safety and the safe­
ty of your passengers, especially infants and small chi ldren.
_& WARNING
- Accident statistics have shown that children
are generally safer in the rear seat area than in the front seating position . Always restrain
any child age 12 and under in the rear.
- All vehicle occupants and especially children must be restrained properly whenever riding
in a vehicle. An unrestrained or improperly restrained child cou ld be injured by striking
the inter ior or by being ejected from the ve­
h icle during a sudden maneuver or impact .
An unrestrained or improperly restrained
child is a lso at greater risk of injury or death
through contact w ith an inflating a irbag.
-A suitable ch ild restraint properly installed
and used at one of the rear seating positions
provides the h ighest degree of protect ion
for infants and small children in most acci­
dent situat ions .
_& WARNING
f"-"----
Children on the front seat of any car even with
Advanced Airbags can be seriously injured or
even killed when an airbag inflates . A child in
a rearward-facing chi ld safety seat installed
on the front passenger seat will be seriously i njured and can be killed if the front airbag in­
flates .
- The inflating airbag will h it the ch ild safety
seat or infant carr ier with great force and
will smash the child safety seat and child aga inst the backrest, center armrest, or
door.
- Always install rear-fac ing child safety seats
on the rear seat .
- If you must install a rearward facing child
safety seat on the front passenger seat in
171

Child safety
exceptional circumstances and the
PASSENGER AIR BAG OFF light does not
come on and stay on, immediately install
the rear-facing child safety seat in a rear
seating position and have the airbag system inspected immediately by your Audi dealer .
A WARNING
If, in exceptional circumstances, you must in­
stall a forward-facing child restraint on the
front passenger's seat:
- Always make sure the forward-facing seat
has been designed and certified by its man­
ufacturer for use on a front seat with a pas­
senger front and side airbag.
- Always follow the manufacturer's instruc­
tions provided with the child safety seat or
carrier.
- Always move the passenger seat into its
rearmost position in the seat's fore and aft
adjustment range, as far away from the air­
bag as possible before installing the child
restraint. The backrest must be adjusted to
an upright position.
- Always make sure that the
PASSENGER AIR
BAG OFF
light comes on and stays on all the
time whenever the ignition is switched on.
(D Tips
Always replace child restraints that were in­ stalled in a vehicle during a crash. Damage to
a child restraint that is not visible could cause
it to fail in another collision situation.
Advanced front airbag system and children
Your vehicle is equipped with a front "Advanced
Airbag System" in compliance with United States
Federal Motor Vehicle Safety Standard (FMVSS)
208, as well as Canada Motor Vehicle Safety
Standard (CMVSS) 208 as applicable at the time
your vehicle was manufactured.
The Advanced Airbag system in your vehicle has
been certified to meet the "low-risk" require­
ments for 3- and 6-year old children on the pas­
senger side and small adults on the driver side.
The low risk deployment criteria are intended to
172
reduce the risk of injury through interaction with
the airbag that can occur, for example, by being
too close to the steering wheel and instrument panel when the airbag inflates. In addition, the
system has been certified to comply with the
"suppression" requirements of the Safety Stand ­
ard, to turn off the front airbag for infants up to
12 months who are restrained on the front pas­
senger seat in child restraints that are listed in
the Standard .
Even though your vehicle is equipped with an Ad­
vanced Airbag system, all children, especially
those 12 years and younger, should always ride
in the back seat properly restrained for their age
and size. The airbag on the passenger side makes
the front seat a potentially dangerous place for a
child to ride. The front seat is not the safest place
for a child in a forward-facing child safety seat. It
can be a very dangerous place for an infant or a
larger child in a rearward-facing seat.
· Advanced Airbags and the weight-sensing
mat in the front seat
The Advanced Airbag System in your vehicle de­
tects the presence of an infant or child in a child
restraint on the front passenger seat using the
weight-sensing mat in the seat cushion and the
sensor below the safety belt latch on the front
passenger seat that measures the tension on the
safety belt.
The weight-sensing mat measures total weight
of the child and the child safety seat and a child
blanket on the front passenger seat . The weight
on the front passenger seat is related to the de­
sign of the child restraint and its "footprint", the
size and shape of the bottom of the child re­
straint as it sits on the seat . The weight of a child
restraint and its "footprint" vary for different
kinds of child restraints and for the different
models of the same kind of child restraint of­
fered by child restraint manufacturers.
The weight ranges for the individual types,
makes and models of child restraints that the
NH TSA has specified in the Safety Standard to­
gether with the weight ranges of typical infants
and typical 1 year -old child have been stored in ..,.

,....,
N
co
er::
co
,...., the control unit of the Advanced A irbag System.
When a child restraint is being used on the front
passenger seat with a typical 1 year-old child, the
Advanced Airbag System compares the weight measured by the weight sensing mat with the in­
formation stored in the electronic control unit .
The electronic control un it also registers the ten ­
sion on the front passenger safety belt. The ten­
sion on the safety belt for the front passenger
seat will be different for an adult who is properly
using the safety belt as compared to the tension
on the belt when it is used to attach a ch ild re­
stra int to the seat. The senso r below the latch for
the safety belt for the front seat passenger
measures the tens ion on the belt. The input from
this sensor is then used with the weight to "de ­
cide", whether there is a child restraint wit h a
typical 1 year-old child on the front passenger
seat and whether or not the airbag must be
turned off.
Child restraints and Advanced Airbags
Regardless of the child restra int that you use,
make sure that it has been cert ified to meet Safe­
ty Standards and has been certified by its manu­
facturer for use wi th an airbag. Always be sure
that the child restraint is properly installed at
one of the rear seating positions . If in exception­
a l circumstances you must use it on the front
passenger seat, carefully read all of the informa­
tion on child safety and Advanced Airbags and heed all of the appl icable WARNINGS. Make cer­
tain that the child restra int is correctly recog­
nized by the weight-sensing mat inside the front
passenger seat, that the front passenger airbag
i s turned off and that the airba g status is always
correct ly signa led by the
PASSENGER AIR BAG
OFF lig ht.
Many types and models of child restraints have
been available over the years, new models are in­
troduced regular ly incorporat ing new and im­
proved designs and older mode ls are taken out o f
production . Chi ld restraints a re not standardized .
Child restraints of the same type typica lly have
different weights and sizes and different 'foot­
prints, ' the s ize and shape of the bottom of the
child restraint that sits on the seat, when they
Child safety
are installed on a vehicle seat . These differences
make it virtua lly impossib le to certify compliance
with the requirements for advanced a irbags w ith
each and every child restraint that has ever been
sold in the past or will be sold over the course of
the useful life of your vehicle.
For t his reason, the United States National High­
way Traffic Safety Admin istration has published a
list of spec ific type, makes and models of ch ild
restra ints that must be used to certify compli­
ance of the Advanced Airbag System in your vehi­
cle with the su ppress ion requirements of Federa l
Motor Vehicle Safety Standard 208. These child
restraints are:
Subpart A -Car bed child restraints
Model Manufactured on or
after
A ngel Guard Angel September 2S, 2007
Ride AA2403FOF
Subpart B - Rear-facing child restraints
Model Manufactured on or
after
Century SmartFit 4543 December 1,
1999
Cosco Arriva September 25, 2007
22-013PAW and base
22-999WHO
Evenflo Discovery Ad- December 1, 1999
just Right 212
E venflo First Choice December 1, 1999
204
Graco Infant 8457 December 1, 1999
Graco Snugride September 25, 2007
Peg Perego Primo Viag -September 25, 2007
g io SIP IMUNOOUS
Subpart C -Forward-facing and convertible
child restraints
Model Manufactured on or
after
Britax Roundabout September 25, 2007
E9L02xx
Cosco Touriva 02519 December 1, 1999
173

Child safet y
Model Manufactured on or
after

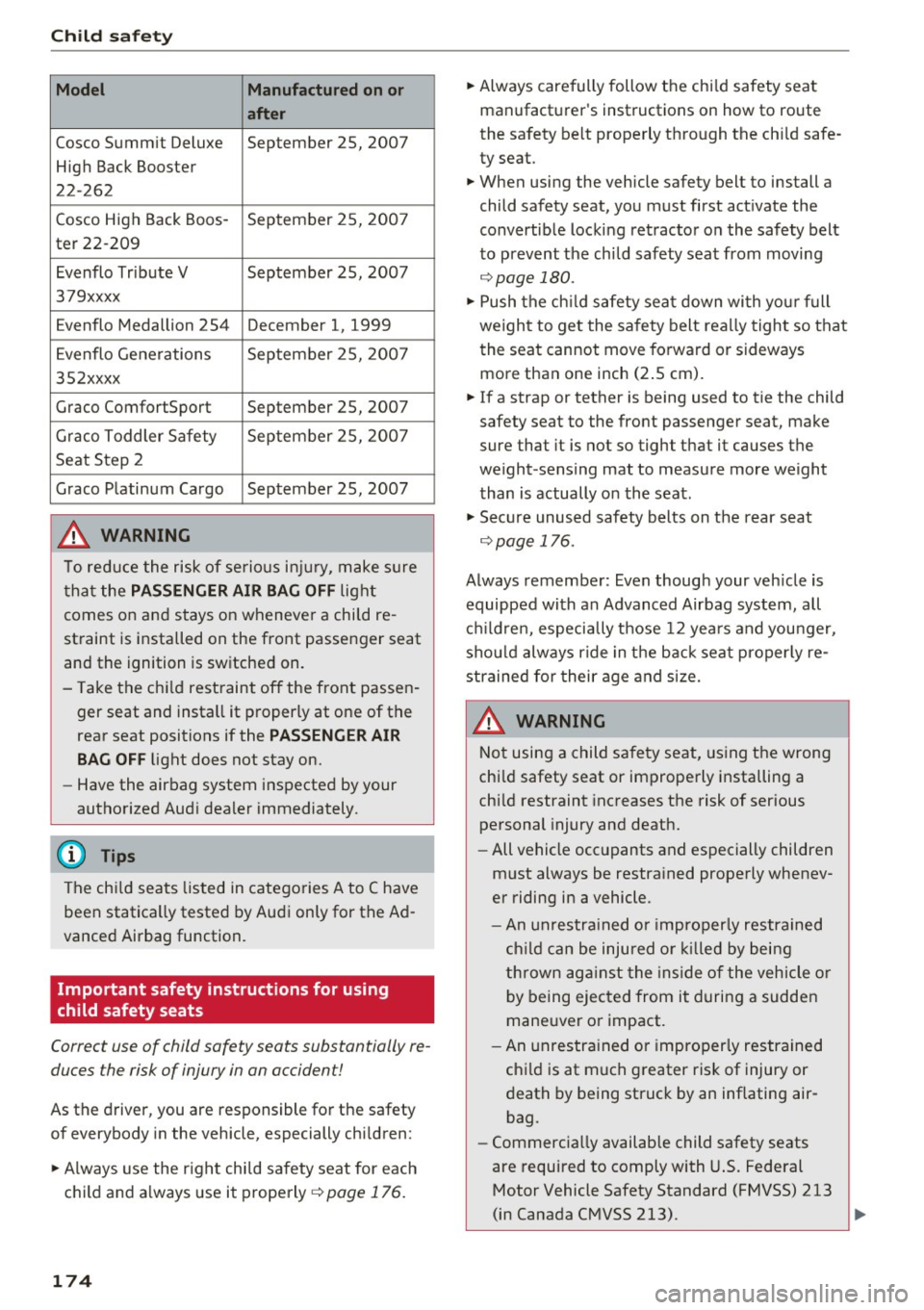

Cosco Summit Deluxe September 25, 2007
High Back Booster
22-262
Cosco High Back Boos -
September 25, 200 7
ter 22-209
Evenflo Tribute V September 25, 2007
379xxxx
Evenflo Medallion 254 December 1, 1999
E venflo Generations September 25, 200 7
352xxxx
Graco ComfortSport September 25, 2007
Graco Toddler Safety Sep tember 25, 200 7
Seat Step 2
Graco P latinum Cargo September 25, 2007
,& WARNING
T o red uce the risk of serio us i njur y, m ake s ure
t ha t the
PASSENGER AIR BAG OFF lig ht
comes o n and stays on wheneve r a child re ­
straint is installed on the front passenger seat
and the ignition is sw itche d on.
- Take the ch ild rest raint off the front passen ­
ger seat and insta ll it p roperly at one of the
rear seat positions if the
PASSENGER AIR
BAG OFF
light does not stay on.
- Have the airbag system inspecte d by your
autho rized Aud i dealer immediately.
(D Tips
The ch ild seats listed in catego ries A to C have
been statica lly tested by Au di only for the Ad­
vanced Airbag function.
Important safety instructions for using
child safety seats
Correct use of child safety seats substantially re­
duces the risk of injury in on occident!
As the driver, you are respons ible for the safety
of everybody in the vehicle, especially chi ldren:
... Always use the r ight chi ld safety seat for each
c h ild and a lways use it properly ¢
page 176.
174 ...
Always carefully follow the chi ld safety seat
manufact urer 's instructions on how to route
the sa fety be lt properly thro ugh the ch ild safe­
ty seat.
... When using the vehicle safety belt to install a
child safety seat, you must first act ivate the
convertib le lock ing retracto r o n the safety belt
to prevent the chi ld safety seat from moving
¢ page 180.
... Push the ch ild sa fety sea t down wi th yo ur fu ll
weigh t to get the safety belt rea lly tight so tha t
the seat cannot move forward or sideways
more than one inch (2 .5 cm).
... If a strap or tether is being used to tie the child
safety seat to the front passenge r seat, make
sure that it is not so tight t hat it causes the
weight -sensing mat to measure more weight
t han is actually o n the seat .
... Secu re unused safety belts on the rear s eat
¢ page 176.
Always remember : Even though your veh icle is
equipped wi th an Advanced Airbag system, all
c hi ld ren, especially those 12 yea rs and you nger,
s h ould always ride in th e back sea t proper ly re­
strained for their age and s ize.
,& WARNING
-
Not usin g a child sa fe ty seat, us ing t he wrong
c h ild safety seat or imprope rly installing a
chi ld restraint inc reases t he risk of serious
personal injury and death.
- All vehicle occupants and es pecially children
m ust always be restra ined properly whenev­
er riding in a vehicle.
- An unrestra ined o r imprope rly restrained
c h ild ca n be injured or killed by bei ng
t h rown ag ai nst the inside of the vehicle or
b y being ejected from it durin g a sudden
maneuver o r impact.
- An unrestra ine d or i mprope rly restrained
ch ild is at much g reater risk of injury or
death by being struck by an inflating air­
bag .
- Commerc ia lly available child safety seats
are required to comply with U.S. Federal
Motor Vehicle Safety Standard (FMVSS) 213
(in Canada C MVSS 213). ...

,....,
N
co
er::
co

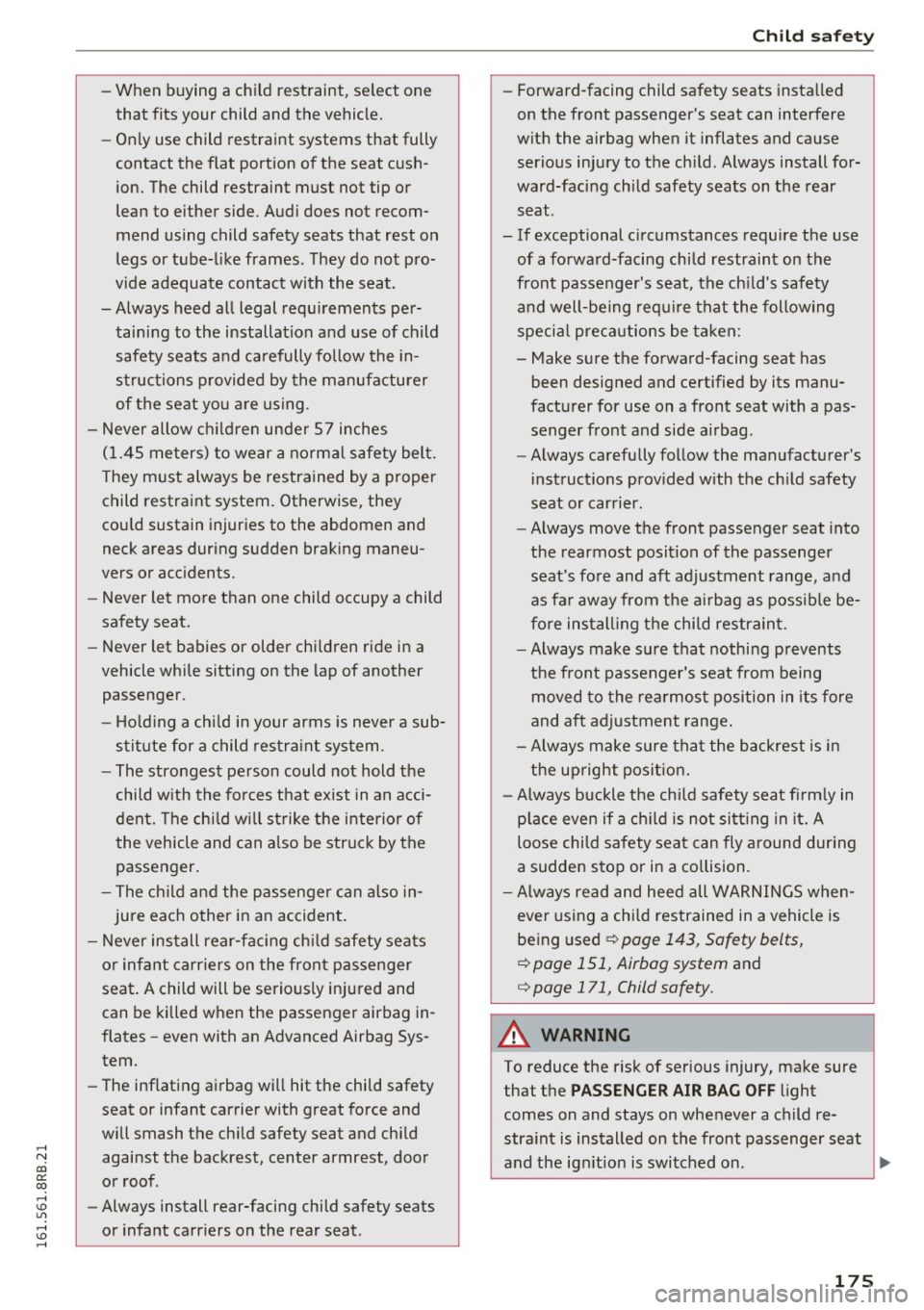

,...., -When buying a child restraint, select one
that fits your child and the vehicle.
- Only use child restraint systems that fully
contact the flat portion of the seat cush­
ion. The child restraint must not tip or
lean to either side. Audi does not recom­
mend using child safety seats that rest on
legs or tube-like frames. They do not pro­
vide adequate contact with the seat.
- Always heed all legal requirements per­ taining to the installation and use of child
safety seats and carefully follow the in­
structions provided by the manufacturer
of the seat you are using.
- Never allow children under 57 inches
(1.45 meters) to wear a normal safety belt.
They must always be restrained by a proper
child restraint system. Otherwise, they
could sustain injuries to the abdomen and
neck areas during sudden braking maneu­
vers or accidents.
- Never let more than one child occupy a child
safety seat.
- Never let babies or older children ride in a
vehicle while sitting on the lap of another
passenger.
- Holding a child in your arms is never a sub­
stitute for a child restraint system.
- The strongest person could not hold the
child with the forces that exist in an acci­
dent. The child will strike the interior of
the vehicle and can also be struck by the
passenger.
- The child and the passenger can also in­
jure each other in an accident.
- Never install rear-facing child safety seats
or infant carriers on the front passenger
seat. A child will be seriously injured and
can be killed when the passenger airbag in­
flates -even with an Advanced Airbag Sys­
tem.
- The inflating airbag will hit the child safety
seat or infant carrier with great force and
will smash the ch ild safety seat and child
against the backrest, center armrest, door
or roof.
- Always install rear-facing child safety seats
or infant carriers on the rear seat .
Child safety
-Forward- facing child safety seats installed
on the front passenger's seat can interfere
with the airbag when it inflates and cause
serious injury to the child. Always install for­
ward-facing child safety seats on the rear seat.
- If exceptional circumstances require the use of a forward-facing child restraint on the
front passenger's seat, the child's safety
and well-being require that the following
special precautions be taken:
- Make sure the forward-facing seat has
been designed and certified by its manu­
facturer for use on a front seat with a pas­
senger front and side airbag.
- Always carefully follow the manufacturer's
instructions provided with the child safety
seat or carrier.
- Always move the front passenger seat into
the rearmost position of the passenger
seat's fore and aft adjustment range, and
as far away from the airbag as possible be­
fore installing the child restraint.
- Always make sure that nothing prevents
the front passenger's seat from being
moved to the rearmost position in its fore
and aft adjustment range.
- Always make sure that the backrest is in
the upright position.
- Always buckle the child safety seat firmly in
place even if a child is not sitting in it. A
loose child safety seat can fly around during
a sudden stop or in a collision.
- Always read and heed all WARNINGS when­
ever using a child restrained in a vehicle is
being used¢
page 143, Safety belts,
¢ page 151, Airbag system and
¢ page 171, Child safety.
A WARNING
-To reduce the risk of serious injury, make sure
that the
PASSENGER AIR BAG OFF light
comes on and stays on whenever a child re­
straint is installed on the front passenger seat
and the ignition is switched on.
~
175

Child safety
-Take the child restraint off the front passen­
ger seat and install it proper ly at one of the
rear seat positions if the
PASSEN GER AIR
BA G OF F
light does not stay on.
- Have the airbag system inspected by your
authorized Aud i dealer immediately.
Secure unused safety belts on the rear seat
l8
,h- --lJ ;g
--- 0
Fig . 173 Schematic overv iew: keep unused safety be lts
away from chi ld ren i n chil d safety seats.@-oute r rear
safety belt, @ - center rear safety be lt
~
If a chi ld safety seat is used on the rear bench,
especially with LA TCH universal lower anchorag­
es, the unused safety be lts
mu st be secured so
that the child in the child restraint cannot reach
them ¢,& .
- Gu ide the safety belt webbings @and @ be­
hind the head restraint of the seat where the
child restraint is installed
¢fig. 173. When do­
ing so, do not engage the convertib le locking
retractor! You should not hear a "clicking"
sound when w inding up the safety be lt .
- Let the belt retractor wind up the safety belt
webb ing .
_& WARNING
A ch ild in a child safety seat installed with the
LATC H lowe r anchorages or w ith the standard
safety belt or a child in a booste r seat on the
rear seat could p lay wit h unused rear seat
safety belts and become entangled. This
cou ld cause t he chi ld ser ious personal injury
and even death.
- Always sec ure unused rear seat safety belts
o ut of reach of ch ild ren in child seats such
as by proper ly routing them aro und the
176
head restraint of the seat where the child
restraint is installed .
- Never activate t he convertible locking re­
tractor when routing the safety belts around
the head restraints.
- Never let anyone s it at the center rear seat­
ing position if the center rear safety belt has
been routed around a rear head restraint.
Child seats
Infant seats
Babies and infants up to about one year old and
20 lbs . or
9 kg need special rearward-facing
child restraints that support the back, neck and
head in a crash.
Fig. 1 74 Sc hema tic ove rview : rearward -facing infa nt sea t,
p rope rly installed on th e rear sea t
.. When using the veh icle safe ty belt to install a
c hild safe ty seat, yo u must first a ct ivate the
convertib le locking re tractor on the safe ty belt
to prevent the child safety seat from moving
¢
page 180 or insta ll the seat using the LATCH
attachments .
.. Push the child safety seat down with your full
weight to get the safety belt really tight so that
the seat cannot move forward or sideways
more than one inch (2 .5 cm).
.. Secure unused safety bel ts on the rear seat
¢ page 176.
Infants up to about one year (20 lbs . or 9 kg) are
bes t protected in special infant carr iers and child
safe ty seats designed for the ir age group. Many
expe rts be lieve that inf ants and small ch ildren
sho uld r ide o nly in special res tra ints in wh ic h t he
ch ild faces the back of the vehicle. These infant
II>

..... N
co ~ CX)
..... I.Cl U"I
..... I.Cl .....

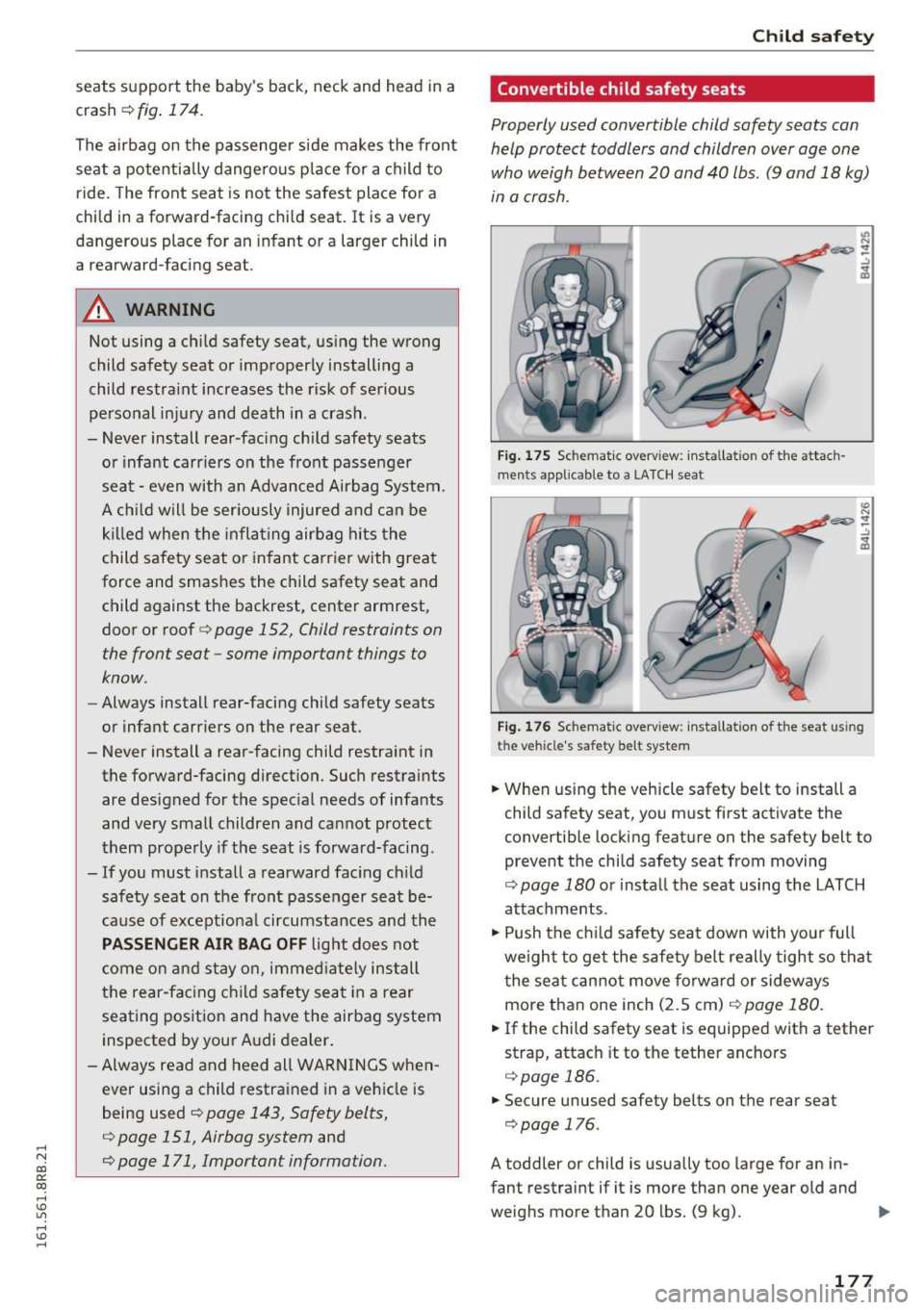

seats support the baby 's back, neck and he ad in a
crash
c!;> fig . 174.
The airbag on the passenger side makes the front
seat a potentially dange ro us p lace for a child to
ride. The front seat is not the safest place for a
child in a forward-facing child seat . It is a very
dangerous place for an infant or a larger child in
a rearward-facing seat .
A WARNING
Not using a child safety seat , using the wrong
child safety seat or imp roperly installing a
child restra int increases the risk of se rious
perso nal in jury and death in a crash .
- Never install rear -facing child safety seats
o r infant carriers on the front passenger
seat -even with an Advanced Airbag System.
A ch ild will be ser iously injured and can be
ki lled when the infla ting airbag hi ts the
child safety seat o r infant carr ier with great
force and smashes the child safety seat and child against the backrest, center armrest,
door or roof
c:> page 152, Child restraints on
the front seat -some important things to
know .
-Always install rear-facing child safety seats
or infant carriers on the rear seat.
- Never install a rear -facing child restraint in
the forward-facing direct ion. Such restraints
are designed for the spec ial needs of infants
and very small children and cannot protect
them properly if the seat is forwa rd- facing .
- If you must install a rearward fac ing ch ild
safety seat on the front passenger seat be­
c a use of except io na l circumstances and the
PASSENGER AIR BAG OFF light does not
come o n and stay o n, immed iate ly i nstall
the re ar-facing c hild safety seat ih a rear
seating posit ion and have the airbag system
inspected by your Audi dealer .
- Always read and heed all WARN INGS when ­
ever using a child restrained in a veh icle is
being used
c:, page 143, Safety belts,
<=:> page
151, Airbag system and
c:> page 171, Important information.
Ch ild sa fety
Convertible child safety seats
Properly used convertible child safety seats can
help protect toddlers and children over age one
who weigh between 20 and 40 lbs . (9 and 18 kg)
in a crash.
F ig . 17 5 Schem atic overv ie w: installat ion o f the attac h­
me nts applicable to a LA TCH sea t
Fig. 17 6 Sc hemat ic overv iew : in sta llat ion of t he seat using
t he ve hicle 's sa fety be lt syst em
.. W hen using the vehicle safe ty belt to install a
child sa fety seat, you must first activate the
convertib le locking feat ure on the safety belt to
prevent the child safety seat from moving
c:::> page 180 or install the seat using the LATCH
attachments .
.. Push the ch ild safety seat down with yo ur full
we igh t to ge t the safety belt really tight so tha t
t he seat can not move forwa rd or sideways
more than one inch (2 .5 cm)
<=:> page 180.
.. If the child safety seat is equ ipped with a tether
strap, attac h it to the tether anchors
c:::> page 186.
.. Secure unused safety belts on the rear seat
c:::> page 176 .
A toddler or child is usua lly too large fo r an in­
fant restraint if it is more th an one year old and
weighs more t han 20 lbs. (9 kg). ..,
177

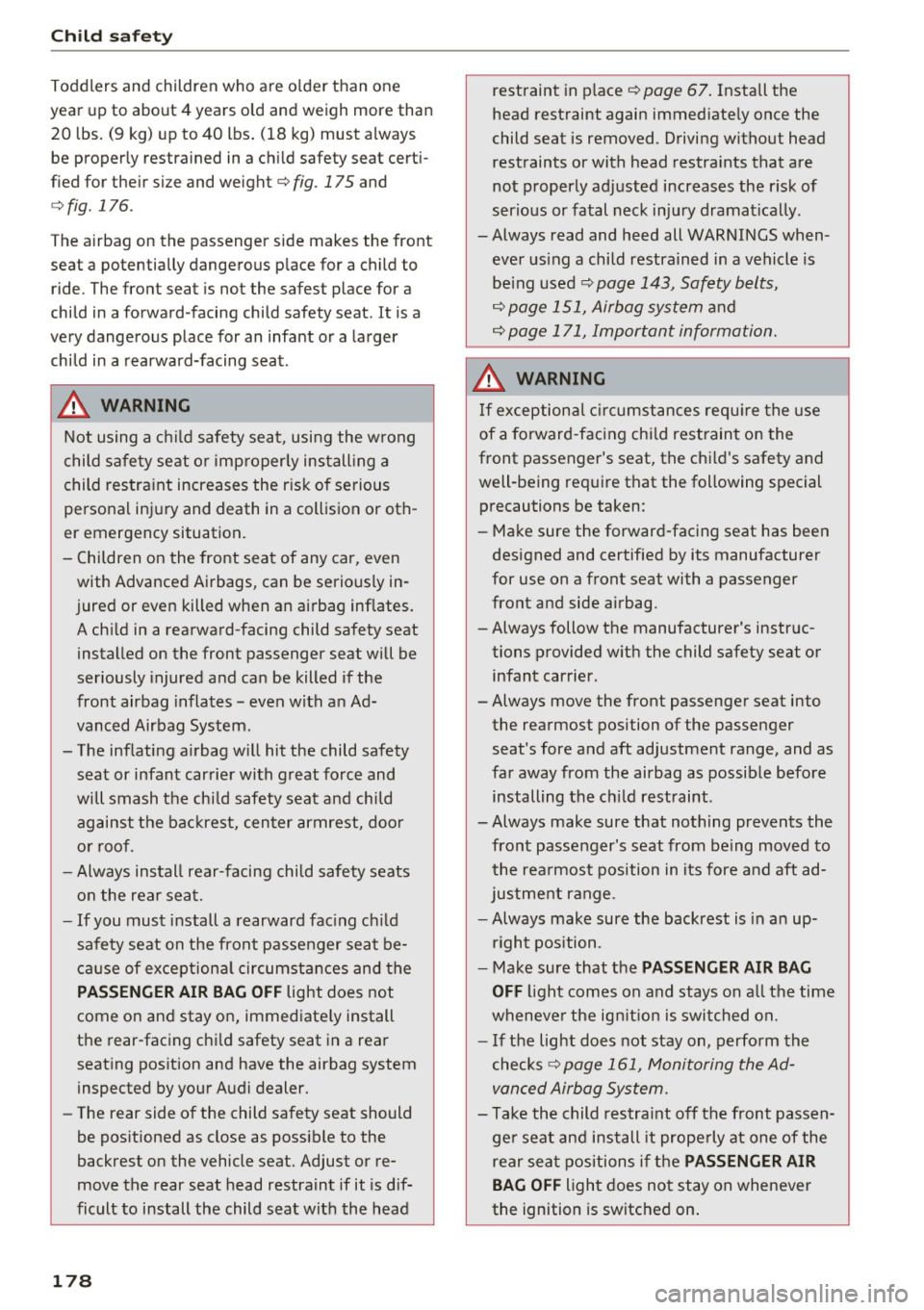

Child safety
Toddlers and children who are older than one
year up to about 4 years old and weigh more than 20 lbs. (9 kg) up to 40 lbs. (18 kg) must always
be properly restrained in a child safety seat certi­
fied for their size and weight¢
fig. 175 and
¢fig. 176 .
The airbag on the passenger side makes the front
seat a potentially dangerous place for a child to
ride. The front seat is not the safest pl ace for a
child in a forward-facing child safety seat . It is a
very dangerous place for an infant or a larger
child in a rearward-facing seat.
.8, WARNING
Not using a child safety seat, using the wrong
child safety seat or improperly installing a
child restraint increases the risk of serious
personal injury and death in a collision or oth­
er emergency situation.
- Children on the front seat of any car, even with Advanced Airbags, can be seriously in­
jured or even killed when an airbag inflates.
A child in a rearward-facing child safety seat
installed on the front passenger seat will be
seriously injured and can be killed if the
front airbag inflates - even with an Ad­
vanced Airbag System .
- The inflating airbag will hit the child safety seat or infant carrier with great force and
will smash the child safety seat and child against the backrest, center armrest, door
or roof.
- Always install rear-facing child safety seats
on the rear seat.
-If you must install a rearward facing child
safety seat on the front passenger seat be­
cause of exceptional circumstances and the
PASSENGER AIR BAG OFF light does not
come on and stay on, immediately install
the rear-facing child safety seat in a rear
seating position and have the airbag system
inspected by your Audi dealer.
- The rear side of the child safety seat should
be positioned as close as possible to the
backrest on the vehicle seat. Adjust or re­
move the rear seat head restraint if it is dif­
ficult to install the child seat with the head
178
restraint in place ¢ page 67. Install the
head restraint again immediately once the
child seat is removed . Driving without head
restraints or with head restraints that are
not properly adjusted increases the risk of
serious or fatal neck injury dramatically .
- Always read and heed all WARNINGS when­ ever using a child restrained in a vehicle is
being used
¢page 143, Safety belts,
¢ page 151, Airbag system
and
¢ page 171, Important information.
.8, WARNING
If exceptional circumstances require the use
of a forward-facing child restraint on the
front passenger's seat, the child's safety and
well-being require that the following special precautions be taken:
- Make sure the forward-facing seat has been
designed and certified by its manufacturer
for use on a front seat with a passenger
front and side airbag.
- Always follow the manufacturer's instruc­
tions provided with the child safety seat or
infant carrier.
- Always move the front passenger seat into the rearmost position of the passenger seat's fore and aft adjustment range, and as
far away from the airbag as possible before
installing the child restraint.
- Always make sure that nothing prevents the front passenger's seat from being moved to
the rearmost position in its fore and aft ad­
justment range.
-Always make sure the backrest is in an up­
right position .
- Make sure that the
PASSENGER AIR BAG
OFF
light comes on and stays on all the time
whenever the ignition is switched on.
- If the light does not stay on, perform the
checks ¢
page 161, Monitoring the Ad­
vanced Airbag System .
-Take the child restraint off the front passen­
ger seat and install it properly at one of the
rear seat positions if the
PASSENGER AIR
BAG OFF
light does not stay on whenever
the ignition is switched on.
