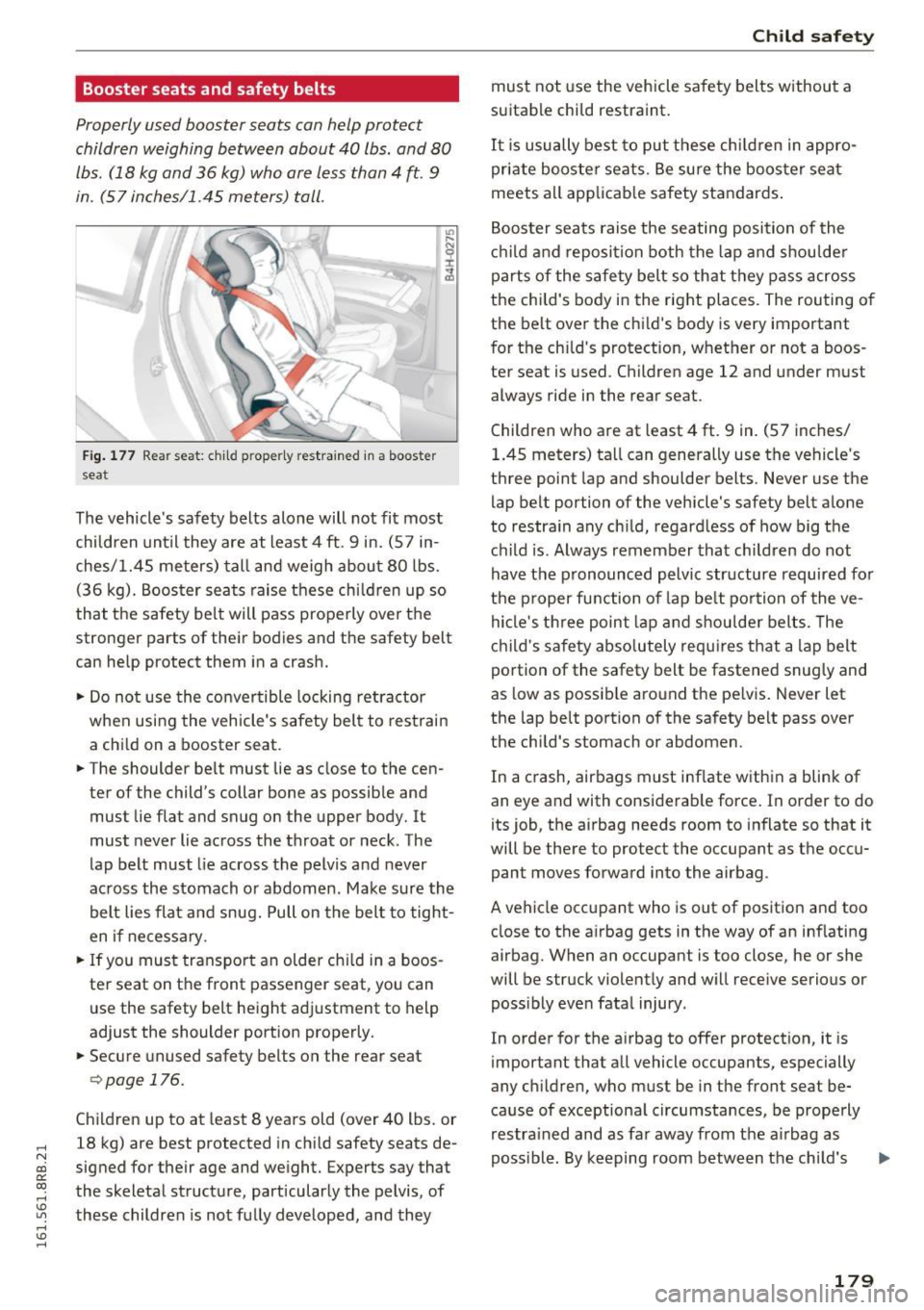

Booster seats and safety belts
Properly used booster seats can help protect
children weighing between about 40 lbs. and 80
lbs. (18 kg and 36 kg) who are less than 4
ft. 9
in. (57 inches/1.45 meters) tall.
Fig. 177 Rear seat: child p roper ly restrained in a booster
seat
The vehicle's safety belts alone will not fit most
children until they are at least 4
ft. 9 in. (57 in­
ches/1.45 meters) tall and weigh about 80 lbs.
(36 kg). Booster seats raise these ch ildren up so
that the safety belt will pass properly over the
stronger parts of their bodies and the safety belt
can help protect them in a crash.
.,. Do not use the convertible locking retractor
when using the vehicle's safety belt to restrain
a chi ld on a booster seat .
.. The shoulder belt must lie as close to the cen­
ter of the child's collar bone as possible and must lie flat and snug on the upper body. It
must never lie across the throat or neck. The
lap belt must lie across the pelvis and never
across the stomach or abdomen. Make sure the
belt lies flat and snug. Pull on the belt to tight­
en if necessary .
.,. If you must transport an older chi ld in a boos­
ter seat on the front passenger seat, you can
use the safety belt height adjustment to help
adjust the shoulder portion properly .
.. Secure unused safety belts on the rear seat
r:=>page 176.
Children up to at least 8 years old (over 40 lbs. or
18 kg) are best protected in chi ld safety seats de­
signed for their age and we ight. Experts say that
the skeletal structure, part icularly the pelvis, of
these children is not fully developed, and they
Child safety
must not use the vehicle safety belts without a
suitable child restraint.
It is usually best to put these children in appro­
priate booster seats. Be sure the booster seat
meets all applicab le safety standards .
Booster seats raise the seating position of the
child and reposition both the lap and shoulder
parts of the safety belt so that they pass across
the child's body in the right places. The routing of
the be lt over the chi ld's body is very important
for the ch ild's protection, whether or not a boos­
ter seat is used. Children age 12 and under must
always ride in the rear seat.
Children who are at least 4
ft. 9 in. (57 inches/
1.45 meters) tall can generally use the vehicle's
three point lap and shoulder belts . Never use the
lap belt portion of the vehicle's safety belt a lone
to restrain any ch ild, regard less of how big the
ch ild is. Always remember that child ren do not
have the pronounced pelvic structure required for
the proper function of lap be lt portion of the ve­
hicle's three point lap and shoulder belts. The
child's safety absolutely requires that a lap belt
portion of the safety belt be fastened snug ly and
as low as possible around the pe lvis. Never let
the lap belt portion of the safety belt pass over
the child's stomach or abdomen .
In a crash, airbags must inflate within a blink of
an eye and with considerab le force. In order to do
its job, the airbag needs room to inflate so that it
will be there to protect the occupant as the occu­
pant moves forward into the airbag .
A vehicle occ upant who is out of position and too
close to the a irbag gets in the way of an inflating
airbag. When an occupant is too close , he or she
will be struck violently and w ill receive serious or
possibly even fata l injury .
In order for the airbag to offer protect ion, it is
important that all vehicle occupants, especially
any children , who must be in the front seat be­
cause of exceptiona l circumstances, be properly
restrained and as far away from t he airbag as
poss ible. By keeping room between the child's ..,_
179

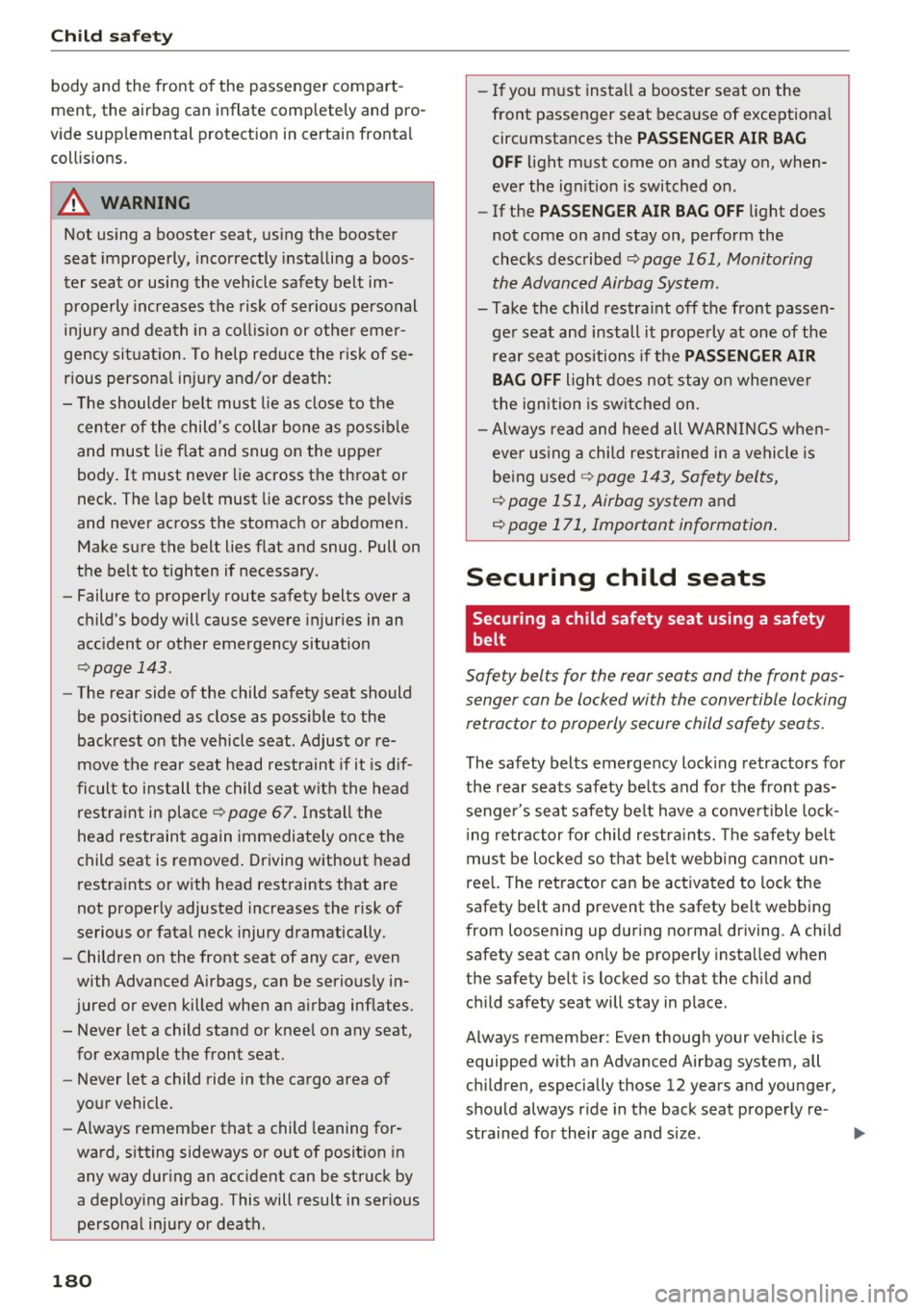

Child safety
body and the front of the passenger compart­
ment, the airbag can inflate completely and pro­
vide supplemental protection in certain frontal
collisions.
.,&. WARNING
Not using a booster seat, using the booster
seat improperly, incorrectly installing a boos­
ter seat or using the vehicle safety belt im­
properly increases the risk of serious personal
injury and death in a collision or other emer­
gency situation. To help reduce the risk of se­
rious personal injury and/or death:
- The shoulder belt must lie as close to the
center of the child's collar bone as possible
and must lie flat and snug on the upper
body.
It must never lie across the throat or
neck. The lap belt must lie across the pelvis
and never across the stomach or abdomen .
Make sure the belt lies flat and snug. Pull on
the belt to tighten if necessary .
- Failure to properly route safety belts over a
child's body will cause severe injuries in an
accident or other emergency situation
~ page 143.
-The rear side of the child safety seat should
be positioned as close as possible to the
backrest on the vehicle seat . Adjust or re­
move the rear seat head restraint if it is dif­
ficult to install the child seat with the head
restraint in place
~page 67. Install the
head restraint again immediately once the
child seat is removed. Driving without head
restraints or with head restraints that are
not properly adjusted increases the risk of
serious or fatal neck injury dramatically.
- Children on the front seat of any car, even
with Advanced Airbags, can be seriously in­
jured or even killed when an airbag inflates.
- Never let a child stand or kneel on any seat, for example the front seat.
- Never let a child ride in the cargo area of
your vehicle.
- Always remember that a child leaning for­
ward, sitting sideways or out of position in
any way during an accident can be struck by
a deploying airbag . This will result in serious
personal injury or death.
180
-If you must install a booster seat on the
front passenger seat because of exceptional
circumstances the
PASSENGER AIR BAG
OFF
light must come on and stay on, when­
ever the ignition is switched on .
- If the
PASSENGER AIR BAG OFF light does
not come on and stay on, perform the
checks described
~ page 161, Monitoring
the Advanced Airbag System .
-Take the child restraint off the front passen­
ger seat and install it properly at one of the rear seat positions if the
PASSENGER AIR
BAG OFF
light does not stay on whenever
the ignition is switched on.
- Always read and heed all WARNINGS when­
ever using a child restrained in a vehicle is
being used
~ page 143, Safety belts,
~page 151, Airbag system
and
~ page 171, Important information.
Securing child seats
' Securing a child safety seat using a safety
I _l:>elt
Safety belts for the rear seats and the front pas­
senger can be locked with the convertible locking
retractor to properly secure child safety seats.
The safety belts emergency locking retractors for
the rear seats safety belts and for the front pas­
senger's seat safety belt have a convertible lock­
ing retractor for child restraints. The safety belt
must be locked so that belt webbing cannot un­
reel. The retractor can be activated to lock the
safety belt and prevent the safety belt webbing
from loosening up during normal driving . A child
safety seat can only be properly installed when
the safety belt is locked so that the child and
child safety seat will stay in place .
Always remember : Even though your vehicle is
equipped with an Advanced Airbag system, all children, especially those 12 years and younger,
should always ride in the back seat properly re -
strained for their age and size . ..,.

,....,
N
co
er::
co

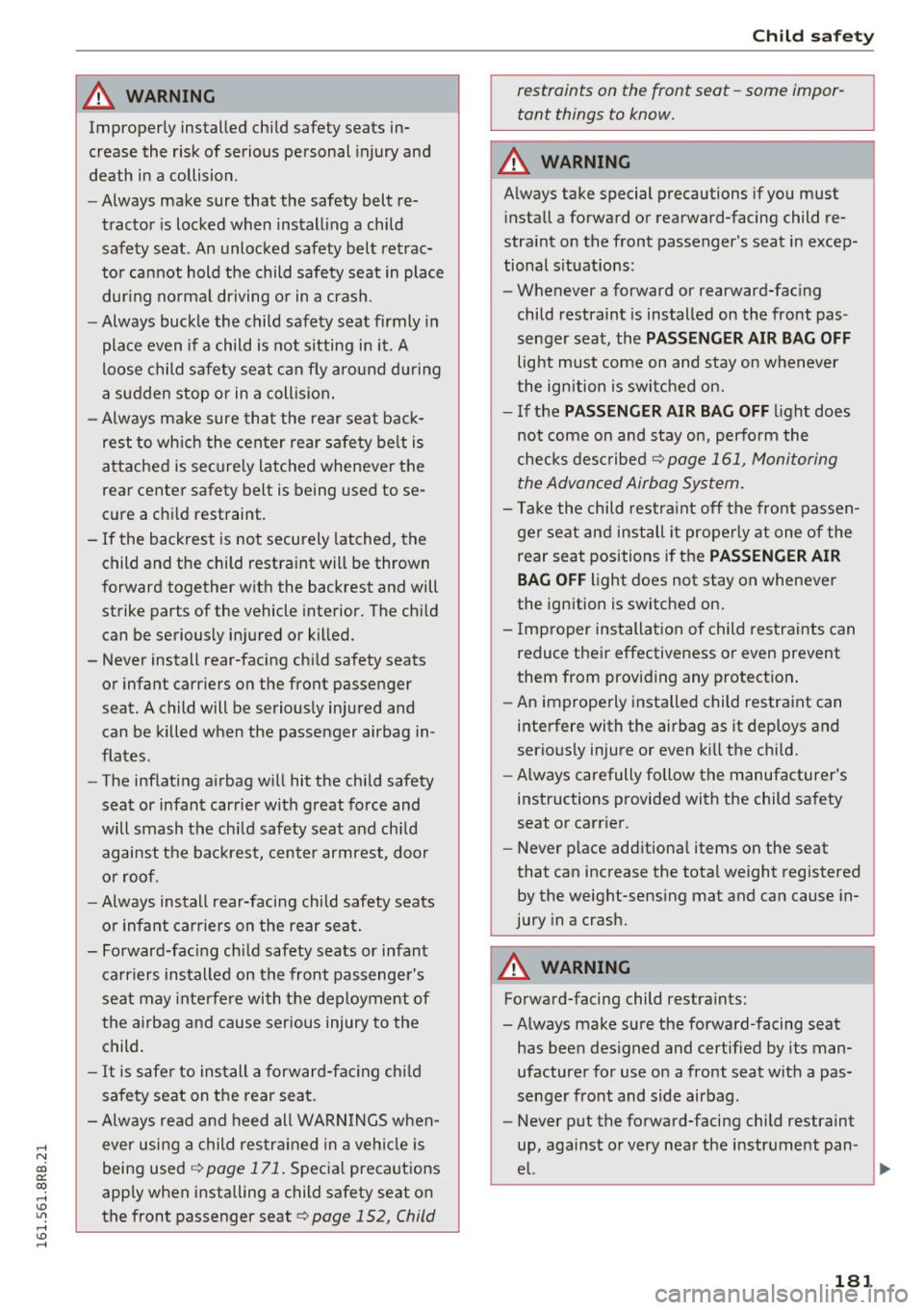

,...., A WARNING 1-= -
Improperly installed child safety seats in­
crease the risk of serious personal injury and
death in a collision .
- Always make sure that the safety belt re­
tractor is locked when installing a child
safety seat . An unlocked safety belt retrac­
tor cannot hold the child safety seat in place during no rma l driving or in a crash.
- Always buckle the child safety seat firmly in
place even if a child is not sitting in it. A
loose child safety seat can fly around d uring
a sudden stop or in a collision .
- Always ma ke sure that the rear seat bac k­
rest to wh ich the center rea r safety be lt is
attached is secure ly latched whenever the
rear center safety belt is being used to se­
cure a ch ild rest raint.
- If the backrest is not securely latched, the
child and the child restraint will be thrown
forward together with the backrest and will
strike parts of the vehicle interior. The ch ild
can be seriously injured or killed.
- Never install rear-facing child safety seats or infant carriers on the front passenger
seat. A child will be serious ly injured and
can be killed when the passenger airbag in ­
flates .
- The inflating a irbag w ill hit the child safety
seat or infant carrier with great force and
will smash the ch ild safety seat and ch ild
against the backrest, center armrest, door
o r roof.
- Always install rear-faci ng child safety seats
o r infant carriers on the rear seat.
- Forward-fac ing ch ild safety seats or infant
c a rriers ins talled on the front passenge r's
seat may inte rfe re with t he deployment of
the a irbag and cause serious injury to the
child.
- It is s afe r to ins tall a forward-fac ing ch ild
sa fety seat on the rear seat.
- Always read and heed all WARN INGS when­
ever using a child res trained in a veh icle is
being used
r:o page 171. Spec ia l precautions
apply when installing a child safety seat on
the front passenger seat
¢ page 152, Child
Ch ild safety
restraints on the front seat -some impor­
tant things to know.
A WARNING
-A lways take special precautions if you must
i nstall a forward or rearward-facing child re­
stra int on the front passenger's seat in excep ­
tional s ituations:
- Whenever a forward or rearward-fac ing
child restraint is installed on the front pas ­
senger seat, the
PASSENGER AIR BAG OFF
light must come on and stay on whenever
the ignition is switched on.
- I f the
PASSENGER AIR BAG OFF light does
not come on and stay on, perform the
checks desc ribed
r:o page 161, Monitoring
the Advanced Airbag System.
- T ake the child restra int off t he front passen­
ge r seat an d install it prope rly at one of the
rear seat positions i f the
PASSENGER AIR
BAG OFF
light does not stay on whenever
the ignition is switched on .
- Improper installat ion of child res traints can
reduce their effectiveness or even prevent
them f rom providing any protect ion .
- An improperly installed child restraint can
interfere with the airbag as it deploys and
serio usly injure or even kill the chi ld.
- Always carefully follow the manufacturer's
instr uctions provided with the child sa fety
seat o r carr ie r.
- Never p lace additiona l items on the seat
that can increase the total weight registered
by the weight-sensing mat and can cause in­
jury in a crash.
A WARNING
-Forward-facing child restra ints:
- Always make sure the forward- facing seat
has been des igned and certified by its man­
ufacturer for use on a front seat with a pas­
senger front and side airbag .
- Never put the forward-facing child restraint
up, against or very near the instrument pan-
-
el. ~
181

Child safety

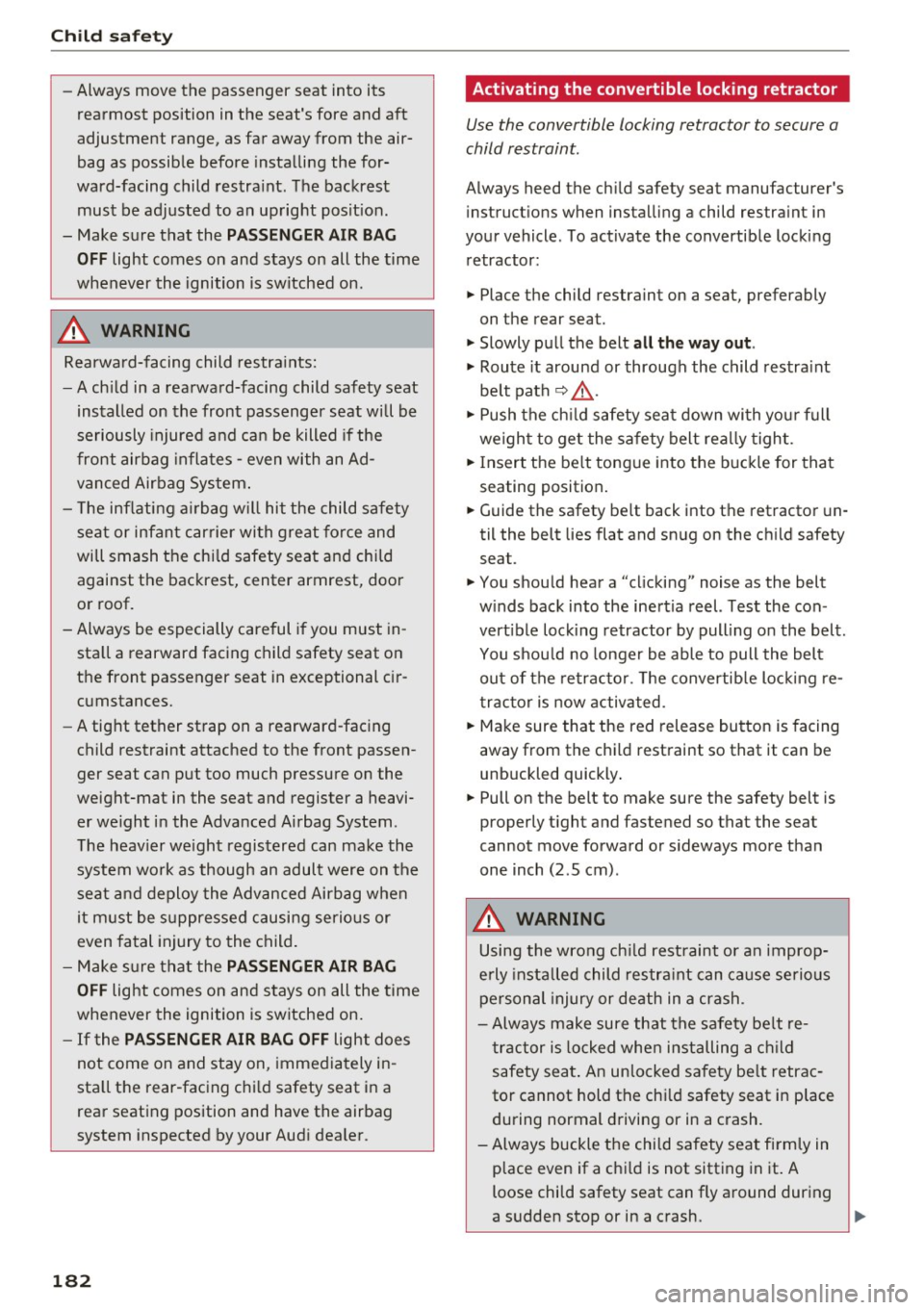

-Always move the passenger seat into its
rearmost position in the seat's fore and aft
adjustment range, as far away from the air­
bag as possible before installing the for­
ward-facing child restraint. The backrest must be adjusted to an upright position.
- Make sure that the
PASSENGER AIR BAG
OFF
light comes on and stays on all the time
whenever the ignition is switched on .
A WARNING
Rearward-facing child restraints:
-A child in a rearward-facing child safety seat
installed on the front passenger seat will be
seriously injured and can be killed if the
front airbag inflates - even with an Ad­
vanced Airbag System.
- The inflating airbag will hit the child safety
seat or infant carrier with great force and
will smash the child safety seat and child
against the backrest, center armrest, door
or roof.
- Always be especially careful if you must in­
stall a rearward facing child safety seat on
the front passenger seat in exceptional cir­ cumstances.
- A tight tether strap on a rearward-facing
child restraint attached to the front passen­
ger seat can put too much pressure on the
weight-mat in the seat and register a heavi­ er weight in the Advanced Airbag System.
The heavier weight registered can make the
system work as though an adult were on the
seat and deploy the Advanced Airbag when
it must be suppressed causing serious or
even fatal injury to the child.
- Make sure that the
PASSENGER AIR BAG
OFF
light comes on and stays on all the time
whenever the ignition is switched on.
-If the PASSENGER AIR BAG OFF light does
not come on and stay on, immediately in­
stall the rear-facing child safety seat in a
rear seating position and have the airbag
system inspected by your Audi dealer .
182
· Activating the convertible locking retractor
Use the convertible locking retractor to secure a
child restraint.
Always heed the child safety seat manufacturer 's
instructions when installing a child restrain t in
your vehicle . To activate the convertible locking
retractor:
.. Place the child restraint on a seat, preferably
on the rear seat .
.. Slowly pull the belt
all the way out .
.. Route it around or through the child restraint
belt path
~ .& .
.. Push the child safety seat down with your full
weight to get the safety belt really tight.
.. Insert the belt tongue into the buckle for that
seating position.
.. Guide the safety belt back into the retractor un­
til the belt lies flat and snug on the child safety
seat.
.. You should hear a "clicking" noise as the belt
winds back into the inertia reel. Test the con ­
vertible locking retractor by pulling on the belt.
You should no longer be able to pull the belt
out of the retractor. The convertible locking re­
tractor is now activated.
.. Make sure that the red release button is facing
away from the child restraint so that it can be
unbuckled quickly.
.. Pull on the belt to make sure the safety belt is
properly tight and fastened so that the seat
cannot move forward or sideways more than
one inch (2 .5 cm) .
A WARNING
Using the wrong child restraint or an improp­
erly installed child restraint can cause serious
personal injury or death in a crash.
- Always make sure that the safety belt re­
tractor is locked when installing a child
safety seat. An unlocked safety belt retrac­
tor cannot hold the child safety seat in place
during normal driving or in a crash.
- Always buckle the child safety seat firmly in
place even if a child is not sitting in it. A
loose child safety seat can fly around during
a sudden stop or in a crash.

,....,
N
co
er::
co
,...., -Always make sure the seat backrest to which
the child restraint is installed is in an up­
right position and securely latched into
place and cannot fold forward. Otherwise,
the seatback with the child safety seat at­
tached to it could f ly forward in the event of
an accident or other emergency situation.
- Always read and heed all WARNINGS when­
ever using a child restrained in a veh icle is
being used
r=;, page 171. Specia l precaut ions
apply when installing a child safety seat on
the front passenger seat
¢ page 152, Child
restraints on the front seat -some impor­
tant things to know.

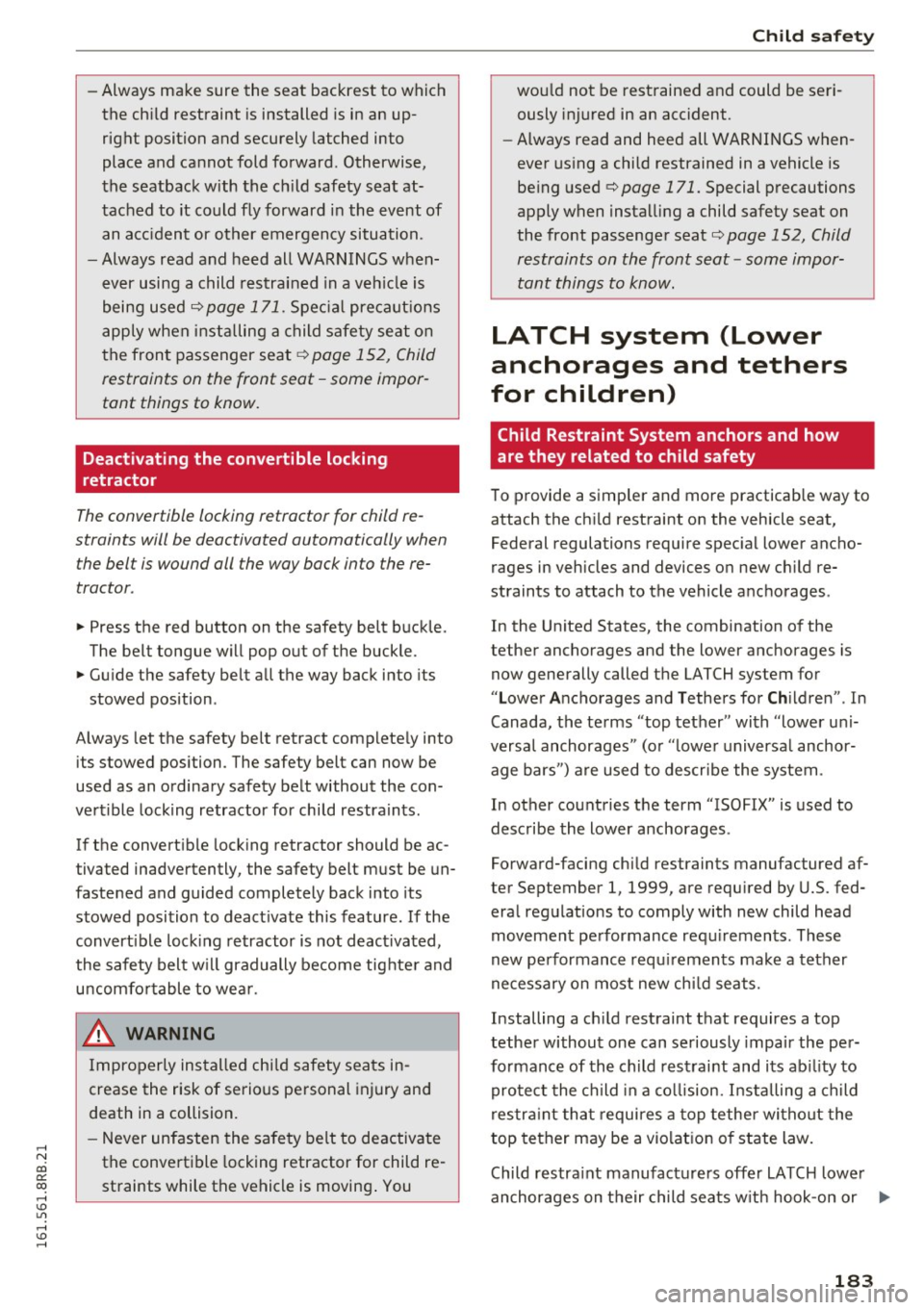

Deactivating the convertible locking
retractor
The convertible locking retractor for child re­
straints will be deactivated automatically when
the belt is wound all the way back into the re­
tractor .
~ Press the red button on the safety belt buckle.
The belt tongue will pop out of the buckle.
~ Guide the safety belt all the way back into its
stowed position .
Always let the safety belt retract completely into
its stowed position. The safety belt can now be
used as an ordinary safety belt without the con­
vertible locking retractor for child restraints.
If the convertible locking retractor should be ac­
tivated inadvertently, the safety belt must be un­
fastened and guided completely back into its
stowed position to deact ivate this feature. If the
convert ible locking retractor is not deactivated,
the safety belt w ill gradually become tighter and
uncomfortable to wear.
_& WARNING
-
Improperly installed chi ld safety seats in­
crease the risk of serious personal injury and
death in a collision.
- Never unfasten the safety belt to deactivate
the convertible locking retractor for child re­
straints while the vehicle is moving . You
Child safety
would not be restrained and could be seri­
ously injured in an accident.
- Always read and heed all WARNINGS when­
ever using a child restrained in a vehicle is
be ing used
¢page 171. Special precautions
apply when installing a child safety seat on
the front passenger seat
¢ page 152, Child
restraints on the front seat -some impor­
tant things to know.
LATCH system (Lower
anchorages and tethers
for children)
Child Restraint System anchors and how
are they related to child safety
To provide a simpler and more practicab le way to
attach the child restraint on the vehicle seat,
Federal regulations require special lower ancho­
rages in vehicles and devices on new child re­
straints to attach to the vehicle anchorages .
In the United States, the combination of the
tether anchorages and the lower anchorages is
now generally called the LATCH system for
"Lower Anchorages and Tethers for Children". In
Canada, the terms "top tether" with "lower uni­
versa l anchorages" (or "lower universal anchor­
age bars") are used to descr ibe the system .
In other countries the term "ISOFIX" is used to
describe the lower anchorages .
Forward-facing child restraints manufactured af­
ter September 1, 1999, are required by U.S. fed­
eral regulations to comply with new child head
movement performance req uirements. These
new performance requirements make a tether
necessary on most new ch ild seats.
Installing a child restraint that requires a top
tethe r without one can seriously impair the per­
formance of the child restraint and its ab ility to
protect the child in a collision. Installing a child
restra int that requi res a top tether without the
top tether may be a violation of state law.
Child restraint manufacturers offer LATCH lower
anchorages on their child seats w ith hook-on or ..,.
183

Child safety
push-on connectors attached to adjustable
straps.
I n addition to the LATCH lower anchorages, these
chi ld restraint systems usually require the use of
tether straps to he lp keep the child restraint
firm ly in place.
A WARNING
Improper installation of child restraints will
increase the risk of injury and death in a
crash.
- Always follow the instructions provided by
the manufacturer of the child restraint you intend to install in your veh icle.
- Never install a child restraint without a properly attached top tether strap if the
child restraint manufacturer's instruct ions
requ ire the top tether strap to be used.
- Improper use of child restra int LATCH lower
anchorage points can lead to injury in a colli­
s ion . The LATCH lower anchorage points are
designed to withstand on ly those loads im­
posed by cor rect ly fitted child restraints .
- Never mount two child restraint systems on
one LATCH lower anchorage point.
- Never secure or attach any luggage or other
item to the LATCH lower anchorages.
Location
Fig. 178 Schematic overview : LA TCH anchorage point loca­
t ions
The illustration shows the seating locatio ns in
your veh icle which are equipped with the lower
anchorages system.
184
Description
The lower anchorage positions are marked for
quick locating .
Fig. 179 Lower anchorages, covers marked
Fig . 180 Rear seats: lower anchorage bracket locat ions
L o wer anch ora g es
The lower ancho rage attac hment po ints are lo­
cated between the rear seatback and rear seat cushion .
Remove the covers
c:::> fig. 179 to access the lower
an chorage at tachme nt points.
The lower anchorage attachment po ints are v is i­
ble
c:::> fig. 180.
Lower anchorages secure the child restra int in
the seat without using the vehicle's safety belts .
Anchorages prov ide a secure and easy-to-use at­
tachment and minimize the possib ility of improp­
er child restraint installat io n.
All child restra ints manufactured after Septem­
ber 1, 2002, must have lower anchorage attach­
ments fo r the
LATCH system.
Remember that the lower anchorage points are
only intended for installation and attachment of
ch ild rest raints spec ifically certif ied for use wi th
LATCH lower a ncho rages. Child restra ints that .,.

..... N
co ~ CX)
..... I.Cl U"I
..... I.Cl .....
are not equipped with the lower anchorage at ­
tachments can still be installed in compliance
with the child restra int manufacturer 's instruc ­
tions on using vehicle safety belts.
A WARNING
Improper use of LATCH lower anchorages can
cause serious personal injury in an accident.
- Always carefully follow the child restra ints
manufacturer's instructions for proper in­
stallation of the child restra int and proper
use of the lower anchorages or safety be lts
in you r vehicle.
- Never secure or attach any luggage or other
items to the
LATCH lower anchorages .
-Always read and heed the important infor­ mation about child restraints in this chapter
and WARN INGS
¢page 171, Child safety.

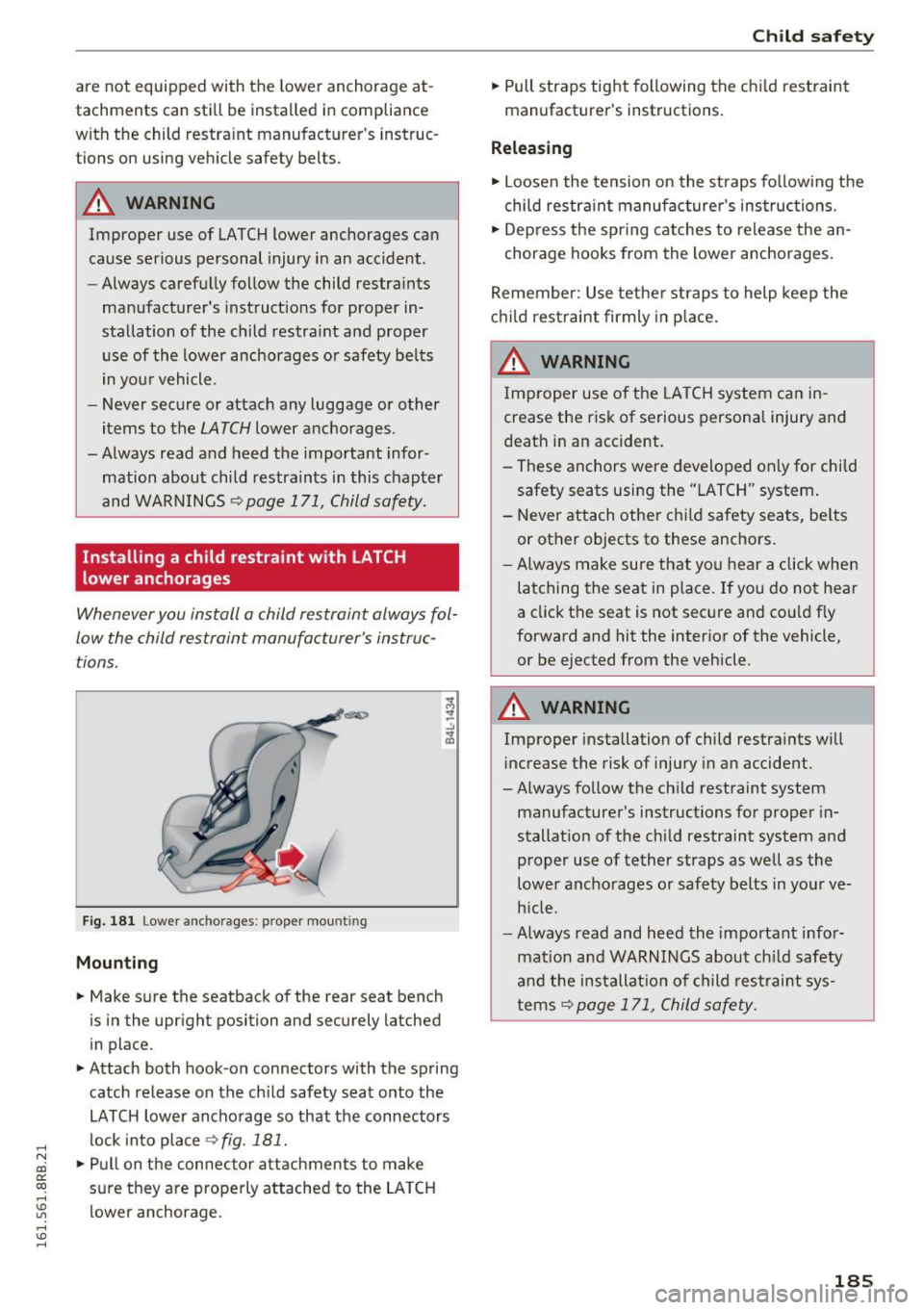

Installing a child restraint with LATCH
lower anchorages
Whenever you install a child restraint always fol­
low the child restraint manufacturer's instruc­
tions.
F ig. 181 Lower anchorages: proper mounting
Mounting
• Make sure the seatback of the rear seat bench
is in the upright position and securely latched
in place.
• Attach both hook-on connectors with the spring
catch re lease on the ch ild safety seat onto the
LATCH lower anchorage so that the connectors
lock into place
r=;, fig. 181 .
•Pullon the connector attachments to make
sure they a re properly attached to the LA TCH
lower anchorage.
Ch ild sa fety
• Pull straps tight following the chi ld restraint
manufacturer's instructions.
Releasing
• Loosen the tension on the straps fo llow ing the
child restra int manufacture r's ins tructions.
• Depress the spr ing catches to release the an­
chorage hooks from the lower anchorages.
Remember: Use tethe r straps to help keep the
c hi ld rest raint firmly in p lace.
A WARNING ~
I mproper use o f the LA TCH system can in -
crease the risk of serious personal injury a nd
death i n an accident.
- These anchors were developed only for child safety seats using the "LATCH" system.
- Never attach other chi ld safety sea ts, be lts
or other objects to these anchors .
- Always make sure that yo u hear a click whe n
latching the seat in place. If you do not hear
a click the seat is not sec ure and co uld f ly
forward and hit the interior of the vehicle,
or be ejected from the vehicle.
A WARNING .
Improper installation of child restra ints w ill
i nc rease the risk of injury in an accident.
-A lways follow the child restraint system
manufacturer's instructions for proper in­
stallat ion of the chi ld restraint system and
proper use of tether straps as well as the lowe r anchorages or safety belts in yo ur ve­
h icle.
- Always read and heed the important info r­
mat ion and WARNINGS about ch ild safety
an d the ins tallat io n of child restrai nt sys­
tems
r=;, page 171, Child safety.
185

Child safety

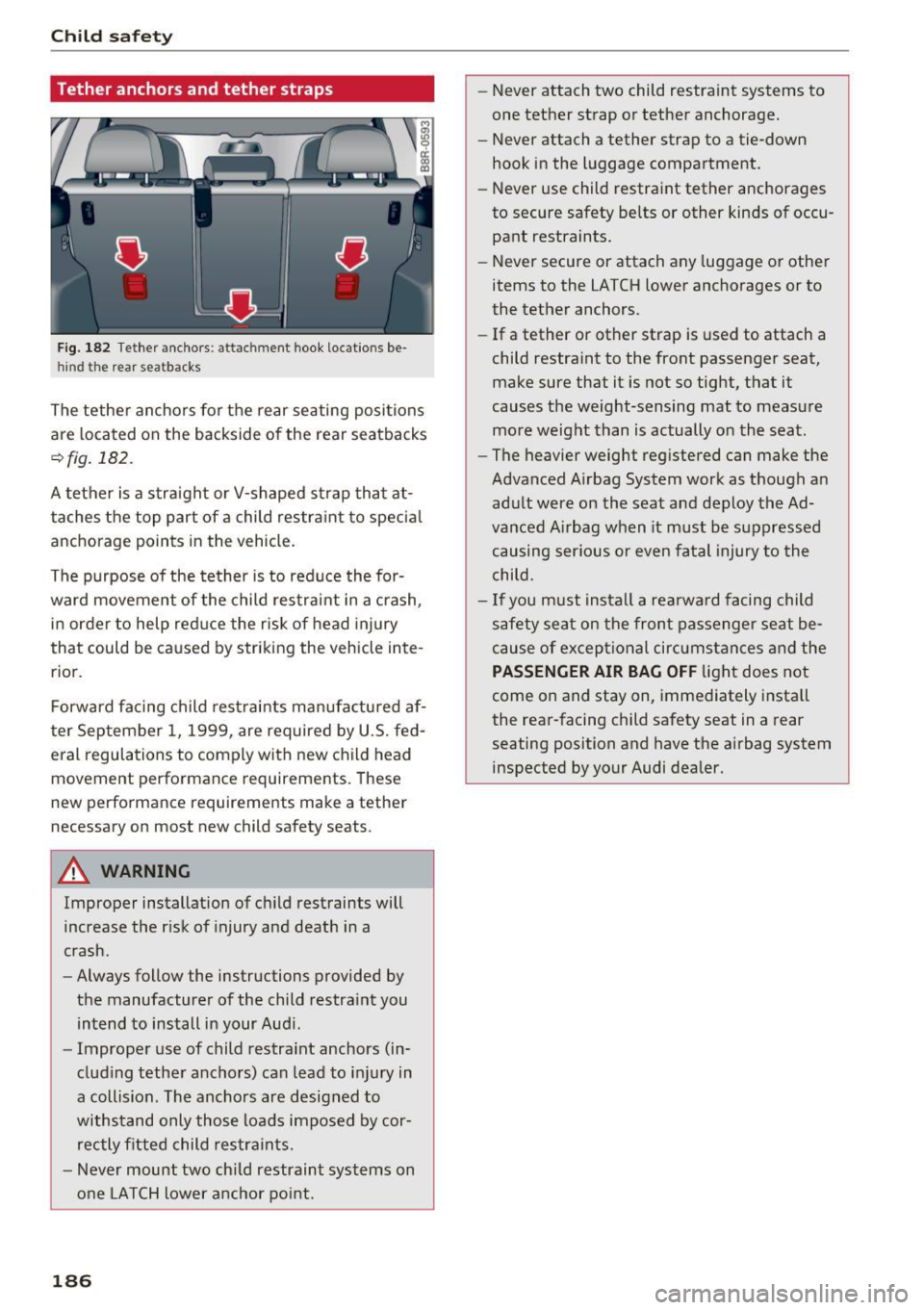

Tether anchors and tether straps
Fig. 182 Tether anchors: attachm ent hook locatio ns be­
hind the rear seatbacks
The tether anchors fo r the rear seating positions
are located on the backside of the rear seatbacks
~ fig. 182 .
A tether is a stra ight or V-shaped strap tha t at­
taches the top part of a child restra int to speci al
anchorage points in the vehicle.
The purpose of the tether is to red uce the for­
ward movement of the child restraint in a crash,
in order to help red uce the risk of head injury
that could be caused by strik ing the vehicle inte­
rior.
Forward fac ing child restraints manufactured af ­
ter September 1, 1999, are required by U.S. fed­
eral regulations to comply with new child head
movement performance requirements. These
new perfo rmance requirements make a tethe r
necessary on most new child safety seats.
A WARNING
Improper installation of ch ild restraints will
increase the r isk of injury and death in a
crash.
- Always follow the instructions provided by
the manufacturer of the child restra int you
intend to install i n your Audi .
- Improper use of child restra int anchors (in­
clud ing tether anchors) can lead to inj ury in
a collision . The ancho rs are designed to
withs tand only those loads imposed by cor­
rectly fitted child restra ints.
- Never mount two chi ld restraint systems on
one LATCH lower a nchor po int.
186
- Never attach two child restraint systems to
one tether strap or tether anchorage.
- Never attach a tether strap to a tie-down
hook in the luggage compartment .
-Never use child restraint tether anchorages
to secure safety be lts or other kinds of occu­
pant restraints.
- Never secure or attach any luggage or othe r
items to the LATCH lower anchorages or to
the tether anchors.
- If a tether or other strap is used to attach a
child restraint to the front passenger seat,
make sure that it is not so tight, that it
causes the weight-sensing mat to measu re
more weight than is actually on the seat.
- The heavier weight reg istered can make the
Advanced A irbag System wor k as though a n
adu lt were on the seat and deploy the Ad­
vanced Ai rbag when it must be suppressed
causing ser ious o r even fatal injury to the
child .
-If you must install a rea rwa rd facing child
safety seat on the front passenger seat be­
cause of excep tio nal circ ums tances a nd the
PASSENGER AIR BAG OF F light does not
come on and stay on, immediately install
the rea r-facing child safety seat in a rear
seating position and have the airbag system
inspected by your Audi dea ler.

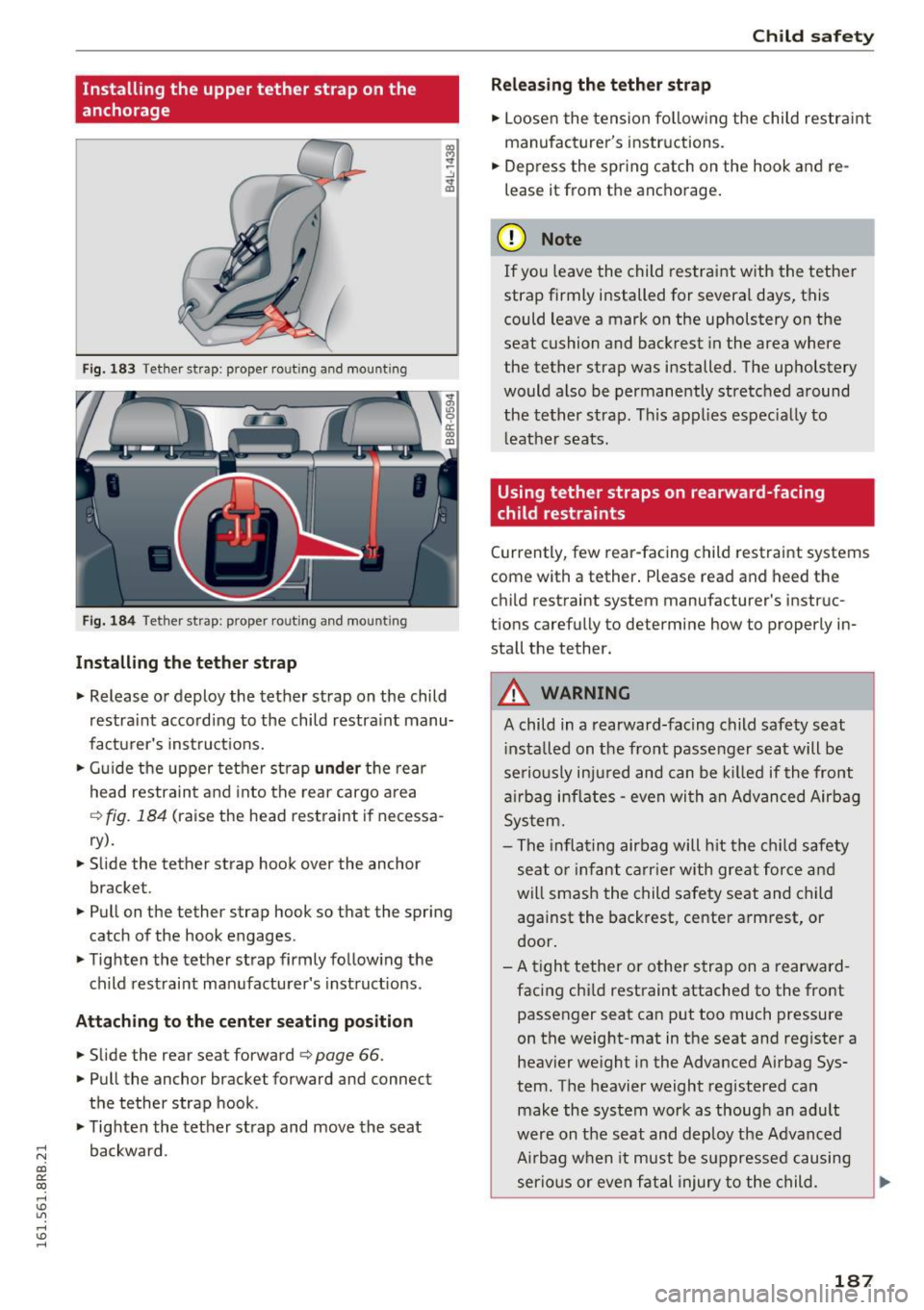

Installing the upper tether strap on the
anchorage
Fig. 183 Tether strap: proper rout ing and mount ing
Fig. 184 Tether strap: proper ro utin g and mo untin g
Inst all ing th e teth er str ap
.,. Release or deploy the tether strap on the child
restra int according to the child restra int manu­
factu rer's instruct ions.
.,. Gu ide the upper tether st rap
und er the rear
head restra int and into the rear cargo a rea
¢ fig. 184 (raise the head restraint if necessa­
ry) .
.,. Slide the tether strap hook over the anchor
bracket .
.,. Pull on the tether strap hook so that the spring
catch of the hook engages.
.,. Tighten the tether strap firmly follow ing the
child restraint manufacturer's instruct ions.
Atta ching to the center seating p osition
.,. Slide the rear seat forward c> page 66.
.,. Pull the anchor bracket forward and connect
the tether strap hook .
.,. Tighten the tether strap and move the seat
;::: backward .
co ~ CX)
rl I.Cl U"I
rl I.Cl rl
Child sa fety
R elea sing the teth er str ap
.,. Loosen the tension following the child restra int
manufacturer's instructions .
.,. Depress the spring catch on the hook and re­
lease it from the anchorage.
(D Note
If you leave the child restraint with the tether
strap firmly installed for several days, this
could leave a mark on the upholstery on the
seat cushion and backrest in the area where
the tether strap was installed . The upholstery
would also be permanently stretched around
the tether strap . T his applies espec ially to
l eather seats.
'
Using tether straps on rearward-facing
child restraints
Currently, few rear-facing child restraint systems
come with a tether . Please read and heed the
child restraint system manufacturer's instruc­
tions carefully to determine how to properly in­
stall the tether.
_&. WARNING ~
A child in a rearward-facing child safety seat i nsta lled on the front passenger seat will be
se riously inju red and can be ki lled if the front
a ir bag inflates - even wi th an Advanced Airbag
Sys tem.
- The inflating airbag will h it the ch ild safety
seat o r infant carr ier with great force and
will smash the child safety seat and child against the backrest, cente r armrest, or
door .
- A t ight tether or other strap on a rearward ­
facing chi ld restraint attached to the front
passenger seat can put too much pressure
on the weight-mat in the seat and register a
heavier weight in the Advanced Airbag Sys­
tem. The heavier weight registered can
make the system work as thoug h an adu lt
were on the seat and deploy the Advanced Ai rbag when it must be suppressed causing
serio us or eve n fatal injury to the child. .,..
18 7

Child safet y

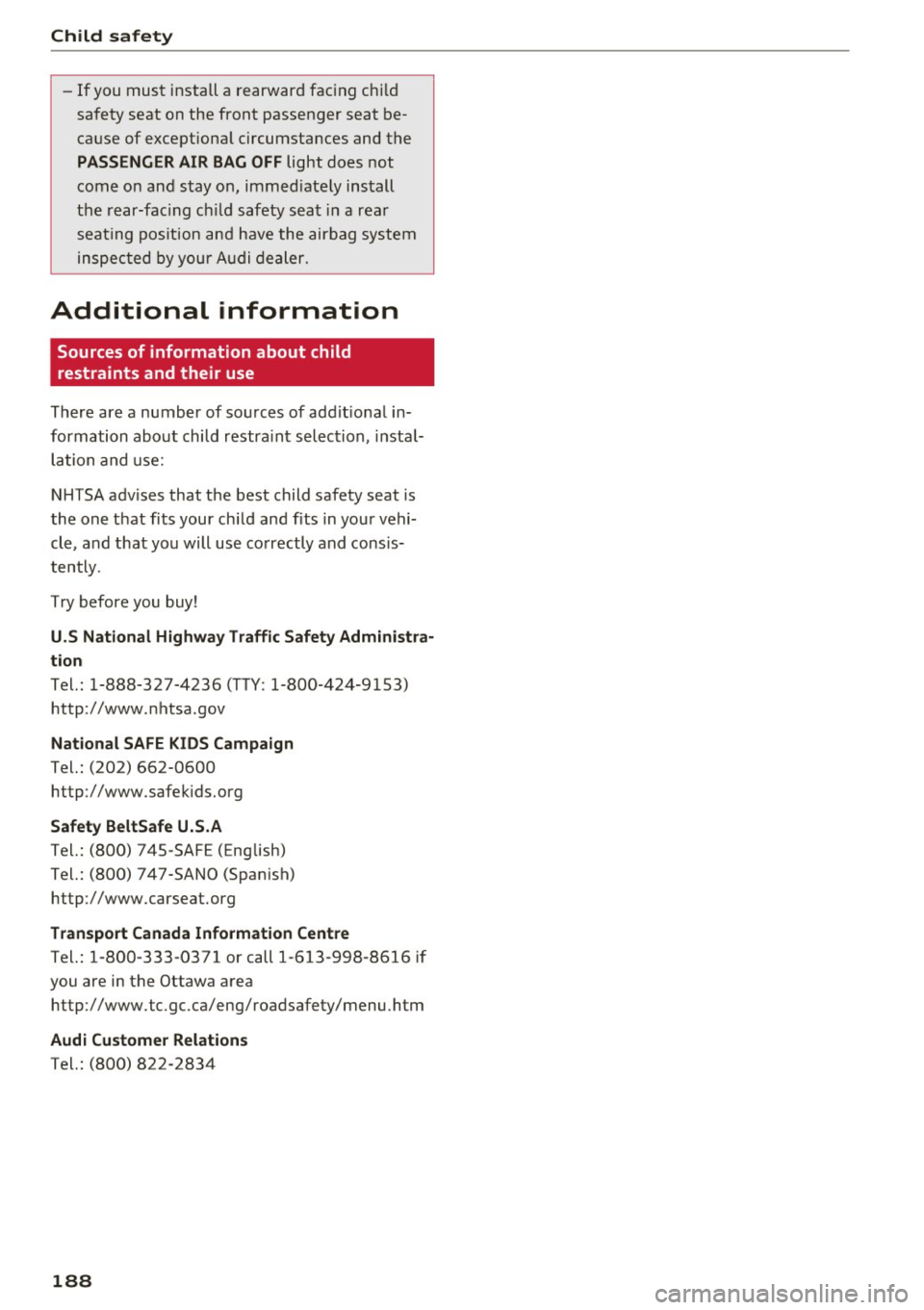

-If you must install a rearward facing ch ild
safety seat on the front passenger seat be­
cause of exceptiona l circumstances and the
PASSENGER AIR BAG OFF light does not
come on and stay on, immed iate ly install
the rear-fac ing ch ild safety seat in a rear
seat ing pos ition and have the airbag system
inspec ted by your A udi dealer.
Additional information
Sources of information about child
restraints and their use
There are a number of so urces of addit io nal in­
formation about child restra int selection, insta l­
lation and use:
NHTSA advises that the best child safety seat is
the one that fits your ch ild and fits in you r vehi­
cle, and that yo u will use co rrectly and consis­
t ently.
Try before you buy!
U.S National Highw ay Traffic Safety Administra­
tion
Tel.: 1-888-327-4236 (TTY : 1-800-424-9153)
http :/ /www.nhtsa .gov
National SAFE KIDS Campaign
Tel.: (202) 662-0600
http ://www.safek ids.org
Safety BeltSafe U.S.A
Tel.: (800) 745 -SAFE (English)
Tel.: (800) 747-SANO (Span ish)
http ://www.carseat.org
Transport Canada Information Centre
Tel.: 1-800-333-0371 or call 1 -613 -998 -8616 i f
you are in the Ottawa a rea
http ://www.tc.gc.ca/ eng/roadsafety/menu .htm
Audi Customer Relation s
Tel.: (800) 822-2834
188
