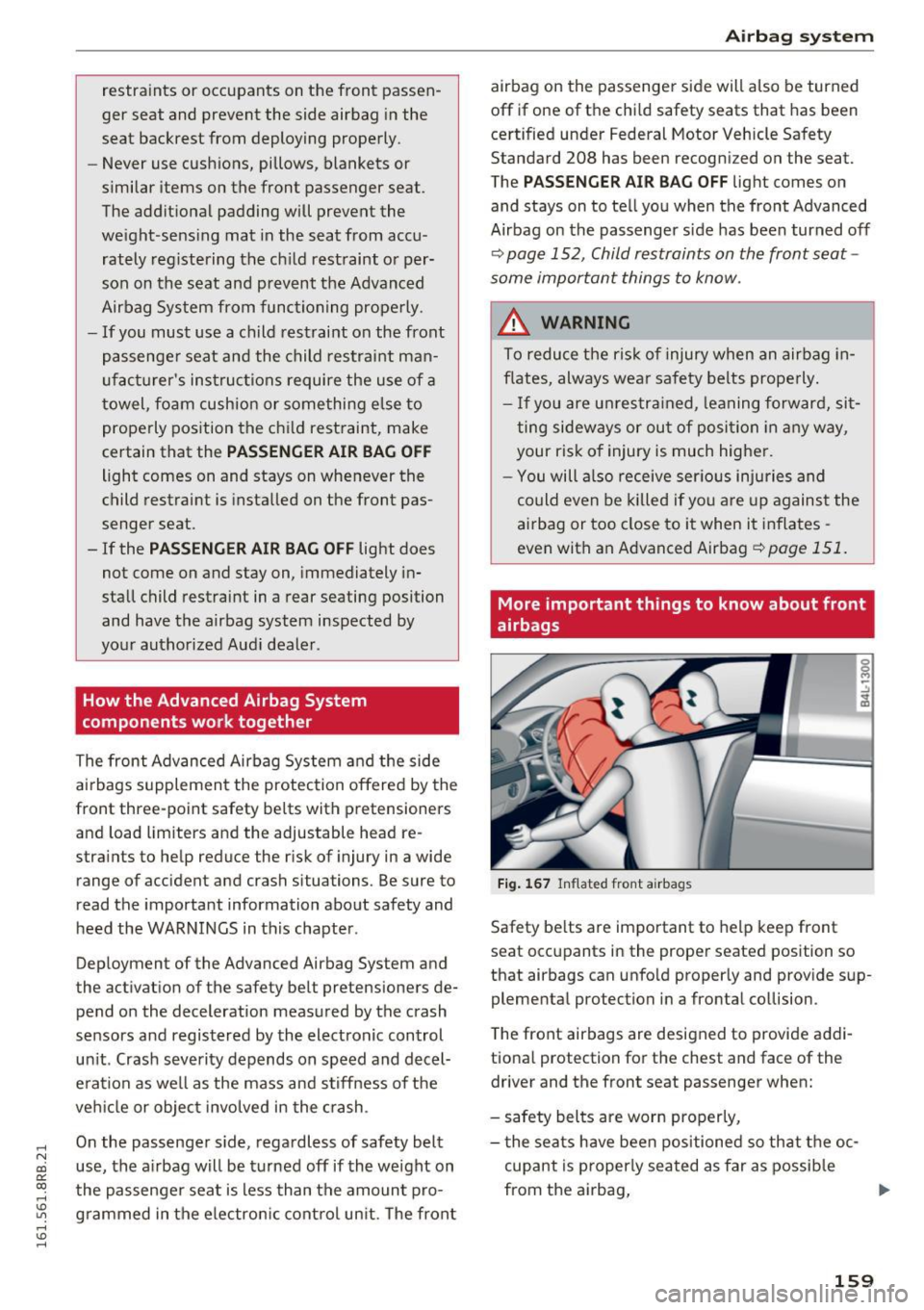

restraints or occupants on the front passen­
ger seat and prevent the side airbag in the
seat backrest from deploying properly.
- Never use cushions, pillows, blankets or
similar items on the front passenger seat.
The additional padding will prevent the
weight-sensing mat in the seat from accu­
rately registering the child restraint or per­
son on the seat and prevent the Advanced
Airbag System from functioning properly .
- If you must use a child restraint on the front passenger seat and the child restraint man­
ufacturer's instructions require the use of a
towel, foam cushion or something else to
properly position the child restraint, make
certain that the
PASSENGER AIR BAG OFF
light comes on and stays on whenever the
child restraint is installed on the front pas­
senger seat.
- If the
PASSENGER AIR BAG OFF light does
not come on and stay on, immediately in­
stall child restraint in a rear seating position
and have the airbag system inspected by
your authorized Audi dealer .
How the Advanced Airbag System
components work together
The front Advanced Airbag System and the side
airbags supplement the protection offered by the
front three-point safety belts with pretensioners
and load limiters and the adjustable head re­
straints to help reduce the risk of inju ry in a wide
range of accident and crash situations. Be sure to
read the important information about safety and
heed the WARNINGS in this chapter.
Deployment of the Advanced Airbag System and
the act ivation of the safety be lt pretensioners de­
pend on the deceleration measured by the crash
sensors and regis tered by the electronic control
unit . Crash severity depends on speed and decel­
eration as well as the mass and stiffness of the
vehicle or object involved in the crash .
On the passenger side, regardless of safety belt
use, the airbag will be turned off if the weight on
the passenger seat is less than the amount pro­ grammed in the elect ronic control unit. The front
Airbag system
airbag on the passenger side will also be turned
off if one of the child safety seats that has been
certified under Federal Motor Vehicle Safety
Standard 208 has been recognized on the seat.
The
PASSENGER AIR BAG OFF light comes on
and stays on to tell you when the front Advanced
Airbag on the passenger side has been turned off
q page 152, Child restraints on the front seat -
some important things to know .
_&. WARNING
To reduce the risk of injury when an airbag in­
flates, always wear safety belts properly.
- If you are unrestrained, leaning forward, sit­
ting sideways or out of position in any way,
your risk of injury is much higher.
- You will also receive serious injuries and
could even be killed if you are up against the
airbag or too close to it when it inflates -
even with an Advanced Airbag
qpage 151.
More important things to know about front
airbags
Fig. 167 Inflated front airbags
Safety belts are important to help keep front
seat occupants in the proper seated position so
that airbags can unfold properly and provide sup­
plemental protection in a frontal collision .
The front airbags are designed to provide addi­
tional protection for the chest and face of the
driver and the front seat passenger when:
- safety belts are worn properly,
- the seats have been positioned so that the oc-
cupant is properly seated as far as possible
from the airbag, ..,.
159

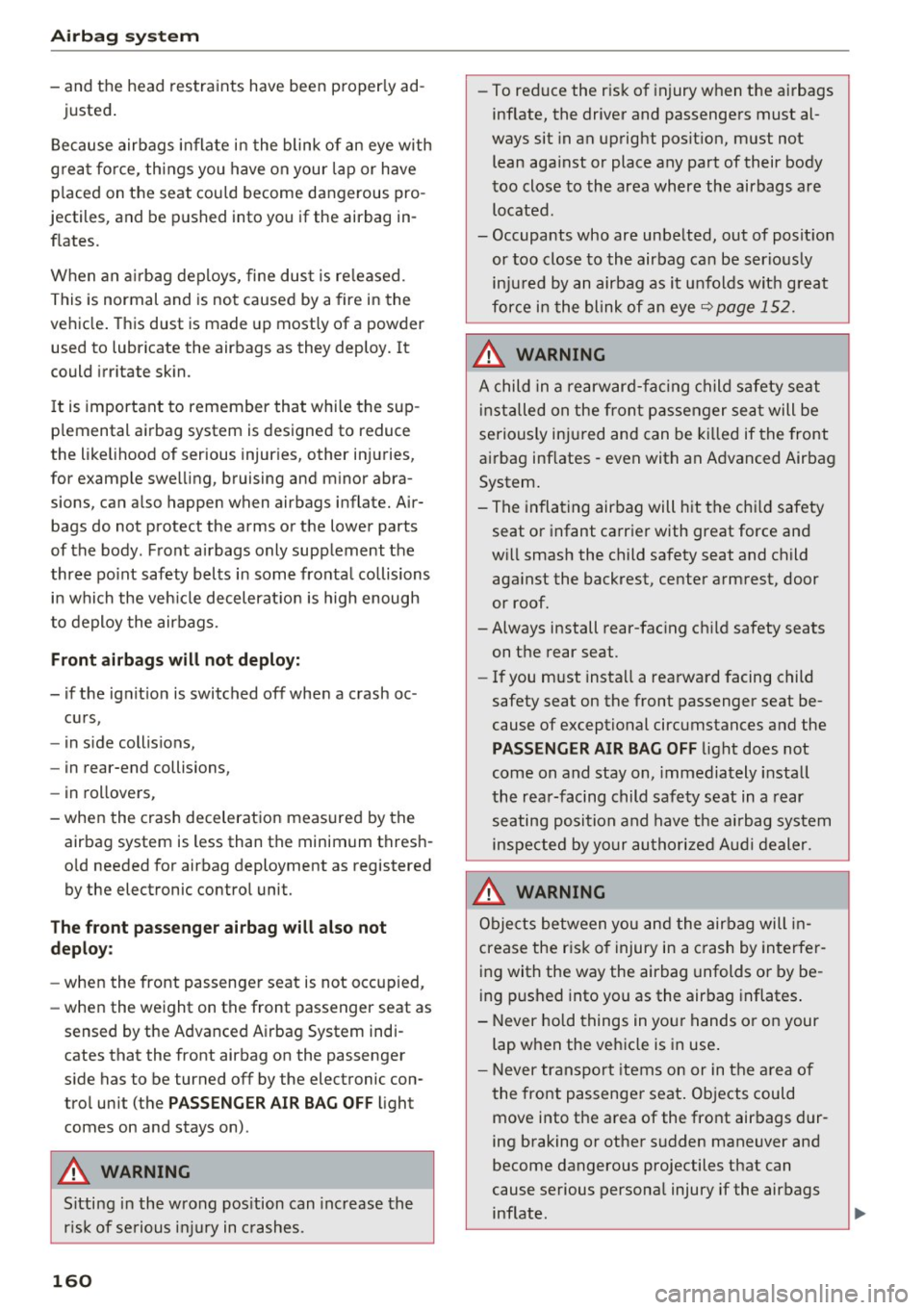

Airbag syste m
-and the head restraints have been properly ad -
justed .
Because airbags i nflate i n the blink of an eye w ith
g reat for ce, th ings you have on your lap or have
p laced on the seat cou ld become dangerous pro ­
jectiles, and be pushed into you if the airbag in­
flates .
When an a irbag deploys, fine dus t is re leased.
This is normal and is not caused by a fire in the
vehicle . This dust is made up mostly of a powder
used to lubricate the airbags as they deploy. It
could irr itate sk in.
It is important to remember that whi le the sup ­
p lemental airbag system is designed to reduce
the likelihood of serious injur ies, other in juries,
for example swelling, bruising and m inor abra­
sions, can also happen when airbags inflate. Air­ bags do not protect the arms or the lower parts
of the body . Front airbags only supplement the
three po int safety belts in some fronta l co llisions
i n which the veh icle decelerat ion is high enough
to deploy the airbags.
Fr ont airbags w ill not deploy:
- if the ignit ion is switched off when a crash oc -
curs ,
- in s ide collisions,
- in rear-end collisions,
- in rollovers,
- when the crash decelerat ion measured by the
airbag system is less than the minimum thresh­
o ld needed for airbag deployment as registered
by the electronic control unit.
The front pass eng er airbag will also not
depl oy :
- when the front passenger seat is not occupied,
- when the weight on the front passenger seat as
sensed by the Advanced A irbag System indi­
cates that the front airbag on the passenger
s ide has to be turned off by the electronic con­
trol unit (the
PAS SENGER AIR B AG OFF light
comes on and stays on) .
A WARNING
Sitting in the wrong pos ition can increase the
r is k of se rious i njury in c rashes.
160
- To reduce the risk o f injury when the airbags
inflate, the driver and passengers must al­
ways sit in an upright position, must not
lean aga inst or place any part of their body
too close to the area where the airbags are
located.
- Occupants who are unbelted, out of posit ion
or too close to the airbag can be serious ly
in ju red by an airbag as it unfolds wit h great
force in the blink of an eye r=;,
page 152.
A WARNING
A child in a rearward-fa cing child safety seat
installed on the front p assenger sea t will be
seriously injured and can be killed if the front
airbag inflates -even with an Advanced Airbag
System.
- The inflating airbag will hit the chi ld safety
seat o r infant ca rrier with great force and
w ill smash the child safety seat and child
aga inst the backrest, center a rmrest, door
or roof.
- Always install rear-fac ing ch ild safety seats
on the rear seat.
- If you must insta ll a rearwa rd facing child
safety seat on the front passenger seat be­
cause of exceptional circumstances and the
PAS SENGER AIR BAG OFF light does not
come on and stay on, immediately install
the rea r-facing child safety seat in a rear
seating position and have the ai rbag system
inspected by your au thori zed Au di d ealer.
A WARNING
Objects between you and the airbag will i n­
crease the r is k of injury in a crash by interfer­
ing with the way the airbag unfolds or by be ­
ing p ushed into you as the airbag inflates .
- Never hold things in yo ur hands o r on your
lap when the vehicle is in use .
- Never transport items on or in the area of
the front passenger seat . Objects could
move into the area of the front airbags dur­
ing braking or other sudden maneuver and
become dangerous projectiles that can
cause serious persona l injury if the airbags
inflate.

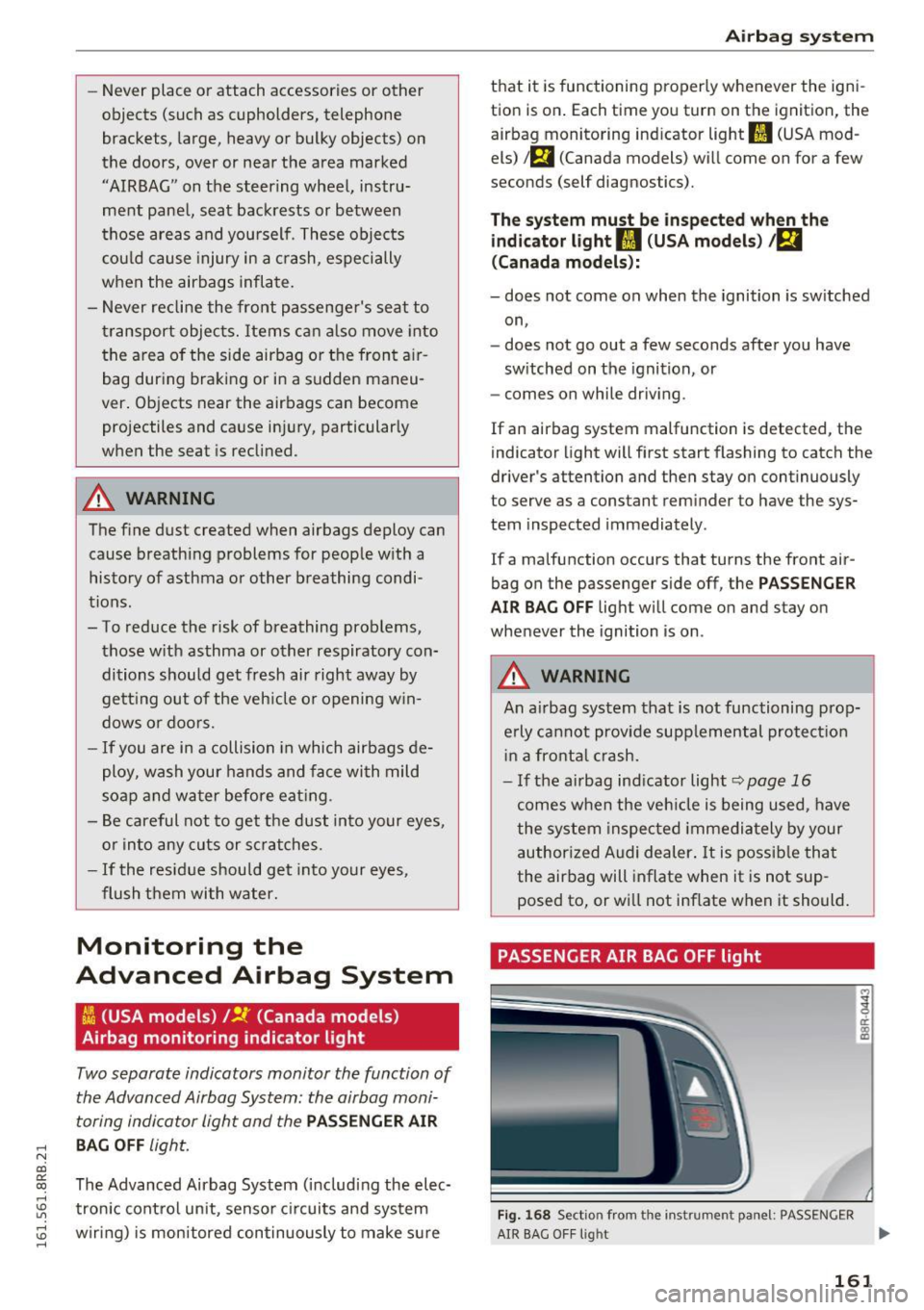

-Never place or attach accessories or o ther
objects (such as cupholders, telephone
brackets, la rge, heavy o r bulky objects) on
the doors, over or n ear t he area marked
"AIRBAG" on the steering wheel, instru­
ment pane l, seat backrests or between
those areas and you rself . These objects
c ou ld cause injury in a crash, especially
when the airbags inflate.
- Never re cline the front passenge r's seat to
t ransport objec ts. Items ca n also move into
the area of the side airbag o r th e fron t air ­
bag dur ing braki ng or i n a sudden maneu­
ver . Objects near the airbags can become
projectiles and cause injury, particularly
when the seat is reclined.
A WARNING
The fine dust created when airbags deploy can
cause breathing problems for people w ith a
history of asthma or other b reathing condi ­
t ions .
-To reduce the risk of breathing problems, those w ith asthma or other respiratory con­
ditions should get fresh air right away by
gett ing out of the veh icle o r opening w in­
dows o r doo rs.
- If you are in a collision in which airbags de­
ploy, wash your hand s and face wi th mild
s oa p and wa ter before eat ing .
- Be careful not to get the dust in to your eyes,
o r in to any cuts or s cratches.
- If the resid ue should ge t into yo ur eyes,
flush them with water.
Monitoring the
Advanced Airbag System
ti (USA models) / !f (Canada models)
Airbag monitoring indicator light
Two separate indicators monitor the function of
the Advanced Airbag System: the airbag moni­
toring indicator light and the
PASSENGER AIR
,... BAG OFF
light. N
co
~ The Advanced Airbag System ( includ ing the elec-,...
~ tro nic cont rol un it, senso r cir cui ts and system
~ w iri ng) is monitored continuously to make s ure ....
Airb ag sys tem
that it is functioning properly whenever the igni­
tion is on. Each time you turn on the ignition, the
airbag monitoring indicator light
II (USA mod­
els)
; E,I (Canada models) wi ll come on for a few
seconds (self diagnostics).
The system must be in spected when the
indicator light
ffl (USA models) t E,I
(Canada models ):
- does not come on when the ignition is sw itched
on,
- does not go out a few seconds after you have
sw itched on the igni tion, or
- comes on while driving .
If an airbag system malfunction is detected, the
indicator light will first start flashing to catch the
driver's attention and then stay on continuously
to serve as a constant reminder to have the sys­
tem inspected immediately.
If a malfunction occurs that turns the front air­
bag on the passenger side off, the
PASSENGER
AIR BAG OFF
lig ht will come on and stay on
whenever the ignition is on .
A WARNING
f-
An airbag system that is not functioning prop-
e rly cannot provide supplemental protect io n
in a fronta l crash.
-If the a irbag ind icator light~ page 16
comes when the veh icle is being used, have
the sy stem inspec ted imme dia tely by your
author ized Audi dealer. It is possi ble th at
the air bag will inflate when it is not sup ­
posed to, or w ill not inflate when it should.
PASSENGER AIR BAG OFF light
Fig. 1 68 Sectio n from the instrument panel: PASS ENGER
i a: CX)
"'
AIR SAG O FF light ...
161

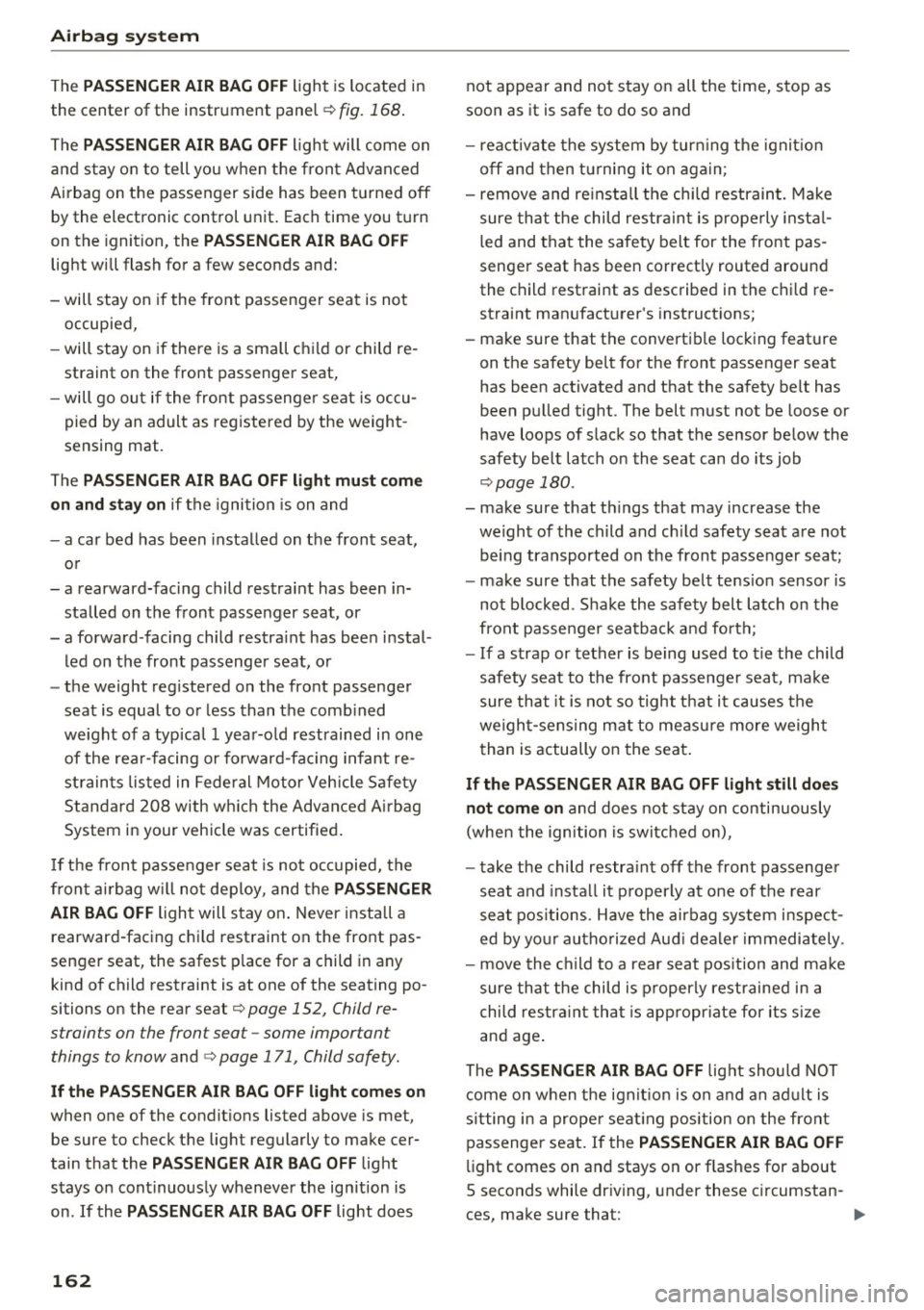

Airbag system
The PASSENGER AIR BAG OFF light is located in
the center of the instrument panel
r::;,fig. 168.
The PASSENGER AIR BAG OFF light will come on
and stay on to tell you when the front Advanced
Airbag on the passenger side has been turned off
by the electronic control unit. Each time you turn
on the ignition, the
PASSENGER AIR BAG OFF
light will flash for a few seconds and:
- will stay on if the front passenger seat is not
occupied,
-will stay on if there is a small child or child re­
straint on the front passenger seat,
- will go out if the front passenger seat is occu­
pied by an adult as registered by the weight­
sensing mat.
The
PASSENGER AIR BAG OFF light must come
on and stay on
if the ignition is on and
- a car bed has been installed on the front seat,
or
- a rearward-facing child restraint has been in­
stalled on the front passenger seat, or
- a forward-facing child restraint has been instal­
led on the front passenger seat, or
- the weight registered on the front passenger
seat is equal to or less than the combined
weight of a typical 1 year-old restrained in one
of the rear-facing or forward-facing infant re­
straints listed in Federal Motor Vehicle Safety
Standard 208 with which the Advanced Airbag
System in your vehicle was certified.
If the front passenger seat is not occupied, the
front airbag will not deploy, and the
PASSENGER
AIR BAG OFF
light will stay on. Never install a
rearward-facing child restraint on the front pas­
senger seat, the safest place for a child in any
kind of child restraint is at one of the seating po­
sitions on the rear seat
r::;, page 152, Child re­
straints on the front seat -some important
things to know
and <=> page 171, Child safety.
If the PASSENGER AIR BAG OFF light comes on
when one of the conditions listed above is met,
be sure to check the light regularly to make cer­
tain that the
PASSENGER AIR BAG OFF light
stays on continuously whenever the ignition is
on. If the
PASSENGER AIR BAG OFF light does
162
not appear and not stay on all the time, stop as
soon as it is safe to do so and
- reactivate the system by turning the ignition
off and then turning it on again ;
- remove and reinstall the child restraint. Make
sure that the child restraint is properly instal­
led and that the safety belt for the front pas­
senger seat has been correctly routed around
the child restraint as described in the child re­
straint manufacturer's instructions;
- make sure that the convertible locking feature
on the safety belt for the front passenger seat
has been activated and that the safety belt has
been pulled tight. The belt must not be loose or
have loops of slack so that the sensor below the
safety belt latch on the seat can do its job
c:::;,page 180.
-make sure that things that may increase the
weight of the child and child safety seat are not
being transported on the front passenger seat;
- make sure that the safety belt tension sensor is
not blocked. Shake the safety belt latch on the
front passenger seatback and forth;
- If a strap or tether is being used to tie the child
safety seat to the front passenger seat, make
sure that it is not so tight that it causes the
weight-sensing mat to measure more weight
than is actually on the seat.
If the PASSENGER AIR BAG OFF light still does
not come on
and does not stay on continuously
(when the ignition is switched on),
- take the child restraint off the front passenger
seat and install it properly at one of the rear
seat positions. Have the airbag system inspect­
ed by your authorized Audi dealer immediately .
- move the child to a rear seat position and make
sure that the child is properly restrained in a
child restraint that is appropriate for its size
and age.
The
PASSENGER AIR BAG OFF light should NOT
come on when the ignition is on and an adult is
sitting in a proper seating position on the front
passenger seat.
If the PASSENGER AIR BAG OFF
light comes on and stays on or flashes for about
5 seconds while driving, under these circumstan-
ces, make sure that:
1111>

,....,
N
co
er::
co

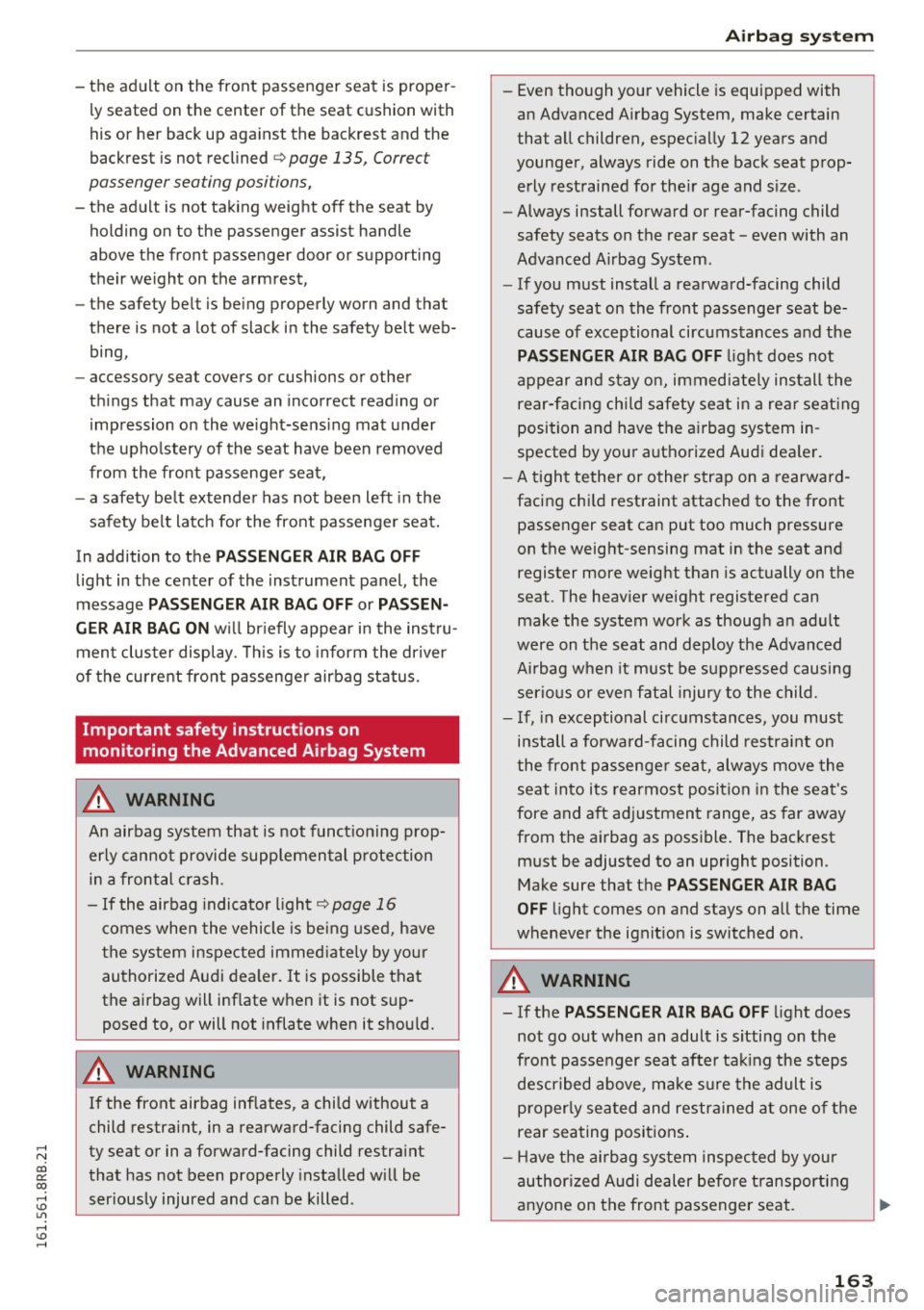

,...., -the adult on the front passenger seat is proper­
ly seated on the center of the seat cushion with
his or her back up against the backrest and the
backrest is not reclined
9 page 135 , Correc t
passenger seating positions,
- the adult is not taking weight off the seat by
holding on to the passenger assis t handle
above the front passenger door or suppor ting
their weight on the armrest,
- the safety bel t is being properly worn and that
there is not a lot of slack in the safety belt web­
bing,
- accessory seat covers or cushions or other
things that may cause an incorrect reading or
impression on the weight-sensing mat under
the upholstery of the seat have been removed
from the front passenger seat,
- a safety belt extender has not been left in the
safety belt latch for the front passenger seat.
In addition to the
PASSENGER AIR BAG OFF
light in the center of the instrument panel, the
message
PASSENGER AIR BAG OFF or PASSEN­
GER AIR BAG ON
will briefly appear in the instru­
ment cluster display . This is to inform the driver
of the current front passenger airbag status.
Important safety instructions on
monitoring the Advanced Airbag System
A WARNING
An airbag system that is not functioning prop­ erly cannot provide supplemental protection
in a frontal crash .
- If the airbag indicator light
9 page 16
comes when the vehicle is being used, have
the system inspected immediately by your
authorized Audi dealer. It is possible that
the airbag will inflate when it is not sup­
posed to, or will not inflate when it should.
A WARNING
If the front airbag inflates, a child without a
child restraint, in a rearward-facing child safe­
ty seat or in a forward-facing child restraint
that has not been properly installed will be
seriously injured and can be killed.
Airbag system
-Even though your vehicle is equipped with
an Advanced Airbag System, make certain
that all children, especially 12 years and
younger, always ride on the back seat prop­ erly restrained for their age and size .
- Always install forward or rear-facing child
safety seats on the rear seat -even with an
Advanced Airbag System .
- If you must install a rearward-facing child
safety seat on the front passenger seat be­
cause of exceptional circumstances and the
PASSENGER AIR BAG OFF light does not
appear and stay on, immediately install the
rear-facing child safety seat in a rear seating
position and have the airbag system in­
spected by your authorized Audi dealer.
-A tight tether or other strap on a rearward­
facing child restraint attached to the front passenger seat can put too much pressure
on the weight-sensing mat in the seat and
register more weight than is actually on the
seat . The heavier weight registered can
make the system work as though an adult
were on the seat and deploy the Advanced
Airbag when it must be suppressed causing
serious or even fatal injury to the child.
- If, in exceptional circumstances, you must
install a forward-facing child restraint on
the front passenger seat, always move the
seat into its rearmost position in the seat's
fore and aft adjustment range, as far away
from the airbag as possible. The backrest must be adjusted to an upright position .
Make sure that the
PASSENGER AIR BAG
OFF
light comes on and stays on all the time
whenever the ignition is switched on.
A WARNING
-- If the PASSENGER AIR BAG OFF light does
not go out when an adult is sitting on the
front passenger seat after taking the steps
described above, make sure the adult is
properly seated and restrained at one of the rear seating positions.
- Have the airbag system inspected by your
authorized Audi dealer before transporting
anyone on the front passenger seat.
163

Airbag system

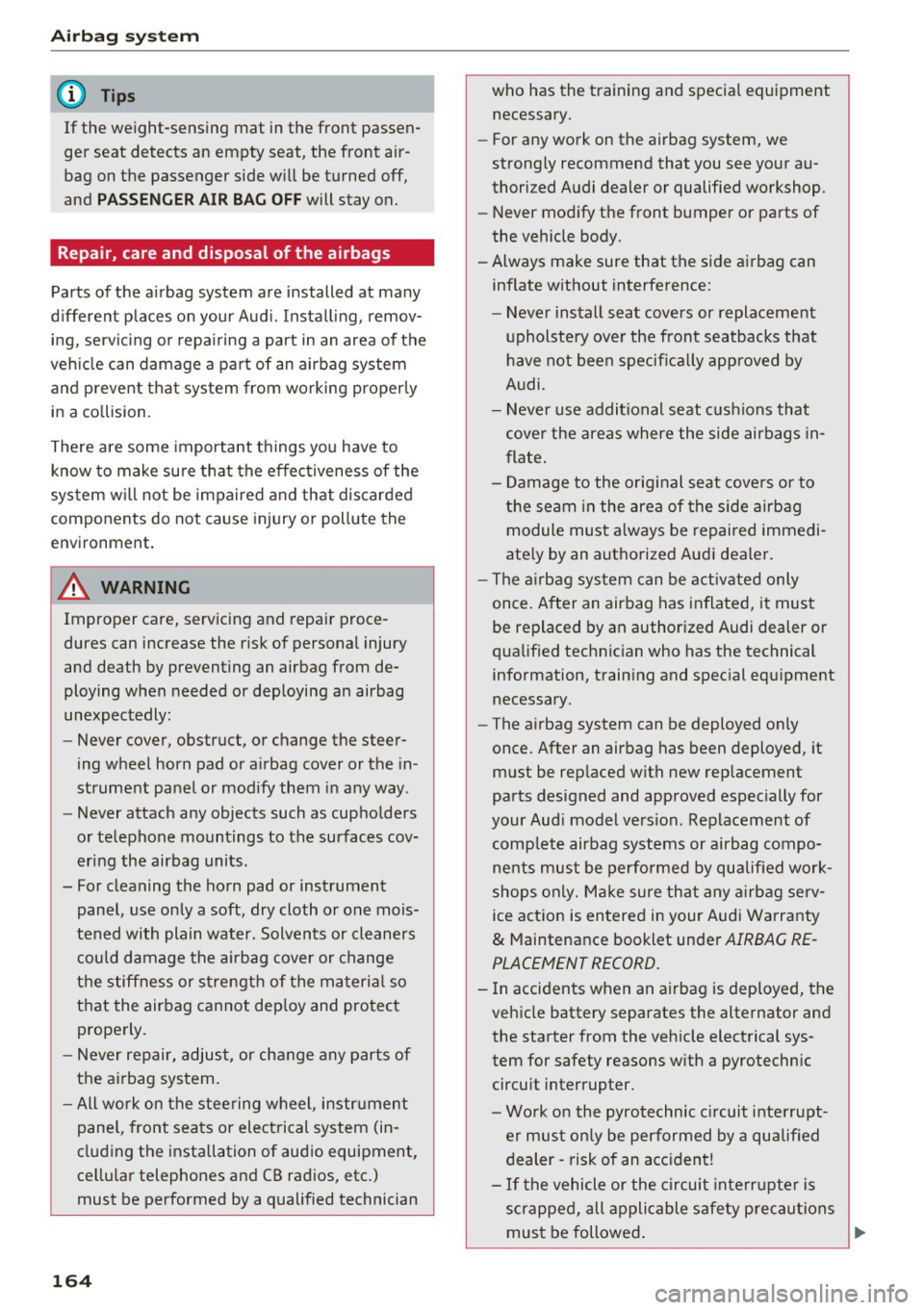

(D Tips
If the weight-sensing mat in the front passen­
ger seat detects an empty seat, the front air­
bag on the passenger side will be turned off,
and
PASSENGER AIR BAG OFF will stay on.
Repair , care and disposal of the airbags
Parts of the airbag system are installed at many
different places on your Audi. Installing , remov­
ing, servicing or repairing a part in an area of the
vehicle can damage a part of an airbag system and prevent that system from working properly in a collision.
There are some important things you have to
know to make sure that the effectiveness of the
system will not be impaired and that discarded
components do not cause injury or pollute the
environment.
A WARNING
Improper care, servicing and repair proce­
dures can increase the risk of personal injury
and death by preventing an airbag from de­
ploying when needed or deploying an airbag
unexpectedly:
-
- Never cover, obstruct, or change the steer­
ing wheel horn pad or airbag cover or the in­
strument panel or modify them in any way .
- Never attach any objects such as cupholders
or telephone mountings to the surfaces cov­
ering the airbag units.
- For cleaning the horn pad or instrument panel, use only a soft, dry cloth or one mois­
tened with plain water. Solvents or cleaners could damage the airbag cover or change
the stiffness or strength of the material so
that the airbag cannot deploy and protect properly.
- Never repair, adjust , or change any parts of
the airbag system.
- All work on the steering wheel, instrument
panel, front seats or electrical system (in­
cluding the installation of audio equipment,
cellular telephones and CB radios, etc.)
must be performed by a qualified technician
164
who has the training and special equipment necessary.
- For any work on the airbag system, we
strongly recommend that you see your au­
thorized Audi dealer or qualified workshop .
- Never modify the front bumper or parts of
the vehicle body.
- Always make sure that the side airbag can
inflate without interference:
- Never install seat covers or replacement
upholstery over the front seatbacks that
have not been specifically approved by
Audi .
- Never use additional seat cushions that
cover the areas where the side airbags in­
flate.
- Damage to the original seat covers or to
the seam in the area of the side airbag
module must always be repaired immedi­
ately by an authorized Audi dealer .
- The airbag system can be activated only
once . After an airbag has inflated, it must
be replaced by an authorized Audi dealer or
qualified technician who has the technical
information, training and special equipment
necessary.
- The airbag system can be deployed only
once . After an airbag has been deployed, it
must be replaced with new replacement
parts designed and approved especially for
your Audi model version. Replacement of complete airbag systems or airbag compo­
nents must be performed by qualified work­
shops only. Make sure that any airbag serv­
ice action is entered in your Audi Warranty
& Maintenance booklet under AIRBAG RE­
PLACEMENT RECORD.
- In accidents when an airbag is deployed, the
vehicle battery separates the alternator and
the starter from the vehicle electrical sys­
tem for safety reasons with a pyrotechnic
circuit interrupter.
- Work on the pyrotechnic circuit interrupt­
er must only be performed by a qualified
dealer - risk of an accident!
- If the vehicle or the circuit interrupter is
scrapped, all applicable safety precautions
must be followed.
llll-

..... N
co ~ CX)
..... I.Cl U"I
..... I.Cl .....

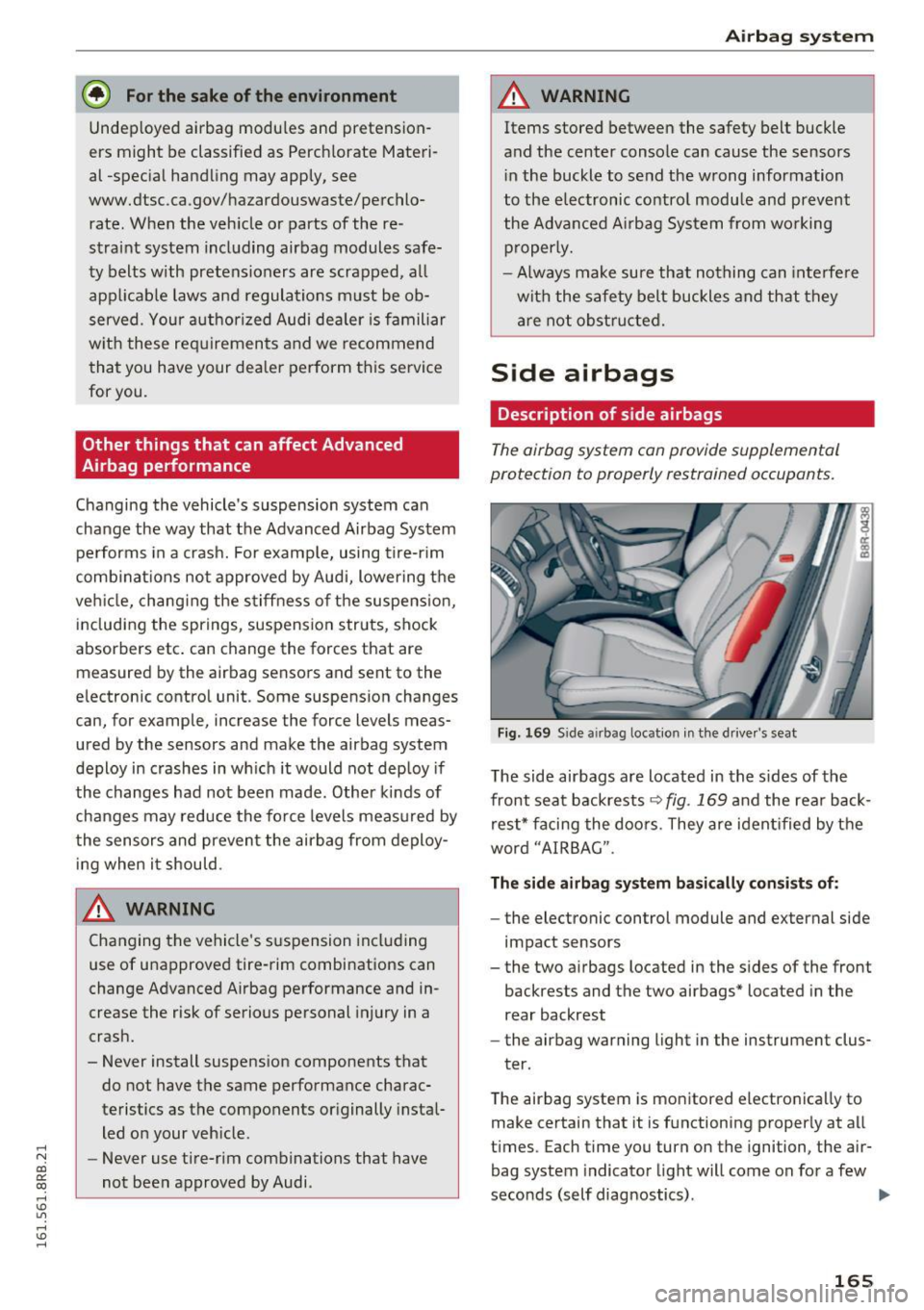

@ For the sake of the environment
Undep loyed airbag modu les and pretension­
ers might be classified as Perchlorate Materi­
al -special handling may apply, see
www.dtsc .ca.gov/hazardouswaste/perchlo­
rate . When the veh icle or parts of the re­
straint system including airbag modules safe­
ty belts with pretensioners are scrapped, all
app licable laws and regulations must be ob­
served. Your authorized Audi dealer is familiar
w ith these req uirements and we recommend
that you have your dealer perform this service
for you.
Other things that can affect Advanced
Airbag performance
Changing the vehicle's suspension system can
change the way that the Advanced Airbag System
pe rforms in a crash. For examp le, using tire-r im
comb inat ions not approved by Audi, lowering the
veh icle, chang ing the stiffness of the suspens ion,
including the springs, suspension struts, shock
absorbers etc . can change the forces that are
measured by the airbag sensors and sent to the
e lectronic control unit . Some suspension changes
can, for example, increase the force levels meas­
ured by the sensors and make the airbag system
deploy in crashes in wh ich it would not deploy if
the changes had not been made . Other kinds of
changes may reduce the fo rce levels measured by
the sensors and prevent the airbag from deploy­ ing when it should.
A WARNING
Changing the vehicle's suspension including
use of unapproved tire-rim combinations can
change Advanced Airbag performance and in­
crease the risk of serious personal injury in a
crash.
- Never install suspens ion components that
do not have the same performance charac­
teristics as the components or iginally instal­
led on your veh icle.
- Never use tire-rim combinations that have
not been approved by Audi.
Airb ag sys tem
A WARNING
-Items stored between the safety belt buckle
and the center console can cause the sensors
i n the buckle to send the w rong information
to the electronic contro l modu le and prevent
the Advanced A irbag System from wo rking
p roperly.
- Always make sure that nothing can interfe re
with the safety belt buckles and that they
are not obstructed.
Side airbags
Description of side airbags
The airbag system con provide supplemental
protection to properly restrained occupants.
Fig. 1 69 Side a irbag locatio n in the driver 's seat
T he side airbags are located in the s ides of the
front seat backrests
r='.> fig . 169 and the rear back­
rest* facing the doo rs. They are ident ified by t he
word "AIRBAG".
The si de airbag system ba sic ally con sis t s of:
- the electronic control module and external side
impact sensors
- the two a irbags located in the s ides of the front
backrests and the two airbags* located in the
rear backrest
- the airbag warning light in the instrument clus-
ter.
The airbag system is monitored electronica lly to
make certain that it is functioning proper ly at all
t imes . Each time you turn on the ignition, the a ir­
bag system indicator light w ill come on for a few
seconds (self diagnostics) .
Ill-
165

Airbag syste m

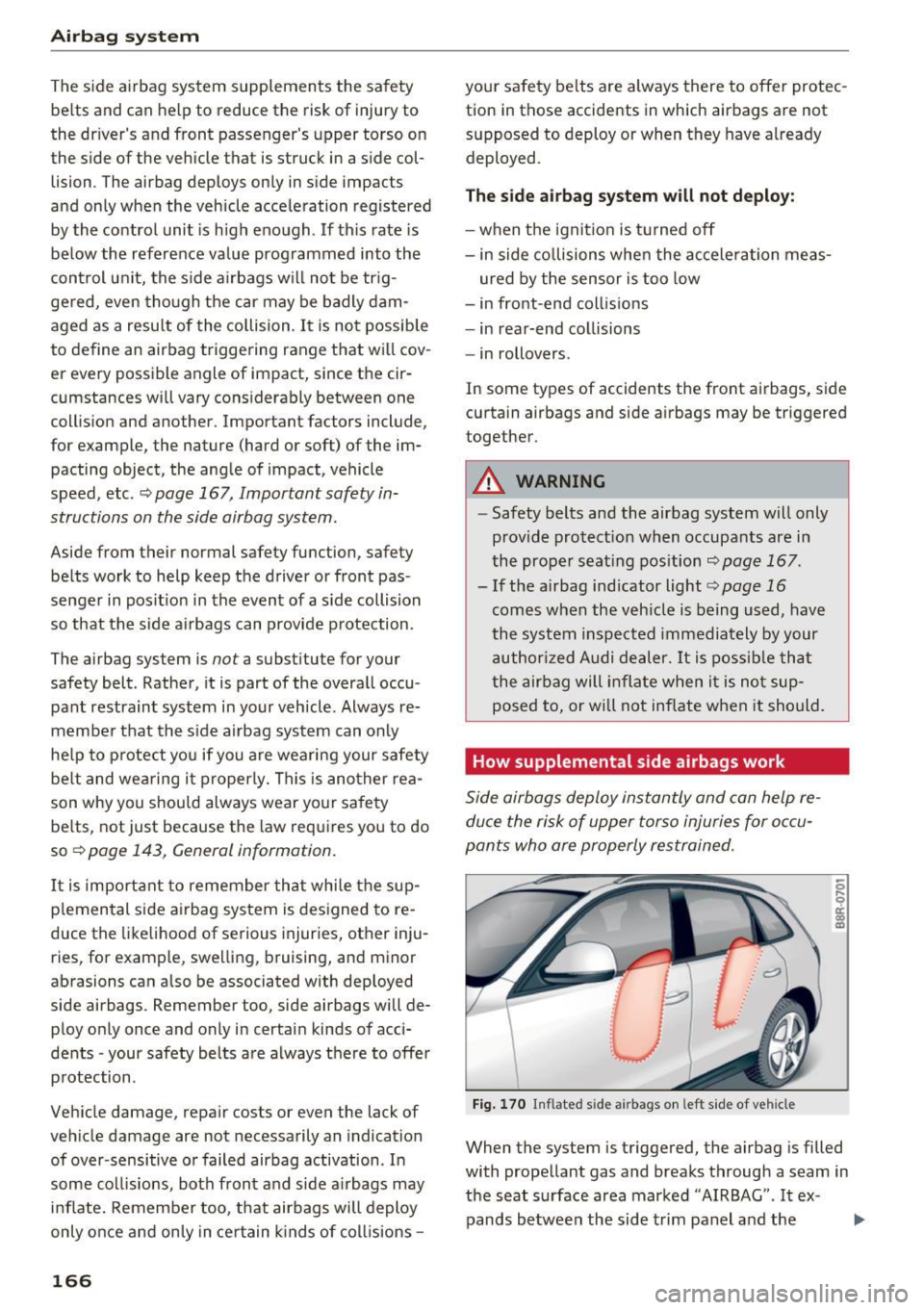

The side airbag system supplements the safety
belts and can help to reduce the risk of injury to
the driver's and front passenger's upper torso on
the side of the vehicle that is struck in a side col­
lision . The airbag deploys only in side impacts
and only when the vehicle acceleration registered
by the control unit is high enough . If this rate is
below the reference value programmed into the
control unit, the s ide a irbags wi ll not be tr ig­
gered, even tho ugh the car may be badly dam­
aged as a result of the collision. It is not possible
to define an airbag triggering range that will cov­
er every possible angle of impact, s ince the cir­
cumstances will vary cons iderably between one
coll is ion and another. Important factors include,
for example, the nature (hard or soft) of the im­ pacting object, the ang le of impact, vehicle
speed , etc.
r::;, page 167, Important safety in­
structions on the side airbag system .
Aside from their normal safety function, safety
belts work to help keep the driver or front pas ­
senger in pos it io n in the event of a s ide collision
so that the side a irbags can provide protection .
The airbag system is
not a subst itute for your
safety belt. Rathe r, it is part of the overa ll occu ­
pant restraint system in your vehicle . Always re­
member that the s ide airbag system can only
he lp to p rotect yo u if you are wea ring your safety
be lt and we aring it properly. This is ano ther rea­
son why you should always wear your safety
be lts, not just because the law requires you to do
so
r::;, page 143, General information.
It is important to remember that whi le the sup­
p lemental side a irbag system is des igned to re ­
duce the likelihood of serious injuries, other inju ­
ries , for example, swelling, bruising, and minor
abrasions can also be associated with deployed
side airbags . Remember too , side airbags will de­
ploy o nly once and only in certain kinds of acci­
dents -your safety belts are always there to offer
p rotection .
Veh icle damage, repa ir costs or even the lack of
veh icle damage are not necessarily an indication
of over -sensitive or failed airbag activation . In
some coll is ions, both front a nd side a irbags may
inflate. Remembe r too, that airbags will deploy
only once and only in ce rtain k inds of coll is ions -
166
your safety be lts are always there to offer protec­
tion in those accidents in which a irbags are not
supposed to deploy or when they have already
deployed .
The si de airbag system will not d eploy:
- when t he ign it ion is tu rned off
- in side co llisions whe n the accele ration meas-
ured by the sensor is too low
- in front-end collis ions
- in rear-end collisions
- in rollovers .
In some types of accidents the front airbags, side curtain airbags and side airbags may be triggered
together .
A WARNING
--Safety belts and the airbag system will only
provide protect ion when occupants are in
the prope r seat ing pos ition
r::;, page 167.
- If the a irbag ind icator light<=> page 16
comes w hen the veh icle is being used, have
the system inspected immediately by your
author ized Audi dealer. It is possib le that
the airbag will inflate when i t is no t sup­
posed to, or wi ll not inf late when it sho uld .
How supplemental side airbags work
Side airbags deploy instantly and can help re­
duce the risk of upper torso injuries for occu­
pants who are properly restrained.
Fig. 1 70 Infl ated s ide airbags on left side of vehicle
When the system is triggered, the airbag is filled
with propellant gas and breaks through a seam in
the seat s urface area marked "AIRBAG" .
It ex-
pands between the side trim panel a nd the .,..

,....,
N
co
er::
co

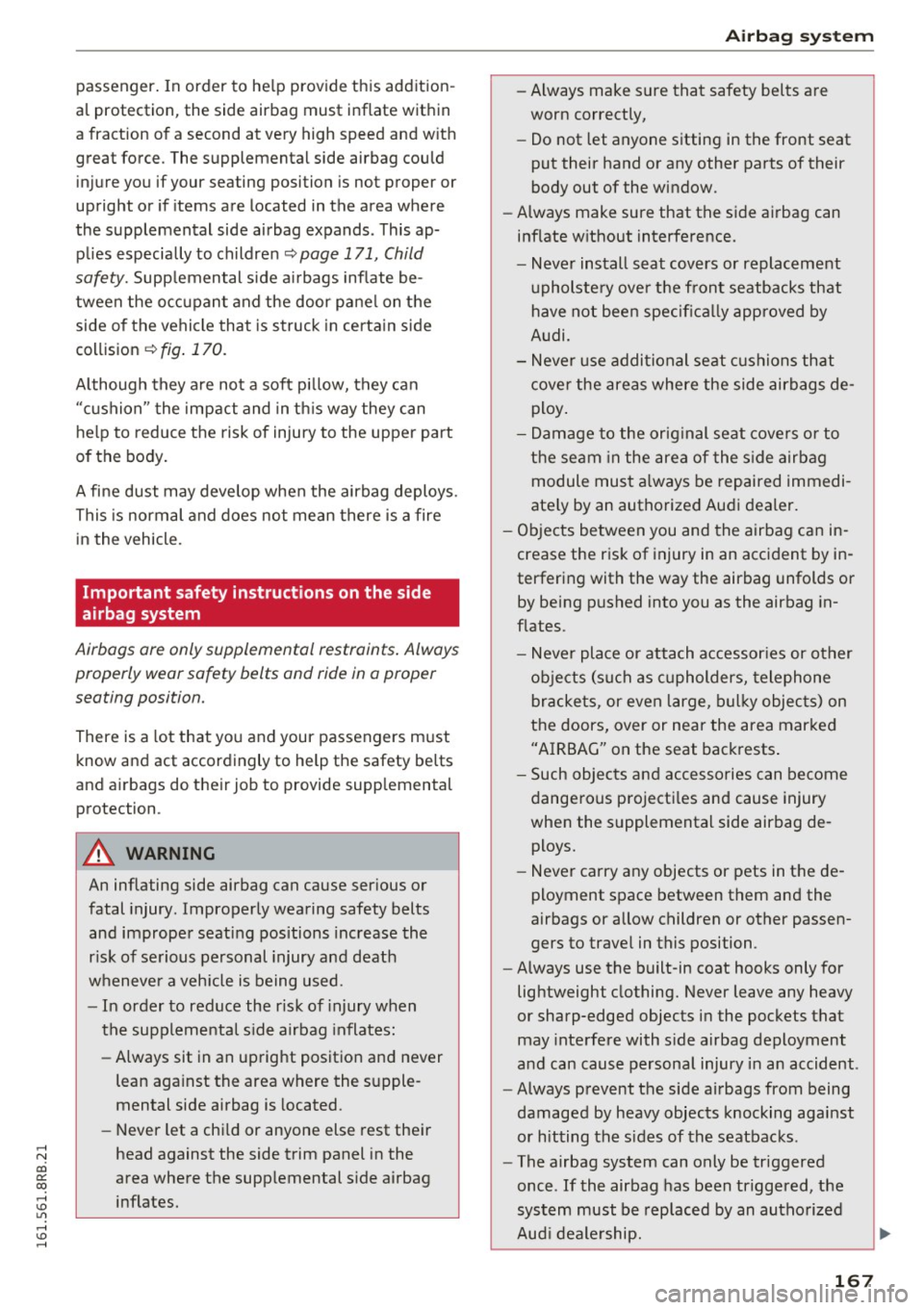

,...., passenger. In or der to he lp provide this addit ion­
al protection, the side airbag must inflate wit hin
a fraction of a second at very high speed and w ith
great force. The supplemental side airbag could injure you if your seating position is not proper or
upright or if items are located in the area where
the supplemental side airbag expands . This ap­
p lies especially to children
c::> page 171, Child
safety.
Supp lemental side a irbags inflate be ­
tween the oc cupan t and the door pane l on the
side of the vehicle that is s truck in certa in side
collision
c::> fig . 170.
Although they are not a soft pi llow, they can
"c ushion" the impact and in th is way they can
h e lp to reduce the risk of injury to the upper part
of the body .
A fi ne dust may develop when the airbag deploys.
This is normal and does no t mean there is a fire
in the vehicle.
Important safety instructions on the side
airbag system
Airbags are only supplemental restraints . Always
properly wear safety belts and ride in a proper seating position.
There is a lot that yo u and your passengers must
know and act accordingly to help the safety belts
and airbags do their job to provide supp lemental
protection .
A WARNING
An inflating side airbag can cause ser ious or
fatal injury. Improperly wearing safety belts
and improper seating positions increase the
r is k of se rious personal injury and death
whenever a veh icle is being used.
- In order to reduce the r isk of injury when
the suppleme ntal s ide airbag inflates:
- Always sit in an upright position an d never
lean aga inst the area where the s upple-
mental side airbag is located .
- Never let a chi ld or anyone else rest their
head against the side trim panel in the
area where the supp lemental s ide airbag
inflates.
Airb ag sys tem
-Always make sure that safety belts a re
worn correctly,
- Do not let anyone sitting in the front seat
put their hand o r any other parts of their
body out of the window .
- Always make sure that the s ide a irbag can
inflate w ithout interference.
- Never install seat covers or replacement
upholste ry ove r the front seatbacks that
have not been specifica lly approved by
Audi.
- Never use addi tional seat cushions that
cove r the areas where the side airbags de­
ploy .
- Dam age to the orig inal seat cove rs or to
the se am in the area of the s ide airbag
module must a lways be repaired immedi ­
ate ly by an authorized Au di dealer.
- Obje cts between you and the airbag can in­
crease the r isk of injury in an accident by in­
terfering with the way the airbag unfolds or
by being pushed into you as the airbag in­
flates .
- Never place or attach accessor ies or other
o bjects (such as cupholders, telephone
br acket s, or even large, bul ky objec ts) on
the doors, over or near the area mar ke d
"AIRBAG" on the seat backrests .
- Such objec ts an d accessories can be come
dange rous p rojecti les and cause injury
when the supplemental side airbag de­
ploys.
- Never carry any objects or pets in the de­
ployment space between them and the
airbags or allow children or other passen­
gers to trave l in this position.
- Always use the b uilt-in coat hooks only for
lightweight clothing. Never leave any heavy
or sharp-edged objects in the pockets that
may interfere with s ide airbag deployment
a nd can cause personal injury in an accident .
- Always p revent the side ai rbags from being
damaged by heavy objects knocking against
or hitting the s ides of the seatbac ks .
- The airbag system can only be triggered
once . If the airbag has been triggered, the
system must be replaced by an autho rized
Aud i deale rship.
167

Airbag system

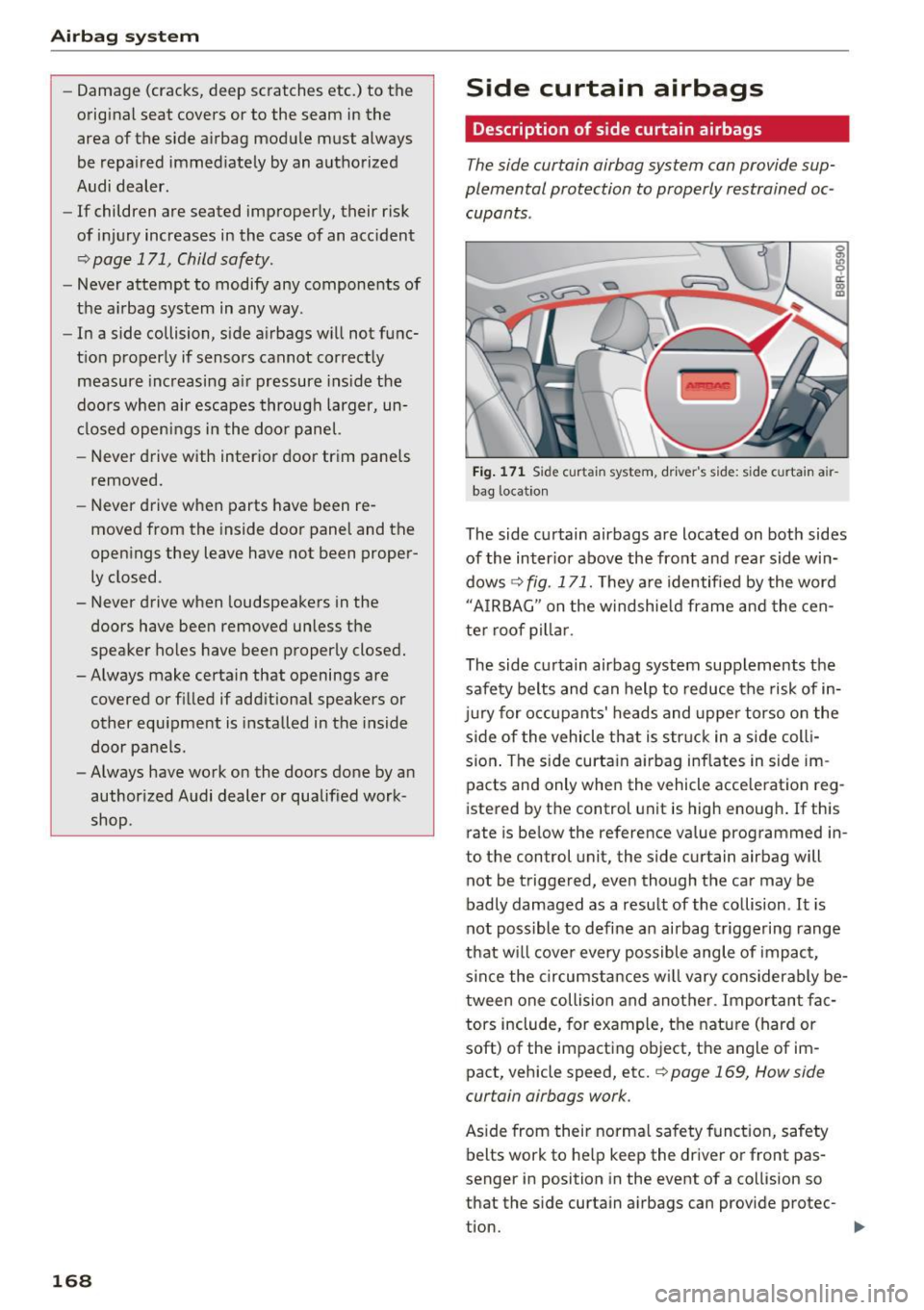

-Damage (cracks, deep scratches etc.) to the
original seat covers or to the seam in the
area of the side airbag module must always
be repaired immediately by an authorized
Audi dealer.
- If children are seated improperly, their risk
of injury increases in the case of an accident
¢page 171, Child safety.
-Never attempt to modify any components of
the a irbag system in any way.
- In a side collision, side airbags will not func­
tion properly if sensors cannot correctly
measure increasing a ir pressure ins ide the
doors when air escapes through larger, un­
closed openings in the door panel.
- Never drive with interior door trim panels
removed.
- Never drive when parts have been re­
moved from the inside door panel and the
openings they leave have not been proper­
ly closed.
- Never drive when loudspeakers in the
doors have been removed unless the
speaker ho les have been properly closed.
-Always make certa in that openings are
covered or f illed if additional speakers or
other equipment is installed in the inside
door panels .
- Always have work on the doors done by an
author ized Audi dealer or qualified work­
shop .
168
Side curtain airbags
Description of side curtain airbags
The side curtain airbag system can provide sup­
plemental protection to properly restrained oc­ cupants .
n nc
Fig. 171 Side cur ta in system , drive r's s ide: side c urta in a ir­
bag loca tion
The side curtain airbags are located on both sides
of the inter ior above the front and rear side win­
dows
¢ fig. 171. Th ey a re identified by the word
"A IRBAG" on the windshie ld frame and the cen­
te r roof pillar .
The side curtain airbag system supplements the
safe ty belts and can help to reduce the risk of in­
jury for occupants' heads and upper torso on the
side of the vehicle that is str uck in a side coll i­
s ion . The side curta in a irbag inflates in side im­
pacts and only when the vehicle accelerat ion reg­
istered by the control unit is high enough .
If this
rate is below the reference value programmed in­
to the control unit, the side curtain airbag will not be triggered, even though the car may be
badly damaged as a result of the collision . It is
not possible to define an airbag triggering range
that w ill cover every possible angle of impact,
s ince the circumstances w ill vary considerably be­
tween one collision and another. Important fac­
tors include, for example, the nature (hard or
soft) of the impacting object, the angle of im­
pact, vehicle speed, etc.
¢ page 169, How side
curtain airbags work.
Aside from their normal safety function, safety
belts work to he lp keep the driver or front pas­
senger in position in the event of
a collision so
that the side curtain airbags can provide protec­
tion.
...
