AUDI Q5 2016 Manual PDF

..... N
co ~ CX)
..... I.Cl U"I
..... I.Cl .....

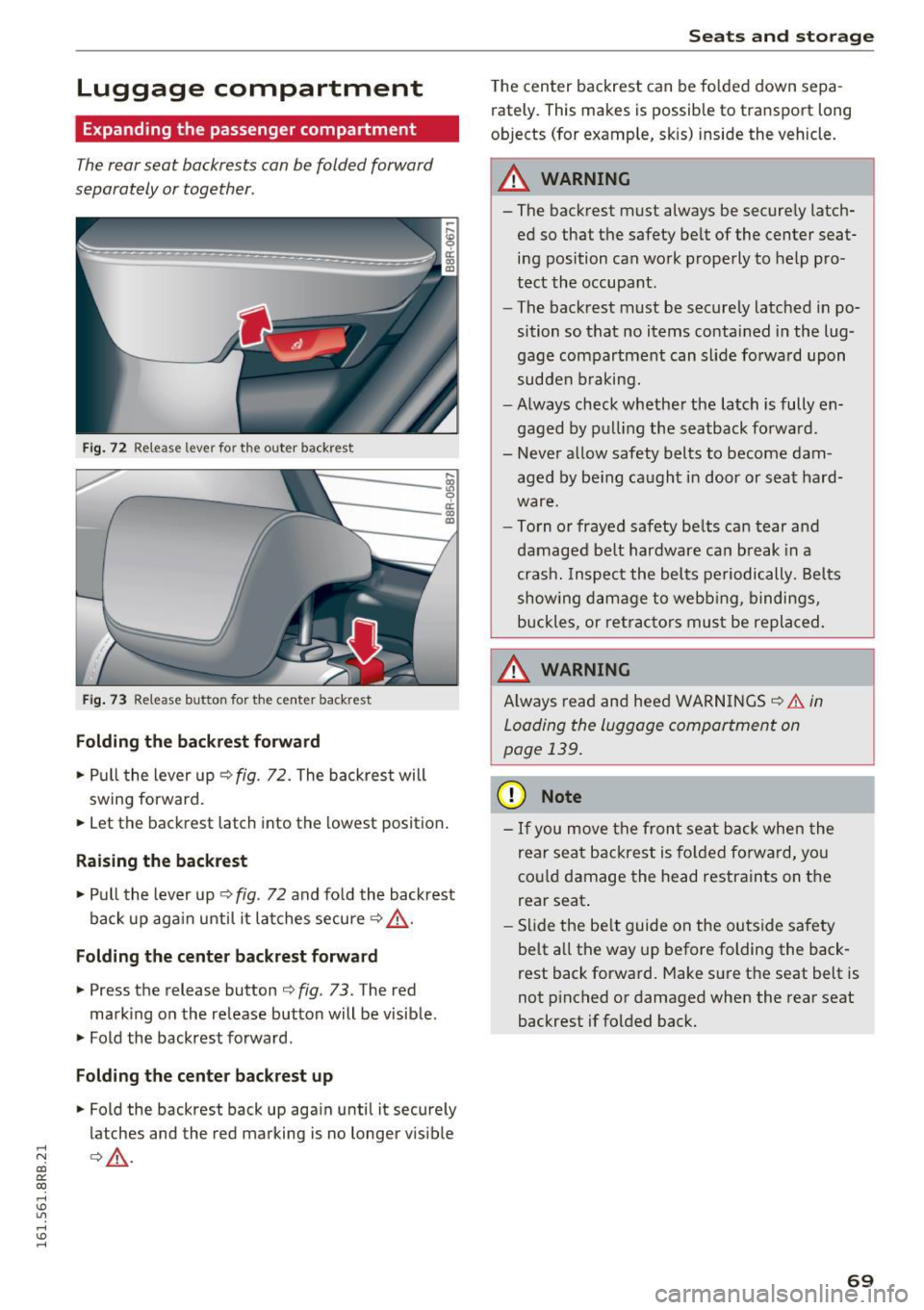

Luggage compartment
Expanding the passenger compartment
The rear seat backrests can be folded forward
separately or together.
Fi g. 72 Release lever for the outer backrest
....
ill 9
~---- 1:i ID
Fig. 73 Release button fo r the center backrest
Folding th e ba ckre st forward
... Pull the lever up ¢ fig . 72. The backres t will
swing forward .
... Let the backrest latch into the lowest position .
Raising the backrest
... Pull the lever up Q fig . 72 and fold the backrest
back up aga in until i t lat ches secure
Q &_ .
Folding the center back re st forw ard
... Press the release button ¢ fig. 73 . The red
mark ing on the release button will be visible.
... Fold the backrest forward.
Folding the cen ter backre st up
... Fold the backrest back up aga in until it secure ly
latches and the red marking is no longer v isible
¢ .&_ .
Seats and storag e
The center backrest can be fo lded down sepa­
rately. This makes is possible to transport long
objects (for example, sk is) inside the vehicle.
A WARNING
=
- The backrest must always be secure ly latch-
ed so that the safety be lt of the center seat­
i n g position can wo rk properly to help pro­
tect the occupant.
- The backrest must be securely latched in po­
sition so that no items contained in the lug­
gage compartment can slide fo rwa rd upon
sudden b raking.
- Always check whether the latch is fully en­
gaged by p ulli ng the seatback fo rwa rd .
- Never allow safety belts to become dam­ aged by be ing caught in door or seat hard­
ware.
- To rn o r frayed safety be lts can tear a nd
damaged be lt hardware can break in a
cras h. Inspect the belts pe riodically. Belts
show ing dam age to webb ing, bindings,
buckles, or re trac to rs mus t be replaced.
A WARNING
= -
Always read and heed WARN INGS Q &. in
Loading the luggage compartment on
page 139 .
(D Note
- If you move the front seat back when the
rear seat backrest is fo lded fo rwa rd, yo u
co uld damage the head restraints on the
rear seat .
- Slide the be lt guide on the outside safety
belt a ll the way up before folding the back­
rest back forward. Make su re the seat belt is
not p inched or damaged when the rear seat
backrest if folded back .
69

Sea ts and stor age
Expanding the luggage compartment
The rear seat backrests can be folded forward
separately or together .
Fig . 74 Luggage compartment: release lever
Folding the ba ckrest forward
• Pull the release lever ¢ fig. 74 in direction of
the a rrow . The back rest will swing fo rward.
• Let the backrest latch into the lowest position .
Folding the backrest up
• Pull the lever up ¢ page 69, fig. 72 and fold the
backrest bac k up again until it securely latches
¢ _& .
& WARNING
- The backrest must always be securely latch ­
ed so that the safety belt of the center seat­
ing position can work properly to help pro­
tect the occupant.
- The backrest must be securely latched in po­
sition so that no items contained in the lug­
gage compartment can slide forward upon
sudden brak ing.
- Always check whether the latch is fully en­
gaged by pulling the seatback forward.
- Never allow safety be lts to become dam­
aged by being caught in door or seat hard­
ware .
- Torn or frayed safety belts can tear and
damaged belt hardware can break in a
crash . Inspect the belts periodically . Belts
showing damage to webbing, bind ings,
buck les, or retractors must be rep laced.
70
(D Note
- If you move the front seat back when the
rear seat backrest is folded forward, you
cou ld damage the head restraints on the
rear
seat.
- Slide the belt guide on the outside safety
belt all the way up before folding the back­
rest back forward. Make sure the seat belt is
not pinched or damaged when the rear seat
backrest if fo lded back. Other objects
sho uld be removed from the rear seat bench
to protect the seatback from damage .
Tie-down rings
There are four tie-down rings in the luggage
compartment for securing luggage items.
Fig . 75 Locat io n of the tie -down rings in the luggage com­
pa rtment
.,. Secure the cargo to the tie-down rings
¢ fig. 75.
.,. Obse rve the safety notes ¢ page 140.
• Read a nd heed a ll WARNINGS ¢ page 139,
Storing cargo correctly .
& WARNING
Weak, damaged or improper straps used to
secure items to tie-downs can fail dur ing hard
braking or in a collision and cause ser ious per­
sonal injury.
- Always use suitable retaining straps and
properly secure items to the tie-downs in
the luggage compartment to help prevent items from s hifting o r fly ing forward .
- When the rear seat backrest is folded down,
always use suitable retaining straps and
proper ly sec ure items to the tie-downs in
-

..... N
co ~ CX)
..... I.Cl U"I ,....,
I.Cl ,....,

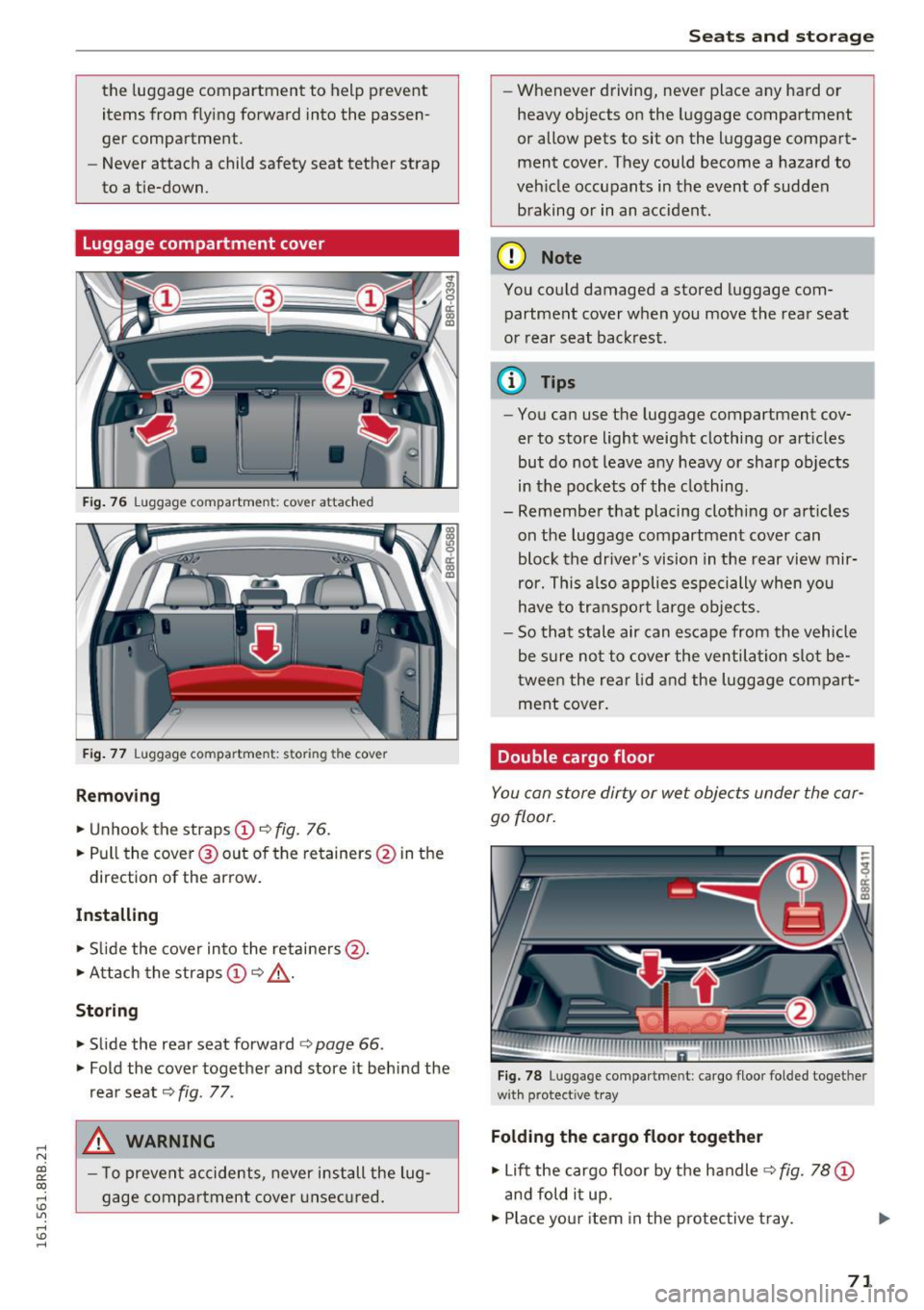

the luggage compartment to help prevent
items from f lying fo rward into the passen­
ger compartment.
- Never attach a child safety seat tether strap
to a tie-down.
Luggage compartment cover
F ig. 76 Luggage compartment: cover attached
Fig. 77 Luggage compartme nt: storing the cover
Removing
"' Unhook the straps @ c:> fig. 76.
"' Pull the cove r@ out of the retainers @ in the
direction of the arrow .
Installing
"' Slide the cover in to the retainers @.
"' Attach the straps
(D c:> _&. .
Storing
"'Slide the rea r seat forward c:> page 66 .
"' Fold the cover together and store it behind the
rea r seat
c:> fig. 77 .
A WARNING
- T o prevent accidents, never install the Lug ­
gage compa rtment cove r unsec ured .
-
Seats and storag e
-Whenever driving, never place any ha rd or
heavy objects on the l uggage compartment
or allow pets to sit on the luggage compart­
ment cover. They could become a hazard to
ve hicle occupants in the event of sudden
braking or in an accident .
(D Note
You could damaged a stored luggage com­
partment cover when you move the rear seat
or rear seat back rest.
@ Tips
- You can use the luggage compartment cov­
er to store light weight clothing or art icles
but do not leave any heavy or sharp objects
in the pockets of the clo thing.
- Remember that placing clothing or art icles
on the luggage compartment cover can
bloc k the drive r's vision in the rear view mir­
ror. This a lso applies es pecially when you
have to transpo rt large obje cts.
- So that stale air can escape from the vehicle
be s ure no t to cover the ventilation slot be­
t ween the rear lid and the luggage com pa rt ­
ment cover.
Double cargo floor
You can store dirty or wet objects under the car­
go floor.
F ig . 7 8 Luggage compartme nt: ca rgo floor folded together
w it h protective tray
Folding the cargo floor together
"' Lift the cargo floor by the handle c:> fig. 78 (D
and fold i t up.
"' Place you r item in the protec tive t ray. ..,.
71

Sea ts and stor age

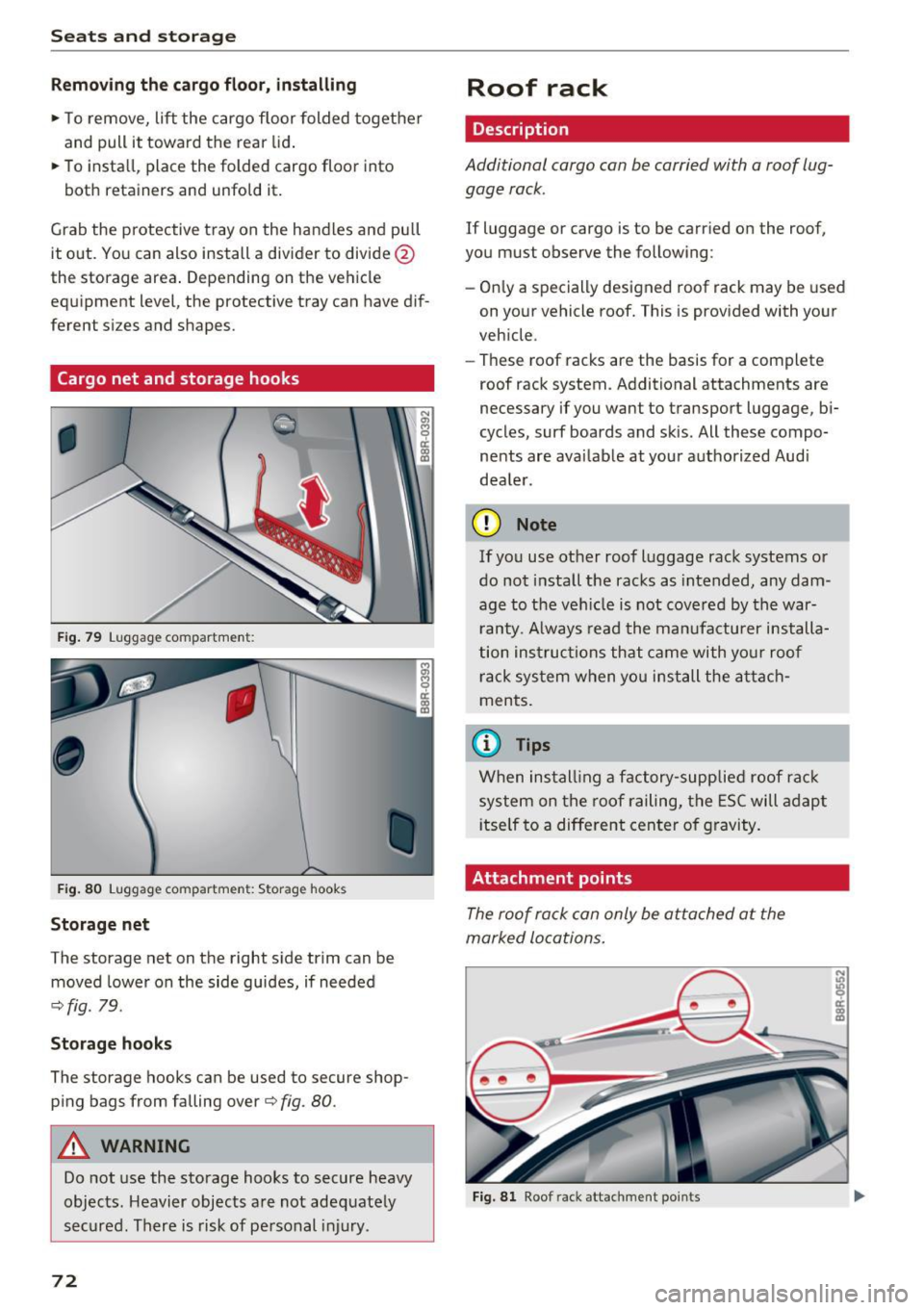

Removing th e cargo fl oor, in stalling
.. To remove, lift the cargo floor folded together
and pull it toward the rear lid .
.. To insta ll, place the folded cargo floo r into
both retainers and unfold it.
Grab the protective tray on the handles and pu ll
it out. You can also install a divider to divide @
the storage area . Depending on the vehicle
equipment level, the protective tray can have dif­
ferent sizes and shapes.
Cargo net and storage hooks
F ig . 79 Luggage compartment :
•
Fig . 80 Luggage compartment: Storage hooks
Storage net
The storage net on the right s ide trim can be
moved lower on the side guides, if needed
.:;. fig . 79.
Storag e ho oks
The storage hooks can be used to secure shop ­
ping bags from falling over¢
fig. 80.
A WARNING
Do not use the storage hooks to secure heavy
objects. Heavier objects are not adeq uately
secured. There is risk of personal in jury .
72
Roof rack
Description
Additional cargo can be carried with a roof lug­
gage rack .
If luggage or cargo is to be carr ied on the roof,
you must observe the following:
- On ly a specially designed roof rack may be used
on your vehicle roof. This is provided with your
veh icle .
- These roof racks are the basis for a complete
roof rack system. Additional attachments are
necessary if you want to transport luggage, b i­
cycles, surf boards and skis. All these compo­
nents are avai lable at your authorized Audi
dea le r.
(D Note
If you use other roof luggage rack systems or
do not install the racks as intended, any dam­
age to the veh icle is not cove re d by the war­
r anty . A lways read the manufacturer installa­
tion instructions that came with yo ur roof
rack system when you install the attach ­
ments.
(D Tips
When install ing a factory-supplied roof rac k
system on the roof railing, the ESC will adap t
i tself to a diffe rent cente r of gravity.
Attachment points
The roof rack can only be attached at the
marked locations.
Fig. 8 1 Roof r ack attachment points

..... N
co ~ CX)
..... I.Cl U"I
..... I.Cl .....
Attach the roof rack only at the attachment poin ts on the roof railing. On the inside of th e
roof railing there are two holes for attaching the
rear end of the roof rack. To p revent confusing
the front and rear roof rack attachment s, there
are three holes on the left and two holes on the
ri ght for mounting the front part of the roof rack
q fig . 81 .
The roof racks have a sti cker on the left side un­
derneath to ident ify front and rear .
A WARNING
When installing the roof rack, make sure the
st icker is on the left side of the vehicle and
faces the stamped arrow in the drive dire c­
t ion.
Installing a roof rack
Fig. 82 Roof railing: posi tion ing the roo f rac k
Fig . 83 Roof railing: installing a roo f rack
The roof rack set cons ists of a front and rear roof
rack, the cove r profile and a socket wrench.
• Open the cap
(D q fig . 83 .
• Before mounting the roof rack, use the socket
wrench @and loosen the left and right screw
in the d irect ion of@ .
Seats and storag e
• Clean the attachment po ints on the roof railing
as well as the roof rack rubber washers@.
• Carefully place the roof rack over the holes in
the roof railing
q fig. 82.
• Place the p ins @ into the holes. The claw ®
must engage into the edge of the roof rai ling .
"' Make sure the rubber washer © lays flat on the
roof railing .
"' Tighten the left and r ight screws using the
soc ket wrench @ in d irect ion @.
"' To reac h the
4 ft lb (6 Nm ) tightening specif i­
cation needed, both arrows on the socket
wrench must align .
"' Repeat this procedure on the second roof rack.
A WARNING
Check all the roof rack connect ions each t ime
before each trip and re-tighten or re-adjust if
necessa ry . If you a re going to be dr iving or
r ough te rra in, you w ill have to check the at­
tachments mo re often. If yo u do not do th is,
the r isk of you r luggage coming loose and
fa lling off is greate r.
(D Note
The pins and the roof rack claws must engage
securely into the holes and into the edge of
the roof railing whe n you t ighten the screws!
(0 Tips
You can adjust the w idt h of the roof rack by
u sing a hexagon wrench and t urning the
screws on the top. Let your authori zed Audi
dealer help you wi th this.
Installing the attachments
Fi g. 8 4 Roof ra ilin g: i nstall ing cov er pro file into the roo f
rack
a)
"' 9 a: a) m
73

Sea ts and stor age
Install ing the attachments
.. Remove the cap @~ fig. 84 .
.. Slide the attachment into the T-groove (2) .
.. Tighten the attachment according to the roof
rack installation instruct ions .
.. Close the cap.
Installing th e cover p rofile
.. Seal the openings in the T-groove (2) wi th the
cover profile @ after having installing the at­
tachments.
.. If you not want to use the attachment, seal the
whole T-groove
0 with the cover profile @.
.. Cut the cover profile to the length needed, if
necessary.

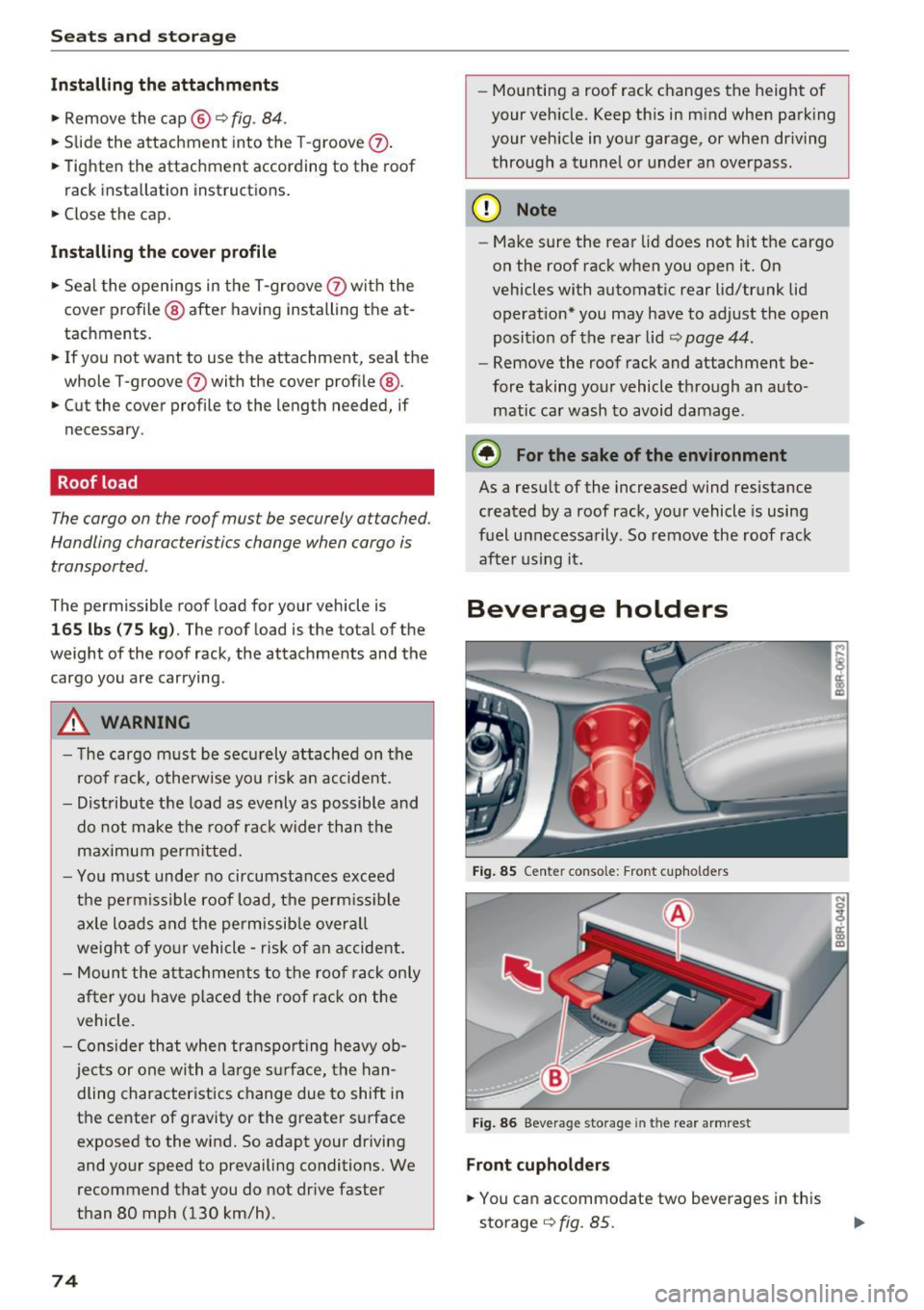

Roof load
The cargo on the roof must be securely attached.
Handling characteristics change when cargo is
transported .
The permissible roof load for your vehicle is
1 65 lbs (75 kg ). The roof load is the total of the
weight of the roof rack, the attachments and the
cargo you are carrying .
_&. WARNING
-The cargo must be secu rely attached on the
roof rack, otherwise you risk an accide nt.
- Distribute the load as evenly as possible and
do not make the roof rack wider than the
maximum pe rmitted.
- You m ust under no circumstances exceed
the permiss ible roof load, the perm iss ible
axle loads a nd the permissib le overa ll
weight of your vehicle -risk of an accident.
- Mount the attachments to the roof rack only
after you have placed the roof rack on the
vehicle.
- Consider that when transpo rting heavy ob­
jects or one wi th a large surface, the han­
dling characteristics change due to shift in
the center of gravity or the greater surface
exposed to the wind. So adapt your driving
and your speed to prevailing conditions. We recommend that you do not dr ive faster
than 80 mph (130 km/h) .
74
-Mounting a roof rack changes the height of
your veh icle. Keep th is in m ind when parking
your veh icle in your garage, or when dr iving
through a tunnel or under an overpass .
(D Note
- Make sure the rear lid does not hit the cargo
on the roof rack when you open it. On
vehicles with automat ic rear lid/trunk lid
operation* you may have to adjust the open
posit ion of the rear lid
~ page 44 .
-Remove the roof rack and attachment be­
fore taking your vehicle through an auto­ matic ca r wash to avoid damage .
@ For the sake of the environment
As a result of the increased wind resistance
created by a roof rack, your vehicle is using
fuel unnecessarily . So remove the roof rack
after using it.
Beverage holders
Fig . 85 Cente r co nso le : F ro nt cupho lders
Fig . 86 Beverage storage in th e rea r armrest
Fr ont cuphold ers
.. You can accommodate two beverages in this
storage
q fig. 85.

..... N
co ~ CX)
..... I.Cl U"I
..... I.Cl ......

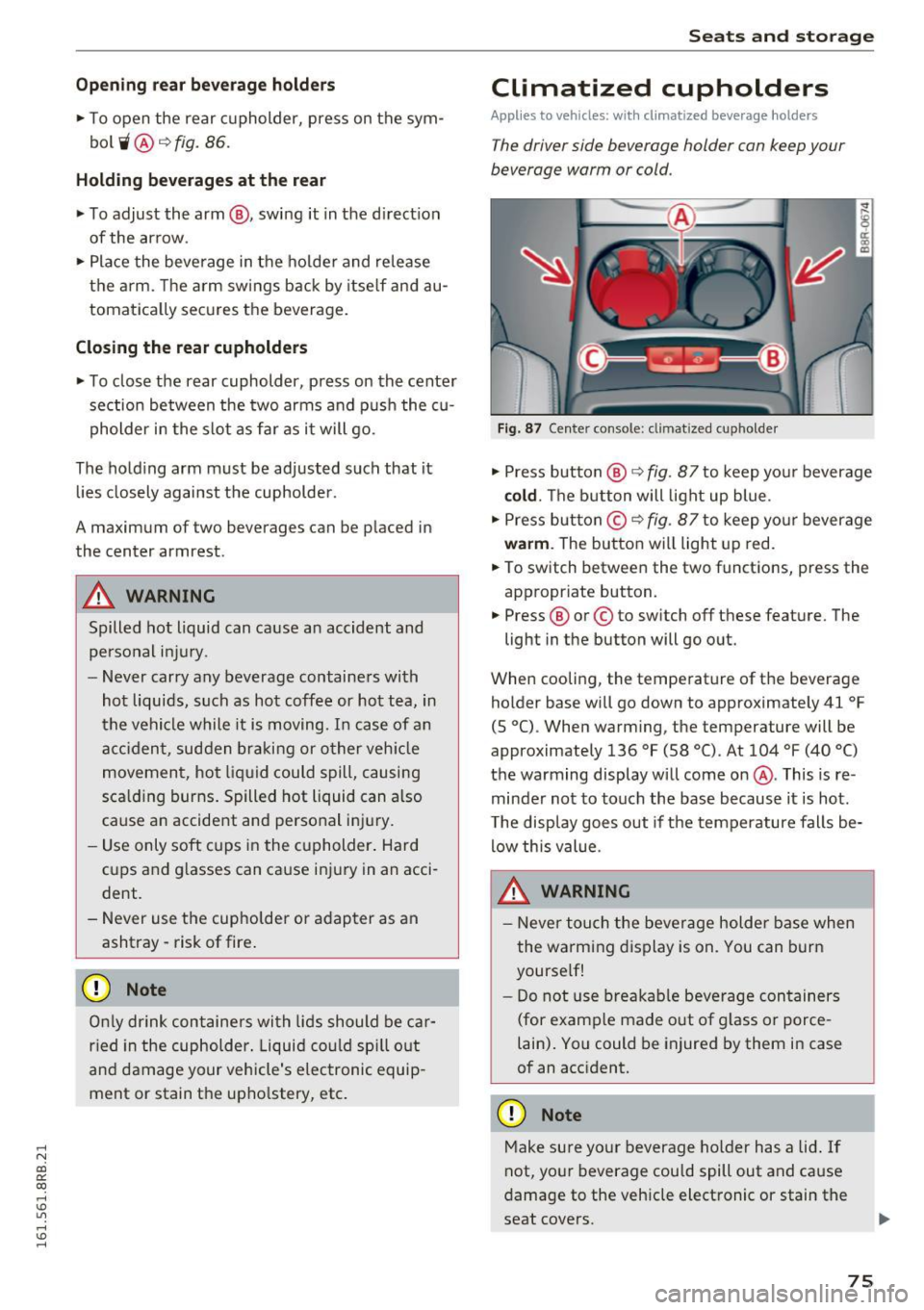

Opening rear beverage h olders
• To open the rear cupholder, press on the sym­
bol~ @~
fig. 86.
Hold ing bev erages at the rear
• To adjust the arm @, swing it in the d irect ion
of the ar row .
• Place the beverage in the holde r and release
the a rm. The a rm swings back by itse lf and au­
tomatica lly sec ures the beverage.
Clo sing the r ear cupholders
• To close the rear cupholder, press on the center
section between the two arms and p ush the cu­
pholder in the s lot as far as it will go.
The hold ing arm must be adjusted such that it
l ies closely against the cupholde r.
A maximum of two beverages can be placed in
the center armrest.
A WARNING
Spilled hot liquid can cause an accident and
personal injury.
- Never carry any beverage containers with
hot liquids, such as hot coffee or hot tea, in
the vehicle while it is moving. I n case of a n
acc ident, sudden braki ng or o ther veh icle
movement, hot liq uid could spill, causing
sca ld ing burns . Spilled hot liquid can also
cause an accident and perso nal i nju ry.
- Use only soft cups in the cupholder . Hard
cups and g lasses can cause i njury in an acci­
dent.
- Never use t he cupholder or adapter as an
ashtray -risk of fire .
(D Note
Onl y drink containe rs with lids should be ca r­
r ied in the cupholder . Liquid could sp ill out
and damage your vehicle's electronic equip ­
ment or stain the upho lstery, etc .
Seats and storag e
Climatized cupholders
Applies to vehicles: w it h climat ized beve rage holders
The driver side beverage holder can keep your
beverage warm or cold.
Fig. 87 Center console: climatized cupholder
• Press button @¢ fig. 87 to keep you r beverage
cold . The b utton will light up blue.
• Press but ton © ¢
fig. 87 to keep yo ur beverage
wa rm . The button will light up red.
• To switch between the two functions, press the
appropr iate button.
• Press ® or© to sw itch off these feature. The
light in the button will go out.
When cooling, the temperature of t he beverage
holder base will go down to approximately 41
°F
(S °C). When warm ing, the temperature will be
approximately 136
°F (58 °(). At 104 °F (40 °()
the warming display will come on@. This is re­
minder not to touch the base because it is hot.
T he disp lay goes out if the temperature falls be­
low this value.
A WARNING
- Neve r tou ch the bever age holder base when
the wa rming display is on. You can bur n
yourse lf!
- Do not use bre akab le beverage con tainers
(for e xamp le made out of g lass or porce­
lain) . Yo u could be injured by them in case
of an acc ident.
(D Note
M ake sure your beverage ho lder has a lid . If
not, your beverage cou ld spill out and cause
damage to the vehicle electronic or stain the
seat covers .
75

Sea ts and stor age
@ Tips
Do not cover the venti lation grille -arrow-be­
cause that cou ld prevent the beverage holder
from functioning correctly.

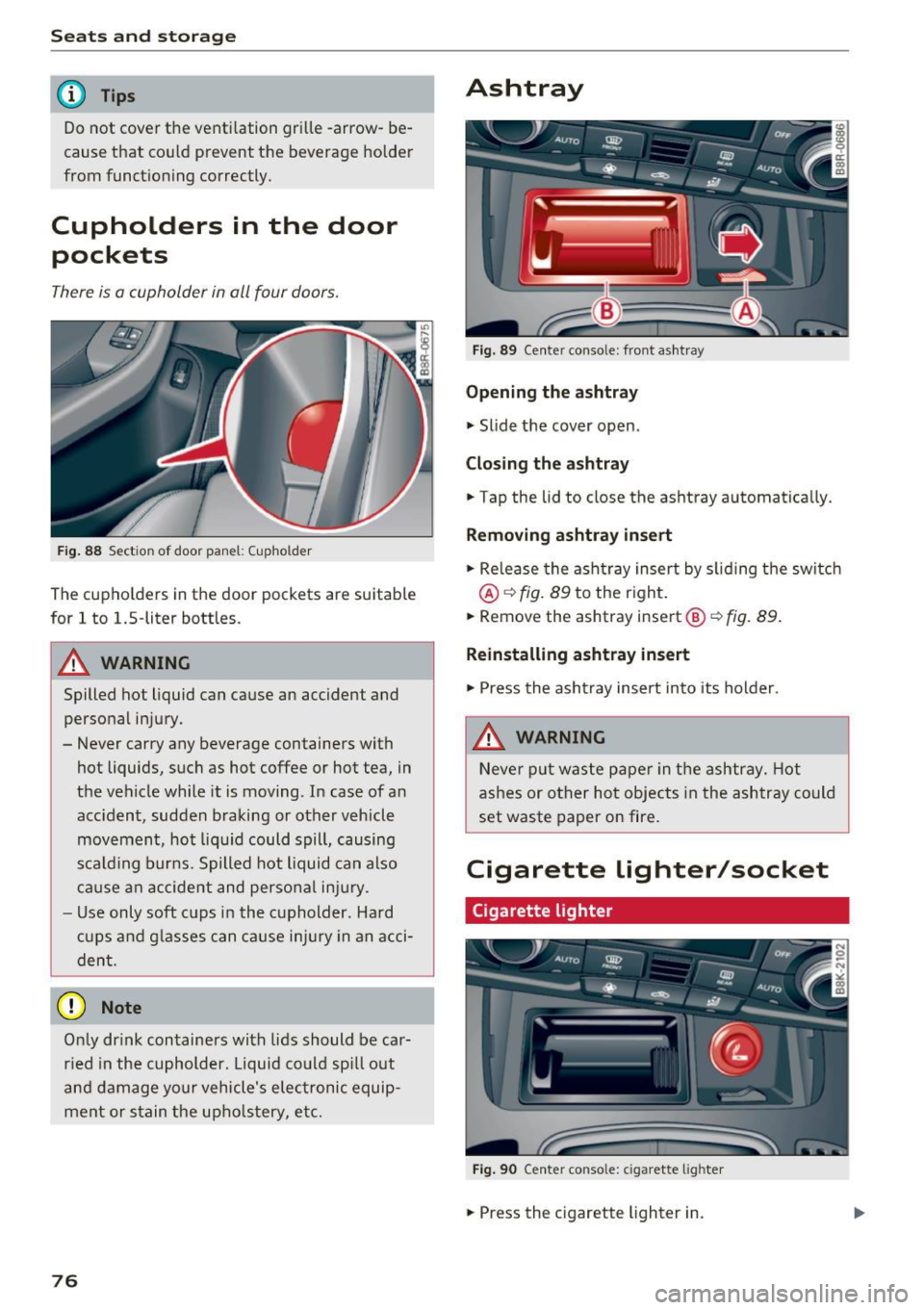

Cupholders in the door
pockets
There is a cupholder in all four doors.
F ig . 88 Sect ion of door panel: (upholder
The cupholders in the door pockets are suitable
for 1 to 1.5-liter bottles .
& WARNING
Spilled hot liquid can cause an accident and
personal injury.
- Never carry any beverage containers with
hot liquids, such as hot coffee or hot tea, in
the vehicle while it is moving. In case of an
acc ident, sudden braking or other vehicle
movement, hot liquid could spill, causing
sca ld ing burns. Spilled hot liquid can also
ca use an accident and personal inj ury.
- Use only soft cups in the cupholder. Ha rd
cu ps and g lasses can cause inju ry in an acci­
dent .
(D Note
Only dr ink containers with lids should be car­
r ied in the cupholder. Liquid co uld sp ill out
and damage yo ur vehicle's electronic equip­
ment or stain the upho lstery, etc.
76
-
Ashtray
Fig. 89 Center conso le: front ashtray
Opening the ashtray
"' Slide the cover open.
Closing the ashtray
"'Tap the lid to close the ashtray automatica lly.
Removing a shtray insert
"' Re lease the asht ray insert by s liding the switch
@ ~fig. 89 to the right.
"' Remove the ashtray insert@¢
fig. 89.
Reinstalling ashtra y insert
"' Press the asht ray insert into its holder.
& WARNING
-
Neve r put was te paper in the ashtray. Hot
ashes or other hot objects in the ashtray co uld
set waste paper on fire.
Cigarette lighter/socket
Cigarette lighter
Fig . 90 Cente r console: cigarette lig h ter
"' Press the cigarette lighter in.

..... N
co ~ CX)
..... I.Cl U"I
..... I.Cl .....
.. Remove the cigarette lighter when it pops out.
The c igarette lighter sho uld only be used as a
power so urce for the compressor from the inflat­
ab le spare tire/tire repai r kit* when absolute ly
necessary.
A WARNING
T he ciga rette lighter on ly works when the ig­
nition is sw itched on. Incorrect usage can lead
to ser ious injuries or burns. For this reason,
children shou ld never be left unattended i n
the vehicle beca use this increases the risk of
injury.

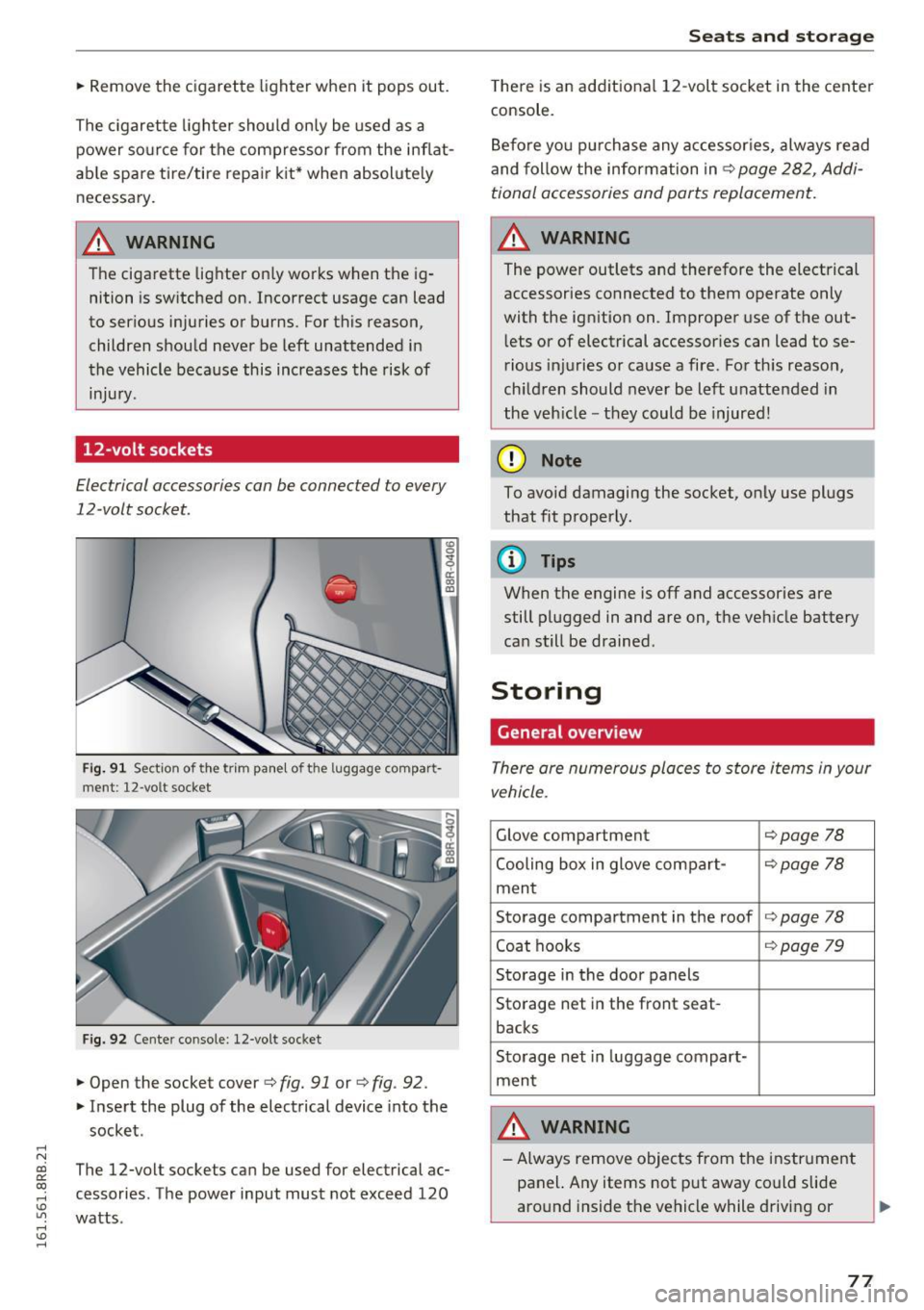

12 -volt sockets
Electrical accessories can be connected to every
12-volt socket.
Fig. 91 Section of the trim pa nel of the luggage compart­
ment: 12-volt socket
Fig . 9 2 Cen ter console: 12-volt socket
.. Open the socket cover c:> fig. 91 or ¢ fig. 92.
9 a: a, ID
.. Inse rt the plug of the electrical device into the
socket .
The 12-volt sockets can be used for electrical ac­
cessories. The power input must not exceed 120
watts .
Seats and storag e
There is an add itio na l 1 2-volt socket in the center
console.
B efore yo u pur chase any accessor ies, always read
and follow the information inc::>
page 282, Addi­
tional accessories and parts replacement.
A WARNING
The power outlets and therefore the electrical
accessories connected to them operate only
with the ign ition on. Improper use of the out­
l ets or of electrical accessor ies can lead to se­
rio us inj uries or cause a fire. Fo r th is reason,
ch ildren should never be left unattended in
the veh icle -they could be injured!
(D Note
To avoid damaging the socket, o nly use plugs
that fit properly.
(D Tips
When the engine is off and accessories are
still plugged in and are on, the ve hicle battery
ca n still be drained .
Storing
General overview
There are numerous places to store items in your
vehicle .
Glove compartment c::>page 78
Cooling box in glove com pa rt-¢ page 78
men t
Storage compartment in the roof
¢page 78
Coat hooks ¢page 79
Storage in the door panels
Sto rage net in the front seat-
backs
Sto rage net in luggage compart-
ment
A WARNING
- A lways remove objects from the instr ument
panel. Any items not p ut away could slide
aro und inside the vehicle while driving or
~
77

Sea ts and stor age
when accelerat ing or when app lying the
brakes or when driving around a corner.
- When you are driving make sure that any­
thing you may have placed in the center con­
so le or other storage locations cannot fall
out into the footwells. In case of sudden
braking you would not be able to brake or
acce le rate .
- Any pieces of cloth ing that you have hung
up must not interfere with the driver's view.
The coat hooks are designed only for light­
weight cloth ing . Neve r hang any clothing
with hard , po inted or he avy objects in the
poc kets on the coat hooks . Dur ing s udden
braking or in an accident -especia lly i f the
airbag is dep loyed -these objects could in­
jure any passengers inside the vehicle .

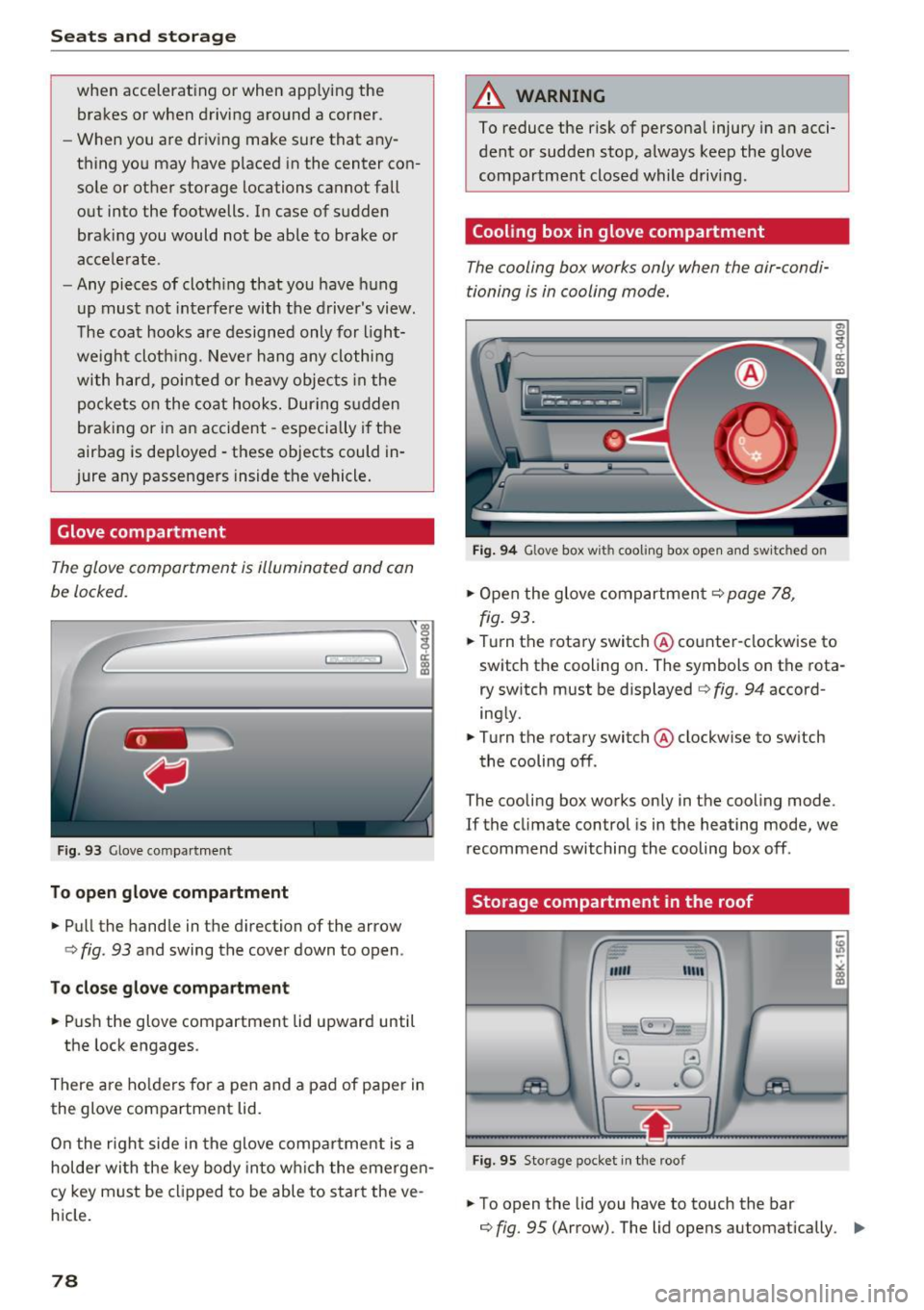

Glove compartment
The glov e comportm ent is illuminat ed and con
be locked.
F ig . 93 Glove co mpa rt men t
To open glove compartment
.. Pull the handle in the d irection of the arrow
c> fig . 93 and swing the cover down to open .
To clo se glove c omp artm ent
.. Push the glove compartment lid upward until
the lock engages .
There are ho lders for a pen and a pad of paper in
the glove compartment lid.
On the r ight side in the glove compa rtment is a
hol der wi th the key body into w hich the emerge n­
cy key must be clipped to be able to star t the ve­
h icle.
78
A WARNING
To reduce the risk of persona l injury in a n acci­
dent or sudde n stop, a lways keep the glove
compartment closed while driving .
Cooling box in glove compartment
The cooling box works only when the air-condi­
tioning i s in cooling mode.
Fig . 94 Glove box w ith cooli ng box ope n and sw itc hed on
.. Open the glove compartmen t c> page 78,
fig. 93 .
.. Tu rn the rotary switch @ counte r-clockwise to
switch th e cooling on . The symbols on th e rota­
ry sw it c h must be displayed c> fig . 94 accord­
ing ly .
.. Turn the rotary switch @ clockwise to sw itch
the cooling off .
The cooling box works only in the cooling mode.
If the climate con trol is in the heating mode, we
recommend switching the cooling box off .
Storage compartment in the roof
""' "'"
-~
@ ..!J
O .. ~O
Fig. 95 Sto ra g e pocket in t he roof
.. To open the lid you have to touch the bar
c> fig. 95 (Arrow). The lid open s automatically . ..,.
