.. To close the lid, push it up until it engages .
A WARNING
Always keep the lid closed while driving to re­
duce the risk of injury during a sudden brak­
ing maneuver or in the event of an accident .

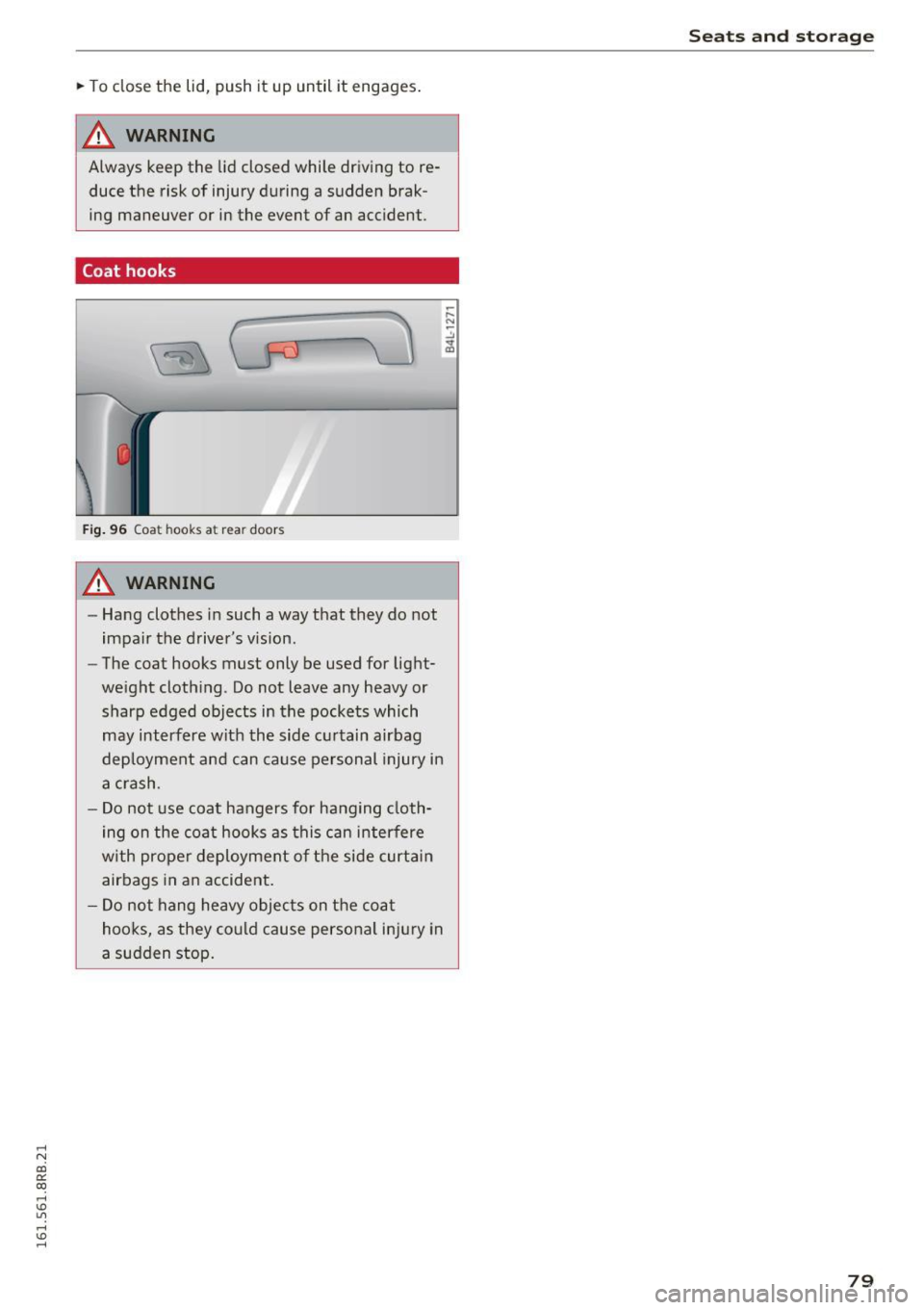

Coat hooks
Fig. 96 Coat hoo ks a t re ar doors
A WARNING
- Hang clothes in such a way that they do not
impair the driver 's vision.
- The coat hooks must only be used for light­
weight clothing . Do not leave any heavy or
sharp edged objects in the pockets which
may interfere with the side curtain airbag
deployment and can cause personal injury in
a crash .
- Do not use coat hangers for hanging cloth­
ing on the coat hooks as this can interfere
with proper deployment of the side curtain
airbags in an accident.
- Do not hang heavy objects on the coat
hooks, as they could cause personal injury in
a sudden stop .
Seats and storage
79

Warm and cold
Warm and cold
Climate control system
Description
The climate control system warms, cools and
adds humidity to the air in the veh icle inter ior. It
is the most effective when the windows and pan­
oramic sliding sunroof* are closed. If there is a
bui ld-up of heat inside the vehicle, ventilation
can help to speed up the cooling process.
I n all heating mode functions except
defrost, the
b lower only switches to a higher speed once the
engine coolant has reached a certain tempera­
ture .
Condensat ion from the cooling system can drip
and form a puddle of water under the veh icle.
This is normal and does not mean there is a leak.
P ollutant filt er
The pol lutant filte r removes pollutants such as
dust and pollen from the a ir.
The air pollutants filter must be changed at the intervals specif ied in your Warranty
& Mainte­
nance booklet, so that the a ir cond it ioner can
properly work.
If you drive your vehicle in an area with high air pollut ion, the filter may need to be changed
more frequently than specified i n your Aud i War­
ranty
& Maintenance booklet. If in doubt, ask
your author ized Audi Service Advisor for advice.
Ke y cod ed setting s
The climate control settings are automatically
stored and assigned to the remote control key
that is in use .
.8, WARNING
Reduced visib ility is dangerous and can ca use
accidents.
- For safe dr iv ing it is very impo rtant that all
windows be free of ice, snow and condensa­
tion .
80
-Complete ly familiarize yourself with the
proper use and function of the heating and
ventilation system and espec ially how to de­
fog and defrost the windows .
- Never use the windshield wiper/washer sys­
tem in freezing weather until you have
warmed the windshield first, using the heat­ ing and vent ilation system. The washer solu­
tion may freeze on the windshield and re­
duce visibi lity.
(D Note
- If you suspect that the air conditioner has
been damaged, sw itch the system off to
avoid further damage and have it inspected
by a qualified dealership.
- Repa irs to the Aud i air cond itioner requ ire
special techn ica l know ledge and spec ial
tools. Contact an authorized Audi dealer fo r
assistance.
@ For the sake of the environment
By reduc ing the amo unt of fuel you use, you
also reduce the amount of pollutants emitted
into the a ir.
(D Tips
- Keep the a ir intake slots (in front of the
windshield) free from ice, snow and debr is
in orde r to maintain the prope r funct ion of
the climate control system .
- The energy management system may sw itch
the seat heating* o r rear window defroster
off temporarily. These systems are available
again as soon as the energy balance has
been restored.
- The air flowing out of the vents and
throughout the ve hicle's ent ire interior is
discharged at the rear of the vehicle. Make
sure that the out let slots are not covered by
clothing, etc.

..... N
co ~ CX)
rl I.Cl U"I
rl I.Cl .....
Warm and cold

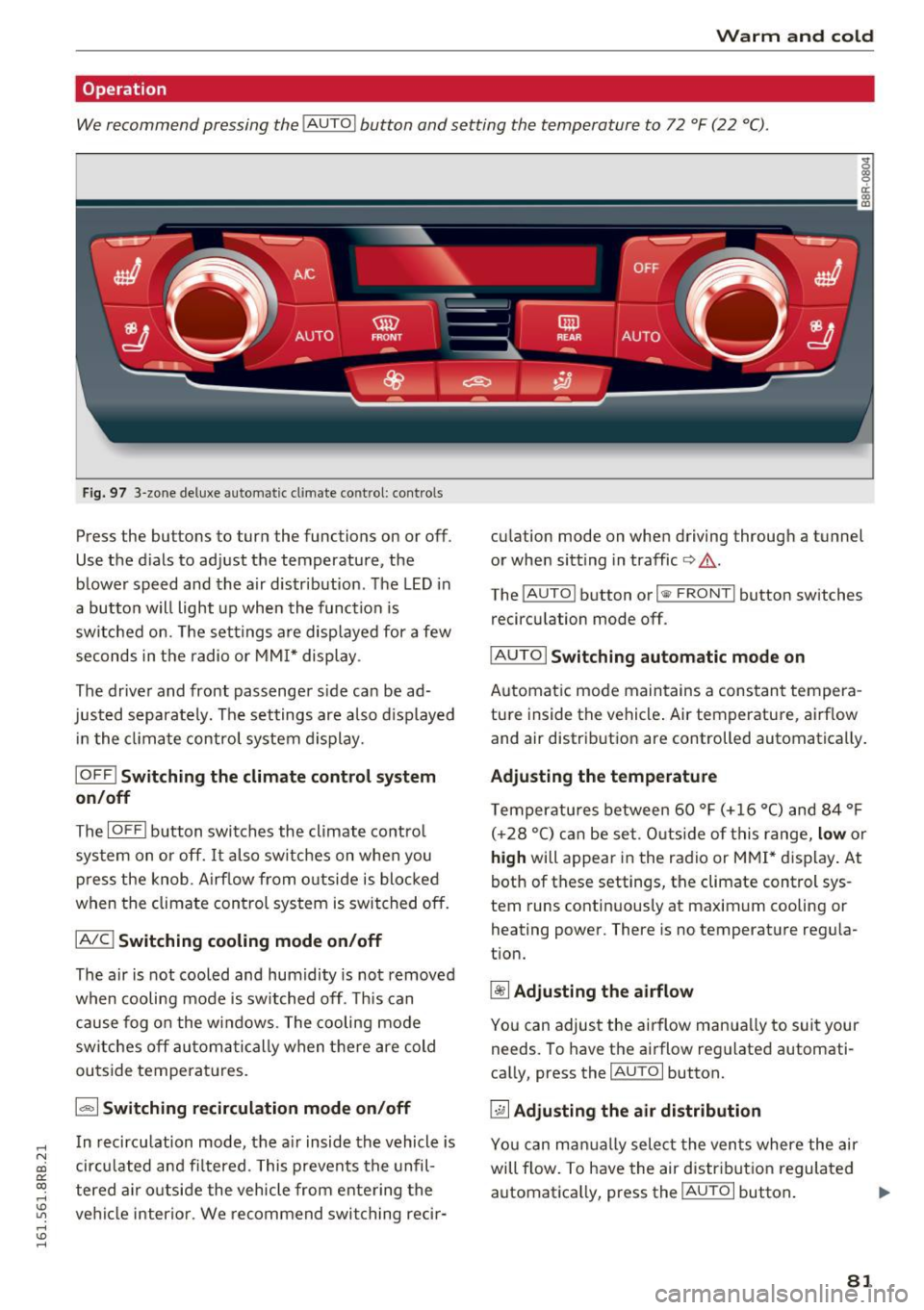

Operation
We recommend pressing the !AUTO ! button and setting the temperature to 72 °F (22 °C).
Fig. 97 3-zone deluxe automatic cl imate control: co ntrols
Press the buttons to turn the functions on or off .
Use the d ials to adjust the temperature, the
blower speed and the air distr ibut ion. The LED in
a button w ill light up when the function is
switched on. The settings are displayed for a few
seconds in the radio or MMI* display .
The driver and front passenger s ide ca n be ad­
justed separately. The settings are also displayed
in t he climate control system display.
IOFFI Switching the climate control system
on/off
The I OF Fi button switches the climate contro l
system on or off.
It also sw itches on when you
press the knob. Airf low from o utside is blocked
when the climate control system is switched off.
IA/C l Switching cooling mode on/off
The air is not cooled and humidity is not removed
when cooling mode is switched off. This can
cause fog on the windows. The cooling mode
switches off automatically when there are cold
outside temperat ures.
1.,,., 1 Switching recirculation mode on/off
In recirculation mode, the air inside the vehicle is
circu lated and fi ltered. This prevents the unfil­
tered air o utside the vehicle from ente ring the
ve hicl e interior. We recommend switching rec ir- cu
lation mode on when driving through a tunnel
or when sitt ing in traffic
c> .&. .
The !AUTO I button or I @ FRONT I button switches
recirculation mode off.
I AUTO I Switching automatic mode on
Automatic mode maintains a constant tempera ­
ture inside the vehicle . Air temperature, airf low
and air distribut ion are controlled automatically .
Adjusting the temperature
Temperatu res between 60 °F (+ 16 °C) and 84 °F
( +2 8 °C) ca n be set. O uts ide of this range,
low or
high will appear in the radio or M MI* display. At
both of these settings, the climate control sys­
tem runs continuous ly at maximum cooling or
heating power. There is no temperat ure regula­
t ion.
~ Adjusting the airflow
You can adjus t the airflow manua lly to suit your
needs. To have the airflow reg ulated automati ­
ca lly, press the
IAUTO I button.
~ Adjusting the air distribution
You can man ually select the ven ts where the air
will flow. To have the air distribut ion regulated
automatica lly, press the
IAUTOi button . ..,.
81

Warm and cold

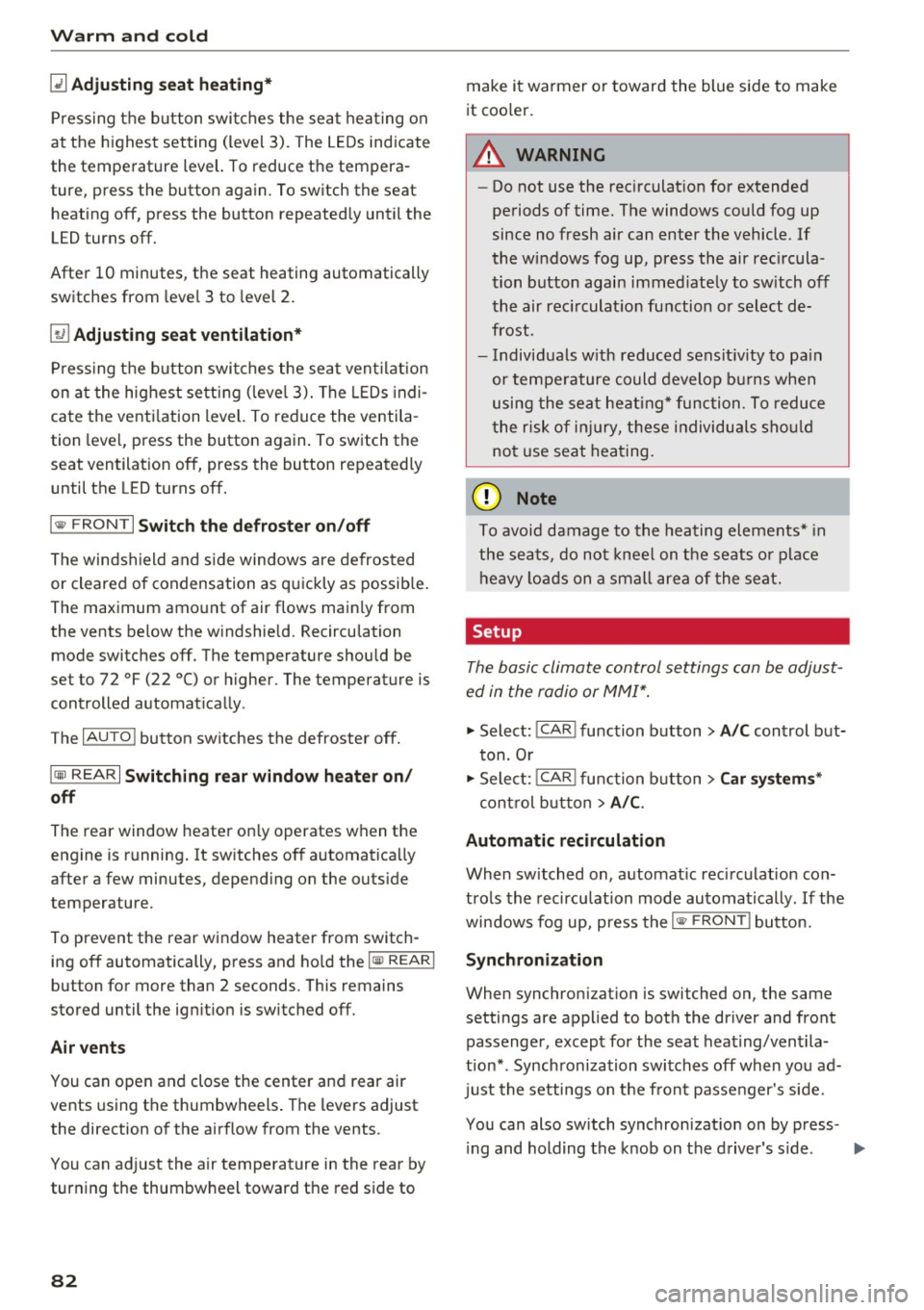

[ii Adjusting seat heating*
P ressing the button switches the seat heating on
at the highest setting (level 3). The LEDs indicate
the temperature level. To reduce the tempera­
ture, press the button again. To switch the seat heating
off, press the button repeatedly until the
LED turns
off.
After 10 minutes, the seat heating automatically
switches from level 3 to level 2.
lil Adjusting seat ventilation*
Pressing the button switches the seat vent ilation
on at the highest sett ing (level 3). The LEDs indi­
cate the venti lation level. To reduce the ventila ­
tion level, press the button again. To sw itch the
seat ventilation
off, press the button repeatedly
until the LED turns
off.
l qo, FRONT I Switch the defroster on/off
The windshield and side windows are defrosted
or cleared of condensation as quickly as possible.
The maximum amount of air flows main ly from
the vents below the windshield. Recirculation
mode switches off. The temperature should be
set to 72 °F (22 °() or higher. The temperature is
controlled automat ically .
The
IAUTOI button switches the defroster off.
IQiil REARI Switching rear window heater on/
off
The rear window heater on ly operates when the
engine is running. It switches off automatica lly
after a few minutes, depending on the outside
temperature.
To prevent the rear window heater from switch­ ing
off automatically, press and ho ld the l(jji) REARI
button for more than 2 seconds. This remains
stored until the ign it ion is switched off.
Air vents
You can open and close the center and rear air
vents using the thumbw heels . The levers adjust
the direction of the airflow from the vents.
You can adjust the air temperature in the rear by
turning the thumbwheel toward the red side to
82
make it warmer or toward the blue side to make
it coo ler.
A WARNING
- Do not use the recirculation for extended
periods of time. The windows could fog up
since no fresh air can enter the vehicle. If
the windows fog up, press the air rec ircula­
tion button again immed iately to switch
off
the air rec irculat ion function or select de­
frost.
- Individuals with reduced sensit iv it y to pain
or temperature could develop burns when
using the seat heating* function . To reduce
the risk of injury, these individuals should
not use seat heating.
(D Note
To avoid damage to the heating elements* in
the seats, do not kneel on the seats or place heavy loads on a small area of the seat.
Setup
-
The basic climate control settings can be adjust­
ed in the radio or MM!".
"'Select : !CAR I function button> A/C control but­
ton. Or
"' Select:
I CAR I function button > Car systems*
control button >
A/C.
Automatic recirculation
When switched on, automat ic rec irculation con­
tro ls the recirculation mode automatically. If the
windows fog up, press the
I® FRO NT ! button.
Synchronization
When synchron izat ion is switched on, the same
settings are applied to both the dr iver and front
passenger , except for the seat heating/ventila­
tion* . Synchronization switches
off when you ad­
just the settings on the front passenger's side.
You can also switch synchronizat ion on by press -
i ng and holding the knob on the driver's side .
Ill>-

,....,
N
co
er::
co

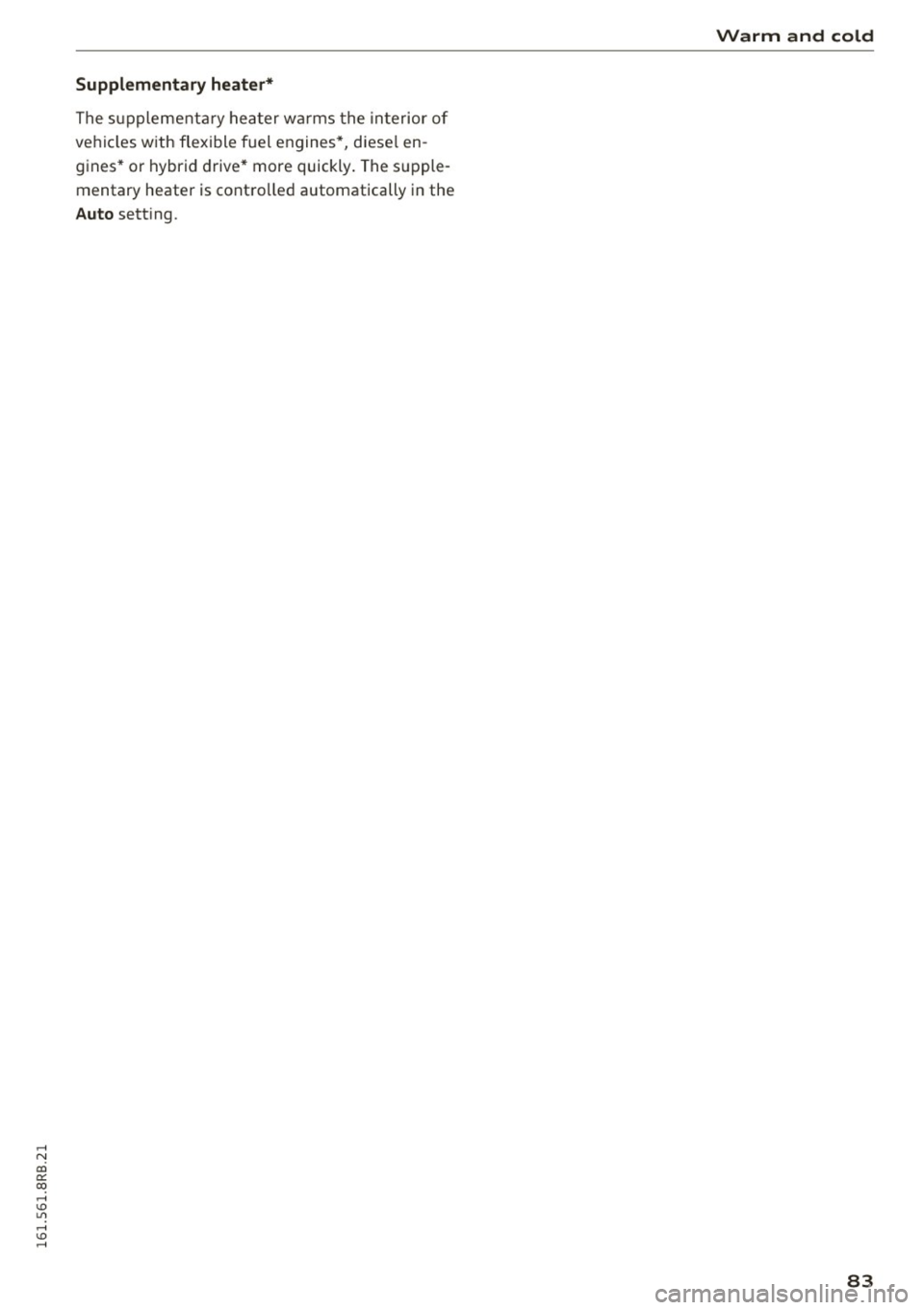

,...., Supplementary heater*
The supplement ary heat er w arms the interior of
ve hicl es w ith flexible fuel engines*, diese l en­
g ines * or hybrid drive* more quickly . The s upple­
mentary heater is cont ro ll ed automatically in the
Auto sett ing .
Warm and cold
83

Driving
Driving
Steering
Manually adjustable steering wheel
The height and reach of the steering wheel can
be adjusted .
Fig . 98 Lever under the s tee ring column
Fi rs t, adjust t he driver 's sea t cor rect ly.
• Pull the lever¢
fig. 98 -Arrow-¢ &_.
• Move the steer ing whee l to the desired posi­
t ion.
• Push the lever agains t the steering col umn un-
ti l it locks .
There m ust be at least 10 inches (25 cm) be­
tween your chest and the cente r of the steering
wheel. If you cannot sit more than 10 inches (25
cm) from the steering whee l, see if adaptive
eq uipment is available to help you reach the ped­
als and increase the distance from the steering
wheel.
For detailed information on how to adjust the
driver's seat, see ¢
page 64.
A WARNING
Improper use of steering whee l adjustment
and improper seati ng position can cause ser i­
ous pe rsonal injury.
- Adjust the steering wheel column on ly when
the vehicle is not moving to prevent loss of
vehicle control.
- Adjust the dr iver's seat o r steering wheel so
that there is a min imum o f 10 inches (25
cm) be twee n your chest and the s teer ing
wheel
¢page 135, fig. 151 . If you ca nnot
84
maintain t his minim um distance, the airbag
system cannot p rotect yo u properly.
- If physical limitations prevent you from sit­
ting 10 inches (25 cm) or more from the
steer ing whee l, check with your author ized
Aud i dea ler to see if adaptive equipment is
ava ilable.
- If the steer ing whee l is aligned with your
face, the s upplementa l dr iver's a irbag can­
not provide as much protect ion in an acci­
dent . Always make sure that the steer ing
wheel is alig ned wi th your chest.
- Always hold the steering w heel with your
hands at the 9 o'clock and 3 o'clock posi­
tions to reduce the ris k of pe rsonal injur y if
the dr ive r's ai rb ag de ploys .
- Never ho ld the stee ring w heel at t he 12
o' cl oc k position or with your hands inside
the stee ring wheel rim or on t he steering
wheel hub. Holding the steering w heel the
wrong way can cause se rious i njuries to the
hands, arms and head if the driver's airbag
deploys .
Ignition lock
Starting engine with the key
The ignition is switched on and the engine start ­
ed with the ignition key.
F ig . 9 9 Ign iti on key
Starting the engine
• In sert the key in to the ignition lock.
• Hybrid d rive *: refer to the information fo r sta rt­
i ng the veh icle under ¢
page 98 .
• Step on the brake pedal and move the selector
lever to the P or N posit ion.
• Press the key¢
fig. 99 -the eng ine will start. .,.

,....,
N
co
er::
co
,...., ~ It is possible that there will be a slight delay

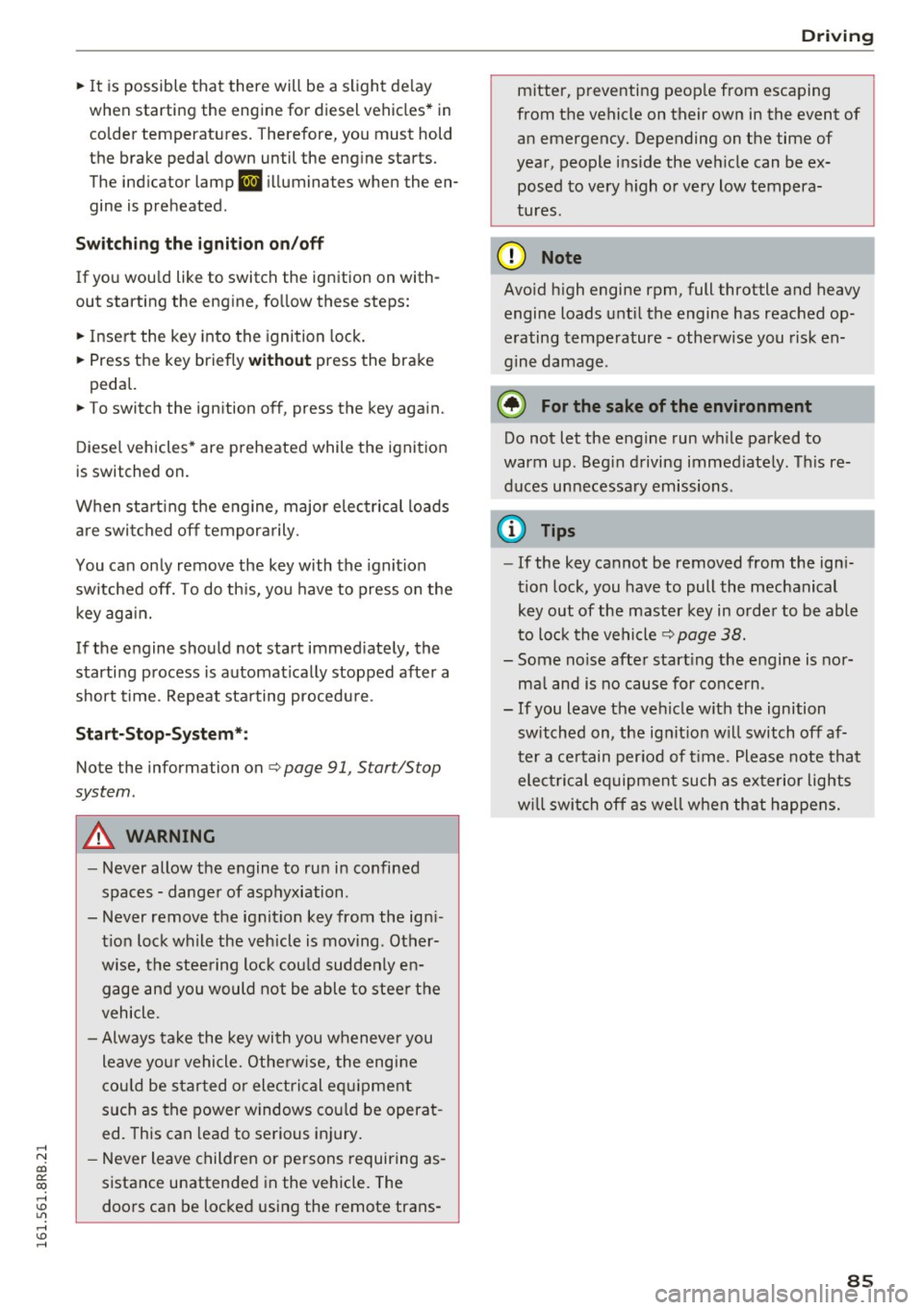

when starting the engine for diesel vehicles* in
colder temperatures. Therefore, you must hold
the brake pedal down until the engine starts.
The indicator lamp
1,1 illuminates when the en­
gine is preheated .
Switching the ignit ion on /off
If you would like to switch the ignition on with­
out starting the engine, follow these steps:
~ Inse rt the key into the ignition lock .
~ Press the key briefly without press the brake
pedal.
~ To switch the ignition off, press the key again.
Diese l vehicles* are preheated while the ignition
is switched on.
When start ing the e ngine, major electrical loads
are switched off tempora rily.
You can on ly remove the key with the ignition
switched off. To do th is, you have to press on the
key aga in.
I f the engine should not start immediately, the
starting process is automat ically stopped after a
short time. Repeat sta rting procedu re .
St art-Sto p-S ystem*:
Note the information on c:> page 91, Start/Stop
system .
A WARNING
-Never allow the engine to run in confined
spaces -dange r of asphyxiation .
- Never remove the ignit ion key from the ign i­
t ion lock while the vehicle is moving . Other­
wise, the stee ring lock cou ld suddenly en­
gage and you would not be able to stee r the
vehicle .
- Always ta ke the key with you whenever you
leave you r vehicle. Othe rw ise, the engine
c ou ld be started or electrical eq uipment
such as the power windows cou ld be operat ­
ed. This can lead to serious injury.
- Never leave children or persons requiring as­
sistance unattended in the vehicle. The
doors can be locked using the remote trans-
-
Driv ing
mitter, preventing peop le from escaping
from the vehicle on their own in the event of
an emergency. Depending on the time of
year, people ins ide the veh icle can be ex­
posed to very h igh or very low tempera­
tures.
(D Note
Avo id h igh engine rpm, full throttle and heavy
engine loads until the engine has reached op­
erating temperature -otherw ise you risk en­
gine damage .
@ For the sake of the environment
Do not let the engine run wh ile parked to
warm up. Beg in driving immed iately. T his re­
duces unnecessa ry emissions.
(D Tips
- If the key cannot be removed from the ign i­
tion lock, you have to pull the mechanical key out of the master key in o rder to be able
to lock the vehicle
c:> page 38.
- Some noise after start ing the engine is nor­
ma l and is no cause for conce rn.
- If you leave the vehicle w ith the ignition
switched on, the ignit ion w ill switch off af­
ter a ce rtain per iod of t ime. Please note that
elect rical eq uipment such as exterior lights
w ill switch off as we ll when that happens.
85

Driving

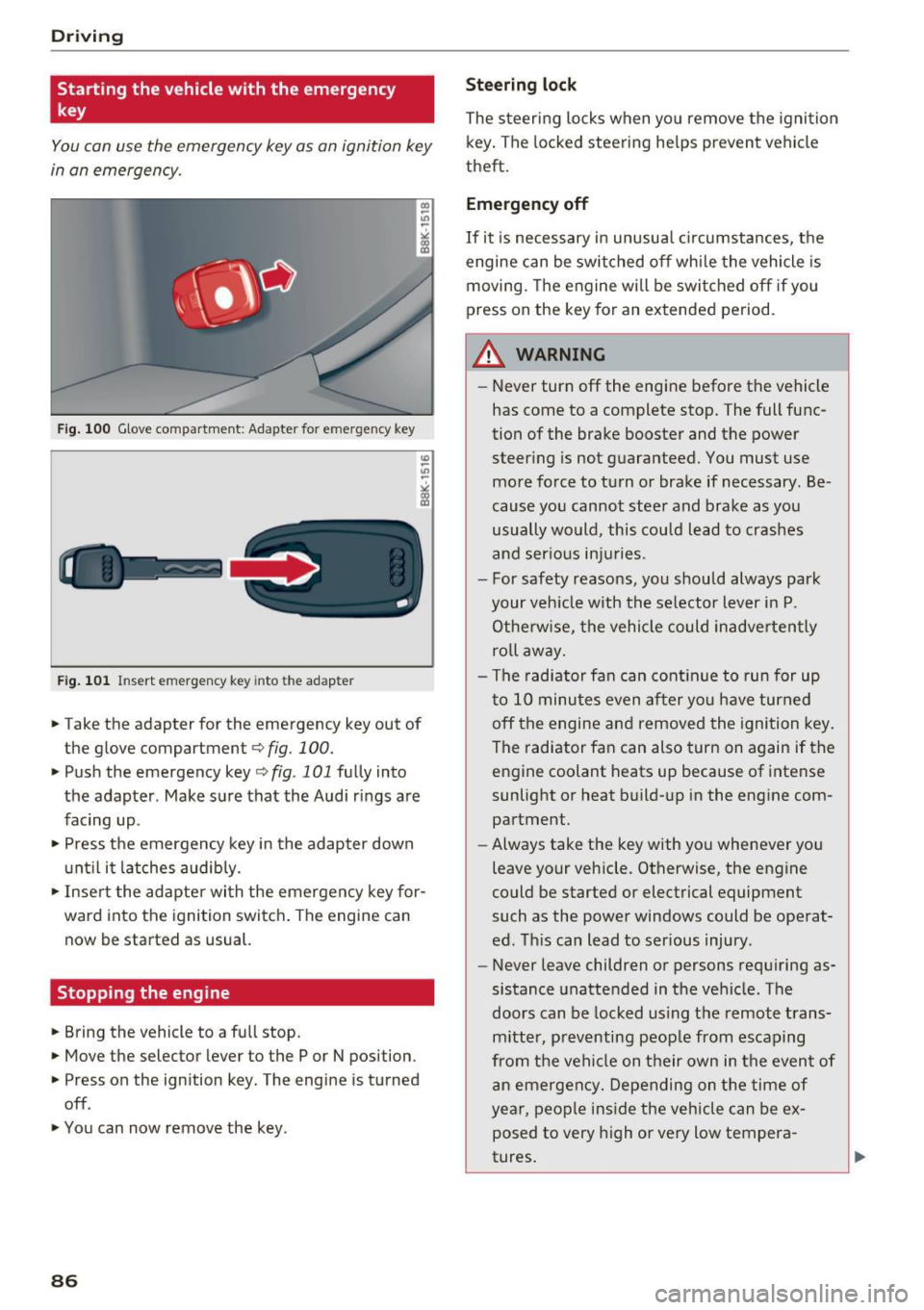

Starting the vehicle with the emergency
key
You can use the emergency key as an ignition key
in an emergency.
Fig. 100 Glove compartment : Ada pte r fo r em erg en cy key
Fig. 101 In sert emergency key into the adap te r
... Take the adapter for the emergency key out of
the glove compartment ¢
fig. 100.
.,. Push the emergency key ¢ fig . 101 fully into
the adapter . Make sure that the Audi rings are
facing up .
.,. Press the emergency key in the adapter down
until it latches audibly.
.,. Insert the adapter with the emergency key for­
ward into the ignition switch. The engine can
now be started as usual.
Stopping the engine
... Bring the vehicle to a full stop.
... Move the selector lever to the P or N position .
.. Press on the ignition key . The engine is turned
off .
.,. You can now remove the key .
86
Steering lock
The steering locks when you remove the ignition
key. The locked steering helps prevent vehicle
theft.
Emergency off
If it is necessary in unusual circumstances, the
engine can be switched off while the vehicle is
moving. The engine will be switched off if you
press on the key for an extended period .
A WARNING
-Never turn off the engine before the vehicle
has come to a complete stop. The full func­
tion of the brake booster and the power
steering is not guaranteed. You must use
more force to turn or brake if necessary . Be ­
cause you cannot steer and brake as you
usually would, this could lead to crashes
and serious injuries .
- For safety reasons, you should always park
your vehicle with the selector lever in P .
Otherwise, the vehicle could inadvertently
roll away.
- The radiator fan can continue to run for up
to 10 minutes even after you have turned
off the engine and removed the ignition key .
The radiator fan can also turn on again if the
engine coolant heats up because of intense
sunlight or heat build-up in the engine com­
partment .
- Always take the key with you whenever you
leave your vehicle . Otherwise, the engine
could be started or electrical equipment
such as the power windows could be operat­
ed. This can lead to serious injury .
- Never leave children or persons requiring as­
sistance unattended in the vehicle. The
doors can be locked using the remote trans­
mitter, preventing people from escaping
from the vehicle on their own in the event of
an emergency. Depending on the time of
year, people inside the vehicle can be ex­
posed to very high or very low tempera­
tures.

..... N
co ~ CX)
..... I.Cl U"I
..... I.Cl .....
CD Note
If the engine has been under heavy load for
an extended per iod, heat builds up in the en­
gine compartment after the engine is switch­
ed off- there is a risk of damaging the eng ine .
Allow the engine to run at idle for about two
m inutes before switching it off .
Convenience key
Starting the engine
Applies to vehicles: with Conve nien ce key
The I S TA RT ENGINE S TOP ! button switches the
ignition on and starts the engine.
Fig. 102 Ce nter console : S TART E NGINE STOP b utto n
Starting the engine
• Hybrid drive *: refer to the informat ion fo r start­
ing the vehicle under
Q page 98 .
• Step on the brake pedal and move the selector
lever to P or
N Q LD, .
• Press on the~ , S_T_A_R_ T_E _N _G_ I_N_E_S_T_O_P~I button
Q fig . 102 -the engine will start.
• It is possible that there will be a sligh t delay
when starting the eng ine fo r die sel vehi cles* in
colder temperatu res. Therefore, you mus t hold
the brake peda l down until the engine starts .
The indicator lamp
II illuminates when the en­
gine is preheated.
Switching the ignition on/off
I f you wou ld like to switch the ign ition on wi th­
ou t starting the eng ine , follow these steps :
• Press t he
I S T AR T ENG IN E STOPI button with ­
out pressing the brake pedal.
• To swi tch the ignition off, press the b utton
again .
Drivi ng
Diesel vehi cles* are preheated whi le the ignition
is switched on.
When starting the e ngine, majo r electrical loads
are switched off temporarily.
If the engine should not start immediately, the
sta rt ing process is au tomatically s topped after a
sho rt time. Repea t starti ng procedure.
Start-Stop-System*:
Note the information on Q page 91, Start/Stop
system .
A WARNING
--Never allow the engine to r un in conf ined
spaces -danger of asphyx iat ion.
- Always take the key with you whenever yo u
leave your vehicle . Otherwise, the eng ine
co uld be started or elect rical equipmen t
such as the powe r windows could be operat­
ed . This can lead to ser ious injury .
- Never le a ve chi ldren o r persons re quiring as­
sis tan ce una ttende d in the ve hicl e. The
doors can be locked us ing the remote t rans­
mitter, preventing peop le from escaping
from the vehicle on their own in the event of an emergency. Depending on the time of
year, people ins ide the veh icle can be ex­
posed to very high o r very low tempera ­
tures .
CD Note
Avoid h igh engine rpm, full throttle and heavy
engine loads u ntil the engine has reached op­
erating temperature -otherwise you risk en ­
g ine damage.
@ For the sake of the environment
Do n ot let the engine run wh ile parked to
warm up . Beg in d riving immed iate ly. T his re­
d uces unnecessa ry emissions .
@ Tips
-Some noise after start ing the engine is nor­
ma l and is no cause for co ncern.
- If you leave the vehicle w ith the ignition
switched on , the ignit ion w ill switch of f af-
-
ter a certain per iod of time . Please note that .,,_
87

Driving
electrical equipment such as exterior lights
will switch off as well when that happens.
Switching engine off
Applies to veh icles: w ith Conven ience key
~ Bring your vehicle to a complete stop.
~ Move the selector lever to the P or N position.
~ Press the I START ENGIN E STOPI button
¢page 87, fig. 10 2.
Steering lock
The steering locks when you turn the engine off
using the
!START ENGINE STOP ! button and
open the driver 's door. The locked steering helps
prevent vehicle theft.
Emergency off
If necessary, the engine can be switched off with
the s ele ctor lever in the R or D/S position. The
engine stops if you press and hold the
!START ENGINE STOP! button at speeds below
6 mph (10 km/h) and press the brake pedal.
A WARNING
- Never turn off the engine before the vehicle
has come to a complete stop. The full func­
t ion of the brake booster and the power
steering is not guaranteed. You must use
more force to turn or brake if necessary. Be­
cause you cannot steer and brake as you
usually would, this could lead to crashes
and serious injuries.
- For safety reasons, you should always park
your vehicle with the selector lever in P.
Otherwise, the vehicle could inadvertently
roll away .
- The radiator fan can continue to run for up
to 10 minutes even after you have turned
off the engine and removed the ignition key.
The radiator fan can also turn on again if the
engine coolant heats up because of intense
sunlight or heat build-up in the engine com­
partment.
- Always take the key with you whenever you
leave your vehicle. Otherwise, the engine
could be started or electrical equipment
88
such as the power windows could be operat­
ed. This can lead to serious injury.
- Never leave children or persons requiring as ­
sistance unattended in the vehicle. The
doors can be locked using the remote trans­
mitter, preventing people from escaping
from the vehicle on their own in the event of
an emergency. Depending on the time of
year, people inside the vehicle can be ex­
posed to very high or very low tempera­
tures.
0 Note
If the engine has been under heavy load for
an extended period, heat builds up in the en­
gine compartment after the engine is switch­
ed off -there is a risk of damaging the engine.
Allow the engine to run at idle for about two
minutes before switching it off.
Driver messages
Ignition is on
This message appears and a warning tone sounds
if you open the driver 's door when the ignition is
switched on.
No key identified
This message appears when the
ISTART E NGIN E STOP !* button is pressed if there
is no master key inside the vehicle or if the sys ­
tem does not recognize it. For example, the mas­
ter key cannot be recognized if it is covered by an
object (e .g . aluminum brief case) which
screens
the radio s ignal. Electronic devices such as cell
phones can also interfere with the radio signal.
Press brake pedal to start engine
This message appears if you do not press the
brake pedal to start the engine .
Shift to N or P to start engine
This message appears when attempting to start
the engine if the selector lever for the automatic
transmission is not in the P or N position. The en­
gine can only be started with the selector in
these positions.
ll-
