AUDI Q5 2016 Repair Manual

..... N
co ~ CX)
..... I.Cl U"I
..... I.Cl .....

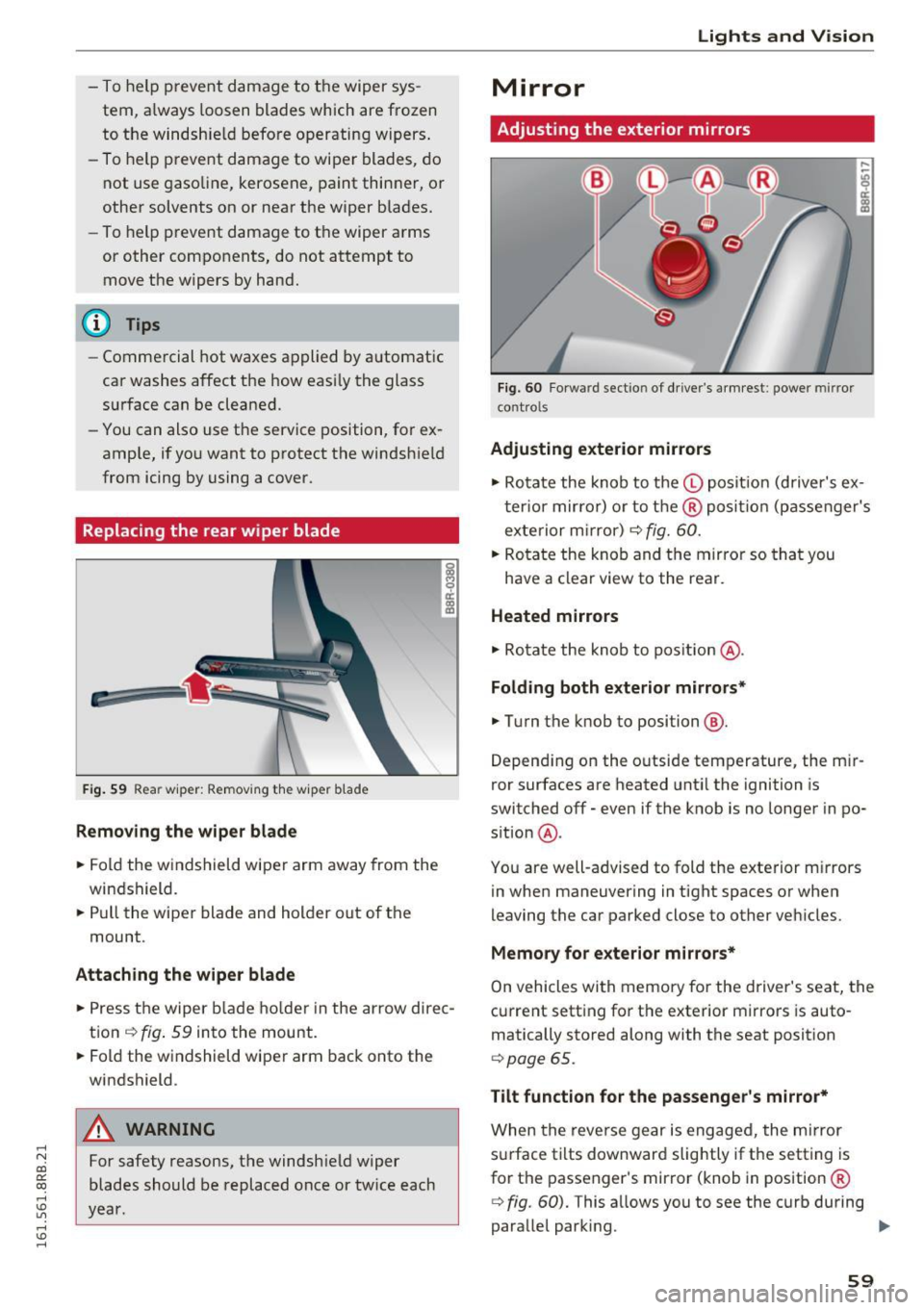

-To help prevent damage to the wiper sys ­
tem, a lways loosen blades which are frozen
to the windshield before operating wipers .
- To help prevent damage to wiper blades, do
not use gasoline, kerosene, paint thinner, or
other solvents on or near the wiper blades.
- To help prevent damage to the wiper arms
or other components, do not attempt to move the wipers by hand.
@ Tips
- Comme rcial hot waxes applied by automatic
car washes affect the how easi ly the glass
surface can be cleaned.
- You can also use the service position, for ex ­
ample, if you want to protect the windsh ield
from icing by using a cover.
Replacing the rear wiper blade
C
F ig . 59 Rea r w ip er: Remov ing t he wiper blade
Removing the wiper blade
.. Fold the windshield wiper arm away from the
windshield.
.. Pull the wiper blade and holder out of the
mount.
Attaching the wiper blade
.,. Press the wiper blade ho lder in the arrow direc­
tion ¢
fig. 59 into the mount.
.. Fold the windshield wiper arm back onto the
windshield .
.&_ WARNING
-
For safety reasons, the windsh ield wiper
blades should be replaced once or twice each
year .
Lights and V ision
Mirror
Adjusting the exterior mirrors
Fig. 60 Forwa rd sect io n of driver's armr est: powe r mirror
contro ls
Adjusting exterior mirrors
.,. Rotate the knob to the© posit ion (driver's ex­
t er ior mir ror) or to t he ® pos ition (passenger's
exterior mirror)¢
fig. 60.
.. Rotate the knob and the mirror so that you
have a clear view to the rear.
Heated mirrors
.,. Rotate the knob to pos it ion @.
Folding both exterior mirrors*
.. Turn the knob to position @.
Depend ing on the outside temperature, the mir­
ror surfaces are heated until the ignition is
switched off- even if the knob is no longer in po­
sition @.
You are well-advised to fold the exterior m irrors
in when maneuvering in tight spaces or when
leaving the car parked close to other veh icles.
Memory for exterior mirrors*
On vehicles with memory fo r the driver's seat, the
current setting for the exterior mirrors is auto­
matically stored along with the seat position
¢ page 65.
Tilt function for the passenger's mirror*
When the reverse gear is engaged, the mirror
surface tilts downward slightly if the setting is
for the passenger's mirror (knob in position®
¢
fig. 60). This allows you to see the curb during
parallel parking. ..,.
59

Lights and Vision

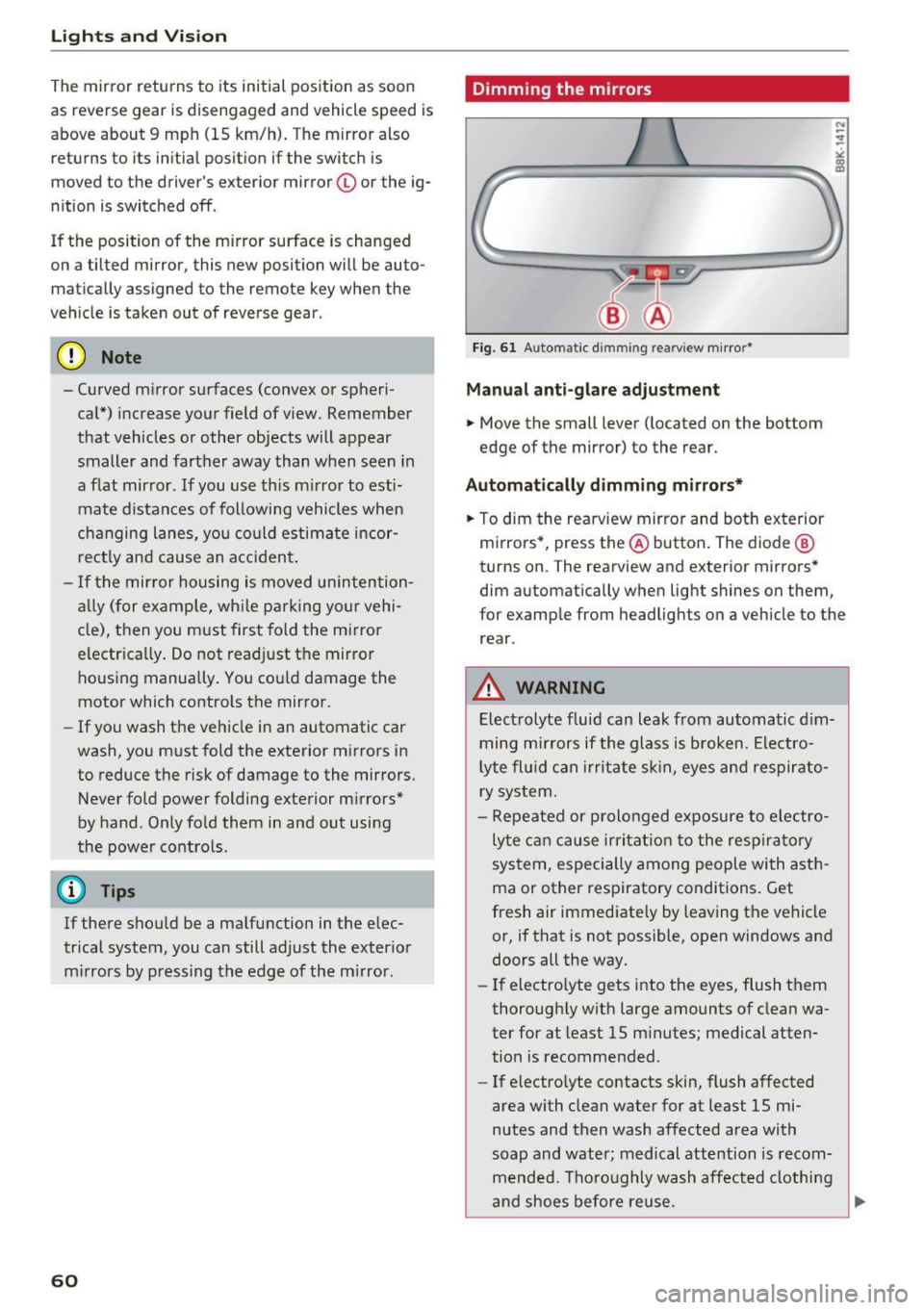

The mirror returns to its initial position as soon
as reverse gear is disengaged and vehicle speed is
above about 9 mph (15 km/h). The mirror also returns to its initial position if the switch is
moved to the driver's exterior mirror© or the ig­
nition is switched off .
If the position of the mirror surface is changed
on a tilted mirror, this new position will be auto ­
matically assigned to the remote key when the
vehicle is taken out of reverse gear .
(D Note
- Curved mirror surfaces (convex or spheri­ cal*) increase your field of view. Remember
that vehicles or other objects will appear
smaller and farther away than when seen in
a flat mirror. If you use this mirror to esti­
mate distances of following vehicles when
changing lanes, you could estimate incor­ rectly and cause an accident.
- If the mirror housing is moved unintention­
ally (for example, while parking your vehi­
cle), then you must first fold the mirror
electrically. Do not readjust the mirror
housing manually. You could damage the
motor which controls the mirror.
- If you wash the vehicle in an automatic car
wash, you must fold the exterior mirrors in to reduce the risk of damage to the mirrors.
Never fold power folding exterior mirrors*
by hand . Only fold them in and out using
the power controls.
(D Tips
If there should be a malfunction in the elec­
trical system, you can still adjust the exterior
mirrors by pressing the edge of the mirror.
60
Dimming the mirrors
Fig. 61 Auto ma tic dimmin g rearv iew mirro r*
Manual anti-glare adjustment
.,. Move the small lever (located on the bottom
edge of the mirror) to the rear.
Automatically dimming mirrors* .,. To dim the rearview mirror and both exterior
mirrors*, press the @button. The diode @
turns on . The rearview and exterior mirrors*
dim automatically when light shines on them,
for example from headlights on a vehicle to the rear .
& WARNING
Electrolyte fluid can leak from automatic dim­
ming mirrors if the glass is broken. Electro­
lyte fluid can irritate skin, eyes and respirato­
ry system.
- Repeated or prolonged exposure to electro­
lyte can cause irritation to the respiratory
system, especially among people with asth­
ma or other respiratory conditions. Get
fresh air immediately by leaving the vehicle
or, if that is not possible, open windows and
doors all the way.
- If electrolyte gets into the eyes, flush them
thoroughly with large amounts of clean wa­
ter for at least 15 minutes; medical atten­
tion is recommended .
- If electrolyte contacts skin, flush affected
area with clean water for at least 15 mi­
nutes and then wash affected area with
soap and water; medical attention is recom­
mended. Thoroughly wash affected clothing
and shoes before reuse.

..... N
co ~ CX)
..... I.Cl U"I
..... I.Cl .....
-If swa llowed and person is conscious, rinse
mouth with water for at least 15 m inutes.
Do not induce vomit ing unless instructed to
do so by medical professional. Get medical
attent ion immed iately.
(D Note
Liquid electrolyte leaking from broken m irror
glass will damage any plastic surfaces it
comes in contact with. C lean up spilled elec­
trolyte immediately w ith clean water and a
sponge.
@ Tips
- Switch ing off the dimming function of the
i nside rear v iew mirror also deact ivates the
automat ic dimming function of the exte rior
mir rors*.
- The automatic d imm ing mirrors do not dim
when the interior lighting is turned on or
the reverse gea r is selected .
- Automat ic dimming for the m irror on ly op­
erates prope rly if the light str iking the in­
s ide mirror is not hinde red by othe r objects.

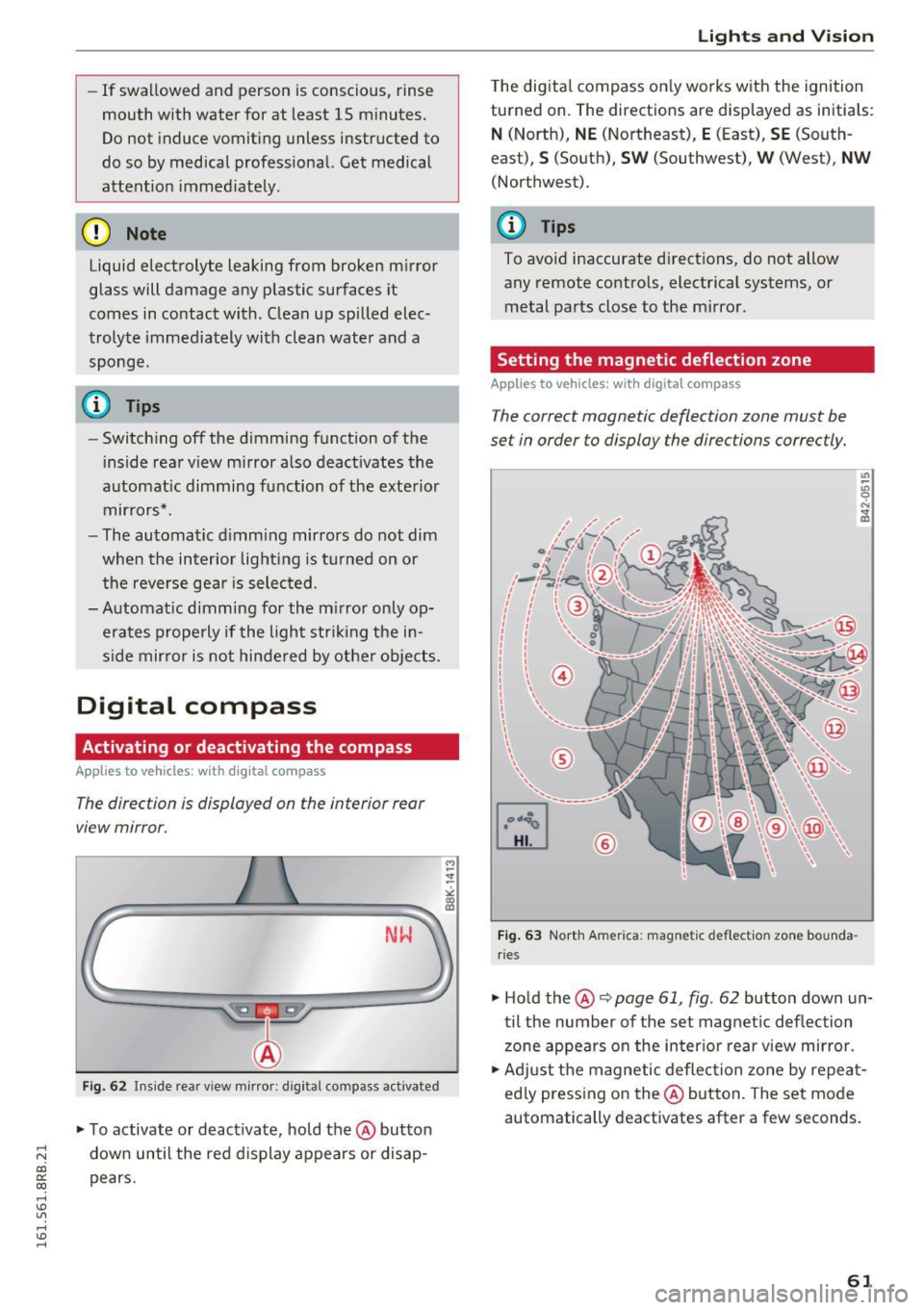

Digital compass
Activating or deactivating the compass
A ppl ies to vehicles: with digital compass
The direction is displayed on the interior rear
view mirror.
Fi g. 62 Inside rea r view m irror: d igital compass activated
... To activate or deactivate, hold the @button
down until the red d isplay appears or disap­
pears.
Lights and V ision
The digita l compass on ly works with the ignition
turned on. The directions are disp layed as initia ls :
N (North), NE (Northeast), E (East), SE (South­
east),
S (South), S W (Southwest), W (West), NW
(Northwest).
(!_) Tips
To avoid inaccurate d irect ions, do not allow
any remote controls, electrical systems, or
metal parts close to the mirror.
Setting the magnetic deflection zone
App lies to vehicles: wi th digita l co mp ass
The correct magnetic deflection zone must be
set in order to display the directions correctly.
®
F ig . 63 No.rth Ame rica: magnetic deflection zone bounda­
ri es
... Hold the@~ page 61, fig . 62 button down un­
til the number of the set magnet ic deflection
zone appears on the in ter io r r ear view mirror.
... Adjust the magnetic deflection zone by repea t­
ed ly press ing on the@ button. The set mode
automatically deactivates after a few seconds .
61

Lights and Vi sion

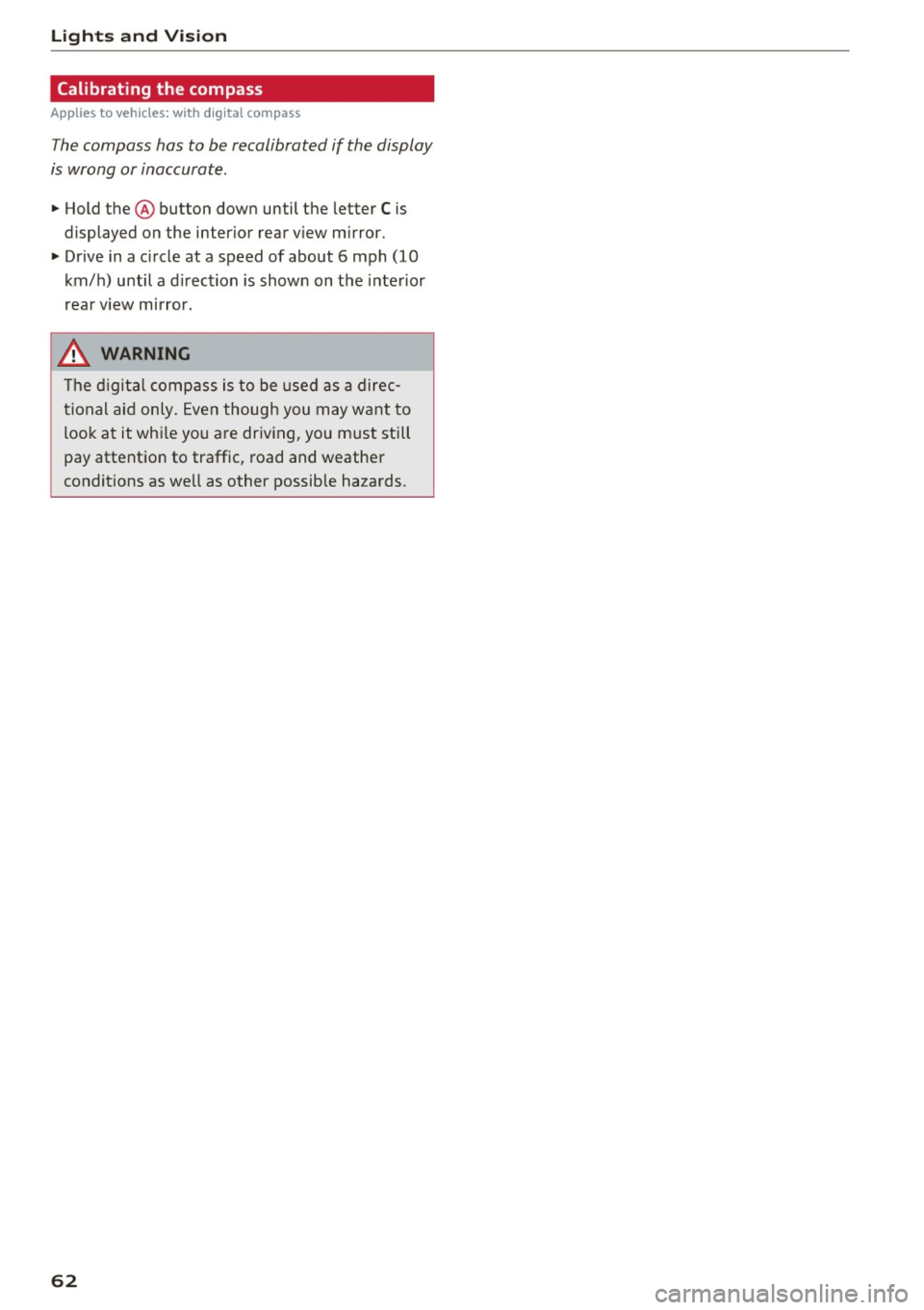

Calibrating the compass
Applies to vehicles: with digital compass
The compass has to be recalibrated if the display
is wrong or inaccurate .
.,. Hold the@ button down until the letter C is
displayed on the interior rear view mirror.
.,. Drive in a circle at a speed of about 6 mph (10
km/h) until a d irection is shown on the interior
. . rear view mirror.
A WARNING
The digital compass is to be used as a direc­
tional aid only. Even though you may want to
look at it whi le you are driving, you must still
pay attention to traffic, road and weather
conditions as well as other possible hazards.
62

..... N
co
er::
co

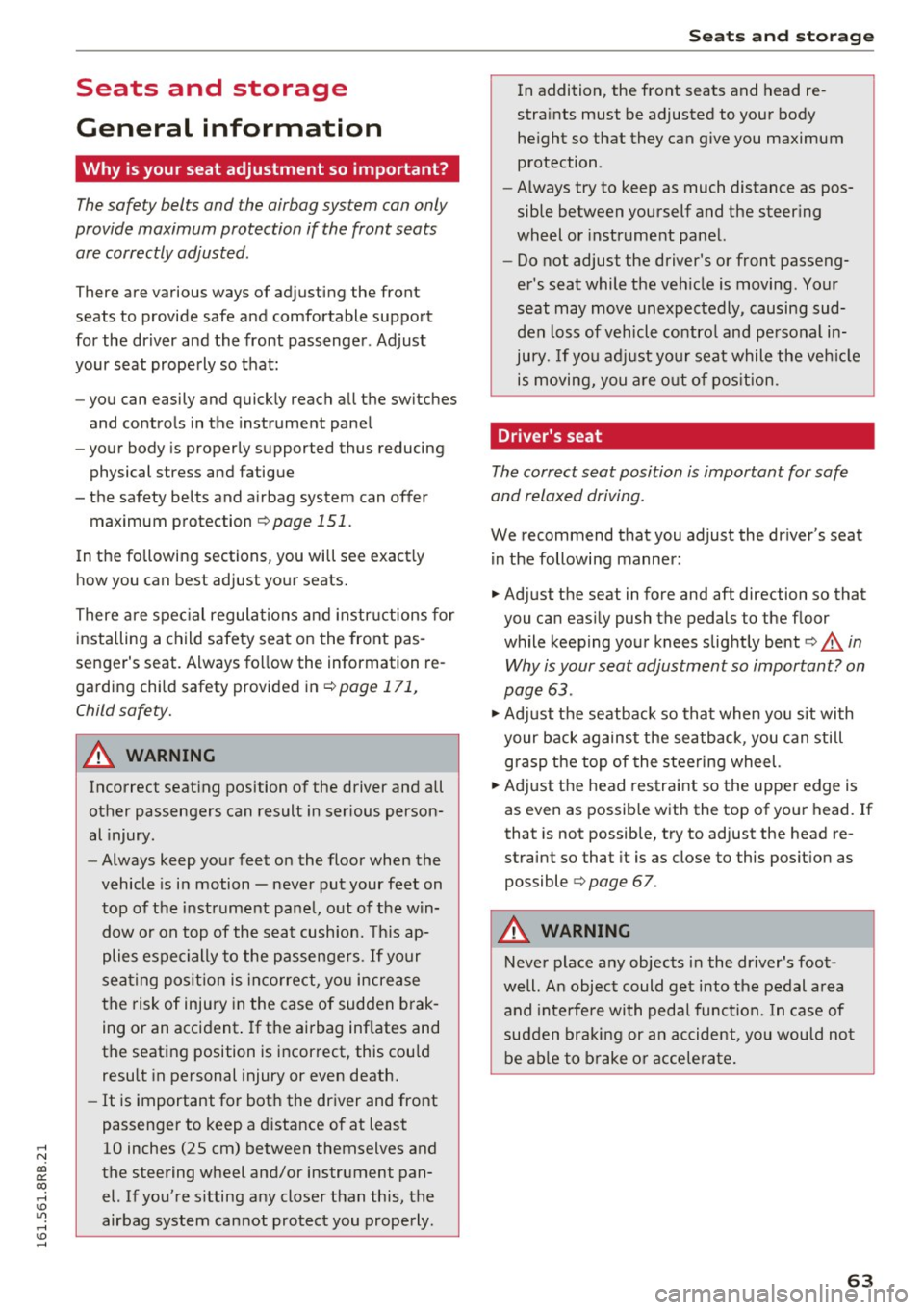

..... ..... Seats and storage
General information
Why is your seat adjustment so important?
The safety belts and the airbag system can only
provide maximum protection if the front seats are corr ectly adjusted .
There are various ways of adjusting the front
seats to provide safe and comfortable support
for the driver and the front passenger . Adjust
your seat properly so that:
- you can easily and quickly reach all the switches
and controls in the instrument panel
- your body is properly supported thus reducing
physical stress and fatigue
- the safety belts and a irbag system can offer
maximum protection
<=:> page 151.
In the following sections, you will see exact ly
how you can best adjust your seats.
There are spec ial regulations and instr uctions for
installing a child safety seat on the front pas­
senger's seat . Always fo llow the information re ­
garding child safety provided in
¢ page 171,
Child safety.
A WARNING
Incorrect seating position of the driver and all
other passengers can result in serious person­
al injury .
- Always keep your feet on the floor when the
vehicle is in motion - never put your feet on
top of the instrument pane l, o ut of the win­
dow or on top of the seat cushion. This ap­
plies especially to the passengers.
If your
seating pos it ion is inco rrect, yo u increase
the risk of injury in the case of sudden brak­
ing or an accident. If the ai rbag inf lates and
the seating position is incorrect, this cou ld
result in personal injury or even death.
- It is important for both the driver and front
passenger to keep a d istance o f at least
10 inches (25 cm) between themselves and
the steering wheel and/or instrument pan­ el. If you're s itting any closer than this, the
airbag system can not protect you properly .
Seat s and sto rage
In addition, the front seats and head re­
stra ints must be adjusted to your body
he ight so that they can g ive you maximum
protection .
- Always try to keep as much distance as pos­
sible between yourself and the steer ing
wheel or instrument panel.
- Do not adjust the driver's or front passeng­
er's seat while the veh icle is moving . Your
seat may move unexpectedly, causing sud­
den loss of vehicle contro l and personal in­
jury.
If yo u ad just yo ur seat while the veh icle
is moving, you a re o ut of pos ition.
Driver's seat
The correct seat position is important for safe
and relaxed driving.
We recommend that you adjust the dr iver 's seat
i n the following manner:
.. Adjust the seat in fore and aft direction so that
you can eas ily push the pedals to the floor
while keeping yo ur knees slightly bent<=:>.&,
in
Why is your seat adjustment so important? on
page 63 .
.,. Adjust the seatback so that when yo u sit with
your back agains t the se atback , you can still
grasp the to p of the steering wheel.
.,. Adjust the head res traint so the uppe r edge is
as even as possib le with the top of you r head. If
that is not possible, try to adjust the head re­
straint so that it is as close to this posit ion as
possible
<=:> page 67.
A WARNING
--
Neve r place any objects in the dr iver's foot ­
well. An object could ge t into the pedal a rea
and inte rfe re with pedal function. In case of
su dd en braking or an accident, you would no t
be ab le to br ake or accelera te.
63

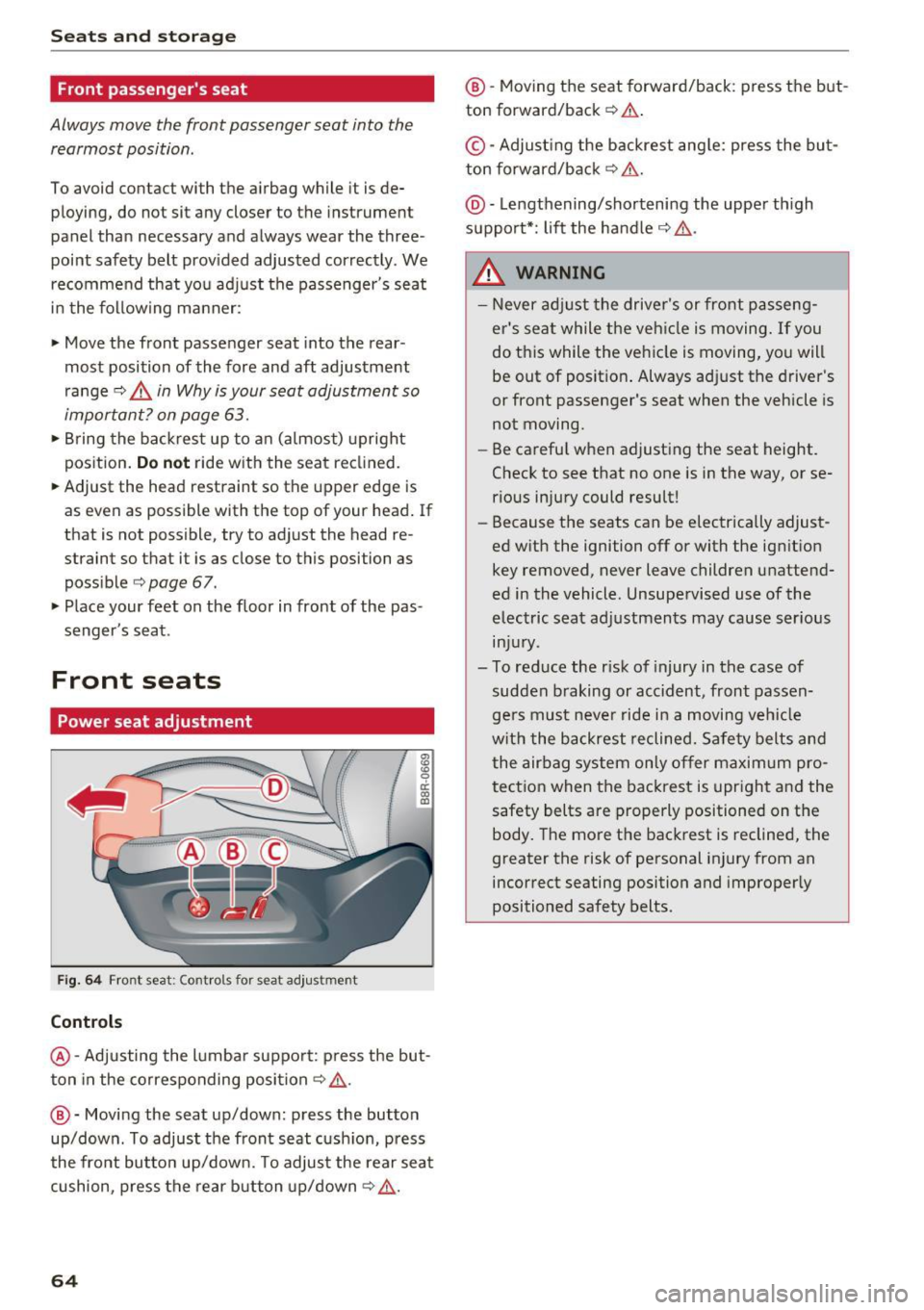

Sea ts and stor age
Front passenger 's seat
Always move the front passenger seat into the
rearmost position.
To avoid contact with the airbag wh ile it is de­
ploying, do not sit any closer to the instrument
panel than necessary and always wear the three­
point safety belt prov ided adjusted correctly. We
recommend that yo u adj ust the passenger's seat
i n t he following ma nner:
.. Move the front passenger seat into the rear­
most position of the fore and aft adjustment
range
c:> .&. in Why is your seat adjustment so
important? on page 63.
.. Bring the back rest up to a n (a lmost) upright
position .
Do not ride with the seat recl ined.
.. Adjust the head restraint so the upper edge is
as even as possible with the top of your head . If
that is not possible, try to adjust the head re­
straint so that it is as close to this position as
poss ible<=>
page 67 .
.. Place your feet on the floor in front of the pas­
senger's seat .
Front seats
Power seat adjustment
Fig. 64 Front seat: Cont rols for seat adju stment
Controls
~ a: a, a:,
@-Adjusting the l umba r suppo rt: p ress the but ­
ton in the correspo nding position
c:> ,& .
@ -Movi ng the seat up/down: p ress the button
up/down. To adjust the front seat c ush ion, press
the front bu tton up/ down. To adjus t the rear sea t
cushion, press the rear b utton up/down
c:> ,& .
64
@ -Moving the seat forward/back: press the but ­
ton forward/back
c:> .&..
©-Adjust ing the b ackrest ang le: press the bu t­
ton forward/back
c:> &. .
@ -Lengthening/sho rteni ng the upper th igh
suppo rt*: lift the handle
c:> &,.
.&, WARNING
- Never adjust the drive r's or front p asseng­
er 's sea t while t he veh icle is moving.
If you
do t his while the vehicle is moving, yo u will
be out of posit ion . Always ad just the driver 's
or front passenger's seat when the vehicle is
not moving .
- Be carefu l when adjusting the seat height.
Check to see that no one is in the way, or se­
rious injury could resu lt!
- Because the seats can be electrically adjust­
ed w ith the ignition off or with the ign ition
key removed, never leave children unattend­
ed in the vehicle. Unsupe rvised use of the
electric seat ad justmen ts may cause serious
in ju ry.
- To reduce the r isk of injury in the case of
sudden b raking or accident, front passen­
ge rs must neve r ride i n a moving ve hicle
w it h the backrest reclined. Safety belts a nd
the airbag system only o ffer maxim um pro­
t ection when the bac krest is upr igh t and the
safety belts are properly positioned on the
body. The mo re the bac krest is reclined, the
greater the risk of personal injury from an
incorrect seating position and improperly
positioned safety belts.
-

..... N
co ~ CX)
..... I.Cl U"I
..... I.Cl .....

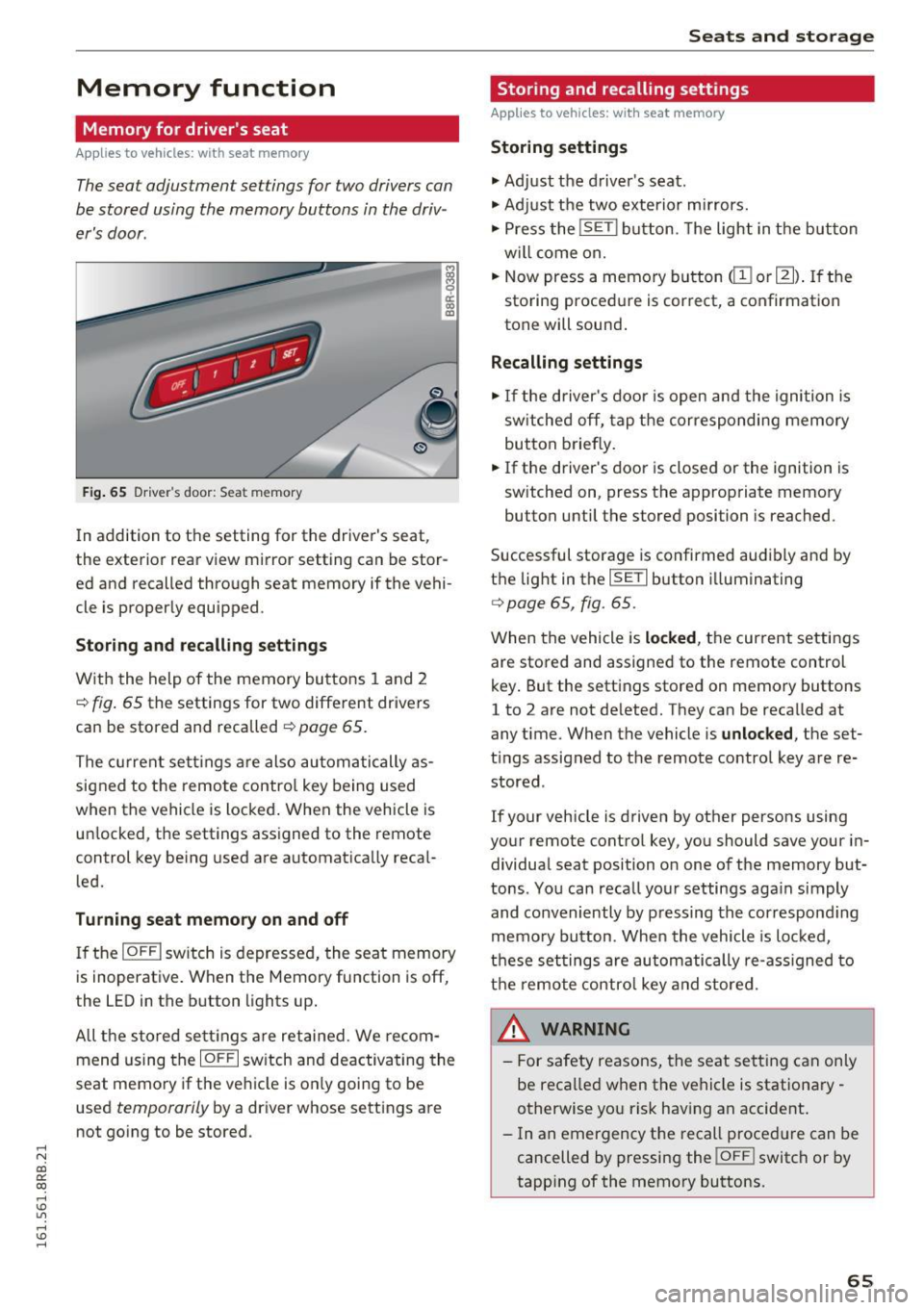

Memory function
Memory for driver's seat
Applies to vehicles: with seat memory
The seat adjustment settings for two drivers con
be stored using the memory buttons in the driv­
er's door .
Fig . 65 D ri ver's door : Sea t memory
! co ID
In addition to the setting for the driver's seat ,
the exterior rear view mirror setting can be stor­
ed and recalled through seat memory if the vehi­
cle is proper ly equ ipped .
Storing and recall ing s ettings
With the help of the memory buttons 1 and 2
¢ fig . 65 the settings for two different drivers
can be stored and recalled
¢ page 65.
The cu rrent sett ings are also automatically as ­
signed to the remote contro l key being used
when the vehicle is locked . When the vehicle is
un locked, the settings ass igned to the remote
control key being used are automatica lly reca l­
led.
Turning seat memory on and off
If the IO FFI sw itch is depressed, the seat memory
is inoperat ive . When the Memory fu nction is off,
the LED in the button lights up .
All the sto red se ttings a re retained. We recom­
mend us ing the
IO FF I sw itch and deactivating the
seat memory if the ve hicle is on ly going to be
used
temporarily by a driver whose settings are
not go ing to be stored .
Seats and storag e
Storing and recalling settings
Applies to vehicles: with seat memory
Storing settings
.,. Adj ust the d river's seat.
.,. Adjust the two exterior mirrors.
.,. Press the
!S ET I button. The light in the button
w ill come on.
.,. Now press a memory button
(ill or 121) . If th e
sto ring procedure is correct, a confirmation
tone will sound .
Recalling settings
.,. If the driver's door is open and the ignition is
sw itched off, tap the corresponding memory
button briefly .
.,. If the driver's door is closed or the ignition is
sw itched on, press the approp riate memory
button until the stored position is reached.
Successful storage is confirmed audibly and by
t h e light in the
ISET I button i lluminating
r=> poge 65, fig. 65.
When the vehicle is locked , the current settings
are stored and assigned to the remote control
key . But the settings stored on memory buttons
1 to 2 are not de leted. They can be reca lled at
any time . When the vehicle is
unlocked , the set­
t ings assigned to the remote control key are re­
stored .
If your vehicle is driven by other persons using
your remote control key, you should save your in­
dividua l seat position o n one of the memory but­
tons . You can reca ll you r settings aga in simply
and conveniently by pressing the correspond ing
memo ry button. When the vehicle is loc ked,
t h ese settings are automatically re-ass igned to
t h e remo te contro l key and stored.
_& WARNING
-
- For safety reasons, the seat sett ing can on ly
be recalled when the vehicle is stationa ry -
otherwise yo u risk having an accident .
- In an emergency the recall proced ure can be
cancelled by pressing the
! OF FI switch or by
tapp ing of the memory bu ttons.
65

Sea ts and stor age

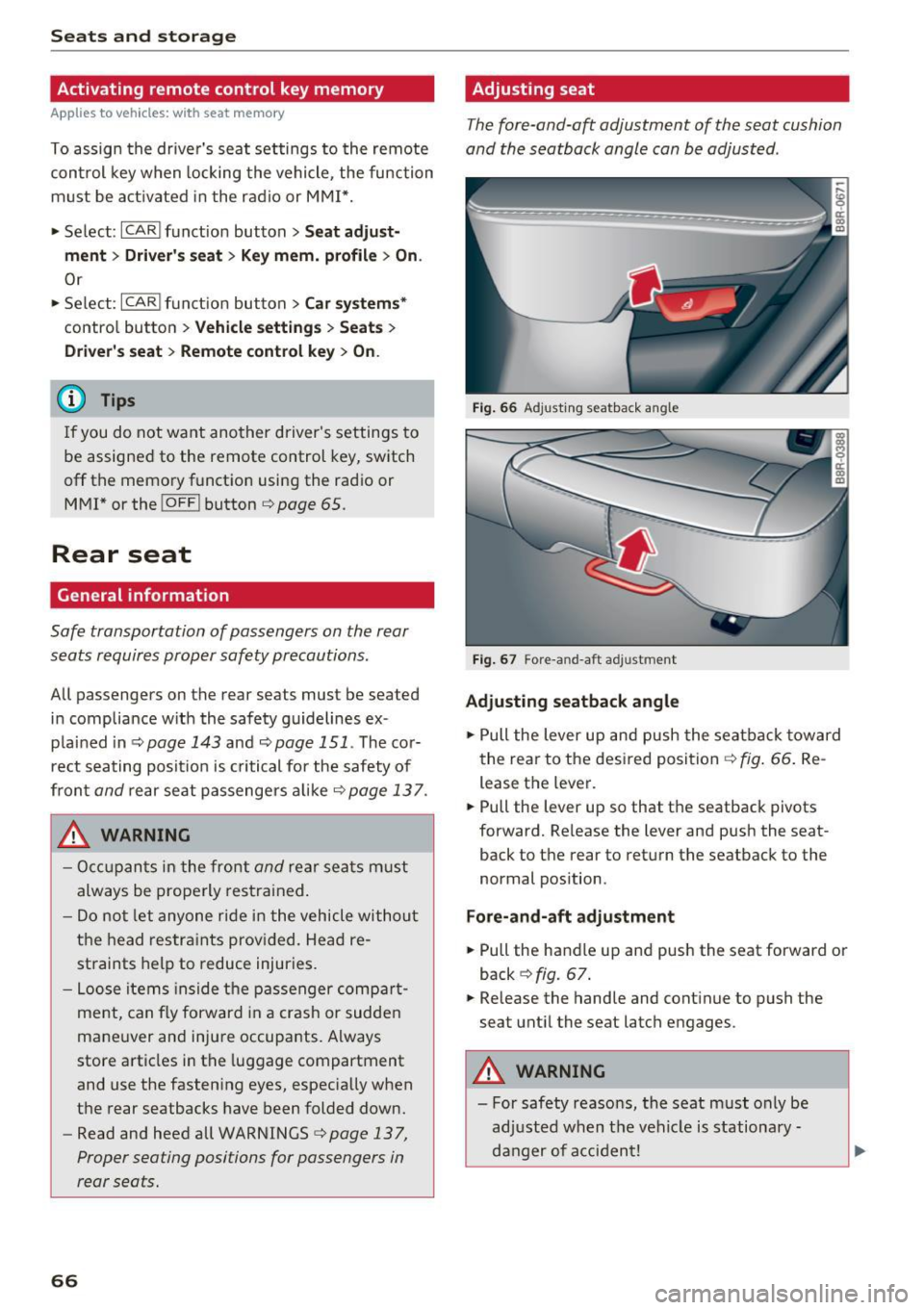

Activating remote control key memory
Applies to vehicles: with seat memory
To assign the drive r's seat settings to the remote
con trol key when locking the vehicle, the function
m ust be activated in the radio or M MI*.
• Select:
ICARI funct ion button > Seat adjust­
ment > Dr iver' s se at
> Key mem. profi le > On .
Or
• Se lect:
I CARI funct io n button > Car sy stem s*
contro l button > Vehicle sett ing s > S eats >
Driv er's s eat > Remote control key > On .
@ Tips
If you do not want another driver's settings to
be assigned to the remote control key, switch
off the memory function using the radio or
MMI* or the
j o FF I button ¢ page 65.
Rear seat
General information
Safe transportation of passengers on the rear
seats requires proper safety precautions.
All passengers on the rear seats must be seated
in compliance w ith the safety guidelines ex ­
p lai ned in
¢ page 143 and ¢page 151. The cor­
rect seating positio n is critical for the safety of
fron t
and rear seat passengers a like ¢ page 13 7.
_8. WARNING
- O ccupan ts in the front and rear seats m ust
always be properly res trained.
- Do not let anyone ride in the vehicle withou t
t h e head restraints prov ided. Head re­
straints hel p to reduce injuries.
- Loose items ins ide the passenger compa rt­
ment, can fly forward in a crash or sudden
maneuver and injure occupants. Always
store articles in the luggage compartment
and use the fasten ing eyes, especially when
t h e rear seatbacks have been folded down.
- Read and heed all WARNINGS
¢page 137,
Proper seating positions for passengers in
rear seats.
66
Adjusting seat
The fore-and-a~ adjustment of the seat cushion
and the seatback angle can be adjusted .
Fig. 66 Ad justing seatback angle
F ig . 67 Fore -a n d-aft ad justment
Adjusting seatback angle
• Pull the lever up and push the seatba ck toward
the rea r to the desired position~
fig. 66 . Re­
lease the lever.
• Pull the lever up so that the seatback pivots
forward. Release the lever and push the seat­
back to the rear to retu rn the seatback to the
normal pos ition .
Fore-and-aft adju stment
• Pull the handle up and push the seat forward or
back ¢
fig. 67.
• Release the handle and cont inue to push the
seat until the seat latch engages .
_8. WARNING
- For safety reasons, the seat must only be
ad justed when t he vehicle is stationa ry -
danger of acci dent!

,...,
N
co ~ CX) ,...,
I.Cl U"I ,...,
I.Cl ,...,

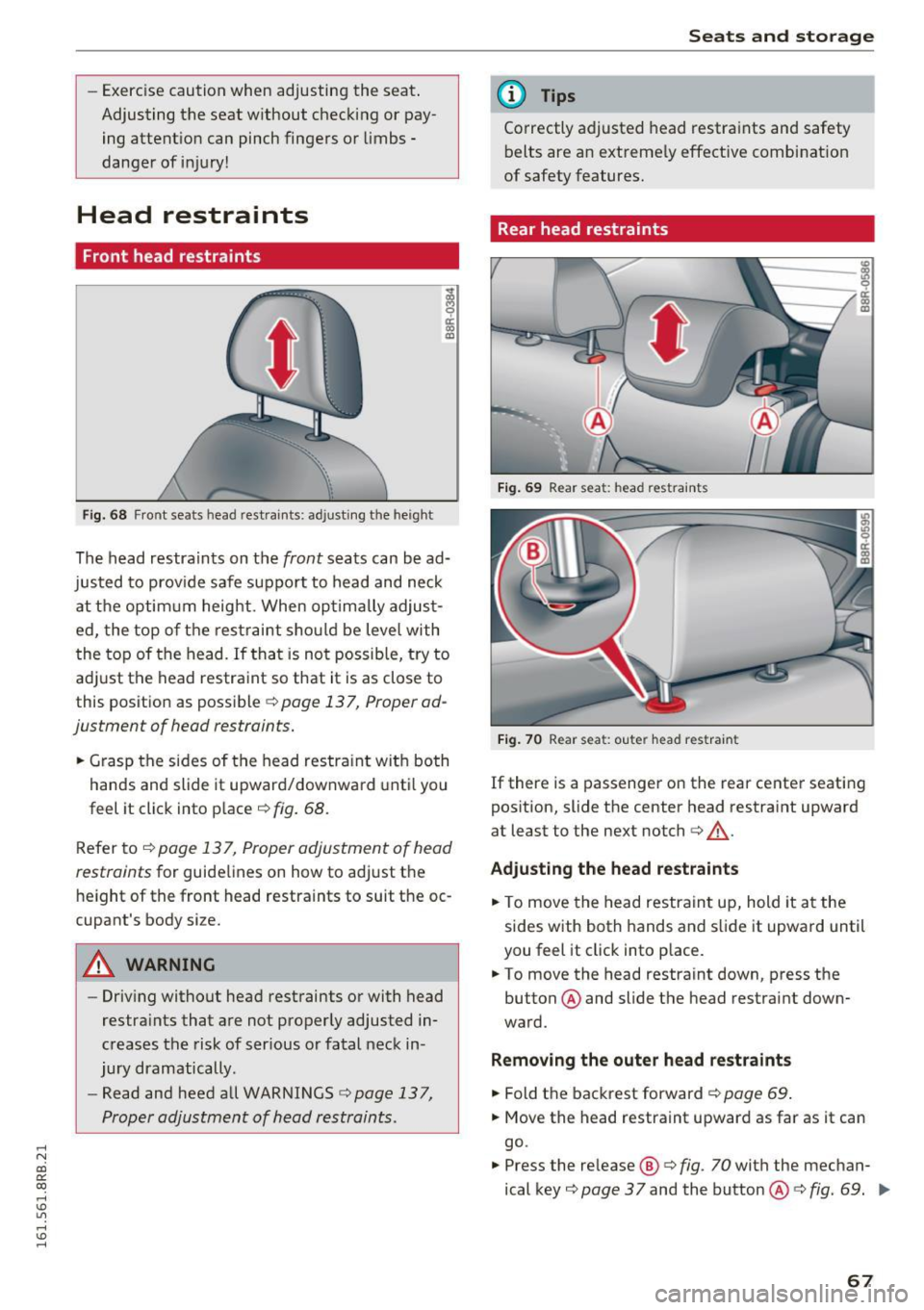

- Exercise caution when adjustin g the seat .
Adjusting t he seat w ithout checking or pay­
ing attention can pinch fingers or limbs -
danger of injury!
Head restraints
Front head restraints
F ig. 68 Fro nt seats hea d restrai nts: adjusti ng the he ight
The head restraints on the front seats can be ad­
justed to prov ide safe suppo rt to head and neck
at the optim um height. When optimally adjus t­
ed, the top of t he restraint sho uld be leve l with
the top of the head. If that is not possib le, try to
ad just the head restraint so that it is as close to
this position as possible
<:!) page 137, Proper ad­
justment of head restraints.
.. Grasp the sides of the head res tra int wit h both
hands and slide it upward/downward unt il you
feel it click into p lace
¢ fig. 68.
Refer to ¢ page 13 7, Proper adjustment of head
restraints
for guidelines on how to adjust t he
h e ight of the front head restra ints to suit the oc­
cupant's body size.
A WARNING
- Driv ing without head rest raints or with head
restra ints that are not properly adjusted in­
creases the risk of ser ious or fatal neck in­
jury dramatically.
- Read and heed all WARNINGS
r:.> page 137,
Proper adjustment of head restraints.
Seats and storag e
(D Tips
Correctly adjusted head restraints and safety
belts are an extremely effective combinat ion
of safety features.
Rear head restraints
F ig . 6 9 Rear seat : head restra ints
Fig. 70 Rear seat: o ute r head restraint
If there is a passenger on the rear center seating
pos it ion, slide the center head restra int upward
at least to the next notch
c:> ,A .
Adju sting the head restraints
.. To move the head restrain t up, hold it a t the
sides with both hands and s lide it upward until
you feel it click into p lace.
.. To move the head restraint down , press the
button @ and slide the head restraint down­
ward.
Removing the outer h ead restra ints
.. Fold t he backrest forward c:!) page 69 .
.. Move the head restraint upward as far as it can
go.
.. Press the re lease ®
c:> fig. 70 with the mec han­
ical key
c> page 37 and the button @ c:> fig. 69. IIJJ,
67

Seats and storage

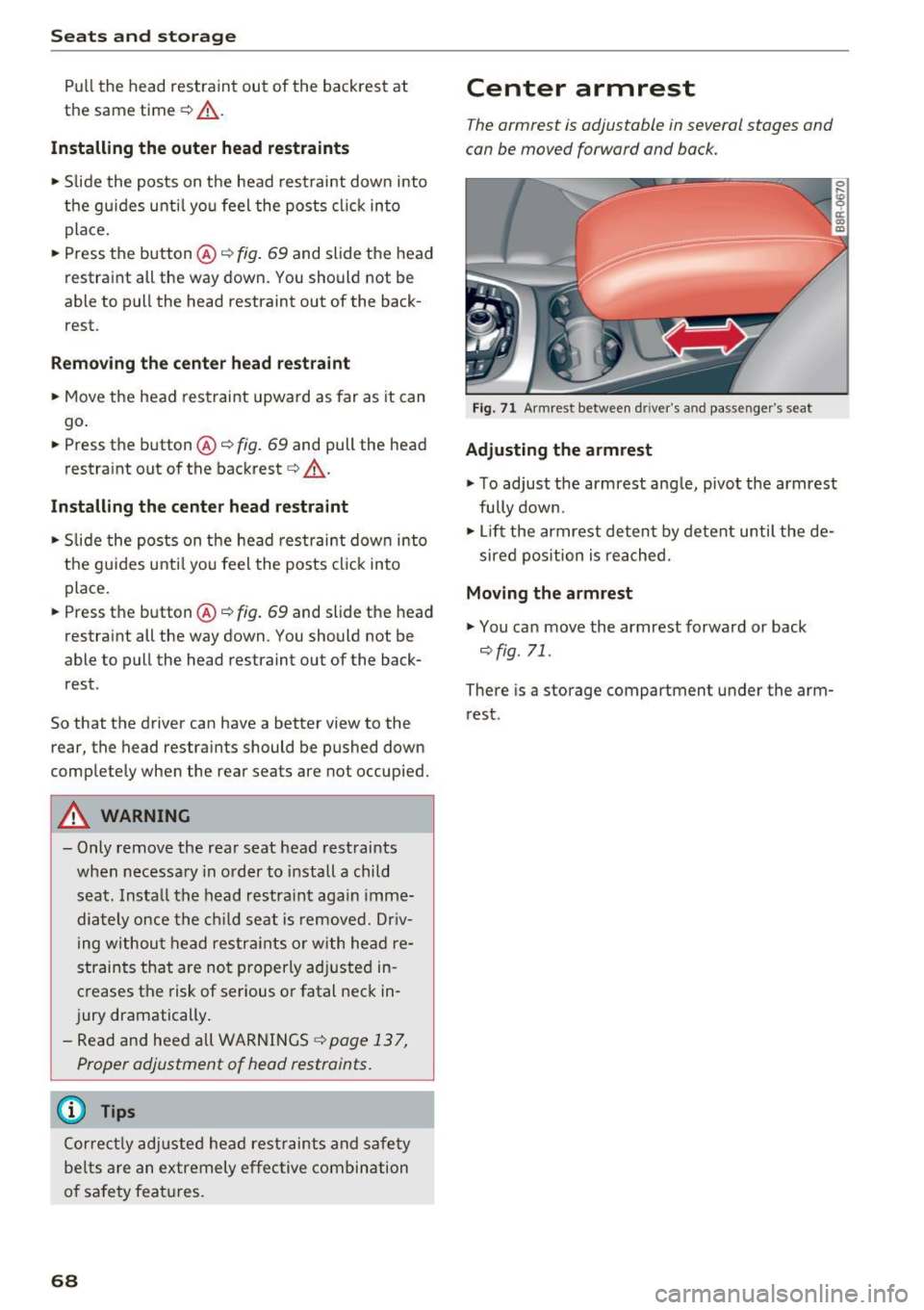

Pull the head restraint out of the backrest at
the same time c::>
.&_.
Installing the outer head restraints
• Slide the posts on the head restraint down into
the guides unti l yo u feel the posts click into
place.
• Press the button @~
fig. 69 and slide the head
restraint all the way down. You should not be
able to pull the head restraint out of the back­
rest.
Removing the center head restraint
• Move the head restraint upward as far as it can
go .
• Press the button@c::>
fig. 69 and pull the head
restraint out of the backrest
c::> .&_ .
Installing the center head restraint
• Slide the posts on the head res tra int down into
the guides until you feel the posts click into
place .
• Press the button@c::>
fig. 69 and slide the head
restraint all the way down. You should not be
able to pull the head restraint out of the back­
rest .
So that the driver can have a better view to the
rear, the head restraints should be pushed down
completely when the rear seats are not occupied.
A WARNING
- Only remove the rear seat head restraints
when necessary in order to install a child
seat. Install the head restraint again imme­
diately once the child seat is removed. Driv­
ing without head restraints or with head re ­
straints that are not properly adjusted in­
creases the risk of ser ious or fatal neck in­
jury dramatically .
- Read and heed all WARNINGS
c::>page 137,
Proper adjustment of head restraints .
© Tips
Correctly adjusted head restraints and safety
belts are an extremely effective combination
of safety feat ures .
68
Center armrest
The armrest is adjustable in several stages and
can be moved forward and back.
Fig. 71 Armrest between driver 's and passenger's seat
Adjusting the armrest
• To adjust the armrest ang le, pivot the armrest
fully down.
• Lift the armrest detent by detent until the de­
sired position is reached.
Moving the armrest
• You can move the armrest forward or back
c::>fig . 71 .
There is a storage compartment under the arm­
rest.
