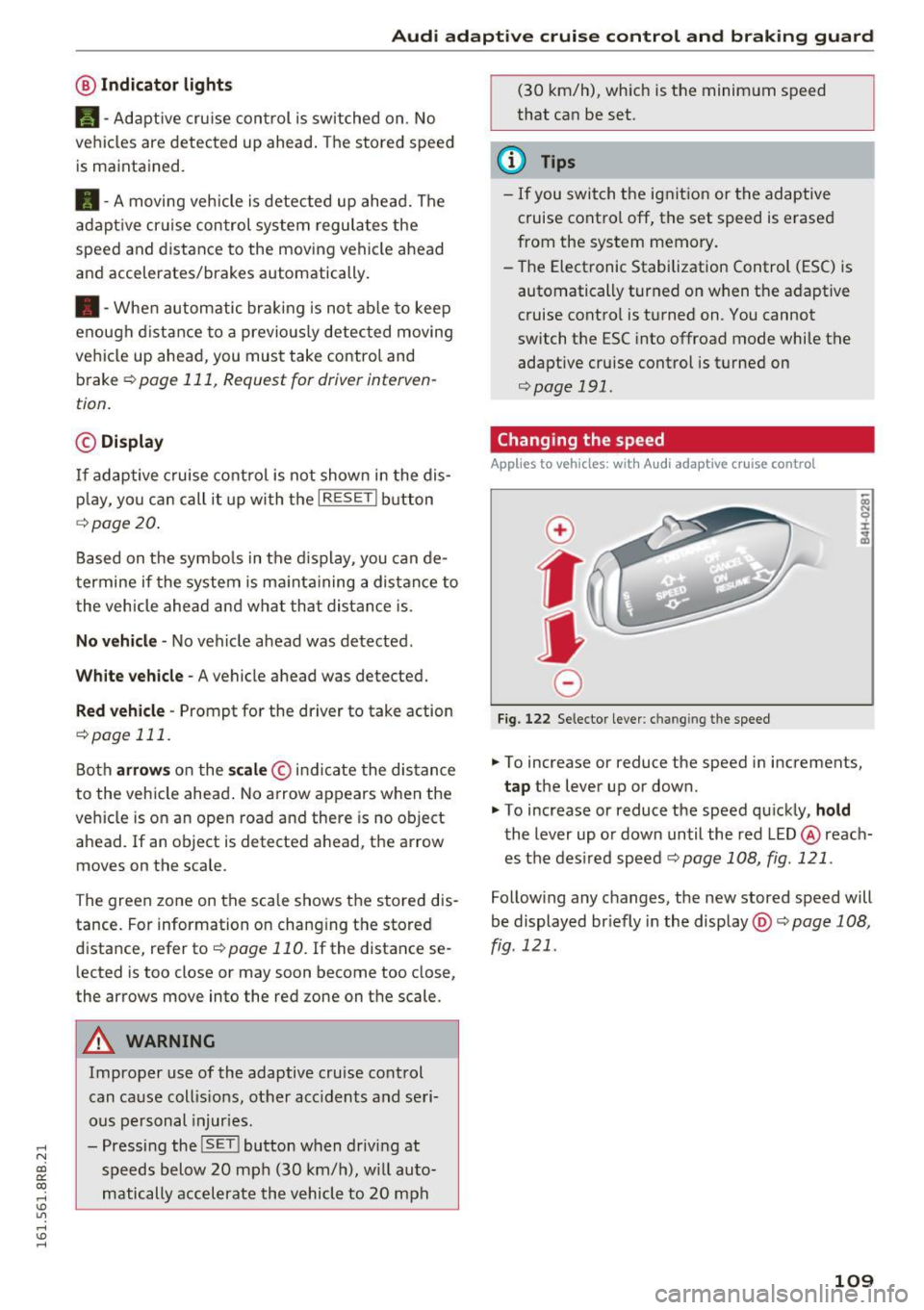

Audi adaptive cruise control and braking guard
@ Indicator lights
Ill-Adaptive cru ise control is switched on. No
vehicles are detected up ahead. The stored speed
is maintained.
• -A moving vehicle is detected up ahead. The
adaptive cruise control system regulates the
speed and distance to the moving vehicle ahead
and accelerates/brakes automatically.
• -When automatic braking is not ab le to keep
enough distance to a previously detected moving
vehicle up ahead, you must take control and
brake
~ page 111, Request for driver interven ­
tion.
© Display
If adaptive cruise control is not shown in the dis­
play, you can call it up with the
I RESETI button
¢page 20.
Based on the symbols in the display, you can de­
termine if the system is maintaining a distance to
the vehicle ahead and what that distance is.
No vehicle -No vehicle ahead was detected.
White vehicle -A vehicle ahead was detected.
Red vehicle -Prompt for the dr iver to take action
¢page 111.
Both arrows on the scale © indicate the distance
to the vehicle ahead . No arrow appears when the
vehicle is on an open road and there is no object
ahead . If an object is detected ahead, the arrow
moves on the scale .
The green zone on the scale shows the stored dis­
tance. For information on changing the stored
distance, refer to
¢page 110. If the distance se­
lected is too close or may soon become too close,
the arrows move into the red zone on the scale.
A WARNING
Improper use of the adaptive cruise control
can cause collis ions, other acc idents and seri­
ous personal injur ies.
- Pressing the
!SET ! button when driving at
speeds below 20 mph (30 km/h), will auto­
matically accelerate the vehicle to 20 mph (30
km/h), which is the minimum speed
that can be set.
(D Tips
- If you switch the ignition or the adaptive
cruise control off, the set speed is erased
from the system memory.
- Th e Electronic Stabilization Control (ESC) is
automatically turned on when the adaptive
cruise control is turned on . You cannot
switch the ESC into offroad mode while the
adaptive cru ise control is turned on
¢page 191.
Changing the speed
Applies to vehicles: with Audi adapt ive cru ise control
0
f
•
0
Fig. 122 Selector lever: ch an gin g the speed
.,. To increase or reduce the speed in increments,
tap the lever up or down.
" To increase or reduce the speed quickly,
hold
the lever up or down until the red LED @ reach­
es the des ired speed c::>
page 108, fig. 121 .
Following any changes, the new stored speed will
be displayed br iefly in the display @c::>
page 108,
fig. 121 .
109

Audi adaptive cruise control and braking guard
Interrupting cruise control
Applies to vehicles: with Audi adaptive cruise contro l
Fig. 123 Selector leve r
Requirement: adaptive cruise control must be
switched on
c:> fig . 123 (D.
Overriding cruise control
• To accelerate manually , press the accelerator
pedal. The message
ACC: override appears .
• To resume adaptive cruise control, remove your
foot from the gas pedal. The system re turns
again to the speed that was saved before .
• You can
save a new speed at any time by press­
ing the
IS ETI button c:> fig. 123 .
Canceling cruise control while driving
• Move the lever into position @. The message
ACC: Standby appears. Or
• press the brake pedal.
• To resume the stored speed, move the lever in­
to position
@.
.,&. WARNING
Never resum e the stored speed if the speed is
too high for prevailing road, traffic or weather
conditions.
110
Setting the distance
Applies to vehicles: with Audi adaptive cruise control
Fig. 124 Se lector leve r: setting the distance
• Tap the switch to display the current set dis­
tance
c:> fig . 124 .
• To increase or reduce the distance by incre­
ments, tap the switch again to the left or right.
The distance between the two veh icles will
change in the instrument cluster display .
When approaching a moving vehicle up ahead,
the adapt ive cruise control system b rakes to
match that object's speed and then maintains
the stored distance.
If the vehicle ahead acceler ­
ates, adaptive cruise control will also accelerate
up to the stored speed .
The higher the speed, the greater the distance in
yards (meters)
c:> &. . The Distance 3 setting is
recommended.
The distances provided are spec ified values . De­
pending on the driving situation and the how the
vehicle ahead is driving, the actua l distance may
be more or less than these target distances .
The var ious symbo ls for the time increments ap­
pear briefly in the information line @
c:>page 108, fig . 121 when yo u change the set­
tings.
c::::, _c::::, ___ Distance 1 : This setting cor responds
to a distance of 92 feet/28 meters when travel­
in g at 62 mph (100 km/h), or a time interval of 1
second .
c::::, __ c::::, __ Distanc e 2: This setting corresponds
to a distance of 118 feet/36 meters when travel­
in g at 62 mph (100 km/h), or a time interval of
1.3 seconds .

..... N
co ~ CX)
..... I.Cl U"I
..... I.Cl .....
Audi adaptive cruise control and braking guard

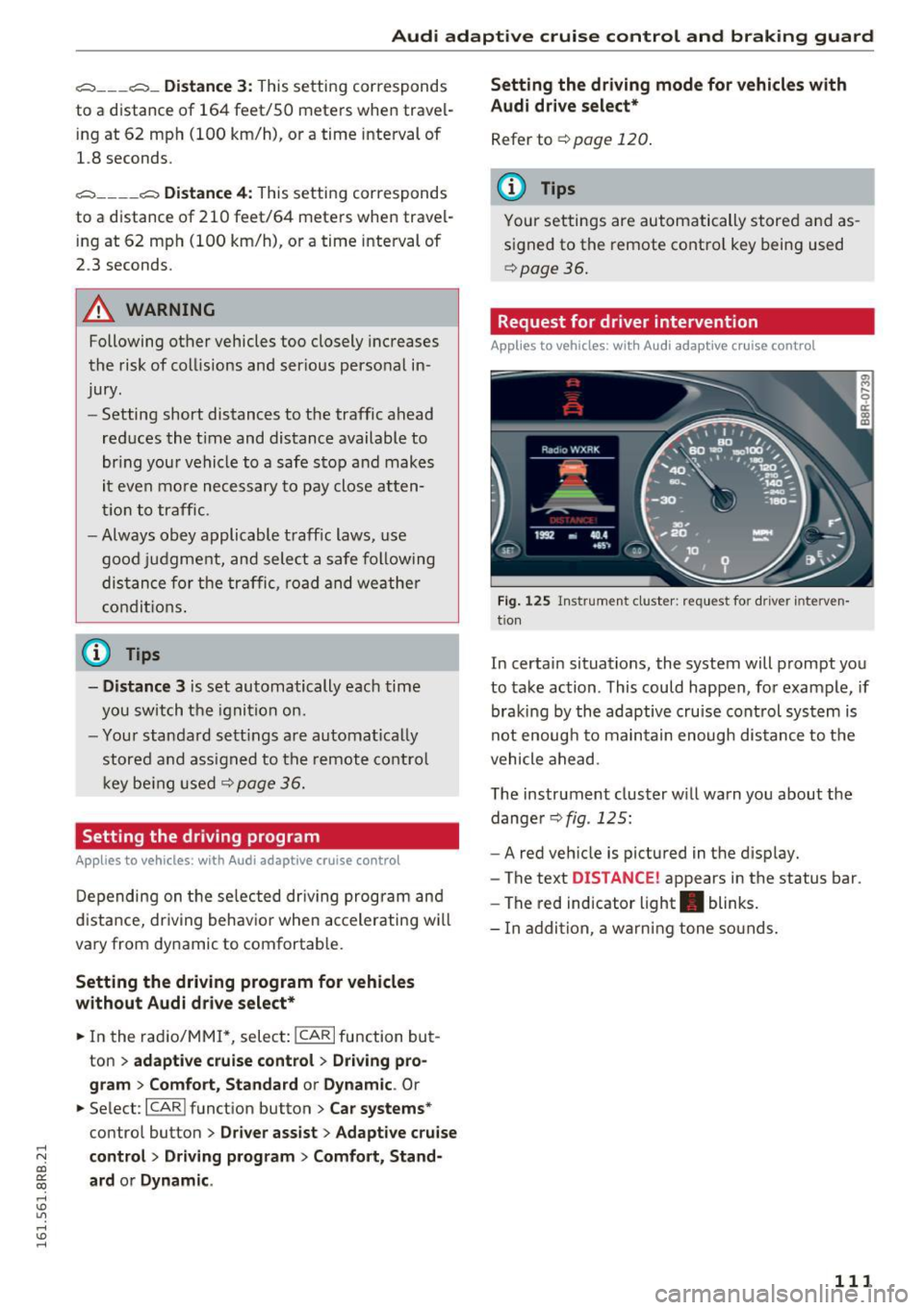

~--- ~-Di stance 3: This setting corresponds
to a distance of 164 feet/SO meters when travel­
ing at 62 mph (100 km/h), or a time interval of
1.8 seconds.
~ ---- ~ Distance 4: This setting corresponds
to a distance of 210 feet/64 meters when travel­
ing at 62 mph (100 km/h), or a time interval of
2 .3 seconds.
A WARNING
Following other vehicles too closely increases
the risk of collisions and ser ious personal in ­
jury.
- Setting short distances to the traffic ahead
reduces the time and distance available to
br ing your vehicle to a safe stop and makes
it even more necessary to pay close atten­
tion to traffic.
- Always obey applicable traffic laws, use
good judgment, and select a safe following
distance for the traffic, road and weather
conditions.
¢j) Tips
- Distance 3
is set automatically each time
you switch the ignition on.
- Your standard sett ings are automat ically
stored and assigned to the remot e control
k ey be ing used
<=> page 36.
Setting the driving program
Applies to vehicles: with Audi adaptive cruise control
Depending on the selected dr iv in g program and
d istance, driving behavior when accelerating w ill
vary from dynamic to comfortable.
Setting the driving program for vehicles
without Audi drive select*
~ In the radio/MM!*, select: !CARI funct ion but­
ton >
adaptive cruise control > Driving pro­
gram > Comfort, Standard or Dynamic .
Or
~ Select: ICARI function button> Car systems*
contro l button > Driver ass ist > Adaptive cruise
control > Driving program > Comfort, Stand­
ard or Dynamic . Setting the driving mode for vehicles with
Audi drive select*
Refer to c!:>poge 120 .
(D Tips
Your settings are automatically stored and as­
s ig ned to the remote control key being used
c!:> page 36.
Request for driver intervention
Applies to vehicles: with Audi adaptive cruise control
Fig. 125 Instrument cluster: req uest for driver interven­
tion
In certain situations, the system will prompt you
to take action . This could happen, for example, if
braking by the adaptive cruise control system is
not enoug h to maintain enough distance to the
vehicle ahead.
The instrument cluster w ill warn you about the
dange r
c!:>fig . 125:
-A red vehicle is pictured in the display.
- The text
DISTANCE! appears in the status bar.
- The red indicator light . blinks.
- I n addition, a warning tone sounds.
111

Audi adaptive cruise control and braking guard
Audi braking guard
Description
Applies to vehicles: with Audi adaptive cruise contro l
Fig. 126 In strument cluste r: appro ach warning
Braking guard uses a radar sensor. It also func­
tions within the limits of the system when adap­
tive cruise control is switched off .
What can braking guard do?
When detected in time, the system can assess
situations when a veh icle ahead brakes suddenly
or if your own vehicle i s traveling at a high speed
and approaching a vehicle up ahead that is mov­
ing more slowly . Braking guard does not react if
it cannot detect the situat ion.
The system advises you of variou s situations:
- The
distance warning is given if you are too
close to the vehicle ahead for a long time. If the
vehicle ahead brakes sharply, you will not be
able to avoid a collision. The indic ator light .
in the display comes on.
- The
approach warning is given when a detected
vehicle up ahead in your lane is moving much
more slowly than you are or if it brakes sharply .
When this warning is given, it may only be pos­
s ib le to avo id a collision by swerving or braking
sharply. The indicator light . and indicator in
the display will warn you about the danger
¢fig. 126. You will also hear an acoustic signal.
If you do not react fast enough or do not react at
a ll to the situation, braking guard will intervene
by braking and the message
Braking guard: Acti­
vated
will appear.
l) Thi s is no t a vail able in som e coun trie s.
112
- If a collision is imminent, the system will first
provid e an
acute warning by briefly and sharply
app ly ing the b rakes.
- If you do not react to the acute warning, brak­
ing guard can brake within the limits of the sys ­
tem . This reduces the vehicle speed in the event
of a collision.
- At speeds under 20 mph (30 km/h), the system
can initiate a comp lete deceleration shortly be­
fore a collision ll.
- If the braking gua rd senses that you are not
braking hard enough when a collision is immi­
nent, it can increase the braking force.
Which functions can be controlled?
You can switch braking guard and the distance/
approach warning on or off in the radio/MM
I*
¢ page 113 , Settings in the radio/MM!* .
A WARNING
Lack of attent ion can cause collisions, other
accidents and ser ious personal injuries . The
braking guard is an assist system and cannot
prevent a collision by itself . The driver must
always intervene. The driver is always respon­
sible for braking at the correct time .
- Always pay close attention to traffic, even
when the braking guard is switched on. Be
ready to intervene and be ready to take
complete control whenever necessary. Al­
ways keep the safe and legal distance be ­
tween your vehicle and vehicles up ahead .
- Braking guard works within limits and will
not respond outside the system limits, for
examp le when approach ing a stopped vehi­
cle or stationary obstacle (end of a traffic
jam or vehicle that has broken down in traf­
fic) .
- Always remember that the radar sensor for
the braking guard works only within defined
detection and range limits that may prevent
the proper detection of other vehicles.
- The radar sensor's function and range can
be reduced by rain, snow and heavy spray.
Moving vehicles up ahead may not be
-

,....,
N
co
er::
co
,...., Audi adapt ive cruis e control and braking gua rd
promptly detected or may not be detected
at all.
- Reflective surfaces including crash barriers
or tunnel entrances may impair the function
of the radar sensor.
(D Tips
- You can cancel the braking that is initiated
by the system by braking yourse lf, by accel ­
erating noticeably or by swerving.
- Braking guard error messages
¢page 113 .
-Keep in mind that braking guard can brake
unexpected ly. Always secure any cargo or
objects that you are transporting to reduce
the risk of damage or injury.
Settings in the radio/MMI*
App lies to vehicles: with Audi adaptive cruise co ntro l
... Se lect : I CARI funct ion button > Au di bra king
guard .
Or
... Select:
~ I C~ A~ R~ I funct ion button > Car sy stem s*
contro l bu tton > Driv er a ssis t> A udi br aking
g uard .
S ystem -
Switch braking guard On and Off. When
you switch the ig nition on, the message
Brak ing
guard: Off
appears if the system is switched off .
Early warning -The distance and approach warn­
ings in the display can be switched
On /Off .
{D) Tips
-Your settings are automatically stored and
ass igned to the remote control key being
used at the times the sett ings are made
¢ page 36.
-If you restrict the ESC, the braking guard al­
so switches itse lf off ¢
page 191.
-Switch braking guard off when you are load­
i ng the veh icle onto a vehicle carr ier, train,
sh ip or other type of transportation . This
can p revent undesired warnings from the
braking gua rd system.
Messages
App lies to vehicles: with Audi adaptive cruise contro l
Braking guard : Off
This driver message appears if the system is
turned off via the radio/MM I *. Otherwise, if the
system is turned off, the information appears ev ­
ery time shortly after the start of the trip.
The driver message a lso appears if the system is
not availab le due to a malfunction or if the ESC is
not switched on
¢ page 191 . If th is is the case,
the system w ill not provide warnings about a
poss ible coll is ion.
B rak ing guard : Activated
T h is dr iver message appears if sharp b rake pres­
s ur e was applied due to an acute warning.
•••
Three white dots appear if a setting cannot be se­
lected w ith the operating lever . For example, this
happens if you want to ra ise/lower the speed
even though the re was no p reviously saved
speed.
A CC : Sensor bloc ked
This message appears if the sensor v iew is ob ­
structed, for examp le by leaves, snow, heavy
spray or dirt. Clean the sensor¢
page 106,
fig. 116.
ACC: Unavailable
The driver mess age appears if, for examp le, the
brake tempera ture is too high. The adaptive
cruise contro l is temporarily unavailable. A chime
sounds as a reminder .
ACC: Not available
The driver message appears if there is a malfunc­
t ion. The adaptive cruise control tu rns off. A
c hi me so unds as a reminde r. Have the system
c hec ked by an author ized Audi dealer or au thor­
ized Audi Service Facility .
Shift lever position!
The driver message appears if the selector lever
is shifted to the N pos ition . The adapt ive cru ise
control is not available wh ile in this position .
Stabilization cont rol (ESC)
T his message appears if the E lectronic Stabi liza­
t ion Control (ESC) is taking action to stabi lize the ..,.
113

Audi adaptive cruise control and braking guard

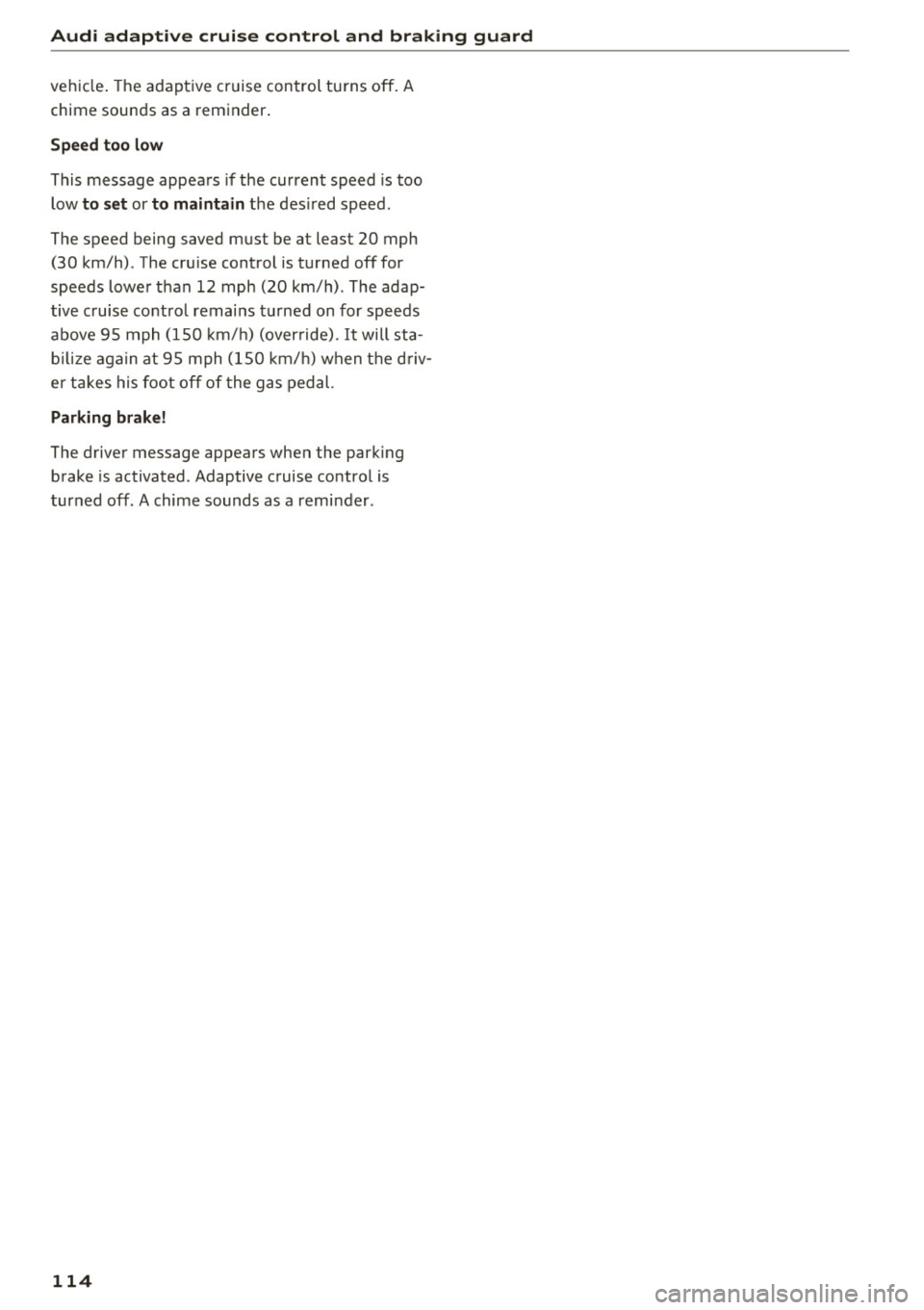

vehicle . The ada ptive cruise control tu rns o ff. A
chime soun ds as a rem inder .
Speed too low
This message appea rs if the current speed is too
low
to set or to maintain th e des ired speed .
The speed being saved must be at least 20 mph (3 0 km/h) . The cru ise control is turned off for
speeds lowe r th an 12 mph (20 km/h) . The adap­
tive c ruise contro l remai ns tu rned on for speeds
above 95 mph (150 km/ h) (over ride).
It will sta­
b iliz e aga in at 9 5 mph (150 km/ h) w hen t he d riv­
er takes his foot o ff of t he gas pedal.
Parking brake!
The driver message appears when the park ing
brake is activated . Adaptive cruise contro l is
turned off . A chime sounds as a reminder .
114

..... N
co ~ CX)
..... I.Cl U"I
..... I.Cl .....
Audi side assist Side assist
Description
App lies to vehicles: with Audi side assist
Fig. 127 Sensor dete ction rang e
Fig. 128 Display o n the exterio r mirror
Side assist helps you monitor your blind spot and
traffic behind your vehicle . Within the limits of
the system , it warns you about vehicles that are
coming closer or that are traveling with you with­
in sensor range ©
c::, fig. 12 7. If a lane change is
classified as critical, the display @ in the exter ior
mirror
c::, fig . 128 turns on .
The display in the left exterior mirror provides as­
sistance when making a lane change to the left,
while the d isp lay in the right exterior mirror pro ­
vides assistance when making a lane change to
the right .
Information stage
As long as you do not activate the turn signal,
side assist
informs you about vehicles that are
detected and class ified as critica l. The disp lay in
the respective mirro r turns on , but is dim .
Aud i side assist
The display remains dim intentionally in the in­
formation stage so that your view toward the
front is not disturbed.
Warning stage
If you activate the turn signal , side assist warns
you about vehicles that are detected and classi­
fied as critical. The display in the respect ive mir­
ror blinks bright ly. If this happens, check traffic
by glancing in the rearview mirror and ove r you r
shoulder c::,
.&. in General informa tion on
page 116.
{!) Tips
- You can adjust the brightness of the display
@ c::,
page 117.
-Please refer to the instructions for towing a
trailer located inc::,
page 116.
115

Audi side assist
General information
Applies to vehicles: with Audi side assist
F ig . 129 Driving s it ua tion s
Fig. 130 Rear of the veh icle: Posit ion of the se nsor s
Side assist functions at speeds above approxi­
mately 19 mph (30 km/h).
(D Vehicles that are appro aching
M
! OJ CD
In certain cases, a vehicle will be classified as
cr itical for a la ne change even if it is still some­
what far away. The faster a veh icle approaches ,
the soo ner the d isplay in the exterior mirror w il l
turn on.
@ Vehicles tra veling with you
Veh icles traveling with you are ind icated in the
exterior m irror if they are classified as critical for
a lane change. All ve hicl es detected by side assist
116
are indicated by the time they enter your "blind
spot", at th e latest .
@ Vehicle s left behind
If you slow ly pass a vehicle that s ide assist has
de tected (the diffe rence in speed between the
vehicle and your vehicle is less than 9 mph or
15 km/h), the display in the exterior mirror turns
on as soon as the vehicle enters your blind spot.
The display w ill not turn on if you quickly pass a
vehicle that side ass ist has detected (the differ­
ence in speed between the vehicle and your vehi­
cle is greater than 9 mph or 15 km/h).
Functional limitation s
The radar sensors are designed to detect the lef t
and rig ht adjacent lanes whe n the road lanes are
the normal width . In certa in situations, the dis­
play in the exterior mirror may turn on even
t hough there is no vehicle located in the area
that is crit ica l for a lane change. For example :
- if the lanes a re narrow o r if your are driving on
the edge of your lane . If this is the case, the
system may have detect ed the vehicle in anoth­
e r lane that is
not adjacent to your current lane.
- if yo u are driving through a curve. Side assist
may r eact to a vehicle that is on e lane over
from the ad jacent lane.
- if side assist reacts to other objects (such as
high or disp laced guard rai ls) .
- In poor weather condit ions. The side assist
functions are limited .
Do no t cover the radar sensors ¢
fig. 130 wit h
stickers, deposits, bicycl e wheels or other ob­
jects, because this wi ll affect the function. Do not
u se side assist when towing a trailer . For infor­
mation on cleaning, refer to ¢
page 207.
A WARNING
-Always pay attention to traffic and to the
area around your veh icle . S ide assist cannot
replace a driver's attention . The driver alone
is always responsib le for lane changes and
sim ila r driv ing mane uve rs .

..... N
co ~ CX)
..... I.Cl U"I
..... I.Cl ..... -
Improper reliance on the side assist system
can cause collisions and serious personal in­
jury:
- Never rely only on side assist when chang­
ing lanes.
- Always check rear view mirrors to make
sure that it is safe to change lanes.
- Side assist cannot detect all vehicles under
all conditions -danger of accident!
- Please note that side assist indicates there
are approaching vehicles, or vehicles in your
blind spot, only after your vehicle has
reached a driving speed of at least 19 mph
(30 km/h).
- In certain situations, the system may not
function or its function may be limited. For
example:
- if vehicles are approaching or being left
behind very quickly. The display may not
turn on in time.
- in poor weather conditions such as heavy
rain, snow or heavy mist.
- on very wide lanes, in tight curves or if
there is a rise in the road surface. Vehicles
in the adjacent lane may not be detected
because they are outside of the sensor
range.
(D Note
The sensors can be displaced by impacts or
damage to the bumper, wheel housing and
underbody. This can affect the system. Have
your authorized Audi dealer or authorized
Audi Service Facility check their function.
(D Tips
-If the window glass in the driver's door or
front passenger's door has been tinted , the
display in the exterior mirror may be misin­
terpreted.
- For Declaration of Compliance to United
States FCC and Industry Canada regulations
¢page 283.
Audi side assist
Activating and deactivating
Applies to vehicles: with A udi side ass ist
Fig. 131 Dr iver 's do or: Sid e assis t button
.,. Press the button ¢ & in General information
on page 116
to switch the system on/ off . The
LED in the button turns on when side assist is
switched on .
Adjusting the display brightness
Applies to vehicles: with Audi side assist
The signal brightness can be set in the radio or
MM!*.
.,. Select: !CAR I function button> Audi side assist .
Or
.,. Select: !CAR I function button> Car systems *
control button > Driver assist > Audi side as­
sist.
The display brightness adjusts automatically to
the brightness of the surroundings, both in the
information and in the warning stage. In very
dark or very bright surroundings, the display is
already set to the minimum or maximum level by
the automatic adjustment. In such cases, you
may notice no change when adjusting the bright­
ness, or the change may only be noticeable once
the surroundings change .
Adjust the brightness to a level where the display
in the information stage will not disrupt your
view forward. If you change the brightness, the
display in the exterior mirror will briefly show the
brightness level in the information stage . The
brightness of the warning stage is linked to the
brightness in the information stage and is adjust­
ed along with the information stage adjustment . ..,.
117

Audi side assist
(D Tips
-Si de assist is not active w hile you are mak­
i ng t he a dju stment .
- You r settings are automatic ally store d an d
assi gned to t he remote co ntrol key being
u sed.
Driver messages
A ppl ies to ve hicles: w ith Audi side assis t
If side ass ist switches off by itself, the LED in the
button turns off a nd a message will appear in the
i n str ument cluster d isp lay :
Audi side assist unavailable: Sensors blocked
The rada r senso rs ' vision is affected. Do not cove r
the area in front of the sensors with b ike wheels,
stickers , dirt or other objects. Clean the area in
front of the sensors, if necessary
c> page 116 ,
fig. 130.
Audi side assist: Currently unavailable
Side assist cannot be switched on tempo rar ily be­
cause there is a malfunction (for example, the
battery charge level may be t oo low).
Audi side assist: System fault!
The system cannot guarantee that it wi ll detect
ve hicl es co rrectly and it is switc hed off. The sen­
sors have been d isp laced or are fa ulty. Have the
system checked by an a uthorized Audi dealer or
author ized Audi Se rvice Facility soon.
Audi side assist: Unavailable when towing
Side assist sw itches off automati ca lly w hen a fac ­
to ry -installed trailer hitch is connected to t he
electrical connector on the trailer. The re is no
gua rantee the system w ill sw itch off whe n using
a retrofitted tra ile r hitc h. Do not use side assist
when towing a trailer.
118
