Service interval display
The service interval display reminds you when
your next service is due .
Fig. 13 Instrumel'lt cluster: Service interval display
8 .,, 0 ci:
"' ID
The schedule for the next oil change or inspec­
tion is calculated automatically and displayed ac­
cordingly. The display works in two stages :
Service reminder
30 days before the next service is due, a service
reminder appears in the display when you turn on
the ignition
¢ fig. 13.
After about 5 seconds the display switches back
to normal. The distance and time remaining are
updated each time the ignition is turned on until
the date due for service is reached.
Service due
When the due date for service is reached, the
message
Service due! appears in the instrument
cluster immediately after you turn on the igni­
tion . Additionally, a warning tone sounds. After
about
5 seconds the display switches back to nor­
mal.
Calling up the service schedules
If or when an oil change or inspection is due, can
be shown in the radio or MMI* display by select­
ing the service interval display in the car menu.
Select
I CARI function button > Service interval
display
or I CAR I function button > Car systems*
control button > Servicing & checks > Service in­
tervals .
Resetting the service interval display
Your authorized Audi dealer will reset the corre­
sponding service schedule after performing the
Driver information system
appropriate service on your vehicle. You also have
the possibility to reset the oil change schedule after having performed an oil change according
to Audi specifications. Select
I CAR I function but­
ton
> Service interval display> Reset oil change
interval
or ICARI function button > Car systems*
control button > Servicing & checks > Service in­
tervals > Reset oil change interval.
(D Note
- Only reset the oil change display when you
have completed an oil change.
- If you disconnect the battery terminals, no
calculations can be made for the service in­
terval display during this time and no serv­
ice reminder will appear. Remember that
observing the proper service intervals is vi­
tally important to extending the life of your
vehicle, particularly the engine, and main­
taining its value. Do not exceed the time in­
terval for the next service, even if the vehi­ cle mileage is low.
@ Tips
The information in the Service Reminder re­
mains stored even when the vehicle battery is
disconnected.
On-board computer
Introduction
The trip computer gives you information on cur­
rent and average fuel mileage, average speed ,
fuel range and driving time .
Fig. 14 Trip comp uter d isp lay: Average fuel mileage
19

Driver information system
The following information is continuously evalu­
ated by the trip computer and can be displayed
sequent ially in the instrument cluster display:
Fuel range
The estimat ed cruising range in miles (km) ap­
pears in the disp lay. Thi s tells you how far your
vehicle wi ll be able to t ravel on the current tank
of fuel and with the same driving style. The dis­
play changes in increments of 5 miles (10 km) .
Average fuel mileage
The average f uel economy in MPG (l/100 km)
since you last cleared the memory appears in this
display . You can use this display to adjust your
driving technique to achieve a desired mileage.
Current fuel mileage
The instantaneo us fue l cons umption in miles per
ga llon (l/100 km) is shown in this display. You
can use th is disp lay to adjust your driv ing techn i­
que to achieve a desired mi leage.
Fuel consumption is recalculated at intervals of
33 ya rds (30 meters).
Average speed
The average speed in mph (km/h) since the last
time the display was reset appears in the disp lay.
Elapsed time
The length of time that you have been driving
since you last reset the memory appears in this
disp lay.
Distance
The distance that has been covered since the last
time the memory was cleared appears in the dis­
play.
@ Tips
- Fuel consumptions (average and current),
range and speed are displayed in metric
units on Canadian models.
- All stored val ues w ill be lost if the vehicle
battery is disconnected.
20
Memories
The trip computer is equipped with two fully au­
tomatic memories as well as an efficiency pro­
gram*.
Fig. 15 Trip computer d isplay: memory level 1
You can switch between the trip computer 1 and
2 and the efficiency program * by pressing the
IRESET I button@<=>page 21, fig. 16 .
You can tell which memory level is currently ac­
tive by the number or the sign in the display
c> fig. 15. The data from the single-trip memory
(memory level 1) is being d isplayed if a
D ap­
pears in the display. If a
fJ is shown, then the da­
ta from the total-trip memory is being d isplayed
(memory level 2). The fuel pump nozzle
ii1 indi­
cates the efficiency program* <::;>
page 22.
Single-trip memory (Trip computer 1)
The single-trip memory stores the trip informa­
tion from the time the ignition is turned on until
it is turned off . If the trip is continued
within 2
hours
from the time the ignition was turned off,
the new data will be included in the calculation of
the current trip information. If the trip is inter­
rupted for
more than 2 hours the memo ry is re­
set automatically .
Total-trip memory (Trip computer 2)
Unlike the single-trip memory, the total-tr ip
memory is not reset automatically . This permits
you to eva luate your dr iv ing data for the enti re
period between manua l resets.
Efficiency program*
The eff ic iency program can help you to use less
fuel <::;>
page 22.

a,
a,
..... N l"­N ..... 0 0
0:
co
Operation
The trip computer is controlled by two switches
on the windshield wiper lever .
~------,@
Fig. 16 W indsh ield w iper lever: con tro ls for the tr ip com­
p u ter
Operating
.,. To display the trip computer memory leve ls,
press the
I RESET ! button@ r:::> fig. 16 repeated­
ly until the des ired memory level is show n in
the d isplay.
.,. To display trip informat ion within a memory
l evel, press the top or bottom par t of the func­
t ion select io n switch
@ .
The trip computer w ill not operate un less the ig­
ni tion is on. When you t urn on the ig nition, the
f u nction tha t was in use w hen you last turned the
i gnit io n off w ill be displayed.
In addition to information abo ut the trip compu t­
e r (trip computer 1, 2 and the effic iency p ro­
g ra m*), informat io n about othe r sy stems ca n al­
so be shown in the disp lay. To switch the d isp lay
between the diff eren t informat io n, tap t he
I RESET I button @ briefly.
Resetting values to zero
.,. Se lect a v alue in the desired tr ip comp ute r o r i n
t h e effi ciency progra m* .
.,. Press and hold the
I RESET I button @ for at
l east one seco nd . All values in the selected tri p
computer or in the efficiency program* a re re ­
set to ze ro.
If th e d ata in tr ip compu ter 1 are deleted, t hen
the values in the efficiency p rogram* wi ll also be
reset .
Driver in forma tion system
W it h some vehicle eq uipment levels, the value s
f or the single trip or tota l trip memory can also
be reset in the radio or M MI *
r:::> page 21 .
(I_) Tips
All stored val ues will be lost if the vehicle bat­
tery is disconnected.
Basic Settings for the trip computer
T he M MI* or the radi o operating unit is used for
setting the trip computer's basic settings .
.,. Sele ct: !CAR I function button> Instrument
cluster > On-board computer 1
or On-board
computer
2 .
The v alues in the si ng le- trip or the tot al-t rip
memo ry can all be reset to zero a t the same time
u nder
Re set in the men u.
In ad di tion, yo u ca n determine wha t in fo rm ation
fr om the trip compu ter should be s hown in the
in strument clu ster di splay. If one of the pieces of
drive r informa tion is tu rned
Off , that dr iver infor ­
mation will not be shown in the disp lay . The in­
f o rmation w ill cont inue to be ca lculated by the
trip computer and can be turned back
On at any
t ime .
(D Tips
-Th is function is not available o n all vehicles.
- The driving info rmation in the efficiency
prog ram * is also reset to zero with t he s in­
gle-trip memory.
21

Driver information system
Efficiency program
Description
Applies to: vehicles with efficiency program

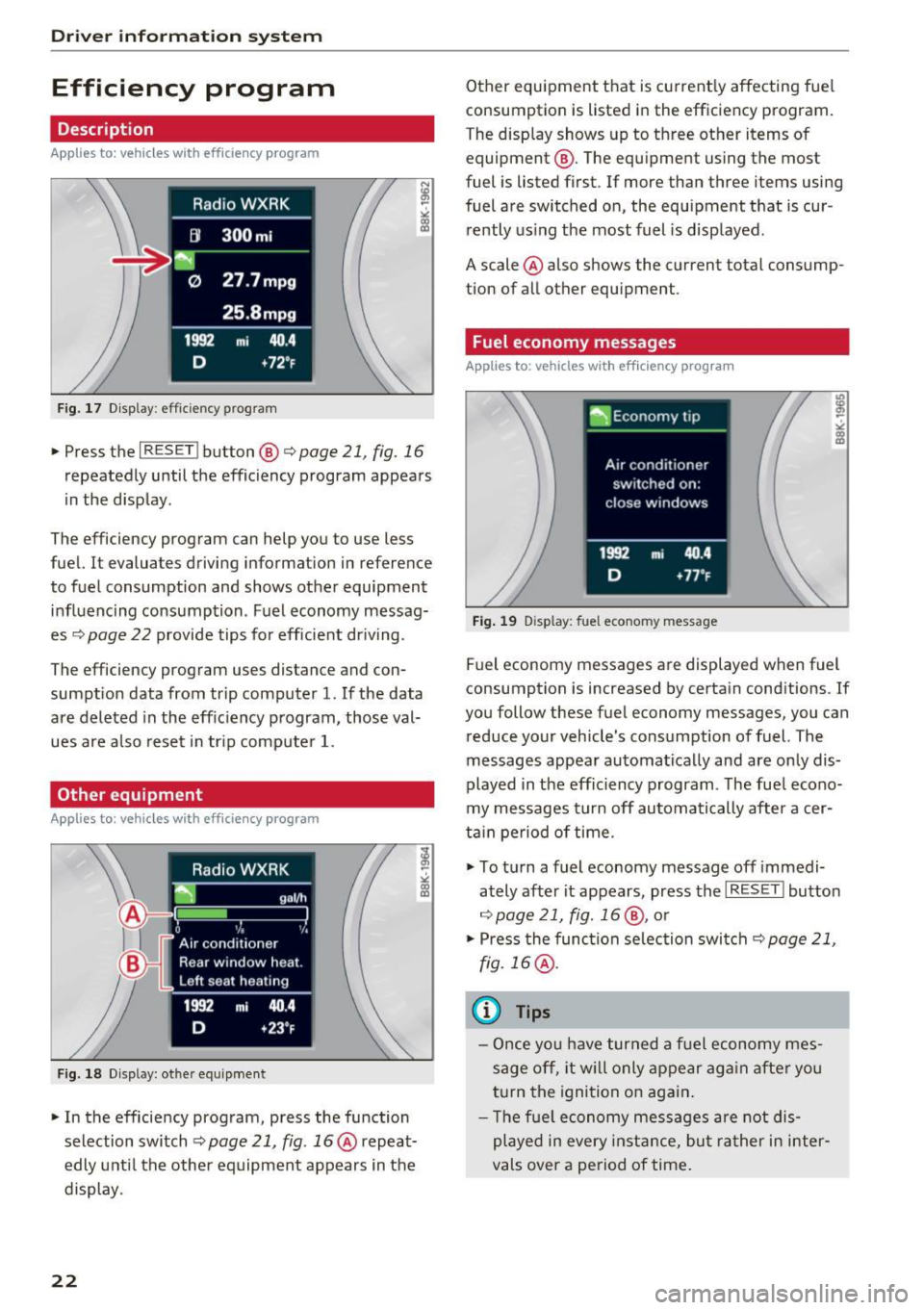

Fig. 17 Display : eff icie ncy program
• Press the I RES ET ! button @c::> page 21, fig. 16
repeatedly until the efficiency program appears
in the display .
The efficiency program can help you to use less
fuel. It evaluates driving information in reference
to fuel consumption and shows other equipment
influencing consumption . Fuel economy messag·
es c::>
page 22 provide tips for efficient dr iving .
The efficiency program uses distance and con­
sumpt ion data from trip computer
1. If the data
are deleted in the efficiency program, those val·
ues are also reset in trip computer
1.
Other equipment
App lies to: vehicles with efficiency program
Fig. 18 D isplay : ot her equipment
• In the efficiency program, press the function
selection switch
c::> page 21 , fig . 16 @ repeat·
edly until the other equipment appears in the
display .
22
Other equipment that is current ly affecting fuel
consumption is listed in the efficiency program.
T he display shows up to three other items of
equipment @. The equipment using the most
fuel is listed first . If more than three items using
fuel are switched on , the equipment that is cur ­
rently using the most fuel is disp layed .
A scale @also shows the current total consump ­
tion of all other equipment .
Fuel economy messages
Applies to: vehicles with efficiency program
Fig. 19 Disp lay: fuel econo my m essa ge
Fuel economy messages are displayed when fuel
consumption is increased by certain conditions . If
you follow these fuel economy messages, you can reduce your vehicle 's consumption of fuel. The
messages appear automatically and are only dis·
played in the efficiency program. The fuel econo·
my messages turn off automatically after a cer­
ta in period of time.
• To turn a fuel economy message off immedi·
ately after it appears, press the
I RESET ! button
c::>page 21, fig. 16 @, or
• Press the function selection switch
c::> page 21,
fig . 16 @.
0) Tips
-Once you have turned a fuel economy mes­
sage off, it will only appear again after you
turn the ignition on again.
- Th e fuel economy messages are not dis­
played in every instance, but rather in inter­
vals over a period of time.

a,
a,
..... N l"­N ..... 0 0
0:
co
On Board Diagnostic
System (OBD)
Malfunction Indicator lamp (MIL)
The Malfunction Indicator Lamp (MIL) ¢'4 in the
instrument cluster
¢ page 11, fig. 7 is part of the
On -Board Diagnostic (OBD II) system.
The warning/indicator light illuminates when the
ignition is switched on and goes out after the en­
gine starts and the idle has stabilized . This indi­
cates that the MIL is working properly .
If the light does not go out after the engine is
started, or illuminates while you are driving, a
malfunction may exist in the engine system .
If
the light illuminates, the catalytic converter
could be damaged.
Continue driving
with reduced power (avoiding
sustained high speeds and/or rapid accelera­
tions) and have the condition corrected. Contact
your authori zed Audi dealer.
If the light illuminates, the electronic speed lim­
iter may also be malfunctioning . For more infor­
mation ¢
page 23, Electronic speed limiter.
An improperly closed fuel filler cap may also
cause the MIL light to illuminate (only vehicles
with gasoline engine)
¢page 212.
On-Board Diagnostics
Fig. 20 Locat ion of Data Link Connec tor (DLC )
On-Board Diagnostics monitors the components
of your emission control system. Each monitored
component in your engine system has been as­
signed a code. In case of a malfunction, the com­ ponent will be identified and the fault stored as a
code in the control module memory.
Driver in forma tion system
The MIL light may also illum inate if there is a
leak in the on-board fuel vapor recovery system.
If the light illuminates after a refueling, stop the
vehicle and make sure the fuel filler cap is prop ­
erly closed (only vehicles with gasoline engine)
¢ page 212.
In order to make an accurate diagnosis, the stor­
ed data can only be displayed using special diag­
nostic equipment (generic scan tool for OBD).
In order to connect the special diagnostic equip­
ment, push the plug into the Data Link Connector
(DLC). The DLC is located to the right of the hood
release ¢
fig. 20.
Your authorized Audi dea ler or qualified work­
shop can interpret the code and perform the nec­
essary repair.
A WARNING
-~
Do not use the diagnostic connector for per­
sonal use. Incorrect usage can cause malfunc­
tions, which can increase the risk of a colli­
sion!
Electronic speed limiter
Your vehicle may be factory equipped with tires
that are rated for a maximum speed of 130 mph (210 km/h). This is less than the maximum speed
of your vehicle. To reduce the risk of sudden tire
failure and loss of control if the vehicle is operat­
ed at excessive speeds, your vehicle also has an
electronic speed limiter. The electronic speed
limiter prevents your vehicle from going faster
than the tire speed rating . For more information
¢ page 237.
If the engine control unit receives faulty vehicle
road speed signa ls, the Malfunction Indicator
Lamp (MIL)
¢4 will illuminate. If this occurs,
contact the nearest authori zed Audi dealer for
assistance.
SQS
Your vehicle's top speed is electronically limited
to 155 mph (250 km/h).
If the engi ne control unit receives fa ulty vehicle
road speed signals, the Malfunction Indicator
lllJ,,
23

Driver information system
Lamp (MIL) II will illuminate. If this occurs,
contact the nearest authorized Audi dealer for
assistance.
A WARNING
Always observe the posted speed limits and
adjust your speed to suit prevailing road, traf­
fic and weather conditions. Never drive your
vehicle faster than the maximum speed rating
of the tires installed.
Auto Check Control
Introduction
The Auto-Check control monitors the function of
certa in vehicle features and components. It sim­
ply makes sure these features and components
are working properly. The Auto-Check control
works as long as the ignition is on, as well as
whenever the veh icle is driven.
-
If a component is malfunctioning or if the need
for an urgent repair has been detected, this will
appear in the instrument cluster display. You will
also hear an audib le warning tone . The displays
are color coded in eit he r red or yellow depending
on their level of priority.
A red symbol means
Danger, a yellow symbol in­
d icates
Warning . In certain s ituations, informa­
tion message for the driver appea r in addition to
the red and yellow symbols .
Note about automatic transmission
The Auto -Check Control will automatically per­
form a test each time you switch on the ignition. W ith the selector lever in P or N, the fo llowing
message appears in the display:
When stationary apply brake pedal while select­
ing gear
When you select a different gear (for example: R, D, etc.), the message will disappear and the Au­
to-Check function is displayed.
If there is a malfunct ion, then the malfunction
message will appear about 15 seconds after you
start the vehicle. At the same time you will hear a
warn ing tone.
24
Driver information messages
Driver information messages are shown in the in­
strument cluster display in addition to symbols.
Fig. 21 Instrument cluste r: SET button
For example, if the transmission selector lever is
not in the P position when the engine is tu rned
off, the following message appears:
Shift to P otherwise vehicle can roll away. Doors
do not lock if lever is not in P.
The ign ition key can only be removed with these­
lector in this position. This and other messages
are brought up if a function cannot be carried
out.
Driver messages and red symbols
If a red symbol appears in the disp lay, a driver
message is also displayed automatically.
For example, the symbol for a problem with en­
gine o il pressure . appears in the display. The
follow ing message appears:
Turn off engine! Oil pressure too low
The driver message in the display goes out after
about 5 seconds. The driver message can be dis­ played again by briefly pressing the
I SETI button
r::> fig. 21.
Driver messages and yellow symbols
If a yellow symbol appears in the display, a driver
message is also displayed automatically.
For example, the symbol
a, appears in the dis­
play, indicating low windshie ld washer fluid level.
The following message also appears:
Please refill washer fluid II>-

CD
CD
.... N ,-... N ..... 0 0 c:<: 00

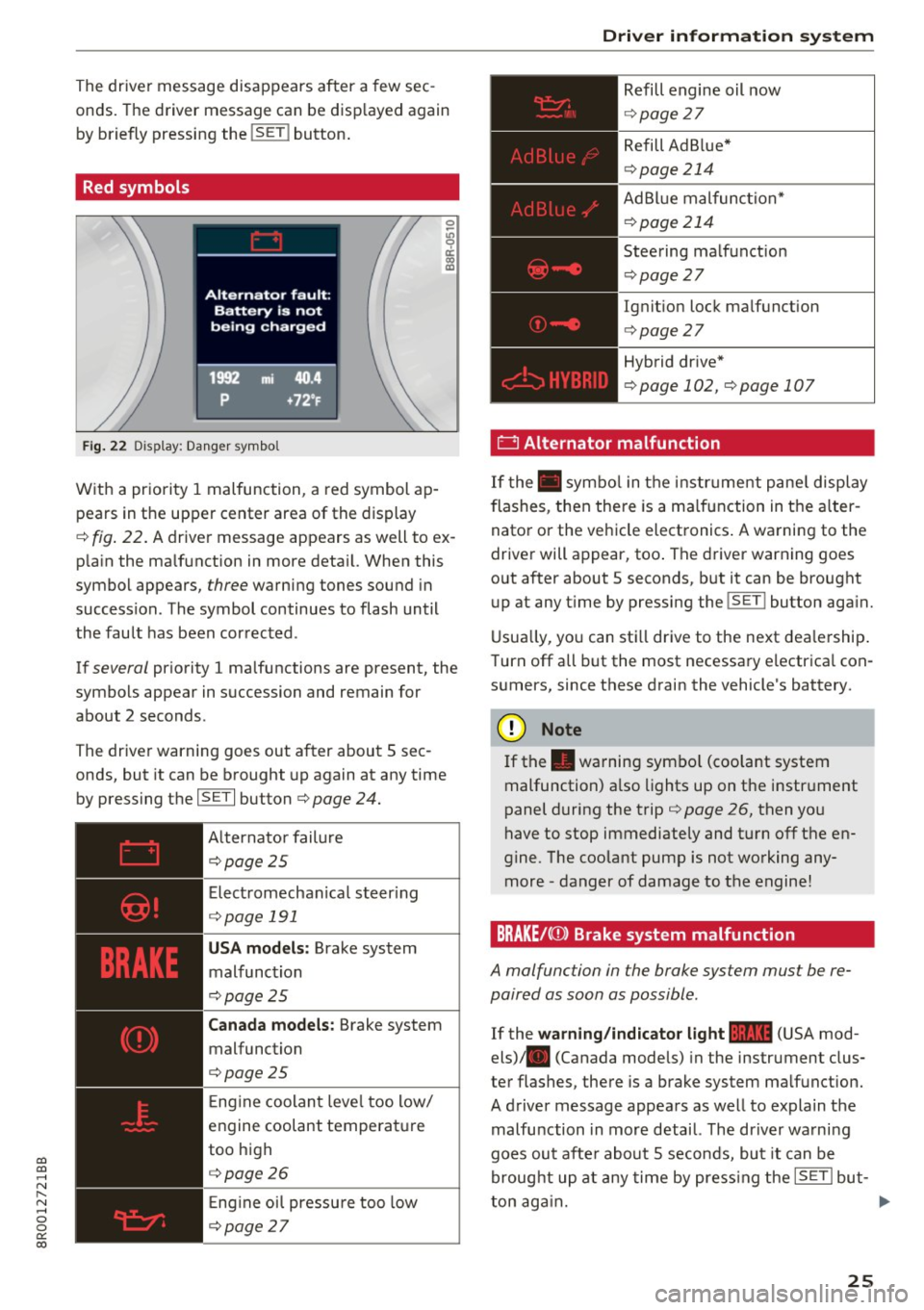

The driver message disappears after a few sec­
onds. The driver message can be disp layed again
by briefly pressing the
! SE T! button .
Red symbols
Fig . 22 Display: Danger symbol
With a priority 1 malfunction, a red symbol ap ­
pears in the upper center area of the display
0 ~
"' 9 a: CX) IX)
c:::> fig. 22 . A driver message appears as well to ex­
p la in the ma lfunction in more deta il. When this
symbol appears,
three warning tones sound in
succession. The symbol continues to flash until
the fault has been corrected .
If
several pr iority 1 malfunctions are present, the
symbols appear in succession and remain for
about 2 seconds .
The driver warning goes out after about 5 sec­
onds, but it can be brought up again at any time
by pressing the
ISETI button c:> page 24.
Alternator failure
c:::> page 2 5
Electromechanical steering
c:::> page 191
USA models : Brake system
malfunction
c:>page 25
Canada models: Brake system
malfunction
c:> page 25
E ng ine coolant level too low/
engine coolant temperature
too high
c:::> page 2 6
En gin e o il pressure too low
c:::> page 2 7
Driver information system
Refill engine oil now
c:::> page 2 7
Refill Ad B lue*
c:> page 214
AdBlue malfunction*
c:::> page 214
Steering malfunction
c:::> page 2 7
Ignition lock malfunction
c:> page 27
Hybrid dr ive*
c:> page 102, c:> page 107
' 0 Alternator malfunction
If the . symbo l in the instr um ent panel display
flashes, then the re is a malfunction in the alter­
nator or the vehicle electronics . A warning to the
driver will appear, too . The driver warning goes
out after about 5 seconds, but it can be brought
up at any t ime by pressing the
!SET ! button aga in.
Usually, you can still drive to the next dea lership .
T urn off all but the most necessary e lectrica l con­
sumers, since these drain the vehicle's battery.
(D Note
If the . warning symbo l (coolant system
malfunction) also lights up on the instrument
panel during the trip
c:> page 26, then you
have to stop immediately and turn off the en­
gine. The coolant pump is not working any­
more -danger of damage to the engine!
BRAKE/C(D) Brake system malfunction
A ma/function in the brake system must be re­
paired as soon as possible .
If the warning/indicator light 11111 (USA mod­
els) . (Canada models) in the instrument clus­
ter flashes, there is a brake system malfunction.
A driver message appears as well to explain the
malfu nction in more detail. The driver wa rning
goes out after about 5 seconds, but it can be
brought up at any time by pressing the
ISETI but-
ton again. ..,.
25

Driver information s ystem
Stop vehicle and check brake fluid level
.,. Stop the vehi cle.
.,. Check the brake f luid leve l¢
pag e 224 .
.,. Seek professional assistance if necessary.
Warning! Fault in brake system. Contact
work shop
.,. Drive carefu lly to the nearest authorized A udi
dealer or other qualified workshop and have
the malfunction corrected ¢
,&..
Parking brake system fault! See owner 's
manual
.,. If this symbol appears when the ve hicle is sta­
tionary or after the ignition is turned on, check
to see if the park ing brake can be released.
Drive to an authori zed Audi dealer or other
qualified workshop as soon as poss ible and
have the malfunction corrected . If the parking
brake cannot be opened, then take it to an ex­
pert at a n author ized Audi dealer.
.,. If the symbol appears while you are d riving, i t is
poss ible th at t he traction co ntro l or the emer ­
gency brake has malfunctioned . It is possib le
that the parking brake cannot be applied .
It is
also possible that th e parking brake cannot be
released after it has been applied. Drive to an
authori zed Aud i dea ler or other qualified work­
shop to have the malfunct io n corrected.
If the ABS system malfunct ions, the ABS warn­
ing/indicator light illuminates together with the
brake system malfunction warn ing/ indicator
light ¢.&. .
A WARNING
-Always observe the warnings in
¢page 217, before opening the hood and
c he ck ing the b rake fl uid .
- Driving with low brake fl uid is a safety haz­
ar d. Stop the car and get professional ass is­
tan ce.
- If the .. (USA models) . (Canada mod­
els) brake system i ndic ator lig ht tu rns on to­
ge ther wit h the ABS and ES C i ndi ca to r
ligh ts, the ABS/ ESC regula ting func tion may
have failed . Functions that stab ilize the ve­
hicle a re no longe r available. This could
26
cause the vehicle to swerve and increase the
r isk of sliding. Drive caref ully to the nearest
author ized Audi dealer or other qualified
workshop and have the malfunct io n correct­
ed.
- L Engine cooling system malfunction
A malfunction in the engine cooling system mu st
be repaired as soon as possible.
If the . symbol flashes in the disp lay, either the
engine coo lant
temperature is too high or the en ­
gine coolant
level is too low. A driver message
appears as we ll to expla in the malfunct ion in
more detail. The dr iver warn ing goes out after
about 5 seconds, but it can be b rought up at any
time by p ressing the
IS ET I button agai n.
Turn off engine and check coolant level
.,. Pull off the road .
.,. Stop the vehicle .
.,. Turn off the engine .
.,. Check coolant level¢
page 223 .
.,. Add coolant if necessary ~ page 223.
.,. Continue dr iv ing only after the engine coolant
wa rning/i nd ic ator light goes out .
.,. Contact your authori zed A udi dealer for assis­
tance if ne cessa ry.
If the engine coo lant level is correct, then t he ra­
diato r fan may be the cause of t he malfunc tion.
A WARNING ~
- If you r vehicle should break down fo r me-
chan ica l or othe r reasons, park at a safe dis ­
tance from mov ing traffic, turn off the en­
gine and turn on the hazard warning lights
¢ page 51, Emergency flashers.
- Never open the hood if you see or hear
steam or coolant escaping from the engine
compartment -you risk being scalded. Wait
until you can no longer see or hear steam or
coo lant escaping .
- The engine compartment of any veh icle is a
dangerous area. Before you perfo rm any
work i n the engine compartment, turn of
t he engine and allow i t to cool. Follow the
warn ing stickers
¢ page 217. ~

CD
CD
.... N ,-... N .... 0 0 C<'. 00
(D Note
Do not continue d riving if the. sym bol ill u­
m inates . There is a mal function in the en gine
coo ling system -you could damage your en­
gi ne.
't=?: Engine oil pressure malfunction
The red engine oil pressure warning symbol re­
quires immediate service or repair. Driving with a
low oil pressure indication is likely to cause se­
vere engine damage .
If the . symbol on the display flashes, the en ­
g ine oi l pressure is too low. A d river message ap ­
pears as well to explain t he malfunction in mo re
deta il. Th e d river war ning goes ou t afte r abo ut 5
s econds, but it can be b ro u gh t up at any time by
p ressing the
ISET I button again.
Turn off engine! Oil pressure too low
• Stop t he ve hicle .
• Turn the eng ine
off.
• Check the eng ine oi l level ¢ page 221.
• Co ntact yo ur autho rized Aud i dea le r for assis-
tance if necessary.
Engine oil level too low
If the engine o il level is too low, add eng ine oi l
¢page 221.
Engine oil level correct
If th e sym bol. flashes even thoug h the en gin e
oil leve l is correct, p lease contact your nea rest
author ized Audi Dealer for assistance. Do not
continue dr iv ing .
Do not leave the eng ine running
idle, either .
@ Tips
- The engine oil pressure symbol. is not
an indicator for a low engine oil level. Do
not rely on it. Instead, check the oil level in
your engine at regular intervals, preferably
each time you refuel, and always before
going on a long trip.
- The yellow oil level warning indication
Ill
requires oil refill or workshop service with­
out delay. Do not wait until the red oil
Driver information system
pressure warning. starts to flash before
you respond to the low oil level warning
II. By then, your engine may already have
suffered serious damage .
~ ""' Fill engine oil now
WARNING : Please add oil immediately
If the. sym bo l lights up, then t he oi l has to be
r ep le ni shed right now
¢page 221.
@-Steering malfunction
If there is a malfunction in the electronic steer ­
ing column lock, the steering cannot be un­
locked.
If the . symbo l in the disp lay bli nks, t here is a
malfunction in t he electronic stee ring col umn
l ock. A driver message appears as we ll to exp la in
t h e malfunction i n mo re detail. The dr ive r warn­
ing goes out afte r about 5 seconds , but it can be
broug ht up a t any time by press ing the
ISETI but ­
ton aga in.
Steering defective! Do not drive vehicle!
• Contact your nea rest a uthorized Audi dea ler .
• Do
not tow your ve hicle.
A WARNING
Your ve hicle m ust not be towed in t he event
of a ma lfunction in t he e lectron ic stee ring
col um n loc k becaus e it can not be st ee red due
to the loc ked steering . If i t is towed w ith th e
st eer ing lo cked , the re is the r isk o f an acci ­
d en t.
©-Ignition lock malfunction
A malfunction in the ignition lock must b e re­
paired immediately .
If the . symbo l in the display b links , there is a
malfu nction in t he e lectron ic ignition lock. A d riv­
er m essage a ppears as well to expla in the ma l­
f unct ion in mo re det ail. The driv er warning go es
out a ft er abou t 5 se cond s, but it can b e broug ht
up at an y ti me by pressing the
!SE T! bu tt o n ag ain .
Ignition lock defective. Contact dealer! .,.
27

Driver information s ystem
"' Do not turn the engine off .
"'Drive immediate ly to an authorized Audi dealer
to have the malfunction corrected.
If there is a malfunct ion in the electronic ignition
lock, the ignition cannot be turned
off . Drive im­
mediately to an authorized service facility to have
the cause of the malfunction corrected.
O n ve hicles with Convenience key* , the eng ine
should not be switched
off using the Start/Stop
button because the engine cannot be started
again after the ignition has been switched
off.
Yellow symbols
F ig . 2 3 Display : Yellow wa rning symbo l
N M
9 a: a, ID
When a ye llow warning symbol appears, one
warning tone sounds. A driver message appears
as well to exp la in the ma lfunction in more deta il.
The driver wa rning goes out after about 5 sec­
onds, but it can be brough t up at any t ime by
pressing the
I S ET I button again .
Check the funct ion disp layed as soon as possible.
The yellow symbol w ill not go o ut again until the
reason for the malfunct io n has been corrected.
If several priority 2 malfunctions are present, the
symbo ls appear in succession and remain for
about 2 seconds.
28
E lect romechanica l steer ing , Dy­
namic steering*
c::> poge 191
Worn brake pads
c::> poge29
Battery vo ltage
c::>poge30 Defective
light bu lb
c::> poge 29
Fog lights
c::> poge29
Rear fog lights
c::> poge29
Check engine oil leve l
¢ page 30
E ngine o il sensor ma lf u nct ion
c::> page 30
E ngine tempe ra tu re*
c::> page 210
Low fuel level
c::> page 30
Refill Ad B lue*
c::> page 214
AdBl ue malfunction *
c::> page 214
Windsh ie ld washer fluid level
low
c::> page 30
Convenience key*
Key not in vehicle
c::> page29
Light/rain sensor defective
c::> page 29
Dynam ic headlight range con ­
tro l defective
c::> page 31
Battery in remote control key
c::> page34
E lectromechanical parking
brake
c::> page 88
Engine speed limitation*
c::> page 30, c::>poge 102
Dies el particulate fi lter * clog ­
ged
c::> page 31
Adaptive ligh t defec tive *
c::> page 31
Steering ma lf u nction
c::> poge 31
