AUDI Q7 2012 Owner´s Manual

Redu cing distance
"' Push the slider sw itch onc e to the left Q.
The distance currently set is shown for 3
seconds in the instrument cluster display.
"' Push the slider switch
again to the left 0
to decrease the distance by one step.
The distance at which the adaptive cruise con­ trol follows a vehicle in front is determined by
time interva ls. A time interval to a vehicle in
front is estab lished and maintained. Th is pro­
duces a speed-dependent interval. The higher
the speed, the greater the safety interva l in
feet (meters)
¢ ,&. .
DISTANCE 1 Ada
pti ve crui se control 119
For example, if the interval DISTANCE 3 is
set, a vehicle in front is fo llowed at a
time in­
terval
of 1.8 seconds.
For a speed of
50 mph (80 km /h ) this wo uld
be equivalent to a distance of
131 feet
( 4 0 meter s)
to the vehicle in front.
T he distances given here are nom inal va lues .
T he vehicle speed may exceed or fall shor t of
these target speeds, depending on the driving situation and the driving style of the vehicle
ahead .
DISTANCE 2 DISTANCE 3 DISTANCE4
Symbol c;:::::::, _ c;:::::::,_ - - c;:::::::, _ - c;:::::::, _ - c;:::::::, _ - - c;:::::::, _ c;:::::::,_ - - _c;:::::::,
T ime interval
Dynamics
I Distance at 25 mph
(40 km /h )
Di st a nce at 50 mph
(80 km /h)
Distance at 75 mph
(120 km /h)
1 second 1.3 seconds
Sporting Standard
36 Feet (11 Me-
JI 46 Feet (14 Me-
ters) ters)
-.
72 Feet (2 2 Me- 95 Feet (29 Me-
t ers) ters)
108 Feet (33 144 Feet (44 Meters) Meters) 1.8 seconds
Standard
66 Feet (20 Me­ ters)
-
131 Feet (40 Me ters)
197 Feet (60 Meters) 2.3 seconds
Comfortab le
82 Feet (25 Me- ·
ters)
1 67 Feet (51
Meters)
249 Feet (76 ·
Meters)
H ow your vehicle responds when accelerating
and following other vehicles w ith ACC operat­
i ng can be adapted to your personal wishes
through diffe rent driving programs. Depend­
ing on w hich driving p rog ram and wh ic h dis- tance you choose, your vehicle will respond
more dynamically or more comfortably when
acce lerat ing and braking . The setting is se­
lected through the MM I menu
adapt ive cruise
contro l¢ page 124, MMI settings.
Settings DISTANCE 1
Symbol for time inter·
val ~-
c;:::::::,_ -
Support fo r: Bumper-to-
Re sponse in "dynam­
ic " driving program
Respon se in "stand ­
ard " driving program
Response in "comfort "
driving program
bumper traffic,
b risk driving
1
2
3
DIS TANCE 2
~ __ c;:::::::,_
Bumper-to-
bumper traffic,
"keep ing pace"
comfortably
2
3
4
(dynamic) 1 -- ---2 ----- 3 --- -- 4 ----- 5 (comfortable)
DISTANCE 3 DISTANCE4
- - -c;:::::::, ~----c;:::::::,
Bumper-to- Secondary roads,
bumper traffic, trailer operation
"keeping pace"
comfortably
2 3
3
4
4
5

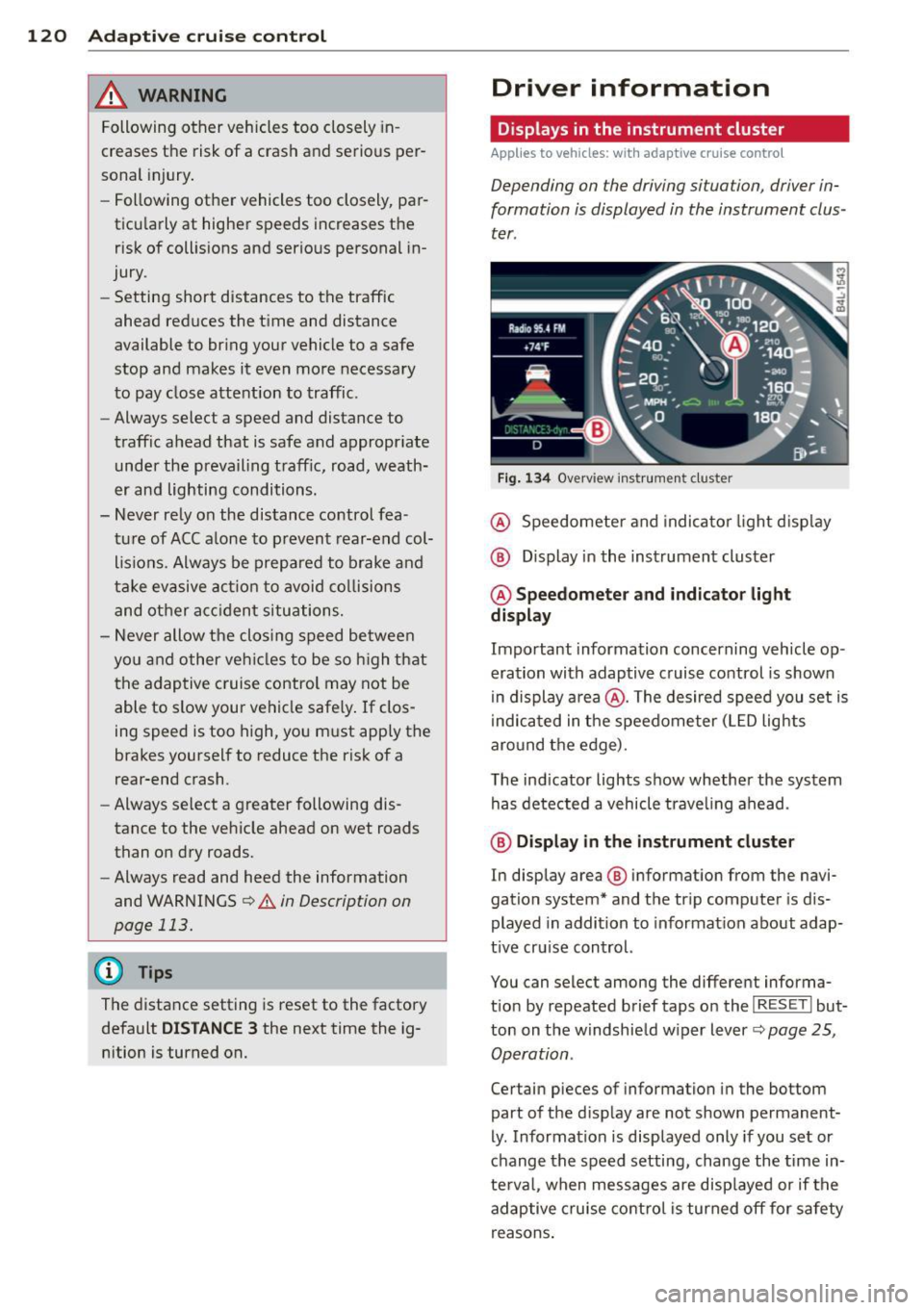

120 Adapti ve crui se control
_&. WARNING
-
Following other vehicles too closely in ­
creases the risk of a crash and serious per­
sonal injury .
- Following other vehicles too closely, par­
ticu larly at higher speeds increases the
risk of coll is ions and serious personal in­
jury.
- Setting short distances to the traffic
ahead reduces the time and distance
available to bring your vehicle to a safe
stop and makes it even more necessary
to pay close attention to traffic .
- Always select a speed and distance to
traffic ahead that is safe and appropriate
under the prevailing traff ic, road, weath­
er and lighting conditions.
- Never rely on the distance control fea­
ture of ACC a lone to prevent rear-end col­
lis ions. Always be prepared to b rake and
take evasive act io n to avoid co llisions
and other ac cident situations.
- Never allow the clos ing speed between
yo u a nd other vehicles to be so h igh that
the adaptive cruise control may not be
able to slow your vehicle safe ly . If clos­
ing speed is too high, yo u m ust app ly the
brakes yourself to reduce the risk of a
rear-end crash.
- Always select a greater following dis­
tance to the veh icle ahead on wet roads
than on dry roads.
- Always read and heed the information
and WARNINGS
¢ &. in Description on
page 113.
(D Tips
The distance setting is reset to the factory
default
DIS TANCE 3 the next time the ig­
nition is turned on.
Driver information
Displays in the instrument cluster
Applies to veh icles: w ith adaptive cruise contro l
Depending on the driving situation, driver in­
formation is displayed in the instrument clus ­
ter .
Fig . 1 34 Overview ins tr u me nt cluster
@ Speedometer and indica to r li ght d isp lay
@ Display in the instrument cluster
@ Speedometer and indi cato r light
display
Important information concerning vehicle op ­
eration with adaptive cruise control is shown
in display a rea @. The desired speed you set is
i ndica ted in the speedometer (L ED lights
aro und the edge).
T he ind icator lights show whether the system
has detected a vehicle trave ling ahead .
@ Display in the in strument cluster
In display area @ information from the navi­
gation system* and the tr ip computer is dis­
played in addition to informat ion about adap­
t ive cru ise control.
You can select among the different informa­
t io n by repeated brief taps on the
I RESET I but­
ton on the w indshie ld w iper lever
c::> page 25,
Operation .
Certain pieces of information in the bottom
part of the d isplay are not shown permanent­
ly . Information is displayed only if you set or
change the speed setting, change the time in­
te rva l, when messages are disp layed or if the
adaptive cruise contro l is turned off for safety
reasons .

Display in the speedometer
Applies to vehicles: with adaptive cruise control
Fig. 135 D isplay in t he s pee domete r
Des ired spe ed
The desired speed set by the driv er is dis­
p layed by a red L ED.
If the desi red speed was set between two
lines on the speedometer using the
I SE TI but ­
ton, the two closest light emitting diodes will
come on <=>
fig. 135.
The system a llows only speeds to be set be ­
tween 20 to 95 mph (30 to 150 km/h) to be
set. This speed range is faint ly illuminated in
the speedometer (L ED lights).
Ind icator light s (symbol s)
-- Open road:
T he ind icator light _
shows that ACC is active and that no moving
veh icle has been detected with in range of
the radar sensor up ahead in your lane of
your lane of travel. Your speed is adjusted according to the speed of the vehicle up
front . ACC acce lerates and brakes automati­
ca lly within the system's capab ilities .
-- Driver int ervention prompt : The
red flashing warning light- means
Request for dri ver to assum e co ntr ol. You
as the dr iver must s low the vehicle with the
f oot brake. The symbol - tells you
t h at the adaptive cruise control is not able
to slow the vehicle down enough to keep a
e nough distance to the vehicle in front of
you. A warning tone will also sound when
Ad apti ve crui se control 121
the symbol appears. For more information
about the driver intervention prompt
r::!) page 124.
_& WARNING
Improper use of the adaptive cruise con­
trol features and inattent ion can lead to a
crash and serious personal injury.
- Never allow the closing speed between
you and othe r vehicles to be so high that
the adaptive cruise control may not be ab le to slow your vehicle safely . If clos­
ing speed is too high, you must apply the
brakes yo urself to reduce the risk of a
rear-end crash.
- Always select a greater following d is­
tance to the vehicle up ahead on wet
roads than on dry roads.
- Always read and heed the info rmation
and WARNINGS <=>
& in Description on
page 113 .
(D Tips
-If you use the accelerator to go faste r
t han t he speed of the vehicle ahead of
you , the dr iver intervention prompt will
not be accompan ied by a warn ing tone.
- If the speed you previously set is exceed­
ed, the indicator light in the speedome­
ter will switch off.
Display in the instrument cluster
Appl ies to vehicles: wit h adaptive cruise control
F ig. 136 D isp lay in the in strument clust er
-
Scroll through the available information dis­
plays by br iefly tapp ing the
I RES ET! button at
the end of the windshield wipe r lever . You can ..,.

122 Adaptive cruise control
select information from the trip computer,
navigation system* or adaptive cruise control.
@ Vehicle symbol
@ Distance
© Status
@Vehicle symbol
The vehicle symbol indicates whether the sys­
tem has detected an object traveling in front .
-Vehicle outline: Open road, no vehicle
ahead.
- White vehicle: A vehicle is detected ahead.
-Red vehicle : Request for driver to assume
control.
@ Distance
Using the arrows and scale, you can detect
how far it is to the vehicle in front of you.
- Open road: No arrow appears when the ve­
hicle is on an open road and there is no vehi­
cle ahead.
- Driving in traffic: If a vehicle is detected
ahead, the arrow moves on the scale. The
green area represents the distance set.
When approach ing slow ly, the arrow moves
from the
gray zone to the green zone on the
scale .
-Driver intervention prompt : When ap­
proaching rap idly, the arrow serves as an
early warning signal. If the d istance select­
ed is exceeded or possibly not reached, the
arrow moves into the
red zone on the scale.
In certa in driving situations, you as the driv­
er w ill have to take action
c::> page 124, Driv­
er intervention prompt.
@Status
- The text ACC OFF appears in white letters
when adaptive cruise control is turned off.
- The text
ACC AVAILABLE appears in wh ite
letters when the system is turned on but no
desired speed has been set.
- The text
OVERRIDE appears in white letters
when you exceed the desired speed by accel­
erating. - The text
DI
STANCE! appears in red letters
when the interva l to a vehicle traveling
ahead is too short and you have to slow your
veh icle additionally with the foot brake.
- The text messages
DISTANCE 1 to DIS­
TANCE
4 appear in green letters to indicate
the t ime interval you have set and adapt ive
cruise control is in management mode.
- If the driving program "standard" is re­
placed by "comfort" or "dynam ic" using the
MMI , the above text message is supple­
mented by an appropriate prompt, e.g.
DIS­
TANCE
1 -dyn .
System status indicator
Applies to vehicles : wi th adap tive c ruise contro l
The text messages and symbols shown in this
area of the display are not displayed perma­
nently.
Fig. 137 System status indicator
Time intervals (such as.::::::, ____ .::::::,)
The different symbols for the time intervals
(distance) appear if you change the settings
c::>fig. 137.
Three white dots ... appear if a setting cannot
be made w ith the operating lever. The follow­
ing are possible reasons
- If you pull the cont ro l lever towards you to
resume speed but no requested speed was
set.
- If you push the lever up to increase (or down
to reduce) speed when no speed has been
set previously.
- If you push the lever up to increase (or down
to red uce) speed and this speed is outs ide
llll>

the 20 to 95 mph (30 to 150 km/h) speed
range .
ACC not available
The text message ACC not available appears,
for example, if the temperature of the brakes
i s excessive. Adaptive cruise control is tempo­
rarily not available. A warning tone sounds as
a reminder .
ACC not available!
The text message ACC not available! appears
in the event of a malf uncti on. Adaptive cruise
control is tu rned off . A warning tone sounds
as a reminder. Have the system inspected by a
qua lified dealership.
ACC sensor blocked !
The text message ACC sensor blocked ! ap­
pears when the ACC System can no longer ac­
curately detect vehicles moving up ahead in
your lane of travel. Adaptive cr uise control is
turned off. A warning tone also sounds as a re­ minder.
To decide whether it is necessary to switch off
the ACC (ACC sensor blocked
!) or if it is only a
temporary condition (ACC Functionally limit­
ed), the system will a lso takes into cons idera­
tion the outside temperature and/or the wind­
shield wiper operation .
The ACC sensor is dirty or blocked (e.g. leaves,
snow).
The ACC sensor is loca ted behind the area to
the right of the front license plate . If the ACC
sensor is dirty or blocked, clean the area to re­
store system operat ion.
Stability program
The text message Stability program appea rs
if the Electronic Stability Control (ESC) has in­
tervened . In th is case the adaptive cr uise con ­
trol is automatically turned off. Th is is accom­
panied by a warn ing tone.
Speed
The set speed in mph (Canada km/h) always
appears when saving or changing the speed in
Adaptive cruise control 123
adaptive cruise control c:::> page 116, How is
the speed stored?
and c:::> page 117, Changing
stored speed.
ACC functionality limited
T he message ACC functionality limited ap­
pears when the ACC System does not detect
any moving vehicles up ahead in your lane of
trave l for a longer period of time . During t his
time, the distance to moving vehicles in your
lane of travel up ahead is not being main­
ta ined . The ACC system is not switched off,
and increased attention to the traffic situation
is absolutely necessary. The following may be
reasons why the message
ACC functionality
limited
appears:
- The ACC sensor is d irty. The ACC system is
not reacting, or is not reacting co rrectly, to
moving vehicles up ahead in your lane of
travel.
- There may be very light traffic on and there
is noth ing that marks the side of the road
(for examp le, guard ra ils, traffic signs,
t rees). As soon as a moving vehicle up ahead
is detected again, ACC becomes active again
and the message disappears.
T he ACC senso r is located behind the area to
the right of the front license p late.
If the ACC
sensor is dirty or blocked, clean the area to re ­
store system operation.
Parking brake!
The text message Parking brake! appears,
whe n the parking brake is applied. ACC is
turned off. A warning tone sounds as a re­
minder.
Stationary object ahead
T he text message Stationary object ahead ap­
pears, whe n you want to activate the system
and there is a stationary vehicle or an object
immediately in front of you .
Gradient too steep
The text message Gradient too steep appears
when the maximum gradient for prope r ACC
operation has been exceeded. Adaptive cruise .,.

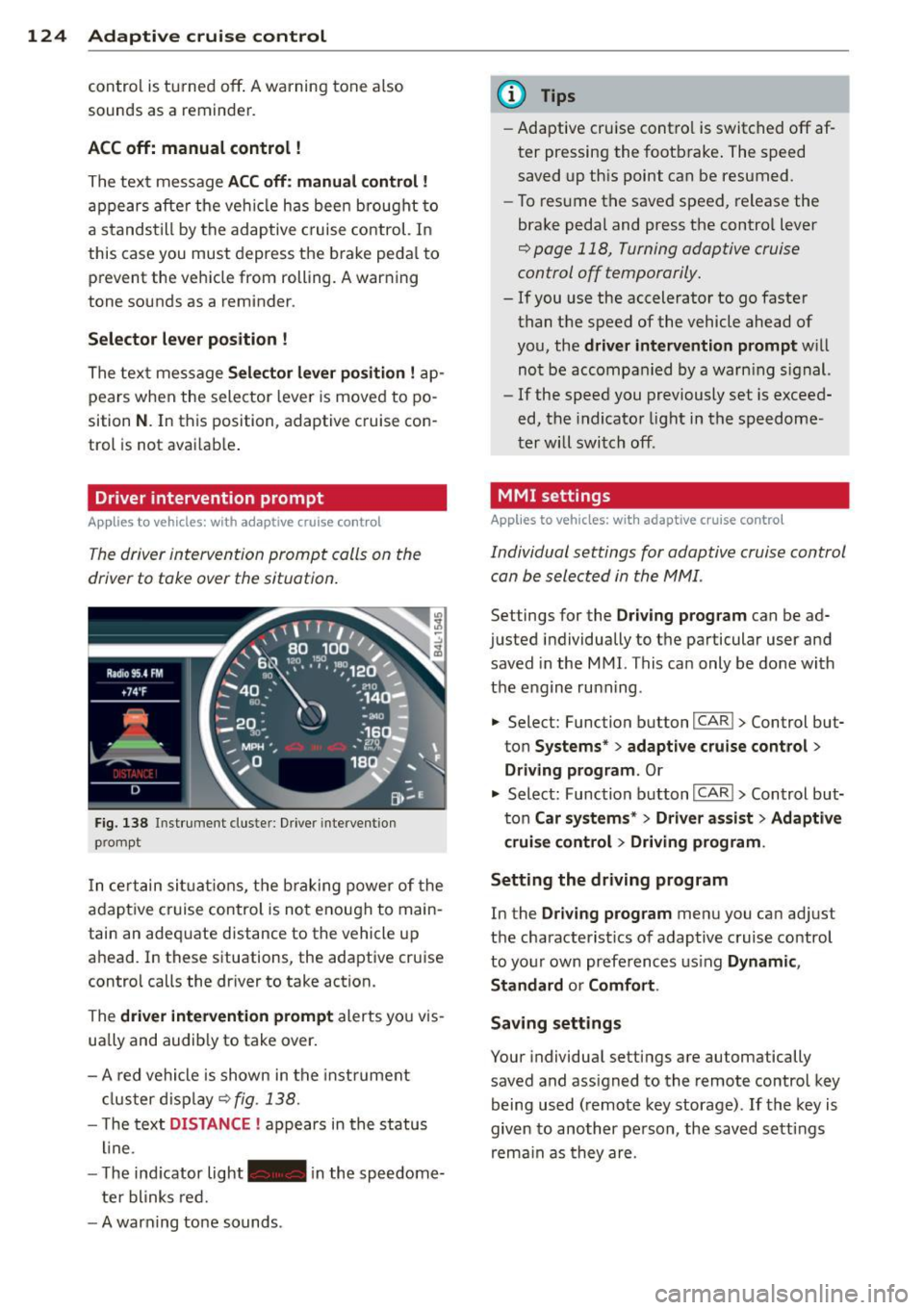

124 Adaptive cruise control
control is turned off . A warning tone also
sounds as a reminder.
ACC off: manual control !
The text message ACC off: manual control !
appears after the vehicle has been brought to
a standstill by the adaptive cruise control. In
this case you must depress the brake pedal to
prevent the vehicle from rolling . A warning
tone sounds as a reminder .
Selector lever position !
The text message Selector lever position ! ap­
pears when the selector lever is moved to po­
sition
N . In this position, adaptive cruise con­
trol is not available .
Driver intervention prompt
Applies to vehicles: with adaptive cruise co ntrol
The driver intervention prompt calls on the
driver to toke over the situation.
Fig. 138 Inst rument clus te r: Driv er in tervent ion
p romp t
In certain situations, the braking power of the
adapt ive cr uise control is not enough to main­
tain an adequate distance to the vehicle up
ahead . In these situat ions, the adaptive cruise
contro l calls the dr iver to take action.
The
driver intervention prompt alerts you vis­
ually and audib ly to take over.
- A red vehicle is shown in the instrument
cluster display ¢
fig. 138.
- T he text DISTANCE ! appears in the status
line .
- T he indicator light- in the speedome­
ter blinks red.
- A warning tone sounds .
(D Tips
-Adaptive cruise contro l is switched off af­
ter pressing the footbrake. The speed
saved up this point can be resumed.
- To resume the saved speed, release the
brake pedal and press the control lever
¢ page 118, Turning adaptive cruise
control off temporarily.
- If you use the accelerator to go faster
than the speed of the vehicle ahead of
you, the
driver intervention prompt w ill
not be accompanied by a warn ing s ign al.
- If the speed you previously set is exceed­
ed, the indicator light in the speedome ­
ter will switch off.
MMI settings
Applies to vehicles: wit h adaptive cruise contro l
Individual settings for adaptive cruise control
can be selected in the MMI.
Settings for the Driving program can be ad­
justed individually to the particular user and
saved in the MMI. This can only be done with
the engine ru nning .
• Select: Function button
I CAR !> Control but­
ton
Systems * > adaptive cruise control >
Driving program . Or
.,. Select: Function b utton I CAR !> Control but­
ton
Car systems* > Driver a .ssist > Adaptive
cruise control
> Driving program .
Setting the driving program
In the Driving program menu you can adjus t
the characterist ics of adaptive cruise control
to your own preferences using
Dynamic,
Standard
o r Comfort .
Saving settings
Your individual settings are automatically
saved and ass igned to the remote control key
being used (remote key storage) .
If the key is
given to another person , the saved settings
remain as they are .

System limitations
General information
Applies to vehicles: with adaptive cruise control
The radar sensor has limits that the driver
must know to be able to use ACC properly.
The adaptive cruise control works within lim­
its that are also related to radar sensor range
and s ight distance . In some situations ACC
may react unusually or late from the driver's
point of v iew. Therefore, a lways be attent ive
to what is happening around you and always be ready to intervene, if necessary:
- when driving around curves ¢page 125
- when vehicles up front are not in line with
you r vehicle ¢ page 125
- when other vehicles are changing lanes
¢ page 126
- when other vehicles are difficult to detect
¢ page 126
- when vehicles up ahead are not moving or
obstacles are in your travel lane ¢page 126
A WARNING
The radar sensor's function and ra nge can
be reduced by rain , snow and heavy spray.
Moving veh icles up ahead may not be
prompt ly detected or may not be detected
at all.
- Always pay ca reful attention to the traf­
fic s ituation and be ready to intervene
and be rea dy to take comp lete cont rol
whenever necessary.
When driving around curves
Applies to vehicles: with adaptive cruise co ntrol
Fig. 1 39 Vehicle enter ing a cu rve
Ad apti ve crui se control 125
Fig. 140 Vehicle leaving a curve
Entering a curve
When enter ing a curve, the adaptive cruise
control may react to a vehicle in the next lane
and apply the brakes in your vehicle
¢ fig. 139. The braking action ca n be over rid­
den by depressing the ac ce lera tor pedal.
Leaving a curv e
At the end of very long curves, ACC's predic­
tive lane reading can cause ACC to react to an­
other vehicle in the next lane and apply the
brakes on your vehicle~ fig . 140. The braking
action can be overr idden by depressing the ac­
ce le rator pedal.
Vehicles offset to one side
App lies to vehicles: with adaptive cruise control
Fig. 141 Vehicle traveling ah ead outside the detect ion
r ange of the radar sensor
Vehicles moving up ahead but offset in the
lane ca nnot be detected by ACC until they are
in sensor range.

126 Adaptive cruise control
Lane changes by other vehicles
Applies to vehicles: with adaptive cruise control
Fig. 142 A vehicle changes la nes
Vehicles that cut into your lane a short dis­
tance in front of you cannot be detected by
ACC until they are in sensor range .
Vehicles that are difficult to detect
Applies to vehicles: with adaptive cruise control
Fig . 143 Two-wheeled vehicle driving ahead
Some vehicles moving up ahead in your lane
of travel are difficult to detect, for example
two-wheeled vehicles, vehicles with high
ground clearance, loads sticking out the back.
Vehicles like this are often detected late or in
some situations not at all .
Stationary vehicles
Applies to vehicles: with adaptive cruise contro l
Fig. 144 Tu rnin g and s tat ionary ve hicle
Fig. 145 Sheer ing out and stat ionary veh icle
If a vehicle that has been detected by ACC ex­
its the highway or sheers out into the neigh­
boring travel lane, and there is a stationary
vehicle ahead of that vehicle, ACC w ill not de­
tect or react to that stationary vehicle
¢fig . 144 and ¢ fig. 145 .
Audi braking guard
Description
Applies to vehicles: with adaptive cruise control
Audi braking guard warns you of a possible
collision with a moving vehicle up ahead.
Fig . 146 D isplay in the instrument cluste r

The Audi braking guard is active from a speed
of approx. 20 mph (30 km/h) and works with­
in the system limits
¢ page 125 even when
the adaptive cruise contro l is deact ivated.
A radar senso r is bui lt into the front of the ve­
hicle
¢ page 114, fig. 127. The system is in­
tended to measure the distance to reflect ive
surfaces. If a measurement is not possible,
the system does not respond .
When the measurement has been taken, the
system can recognize a poss ibly hazardous sit ­
uation, for example, when a vehicle up ahead
in your lane of travel suddenly brakes or when
your ow n ve hicle is moving at high speed to­
wards a much s lowe r vehicle up ahead . As
soon as the system senses that a possible co l­
l ision with the vehicle up ahead can only be
avoided by immediate full brake appl ication or
by an avoidance maneuver, a warning appears .
The system has a defau lt response time to be
ab le to sig na l befo re a col lision occu rs. This
system response time is a utomat ica lly re­
d uced if you acce lerate actively, for example
to join a highway. Braking, transverse acce ler­
ation and the steering ang le can lead to a re­
duced system response time. The warning is
deactivated if you begin to overtake with full
acceleration.
The system can make yo u aware of two differ­
ent hazardo us situations:
Distance
The distance warn ing is g iven if the sys tem
calc ulates that the re is not enough d istance
to the vehicle up ahead a period of more than 5 seconds. If the distance is less than 30 feet
(9 meters) at SO mph (80 km/h), for example,
an optical d isplay comes on in the instrument
cluster
c> fig . 146.
If the vehicle ahead brakes sharply, A udi brak­
ing guard cannot help you to avoid a co llision,
even in the case of an immediate response.
Take immediate act ion to avoid the collision
and increase the distance to the vehicle up
ahead .
Adapti ve crui se control 127
Speed
If there is a much slowe r vehicle mov ing up
ahead in your lane, or if the vehicle ahead brakes sharply, the Audi brak ing guard calcu­
lates the point from which a collision can only
be avoided by f ull braking or by an avo idance
maneuver . If a warning does sound, a possible
collision with the veh icle in front can only be
avo ided through an evas ive maneuver or by
braking.
The warning is given in two stages:
- Pre-warnin g: A visua l display appears in the
instrument cluster and a warning tone
sounds.
- Acute w arning : If you do not respond to the
pre-warning, the second stage warning is
given. A quick brake application helps to di­
rect your attention to the road and traffic
situat ion.
Under heavy braking, the brake assistant
i=> page 114 also helps you benefit from maxi­
mum brak ing eff ic iency.
_& WARNING
Inattention can cause collisions, other ac­
cidents and ser ious personal inju ries.
- Always pay close attent ion to the traffic,
even when the Audi braking guard is
sw itched on. The Audi braking guard pro­
vides a wa rning but does not brake the
car for you. You must app ly the brakes
yourse lf!
- Always keep the safe and lega l distance
between yo ur vehicle and vehicles up
ahead.
- Aud i brak ing g uard wor ks within lim its
and will no t respond outside the system
limits, fo r example when approach ing a
stopped vehicle or stationary obstacle (end of a traffic jam or vehicle that has
broken down in traffic).
- Always remember that the radar sensor
for the Audi braking guard works within
defined detect ion and range limits that
may prevent the proper detection of oth­
er vehicles .

128 Adapti ve crui se co ntrol
-The radar sensor's function and range
can be reduced by rain, snow and heavy
spray. Moving vehicles up ahead may not be promptly detected or may not be de­
tected at all.
- Always pay careful attention to the traf­
fic s ituation and be ready to intervene
and be ready to take complete control
whenever necessary.
- Reflective surfaces includ ing crash barri­
ers or tunnel entrances may impair the
function of the radar sensor.
Settings in the MMI
Applies to vehicles: with adaptive cruise control
T he settings of the Audi braking guard are
performed in the MMI.
._ Select : Funct ion button ICARI > Control but­
ton Systems * > Audi brak ing guard . Or
._ Select : Funct ion button
ICARI > Control but ­
ton Car system s* > Driver as sist> Audi
braking guard .
- System -the Audi braking guard system can
be switched
On and Off .
-Earl y warning - the acoustic warning and
the messages can be switched
On and Off .
(D) Tips
When handing over the keys to another pe rson, the prev ious settings are adopted
if the Audi braking guard is act ivated
~ page 43.
Driver's information in the instrument
cluster display
Applies to vehicles: with adaptive cruise co ntrol
braking gua rd activated
This message appears whe n the Audi braking
guard applies the b rakes during a second
stage (acute) warning .
braking gua rd off
This message appears whe n the system has
been deact ivated v ia the MMI. This message also appears briefly at each beginning of a trip
if the system is switched off.
T his message a lso appears when the system is
not availab le because of a ma lf u nct ion or if
E SC is switched to the Off road
mode ~
page 219. The system can no longer
warn of an impending coll is ion .
