14 Instruments and warning/indicator lights
Warning/indicator lights
Overview
The warning/indicator lights indicate different functions or a possible malfunction.
Fig . 8 Instrument duster w ith warning/indicator ligh ts
Your veh icle is equipped with several impor·
a
Malfunction Indicator Lamp
tant warning and indicator lights to help you (MIL)
monitor the continued reliable operation of
<=:>page 17
your veh icle c:> _& .
•
Adaptive Air Suspension*
rm
Electron ic power control <=:>page 17
(alternative to l,;I) -
•
Adaptive Air Suspension*
<=:>page 15
<=:>page 17
II
Glow plug system ~
(alternative to~
rl
Right turn signal
<=:>page 15 <=:>page
16
•
Electron ic Stability Control (ESC)
Safety belt
<=:>page 16
<=:>page 18
I
Electronic Stability Control (ESC)
•
High beam
<=:>page 16
¢page 18
USA models: Safety systems
[g
Tire pressure monitoring system
<=:>page 16
<=:>page 18
Canada models : Safety systems
gm
USA models: Cruise control acti·
<=:>page 16 vated
<=:>page 18 j
Left turn signal
E
Canada models: Cruise control <=:>page 16
•
activated
•
Trailer turn signal assembly* c:>pafe 18
<=:>page 16
~
USA models: Anti-lock brake
system (ABS) defective
¢page 18

16 Instruments and warning/indicator lights
;;./~ Electronic Stability Control (ESC)
This warning/indicator light monitors the
Electronic Stability Control .
If the D] indicator lamp blinks while driving,
the ESC or ASR (Anti-Slip Regulation) is active­
ly regulating.
If the G] indicator lamp illuminates, the sys­
tem has switched the ESC off. In this case, you
can switch the ignition off and then on to
switch the ESC on again . The system is func­
tioning completely when the indicator lamp
switches off.
If the
I indicator lamp illuminates, the ESC
was switched off with the
I ~ OF F! button.
Stability program and ABS fault! See own­
er's manual
If the J;.j indicator lamp and the llJ ABS indi­
cator lamp illuminate and the driver message
appears, the ABS or electronic differential lock
is malfunctioning. This also interrupts the
ESC. The brakes still function with their nor­
mal power, but ABS is not active .
Drive to your authorized Audi dealer immedi­
ately to have the malfunction corrected.
For more information about the ESC
¢page 219.
ii !.!r Safety systems
The I (USA models)/ . (Canada mode ls) in­
dicator light monitors the safety systems e.g.
a ir bags, pretensioners and illuminates for a
few seconds each time you switch the ignition
on .
If the
I (USA models)/ . (Canada models)
indicator light does not go out, or if it illumi­
nates while you are driv ing, or if it starts to
b link , then there is a malfunction somewhere
in the system. If the light does not illuminate
when you switch the ignition on, this also
means there is a malfunction.
A WARNING
If you have a ma lfunction in the safety sys­
tems, contact your authorized Audi dealer
imme diately. Otherwise the safety sys­
tems may not work properly in an acc i­
dent.
¢ Q Turn signals
The indicator light blinks when you use either
turn signal .
Whenever you use the left B or the right B
turn signal, the indicator light blinks. When
you use the emergency flashers, both indica­
tor lights flash.
If one of the turn signal light bulbs burn out,
the turn signal will blink twice as fast as nor­
mal.
This does not apply, however, in towing mode.
The indicator light does not flash if a turn sig­
nal is out on the trailer or the towing vehicle .
Additional information on the turn s ignals
¢ page 60 .
¢1¢ Trailer turn signal assembly
Applies to veh icles : w ith t owing h it c h
The indicator light also blinks if the turn sig ­
nal is operated when towing a trailer.
The indicator light . blinks when the turn
signal is used, if a trai ler has been proper ly
connected to the vehicle.
If one of the turn signal bulbs on the trailer is
burned out or defective, the indicator light
will not blink when you use the turn signals .
(D Tips
For vehicles with a factory installed towing
hitch or a trailer hitch that was installed
later according to factory spec ifications,
the trailer turn signal assembly is actuat­
ed.

48 Openin g and clo sing
- As soon as the electrical connec tion to
the trailer socket is completed on vehi­
cles with a factory installed towing h itch,
or a trailer hitch that was installed later
according to factory specifications, the
automat ic rear lid function can on ly be
operated via the handle in the rear lid.
Rear lid emergency unlocking
If the rear lid cannot be opened, an emergen­
cy release is provided .
1----------------- --,l~ N
Fig . 4 1 Section of the luggage compar tment : Access to
emerge ncy re lease
Fig . 42 Sect ion of the luggage compartment: Emer­
gency release
,.. Tilt the seatback forward .
,.. Move into the t runk.
,.. Take the sc rewd river from the veh icle tool
kit. As an alternat ive, you can a lso use the
vehicle key.
,.. Put the flat side of the screw driver into the
recess and pry the cover up
o fig. 41 -Arrow-.
,.. Press the lever in the direction of the arrow
ofig . 42 to unlock the rear lid .
Child safety lock
Power child safety lock for the rear
doors
The power child safety lock t prevents the
rear doors from being opened from the in ­
side .
Fig . 43 Sect ion fro m driver's door: controls
The rear doors are equipped with a power
child safety lock.
It is operated with the two
safety buttons
III in the dr iver's door o fig. 43.
,.. Press the left and/or right safety button to
disab le the rear power window(s) and pre­
vent the respective rear door from being
opened from the inside. The LED in the but­
ton will light up when the child safety lock is
turned
on .
,.. Press the illum inated button aga in to turn
the child safety featu res
off .
When the c hild safety lock is activated, the in­
te rior door opening lever is inoperative; the
doo r can only be opened from th e outside. In
addition, the window regu lator for that doo r
is also inoperative when the child safety lock
is activa ted.
If the child safety lock has been ac tivated on
one or both sides, the butto ns in the rear for
the Panoramic slid ing su nroof* are disabled .
If the child safety lock has been act ivated on
the left
and on the right side, the rear con­
tro ls are locked on veh icles with rear a ir-condi­
tion ing *. Dashes"··-" are show n in t he dis­
plays for the rear climate contro ls, and the
rear air-conditioning can on ly be operated
from the climate controls in the cabin
opage 97.

Redu cing distance
"' Push the slider sw itch onc e to the left Q.
The distance currently set is shown for 3
seconds in the instrument cluster display.
"' Push the slider switch
again to the left 0
to decrease the distance by one step.
The distance at which the adaptive cruise con­ trol follows a vehicle in front is determined by
time interva ls. A time interval to a vehicle in
front is estab lished and maintained. Th is pro­
duces a speed-dependent interval. The higher
the speed, the greater the safety interva l in
feet (meters)
¢ ,&. .
DISTANCE 1 Ada
pti ve crui se control 119
For example, if the interval DISTANCE 3 is
set, a vehicle in front is fo llowed at a
time in­
terval
of 1.8 seconds.
For a speed of
50 mph (80 km /h ) this wo uld
be equivalent to a distance of
131 feet
( 4 0 meter s)
to the vehicle in front.
T he distances given here are nom inal va lues .
T he vehicle speed may exceed or fall shor t of
these target speeds, depending on the driving situation and the driving style of the vehicle
ahead .
DISTANCE 2 DISTANCE 3 DISTANCE4
Symbol c;:::::::, _ c;:::::::,_ - - c;:::::::, _ - c;:::::::, _ - c;:::::::, _ - - c;:::::::, _ c;:::::::,_ - - _c;:::::::,
T ime interval
Dynamics
I Distance at 25 mph
(40 km /h )
Di st a nce at 50 mph
(80 km /h)
Distance at 75 mph
(120 km /h)
1 second 1.3 seconds
Sporting Standard
36 Feet (11 Me-
JI 46 Feet (14 Me-
ters) ters)
-.
72 Feet (2 2 Me- 95 Feet (29 Me-
t ers) ters)
108 Feet (33 144 Feet (44 Meters) Meters) 1.8 seconds
Standard
66 Feet (20 Me­ ters)
-
131 Feet (40 Me ters)
197 Feet (60 Meters) 2.3 seconds
Comfortab le
82 Feet (25 Me- ·
ters)
1 67 Feet (51
Meters)
249 Feet (76 ·
Meters)
H ow your vehicle responds when accelerating
and following other vehicles w ith ACC operat­
i ng can be adapted to your personal wishes
through diffe rent driving programs. Depend­
ing on w hich driving p rog ram and wh ic h dis- tance you choose, your vehicle will respond
more dynamically or more comfortably when
acce lerat ing and braking . The setting is se­
lected through the MM I menu
adapt ive cruise
contro l¢ page 124, MMI settings.
Settings DISTANCE 1
Symbol for time inter·
val ~-
c;:::::::,_ -
Support fo r: Bumper-to-
Re sponse in "dynam­
ic " driving program
Respon se in "stand ­
ard " driving program
Response in "comfort "
driving program
bumper traffic,
b risk driving
1
2
3
DIS TANCE 2
~ __ c;:::::::,_
Bumper-to-
bumper traffic,
"keep ing pace"
comfortably
2
3
4
(dynamic) 1 -- ---2 ----- 3 --- -- 4 ----- 5 (comfortable)
DISTANCE 3 DISTANCE4
- - -c;:::::::, ~----c;:::::::,
Bumper-to- Secondary roads,
bumper traffic, trailer operation
"keeping pace"
comfortably
2 3
3
4
4
5

130 Audi side assist
-The radar sensor's vision can be reduced
or entirely blocked by rain, snow, and
heavy spray . This can result in side assist
not adequately detecting vehicles or, in
some cases, not detecting them at all.
Always keep an eye on the direction you
are traveling and the relevant area
around the vehicle.
- Please note that side assist indicates
there are approaching vehicles, or vehi­ cles in your blind spot, only after your ve­
hicle has reached a driving speed of at
least 19 mph (30 km/h).
- Side assist signal does not work around
tight corners (turning radius less than
328 feet, or 100 m).
- Side assist is no replacement for the driv­
er's full attention. The driver alone is re­
sponsible for lane changes and similar
driving maneuvers. Always keep an eye
on the direction you are traveling and the relevant area around the vehicle.
- To ensure that you do not adversely af­
fect side assist, do not block the area on
the rear bumper where the radar sensors
are located with foreign objects (such as
stickers or bicycle racks).
- Make sure that the signal light on the
outside mirror is not blocked by stickers
or other items.
(Di Tips
- Side assist automatically deactivates if it
detects that the radar sensors are
blocked ¢
page 135. The indicator light
on the button goes out .
- The area on the bumper where the radar
sensors are located must consistently re­
main free of snow, ice, and heavy soiling
so that side assist can function properly.
Follow the additional notes on
¢page 136.
-For vehicles with a factory installed tow­
ing hitch* or a trailer hitch* that was in­
stalled later according to factory specifi­
cations, side assist is automatically deac- tivated
as soon as the electrical connec­
tion to the trailer electrical socket is made
¢ page 135.
-For vehicles with a trailer hitch that was
not installed according to factory specifi­
cations, switch off the side assist when
towing a trailer .
- Additional tinting on the front side win­
dows can make it harder to see and cor­
rectly understand the signal light on the
outside mirror.
- For Declaration of Compliance to United
States FCC and Industry Canada regula­
tions¢
page 322.
Sensor detection area
Applies to vehicles: with side assist
-----··· .... ·--·--
@ / ,
--­
ill b''T -
Fig. 150 Sc hematic illustration: Sensor detectio n area
The detection ¢ fig. 150 of the radar sensor
detection area is made up of:
-
- the approach area (light red area) (D, about
230 feet (70 m) behind the vehicle, and
- the "blind spot" (dark red area) @.
The radar sensors cover the adjacent left and
right lanes. Other lanes are
not covered by the
radar sensors.
(D Tips
Side assist does not measure actual lane
width. The system assumes a fixed lane
width . Detection in the left and right lanes
is based on this assumed lane width.
When driving on narrow roads or when
driving to the left or right of the center of
a travel lane, it is possible that vehicles
will be detected that are
not in the lane

Lane width
Applies to vehicles: with side assist
-· Fig. 155 Lan es o f a norma l wid th a re in detect ion area
Fig . 156 Narrow lanes: Side ass ist may detect vehicles
two la nes away
Side assist's detection area is designed to cov­
e r l anes of standard w idth to the left and
r ight of your travel lane, depending on wheth­
er you dr ive in the center of your lane or closer
to the edge.
I f you drive in narrow lanes, s ide ass ist's de­
tec tion a rea may a lso incl ude other lanes -es­
pec ia lly if you tend to drive on the edge of
your lane
c:::> fig. 156 . Under these cond it ions,
ve hicles can also be detected that are two
lanes away, and side assist then could switch
between the informat ional and warn ing stage
signals.
When driving in very wide lanes, vehicles in
the adjacent lane may not be detected be ­
cause they are not inside the detection area.
Notes
Messages in instrument cluster display
Applies to vehicles: with side assist
If s ide ass ist t urns off automa tically, the ind i­
cator l igh t on the button wi ll go ou t and you
Aud i side assist 135
will see a message in the instrument cluster
display:
Audi side assist not available: sensors
bloc ked
The side assist sensors are built into the rear
bumper on the left and r ight (not visible on
the outside)
c:::> page 129, fig . 147. To ensure
that you do not adversely affect the way side
ass ist functions, foreign objects (such as stick­
ers or bicycle racks) should not be attached to
the area on the rear bumper where the sen­
sors a re located . If side ass ist functions are
adverse ly affec ted, you w ill see th is message
in the instrument cluster disp lay . Remove any­
th ing t hat may be blocking the sensors.
If no vehicle is detected for a longer per iod of
t ime wh ile dr iv ing, s ide ass ist w ill also switch
off automatically.
Audi s ide as sist cu rrentl y not available
If there is a temporary problem (such as the
vehicle 's battery charge be ing low), side assist
cannot be act ivated temporar ily .
Audi side assis t: sy stem fault
Have the system checked by an author ized Au­
di dealer or qualified workshop.
Audi side assist not availabl e when
towing
The radar sensor's view is limited when tow­
ing a tra iler. For vehicles with a factory instal­
led towing hitch or a trailer hitch that was in­
stalled later according to facto ry specifica­
tions, s ide ass ist is automatically deact ivated
as soon as the ele ctrical connection to the
trailer's e lectrical socke t is made, and this sta­
tus message appears in the instrument clus­
ter display. Deactivation cannot be guaran ­
teed when using a retrofitted towing hitch
that was
not installed according to factory
specifications.

Parking system
General information
App lies to vehicles: with rea r park assis t/Audi park ing sys ­
tem plus w ith rearview camera
There are two different park assist systems
avai lab le depending on your vehicle's equip­
ment leve l.
The
r ea r p ark ass is t is an acoustic park assist
system that will give you a sound warning to let you know there is something
behind the
veh icle
¢ page 143.
The Aud i p arki ng sys te m p lus with rea rvie w
ca mera
audibly and visually tells you there is
something
in front of and behind the veh icle.
A rearview camera also shows you what is be­
hind the veh icle. This image he lps you when
parallel parking or reverse parking
¢ page 144.
@ Tips
The sensors must be kept clean and free of
snow and ice for the park assist to operate.
Rear park assist
Description
App lies to vehicles: with rear park assist
The rear pork assist is on audible system.
Sensors are located in the rear bumpers. If
these detect an obstacle, audible signals warn
you. The range at which the sensors begin to measure is approximately:
side 2 ft (0.60 m)
rear center
5.2 ft (1.60 m)
T he closer you get to the obstacle, the shorter
the interval between the audible signals. A continuous tone sounds when the obstacle is
less than approximately 1 foot (0 .30 meters)
away . Do not cont inue driving farther .
If the d istance to an obstacle remains con­
stant, the volume of the d istance warning
gradually drops after about four seconds (th is
does not apply in the continuous tone range) .
Parking system 143
The park assist is activated automatica lly
when reverse gear is engaged. A short confir­
mation tone sounds.
_& WARNING
- The parking system cannot replace the driver's attention. The driver alone is re­
sponsible for parking and similar driving maneuvers .
- Sensors have blind spots in wh ich objects
cannot be detected. Pay spec ial attent ion
to small children and an imals because
the sensors cannot always detect them.
- Always keep your eyes on the vehicle 's
surroundings, us ing the rea r view mirror
as well.
(D) Note
Low obstacles already signaled by a warn­
i ng can d isappear from the system's detec­
tion range as they are approached and w ill
not cont inue to be signaled. Objects such
as barrier chains, trailer d raw bars, th in
painted vertica l poles or fences may not be
detected by the system, posing risk of
damage.
(D Tips
- Please follow the instructions for tow ing
a trailer
¢page 149.
-Yo u can change the vo lume and pi tch of
the signals
¢ page 148.
-

146 Parking system
Switching on and off
Applies to vehicles: with Audi parking system plus w ith
rea rview camera
The reorview camera switches on automati­
cally together with the acoustic and visual
pork assist when you put the vehicle in re­ verse .
Fig. 168 Ce nter console: Park ing system switc h
Fig. 169 MMI display: visual d istance d isplay
Switching on
> Switch the MMI on and se lect reverse gear.
> Switc h on the Adaptive Air Suspension*
comfort or automatic mode.
> To use the front pa rking system , press the
switch P"1t in the center console
c:> fig. 168. A
short confirmat ion tone sou nds a nd the in ­
di ca to r li ght in the swi tch lights up.
Switching betwe en the r earview camera
and visual display
> Press the Graphi c control button
¢
page 147, fig. 170@to see the v isua l
display.
> Press the Rea r view contro l button to see
the rearview camera image
<=:> fig. 169.
Switching off
> Drive faster than 6 mph (10 km/h), or
> press the sw itch P 1t or
> switch off the ignition.
Segm ents in the visual display
The red segments in fro nt of and behind the
vehicle
<=:> fig. 169 help you to determ ine t he
distan ce between yo u and an obstacle. As
your vehicle comes close r to the obstacle, the
segments move closer to the vehicle . The co l­
lision area has been reached when the next to
l ast segment is displayed . Do not continue
driving farther ¢
& in General Information
on page
145!
A WARNING
-
- The MMI d isplay cannot show, or ca nnot
adequately show, certain objects (such as
sma ll posts or grating), recesses in the
g rou nd a nd p rot ruding pa rts on ano ther
car.
- Onl y use t he rearview camera to ass ist
you i f it shows a good, clear pic ture. For
examp le, the image may be affec ted by
the sun s hining into the lens, d irt on the
lens or if there is a defect.
- Use the rearv iew came ra only wi th the
rear lid comp lete ly closed . Make s ure any
objects you may have mounted on the
rear lid do not b lock the rearview cam­
era.
(D Tips
- The sensors m ust be kept clean and free
of snow and ice for the park assist to op­
erate.
- The visua l display is shown in the ill us­
tration of the rearview camera. Th is dis ­
play shows where the sensors have de­
tected an obstacle.
- You can change the volume and pitch of
the s ignals as we ll as the disp lay
c:> page 148.
- Please follow the instructions for tow ing
a trailer
c:> page 149.
- What appears in the display is time-de­
layed.

Reverse Parking
Applies to vehicles: with Audi parking system plus w ith
rea rview camera
Parking mode 1 can be used when parking in
a garage or into a parking space.

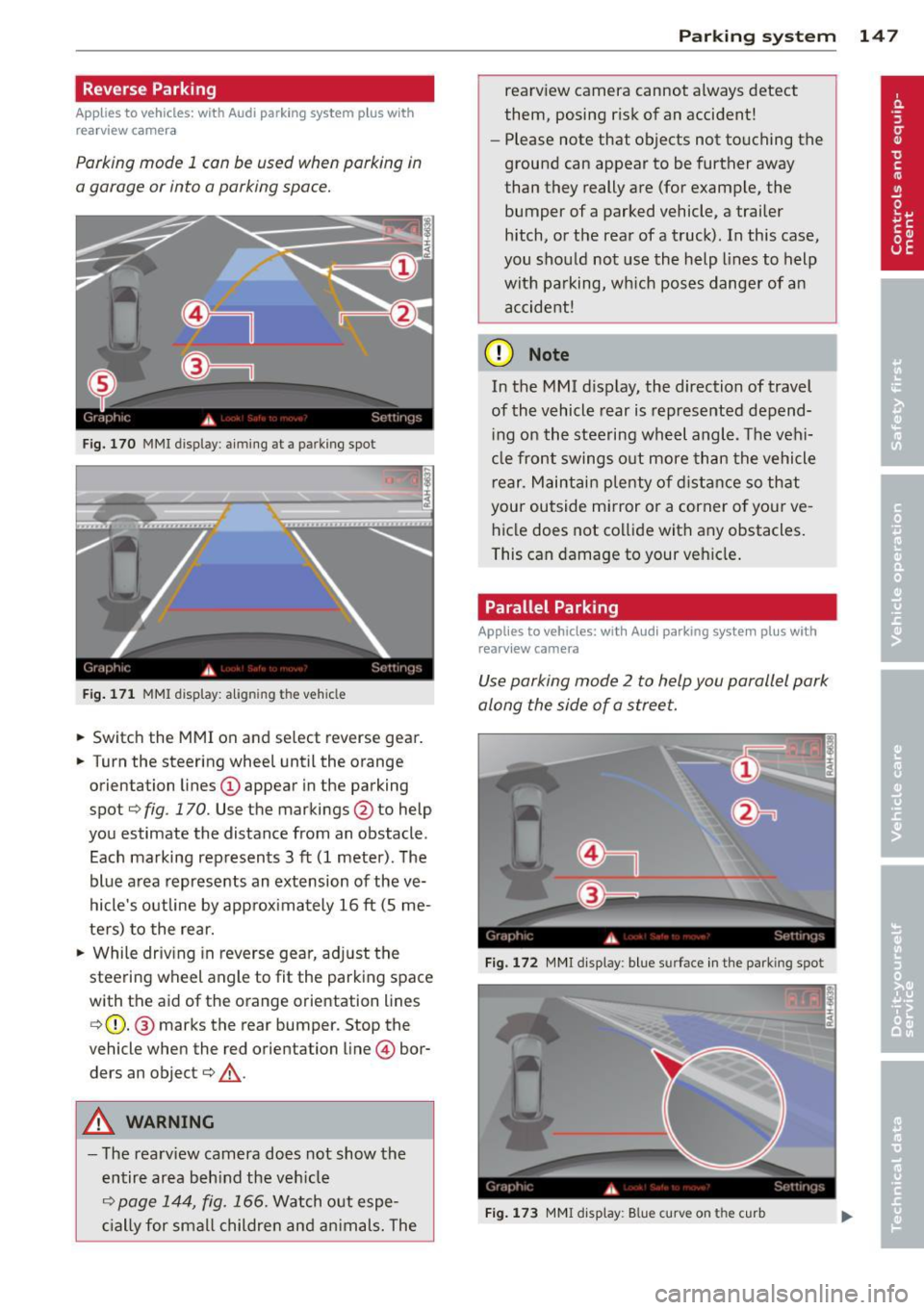

Fig. 170 MMI display: aiming at a park ing spot
Fig. 171 MMI display: aligning the vehicle
• Switch the MMI on and select reverse gear.
• Turn the steering wheel until the orange
orientation lines
(D appear in the parking
spot¢
fig. 170. Use the markings @to help
you estimate the distance from an obstacle .
Each marking represents 3
ft (1 meter). The
blue area represents an extension of the ve­
hicle's outline by approximately 16
ft (5 me­
ters) to the rear.
• While driving in reverse gear, adjust the
steering wheel angle to fit the parking space
with the aid of the orange orientation lines ¢ (D. @ marks the rear bumper. Stop the
vehicle when the red orientation line© bor­
ders an object¢
,A.
A WARNING
-The rearv iew camera does not show the
entire area beh ind the veh icle
¢
page 144, fig. 166. Watch out espe­
cially for smal l children and animals. The
Parking system 147
rearview camera cannot always detect
them, posing risk of an accident!
- Please note that objects not touching the
ground can appear to be further away
than they really are (for example, the bumper of a parked vehicle, a trailer
hitch, or the rear ofa truck). In this case,
you shou ld not use the help lines to help
with parking, which poses danger of an accident!
(D Note
In the MMI d isplay, the direction of travel
of the vehicle rear is represented depend­
ing on the steering wheel angle. The vehi­
cle front swings out more than the vehicle
r ear. Maintain plenty of distance so that
your outside mirror or a corner of your ve­
hicle does not collide with any obstacles.
This can damage to your vehicle.
Parallel Parking
Applies to vehicles: wit h Aud i parking syste m plus with
rearv iew camera
Use parking mode 2 to help you parallel park
along the side of a street.
Fig. 172 MMI display: blue surface in the park ing spot
Fig. 173 MMI display: Blue curve on the curb
