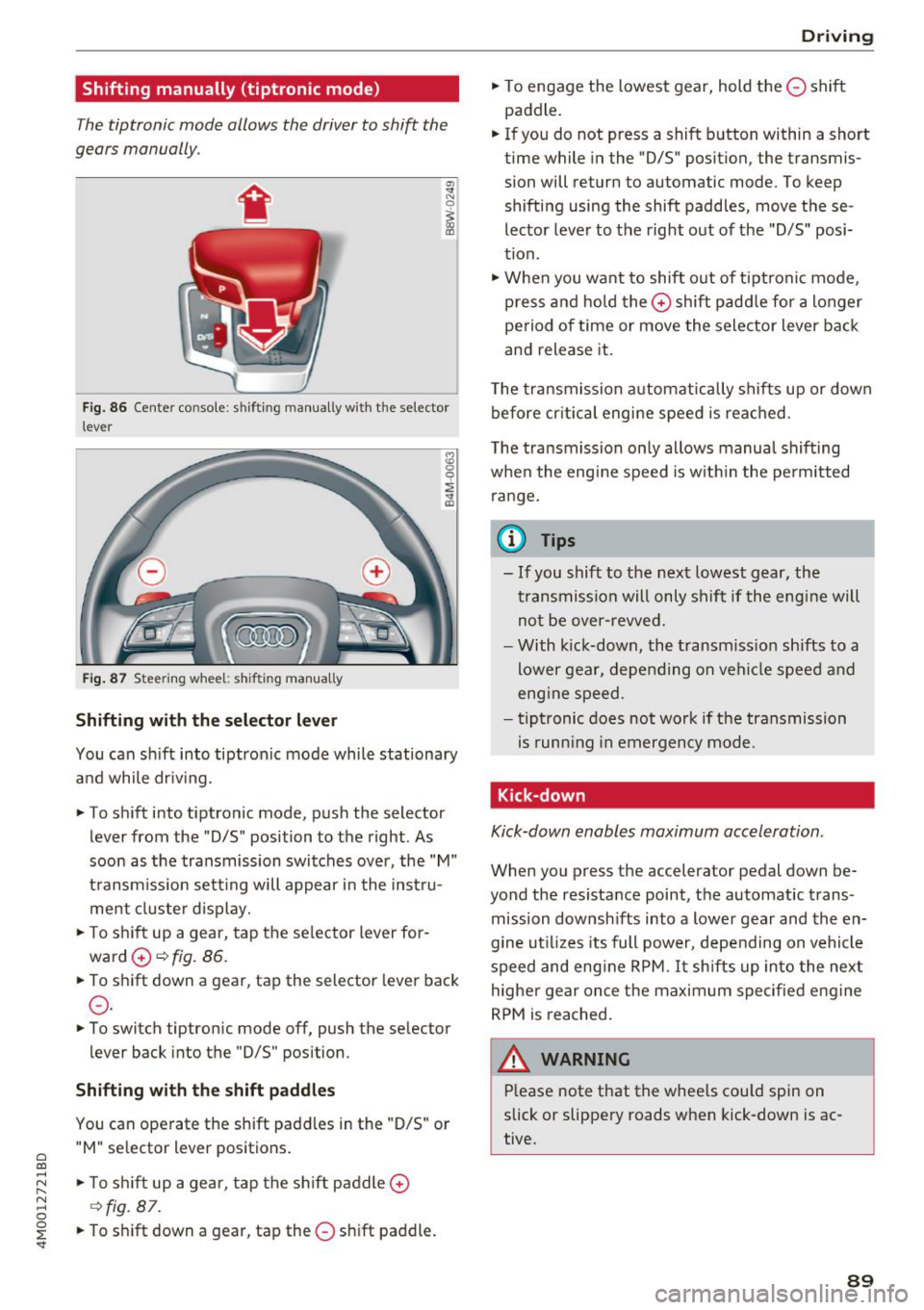

:E ' Shifting manually (tiptronic mode)
The tiptronic mode allows the driver to shift the
gears manually .
Fig. 86 Center console : sh ifti ng manually with the selector
l ever
Fig. 87 Steeri ng wheel: shifti ng manual ly
Shifting with th e selector leve r
You can shift into tiptronic mode while stationary
and while driv ing.
• To shift into tiptronic mode, push the selector
lever from the "D/S" position to the right . As
soon as the transmission switches over, the "M"
transm iss ion sett ing will appear i n the instru­
ment cluster d isplay.
• To sh ift up a gear, tap the se lector lever for­
ward
0 ~ fig. 86.
• To shift down a gear, tap the selector lever back
0 -
• To switch tiptron ic mode off, push the selector
lever back into the "D/S" pos ition.
Shifting with th e s hift paddle s
You can operate the shift padd les in the "D/S" or
" M " se lector lever positions.
• To s hift up a gear, tap the sh ift paddle
0
~ fig. 87 .
• To s hift down a gear, tap the 0 shift paddle.
D rivi ng
• To engage the lowest gear, hold the 0 shift
paddle.
• If you do not press a shift button within a short
time while in the "D/S" position, the transmis­
sion will return to automatic mode. To keep
shifting using the shift paddles, move these ­
lector lever to the right out of the "D/S" posi­
tion .
• When you want to shift out of tiptronic mode ,
press and hold the
0 shift padd le for a longer
period of time or move the selector lever back
and release it.
T he transmission automatically shifts up or down
before cr itica l engine speed is reached .
T he transmission on ly allows manua l shifting
when the eng ine speed is w ith in the perm itted
range.
(D Tips
- If you shift to the next lowest gear, the
transmission will only shif t if the engine will
not be over-revved.
- With kick-down, the transmission shifts to a
lower gear, depending on vehicle speed and
eng ine speed .
- tiptronic does not work if the transmission
is runn ing in emergency mode .
Kick-down
Kick-down enables maximum acceleration .
When you press the accelerator pedal down be­
yond the resista nce point, the automatic trans­
mission downsh ifts into a lower gear and the en­
gine ut il iz es its full power, depending on vehicle
speed and eng ine RPM.
It sh ifts up into the next
highe r gear once the maximum specified eng ine
RPM is reached .
A WARNING ~
Please note that the whee ls cou ld spin on
slick or slippery roads when kick-down is ac­
tive.
89

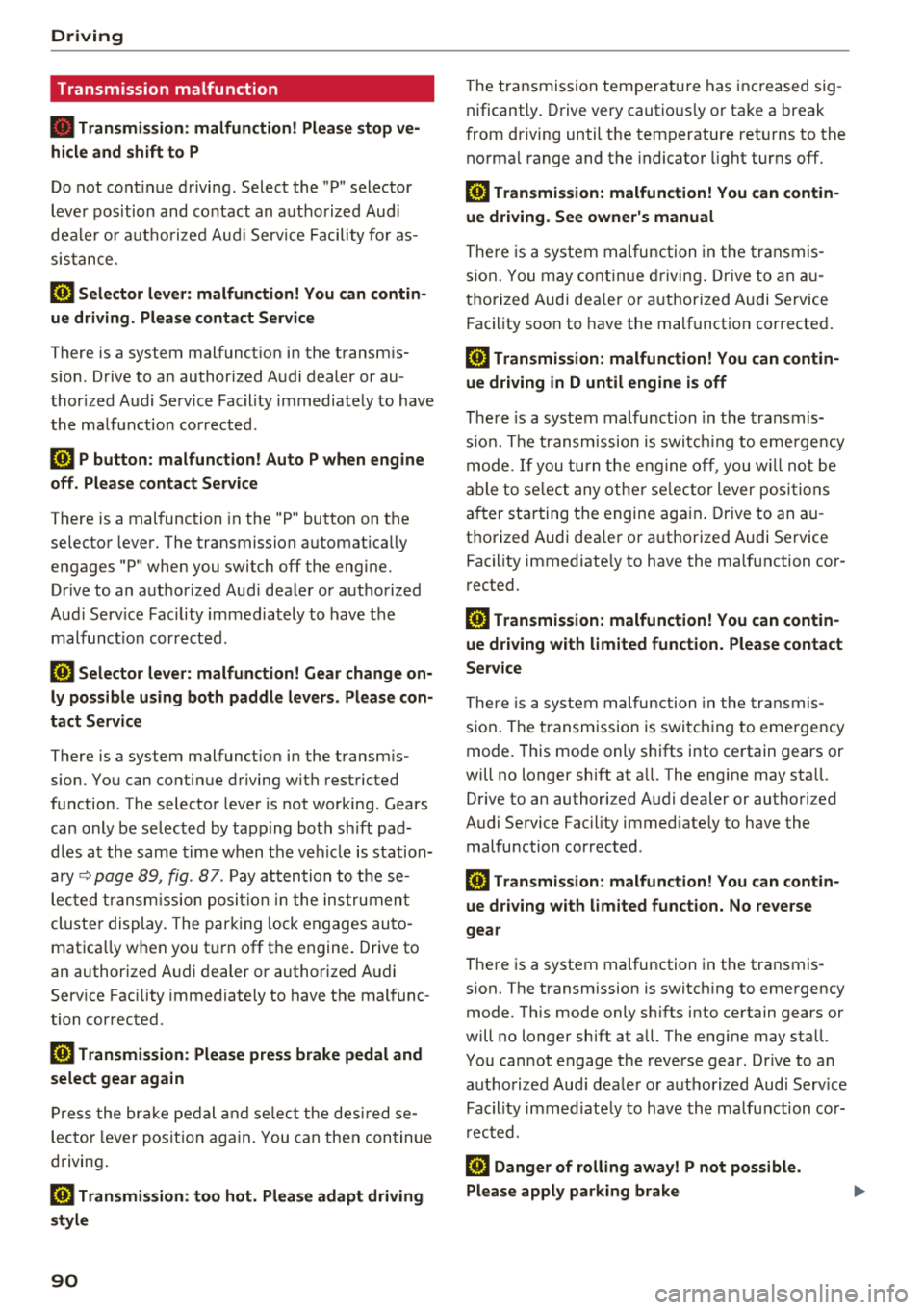

Driving Transmission malfunction
• Transmi ssion: malfunction! Please stop ve­
hicle and shift to P
Do not cont inue d rivi ng. Selec t the "P" selector
lever position and co ntact an authorized Au di
de aler or auth o riz e d Aud i Serv ice Facili ty fo r as­
si st ance.
[O] Selector lever: malfunction! You can contin­
ue driving . Please contact Service
There is a system malfunct io n in the t ransm is­
sion . Drive to an author ized A udi dealer or au­
thor ized A udi Se rvice Fac il ity immed iate ly to have
t he ma lfunction co rrecte d.
[O] P button: malfunction! Auto P when engine
off . Please contact Service
There is a malfunction in the "P " button on t he
selecto r leve r. The transmission a utomat ically
e ngages "P" when you switch off the eng ine.
Dr ive to an a utho rized Aud i dea le r or a uthorized
Aud i Serv ice Facility immedia tely to have t he
malfunc tion corrected.
[O] Selector lever: malfunction! Gear change on­
ly possible using both paddle levers. Please con­
tact Service
There is a system malfunct io n in the t ransm is­
sion. You can conti nue d riving w ith rest ricted
f un ction . The selecto r leve r is not working . Gears
can only be se lec ted by tapping bo th sh ift pad­
d les a t the sam e time w hen t he v ehicl e is station ­
a ry ~
page 8 9, fig . 87. Pa y a tten tio n t o th ese­
lec ted t rans mi ssion positio n in t he ins tru ment
cluste r display. The par king lock eng ages au to ­
mat ica lly w hen you t urn off the engine . Drive to
an author ized A udi dealer or authorized A udi
Serv ice Facility immediately to have the mal func­
tion cor rected.
[O] Transmission: Please press brake pedal and
select gear again
Pr es s t he bra ke peda l and se lec t the des ired se ­
lec to r l eve r pos it io n ag ain. Y ou ca n then con tinue
d riving .
[O] Transmis sion: too hot. Please adapt driving
style
90
T he transmission tem peratu re has inc reased sig ­
nificantly . Drive very cautio usly o r ta ke a break
from driving until the temperature ret urns to t he
no rma l range and t he indicato r light turns off.
[O] Transmission: malfunction! You can contin­
ue driving. See owner's manual
T he re is a s ystem malfunc tion in the tran smi s­
s io n. You m ay con tinu e dr ivin g. Drive to an au­
t h ori ze d Aud i dea le r o r a uthorized Audi Se rvice
Fac ility soon to have the malf unct io n correcte d.
[il Transmission : malfunction! You can contin­
ue driving in D until engine is off
There is a syst em malfunc tion in th e transmis­
s io n. The trans missio n is swi tching to eme rge ncy
mo de.
If yo u tu rn th e e ngine off, you w ill not be
a ble to se le ct any o the r se le ct or lever posi tio ns
a ft er sta rting t he engine aga in . D rive to an a u­
t h orized Audi dea le r or a uthorized Audi Se rvice
Facility immed iate ly to have the ma lfunction cor ­
r ected .
[O] Transmission: malfunction! You can contin­
ue driving with limited function. Please contact
Service
T he re is a sys tem m alf unc tion in the tran smis ­
s io n. The transmission is switc hing to eme rgency
mode. This mode only s hifts into ce rtain gears or
will no longer shift at a ll. The eng ine may sta ll.
D rive to an author ized A udi dealer or autho rized
Audi Se rvice Facility immed iate ly to have the
malfunction corrected .
[O] Transmission: malfunction! You can contin­
ue driving w ith limited function. No reverse
gear
There is a system malfunction in the tra nsmis ­
s io n. The transmission is switc hing to eme rge ncy
mode. Th is mode only s hifts int o ce rtain gears or
will no longer sh ift at a ll. The eng ine may sta ll.
Yo u cannot engage the reve rse gear. Dr ive to a n
a uth orize d Aud i dea le r o r auth orized Aud i Serv ice
Fac il ity i mmed iat ely to hav e the ma lfunction cor­
r ec ted .
[O] Danger of rolling away! P not possible.
Please apply parking brake

-The parking lock was released using the emer­
gency release
¢ page 91. Or
- The parking lock can no longer be engaged.
Drive to an authorized Audi dealer or author­
ized Audi Service Facility immediately to have
the malfunction corrected .
[il Move selector lever to automatic position
There is a malfunction in the tiptronic mode . End
tiptron ic mode by pushing the selector lever to
the left into the "D/S" position.
Parking lock emergency release
The parking lock must be released with the
emergency release when driving through moun­ tains/maneuvering.
Fig. 88 Drive r's side footwell : releas ing th e parking lock
us ing the eme rgency re lease
The emergency release is located under the floor
mat on the driver 's side .
Releasing the parking lock using the
emergency release
"'To prevent the vehicle from rolling unintent ion­
ally, set the parking brake(®)¢
page Bl or
press the brake pedal.
"' There are two slits on the cover. Position the
screwdriver from the vehicle tool kit in one of
the slits on the cover and pry the cover off.
"' Insert the socket wrench (from the vehicle tool
k it) into the opening
c:> fig . 88.
"'T urn the socket wrench all the way clockw ise @
and press it downward @unti l it locks into
place.
~ "'L eave the socket wrench inserted c:> .&_ . ...... N r--.
~ Resetting the parking lock
0
0
~ "'Press the brake pedal and start the engine .
Driving
"' Keep the brake pedal pressed and engage the
following selector lever positions one after the
other: "N" , "D" and back to "N".
"' Turn the engine off again.
"' Grasp the socket wrench with both hands and
pull it up and out carefully to remove
c:>(D .
"'Install the cover .
When the parking lock emergency release is
used, the
[il indicator light and the "N " selector
lever posit ion turn on in the instrument cluster.
The message
Danger of rolling away! P not pos­
sible. Please apply parking brake
also appears.
_& WARNING
-Only activate the emergency release while
on a level surface or a slight slope.
- The parking lock may only be released using
the eme rgency release if the parking brake
is set . If it is not functioning, secure the ve­
hicle from rolling using the brake pedal or
other suitable means, such as blocking a
front and a rear wheel. An unsecured vehicle
may roll away, which increases the risk of an
accident.
- To reduce the r isk of an accident, you must
not drive when the emergency release is ac­
tivated .
@ Note
-Read and follow the important instructions
about tow ing
<=> page 371.
-The risk of damage increases if you do not
remove the socket wrench carefully when
resetting the parking lock.
91

Trail er to wing
Trailer towing
Driving with a trailer
General information
Your veh icle is primari ly intended for transport­
ing peop le and luggage. Howeve r, if you dr ive
with a tra iler , follow the techn ica l requirements ,
the operation and driving tips, and the lega l reg ­
ulations.
Dr iving w ith a trailer affects the vehicle 's fuel
consumpt ion, performance and wear. It a lso re­
quires higher concentration from the driver .
A WARNING
Do not transport any people in a trailer due to
the risk of fatal injury .
Technical requirements
Certain requirements must be met when towing
a trailer.
Trailer hitch
Only use a trailer hitch with a removab le ball
h itch mount and ball h itch. The tra ile r hitc h must
be pe rm it t ed for the vehicle, the tra iler and the
permitted tota l weight of the trailer being
pu lled . Above all, it must be secure ly and safe ly
attached to the vehicle trailer.
Never mo unt a t rai ler hitch on the bumper. The
trai ler hitc h must be mounted in a way that does
not impair the function of the bumper. Do not
make any changes to the exhaust system and the
brake system.
Check regu larly if the trai ler hitc h is securely
mounted . A lways follow the instructions given by
the trai ler hitch manufacturer .
Trailer brakes
If t he tra ile r has its own bra ke system, then fol­
low the manufacturer specifica tions. Howeve r,
the brake system on the trai ler must never be
connected to the vehicle brake system.
92
Engine cooling system
D riving w ith a tra ile r means a higher load on t he
engine and the cooling sys tem. The coo ling sys­
tem must be designed for additiona l load and
contain enoug h coo lant ~@ .
A WARNING -
- Never mount a "weight -distributing" or
"load-balancing" trailer coupler as the trail­
er hitch. The ve hicle was not des igned for
these types of tra iler h itches. The tra iler
h itch can malfunction and t he tra ile r can
b reak off from the vehicle.
- If t he tra ile r i s equ ipped w ith elect ronic
brakes, these brakes can not be activated by
a facto ry-installed control system, whi ch in­
creases the r isk of an accide nt.
- To red uce the r is k of injury, always remove
the ball hitch mount if no tra ile r is mo unt ­
ed.
@ Note
L onge r incl ines cannot be dr iven without a
su itab le cooli ng system, especially if the out­
s ide temperatu res a re high. ot herwise, this
i nc reases the risk of eng ine da mage.
Operating instructions
Several things must be noted when towing a
trailer.
Towing capacity
The permitted towing capacity must not be ex ­
ceeded under any circumstances~
page 376.
You can dr ive up larger inclines if you are not us­
i ng the maximum towing capacity.
The towing capacities given only apply to e leva ­
tions up to 3,200 ft (1,000 m) above sea level. As
the e levation increases, the engine power de­
creases due to the decreasing air pressures. T his
reduces the hill climb ing ability and towing ca­
pac ity . For every additional 3,200
ft (1,000 m),
t h e maximum permitted tow ing weight must be
r educed by app roximately 10% . T he pe rm itted
tow ing weight is t he comb ined we igh t of the
( loaded) vehicle and the (loaded) trailer .

Cl a:, ...... N
" N ...... 0
0
::r ' Tongue weight
The maximum permitt ed tongue weight of the
trailer drawbar on the trailer hitch ball head may
not be exceeded .
If the tongue we ight is too low, this affects the
trailer's handling . For driv in g safety, we recom­
mend to always utilize the maximum permitted
tongue weight, but not exceed it. You can reach
it, for example , by distributing the cargo in the
trailer correctly.
You can determine the tongue weight, for exam­
ple, with a bathroom scale or a public weigh sta ­
tion .
The permitted tongue weight of your veh icle can
be found in the vehicle documentation or in
¢page 376.
Load distribution
Poor cargo load and distribution can negatively
i mpact ve hicle handl ing.
- Store objects preferably in the vehicle luggage
compartment . The vehicle shou ld always carry
the heaviest possible load and the trailer
shou ld have the lightest possible load.
- Distribute the load in the tra iler so that the
heavy objects are as close to the axle as possi­
ble.
- Secure objects from slid ing out of p lace.
- Utilize the maximum permitted tongue weight
if possible .
Tires
Set the tire pressure on your vehicle for a "full
load"; see the t ire pressure sticker¢
page 340.
If necessary, also adjust the tire pressure on the
trailer according to the manufacturer's recom­
mendation .
The tire pressure must be increased an addi tional
3 PS I (0 .2 bar) for towing loads over 6,600 lbs
(3,000 kg) .
W inter tires shou ld be mounted on the vehicle
and on the trailer during winter temperatures .
Trailer towing
Outside mirrors
If you cannot see the traffic behind the trailer
with the standard exterior mirrors, then you
must attach additional exterior mirrors. Adjust
them so you have a sufficient visibility behind
you.
Exterior lighting
Follow the legal regu lations rega rding the light ­
ing equipment on your trailer. Contact an author­
ized Audi dea ler or authorized Audi Service Facili­
ty for more information.
Before starting to drive , check all lighting eq uip­
ment on the hitched trailer.
T he headl ight range cont rol adj usts automat ica l­
ly to the light range of the headlights .
Safety chains
Make sure the safety chains are correctly applied
when pulling a trailer . The cha ins should hang
enough so that the trailer can drive around
curves . Howeve r, they must not touch the
ground.
Air suspension
Applies to: vehicles with air suspension
The air suspens ion must be at the standard vehi ­
cle he ight before you set the tongue weight on
the tra iler and hitch the trailer¢@ ,
¢page 130,
Raising/lowering the vehicle.
For vehicles with a factory-installed trailer hitch,
the a ir suspension trailer mode w ill automatically
switch on if you connect the trailer cable to the
socket.
For vehicles with a retrofitted trailer hitch, you
must sw itch on the a ir suspension trailer mode
manua lly . Select in the Infotainment system:
IMENU I button> Vehicle > left control button>
Vehicle settings > Air suspension: trailer. Switch
it off again after towing a trailer.
You can also sw itch off trailer mode manually
wh ile dr iving, for example, whe n using a bicycle
rack system. ..,.
93

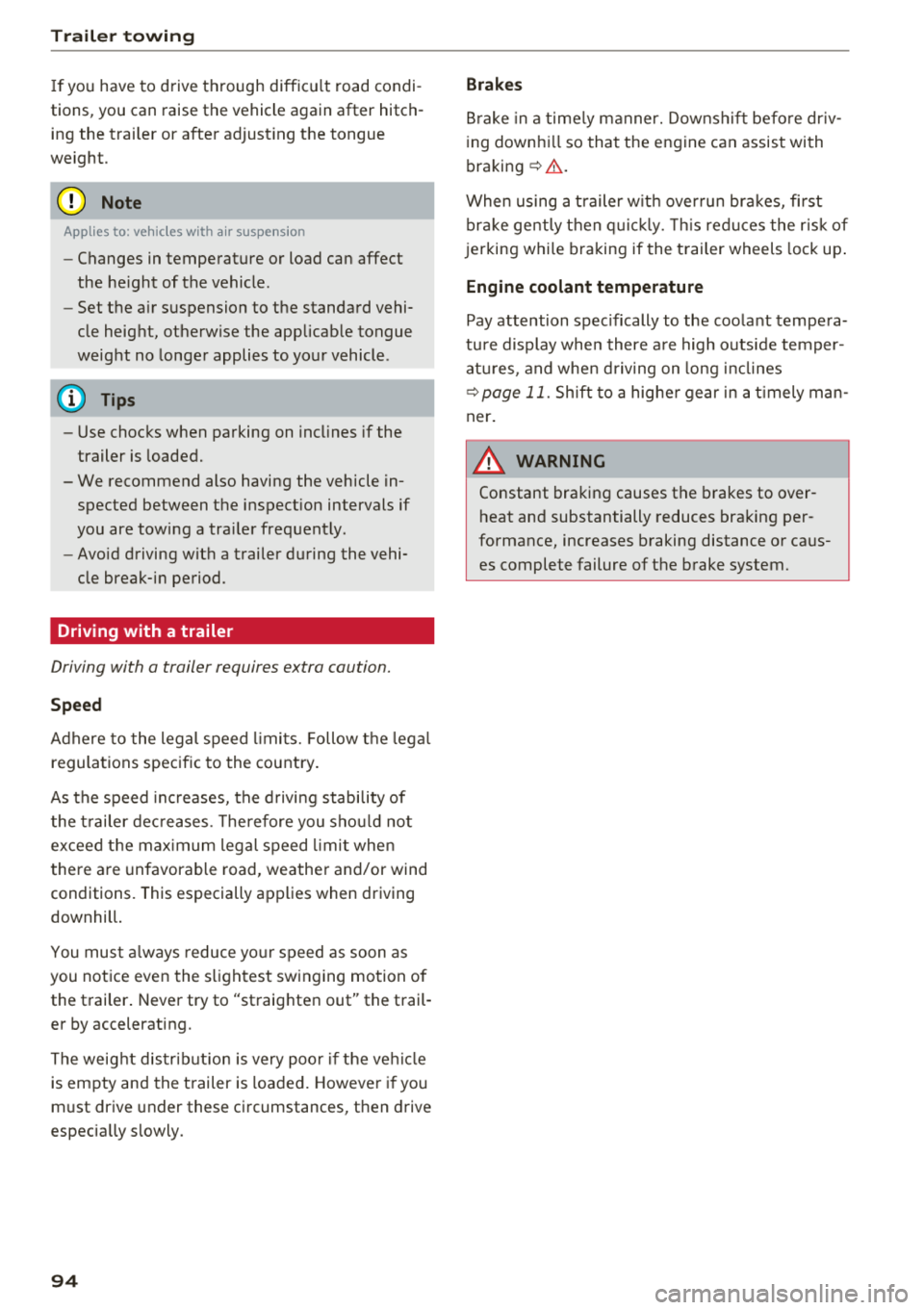

Trail er to wing
If you have to drive th rough diffic ult road condi­
tions, you can raise the vehicle again after hitch ­
ing the trai ler or after adjust ing the tongue
weight .
{QJ Note
Applies to: vehicles with air suspension
-Changes in temperature or load can affect
the he ight of the vehicle.
- Set the a ir suspension to the standard vehi­
cle heig ht, otherwise the applicab le tongue
weig ht no longer applies to your vehicle .
(D Tips
-Use chocks when parking on incl ines if the
trailer is loaded.
- We recommend also having the vehicle in­ spected between the inspection intervals if
you are towing a trai ler frequently.
- Avo id driving wit h a trailer du ring the vehi­
cle break-i n period .
Driving with a trailer
Driving with a trailer requires extra caution.
Speed
Adhere to the legal speed l imi ts. Follow t he lega l
regulations specif ic to the country.
As the speed inc reases, the d riving stability of
the t railer dec reases . The refore you sho uld not
exceed t he max imum legal speed limit when
there are unfavorable road, weather and/or wind
conditions. This especially applies when driving
downhill.
You must a lways reduce yo ur speed as soon as
you not ice even the s lightest swinging motion of
the trailer . Never try to "straighten out" the trail ­
er by accelerating.
The weig ht dis trib ution is very poo r if t he ve hicle
is empty and the trailer is loaded. However if you
must drive under these circumstances, t hen drive
especia lly slowly.
94
Brak es
Brake in a time ly manner. Downs hift be fo re dr iv ­
i ng down hill so that the engine can assist with
braking ~&, .
When using a t railer w it h over run bra kes, fi rst
brake ge ntly t hen q uickl y. This red uces the r isk o f
jerking while braking if the trailer wheels lock up .
Engine coolant temperatur e
Pay attention specifically to the coolant tempera­
ture display when there a re high outs ide temper­
at ures , and whe n driving on long i nclines
~ page 11. Shift to a highe r gear in a t imely man­
ner .
A WARNING
Constant braking causes the b rakes to over­
h eat and substantially reduces bra king per ­
formance, increases b raking distance o r caus­
es complete failure of the brake system.
-

a co ...... N r--. N ...... 0
0

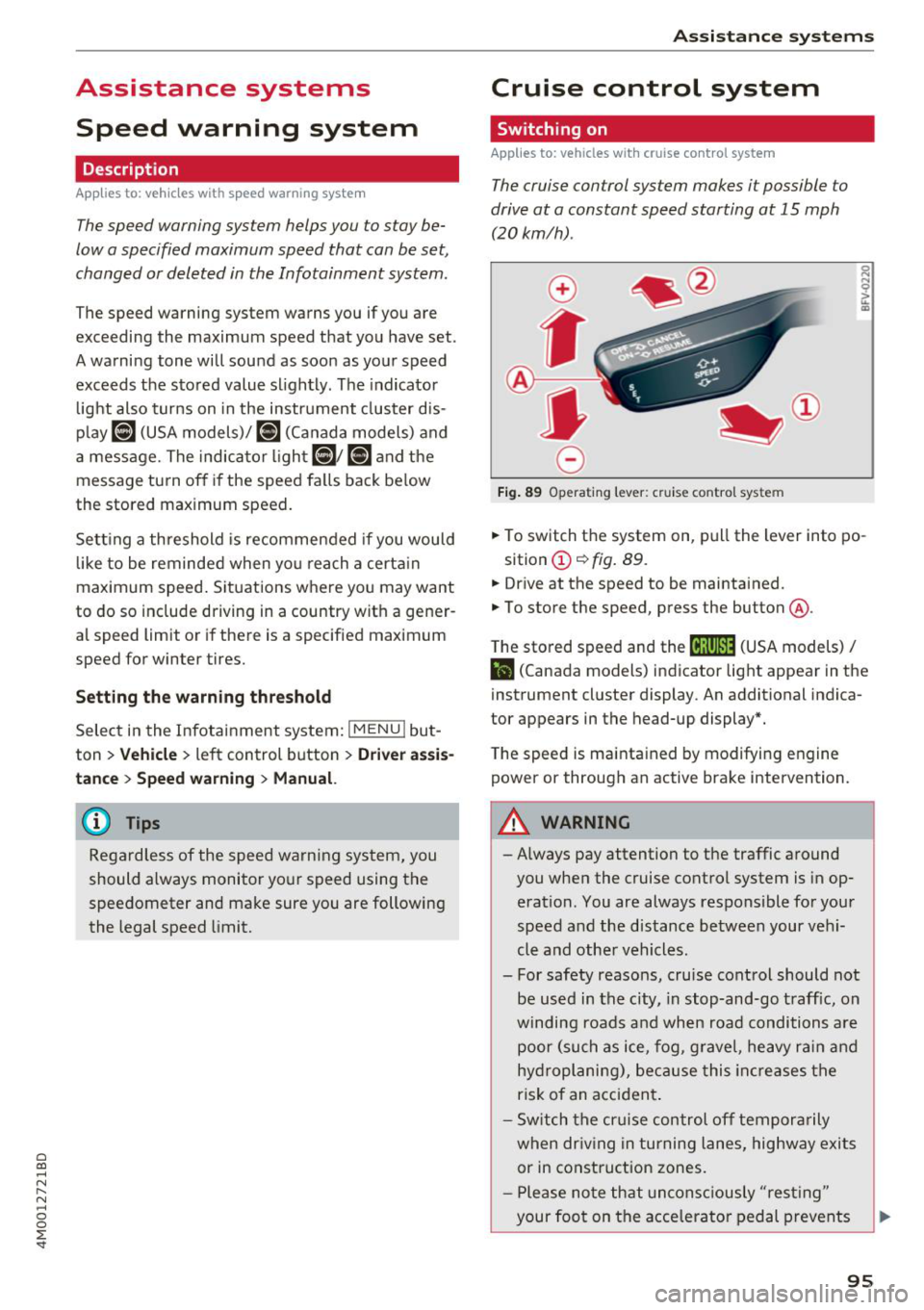

:E ' Assistance systems Speed warning system
Description
App lies to: vehicles with speed warning system
The speed warning system helps you to stay be­
low a specified maximum speed that can be set,
changed or deleted in the Infotainment system .
The speed warning system warns you if you are
exceeding the maximum speed that you have set .
A warning tone will sound as soon as your speed
exceeds the stored value slightly . The indicator
l ight also turns on in the instr ument cluster d is­
p lav
[0] (USA models)/ [81 (Ca nada models) and
a message. The indica tor l igh t
[0]/ [OJ and the
message turn off if the speed fa lls back be low
the stored maximum speed.
Sett ing a threshold is recommended if you would
like to be reminded when yo u reach a certa in
maximum speed . Situations where you may want
to do so include driving in a country with a gener ­
al speed lim it or if there is a specified maximum
speed for winter tires.
Setting the warning threshold
Select in the I nfotai nment system:
IMENU I but­
ton
> Ve hicle > le ft control button > Dri ver a ss is ­
tance
> Speed warning > Manual.
@ Tips
Regard less of the speed warning system, you
should always monitor yo ur speed using the
speedomete r and make sure you are following
the legal speed limit.
A ssi st a nce systems
Cruise control system
Switching on
Applies to: vehicles with cruise control system
The cruise con trol system makes it possible to
drive at a constant speed starting at 15 mph
(20 km/h) .
0
f
~
0
Fig. 89 Op era ting leve r: cru ise co ntrol sys te m
.,. To switch t he system on, pull the lever into po-
sition
(D ¢ fig. 89 .
.,. Drive at the speed to be maintained.
.,. To store the speed, press the button @.
T he stored speed and the
@jltJ~i, (USA models) /
l'I (Canada models) ind icator lig ht appear in the
instrument cluster display . An additional indica­
tor appears in the head-up display*.
T he speed is mainta ined by modifyi ng engine
power or through an active brake intervention.
A WARNING
- Always pay attention to the traffic a round
you when the cruise control system is in op­
eration . You are always responsible for you r
speed and the distance be tween your ve hi­
cle and othe r vehicles .
- For safety reasons, cru ise cont rol should not
be used in the city, in stop -and-go t raff ic, on
winding roads a nd when road conditions a re
poor (su ch as ice, fog, g rave l, heavy ra in and
hy droplani ng), bec ause this in cr eases the
risk of an acciden t.
- S witch the cr uise con trol off tempor arily
when dr iv in g in turning lanes, highway exits
or in construction zones.
- P lease no te th at uncon sc iously "resting "
your foot on the accelerator ped al prevents
95

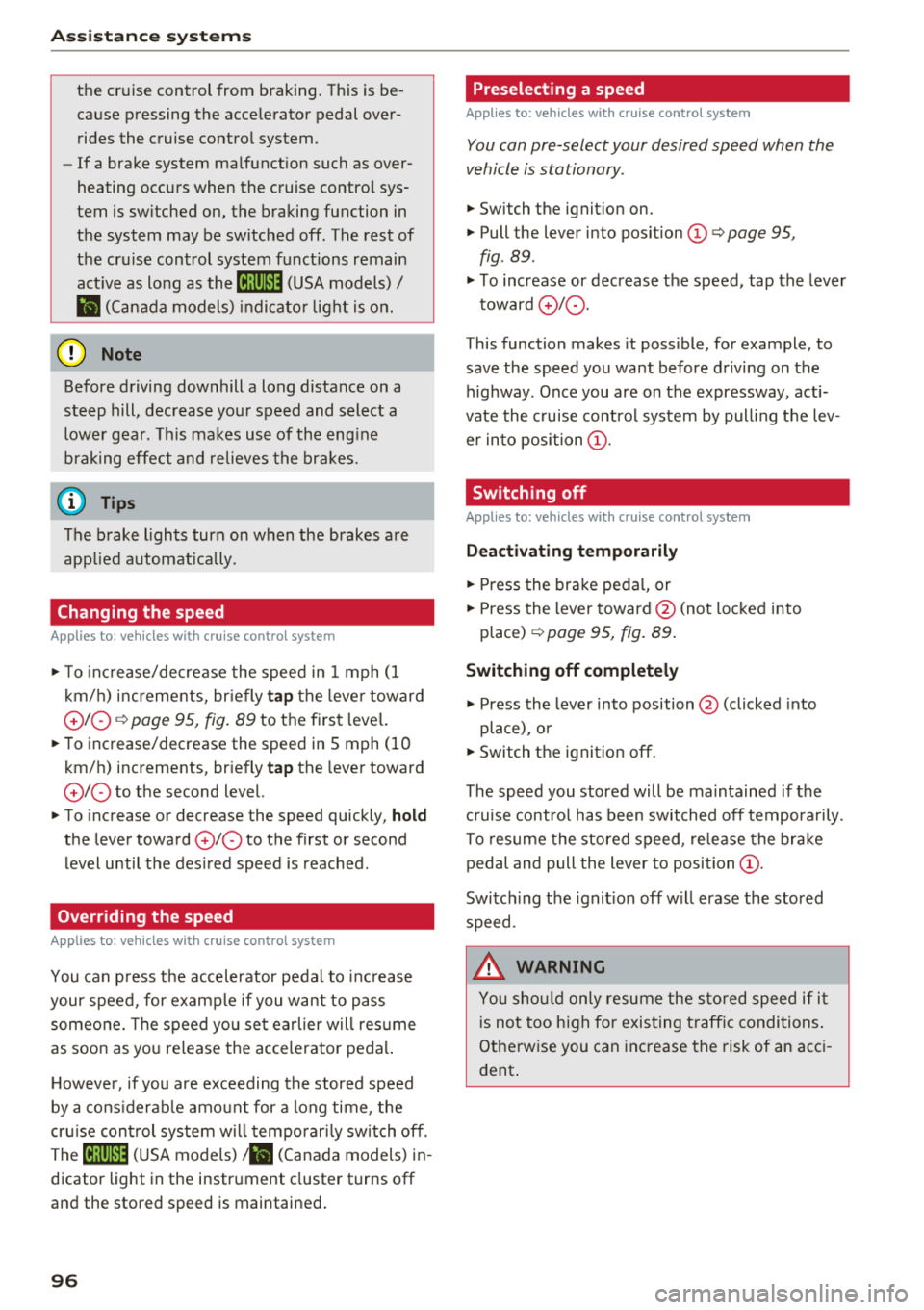

Ass is tanc e system s
the cruise control from braking. This is be ­
cause pressing the accelerator pedal over­
rides the cruise contro l system .
- If a brake system ma lfunction such as over­
heating occurs when the cruise control sys­
tem is sw itched on, the braking function in
the system may be switched off . The rest of
the cruise control system functions remain act ive as long as
the @;\l)~ij (USA models) /
Bl (Canada models) indicato r light is on.
@ Note
Before driving downhill a long distance on a
steep hill, decrease you r speed and select a
lower gear. This makes use of the eng ine
brak ing effect and re lieves the bra kes.
(D Tips
The b rake l ights turn on w hen the brakes a re
app lied automat ically .
Changing the speed
Applies to: vehicles with cruise control system
.,. To inc rease/decrease the speed in 1 mph (1
k m/h) increments, br ie fly
tap the leve r toward
0 10 ¢ page 95, fig. 89 to the f irst leve l.
.,. To increase/decrease the speed in S mph (10
km/ h) increments, br iefly
tap the leve r toward
0 10 to the second level.
.,. To increase or decre ase the speed quickly, hold
the lever toward
0 10 to the first or second
level until the des ired speed is reached .
Overriding the speed
Applies to: vehicles with cruise control system
You can p ress t he accelerator pedal to inc rease
your speed, for examp le if you want to pass
someo ne. The speed yo u se t earlier w ill res ume
as soon as yo u release the accelerator peda l.
H oweve r, if you are exceeding the stored speed
by a cons ider able amo unt for a long time , the
cr uise con trol sys tem w ill tempo rar ily switch off.
The
[ij;\l)~ij (USA models) tBI (Canada models) in ­
dicator light in the instrument cluster turns off
and the stored speed is maintained .
96
Preselecting a speed
Applies to: vehicles with cruise control system
You can pre-select your desired speed when the
vehicle is stationary .
.,. Switch the ignit ion on.
.,. Pull the lever into pos ition
(D ¢ page 95,
fig . 89 .
.,. To increase or decrease the speed, tap the leve r
toward
0 10 .
This function makes it possible , for example , to
save the speed you want before driving on the highway . Once you are on the expressway, acti­
vate the c ruise control system by pull ing t he lev ­
e r in to position
(D .
Switching off
Applies to: vehicles with cruise control system
Deactivating temporarily
.,. Press the br ake pedal, or
.,. Press the lever towar d@ (not loc ke d in to
place)
¢ page 95, fig. 89.
Switching off completely
.,. Press the lever into position @(clicked into
place), or
.,. Switch the ignit io n off.
The speed you stored will be ma intained if the
c ruise contro l has been switched off tempora rily .
To resume the stored speed, re lease the bra ke
pedal and pull the lever to posi tion
(D .
Switc hing the ignit ion off w ill erase the stored
speed .
.&_ WARNING
You sho uld only resume the s to red speed if i t
i s no t too h igh fo r exis ting traff ic condi tions .
Ot herwise you can increase the risk of an acci ­
dent .

a co ,-1 N r--. N ,-1 0
0
:E " Camera-based traffic
sign recognition
Description
App lies to: ve hicles with camera-based traffic sign recogni­
tio n
~ 180 m1 & I f1' I! ' I Pl I
! IJ' mm .. I~ / .-.
I 1:9:11 " '
) ' a!i ,,' i '
Fig. 90 Instrument cluster: traff ic sign recognition
F ig. 9 1 Windsh ield: camera window for t raffic sign recog­
nition
Traffic sign recognit io n assis ts you when driving
by d isp lay ing detected speed limits or signs pro ­
h ibit ing passing in the instrument cluster d isp lay
c::> fig . 90 . Within the limits of the system, the le­
gal speed lim its in school zones are detected and
d isp layed.
General info rmation
Traffic sign recognit ion can detect standa rd
speed limit sig ns that are within the camera's vis­
ua l field. With assistance from navigation data,
detected speed limits are evaluated and shown in
the disp lay . The traffic sign for the current de­
tected speed l imit will bli nk in the display if you
exceed the war ning th reshold set in the Infotain­
ment system
c::> page 98 .
The traffic sign recogn ition is subject to certain
system limitations and may be unavailab le or on ­
ly partia lly available in the followi ng situations:
A ssi st a nce systems
- when visibility is poor, s uch as in snow, rain,
fog or heavy spray
- when there is glare, for example from oncom­
ing traffic or the sun
- at high speeds
- if the camera 's visual field
c::> fig. 91 is cove red,
for examp le by dirt or st icke rs. For i nfo rmation
on cleaning, see
c::> page 351 .
- if the traff ic signs are comp letely or partially
covered, for examp le by trees, snow, dirt or
other vehicles
- if speed traffic signs do not conform to the
stand ards
- if traffic signs are damage d or ben t
- if traff ic sig ns are d isplayed o n sig n holders
w ith elec tronic s igns
- if the traffic signs o r the configu ration of the
road have changed (navigation data is no lon­
ge r up-to-da te)
_&. WARNING
P ay atten tion to traffic and the area around
your vehicle when traffic sign recogn ition is
turned on . The traffic signs insta lled on the
road a lways ta ke precedence over the display.
The driver is a lways responsible for assessing
the traffic situation.
- Under some circ umstances, traffic s ign rec­
ognition may not detect traff ic signs cor­
rectly or detect them at a ll. As a resu lt, the
system may not dis play the correct speed lim it or any speed limit.
- Traffic sign recognit ion does not adapt your
veh icle's speed to match the speed limit!
- The display in the instrument cluster is
based on the units of measurement used for
speed in that country. As a result, the dis­ p lay
50 i n t he inst rument cl uste r can mean
eithe r km/h or mph, depend ing o n the cou n­
try.
-
97

Ass is tance sy stem s
Operating
Applies to: vehicles with camera -based traffic sign recogni­
tion
F ig . 92 Instrument clus te r: addi tiona l d isplay
Ac ces sing traffic sign recogn iti on
... Se lect: the first tab> T ra ffic si gns.
Setting a speed warning
You can set a warn ing th reshold down to 10 mph
(15 km/h). The traffic sign for the current detect­
ed speed limit w ill blink in the disp lay if you ex ­
ceed the set thresho ld.
... Select in the Infotainment system:
IM ENU I but­
ton >
V ehi cle> left contro l button > Driver a s·
s is tan ce
> S pe ed war ning > Tr affic sign ba sed
w arning .
Add itional display
If a view other than the traffic sign recognit ion is
selected in the instrument cluster disp lay, the
speed limit w ill be shown in another disp lay
~ fig. 92 . The cur rent applicable speed limit will
be shown there , if possib le with in the limits of
the system.
(D Tips
- An additional indicator appears in the head­
up d isplay*.
- Your speed warning settings a re stored au­
tomatically and ass igned to the remote con­
tro l key in use .
Messages
Applies to: vehicles with camera-based traffic sign recogn i­
tion
P!\i Traffi c sign recognition : curren tly unavaila­
ble _ Camera view limit ed du e to su rrounding s
98
Function currentl y una va ilable. Camera view re­
stricted due to surroun ding s
This message appears if the camera's v is ual fie ld
i s covered ~
page 97, fig. 91. The system will
switch itself o ff.
la Tr affic sign r ecog nition : currentl y limit ed .
Se e owner' s manua l
This message appears if there is a malfunct ion in
the nav igation system, for example . The speed
li mit d isplay is limited, wh ich inc reases the risk
of an incorrect d isp lay.
P!\i Traffic sign based speed warnin g: current ly
una vail able . Se e own er' s manual
There is no warning when the set threshold is ex­
ceeded .
No traffic sign inf ormation available
There is no valid navigation data and do speed
li mits were detected. Or there is a recommended
speed but there is not a speed lim it (for examp le
driv ing on and off the expr essway) .
Malfun ction! S ee owner's manu al
The system cannot guarantee correct funct ion
and is switched off. See an autho rized Aud i dea l­
er or autho rized Aud i Serv ice Faci lity for assis ­
tance.
Functi on not av ailable in this country
The vehicle is in a country where the function is
not availab le .
Lap timer
Introduction
Applies to: vehicles with lap t imer
You can measure and analyze lap times with the
lap timer in the display.
Opening the lap timer
... Open the first Vehicle tab (trip computer) using
the
l <1 1>I button on the multifunction steering
wheel.
... Sele ct on the m ultifunction steering wheel : lef t
cont rol b utton
> Lap time s. Ill-
