electronic immobilizer is automatically acti­
vated once aga in.
If an unauthorized key was used, SAFE is dis­
played continuously in the odometer display
field.
~ WARNING
-
Always take the key with you when you
leave the vehicle. The key can disarm the
electronic engine immobilizer and permit
an unauthorized person to start the engine
and enable operation of the vehicle sys ­
tems such as power window leading to se­
rious personal injury.
@ Tips
- The vehicle cannot be started if an unau­
thorized key is used . The vehicle may not
start if another radio device such as a key
for another vehicle or a transponder is
located on the key ring .
- For Declaration of Compliance to United
States FCC and Industry Canada regula­
tions
r::;, page 212.
Power locking system
General description
The power locking system locks or unlocks oil
doors simultaneously.
When opening and closing the doors , the
power locking system locks or unlocks
both
doors together.
The remote master key locks and unlocks the
doors using a radio signal
r::;, page 40.
Locking and unlocking with the key
You can also lock and unlock your vehicle us­
ing the key in the lock on the driver's door.
The unlocking and locking mode can be
changed in the Driver Information System
r::;,page24.
Both doors are locked automatically when the
vehicle is locked and the anti-theft alarm sys­
tem is activated.
Opening and closing 39
Auto Lock
The Auto Lock function locks all doors and the
front lid once speed has exceeded approxi­
mately 9 mph (15 km/h).
The car is unlocked automatically once the ig­
nition key is removed . In addition, the vehicle
can be unlocked if the power locking system
opening function~ is activated or one of the
door levers is used.
Turn signals
All the turn signals flash to indicate when the
vehicle is locked and unlocked. The turn sig­
nals flash twice when the vehicle is unlocked.
The turn signals flash once when all the doors
and the front lid are locked. The interior lights
are also switched on or off automatically ac­
cording to the position of the door contact
switch.
A WARNING
- When you lock your vehicle from outside,
nobody -especially children -should re­
main inside the vehicle. Remember,
when you lock the vehicle from the out­
side the windows cannot be opened from
the inside.
- When you leave the vehicle, always re­
move the ignition key and take it with
you. This will prevent passengers (chil­
dren, for example) from accidentally be­ ing locked in the vehicle should they acci­
dentally press the power locking switch
in one of the doors.
- Do not leave children inside the vehicle
unsupervised. In an emergency it would
be impossible to open the doors from
the outside without the key.
(D Tips
-The driver's door can be locked and un­
locked with the key if the power locking
system fails. The passenger's door can
be locked manually
r::;, page 42.

40 Opening and clo sing
- In the event of a crash with airbag de ­
ployment all locked doors will be auto­
matically unlocked to g ive access to the
vehicle occupants from the outside .
- You are well advised not to keep valua­
bles inside an unattended vehicle, visib le
or not . Even a properly locked vehicle
cannot provide the security of a safe!
Unlocking and locking the vehicle with
the remote control
Fig. 32 Remote co ntro l: fun ctio n button s
To unlock the veh icle @J
.. Press button @once ¢ fig. 32 .
To lock the vehi cle [fil
.. Press b utton ® once ¢ ,&..
To unlock f ront lid only
.. Press button © for approximately one sec ­
ond .
PANIC Button
.. Push the red button @ to activate the pan ic
function. The horn sounds and the turn s ig­
nals flash .
.. Push the button @ again to deactivate the
panic funct ion .
The turn s ignals flash twice when the vehicle
is unlocked . If the vehicle is u nlocked and a
door or the front lid are not opened within the
next 30 seconds, the vehi cle locks again auto­
ma tica lly. This feature prevents the vehicle
from being left unlocked acc identally for a
long period of time . T
he t urn signa ls briefly flash once and the
horn so unds once when the doo rs and front
lid are locked properly .
A WARNING
-Read and follow all WARNINGS ¢.&. in
General description on page 39.
(D Tips
- Use the remote cont ro l only when the
doors and front lid are closed.
- In order to make s ure the locking f unc­
tion is working, you should a lways keep
your eye on the vehicle to make s ure it is
properly locked.
-
- Do not use the remote cont ro l if yo u are
inside the car, otherw ise you may unin­
tentionally lock the vehicle, and then you
would set off the anti-theft alarm when
you try to open a door . In case this hap­
pens any how, push the unloc k button~-
- Use the pan ic function o nly if you are in
an eme rgency s ituation .
Operating locks with the key
To lock and unlock the vehicle from the out­
side, turn the key in the lock of the driver's
door .
F ig . 33 Key turns fo r ope nin g an d clos ing
To unlock the vehicle
.. Turn the key one time to posit io n @ to un­
lo ck the driver 's door ¢
fig. 33.
To lock the vehicle
.. Tu rn the key in the lock of the d river's door
to the lock pos it io n
@ ¢ ,&. . .,..

The turn signals briefly flash once and the
horn sounds once when the doors and the
front lid are locked properly.
_& WARNING
- Be careful when closing the windows.
-
Check to see that no one is in the way, or
serious injury could result!
- Always read and heed WARNING
c::> .&. in
General description on page 39 .
@ Tips
-However, note that which door is un­
l ocked
mechanically when the vehicle is
opened depends on the settings in the menu display
c::> page 24.
- Both doors are locked automatically
when the vehicle is locked.

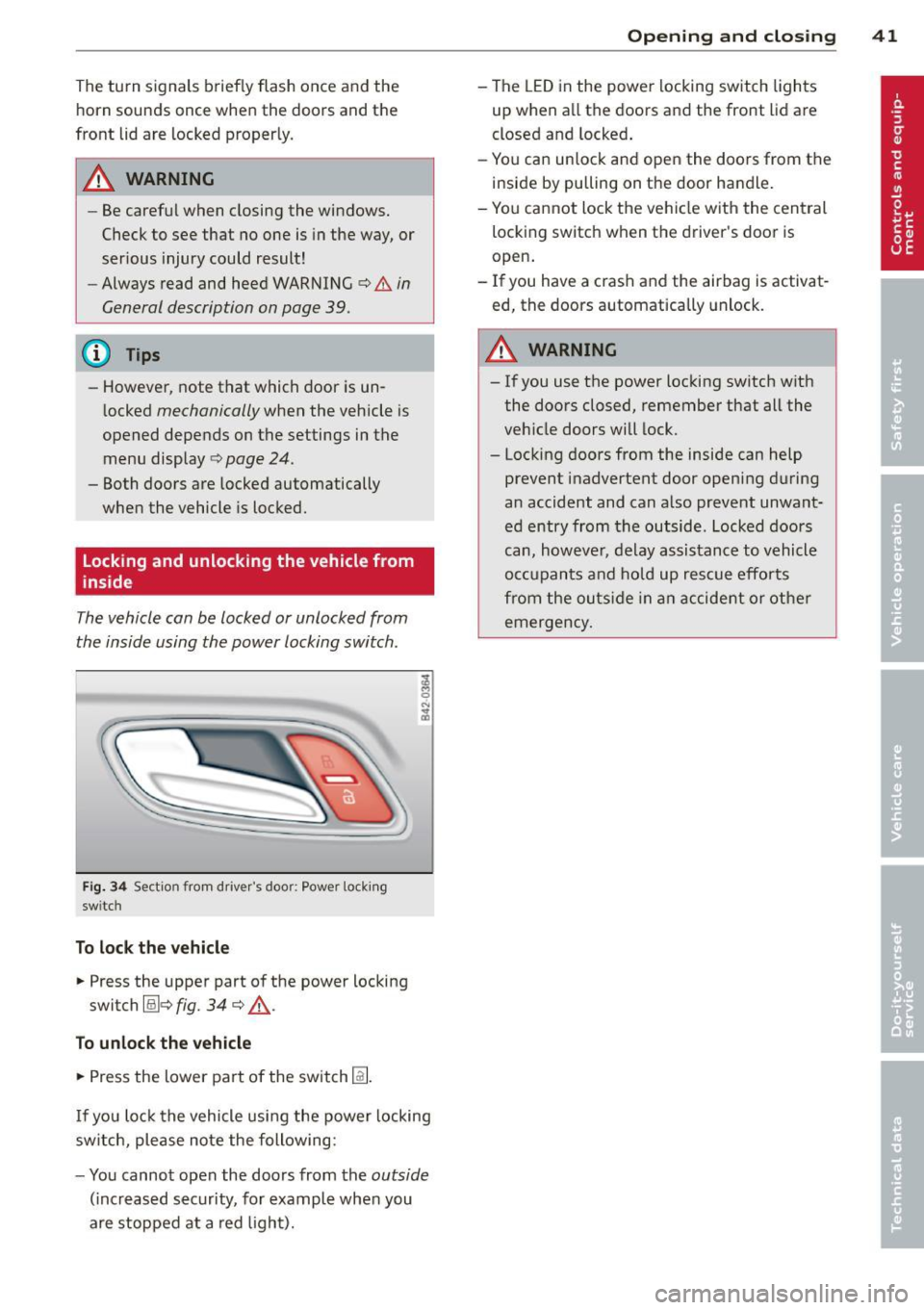

Locking and unlocking the vehicle from
inside
The vehicle can be locked or unlocked from
the inside using the power locking switch.
Fig. 34 Section from driver's door: Power lock ing
sw itch
To lock the vehicle
• Press the upper part of the power locking
switch
@Jc::, fig. 34 c::> ,& .
To unlock the vehicle
• Press the lower part of the switch~-
If you lock the vehicle using the power locking
switch, please note the following:
- You cannot open the doors from the
outside
(increased security, for example when you
are stopped at a red light).
Opening and closing 41
- The LED in the power locking switch lights
up when all the doors and the front lid are
closed and locked.
- You can unlock and open the doors from the
inside by pulling on the door handle.
- You cannot lock the vehicle with the central
locking switch when the driver's door is
open.
- If you have a crash and the airbag is activat­
ed, the doors automatically unlock.
_& WARNING
-If you use the power locking switch with
the doors closed, remember that all the
vehicle doors will lock.
- Locking doors from the inside can help
prevent inadvertent door opening during
an accident and can also prevent unwant­
ed entry from the outside. Locked doors
can, howeve r, delay assistance to vehicle
occupants and hold up rescue efforts
from the outside in an accident or other
emergency.

42 Opening and clo sing

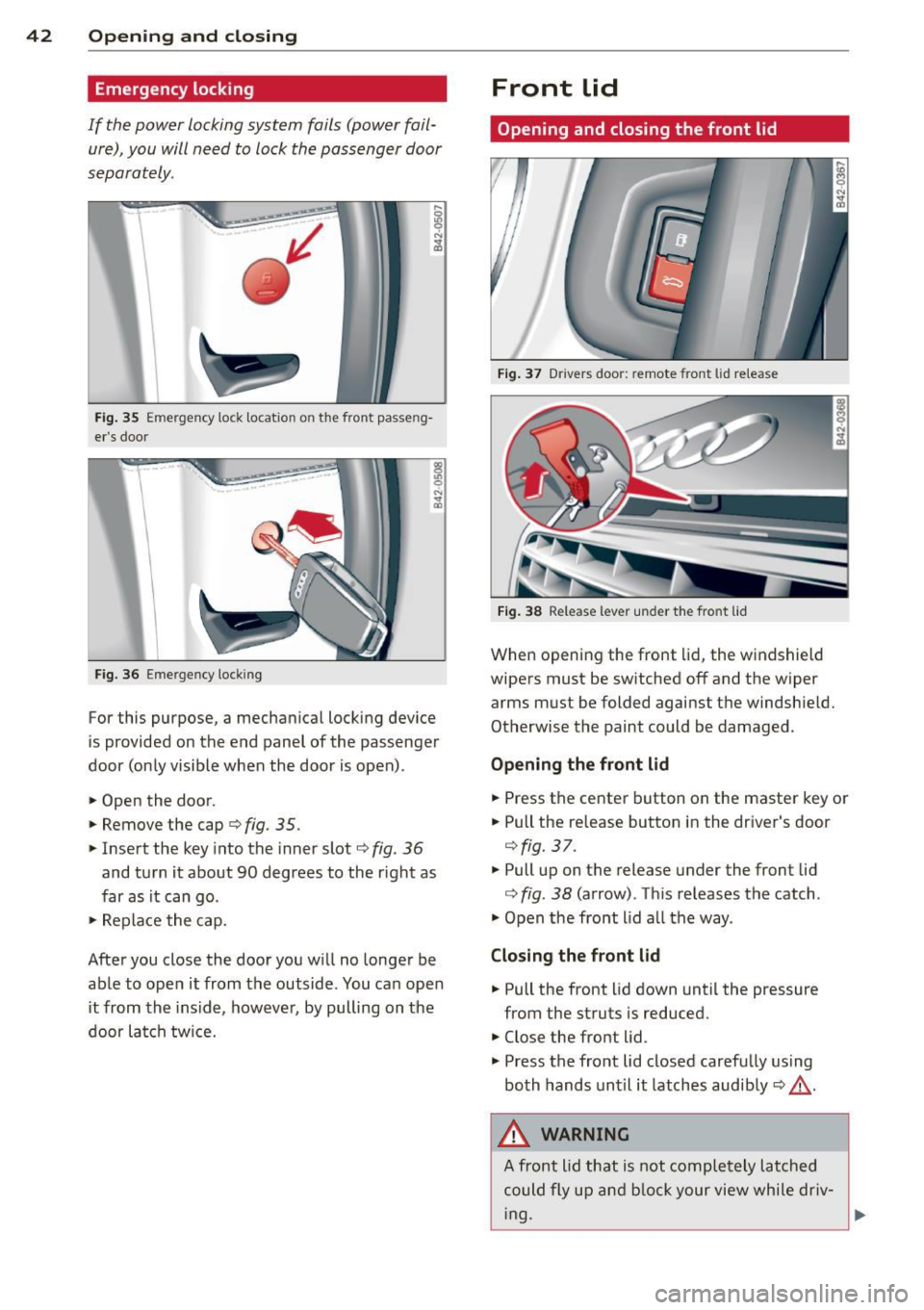

Emergency locking
If the power locking system fails (power fail­
ure), you will need to lock the passenger door
separately.
Fi g. 35 Emergency lock location on the front passeng­
er 's door
~ 0
"' .., a,
Fig. 36 Emergency lock ing
For this purpose, a mechanical locking device
is provided on the end panel of the passenger
door (only visible when the door is open) .
.. Open the door.
"' Remove the cap
9 fig. 35.
1> lnsert the key into the inner slot c::> fig. 36
and turn it about 90 degrees to the right as
far as it can go.
.. Replace the cap.
After you close the door you w ill no longer be
able to open it from the outside. You can open
it from the insid e, howeve r, by pulling on the
door la tch tw ice.
Front lid
Opening and closing the front lid
1
Fig . 37 Drivers door: remote front lid release
F ig . 38 Release lever under the front lid
When opening the front lid, the windshield
wipers must be switched off and the wiper
arms must be folded against the windshield.
Otherwise the paint could be damaged .
Opening th e front lid
.. Press the center button on the master key or
.. Pull the release button in the driver's door
c::>fig. 37.
.. Pull up on the release under the front lid
c::> fig . 38 (arrow). This releases the catch .
"' Open the front lid a ll the way .
Closing the front lid
.. Pull the front lid down until the pressure
from the struts is reduced.
"' Close the front lid .
.. Press the front lid closed carefully using
both hands unt il it latches audib ly
c::> .&_ .
_8. WARNING
A front lid that is not completely lat ched
could fly up and b lock your view while driv­
i ng.

-When you close the front lid , check it to
make sure the safety catch has properly
engaged . The lid should be flush with the
surround ing vehicle body parts .
- If you notice while driving that the lid is
not secured properly, stop at once and
close it .
- Never leave your vehicle unattended es­
pecially with the front lid left open. A
child could crawl into the luggage com­
partment and pull the lid shut, becoming
trapped and unable to get out. To reduce
the risk of personal injury, never let chil­
dren play in or around your vehicle. Al­
ways keep the front lid as we ll as the ve ­
hicle doors closed when not in use.
(D Note
Make sure there are no objects are pro­
t rud ing above the edge of the luggage
compartment . Otherwise, the front lid
could be damaged .
@ Tips
If the front lid is open or not properly
locked when the ignition is turned on, the
door and front lid warning appears in the
instrument cluster disp lay.
Emergency release for front lid
If the front lid cannot be opened, on emer­
gency release is provided .
Fig. 39 Sectio n: Eme rgency release
" Reach under the closed glove compartment .
There is a red plast ic cord under the glove
compartment.
"Pu ll the red plastic cord towards you.
Opening and closing 43

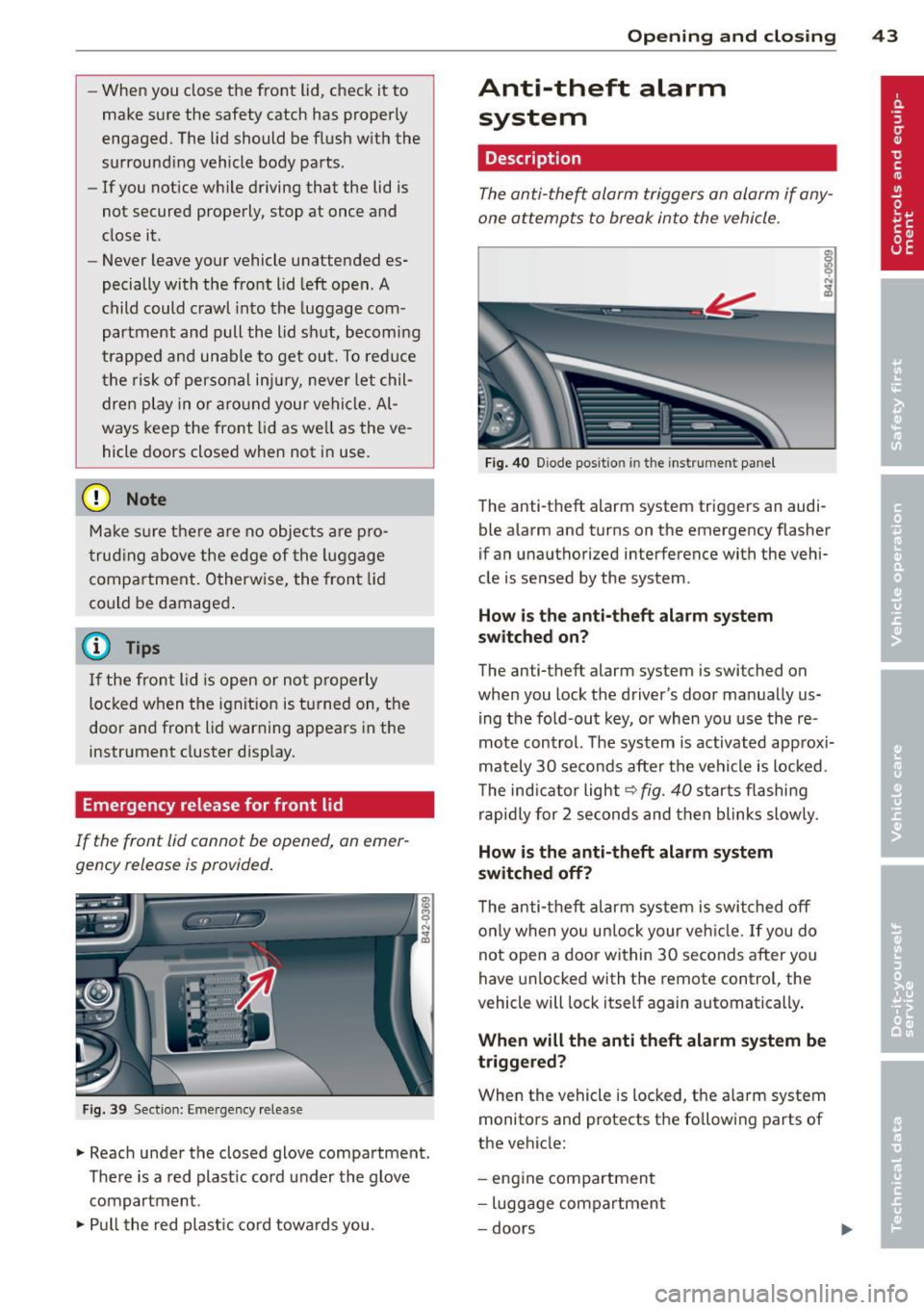

Anti-theft alarm
system
Description
The anti-theft alarm triggers an alarm if any­
one attempts to break into the vehicle .
Fig. 40 Diode posit io n in th e in str um ent panel
The anti-theft alarm system triggers an audi·
ble alarm and turns on the emergency flasher
if an unauthorized interference with the vehi­
cle is sensed by the system .
How is the anti-theft alarm system
switched on?
The anti-theft alarm system is switched on
when you lock the driver's door manually us­
ing the fold -out key, or when you use the re­
mote control. The system is activated approxi­
mately 30 seconds after the vehicle is locked.
T he ind icator light
9 fig. 40 starts flashing
rapidly for 2 seconds and then blinks slow ly.
How is the anti -theft alarm system
switched off?
T he anti-theft alarm system is switched off
o nly when yo u un lock your veh icle.
If you do
not open a door within 30 seconds after you
have unlocked with the remote control, the
vehicle will lock itself again automatically .
When will the anti theft alarm system be
triggered?
When the vehicle is locked, the a larm system
monitors and protects the fo llowing parts of
the vehicle:
- engine compartment
- luggage compartment
- doors

44 Opening and clo sing
- ignition
When the sys tem is activated, the alarm w ill
be tr iggered if one of the doors , the eng ine
compartmen t lid or the front lid are opened.
The anti-theft a larm system will also go
off
when the ba tte ry is d isconne cted.
You can a lso trigger the alarm by pressing the
PANIC button on your remote-control key .
This will a lert other people in case of emer­
gency. Press the PANIC button again to turn
off th e al ar m .
How is the anti-theft alarm switched off
when triggered?
To switch t he a larm off, press the button @l on
the master key o r swi tch t he ign ition on. The
ala rm w ill also sw itch i tse lf
off when i t comes
to the end of its cycle .
Emergency flasher
The emergency flasher w ill blink briefly when
the doo rs, e ngine compartment lid and front
lid are prope rly closed .
If the emergency flashe rs do not b link, check
the doors, engine compartment lid and front
lid to ma ke sure t hey a re p roperly closed. If
you close a doo r, the engine comp artment lid
or the front lid wit h the anti-theft alarm
switched on, t he emergency f lashers will blink
only after you have closed the door or lid .
Power windows
Controls
The driver can operate all windows.
Fig. 41 D rive r's doo r: p owe r w in dow sw it c h es
Fig. 42 Passen ger 's doo r: powe r wi ndow swit ch
0 ~
"' 0
"' "' OJ
The powe r wi ndow swi tches have a two-posi ­
tion function :
Opening the windows
• Press the switch and hold it down unt il the
w ind ow has reached the desired position.
"' Press the switc h
briefly to open the window
automatically .
"' By briefly pressi ng/p ull ing the sw itch again,
t he downward travel of the window ca n be
s toppe d in any pos it ion
~ .&, .
Closing the windows
"' Pull the sw itch and hold it until the window
has reached the desired position .
"' Pull the sw itch
briefly to close the window
automatically .
"' By briefly pressing/p ull ing the sw itch agai n,
t he upward trave l of the window can be
stopped in any position
~ .&, .
.&_ WARNING
-
-Do not leave ch ildren unattended in the
veh icle, especially with access to vehicle
keys. Unsupervised use of the keys can
resu lt in start ing of the engi ne and use
o f vehicle syst ems such as power w in­
d ows, e tc. w hich could res ult in s erious
lnJUr y.
-Remember -you can still ope n or close
the powe r windows for about ten mi­
nutes after the ig nition i s swi tched off.
On ly w hen ei ther o f th e fr ont d oors are
opened a re the power windows switched
off ~

-Be careful when closing the windows.
Check to see that no one is in the way, or
serious injury could result!
- Always remove the ignition key whenever
you leave your vehicle .
-If you lock your vehicle from the outside ,
no one, especially children, should re­
main in the vehicle .
- Do not stick anything on the windows or
the windshield that may interfere with
the driver's field of vision.
@ Tips
- When the doors are opened, the win­
dows are automatically lowered 0.4 in
(10 mm) .
Reactivating the system after battery
disconnection
If the vehicle battery is disconnected and then
reconnected, the automatic closing and open­
ing function will not work until it is reactivat­
ed. To reactivate this feature, perform the fol­
lowing steps:
- Pull and hold the power window switch until
the window is completely closed.
- Release the switch . Pull the switch again for
one second. The automatic closing/opening is now reactivated.
Opening and closing 45

46 Convertible top
Convertible top
Convertible top
General information
The fabric convertible top opens and closes
automatically. When it is open, it is stored in
the convertible top storage bay. The converti­
ble top may be opened or closed at speeds up
to 31 mph (SO km/h) .
The convertible top is wind- and waterproof
under normal conditions . Some moisture may
collect in the vehicle interior , but only under
extremely adverse weather conditions such as
torrential rain. That is normal and no cause
for concern.
Follow the cleaning and maintenance instruc­
tions
~ page 163 to ensure the convertible
top remains wind- and waterproof. Also note
the following points:
- Only stow the convertible top when it is
clean and dry . Grains of sand or coarse dirt
particles can cause abrasions on the conver­
tible top when stowed that can lead to dam­
age to the fabric over time. Stowing the con­
vertible top when it is damp can cause
marks or permanent mildew spots to form .
- Do not leave the convertible top open for
several weeks or the creases in it may be ­
come discolored . This is especially true if the
top was stowed when damp .
- Remove ice and snow before opening the
convertible top . Do not use any sharp edged
objects to remove ice and snow or the con­
vertible top could be scratched or damaged.
The rear window may be cleared with a
standard ice scraper.
- The fabric in the convertible top loses elas­
ticity in sub-zero temperatures. We recom­
mend not opening or closing the convertible
top when the temperature is below 32 °F (0 QC). The convertible top will not open
when the temperature is 5 °F (-15 QC) or be­
low.
Opening and closing the convertible top
Fig. 43 Center co nsole : convertible top sw itc h
Requirement: the front lid must be closed and
the ignition must be switched on.
Opening the convertible top
.. Pull and hold the convertib le top switch un­
til the top is stowed in the bay and the cover
on the bay has closed completely.
Opening the convertible top using the
one-touch function
.. Pull the switch briefly to open the converti­
ble top completely . It is not necessary to
hold the switch. The one-touch function is
only available at speeds between 4 and
31 mph (6 and SO km/h) .
Closing the convertible top
.. Press and hold the switch until the converti-
ble top is closed and the latch is locked.
The indicator light
Min the instrument clus ­
ter goes out when the top is completely open
or closed.
The side windows automatical ly lower slightly
during the opening/closing process.
A WARNING ~
- Never drive when the convertible top is
not locked correctly. The wind generated
by driving could cause itto open, which
could injure vehicle occupants or damage
the vehicle.
- Make sure no one will be injured by the
convertible top supports and other mov­ ing objects on the vehicle when opening
and clos ing the top .
liJI,

(D Note
To prevent damage to the convertible top:
-do not store any objects in the converti­
ble top storage bay.
- make sure there is enough space above
the vehicle when opening or closing the
convertible top.
@ T ips
- When the indicato r lamp ffl blinks,
there is a system malfunction
c> page 16 .
-The one-touch opening function is not
ava ilable when the vehicle is traveling
below 4 mph (6 km/h) or above 31 mph
(SO km/h).
If this is the case, a warning
tone will sound and a message will ap­ pear in the instrument cluster
c> page47.
Error message in the instrument cluster
display
An error message appears if the convertible
top cannot open or close.
Severa l conditions must be met for the con­
vertible top to open or close automatically .
An error message in the instrument cluster
d isp lay ind icates if one of the condit ions is not
me t or there is a malfunct ion.
Soft top: Pleas e clo se engin e lid!
The engine compartment lid must be closed
when opening or closing the convertible top .
T his message appears in the instrument clus­
ter disp lay if the engine compartment lid is
no t closed.
Soft t op : C annot be used!
This error message appears if the convertib le
cannot open or close b ecause of safety rea­
sons or if there is a malfunction . The follow­
ing causes are poss ible:
- The vehicle i s tra v eling too fa st: Converti­
ble top operation is deactivated for safety
reasons if the vehicle is traveling too fast . A
message w ill appear . Reduce the vehicle
Con vertible top 47
speed and pu ll o r press the switch again to
open or close th e convertible top.
- The b att ery vo ltag e is too low: The conver­
tible top cannot open or close if the battery
voltage is too low. This ens ures there will be
enough battery vo ltage left to start the ve­
hicle . The convertible top c an be operated
aga in after the engine is star ted.
- Ove rload p rotect ion is acti ve: Ope rating the
convert ible top continuously for a long peri­
od of time p laces stress on the hydraulic
un it. Overload protect io n is act ivated to pre­
vent damage to the system . This protective
fu nction prevents the convertible top from
open ing or close fo r approximate ly 15 to 30
m inutes.
It will funct ion aga in a fter tha t
c:::> &..
-Malfun ction : Failure of system components
is one possib le cause fo r malfunction. If this
happens, you can a lso operate the converti­
ble top by hand
c> page 49 .
-The e xterio r tempe ratu re i s too low: The
convertible top will not open in tempera­
tures below (S °F) (-15 QC).
Soft top not secur e
If the convertible top is not c ompl etely open
or closed and the vehicle is traveling too fast,
the error message above appears and a warn­ ing tone sounds. Reduce the vehicle speed
and pull or press the switch again to open or close the convertible top.
A WARNING
Never drive when the convertible top is not
locked correctly . The wind from driving
could cause the co nvertib le top to open.
This can resu lt in i nju ries and damage to
the vehicle.

48 Convertible top
Wind deflector
The wind deflector reduces turbulence in the
passenger compartment and makes driving
more comfortable.
Fig. 44 Install ing the wind defl ector
Fig. 45 Luggage compart ment: stori ng th e w ind de ­
fle ctor
The wind def lector is located in the luggage
compartment . Insta lling it from the side of
the vehicle that is farthest from traffic is rec­
ommended for safety reasons. Follow the in­
stallat io n instructions provided in the storage
bag.
Installing /removing the wind deflector
.,. To install the wind deflector, slide the re-
ta ining pin @into the mount @
¢fig . 44.
The w ind deflector is secure when it clicks
into place and the red marks on both but ­
tons are no longer visible .
.,. To remove the wind deflector, p ress both
buttons © and p ull the deflector upward.
Storing the wind deflector
.,. Slide the wind deflector into the storage bag
with the retaining pins facing downward .
.,. Hang the storage bag on the retainers @in
the luggage compartment ¢
fig. 45.
A WARNING
-
-Do not use the wind deflector to secure
cargo or other objects. Th is could resu lt
in injury.
- Be careful of traffic when installing the
wind deflector.
@ Note
To prevent damage to the vehicle paint, do
not lean on the vehicle when installing the
wind deflector. Objects such as belt buck­ les could scratch the surface of the paint .
@ Tips
-Keeping both side windows raised pro­
vides the best w ind protection.
- To prevent mildew, do not store the wind def lector when it is damp.
Rear window
Fig. 46 Rear w indow in win d deflecto r pos it ion
Fig . 47 Sect io n of the center co nsole : conve rtible top
switch
The rear window can be extended slightly
when the convertible top is open to reduce air
movement inside the vehicle and increase
comfort . This is called the wind deflector posi-
t ion ¢
fig. 46 . ..,_
