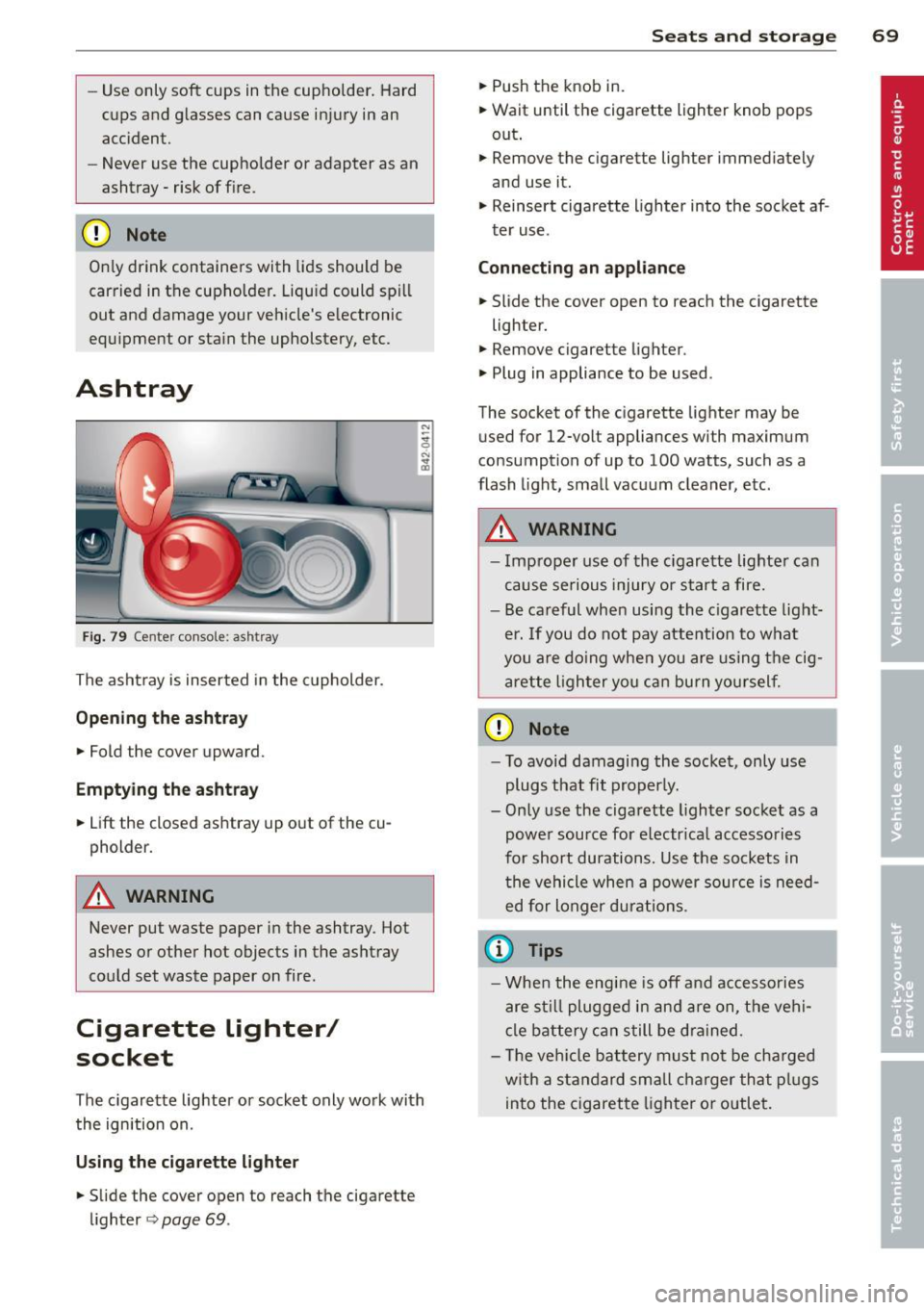

-Use only soft cups in the cupholder. Hard
cups and g lasses can cause injury in an
accident.
- Never use the cupholder or adapter as an
ashtray- risk of fire.
CD Note
Only drink containers with lids should be
carried in the cupho lder. Liquid could spill
out and damage your vehicle's electronic
equipment or stain the upholstery, etc.
Ashtray
Fig. 79 Center console: ash tray
The ashtray is inserted in the cupholder.
Opening the ashtray
.. Fold the cover upward.
Emptying the ashtray
.. Lift the closed ashtray up out of the cu­
pholder.
A WARNING
Never put waste paper in the ashtray. Hot
ashes o r other hot objects in the ashtray
could set waste paper on fire.
Cigarette Lighter/
socket
The c igarette lighter or socket only work with
the ignition on.
Using the cigarette lighter
.. Slide the cover open to reach the cigarette
lighter
<=> page 69.
Seats and storage 69
.. Push the knob in.
.. Wait until the cigarette lighter knob pops
out .
.. Remove the cigarette lighter immediately
and use it.
.. Reinsert cigarette lighter into the socket af­
ter use.
Connecting an appliance
.. Slide the cover open to reach the cigarette
lighter.
.. Remove cigarette lighter .
.. Plug in appliance to be used.
The socket of the cigarette lighter may be used for 12-volt appliances with maximum
consumption of up to 100 watts, such as a
flash light, small vacuum cleaner, etc.
A WARNING
- Improper use of the cigarette lighte r can
cause serious injury or start a fire.
- Be careful when using the cigarette light­
er. If you do not pay attention to what
you are doing when you are using the cig­
arette lighter you can burn yourself.
CD Note
-To avoid damaging the socket, only use
plugs that fit properly.
- Only use the cigarette lighter socket as a
power source for electrical accessories
for short durations. Use the sockets in the vehicle when a power source is need­
ed for longer durations .
(D Tips
-When the engine is off and accessories
are still plugged in and are on, the vehi­
cle battery can still be drained.
- Th e veh icle battery must not be charged
w ith a standard small charger that plugs
into the cigarette lighter or outlet.

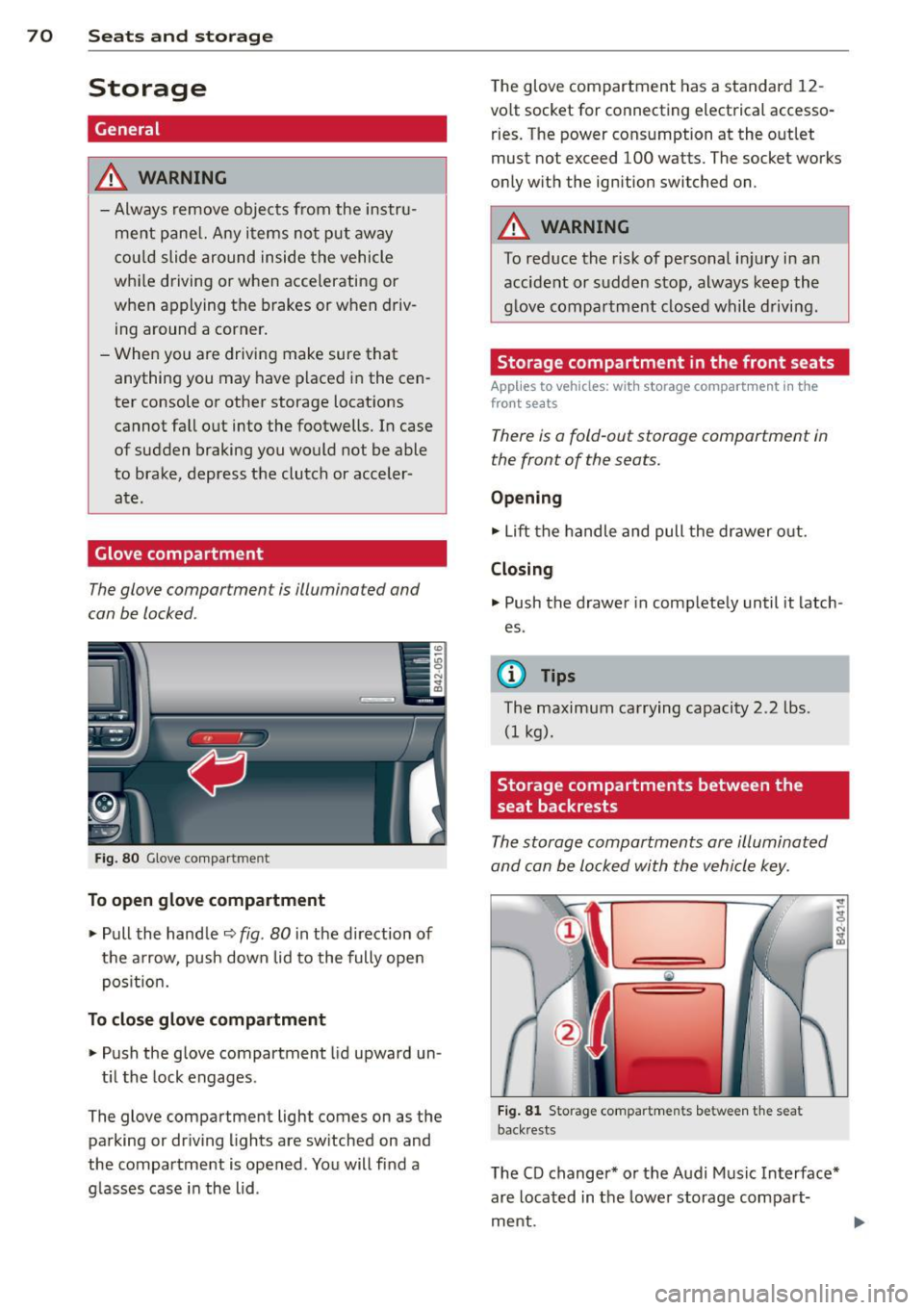

70 Seats and st o ra ge
Storage
"
General
A WARNING
- Always remove objects from the instru-
ment pane l. Any items not put away
cou ld slide around inside the vehicle
whi le driving or when accelerating or
when applying the brakes or when driv­
ing around a corner.
- When you are drivi ng make sure that
anything you may have placed in the cen ­
ter console or othe r storage locations
cannot fa ll out into the footwells. In case
of sudden braking you would not be able
to brake, depress the clutch or acceler­ ate.
Glove compartment
The glove compartment is illuminated and
can be locked .
Fig. 8 0 G love co mpa rtm ent
To open glove compartment
.,. Pull the handle ¢ fig . 80 in the direction of
the arrow, push down lid to the fully open
pos it ion.
To close glove compartment
.,. Push the glove compartment lid upward un -
t il t he lock engages .
The glove compartment light comes on as the
parking or driving l ights are sw itched on and
the compartment is opened . You will fi nd a
g lasses case in the lid . The glove compartment has a standard
12
-
volt socket for connecting electrical accesso­
ries. The power cons umption at the o utlet
must not exceed 100 watts. The socket works
only w ith the ignition switched on.
A WARNING
--
To reduce the risk of pe rsonal inju ry i n an
accident or sudde n stop, always keep the
g love compartme nt closed while driving .
Storage compartment in the front seats
Applies to veh icles: w ith storage compartment in the
front seats
There is a fold-out storage compartment in
the front of the seats.
Opening
.,. Lift the handle and pull the drawer o ut.
Closing
.,. Push the drawer in complete ly until it latch ­
es .
© Tips
The maximum carrying capacity 2.2 lbs .
(I kg).
Storage compartments between the
seat backrests
The storage compartments are illuminated
and can be locked with the vehicle key.
Fi g. 81 Storage compartments between t he seat
back rests
The CD changer* or the Audi Music In terface*
are located in the lowe r storage compart­
ment.

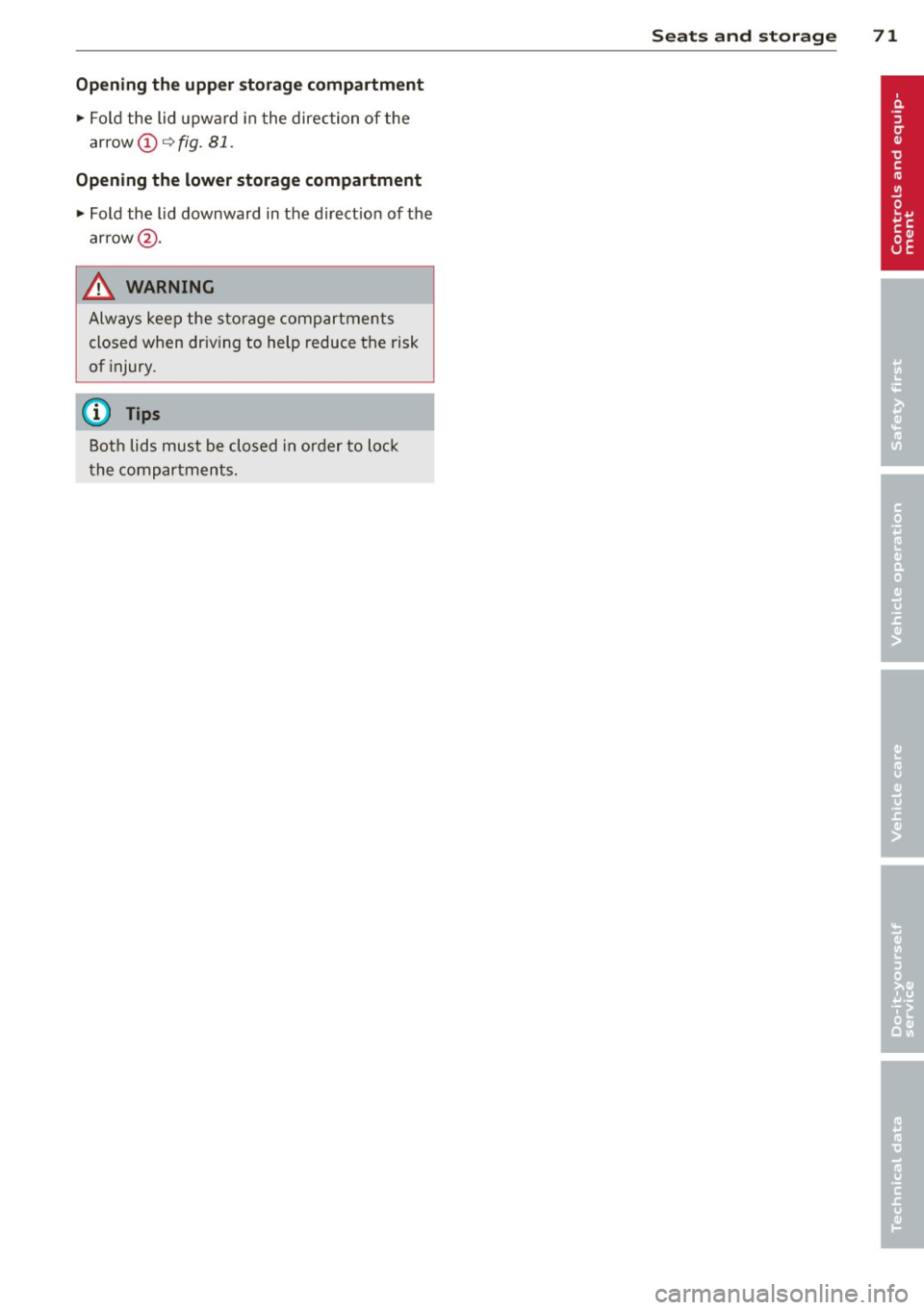

Opening the upper storage compartment
"'Fold the lid upw ard in t he direc tion of the
arrow
Ci) ¢ fig. 81.
Opening the lower storage compartment
"'Fold the lid downward in t he d irect io n of t he
arrow @.
_& WARNING
Alw ays keep the s to rage comp artmen ts
close d when dr iv ing to help reduce t he risk
of injury.
(D Tips
Bot h lid s must be clo sed in or der to lo ck
t he com partments .
-
Seats and storage 71

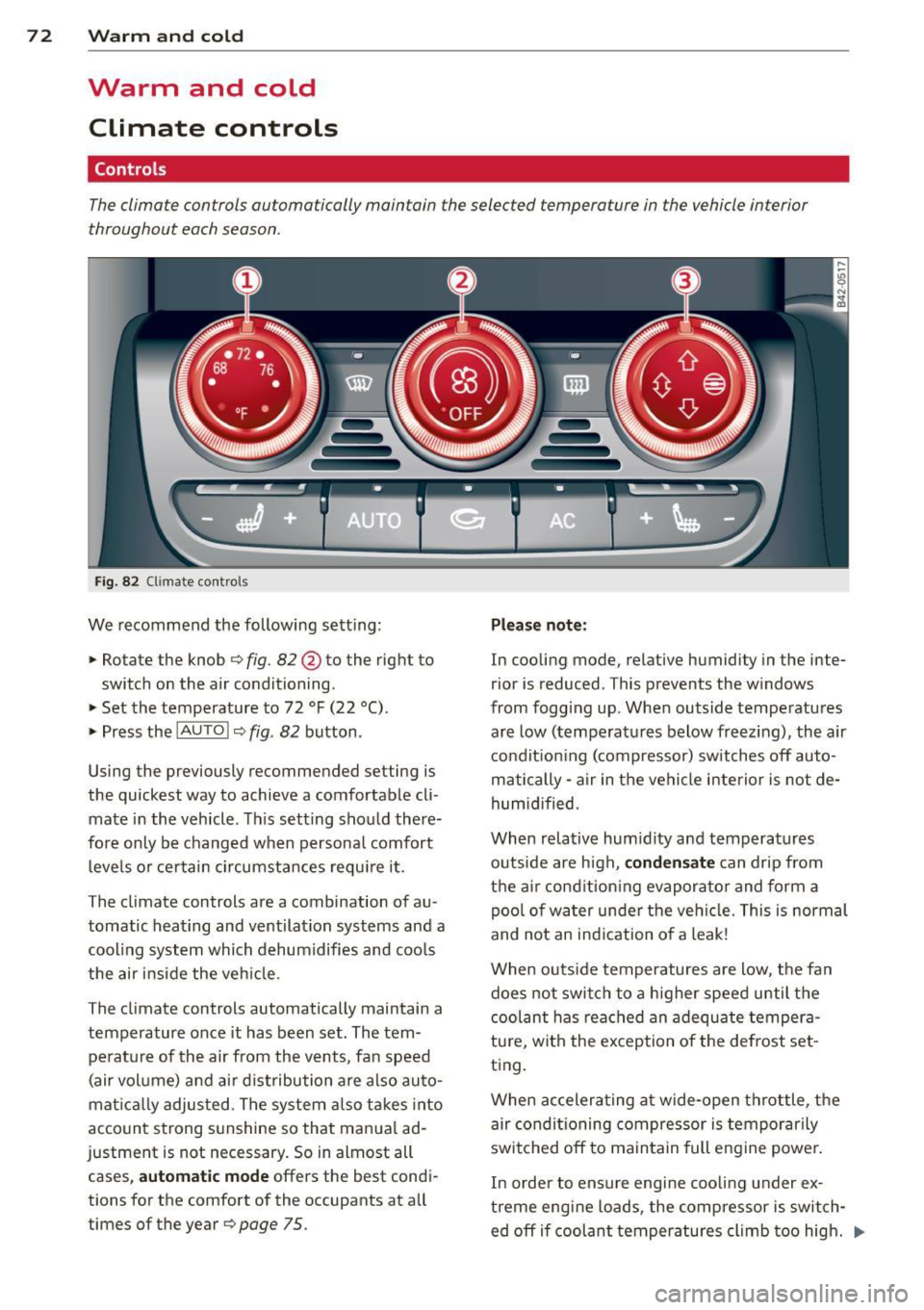

7 2 Warm and cold
Warm and cold
Climate controls
Controls
The climate controls automatically maintain the selected temperature in the vehicle interior
throughout each season .
Fig. 82 Climate contro ls
We recommend the following sett ing :
> Rotate the knob 9 fig. 82 @ to the right to
switch on the air conditioning .
> Set the temperature to 72 °F (22 °().
> Press the !AUTO !~ fig. 82 button .
Using the previously recommended setting is
the quickest way to achieve a comfortable cli ­
mate in the vehicle . This setting should there­
fore only be changed when persona l comfort
l evels or certain circumstances require it.
The climate controls are a combination of au ­
tomatic heating and ventilation systems and a
coo ling system which dehum idifies and coo ls
the air inside the veh icle.
The climate controls automatically maintain a temperature once it has been set . The tem­
perat ure of the air from the vents, fan speed
(air volume) and a ir dist ribution are also auto­
mat ical ly adjusted . The system also takes into
account strong s unshine so that manua l ad­
justment is not necessary. So in almost all cases,
a ut om at ic mode offers the best condi­
tions for the comfort of the occupants at all
times of the year
9 page 75 .
Plea se not e:
In cooling mode , relative humidity in the inte­
rior is reduced . This prevents the w indows
from fogg ing up. When outside temperatures
are low (temperatures below freezing), the air
condit ion ing (compressor) switches off auto­
matically - air in the vehicle inte rior is not de­
humid ified.
When relative hum idity and temperatures
outside are h igh,
co nden sat e can drip from
the a ir cond ition ing evaporator and form a
pool of water under the vehi cle. This is normal
and not an ind ication of a leak!
When outs ide temperatures are low, the fan
doe s not switch to a h igher speed until the
coolant has reached an adequate tempera­
tu re, with the exception of the defrost set­
ting.
When accelerating at wide-open throttle, the air conditioning compressor is temporarily
switched off to maintain full eng ine power .
In order to ensure engine cooling under ex­
t reme engine loads , the compressor is switch­
ed off if coolant temperatures climb too high . .,..

Functions are set by turning the rotary knob
or switched on and
off by tapping the buttons.
T he LED in the buttons illuminates when the
function is active.
Button(s) Meaning Page
Rotary knob Temperature
i::>page 73
CD selection
Switch air con-
Rotary knob ditioning on/
i::>poge 74
@ ~ off
Fan
Rotary knob Air distribu-
i::> page 74
® tion
~ Defrost i::>poge 75
~
Rear window i::>page 76
defogger
Heated seat
I-.1 + I driver/passen-i::>poge 76
ger side
Recirculation
i::> page 75
Switch on
! AC!
I
cooling sys-i::> page 75
tern
Pollutant filter
The pollutant filter (particle filter) ensures
that contaminants in the outside air (such as
dust or pollen) are greatly reduced or stop­
ped. The air is also filtered in recirculation
mode.
The pollutant filter element must be changed according to the intervals specified in the maintenance schedule so that the air condi­
tioning system's performance is not adversely
affected.
If the filter 's effectiveness is weakened by
driving the vehicle in areas with heavily pollut­
ed outside air, the filter element should also
be changed between the listed services.
Energy management
To prevent the battery from being discharged
and to restore the balance of energy, compo­
nents which require large amounts of energy
are temporarily cut back or switched
off
Warm and cold 73
i::> page 155. Heating systems in particular re­
quire a great deal of energy. If you notice, for
example, that the rear window heater is not
heating, then it has been temporarily cut back
or switched
off by energy management.
These systems are available again as soon as
the energy balance has been restored .
A WARNING
For safety reasons, it is important that all
windows are free of ice , snow, and conden­
sation . Only then is good visibility ensured.
Please familiarize yourself with the correct
operation of the air conditioning and how
to dehumidify/defrost the windows.
(D Note
- If you suspect that the climate controls
have been damaged, switch the system
off to avoid damaging it , and have it in­
spected by an authorized Audi dealer.
- Audi climate control system repairs re­ quire special expertise and the proper
tools. You should contact an authorized
Audi dealer in the event of malfunctions.
(D Tips
-To avoid adversely affecting heating and
cooling performance and to prevent con­
densation on the windows, the air intake
in front of the windshield must be free of
ice, snow, and leaves.
- Climate control works most effectively if
the windows are closed. However, if the
interior of a parked vehicle is extremely
hot from the sun's rays, briefly opening
the windows can speed up the cooling
process.
Setting temperature
.,. Turn the rotary knob CD c:> page 72, fig. 82
to the desired temperature setting.
To set a lower temperature, turn the rotary
knob to the left. To set a higher temperature,
turn the rotary knob to the right. There are .,..

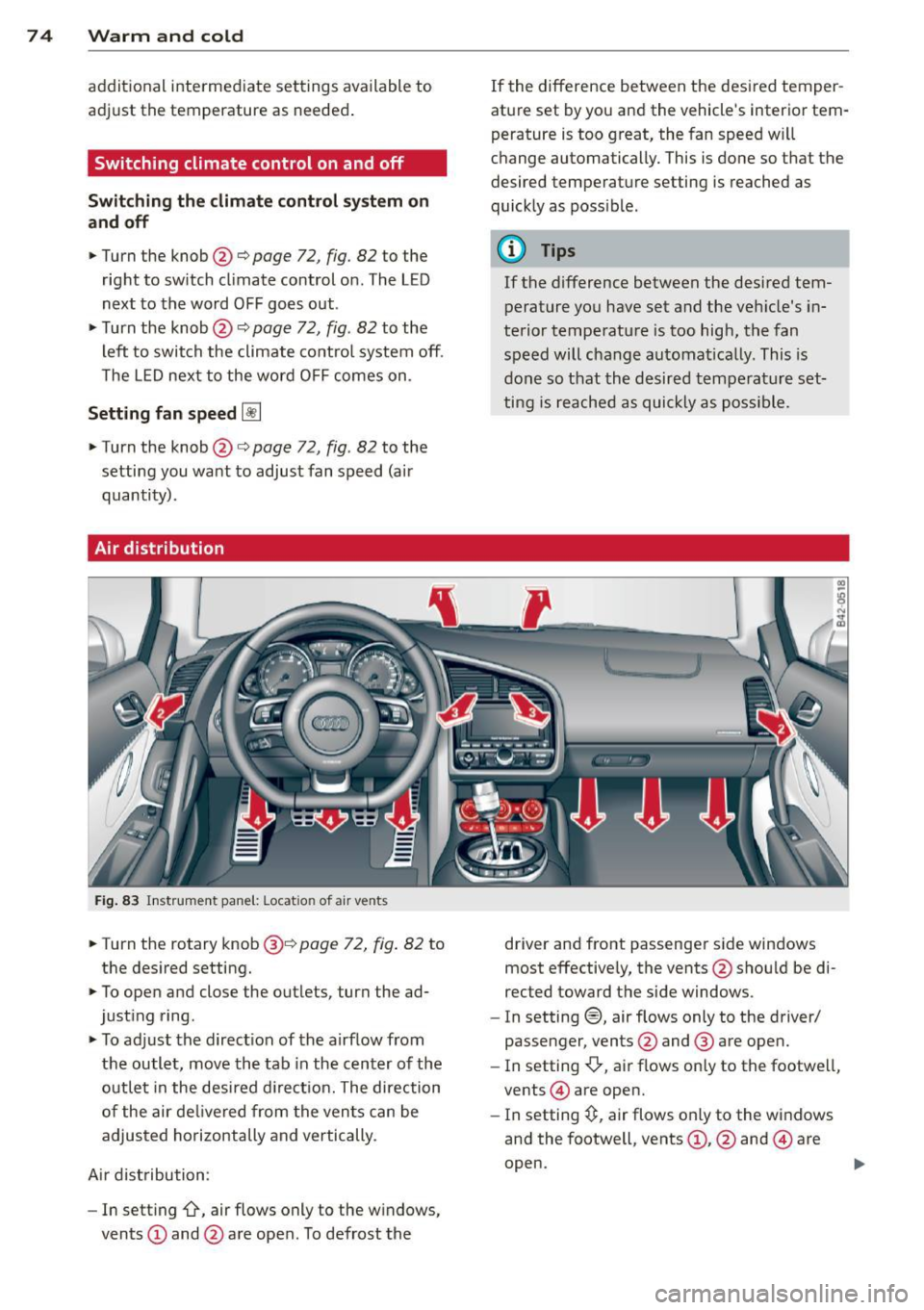

7 4 Warm and cold
addit ional intermediate settings available to
adj ust the temperature as needed.
Switching climate control on and off
Sw it ch ing the clim ate con trol sy stem on
a nd off
• Turn the knob @¢ page 72, fig. 82 to the
r ight to sw itch climate control on. The LED
next to the word OFF goes out .
• Turn the knob@¢
page 72, fig. 82 to the
left to switch the climate contro l system off .
T he LED nex t to the word OFF comes on .
Setting fan speed~
• Turn the knob@¢ page 72, fig. 82 to the
setting you want to adjust fan speed (air
quantity) .
Air distribution
Fig . 83 Instr ume nt pane l: Locat io n of air vents
• Turn the rotary knob@¢ page 72, fig. 82 to
the desired setting.
• To open and close the outlets, turn the ad­
justing ring .
• To adj ust the direct ion of the airflow from
the outlet, move the tab in the center of the
outlet in the desi red d irection. The direction
of the air de livered from the ven ts can be
adjusted horizontally and vertically.
A ir dist ribution:
- In setting
-0, air flows only to the windows,
vents
(D and @are open. To defrost the If the difference between the desired temper­
ature set
by you and the vehicle's interior tem­
perature is too great, the fan speed will
change automatically. This is done so that the
desired temperature setting is reached as
quick ly as possible .
(D Tips
If the difference between the desired tem­
perature you have set and the veh icle's in­
terior temperature is too high, the fan
speed will change automat ically. This is
done so that the desired temperature set­
ting is reached as quickly as poss ible.
driver and front passenger side windows
most effective ly, the vents @shou ld be di­
rected toward the side windows.
- In setting®, air flows only to the driver/
passenger, vents @and @ are open.
- In setting
-0-, air flows only to the footwe ll,
vents @) are open.
- In setting~. air flows only to the windows
and the footwell, vents
(D , @ and @are
open.
...

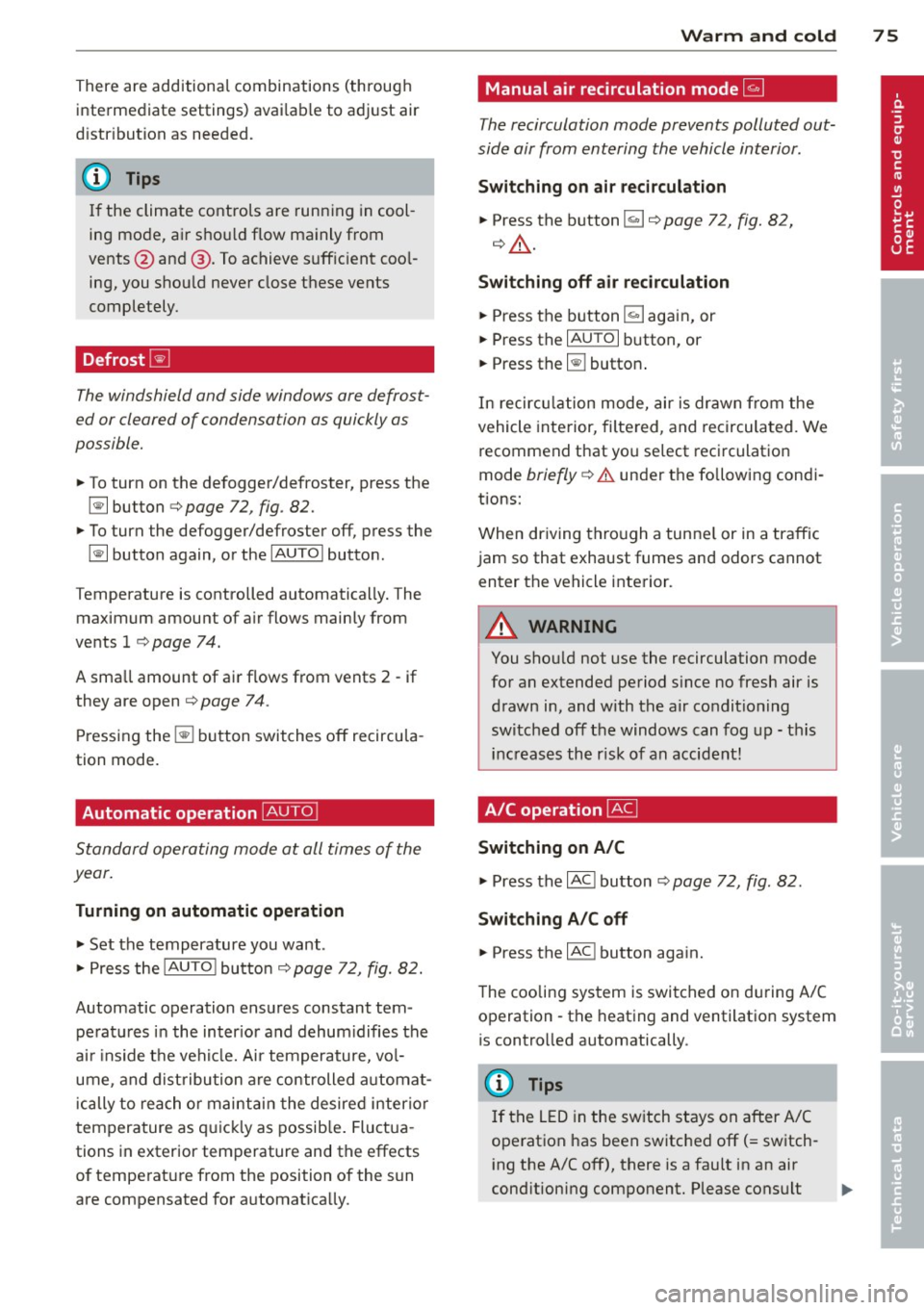

There are additional combinations (through
intermediate settings) avai lab le to adjust air
d istr ibution as needed.
(D Tips
I f the climate controls are running in cool ­
ing mode, air shou ld flow mainly from
vents @and
@. To achieve s uff ic ient coo l­
ing, you shou ld never close these vents
completely.
Defrost ~
The windshield and side windows are defrost­
ed or cleared of condensa tion as quickly as
possible.
~ To turn on the defogger/defroster, press the
~ button ¢ page 72 , fig . 82.
~ To turn the defogger/defroster off, press the
~ button again, or the IAU TOI button .
T emperature is controlled automatically. The
maximum amount of a ir flows mainly from
vents 1 ¢
page 74.
A small amount of air flows from vents 2 -if
they are open
¢ page 74 .
Pressing the~ button switches off recircu la ­
tion mode.
Automatic operation ~
Standard operating mode at all times of the
year.
Tu rning on automatic operation
~ Set the temperature you want .
~ Press the IAU TO I button ¢ page 72, fig. 82.
Automatic operation ensures constant tem ­
peratures in the inter ior and dehum idifies the
air ins ide the vehicle. Air temperature, vol­
ume , and distribution are controlled automat­
i cally to reach o r maintain the desired interior
temperature as q uickly as possib le. Fluctua ­
tions in exterior temperature and the effects
of temperature from the position of the sun
are compensated for automat ically.
Warm and c old 75
Manual air recirculation mode~
The recirculation mode prevents polluted out­
side air from entering the vehicle interior.
S w itching on air re circul atio n
~ Press the button ~¢ page 72, fig. 82,
¢ ,&.
Switching off a ir re circulation
~ Press the button l.;., I again, or
~ Press the IAU TOI button , or
~ Press the~ button .
In recircu lation mode, air is drawn from the
vehicle interior, filte red, and recirculated . We
recommend that you se lect recirculation
mode
briefly ¢.& under the fo llowing condi­
tions:
When driving through a tunne l or in a traffic
jam so that exhaust fumes and odors cannot enter the vehicle interior.
A WARNING
You shou ld not use the recirculation mode
for an extended period s ince no fresh air is
drawn in, and with the air condit ioning
switched off the windows can fog up -this
increases the r isk of an accident!
A/C operation ~
Switching on A /C
~ Press the IAC ! button ¢ page 72, fig. 82.
Sw itching A /C off
~ Press the IAC ! button again.
The cooling system is switched on during A/C
operation -the heating and ventilation system
is controlled automatically .
(D Tips
If the LED in the switch stays on after A/C
operation has been switched off( = switch-
ing the A/C off), there is a fault in an air
cond itioning component. Please consult
llJI,

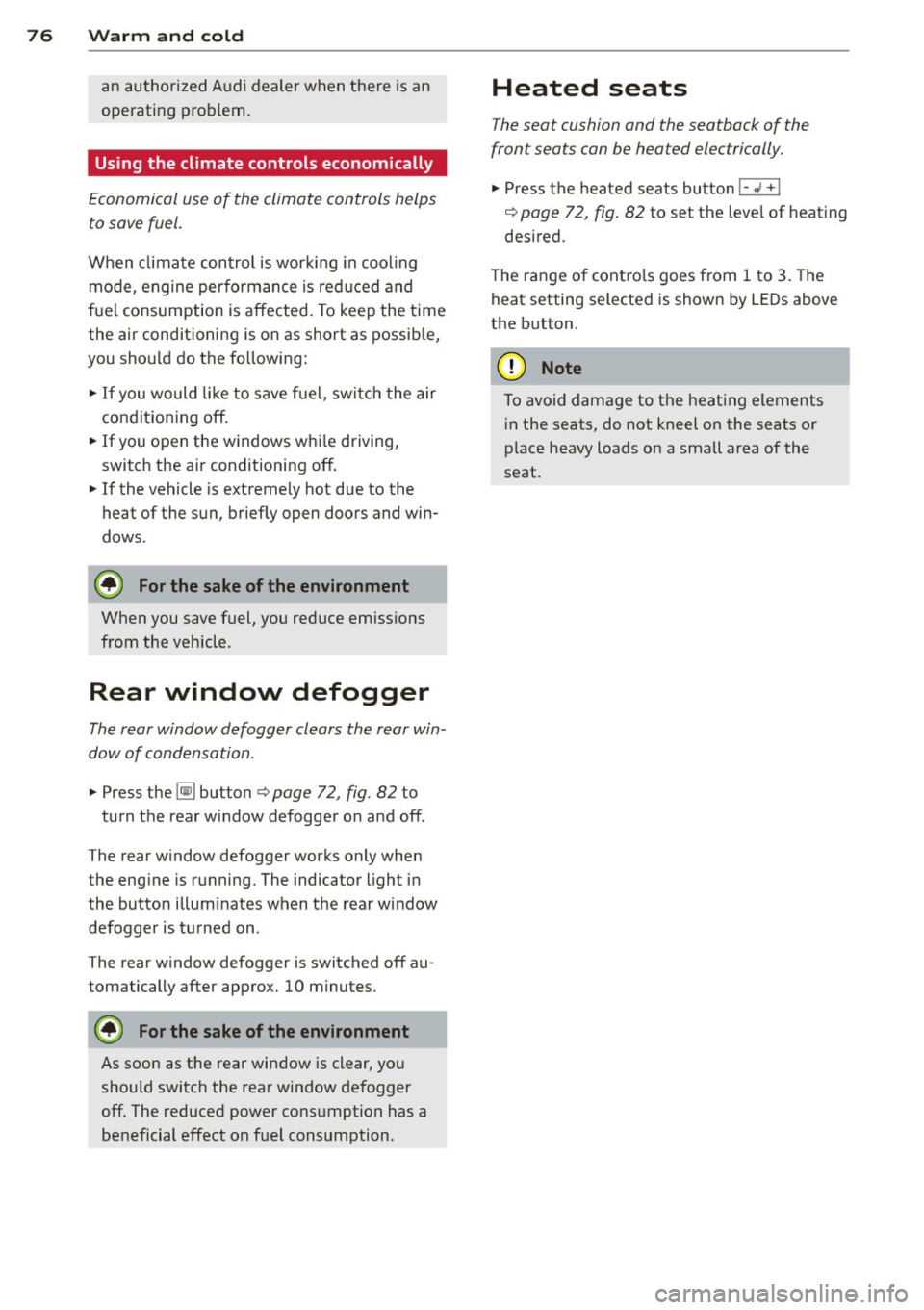

76 Warm and cold
an authorized Audi dealer when there is an
operating problem.
Using the climate controls economically
Economical use of the climate controls helps
to save fuel.
When climate control is wor king in cool ing
mode, engine performance is reduced and
fuel consumption is affected. To keep the time
the air conditioning is on as short as possible,
you shou ld do the fo llow ing:
.,. If you would like to save f uel, sw itch the air
condition ing off.
... If you open the windows whi le driving,
switch the air conditioning off.
... If the vehicle is extremely hot due to the
heat of the sun, briefly open doors and win­
dows .
@ For the sake of the environment
When you save fuel, you reduce emissions
from the vehicle.
Rear window defogger
The rear window defogger clears the rear win­
dow of condensation .
... Press the~ button c::> page 72, fig. 82 to
turn the rear window defogger on and off.
The rear window defogger works only when
the eng ine is running. The indicator light in
the butto n illum inates when the rear window
defogger is turned on .
The rear window defogger is switched off au­
tomatically after approx. 10 minutes.
@ For the sake of the environment
As soon as the rear window is clear, yo u
should switch the rear window defogger
off. The reduced power consumption has a
beneficial effect on fuel consumption.
Heated seats
The seat cushion and the seotbock of the
front seats con be heated electrically.
... Press the heated seats button I- ., +I
c::> page 72, fig . 82 to set the level of heating
desired.
The range of contro ls goes from 1 to 3. The
heat setting selected is shown by LEDs above
the button.
(D Note
To avoid damage to the heating elements
in the seats, do not kneel on the seats or
place heavy loads on a small area of the
seat .

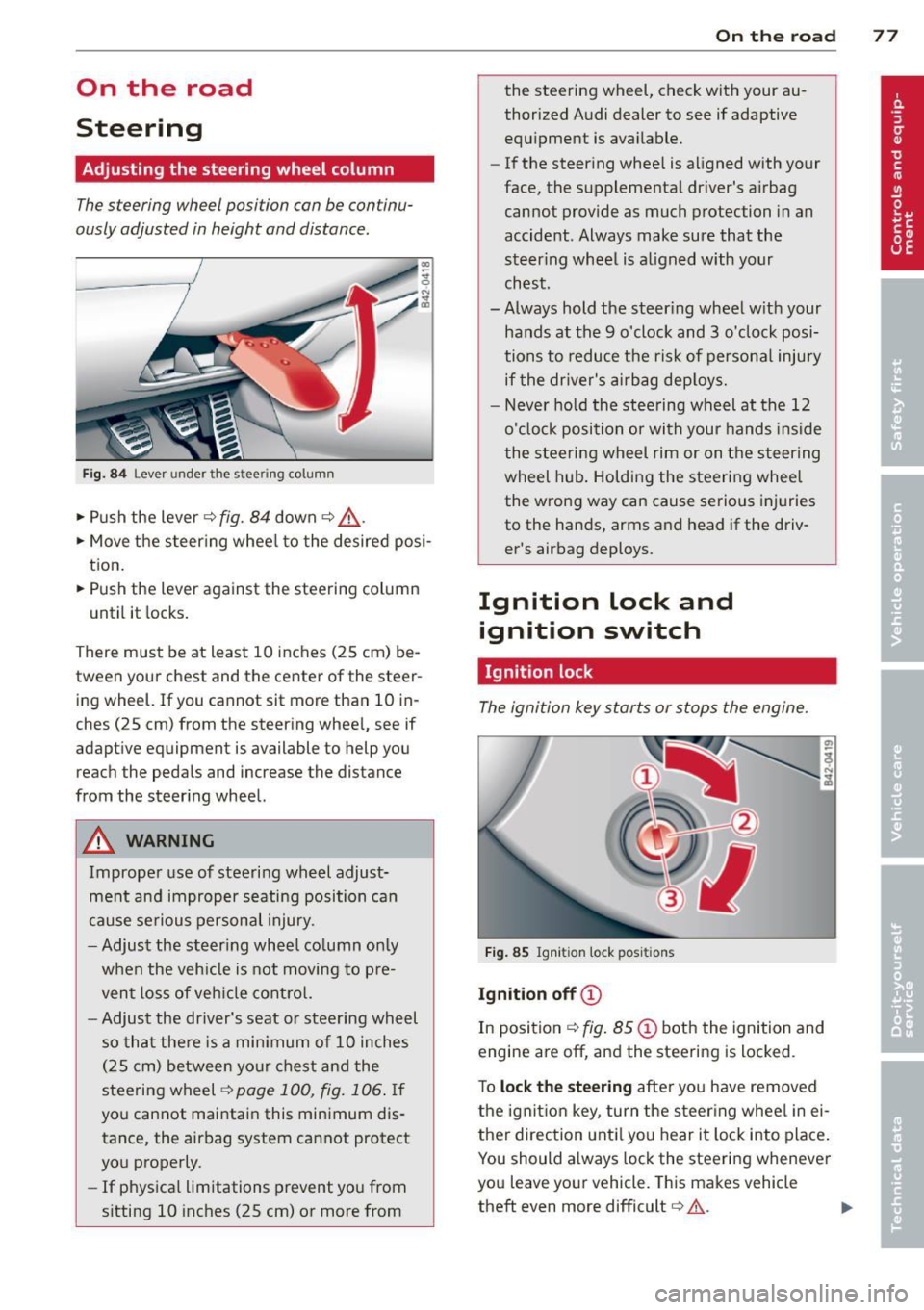

On the road
Steering
Adjusting the steering wheel column
The steering wheel position can be continu­
ously adjusted in height and distance.
Fig. 84 Lever under the stee ring column
• Push the lever ¢ fig. 84 down ¢ &.
• Move the steer ing whee l to the desired posi­
tion.
• Push the lever against the steering column
until it locks.
There must be at least 10 inches (25 cm) be­
tween your chest and the center of the steer­
ing wheel. If you cannot sit more than 10 in­
ches (25 cm) from the steering wheel, see if
adaptive equipment is available to help you
reach the pedals and increase the distance
from the steering wheel.
A WARNING
Improper use of steering wheel adjust­
ment and improper seating position can
cause serious personal injury .
- Adjust the steering whee l column only
when the veh icle is not moving to pre­
vent loss of veh icle control.
-
-Adjust the driver's seat or steering wheel
so that there is a minimum of 10 inches
(25 cm) between your chest and the
steering wheel
¢ page 100, fig. 106. If
you cannot maintain this minimum dis ­
tance, the airbag system cannot protect
you properly.
- If physica l limitations prevent you from
sitting 10 inches (25 cm) or more from
On the road 77
the steering wheel, check with your au­
thorized Audi dealer to see if adaptive
equipment is available.
- If the steering wheel is aligned with your
face, the supplemental driver's airbag cannot provide as much protection in an
accident . Always make sure that the
steer ing wheel is aligned with your
chest.
- Always hold the steer ing wheel w ith your
hands at the 9 o'clock and 3 o'clock posi­
tions to reduce the risk of personal injury
if the driver's airbag deploys.
- Never hold the steering wheel at the 12
o'clock position or with your hands inside
the steering wheel rim or on the steering
wheel hub . Holding the steering wheel
the wrong way can cause serious injuries
to the hands, arms and head if the driv­
er's airbag deploys.
Ignition lock and ignition switch
Ignition lock
The ignition key starts or stops the engine.
Fig. 85 Igniti on lock posit ions
Ignition off©
In position ¢ fig. 85@ both the ignition and
engine are
off, and the steering is locked .
To
lock the steering after you have removed
the ignition key, turn the steer ing wheel in ei­
ther direction until you hear it lock into place.
You should always lock the steering whenever
you leave your vehicle. This makes vehicle
theft even more difficult
c::> .&. .

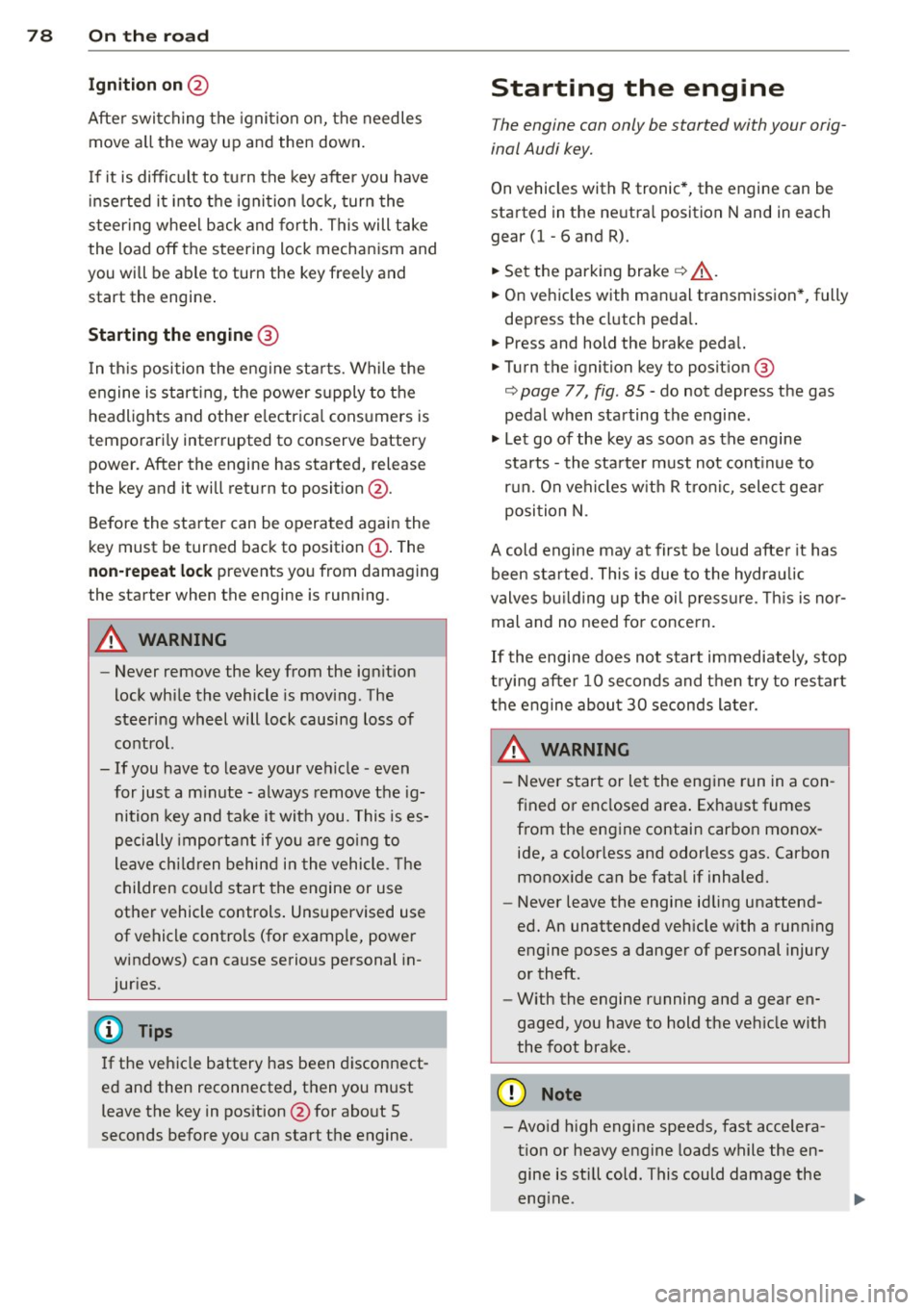

78 On the road
Ignition on @
Afte r switching the ignition on, the needles
move a ll the way up and then down .
I f it is difficult to tu rn the key afte r you have
i nserted it into the ignition lock, turn the
steering wheel back and forth. This will take
the load off the steering lock mechan ism and
you will be able to turn the key freely and start the engine .
Starting the engine @
In th is position the engine sta rts. While the
engine is start ing, the power s upply to the
headlights and other e lectr ica l cons umers is
tempo rari ly interrupted to conserve battery
power. After the engine has started, release
the key and it will return to posit ion @.
Before the starter can be operated again the
key must be turned back to position@. The
non-repeat lock prevents you from damaging
the starter when the engine is runn ing .
A WARNING
-Never remove the key from the ign ition
lock whi le the vehicle is moving. The
steeri ng wheel will lock causing loss of
contro l.
- If you have to leave your vehicle - even
for just a m inute - always remove t he ig­
nition key and ta ke it with you. This is es­
pecially important if you a re going to
leave ch ildren behind in the vehicle. The
children co uld star t t he engine or use
other vehicle controls . Unsupervised use
of vehicle controls (for examp le, power
windows) can cause serious personal in­
jur ies.
(D Tips
If the veh icle battery has been discon nect­
ed and then reconnected, then you must leave the key in pos ition @for abo ut 5
seconds before you can start t he engine.
-
Starting the engine
The engine can only be started with your orig ­
inal Audi key.
On vehicles with R tronic *, the engine can be
started in the ne utra l position N and in each
gear (1 - 6 and R).
.. Se t the park ing brake ¢,&. .
.. On ve hicles with ma nual transmission *, fully
depress the cl utch peda l.
.. Press and hold the brake peda l.
.. Turn the ignition key to posit ion @
¢ page 77, fig . 85 - do not depress the gas
pedal when starting the engine .
.. Let go of the key as soo n as the engine
starts - the sta rter must not cont inue to
r u n. On veh icles w it h R t ro nic , sele ct ge ar
posi tion N.
A cold engine may at first be loud afte r it has
been started. This is due to the hydrau lic
valves b uilding up the oil p ress ure. This is no r­
mal and no need fo r conce rn .
If th e engine does not start imm ediately, stop
t ry ing after 10 seconds and t hen t ry to res tart
t h e engine abou t 30 seconds later.
A WARNING
-
- Never star t or le t the eng ine run in a con ­
f ined o r enclosed area . Exha ust fumes
from the en gine contain carbon monox­
ide, a co lorless and odorless gas. Carbon
monox ide ca n be fatal if inhaled.
- Never leave the engine id ling unattend­
ed. An unattended veh icle w ith a run ning
e ngine poses a danger of personal injury
or theft.
- With the engine r unning and a gear en­
gaged, you have to hold the ve hicle w it h
the foot brak e.
(D Note
-Avo id h igh engine speeds, fast accelera­
tion or heavy engine loads while the en­
gine is still cold. This could damage the
eng ine.
