Interior lights
Interior lights
The interior lights include the reading lights
for the driver and the front passenger .
Fig. 55 Section from headliner : In terior lights
Activating door contact circu it
• Press the button @. The LED in the button
illuminates.
Deactivating do or contact circu it
• Press the button @. The LED in the button
goes out.
Fr ont re ad ing l ight s
~
• Press one of the switches ® to turn the
right or left reading light on/off .
"' l1l 0
With the door contact circuit, the interior
lights turn on as soon as you unlock the vehi­
cle or open the doors. The interior lights are
also turned on when the ignition key is re­
moved. The lights turn off about 30 seconds
after the doors are closed . When the vehicle is
locked or when the ignit ion is tu rned on, the
inte rior lights are turned off .
When a door is open, the interior lights are
turned off after about 10 m inutes to prevent
battery draining.
The brightness of the lights is controlled au­
tomatically by a dimmer when they are
switched on/off.
Clear vi sion 49
Instrument panel illumination
The illumination of the instruments, displays
and the center console can be adjusted .
Fig . 56 Instrumen t pa nel illuminat ion
You regu late the brightness of the instr u­
ments with the left thumbwheel
C1 ~ fig . 56 .
Ignition ON, light switch at @
With the ign ition switched ON, the glow of
in­
strument needles
can be adjusted to appea r
brighter o r dimmer.
Ignition ON, light switch at
:oo~ or ~D.
With the lights switched on, the brightness of
instrument cluster (i.e. needles, gauges and
displays) and center conso le illuminat ion can
be adjusted .
(D Note
The instrument cluster and center conso le
ill umination (gauges and need les) comes
on when you sw itch on the ignition and the
v eh icle headlight s are off . Be awa re of the
fo llow ing difference be tween models bu ilt
to US or Canadian specifications:
- USA mo dels: illumination o f the i nstr u­
ment cl uster (gauges and need les), dash
and center conso le around the gearshift
lever is controlled by a light sensor locat­
ed in the instrument pane l. The instru­
ment pa nel illuminat ion w ill automati­
cally become dimmer as the daylight
fades away and eventually will go out completely when outs ide light is very
low. This is to remind you, the dr iver, to
switch o n the hea dlights before it ge ts
too d ark .

50 Clear vis ion
- Canada mode ls: instrument panel illumi ­
nation will stay bright regard less of the
i ntensity of amb ient light. Always be
aware of changes in outside light condi­
tions whi le you are driv ing. Respond in
time to fading daylight by turning the light sw itch to position @,0 (or "AUTO " if
you r ca r is equ ipped with this feature) to
tu rn on your headl igh ts.
Luggage compartment light
The ligh t is loc ated on t he righ t side of the
l uggage compartmen t.
These lights come on automat ica lly when the
front lid is ope ned . T he lights tu rn off au to­
mat ica lly if the lid is left open for more t hen
10 minutes .

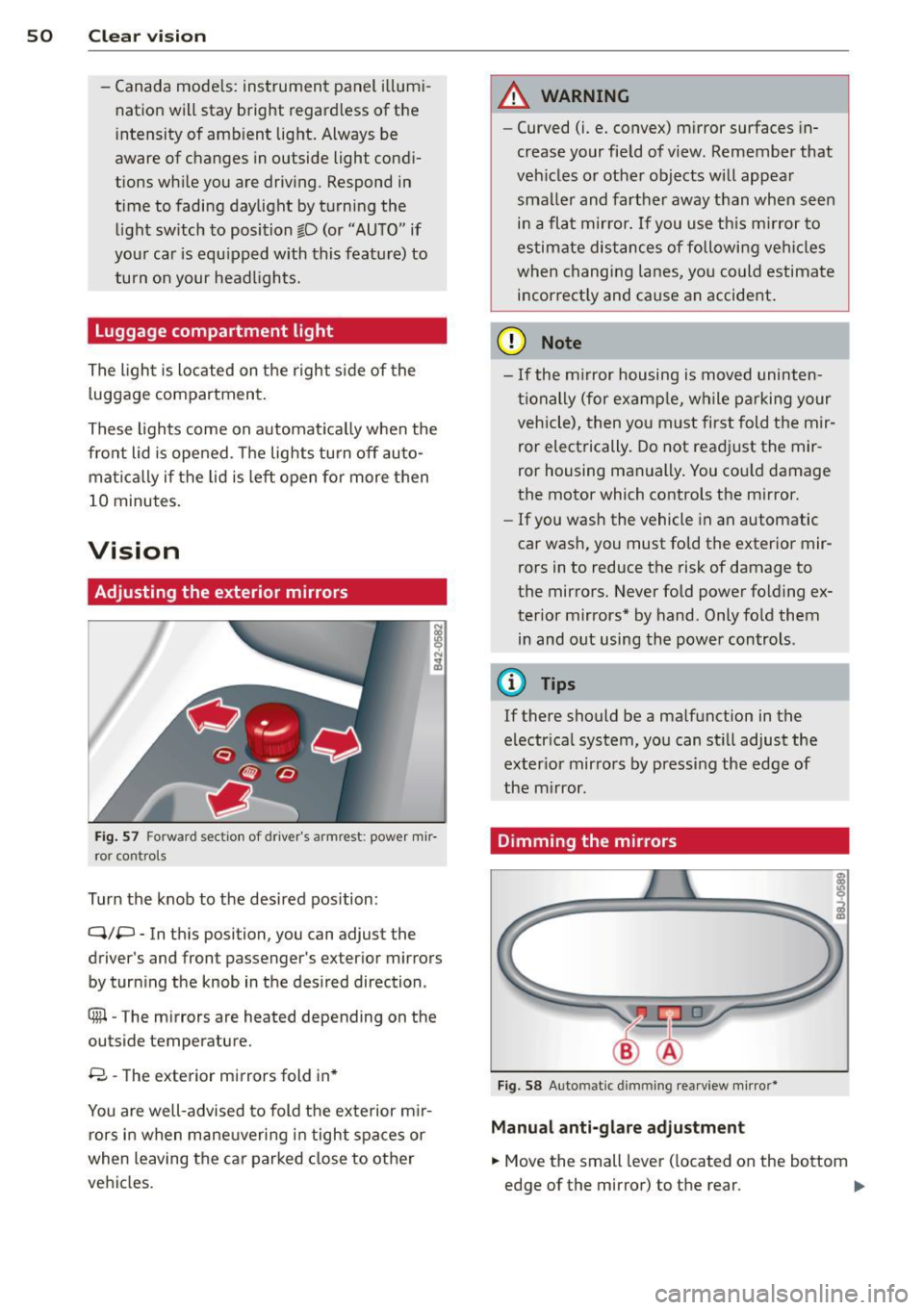

Vision
Adjusting the exterior mirrors
Fig. 57 Forwa rd se cti on of drive r' s armr est: pow er mir ­
r o r co ntrols
Turn the knob to the desired position :
Q/P - In this position, you can adjust the
driver's and fron t passenger's exter ior mirrors
by turn ing t he knob in the des ired direction .
outs ide temperature.
8 - The exterior mirrors fold in *
You are well-advised to fold the ex te rior m ir­
rors in when mane uvering in tight spaces or
when leaving the car parked close to other
vehi cles .
A WARNING
--Curved (i.e . convex) m irror surfaces in-
crease your field of view. Remember that
veh icles or other objects will appea r
sma ller and farther away than when seen
i n a flat mirror.
If you use th is m irror to
estimate dis tances of followi ng ve hicl es
when changing lanes, yo u co uld estimate
i n correct ly and cause an accident .
(D Note
-If the m irror housing is moved uninten­
ti onally (for examp le , while p arking your
vehicle), then yo u m ust first fold t he mir­
ror electrically. Do not readjust the mir ­
ror housing manually . You cou ld damage
the motor which controls the mirror .
- If you wash the vehicle in an automatic
car wash, you must fo ld the exter ior mir­
rors in to reduce the risk of damage to
the mirro rs . Never fold powe r folding ex­
terior mirrors* by hand . Only fold them
in and o ut using the power controls .
@ Tips
If there should be a malf u nction in t he
electr ica l system, you can st ill adjust the
ex ter io r mirrors by pressing the edge of
the m irror.
Dimming the mirrors
Fig . 58 Auto matic dimmin g rearv iew m irro r*
Manu al anti-glare adju stment
.,. Move the small lever ( located on the bottom
edge of the mirror) to the rear .
Ill>

Automatically dimming mirr ors*
• To d im the rearv iew mirror and both exterior
mirrors, press the @ button. The diode @
turns on. The rearview and exterior mirrors dim automat ically when light shines on
them, for example from headlights on ave­ hicle to the rear.
A WARNING
E lectrolyte flu id can leak from automatic
dimming m irrors if the glass is broken.
Electrolyte flu id can irritate skin, eyes and
respiratory system.
- Repeated or prolonged exposure to elec­
tro lyte can cause irritation to the respira­
tory system, espec ially among people
with asthma or other respiratory condi­
tions . Get fresh air immediately by leav­
ing the vehicle or, if that is not possible,
open windows and doors a ll the way.
- If electrolyte gets into the eyes, flush
them thoro ughly with large amounts of
clean water for at least 15 m inutes;
medica l attention is recommended.
- If electrolyte contacts sk in, flush affect­
ed area with clean water for at least 15
minutes and then wash affected area
with soap and water; medical attention is recommended . Thoroughly wash af­
fected clothing and shoes before reuse .
- If swallowed and person is conscious, rinse mouth w ith water for at least 15
minutes . Do not induce vom iting un less
instructed to do so by medical professio­
nal. Get medical attention immediately.
(D Note
Liquid elect rolyte leaking from broken mir­
ror glass will damage any p lastic surfaces
it comes i n contact w ith. Clean up spilled
elec trolyte immediately with clean water
and a sponge.
(D Tips
- Switch ing off the dimming func tion of
the i nside rear view m irror also deact i-
Clear vi sion 51
vates the automatic dimming function of
the exterior mirrors .
- T he automatic dimming mirrors do not
dim when the interior lighting is turned
on or the reverse gear is selected .
- Automatic d imm ing fo r the mirror on ly
operates properly if the light striking the
inside mirror is not hindered in any way.
, Sun visors
,.--~ --~-- -------.
Fig . 59 S un vi so r
The vanity mirrors in the sun visors are equip­
ped with covers .
Wiper and washer
system
Windshield wiper
The windshield wiper lever controls both the
windshield wipers and the washer system.
Fig . 60 W iper le ver: win ds hiel d wiper le ver positio ns
The windshield wiper lever I:!) fig. 60 has th e
fo llowing positions:
Int ermittent wiping ~1 (acti vating r ain
s e n sor )*
• Move the lever up to position (!).

52 Clear vis ion
• Move the interva l set switch @, to change
the interva ls.
Low wiper sp eed
• Move the leve r up to position @.
High wiper speed
• Move the lever up to position @.
One-touch wiping
• Move the lever to position@, when you
want to wipe the windshield briefly.
Automatic wiper /washer
• Pull the lever to position ® (toward the
steering wheel) and ho ld.
• Re lease the lever. The washer stops and the
wipers keep going for about four seconds .
Turning off the wipers
• Move the leve r back to position @.
The windshield wipers and washer only work when the ignition is turned on. If you switch
off the ignit ion w ith the windshield wiper lev­
e r still in the interval wipe position and then
come back a while later and drive off, the rain
sensor will reactivate itse lf after the vehicle
speed has exceeded 4 mph (6 km/h).
The rain sensor* is only activated with the
wiper leve r set to posit ion
(D . When it starts
to rain, the rain sensor will automatically acti­
vate the intermittent wiping mode.
To reduce the sens it iv ity of the se nsor, move
switch @down. To increase the sens itiv ity,
move the switch up. The highe r you adjust the
sens itivity, the faster the sensor wi ll react
when it se nses moisture on the windshield.
The pauses between w iper turns depend not
only on the sensitivity setting, but on the ve­
h icle speed as well.
During brief stops, e .g. at a red light, wiper
motion wi ll automatica lly be reduced to the
next lower speed. Wipers already turning at
low speed change to interm ittent wip ing .
When the ignition is turned on, t he washer
jets are heated.
A WARNING
- W iper blades are crucial for safe driving!
O nly when they are i n good condit io n are
they able to clear the windows properly
to p rov ide uncomprom ising v is ibility.
Wo rn o r damaged wipe r blades are a
safety haz ard
~ page 54, Replacing
windshield wiper blades!
- The light/ rain sensor* is only des igned to
assis t and support the d river. It remains
entire ly the driver's responsibility to
monitor outside weather condit ions and
to manually activate the wipers as soon as rain or dr izzle reduces v is ibility
through the windshield.
- The windsh ield must not be treated w ith
water-repellent materials. They can in­
crease glare under poor v is ibility condi­
tions such as wetness, darkness, or when
the sun is low on the hor izon. In addi­
tion, they can cause the w indshield w ip­
ers to chatter.
(D Note
In freezing o r near freezing conditions:
- Always check that the w iper blades are
not frozen to the g lass before you turn
the wipers on. Loosen a wiper blade
w hich is frozen in place before operating
the wipe rs to prevent damage to the
w iper blade or the wiper motor.
- Do not use the w ipers to clear a frosted
w indow. Using the wipers as a conve n­
ient ice scr ape r will dest roy the wipe r
blades.
- Before yo u take your ve hicle to a n auto­
ma tic ca r w ash, ma ke s ure you have the
w indshield wiper system switched off
(lever in position 0), otherwise the wind­
shield wiper system could get damaged
in the car wash i f it should suddenly
come on.
(D Tips
- The windshie ld wipers are switched off
when the ignit ion is turned off. Act ivate
the winds hield wipers after the ignition

is switched back on by moving the wind­
shield wiper lever to any position.
- Worn or dirty windshield wiper blades
cause smearing, which can affect the op­
eration of the light/rain sensor*. Check
the condition of your windshield wiper
blades regularly.
- The rain sensor is part of the interval
wiping system. Turning off the ignition
will also deactivate the rain sensor. To re­
activate the sensor, switch off the inter­
val wiping function, then switch it back
on again.
- Applies to vehicles with light/rain sen­
sor: When the wipers are switched on
manually and in rain conditions, the au­
tomatic headlights* turn on
c;> page 46,
Lights or off during the day when the
wipers are no longer operating. The au­
tomatic headlights* function is available
in this case only when the light switch is
in the "AUTO" position
c;> page 46,
fig. 52.
-Make sure the washer fluid reservoir in
the engine compartment is topped off
before going on a long trip. Look up
c;> page 188 for checking and filling the
washer container.
- The wipers only operate with the hood
completely closed.
Service position
It is only possible to change wiper blades if
you move the wiper arms to the service posi ­
tion.
In order to use the windshield wipers, the
front lid must be completely closed.
Moving wiper blades to the service
position
.,. When there is a risk of frost, make sure that
the wiper blades are not frozen to the wind­
shield .
.,. Switch the ignition on .
.,. Move the wiper lever to position
0
c;>page 51, fig. 60 .
Clear vision 53
.,. Press the I RESET ! button until the Display
type
menu appears in the Driver Informa­
tion System display.
.,. Using the rocker switch and the
I RESET ! but­
ton, select the
Set > Wipers > Front> Serv­
ice position on
function. The windshield
wiper arms move to the service position.
Moving wiper blades to park position
.,. Make certain that the wiper arms are lying
against the windshield.
.,. Switch the ignition on and move the wiper
lever from position
O to 4 c;> page 51,
fig . 60. The wiper arms will move back to
the park position.
(D Note
Never drive your vehicle when the wind­
shield wiper arms are in the service posi­
tion and pulled away from the windshield.
When you drive faster than 4 mph (6 km/
h), the wiper arms automatically return to
the park position and could cause paint
damage to the front lid!
(D Tips
-You can also turn on the service position,
for example, if you want to protect the
windshield from icing by using a cover.
- The service position moves to
off auto­
matically when you operate the wind­
shield wiper lever, or speed exceeds
4 mph (6 km/h).
Cleaning windshield wiper blades
Clean the windshield wiper blades when they
begin to leave streaks .
.,. Place the windshield wiper arms in the serv­
ice position. Refer to
c;> page 53.
.,. Use a soft cloth and glass cleaner to clean
the windshield wiper blades.
A WARNING
Dirty windshield wiper blades can impair
your view. This can lead to accidents.

54 Clear vis ion
Replacing windshield wiper blades
Wiper blades in good condition help keep the
windshield clear .
Fig. 61 Unl atc hing wiper b lades
Fi g. 62 Remov ing wiper blades
Removing the wip er blade
.. Move the wipers to the service position
¢ page 53.
.. Fold the w indshield w iper arm away from
the g lass .
.. On the upper end of the wiper arm at the
corrugation, squeeze the plastic retainer to­
gether on both sides in the direction of the
arrow ¢
fig. 61.
.. Rotate the wiper blade in the direction of
the arrow @¢
fig. 62 away from the wiper
arm .
.. Lift the w iper blade off in the direction of
the a rrow @.
Inst alling the wiper bl ade
.. Place the rounded end of the wiper onto the
end of the wiper arm in the
opposit e direc­
t ion to the arrow @¢
fig. 62 .
.. Squeeze the corrugation on the w iper until
yo u hear it clic k in the wipe r arm .
.. Fold the w iper arm back onto the wind­
shield. ..
Switch the ignition on and move the wipe r
lever down briefly¢
page 51, fig . 60 . The
w iper w ill move back to the park position.
_& WARNING
--
For your safety, you shou ld rep lace the
wiper b lades once or twice a year. See your
authorized Audi dealer for replacement
blades.
(D Note
- The wiper blades may only be changed
¢ page 53 in the service posit ion! Othe r­
w ise, you risk damag ing the pa int on the
front lid or the windshield wipe r motor.
- To help prevent damage to the w iper sys­
tem, always loosen blades wh ich are fro­
zen to the windshi eld before operating
w ipers.
- To help p revent damage to wiper blades,
do not use gaso line, kerosene, paint
t hinne r, or o ther solven ts on o r near the
w iper blades.
- T o help prevent damage to the w iper
arms or other components, do not at­
t empt to move the wipers by hand .
(D Tips
- Commercial hot waxes applied by a uto­
matic car washes affec t the cleanabili ty
o f the g lass s urface .
- T he front w iper blades are different
lengths; t he b lade on t he drive r's side is
longer .

Digital compass
Activating or deactivating the compass
Applies to vehicles: with d ig ital compass
The direction is displayed on the interior rear­
view mirror.
Fi g. 63 Ins ide rearv iew m irror: dig ita l c ompass act iva t­
ed
.,.. To activate or deact ivate, hold the ® button
down until the red disp lay appears or disap­
pears .
T he digital compass only works with the igni­
tion turned on . The directions are displayed as
in itials:
N (North), NE (Northeast), E (East),
S E (Southeast), S (South), SW (Southwest),
W (West), NW (Northwest).
(D Tips
To avo id inaccurate directions, do not al­
low any remote controls, electrical sys ­
tems, or metal parts close to the mirror.
Clear vi sion 55
Setting the magnetic deflection zone
App lies to vehicles: wit h digital compass
The correct magnetic deflection zone must be
set in order to display the directions correctly.
F ig. 64 Magnet ic deflect ion zo ne bo un daries
.,.. Hold the ® button ¢ page 55, fig . 63 down
until the number of the set magnetic deflec­
tion zone appears on the interior rear view
m irror .
.,.. Adjust the magnetic deflect ion zone by re­
peated ly pressing on the@ button . The set
mode automatically deactivates after a few
seconds .
Calibrating the compass
Applies to vehicles: wit h digi tal co mpass
The compass has to be recalibrated if the dis­
play is wrong or inaccurate .
.,.. Hold the@ but ton down unt il the letter C is
disp layed on the interior rearview mirro r .
.,.. Dr ive in a circle at a speed of about S mph
(10 km/h) u ntil a d irectio n is shown on the
interior rearview mirror.
A WARNING
The digital compass is to be used as a di­ rectional aid only. Even though you may

56 Clear vision
want to look at it w hile you are driv ing, you
m ust still pay attenti on to t raffic, r oad and
weat her conditions as well as other possi­
ble hazards .

Seats and storage
General recommen­
dations
Why is your seat adjustment so important?
The safety belts and the airbag system can
only provide maximum protection if the front
seats are correctly adjusted.
There are various ways of adjusting the front
seats to provide safe and comfortable support
for the driver and the front passenger. Adjust
your seat properly so that :
- you can easily and quick ly reach all the
switches and controls in the instrument
panel
- your body is properly supported thus reduc­ ing physical stress and fatigue
- the safety belts and airbag system can offe r
maximum protection
¢ page 111.
In the following sections, you will see exactly
how you can best adjust your seats .
There are special regulations and instructions
for installing a child safety seat on the front passenger's seat. Always heed the informa­
tion regard ing child safety provided in
¢ page 132, Child Safety.
A WARNING
Incorrect seating position of the driver and
all other passengers can result in serious
personal injury.
- Always keep your feet on the f loor when
the vehicle is in motion -never p ut your
feet on top of the instrument panel, out
of the w indow or on top of the seat cush­
ion! This applies espec ially to the passen­
gers . If your seating position is incorrect
you increase the r isk of injury in the case
of sudden braking or an acc ident. If the
airbag inflates and the seating position
is incorrect this could result in personal
injury or even death.
- It is important for bo th the driver and
front passenger to keep a distance of a t
Seat s an d sto rage 57
least 10 inches (25 cm) between them­
selves and the steering wheel and/or in­
strument panel. If you're s itting any
closer than th is, the airbag system can­
not protect you properly. In addition to
this, the front seats and head restra ints
must be adjusted to yo ur body height so
that they can give you max imum prote c­
tion.
- Always try to keep as much distance as
possible be tween yourself and the s teer­
ing wheel o r instrument pane l.
- Do not adjust the driver's or front pas­
senger's seat whi le the vehicle is moving.
Your seat may move unexpected ly, caus ­
ing sudden loss of vehicle control and
personal injury . If you ad just yo ur seat
while the veh icle is moving, you are out
of posit ion.
Driver's seat
The correct seat position is important for safe
and relaxed driving.
We recommend that you adjust the driver's
seat in the fo llowing manner:
.,. Adj ust the seat in fore and aft direction so
t ha t you can easily push the peda ls to the
floor whi le keeping your knee sligh tly bent
c::> A in Why is your seat adjustment so im­
portant? on page
57 .
.,. Adjust the seatback so that when you sit
w ith your back against the seatback, you can
still grasp the top of the steering wheel.
.,. Pos it ion the head restrai nt accord ing to the
occupant 's height
c::> page 59. For maxi­
mum protection, the top of the head re­
straint shou ld be at least at eye level, pref­
erably higher and idea lly level with the top
of the head
¢ page 96, fig. 103 .
A WARNING
Never place any objects in the dr iver's foot­
well. An object could get into the pedal
area and interfere with pedal funct ion. In
case of sudden braking or an acc ident, you
would not be able to brake or accelerate!

58 Seats and storage
Front passenger's seat
Always move the front passenger seat into
the rearmost position .
To avoid contact with the airbag while it is de­
ploying, do not sit any closer to the instru­
ment panel than necessary and always wear
the three-point safety belt provided adjusted
correctly . We recommend that you adjust the
passenger's seat in the following manner:
• Bring the backrest up to an (almost) upright
pos it ion.
Do not ride with the seat reclined .
• The idea l position fo r the head restraint is
with the upper edge of the restraint leve l
with the top of your head ¢
page 59. You
shou ld
not lower the top of the restraint be­
low the level of your eyes .
• Place your feet on the floor in front of the
passenger's seat .
Power seats
Adjustment switches
The operating logic for the switches corre­
sponds to the construction and function of
the seat.
Fig. 65 Adjust men t swi tc h es : locat io ns on dr iver seat
The operating logic for the switches corre­
sponds to the construction, the design and
the function of the seat. Push or pull either
switch in exactly the same d irect ion you want
the corresponding part of the seat to move.
Adjustment switches
CD Adjusting the lumbar support
@ Adjusting seat height and fore-and-aft po­
sition @
Adjusting the angle of the seatback
Power seat adjustment
The switches can be moved in various direc­
tions to allow precis e adjustment .
Read and heed all warnings before you adjust
your seat.
¢ &_ .
Adjusting the curvature of the lumbar
support
• Push the forward or rear depression on the
switch shell
CD C? page 58, fig. 65 to in­
crease or decrease the back rest curvature.
Adjusting the height of the lumbar
support
• Push the top or bottom depression on the
sw itch shell
CD to raise or lower the support
in the backrest.
Moving the front seats forward or
backward
• Press the switch@ forward or backward
horizontally .
Adjusting the seat height
• Pull or p ush the switch @evenly at both
ends to raise or lower the seat.
Angling the seat cushion up and down
(front)
• Pull or push the switch @at the front only
to raise or lowe r the seat.
Angling the seat cushion up and down
(rear)
• Pull or push the switch @at the rear only to
raise or lower the seat.
Adjusting the seatback
• Push or pull the switch @ in the same direc­
tion you want the seatback to tilt.
A WARNING "---
- Never adjust the driver's or front passen-
ger seat while the vehicle is moving . If
you do this while the vehicle is moving,
~
