-If you must install a rearward facing
child safety seat on the front passenger
seat in exceptional circumstances and
the
PASSENGER AIR BAG OFF light does
not come on and stay on, immediately
install the rearward-facing child safety
seat in a rear seating position and have
the airbag system inspected immediately by your authorized Audi dealer.
,& WARNING
If, in exceptional circumstances, you must
install a forward-facing child restraint on
the front passenger's seat:
- Always make sure the forward-facing
seat has been designed and certified by
its manufacturer for use on a front seat
with a passenger front and side airbag.
- Always follow the manufacturer's in­
structions provided with the child safety
seat or carrier.
- Always move the passenger seat into its
rearmost position in the seat's fore and
aft adjustment range, as far away from
the airbag as possible before installing
the child restraint. The backrest must be adjusted to an upright position .
- Always make sure that the
PASSENGER
AIR BAG OFF
light comes on and stays
on all the time whenever the ignition is
switched on.
@ Tips
Always replace child restraints that were
installed in a vehicle during a crash. Dam­
age to a child restraint that is not visible
could cause it to fail in another collision
situation.
Advanced front airbag system and children
Your vehicle is equipped with a front "Ad­
vanced Airbag System" in compliance with
United States Federal Motor Vehicle Safety
Standard (FMVSS) 208 as applicable at the
time your vehicle was manufactured .
Child Safety 159
The Advanced Airbag system in your vehicle
has been certified to meet the "low-risk" re­
quirements for 3- and 6-year old children on
the passenger side and small adults on the driver side. The low risk deployment criteria
are intended to reduce the risk of injury
through interaction with the airbag that can
occur, for example, by being too close to the
steering wheel and instrument panel when
the airbag inflates. In addition, the system
has been certified to comply with the "sup­
pression" requirements of the Safety Stand­
ard, to turn off the front airbag for infants up
to 12 months who are restrained on the front passenger seat in child restraints that are list­
ed in the Standard.
Even though your vehicle is equipped with an
Advanced Airbag system, all children, espe­
cially those 12 years and younger, should al­
ways ride in the back seat properly restrained
for their age and size . The airbag on the pas ­
senger side makes the front seat a potentially
dangerous place for a child to ride . The front
seat is not the safest place for a child in a for­
ward-facing child safety seat. It can be a very
dangerous place for an infant or a larger child
in a rearward-facing seat.
Advanced Airbags and the weight­
sensing mat in the front seat
The Advanced Airbag System in your vehicle
detects the presence of an infant or child in a
child restraint on the front passenger seat us­
ing the weight-sensing mat in the seat cush­
ion and the sensor below the safety belt latch
on the front passenger seat that measures the
tension on the safety belt.
The weight-sensing mat measures total
weight of the child and the child safety seat
and a child blanket on the front passenger
seat. The weight on the front passenger seat
is related to the design of the child restraint
and its "footprint", the size and shape of the
bottom of the child restraint as it sits on the
seat. The weight of a child restraint and its "footprint" vary for different kinds of child re -
straints and for the different models of the ..,. •
•

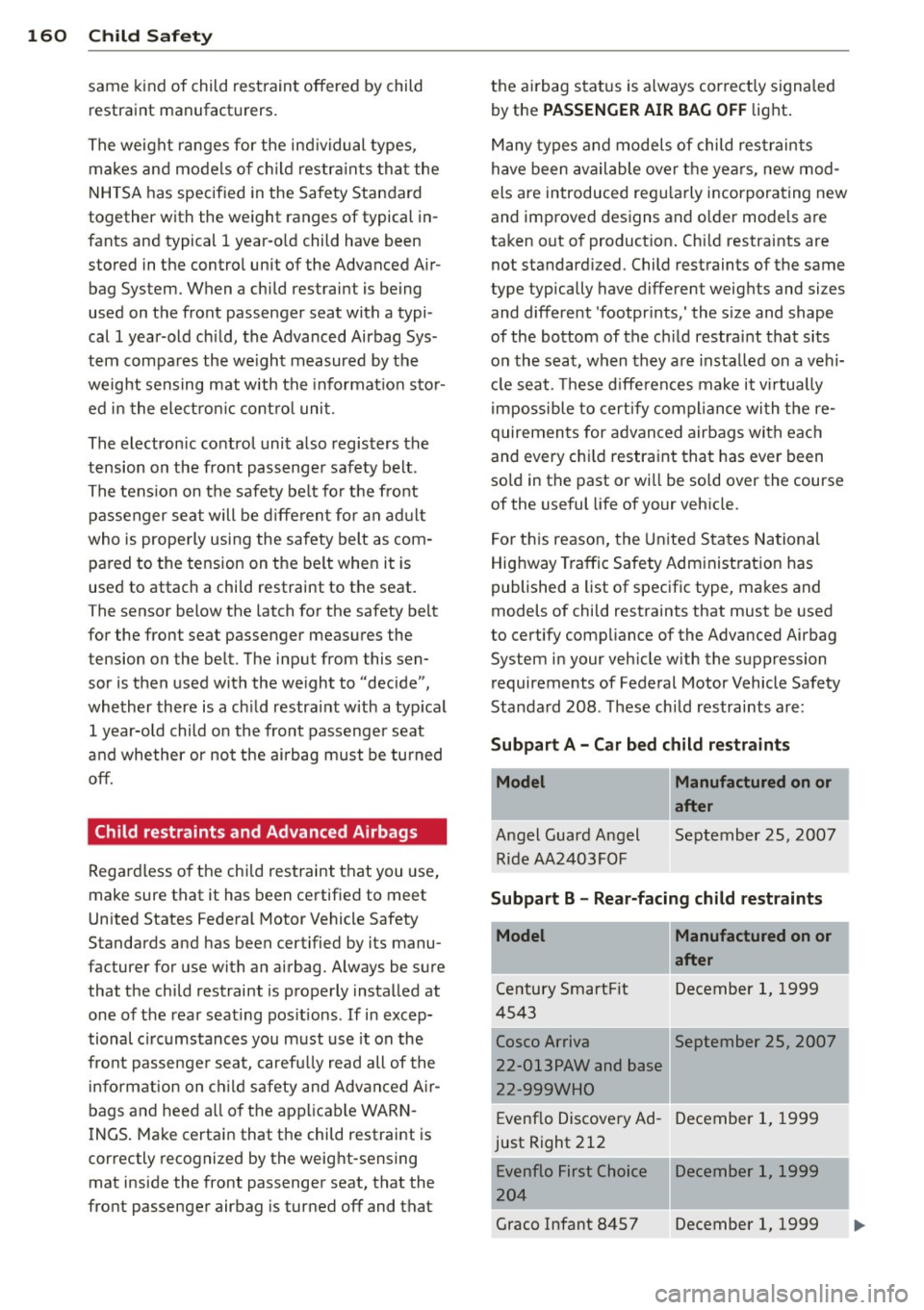

160 Child Saf ety
same kind of child rest raint offered by child
restraint manufact urers.
The weight ranges fo r the ind ividual types,
makes and mode ls o f chi ld restra ints that the
NHTSA has specified in the Safety Standard
together with the weight ranges of typical in­
fants and typical 1 year-o ld child have been
stored in the control unit of the Advanced A ir­
bag System. When a child restraint is being
used on the front passenger seat with a typi­
cal 1 year-old ch ild, the Advanced Airbag Sys­
tem compa res the we ight measured by the
weight sensing mat with the informat io n sto r­
ed i n the ele ct ron ic cont ro l uni t.
The electron ic control unit also registers the
tension on the front passenge r safety belt .
The tens io n on the safety be lt fo r the front
passenger seat will be d iffe ren t for an ad ult
who is prope rly using the safety belt as com­
pared to the tension on the be lt whe n it is
used to attach a chi ld restraint to the seat.
The sensor below the latch for the safety be lt
for the front seat passenger meas ures the
tension on the be lt. The input from this sen­
sor is then used with the we ight to "decide",
whether there is a ch ild restraint w ith a typ ical
1 year-o ld child o n the front passenger seat
and whe ther or not the ai rbag must be tu rned
off.
Child restraints and Advanced Airbags
Regardless o f the child restraint t hat you use,
make sure that it has been ce rtified to meet
United States Federal Motor Vehicle Safety
Standards and has been certified by its manu­
facturer for use with a n airbag. Always be sure
that the child restraint is properly instal led at
one of the rear seat ing pos itions .
If in excep­
tional c ircumstances you must use it on the
fro nt passenger sea t, caref ully read all of the
i n format ion on c hild safety and Advanced A ir­
bags and heed a ll of the app licab le WAR N­
I NGS . Ma ke certain that the child restraint is
correctly recognized by the weig ht-sensing
mat inside the front passenger seat, that the
fro nt passenger airbag is turned off and that the a
irbag sta tus is always cor rect ly signa led
by the
PASSENGER AIR BAG OFF light .
Many types and models of child res traints
h ave been available over the yea rs, new mod­
els are introduced regu larly incorporating new
and improved designs and o lde r mode ls are
ta ken out o f product ion . Ch ild restra ints are
not standard ized . Child restraints of the same
type typically have different weights and sizes
and different 'footpr ints,' the size and shape
of the bottom of the ch ild restra int that sits
on the seat, when they are insta lled on a vehi­
cl e seat. These d iffe rences make it v irtually
i mpossible to certify compl ian ce wi th t he re­
quiremen ts for advanced airbags with eac h
and every chi ld restraint that has eve r been
sold in the past or wi ll be sold over the course
of the useful life of your veh icle.
F or t his reason, the United S tates National
Highway T raffic Safety Adm inist ration has
published a list of specific type, ma kes and
models of child restraints that must be used
to certify comp liance of the Advanced Airbag
System i n your veh icle with the suppression
requirements of Federal Motor Vehicle Safety
Standa rd 208. These ch ild restraints a re:
Subpart A -Car bed child re straints
Model
A ngel Guard Angel
Ride AA2403FOF
Manufactured on or
after
September 25, 2007
Subpart B -Rear-facing child restraints
Model Manufactured on or
after
Ce ntury 5martFit December 1, 19 99
4 543
Cosco Arriva September 25, 2007
I
22-013PAW and base
22-999WHO
I
Evenflo Discove ry Ad- December 1, 1999
just Right 212
Evenflo First Choice December 1, 1999
20 4
Graco Infant 8457 December 1, 1999

-Model Manufactured on or
after
Graco Snugride September 25, 2007
Peg Perego Primo V i- September 25, 200 7
aggio SIP IMUN00US
Subpart C -Forward-facing and
con vertible child r estra ints
Model Manufactured on or
after
Britax Roundabout September 25, 2007
E9L02xx
Cosco Touriva 02519 December 1, 1999
Cosco Summit Deluxe September 25, 2007
High Back Booster
22-262
Cosco High Back September 25, 2007
Booster 22-209
Evenflo Tribute V September 25, 2007
379xxxx
Evenflo Medallion December 1, 1999
254
Evenflo Generations September 25, 200 7
352xxxx
Graco ComfortSport September 25, 2007
Graco Toddler Safety September 25, 2007
Seat Step 2
Graco Platinum Cargo September 25, 2007
A WARNING
T o reduce the risk of serious injury, make
sure that the
PASSENGER AIR BAG O FF
light comes on and stays on whenever a
child restraint is installed on the front pas­
senger seat and the ignition is switched
on.
- Take the child restraint off the fro nt pas­
senger seat and install it properly at one of the rea r seat positions if the
PASSEN­
GER AIR BAG OFF
light does not stay on.
- Have the airbag system inspected by
your authorized Aud i dealer immediate­
ly.
Child Sa fet y 161
'
(D Tips
The child seats listed in categories A to C
have been statically tested by A udi on ly for
the Advanced A irbag function.
Important safety instructions for using
child safety seats
Correct use of child safety seats substantially
reduces the risk of injury in an accident!
As the dr iver, you are responsib le for the safe­
ty of everybody in the vehicle, especially ch il­
dren:
... Always use the right ch ild safety seat for
each child and always use it properly
¢page 164 .
... Always carefully follow the child safety seat
manufacturer's instruct ions on how to route
the safety belt properly through the child
safety seat.
... When using the veh icle safe ty belt to install
a child safety se at, you m ust first activate
the convertib le locking retractor on the
safety belt to prevent the child safety seat
from moving
¢ page 168.
... Push the ch ild safety seat down with yo ur
full weight to get the safety be lt really tight
so that the seat cannot move forwa rd or
sideways mo re than one inch (2 .5 cm) .
... If a strap or tethe r is be ing used to tie the
child safety seat to the front passenger
s eat , make sure tha t it is not so tight that it
causes the weight-sensing mat to measure
more weight than is act ually on the seat.
... Sec ure unused safety be lts on the rear seat
¢ page 163.
Always remember : Even tho ugh yo ur vehicle is
equipped with an Advanced Airbag system, all c h il dren, especially those 12 years and young­
er, shou ld always r ide in the back seat proper -
ly restra ined for the ir age and size. .,_ •
•

162 Child Safety
&_ WARNING
Not using a child safety seat, using the
wrong child safety seat or improperly in­
stalling a child restraint increases the risk
of serious personal injury and death .
-All vehicle occupants and especially chil ­
dren must always be restrained properly
whenever riding in a vehicle.
-
- An unrestrained or improperly restrain­
ed child can be injured or killed by be­
ing thrown against the inside of the ve­
hicle or by being ejected from it during
a sudden maneuver or impact .
- An unrestrained or improperly restrain­
ed child is at much greater risk of injury
or death by being struck by an inflating
airbag.
- Commercially available child safety seats
are required to comply with U.S. Federal
Motor Vehicle Safety Standard (FMVSS)
213 (in Canada CMVSS 213).
- When buying a child restraint, select
one that fits your child and the vehicle.
- Only use child restraint systems that
fully contact the flat portion of the
seat cushion. The child restraint must not tip or lean to either side. Audi does
not recommend using child safety
seats that rest on legs or tube -like
frames . They do not provide adequate
contact with the seat.
-Always heed all legal requirements per­
taining to the installation and use of
child safety seats and carefully follow
the instructions provided by the manu­
facturer of the seat you are using.
- Never allow children under 57 inches
(1.45 meters) to wear a normal safety
belt. They must always be restrained by a
proper child restraint system. Otherwise,
they could sustain injuries to the abdo­
men and neck areas during sudden brak­
ing maneuvers or accidents.
- Never let more than one child occupy a
child safety seat . -
Never let babies or older children ride in
a vehicle while sitting on the lap of an­
other passenger .
- Holding a child in your arms is never a
substitute for a child restraint system.
- The strongest person could not hold
the child with the forces that exist in
an accident. The child will strike the in­
terior of the vehicle and can also be
struck by the passenger.
- The child and the passenger can also
injure each other in an accident.
- Never install rearward-facing child safety
seats or infant carriers on the front pas­
senger seat. A child will be seriously in­
jured and can be killed when the passen­
ger airbag inflates -even with an Ad­
vanced Airbag System .
- The inflating airbag will hit the child
safety seat or infant carrier with great
force and will smash the child safety
seat and child against the backrest,
center arm rest, door or roof.
= Always install rearward-facing child
safety seats or infant carriers on the
rear seat.
- Forward-facing child safety seats instal­
led on the front passenger's seat can in­
terfere with the airbag when it inflates and cause serious injury to the child. Al­
ways install forward-facing child safety seats on the rear seat .
- If exceptional circumstances require the
use of a forward-facing child restraint on
the front passenger's seat, the child's
safety and well-being require that the
following special precautions be taken:
- Make sure the forward-facing seat has
been designed and certified by its man­
ufacturer for use on a front seat with a
passenger front and side airbag.
- Always carefully follow the manufac­
turer's instructions provided with the
child safety seat or carrier.
- Always move the front passenger seat
into the rearmost position of the pas-
senger seat's fore and aft adjustment
~

range, and as far away from the a irbag
as poss ible before instal ling the child
restraint.
- Always make sure that nothing pre­
vents the front passenger's seat from
be ing moved to the rearmost position
i n its fore and aft adjustment range.
- Always make sure that the backrest is
in the upr ight position.
- Always buckle the child safety seat firmly
in place even i f a child is not sitting in it.
A loose ch ild safety seat can fly around
dur ing a sudden stop or in a coll is ion .
- Always read and heed all WARNINGS
whenever using a child restrained in ave­
hicle is being used
c:::;,page 129, Safety
belts,
c:::;, page 137, Airbag system and
¢ page 158, Child Safety.
.8, WARNING
To reduce the risk of serious injury, make
sure tha t t he
PASSENGER AIR BAG OFF
light comes on and stays on whenever a
child rest raint is installed on the front pas­
senger seat and the ignition is switched
on.
- Take the child restraint off the front pas­
senger seat and install it proper ly at one
of the rear seat positions if the
PASSEN­
GER AIR BAG OFF
light does not stay on.
- Have the airbag system inspected by
your authorized Aud i dealer immediate­
ly.
Secure unused safety belts on the rear
seat
F ig. 160 Schematic overview: kee p un used safety be lts
away from chil dren in child safe ty seats. @-oute r rear
safety be lt
.
Child S afety 163
If a child safety seat is used on the rea r bench,
especially with LATCH universal lower ancho­
rages, the unused safety belts
must be se­
cured so that the child in the child restraint
cannot reach them
c:::;, &,.
-Guide the safety belt webbing @behind the
head restra int of the seat where the child re ­
straint is installed¢
fig. 160. When doing
so, do not engage the switchable locking re­
tractor ! You should not hear a "clicking"
sound when wind ing up the safety belt.
- Let the belt retractor wind up the safety belt
webbing.
.8, WARNING
A child in a chi ld safety seat installed with
the LA TCH lower a nc ho rages or with the
stan dard safety be lt or a child in a boos ter
se at o n the rea r seat co uld play with un­
used rea r seat safety belts and become en ­
tang led . This cou ld cause t he chi ld ser ious
personal injury and even death.
-A lways secure unused rear seat sa fe ty
be lts out of reach of children in child
seats such as by proper ly rout ing them
around the head restraint of the seat
where the ch ild restraint is installed.
- Never activate the switchable locking re­
tracto r when routing the safety belts
around the head restraints.

164 Child Safet y

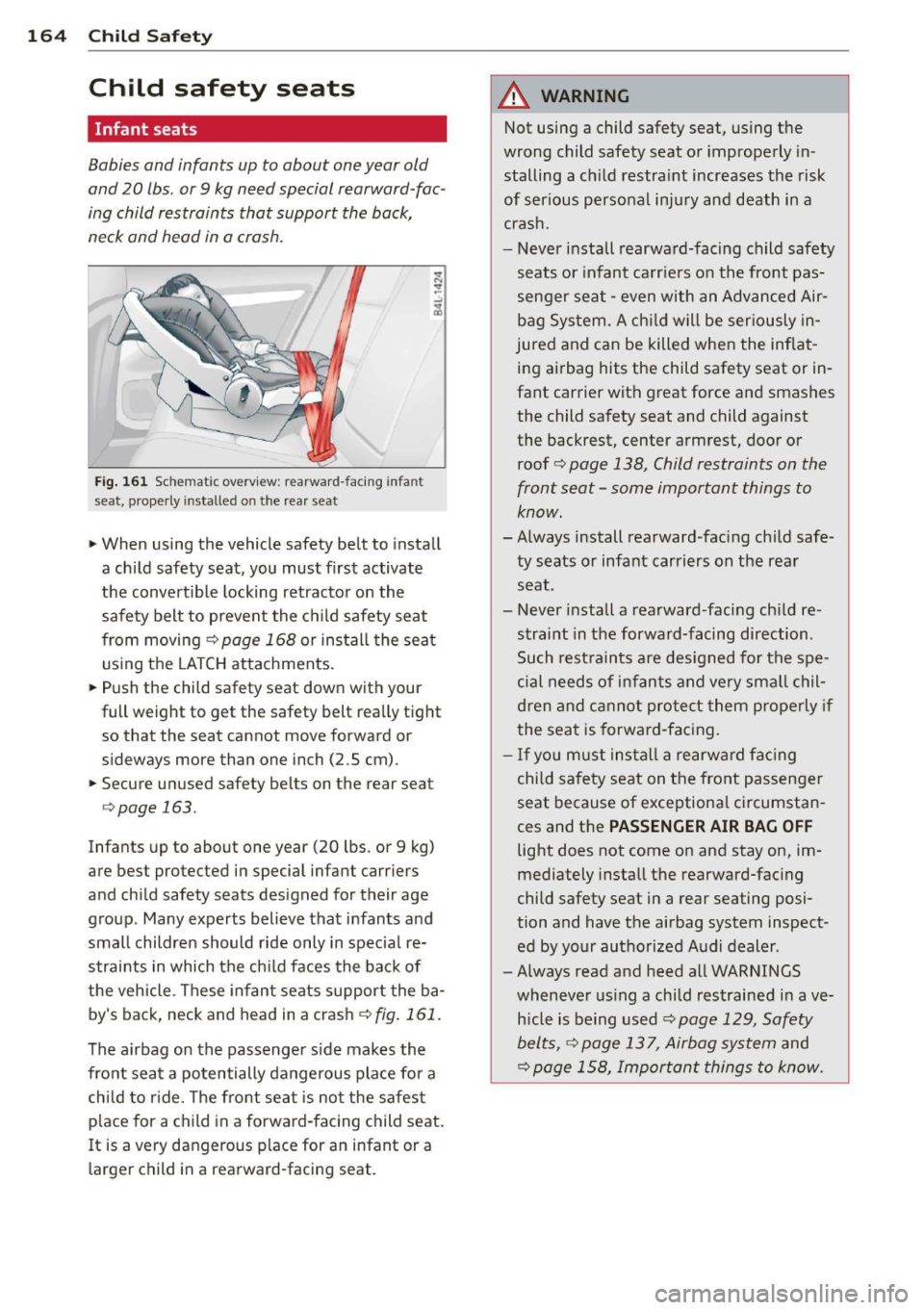

Child safety seats
Infant seats
Babies and infants up to about one year old
and 20 lbs. or 9 kg need special rearward-fac ­
ing child restraints that support the back,
neck and head in a crash.
-- /
Fig . 161 Sche matic overview: rearward- facing infant
seat, properly installed o n the rear seat
> When using the vehicle safety belt to install
a ch ild safety seat, you must first activate
the convertible locking retractor on the
safety belt to prevent the child safety seat
from moving ¢
page 168 or install the seat
using the LATCH attachments.
> Push the child safety seat down with your
full weight to get the safety belt rea lly tight
so that the seat cannot move forward or
sideways more than one inch (2.5 cm).
> Secure unused safety belts on the rear seat
¢page 163.
Infants up to about one year (20 lbs. or 9 kg)
are best protected in special infant carriers
and child safety seats designed for their age
group . Many experts believe that infants and
small children should ride only in spec ial re­
straints in which the chi ld faces the back of
the vehicle . These infant seats support the ba­
by's back, neck and head in a crash ¢
fig. 161 .
The airbag on the passenger side makes the
front seat a potentially dangerous place for a
child to r ide . The front seat is not the safest
p lace for a child in a forwa rd-facing child seat.
I t is a very dangerous p lace for an infant or a
larger child in a rearward-facing seat.
A WARNING
-Not using a child safety seat, using the
wrong child safety seat or improperly in ­
stalling a ch ild restra int increases the risk
of ser ious personal in ju ry and death in a
crash.
- Never install rearwa rd-facing child safety
seats or infant ca rr ie rs on the front pas­
senger sea t -even with an Advanced Air­
bag Sys tem. A c hild will be ser iously in­
jured and can be killed whe n the inflat ­
ing ai rbag hits the child safety seat or in­
fant carrier with great force and smashes the child safety seat and child against
the backrest, center armrest, door or
roof ¢
page 138, Child restraints on the
front seat -some important things to
know.
- Always install rearward-facing ch ild safe ­
ty seats or infant carriers on the rear seat .
- Never install a rearward-facing ch ild re ­
straint in t he forward-facing direction .
Such rest ra ints are des igned for the spe­
cial needs of infan ts and very sma ll chil­
d ren and cannot protect them p roperly if
the seat is forward -facing.
- If you m ust ins ta ll a rearwa rd fac ing
chi ld safety seat on the front passenger
seat because of exceptiona l circumstan ­
ces and the
PASSENGER AIR BAG OFF
light does not come on and stay on, im­
mediately install t he rearward-fac ing
child safety seat in a rear seating posi­
tion and have the airbag system inspect ­
ed by your authorized Aud i dealer .
- Always read and heed all WARNINGS
whenever us ing a child restrained in ave­
h icle is being used
¢ page 129, Safety
belts, ¢ page 137, Airbag system
and
¢ page 158, Importan t things to know.

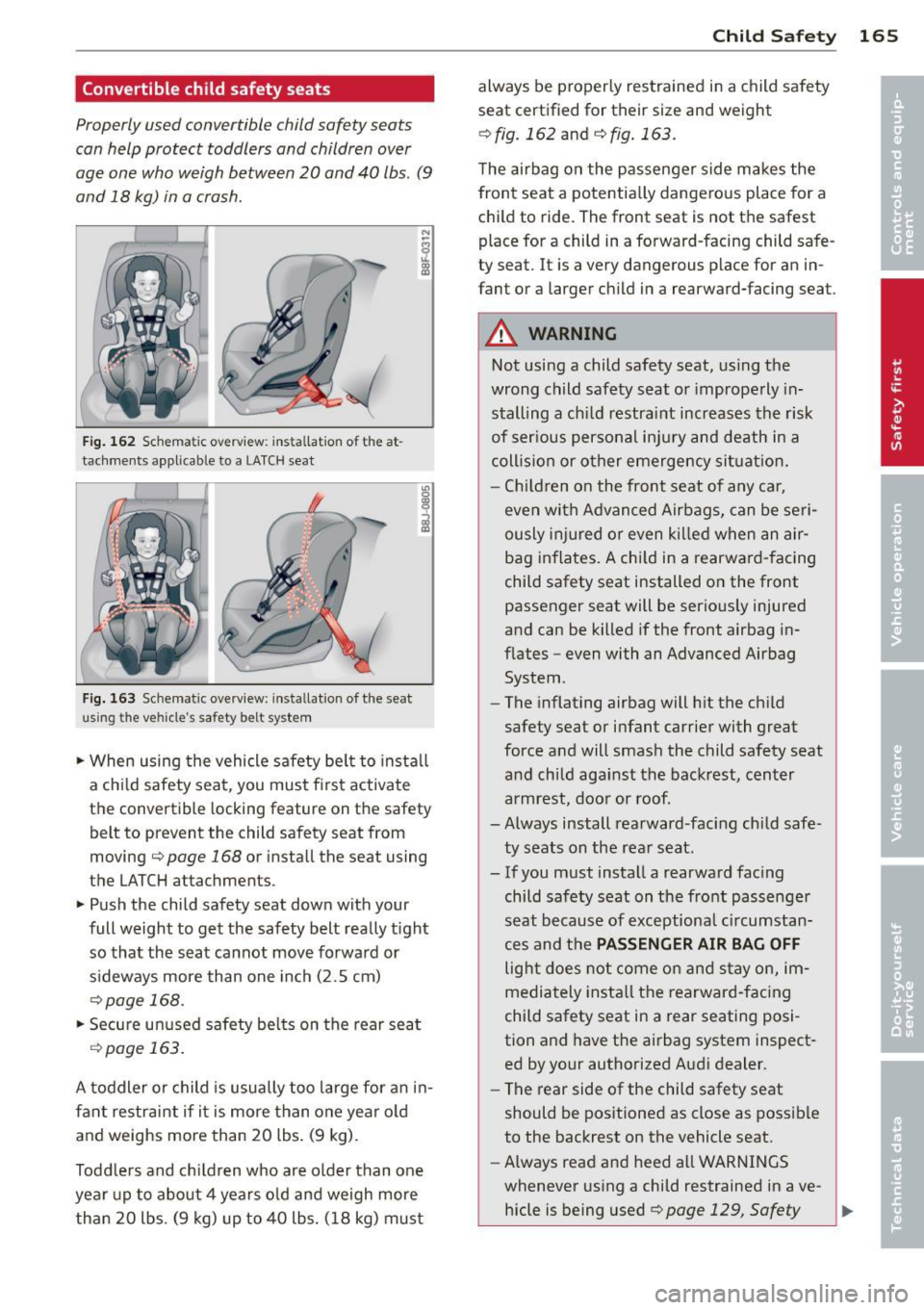

Convertible child safety seats
Properly used convertible child safety seats
can help protect toddlers and children over
age one who weigh between 20 and 40 lbs . (9
and 18 kg) in a crash.
F ig . 162 Schematic overview: installat ion of the at­
tachments appl icable to a LA TCH seat
.r
F ig. 163 Schem atic overview: installat ion of t he seat
using the vehicle 's s afety b elt system
.. When using the vehicle safety be lt to insta ll
a chi ld safety seat, you must f irst activate
the convertible locking feature on the safety
belt to prevent the child safety seat from
moving
c::> page 168 or install the seat using
the LATCH attachments.
.,. Push the child safety seat down with your
full weight to get the safety belt really t ight
so that the seat cannot
move forward or
s ideways more than one inch (2.5 cm)
c:;, page 168.
.,. Secure un used safety belts on the rear sea t
c:;, page 163.
A toddler or child is usually too large for an in­
fant restraint if it is more than one year o ld
and weighs more than 20 lbs . (9 kg) .
Toddlers and ch ildren who are older than one
year up to about 4 years o ld and weigh more
than 20 lbs . (9 kg) up to 40 lbs. (18 kg) must
Child S afety 165
always be properly restrained in a child safety
seat certified for their size and weight
¢fig.162 and c::> fig .163 .
The airbag on the passenger side makes the
front seat a potentia lly dangerous place for a
child to ride. The front seat is not the safest
place for a child in a forward -facing child safe­
ty seat. It is a very dangerous p lace for an in­
fant or a larger ch ild in a rearward-facing seat.
A WARNING
Not using a child safety seat, using the
wrong child safety seat or imprope rly in­
stalling a ch ild restraint increases the risk
of ser ious personal inju ry and death in a
coll is ion or other emergency sit uat ion.
- Ch ildren o n the front seat of any ca r,
even with Advanced Airbags, can be se ri­
ously i njured or
even k ill ed when an air ­
bag inflates . A child in a rearward -facing
child safety seat installed o n the front
passenger seat will be serious ly injured
and can be k illed if the front airbag in­
flates -
even with an Advanced Airbag
System .
-
-The inflating airbag will hit the ch ild
safety seat or infant carrier with great
force and will smash the child safety seat
and child agai nst the backrest, center
armrest, doo r or roof .
- Always install rea rward -facing chi ld safe ­
ty seats on the rear seat.
- If you must install a rearward fac ing
child safety seat on t he front passenge r
seat because of exceptional c ircumstan­
ce s and t he
PASSENGER AIR BAG OFF
light does no t come o n and stay on, im ­
mediately insta ll the rearward-facing
child safety seat in a rear seating posi ­
tion and have the airbag system inspect ­
ed by your authorized A udi dealer .
- The rear side of the child safety seat
should be pos itioned as close as poss ib le
to the backrest on the vehicle seat.
- Always read and heed all WARNINGS
whenever using a child restrained in ave-
hicle is being used
c:;, page 129, Safety 11>

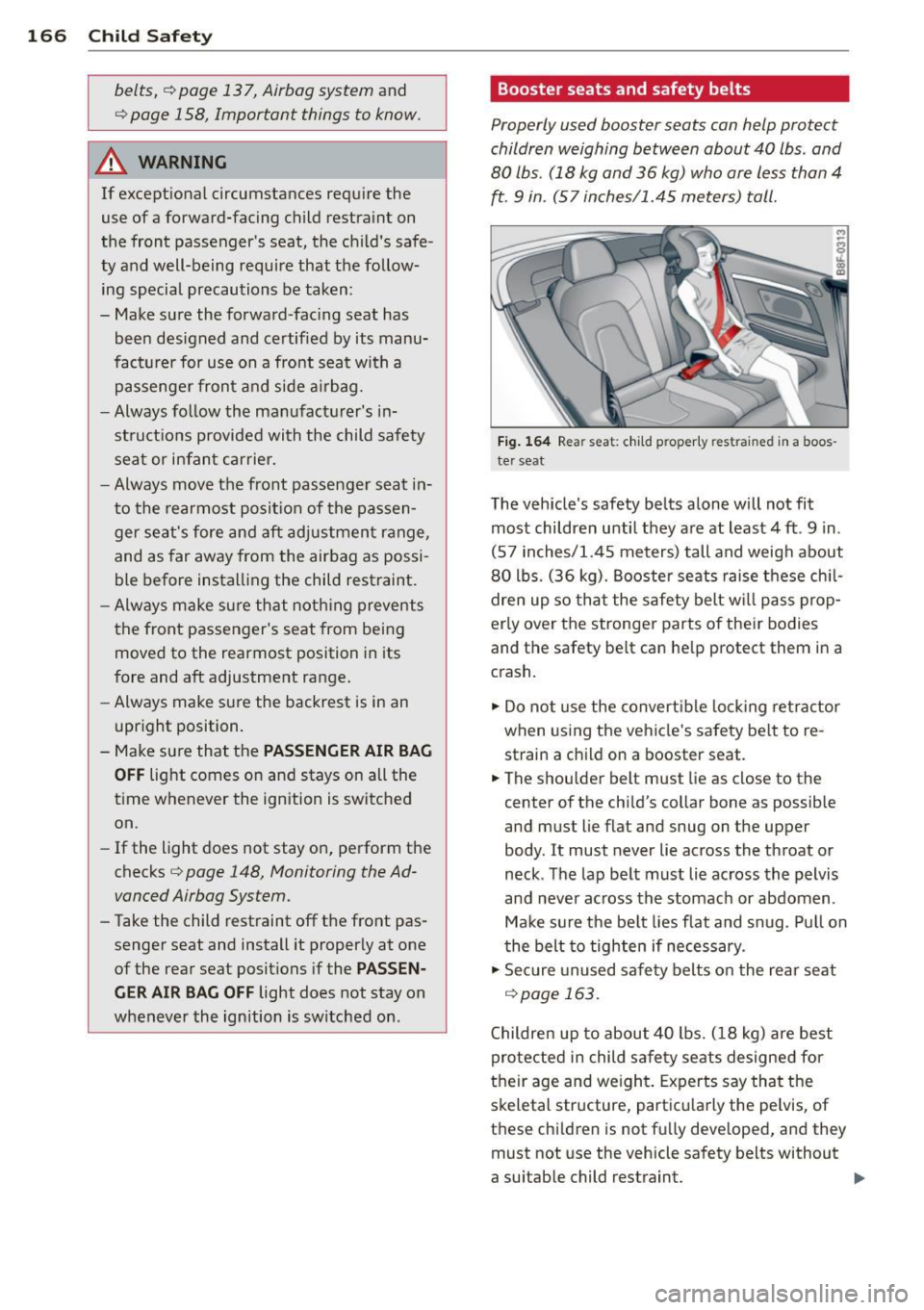

166 Child Safety
belts, ¢page 137, Airbag system and
c:> page 158, Important things to know.
A WARNING
If exceptional circumstances require the
use of a forward-facing child restraint on
the front passenger's seat, the child's safe ­
ty and well-being require that the follow­ ing special precautions be taken :
- Make sure the forward -facing seat has
been designed and certified by its manu­
facturer for use on a front seat with a
passenger front and side airbag.
-Always follow the manufacturer's in­
structions provided with the child safety
seat or infant carrier.
- Always move the front passenger seat in­
to the rearmost position of the passen­
ger seat's fore and aft adjustment range,
and as far away from the airbag as possi­
ble before installing the child restraint .
- Always make sure that nothing prevents
the front passenger's seat from being
moved to the rearmost position in its
fore and aft adjustment range.
- Always make sure the backrest is in an
upright position.
- Make sure that the
PASSENGER AIR BAG
OFF
light comes on and stays on all the
time whenever the ignition is switched on .
- If the light does not stay on, perform the
checks ¢
page 148, Monitoring the Ad ·
vanced Airbag System.
- Take the child restraint off the front pas­
senger seat and install it properly at one
of the rear seat positions if the
PASSEN­
GER AIR BAG OFF
light does not stay on
whenever the ignition is switched on .
Booster seats and safety belts
Properly used booster seats can help protect
children weighing between about 40 lbs . and
80 lbs . (18 kg and 36 kg) who are
less than 4
ft. 9 in. (57 inches/1.45 meters) tall.
Fig. 164 Rea r seat : child p rop erly r estrained in a boo s­
te r se at
The vehicle's safety belts alone will not fit
most children until they are at least 4
ft . 9 in .
(57 inches/1.45 meters) tall and weigh about
80 lbs.
(36 kg). Booster seats raise these chil­
dren up so that the safety belt will pass prop­
erly over the stronger parts of their bodies
and the safety belt can help protect them in a
crash.
.. Do not use the convertible locking retractor
when using the vehicle's safety belt to re­ strain a child on a booster seat.
.. The shoulder belt must lie as close to the
center of the child 's collar bone as possible
and mu st lie flat and snug on the upper
body.
It must never lie across the throat or
neck . The lap belt must lie across the pelvis
and never across the stomach or abdomen .
Make sure the belt lies flat and snug . Pull on
the belt to tighten if necessary .
.. Secure unused safety belts on the rear seat
c::>page 163.
Children up to about 40 lbs. (18 kg) are best
protected in child safety seats designed for
their age and weight. Experts say that the
skeletal structure, particularly the pelvis, of
these children is not fully developed, and they must not use the vehicle safety belts without
a suitable child res traint.
...

It is usually best to put these children in ap­
propriate booster seats. Be sure the booster
seat meets all applicable safety standards.
Booster seats raise the seating position of the
child and reposition both the lap and shoulder
parts of the safety belt so that they pass
across the child 's body in the right places. The
routing of the belt over the child's body is very
important for the child's protection, whether
or not a booster seat is used. Children age 12
and under must always ride in the rear seat.
Children who are at least 4
ft. 9 in. (57 in­
ches/1.45 meters) tall can generally use the
vehicle's three point lap and shoulder belts.
Never use the lap belt portion of the vehicle's
safety belt alone to restrain any child, regard­ less of how big the child is. Always remember
that children do not have the pronounced pel­
vic structure required for the proper function
of lap belt portion of the vehicle's three point
lap and shoulder belts. The child's safety ab­
solutely req uires that a lap belt portion of the
safety belt be fastened snugly and as low as
possible around the pelvis. Never let the lap
belt portion of the safety belt pass over the
child's stomach or abdomen.
In a crash, airbags must inflate within a blink
of an eye and with considerable force. In order
to do its job, the airbag needs room to inflate
so that it will be there to protect the occupant
as the occupant moves forward into the air­ bag.
A vehicle occupant who is out of position and
too close to the airbag gets in the way of an
inflating airbag. When an occupant is too
close, he or she will be struck violently and
will receive serious or possibly even fatal in­
jury.
In order for the airbag to offer protection, it is
important that all vehicle occupants, especial­
ly any children, who must be in the front seat
because of exceptional circumstances, be
properly restrained and as far away from the
airbag as possible. By keeping room between
the child's body and the front of the passen­
ger compartment, the airbag can infla te com-

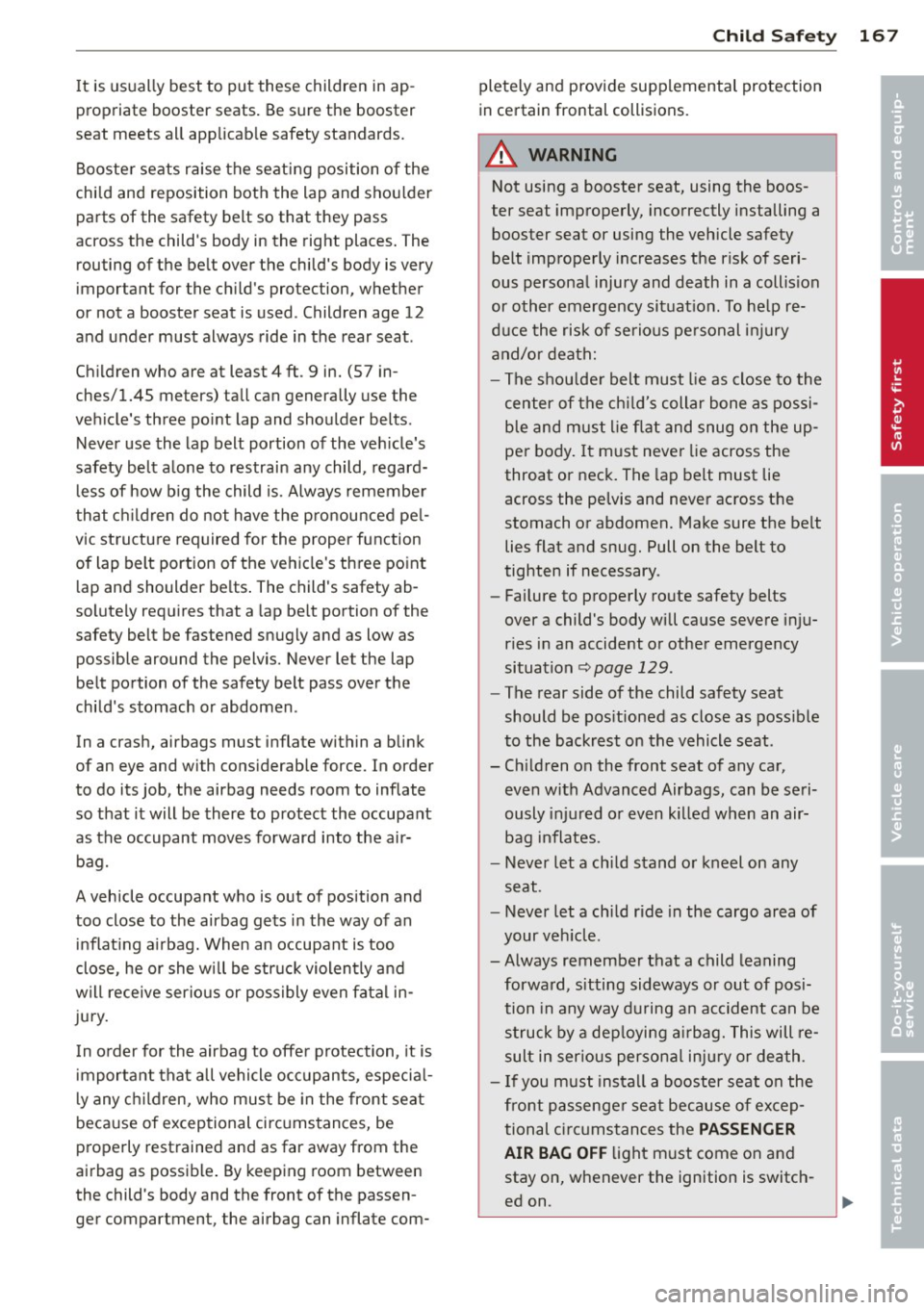

Child Safety 167
pletely and provide supplemental protection
in certain frontal collisions.
A WARNING
Not using a booster seat, using the boos­
ter seat improperly, incorrectly installing a
booster seat or using the vehicle safety
belt improperly increases the risk of seri­
ous personal injury and death in a collision
or other emergency situation. To help re­
duce the risk of serious personal injury
and/or death:
- The shoulder belt must lie as close to the
center of the child's collar bone as possi­ ble and must lie flat and snug on the up­
per body. It must never lie across the
throat or neck. The lap belt must lie
across the pelvis and never across the
stomach or abdomen. Make sure the belt
lies flat and snug. Pull on the belt to
tighten if necessary .
- Failure to properly route safety belts
over a child's body will cause severe inju­
ries in an accident or other emergency
situation
~page 129.
- The rear side of the child safety seat
should be positioned as close as possible
to the backrest on the vehicle seat .
- Children on the front seat of any car, even with Advanced Airbags, can be seri­
ously injured or even killed when an air­
bag inflates .
- Never let a child stand or kneel on any
seat .
- Never let a child ride in the cargo area of
your vehicle.
- Always remember that a child leaning
forward, sitting sideways or out of posi­
tion in any way during an accident can be
struck by a deploying airbag. This will re­
sult in serious personal injury or death .
- If you must install a booster seat on the
front passenger seat because of excep­
tional circumstances the
PASSENGER
AIR BAG OFF
light must come on and
stay on, whenever the ignition is switch­
ed on. •
•
-

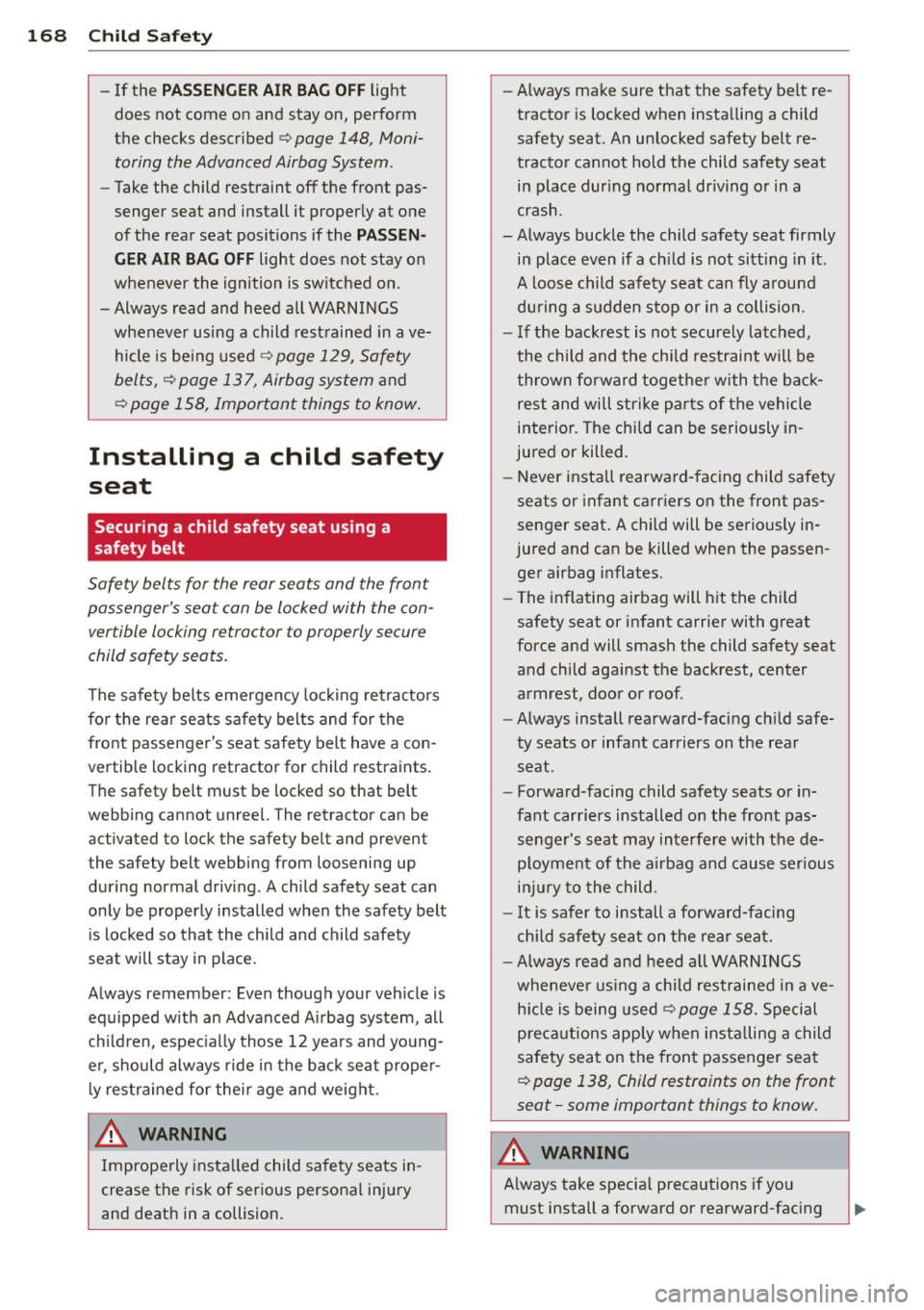

168 Child Saf ety
- If the PASS ENGER AIR BAG O FF li ght
does not come on and stay on, perform
the checks described
c:> page 148, Moni­
toring the Advanced Airbag System .
-Take the child restraint off the front pas­
senger seat and install it properly at one
of the rear seat positions if the
PASSEN­
GER AIR BAG OFF
light does not stay on
whenever the ignition is switched on.
- Always read and heed all WARNINGS whenever using a child rest rained in ave­
hicle is being used
c:> page 129, Safety
belts, c:>page
137, Airbag sy st em and
<:?v page 158, Important things to know.
Installing a child safety
seat
Securing a child safety seat using a
safety belt
Safety belts for the rear seats and the front
pas senger 's seat can be locked with the con­
vertible locking retractor to properly secure
child safety seats.
The safe ty belts eme rgency lock ing re tractors
fo r the re ar seats safe ty belts and for the
fro nt passenger's seat safety belt have a con­
vertible locking retracto r fo r child restraints.
The safety belt must be locked so that belt
webbing cannot unree l. The retractor can be
activated to lock the safety be lt and prevent
the safety belt webbing from loosening up
during normal driving . A child safety seat can
only be properly installed when the safety belt
i s locked so that the child and child safety
seat will stay in place.
A lways remember: Even thoug h your veh icle is
eq uipped w it h an Advanced A irbag system, all
ch ildren , espec ia lly those 12 yea rs and yo ung­
e r, should always ride in the ba ck seat proper­
l y res traine d for thei r age and weig ht.
_& WARNING
Imprope rly insta lled child sa fe ty seats in ­
crease the risk of ser ious personal inju ry
and death in a collision. -
Always make sure that the safety belt re­
tractor is locked when insta lling a child
safety seat. An unlocked safety belt re­
tractor cannot hold the child safety seat in place dur ing no rma l dr iving o r in a
crash .
- Always buckle the child safety seat firmly in place even if a ch ild is not sitt ing in it .
A loose child safety seat can fly aroun d
du ring a s udden st op or in a colli sion.
- I f the backrest is not securely la tched,
the child and the child restraint will be
throw n forward toge ther with t he ba ck­
rest and will strike par ts of the vehicle
interior. The child can be se riously in ­
jured or killed.
- Never inst all rearward-facing child safety
seats or infant ca rr iers on the front pas­
senger seat . A child will be serious ly in­
jured and can be killed when the passen­
ger airbag i nflates.
- The inflating airbag will h it the ch ild
safety seat or infant carrier with great
force and will smash the child safety seat
and child aga inst the back rest , center
armrest, doo r or roof.
- Always install rearward-facing ch ild safe­
ty seats or infa nt carriers on the rea r
seat .
- Forwa rd-facing child safety seats or in­
fant car riers installed on the front pas­
senger's seat may interfere with t he de­
p loyment of t he a irbag and cause serious
i njur y to the child .
-It is safer to ins tall a forward-facing
child safety seat on the rear seat.
- Always read and heed all WAR NIN GS
whe neve r using a child restrai ned in ave­
h icle i s being u sed
c:> page 158. Special
p reca utions apply when ins tal ling a child
safety seat on the fron t passenger seat
c:> page 138, Child restraints on the front
seat -some important things to know.
_& WARNING
--
Always take specia l precautions if you
must install a forwa rd or rearward-facing
