Convenience opening/closing
The windows can be opened and closed with
the mechanical key or the emergency key.
@
' -~
® ' I
Fig . 31 Key turns for opening and clos ing
Convenience opening feature
.. Use the emergency key or pull the mechani­
cal key ou t of the master key¢
page 32 .
.. Inse rt the key into the lock of the driver's
door .
.. Turn the key to position¢
fig. 31 @until a ll
the windows have reached the desired posi­
t ion.
Convenience closing feature
.. Use the emergency key or pull the mechani­
cal key out of the master key~
page 32.
.. Turn the key in the lock of the driver's door
to the lock position @ until the windows are
closed ¢
_&..
A WARNING
-Never close the windows inattentive ly
and without checking -there is risk of in­
jury.
- You must always watch when the win­ dows are being ra ised so that no one can
be trapped. If you release the key, the
cl osing action is immed iate ly canceled .
- Always read and heed WARNING ¢
& in
General description on page 30.
Opening and closing 39
Correcting window regulator
, malfunction
After disconnecting the vehicle battery, the
one -touch up and down feature must be acti­
vated again.
.. Pull and hold the power window switch until
the window is completely closed .
.. Release the switch and pull the sw itch again
for one second.
Valet parking
App lies to vehicles: wi th vale t parking function
The valet parking feature protects the lug­
gage compartment from unauthorized ac­
cess .
Fig. 32 Glove compartme nt: valet parkin g button
You can switch the "valet parking function" on
when someone else is parking your vehicle .
When the function is switched on, the vehicle
can be driven, locked and unlocked using the
master key, but access to the luggage com­
partment is not permitted.
.. Take the mechanical key out of the master
key¢
page 32.
.. Open the glove compartment ¢ page 66.
.. Activate ¢
fig. 32 the "valet parking" fea­
ture by pressing the
I VALET I button . The in­
dicator light in the switch illuminates.
.. Close the glove compartment and lock it
w ith the mechanical key .
.. Leave the master key with the serv ice per­
sonnel for park ing and keep the mechanical
key with you.
The following buttons are deactivated when
the valet parking function is switched on :

40 Opening and clo sing
-I «:s I button on the master key
- Handle in the rear lid
When the valet parking feature is activated,
the message
V ale t park ing activat ed appea rs
in the ins trument cluster display when you
switc h the ignition on.
Garage door opener
(Homelink)
Description
App lies to vehicles: with garage door opener ( Homelink)
Fig. 33 Garage door ope ner: exa mples of u sing wit h
diff erent sy stems
You can activate various systems such as ga ­
rage doors, sec urity systems and home light­
ing from inside yo ur vehicle using the ga rage
door opener (Homelink). There are three but­
tons for this in the vehicle headliner that can
be in used in place of up to three hand -he ld
transmitters.
To operate systems using the garage door
opener , the three buttons in the roof headlin­
er must be programmed first .
A WARNING
Make sure no people or objects are in the
immediate vicinity of the equipment when
using or programm ing the garage doo r
opene r. People can be injured and objects
can be damaged if they are caught in the
equipment .
@ Tips
-Fo r security reasons, we recommend that
you clear the programmed buttons be­
fore se lling the vehicle. -
For add itiona l information about Home­
Link, visit www.homelink .com.
- For Declara tion of Compliance to United
States FCC and Ind ustry Canada reg ula ­
tions
c::> page 267.
' . Operation
Applies to vehicles: with garage door opener (Homelink)
Fig. 3 4 Headli ner: con tro l uni t
Requir ement: The buttons in the roof head lin­
er must be programmed
c::> page 40 or
c::> page 41 and the ve hicle must be within
range of the system, such as the garage door
opener.
.,. Press the b utton to open t he garage door.
The LED @ blinks o r turns on .
.,. Press the button aga in to close the garage
door.
(D Tip s
To open or close the garage door, press the
button, but do not hold it for longer than
10 seconds or the garage door opener
module will switch to programming mode.
Programming the buttons (version A)
Applies to vehicles: with garage door opener (Homelink)
You can program both fixed code and rol ling
code systems using this procedu re .
Pro gramming or repr ogramm ing buttons
.,. Switch the ignition on .
.,. Press and hold the button in the roof head­
liner
c::> page 40, fig . 34 that you wou ld like
to prog ram for at least 10 seconds. Or
.,. Select:
!CARI function button> Car sy ste m s*
contro l butto n > Vehicle setting s > Garage IJJI,

"' N
a: LL co
rl I.O
"' rl
"' rl
door opener> Program garage door open­
er.
If this path is not available, program the
button as described in version
Bqpage41 .
.,. Follow the instructions in the MMI.
Erasing button programming
The programmed buttons cannot be erased
individually. They must all be erased together.
Reprogram the buttons if necessary .
.,. Select:
ICARI function button> Car systems*
control button > Vehicle settings > Garage
door opener> Clear program settings
>
Yes .
Displaying the version/status/country
code
.,. Select: I CARI function button > Car systems*
control button > Vehicle settings > Garage
door opener > Version information.
@ Tips
-Programming through the MMI* is not
possible with all infotainment systems.
If this is the case, program the buttons
as described in version B
c:> page 41.
- The required distance between the hand
transmitter and the HomeLink module in
the radiator grille
c:> page 41; fig. 35
depends on the system that you are pro­
gram ming.
- Depending on the model of the system,
you may need to release the button on
the remote control during programming
and press it again. Hold each position
you try for at least 15 seconds before
trying another position. Keep the turn
signals on your vehicle in view when do­
ing this.
- After programming the garage door
opener, it may be necessary to synchron­i ze the motor with the system. Refer to
the manufacturer's instructions.
Opening and closing 41
Programming the buttons (version 8)
Applies to vehicles: with garage door opener (Homelink)
Fig. 35 Distance be tween the ra diato r grille and the
hand transmitter
Programming the button: Part 1 with the
controls
1. Switch the ignition on.
2. Press and hold both outer buttons in the
roof headliner
c:> page 40, fig. 34 until the
LED @turns off completely (after about
20 seconds). This procedure clears the
standard codes that were set at the facto ­
ry and does
not need to be repeated again
to program the other buttons.
3. Briefly press the button on the roof head­
liner that you would like to program.
4. Wait until the LED @ begins to blink
quickly. Programming mode is active for 5
minutes.
5. Move in front of your vehicle while hold­
ing the original remote control for the
system that would like to program to a
button in the roof headliner.
Programming the button: Part 2 at the
radiator grille
6. Hold the remote control up to the radiator
grille on your vehicle
c:> fig. 35.
7. Press and hold the remote control until
the turn signals on your vehicle blink. This
may take up to 30 seconds.
8. If the emergency flashers blink three
times, the programming was successful.
If the emergency flashers only blink one
time, the 5 minute time limit for the pro­
gramming has ended or the programming
was not successful. Repeat the program­
ming from the third step, or try changing
t he distance to the radiator grille. .,.

42 Openin g and clo sing
9 . I f the garage door or other system does
not open using the buttons in the roof
headliner even though the programming
was successful, the system may use a roll­ ing code instead of a fixed code.
Roll ing
code pro gramming
must be performed
¢ page 42.
The other two buttons in the roof headliner
can be programmed according to the instruc­
tions above . Begin with the third step .
Erasing butt on progr amming
The programmed buttons cannot be erased
individually . They must all be erased together.
Reprogram the buttons if necessary.
.. Switch the ignition on.
.. Press and ho ld both outer buttons in the
roof headline r until the LE D @ turns off
completely (after about 20 seconds).
Re prog ramming th e button s
.. Switch the ignition on.
.. To reprogram an individual button, press
and hold the button until the LED@ starts
to flash quick ly (after about 10 seconds) .
Re lease the button immediately. Program­
ming mode is active for 5 minutes .
.. Continue with the fifth step .
(D Tips
-Programming using the buttons in the
roof headliner is not possible with all In­
fota inment systems. If this is the case,
program the buttons as described in ver­
s ion A¢ page 40 .
- The requ ired distance between the hand
transmitter and the Home Link module in
the radiato r grille ¢ fig. 35 depends on
the system tha t you are programming.
- Depend ing on the model of the system,
you may need to release the but ton on
the remote contro l during programming
and press it again . Ho ld each position
you try for at least 15 seconds before
trying another position. Keep the turn
s ignals on your vehicle in v iew when do­
i ng th is.
Rolling code programming
Applies to vehicles: with garage door opener (Homelink)
Rolling code programming is also needed for
some systems .
Identifying a rolling cod e
.. Press and hold the button in the roof head ­
liner that was already programmed .
.. Watch the LED@¢ page 40, fig. 34. If the
LE D blinks quickly, the systems (such as a
garage door) is equipped with a rolling code .
.. Program the rolling code as follows:
Acti vating the moto r unit in a system
.. Locate the programming button on the sys­
tem's motor un it. The exact location and
color of the button may vary depend ing o n
the brand of the system.
.,. Press the programming button on the ga­
rage door opene r moto r unit (this will usual ­
ly activate an " indicator" on the motor unit) .
Yo u now have approximate ly
30 second s to
program the b utton in the roof headliner .
Programming the button in the roof
headlin er
.,. Press and hold the previo usly programmed
button in the roof headliner for 2 seconds .
.. To end ro lling code programming , press and
hold the button again for 2 seconds.
.. With some systems, the button may need to
be pressed a third t ime to end the program­
m ing process .
After programm ing, the system sho uld detect
the signal and begin moving when the button
in the roof headliner is pressed . Now you may
program the other buttons as needed .
(D Tips
-The rolling code can be programmed
more quickly and more easily with the
help of a second person.
- If you have difficulty programming the
roll ing code, referr ing to the user guide
for the system may help .

"' N
a: LL co
rl I.O
"' rl
"' rl
Power top
Automatic power top
General information
The power top opens and closes automat ica l­
l y . The ent ire power top is s tored in the power
top compartment. The power top may be
opened or closed at speeds up to 30 mph
(SO km/h).
Under normal conditions, the power top is
wind and w aterproof. In rare cases, small
drop lets of water may form under extreme
weather conditions such as torrential or pro­ longed rain. That is norma l and no cause for
concern.
F ollow the care instr uctions to keep the roo f
from leak ing and to maintai n its appearance
over time
c::> page 184, Vehicle care and
cleaning.
Also observe the following:
- Only open and store the power top when it is
clean a nd dry . Sharp dirt particles can cause
damage to the rear window and the power
top. If the power top is stored when damp,
dents can form . If left stored for a long per i­
od of t ime, mildew and other damage can
develop .
- Do not leave the power top open for several
weeks or the creases in it may become dis­
colored .
- Remove ice and snow before opening the
power top. Do not use any sharp edged ob ­
jects to remove ice and snow or the power top could be scratched or damaged . T he rear
window may be clea red wi th a standa rd ice
scraper.
- Do not open the power top when tempera­
tu res are below 32 ° F (0 °C). The fabr ic used
i n the power top loses its elasticity when
temperatures are be low freezing .
Power top 43
Opening/closing the power top
Fig. 36 Center co n sole : power top sw itch
.,.. Switch the ignit ion on.
.,.. To open/close the power top, pull/press and
hold the~ button during the entire proc ­
ess .
Th ..
@ ;ndicator light turns on .
- when the power top opens/closes or
- if the power top did not open/close com- pletely.
T he
II indicator light in the inst rument clus­
ter turns off when the power top is complete ­
ly open/closed.
The
II light will blink if the power top cannot
be opened/closed
c::> page 45.
.&_ WARNING
- When operating the power top, make
sure the func tion is not affected by wind
or other factors and that it does not in ­
terfere with other drivers.
- Never drive when the power top is not
locked correctly. The wind from dr iving
could cause the power top to open . This
can result in injuries and damage to the
veh icle.
- Make sure no one wi ll be injured by the
power top supports and other mov ing
parts when opening and closing the top.
- The head space in the rear is reduced
when the power top opens and closes.
Make sure the passengers in the rear are
far enough away from the power top to
-
red uce the risk of inju ry. ..,

44 Power top
-When operating the power top, visibility
to the rear is limited . Avoid operating the
top while driving in reverse.
(D Note
- To prevent damage to the power top:
- do not store any objects in the power
top compartment.
- make sure there is enough space above
the vehicle when opening or closing
the power top.
- To reduce the risk of damage, make sure
there are no fragile objects within the
storage bay's range of motion.
@ Tips
-To prevent the battery from draining, do
not open or close the power top repeat­
edly when the engine is switched off.
- A message will appear in the instrument
cluster display if there is a power top
malfunction
~ page 45.
- The power top can also be operated
manually if there is a malfunction
¢ page 47, Power top emergency op­
eration.
The cause of the malfunction
should be corrected by an authorized
Audi dealer or authorized repair facility
as soon as possible.
- The vehicle is not protected from the
weather or from unauthorized entry if
the vehicle is left parked with the power
top open. Lock any objects you are leav­ ing in the vehicle in the luggage com­
partment. Close the power top before
leaving the vehicle.
- The side windows lower slightly auto­
matically when opening/closing the pow­
er top .
Power top convenience opening/closing
Fig. 37 Remote control key: buttons
Fig. 38 Turning the key to open and close
Convenience opening with the driver's
door lock
.. Press them button on the remote control
key to unlock the vehicle.
N
~ co aJ
.. Turn the key once in the driver 's door lock to
the opening position @¢
fig. 38 .
.. Turn the key to the opening position again
within two seconds and hold it there until
the power top opens completely.
Convenience closing with the driver's door
lock
.. Turn the key once in the driver's door lock to
the closing position@¢
fig. 38.
.. Turn the key to the closing position again
within two seconds and hold it there until
the power top closes completely.
Releasing the key stops the opening or closing
process
immediately .
A WARNING
-Read and follow the important safety pre­
cautions ¢
A in Opening/closing the pow­
er top on page 43.

"' N
a: LL co
rl I.O
"' rl
"' rl
Variable power top storage bay
Fig . 39 Luggage compartment: t he var iab le power top
storage bay is lowe red
F ig . 40 Luggage compart men t: eme rgency release lev­
er for the variab le power top storage bay
The variab le power top sto rage bay lowers au­
tomatically when the power top opens. To re­
duce the risk of damage, make sure there are
no frag ile objects within the storage bay's
range of motion.
Rai sing the power top storage bay
.,. Press the trim in the direction of the ar row
to raise the va riab le powe r top storage bay
c>fig. 39.
Lowe ring the power top storage bay
manually (emergency operation)
.,. Open the left s ide trim and press the re lease
lever d own to lower the variable power top
storage bay¢
fig. 40.
The variable power top storage bay can be
ra ised when the
power top is closed . This pro­
vides more cargo space in the luggage com­
pa rtment.
The
opened power top i s stored in the storage
bay and protected. The power top bay cannot
be ra ised when the power top is open. The car­
go area in the luggage compartment is small-
Power top 45
er w hen the powe r top is open than when it is
closed.
Messages
Convertible top Please close t runk
T his mess age ap pears in the instrument cl us­
te r display if the l uggage compa rtment lid is
not closed when operating the power top .
Close the luggage compartment lid.
Convertible top storage box not lowered.
Please remove obstacle
T his message ap pears when t he power top
storage bay is not lowere d when opening the
p ower top . If the p owe r top s to rage bay is
blocked by objects in the luggage com part­
ment, remove the ob jects that are in the way.
If the power top storage bay is still not low­
ered automatically, y ou can lower it manually
<=> page 45.
Convertible top Cannot be used
Th is mes sage ap pears if the power top ca nnot
o pen or close a utomat ically because of safety
r easons or if there is a malfunction. The fol­
low ing ca uses are possible:
- Vehicle speed too high: Th e autom atic pow ­
er top is deactivate d for safety reasons i f the
veh icle speed is too high. Red uce the vehicle
speed an d try closing/opening the power
top again .
-Battery voltage too low: The automatic
power top is deact ivated if the bat tery
char ge level is too low. You can open/close
the power top again after starting the en­
gi ne.
- Rollover protect ion act ive: If the power top
runs continuously for a long period of t ime,
th e overload protection will activate for ap­
prox imately 15 to 30 minutes. You can
open/close th e powe r top again afte r that
¢ _& .
-Malfunction: Failur e of syst em compone nts
is o ne pos sib le cause fo r malfun ction. The
power t op can be opera ted ma nually
¢page 47. ~

46 Power top
Conv ertible top not secure
This message appears and a warn ing tone
sounds if the power top is no t comp letely
closed/open and the veh icle speed is above
50 km/h . Reduce the vehicle speed and try
closing/opening the power top again.
.&_ WARNING
Never drive when the power top is not
locked correctly . The w ind from dr iv ing
could cause the power top to open. T his
can result in injuries a nd damage to the
veh icle.
Wind deflector
Applies to vehicles: with wind deflecto r
The wind deflector reduces turbulence in the
passenger compartment and makes driving more comfortable.
F ig. 41 Rear of the vehicle: insert ing the win d deflec ­
t o r
(1 )
Fig. 42 Rear of the vehicle: insert ing the wind deflec­
to r (2)
The wind de fle ctor is loca ted in the luggage
compartment in a storage bag* or under the
cargo floo r cove r.
Inserting and positioning the wind
defl ector
" Open the rea r door on the passenger's side.
" Remove the wind def lector from the lug-
gage compartment and fold it apart once.
The wind def lector is installed in the correct
position when the long side is toward the
front and the wind deflector frame is at the
top.
"I nsert both p ins on the wind deflector @
¢
fig. 41 on the driver's si de in t he mounts
in the s ide trim.
" Fold the handle @upward and lift the cen­
ter of the wind deflector up slight ly @
¢fig. 42.
" Guide the wind deflector into the mounts on
the passenger's side @and press lig htly in
the center of the w ind deflector ® until the
handle locks in place.
" Raise the wind deflector comp letely .
Removing the wind deflector
" Fold t he wind def lector frame back.
" Fold the handle @¢
fig. 41 upward and lift
the cente r of the w ind deflector up slightly
@ ¢fig . 42.
" Remove the wind deflector from the mounts
in the s ide trim on the p asse nger side.
" Pull the w ind deflec to r out of the moun ts on
the dr iver side and lift it o ut.
" Fold the wind deflector together and store it
securely .
.&_ WARNING
-
- Do not use the wind deflector to sec ure
cargo.
- Be careful when installing so you do not
pinch your f ingers.
- Pay attention to traffic when instal ling
the wind deflector. Insta ll th e wind de ­
f lector from the s ide of the vehicle that
is farthest from traffic.
(D Note
Do not lean aga inst the vehicle when in­
stalling the wind deflector . Hard objects
and decorat io ns on clothing such as be lt
buckles can scratch the pa int.

"' N
a: LL co
rl I.O
"' rl
"' rl
@ Tips
-The wind deflector works best when a ll
of the windows are rolled up wh ile driv­
i ng.
- Only store the wind def lector in the stor­
age bag* when it is dry.
Power top emergency
operation
General information
The power top can be closed manually if there
is a malfunction.
~ Set the parking brake.
~ Open the windows.
~ Switch the ign ition off.
~ To reduce pressure in the powe r top hydraul­
ics, pull the<¾, button for approximately 10
to 15 seconds ¢
page 43, fig. 36.
Only close the powe r top manually in an emer­
gency . Have a second person help you. Drive
to an authorized Audi dealer or authorized re­
pa ir facility immediately to have the malfunc­
tion corrected.
A WARNING
-There is a risk of p inching your hands or
injuring othe r people during all steps in
the power top emergency operation
process.
- Make sure all w indows are open during
emergency operation.
- Do not hold the power top supports or
other moving parts.
- Never drive when the power top is not
locked correctly. The wind from driving
cou ld cause the power top to open . This
can result in injur ies and damage to the
vehicle.
@ Tips
The vehicle headliner is not clipped in and
the power top compartment cover is not
locked after using the power top emergen­
cy operation procedure. Drive to an author- Power top 4
7
ized Audi dealer or authorized repair facili­
ty immediately to have the malfunction
corrected .
Step 1: Releasing the power top storage
bay lid
Fig. 43 Luggage compartment: re lease lever
Fig. 44 Luggage compartment: side trim
~ Open the luggage compartment lid.
~ Reach with your finger into the gap behind
the trim near the center of the vehicle
¢fig. 43.
~ Press the release lever down to release the
power top compartment cover .
~ Open the left side trim and press the yellow
lever in the direction of the arrow¢
fig. 44.
~ Remove the emergency re lease key (hex key)
from the left side trim @ ¢
fig. 44.
~ Open the right side tr im and press the ye l­
low lever in the direction of the arrow.

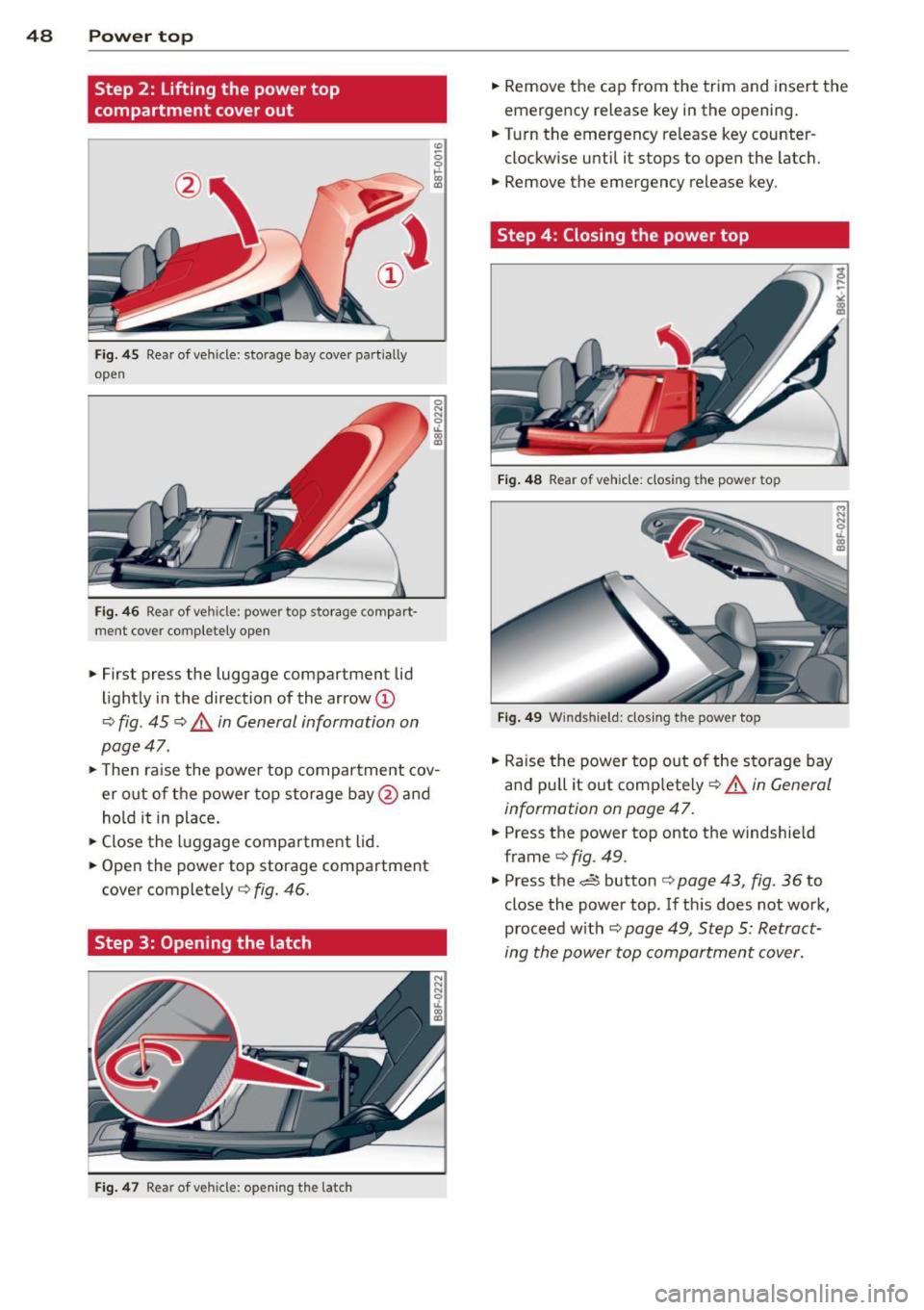

48 Power top
Step 2: Lifting the power top
compartment cover out
Fig. 45 Rear of vehicle: storage bay cover partially
open
Fi g. 46 Rear of veh icle: power top storage compart­
ment cover completely open
""First press the luggage compartment lid
li ghtly in the direction of the arrow
(D
¢ fig . 45 ¢.&. in General information on
page 47 .
g ,-,. a, a)
""The n ra ise the powe r top compar tment cov­
er out of the power top storage bay @and
hold it in place .
"" Close the luggage compartment lid.
"" Open the power top storage compartment
cover complete ly¢
fig. 46.
Step 3: Opening the latch
F ig. 4 7 Rear of veh icle: opening the latch
"" Remove the cap from the trim and insert the
emergency release key in the opening .
"" Turn the emergency re lease key counter­
clockw ise until it stops to open the latch.
"" Remove the emergency release key.
Step 4: Closing the power top
Fig . 4 8 Rear of vehicle: closing the power top
Fig . 4 9 Wind shie ld: closing the power top
"" Raise the power top out of the storage bay
and pull it out comp letely¢
A in General
information on page 47.
"" Press the power top onto the windshie ld
frame ¢
fig. 49.
.. Press the~ button ¢ page 43, fig. 36 to
close the power top. If th is does not work,
proceed w ith
¢ page 49, Step 5: Retract­
ing the power top compartment cover.
