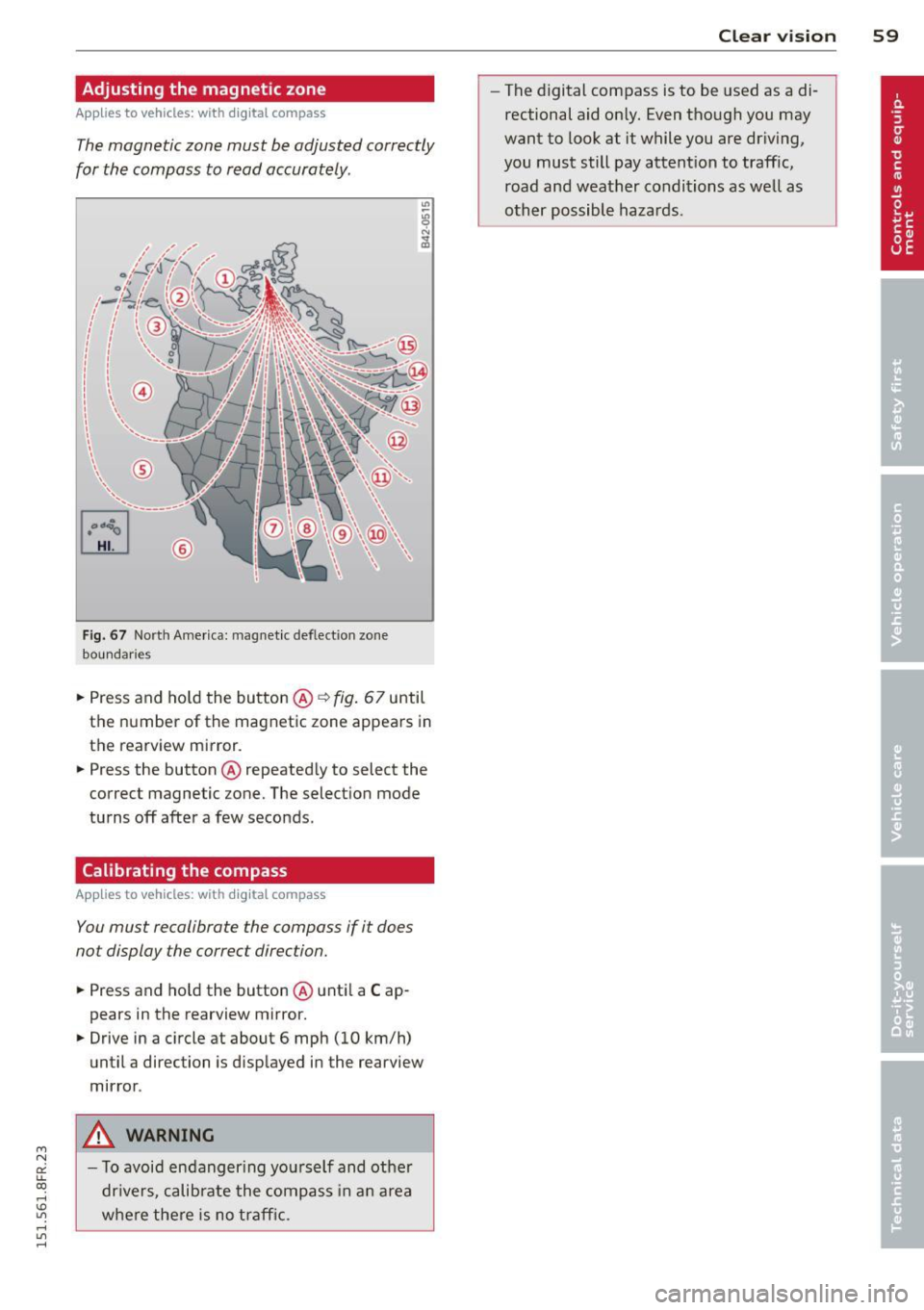

Adjusting the magnetic zone
Applies to vehicles: with digital compass
The magnetic zone must be adjusted correctly
for the compass to read accurately .
Fig. 67 North America: magnet ic def lect ion zone
bounda ries
.. Press and ho ld the button @ ~fig. 67 until
the number of the magnetic zone appears in
the rearv iew mirror .
.. Press the button @repeated ly to select the
correct magnetic zone. The select io n mode
turns off after a few seconds.
Calibrating the compass
Applies to vehicles: with digital compass
You must recalibrate the compass if it does
not display the correct direction .
.. Press and ho ld the button @unti l a C ap­
pears in the rearview mirror .
.. Drive in a circle at about 6 mph (10 km/h)
until a direction is disp layed i n the rearview
mirror .
&, WARNING
- To avoid endang ering yo urse lf and other
dr ivers, calib rate the compass in a n area
w he re there is no traff ic. Clear vi
sion 59
- The digital compass is to be used as a di­
rectional aid on ly. Even though you may
want to look at it while you are dr iving,
you must still pay attent ion to traffic,
road and weather conditions as we ll as
other possible hazards.

60 Seats and stor age
Seats and storage
General recommen­
dations
Why is your seat adjustment so
important?
The safety belts and the airbag system can
only provide maximum protection if the front
seats are correctly adjusted.
There are various ways of adjusting the front
seats to provide safe and comfortable support
for the driver and the front passenger. Adjust
you r seat prope rly so that :
- you can easily and quickly reach all the
switches and controls in the instrument
panel
-your body is properly supported thus reduc­
ing physical stress and fatigue
- the safety be lts and airbag system can offer
maximum protection
¢ page 131.
In the following sections, you will see exactly
how you can best adjust your seats .
There are special regulations and instructions
for installing a child safety seat on the front
passenger's seat. Always follow the informa­
tion regarding child safety provided in
¢ page 152, Child Safety.
WARNING
Refer to¢ page 112, Driving Safely for
important information, tips, suggestions
and warnings that you should read and fol­
low for your own safety and the safety of
your passengers.
A WARNING
, -
Incorrect seating position of the driver and
all other passengers can result in serious
personal injury .
- Always keep your feet on the floor when
the vehicle is in motion -never put your
feet on top of the instrument panel, out of the w indow or on top of the seat cush­
ion. This applies especially to the passen- gers
. If your seating position is incorrect,
you increase the risk of injury in the case
of sudden braking or an accident. If the
airbag inflates and the seating position is incorrect, this could result in personal
injury or even death.
- It is important for both the driver and front passenger to keep a distance of at
least 10 inches (25 cm) between them­
selves and the steering wheel and/or in­
strument panel.
If you're sitting any
closer than this, the airbag system can­
not protect you properly. In addition, the
front seats and head restraints must be
adjusted to your body height so that they
can give you maximum protection.
- Always try to keep as much distance as
possible between yourself and the steer­
ing wheel or instrument panel.
- Do not adjust the driver's or front pas­
senger 's seat while the vehicle is moving.
Your seat may move unexpectedly, caus­
ing sudden loss of veh icle control and
personal injury. If you adjust your seat
while the veh icle is moving, you are out
of posit ion.
Driver's seat
The correct seat position is important for safe
and relaxed driving .
We recommend that you adjust the driver's
seat in the following manner :
.. Adjust the seat in fore and aft direction so
that you can easily push the pedals to the
floor wh ile keeping your knees slightly bent
o &. in Why is your seat adjustment so im ­
portant? on page
60 .
.,. Adjust the seatback so that when you sit
w ith your back against the seatback , you can
still grasp the top of the steering wheel.
.. Applies to vehicles with adjustable head re­
straints: Adjust the head restraint so the up­
per edge is as even as possible with the top
of your head. If that is not possible, try to
adjust the head restraint so that it is as .,.

"' N
a: LL co
rl I.O
"' rl
"' rl
close to this position as possible
¢page 63.
A WARNING
Never place any objects in the driver's foot­
well. An object could get into the pedal
area and interfere with pedal function. In
case of sudden braking or an accident, you
would not be able to brake or accelerate .
Front passenger's seat
Always move the front passenger seat into
the rearmost position .
To avoid contact with the airbag while it is de­
ploying, do not sit any closer to the instru­
ment panel than necessary and always wear
the three-point safety belt provided adjusted
correctly . We recommend that you adjust the
passenger's seat in the following manner:
.,. Bring the backrest up to an (almost) upright
position.
Do not ride with the seat reclined .
.,. Applies to vehicles with adjustable head re­
stra ints: Adjust the head restraint so the up­
per edge is as even as possible with the top
of your head. If that is not possible, try to
adjust the head restraint so that it is as
close to this position as possible
¢ page 63.
.,. Place your feet on the floor in front of the
passenger's seat .
Front seats
Power seat adjustment
Fig. 68 Front seats: power seat adjustment
Seats and storage 61
Controls
@-Adjusting the lumbar support*: press the
button in the corresponding position ¢
.&..
@ -Moving the seat up/down: press the but­
ton up/down ¢ ,&. .
®-Moving the seat forward/back: press the
button forward/back¢ ,&..
©-Adjusting the backrest angle : press the
button forward/back ¢,&. .
©-Raising/lowering* the head restraints:
press the button up/down¢,&. .
@ -Lengthening/shortening the upper thigh
support* :
lift the handle. A spring moves the
front seat cushion forward ¢
.&..
A WARNING
--
- Never adjust the driver's or front pas­
senger's seat while the vehicle is moving.
If you do this while the veh icle is moving,
you will be out of position. Always adjust
the dr iver's or front passenger's seat
when the vehicle is not mov ing.
- Be careful when adjusting the seat
he ight. Check to see that no one is in the
way, or ser ious injury could result!
- Because the seats can be electrically ad­
justed with the ignition off or with the
ignit ion key removed, never leave chil­
dren unattended in the vehicle. Unsuper­
vised use of the electric seat adjust­
ments may cause serious injury.
- To reduce the risk of injury in the case of
sudden braking or accident, front pas­
sengers must never ride in a moving ve­
hicle with the backrest reclined. Safety
belts and the airbag system only offer
maximum protection when the backrest
is upr ight and the safety belts are prop­
erly positioned on the body. The more
the backrest is reclined, the greater the
risk of persona l injury from an incorrect
seating position and improperly posi­
tioned safety belts.

62 Seats and storage
Power easy entry function
The easy entry function makes it easier for
the rear passengers to enter and leave the ve­
hicle .
Fig. 69 Comfort seats•: easy entry contro ls
Fi g. 70 Spor t seats •: easy e ntry contro ls
• To fold the fron t seat backrests forwa rd/
back,
lift the latch @~ fig. 69 or~ fig. 70
and fold the backrest forward.
• To move the front seats forward/back, press
and hold the @ button until the seat has
reached the desired position.
When the front seats are moved forward,
their original pos it ion is stored . When it is
moved back, the seat automatically stops in
this position. To move the seat even further back, you have to re lease the switch @ and re ­
activate it.
Applies to vehicles w it h ad justab le head re­
straints : The head restraints from the front
seats, depending on the seat height that has
been set, are automatically retracted when
the seatbacks are folded down . They return to
thei r o rigina l posit io n aga in when the sea t­
bac ks for the front seats a re raised .
(D Tips
With the driver's or passenger's door
closed, the corresponding switch to move
the seat is inoperat ive.
Seat adjustments in MMI
Appl ies to vehicles: with seat memory and MMI
The passenger's seat can be adjusted to vari­
ous positions by the driver.
Conven ience side view
• Select: !CAR I function button > Seat adju st­
ment
> P ass enger' s se at > Con venience side
view.
O r
- -• Select: I CAR I function button > Ca r systems *
control button > Ve hicle s ettings > Seats >
Passenger 's seat > Convenience side view .
• Continue to press the control knob until the
adjustment process is complete.
Seat symmetry
• Select: Function button !CAR !> Seat adjust­
ment > Passenger's seat > Seat s ymmetry .
Or
• Select: !CARI function button> Car systems *
control button > Vehicle s ettings > Se ats >
Pa sseng er's s eat > Align with driv er's seat.
• Cont inue to press the control knob until the
adj ustment p rocess is comp lete.
U sing the
Con veni ence side view funct ion, the
passenger 's seat is adjusted so that the driver
has the best poss ible view to the righ t. Whe n
the Conve nience s ide v iew is set, the specific
position of the driver's seat is taken into con ­
sideration.
U si ng the
Seat symm etry function, the pas­
senger's seat can be moved to the same po si­
tion as the driver 's seat . The settings for the
driver's seat are imported and set automati ­
ca lly.

"' N
a: LL co
rl I.O
"' rl
"' rl
Center armrest
The center armrest can be adjusted to several
levels .
Fig. 71 Armrest between t he drive r's/front passenger's
seats.
Adjusting the center armrest
.. To adjust the angle, raise the armrest from
the starting position
r=:> fig. 71 detent by de­
tent.
.. To bring the armrest back into the starting
pos ition, raise it out of the top detent and
fold it back down.
The arm rest can slide forward and back .
Head restraints
Front head restraints
Applies to vehicles: with ad justable head restraints
Head restraints that are adjusted according
to body size, along with the seat belt, offer
effective protection.
....
::::=;~~-..:.:::::~ I
Fig . 72 Fro nt seat: adjusting the power head restra int
Adjust the head restraint so the upper edge is
as even as possible with the top of your head.
If that is not possible, try to adjust the head
restra int so that it is as close to this position
as poss ible r=:>
page 63 .
Seats and storage 63
.. To adjust the height of the power head re­
straint*, press the button up/down
<=:> fig. 72.
Refer to <=:> page 115, Proper adjustment of
head restraints
for guidelines on how to ad­
just the height of the front head restraints to
suit the occupant's body size.
A WARNING
- Driving without head restraints or with
head restraints that are not properly ad­
justed increases the risk of serious or fa­
tal neck injury dramat ically.
- Read and heed all WARNINGS
<=:> page 115, Proper adjustment of head
restraints .
@ Tips
-To prevent the head restraints from run­
ning into the headliner, they retract au­
tomatically when moving the seat for­
ward or upward.
- Correctly adjusted head restraints and
safety belts are an extremely effective
combinat ion of safety features.
Seat memory
Description
App lies to vehicles: wit h memo ry function
-
The memory fun ction allows you to quickly
and easily store and recall personal seating
profiles for the driver. The memory function is
operated t hrough the master key and the
memory buttons in the driver's door .
The driver's seating profile is stored and as­
signed to the master key each time the vehicle
is locked. When you open the door, the seat
profile is automatically recalled . If two peop le
use one vehicle, it is recommended that each
person always uses "their own " master key.
Up to 2 seat profiles can be stored in the
memory buttons in the driver's door . Once
they a re stored, these seat profiles can be se-
lected at any time.
IJII,-

64 Seats and storage
In addition to the driver 's seat settings, you
can also store and access the exterior mirror
ad justment settings* using the remote con­
trol key or memory button.
Remote control key
Applies to vehicles: with seat memory
To assign the driver's seat settings to the re­
mote contro l key when locking the vehicle, the
function must be activated in the radio or
MMI*
• Se lect :
I CAR I funct ion button> Seat adj ust ­
ment
> Dri ver's se at > Remote c ontrol k ey >
on .Or
• Se lect :
,..,I Cc-cAc-cRc-, 1 funct ion button > Car system s*
control button > Vehicle setting s > Seats >
Driv er' s s eat > Remot e cont rol key > On .
(D Tips
If you do not want another d river's set­
tings to be assigned to the remote key,
sw itch off the memory function us ing the
rad io or MMI* or the
!ON/OFF I button
c:::>page 64.
Memory buttons
App lies to vehicles: with seat memory
Fig. 73 Driver 's door: memory functio n buttons
The memo ry but tons are located in the dr iv­
e r's door .
Switching the memory function on /off
• Press the ION/O FF I button to switch the
memo ry fu nction on/off. The word
OFF
li ghts up when the memory funct io n is
swit ched off. Seat profi les are neither stored
nor recalled .
Storing a s eat p rofile
• Press the ISET I button. When the word SET
lights up, the memory is ready to store set ­
tings.
• Press a memory button
dII or [Ii) briefly . A
tone confirms that the settings were stored.
Acces sing a seat profile
• If the driver's door is open and the ignition
is switched off, press the memory button.
• If the driver's door is closed or the ignition is
switched on, press and ho ld the memory
button until the seat adjustment is com­
plete .
A WARNING
-For safety reasons ., the seat setting can
only be recalled when the vehicle is sta­
tionary -ot herwise you ris k having an ac­
cident.
- I n an emergency the recall proced ure can
be cancelled by p ressing the
ION/OFF I
sw itch or by tapping the memory bu t­
ton s.
Ashtray
Fig. 7 4 Center console : ashtray
Opening /cl osi ng
• To open the ashtray, slide the cover up
c:::> fig. 74.
• To close the ashtray, press down on the cov­
er.
Emptying the ashtray
• To remove the insert, s lide the latch to the
right
c:::> fig. 74 -arrow- . ..,_

"' N
a: LL co
rl I.O
"' rl
"' rl
.. To install the insert , press it down into the
mount.
A WARNING
Never put waste paper in the ashtray. Hot
ashes or other hot objects in the ashtray
could set waste paper on fire.
Cigarette Lighter
Fig. 75 Fron t ce n ter conso le: cigarett e lig hter
.. Press the cigarette lighter in .
.. Remove the cigarette l ighter when it pops
out.
The c igarette lighter shou ld only be used as a
power source for the tire repair kit when abso­
l utely necessary.
A WARNING
The cigarette lighter only works when the
ign ition is switched on . Incorrect usage
can lead to serious injuries or burns. For
this reason, children should never be left
unattended in the vehicle because this in­
creases the risk of injury.
Storage
General overview
A WARNING
- Always remove objects from the instru­
ment panel. Any items not put away
could slide around inside the vehicle
wh ile driving or when accelerating or
when applying the brakes or when driv­
ing around a corner.
Seats and storage 65
-When you are driving make sure that
anyth ing you may have placed in the cen­
ter console or other storage locations
cannot fall out into the footwells . In case
of sudden braking you would not be able
to brake or accelerate .
Cupholder
Fig. 76 Center console: fro nt cupho lde r
Fig. 77 (up holder* in the rea r
Front beverage holders
.. You can accommodate two beverages in this
storage
Q fig. 76.
A maximum of two beverages can be placed in
the rear beverage holders*.
A WARNING
Spilled hot liquid can cause an accident
and personal injury.
- Never carry any beverage containers with
hot liquids, such as hot coffee or hot tea,
in the vehicle while it is moving. In case
of an accident, sudden braking or other
veh icle movement, hot liquid could spill,
causing scalding burns. Spilled hot liquid
can also cause an acc ident and personal
injury.

66 Seats and st o rage
- Use only soft cups in the cupholder. Hard
cups and g lasses can ca use in jury in an
accident.
- Never use the cupholder or adapter as an
ashtray -risk of fire.
(D Note
On ly drink containers with lids should be
carried in the cupho lder. Liqu id could sp ill
out and damage your vehicle's e lectronic
equipment or stain the upholstery, etc.
Glove compartment
The glove comportment is illuminated and
can be locked .
Fig . 78 Glove compa rtment
.. To open the glove compartment, pu ll the
hand le in the direct io n of the arrow¢
fig. 78
and swi ng the cover down to open.
.. To close the glove compartment, pus h the
glove compartment lid upward until the lock
engages.
The glove compa rtment can be locked using
the mechanical key¢
page 32.
On the r ight side in the glove compartment is
a holder wi th the key body into which the
emergency key must be cl ipped to be able to
start the vehicle .
A WARNING
To reduce the risk of persona l injury in an
accident or sudden stop, always keep the
glove compartment closed wh ile driving.
Luggage compartment
General information
A WARNING ~
Read and follow the important safety pre-
cautions on ¢
page 118, Stowing lug­
gage.
Enlarging the luggage compartment
The backrests con be folded forward either
separately or together.
F ig . 7 9 Luggage compartment: release lever
Folding th e backrest fo rwar d
.. Pull the release lever in the direction of the
arrow to fold the backrest forward .
Folding th e back res t b ack int o the upright
po sition
.. Fold the backrest back up again until it
latches securely¢ _&..
A WARNING
--The backrest must be securely latched in
position so that no items contained in
the luggage compa rtment can s lide fo r­
ward upon sudden braking.
- Always check whether the la tc h is fully
engaged by pulling the seatback for­
ward.
- Never a llow safety belts to become dam­
a ged by be ing caugh t in door or seat
hardware.
- Torn or frayed safety belts can tear and
d a maged be lt hardware can break i n a
crash. Inspect the belts periodically .

"' N
a: LL co
rl I.O
"' rl
"' rl
Belts showing damage to webbing, bind­
ings, buckles, or retractors must be re­
placed.
(D Note
Slide the belt guide on the outside safety
be lt all the way up before fo lding the back­
rest back forward. Make sure the seat belt
is not pinched or damaged when the rear
seat backrest if folded back. Other objects
should be removed from the rear seat
bench to protect the seatback from dam­
age.
Tie-downs
The luggage compartment is equipped with
four tie-down rings to secure luggage and
other items.
Fig. 80 Luggage compartment: t ie -dow ns
.,. Secure objects using elastic cords attached
to the tie-downs
c::> fig. 80.
.,. Read and heed all WARNINGS c:!;>poge 118,
Stowing luggage.
Seats and storage 67
Securing the ski sack
Applies to vehicles: with ski sack
Long objects such as skis or snowboards con
be transported in the ski sock.
Fig. 81 Luggage compartment: Secur ing the sk i sac k
Fig . 82 Rear bench seat: sec uring the sk i sack
.,. Fold both backrests fo rward c:!;> page 66 .
.,. Slide the ski sack from the lu ggage com­
partment through the opening
c::> A with
the zipper at the rear.
.. To secure the ski sack in the luggage com­
partment, hang the hooks ®
c:!;> fig. 81 in
the rear tie-downs .
.,. Tighten the strap @
c:!;> fig. 82 on the ski
sack to prevent the objects in the sack from
sliding.
A WARNING
-
- The ski sack is intended only for the
transportation of skis and other light ob­
jects . To reduce the risk of serious per­
sonal injury, never transport heavy or
pointed objects in the ski sack.
- When braking rapidly or during an acci­
dent, the load could be displaced and
cause injury to occupants.
- Sharp edges on the load must be covered
for protection. Always fasten the belt ..,_

68 Seats and stor age
tightly around the sack and its contents
¢ fig. 82.
-For safety reasons, do not t ransport
more than two pairs of skis in the ski
sack.
- You m ust sec ure the ski sack with t he
strap after loading.
- Make su re that all objects you are trans­
porting with the backrests folded for­
ward are secured. Otherwise they could slide aro und during sudden braking ma­
neuvers and cause injuries.
(D Tips
- Never stow the sk i sack away when it is
still wet or damp (for example, snow melt ing from sk is) . Allow it to dry com­
plete ly before stowing it away.
- When transporting skis or snowboards,
tighte n the securing strap between the
bindings .
- Position skis in the ski sack w ith the
po inted ends fac ing t he front and ski
po les w ith the pointed ends facing th e
rear.
