AUDI RS7 SPORTBACK 2015 User Guide

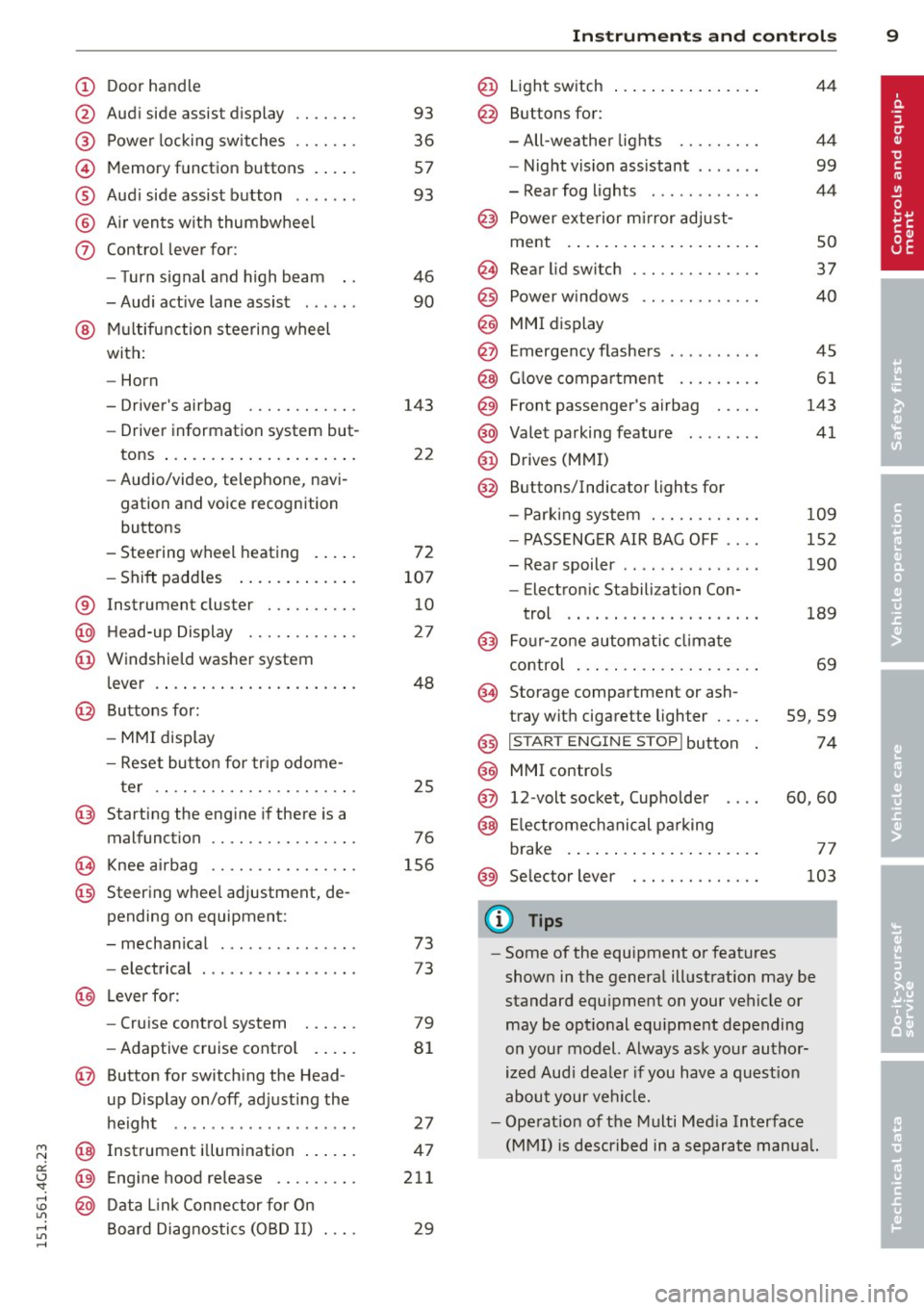

(!) Door handle
@
®
©
®
®
(j)
Audi side assist d isplay
Power locking sw itches
Memory function buttons . ... .
Aud i side assist button .. .. .. .
A ir vents with thumbwheel
Control lever for :
- T urn signal and high beam
- Audi act ive lane assist . .. .. .
@ Mu ltifunction steering wheel
with:
- Horn
- Driver's airbag
- Driver information system but-
tons ... ..... ....... ... .. .
- Audio/video , telephone, navi­
gation and voice recognition
buttons
- Steering wheel heating . ... .
- Shift padd les ..... ... .. .. .
® Instrument cluster ..... .. .. .
@ H ead-up Display ....... .. .. .
@ Windsh ield washer system
l ever .... .... ...... ... .. .. .
@ Buttons for :
- MM I display
- Reset button for tr ip odome-
ter .. .. ............. .... .
@ Starting the eng ine if there is a
malfunction
~ Knee airbag ........... .... .
@ Steering whee l adjustment, de­
pending on equipment:
- mechanical . ............. .
- electrical
@ Leverfo r:
- Cru ise contro l system
- Adaptive cruise cont ro l .. .. .
@ Button for switch ing the Head­
up Display on/off , adjusting the
h eight .. ................ . .
@ Instrument illuminat ion ... .. .
@ Eng ine hood release .... .. .. .
@ D ata Link Connector for On
Board Diag nos tics ( OBD II) . .. .
93
36
57
93
46
90
143
22
72
107 10
27
48
25
76
156
73
73
79
8 1
27
47
211
29
In strument s and control s 9
@ Light switch ..... . .. .. ..... .
@ Buttons for :
- All -weathe r lights
- Night vision assistant . .. ... .
- Rear fog lights . .......... .
@ Power exterior mirror adjust-
ment . ... .... .. . .. .. ..... .
@ Rear lid switc h ............. .
@) Power w indows .... ........ .
@ MMI display
@ Emergency flashers .. .. .. ... .
@ Glove compar tment ........ .
@ Front passenger's airbag .... .
@ Valet parking feature ....... .
@ Drives (MMI)
@ Buttons/Indicator ligh ts for
- P arking system ........... .
- PASSENG ER AIR BAG OFF ... .
- Rear spoiler .. .. . .. .... ... .
- E lectron ic Stabili zation Con-
trol .. .. .. .. .. . ... ...... .
@) Four-zone automatic climate
control . .. .. .. .. .. ........ .
@ Storage compartment or ash-
tray with cigarette ligh ter .....
@) I STAR T ENGIN E ST OPI button
@ MMI controls
@ 12-volt socket , (upholde r
@ Elec tromechanical pa rking
brake . ... .. .... . ... ...... .
@ Selector lever
(D Tips
44
4 4
99
44
so
37
40
45
61
143
41
109
152
190
189
69
59,59
74
60,60
77
103
- Some of the equipment or features
shown in the genera l ill ustration may be
standard equ ipment on your vehicle or
may be opt ional equ ipment depending
on you r model. Always ask your autho r­
ized Aud i dea le r i f you have a quest ion
about your ve hicl e.
- Ope rat ion of the Multi Med ia Interface
(MMI) is described in a separate manua l.

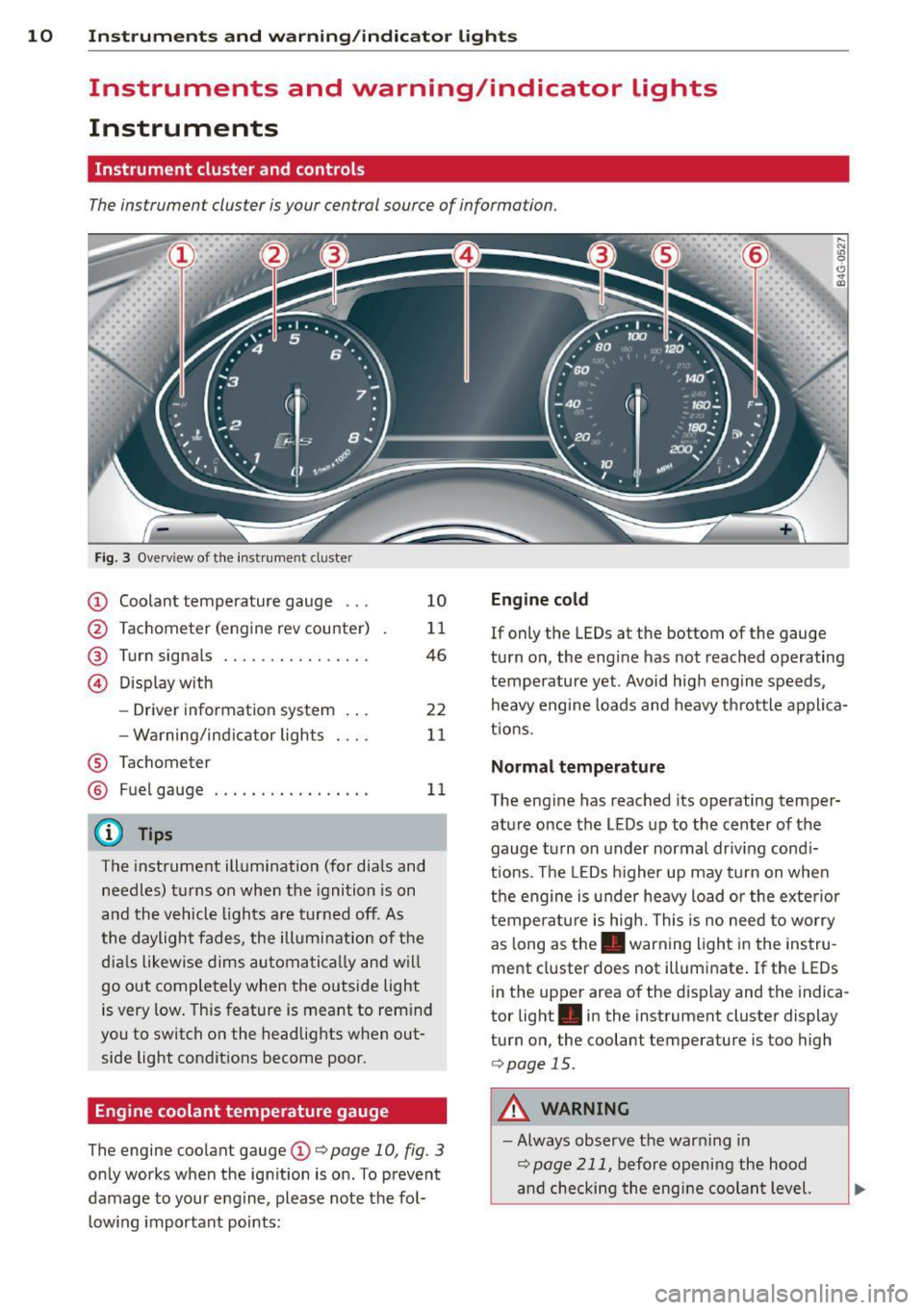

10 Instruments and warning/indicator lights
Instruments and warning/indicator Lights
Instruments
Instrument cluster and controls
The instrument cluster is your central source of information.
Fig. 3 Overv iew of the inst rument cluster
CD Coolant temperature gauge ...
@ Tachometer (engine rev counter)
@ Turn signals ........... .. .. .
© Display with
- Driver information system .. .
- Warning/ind icator lights
® Tachometer 10
11
46
22
11
@ Fuel
gauge . . . . . . . . . . . . . . . . . 11
@ Tips
The instrument illumination (for dials and
needles) turns on when the ignition is on
and the vehicle lights are turned off . As
the daylight fades, the illumination of the
dia ls likewise dims automatically and will
go out completely when the outside light
is very low. This feature is meant to rem ind
you to switch on the headlights when out­
side light conditions become poor.
Engine coolant temperature gauge
The engine coolant gauge CD c:> page 10, fig. 3
only works when the ignition is on . To prevent
damage to your engine, please note the fol­
l owing important points:
Engine cold
,.._ N
9 (!)
" a,
If only the LEDs at the bottom of the gauge
turn on, the engine has not reached operating
temperature yet. Avoid high engine speeds, heavy engine loads and heavy th rottle applica­
t ions.
Normal temperature
The engine has reached its operating temper­
ature once the LEDs up to the center of the
gauge turn on unde r normal driv ing cond i­
t ions . Th e LEDs higher up may turn on when
the engine is under heavy load or the exterior
temperature is high. This is no need to worry
as long as the . warning light in the instru­
ment cluster does not illum inate . If the LEDs
in the upper area of the disp lay and the indica­
tor light . in the instrument cluster display
turn on, the coolant temperature is too high
c:> page 15.
A WARNING
-Always observe the warn ing in
c:> page 211, before opening the hood
and checking the engine coolant level.

M N
0:: <.J 'SI: ,...., \!) ..,.,
,...., ..,., ,....,
Instrument s and warnin g/indic ator ligh ts 11

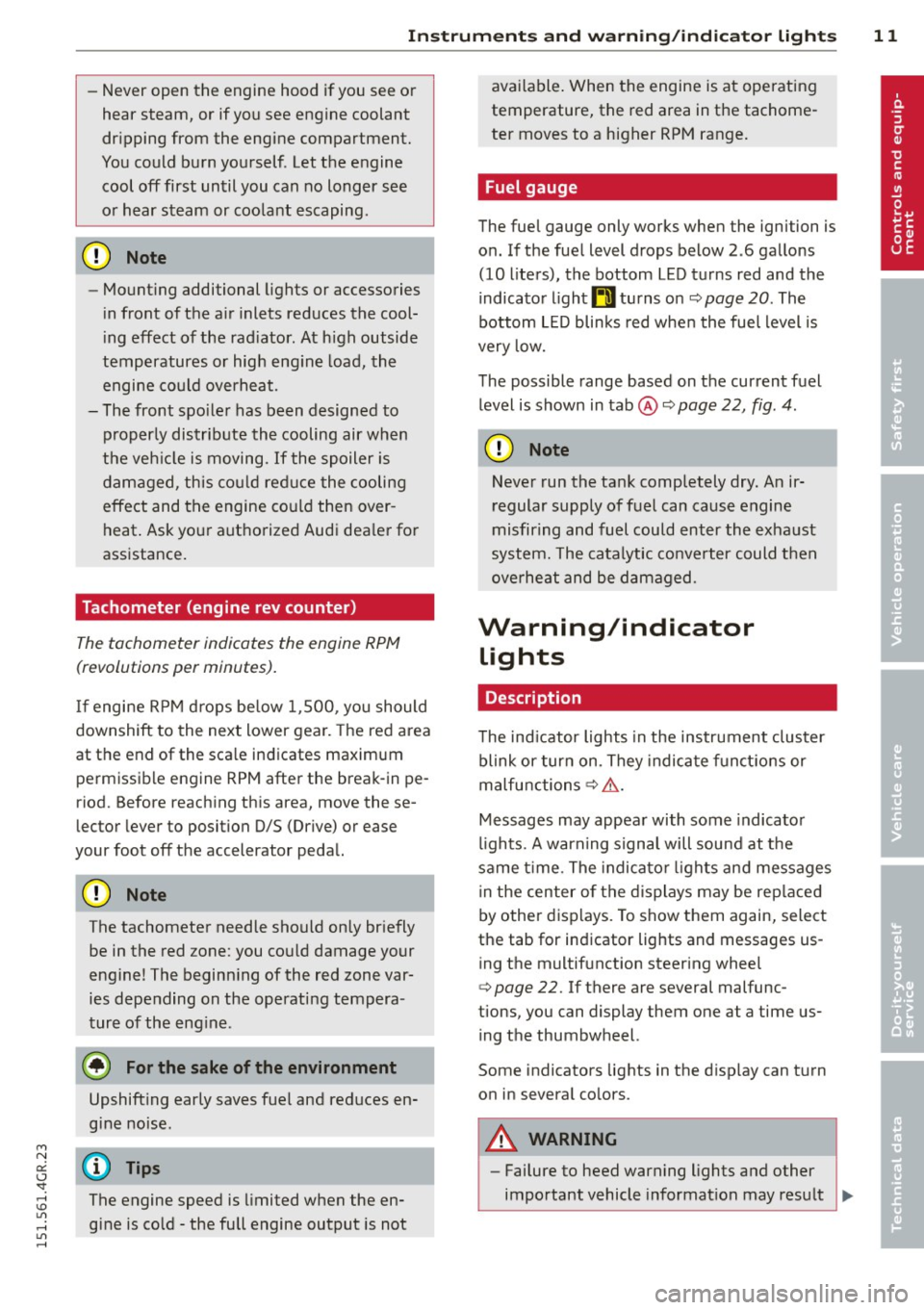

- Never open the engine hood if you see or
hear steam, or if you see engine coolant
dr ipping from the engine compartment.
You could burn yourself . Let the engine
cool off first until you can no longer see
or hear steam or coo lant escaping.
Q) Note
- Mount ing additional lights or accessories
i n front of the a ir inlets reduces the cool­
i ng effect of the rad iator . At h igh outside
temperatures or high eng ine load, the
engine could overheat.
- The front spo ile r has been designed to
proper ly distribute the cooling air wh en
t h e veh icle i s moving.
If the spoiler is
damaged, this cou ld red uce the cooling
effect and the engine co uld then over ­
heat . Ask yo ur authorized Audi dea ler fo r
ass istance.
Tachometer (engine rev counter)
The tachometer indicates the engine RPM
(revolutions per minutes).
If engine R PM drops be low 1 ,500, you should
downshift to the next lower gea r. T he red area
at the end of the sca le indicates maximum
pe rmissib le engine RPM after the break- in pe­
riod. Before reach ing this area, move these­
lector lever to position 0/5 (Drive) or ease
your foot off the accelerator peda l.
(D Note
The tachometer needle should only br iefly
be in the red zone: you cou ld damage your
eng ine! The beginn ing of the red zone var­
ies depending on the operati ng tempera­
ture of the eng ine .
@ For the sake of the environment
Upshift ing early saves fuel and reduces en­
gine noise.
@ Tips
The engine speed is limited when the en­
g ine is co ld - the full engine output is not ava
ilable . When the engine is at operating
temperature, the red area in the tachome­
ter moves to a higher RPM range.
Fuel gauge
The fuel gauge only works when the ignition is
on. If the fue l level drops below 2 .6 gallons
(10 lite rs), the bottom LED turns red and the
indicato r light
(j) turns on ¢ page 20. The
bottom L ED blinks red whe n the fuel level is
very low.
The possible range based on the current fuel level is shown in tab@¢
page 22, fig. 4.
(D Note
Neve r run the ta nk completely dry. A n ir­
r egular supply of f uel can cause engine
misfiring and fuel could enter the exha ust
system. The catalytic co nve rter could t hen
ove rheat and be damaged .
Warning/indicator
Lights
Description
The ind icator lights in the instrument cluster
blink or tur n on. They indica te f unct ions or
malfunctions ¢
&.
Messages may appea r with some indicato r
li ghts. A warning signal will sound at t he
same t ime . The indica to r li ghts and messages
i n the center of the displays may be rep lace d
by other disp lays. To show them again, select
the tab for ind icator lights and messages us­
ing the multif unction steering whee l
¢
page 22. If there are several malfunc­
tions, you can display them one at a time us­ i ng the thumbwheel.
Some indicators lights in the d isp lay can turn
on in severa l co lors.
A WARNING
- Failure to heed warning lights and other
important vehicle informat ion may resu lt
IJI,,

12 Instrum ent s and w arn ing /indic ato r light s

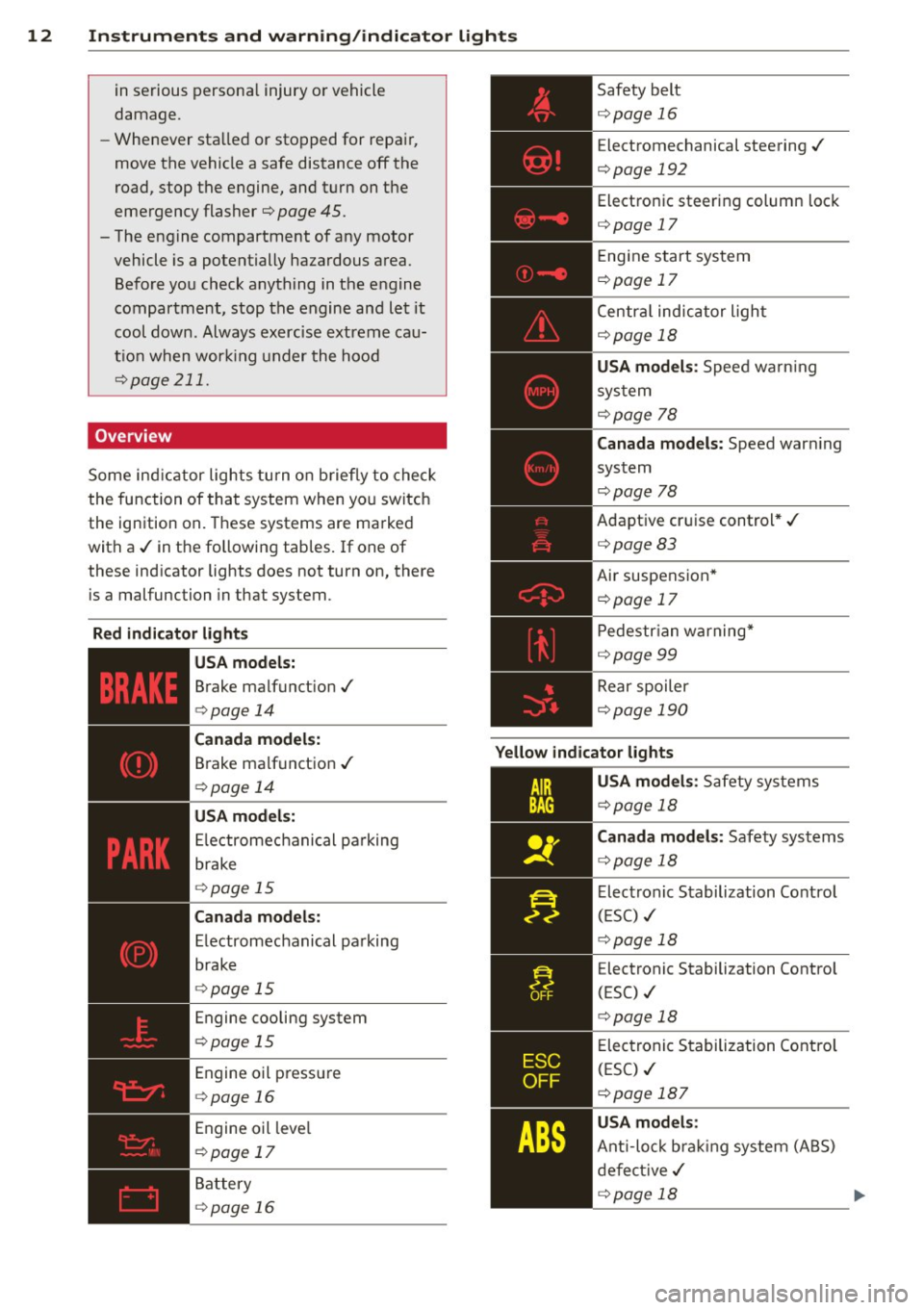

in serious persona l injury or vehicle
damage.
- Whenever sta lled or stopped for repair,
move the vehicle a safe distance off the
road, stop the engine, and turn on the
emergency flasher
¢ page 45.
- The engine compartment of any motor vehicle is a potentially hazardous area.
Before you check anything in the engine
compartment, stop the engine and let it
cool down. Always exercise extreme cau­
t ion when wor king under the hood
¢page 211.
Overview
Some ind icator lights tu rn o n briefly to check
the function of that system when yo u switch
the ignition on. These systems are marked
with a ./ in the fo llowing tab les. If one of
these ind icator lights does not turn on, there
is a malfunction in that system .
Red ind icator light s
-------------
USA mo del s:
Brake malfunct ion ./
¢page 14
Safety belt
¢page 16
Electromechanical steering ./
¢page 192
Electronic steering column lock
¢page 17
Engine start system
¢page 17
Centra l indicator light
¢ page 18
USA model s: Speed warning
sys tem
¢ page 78
Canada models : Speed warning
system
¢ page 78
Adaptive cruise control *./
¢page83
Air suspension *
¢page 17
Pedestr ian warning*
~ page 99
Rear spoiler
¢page 190
Canad a mod els :
Brake malfunction ./
¢page 14
Yello w ind ic a to r lights
U SA mo dels:
El ectromechanical pa rking
brake
¢ page 15
Canada model s:
Electromechanical parking
brake
¢ page 15
Engine cooling system
¢page 15
Engine oil pressure
¢page 16
Engine oil leve l
¢page 17
Battery
¢page 16
-------------
USA m odels: Safety sy stems
¢ page 18
Canada mod els: Safety systems
¢ page 18
Electronic Stabilization Control
(ESC) ./
¢page 18
Electronic Stabilization Control
(ESC) ./
¢page 18
Electronic Stabilization Cont ro l
(ESC) ./
¢page 187
USA m odel s:
Ant i- lock bra king system (ABS)
de fect ive ./
¢page 18 ..,.

M N
0:: <.J 'SI: ,...., \!) 1.1'1 ,...., 1.1'1 ,....,
Instrument s and warnin g/indic ator ligh ts 13
Canada m odel s:
Anti-lock braking system (ABS)
defective ,/
¢ page 18
Worn brake pads ¢page 19
Electromechanical parking
brake
¢ page 15
Tire pressure monitoring sys­ tem./
¢ page 255
Tir e p ress ure monitoring sys­
tem
¢ page 255
Electronic power control./
¢ page 19
Malfunction indicator Lamp
(MIL),/
¢page 20
Engine speed limitation
¢ page 20
Engine oil leve l
¢ page 17
Engine oil sensor
¢ page 20
Request to warm engine by
driving
¢ page 20
Battery
¢ page 16
Tank system
¢page 20
Windshield washer fluid leve l
¢ page 20
Windshield wipers ¢ page 21
Remote control key
¢ page 74
Remote control key
¢ page 76
Battery in remote control key
¢ page 32
/:
Defective light bulb warning
c:::> page 21
Rear fog light(s)
c:::> page 21
Headlight range control
c:::> page 21
adaptive light*
c:::> page 21
L ight-/ra in sensor fa ulty
c:::>page 21
Aud i active lane ass ist*
c:::> page 91
Adapt ive dampers*
c:::>page 21
Transm iss ion
c:::> page 107
Electronic steering column lock
c:::> page 17
Eng ine start system
c:::>page 17
Centra l ind icator light
c:::> page 18
E lectromechanica l steering, dy­
namic steering* ,/
c:::> page 192
A ir suspension*
c:::> page 17
Sport d ifferent ial*
c:::> page 21
Rear spoiler
c:::> page 190
Other indicator light s
-------------
Turn signals
c:::> page22
USA model s: Cruise control *
c:::> page 79
Canada models: C ruise control*
c:::> page 79
Adapt ive cr uise control*
c:::> page 83
Adapt ive cr uise control*
c:::> page 83

14 Instruments and warning/indicator lights
Adaptive cruise control*
9page 83
Audi act ive lane assist*
~ page 91
High beam
Qpage46
BRAKE/( ©) Brake system
The light illuminates when the ignition is
switched on. It goes out after the engine has
been started . Th is indicates that the brake
warn ing light is functioning properly.
If the brake warning light does not light up
when the engine is cranking , there may be a
malfunction in the electrical system. In this
case, contact your Audi dealer.
If the brake system warning/indicator light
turns on, there is a brake system malfunction .
• (USA models) ta (Canada models) Stop
vehicle and check brake fluid level
If the indicator light turns on and the mes­
sage appears, proceed as follows :
"" Pull off the road .
.. Stop the vehicle.
""Turn off the engine .
""C heck the brake fluid level ¢
page 220.
""Contact your neares t authorized repair fa-
cility if necessary.
Warning! Fault in brake system. Contact
dealer
If the ABS indicator light rJlm (USA models)/
[iJ (Canada models), the ESC indicator light
G1 and the b rake system indicator light
• (USA models)/. (Canada models) turn
on and the message appears, the ABS, ESC
and braking distribution are not working ¢
A.
Ca refully drive to your authorized Aud i dealer
immediately to have the malfunction correct­
ed ¢
,A.
• (USA models)/ . (Canada models) Park­
ing brake : system fault! Please contact deal­
er
- If the indicator light and the message ap ­
pear
when stationary or after switching the
ignition on ,
check if you can re lease the
parking brake. After releasing the parking
brake, carefully drive to your authorized
Aud i dea ler immediately to have the mal ­
fu nction corrected. If you cannot release the
park ing brake, seek professiona l assistance.
- If the ind icator light and the message ap­
pear
while driving , the emergency brak ing
function may not be available . It may not be
possible to set the park ing brake or release
it once it has been set. Seek profess iona l as­
sis tance.
(USA models) : If the warn ing light. and the
warning light
E+J appear together, immedi­
ately contact your au tho rized Aud i dealer or
qualified wo rkshop to have all brake pads in­
spected
¢ page 19 .
When the light comes on, an aud ible warning
s ignal is also g iven .
_& WARNING
-Always observe the warnings in
¢
page 211, before opening the hood
and checking the brake fluid .
- Driving with low brake fluid is a safety
hazard. Stop the car and get professiona l
assistance.
- If the. (USA models)/ . (Canada
models) brake system indicator light
turns on togethe r with the ABS and ESC
indicator lights, the ABS/ESC regulating
function may have failed. Functions that
stabilize the vehicle are no longer availa­
ble. This could cause the vehicle to
swerve and increase the r isk of slid ing .
Drive carefully to the nearest authorized
Aud i dealer or other qualified workshop
and have the ma lfunction corrected.
- If the brake wa rning/ind icator light does
not go out after a few seconds and the pa rking brake is re leased, or lights up
while you are dr iving, the f lu id l eve l in
the brake fluid reservoir is too low. If you
believe that it is safe to do so, proceed
Iii>

M N
0:: <.J 'SI: ,...., \!) ..,.,
,...., ..,., ,....,
Instrument s and warnin g/indic ator ligh ts 15
immediately at low speed to the nearest
authorized Audi dealer or qualified repair
facility and have the brake system in­
spected .
- Always keep in m ind that after several
brake applicat ions, you will need greater
pressure on the brake pedal to stop your
vehicle . Do not rely on stra ined brakes to
respond w ith maximum stopp ing power
in critical situations. You must allow for
increased bra king distances . The extra
distance used up by fading brakes could
lead to an accident .
PARK!<®> Electromechanical parking brake
The warning/indicator light monitors the
electromechanical parking brake.
If the indicator light . (USA models)/ .
(Canada models) tu rns on, the par king b rake
was set .
• (USA mod els ) ~ (C anada mode ls) Cau­
tion: V ehicle pa rk e d too stee p
If the indicator lig ht blinks and the message
appears, there is not enough braking power to
keep the vehicle from rolling. The brakes have
overheated . The vehicle could ro ll away even
on a small in cl ine.
Pr ess brake pedal to rel eas e parking brake
To release the parking brake, press the brake
pedal and press the button ~ or start driving
with s tart ing ass ist at the same t ime
c::> page 78.
Please release parking brake
To release the parking brake man ually, press
the brake pedal and press the button~ at the
same time. The parking brake on ly re leases
automatically if the driver's safety be lt is fas­
tened.
Ill Parkin g brake!
If the Ill indica tor l igh t turns on and this
message appea rs, there is a p arking brake
mal function . Drive to your authorized Audi dealer or qualified workshop immediately to
have the malfunction corrected
.
_L Engine cooling system malfunction
A malfunction in the engine cooling system
must be repaired as soon as possible .
• Swit ch off en gin e and check coolant l evel
If the indicato r light turns on and the mes­
sage appea rs, the coolant temperature is too
high or the coolant leve l is too low.
.,. Pull off the road .
.,. Stop the vehicle .
.,. Turn off the engine .
.,. Check coolant level
c::> page 217 .
.,. Add coo lant if necessary c::> page 218.
.,. Con tinue dr iv ing on ly afte r the engine cool ­
ant warning/indicator ligh t goes out .
.,. Contact yo ur authorized Audi dealer for as-
sistance if necessary.
If the engine coo lant level is correct, t hen the
radiator fan may be the ca use of the malfunc­
tion .
• Coola nt temperature t oo high! Plea se let
engine run with vehicle stationary
If the indicator light turns on and the mes­
sage appea rs, let the engi ne run at idle for a
f ew m in utes to cool down.
A WARNING
- If you r vehicle should brea k down for
mechanical or other reasons, park at a
safe distance from moving traffic, turn
off the eng ine and turn on the hazard
warn ing lights
c::> page 45, Emergency
flasher.
-
- Never open the hood if you see or hear
steam or coolant escaping from the en­
gine compartment -you risk being scald­
ed . Wait unt il you can no longer see o r
hea r steam o r coolant escap ing .
- The engine compartment of any vehicle is a dangerous area . Before you perform
any wo rk in the engine compartment,
~

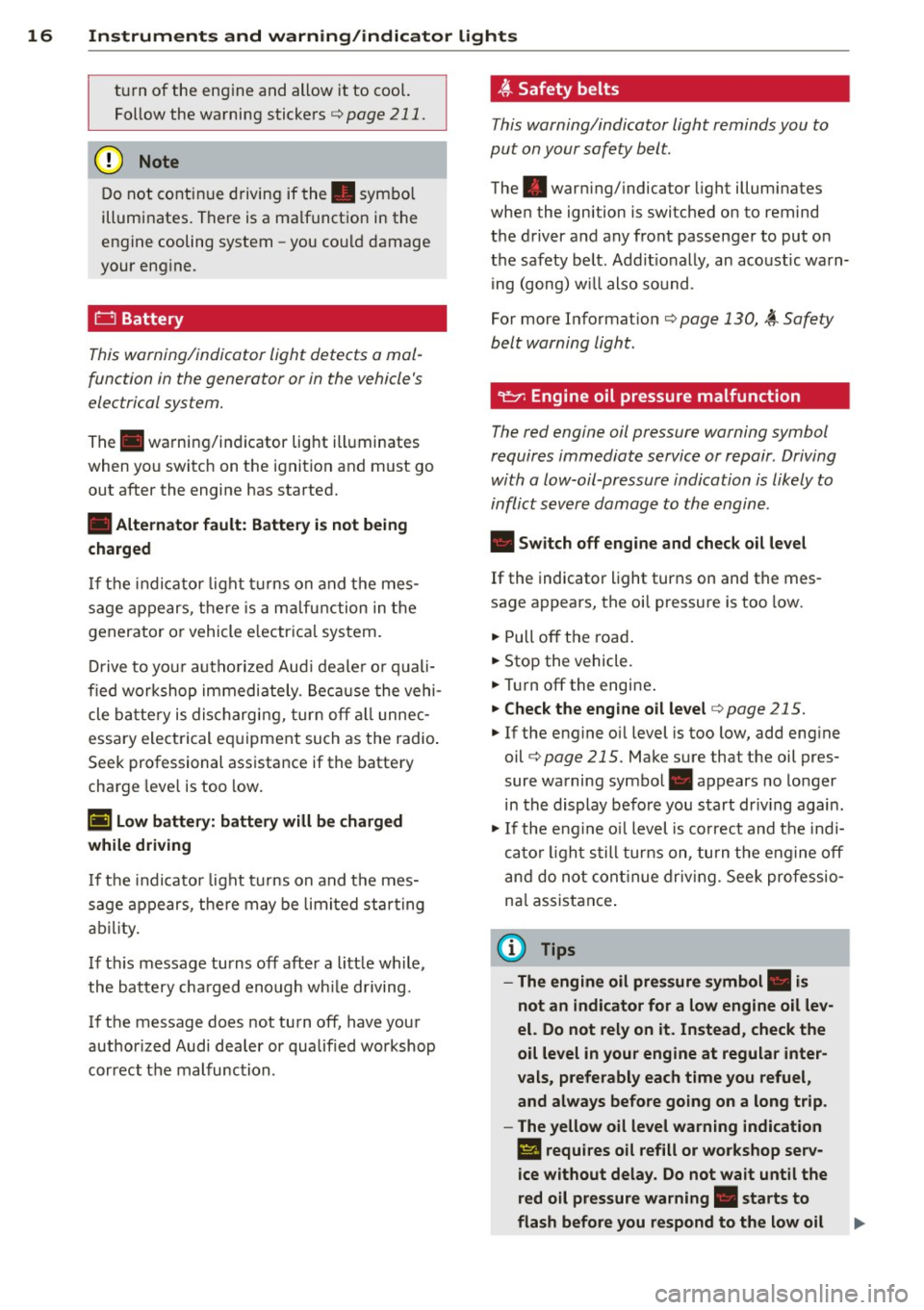

16 Instruments and warning/indicator lights
turn of the engine and allow it to cool. Follow the warning stickers
c::> page 211.
@ Note
Do not continue driving if the. symbol
illuminates. There is a malfunction in the
engine cooling system -you could damage
your eng ine.
0 Battery
This warning/indicator light detects a mal ­
function in the generator or in the vehicle's
electrical system.
The . warning/indicator light illuminates
when yo u switch on the ignition and must go
out after the engine has started.
• Alternator fault: Battery is not being
charged
If the indicator light turns on and the mes ­
sage appears, there is a ma lfunction in the
generator or vehicle e lectrica l system.
Drive to you r authorized Aud i deale r or quali­
fied workshop immediately. Because the vehi­
cle battery is discharging, turn off all unnec­
essa ry electrical equipment such as the radio .
Seek professional assistance if the battery
charge leve l is too low.
(•) Low battery: battery will be charged
while driving
If the indicator light turns on and the mes­
sage appears, there may be limited starting
ability.
I f th is message turns off afte r a litt le while,
the battery cha rged enough wh ile driving.
If the message does not turn off, have your
author ized Audi dealer or qualified workshop
correct the malfunction .
4'-Safety belts
This warning/indicator light reminds you to
put on your safety belt.
The . warn ing/ indicator light illuminates
when the ignition is switched on to remind
the driver and any front passenger to put on
the safety belt. Addit ionally, an acoustic warn­
ing (gong) w ill also sound .
For more Information¢
page 130, ~ Safety
belt warning light.
"l!::7": Engine oil pressure malfunction
The red engine oil pressure warning symbol
requires immediate service or repair . Driving
with a low-oil-pressure indication is likely to
inflict severe damage to the engine .
• Switch off engine and check oil level
If the indicator light turns on and the mes­
sage appears, the oi l pressu re is too low.
.,. Pull off the road .
.,. Stop the vehicle.
.,. Turn off the engine .
.,. Check the engine oil level c::> page 21 S.
.,. If the engine o il level is too low, add eng ine
oil
¢ page 215. Make sure that the oil pres­
sure warning symbol. appears no longer
in the display before you start dr iv ing again .
.,. If the engine o il level is correct and the indi­
cator light still turns on, turn the engine off
and do not continue driving. Seek professio­
na l assistance .
@ Tips
- The engine oil pressure symbol. is
not an indicator for a low engine oil lev­
el. Do not rely on it. Instead, check the
oil level in your engine at regular inter­
vals, preferably each time you refuel,
and always before going on a long trip.
- The yellow oil level warning indication
II requires oil refill or workshop serv­
ice without delay. Do not wait until the
red oil pressure warning. starts to
flash before you respond to the low oil ..,.

M N
0:: <.J 'SI: ,...., \!) 1.1"1 ,...., 1.1"1 ,....,

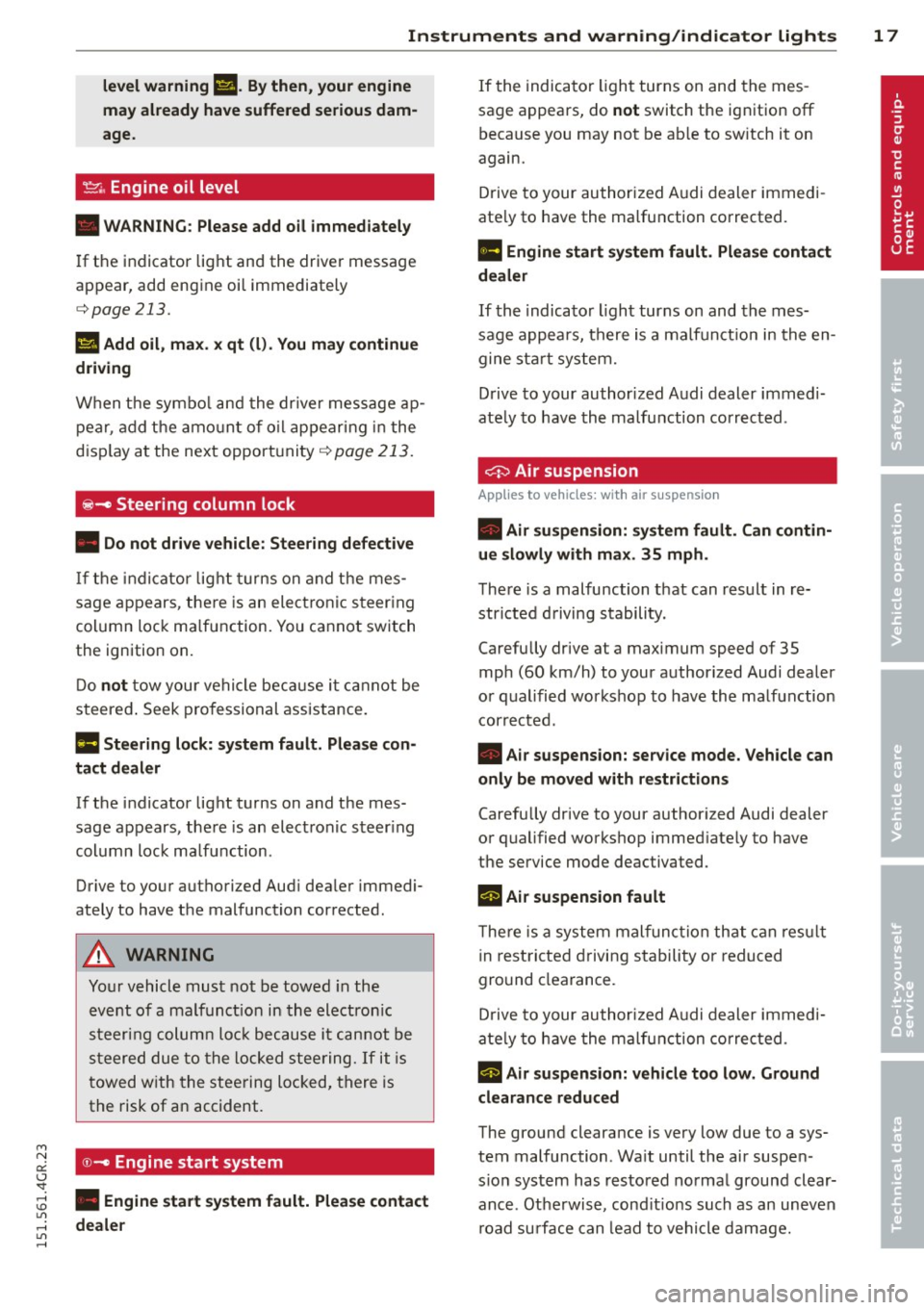

Instruments and warning/indicator lights 17
level warning a. By then, your engine
may already have suffered serious dam­
age.
!::. , Engine oil level
• WARNING: Please add oil immediately
If the indicator lig ht and the driver message
ap pear , add eng ine oi l immediately
¢page 213.
Ill Add oil , max. x qt (l). You may continue
driving
Wh en the sy mbol and t he dr ive r m essage ap­
pea r, a dd t he am oun t of oil a pp ear ing in t he
d is pl ay at the ne xt opport uni ty
¢ page 213.
~ - Steering column lock
• Do not drive vehicle: Steering defective
If the ind ic a to r lig ht tur ns on and t he mes­
sage ap pears, the re is an ele ct ro nic steer ing
col umn loc k ma lf u nction. You ca nnot switch
the ign ition on.
D o
not to w y our ve hicle bec ause it c annot be
steere d. Seek pro fes sional assistance.
Ill Steering lock: system fault. P lease con­
tact dealer
If the i ndicator lig ht tu rns on and the mes­
sage ap pears, the re is a n elect ro nic s teer ing
col umn loc k ma lfunction .
Drive to yo ur authorized Audi dea ler immedi­
ately to have the malfunction cor rected.
A WARNING
Y our veh icle mus t not be towed in the
eve nt of a malfun ct ion in th e ele ctron ic
s teeri ng colu mn lock becau se i t ca nno t be
steered due t o the l ocked s tee ring. If it is
t owed w ith the stee ring loc ked, there is
the risk of an accident .
©-. Engine start system
• Engine sta rt system fault. Please contact
dealer
I f the indica tor ligh t turns on and the mes ­
sage a ppears , do
not switch the ign ition off
because you may not be ab le to sw itch it on
again.
Drive to your authori zed A udi dealer immedi ­
ate ly to have the ma lfunction corrected .
Ill Engine start system fault . Please contact
dealer
If t h e i ndica to r ligh t turns on and the m es­
sage appea rs, t here is a malf unctio n in the en­
gine start system.
D rive to your author ized A udi dealer immed i­
ate ly to have th e ma lfunction corr ected .
0 Air suspension
Applies to vehicles : wit h air suspensio n
• Air suspension: system fault. Can contin­
ue slowly with max . 35 mph .
There is a malfunction that can result in re­
stricte d driving stability.
Carefully drive at a maximum speed of 35
mph (60 km/h) to your authorized Audi dealer
o r q ualified wor ks h op to have the ma lf u nc tion
correc ted.
• Air suspens ion: service mode. Vehicle can
only be moved with restrictions
Carefu lly drive to your author ized Audi dealer
o r qualified works hop immed iate ly to have
the service mode deactivated.
II Ai r suspension fault
The re is a system mal func tion th at ca n res ult
i n rest ric te d d rivi ng stability or redu ced
g ro und clea rance.
D rive to your au th oriz ed A udi dealer immed i­
ate ly to h ave the mal func tion correc ted.
II Air suspension: vehicle too low. Ground
clearance reduced
The ground clearance is very low due to a sys­
tem malfunction . Wa it until the air suspe n­
s io n system has resto red no rma l groun d clear­
an ce . Ot he rwis e, cond it ions su ch as an uneven
r oad su rfa ce can lead to vehicle damage .

18 Instrum ent s and w arn ing /indic ato r light s
tl'l.l !f Safety systems
The II (USA models)/S,I (Canada mode ls) in­
d icator light monitors the safety systems (e .g.
a irbags, pretensioners) and illuminates for a
few seconds each time you switch the ignition
on.
I f the
II (USA mode ls)/ S,I (Canada models)
indicator light does not go out, or if it illumi­
nates while you are driving, or if it starts to
blink, then there is a ma lfunction somewhere
in the system.
If the light does not illuminate
when you switch the ignition on, this also means there is a malfunction.
A WARNING
If you have a malfunction in the safety sys­
tems, contact your author ized Audi dealer
immediate ly. Otherwise the safety sys­
tems may not wo rk properly in an acci­
dent.
& Central indicator light
I f the indicator light . or II turns on, check
the message in the instrument cluster.
;;,J {J Electronic Stabilization Control
(ESC)
If the J,.J indicator light blinks wh ile driving,
the ESC or ASR (Ant i- S lip Regulation) is active ­
ly regulating .
If the
Ji! indicator light turns on, the system
has sw itched the ESC off. In this case, you can
switch the ignition off and then on to switch
the ESC on again . The indicator light turns off
when the system is functioning fully .
If the
fil indicator light turns on, ESC was re­
stricted or switched off using the
I Y; OF F I but­
ton
Q page 187 .
Stabilization cont rol (E SC/ABS): F ault! See
o w ner 's manual
If the Ji! indicator light and the ABS indicator
light
fi1 (USA models) I ii] (Canada models)
turn on and the message appears, the ABS or
e lec tronic differen tial lock is ma lfunction ing. T
his also causes the ESC to malfunction. The
brakes still function with their normal power,
but ABS is not active.
Drive to your au thorized A udi dealer or quali­
fied workshop immed iate ly to have the mal­
function corrected .
A WARNING
-If the . (USA mode ls)/ . (Canada mod-
e ls) b rake system indicator light turns on
together with the ABS and ESC indicator
lights, the ABS/ESC regulating function
may have failed . Fu nctions that stabilize
the veh icle are no longe r available . T his
could cause the vehicle to swerve and in­
crease the risk of sliding. Drive carefully to
the nea rest au thori zed A udi dealer or oth­
er qualified workshop and have the ma l­
f u nction corrected.
@ Tips
Fo r additional in format ion on ESC and
ABS, refer to
Q page 187.
ABS/{ €,) Anti-lock braking system (ABS)
This warning/indicator light monitors the ABS
and the electronic differential lock (EDL).
The wa rning/indicator light fi1 (USA mod-
els)
/ KG!ff (Ca nada models) w ill come o n for a
f ew seconds when the ignition is sw itched on.
T he light will go out after an automatic check
sequence is comp leted .
There is a malfunction in the ABS when:
-The warning/indicato r light does not illum i­
nate when you switch the ignit io n on.
- The warning/indicator l ight does not go out
after a few seconds.
- The warn ing/ indicator light illum inates
while d riving.
The ESC indicator lig ht also illum inates if
there is a malfunction in the ABS. The mes ­
sage
Stabi liz at ion control (ESC /ABS ): Fault!
See owner's manual
also appears in the in­
st rument cluste r d isplay and a wa rning tone
sounds.
