AUDI RS7 SPORTBACK 2015 Workshop Manual

M N
0:: <.J 'SI: ,...., \!) 1.1'1 ,...., 1.1'1 ,....,

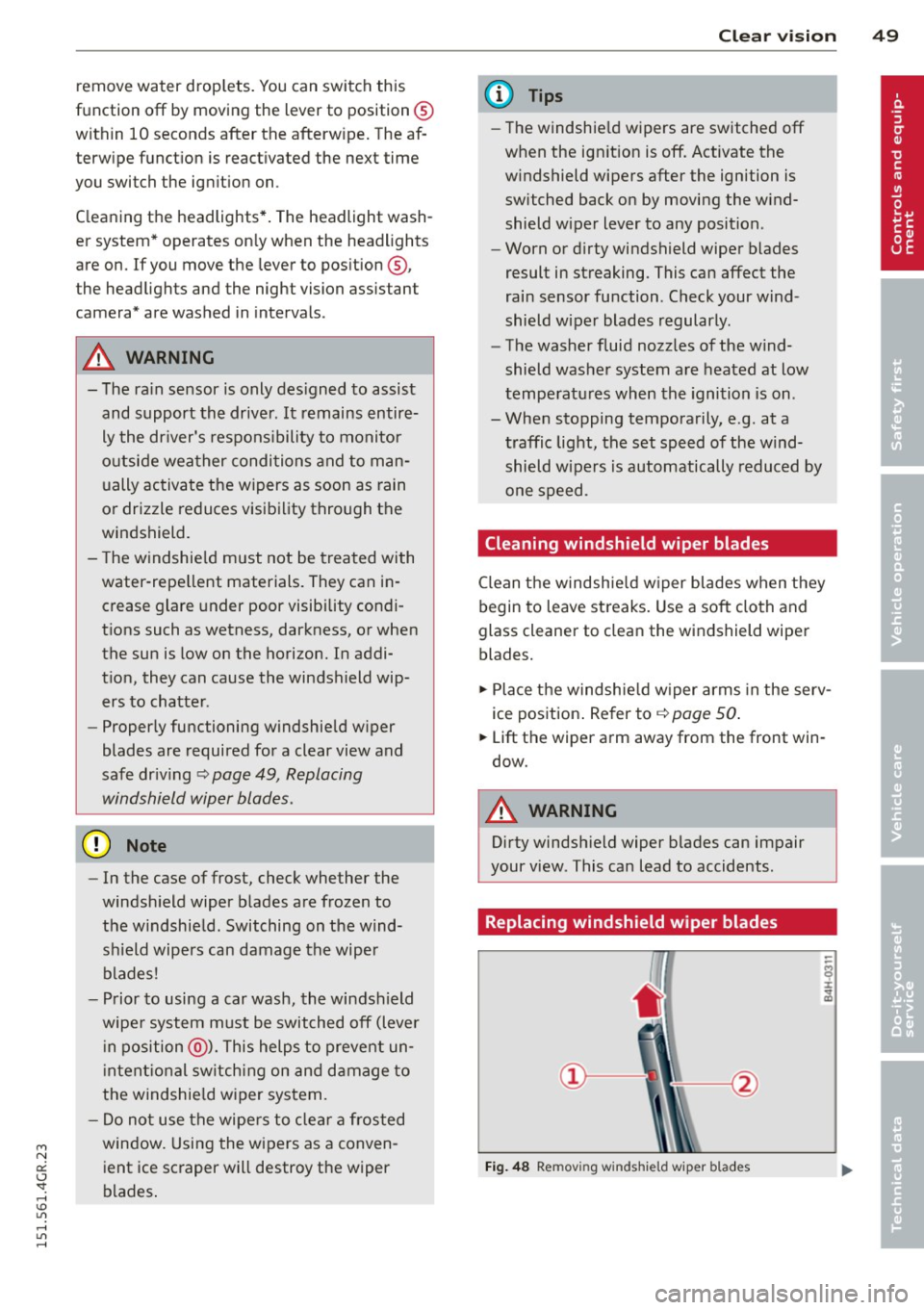

remove water droplets . You can switch this
function off by moving the lever to position ®
within 10 seconds after the afterw ipe. The af­
terw ipe funct ion is react ivated the next time
you switch the ignit ion on .
C lea ning the headlights *. The headlight wash ­
er system * operates on ly when the headlights
are on. If you move the lever to pos ition ®,
the headlights and the night vision assistant
camera* are washed in intervals .
.&_ WARNING
-The ra in sensor is only des igned to assist
and support the drive r.
It remains entire­
ly the dr iver's respons ibility to monitor
o utside wea ther conditions and to man­
ually activate the wipers as soon as rain
or drizzle reduces visibility through the
w indshield.
- The w indshie ld m ust not be treated with
water -repe llent materials. They can in­
c rease glare under poor visibi lity condi­
tions such as wetness, darkness, or when
the sun is low on the horizon. I n addi­
tion, they can cause the windshield wip­
ers to chatte r.
- Properly functioning windshie ld w iper
blades are required for a clear view and
safe dr iv ing ¢
page 49, Replacing
windshield wiper blades .
(D Note
-In the case of frost, check whether the
windsh ield wiper b lades a re frozen to
t h e windshie ld. Switching on the wind­
s h ield wipers can damage the wiper
blades!
- Prior to using a car wash, the win dsh ield
wipe r system must be switched off (lever
i n position @). This helps to prevent un ­
i ntent ional sw itch ing on and damage to
the windshie ld w iper sys tem .
- Do no t use the wipe rs to cle ar a frosted
window. Using the wipers as a conven­
i ent ice sc raper will destroy t he wiper
b lades .
Clear vis ion 49
(D Tips
- The windshie ld wipers are switched off
when the ign it ion is off. Activate the
w indshield wipers after the ignition is
switched back on by moving the w ind­
shield wiper lever to any position .
- Worn or d irty windshield wiper blades
result in streaking. This ca n affect the
rai n sensor function. Check your wind­
shield wiper blades regularly.
- The washer fluid nozz les of the wind­
shield washe r system a re heated at low
tempe ratu res whe n the ignition is on.
- When stopping temporarily, e .g. at a
t raffic light, the set spe ed of the wind­
shield wipers is automatically reduced by
one speed.
Cleaning windshield wiper blades
Clean the w indsh ie ld w iper blades when t hey
begin to leave st reaks. Use a soft clo th and
glass cleaner to clean the wi ndshield wipe r
blades.
.,. Place t he windsh ie ld w iper arms in the serv­
ice pos ition . Re fer to ¢
page 50 .
.,. Lift the wiper arm away from the front win­
dow.
.&_ WARNING
Dirty windsh ield wiper b lades can impair
your view. This can lead to accidents .
Replacing windshield wiper blades
Fig. 48 Removing windshie ld wiper blades

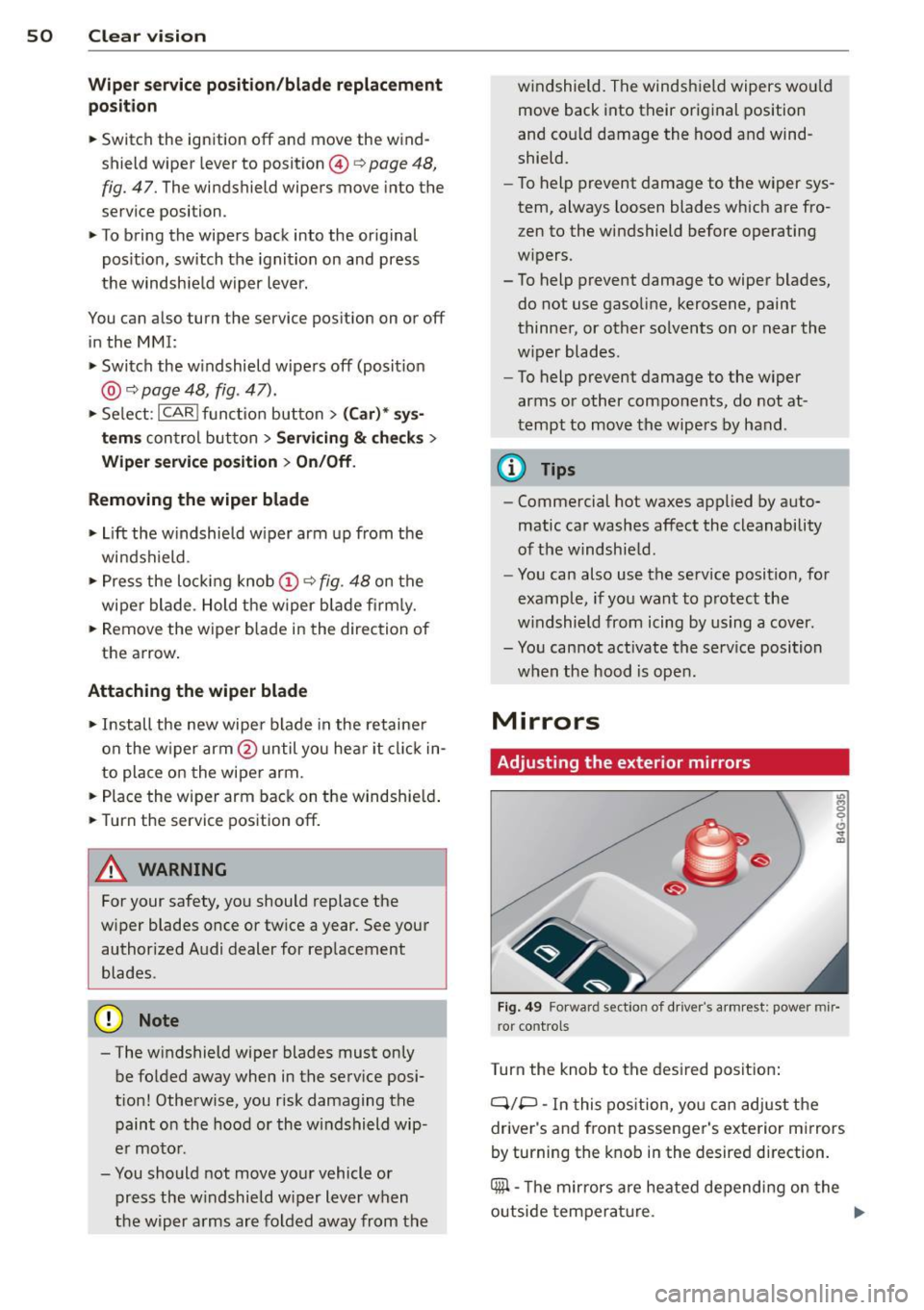

50 Clear vis ion
Wiper servi ce po sition /blade rep lacem ent
po sit ion
• Switch the ignition off and move the wind­
shield wiper lever to position @¢
page 48,
fig. 47. The windshield wipers move into the
service position.
• To bring the wipers back into the original
pos ition, switch the ignition on and press
the windshie ld wiper lever.
You can also turn the service position on or
off
in the MMI:
• Switch the w indshield wipers off (posit ion
@ ¢page 48, fig. 47).
• Se lect: I CAR I funct ion button> (C ar)* sys·
tern s
control button > Servicing & ch eck s >
Wip er serv ice po sition > O n/ Off .
R em oving the wip er blade
• Lift the w indshield wiper arm up from the
wi ndshield.
• Press the locking knob
(D ~ fig. 48 on the
wiper blade. Hold t he wiper blade firm ly.
• Remove the wiper blade in the direction of
the arrow .
Attaching th e wiper blade
• Install the new wipe r blade in the retaine r
on the w iper arm @until you hear it cl ick in­
to place on the wiper arm.
• Place the wiper arm back on the windshie ld .
• Turn the service pos ition
off .
A WARNING
-
For your safety, yo u should replace the
wiper blades once or tw ice a year. See your
authorized Audi dealer for rep lacement
blades.
(D Note
- The windshield wiper blades must on ly
be folded away when in the service posi­
tion! Otherwise, you risk damaging the paint on the hood or the w indshield wip·
er moto r.
- You should not
move your vehicle or
press the w indshield w iper lever when
the wip er arms are folded away from the w
indshield. The windshield wipers wou ld
move back into their original position
and co uld damage the hood and wind­
shield.
- To help prevent damage to the wiper sys­
tem, always loosen blades wh ich are fro­
zen to the windshield before operating
w ipers.
- To help prevent damage to wiper blades,
do not use gasoline, kerosene, paint
thinner, or other solvents on o r near the
w iper blades.
- To help prevent damage to the wiper
arms or other components, do not at­
tempt to move the wipe rs by hand.
¢j) Tips
- Commercial hot waxes applied by auto·
matic car washes affect the cleanability
of the windshie ld.
- You can also use the se rvice position, for
example, if you want to protect the
w indshield from icing by using a cover.
- You can not activate the service position
when the hood is open .
Mirrors
Adjusting the exterior mirrors
Fig. 49 Fo rward section of driver 's arm rest: power mir·
ror controls
Turn the knob to the desired posit ion :
Q/P -In this pos ition, yo u can adjust the
driver's and front passenger's exterior mirrors
by turning the knob in the desired direction.
4iil -The m irrors are heated depend ing on the
outside tempera ture. .,._

"' N
a:: I.J "". rl I.O
"' rl
"' rl

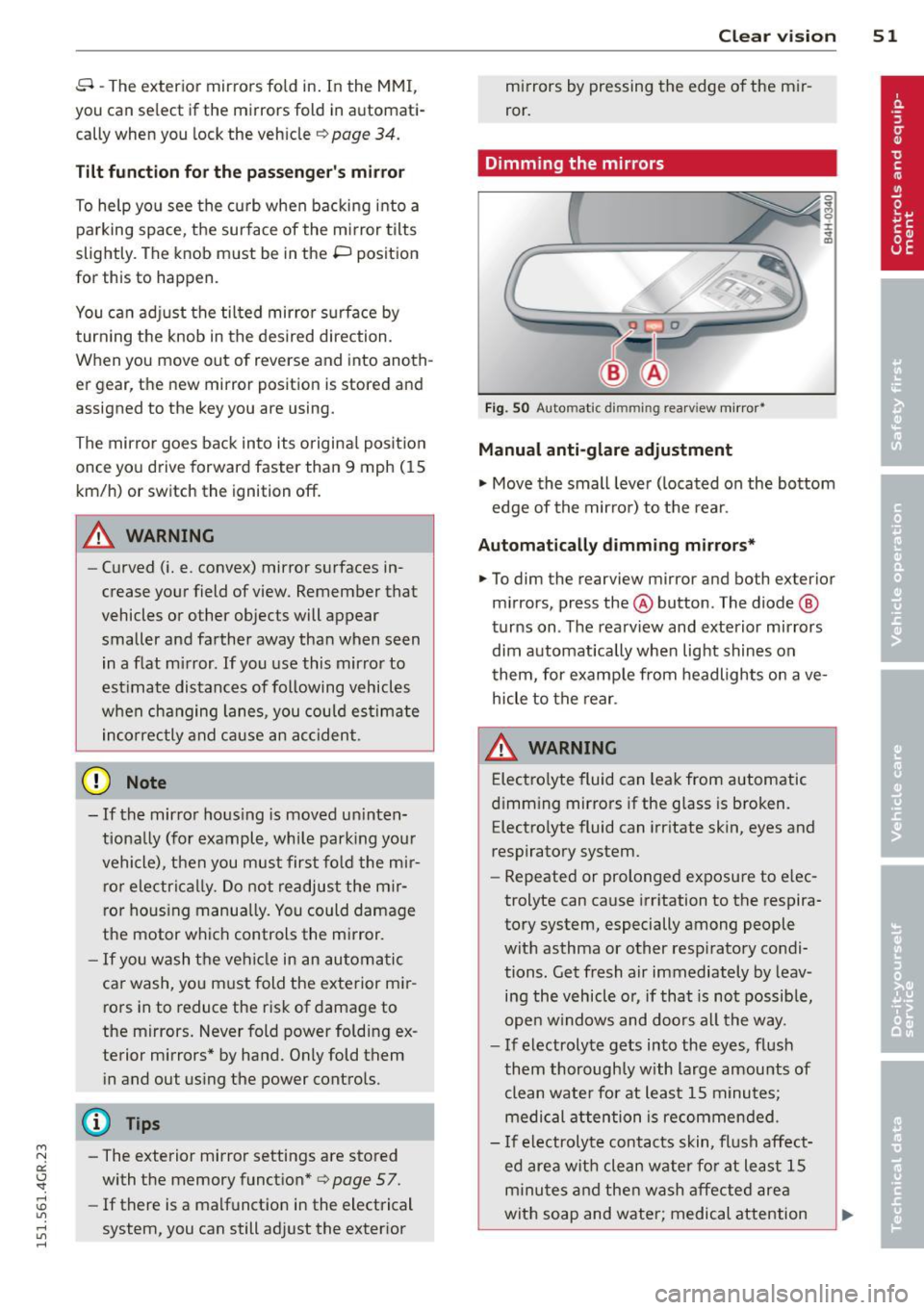

8 - The exterior mirrors fold in. In the MMI,
you can select if the mirrors fold in automati­
cally when you lock the vehicle ~
page 34.
Tilt function for the passenger's mirror
To help you see the curb when backing into a
parking space, the surface of the mirror tilts
slightly. The knob must be in the P position
for this to happen.
You can adjust the tilted mirror surface by
turning the knob in the desired direction.
When you move out of reverse and into anoth­
er gear, the new mirror position is stored and
assigned to the key you are using.
The mirror goes back into its original position
once you drive forward faster than 9 mph (15
km/h) or switch the ignition off.
.&_ WARNING
- Curved (i.e. convex) mirror surfaces in­
crease your field of view. Remember that
vehicles or other objects will appear
smaller and farther away than when seen in a flat mirror.
If you use this mirror to
estimate distances of following vehicles
when changing lanes, you could estimate
incorrectly and cause an accident.
(D Note
-If the mirror housing is moved uninten­
tionally (for example, while parking your
vehicle), then you must first fold the mi r­
ror electrically. Do not readjust the mir­
ror housing manually. You could damage
the motor which controls the mirror.
- If you wash the vehicle in an automatic
car wash, you must fold the exterior mir­
rors in to reduce the risk of damage to
the mirrors. Never fold power folding ex­
terior mirrors* by hand. Only fold them in and out using the power controls.
@ Tips
-The exterior mirror settings are stored
with the memory function*
~ page S 7.
- If there is a malfunction in the electrical
system, you can still adjust the exterior
Clear vision S 1
mirrors by pressing the edge of the mir­
ror.
Dimming the mirrors
Fig. SO Automatic dimming rea rview mirro r•
Manual anti-glare adjustment
"' Move the small lever (located on the bottom
edge of the mirror) to the rear.
Automatically dimming mirrors*
"'To dim the rearview mirror and both exterior
mirrors, press the@button. The diode @
turns on. The rearview and exterior mirrors
dim automatically when light shines on
them, for example from headlights on ave­
hicle to the rear.
&_ WARNING
= Electrolyte fluid can leak from automatic
dimming mirrors if the glass is broken.
Electrolyte fluid can irritate skin, eyes and
respiratory system.
~
- Repeated or prolonged exposure to elec­
trolyte can cause irritation to the respira­
tory system, especially among people
with asthma or other respiratory condi­
tions. Get fresh air immediately by leav­
ing the vehicle or, if that is not possible,
open windows and doors all the way.
- If electrolyte gets into the eyes, flush
them thoroughly with large amounts of
clean water for at least 15 minutes·
'
medical attention is recommended.
- If electrolyte contacts skin, flush affect­
ed area with clean water for at least 15 minutes and then wash affected area
with soap and water; medical attention
.___ ______ _:_ ____ _:_.::..:.:..__J ....

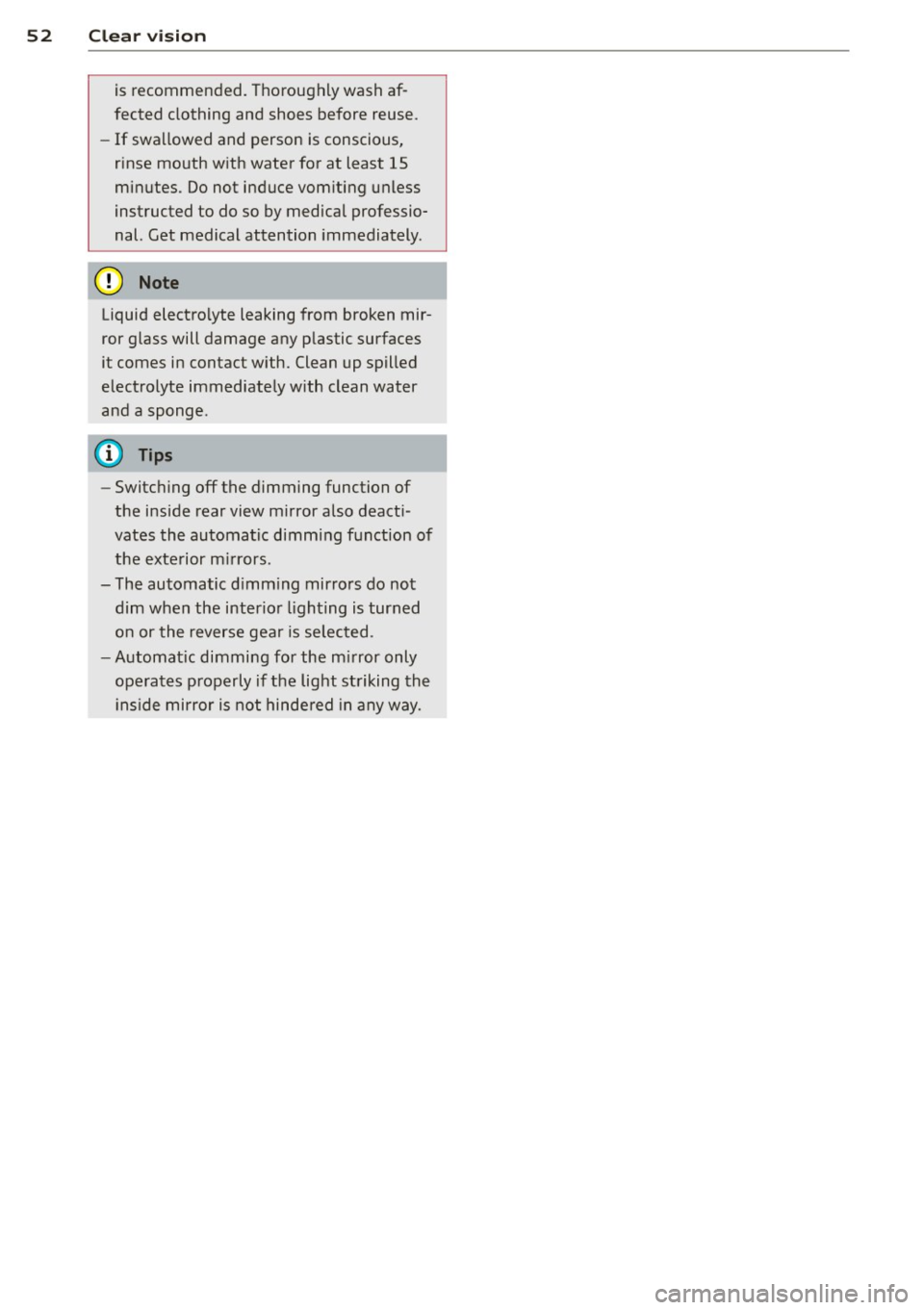

52 Clear vis ion
is recommended. Thoroughly wash af­
fected clothing and shoes before reuse .
- If swallowed and person is conscious,
rinse mouth with water for at least 15
minutes . Do not induce vom iting unless
instructed to do so by medical professio­
nal. Get medical attention immediately .
(D Note
Liquid electro lyte leaking from broken mir­
ror glass will damage any plastic surfaces
it comes in contact with. Clean up spilled
electrolyte immediately with clean water
and a sponge .
{i) Tips
-Switching off the dimming function of
the inside rear view mirror also deact i­
vates the automatic dimming f unction of
the exte rior m irrors .
- The automatic d imm ing mirrors do not
dim when the interio r lighting is turned
on or the reverse gear is se lected .
- Automat ic dimmi ng for the m irror only
ope rates p roperly if the light st riking the
i nside mirror is not hinde red in any way.

M N
0:: <.J 'SI: ,...., \!) 1.1'1 ,...., 1.1'1 ,....,

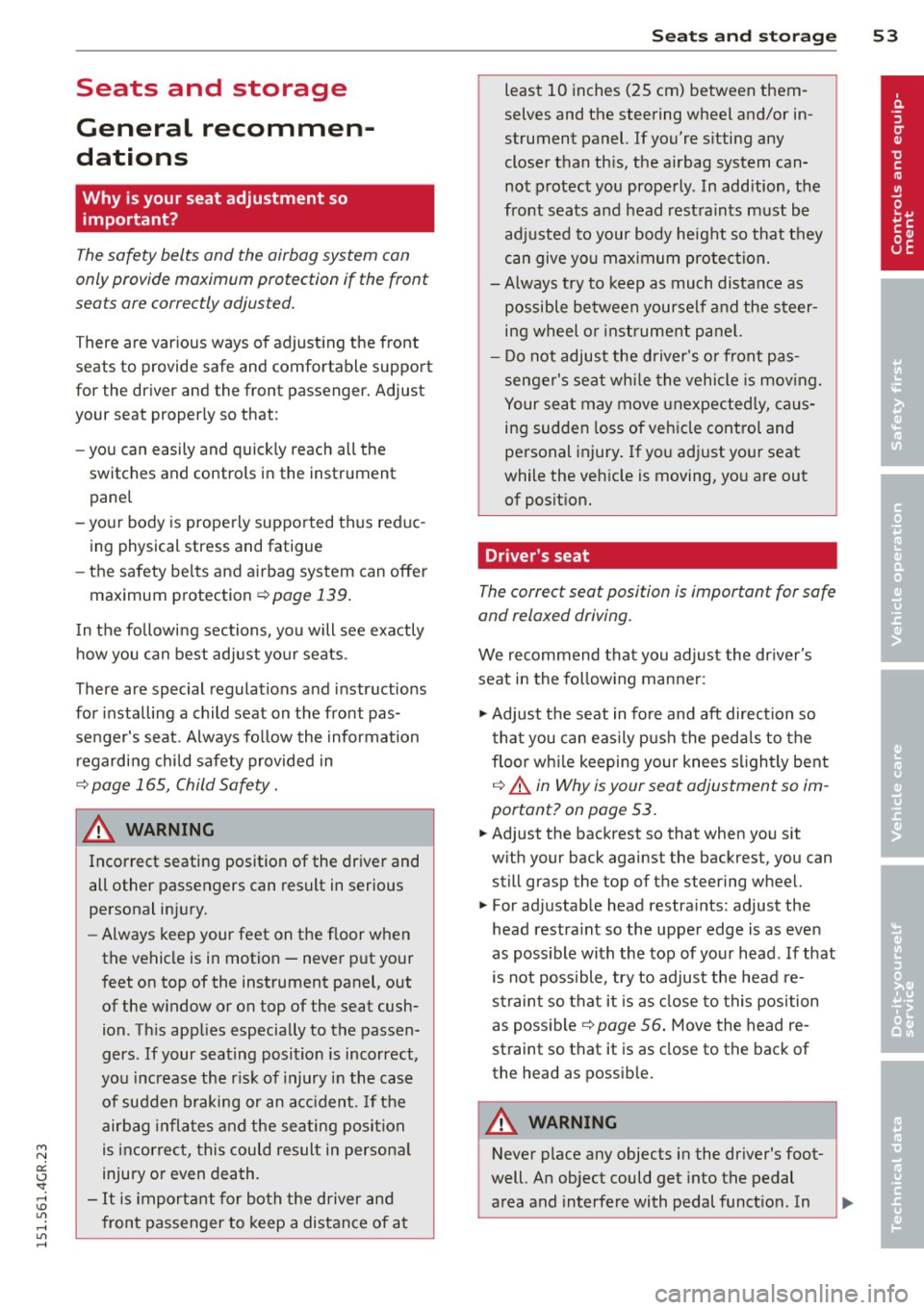

Seats and storage
General recommen­
dations
Why is your seat adjustment so important?
The safety belts and the airbag system can
only provide maximum protection if the front
seats are correctly adjusted.
There are various ways of adjusting the front
seats to provide safe and comfortable support
for the driver and the front passenger. Adjust
your seat properly so that :
- you can easily and quick ly reach all the
switches and controls in the instrument
panel
- your body is properly supported thus reduc­ ing physical stress and fatigue
- the safety belts and airbag system can offe r
maximum protection
¢ page 139.
In the following sections, you will see exactly
how you can best adjust your seats .
There are special regulations and instructions
for installing a child seat on the front pas­
senger's seat. Always fo llow the information
regarding chi ld safety provided in
¢ page 165, Child Safety .
A WARNING
Incorrect seating position of the driver and
all other passengers can result in serious
personal injury.
- Always keep your feet on the f loor when
the vehicle is in motion -never put your
feet on top of the instrument panel, out
of the window or on top of the seat cush­
ion. Th is applies especially to the passen­
gers . If your seating position is incorrect,
you increase the r isk of injury in the case
of sudden braking or an acc ident. If the
airbag inflates and the seating position
is incorrect, this could result in persona l
injury or even death.
- It is important for both the driver and
front passenger to keep a distance of a t
Seat s an d sto rage 53
least 10 inches (25 cm) between them­
selves and the steering wheel and/or in­
strument panel. If you're s itting any
closer than th is, the airbag system can­
not protect you properly. In addition, the
front seats and head restraints must be
adjusted to your body height so that they
can give you maximum protect ion.
- Always try to keep as much distance as
possible between yourself and the s teer­
ing wheel o r instrument pane l.
- Do not adjust the driver's or front pas­
senger's seat whi le the vehicle is moving.
Your sea t may move unexpected ly, caus­
ing sudden loss of vehicle cont rol and
personal injury . If you adjust yo ur seat
while the veh icle is moving, yo u are out
of posit ion.
Driver's seat
The correct seat position is important for safe
and relaxed driving.
We recommend that you adjus t the dr iver's
seat in the fo llowing manner:
.,. Adjust the seat in fore and aft direction so
that you can easily push the peda ls to the
floor wh ile keeping your knees s lightly bent
i:::> A in Why is your seat adjustment so im­
portant? on page 53.
.,. Adjust the backrest so that when you sit
w ith your back against the backrest, you can
still grasp the top of the steering wheel.
.,. For adjustable head restra ints: adjust the
head restra int so the upper edge is as even
as poss ible with the top of your head . If that
is not poss ible, try to adjust the head re­
straint so that it is as close to this position
as possible ¢
page 56. Move the head re­
straint so that it is as close to the back of
the head as possib le .
A WARNING
-Never place any objects in the dr iver's foot-
well. An object could get into the pedal
area and interfere with pedal funct ion . In
~

54 Seat s and storage
case of sudden braking or an accident, you
would not be ab le to brake or acce lerate.

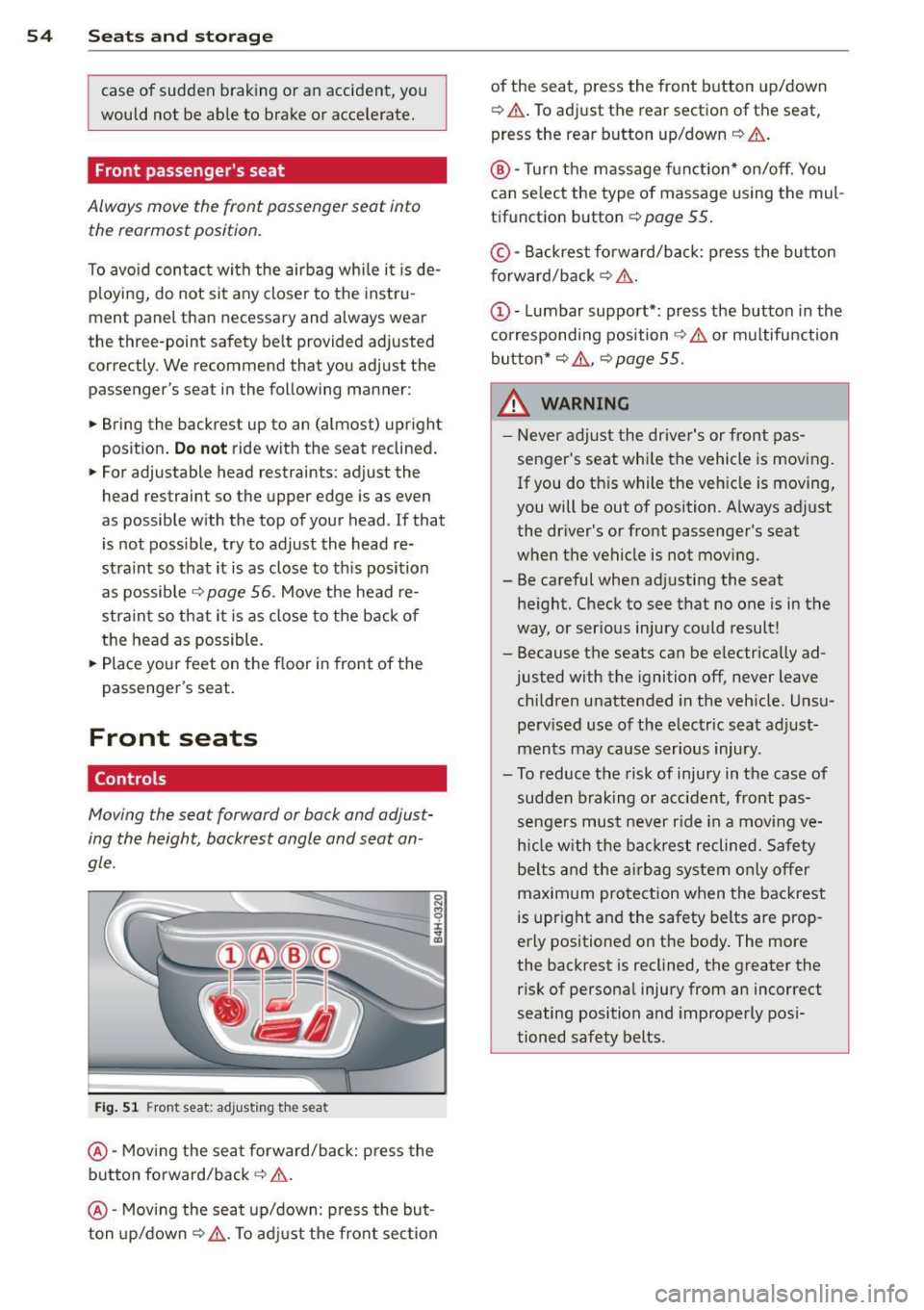

Front passenger's seat
Always move the front passenger seat into
the rearmost position.
To avo id contact with the airbag wh ile i t is de ­
p loying, do not sit a ny closer to the inst ru ­
ment panel than necessary and always wear
the three-point safety belt provided adjusted
correctly. We recommend that you adjust the
passenger's seat in the following manner:
"' Bring the backrest up to an (almost) upright
position . Do not ride with the seat reclined.
"' For adjustable head restraints: adjust the
head restraint so the upper edge is as
even
as possible w ith the top of your head . If that
is not possible, try to adjust the head re­
stra int so that it is as close to th is position
as possible ¢
page 56. Move t he head re­
stra int so that it is as close to the back of
the head as possible.
"' Place your feet on the floor in front of the
passenger's seat .
Front seats
Controls
Moving the seat forward or bock and adjust­
ing the height, backrest angle and seat an­
gle.
F ig. 5 1 Front seat: adjusting t he seat
@ -Moving the seat forward/back: press the
button fo rward/back
c:> .&. .
@ -Mov ing the seat up/down: press the but­
ton up/down~ _&.. To ad just the fron t sec tion of the seat, press the front button up/down
¢
.&. .To adjust the rear sectio n of the seat
,
press the rear button up/down ¢ &..
®-Turn the massage function * on/off. You
can select the type of massage using the mul­
tif unction button ¢
page 55 .
© -Backrest fo rward/back: p ress the bu tton
f orward/back
c:> &. .
corresponding position
c:> &. or multifunction
button*
c:> &. , c:> page 55 .
_& WARNING -
-Never adjust the driver's or front pas -
senger's seat whi le the vehicle is moving .
If you do th is while the veh icle is moving,
you will be out of position. A lways adjust
the driver's or front passenger's seat
when the ve hicle is not mov ing.
- Be careful when adj usting the seat
he ight. Check to see that no one is in t he
way, or ser ious injury cou ld result!
- Because the seats can be e lectrically ad­
justed with the ignition off,
never leave
children unattended in the veh icle. Unsu­
pe rv ised use of the electric seat adjust­
ments may cause serious injury .
- To reduce the risk of injury in the case of sudden b raking or accident, front pas­
sengers mus t never r ide in a moving
ve­
h icle with the ba ck res t reclined. Safety
be lts and the airbag system o nly offer
maxim um protection when the backrest
is upr ight and the safety belts are prop ­
erly positioned on the body . The more
the backrest is reclined, the greater the risk of persona l injury from an incorrect
seating position and improperly pos i­
tioned safety belts.

"' N
a:: I.J "". rl I.O
"' rl
"' rl

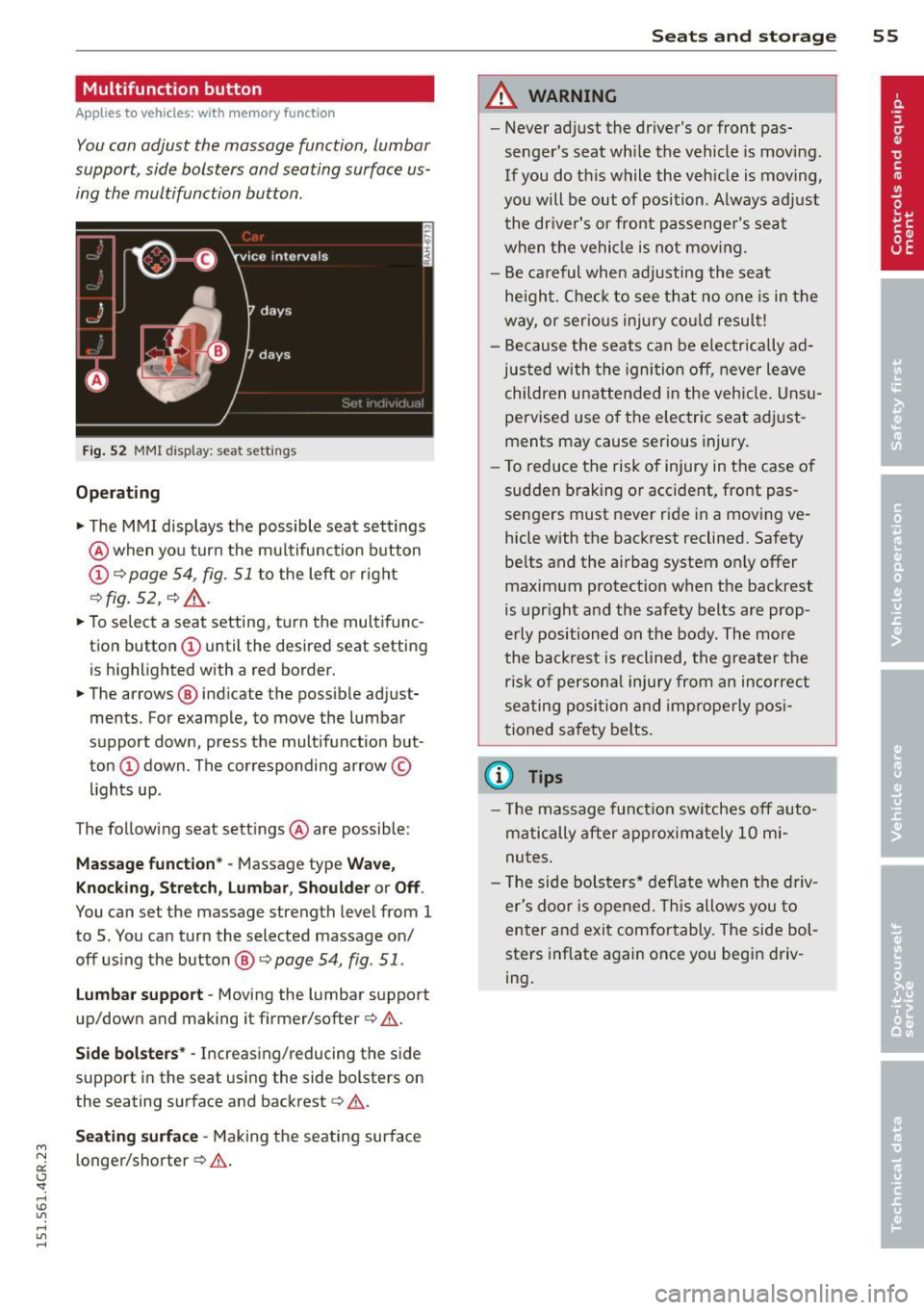

Multifunction button
Applies to vehicles: with memory function
You con adjust the massage function, Lumbar
support, side bolsters and seating surface us­ ing the multifunction button .
Fig. 52 MMI disp lay : sea t sett ings
Operating
.. The MMI displays the possible seat settings
@ when you turn the multifunction button
(D c:> page 54, fig. 51 to the left or right
~fig . 52 , c:> ,& .
.. To select a seat setting, turn the multifunc­
tion button
(D until the desired seat setting
is highlighted with a red border.
• The arrows @ indicate the possible adjust­
ments. For example, to move the lumbar
support down, press the multifunction but ­
ton
(D down . The corresponding arrow ©
lights up.
T he follow ing seat settings @ are possible:
Massage function* -Massage type Wave,
Knocking, Stretch, Lumbar, Shoulder or Off .
You can set the massage strength level from 1
to 5. You can turn the selected massage on/
off using the button @~
page 54, fig . 51 .
Lumbar support -Moving the lumbar support
up/down and making it firmer/softer
c:> .&. .
Side bolsters * -Increasing/reducing the side
support in the seat using the side bolsters on
the seating surface and backrest
c:> A .
Seating surface -Making the seating surface
l onger/shorter
c:> .&. .
Seats and storage 55
A WARNING
-Never adjust the driver's or front pas­
senger's seat while the vehicle is moving.
If you do this while the veh icle is moving,
you will be out of position . A lways adjust
the driver's or front passenger's seat
when the vehicle is not moving.
- Be careful when adjusting the seat
he ight. Check to see that no one is in the
way, or serious injury could result!
- Because the seats can be electrically ad­
justed with the ignit ion off, never leave
children unattended in the vehicle. Unsu­
pervised use o f the electric seat adjust­
ments may cause serious injury.
- To reduce the risk of injury in the case of
sudden braking or accident, front pas­
sengers must never ride in a moving ve­
hicle with the backrest reclined. Safety
belts and the airbag system on ly offer
maximum protection when the backrest
is upright and the safety belts are prop­
erly positioned on the body . The more
the backrest is reclined, the greater the
ris k of persona l inju ry from an incorrect
seating position and improperly posi­
tioned safety belts.
(D Tips
- The massage function switches off auto­
matically after approximately 10 mi­
nutes.
- Th e side bolsters* deflate when the driv­
er's doo r is opened. This allows you to
enter and exit comfortably. The side bol­
sters inflate again once you begin driv­
ing.

56 Seats and storage

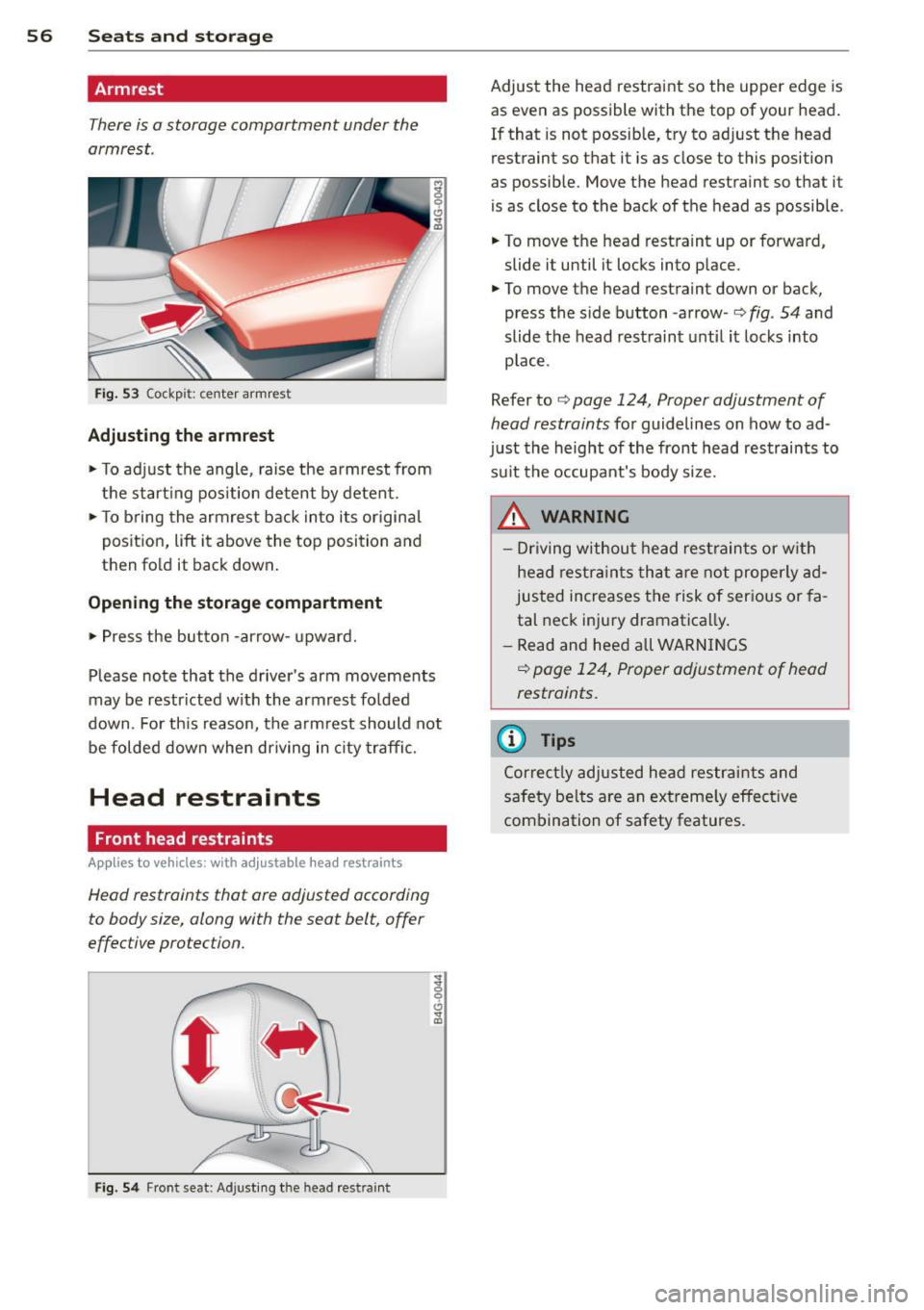

Armrest
Th ere is a storage compartment under the
armrest.
F ig. 53 Cockp it : center arm rest
Adjusting th e armrest
• To ad just the angle, raise the armrest from
the start ing pos ition detent by detent.
• To bring the armrest back into its original
position, lift it above the top position and
then fold it back down .
Opening th e storage compartment
• Press the button -arrow-upward.
Please note that the driver's arm movements
may be restr icted w ith the armrest fo lded
down. Fo r th is reason, the armrest should not
be folded down when driving in city traffic.
Head restraints
Front head restraints
App lies to vehicles: with adjustable head restrain ts
Head restraints that are adjusted according
to body size, along with the seat belt, offer
effective protection.

F ig . 54 Fr ont seat: Adjusting t he head res tra int
Adjust the head restraint so the upper edge is
as even as possible with the top of your head.
If that is not possible, try to adjust the head
restraint so that it is as close to this position
as possible. Move the head restraint so th at it
is as close to the back of the head as possib le .
• To move the head restraint up or forward,
slide it until it locks into place.
• To move the head restraint down or back,
press the side button -arrow -
c::> fig. 54 and
slide the head restraint unt il it loc ks into
p lace.
Refer to
c::> page 124, Proper adjustment of
head restraints
fo r guidelines on how to ad­
just the height of the front head restraints to
su it the occupant's body size.
_& WARNING
- Dr iving w ithou t hea d rest rain ts or with
hea d restra ints tha t ar e no t properly ad­
justed increases t he risk of ser ious or fa­
tal neck injury dramatica lly.
- Read and heed all WARN INGS
c::> page 124, Proper adjustment of head
restraints.
(D Tips
Cor rec tly adjusted hea d restr aints and
s a fety be lt s are an extreme ly effe ctive
com bination of safety features.
-

"' N
a:: I.J "". rl I.O
"' rl
"' rl

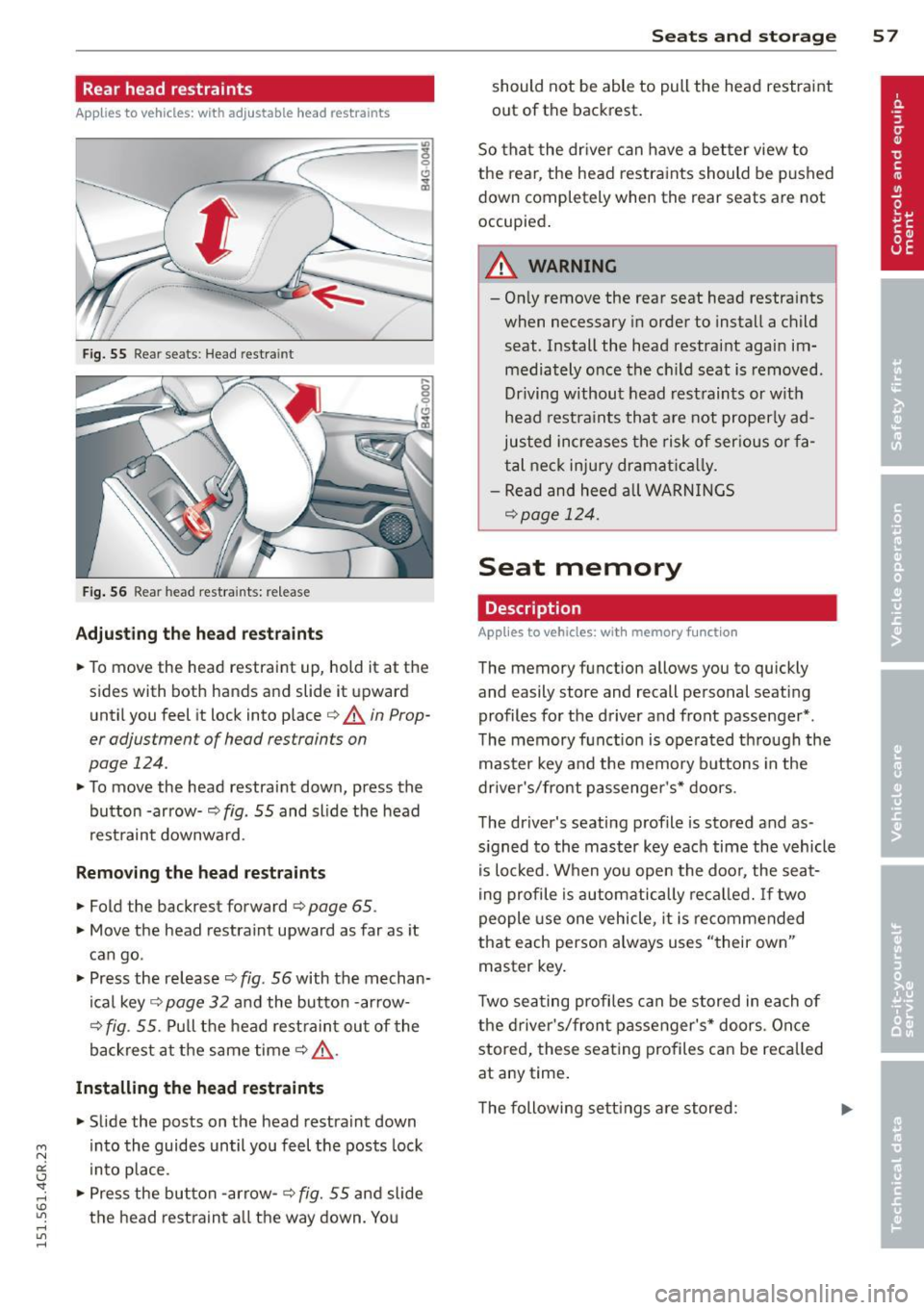

Rear head restraints
Applies to vehicles: with adj ustable head restraints
--
/
Fig. 55 Rear seats: Head restra int
Fig. 56 Rear head restraints: re lease
Adjusting the head restraints
• To move the head restraint up, hold it at the
sides with both hands and slide it upward
until you feel it lock into place
¢ .&. in Prop­
er adjustment of head restraints on
page 124.
• To move the head restraint down, press the
button -arrow-
q fig. 55 and sl ide the head
restraint downward .
Removing the head restraint s
• Fold the backrest forward ¢ page 65.
• Move the head restraint upward as far as it
can go .
• Press the release¢
fig. 56 with the mechan­
ical key ¢
page 32 and the button -arrow-
¢
fig. 55. Pull the head restraint out of the
backrest at the same time
q _&..
Installing the head restraints
• Slide the posts on the head restraint down
into the guides until you feel the posts lock
i nto place .
• Press the button -arrow-
¢ fig. 55 and slide
the head restraint a ll the way down. You
Seats and storage 57
should not be able to pull the head restraint
out of the backrest.
So that the driver can have a better view to
the rear, the head restraints should be pushed
down completely when the rear seats are not
occupied .
A WARNING
-On ly remove the rear seat head restraints
when necessary in order to install a child
seat. Install the head restraint again im­ mediately once the child seat is removed.
Driving without head restraints or with
head restraints that are not properly ad­
justed increases the risk of serious or fa­
tal neck injury dramat ically.
- Read and heed all WARNINGS
qpoge 124.
Seat memory
Description
Applies to vehicles: wit h memory function
The memory func tion allows you to quickly
and easily store and recall personal seating
profiles for the driver and front passenger* .
The memory function is operated through the
master key and the memory buttons in the
driver's/front passenger's* doors.
The driver's seating profile is stored and as­
s igned to the master key each time the vehicle
is locked. When you open the door, the seat­
ing profile is automatically recalled.
If two
people use one vehicle, it is recommended
that each person always uses "their own"
master key.
Two seating profiles can be stored in each of
the driver's/front passenger's* doors. Once
stored, these seating profiles can be recalled
at any time .
The following settings are stored:

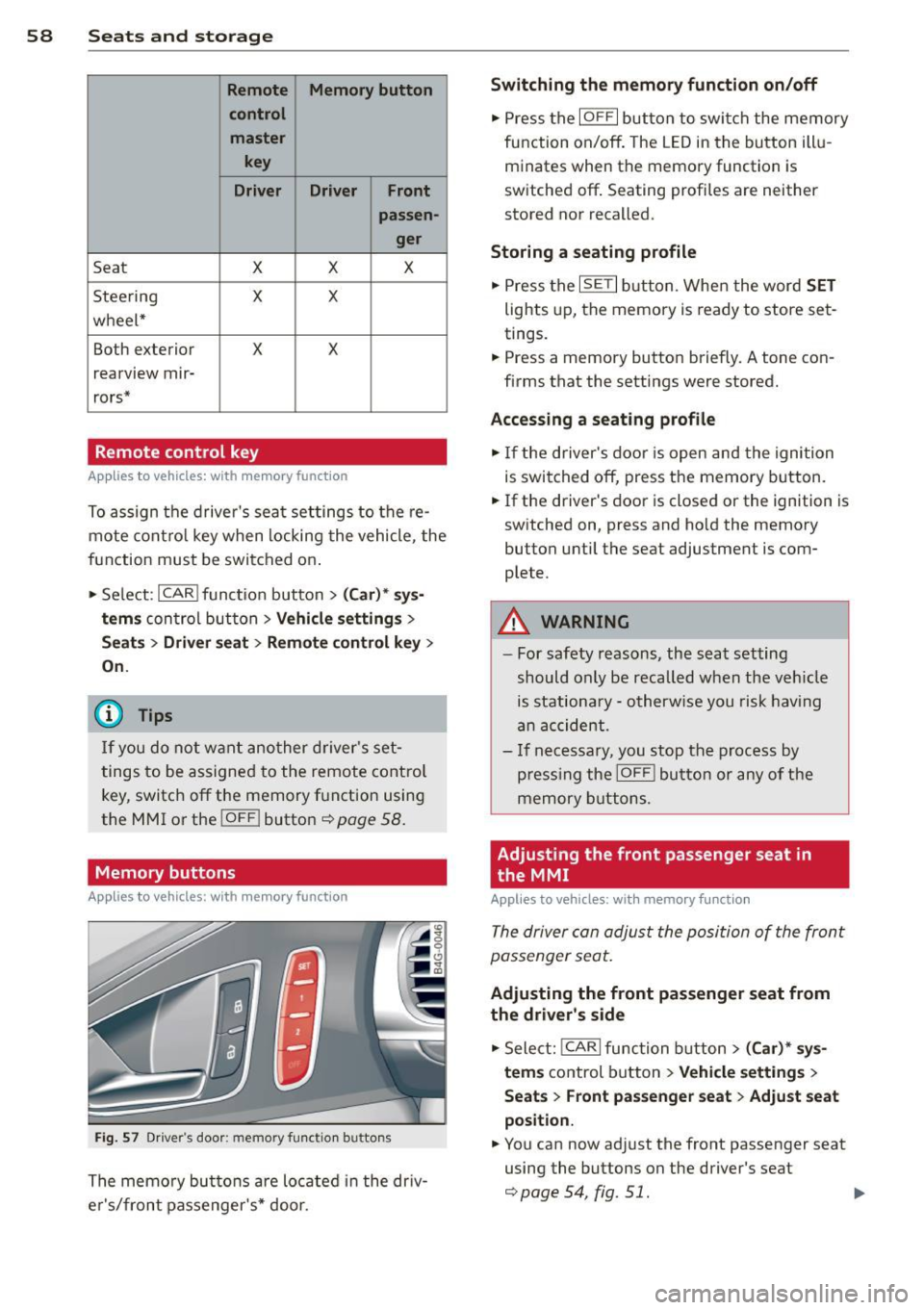

58 Seats and storage
Remote Memory button
control master
key
Dri ver Driver Front
passen -
ge r
Seat X X X
Stee ring X X
wheel*
Both exterior
X
X
rearview mir-
rors*
Remote control key
Applies to vehicles: with memory function
To assign the driver 's seat set tings to the re ­
mote contro l key when locking the vehicle, the
function must be switched on .
• Se lect:
I CAR I funct ion button > (Ca r)* sys­
tem s
control button > V ehi cle se tt ings >
Sea ts > Dr ive r se a t > R emot e control k ey >
On.
@ Tips
If you do not want ano ther driver's set­
tings to be assigned to the remote contro l
key, switch off the memory function using
the MMI or the
!OFF ! button c::> page 58.
Memory buttons
Applies to vehicles: with memory function
Fi g. 57 D river's door: memory function buttons
The memory but to ns are located in the dr iv­
e r's/front passenger 's* door.
Switching the memory function on /off
• Press the IOFFI button to swi tch the memory
function on/off. The LED in the button illu­
minates when the memory function is
switched off. Seating profi les are neither
stored nor recalled.
Storing a seating profile
• Press the ISETI button. When the word SET
lights up, the memory is ready to store set­
tings.
• Press a memory button briefly. A tone con­
firms that the settings were stored.
Accessin g a seating profile
• If the driver's door is open and the ignition
is switched off, press the memory button.
.,. If the driver's door is closed or the ignition is
switched on, press and hold the memory
button until the seat adjustment is com­
plete.
_&. WARNING
- For safety reasons, the seat setting
should only be recalled when the veh icle
is stationa ry - otherw ise you risk having
an accident .
- I f necessary, you stop the process by
p ress ing the
I OFF ! button or any of the
memory buttons.
Adjusting the front passenger seat in
the MMI
Applies to vehicles: with memory function
The driver con adjust the position of the front
passenger seat.
Ad ju stin g the front passeng er seat fr om
the driv er's s id e
• Select: !CARI function button> ( C a r)* sys­
tem s
control button > Vehicle sett ings >
Seat s > Front pass enge r seat> Adju st seat
po siti on.
.,. You can now adjust the front passenger seat
using the buttons on the driver's seat
c::>page 54, fig. 51.
