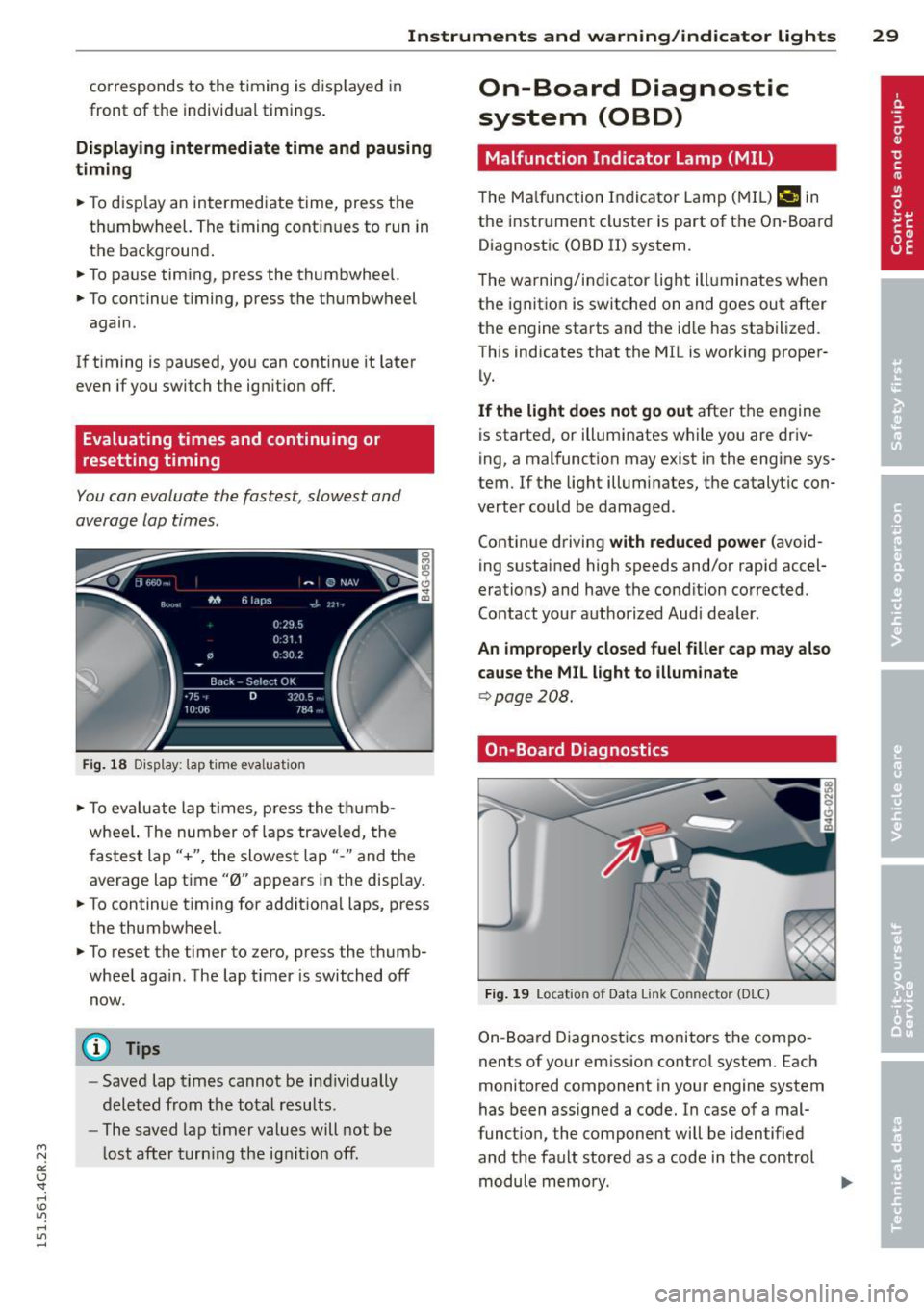

Instrument s and warning /indicator lights 29
corresponds to the timing is displayed in
front of the ind ividual timings .
Displaying intermediate time and pausing
timing
.. To disp lay an intermediate time, press the
t h umbwheel. The timing cont in ues to run in
t h e background .
.. To pa use tim ing, press the thumbwhee l.
.. To continue t iming, press the thumbwheel
again.
If t iming is paused, you can continue it later
even if you switch the ignit ion
off.
Evaluating times and continuing or
resetting timing
You can evaluate the fastest, slowest and
average lap times.
F ig. 1 8 Dis pl ay: lap t ime eva luat ion
.. To ev aluate lap t imes, press the t humb­
whee l. The number of laps traveled, the
f astest lap"+", the slowes t lap" -" and the
average lap time "0" appears in the disp lay .
.. To continue t iming for addit iona l laps, press
t h e thumbwheel.
.,. To reset the timer to ze ro , press the thumb­
whee l aga in . The lap t imer is switched
off
now.
(D Tips
- Saved lap t imes cannot be ind iv idually
dele ted from t he tota l resu lts .
- The saved lap timer values will not be
l ost after turn ing the ig nitio n
off.
On-Board Diagnostic
system (OBD)
Malfunction Indicator Lamp (MIL )
The Ma lfunction Indicator Lamp ( MIL) ¢'4 in
the instr ument cluster is part of the On-Board
Diagnostic (OBD II) system .
T he wa rni ng/indicator light ill uminates when
the ignit io n is switched on and goes out after
the engine sta rts and the id le has stab ilized.
This indicates that the M IL is working proper­
ly .
If the light does not go out afte r th e engine
is started, or illuminates while you are dr iv­
ing, a mal function may exist in the engine sys ­
tem .
If the light illum inates, the catalyt ic con­
verter could be damaged .
Contin ue driving
with reduced power (avoid­
ing s ustained high speeds and/or rapid accel­
erations) and have the cond ition corrected.
Contact your aut horized Audi dea ler.
An improperly closed fuel filler cap may also
cause the MIL light to illuminate
¢ page 208.
On-Board Diagnostics
Fig. 19 Locat io n of Data Li nk Co nnector (D LC)
On-Board Diagnostics monitors the compo ­
nents of your emission contro l system. Each
monitored component in your engine system
has been ass igned a code. In case of a mal­
funct ion , the component will be identified
and the fault stored as a code in the control module memo ry.

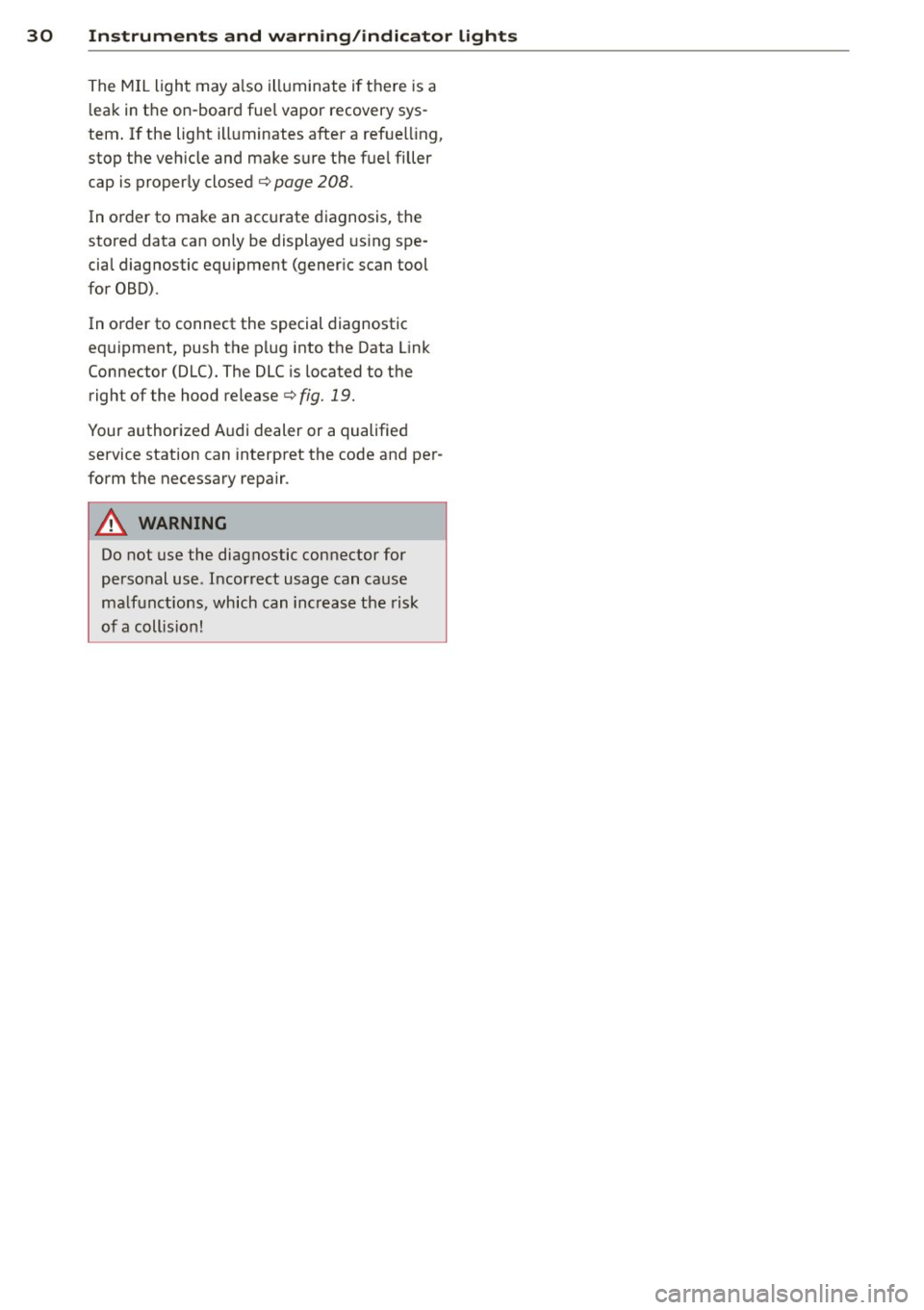

30 Instruments and warning /indicator lights
The MIL light may a lso illuminate if there is a
leak in the on-board fue l vapor recovery sys­
tem .
If the light illuminates after a refuell ing,
stop the vehicle and make sure the fuel filler
cap is properly closed¢
page 208.
In order to make an accurate diagnosis, the
stored data can only be displayed using spe­
cial diagnostic equipment (generic scan tool
for OBD) .
In order to connect the special diagnostic
equipment, push the p lug into the Data L ink
Connector (DLC). The DLC is located to the
rig ht of the hood release ¢
fig. 19.
Your authorized Audi dealer or a qualified
service station can interpret the code and per­
form the necessary repair .
A WARNING
Do not use the diagnostic connector for
personal use . Incorrect usage can cause
malfunctions, which can increase the risk
of a coll ision!
-

"' N
a:: I.J "". rl I.O
"' rl
"' rl

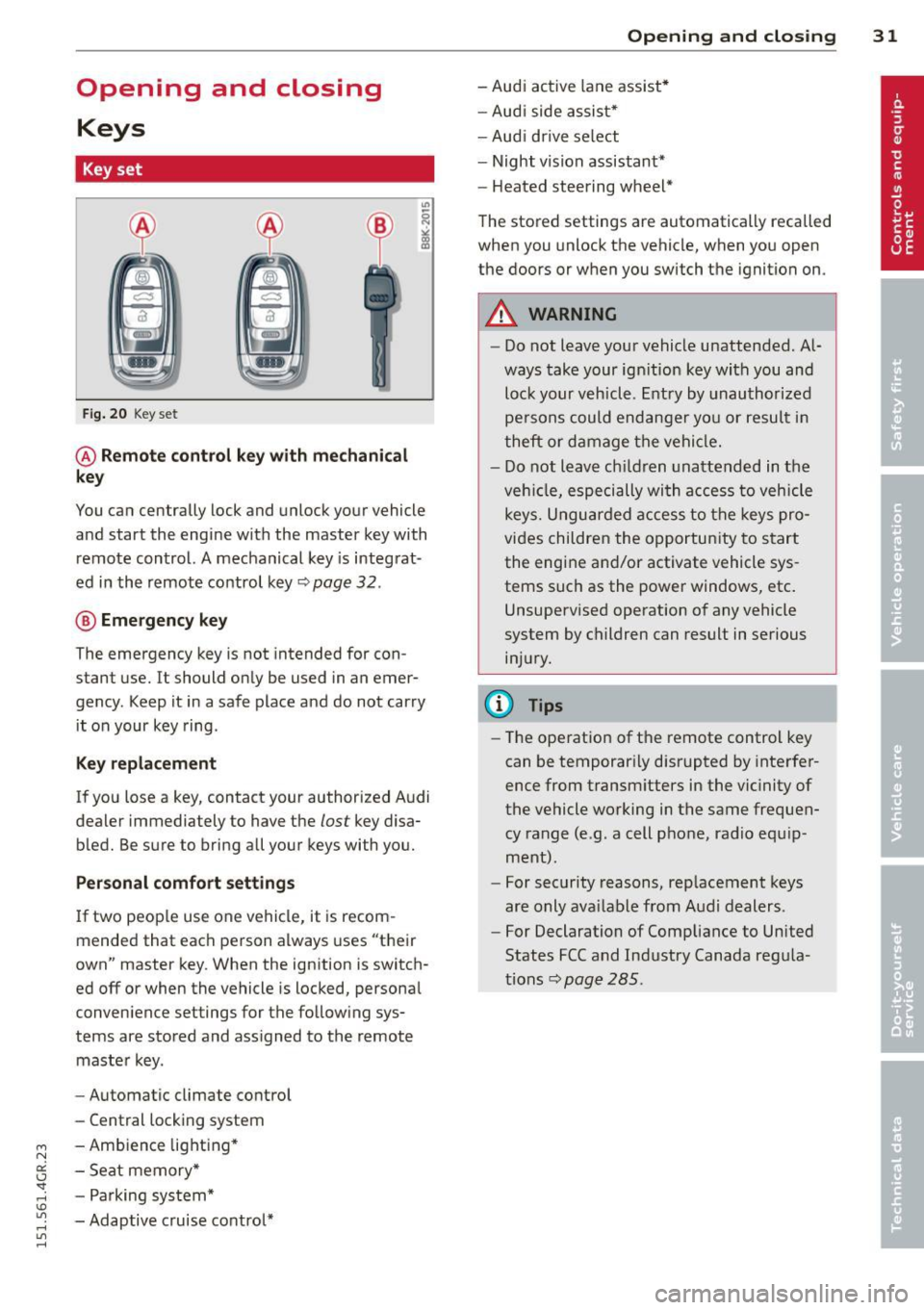

Opening and closing Keys
Key set
Fig. 20 Key set
@ Remote control key with mechanical
key
You can centrally lock and unlock your vehicle
and start the engine with the master key with
remote control. A mechanical key is integrat­
ed in the remote control key~ page
32 .
® Emergency key
The emergency key is not intended for con­
stant use.
It should only be used in an emer­
gency. Keep it in a safe place and do not carry
it on your key ring .
Key replacement
If you lose a key, contact your authorized Audi
dealer immed iately to have the
lost key disa­
bled. Be sure to bring all your keys with you.
Personal comfort settings
If two people use one vehicle, it is recom­
mended that each person always uses "their
own" master key. When the ignition is switch­
ed off or when the vehicle is locked, personal
convenience settings for the following sys­
tems are stored and assigned to the remote
master key.
- Automatic climate control
- Central locking system
- Ambience lighting*
- Seat memory*
- Parking system*
- Adaptive cruise control*
Opening and closing 31
- Audi active lane assist*
- Audi side assist*
-Audi drive select
- Night vision assistant*
- Heated steering wheel*
The stored settings are automatically recalled
when you unlock the vehicle, when you open
the doors or when you switch the ignition on.
A WARNING
-Do not leave your vehicle unattended. Al­
ways take your ignition key with you and
lock your vehicle. Entry by unauthorized
persons could endanger you or result in
theft or damage the vehicle.
- Do not leave children unattended in the
vehicle, especially with access to vehicle
keys. Unguarded access to the keys pro­
vides children the opportunity to start
the engine and/or activate vehicle sys­
tems such as the power windows, etc.
Unsupervised operation of any vehicle
system by children can result in serious
injury.
(D Tips
- The operation of the remote control key
can be temporarily disrupted by interfer­
ence from transmitters in the vicinity of
the vehicle working in the same frequen­
cy range (e.g. a cell phone, radio equip­
ment).
- For security reasons, replacement keys
are only available from Audi dealers.
- For Declaration of Compliance to United
States FCC and Industry Canada regula­
tions~ page
285.

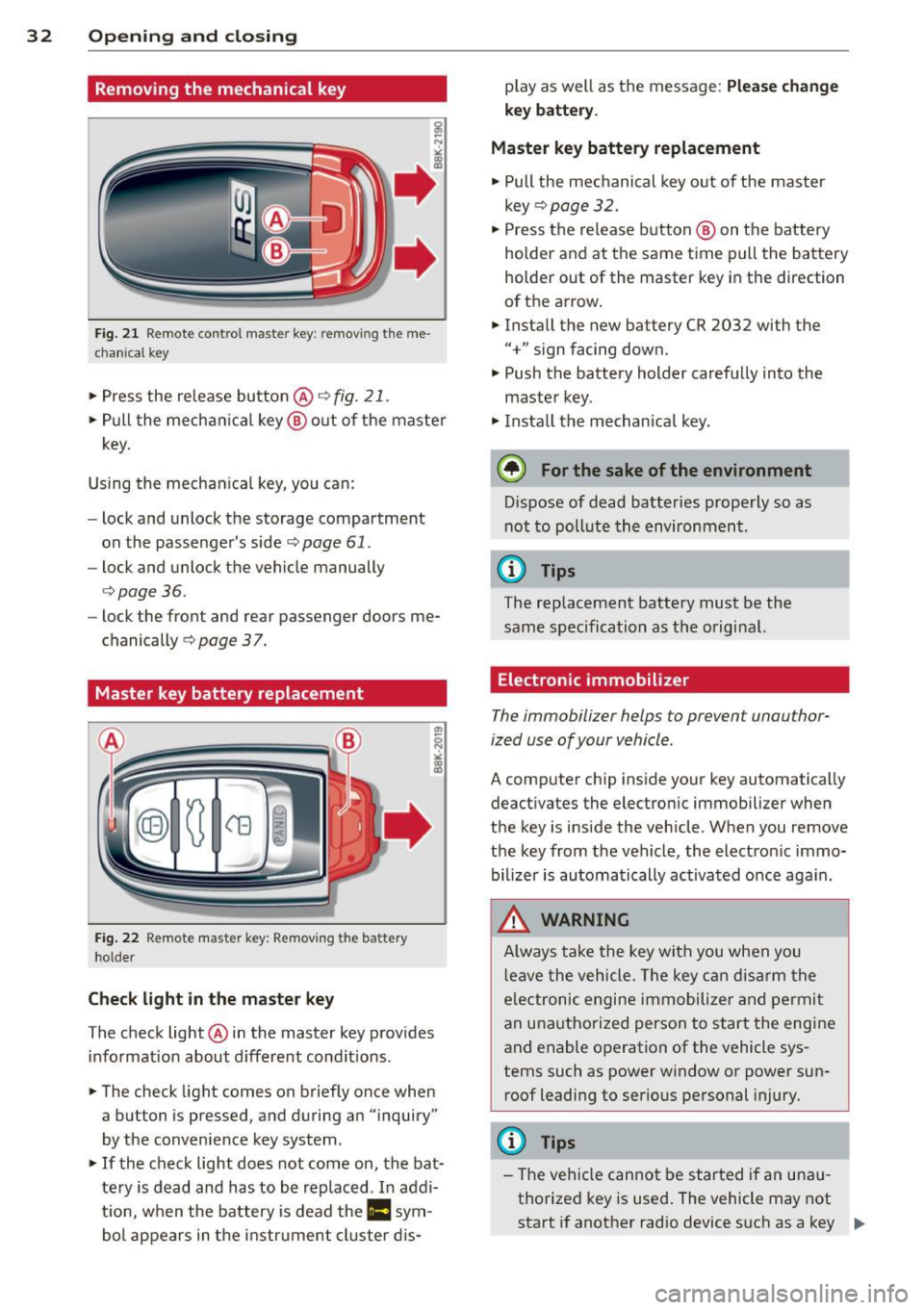

32 Opening and clo sing
Remov ing the mechanical key
Fig. 21 Remote control master key : removing the me­
chanical key
"'Press the release button@r=>.> fig. 21.
.. Pull the mecha nica l key @ out of the master
key.
Using the mechan ica l key, you can:
- lock and unlock the storage compartment
on the passenger's side
c::> page 61.
- lock and unlock the vehicle manually
<=>page 36.
-lock the front and rear passenger doors me­
chanically
c::> page 37.
Master key battery replacement
Fig . 22 Remote master key: Removing the battery
holder
Ch eck light in the master ke y
The check light @in the master key provides
information about d ifferent cond itions .
.. The check light comes on briefly once when
a button is pressed, and during an "inquiry"
by the convenience key system .
.. If the check light does not come on, the bat­
tery is dead and has to be rep laced. In addi­
t ion, when the battery is dead the
II sym­
bol appears in the instrument cluster dis- play as well as the message:
Plea
se ch ange
key b attery.
Ma ster key battery replacement
.. Pull the mechanical key out of the master
key
c::> page 32 .
.. Press the release button @ on the battery
holder and at the same time pull the battery
holder out of the master key in the direction
of the arrow .
.. Install the new battery CR 2032 with the
"+" sign facing down.
.. Push the battery holder carefully into the
maste r key .
.. Insta ll the mechan ica l key.
@ For the sake of the environment
D ispose of dead batteries properly so as
not to poll ute the environment.
(D Tips
The replacement battery must be the
same specification as the original.
Electronic immobilizer
The immobilizer helps to prevent unauthor­
ized use of your vehicle.
A computer chip ins ide your key automatically
deactivates the electron ic immobilizer when
the key is inside the vehicle . When you remove
the key from the vehicle, the electron ic immo­
bilizer is automatically ac tivated once aga in.
_& WARNING
-
A lways take the key with you when you
l eave the vehicle. The key can disarm the
e lectronic engine immobilize r and permi t
an unauthorized person to start the engine
and enable operation of the vehicle sys­
tems such as power window or power sun­
roof leadi ng to serious personal injury.
(D Tips
- The vehicle cannot be started if an una u­
thorized key is used . The vehicle may not
start if another radio device s uch as a key .,..

M N
0:: <.J 'SI: ,...., \!) ..,.,
,...., ..,., ,....,

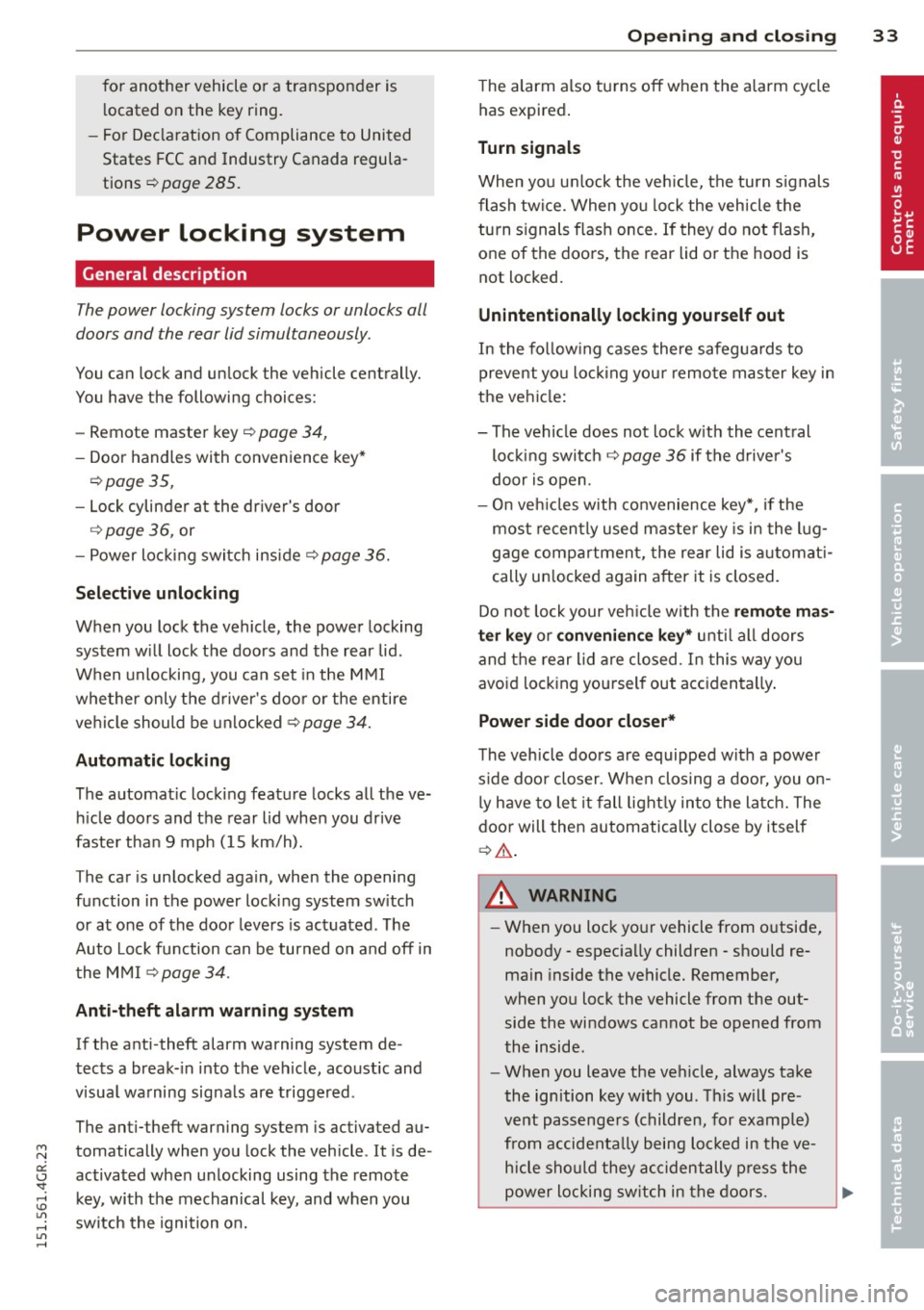

for another vehicle or a transponder is
l ocated on the key ring.
- For Decla ration of Compliance to United
States FCC and Industry Canada regula­
tions
¢ page 285.
Power locking system
General description
The power locking system locks or unlocks all
doors and the rear lid simultaneously.
You can lock and un lock the vehicle centrally.
You have the following choices:
- Remote master key¢
page 34,
-Door handles with convenience key*
¢page 35 ,
-Lock cylinder at the driver's door
¢ page 36, or
- Power locking switch inside¢
page 36.
Selective unlocking
When you lock the vehicle, the power locking
system w ill lock the doors and the rear lid.
When unlocking, you can set in the M MI
whether only the driver 's doo r or the entire
vehicle should be unlocked
¢ page 34.
Automatic locking
The automat ic locking feature locks all the ve­
hicle doors and the rear lid when you drive
faster than 9 mph ( 1S km/h).
T he car is unlocked again, when the opening
function in the power lock ing system sw itch
or at one of the door levers is actuated . Th e
Auto Lock function can be turned on and off in
the MMI
¢page 34.
Anti-theft alarm warning system
If the anti-theft alarm warning system de­
tects a break- in into the vehicle, acoustic and
visua l warning signals are triggered.
The anti-theft warning system is activated au­
tomatically when you lock the vehicle . It is de ­
activated when u nlocking using the remote
key, with the mechanical key, and when you
switch the ignition o n.
Opening and clo sin g 33
The alarm also turns off when the a larm cycle
has expired.
Turn signals
When you unlock the veh icle, the turn s ignals
flash twice. When you lock the veh icle the
tu rn s ignals flash once. If they do not flash,
one of the doors, the rear lid or the hood is
not locked.
Unintentionally locking yourself out
In the follow ing cases there safeguards to
prevent yo u lock ing your remote master key in
the vehicle:
- The vehicle does not lock w ith the central
locking switch¢
page 36 if the driver's
door is open.
- On veh icles with convenience key*, if the
most recently used maste r key is in the lug­
gage compartment, the rear lid is a utomat i­
cally un locked again after it is closed.
Do not lock your veh icle w ith the
remote mas­
ter key or convenience key*
unti l all doors
and the rear lid are closed . In this way you
avoid locking yoursel f out accidentally .
Power side door closer*
The vehicle doors are equipped w ith a power
s ide door closer . When closing a door, you on­
ly have to let it fall light ly into the latch. The
door will then automatically close by itself
¢_&. .
A WARNING
-When you lock your vehicle from outside,
nobody -especia lly children -shou ld re­
main inside the vehicle. Remember,
when you lock the vehicle from the out­ side the windows cannot be opened from
the inside.
- When you leave the veh icle, always take
the ignition key w ith you . Th is w ill pre­
vent passengers (children, for example)
from accidentally being locked in the ve­
hicle should they accidentally press the
power locking sw itch in the doors. .,.

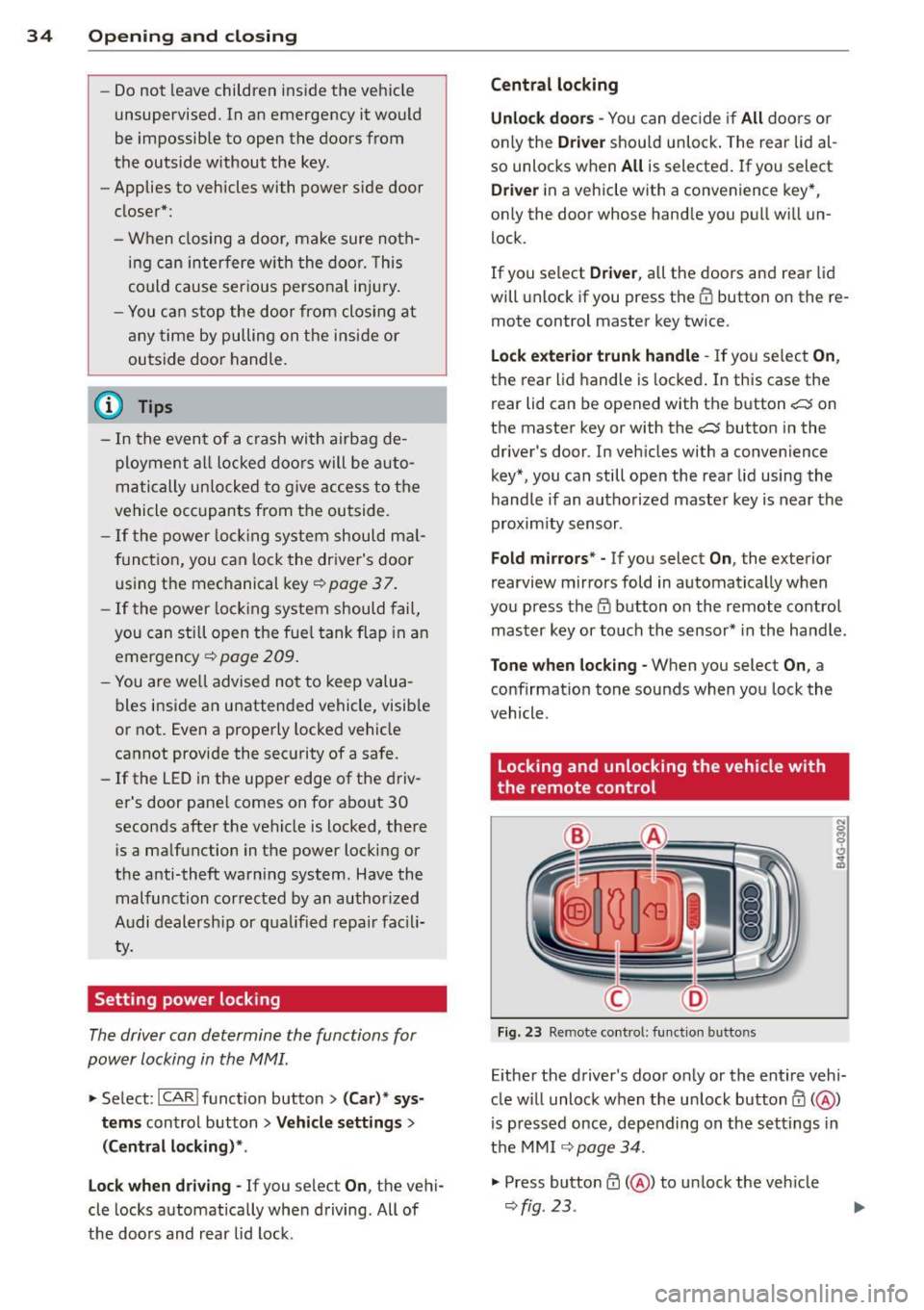

34 Openin g and clo sing
- Do not leave children inside the veh icle
unsupervised. In an emergency it would
be impossible to open the doors from
the outside without the key.
- Applies to vehicles with power side door
closer*:
- When closing a doo r, make sure noth­
i ng can interfere w ith the door. This
could cause ser ious personal injury .
- You c an stop the door from closing at
any time by pulling on the inside or
outside door handle.
(DJ Tips
- In the event of a c rash with airbag de­
ployment al l locked doors will be auto­
matically un locked to g ive access to t he
vehicle occupants from t he outside.
- If the power lock ing system should ma l­
function, you can lock the driver's door
u sing the mechanical key
¢ page 3 7.
- If the power loc king system should fail,
you can st ill open the fue l tank flap in an
emergency
¢ page 209 .
-You are well advised no t to keep valua­
bles inside an unattended vehicle, visib le
or not. Even a properly locked vehicle
cannot provide the security of a safe.
- If the LED in the upper edge of the driv ­
er's door panel comes on for abo ut
30
seconds afte r the vehicle is locked, the re
i s a malfunction in the power locking or
the anti-theft warning system . Have the
malfunction corrected by an author ized
Audi dealersh ip or qua lified repai r fac ili­
ty.
Setting power locking
The driver can determine the functions for
power locking in the MMI.
.. Select : I CARI funct io n button> (Car )* sy s­
tem s
control button > V ehicle settings >
( Central lo ck ing) *.
Lo ck when dr iving -
If you se lec t On , the vehi­
cle locks automatically when d riving. All of
the doors and rear lid lock .
Central locking
Unlock doors -
You can dec ide if All doors or
o nly the
Driv er shou ld unlock . The rear lid al ­
so unlocks when
All is selected . If you select
Driver in a vehicle with a convenience key*,
only the door whose hand le you pu ll will un ­
lock.
If you se lect
Driver , all the doors and rear lid
will unlock if you press them button on the re ­
mote control master key twice .
Lo ck exterior trunk handle -If you select On ,
the rear lid handle is locked . In this case the
rear lid can be opened with the b utton
c:s on
the master key or with the
c:s button in the
driver' s door . In veh icles with a convenience
key* , you can still open the rear lid using the
handle if an authorized master key is near the
proxim ity sensor .
Fold mirrors * -If yo u select On , the exterior
rearview mirrors fold in automatically when
you press the
{f) button on the remote control
master key or touch the sensor* in the handle.
Tone when lock ing -When you select On, a
confirmat io n tone sounds when you lock the
vehicle .
Locking and unlocking the vehicle with
, the remote control
Fi g. 23 Re mote co ntro l: fu nct io n buttons
N 0 q
Cl
~
E ither the driver's door only or the entire vehi­
cle w ill unlock when the unlock button
0 ( @ )
is p ressed once, depending on the settings in
the MMI
¢ page 34 .
.. Press butto n 0 (@ ) to un lock the veh icle
¢ fig. 23 .

M N
0:: <.J 'SI: ,...., \!) ..,.,
,...., ..,., ,....,
~ Press button t'fJ (@ ) to lock the vehicle q .&.
in General description on page 33.
~ Press button c:s <© ) briefly to un lock the
rear lid.
~ Push the red IPANICI button( @) to activate
the panic function. The horn sounds and the
turn signals flash. Push the red
I PANIC ! but­
ton aga in to deactivate the panic function.
If the vehicle is unlocked and no door, the rear
lid or the hood is opened within 60 seconds,
the vehicle locks itself agai n automatically .
This feature p revents t he ve hicl e from be ing
accidenta lly left unlocked over a long period
of t ime.
It depends o n the settings i n the MMI wheth­
e r the entire veh icle is unlocked or on ly cer­
tain doors ¢
page 34.
A WARNING
Read and follow all WARNINGS¢ &. in
General description on page 33.
(D Tips
- In o rder to make sure the locking func­
tion is working, you s hou ld always keep
you r eye on the vehicle to make sure it is
proper ly locked.
-
- Do not use t he remo te control if you are
i nside the car, otherwise you may unin­
tentiona lly lock the ve hicle, and then yo u
would set
off the anti-theft alarm w hen
you try to start the engine or open a
door. In case this happens anyhow, push
the unlock button
0.
- The vehicle can only be locked when the
se lector lever is in the P posit ion.
- Use the panic function only i f you are in
an emergency situation.

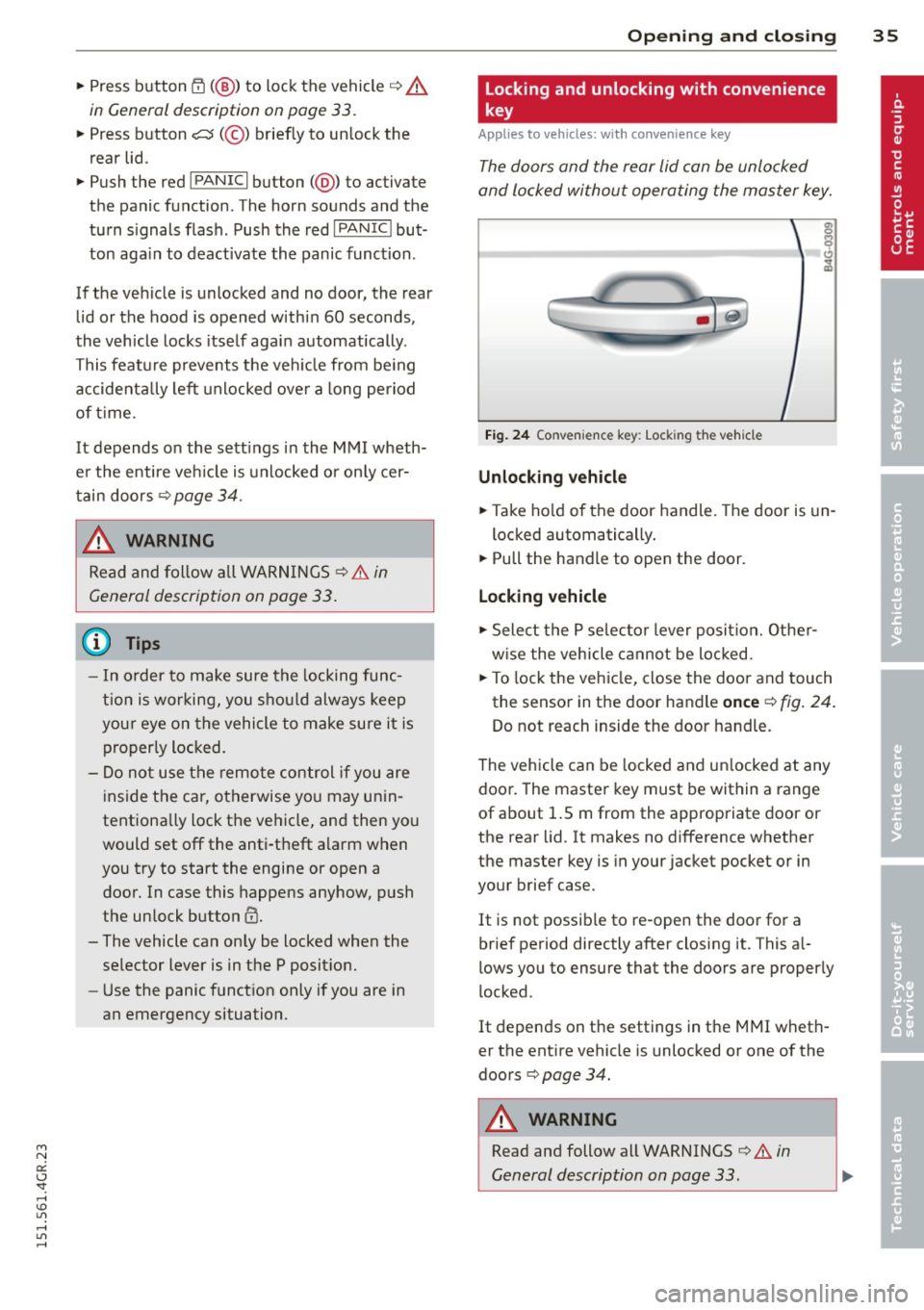

Opening and clo sin g 35
Locking and unlocking with convenience
key
Applies to veh icles: w ith conven ience key
Th e doors and th e rear lid can be unlocked
and locked without operating the master key.
Fi g. 24 Convenience key: Lock ing the vehicle
Unlocking vehicle
~ Take ho ld of the door handle. The door is un -
locked automatically .
~ Pull the handle to open the door.
Locking vehicle
~ Select the P se lec to r lever posit ion. Othe r­
w ise the vehicle canno t be loc ked.
~ To lock the veh icle, close the doo r and touch
the senso r in t he door handle
once ¢ fig. 24 .
Do not reach inside the door handle.
T he vehicle can be locked and un locked at any
door . The master key must be within a range
of about 1.5 m from the appropriate door or
the rear lid. It makes no difference whether
the master key is in your jacket pocket or in
your brief case.
It is not possib le to re-open the door for a
brief period directly after closing it. This al­
lows you to ensure that the doors are proper ly
locked.
It depends on t he settings in the MMI wheth­
er the ent ire vehicle is unlocked or one of the
doors ¢
page 34.
A WARNING
Read and follow all WARNINGS ¢&. in
General description on page 33.
-

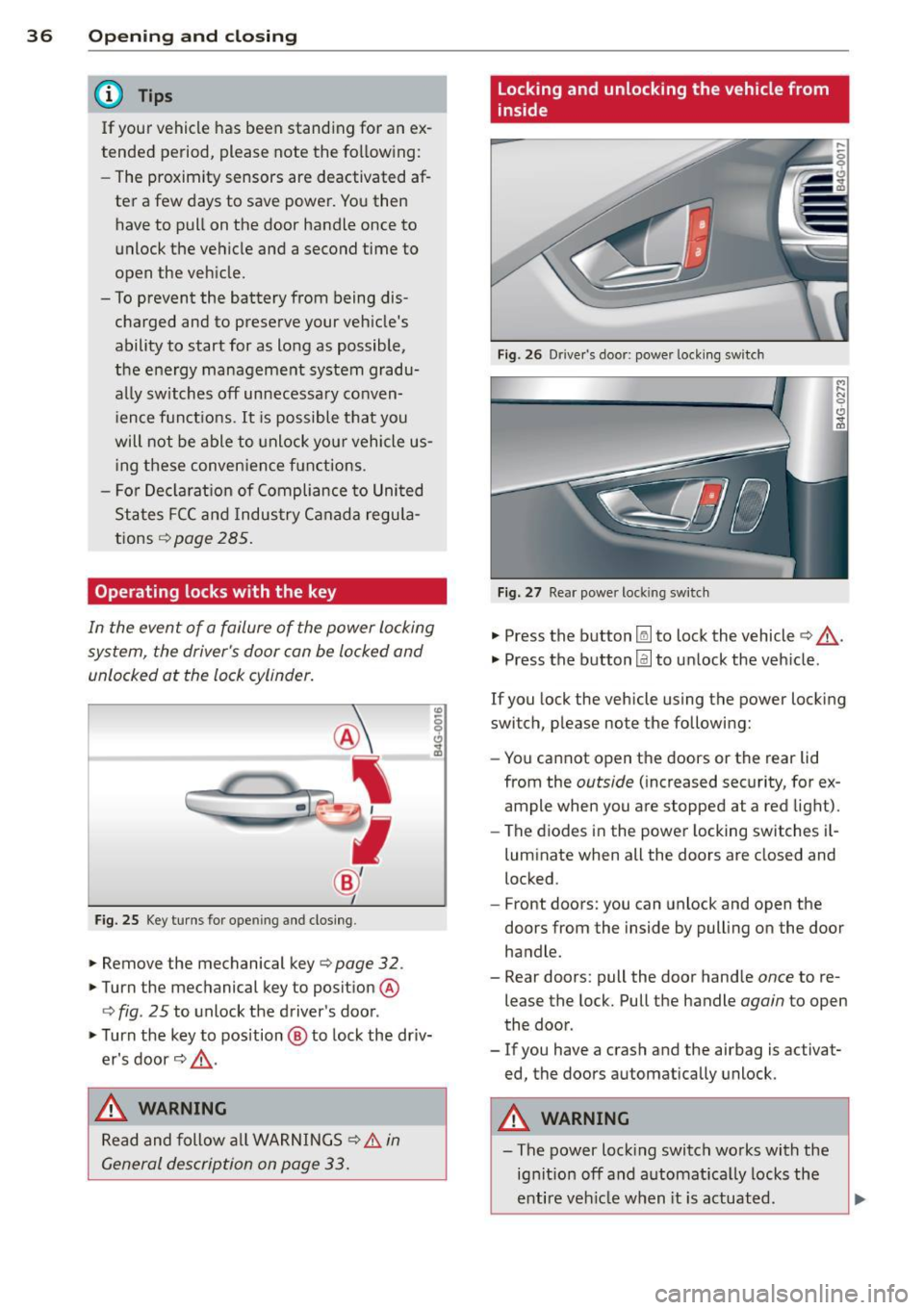

36 Opening and clo sing
@ Tips
If your vehicle has been standing for an ex­
tended period, please note the following:
- The proximity sensors are deactivated af-
ter a few days to save power. You then
have to pull on the door handle once to
unlock the vehicle and a second time to
open the vehicle.
- To prevent the battery from being dis­
charged and to preserve your vehicle's
ability to start for as long as possible,
the ene rgy management system gradu­
ally switches off unnecessary conven­ i ence functions.
It i s possible that you
will not be able to unlock your vehicle us­
i ng these conven ience f unctions .
- For Declaration of Compliance to United
States FCC and Industry Canada regula­
tions ¢
page 285.
Operating locks with the key
In the event of a failure of the power locking
system, the driver 's door can be locked and
unlocked at the lock cylinder.
Fig. 25 Key turns for ope ning and closing .
.. Remove the mechanical key¢ page 32 .
.. Turn the mechanical key to position @
¢
fig . 25 to unlock the driver's door .
.. Turn the key to position @ to lock the driv­
er's door ¢.&, .
_& WARNING
Read and follow all WARNINGS¢ & in
General description on page 33.
Locking and unlocking the vehicle from
inside
Fig. 26 Drive r's door; power locking sw itch
Fig. 27 Rear powe r lock ing switch
.. Press the button~ to lock the vehicle¢.&, .
.. Press the button@] to unlock the veh icle .
If you lock the vehicle using the power locking
switch, please note the following:
- You cannot open the doors or the rear lid
from the
outside (increased security, for ex­
ample when you are stopped at a red light).
- The diodes in the power locking switches i l-
luminate when all the doors are closed and
locked .
- Front doors: you can unlock and open the
doors from the inside by pulling on the door
handle .
- Rear doors: pull the door handle
once to re­
lease the lock. Pull the handle
again to open
the door .
- If you have a crash and the airbag is activat­
ed, the doors automatically unlock.
A WARNING
-==
-The power lock ing switch works with the
ignition off and automatica lly locks the
entire veh icle when it is actuated .

"' N
a:: I.J "". rl I.O
"' rl
"' rl
-On a vehicle locked from the outside the
power locking system switch is inopera­
t ive.
- Locked doors make it more difficult for
emergency workers to get into the vehi­
cle, which puts lives at risk. Do not leave
anyone behind in the vehicle, especially
children.
(D Tips
Your vehicle is locked automatically at a speed of 9 mph (15 km/h) ¢ page 33. You
can unlock the vehicle again using the
open ing funct ion in the power lock ing sys­
tem switch .
Emergency locking
Each door must be locked separately if the
power locking system fails.
Fig . 28 Door: Emergency locking
An emergency lock is located on the front end
of the passenger' s door and the rear doors
(only visible when door is open).
.,. Remove the mechanical key¢ page 32.
.,. Pull the cover cap out of the opening
¢fig. 28.
.,. Insert the key in the inside slot and turn it
all the way to the right (right door) or left
(left door).
Once the door has been closed, it can no lon­
ger be opened from the outside . The door can
be opened from the inside by pulling the door
handle. If the child safety lock in a rear door is
activated, you must first pull the door handle
on the inside. Then you can open the door
from the outs ide.

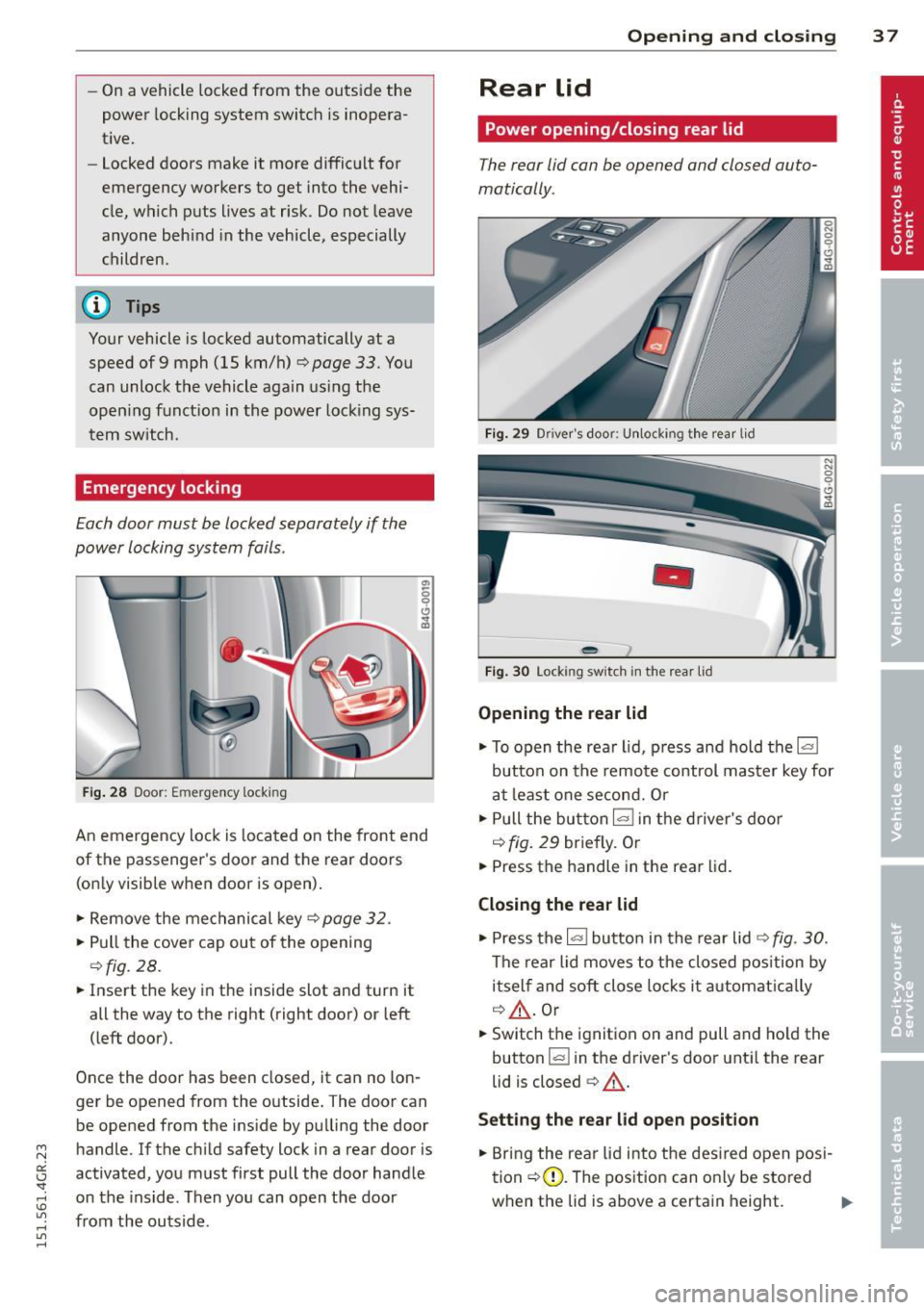

Opening and closing 3 7
Rear lid
Power opening/closing rear lid
The rear lid can be opened and closed auto­
matically .
Fig. 29 Driver's door: Un locking th e rear lid
-
Fig . 30 Locking switc h in the rear lid
Opening the rear lid
.,. To open the rear l id, pre ss and hold the la!
button on the remote control master key for
at least one second. Or
.,. Pull the button
lo<::>l in the driver's door
¢ fig. 29 briefly. O r
.,. Press the handle in the rear l id.
Closing the rear lid
.,. Press the lasl button in the rear lid ¢ fig. 30 .
The rear lid moves to the closed position by
itself and soft close locks it aut omatica lly
¢ .&, . Or
.,. Switch the ignition on and pull and ho ld the
button
l a l in the driver's door until the rear
lid is closed
a:> .&, .
Setting the rear lid open position
.,. Bring the rear lid into the desired open posi­
tion¢(!). The position can only be stored
when the lid is above a certa in height .
IJJ,,-

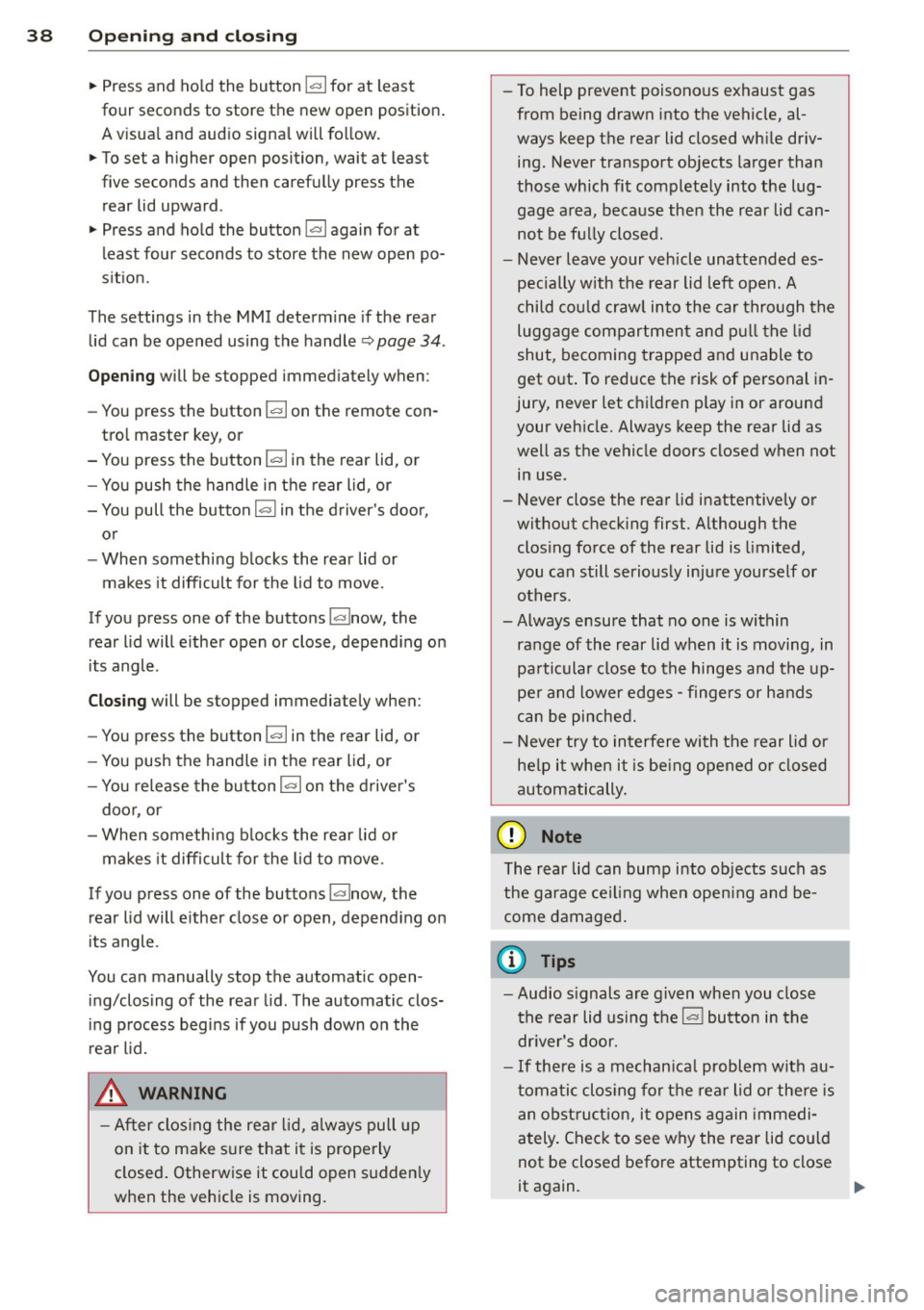

38 Opening and closing
• Press and hold the button~ for at least
four seconds to store the new open position.
A visual and audio signal will follow.
• To set a higher open position, wait at least
five seconds and then carefully press the
rear lid upward .
• Press and hold the button~ again for at
least four seconds to store the new open po­
sition.
The settings in the MMI determine if the rear
lid can be opened using the handle
~ page 34 .
Opening will be stopped immediately when :
- You press the button
l"" I on the remote con-
trol master key , or
- You press the button
l"" I in the rear lid, or
- You push the handle in the rear lid, or
- You pull the button
I""! in the driver's door,
or
- When something blocks the rear lid or
makes it difficult for the lid to move.
If you press one of the buttons ~now, the
rear lid will either open or close , depending on
its angle .
Closing will be stopped immediately when:
- You press the button
l"" I in the rear lid, or
- You push the handle in the rear lid, or
- You release the button
lal on the driver's
door, or
- When something blocks the rear lid or
makes it difficult for the lid to move.
If you press one of the buttons ~now, the
rear lid will either close or open , depending on
its angle .
You can manually stop the automatic open ­
ing/closing of the rear lid. The automatic clos­
ing process begins if you push down on the
rear lid.
A WARNING
-After closing the rear lid, always pull up
on it to make sure that it is properly
closed. Otherwise it could open suddenly
when the vehicle is moving. -
To help prevent poisonous exhaust gas
from being drawn into the vehicle, al­
ways keep the rear lid closed while driv­ ing. Never transport objects larger than
those which fit completely into the lug­
gage area, because then the rear lid can­
not be fully closed.
- Never leave your vehicle unattended es­
pecially with the rear lid left open. A
child could crawl into the car through the
luggage compartment and pull the lid
shut, becoming trapped and unable to
get out. To reduce the risk of personal in­
jury, never let children play in or around
your vehicle. Always keep the rear lid as
well as the vehicle doors closed when not in use .
- Never close the rear lid inattentively or
without checking first. Although the
closing force of the rear lid is limited,
you can still seriously injure yourself or
others.
- Always ensure that no one is within
range of the rear lid when it is moving, in
particular close to the hinges and the up­
per and lower edges - fingers or hands
can be pinched.
- Never try to interfere with the rear lid or
help it when it is being opened or closed
automatically.
@ Note
The rear lid can bump into objects such as
the garage ceiling when opening and be­
come damaged.
(D Tips
-Audio signals are given when you close
the rear lid using the
las! button in the
driver's door.
- If there is a mechanical problem with au­
tomatic closing for the rear lid or there is
an obstruction, it opens again immedi­
ately. Check to see why the rear lid could
not be closed before attempting to close
it again. ...
