& WARNING (continued)
• For safety reasons, the windshield wiper blades should be
replaced once or twice a year. •

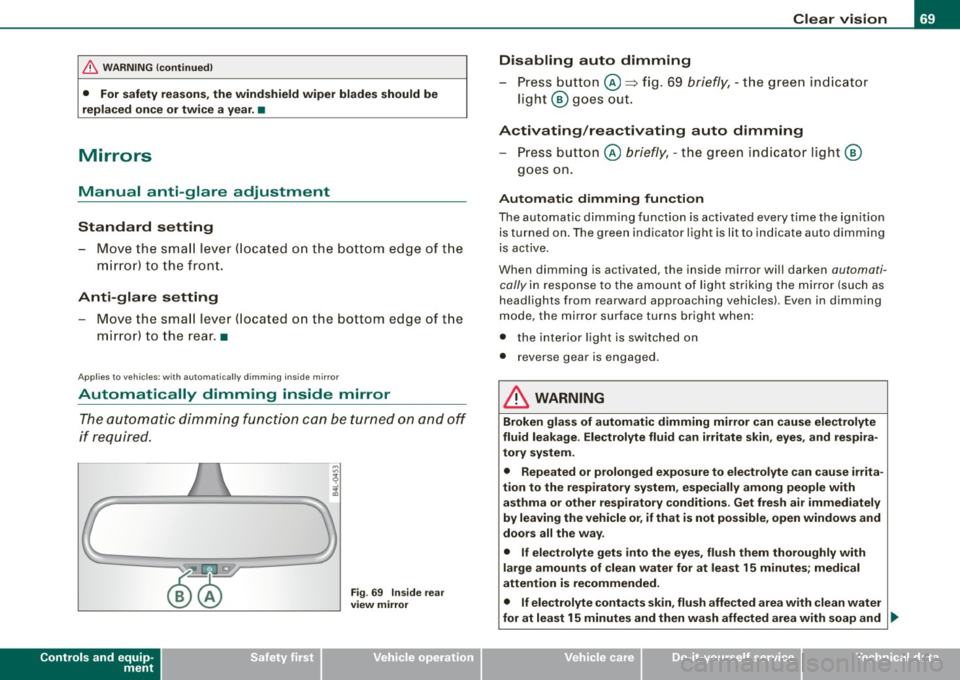

Mirrors
Manual anti -glare adjustment
Standard setting
- Move the small lever (located on the bottom edge of the
mirror) to the front.
Anti-glare setting - Move the small lever (located on the bottom edge of the
mirror) to the rear. •
Applies to veh icles: w it h a utom ati cally dim mi ng in sid e m ir ro r
Automatically dimming inside mirror
The automatic dimming function can be turned on and off
if required.
Controls and equip ­
ment
Fig . 69 Inside rear
view mirror
Clear vision
Disabling auto dimming
- Press button @=> fig. 69
briefly, -the green indicator
light ® goes out.
Activating/reactivating auto dimming Press button @
briefly, -the green indicator light ®
goes on.
Automatic dimming function
The automatic dimming function is activated every time the ignition
is turned on. The green indicator light is lit to indicate auto dimming
is active.
When dimming is activated, the inside mirror will darken
automati­
cally
in response to the amount of light striking the mirror (such as
headlights from rearward approaching vehicles). Even in dimming
mode, the mirror surface turns bright when:
• the interior light is switched on
• reverse gear is engaged .
& WARNING
Broken glass of automatic dimming mirror can cause electrolyte
fluid leakage . Electrolyte fluid can irritate skin, eyes, and respira­
tory system.
• Repeated or prolonged exposure to electrolyte can cause irrita­
tion to the respiratory system, especially among people with
asthma or other respiratory conditions . Get fresh air immediately
by leaving the vehicle or, if that is not possible, open windows and
doors all the way.
• If electrolyte gets into the eyes, flush them thoroughly with
large amounts of clean water for at least 15 minutes; medical
attention is recommended.
• If electrolyte contacts skin, flush affected area with clean water
for at least 15 minutes and then wash affected area with soap and ._
I • •

Clear vision
& W ARNING (con tinued )
water ; medic al a ttent ion is re commended . Thoroughly wash
affected clothing and shoe s before reuse .
• If sw allowed and per son is con sciou s, rinse mout h with water
fo r at lea st 15 minutes. Do not indu ce vomiting unles s instructed
to do so b y medic al professional . Get medic al attenti on immedi ­
ately.
0 Note
Liquid electro lyte leaked fro m a broken mirror glass will damage any
plastic surfaces it comes in contact with . C lean up spilled electrolyte
immedia tely with c lear water and a sponge .
[ i ] Tips
• If you switch off the automatic dimming function on th e ins ide
mirror , automati c dimming of the out side mirror s will lik ewi se be
di sabled .
• Check to make sure there are no objects preventing light from
reaching the inside mirror.
• Do not attach any stickers to the windshield in front of the light
sensor, as this wou ld inter fere with the au tomatic opera tion of the
headlights and the automatic dimming of the inside mirror.
• Be aware that automatic d imming of the inside mirror can only
operate properly if the rear window sun b lind * is retracted .•
Outside mirrors
The outside mirro rs are elect ric ally a djusted (powe r
mirr ors)
Adjusting th e outsid e mirrors
Fig . 7 0 Fo rward
sec tion of dri ve r's
ar mr est: po wer mir ror
c ontrol s
Turn the adjust ing knob to~ fig. 70 (0 (drive r's side
outside mirror) to @ (front passenger's outside m irror) .
Press the kno b in the appropr iate direction to move the
m irror surface so that you have a good view to the rear .
Heated mirrors*
-Tur n the ro tary knob to @ .
Depe nding on outside temperature and vehicle speed, the mirror
surfaces are heated unt il the ignition is switched off -even if the
r otary knob is no longer in posit ion
@ .
You are well -advised to fold* the outside mirrors in when maneu­
vering in tight spaces o r when leaving the ca r parked c lose to other
vehic les.
0 Note
• Curved mirror surfaces (convex or spherica l*) increase your fie ld
of view. Remember that vehicles or other objects will appear smaller _..

and farther away than when seen in a flat mirror. If you use this
mirror to esti mate distances of fo llowing vehicles when changing
lanes, you cou ld es timate incorrectly and cause an accident .
[ i] Tip s
If there shou ld be a malfunction in the electrica l system, you can
sti ll adjust the outside mirrors by pressing the edge of the mirror .•
Ap plie s to v ehicl es: wit h autom atic dim ming for out side m irro rs

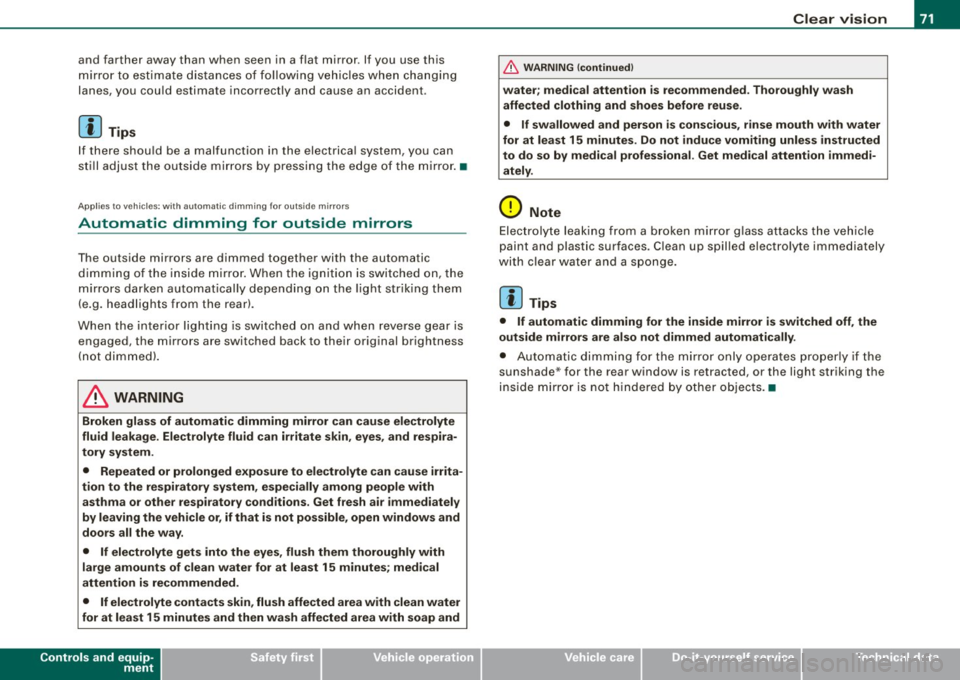

Automatic dimming for outside mirrors
The outside mirrors are dimmed together with the automatic
dimming of the inside mir ror . When the ignition is switched on, the
mirrors darken automatical ly depending on the light striking them
(e .g. head lights from the rear) .
When the interior lighting is switched on and when reverse gear is
engaged , the mirrors are swi tched back to their original brightness
(not dimmed).
& WARNING
Broken glas s of automatic dimming mirror can c ause electrolyte
fluid le akage. Electrolyte fluid can ir ritate s kin , eyes , and re spir a­
tory system .
• Repeated or prolonged e xposure to ele ctro lyte can cau se irrita­
tion to the respi ratory sy stem , e specially among people with
asthm a or other respir atory co ndition s. G et fresh a ir i mmediately
by leaving the veh icle or , if that is not po ssible , open windows and
do ors all the way.
• If electrolyte get s into the eyes , flush them thoroughly with
large amounts of clean wate r fo r at least 15 minut es; medi cal
attention i s recommended .
• If ele ctrolyte cont acts sk in , flu sh affe cted are a with clean w ater
for at lea st 15 minute s and then wash affected area with soap and
Controls and equip ­
ment
Cl ea r vision
& WAR N IN G ( continued )
water; medic al attent ion is re commend ed . Thoroughly wash
affected clothing and shoes before reu se .
• If swallowed and person i s cons ciou s, rinse mouth w ith w ater
for at lea st 1 5 minute s. Do not indu ce vomitin g unles s instructed
to do so by medic al profession al. Get medi cal attent ion immed i­
ately.
0 Note
Electrolyte leaki ng from a broken mirror g lass at tacks the veh ic le
paint and plastic surfaces . C lean up spilled electrolyte immediately
with c lear water and a sponge.
[ i ] Tips
• If automatic dimming for the inside mirror is swit ched off , the
out side m irrors are also not dimmed automati cally.
• Automatic di mming for the mirror only operates proper ly if the
sunshade * for the rear window is retracted, or the light striking the
ins ide mirror is not hindered by other ob jects. •
I • •

Clear vision

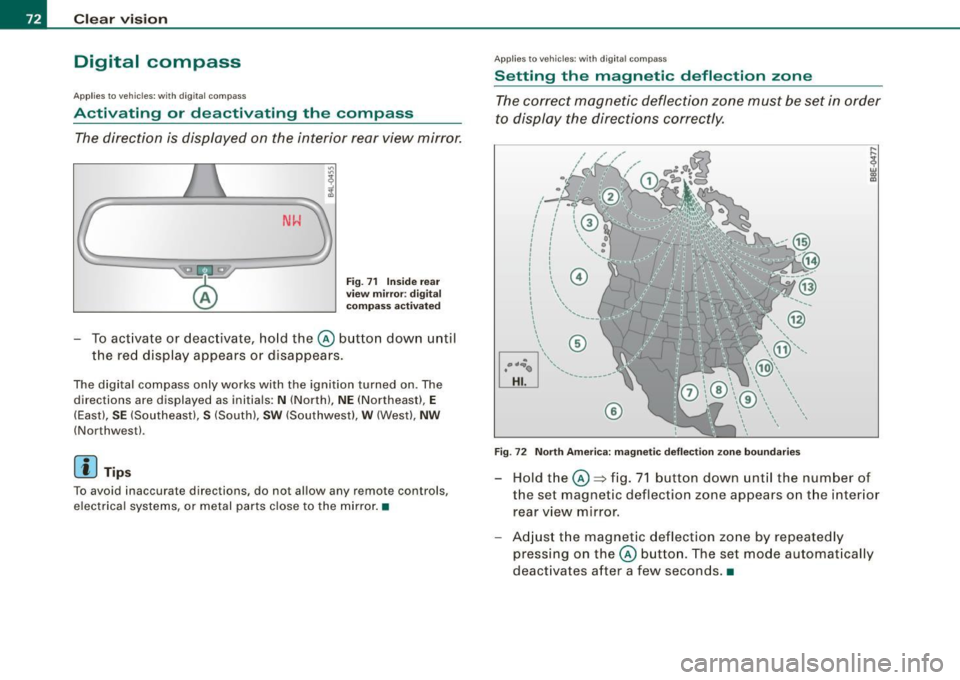

Digital compass
Applies to vehi cles: w ith di gital co mpass
Activating or deactivating the compass
The direction is displayed on the interior rear view mirror.
Fig. 71 In side rear
view mirror : digital
com pass activated
To activate or deactivate, hold the @ button down until
the red display appears or d isappears.
The digital compass only works with the ignition turned on. The
directions are displayed as initials :
N (North), NE (Northeast), E
(East),
SE (Southeast), S (South), SW (Southwest), W (West), NW
(Northwes t).
[ i J Tips
To avoid inaccurate dir ections, do not allow any remot e controls ,
e lectrical systems, or metal parts close to the mirror. •
Applie s to vehi cles : wi th digi tal compass
Setting the magnetic deflection zone
The correct magnetic deflection zone must be set in order
to display the directions correctly .
®
Fig. 72 North America: magnetic deflection zone boundaries
Hold the@=> fig. 71 button down until the number of
the set magnetic deflection zone appears on the interior rear view mirror .
Adjust the magnetic deflection zone by repeatedly
pressing on the@ button. The set mode automat ically
deactivates after a few seconds .•

Applies to vehicles: with digita l compass

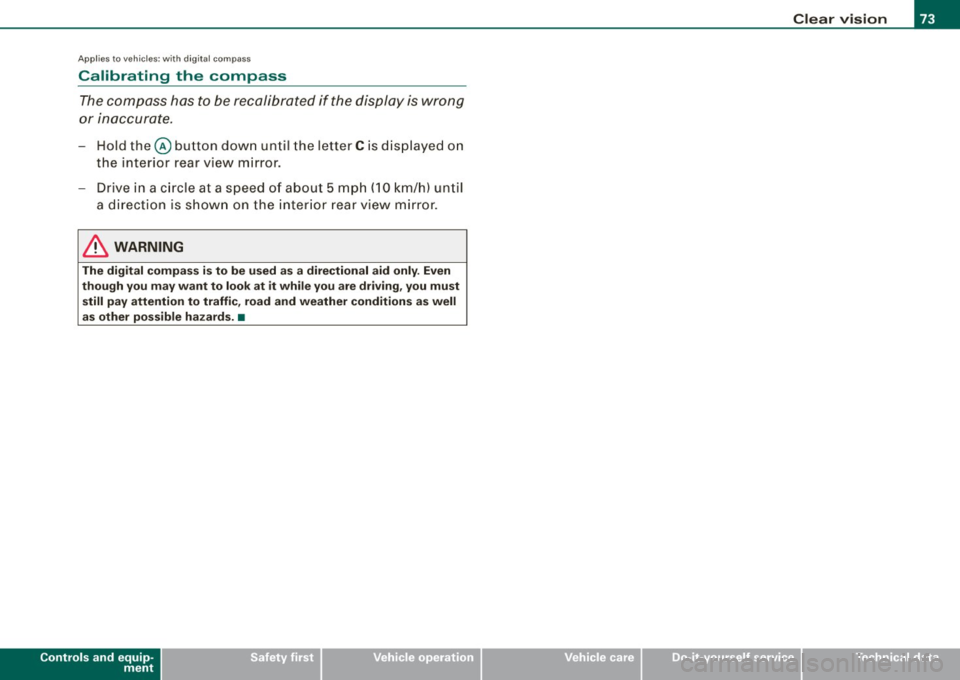

Calibrating the compass
The compass has to be recalibrated if the display is wrong
or inaccurate.
- Hold the @button down until the letter C is displayed on
the interior rear view mirror.
- Dr ive in a circle at a speed of about 5 mph (10 km/h) until
a direction is shown on the interior rear view mirror.
& WARNING
The digital compass is to be used as a directional aid only. Even
though you may want to look at it while you are driving, you must
still pay attention to traffic, road and weather conditions as well
as other possible hazards. •
Controls and equip ­
ment
Clear vision
I • •

Seats and storage
Seats and storage
General recommendations
Why is your seat adjustment so important?
The safety belts and the airbag system can only provide
maximum protection if the front seats are correctly
adjusted.
There are several different ways you can adjust the driver's seat and
the front passenger's seat so that it conforms to your body size. It is
especially important that the seat be adjusted properly so that:
• you can easily and quickly reach all the switches and controls in
the instrument panel
• your body is properly supported thus reducing physical stress
and fatigue
• the safety belts and airbag system can offer maximum protec ­
tion=>
page 147
In the following chapters, you will see exactly how you can best
adjust your seats.
There are special regulations and instructions for installing a child safety seat on the front passenger's seat. Always heed the informa ­
tion regarding child safety provided in=>
page 769, "Child Safety".
L1}. WARNING
Incorrect seating position of the driver and all other passengers
can result in serious personal injury.
• Always keep your feet on the floor when the vehicle is in motion
- never put your feet on top of the instrument panel, out of the
window or on top of the seat cushion! This applies especially to
the passengers. If your seating position is incorrect you increase
the risk of injury in the case of sudden braking or an accident. If
& WARNING (continued)
the airbag inflates and the seating position is incorrect this could
result in personal injury or even death.
• It is important for both the driver and front passenger to keep
a distance of at least 10 inches (25 cm) between themselves and
the steering wheel and/or instrument panel. If you're sitting any closer than this, the airbag system cannot protect you properly. In
addition to this, the front seats and head restraints must be
adjusted to your body height so that they can give you maximum
protection.
• Always try to keep as much distance as possible between your­
self and the steering wheel or instrument panel.
• Do not adjust the driver's or front passenger's seat while the
vehicle is moving . Your seat may move unexpectedly, causing
sudden loss of vehicle control and personal injury. If you adjust
your seat while the vehicle is moving, you are out of position. •
Driver's seat
The correct seat position is important for safe and relaxed
driving.
We recommend that you adjust the driver's seat in the
following manner:
- Adjust the seat in fore and aft direction so that you can easily push the pedals to the floor while keeping your
knees slightly bent=>
& in "Why is your seat adjustment
so important?".
- Adjust the seatback so that when you sit with your back
against the seatback, you can still grasp the top of the
steering wheel.
~

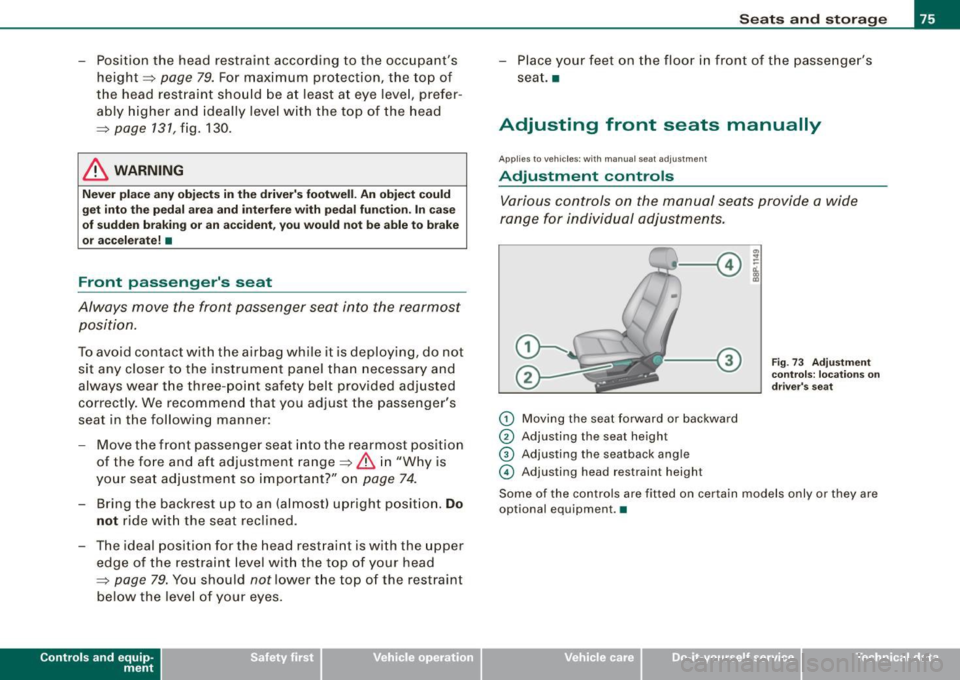

- Position the head restraint according to the occupant's height=> page
79. For maximum protection, the top of
the head restraint should be at least at eye level, prefer­
ably higher and ideally level with the top of the head
=> page 131 , fig. 130.
& WARNING
Never place any objects in the driver's footwell. An object could
get into the pedal area and interfere with pedal function. In case
of sudden braking or an accident, you would not be able to brake
or accelerate! •
Front passenger's seat
Always move the front passenger seat into the rearmost
position.
To avoid contact with the airbag while it is deploying, do not
sit any closer to the instrument panel than necessary and
always wear the three-point safety belt provided adjusted
correctly. We recommend that you adjust the passenger's
seat in the following manner :
- Move the front passenger seat into the rearmost position
of the fore and aft adjustment range=>
& in "Why is
your seat adjustment so important?" on page
74.
-Bring the backrest up to an (almost) upright position. Do
not ride with the seat reclined.
- The ideal position for the head restraint is with the upper
edge of the restraint level with the top of your head
=> page
79. You should not lower the top of the restraint
below the level of your eyes.
Con tro ls and eq uip­
ment
Seats and storage
- Place your feet on the floor in front of the passenger's
seat. •
Adjusting front seats manually
Applies to vehicle s: wi th manua l seat ad justme nt
Adjustment controls
Various controls on the manual seats provide a wide
range for individual adjustments.
G) Moving the seat forward or backward
© Adjusting the seat height
© Adjusting the seatback angle
© Adjusting head restraint heigh t
Fig. 73 Adjustment
controls: locations on
driver's seat
Some of the controls are fitted on certain models only or they are
optional equipment. •
Vehicle care
I I irechnical data

Seats and storage

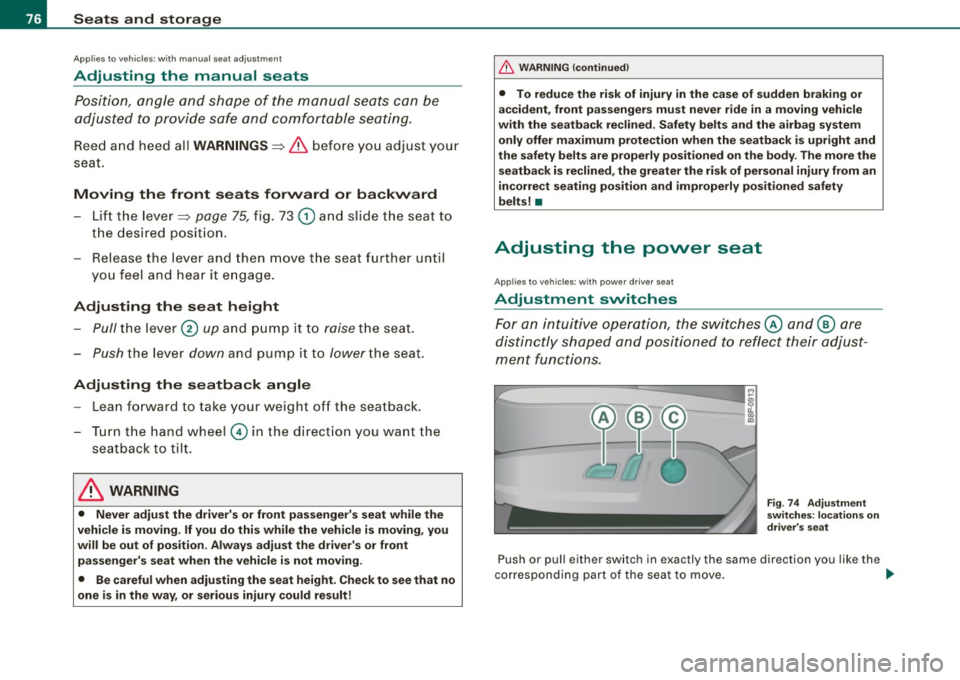

Applies to vehicles : w ith m anual seat a djustm en t
Adjusting the manual seats
Po sition, angle and shape of the manual seats can be
adjusted to provide safe and comfortable seating.
Reed and heed all WARNINGS =:> & before you adjust your
seat.
Moving the front seats forward or backward
- Li ft the lever =:>
page 75, fig. 73 (D and slide the seat to
the desired p osition.
- Release the lever and then move the seat further until
you feel and hear it engage.
Adjusting the seat height
- Pull the lever @ up and pump it to raise the seat.
-Push the lever down and pump it to lower the seat .
Adjusting the seatback angle
- Lean forward to take your weight off the seatback.
- Turn the hand wheel© in the direction you want the
seatback to tilt.
& WARNING
• Never adjust the driver's or front passenger's seat while the
vehicle is moving . If you do this while the vehicle is moving , you
will be out of position . Always adjust the driver's or front
passenger's seat when the vehicle is not moving .
• Be careful when adjusting the seat height . Check to see that no
one is in the way, or serious injury could result!
& WARNING (continued)
• To reduce the risk of injury in the case of sudden braking or
accident, front passengers must never ride in a moving vehicle
with the seatback reclined. Safety belts and the airbag system
only offer maximum protection when the seatback is upright and
the safety belts are properly positioned on the body . The more the
seatback is reclined, the greater the risk of personal injury from an
incorrect seating position and improperly positioned safety
belts! •
Adjusting the power seat
Applies to vehi cles : wi th p ow er dr iv e r s eat
Adjustment switches
For an intuitive operation, the switches @ and @ are
distinctly shaped and posi tioned to reflect their adjust­
ment functions.
Fig . 7 4 Adjustment
switches: locations on
driver's seat
Push or pul l either switch in exactly the same direction you like the
co rresponding part of the seat to move. .,,

@ Moving the seat forward or backward
@ Adjusting the angle of the seatback and head restraints
© Adjusting the lumbar support•
Applies to ve hicl es : with power driver s eat

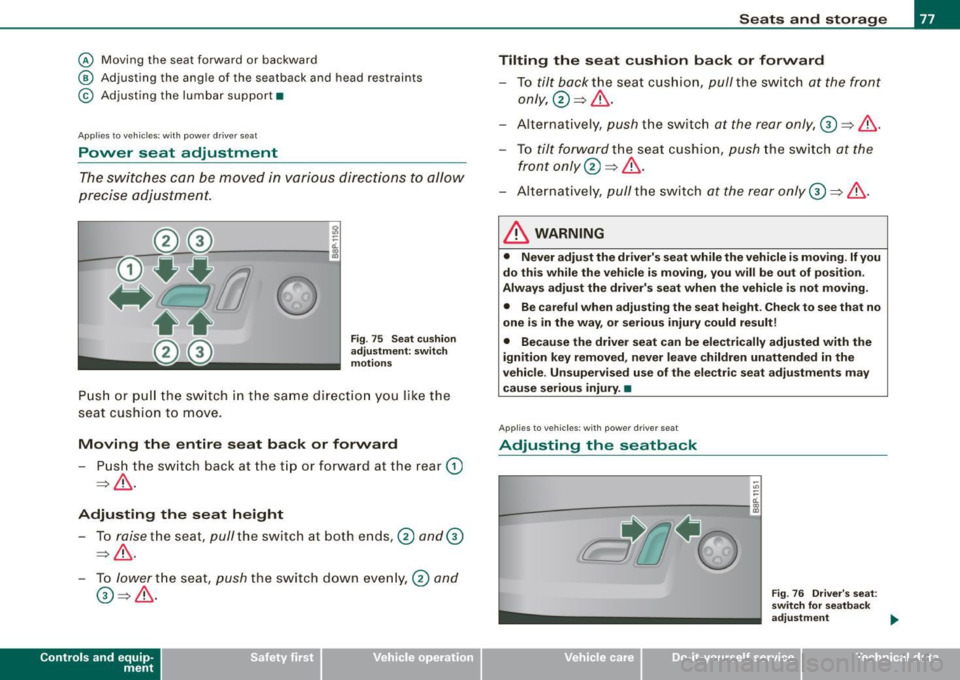

Power seat adjustment
The switches can be moved in various directions to allow
precise adjustment.
~
L----"'/ :,._..--,'~-~ ------- --i
Fig . 75 Seat cushion
adjustment: switch
motions
Push or pull the switch in the same direction you like the
seat cushion to move.
Moving the entire seat back or forward
- Push the switch back at the tip or forward at the rear G)
~& -
Adjusting the seat height
- To raise the seat, pull the switch at both ends,@ and (i)
=>& .
- To lower the seat, push the switch down evenly, @ and
0~& .
Con tro ls and eq uip­
ment
Seats and storage
Tilting the seat cushion back or forward
-To tilt back the seat cushion, pull the switch at the front
only, @~& -
- Alternatively, push the switch at the rear only,
(i) => &.
- To tilt forward the seat cushion, push the switch at the
front only@=>& .
- Alternatively, pull the switch at the rear only
(i) ~ &.
& WARNING
• Never adjust the driver's seat while the vehicle is moving. If you
do this while the vehicle is moving, you will be out of position.
Always adjust the driver's seat when the vehicle is not moving.
• Be careful when adjusting the seat height. Check to see that no
one is in the way, or serious injury could result!
• Because the driver seat can be electrically adjusted with the
ignition key removed, never leave children unattended in the
vehicle . Unsupervised use of the electric seat adjustments may
cause serious injury. •
Applies to vehicles : with powe r driv e r seat
Adjusting the seatback
a'..
L------- --;:----- ~--- -,lll
CJ'1·~
Vehicle care I I
Fig. 76 Driver's seat:
switch for seatback
adjustment
~
irechnical data

Seats and storage

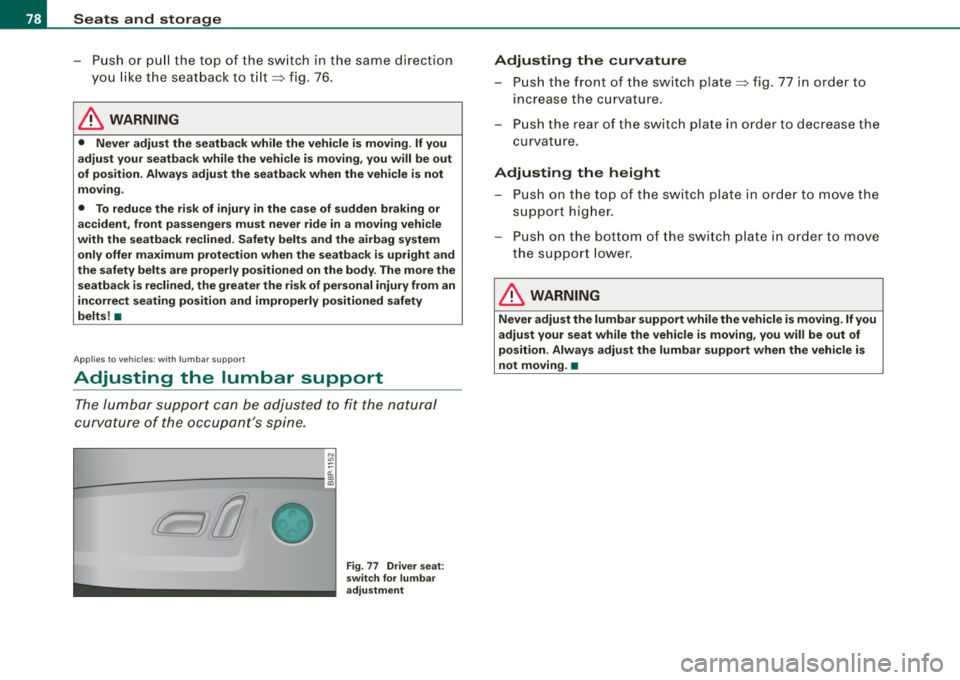

-Push or pull the top of the switch in the same direction
you like the seatback to tilt~ fig . 76.
& WARNING
• Never adjust the seatback while the vehicle is moving . If you
adjust your seatback while the vehicle is moving, you will be out
of position. Always adjust the seatback when the vehicle is not
moving.
• To reduce the risk of injury in the case of sudden braking or
accident, front passengers must never ride in a moving vehicle
with the seatback reclined. Safety belts and the airbag system
only offer maximum protection when the seatback is upright and
the safety belts are properly positioned on the body. The more the
seatback is reclined , the greater the risk of personal injury from an
incorrect seating position and improperly positioned safety
belts! •
Applies to v ehicles : with lum bar support
Adjusting the lumbar support
The lumbar support can be adjusted to fit the natural
curvature of the occupant's spine.
N
"' ~
~
a:.
L-------- -,:g
Fig. 77 Driver seat:
switch for lumbar
adjustment
Adjusting the curvature
- Push the front of the switch plate~ fig. 77 in order to
increase the curvature.
- Push the rear of the switch plate in order to decrease the
curvature.
Adjusting the height - Push on the to p of the switch plate in order to move the
support higher.
- Push on the bottom of the switch plate in order to move
the support lower.
& WARNING
Never adjust the lumbar support while the vehicle is moving. If you
adjust your seat while the vehicle is moving, you will be out of
position. Always adjust the lumbar support when the vehicle is
not moving .•
