AUDI S6 2008 Owners Manual

~­
.> -
\\ ­
o:i,
o.0. \'?> ...........
... ~ 'A

lllffll,___G_ e_ n_ e_r_a _ l_ i _n_ f_ o_ rm_ a _t_io _ n _______________________________________________ _

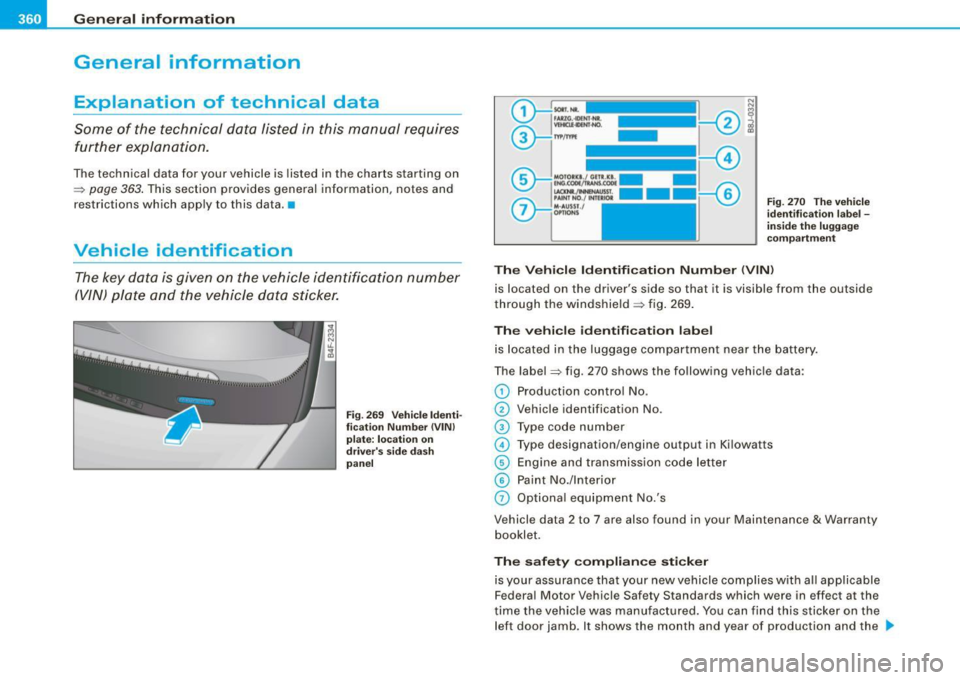

General information
Explanation of technical data
Some of the technical data listed in this manual requires
further explanation.
The technical data for your vehicle is listed in the charts starting on
~ page 363. This section provides general information, notes and
restrictions which app ly to this data. •
Vehicle identification
The key data is given on the vehicle identification number
(VIN) pla te and the vehicle data st icker.
F ig. 269 Ve hicl e Id enti ­
fi ca tion Number (V IN)
pl ate : lo cation on
d riv er 's s ide das h
pan el F
ig . 2 70 The vehi cle
i d e ntifi cat ion la be l -
i nside the lug gag e
com partm ent
The Vehicle Id enti fication Numb er (V IN)
is located on the driver's side so that it is visible from the outside
through the windshield ~ fig . 269 .
The veh icle i de ntifi cat ion lab el
is located in the luggage compar tment near the battery.
The label~ fig. 270 shows the following vehic le data :
0 Production control No.
0 Vehicle identification No.
G) Type code number
© Type designation/engine output in Ki lowatts
@ Engine and transmission code letter
© Paint No./lnterior
0 Optiona l equipment No.'s
Vehicle data 2 to 7 are also found in your Maintenance
& Warranty
booklet.
Th e s afet y co mpli ance sti cker
is your assurance that your new vehicle complies with a ll app licable
Federa l Motor Vehicle Safety Standards which were in effect at the
time the vehicle was manu factured. You can find this sticker on the
left door jamb . It shows the month and year of production and the .._

_________________________________________________ G_ e_ n_ e_r _a _l_ i_n _f_o _ r_ m_ a_ t _i _o _ n __ lllll
v e hic le identificatio n number of your vehic le (p erforation) as well as
th e G ro ss V ehic le We ight Rat ing (GVWR) an d the Gro ss A xle We ig ht
R ating (GAWRl .
The high voltage warning label is located on the lock carrier.
The spark ignition system meets all requirements of the Canadian Interference -Ca using Equipment Regulations . •

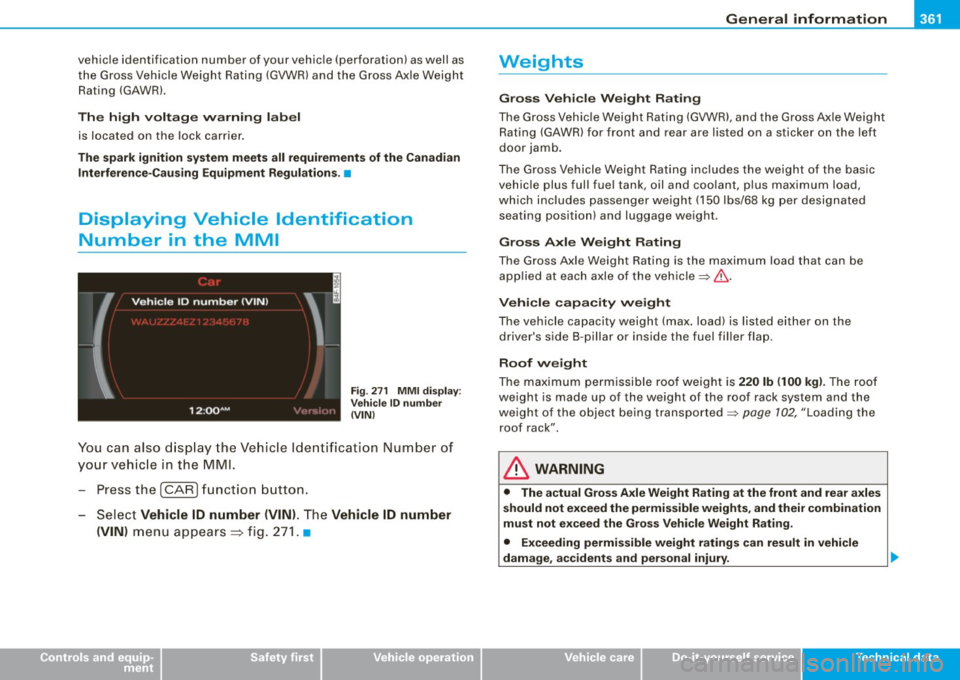

Displaying Vehicle Identification
Number in the MMI
Fig . 2 7 1 MMI display :
Vehicle ID number
( VIN )
You c an also disp lay the Ve hic le I dentification Num be r of
y o ur vehi cle in t he MM I.
- Press the
I C A R I funct io n bu tton.
- Se lect
Vehicle ID number (VIN). T he Vehicle ID number
(VIN)
me nu a ppear s :::::;, fig . 271 . •
Controls and equip­
ment Safety first Vehicle operation
Weights
Gross Vehicle Weight Rating
The G ross Ve hicle We ight Rating (GVWR), a nd the Gross A xle Weight
R ating (GAW R) for front and rear are l isted on a stic ker on the left
doo r jamb .
T he G ross Ve hicle We igh t R ating includes t he weight o f the bas ic
vehic le plus full fue l tank , oil and coo lant, p lus maximum load,
w hi ch includes passe nger we ight (1 50 lbs/68 kg per des ignat ed
seat ing position) and luggage weight .
Gross Axle Weight Rating
The Gross Axle Weight Rating is the maximum load that can be
ap plied at each axl e of the vehicle~ &.
Vehicle capacity weight
The vehic le capacity weig ht (max. load) is list ed e ither on the
driver's side B -pillar or ins ide the fuel fi ller flap.
Roof weight
The maxi mum pe rm is s ible roof we ig ht i s 220 lb (100 kg ). The ro of
we ight is made up of th e wei ght of t he roof rack system and the
we igh t of t he o bjec t being tra nspo rted ~ page
102, "Lo ading the
roo f rack".
& WARNING
• The actual Gross Axle Weight Rating at the front and rear axles
should not exceed the permissible weights , and their combination
must not exceed the Gross Vehicle Weight Rating.
• Exceeding permissible weight ratings can result in vehicle
damage , accidents and personal injury .
Vehicle care Do-it-yourself service Tec hn ica l da ta

___ G_ e_n_ e_ r_ a _l _i_n _f _o _ r_ m_ a_ t_ i_ o _ n ________________________________________________ _

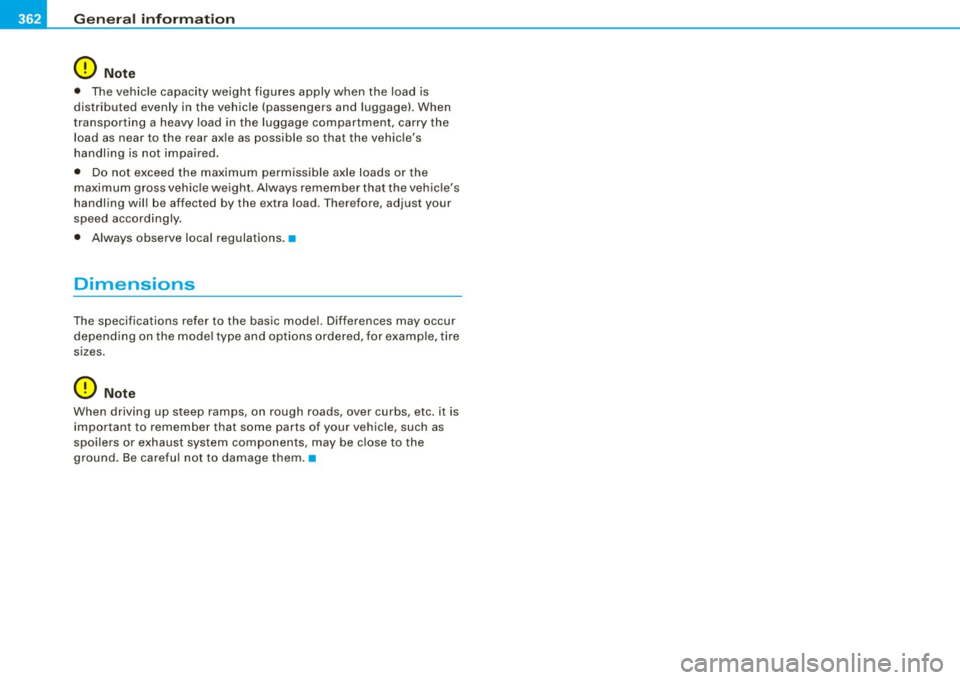

0 Note
• The vehicle capacity weight figures apply when the load is
distributed evenly in the vehicle (passengers and luggage). When
transporting a heavy load in the luggage compartment, carry the
load as near to the rear axle as possible so that the vehicle's
handling is not impaired.
• Do not exceed the maximum permissible axle loads or the
maximum gross vehic le weight. Always remember that the vehic le's
handling will be affected by the extra load. Therefore, adjust your
speed accordingly .
• Always observe local regulations. •
Dimensions
The specifications refer to the basic model. Differences may occur
depending on the mode l type and options ordered, for example, tire
sizes.
0 Note
When driving up steep ramps, on rough roads, over curbs, etc. it is
important to remember that some parts of your vehicle, such as
spoilers or exhaust system components, may be close to the
ground. Be careful not to damage them. •

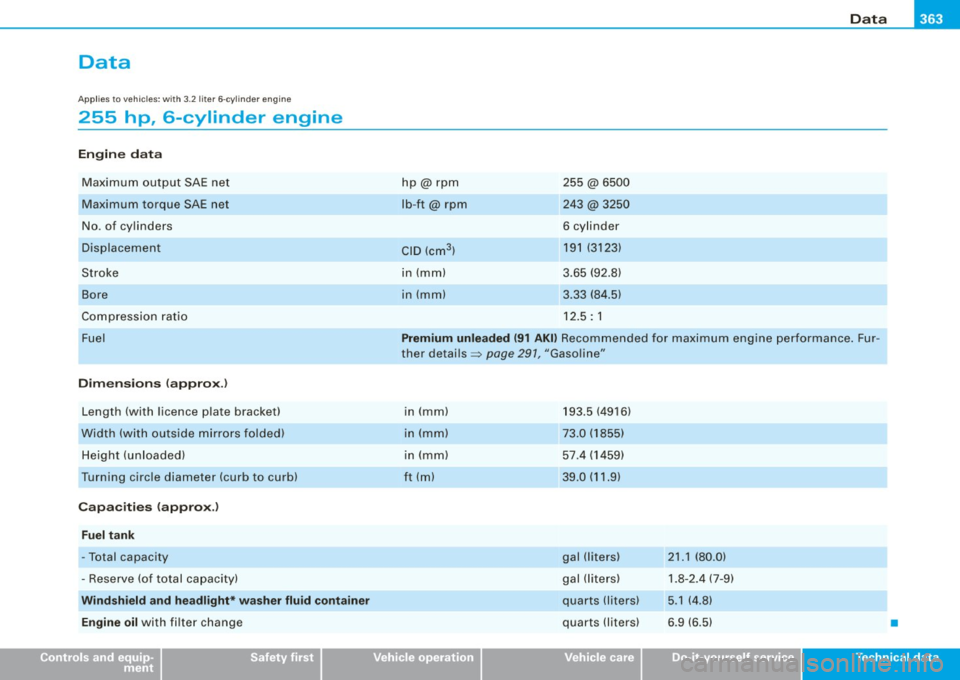

_____________________________________________________ D_a_ t_ a __ llll
Data
Ap plies to veh icles: wit h 3.2 lit er 6 -c ylinde r en gine
255 hp, 6-cylinder engine
En gin e da ta
Maximum output SAE net
Maximum torque SAE net
No . of cylinders
Displacement
Stroke
Bore
Compression ratio
Fuel
Dim ension s (app rox.)
Length (with licence plate bracket)
Width (with outside mirrors fo lded)
Height (unloaded)
Turning circle diameter (curb to curb)
Ca pac ities (a pprox.)
F u el t ank
-Total capacity
- Reserve (of total capacity)
Wind shi eld and he adli ght * was her fluid container
E ngine oil
with filter change
Controls and equip­
ment Safety first
hp@rpm
lb-ft@ rpm
CID (cm
3
)
in (mm)
in (mm)
255@ 6500
243@3250
6 cylinder
191 (3123)
3.65 (92.8)
3.33 (84.5) 12.5 : 1
Premium unleaded (91 AKI) Recommended for maximum engine performance. Fur­
ther details =>
page 297, "Gasoline"
in (mm)
in (mm)
in (mm)
ft (ml
193 .5 (49 16)
73.0 (1855) 57 .4 (1459)
39 .0 (11.9)
gal Oiters)
gal (liters)
quarts (liters)
quarts (liters ) 21.1 (80.0)
1 .8-2 .4 (7 -9)
5 .1 (4 .8)
6 .9 (6 .5)
•
Vehicle operation Vehicle care Do-it-yourself service Tec hn ica l da ta

___ D_a_ t_ a ___________________________________________________ _

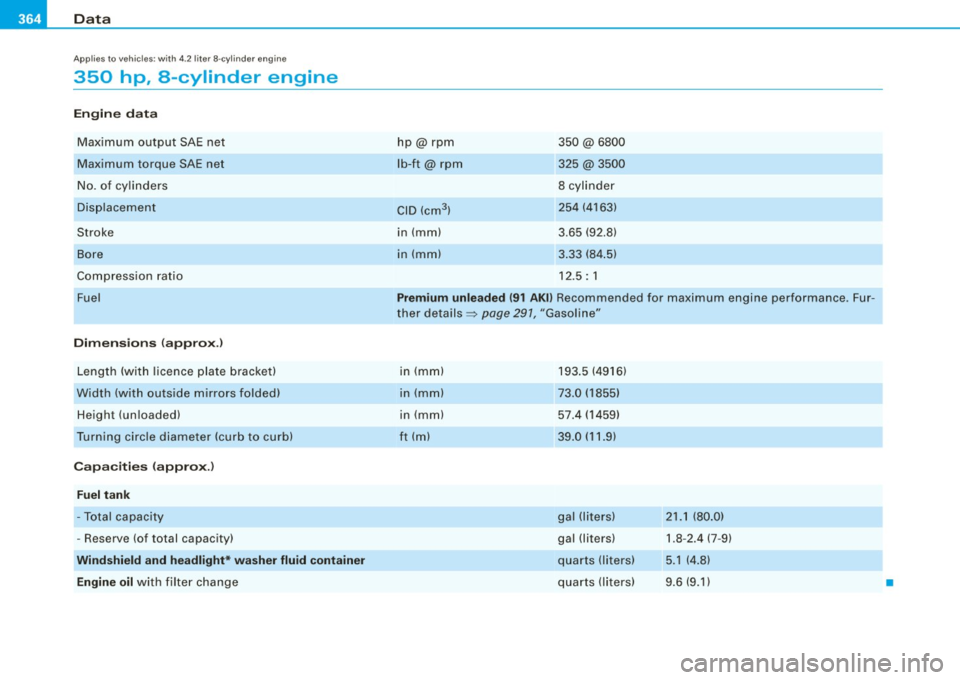

Applies to vehi cles : with 4 .2 l iter a-c ylinder e ngine
350 hp , a-cylinder engine
Engine data
Max imum output SAE net
Maximum torque SAE net
N o. of cy linders
Disp lacement
Stroke
Bo re
Comp ress ion ratio
Fuel
Dimensions (appro x.)
Length (with licence plate brac ket)
Width (wit h outside mirrors folded)
Height (un loaded)
Turning c ircle diameter (curb to curb)
Capacities {approx .)
Fuel tank
-Total capacity
- Reserve (of total capacity)
Windshield and headlight* washer fluid container
Engine oil
with filter change hp@ rpm
lb-ft@ rpm
CID (cm
3
)
in (mm)
in (m m) 350@6800
325@ 3500
8 cylinder
254 (4163)
3 .65 (92 .8)
3 .33 (84 .5)
12. 5: 1
Premium unleaded {91 AKll Recommended for maximum engine performance . Fur ­
ther details =:>
page 291, "Gasoline"
in (m m)
in (m m)
in (mm)
ft (ml 193
.5 ( 4916)
73.0 (1855)
57.4 ( 1459)
39 .0 (1 1.9)
gal (l iters)
gal (li ters)
quarts (liters)
quarts (l iters) 21.1 (80
.0)
1 .8 -2 .4 (7 -9)
5.1 ( 4.8)
9. 6 (9 .1)
•

_______________________________________________ C _o_ n _ s_u _ m_ e_ r_l_n _f_o _ r_ m_ a_ t _i _o _ n __ lffllll

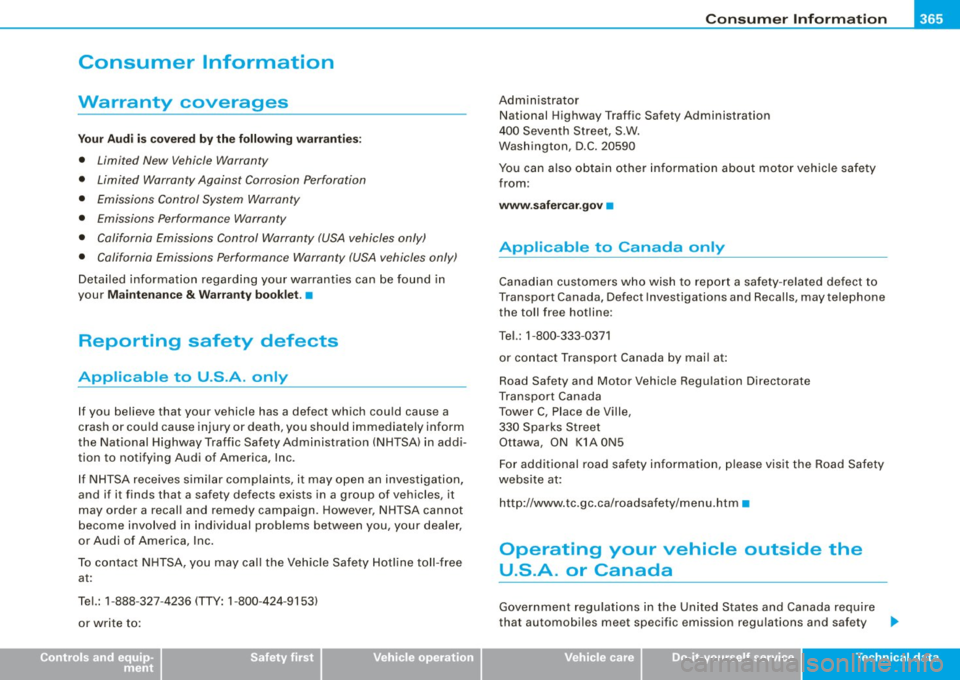

Consumer Information
Warranty coverages
Y o ur A udi i s covere d by the f ollowi ng wa rrant ie s:
• Limited New Vehicle Warranty
• Limited Warranty Against Corrosion Perforation
• Emissions Control System Warranty
• Emissions Performance Warranty
• California Emissions Control Warranty (USA vehicles only)
• California Emissions Performance Warranty (USA vehicles only)
Detai led information regarding your warrant ies can be found in
your
Mainten an ce & Warr ant y booklet .•
Reporting safety defects
Applicable to U.S.A . only
If you believe that your vehicle has a defect which cou ld cause a
crash or cou ld cause injury or death, you should immediately inform
the National Highway Traffic Safety Administration (NH TSAl in addi­
tion to notifying Audi of America, Inc .
If NHTSA receives simi lar complaints, it may open an invest igation,
and if it finds that a safety defects exists in a group of vehicles, it
may order a recall and remedy campaign. However, NHTSA cannot
become invo lved in individual problems between you, your dealer ,
or Audi of America, Inc .
To contact N HTSA, you may cal l the Vehic le Safety Hotline toll -free
at:
T el.: 1-888 -327-4236 ( TTY: 1-800 -424 -9153)
or write to:
Controls and equip­ ment Safety first Vehicle operation
Administrator
N ational Highway Traffic Safety Administration
400 Seventh Street, S.W.
Washington, D.C. 20590
You can also obtain other informat ion about motor vehicle safety
from :
www .safer car.gov •
Applicable to Canada only
Canad ian custome rs who wish to repo rt a safety -re lated defect to
Transport Canada, Defect Investiga tions and Recalls, may telephone
the toll free hotline:
Tel.: 1 -800-333 -0371
or contact Transport Canada by mail at :
Road Safety and Motor Vehic le Regulation Directorate
Transport Canada
Tower C, Place de Ville, 330 Sparks S treet
Ottawa, ON
K1 A O N 5
For additional road safe ty informatio n, p lease visit the Road Safety
website at:
http ://www .tc.gc .ca/roadsafety/men u.htm •
Operating your vehicle outside the
U.S.A. or Canada
Governmen t regulations in the Un ited States and Canada require
that automobiles meet specific emission regu lations and safety .,_
Vehicle care Do-it-yourself service Tec hn ica l da ta

___ C_ o_n_ s_ u_m _ e_ r_ ln_ f_ o _r _m _ a_ t_ i_o _n ______________________________________________ _

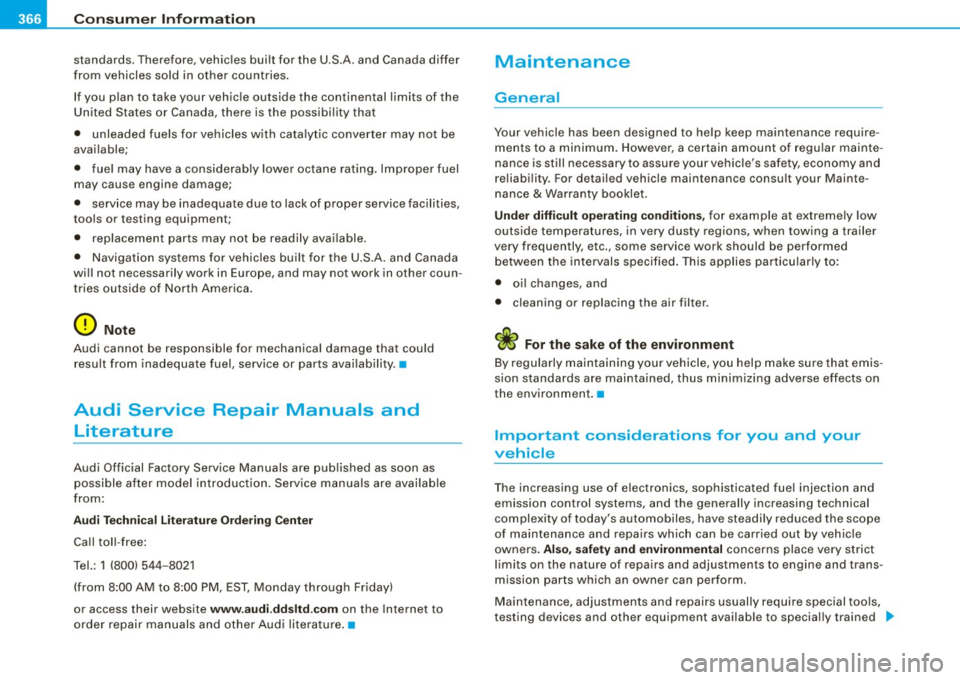

standards. Therefore, vehicles built for the U.S .A. and Canada differ
from vehicles sold in other countries.
If you plan to take your vehicle outside the continental limits of the
United States or Canada, there is the possibility that
• unleaded fuels for vehicles with catalytic converter may not be
available;
• fuel may have a considerably lower octane rating. Improper fuel
may cause engine damage;
• service may be inadequate due to lack of proper service facilities,
tools or testing equipment;
• replacement parts may not be readily available .
• Navigation systems for vehicles built for the U.S.A. and Canada
will not necessarily work in Europe , and may not work in other coun­
tries outside of North America.
0 Note
Audi cannot be responsible for mechanical damage that could
result from inadequate fuel , service or parts availability .•
Audi Service Repair Manuals and
Literature
Audi Official Factory Service Manuals are published as soon as
possible after model introduction. Service manuals are available
from :
Audi Technical Literature Ordering Center
Call toll -free:
Tel.: 1 (800) 544-8021
(from 8:00 AM to 8:00 PM, EST, Monday through Friday)
or access their website www.audi.ddsltd.com on the Internet to
order repair manuals and other Audi literature. •
Maintenance
General
Your vehicle has been designed to help keep maintenance require­
ments to a minimum. However, a certain amount of regular mainte­
nance is still necessary to assure your vehicle 's safety, economy and
reliability. For detailed vehicle maintenance consult your Mainte­
nance & Warranty booklet .
Under difficult operating conditions, for example at extremely low
outside temperatures, in very dusty regions, when towing a trailer
very frequently, etc., some service work should be performed
between the intervals specified. This applies particularly to:
• oil changes , and
• cleaning or replacing the air filter.
~ For the sake of the environment
By regularly maintaining your vehicle, you help make sure that emis ­
sion standards are maintained, thus minimizing adverse effects on
the environment. •
Important considerations for you and your
vehicle
The increasing use of electronics, sophisticated fuel injection and
emission control systems, and the generally increasing technical
complexity of today's automobiles, have steadily reduced the scope
of maintenance and repairs which can be carried out by vehicle
owners. Also, safety and environmental concerns place very strict
limits on the nature of repairs and adjustments to engine and trans­
mission parts which an owner can perform.
Maintenance, adjustments and repairs usually require special tools,
testing devices and other equipment available to specially trained .,_

_______________________________________________ C _o_ n _ s_u _ m_ e_ r_l_n _f_o _ r_ m_ a_ t _i _o _ n __ PII

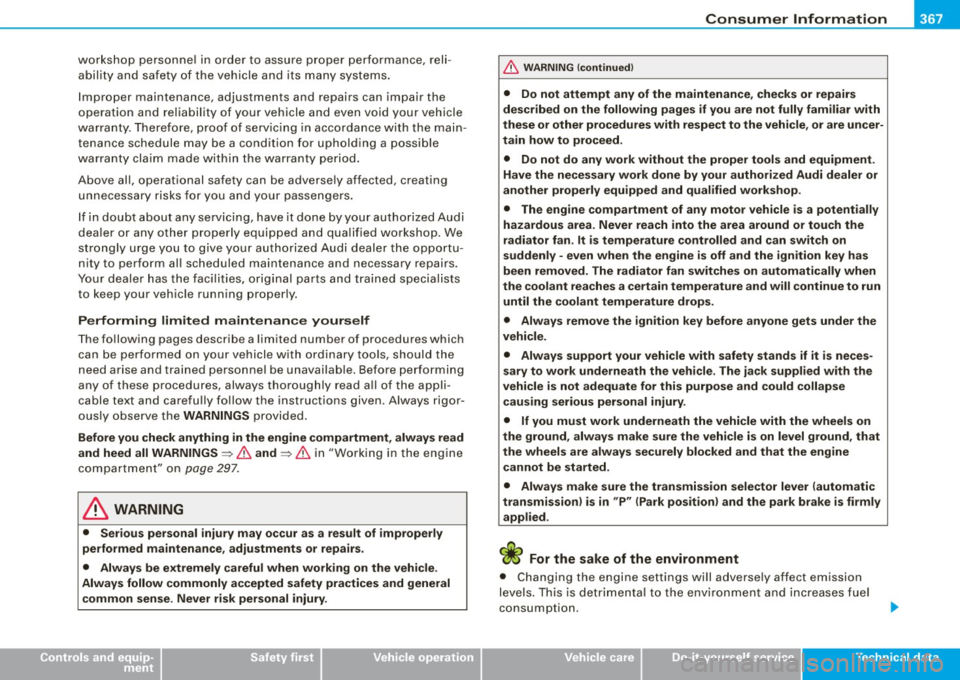

workshop personne l in order to assure proper performance, reli ­
abil ity and sa fe ty of the vehicle a nd i ts many sys te m s.
I mproper maintenance, adjustments and repairs can impair the
operation and reliabil ity of your vehicle and even void your vehicle
war ra nty. T here fore, proof o f serv ic ing in accorda nce with the main ­
tenance schedule may be a condition for uphold ing a possible
war ra nty claim made withi n th e warranty per iod .
Above all, operat ional safety can be adverse ly affected, creating
unnece ssary risks fo r you and you r passengers .
If in doubt about a ny servici ng, have it do ne by your authorized Aud i
dea ler or any other properly equipped and qua lified workshop. We
str ongly u rge you to give your auth orized Audi dealer the oppo rtu ­
nity to perform al l scheduled maintenance and necessary repairs.
You r deale r has the facil ities, origi nal par ts and trained special is ts
to keep your vehic le running proper ly.
Performing limited maintenance yourself
T he fo llow ing pages describe a limited numbe r of procedures which
can be perfo rme d on you r vehicle wi th ordi nary too ls, should the
need arise and trained personne l be unavailab le. Before performing
any of these proced ures, always thor oug hly read a ll of th e appli­
cable text and carefu lly fo llow the instructions given. Always rigor ­
ously observe the WARNINGS provided.
Before you check anything in the engine compartment , alway s read
and heed all WARNINGS:::>
& and:::> & in "Wo rking in the engine
compartment" on
page 297.
& WARNING
• Ser ious persona l injury may occur as a result of improperly
performed maintenance , adjustments or repairs.
• Always be e xtremely careful when working on the vehicle .
Always follow commonly accepted safety practices and general
c ommon sense . Never ri sk per sonal injury .
Controls and equip­ ment Safety first
Vehicle operation
& WARNING (continued )
• Do not attempt any of the maintenance , checks or repairs
described on the following pages if you are not fully familiar with
these or other pro cedures with respect to the vehicle , or are uncer­
tain how to proceed.
• Do not do any work without the proper tools and equipment.
Have the necessary work done by your autho rized Audi dealer or
another properly equipped and qualified workshop .
• The engine compartment of any motor vehicle is a potentially
hazardous area . Never reach into the area around or touch the
radiator fan . It i s temperature controlled and can switch on
suddenly - even when the engine is off and the ignition key has
been removed . The radiator fan switche s on automatically when
the coolant reaches a certain tempe rature and will continue to run
until the coolant temperature drops .
• Always remove the ignition key before anyone gets under the
vehicle.
• Always support your vehicle with safety stands if it is neces­
sary to work underneath the vehicle. The jack supplied with the
vehicle is not adequate for this purpose and could collapse
causing serious personal injury .
• If you must work underneath the vehicle with the wheels on
the ground, always make sure the vehicle is on level ground , that
the wheels are always securely blocked and that the engine
cannot be started .
• Always make sure the transmission selector lever (automatic
transmission) is in "P " (Park position) and the park br ake is firmly
appl ied .
ffi For the sake of the environment
• Changing the engine settings wi ll adverse ly affect emission
leve ls. T his is detrimenta l to the envi ro nmen t and i ncreas es fu el
consumption.
Vehicle care Do-it-yourself service Tec hn ica l da ta

___ C_ o_n_ s_ u_m _ e_ r_ ln_ f_ o _r _m _ a_ t_ i_o _n ______________________________________________ _

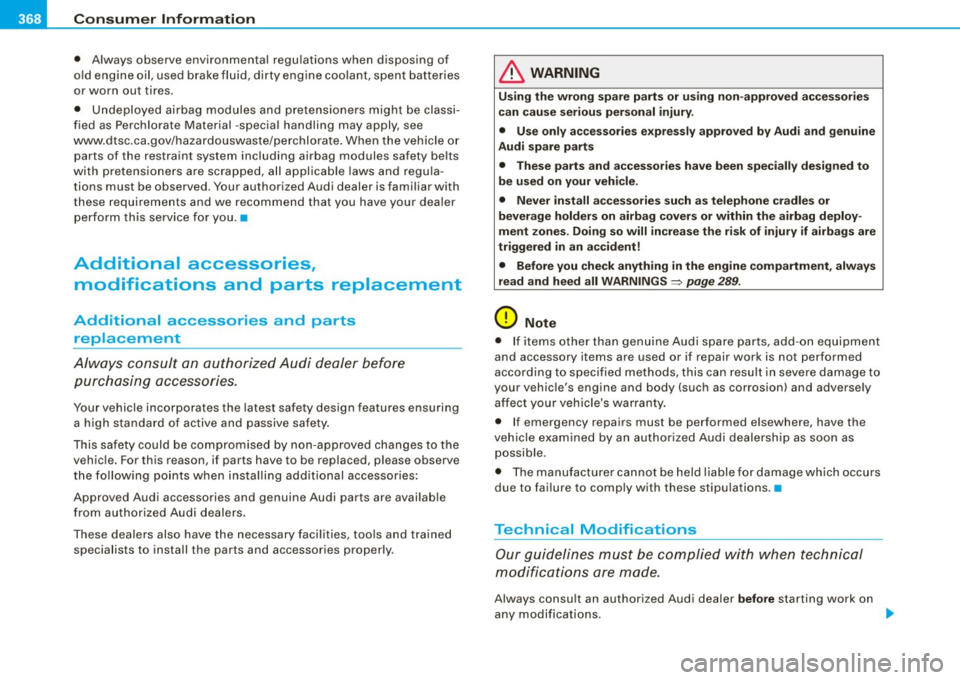

• Always observe environmental regulations when disposing of
o ld engine oil, used brake fluid, d irty engine coo lant, spent batteries
or worn out tires .
• Undeployed airbag modules and pretensioners might be classi­
fied as Perchlorate Material -special handling may apply , see
www .dtsc.ca.gov/hazardouswaste/perchlorate. When the vehicle or
parts of the restraint system including ai rbag modules safety belts
with pretensioners are scrapped, all applicable laws and regula ­
tions must be observed . Your authorized Audi dealer is familia r with
these requirements and we recommend that you have your dea ler
perform this service for you .•
Additional accessories,
modifications and parts replacement
Additional accessories and parts
replacement
Always consult an authorized Audi dealer before
purchasing ac cessories.
Your vehicle incorporates the latest safety design features ensuring
a high standard of active and passive safety .
This safety could be compromised by non-approved changes to the
vehic le. For this reason, if parts have to be replaced , please observe
the follow ing po ints when installing addit ional accessories:
Approved Audi accessories and genuine Audi parts are availab le
from authorized Audi dealers.
These dealers also have the necessary faci lities , too ls and trained
specialists to install the parts and accessories properly .
& WARNING
Usi ng the wron g spar e p art s or usi ng non-a ppr ove d accessor ies
c a n cau se seri ous pers onal injur y.
• Use onl y acc essorie s ex pr ess ly a ppr oved by A udi and genuine
Audi spare p art s
• These par ts a nd acces sorie s have been sp ecially de sig ne d to
be u sed on your v ehic le .
• Nev er in sta ll a ccesso ries s uch a s tel ephon e cra d le s or
b ev era ge h older s on airb ag cove rs o r w ithin th e air b ag d eploy­
me nt zone s. D oing so will in crea se the risk of inju ry if airb ags a re
tri gger ed in an acciden t!
• Befor e you che ck anyt hing in the eng in e comp artment , alwa ys
re ad and heed all W ARNIN GS
=> page 28 9.
0 Note
• If items other than genuine Audi spare parts, add-on equipment
and accessory items are used or if repair work is not performed
according to specified methods, this can result in severe damage to
your vehic le's engine and body (such as corrosion) and adversely
affect your vehicle's warranty .
• If emergency repairs must be performed e lsewhere , have the
vehicle examined by an authorized Audi dea lership as soon as
possible .
• The manufacturer cannot be held liable for damage wh ich occurs
due to failure to comply with these stipu lations .•
Technical Modifications
Our guidelines must be complied with when technical
modifications are made.
A lways consult an authorized Audi dealer before starting work on
any modifications . .,
