AUDI S8 2010 Owners Manual

Because the passengers of this vehicle are not using safety belts
=> page 198, fig. 202, they will keep moving at the same speed the
vehicle was moving just before the crash, until something stops them
- here, the wall =>
page 198, fig. 203.
The same principles apply to people sitting in a vehicle that is
involved in a frontal collision. Even at city speeds of 20 to 30 mph (30
to SO km/h), the forces acting on the body can reach one ton (2,000
lbs, or 1,000 kg) or more. At greater speeds, these forces are even
higher.
People who do not use safety belts are also not attached to their
vehicle. In a frontal collision they will also keep moving forward at
the speed their vehicle was travelling just before the crash. Of course,
the laws of physics don't just apply to frontal collisions, they deter­
mine what happens in all kinds of accidents and collisions.•
What happens to occupants not wearing
safety belts?
In crashes unbelted occupants cannot stop themselves
from flying forward and being injured or killed. Always
wear your safety belts!
Safety first
Fig. 204 A driver not
wearing a safety belt is violently thrown
forward
Vehicle OP-eration
Safety belts
Fig. 205 A rear
passenger not wearing
a safety belt will fly
forward and strike the driver
Unbelted occupants are not able to resist the tremendous forces of
impact by holding tight or bracing themselves. Without the benefit
of safety restraint systems, the unrestrained occupant will slam
violently into the steering wheel, instrument panel, windshield, or
whatever else is in the way=> fig. 204. This impact with the vehicle
interior has all the energy they had just before the crash.
Never rely on airbags alone for protection. Even when they deploy,
airbags provide only additional protection. Airbags are not supposed
to deploy in all kinds of accidents. Although your Audi is equipped
with airbags, all vehicle occupants, including the driver, must wear safety belts correctly in order to minimize the risk of severe injury or
death in a crash.
Remember too, that airbags will deploy only once and that your
safety belts are always there to offer protection in those accidents in
which airbags are not supposed to deploy or when they have already
deployed. Unbelted occupants can also be thrown out of the vehicle
where even more severe or fatal injuries can occur.
It is also important for the rear passengers to wear safety belts
correctly . Unbelted passengers in the rear seats endanger not only
themselves but also the driver and other passengers=> fig . 205. In a
frontal collision they will be thrown forward violently, where they can
hit and injure the driver and/or front seat passenger. •
Vehicle care Do-it-yourselt service iTechnical data

__ _:::S:.::a :..:f...:e :.:t::1y ~ b:..:e:.: l:.: t :.:s :._ ____________________________________________ _
Safety belts protect
People think it's possible to use the hands to brace the
body in a minor collision . It's simply n ot true!
F ig. 2 06 Dri ver is
correct ly re str ain ed in
a s udden b rakin g
m ane uver
Safe ty belts used properly can make a big d ifference. Safe ty belts
help to keep passengers in their seats, gradually reduce energy levels
applied to the body in an accident, an d help prevent the uncon trolled
movement that can cause serious injuries. In add it ion, safety belts
red uce the danger of be ing t hrown ou t of the vehicle .
Safety be lts attach passengers to the car and give them the benefit of
being slowed down more gently or "softly" through the "give" in the
safety belts, crush zones and othe r saf ety features engine ered into
today's vehicles. By "absorb ing" the kinetic energy over a longer
per iod of time , the safety belts m ake the forces on the body more
"tolerable" and less likely to cause injury.
Altho ugh these examples are based on a fronta l collision, safety belts
can also s ubstant ially red uce the risk of injury in other ki nds of
crashes. So, whether you're on a long trip or just going to the corner
sto re, always buckle up and make sure others do, too. Acc ident statis­
tics show that vehicle occupants properly wear ing safety belts have a
lower ris k of bei ng inj ured and a mu ch better cha nce of s urviv ing an
acc ident . Properly using safety belts also greatly increases the ability
of the supp lemen tal air bags to do the ir job in a coll is ion. For this
reason, wearing a safety bel t is lega lly requ ired in most coun tries
including muc h of the Un ited States and Canada. Altho
ugh your Audi is equ ipped with a irbags, you still have to wear
t he safe ty belts provided. Fron t air bags, for ex ample, are a ctiv ate d
only in some frontal collisions . T he front a irbags are not act ivated in
all frontal co llisions, in s ide and rear coll isio ns, in roll overs or in cases
where there is not enough decelerat ion thro ugh impact to the front
of the vehicle . The same goes for the other airbag systems in yo ur
Audi. So, always wea r your safety be lt and make su re everybody in
your vehicle is properly restrained!
Important safety Instructions about safety
belts
Safety b elts must always be correctly positioned across
the strongest bones of your body .
-Always wear safety belts as illustrated and described in
this chapter .
- Make sure that your safety belts are always ready for use and are not damaged .
& WARNING
Not wearing safety belts o r wearing them improperly inc reases
the risk of s eriou s personal injury and death . Safety belts can work
only when u sed correctl y.
• Alway s fasten your safety belts correctly bef ore driving off and
make sure all passengers are corre ctly restrained.
• For ma ximum protection , safety belts must alw ays be posi ­
ti oned properly on the body.
• Never strap more than one person , including small children ,
into any belt .
• Never place a safety belt o ver a ch ild sitting on you r lap .
• Alway s keep feet in the footwell in front of the seat while the
vehicle is being driven.
~

& WARNING (continued)
• Never let any person ride with their feet on the instrument
panel or sticking out the window or on the seat.
• Never remove a safety belt while the vehicle is moving. Doing
so will increase your risk of being injured or killed.
• Never wear belts twisted.
• Never wear belts over rigid or breakable objects in or on your
clothing, such as eye glasses, pens, keys, etc., as these may cause
injury.
• Never allow safety belts to become damaged by being caught
in door or seat hardware.
• Do not wear the shoulder part of the belt under your arm or
otherwise out of position .
• Several layers of heavy clothing may interfere with correct
positioning of belts and reduce the overall effectiveness of the
system.
• Always keep belt buckles free of anything that may prevent the
buckle from latching securely.
• Never use comfort clips or devices that create slack in the
shoulder belt. However, special clips may be required for the
proper use of some child restraint systems.
• Torn or frayed safety belts can tear, and damaged belt hard­
ware can break in an accident. Inspect belts regularly. If webbing, bindings, buckles, or retractors are damaged, have belts replaced
by an authorized Audi dealer or qualified workshop.
• Safety belts that have been worn and loaded in an accident
must be replaced with the correct replacement safety belt by an
authorized Audi dealer. Replacement may be necessary even if
damage cannot be clearly seen. Anchorages that were loaded
must also be inspected.
• Never remove, modify, disassemble, or try to repair the safety
belts yourself.
Safety first Vehicle OP-eration
Safety belts
& WARNING (continued)
• Always keep the belts clean. Dirty belts may not work properly
and can impair the function of the inertia reel=>
page 281,
"Safety belts". •
Safety belts
Fastening safety belts
Seat first -everybody buckle up!
Fig. 207 Belt buckle
and tongue on the
driver's seat
To provide maximum protection , safety belts must always be
positioned correctly on the wearer's body.
- Adjust the front seat and head restraint properly
=>
page 76 , "General recommendations" .
- Hold the belt by the tongue and pull it evenly across the
chest and pelvis=>& .
- Insert the tongue into the correct buckle of your seat until
you hear it latch securely => fig. 207 .
- Pull on the belt to make sure that it is securely latched in
the buckle. _.
Vehicle care Do-it-yourselt service iTechnical data

-Safety belts -----=-----------------------------------------
Automatic safety belt retractors
Every sa fe ty be lt is equipped wi th an au toma tic be lt r etrac tor on the
shoulder be lt. This feat ure locks t he belt whe n the belt is pull ed out
fast, during ha rd bra king an d in an acc ident . The belt may also loc k
w hen you dr ive up or dow n a s te ep h ill or throug h a sharp curve .
Dur ing norma l driv ing the belt lets you move freely.
Safety belt pretensioners
Th e safety belts are e quipped w ith a belt p retensioner that hel ps to
t igh ten the saf ety be lt and remove slac k w he n the p re tensioner is
act ivated . The f unction of t he p retens ioner is monitore d by a warn ing
light=>
pag e 17.
Switchable locking feature
Every safety be lt except the one on the driver sea t is equipped with a
switchab le locking feature that
must b e used when the safety belt is
us ed to attach a c hild se at. B e s ure to rea d the i mporta nt info rmation
about th is feature =>
page 241.
& WARNING
Improperly positioned safety belts can cause serious injury in an
accident =>
page 202, "Safety belt position ".
• Safety belt s offer optimum protection only when the seat back
is upright and belts are properly positioned on the body.
• Never attach the safety belt to the buckle for another seat.
Attaching the belt to the wrong buckle will reduce safety belt
effe ctivene ss and can cause seriou s per sonal injury.
• A passenger who is not properly restrained can be seriously
injured by the safety belt itself when it moves from the stronger
parts of the body into critical areas like the abdomen.
• Always lock the convertible locking retractor when you are
securing a child seat in the vehicle=>
page 243. •
Safety belt position
Corre ct b elt posi tion is the key t o getting maximum
p ro tec tion fro m sa fety belts .
Fig. 208 Head
restraint a nd safety
belt po sit ion as s een
from the side
Use the height adjustment to change the pos it io n of the s houl de r
be lt of the fron t sa fety be lts.
& WARNING
Improperly po sitioned safety belts can cau se serious per sonal
injury in an accident.
• The shoulder belt portion of the safety belt must be positioned
over the middle of the occupant's shoulder and never across the
neck or throat.
• The safety belt must lie flat and snug on the occupant's upper
body => fig. 208. Pull on the belt to tighten if necessary.
• The lap belt portion of the safety belt must be positioned a s
low as possible across pelvis and never over the abdomen . Make
sure the belt lies flat and snug => fig. 208. Pull on the belt to
tighten if necessary .
• A loose-fitting safety belt can cause serious injuries by shifting
its position on your body from the strong bones to more vulner-
able , soft tissue and cause serious injury .
~

& WARNING (continued)
• Always read and heed all WARNINGS and other important
information ~
page 200. •
Pregnant women must also be correctly
restrained
The best way to protect the fetus is to make sure that
expectant mothers always wear safety belts correctly -
throughout the pregnancy.
Fig. 209 Safety belt
position during preg­
nancy
To provide maximum protection, safety belts must always be
positioned correctly on the wearer's body=:>
page 202.
- Adjust the front seat and head restraint correctly
::::, page 76, "General recommendations".
- Hold the belt by the tongue and pull it evenly across the
chest and pelvis::::, fig.
209, ::::, /1.
- Insert the tongue into the correct buckle of your seat until
you hear it latch securely::::,
page 201, fig. 207.
-Pull on the belt to make sure that it is securely latched in
the buckle.
Safety first Vehicle OP-eration
Safety belts
& WARNING
Improperly positioned safety belts can cause serious personal
injury in an accident.
• Expectant mothers must always wear the lap portion of the
safety belt as low as possible across the pelvis and below the
rounding of the abdomen.
• Always read and heed all WARNINGS and other important
information ~
& in "Fastening safety belts" on page 201. •
Unfastening safety belts
Unbuckle the safety belt with the red release button only
after the vehicle has stopped.
Fig. 210 Releasing
the tongue from the
buckle
Push the red release button on the buckle::::, fig. 210. The
belt tongue will spring out of the buckle::::,
/1.
Let the belt wind up on the retractor as you guide the belt
tongue to its stowed position .
& WARNING
Never unfasten safety belt while the vehicle is moving. Doing so
will increase your risk of being injured or killed. •
Vehicle care Do-it-yourselt service iTechnical data

Ill Safety belts
---=-------------------------------
Adjusting safety belt height
Use the safety belt height adjustment to change belt
position on the shoulder.
Fig. 211 Adjusting
shoulder belt height
The safety belt height adjustors for the front seats can be
used to adjust the height of the shoulder portion of the
safety belt so that it is positioned correctly.
- Push the latch=> fig. 211 up or down so that the shoulder
portion of the safety belt is positioned nearly midway over
the shoulder => & in "Safety belt position" on
page 202.
& WARNING
Always read and heed all WARNINGS and other important infor­
mation =>
page 200. •
Improperly worn safety belts
Incorrectly positioned safety belts can cause severe inju­
ries.
Wearing safety belts improperly can cause serious injury or
death. Safety belts can only work when they are correctly
positioned on the body . Improper seating positions reduce the effectiveness of safety belts and will even increase
the
risk of injury and death by moving the safety belt to critical
areas of the body. Improper seating positions also increase
the risk of serious injury and death when an airbag deploys and strikes an occupant who is not in the correct seating posi­
tion. A driver is responsible for the safety of all vehicle occu­ pants and especially for children . Therefore:
- Never permit anyone to assume an incorrect sitting posi­
tion in the vehicle while traveling=>& .
& WARNING
Improperly worn safety belts increase the risk of serious personal
injury and death whenever a vehicle is being used.
• Always make sure that all vehicle occupants are correctly
restrained and stay in a correct seating position whenever the
vehicle is being used.
• Always read and heed all WARNINGS and other important
information =>
page 200. •
Safety belt pretensioners
How safety belt pretensioners work
In front, side and rear-end collisions above a particular
severity, safety belts are tensioned automatically.
The safety belts are equipped with safety belt pretensioners. The
system is activated by sensors in front, side and rear-end collisions of
great severity. This tightens the belt and takes up belt slack~
& in
" Service and disposal of safety belt pretensioner" on
page 205 .
Taking up the slack helps to reduce forward occupant movement
during a collision. ..

_______________________________________________ S_ a_ f_ e_ t_ y_ b_ e_ lt_s __ _
[I) Tips
The safety belt pretensioner can only be activated once.
• In minor frontal and side collisions, in rear-end collisions, in a ro ll­
over and in acc idents involving very little impact force, the safety belt
pretensioner are not activated.
• When the safety belt pretensioner is activated, a fine dust is
re leased . This is norma l and is not caused by a fire in the vehicle.
• The relevant safety requirements must be observed when the
vehicle or components of the system are scrapped. A qualified deal­
ersh ip is familiar with these regulat ions and will be pleased to pass on
the information to you.
• Be sure to observe all safety, environmental and other regulations
if the vehicl e or individual parts of the system, particularly the safety
belt or a irbag, are to be disposed. We recommend you have your
authorized Audi dea ler perform this service for you .•
Service and disposal of safety belt
pretensioner
Th e safety belt pretensioners are parts of the safety belts on your
Audi. Installing, removing, servicing or repairing of belt preten­
sioners can damage the safety belt system and prevent it from
work ing correctly in a collision.
Th ere are some important things you have to know to make s ure that
the effectiveness of the system w ill not be impaired and that
discarded components do not cause injury or pollute the environ­
ment.
& WARNING
Improper care, servicing and repair procedures can increase the
risk of personal injury and death by preventing a safety belt
pretensioner from activating when needed or activating it unex­
pectedly:
Controls and equip­ ment Safety first Vehicle operation
& WARNING
(continued)
• The belt pretensioner system can be activated only once. If belt
pretensioners have been activated, the system must be replaced.
• Never repair, adjust, or change any parts of the safety belt
system.
• Safety belt systems including safety belt pretensioners cannot
be repaired. Special procedures are required for removal, installa ­
tion and disposal of this system.
• For any work on the safety belt system, we strongly recom ­
mend that you see your authorized Audi dealer or qualified tech­
nician who has an Audi approved repair manual, training and
special equipment necessary.
~ For the sake of the environment
Undeployed airbag modules and pretensioners might be classified as
Perchlorate Material -special handling may apply, see
www.dtsc.ca .gov/hazardouswaste/perchlorate. When the vehicle or
parts of the restraint system including air bag modu les safety belts
with pretensioners are scrapped, all app licab le laws and regu lations
must be observed. Your authorized Audi dealer is familiar with these
requirements and we recommend that you have your dealer perform
th is service for you. •
Vehicle care Do-it-yourself service Technical data

ffl..,___A_ i_rb _ a_,g,:;._ s_, y'- s_ t_e _m ________________________________________________ _

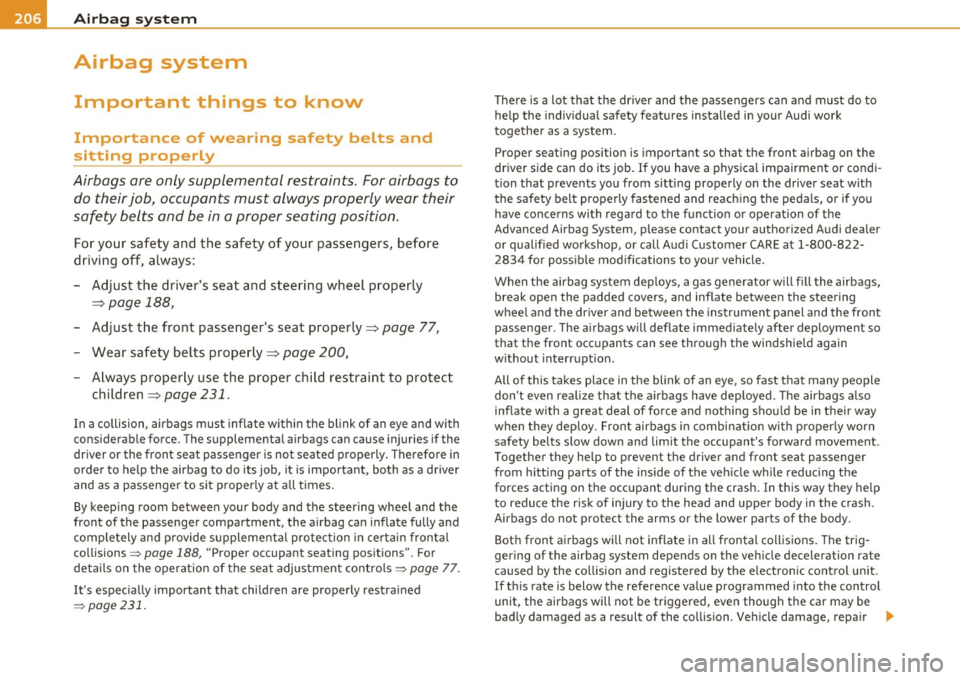

Airbag system
Important things to know
Importance of wearing safety belts and
sitting properly
Airbags are only supplemental restraints. For airbags to
do their job, occupants must always properly wear their
safety belts and be in a proper seating position.
For your safety and the safety of your passengers, before
driving off, always:
- Adjust the driver's seat and steering wheel properly
~ page 188,
-Adjust the front passenger's seat properly~ page 77,
- Wear safety belts properly~
page 200,
- Always properly use the proper child restraint to protect
children~
page 231.
In a collision, airbags must inflate within the blink of an eye and with
considerable force. The supplemental airbags can cause injuries if the
driver or the front seat passenger is not seated properly. Therefore in
order to help the airbag to do its job, it is important, both as a driver
and as a passenger to sit properly at all times.
By keeping room between your body and the steering wheel and the
front of the passenger compartment, the airbag can inflate fully and
completely and provide supplemental protection in certain frontal
collisions =>
page 188, "Proper occupant seating positions". For
details on the operation of the seat adjustment controls=>
page 77.
It's especially important that children are properly restrained
=>
page 231.
There is a lot that the driver and the passengers can and must do to help the individual safety features installed in your Audi work
together as a system.
Proper seating position is important so that the front airbag on the
driver side can do its job. If you have a physical impairment or condi­
tion that prevents you from sitting properly on the driver seat with
the safety belt properly fastened and reaching the pedals, or if you
have concerns with regard to the function or operation of the
Advanced Airbag System, please contact your authorized Audi dealer
or qualified workshop, or call Audi Customer CARE at 1-800-822-
2834 for possible modifications to your vehicle.
When the airbag system deploys, a gas generator will fill the airbags,
break open the padded covers, and inflate between the steering
wheel and the driver and between the instrument panel and the front
passenger . The airbags will deflate immediately after deployment so
that the front occupants can see through the windshield again
without interruption.
All of this takes place in the blink of an eye, so fast that many people don't even realize that the airbags have deployed. The airbags also
inflate with a great deal of force and nothing should be in their way
when they deploy. Front airbags in combination with properly worn
safety belts slow down and limit the occupant's forward movement.
Together they help to prevent the driver and front seat passenger
from hitting parts of the inside of the vehicle while reducing the
forces acting on the occupant during the crash. In this way they help
to reduce the risk of injury to the head and upper body in the crash .
Airbags do not protect the arms or the lower parts of the body.
Both front airbags will not inflate in all frontal collisions. The trig­
gering of the airbag system depends on the vehicle deceleration rate
caused by the collision and registered by the electronic control unit.
If this rate is below the reference value programmed into the control
unit, the airbags will not be triggered, even though the car may be
badly damaged as a result of the collision. Vehicle damage, repair .,,,.

_______________________________________________ A_ ir_ b_ a_,,,g '--- s.:.y _s _t_ e _ m ___ lJ'II
costs o r even t he lack of ve hicle damage is not necessarily an ind ica­
t ion of w heth er an a irba g should inflat e or not.
S ince the c ircumstances will vary considera bly b etwee n one co llision
and another, it is not possi ble to define a range of vehicle spee ds that
w ill c ove r eve ry po ssibl e kind and angle of i mpac t that will alw ay s
trigge r the a irbags. Im portant facto rs include, for examp le, the
n at ure (har d or so ft ) of th e obje ct wh ich t he c ar hi ts, the an gle of
impact, vehicle speed, etc . T he front airbags w ill also not inflate in
s ide or rear co ll is io ns, or i n roll-o ve rs.
Always remember: Airbags will deploy only once, a nd only in certain
kinds of coll isions . Yo ur safety be lts are a lways there to offer protec ­
ti on in t hose situ ations i n w hich air bags are not s upposed to deploy,
or w hen they have alrea dy de ploye d; for examp le, w hen your ve hicle
s tr ikes or is st ruc k by ano ther ve hicle after the fi rst co llisio n.
T hi s is just one of the reasons w hy a n airbag is a s upplementary
res tra in t a nd i s no t a su bs titu te for a saf ety bel t. The air bag syste m
works most effective ly whe n used w ith the safety belts . Therefore,
always p rope rly wea r you r sa fety belts ~ page 197 .
& WARNING
Sitting too close to the steering wheel or instrument panel will
decrease the effectiveness of the airbags and will increase the r isk
of personal injury in a collision.
• Never sit closer than 10 inches (25 cm ) to the steer ing wheel or
instrument panel.
• If you cannot sit more than 10 inches (25 cm ) from the
steering wheel, investigate whether adaptive equipment may be
available to help you reach the pedals and increase your seating
distance from the steering wheel.
• If you are unrestrained, leaning forward, sitting sideways or
out of po sition in any way, your risk of injury is much higher.
• You will also receive serious injuries and could even be killed if
you are up against the airbag or too close to it when it inflates - even with an Advanced Airbag .
Controls and equip­ ment Safety first Vehicle operation
& WARNING
(co ntinued )
• To reduce the risk of injury when an airbag inflates, always
wear safety belts properly=>
page 201, "Safety belts ".
• Always make certain that children age 12 or younger always
ride in the rear seat. If children are not properly restrained, they
may be severely injured or killed when an airbag inflates.
• Never let children r ide unrestrained or improperly restrained in
the vehicle. Adjust the front seats properly .
• Never r ide with the backrest reclined.
• Always sit as far as possible from the steering wheel or the
instrument panel=>
page 188.
• Always sit upright with your back against the backre st of your
seat .
• Never place your feet on the instrument panel or on the seat.
Always keep both feet on the floor in front of the seat to help
prevent serious injuries to the legs and hips if the airbag inflates .
• Never recline the front passenger 's seat to transport objects .
Items can also move into the area of the side airbag or the front
airbag during braking or in a sudden maneuver. Objects near the
airbags can become projectiles and cause injury when an airbag
inflates .
& WARNING
Airbags that have deployed in a crash must be replaced.
• Use only original equ ipment airbags approved by Aud i and
installed by a trained technician who ha s the necessary tools and
diagnostic equipment to properly replace any airbag in your
vehicle and assure system effectiveness in a crash.
• Never permit salvaged or recycled airbags to be installed in
your vehicle. •
Vehicle care Do-it-yourself service Technical data

........ _A_ i_rb _ a_,g,:;._ s_, y'- s_ t_e _m ________________________________________________ _

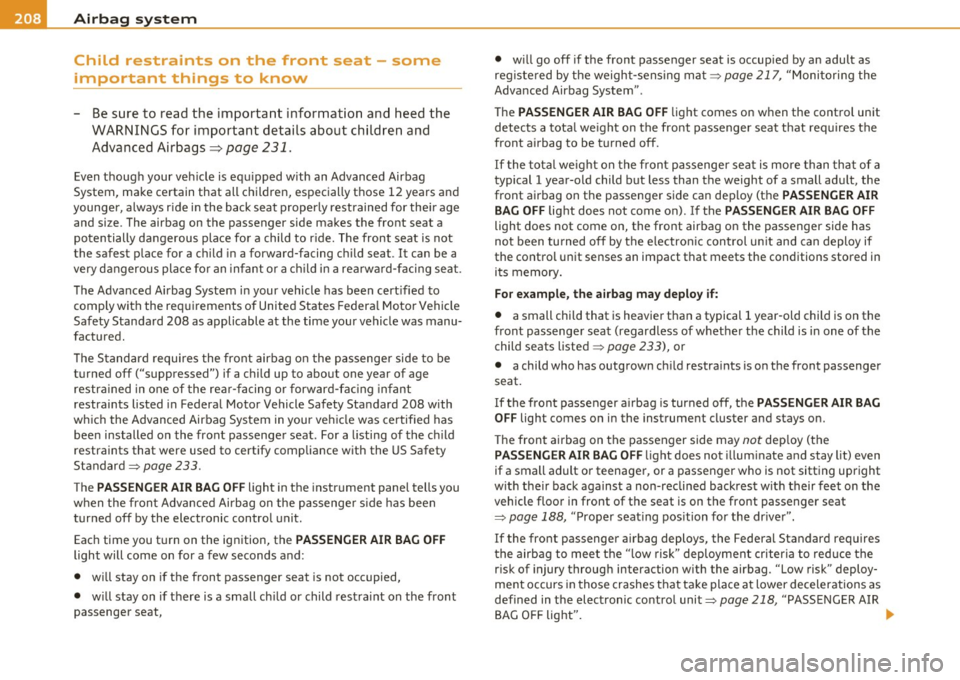

Child restraints on the front seat - some
important things to know
- Be sure to read the important information and heed the WARNINGS for important details about children and Advanced Airbags =:>
page 231.
Even though your veh icle is eq uipped with an Advanced Airbag
System, make certain that all children, especially those
12 years and
younger, a lways r ide in the back seat properly rest rained for the ir age
and size . The airbag on the passenger side makes the front seat a
potentially dangerous place fo r a child to r ide. The front seat is not
the safest p lace for a child in a forward-facing c hild seat . It can be a
very d angerous pla ce fo r an in fant or a ch ild in a rearwa rd-faci ng sea t.
The Advanced Airbag System in your vehicle has been cert ified to
comply with the req uirements of United States Federa l Motor Vehicle
Safety Standard
208 as applicable at the time your vehicle was manu­
factured .
T he S ta n dard requi res the front airbag on the passenger side to be
turned off ("suppressed") if a child up to about one year of age
restra ined in o ne of the rea r-facing or forward -fa cing in fant
restra ints listed in Federa l Motor Vehicle Safety Standard
208 with
w hich the Advanced Airbag System in your ve hicl e was ce rtified has
been installed o n the front passenger seat . For a listing of the ch ild
restraints that were used to certify compliance with the US Safety
Standard=>
page 233 .
The PASSENGER AIR BAG OFF light in the instrument panel tells you
w hen the front Advanced Ai rbag on the passenge r side has been
turned off by the electronic control unit .
Eac h time you t urn on the ign ition, the
PASSENGER AIR BAG OFF
light will come on for a few seconds and:
• will stay on if the front passenger seat is not occupied,
• will stay on if there is a small ch ild or child rest rai nt on the front
passenger seat, •
will go off if the front passenger seat is occup ied by an adult as
registe red by t he weigh t-sens ing ma t:::::>
page 217, "Moni toring the
Advanced Airbag System" .
Th e
PASSENGER AIR BAG OFF light comes on when the control unit
detects a tota l we igh t on the front passenger seat t hat req uires the
front airbag to be turned off.
If the total we ight on the front passenge r sea t is more than that of a
typical 1 year-old child but less than the weight of a small adu lt, the
front ai rbag on the passenger side can dep loy (the
PASSENGER AIR
BAG OFF
lig ht does not come on). If the PASSENGER AIR BAG OFF
light does not come on, the fro nt airbag on the passenger side has
not been tu rned off by the e lectro nic cont rol u nit and can deploy if
the cont rol unit senses an impact that meets the conditions stored in
its memory.
Fo r example , the a irbag may deploy if:
• a small child that is heavier than a typical 1 year-old child is on the
front passenge r seat (regard less of whet her the child is in one of the
child seats listed:::::>
page 233), or
• a chi ld who has outgrown ch ild restra ints is o n the front passenger
seat.
If the fron t passenger a irbag is turned off, the
PASSENGER AIR BAG
OFF
light comes on in the instrument cluster and stays on.
Th e front a irbag on the passenger side may
not dep loy (the
PASSENGER AIR BAG OFF li ght does not illum inate and stay lit) even
if a small ad ult o r teenage r, or a passenger who is not sitting upright
w it h th e ir back against a non-recli ned backrest w it h their feet on the
veh icle floor in front of the seat is on the front passenger seat
=>
page 188, "Prope r seat ing pos ition for the dr ive r".
If the front passenger airbag deploys, the Federal Standard requires
t he airbag to meet the " low risk" deployment criteria to red uce the
r isk of injury through interaction with the airbag. "Low risk" deploy­
ment occurs in those crashes that ta ke place a t lower decelerations as
defined in the elec tronic control unit:::::>
page 218, "PASS ENGER AIR
BAG O FF light".
liJ,
