Downloaded from www.Manualslib.com manuals search engine those areas and yourself. These objects
could cause injury in a crash, especially
when the airbags inflate.
- Never recline
the front passenger's seat to
transport objects. Items can also move into
the area of the side airbag or the front air­
bag during braking or in a sudden maneu­
ver. Objects near the airbags can become
projectiles and cause injury, particularly
when the seat is reclined.
- Never place
or transport objects on the
front passenger seat. Objects on the front
passenger seat could cause the capac itive
sensor in the seat to signal to airbag system
that the seat is occup ied by a person when it
in fact is not, or that the person on the seat
is heavier than he or she actually is. The
change in electric capacitance because of
such objects can cause the passenger front
airbag to be turned on when it should be
off, or can cause the a irbag to work in a way
that is diffe rent from the way it would have
worked without objects on the seat.
- Always make sure that there is nothing on
the front passenger seat that will cause the
capaciti ve passenger detection system in
the seat to signal to the Airbag System tha t
the seat is occupied by a person when it is
not, or to signa l that it is occupied by some­
one who is heavier than the person actually
sitting on
the seat. The presence of an ob­
ject could cause the passenger front airbag
to be turned on when it should be off, or
cou ld cause the air bag to work in a way that
is different from the way it wou ld have
worked witho ut the object on the seat.
- Never tilt the front passenger seat backrest
forward when the vehicle is moving. An in­
flating airbag will force the backrest back­
ward and can injure rear seat occupants.
_&WARNING
The fine dust created when airbags deploy can
cause breathing problems for people w ith a
history
of asthma or other breathing condi­
tions.
Airba g system
- To reduce the ris k of breathing problems,
those with asthma or other respiratory con­
ditions should get fresh a ir right away by
getting out of the vehicle or opening win­
dows or doors.
-
If you are i n a collision in which airbags de­
p loy, wash your hands and face with mild
soap and water before eating.
-
Be carefu l not to get the dust into your eyes,
or into any cuts or scratches.
-Ifthe residue should get into your eyes,
f lush
them w ith water.
Monitoring the
Advanced Airbag System
t~~ Airbag monitoring indicator light
Two separate indicators monitor the function of
the Advanced Airbag System: the airbag moni­
toring indicator light and the PASSENGER AIR
BAG OFF light.
The Advanced Airbag System as well as the side
airbags and side curta in airbags with ejection
mitigation features (including the electronic con­
trol unit, sensors and system wiring) are all
monitored continuously to make sure that they
are functioning properly whenever the ignition is
on. Every time you turn on the ign ition, the a ir­
bag system indica to r light II will come on for a
few
seconds ( function check).
The system must be inspected when the
indicator light II:
-does not come on when the ignition is sw itched
on,
-
does not go out a few seconds after you have
switched on the igni tion, or
-comes on while driving .
If an airbag system malfunction is detected, the
indicator light will first start flashing to catch the
driver's attention and then stay on continuously
to serve as a constant rem inder to have the sys­
tem inspected immediately.
If a malfunction occurs that turns the front air-
bag on
the passenger side off, the PASSENGER ..,.
199

Downloaded from www.Manualslib.com manuals search engine Airbag system
AIR BAG OFF light will come on and stay on
wheneve r
the ignition is on.
A WARNING
An airbag system that is not functioning prop­
erly cannot p rovide supplemental p rotection
in a frontal crash.
-
If the airbag indicato r light c::> page 15
comes when the vehicle is b eing used, have
t h e
system inspecte d immediately by your
autho rized Audi d eale r. It is possible t hat
th e air bag will inflate when it is not su p­
posed to, or will not inflate when it should.

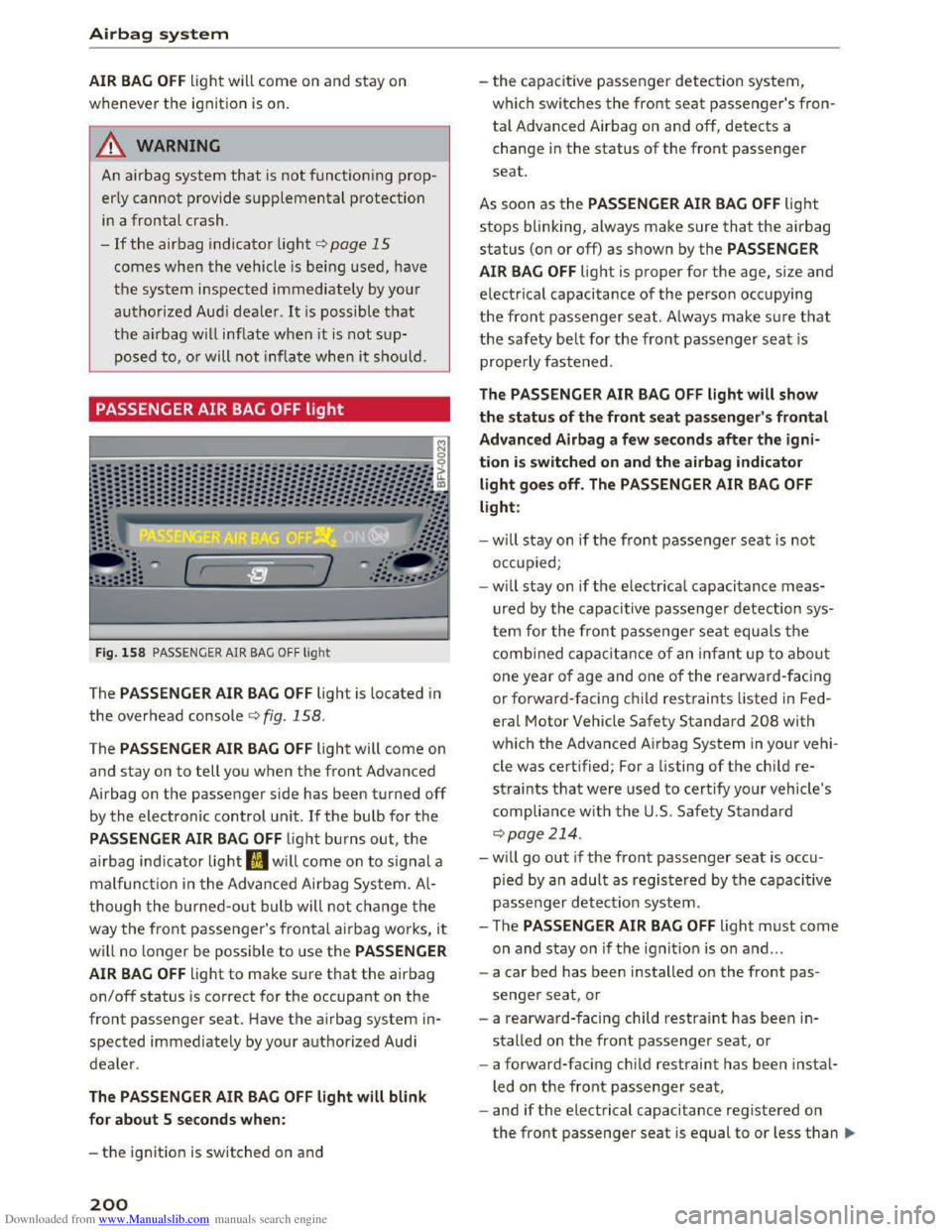

PASSENGER AIR BAG OFF light
Fig . 158 PASSENGER AIR BAG OFF lig ht
The PASSENGER AIR BAG OFF light is located in
the over head console c::> fig. 158.
The PASSENGER AIR BAG OFF light will come on
and stay on to tell you when th e front Advanced
Airbag on
the passenger side has been turned off
by the electronic control unit. If the bulb fo r t he
PASSENGER AIR BAG OFF light burns out, t h e
airbag indicator light fB w ill co m e o n to sig nal a
malfunctio n in the Advanced Airb ag System. Al­
though the burned-out bul b will not change the
way
the front passenger's front al air bag works, it
will no l
onger be possible to use the PASSENGER
AIR
BAG OFF light to make su re that the air b ag
on/off status is correct for the occupant on the
front passenger seat. H ave the airbag system in­
spected immediately by you r a uthorized Audi
deale r.
The PASSENGER AIR BAG OFF light will blink
for about
S seconds when:
-the ignition is switched on and
200
-the capacit ive passenger detection system,
which switches the front seat passenger's fron ­
tal Advanced Airbag on and off, detects a
change in the status of the front passenger
seat.
As soon as the PASSENGER AIR BAG OFF light
stops blinking, always make sure that the airbag
status (on or off} as shown by the PASSENGER
AIR BAG OFF lig ht is proper for the age, size and
electrical capacitance of the person occupying
t h e
front passenger seat. Always make sure t hat
th e safety belt fo r the front passenger seat is
properly fasten ed .
The PASSENGER AIR BAG OFF light will show
the status
of the front seat passenger's frontal
Advanced Airbag a
few seconds after the igni­
tion is switched on and the airbag indicator
light goes off. The PASSENGER AIR BAG OFF
light:
- will stay on if the front passenger s eat is not
occ up ied;
- will
stay on if the electrica l capaci tance meas­
ured b y the capaci tive passenger detection sys­
t
em for t he fron t passenger seat equals t he
c
ombined capa citanc e of an infant up to abo ut
one year of age and one of the rearwa rd -f acing
or forward -fac ing chil d restraints listed in Fed­
eral Motor Vehicle Safety Standard 208 with
which
the Advanced Airbag System in your vehi ­
cle was
certified; For a listing of the child re­
strai nts that were used to certify your vehicle 's
complia nce w ith the U .S . Safety Standard
c::>poge 214.
- w ill go out if the front passe nge r seat is occu ­
pied by an adu lt
as register ed by the cap ac it ive
passenger d etectio n system.
- T he PASSENGER AIR BAG OFF light must com e
on and
stay on if the igni tion is on and ...
- a car bed
has been installed on the front pas­
senger seat, or
- a rea rward-facing child restraint has been in­
stalled on the front passenger seat, o r
- a forward-fac ing chil d
restraint has been instal­
led on
the front passenger seat,
-and if the electrical capacitance registered on
the front passenger seat is equal to or less than ..,.

Downloaded from www.Manualslib.com manuals search engine .....
the combined capacitance of a typical l year ­
old
infant and one of the rearward-facing or
forward-facing child restraints listed in Federal
Motor Vehicle
Safety Standard 208 with which
the Advanced Airbag System in your vehicle was
certified.
If the front passenger seat is not occupied, the
front airbag will not deploy, and the PASSENGER
AIR BAG OFF light will stay on. Never install a
rearward -facing child
restraint on the front pas­
senger seat, the safest place for a child in any
kind
of child restraint is at one of the seating po ­
sitions on
the rear seat ~page 189, Child re­
straints on the front
seat -some important
things to know
and ~page 212, Child safety.
If the PASSENGER AIR BAG light comes
on ...
If the PASSENGER AIR BAG OFF light comes on
when one of the conditions listed above is met,
be sure to check the light regularly to make cer­
tain that the PASSENGER AIR BAG OFF light
stays on continuously whenever the ignition is
on. If the PASSENGER AIR BAG OFF light does
n
ot appea r on and does not stay on all the time,
stop as soo n as it is safe to do so and
- reactivate
the system by turning the ignition
off for more than 4 seconds and then turning it
on again;
- remove and reinstall
the child restraint. Make
sure that the child restraint is properly instal­
led and
that the safety belt for the front pas­
senger seat has been correctly routed through
the child restrain t as described in th e child re­
straint manufacturer's instructions;
- make
sure that the convertible locking retrac­
tor on the safety belt for the front passenger
seat has been activated and that the safety belt
has been pulled tight.
-make sure that no electrical device (such as a
laptop,
CD player, electron ic games device,
power inverter
or seat heater for child seats) is
placed or used on the front passenger seat if
the device is connected to the 12-volt socket or
~ the cigarette lighter socket;
co -make sure that no seat heater has been retro-...
~ fitted or otherwise added to the front passen-
..... :::: ger seat;
Airbag system
-make sure that nothing can interfere with the
safety belt buckles and that they are not ob­
structed;
-make sure that there are no wet objects (such
as a wet towel) and no water or other liquids on
the front passenger seat cushion.
If the PASSENGER AIR BAG light still does
not come on ...
If the PASSENGER AIR BAG OFF light still does
not come on and does not stay on continuously
(when
the ignition is switched on),
-
take the child restraint off the front passenger
seat and install it properly at one of the rear
seat positions. Have the airbag system inspect­
ed
by your Audi dealer immediately.
-move the child to a rear seat position and make
sure that the child is properl y restrained in a
child
restraint that is appropriate for its size
and age.
The PASSENGER AIR BAG light should NOT
come on ...
The PASSENGER AIR BAG OFF light should NOT
come on when the ignition is on and an adult is
sitting in a prope r seating position on the front
passenger seat. If the PASSENGER AIR BAG OFF
light comes on and stays on or flashes for about
5 seconds while driving, under these circumstan ­
ces,
make sure that:
-the adult on the front passenger seat is proper­
ly seated on the center of the seat cu sh ion wit h
his or
her back up against the backrest and the
backrest is not reclined,
-
the adult is not taking weight off the seat by
holding on to the passenger assist handle
above
the front passenger door or supporting
their weight on the armrest,
-the safety belt is being properly worn and that
there is not a lot of slack in the safety belt web­
bing,
-
there are no aftermarket seat covers or cush­
ions or
other things (such as blankets) on the
front passenger seat that might cause the ca­
pacitive passenger detection system to miscal­
culate electrical capacitance.
201

Downloaded from www.Manualslib.com manuals search engine Airbag system
"
Important safety instructions on
monitoring the Advanced Airbag System
A WARNING
--I
-If the status of the Advanced Airbag System
has changed while the vehicle is moving, the
PASSENGER AIR BAG OFF light blinks for
about 5 seconds to catch the driver's atten­
tion. If this happens, always stop as soon as
it is safe to do so and check the steps descri­
bed above.
-If the PASSENGER AIR BAG OFF light does
not go off when an adult who is not very
small is sitti ng on the front passenger seat
after taking the steps described above,
make sure the adult is properly seated and
restrained at one of the rear seating posi­
tions. Have the airbag system inspected by
your authorized Aud i dealer before trans­
porting anyone on the front passenger seat.
A WARNING
An airbag system that is not functioning prop-
erly
cannot provide supplemental protection
in a frontal crash.
-
If the airbag indicator light Q page 15
comes when the vehicle is being used, have
the system inspected immediately by your
authorized Audi dealer. It is possib le that
the airbag will inflate when it is not sup­
posed to, or will not inflate when it should.
A WARNING
If the front airbag inflates, a child without a
child
restrai nt, or in a rearward-facing child
safety seat, or in a forward-facing child re­
straint that has not been properly installed
will be seriously injured and can be killed.
- Even
though your vehicle is equipped with
an Advanced Airbag System, make certain
that all children, especially 12 years and
younger, always ride on the back seat prop­
erly
restrained for their age and size.
- Always install forward
or rear-facing child
seats on the rear seat -even with an Ad­
vanced Airbag System.
202
-If you must install a rearward-facing child
seat on the front passenger seat because of
exceptional circumstances and the PASSEN­
GER AIR BAG OFF light does not appear and
stay on, immediately install the rear-facing
child
seat in a rear seating position and have
the airbag system inspected by your Audi
dealer.
- If, in exceptional circumstances, you must
install a forward-facing child restraint on
the front passenger seat, always move the
seat into its rearmost position in the seat's
fore and aft adjustment range, as far away
from the airbag as possi ble. The backrest
must be adjusted to an upright position.
M
ake sure that the PASSENGER AIR BAG
OFF light comes on and stays on all the time
whenever the ignition is swi tched on.
A WARNING
---"
-If the PASSENGER AIR BAG OFF light does
not go out when an adult is sitting on the
front passenger seat after taking the steps
described above, make sure the adult is
properly seated and restrained at one of the
rear seating positions.
- Have
the airbag system inspected by your
Audi
dealer before transporting anyone on
the front passenger seat.
(1) Tips
If the capacitive passenger detection system
d etermines that the front passenger seat is
empty, the frontal airbag on the passenger
side will be turned off, and the PASSENGER
AIR BAG OFF light will stay on.
Repair, care and disposal of the airbags
Parts of the airbag system are installed at many
different places on your Audi. Installing, remov­
ing, servicing
or repairing a part in an area of the
vehicle can damage a part of an airbag system
and prevent that system from working properly
in a collision.
There
are some important things you have to
know to make sure that the effectiveness of the ~

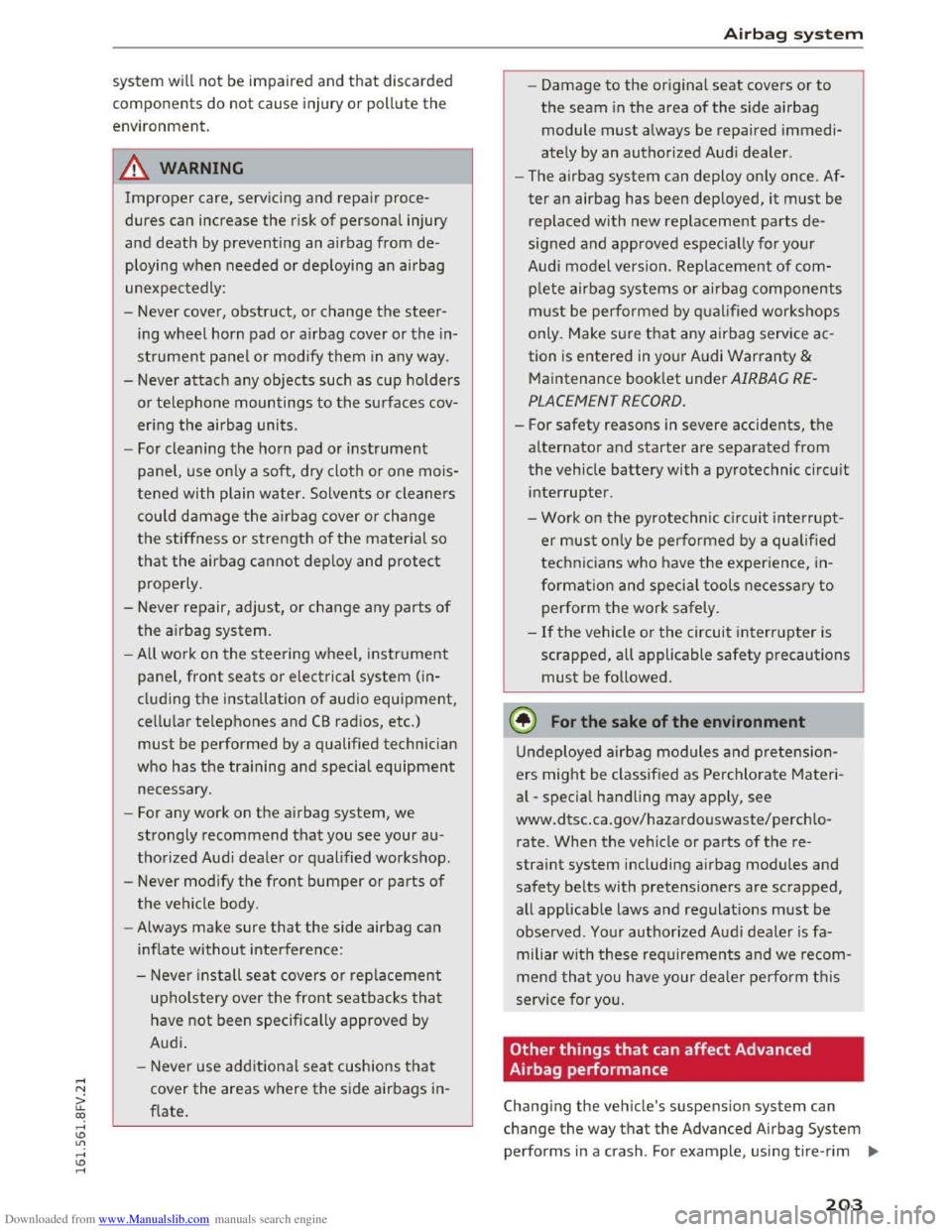

Downloaded from www.Manualslib.com manuals search engine system will not be impaired and that discarded
components do not cause injury or pollute the
environment.
A WARNING
Improper care, servicing and repair proce­
dures can increase the risk of personal injury
and death by preventing an airbag from de­
ploying when needed or deploying an airbag
unexpectedly:
- 1
-Never cover, obstruct, or change the steer­
ing wheel horn pad or airbag cover or the in­
strument panel or modify them in any way.
- Never
attach any objects such as cup holders
or telephone mountings to the surfaces cov­
ering
the airbag units.
- For cleaning
the horn pad or instrument
panel, use only a soft, dry cloth or one mois­
tened with plain water. Solvents or cleaners
could damage the airbag cover or change
the stiffness or strength of the material so
that the airbag cannot deploy and protect
properly.
- Never repair,
adjust, or change any parts of
the airbag system.
-All work on the steering wheel, instrument
panel, front seats or electrical system (in­
cluding
the installation of audio equipment,
cellular telephones and CB radios, etc.)
must be performed by a qualified technician
who has the training and special equipment
necessary.
- For any work on
the airbag system, we
strongly recommend that you see your au­
thorized Audi dealer or qualified workshop.
- Never modify
the front bumper or parts of
the vehicle body.
- Always
make sure that the side airbag can
inflate without interference:
- Never install
seat covers or replacement
upholstery over the front seatbacks that
have not been specifically approved by
Audi.
- Never
use additional seat cushions that
cover the areas where the side airbags in­
flate.
Airbag system
-Damage to the original seat covers or to
the seam in the area of the side airbag
module must always be repaired immedi­
ately by an authorized Audi dealer.
-The airbag system can deploy only once. Af­
ter an airbag has been deployed, it must be
replaced with new replacement parts de­
signed and approved especially for your
Audi
model version. Replacement of com­
plete airbag systems or airbag components
must be performed by qualified workshops
only. Make sure that any airbag service ac­
tion is
entered in your Audi Warranty &
Maintenance booklet under AIRBAG RE­
PLACEMENT RECORD.
-For safety reasons in severe accidents, the
alternator and starter are separated from
the vehicle battery with a pyrotechnic circuit
interrupter.
-Work on the pyrotechnic circuit interrupt­
er must only be performed by a qualified
technicians who have
the experience, in­
formation and special tools necessary to
perform the work safely.
-
If the vehicle or the circuit interrupter is
scrapped, all applicable safety precautions
must be followed.
@ For the sake of the environment
Undeployed airbag modules and pretension­
ers might be classified as Perchlorate Materi­
al -special handling may apply, see
www.dtsc.ca.gov/hazardouswaste/perchlo­
rate. When the vehicle or parts of the re­
straint system including airbag modules and
safety belts with pretensioners are scrapped,
all applicable laws and regulations must be
observed. Your authorized Audi dealer is fa­
miliar
with these requirements and we recom­
mend that you have your dealer perform this
service for you.
Other things that can affect Advanced
Airbag performance
Changing the vehicle's suspension system can
change the way that the Advanced Airbag System
performs in a crash. For example, using tire-rim ..,.
203

Downloaded from www.Manualslib.com manuals search engine Airbag system
combinations not approved by Audi, lowering the
vehicle, changing the stiffness of the suspension,
including the springs, suspension struts, shock
absorbers etc. can change the forces that are
measured by the airbag sensors and sent to the
electronic control unit. Some suspension changes
can, for example, increase the force levels meas­
ured by the sensors and make the airbag system
deploy in crashes in which it would not deploy if
the changes had not been made. Other kinds of
changes may reduce the force levels measured by
the sensors and prevent the airbag from deploy­
ing when it should.
_&. WARNING
Changing the vehicle's suspension including
use
of unapproved tire-rim combinations can
change Advanced Airbag performance and in­
crease the risk of serious personal injury in a
crash.
-Never install suspension components that
do not have the same performance charac­
teristics as the components originally instal­
led on your vehicle.
- Never use tire-rim
combinations that have
not been approved by Audi.
Knee airbags
Description of knee airbags
The knee airbag system can provide supplemen­
tal protection to properly restrained front
seat
occupants.
Fig. 159 Driver's knee airbag
The driver knee airbag is in the instrument panel
underneath the steering wheel Q fig. 159, the
airbag for the passenger is at about the same
204
height in the instrument panel underneath the
glove compartment.
The knee airbag offers additional protection to
the driver's and passenger's knees and upper and
lower thigh areas and supplements the protec­
tion provided by the safety belts.
If the front airbags deploy, the knee airbags also
deploy
in frontal collisions when the deployment
threshold stored in the control unit is met
Qpage 197, More important things to know
about front airbags.
In addition to their normal safety function, safe­
ty belts help keep the driver or front passenger in
position in a frontal collision so that the airbags
can provide
supplemental protection.
The airbag system is not a substitute for your
safety belt. Rather, it is part of the overall occu­
pant restraint system in your vehicle. Always re­
member that the airbag system can only help to
protect you if you are wearing your safety belt
and wearing it properly. This is why you should
always wear your safety belt, not just be ca use
t h e law requires you
to do so~ page 180, Gener­
al notes .
Remember too, airbags will deploy only once and
only in certain kinds of accidents -your safety
belts are always there to offer protection in those
accidents in which airbags are not supposed to
deploy or when they have already deployed, for
example when your vehicle strikes or is struck by
another after the first collision.
This
is just one of the reasons why an airbag is
not a substitute for the safety belt. The airbag
system works most effectively when used with
the safety belts. Therefore, always wear your
safety belts correctly.
It is important to remember that while the sup­
plemental knee airbag system is designed to re­
duce the likelihood of serious injuries, other inju­
ries, for example, swelling, bruising and minor
abrasions and friction burns can also occur when
an airbag inflates.
The knee airbag system basically consists of:
-The electronic control module .,.

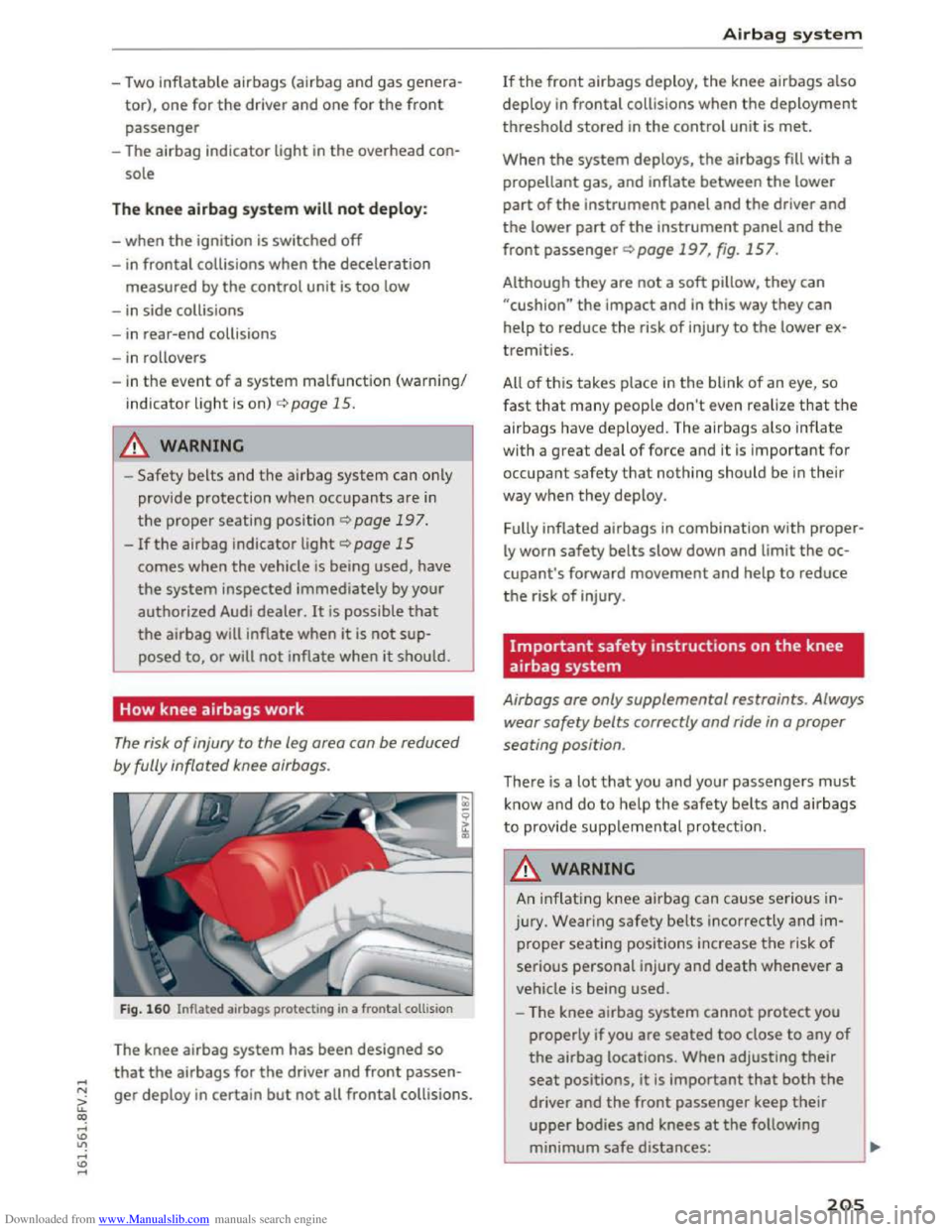

Downloaded from www.Manualslib.com manuals search engine -Two inflatable airbags (airbag and gas genera­
tor),
one for the driver and one for the front
passenger
-The airbag indicator light in the overhead con­
sole
The knee airbag syste m will not deploy:
-when the ignition is switched off
-in frontal collisions when the deceleration
measured by the control unit is too low
-
in side collisions
-
in rear-end collisions
-
in rollovers
-
in the event of a system mal function (warning/
i ndicator light is on) ~page 15.
A_ WARNING
-Safety belts and the airbag system can only
prov i
de protection when occupants are in
the proper seating position ~page 197.
-If the airbag indicator light~ page 15
comes when the vehicle is being used, have
the system inspected immediately by your
authorized Audi dealer.
It is possible that
the airbag will inflate when it is not sup­
posed to,
or will not inflate when it should.
How knee airbags work
The risk of injury to the leg area can be reduced
by fully inflated knee airbags.
Fig. 160 Inflated airbags protecting in a frontal collision
The knee airbag system has been designed so
that the airbags for the driver and front passen­
ger deploy in certain but not all frontal collisions.
Airbag system
If the front airbags deploy, the knee airbags also
deploy
in frontal collisions when the deployment
threshold stored in the control unit is met.
When the system deploys, the airbags fill with a
propellant gas, and inflate between the lower
part of the instrument panel and the driver and
the lower part of the instrument panel and the
front passenger~ page 197, fig. 157.
Although they are not a soft pillow, they can
"cushion" the impact and in this way they can
help
to reduce the risk of injury to the lower ex­
tremities.
All of this takes place in the blink of an eye, so
fast that many people don't even realize that the
airbags have deployed. The airbags also inflate
with a
great deal of force and it is important for
occupant
safety that nothing should be in their
way when they deploy.
Fully inflated airbags
in combination with proper­
ly worn safety belts slow down and limit the oc­
cupant's forward movement and help to reduce
the risk of injury.
Important safety instructions on the knee
airbag system
Airbags are only supplemental restraints. Always
wear
safety belts correctly and ride in a proper
seating position.
There is a lot that you and your passengers must
know and do to help the safety belts and airbags
to provide supplemental protection .
.&. WARNING
An inflating knee airbag can cause serious in­
j u
ry. Wearing safety belts incorrectly and im­
proper seating positions increase the risk of
serious personal injury and death whenever a
vehicle
is being used.
- The knee airbag
system cannot protect you
properly if you
are seated too close to any of
the airbag locations. When adjusting their
seat positions, it is important that both the
driver and the front passenger keep their
upper bodies and knees at the following
minimum
safe distances: ~
205

Downloaded from www.Manualslib.com manuals search engine Airbag system

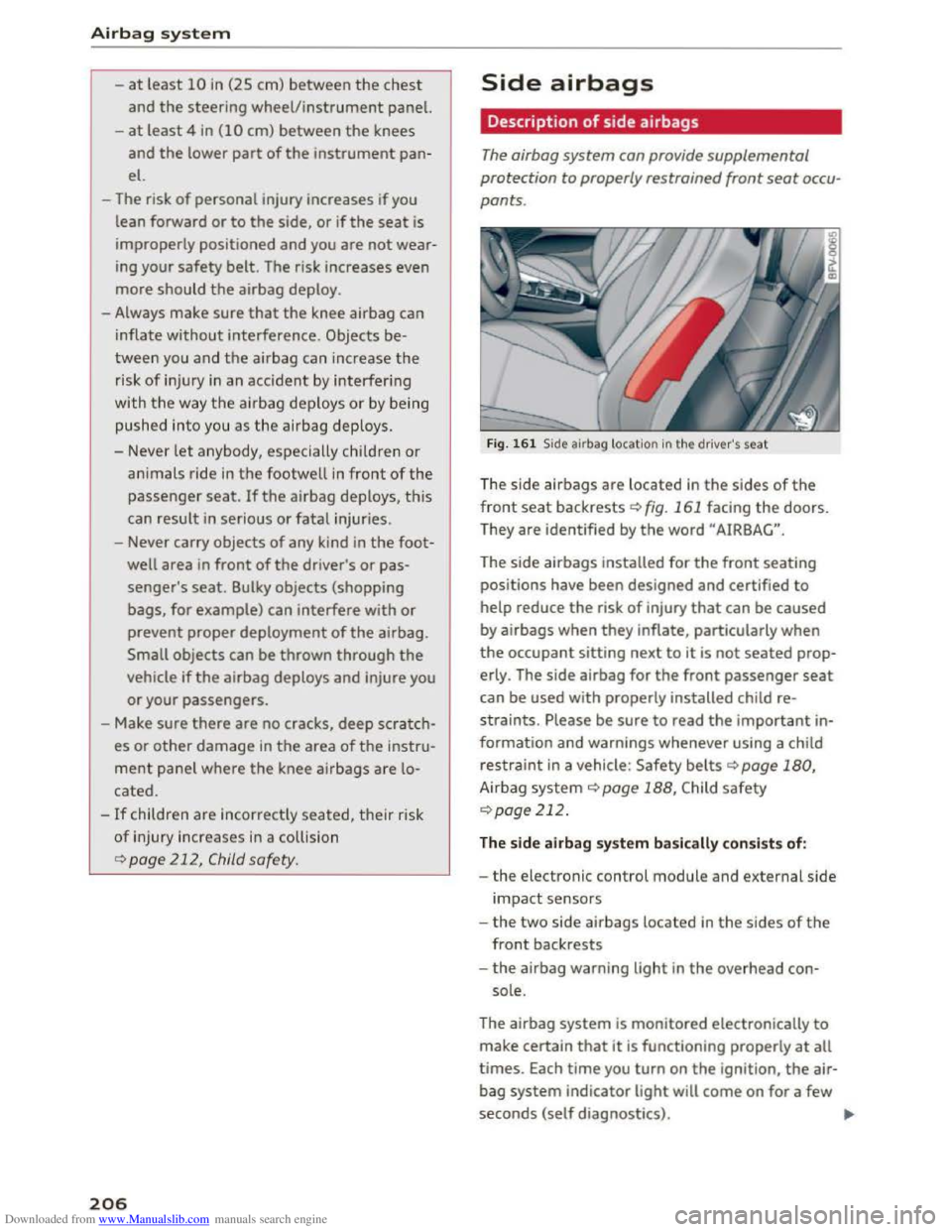

-at least 10 in (25 cm) between the chest
and the steering wheel/instrument panel.
-
at least 4 in (10 cm) between the knees
and the lower part of the instrument pan­
el.
- The risk
of personal injury increases if you
lean forward
or to the side, or if the seat is
improperly positioned and you are not wear­
ing your safety belt. The risk increases even
more should the airbag deploy.
- Always
make sure that the knee airbag can
inflate without interference. Objects be­
tween you and the airbag can increase the
risk of injury in an accident by interfering
with
the way the airbag deploys or by being
pushed into you as the airbag deploys.
- Never
let anybody, especially children or
animals ride in the footwell in front of the
passenger seat. If the airbag deploys, this
can result in serious or fatal injuries.
- Never carry
objects of any kind in the foot­
well area in front of the driver's or pas­
senger's seat. Bulky objects (shopping
bags, for example) can interfere with or
prevent proper deployment of the airbag.
Small objects can be thrown through the
vehicle if the airbag deploys and injure you
or your passengers.
-Make sure there are no cracks, deep scratch­
es or other damage in the area of the instru­
ment panel where the knee airbags are lo­
cated.
-If children are incorrectly seated, their risk
of injury increases in a collision
~page 212, Child safety.
206
Side airbags
Description of side airbags
The airbag system can provide supplemental
protection to properly restrained front
seat occu­
pants .
Fig . 161 Side airbag location in the driver's seat
The side airbags are located in the sides of the
front seat backrests Q fig. 161 facing the doors.
They
are identified by the word "AIRBAG".
The side airbags installed for the front seating
positions have been designed and certified to
help reduce the risk of injury that can be caused
by airbags when they inflate, particularly when
the occupant sitting next to it is not seated prop­
erly. The
side airbag for the front passenger seat
can be used with properly installed child re­
straints. Please be sure to read the important in­
formation and warnings whenever using a child
restraint in a vehicle: Safety belts Q page 180,
Airbag system Q page 188, Child safety
¢page 212.
The side airbag syste m b asica lly consist s o f:
-
the electronic control module and external side
impact sensors
-the two side airbags Located in the sides of the
front backrests
-the airbag warning light in the overhead con­
sole.
The airbag system is monitored electronically to
make certain that it is functioning properly at all
times. Each time you turn on the ignition, the air­
bag system indicator light will come on for a few
seconds (self diagnostics). Iii>

Downloaded from www.Manualslib.com manuals search engine ..... N
G'. co ..... ID VI ..... ID .....

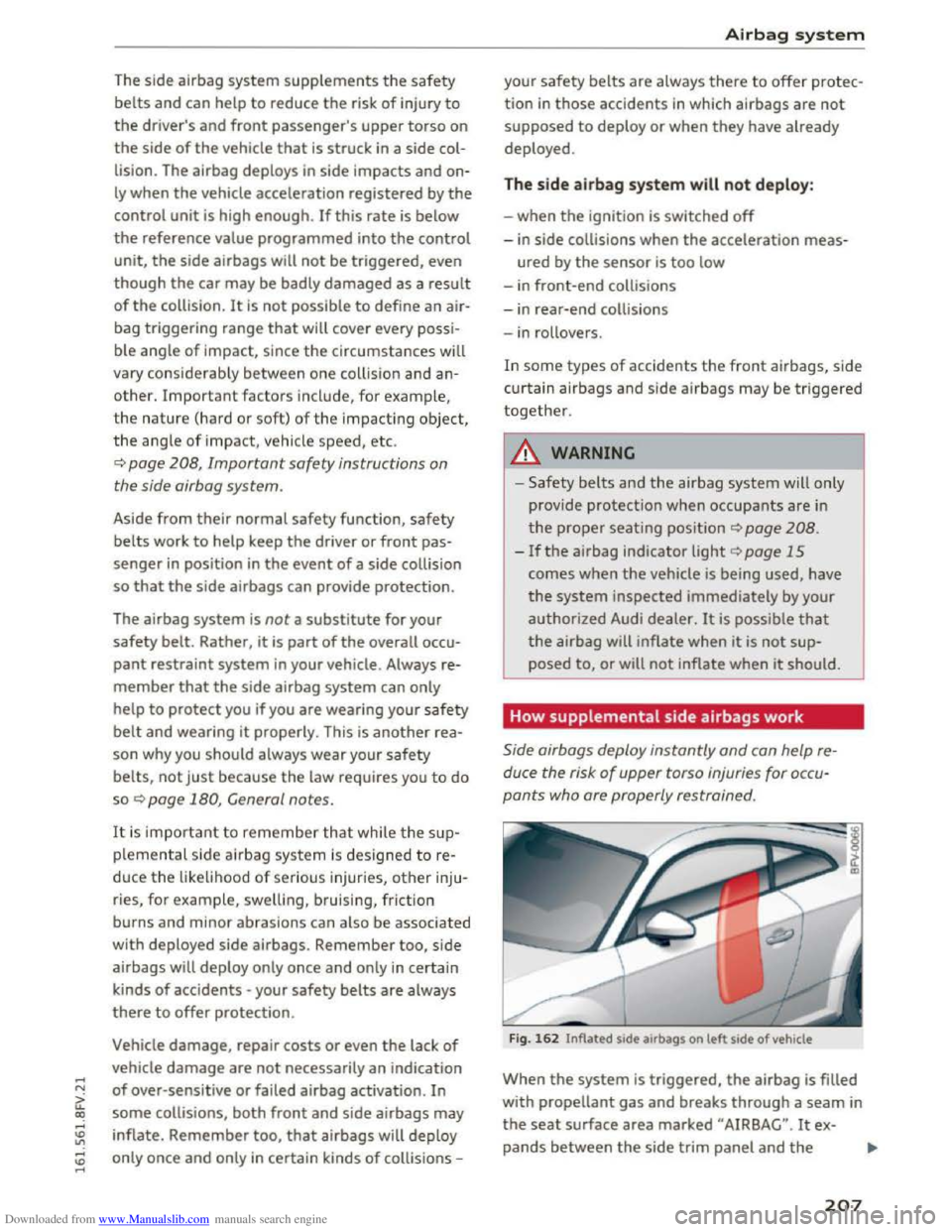

The side airbag system supplements the safety
belts and can help to reduce the risk of injury to
the driver's and front passenger's upper torso on
the side of the vehicle that is struck in a side col­
lision. The
airbag deploys in side impacts and on­
ly when the vehicle acceleration registered by the
control unit is high enough. If this rate is below
the reference value programmed into the control
unit, the side airbags will not be triggered, even
though the car may be badly damaged as a result
of the collision. It is not possible to define an air­
bag
triggering range that will cover every possi­
ble
angle of impact, since the circumstances will
vary considerably
between one collision and an­
other. Important factors include, for example,
the nature (hard or soft) of the impacting object,
the angle of impact, vehicle speed, etc.
Q page 208, Important safety instructions on
the side airbag system.
Aside from their normal safety function, safety
belts work to help keep the driver or front pas­
senger in position in the event of a side collision
so that the side airbags can provide protection.
The airbag system is not a substitute for your
safety belt. Rather, it is part of the overall occu­
pant restraint system in your vehicle. Always re­
member that the side airbag system can only
help
to protect you if you are wearing your safety
belt and wearing it properly. This is another rea­
son why you should always wear your safety
belts, not just because the law requires you to do
so Qpage 180, General notes.
It is important to remember that while the sup­
plemental side a irbag system is designed to re­
duce the lik eli hood of serious injuries, other inju­
ries, for
example, swelling, bruising, friction
burns and minor abrasions can also be associated
with deployed side airbags. Remember too, side
airbags will deploy only once and only in certain
kinds of accidents -your safety belts are always
there to offer protection.
Vehicle damage, repair costs or even the lack of
vehicle damage are not necessarily an indication
of over-sensitive or failed airbag activation. In
some collisions, both front and side airbags may
inflate .
Remember too, that airbags will deploy
only once
and only in certain kinds of collisions -
Airbag system
your safety belts are always there to offer protec­
tion
in those accidents in which airbags are not
supposed to deploy or when they have already
deployed.
The side airbag system will not deploy:
-when the ignition is switched off
-in side collisions when the acceleration meas-
ured by
the sensor is too low
-
in front-end collisions
- in rear-end collisions
-
in rollovers.
In
some types of accidents the front a irbags, side
curtain airbags and side airbags may be triggered
together.
A WARNING
--Safety belts and the airbag system will only
provide protection
when occupants are in
the proper seating position Q page 208.
-If the airbag indicator light Q page 15
comes when the vehicle is being used, have
the system inspected immediately by your
authorized Audi dealer. It is possible that
the airbag will inflate when it is not sup­
posed to, or will not inflate when it should.
How supplemental side airbags work
Side airbags deploy instantly and can help re­
duce the risk
of upper torso injuries for occu­
pants who are properly restrained.
Fig. 162 Inflated side airbags on left side of vehicle
When the system is triggered, the airbag is filled
with propellant gas and breaks through a seam in
the seat surface area marked "AIRBAG". It ex-
pands between the side trim panel and the ..,..
207

Downloaded from www.Manualslib.com manuals search engine Airbag sy ste m

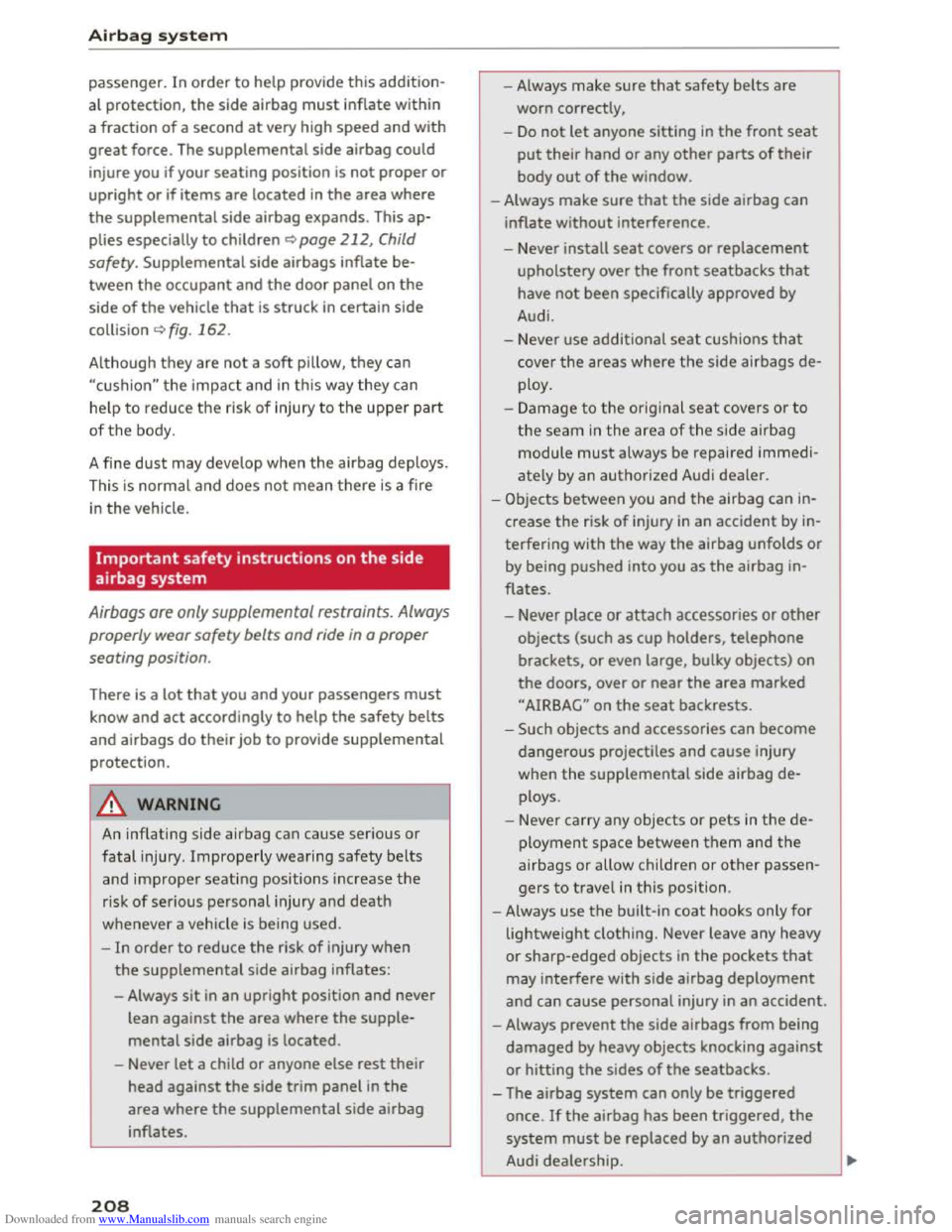

passenger. In order to help provide this addition­
al protection, the side airbag must inflate within
a
fraction of a second at very high speed and with
great force . The supplemental side airbag could
injure you if
your seating position is not proper or
upright or if items are located in the area where
the supplemental side airbag expands. This ap­
plies especially to children Q page 212, Child
safety.
Supplemental side airbags inflate be­
tween the occupant and the door panel on the
side of the vehicle that is struck in certain side
collision Qfig. 162.
Although they are not a soft pillow, they can
"cushion" the impact and in this way they can
he lp
to reduce the risk of injury to the upper part
of the body.
A fine
dust may develop when the airbag deploys.
This is
normal and does not mean there is a fire
in the vehicle.
Important safety instructions on the side
airbag
system
Airbags ore only supplemental restraints. Always
properly wear safety belts and ride in a proper
seating posit ion.
There is a lot that you and your passengers must
know and act accordingly to help the safety belts
and airbags do their job to provide supplemental
protection.
A WARNING
An inflating side airbag can cause serious or
fatal injury. Improperly wearing safety belts
and improper seating positions increase the
r isk of serious personal injury and death
whenever a vehicle is being used.
-In order to reduce the risk of injury when
the supplemental side airbag inflates:
-Always sit in an upright position and never
lean against the area where the supple-
mental side airbag is located.
-Never let a child or anyone else rest their
head against the side trim panel in the
area where the supplemental side airbag
inflates.
208
-Always make sure that safety belts are
worn correctly,
-
Do not let anyone sitting in the front seat
put their hand or any other parts of their
body out of the window.
- Always
make sure that the side airbag can
inflate without interference.
- Never install seat covers or replacement
upholstery over the front seatbacks that
have not been specifically approved by
Audi.
- Never
use additional seat cushions that
cover the areas where the side airbags de­
ploy.
-
Damage to the original seat covers or to
the seam in the area of the s ide airbag
module must always be repaired immedi­
ately by an
authorized Audi dealer.
-Objects between you and the airbag can in­
crease the risk of injury in an accident by in­
terfering with the way the airbag unfolds or
by being pushed into you as the airbag in­
flates.
-Never place or attach accessories or other
objects (such as cup holders, telephone
brackets, or even large, bulky objects) on
the doors, over or near the area marked
"AIRBAG" on the seat backrests.
-Such objects and accessories can become
dangerous projectiles and cause injury
when the supplemental side airbag de­
ploys.
- Never carry any
objects or pets in the de­
ployment space between them and the
airbags or allow children or other passen­
gers to travel in this position.
- Always
use the built-in coat hooks only for
lightweight clothing. Never leave any heavy
or sharp-edged objects in the pockets that
may interfere with side airbag deployment
and can cause personal injury in an accident.
- Always
prevent the side airbags from being
damaged by heavy objects knocking against
or hitting the sides of the seatbacks.
-The airbag system can only be triggered
once. If the airbag has been triggered, the
system must be replaced by an authorized
Audi dealership. ~
