AUDI TT ROADSTER 2016 Owners Manual

Downloaded from www.Manualslib.com manuals search engine 0
0
N
,.....
N
....
0
,.....
Vl
CX) CD
@ ®
@
®
®
0
®
®
@
@
@ Symbol
/ marking
I LIST! or�
Entry field
Results list +
E
!!&? !
laoul
! 123!�ABC!
Character selection
•
(©) Note Multi
Media Interface
Description
To switch to the results list.
The current entry is displayed.
Menu Language Arabic: A vertical line on the left/right side of the
cursor indicates where the next character will be inserted.
A list of suggestions for the letters already entered is displayed.
To switch from lower case to upper case letters and vice versa.
Menu Language Arabic: To show additional Arabic characters.
To open further speller options (e.g. Close speller, Clear entry field
or Switch to Cyrillic characters).
To display punctuation marks and special characters (e.g. hyphen or
full stop).
To display diacritics (e.g. a,�. n, o) or the Cyrillic alphabet.
Menu Language Arabic: To switch between Arabic and Latin charac-
ters.
To switch the speller from letters to numbers and vice versa
To enter a space in the entry field .
The character selected will be highlighted.
The entry suggestion* can be accepted by pushing the rotary push-
button upwards.
To delete the character to the left of the cursor.
Menu Language Arabic: Note the direction of writing.
Calling up the search function
Diacritics are not available for every letter. .,.
Select: !MENU
! button > the desired menu item
(e.g. Telephone) .

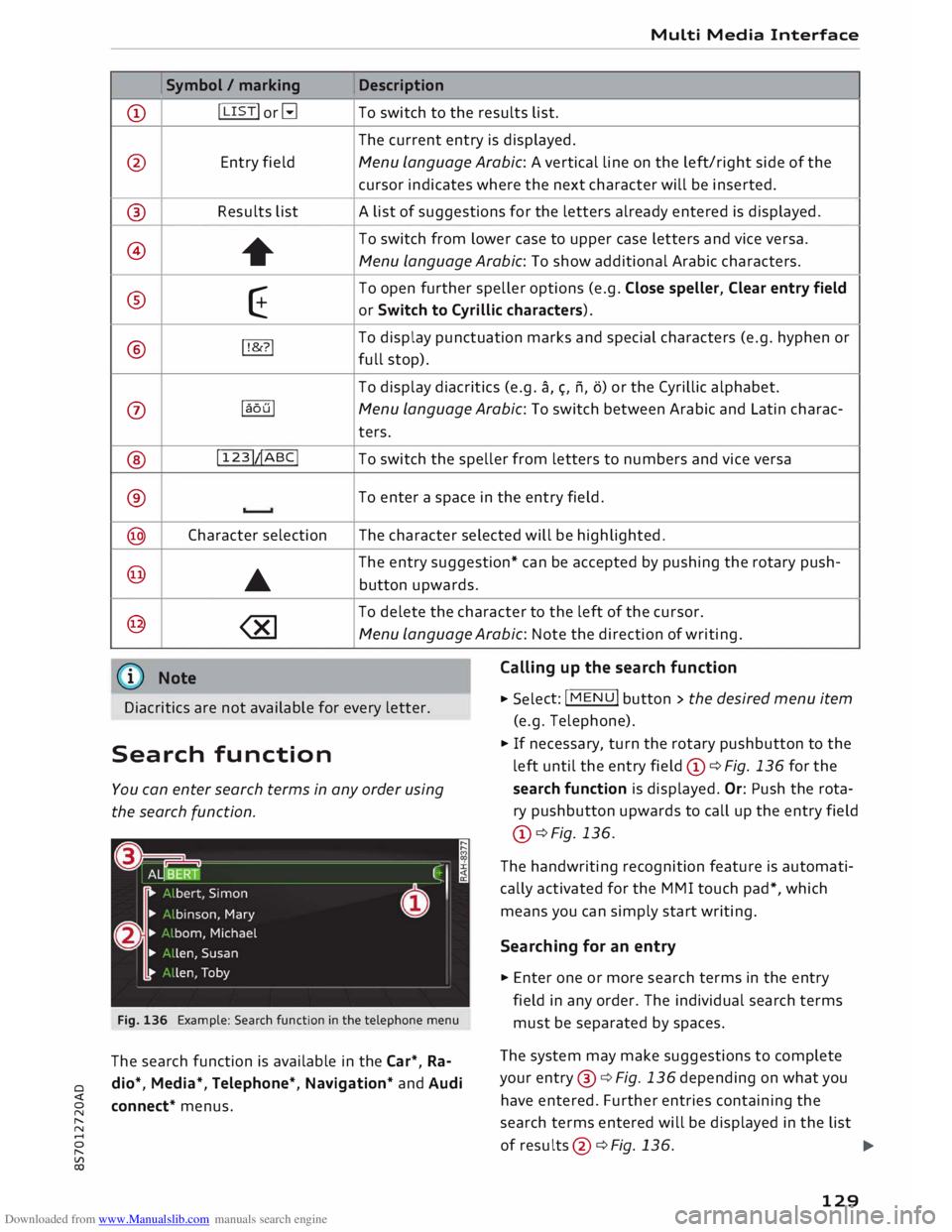

Search function
You can enter search terms in any order using
the search function.
Fig. 136 Example: Search function in the telephone menu
The search function is available in the Car*, Ra­
dio*, Media*, Telephone*, Navigation* and Audi
connect* menus. .,.
If necessary, turn the rotary pushbutton to the
left until the entry field CD¢ Fig. 136 for the
search function is displayed. Or: Push the rota­
ry pushbutton upwards to call up the entry field
CD ¢ Fig. 136.
The handwriting recognition feature is automati­
cally activated for the MMI touch pad*, which
means you can simply start writing.
Searching for an entry
.,. Enter one or more search terms in the entry
field in any order. The individual search terms
must be separated by spaces.
The system may make suggestions to complete
your entry @¢ Fig. 136 depending on what you
have entered. Further entries containing the
search terms entered will be displayed in the list
of results
@¢
Fig.136.
1)11,,
129

Downloaded from www.Manualslib.com manuals search engine Multi
Media Interface
If the desired term is not yet displayed, continue
entering letters until it appears.
The first few letters of the search terms will of­
ten be sufficient to bring up a list of results. In
the Telephone* menu, for example, write the ini­
tials of the contact you are looking for, separat­
ing them with a space.
Confirming an autocomplete suggestion
Important: An autocomplete suggestion@
¢ Fig. 136 must be displayed .
... When using MMI touch: Press the rotary push­
button.

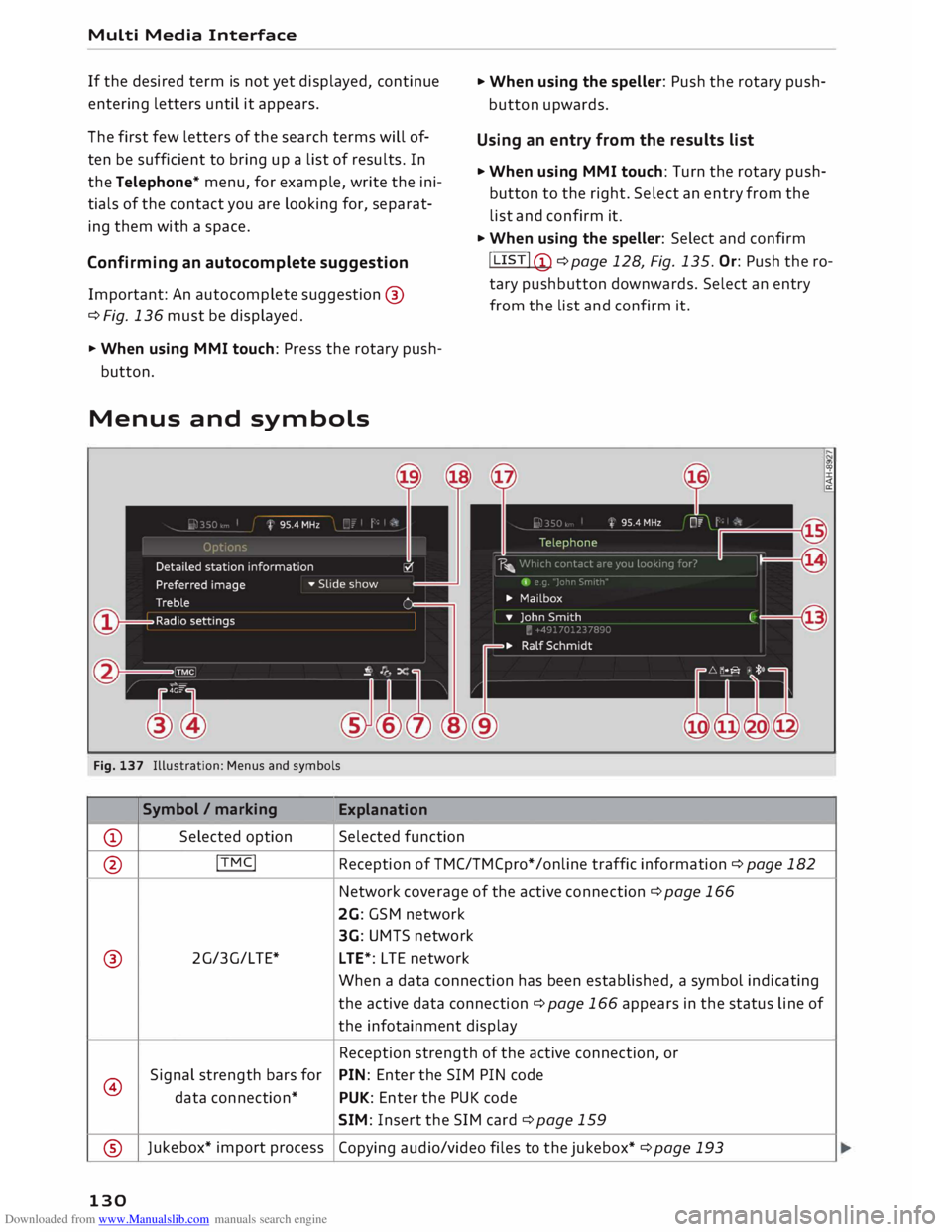

Menus and symbols
Fig. 137 Illustration: Menus and symbols
Symbol / marking
Explanation
CD Selected
option Selected function ...
When using the speller: Push the rotary push­
button upwards.
Using an entry from the results list
... When using MMI touch: Turn the rotary push­
button to the right. Select an entry from the
list and confirm it.
... When using the speller: Select and confirm
! LIST! (!)
¢page 128, Fig. 135. Or: Push the ro­
tary pushbutton downwards. Select an entry
from the list and confirm it.
@ !TMC!
Reception of TMC/TMCpro* /on line traffic information ¢ page 182
Network coverage of the active
connection
¢ page 166
2G: GSM network
3G: UMTS network
® 2G/3G/LTE*
LTE*: L TE network
When a data connection has been established, a symbol indicating
the active data connection ¢page 166 appears in the status line of
the infotainment display
Reception strength of the active connection, or
@ Signal
strength bars for PIN:
Enter the SIM PIN code
data connection* PUK:
Enter the PUK code
SIM: Insert the SIM card¢ page 159
® Jukebox*
import process
Copying audio/video files to the jukebox* ¢ page 193
130

Downloaded from www.Manualslib.com manuals search engine 0
0
N
,.....
N
......
0
,.....
Vl
CX) ®
(J)
®
®
@
@
@
@
@
@
@
@
@
@
@

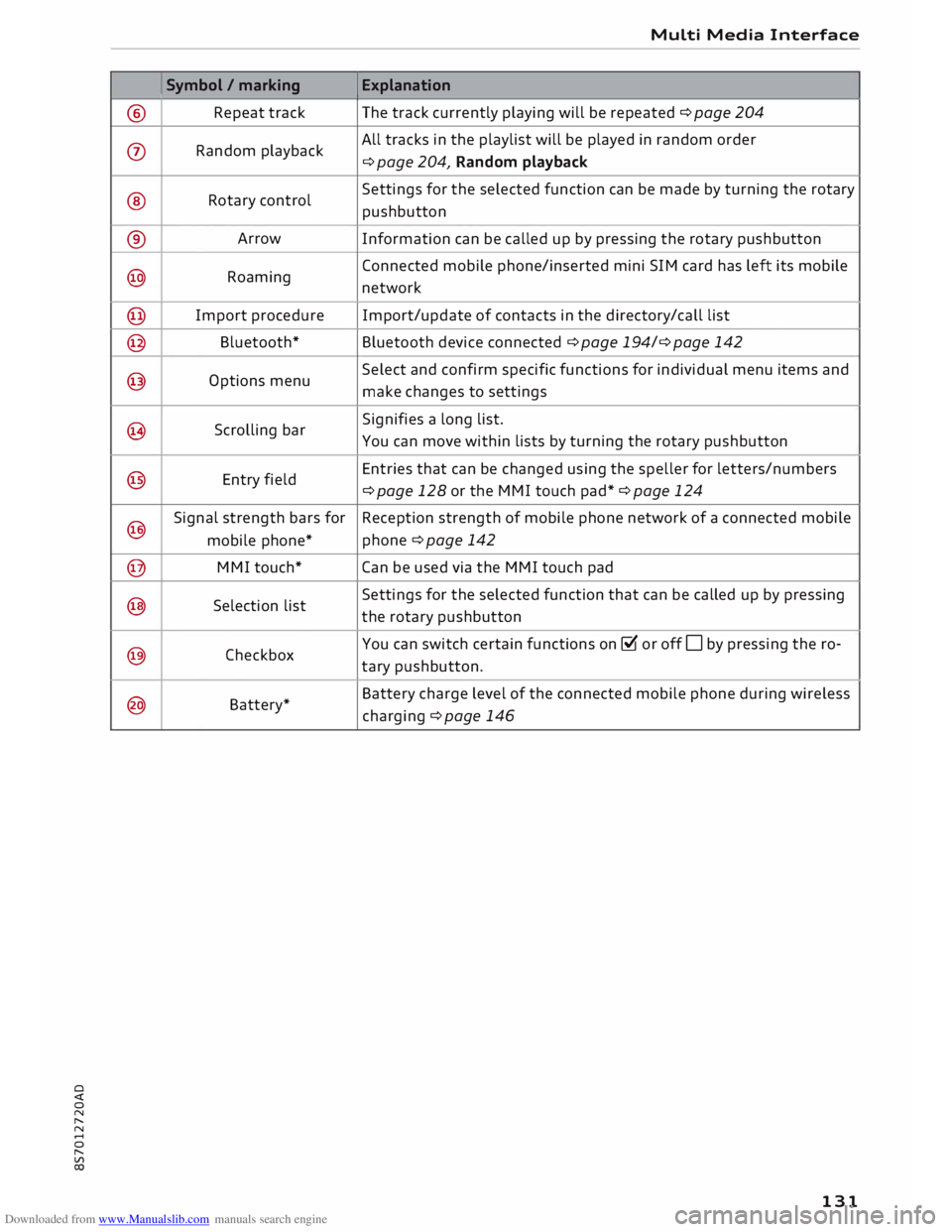

Symbol
/ marking
Repeat track
Random playback
Rotary control
Arrow
Roaming
Import procedure
Bluetooth*
Options menu
Scrolling bar
Entry field
Signal strength bars for
mobile phone*
MMI touch*
Selection list
Checkbox
Battery* Multi
Media Interface
Explanation
The track currently playing will be repeated ¢ page 204
All tracks in the playlist will be played in random order
¢ page 204, Random playback
Settings for the selected function can be made by turning the rotary
pushbutton
Information can be called up by pressing the rotary pushbutton
Connected mobile phone/inserted mini SIM card has left its mobile
network
Import/update of contacts in the directory/call list
Bluetooth device connected ¢ page 194/¢ page 142
Select and confirm specific functions for individual menu items and
make changes to settings
Signifies a long list.
You can move within lists by turning the rotary pushbutton
Entries that can be changed using the speller for letters/numbers
¢ page 128 or the MMI touch pad*¢ page 124
Reception strength of mobile phone network of a connected mobile
phone ¢ page 142
Can be used via the MMI touch pad
Settings for the selected function that can be called up by pressing
the rotary pushbutton
You can switch certain functions on� or off Oby pressing the ro-
tary pushbutton.
Battery charge level of the connected mobile phone during wireless
charging ¢ page 146
131

Downloaded from www.Manualslib.com manuals search engine Speech
dialogue system
• Telephone
• Audi connect
• Navigation
• Directory
• Radio
• Media
• Sound
• Help
• Help Speech Dialogue System
• Help Telephone
• Help Audi connect
• Help Navigation
• Help Map
• Help Radio
• Help Media
• Enter
number
• Delete
number / correction
• Directory
• Call (XY)
•business/ private/ Land line/ mobile
• Drive
me to (XY)
• Business address/ Private address
• Start/ stop route guidance
• Directory
• Last destinations
• Navigation
favourites
• Drive
home
• Enter
address
• Enter
country/ town/ street
• Exclude
route/ Exclude route for (XY) km/ m
• Audi connect
• Travel information / Parking information
• Fuel prices
• Weather
• Radio
favourites
• Last
stations
• FM
and DAB
•FM/ DAB/ AM
• Station (XY) / Frequency (XY)
• Ensemble (XY)
• Traffic programme on/ off

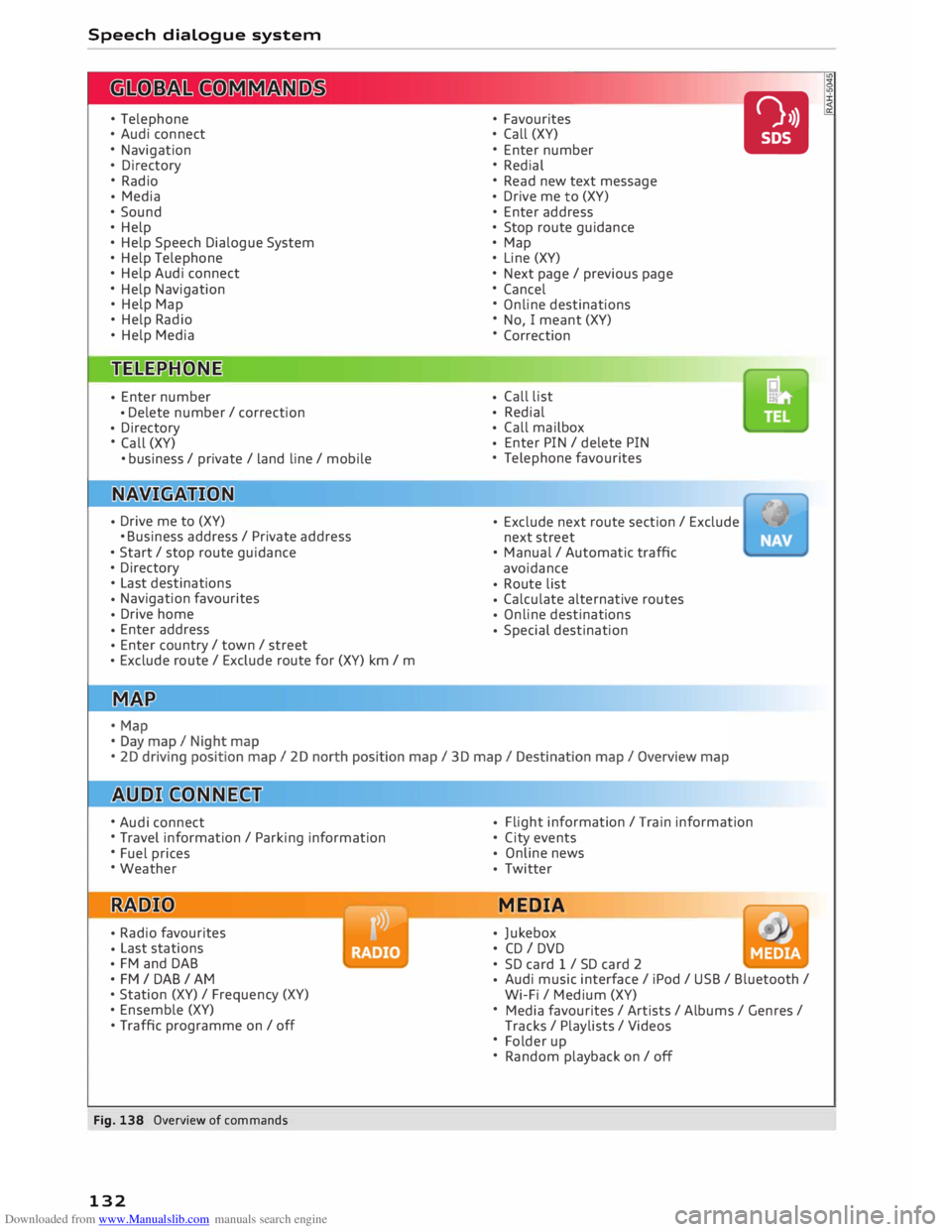

Fig. 138 Overview of commands
132 •
Favourites
• Call (XY)
• Enter number
• Redial
• Read new text message
• Drive
me to (XY)
• Enter address
• Stop route guidance
• Map
• Line (XY)
• Next page / previous page
• Cancel
• Online destinations
• No, I meant (XY)
• Correction
• Call
list
• Redial
• Call
mailbox
• Enter
PIN / delete PIN
• Telephone favourites
• Exclude
next route section / Exclude
next street
• Manual / Automatic traffic
avoidance
• Route
list
• Calculate
alternative routes
• Online
destinations
• Special
destination •
• Flight
information / Train information
• City events
• Online
news
• Twitter
MEDIA
• Jukebox
• CD I DVD
• SD card 1 / SD card 2
• Audi
music interface / iPod / USB / Bluetooth /
Wi-Fi / Medium (XY)
• Media favourites/ Artists/ Albums/ Genres/
Tracks / Playlists / Videos
• Folder up
• Random playback on / off

Downloaded from www.Manualslib.com manuals search engine 0
0
N
,.....
N
....
0
,.....
Vl
CX) Speech
dialogue system

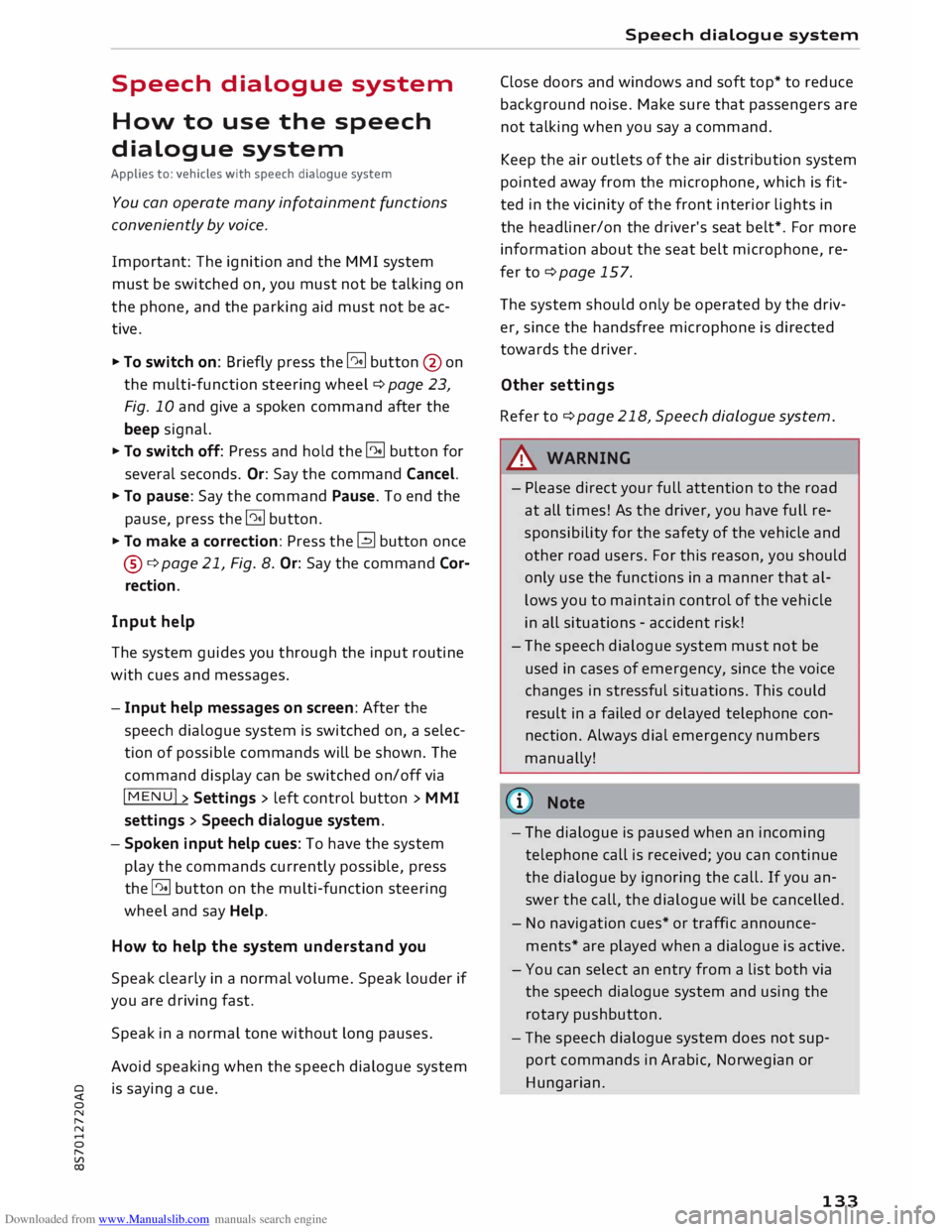

How to use the speech
dialogue system
Applies to: vehicles with speech dialogue system
You can operate many infotainment functions
conveniently by voice.
Important: The ignition and the MMI system
must be switched on, you must not be talking on
the phone, and the parking aid must not be ac­
tive.
� To switch on: Briefly press the [2!l button @ on
the multi-function steering wheel¢ page 23,
Fig. 10 and give a spoken command after the
beep signal.
� To switch off: Press and hold the [2!l button for
several seconds. Or: Say the command Cancel.
� To pause: Say the command Pause. To end the
pause, press the [2!l button.
� To make a correction: Press the� button once
® ¢page 21, Fig. 8. Or: Say the command Cor­
rection.
Input help
The system guides you through the input routine
with cues and messages.
- Input help messages on screen: After the
speech dialogue system is switched on, a selec­
tion of possible commands will be shown. The
command display can be switched on/off via
IM ENU I
> Settings > left control button > MMI
settings > Speech dialogue system.
- Spoken input help cues: To have the system
play the commands currently possible, press
the [2!l button on the multi-function steering
wheel and say Help.
How to help the system understand you
Speak clearly in a normal volume. Speak louder if
you are driving fast.
Speak in a normal tone without long pauses.
Avoid speaking when the speech dialogue system
is saying a cue. Speech
dialogue system
Close doors and windows and soft top* to reduce
background noise. Make sure that passengers are
not talking when you say a command.
Keep the air outlets of the air distribution system
pointed away from the microphone, which is fit­
ted in the vicinity of the front interior lights in
the headliner/on the driver's seat belt*. For more
information about the seat belt microphone, re­
fer to¢ page 157.
The system should only be operated by the driv­
er, since the handsfree microphone is directed
towards the driver.
Other settings
Refer to¢ page 218, Speech dialogue system.
&_ WARNING
- Please direct your full attention to the road
at all times! As the driver, you have full re­
sponsibility for the safety of the vehicle and
other road users. For this reason, you should
only use the functions in a manner that al­
lows you to maintain control of the vehicle
in all situations -accident risk!
- The speech dialogue system must not be
used in cases of emergency, since the voice
changes in stressful situations. This could
result in a failed or delayed telephone con­
nection. Always dial emergency numbers
manually!
(@ Note
- The dialogue is paused when an incoming
telephone call is received; you can continue
the dialogue by ignoring the call. If you an­
swer the call, the dialogue will be cancelled.
- No navigation cues* or traffic announce­
ments* are played when a dialogue is active.
- You can select an entry from a list both via
the speech dialogue system and using the
rotary pushbutton.
- The speech dialogue system does not sup­
port commands in Arabic, Norwegian or
Hungarian.
133

Downloaded from www.Manualslib.com manuals search engine Speech
dialogue system

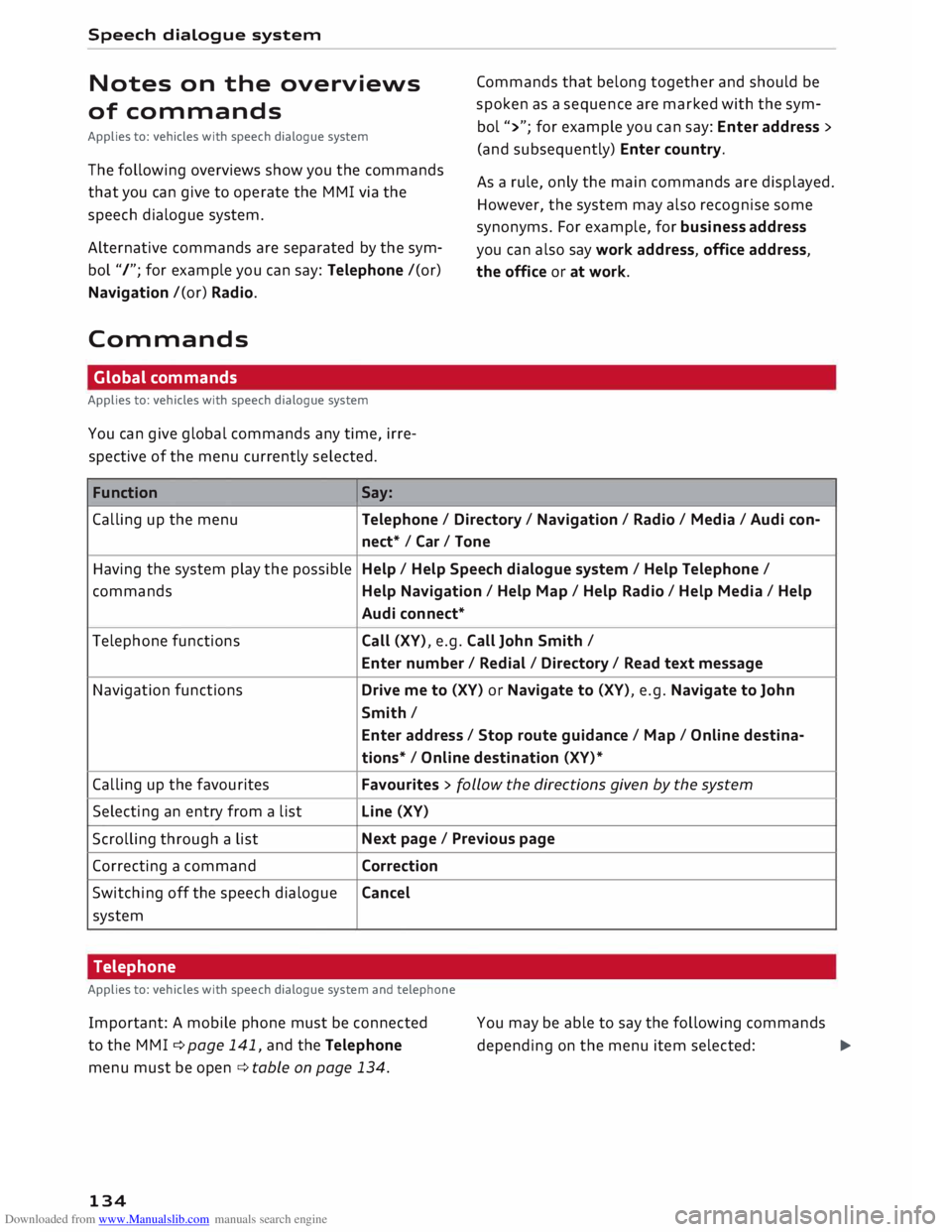

Notes on the overviews
of commands
Applies to: vehicles with speech dialogue system
The following overviews show you the commands
that you can give to operate the MMI via the
speech dialogue system.
Alternative commands are separated by the sym­
bol "/"; for example you can say: Telephone /(or)
Navigation /(or) Radio.
Commands Global commands
Applies to: vehicles with speech dialogue system
You can give global commands any time, irre­
spective of the menu currently selected.
Function Say: Commands
that belong together and should be
spoken as a sequence are marked with the sym­
bol ">"; for example you can say: Enter address >
(and subsequently) Enter country.
As a rule, only the main commands are displayed.
However, the system may also recognise some
synonyms. For example, for business address
you can also say work address, office address,
the office or at work.
Calling up the menu Telephone/ Directory/ Navigation / Radio / Media / Audi con-
nect* /Car/ Tone
Having the system play the possible Help
/ Help Speech dialogue system / Help Telephone /
commands Help Navigation / Help Map/ Help Radio/ Help Media / Help
Audi connect*
Telephone functions Call (XV), e.g. Call John Smith /
Enter number/ Redial/ Directory/ Read text message
Navigation functions Drive me to (XV) or Navigate to (XV), e.g. Navigate to John
Smith/ Enter address / Stop route guidance/ Map/ Online destina-
tions* / Online destination (XV)*
Calling up the favourites Favourites
> follow the directions given by the system
Selecting an entry from a list Line
(XV)
Scrolling through a list Next
page / Previous page
Correcting a command Correction
Switching off the speech dialogue Cancel
system
Telephone
Applies to: vehicles with speech dialogue system and telephone
Important: A mobile phone must be connected
to the M MI ¢ page 141, and the Telephone
menu must be open ¢ table on page 134.
134 You
may be able to say the following commands
depending on the menu item selected:
�

Downloaded from www.Manualslib.com manuals search engine 0
0
N
,.....
N
......
0
,.....
Vl

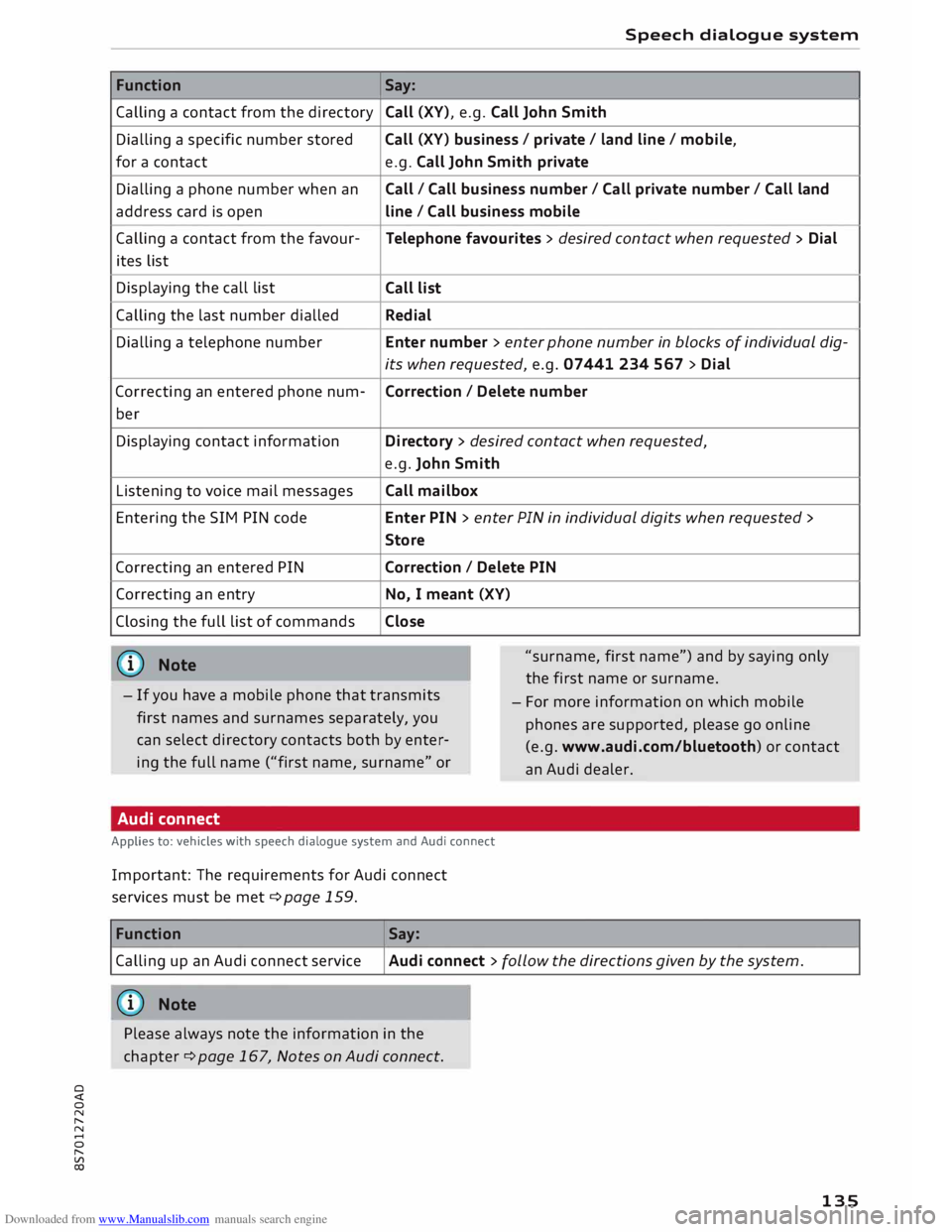

CX) Function
Calling a contact from the directory
Dialling a specific number stored
for a contact
Dialling a phone number when an
address card is open
Calling a contact from the favour-
ites list
Displaying the call list
Calling the last number dialled
Dialling a telephone number
Correcting an entered phone num-
ber
Displaying contact information
Listening to voice mail messages
Entering the SIM PIN code
Correcting an entered PIN
Correcting an entry
Closing the full list of commands
((I)) Note Speech
dialogue system
Say: Call (XV), e.g. Call John Smith
Call (XV) business/ private/ land line/ mobile,
e.g. Call John Smith private
Call/ Call business number/ Call private number/ Call land
line / Call business mobile
Telephone favourites > desired contact when requested > Dial
Call list
Redial
Enter number > enter phone number in blocks of individual dig-
its when requested, e.g. 07441 234 567 > Dial
Correction I Delete number
Directory > desired contact when requested,
e.g. John Smith
Call mailbox
Enter PIN > enter PIN in individual digits when requested >
Store
Correction I Delete PIN
No, I meant (XV)
Close
"surname, first name") and by saying only
the first name or surname.
- If you have a mobile phone that transmits
first names and surnames separately, you
can select directory contacts both by enter­
ing the full name ("first name, surname" or -
For more information on which mobile
phones are supported, please go on line
(e.g. www.audi.com/bluetooth) or contact
an Audi dealer.
Audi connect
Applies to: vehicles with speech dialogue system and Audi connect
Important: The requirements for Audi connect
services must be met ¢page 159.
Function Say:
Calling up an Audi connect service
Audi connect > follow the directions given by the system.
((!)) Note
Please always note the information in the
chapter ¢ page 167, Notes on Audi connect.
135

Downloaded from www.Manualslib.com manuals search engine Speech
dialogue system

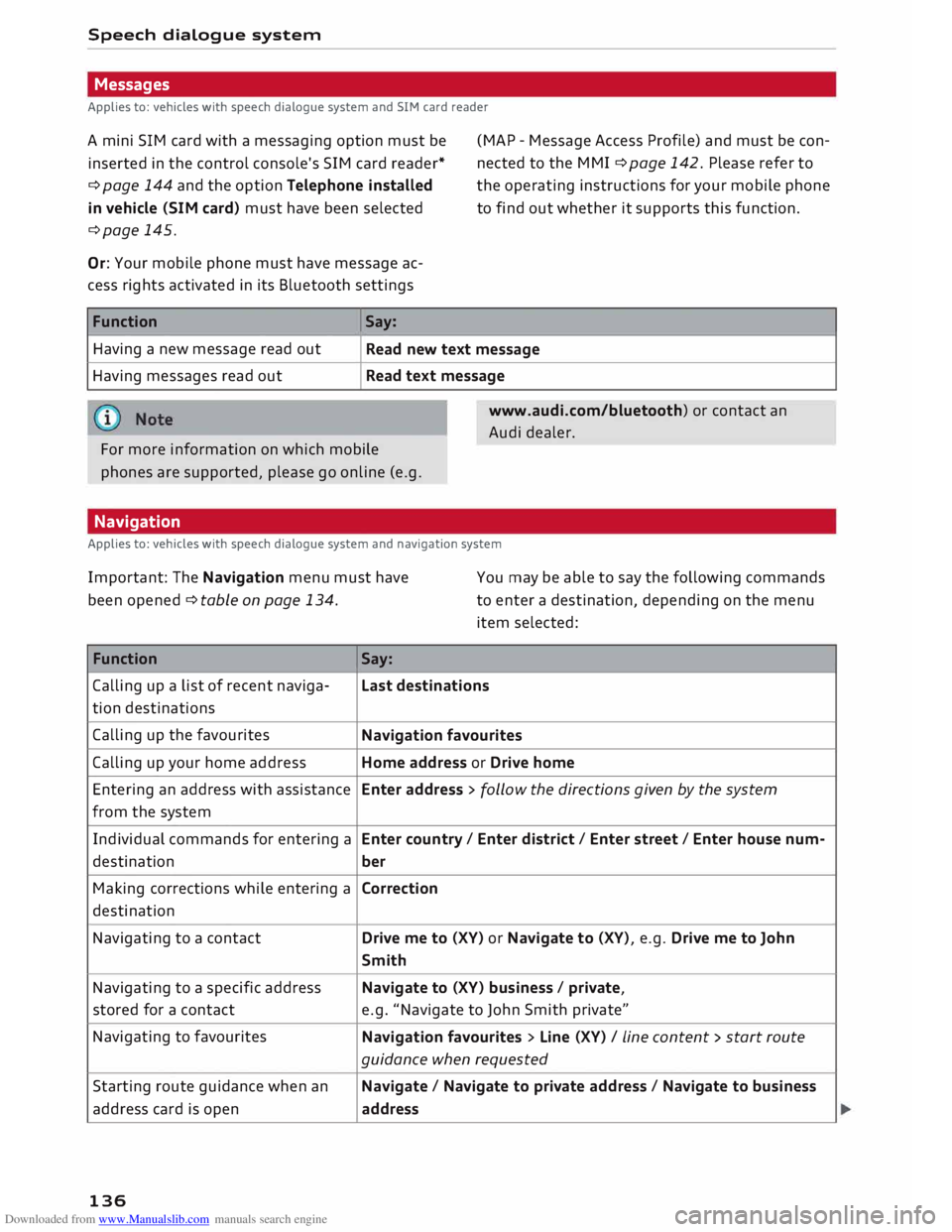

Messages
Applies to: vehicles with speech dialogue system and SIM card reader
A mini SIM card with a messaging option must be
inserted in the control console's SIM card reader*
¢ page 144 and the option Telephone installed
in vehicle (SIM card) must have been selected
¢page 145. (MAP
-Message Access Profile) and must be con­
nected to the MM I ¢ page 142. Please refer to
the operating instructions for your mobile phone
to find out whether it supports this function.
Or: Your mobile phone must have message ac­
cess rights activated in its Bluetooth settings
Function Having a new message read out
Having messages read out Say:
Read new text message
Read text message
www.audi.com/bluetooth) or contact an
Audi dealer.
For more information on which mobile
phones are supported, please go online (e.g.
Navigation
Applies to: vehicles with speech dialogue system and navigation system
Important: The Navigation menu must have
been opened ¢ table on page 134. You
may be able to say the following commands
to enter a destination, depending on the menu
item selected:
Function Say:
Calling up a list of recent naviga- Last destinations
tion destinations
Calling up the favourites
Navigation favourites
Calling up your home address Home address or Drive home
Entering an address with assistance Enter address > follow the directions given by the system
from the system
Individual commands for entering a Enter country/ Enter district/ Enter street/ Enter house num-
destination ber
Making corrections while entering a
Correction
destination
Navigating to a contact Drive
me to (XV) or Navigate to (XV), e.g. Drive me to John
Smith
Navigating to a specific address Navigate
to (XV) business/ private,
stored for a contact e.g.
"Navigate to John Smith private"
Navigating to favourites
Navigation favourites > Line (XV) / Line content> start route
guidance when requested
Starting route guidance when an Navigate/ Navigate to private address / Navigate to business
address card is open
address
136

Downloaded from www.Manualslib.com manuals search engine 0
0
N
,.....
N
......
0
,.....
Vl
CX) Speech
dialogue system

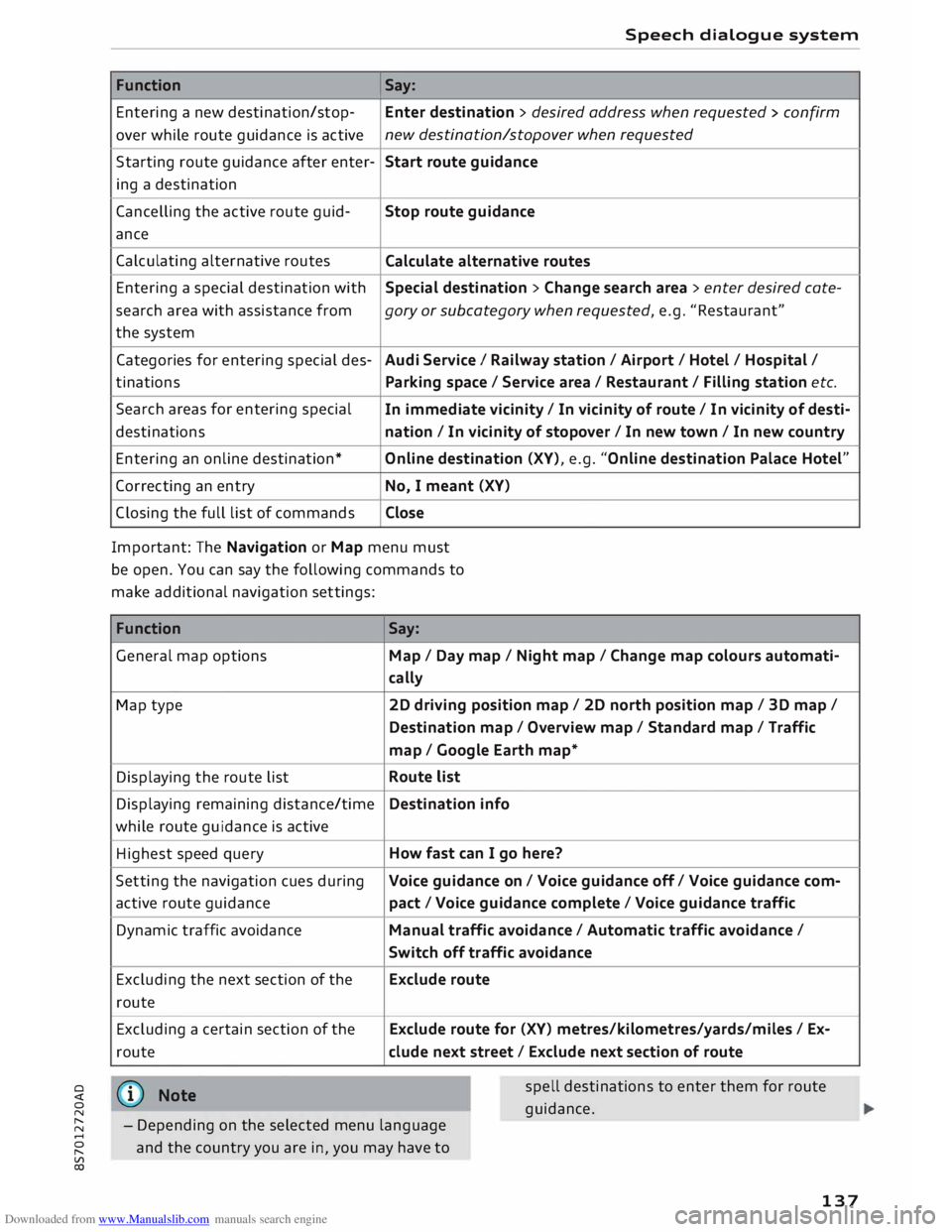

Function Say:
Entering a new destination/stop- Enter destination > desired address when requested > confirm
over while route guidance is active new
destination/stopover when requested
Starting route guidance after enter-
Start route guidance
ing a destination
Cancelling the active route guid-
Stop route guidance
ance
Calculating alternative routes
Calculate alternative routes
Entering a special destination with
Special destination > Change search area > enter desired cote-
se arch area with assistance from
gory or subcategory when requested, e.g. "Restaurant"
the system
Categories for entering special des-
Audi Service I Railway station/ Airport / Hotel / Hospital /
ti nations
Parking space/ Service area / Restaurant/ Filling station etc.
Search areas for entering special
In immediate vicinity/ In vicinity of route / In vicinity of desti-
destinations nation/ In vicinity of stopover / In new town/ In new country
Entering an online destination*
Online destination (XV), e.g. "Online destination Palace Hotel"
Correcting an entry
No, I meant (XV)
Closing the full list of commands Close
Important: The Navigation or Map menu must
be open. You can say the following commands to
make additional navigation settings:
Function
General map options
Map type
Displaying the route list
Displaying remaining distance/time
while route guidance is active
Highest speed query
Setting the navigation cues during
active route guidance
Dynamic traffic avoidance
Excluding the next section of the
route
Excluding a certain section of the
route
@ Note Say:
Map / Day map / Night map/ Change map colours automati-
cally
2D driving position map/ 2D north position map/ 3D map/
Destination map/ Overview map/ Standard map/ Traffic
map/ Google Earth map*
Route list
Destination info
How fast can I go here?
Voice guidance on/ Voice guidance off/ Voice guidance com-
pact / Voice guidance complete/ Voice guidance traffic
Manual traffic avoidance/ Automatic traffic avoidance /
Switch off traffic avoidance
Exclude route
Exclude route for (XV) metres/kilometres/yards/miles/ Ex-
elude next street / Exclude next section of route
spell destinations to enter them for route
guid ance.
- Depending on the selected menu language
and the country you are in, you may have to
137

Downloaded from www.Manualslib.com manuals search engine Speech
dialogue system
- Please always note the information in the
chapter ¢ page 167, Notes on Audi con­
nect.

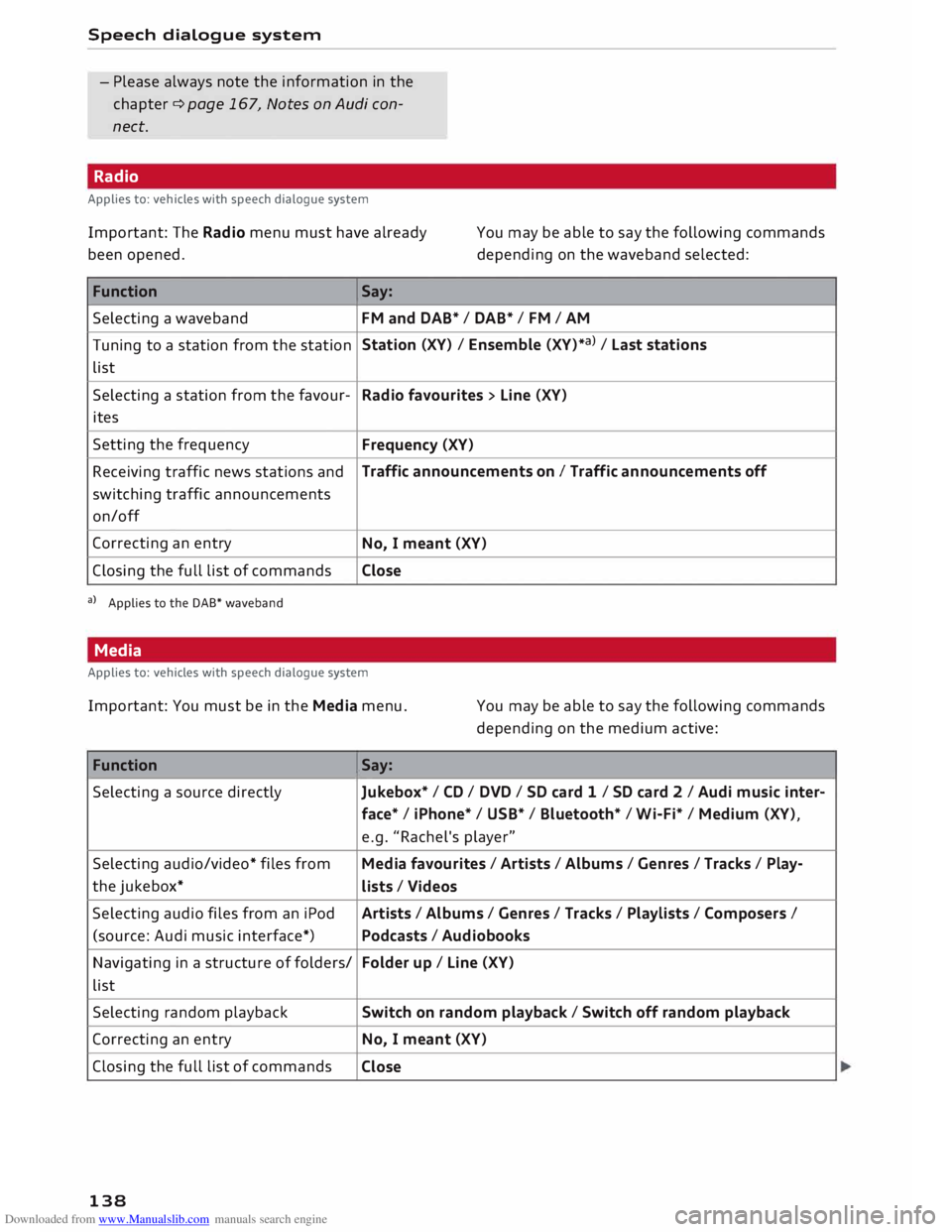

Radio
Applies to: vehicles with speech dialogue system
Important: The Radio menu must have already
been opened. You
may be able to say the following commands
depending on the waveband selected:
Function Say:
Selecting a waveband
FM and DAB* / DAB* / FM / AM
Tuning to a station from the station Station
(XV) / Ensemble (XV)*a) / La st stations
list
Selecting a station from the favour-
Radio favourites > Line (XV)
ites
Setting the frequency
Frequency (XV)
Receiving traffic news stations and Traffic
announcements on I Traffic announcements off
switching traffic announcements
on/off
Correcting an entry
No, I meant (XV)
Closing the full list of commands Close
a) Applies to the DAB* waveband
Media
Applies to: vehicles with speech dialogue system
Important: You must be in the Media menu. You may be able to say the following commands
depending on the medium active:
Function Say:
Selecting a source directly
Jukebox*/ CD/ DVD/ SD card 1 / SD card 2 I Audi music inter-
face* I iPhone* / USB* / Bluetooth* / Wi-Fi* / Medium (XV),
e.g. "Rachel's player"
Selecting audio/video* files from Media favourites / Artists / Albums / Genres I Tracks / Play-
the jukebox*
Lists / Videos
Selecting audio files from an iPod
Artists/ Albums / Genres I Tracks / Playlists / Composers I
(source: Audi music interface*) Podcasts / Audiobooks
Navigating in a structure of folders/ Folder
up/ Line (XV)
list
Selecting random playback Switch
on random playback/ Switch off random playback
Correcting an entry
No, I meant (XV)
Closing the full list of commands
Close
138
