AUDI TT ROADSTER 2016 User Guide

Downloaded from www.Manualslib.com manuals search engine 0
0
N
,.....
N
....
0
,.....
Vl
CX) (D
Side assist warning lamp
@ Door handle
®
@ Central
locking switch
Air outlet with control for seat
heating
® Control lever for:
- Turn signals and main beam
headlights ................ .
- Main beam assist ...........
.
- Active lane assist
........... .
@ Multi-function steering wheel with:
-Horn
- Driver's airbag ............. .
- Controls for virtual instrument
cluster including driver informa­
tion system, audio/video, tele­
phone, navigation system and
speech dialogue system
- Paddle levers .............. .
0 Audi virtual cockpit (instrument
cluster) .................... .
® Control lever for windscreen wipers
and washer ................. .
® Starting the
engine
after a mal-
function .................... .
@ Adjustable steering column .... .
@ Control lever for cruise control sys-
tem ....................... .
@ Instrument lighting .......... .
@ Bonnet lock release ........... .
� Light switch ................. .
@ Electric adjuster for exterior mir-
rors .......................
.
@ Electric windows ............. .
@ Air outlet with control for air condi-
tioner ...................... .
@ Lockable glove box
@ Deactivating passenger's airbag
@ Drives for CD, DVD and SIM/SD
cards ...................... .
@ Passenger's airbag ........... .
@ Switch for rear window heating
@ Depending on equipment fitted,
buttons for: 97
31
45
46
92
237
81
10 so
71
68
86 48
244
44
48 34
60
237
192
236 View
of cockpit
- Drive select ................ .
- Start/stop system .......... .
- Electronic stabilisation control
(ESC) ..................... .
- Hazard warning lights
- Automatic rear spoiler ....... .
- Park assist ................ .
(8 Centre console with optional equip­
ment:
- Storage compartment with AUX
input/USB charging socket ....
- Multimedia box for mobile phone
-Audi phone box ............ .
@ On/off button for infotainment sys-
tem ....................... .
@ Infotainment control console .. .
@ Switch for windbreak ......... .
@ Depending on equipment fitted:
- Storage compartment
-Ashtray ................... .
- Cup holder ................ .
@) Hold assist .................. .
@ Switch for opening and closing soft
top ........................ .
@ Parking brake ............... .
@ Depending on equipment fitted,
buttons for:
-!START ENGINE STOP!
....... .
- Engine sound
@ Depending on equipment fitted:
- Selector lever (on vehicles with S
tronic gearbox) ............. .
- Gear lever (on vehicles with man­
ual gearbox)
(© Note 100
71
113 47
117
108
199
198
146
121
121
41
56
57
76
39
74
68
77
- Some of the items of equipment listed in
this section are only fitted on certain mod­
els or are optional extras.
- The arrangement of switches and controls
on right-hand drive models* may be slightly
different from the layout shown on
¢ page 8. However, the symbols used to
identify the controls are the same.
9

Downloaded from www.Manualslib.com manuals search engine Instruments
and warning/indicator Lamps
Instruments and warning/indicator Lamps

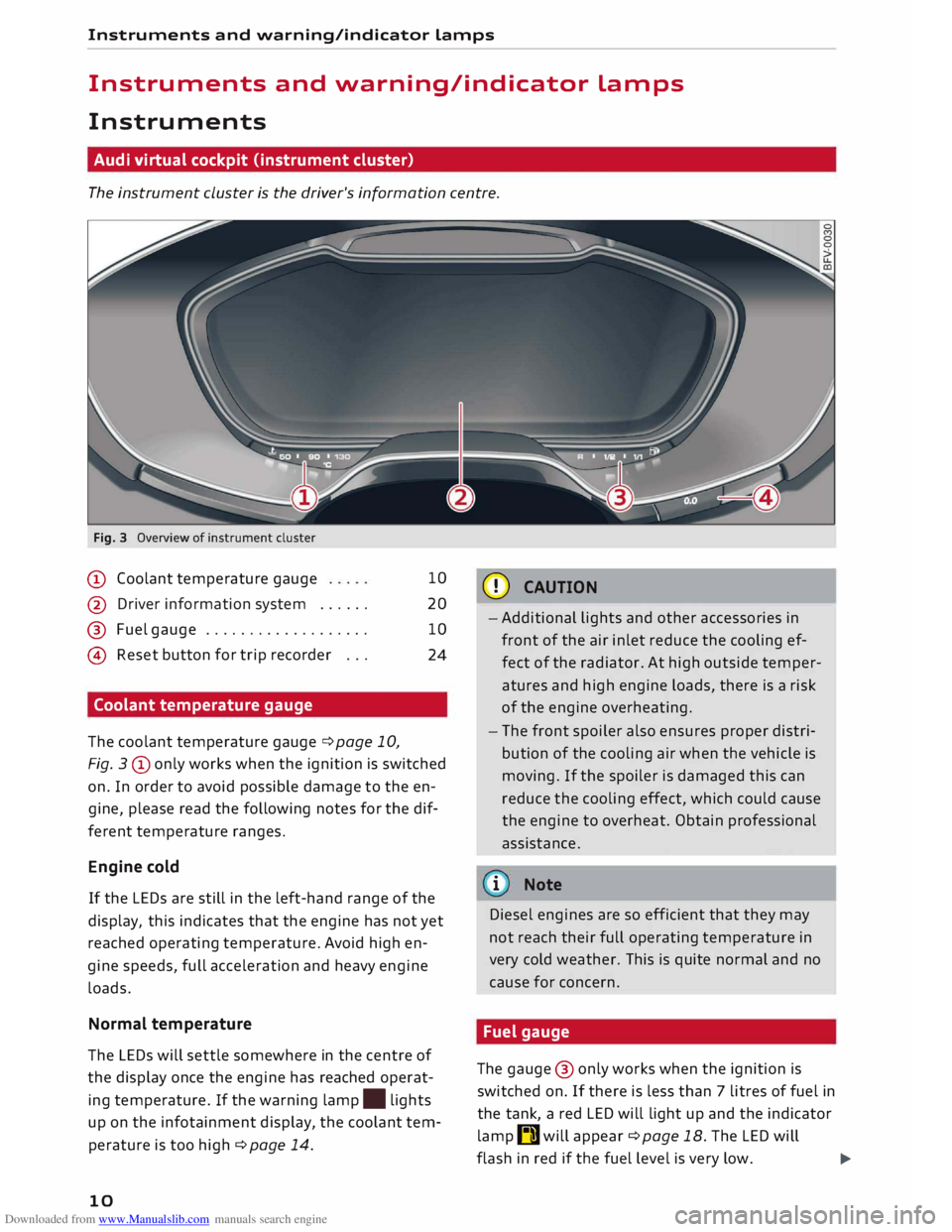

Instruments Audi virtual cockpit (instrument cluster)
The instrument cluster is the driver's information centre.
Fig. 3 Overview of instrument cluster
(D Coolant temperature gauge 10
@ Driver information system . . . . . . 20
@ Fuel gauge . . . . . . . . . . . . . . . . . . . 10
@ Reset button for trip recorder . . .
24
Coolant temperature gauge
The coolant temperature gauger=> page 10,
Fig. 3@ only works when the ignition is switched
on. In order to avoid possible damage to the en­
gine, please read the following notes for the dif­
ferent temperature ranges.
Engine cold
If the LEDs are still in the left-hand range of the
display, this indicates that the engine has not yet
reached operating temperature. Avoid high en­
gine speeds, full acceleration and heavy engine
loads.
Normal temperature
The LEDs will settle somewhere in the centre of
the display once the engine has reached operat­
ing temperature. If the warning lamp. lights
up on the infotainment display, the coolant tem­
perature is too high r=> page 14.
10 CD
CAUTION
-Additional lights and other accessories in
front of the air inlet reduce the cooling ef­
fect of the radiator. At high outside temper­
atures and high engine loads, there is a risk
of the engine overheating.
- The front spoiler also ensures proper distri­
bution of the cooling air when the vehicle is
moving. If the spoiler is damaged this can
reduce the cooling effect, which could cause
the engine to overheat. Obtain professional
assista nee.
i Note
Diesel engines are so efficient that they may
not reach their full operating temperature in
very cold weather. This is quite normal and no
cause for concern.
Fuel gauge
The gauge @only works when the ignition is
switched on. If there is less than 7 litres of fuel in
the tank, a red LED will light up and the indicator
lamp I]] will appear r=> page 18. The LED will
flash in red if the fuel level is very low.
�

Downloaded from www.Manualslib.com manuals search engine 0
0
N
,.....
N
......
0
,.....
Vl
CX) Instruments
and warning/indicator lamps

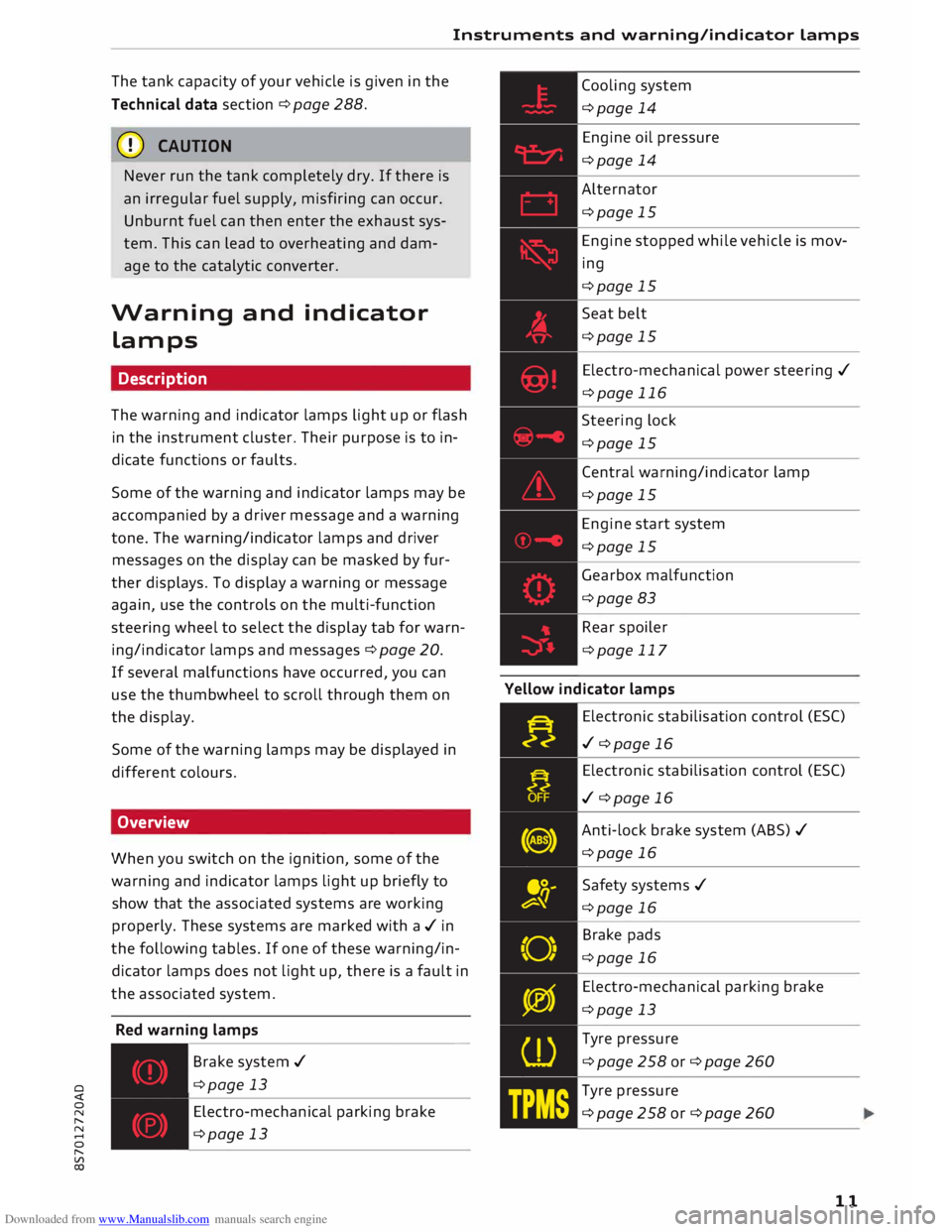

The tank capacity of your vehicle is given in the
Technical data section ¢ page 288.
CD CAUTION
Never run the tank completely dry. If there is
an irregular fuel supply, misfiring can occur.
Unburnt fuel can then enter the exhaust sys­
tem. This can lead to overheating and dam­
age to the catalytic converter.
Warning and indicator
Lamps
Description
The warning and indicator lamps light up or flash
in the instrument cluster. Their purpose is to in­
dicate functions or faults.
Some of the warning and indicator lamps may be
accompanied by a driver message and a warning
tone. The warning/indicator lamps and driver
messages on the display can be masked by fur­
ther displays. To display a warning or message
again, use the controls on the multi-function
steering wheel to select the display tab for warn­
ing/indicator lamps and messages ¢ page 20.
If several malfunctions have occurred, you can
use the thumbwheel to scroll through them on
the display.
Some of the warning lamps may be displayed in
different colours.
Overview
When you switch on the ignition, some of the
warning and indicator lamps light up briefly to
show that the associated systems are working
properly. These systems are marked with a../ in
the following tables. If one of these warning/in­
dicator lamps does not light up, there is a fault in
the associated system.
Red warning lamps
---------------
Br a k e system ../
¢page 13
Electro-mechanical parking brake
¢page 13 Cooling
system
¢page 14
Engine oil pressure
¢page 14
Alternator
¢page 15
Engine stopped while vehicle is mov­
ing
¢page 15
Seat belt
¢page 15
Electro-mechanical power steering ../
¢page 116
Steering lock
¢page 15
Central warning/indicator lamp
¢page 15
Engine start system
¢page 15
Gearbox malfunction
¢page 83
Rear spoiler
¢page 117
Yellow indicator lamps
Electronic stabilisation control (ES()
../ ¢page 16
Electronic stabilisation control (ES()
../ ¢page 16
Anti-lock brake system (ABS) ../
¢page 16
Safety systems ../
¢page 16
Brake pads
¢page 16
Electro-mechanical parking brake
¢page 13
Tyre pressure
¢page258or¢page260
Tyre pressure
¢page258or¢page260
11

Downloaded from www.Manualslib.com manuals search engine Instruments
and warning/indicator Lamps
Engine management
¢page 17
Engine management system (diesel
engines)./ ¢page 17
Emission control system
¢page 17
Diesel particulate filter*
¢page 17 Central
warning/indicator lamp
¢page 15
Electro -mechanical power steering ./
¢page 116
Suspension control*
¢page 19
Rear spoiler
¢page 117
Engine speed governing
¢page 17 Further
indicator lamps
12 Engine
oil level
¢page 18
Engine oil sensor
¢page 18
Battery charge
¢page 15
Fuel tank system
¢page 18
Washer fluid level
¢page 18
Windscreen wipers
¢page 18
Remote control key
¢page 70
Battery in remote control key
¢page 29
Headlight range control
¢page 19
Adaptive light*
¢page 19
Light sensor/rain sensor*
¢page 19
Steering lock
¢page 15
Engine start system
¢page 15 ¢¢
iljN
1 \
(®)
LIM (A)
� y>)}
P@
P@OFF
�
j �
tiiiq
0
(®) Turn
signals
¢page 19
Cruise control system*
¢page 86
Active lane assist*
¢page 93
Hold assist*
¢page 76
Speed limiter*
¢page 88
Start/stop system*
¢page 71
Start/stop system*
¢page 71
Convenience key
¢page 71
•
... ,,,. ,:
•
... ,,,. ,:
Electro -mechanical parking brake
¢page 13
Active lane assist*
¢page 93
Audi side assist*
¢page 99
. . . .
.
- '... .
Electro -mechanical parking brake
¢page 13

Downloaded from www.Manualslib.com manuals search engine 0
0
N
,.....
N
......
0
,.....
Vl
CX) Instruments
and warning/indicator lamps

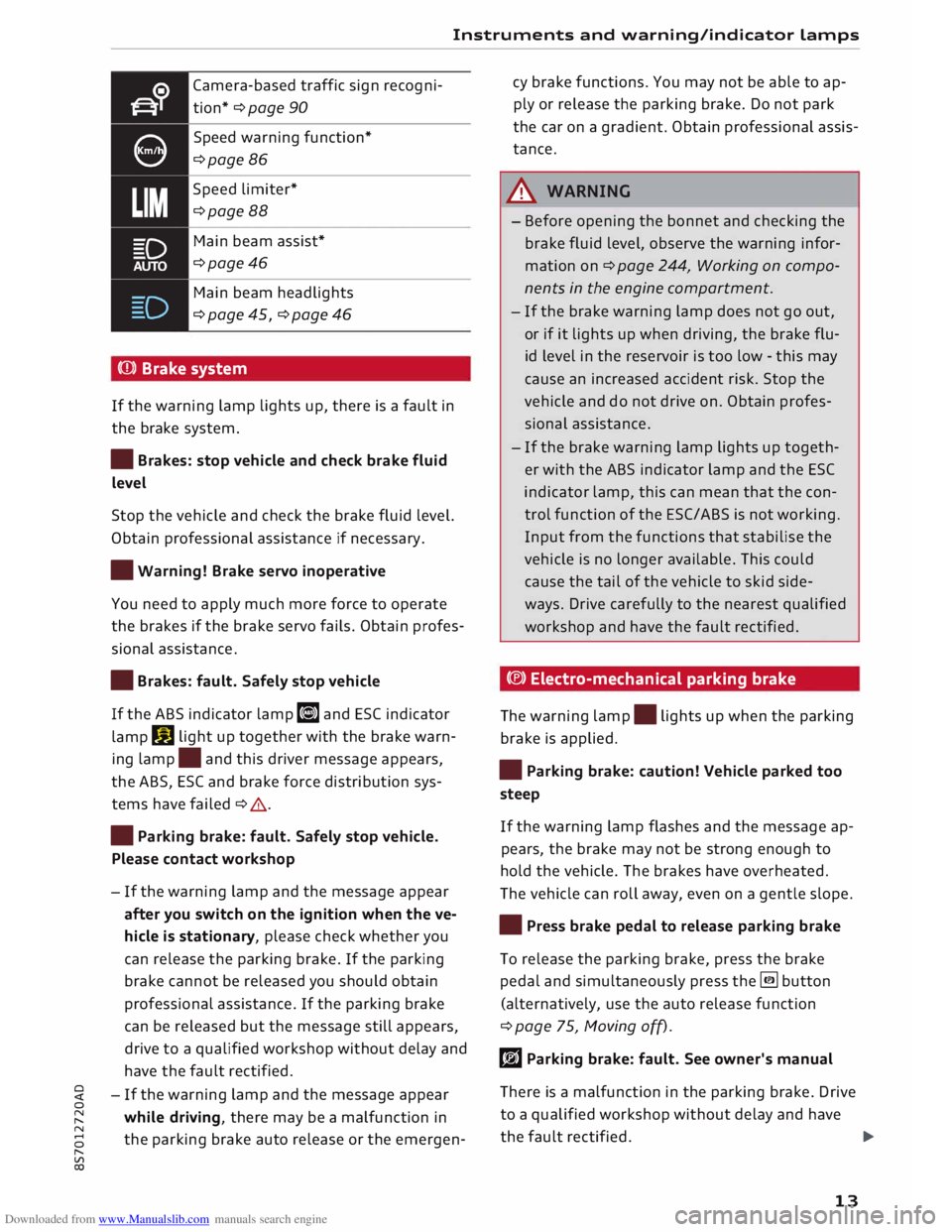

Camera-based traffic sign recogni­
tion* ¢ page 90
Speed warning function*
¢page 86
Speed limiter*
¢page 88
Main beam assist*
¢page46
Main beam headlights
¢ page 45, ¢ page 46
(Q)) Brake system
If the warning lamp lights up, there is a fault in
the brake system.
• Brakes: stop vehicle and check brake fluid
Level
Stop the vehicle and check the brake fluid level.
Obtain professional assistance if necessary.
• Warning! Brake servo inoperative
You need to apply much more force to operate
the brakes if the brake servo fails. Obtain profes­
sional assistance .
• Brakes: fault. Safely stop vehicle
If the ABS indicator lamp liJ and ESC indicator
lamp DJ
light up together with the brake warn­
ing lamp .
and this driver message appears,
the ABS, ESC and brake force distribution sys­
tems have failed ¢ .&. .
• Parking brake: fault. Safely stop vehicle.
Please contact workshop
- If the warning lamp and the message appear
after you switch on the ignition when the ve­
hicle is stationary, please check whether you
can release the parking brake. If the parking
brake cannot be released you should obtain
professional assistance. If the parking brake
can be released but the message still appears,
drive to a qualified workshop without delay and
have the fault rectified.
- If the warning lamp and the message appear
while driving, there may be a malfunction in
the parking brake auto release or the emergen- cy
brake functions. You may not be able to ap­
ply or release the parking brake. Do not park
the car on a gradient. Obtain professional assis­
tance.
A WARNING
- Before opening the bonnet and checking the
brake fluid level, observe the warning infor­
mation on ¢ page 244, Working on compo­
nents in the engine compartment.
- If the brake warning lamp does not go out,
or if it lights up when driving, the brake flu­
id level in the reservoir is too low -this may
cause an increased accident risk. Stop the
vehicle and do not drive on. Obtain profes­
sional assistance.
- If the brake warning lamp lights up togeth­
er with the ABS indicator lamp and the ESC
indicator lamp, this can mean that the con­
trol function of the ESC/ABS is not working.
Input from the functions that stabilise the
vehicle is no longer available. This could
cause the tail of the vehicle to skid side­
ways. Drive carefully to the nearest qualified
workshop and have the fault rectified.
C®) Electro-mechanical parking brake
The warning lamp.
lights up when the parking
brake is applied.
• Parking brake: caution! Vehicle parked too
steep
If the warning lamp flashes and the message ap­
pears, the brake may not be strong enough to
hold the vehicle. The brakes have overheated.
The vehicle can roll away, even on a gentle slope.
• Press brake pedal to release parking brake
To release the parking brake, press the brake
pedal and simultaneously press the� button
(alternatively, use the auto release function
¢ page 75, Moving off).
rlJ Parking brake: fault. See owner's manual
There is a malfunction in the parking brake. Drive
to a qualified workshop without delay and have
the fault rectified.
..,.
13

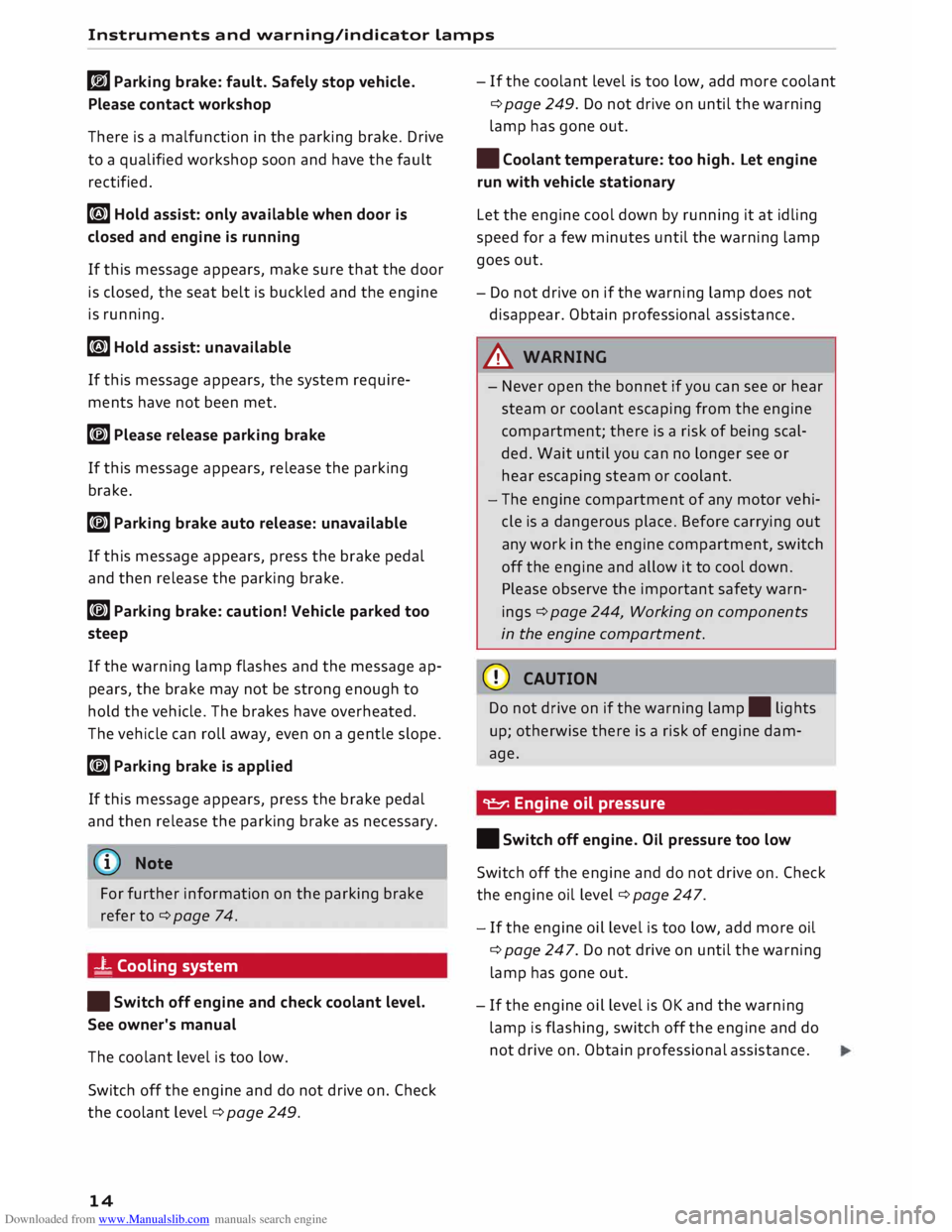

Downloaded from www.Manualslib.com manuals search engine Instruments
and warning/indicator Lamps
rlJ Parking brake: fault. Safely stop vehicle.
Please contact workshop
There is a malfunction in the parking brake. Drive
to a qualified workshop soon and have the fault
rectified.
[i] Hold assist: only available when door is
closed and engine is running
If this message appears, make sure that the door
is closed, the seat belt is buckled and the engine
is running.
[i] Hold assist: unavailable
If this message appears, the system require­
ments have not been met.
� Please release parking brake
If this message appears, release the parking
brake.
� Parking brake auto release: unavailable
If this message appears, press the brake pedal
and then release the parking brake.
� Parking brake: caution! Vehicle parked too
steep
If the warning Lamp flashes and the message ap­
pears, the brake may not be strong enough to
hold the vehicle. The brakes have overheated.
The vehicle can roll away, even on a gentle slope.
� Parking brake is applied
If this message appears, press the brake pedal
and then release the parking brake as necessary.
(D Note
For further information on the parking brake
refer to¢ page 74.
_t Cooling system
• Switch off engine and check coolant level.
See owner's manual
The coolant Level is too Low.
Switch off the engine and do not drive on. Check
the coolant Level¢ page 249.
14 -
If the coolant Level is too Low, add more coolant
¢ page 249. Do not drive on until the warning
Lamp has gone out.
• Coolant temperature: too high. Let engine
run with vehicle stationary
Let the engine cool down by running it at idling
speed for a few minutes until the warning Lamp
goes out.
- Do not drive on if the warning Lamp does not
disappear. Obtain professional assistance.
A WARNING
- Never open the bonnet if you can see or hear
steam or coolant escaping from the engine
compartment; there is a risk of being scal­
ded. Wait until you can no Longer see or
hear escaping steam or coolant.
- The engine compartment of any motor vehi­
cle is a dangerous place. Before carrying out
any work in the engine compartment, switch
off the engine and allow it to cool down.
Please observe the important safety warn­
ings ¢ page 244, Working on components
in the engine compartment.
CD CAUTION
Do not drive on if the warning Lamp. Lights
up; otherwise there is a risk of engine dam­
age.
9::::r. Engine oil pressure
• Switch off engine. Oil pressure too low
Switch off the engine and do not drive on. Check
the engine oil Level ¢ page 247.
- If the engine oil Level is too Low, add more oil
¢ page 247. Do not drive on until the warning
Lamp has gone out .
- If the engine oil Level is OK and the warning
Lamp is flashing, switch off the engine and do
not drive on. Obtain professional assistance.

Downloaded from www.Manualslib.com manuals search engine 0
0
N
,.....
N
......
0
,.....
Vl

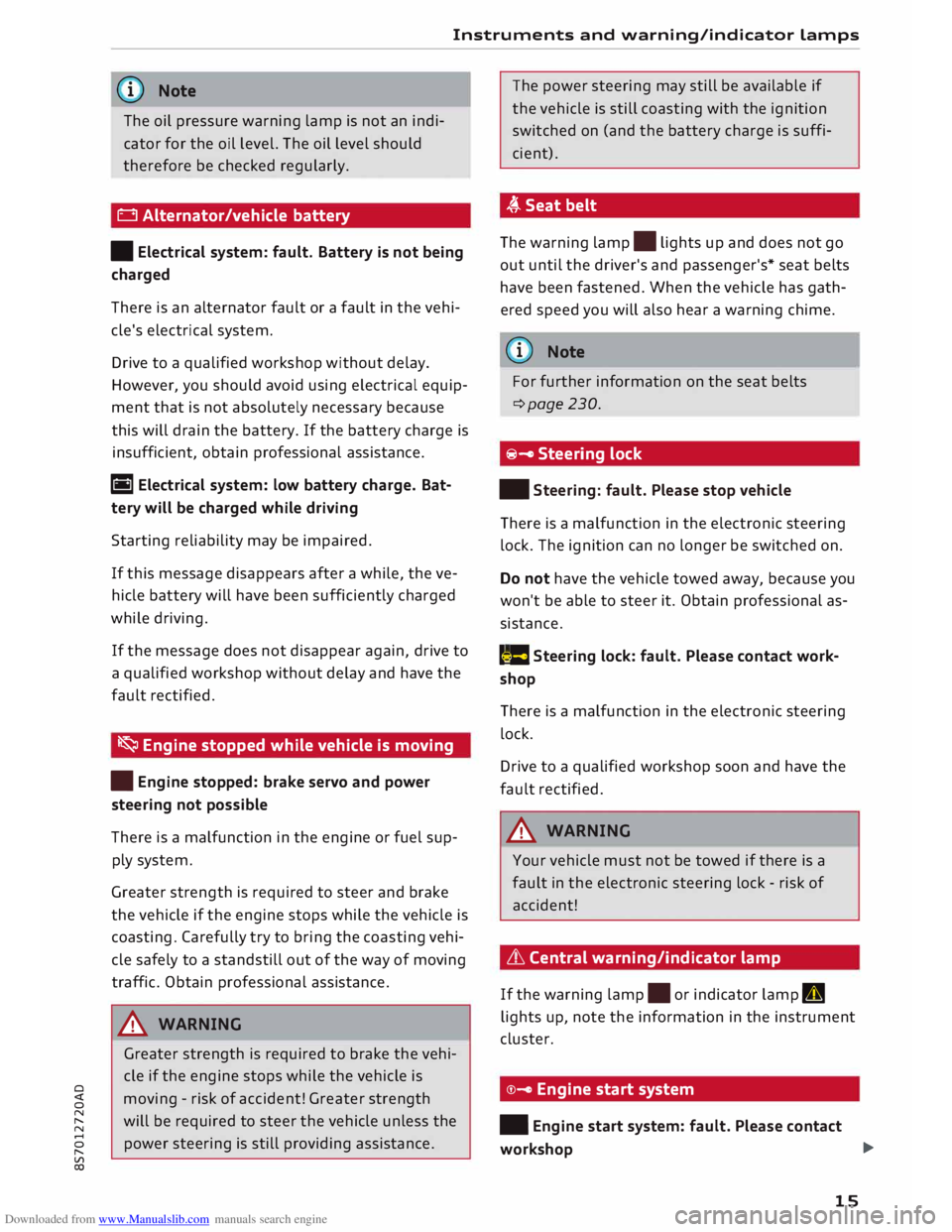

CX) Instruments
and warning/indicator lamps
(D) Note
The oil pressure warning lamp is not an indi­
cator for the oil level. The oil level should
therefore be checked regularly.
0 Alternator/vehicle battery
• Electrical system: fault. Battery is not being
charged
There is an alternator fault or a fault in the vehi­
cle's electrical system.
Drive to a qualified workshop without delay.
However, you should avoid using electrical equip­
ment that is not absolutely necessary because
this will drain the battery. If the battery charge is
insufficient, obtain professional assistance.
ri1 Electrical system: low battery charge. Bat­
tery will be charged while driving
Starting reliability may be impaired.
If this message disappears after a while, the ve­
hicle battery will have been sufficiently charged
while driving.
If the message does not disappear again, drive to
a qualified workshop without delay and have the
fault rectified.
� Engine stopped while vehicle is moving
• Engine stopped: brake servo and power
steering not possible
There is a malfunction in the engine or fuel sup­
ply system.
Greater strength is required to steer and brake
the vehicle if the engine stops while the vehicle is
coasting. Carefully try to bring the coasting vehi­
cle safely to a standstill out of the way of moving
traffic. Obtain professional assistance.
_& WARNING
Greater strength is required to brake the vehi­
cle if the engine stops while the vehicle is
moving -risk of accident! Greater strength
will be required to steer the vehicle unless the
power steering is still providing assistance. The
power steering may still be available if
the vehicle is still coasting with the ignition
switched on (and the battery charge is suffi­
cient).
,(,.Seatbelt
The warning lamp.
lights up and does not go
out until the driver's and passenger's* seat belts
have been fastened. When the vehicle has gath­
ered speed you will also hear a warning chime.
(Q)) Note
For further information on the seat belts
¢page 230.
@- Steering lock
• Steering: fault. Please stop vehicle
There is a malfunction in the electronic steering
lock. The ignition can no longer be switched on.
Do not have the vehicle towed away, because you
won't be able to steer it. Obtain professional as­
sistance.
(::$ Steering
lock: fault. Please contact work­
shop
There is a malfunction in the electronic steering
lock.
Drive to a qualified workshop soon and have the
fault rectified.
_& WARNING
Your vehicle must not be towed if there is a
fault in the electronic steering lock -risk of
accident!
& Central warning/indicator lamp
If the warning lamp.
or indicator lamp II
lights up, note the information in the instrument
cluster.
©- Engine start system
• Engine start system: fault. Please contact
workshop ..,.
15

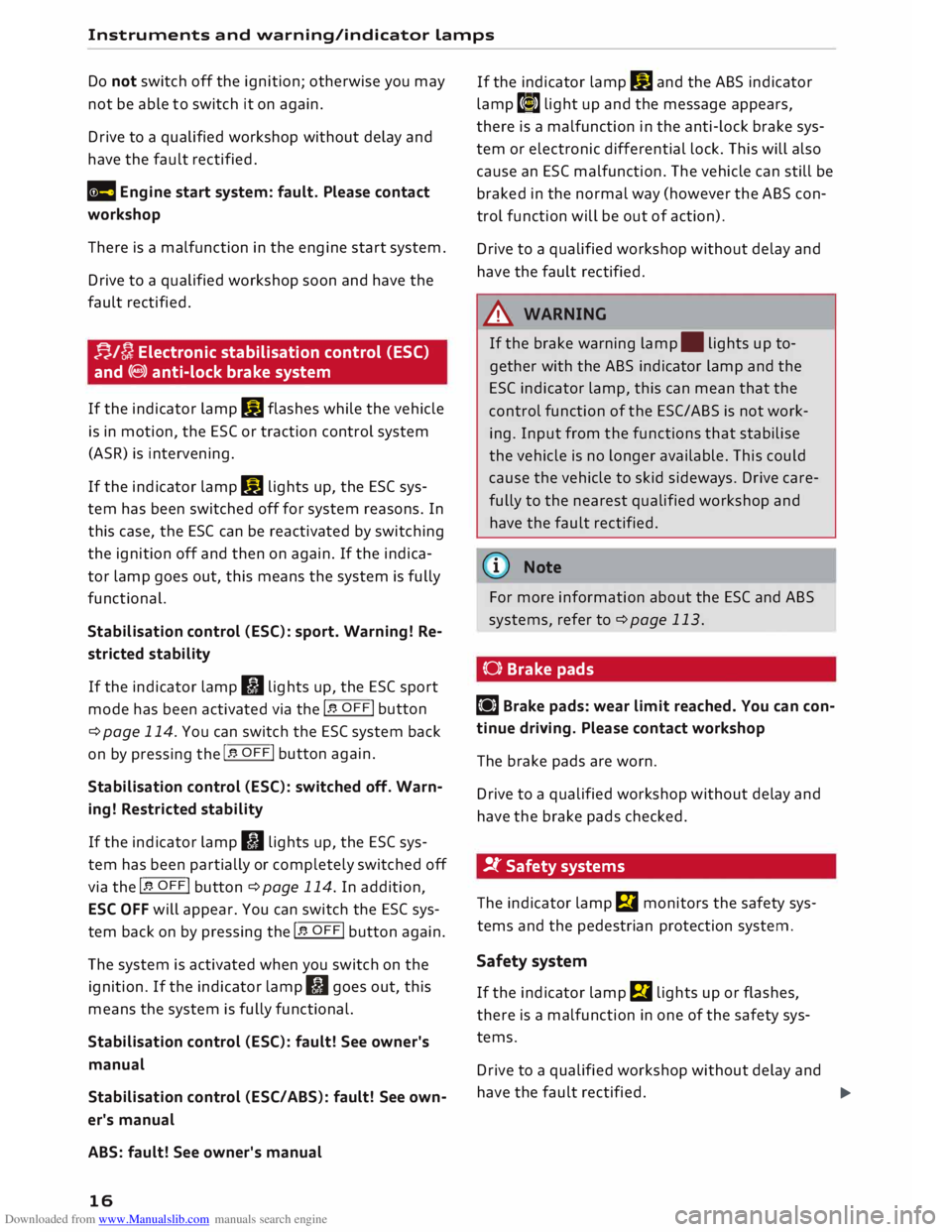

Downloaded from www.Manualslib.com manuals search engine Instruments
and warning/indicator Lamps
Do not switch off the ignition; otherwise you may
not be able to switch it on again.
Drive to a qualified workshop without delay and
have the fault rectified.
Im Engine start system: fault. Please contact
workshop
There is a malfunction in the engine start system.
Drive to a qualified workshop soon and have the
fault rectified.
f-j./[}; Electronic stabilisation control (ESC)
and (8) anti-lock brake system
If the indicator lamp DJ flashes while the vehicle
is in motion, the ESC or traction control system
(ASR) is intervening.
If the indicator lamp DJ lights up, the ESC sys­
tem has been switched off for system reasons. In
this case, the ESC can be reactivated by switching
the ignition off and then on again. If the indica­
tor lamp goes out, this means the system is fully
functional.
Stabilisation control (ESC): sport. Warning! Re­
stricted stability
If the indicator lamp II lights up, the ESC sport
mode has been activated via the 1.$ OFF! button
¢page 114. You can switch the ESC system back
on by pressing the 1.$ OFF! button
again.
Stabilisation control (ESC): switched off. Warn­
ing! Restricted stability
If the indicator lamp II lights up, the ESC sys­
tem has been partially or completely switched off
via the I.$ OFF! button ¢page 114. In addition,
ESC OFF will appear. You can switch the ESC sys­
tem back on by pressing the 1.$ OFF!
button again.
The system is activated when you switch on the
ignition. If the indicator lamp II goes out, this
means the system is fully functional.
Stabilisation control (ESC): fault! See owner's
manual
Stabilisation control (ESC/ ABS): fault! See own­
er's manual
ABS: fault! See owner's manual
16 If
the indicator lamp DJ and the ABS indicator
lamp t�» light up and the message appears,
there is a malfunction in the anti-lock brake sys­
tem or electronic differential lock. This will also
cause an ESC malfunction. The vehicle can still be
braked in the normal way (however the ABS con­
trol function will be out of action).
Drive to a qualified workshop without delay and
have the fault rectified.
_& WARNING
If the brake warning lamp. lights up to­
gether with the ABS indicator lamp and the
ES( indicator lamp, this can mean that the
control function of the ESC/ ABS is not work­
ing. Input from the functions that stabilise
the vehicle is no longer available. This could
cause the vehicle to skid sideways. Drive care­
fully to the nearest qualified workshop and
have the fault rectified.
{D) Note
For more information about the ESC and ABS
systems, refer to ¢page 113.
(0) Brake pads
LiJ Brake pads: wear limit reached. You can con­
tinue driving. Please contact workshop
The brake pads are worn.
Drive to a qualified workshop without delay and
have the brake pads checked.
!f Safety systems
The indicator lamp El monitors the safety sys­
tems and the pedestrian protection system.
Safety system
If the indicator lamp El lights up or flashes,
there is a malfunction in one of the safety sys­
tems.
Drive to a qualified workshop without delay and
have the fault rectified.
liJII>

Downloaded from www.Manualslib.com manuals search engine 0
0
N
,.....
N
......
0
,.....
Vl

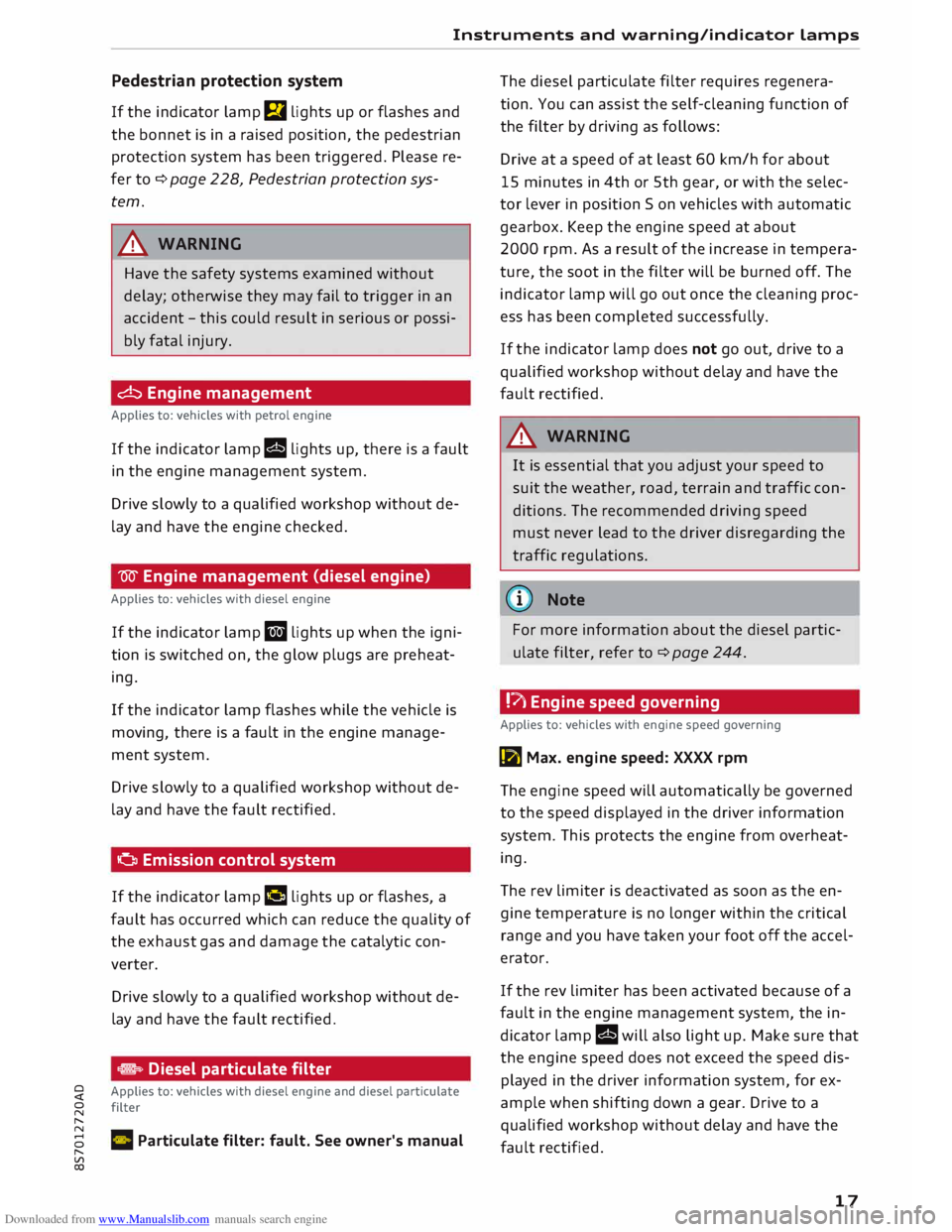

CX) Instruments
and warning/indicator lamps
Pedestrian protection system
If the indicator Lamp El Lights up or flashes and
the bonnet is in a raised position, the pedestrian
protection system has been triggered. Please re­
fer to¢ page 228, Pedestrian protection sys­
tem.
.&_ WARNING
Have the safety systems examined without
delay; otherwise they may fail to trigger in an
accident -this could result in serious or possi­
bly fatal injury.
� Engine management
Applies to: vehicles with petrol engine
If the indicator Lamp II Lights up, there is a fault
in the engine management system.
Drive slowly to a qualified workshop without de­
lay and have the engine checked.
W Engine management (diesel engine)
Applies to: vehicles with diesel engine
If the indicator Lamp II Lights up when the igni­
tion is switched on, the glow plugs are preheat­
ing.
If the indicator lamp flashes while the vehicle is
moving, there is a fault in the engine manage­
ment system.
Drive slowly to a qualified workshop without de­
lay and have the fault rectified.
G Emission control system
If the indicator Lamp II Lights up or flashes, a
fault has occurred which can reduce the quality of
the exhaust gas and damage the catalytic con­
verter.
Drive slowly to a qualified workshop without de­
lay and have the fault rectified.
@.> Diesel particulate filter
Applies to: vehicles with diesel engine and diesel particulate
filter
C Particulate filter: fault. See owner's manual The
diesel particulate filter requires regenera­
tion. You can assist the self-cleaning function of
the filter by driving as follows:
Drive at a speed of at Least 60 km/h for about
15 minutes in 4th or 5th gear, or with the selec­
tor lever in position Son vehicles with automatic
gearbox. Keep the engine speed at about
2000 rpm. As a result of the increase in tempera­
ture, the soot in the filter will be burned off. The
indicator lamp will go out once the cleaning proc­
ess has been completed successfully.
If the indicator Lamp does not go out, drive to a
qualified workshop without delay and have the
fault rectified.
.&_ WARNING
It is essential that you adjust your speed to
suit the weather, road, terrain and traffic con­
ditions. The recommended driving speed
must never Lead to the driver disregarding the
traffic reg u Lations.
@ Note
For more information about the diesel partic­
ulate filter, refer to ¢page 244.
!?') Engine speed governing
Applies to: vehicles with engine speed governing
(m Max. engine speed: XXXX rpm
The engine speed will automatically be governed
to the speed displayed in the driver information
system. This protects the engine from overheat­
ing.
The rev Limiter is deactivated as soon as the en­
gine temperature is no Longer within the critical
range and you have taken your foot off the accel­
erator.
If the rev Limiter has been activated because of a
fault in the engine management system, the in­
dicator Lamp II will also Light up. Make sure that
the engine speed does not exceed the speed dis­
played in the driver information system, for ex­
ample when shifting down a gear. Drive to a
qualified workshop without delay and have the
fault rectified.
17

Downloaded from www.Manualslib.com manuals search engine Instruments
and warning/indicator Lamps
� Engine oil level (min.)
II Please check oil level
You can continue driving for the time being but
you should check the engine oil level as soon as
possible ¢ page 247.
- If the engine oil level is too low, add more oil
¢page 247.
- If the engine oil level is normal but the indica­
tor lamp stays on, drive to a qualified workshop
without delay and avoid high engine speeds.
� ..
Engine oil sensor
l!I Oil level sensor system: fault. Please contact
workshop
The sensor for checking the engine oil level has
failed. Drive to a qualified workshop soon and
have the fault rectified.
l!I Oil level sensor: oil change required. Please
contact workshop
The engine oil level is too high.
Drive to a qualified workshop without delay and
have the fault rectified.
CD CAUTION
Please observe the procedure described in the
Owner's Manual¢ page 247, Checking and
topping up the engine oil Level.
Bi) Fuel tank system (petrol/diesel)
GD Please refuel
When the indicator lamp lights up for the first
time and the message appears, there are still
about 7 litres of fuel left in the tank.
GD Please refuel immediately
If the indicator lamp lights up and the message
appears, the fuel tank is almost empty. Drive to a
filling station without delay.
GD Tank system malfunction! Please contact
workshop
l l
This equipment is not available on all export versions.
18 There
is a malfunction in the tank system.
Applies to: vehicles with diesel engine: Water
may have collected in the fuel filter ¢(D.
Drive to a qualified workshop without delay and
have the fault rectified.
CD CAUTION
Applies to: vehicles with diesel engine
If poor-quality diesel fuel is used, it may be
necessary to have the water separator 1
)
on
the fuel filter drained. Risk of engine damage!
Drive to a qualified workshop without delay
and have the fault rectified.
• For the sake of the environment
Never pour fuel down drains or into the
ground.
.
1 Note
For more information about filling the tank,
refer to ¢page 242.
• Washer fluid level
C Please add washer fluid
With the ignition switched off, top up the fluid
for the windscreen washer and headlight washer
system* ¢page 252.
'V! Windscreen wipers
BJ Windscreen
wipers: fault. Please contact
workshop
There is a malfunction in the windscreen wipers.
Drive to a qualified workshop without delay and
have the fault rectified.
-'.q):- Bulb monitor
If the indicator lamp II lights up, a bulb has
failed. The message indicates the location of the
bulb.
Have the bulb replaced without delay.
