are. If you use these mirrors to esti­
mate the distance to vehicles behind you
when changing lane, you could misjudge the
distance. Risk of accident!
CD CAUTION
If one of the mirror housings is knocked out
of position (e.g. when parking), the mirrors
must first be fully retracted with the electric
control. Do not readjust the mirror housing by
hand, as this will interfere with the mirror ad­
juster function.
(!J) Note
If the electrical adjustment should fail to op­
erate, both of the mirrors can be adjusted by
hand by lightly pressing the edge of the mir­
ror glass.
Anti-dazzle setting

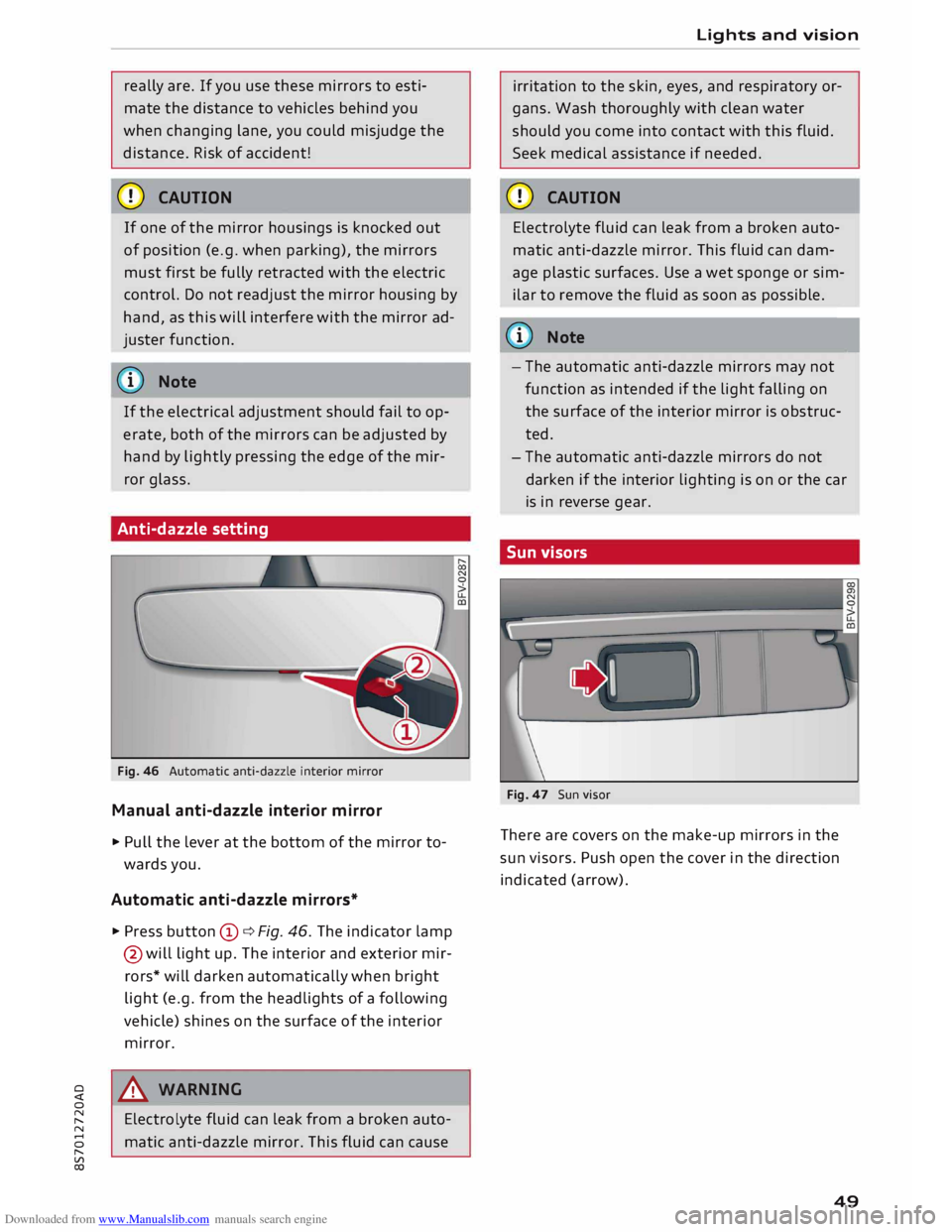

Fig. 46 Automatic anti-dazzle interior mirror
Manual anti-dazzle interior mirror
... Pull the lever at the bottom of the mirror to­
wards you.
Automatic anti-dazzle mirrors*
.., Press button (D ¢ Fig. 46. The indicator lamp
@ will light up. The interior and exterior mir­
rors* will darken automatically when bright
light (e.g. from the headlights of a following
vehicle) shines on the surface of the interior
mirror.
8_ WARNING
Electrolyte fluid can leak from a broken auto­
matic anti-dazzle mirror. This fluid can cause Lights
and vision
irritation to the skin, eyes, and respiratory or­
gans. Wash thoroughly with clean water
should you come into contact with this fluid.
Seek medical assistance if needed.
CD CAUTION
Electrolyte fluid can leak from a broken auto­
matic anti-dazzle mirror. This fluid can dam­
age plastic surfaces. Use a wet sponge or sim­
ilar to remove the fluid as soon as possible.
@ Note
- The automatic anti-dazzle mirrors may not
function as intended if the light falling on
the surface of the interior mirror is obstruc­
ted.
- The automatic anti-dazzle mirrors do not
darken if the interior lighting is on or the car
is in reverse gear.
Sun visors
Fig. 47 Sun visor
There are covers on the make-up mirrors in the
sun visors. Push open the cover in the direction
indicated (arrow).
49

Downloaded from www.Manualslib.com manuals search engine Lights
and vision
Windscreen wipers
Switching on the windscreen wipers

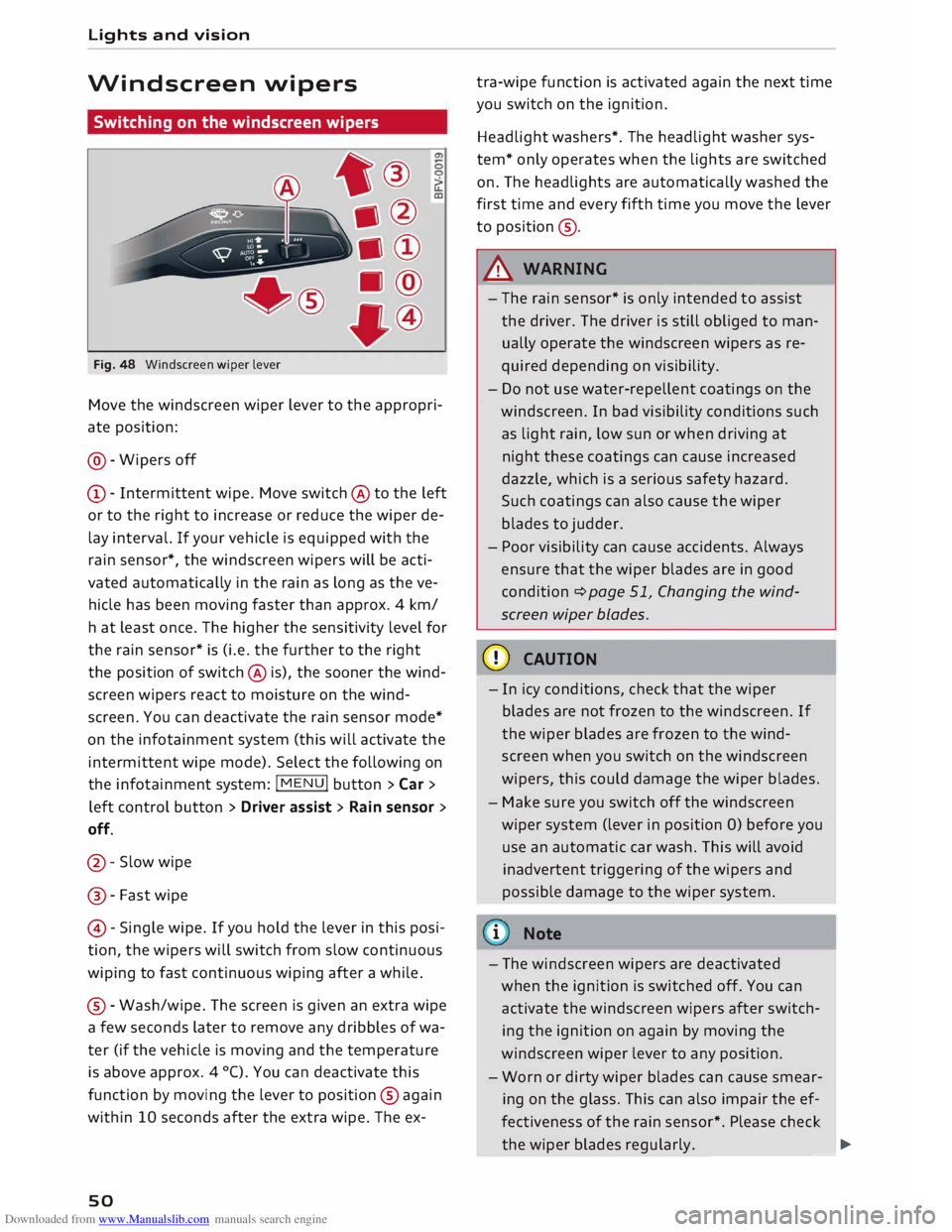

Fig. 48 Windscreen wiper lever
Move the windscreen wiper lever to the appropri­
ate position:
@- Wipers off
CD- Intermittent wipe. Move switch @ to the left
or to the right to increase or reduce the wiper de­
lay interval. If your vehicle is equipped with the
rain sensor*, the windscreen wipers will be acti­
vated automatically in the rain as long as the ve­
hicle has been moving faster than approx. 4 km/
ha t least once. The higher the sensitivity level for
the rain sensor* is (i.e. the further to the right
the position of switch @ is), the sooner the wind­
screen wipers react to moisture on the wind­
screen. You can deactivate the rain sensor mode*
on the infotainment system (this will activate the
intermittent wipe mode). Select the following on
the infotainment system: !MENU! button> Car >
left control button > Driver assist> Rain sensor >
off.
@- Slow wipe
@ -Fast wipe
@ -Single wipe. If you hold the lever in this posi­
tion, the wipers will switch from slow continuous
wiping to fast continuous wiping after a while.
® -Wash/wipe. The screen is given an extra wipe
a few seconds later to remove any dribbles of wa­
ter (if the vehicle is moving and the temperature
is above approx. 4 °C). You can deactivate this
function by moving the lever to position @again
within 10 seconds after the extra wipe. The ex-
so tra-wipe
function is activated again the next time
you switch on the ignition.
Headlight washers*. The headlight washer sys­
tem* only operates when the lights are switched
on. The headlights are automatically washed the
first time and every fifth time you move the lever
to position ®·
A WARNING
- The rain sensor* is only intended to assist
the driver. The driver is still obliged to man­
ually operate the windscreen wipers as re­
quired depending on visibility.
- Do not use water-repellent coatings on the
windscreen. In bad visibility conditions such
as light rain, low sun or when driving at
night these coatings can cause increased
dazzle, which is a serious safety hazard.
Such coatings can also cause the wiper
blades to judder.
- Poor visibility can cause accidents. Always
ensure that the wiper blades are in good
condition ¢ page 51, Changing the wind­
screen wiper blades.
CD CAUTION
- In icy conditions, check that the wiper
blades are not frozen to the windscreen. If
the wiper blades are frozen to the wind­
screen when you switch on the windscreen
wipers, this could damage the wiper blades.
- Make sure you switch off the windscreen
wiper system (lever in position 0) before you
use an automatic car wash. This will avoid
inadvertent triggering of the wipers and
possible damage to the wiper system.
i Note
- The windscreen wipers are deactivated
when the ignition is switched off. You can
activate the windscreen wipers after switch­
ing the ignition on again by moving the
windscreen wiper lever to any position.
- Worn or dirty wiper blades can cause smear­
ing on the glass. This can also impair the ef­
fectiveness of the rain sensor*. Please check
the wiper blades regularly. ______ �

Downloaded from www.Manualslib.com manuals search engine 0
0
N
,.....
N
......
0
,.....
Vl
CX) -
The windscreen washer jets are heated*
when the ignition is switched on if the out­
side temperature is low.
- If you stop briefly, e.g. at traffic lights, the
wiper speed setting will automatically be re­
duced by one level.
Cleaning windscreen wiper blades
Clean the wiper blades if the wipers leave smear­
ing on the glass. Clean the wiper blades using a
soft cloth and a glass cleaning solution.
11- Set the wiper arms to the service position
¢page 51.
11- Lift the wiper arms away from the glass.
A WARNING
Dirty wiper blades can impair the driver's view
- risk of accident!

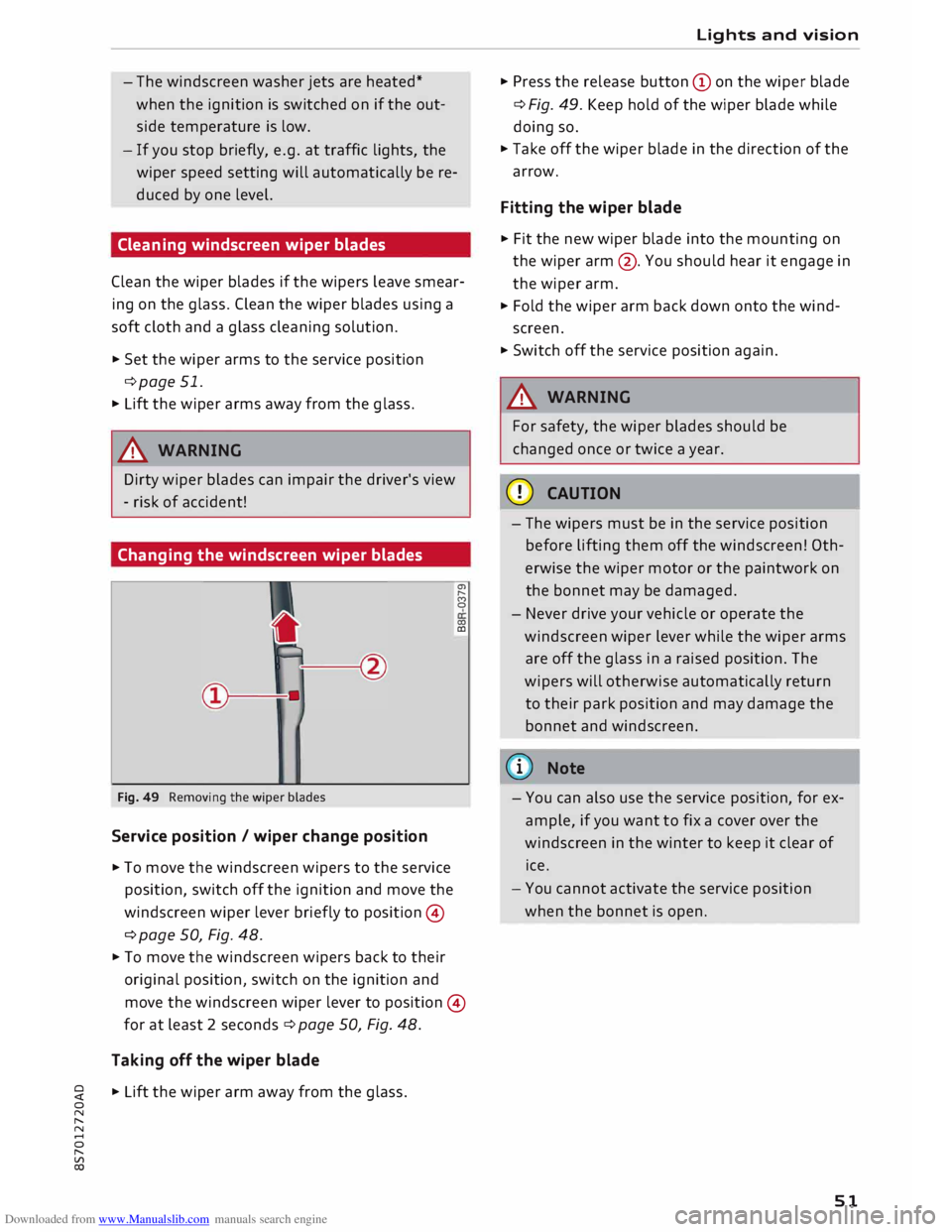

Changing the windscreen wiper blades
Fig. 49 Removing the wiper blades
Service position / wiper change position
11- To move the windscreen wipers to the service
position, switch off the ignition and move the
windscreen wiper lever briefly to position ©
¢ page 50, Fig. 48. a,
,._.
(')
0
0)
CD
11- To move the windscreen wipers back to their
original position, switch on the ignition and
move the windscreen wiper lever to position ©
for at least 2 seconds¢ page 50, Fig. 48.
Taking off the wiper blade
11- Lift the wiper arm away from the glass. Lights
and vision
11- Press the release button (Don the wiper blade
¢ Fig. 49. Keep hold of the wiper blade while
doing so.
11- Take off the wiper blade in the direction of the
arrow.
Fitting the wiper blade
11- Fit the new wiper blade into the mounting on
the wiper arm@. You should hear it engage in
the wiper arm.
11- Fold the wiper arm back down onto the wind­
screen.
11- Switch off the service position again.
A WARNING
For safety, the wiper blades should be
changed once or twice a year.
CD CAUTION
- The wipers must be in the service position
before lifting them off the windscreen! Oth­
erwise the wiper motor or the paintwork on
the bonnet may be damaged.
- Never drive your vehicle or operate the
windscreen wiper lever while the wiper arms
are off the glass in a raised position. The
wipers will otherwise automatically return
to their park position and may damage the
bonnet and windscreen.
(D) Note
- You can also use the service position, for ex­
ample, if you want to fix a cover over the
windscreen in the winter to keep it clear of
ice.
- You cannot activate the service position
when the bonnet is open.
51

Downloaded from www.Manualslib.com manuals search engine Lights
and vision
Digital compass
Activating and deactivating the compass
Applies to: vehicles with digital compass

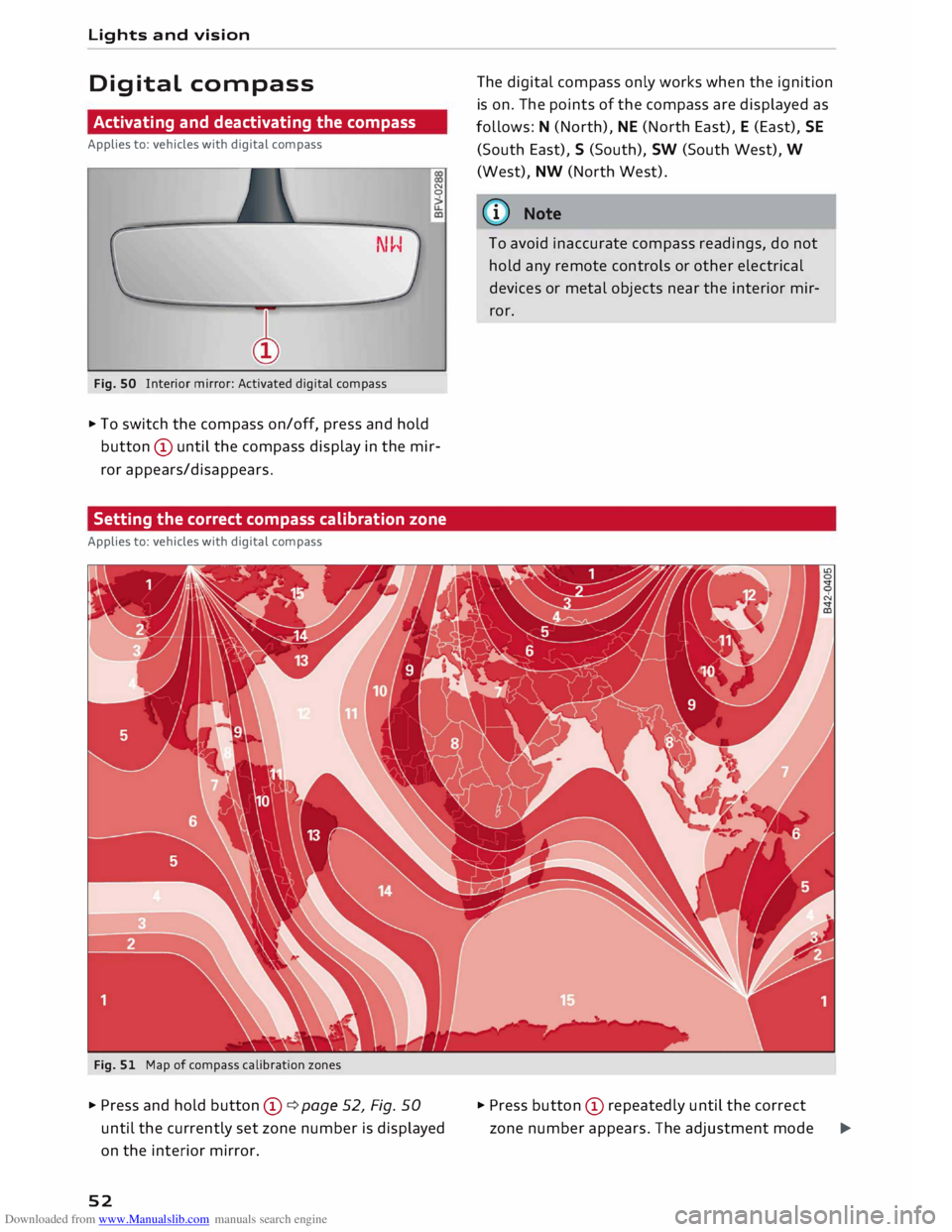

Fig. SO Interior mirror: Activated digital compass N
0
.,. To switch the compass on/off, press and hold
button © until the compass display in the mir­
ror appears/disappears.
Setting the correct compass calibration zone
Applies to: vehicles with digital compass
Fig. 51 Map of compass calibration zones
.,. Press and hold button ©¢ page 52, Fig. 50
until the currently set zone number is displayed
on the interior mirror.
52 The
digital compass only works when the ignition
is on. The points of the compass are displayed as
follows: N (North), NE (North East), E (East), SE
(South East), S (South), SW (South West), W
(West), NW (North West).
ij)) Note
To avoid inaccurate compass readings, do not
hold any remote controls or other electrical
devices or metal objects near the interior mir­
ror.
.,. Press button © repeatedly until the correct
zone number appears. The adjustment mode
�

Downloaded from www.Manualslib.com manuals search engine 0
0
N
,.....
N
......
0
,.....
Vl
CX) will
be ended automatically after a few sec­
onds.

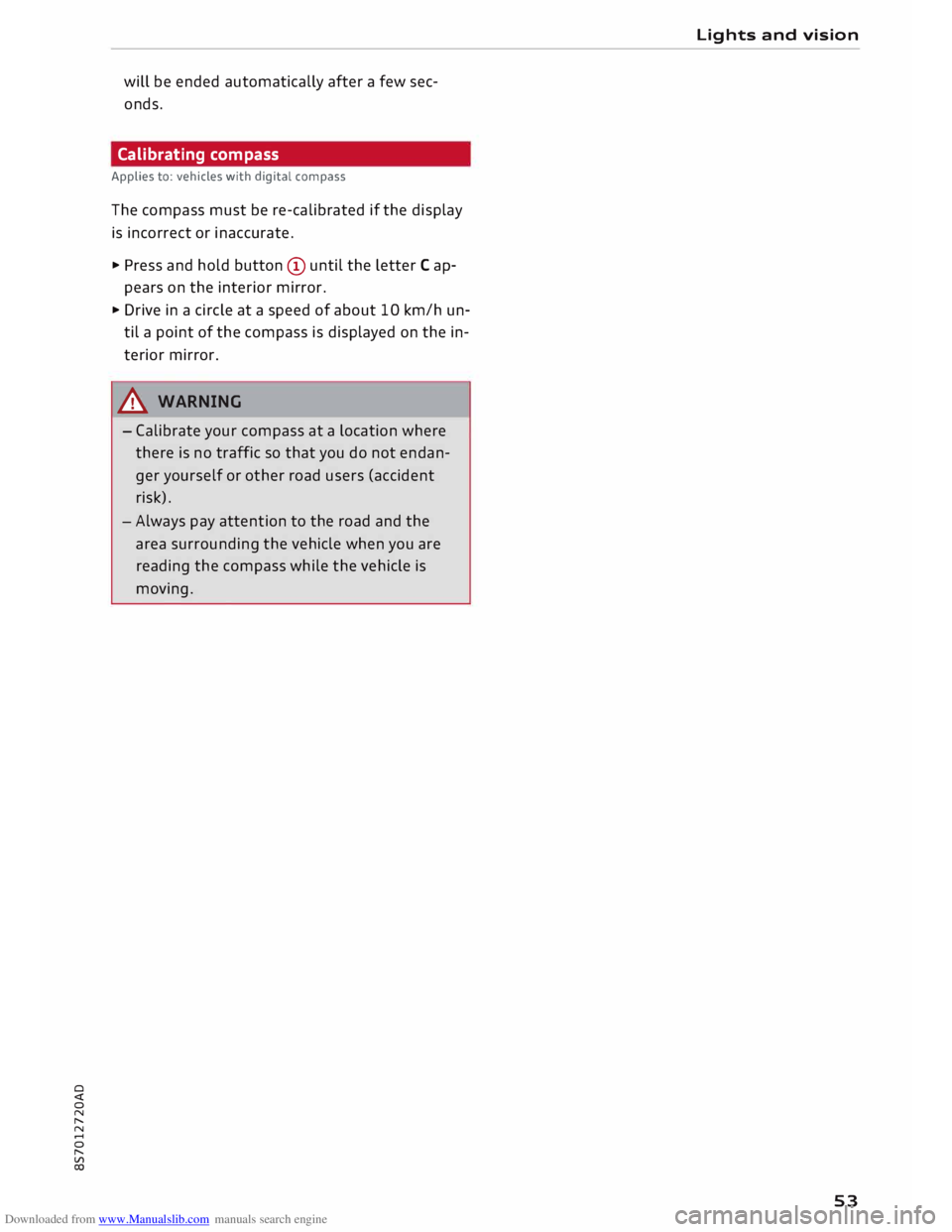

Calibrating compass
Applies to: vehicles with digital compass
The compass must be re-calibrated if the display
is incorrect or inaccurate .
... Press and hold button (D until the letter Cap­
pears on the interior mirror .
... Drive in a circle at a speed of about 10 km/h un­
til a point of the compass is displayed on the in­
terior mirror.
& WARNING
- Calibrate your compass at a location where
there is no traffic so that you do not endan­
ger yourself or other road users (accident
risk).
- Always pay attention to the road and the
area surrounding the vehicle when you are
reading the compass while the vehicle is
moving. Lights
and vision
53

Downloaded from www.Manualslib.com manuals search engine Seats
and storage
Seats and storage
General notes
A WARNING
You will find important information, tips, sug­
gestions and warnings that you should read
and observe for your own safety and the safe­
ty of your passengers on¢ page 220, Safe
driving.
Front seats
Manual adjustment of seats
Applies to: vehicles with manual seat adjustment

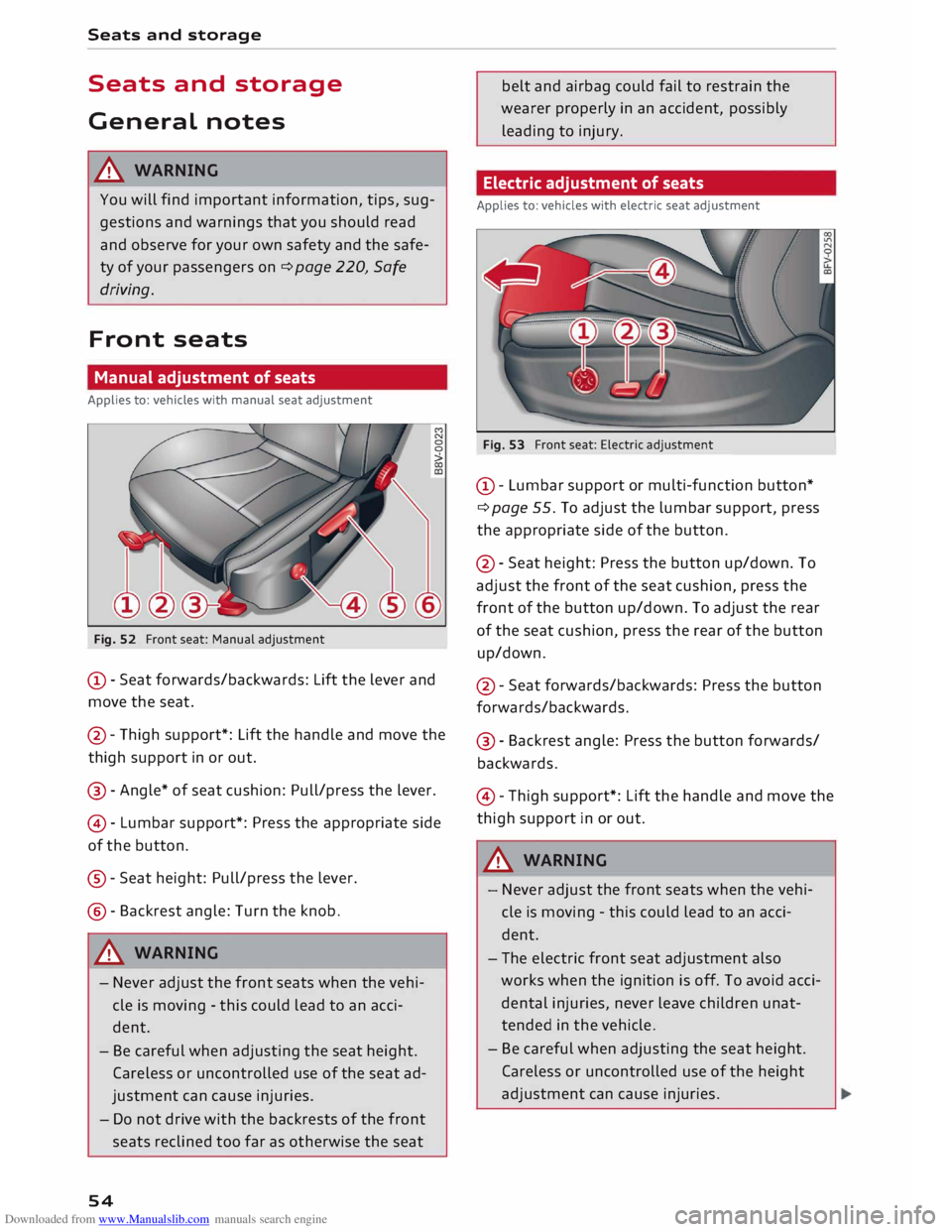

Fig. 52 Front seat: Manual adjustment
@ -Seat forwards/backwards: Lift the lever and
move the seat.
@ -Thigh support*: Lift the handle and move the
thigh support in or out.
@ -Angle* of seat cushion: Pull/press the lever.
@ -Lumbar support*: Press the appropriate side
of the button.
®- Seat height: Pull/press the lever.
@- Backrest angle: Turn the knob.
A WARNING
- Never adjust the front seats when the vehi­
cle is moving -this could lead to an acci­
dent.
- Be careful when adjusting the seat height.
Careless or uncontrolled use of the seat ad­
justment can cause injuries.
- Do not drive with the backrests of the front
seats reclined too far as otherwise the seat
54 belt
and airbag could fail to restrain the
wearer properly in an accident, possibly
leading to injury.
Electric adjustment of seats
Applies to: vehicles with electric seat adjustment
Fig. 53 Front seat: Electric adjustment
@ -Lumbar support or multi-function button*
¢ page 55. To adjust the lumbar support, press
the appropriate side of the button.
@- Seat height: Press the button up/down. To
adjust the front of the seat cushion, press the
front of the button up/down. To adjust the rear
of the seat cushion, press the rear of the button
up/down.
@ -Seat forwards/backwards: Press the button
forwards/backwards.
@ -Backrest angle: Press the button forwards/
backwards.
© -Thigh support*: Lift the handle and move the
thigh support in or out.
A WARNING
- Never adjust the front seats when the vehi­
cle is moving -this could lead to an acci­
dent.
- The electric front seat adjustment also
works when the ignition is off. To avoid acci­
dental injuries, never leave children unat­
tended in the vehicle.
- Be careful when adjusting the seat height.
Careless or uncontrolled use of the height
adjustment can cause injuries.

Downloaded from www.Manualslib.com manuals search engine 0
0
N
,.....
N
......
0
,.....
Vl
CX) -
Do not drive with the backrests of the front
seats reclined too far as otherwise the seat
belt and airbag could fail to restrain the
wearer properly in an accident, possibly
leading to injury.

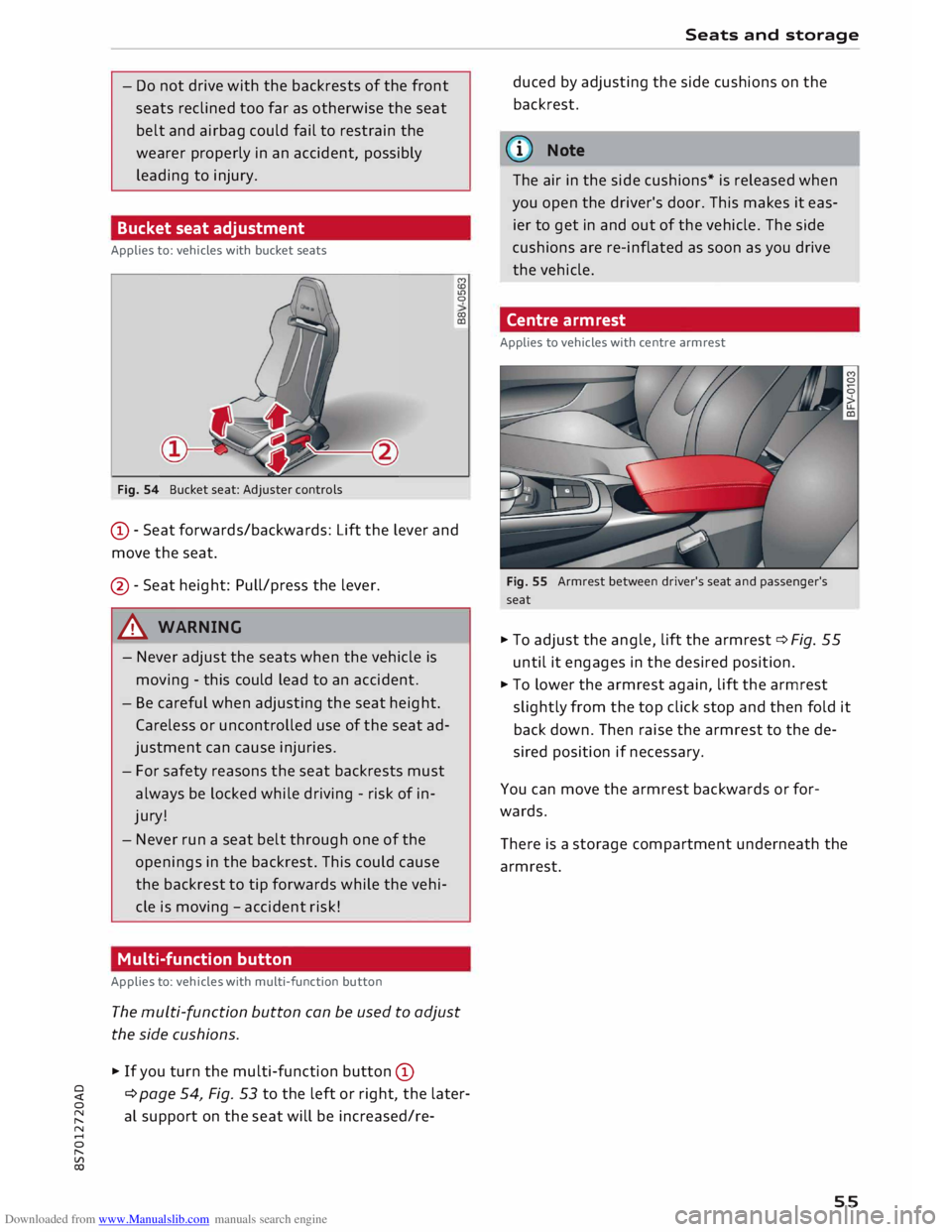

Bucket seat adjustment
Applies to: vehicles with bucket seats
Fig. 54 Bucket seat: Adjuster controls M
co
Ll)
0
co
CD
CD -Seat forwards/backwards: Lift the lever and
move the seat.
@ -Seat height: Pull/press the lever.
A WARNING
- Never adjust the seats when the vehicle is
moving -this could lead to an accident.
- Be careful when adjusting the seat height.
Careless or uncontrolled use of the seat ad­
justment can cause injuries.
- For safety reasons the seat backrests must
always be locked while driving -risk of in­
jury!
- Never run a seat belt through one of the
openings in the backrest. This could cause
the backrest to tip forwards while the vehi­
cle is moving -accident risk!
Multi-function button
Applies to: vehicles with multi-function button
The multi-function button can be used to adjust
the side cushions.
� If you turn the multi-function button CD
¢ page 54, Fig. 53 to the left or right, the later­
al support on the seat will be increased/re- Seats
and storage
duced by adjusting the side cushions on the
backrest.
@ Note
The air in the side cushions* is released when
you open the driver's door. This makes it eas­
ier to get in and out of the vehicle. The side
cushions are re-inflated as soon as you drive
the vehicle.
Centre armrest
Applies to vehicles with centre armrest
Fig. 55 Armrest between driver's seat and passenger's
seat
� To adjust the angle, lift the armrest ¢ Fig. 55
until it engages in the desired position.
� To lower the armrest again, lift the armrest
slightly from the top click stop and then fold it
back down. Then raise the armrest to the de­
sired position if necessary.
You can move the armrest backwards or for­
wards.
There is a storage compartment underneath the
armrest.
55

Downloaded from www.Manualslib.com manuals search engine Seats
and storage

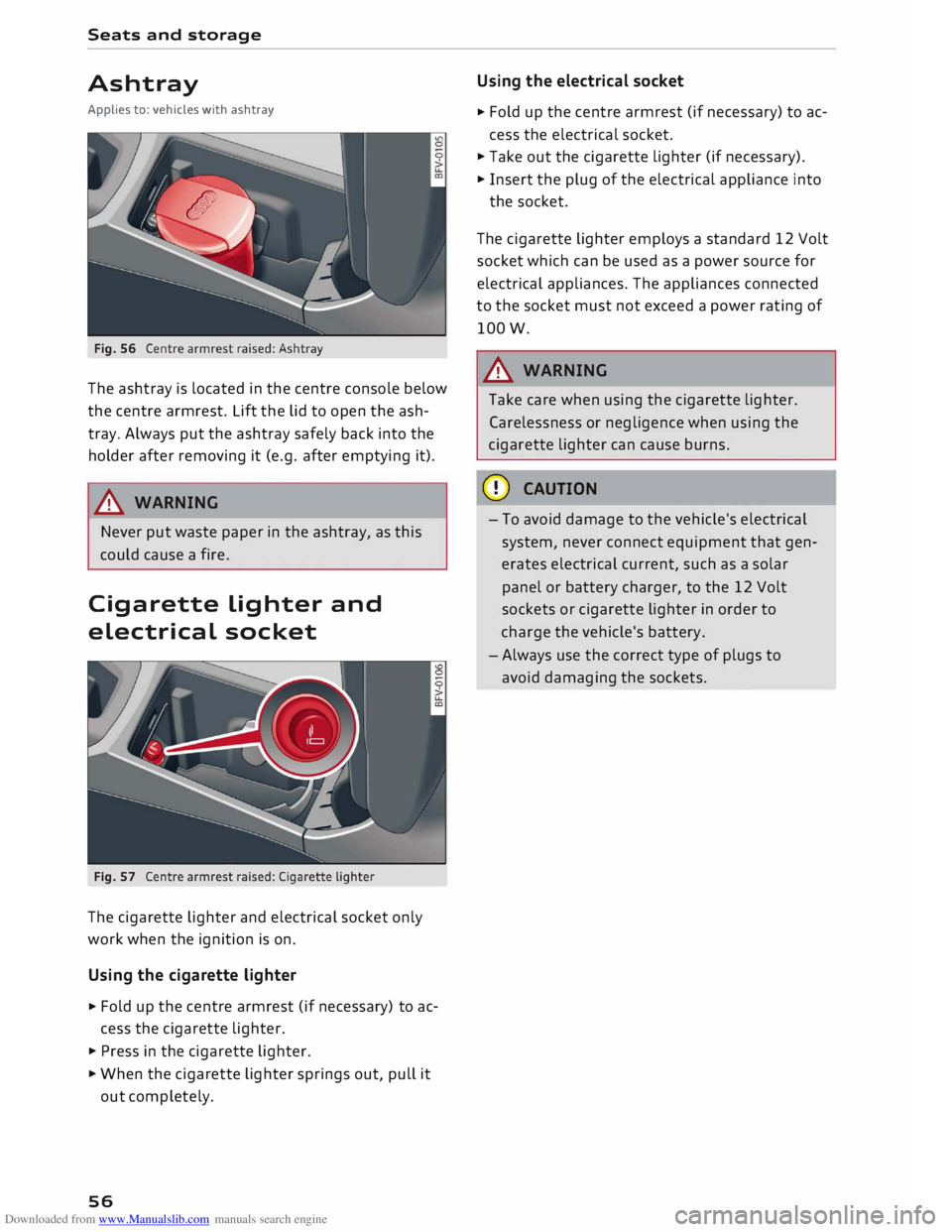

Ashtray
Applies to: vehicles with ashtray
The ashtray is located in the centre console below
the centre armrest. Lift the lid to open the ash­
tray. Always put the ashtray safely back into the
holder after removing it (e.g. after emptying it).
A WARNING
Never put waste paper in the ashtray, as this
could cause a fire.
Cigarette Lighter and
electrical socket
The cigarette lighter and electrical socket only
work when the ignition is on.
Using the cigarette lighter
� Fold
up the centre armrest (if necessary) to ac­
cess the cigarette lighter.
� Press in the cigarette lighter.
� When the cigarette lighter springs out, pull it
out completely.
56 Using
the electrical socket
� Fold
up the centre armrest (if necessary) to ac­
cess the electrical socket.
� Take out the cigarette lighter (if necessary).
� Insert the plug of the electrical appliance into
the socket.
The cigarette lighter employs a standard 12 Volt
socket which can be used as a power source for
electrical appliances. The appliances connected
to the socket must not exceed a power rating of
lOOW.
A WARNING
Take care when using the cigarette lighter.
Carelessness or negligence when using the
cigarette lighter can cause burns.
CD CAUTION
- To avoid damage to the vehicle's electrical
system, never connect equipment that gen­
erates electrical current, such as a solar
panel or battery charger, to the 12 Volt
sockets or cigarette lighter in order to
charge the vehicle's battery.
- Always use the correct type of plugs to
avoid damaging the sockets.

Downloaded from www.Manualslib.com manuals search engine 0
0
N
,.....
N
......
0
,.....
Vl

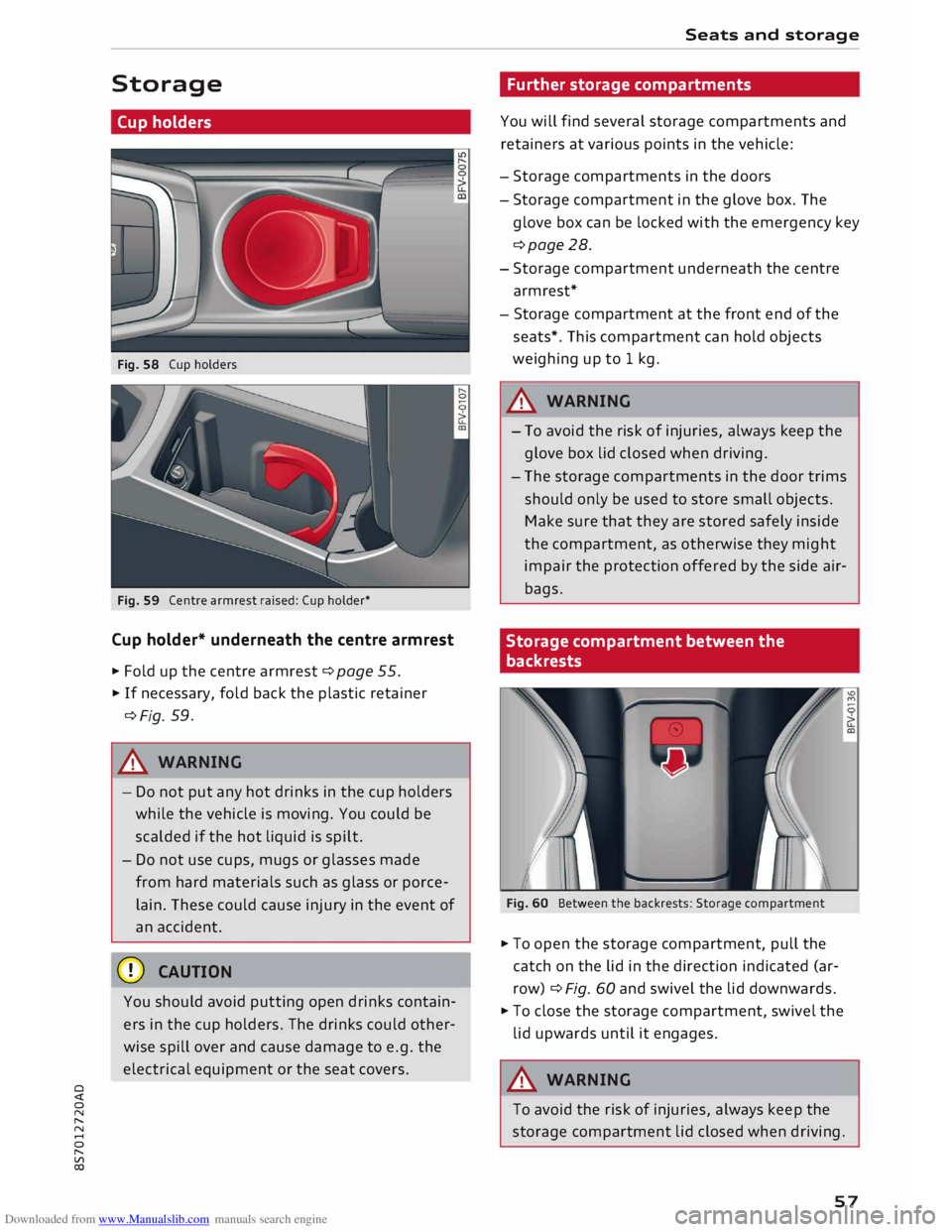

CX) Storage
Cup holders
Fig. 58 Cup holders
Fig. 59 Centre armrest raised: Cup holder*
Cup holder* underneath the centre armrest
"" Fold up the centre armrest ¢ page 55.
""If necessary, fold back the plastic retainer
¢Fig. 59 .
.&_ WARNING
- Do not put any hot drinks in the cup holders
while the vehicle is moving. You could be
scalded if the hot liquid is spilt.
- Do not use cups, mugs or glasses made
from hard materials such as glass or porce­
lain. These could cause injury in the event of
an accident.
CD CAUTION
You should avoid putting open drinks contain­
ers in the cup holders. The drinks could other­
wise spill over and cause damage to e.g. the
electrical equipment or the seat covers. Seats
and storage
Further storage compartments
You will find several storage compartments and
retainers at various points in the vehicle:
- Storage compartments in the doors
- Storage compartment in the glove box. The
glove box can be locked with the emergency key
¢page 28.
- Storage compartment underneath the centre
armrest*
- Storage compartment at the front end of the
seats*. This compartment can hold objects
weighing up to 1 kg.
.&_ WARNING
- To avoid the risk of injuries, always keep the
glove box lid closed when driving.
- The storage compartments in the door trims
should only be used to store small objects.
Make sure that they are stored safely inside
the compartment, as otherwise they might
impair the protection offered by the side air­
bags.
Storage compartment between the
backrests
Fig. 60 Between the backrests: Storage compartment
""To open the storage compartment, pull the
catch on the lid in the direction indicated (ar­
row) ¢ Fig. 60 and swivel the lid downwards.
""To close the storage compartment, swivel the
lid upwards until it engages.
.&_ WARNING
To avoid the risk of injuries, always keep the
storage compartment lid closed when driving.
57

Downloaded from www.Manualslib.com manuals search engine Seats
and storage
Luggage compartment
General notes
A WARNING
Please refer to the important safety notes on
¢page 227, Stowing Luggage safely.
Load-through hatch with bag
Applies to: vehicles with load-through hatch and removable
ski bag
The bag can be used to transport Long items
(such as skis).
Fig. 61 Luggage compartment: Cover
AUD!
Fig. 62 Luggage compartment: Securing the bag
Loading
� Open the flap for the storage compartment be­
tween the backrests ¢page 57.
� Open the boot lid.
� Press the release catch and fold down the cover
for the load-through hatch towards the lug­
gage compartment ¢ Fig. 61.
� Push the bag (with the zip pointing towards the
rear of the vehicle) from the luggage compart­
ment into the passenger compartment ¢.&_.
� Load up the ski bag.
58 Securing
the bag
� Hook each of the attachments on the two fas­
tening belts into the corresponding rear fasten­
ing ring ¢Fig. 62.
A WARNING
The bag must be strapped in place with the
two fastening belts after it has been loaded.
(D) Note
- Fold up the bag only when it is dry.
- Place skis in the bag with their tips facing
forwards and ski poles with their tips facing
backwards.
Lowering the luggage compartment floor
panel
The Luggage compartment floor panel can be
Lowered in certain special cases.
Fig. 64 Luggage compartment: Spare wheel removed
� Take out the floor panel ¢ page 270.
� Remove the plastic base panels ¢ Fig. 63.
� Turn the knob anti-clockwise and take out the
foam insert.
� Take out the spare wheel.
