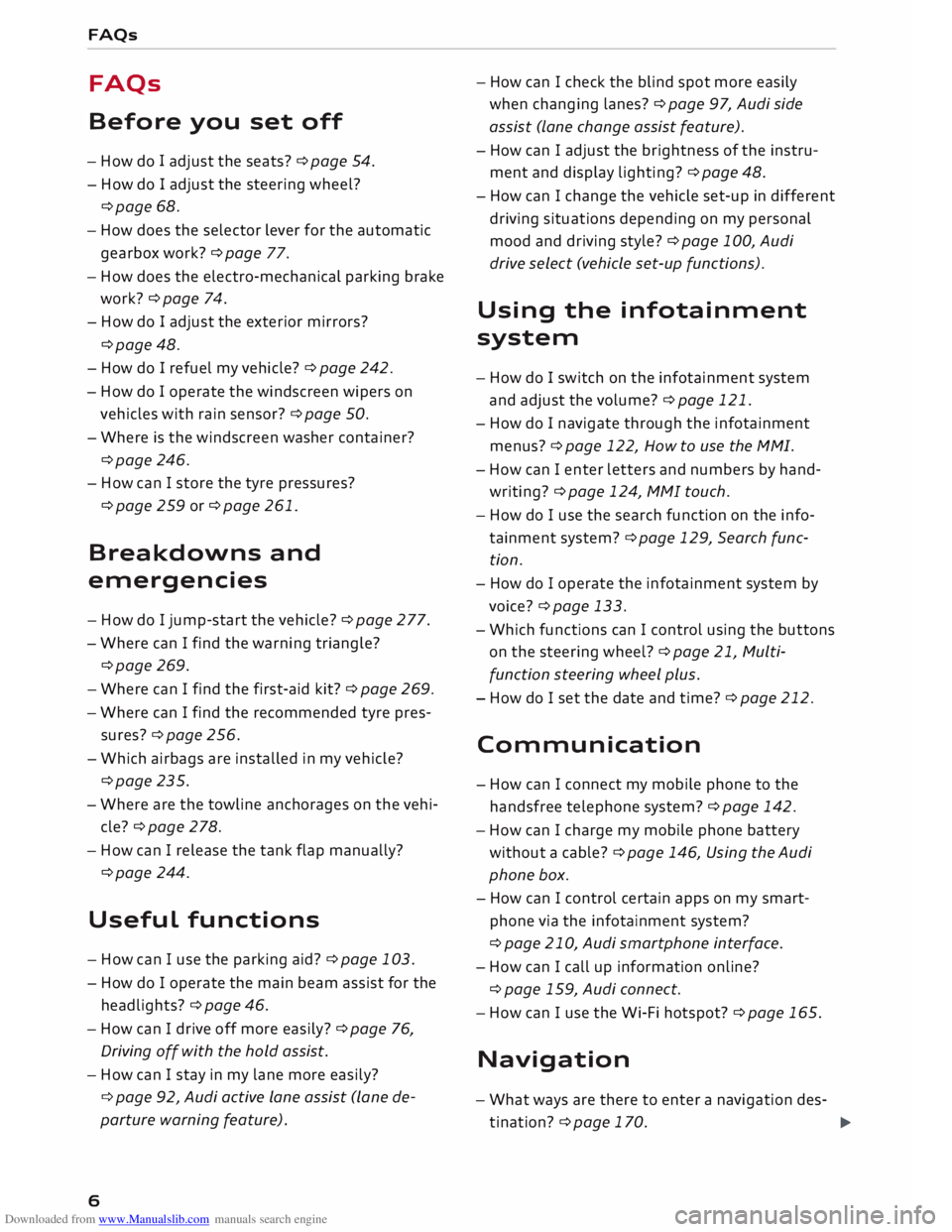

FAQs
Before you set off
- How do I adjust the seats? ¢ page 54.
- How do I adjust the steering wheel?
¢page 68.
- How does the selector lever for the automatic
gearbox work? ¢ page 77.
- How does the electro-mechanical parking brake
work? ¢page 74.
- How do I adjust the exterior mirrors?
¢page 48.
- How do I refuel my vehicle? ¢ page 242.
- How do
I operate
the windscreen wipers on
vehicles with rain sensor? ¢ page 50.
- Where is the windscreen washer container?
¢page 246.
- How can I store the tyre pressures?
¢page 259 or ¢page 261.
Breakdowns and
emergencies
- How do I jump-start the vehicle? ¢page 277.
- Where can I find the warning triangle?
¢page 269.
- Where can I find the first-aid kit? ¢ page 269.
- Where can I find the recommended tyre pres-
sures? ¢ page 256.
- Which airbags are installed in my vehicle?
¢page 235.
- Where are the towline anchorages on the vehi­
cle? ¢page 278.
- How can I release the tank flap manually?
¢page 244.
Useful functions
- How can I use the parking aid?¢ page 103.
- How do I operate the main beam assist for the
headlights? ¢ page 46.
- How can I drive off more easily? ¢ page 76,
Driving off with the hold assist.
- How can I stay in my lane more easily?
6 ¢
page 92, Audi active lane assist (lane de­
parture warning feature). -
How can I check the blind spot more easily
when changing lanes? ¢page 97, Audi side
assist (lane change assist feature).
- How can I adjust the brightness of the instru­
ment and display lighting? ¢ page 48.
- How can I change the vehicle set-up in different
driving situations depending on my personal
mood and driving style? ¢page 100, Audi
drive select (vehicle set-up functions).
Using the infotainment
system
- How do I switch on the infotainment system
and adjust the volume? ¢ page 121.
- How do
I navigate
through the infotainment
menus? ¢ page 122, How to use the MMI.
- How can I enter letters and numbers by hand­
writing? ¢ page 124, MMI touch.
- How do I use the search function on the info­
tainment system?¢ page 129, Search func­
tion.
- How do I operate the infotainment system by
voice? ¢ page 133.
- Which functions can I control using the buttons
on the steering wheel?¢ page 21, Multi­
function steering wheel plus.
- How do I set the date and time? ¢ page 212.
Communication
- How can I connect my mobile phone to the
handsfree telephone system? ¢ page 142.
- How can I charge my mobile phone battery
without a cable? ¢ page 146, Using the Audi
phone box.
- How can I control certain apps on my smart­
phone via the infotainment system?
¢ page 210, Audi smartphone interface.
- How can I call up information online?
¢ page 159, Audi connect.
- How can I use the Wi-Fi hotspot?¢ page 165.
Navigation
- What ways are there to enter a navigation des-
tination? ¢ page 170.
�

Downloaded from www.Manualslib.com manuals search engine Instruments
and warning/indicator Lamps
Engine management
¢page 17
Engine management system (diesel
engines)./ ¢page 17
Emission control system
¢page 17
Diesel particulate filter*
¢page 17 Central
warning/indicator lamp
¢page 15
Electro -mechanical power steering ./
¢page 116
Suspension control*
¢page 19
Rear spoiler
¢page 117
Engine speed governing
¢page 17 Further
indicator lamps
12 Engine
oil level
¢page 18
Engine oil sensor
¢page 18
Battery charge
¢page 15
Fuel tank system
¢page 18
Washer fluid level
¢page 18
Windscreen wipers
¢page 18
Remote control key
¢page 70
Battery in remote control key
¢page 29
Headlight range control
¢page 19
Adaptive light*
¢page 19
Light sensor/rain sensor*
¢page 19
Steering lock
¢page 15
Engine start system
¢page 15 ¢¢
iljN
1 \
(®)
LIM (A)
� y>)}
P@
P@OFF
�
j �
tiiiq
0
(®) Turn
signals
¢page 19
Cruise control system*
¢page 86
Active lane assist*
¢page 93
Hold assist*
¢page 76
Speed limiter*
¢page 88
Start/stop system*
¢page 71
Start/stop system*
¢page 71
Convenience key
¢page 71
•
... ,,,. ,:
•
... ,,,. ,:
Electro -mechanical parking brake
¢page 13
Active lane assist*
¢page 93
Audi side assist*
¢page 99
. . . .
.
- '... .
Electro -mechanical parking brake
¢page 13

Downloaded from www.Manualslib.com manuals search engine Instruments
and warning/indicator Lamps

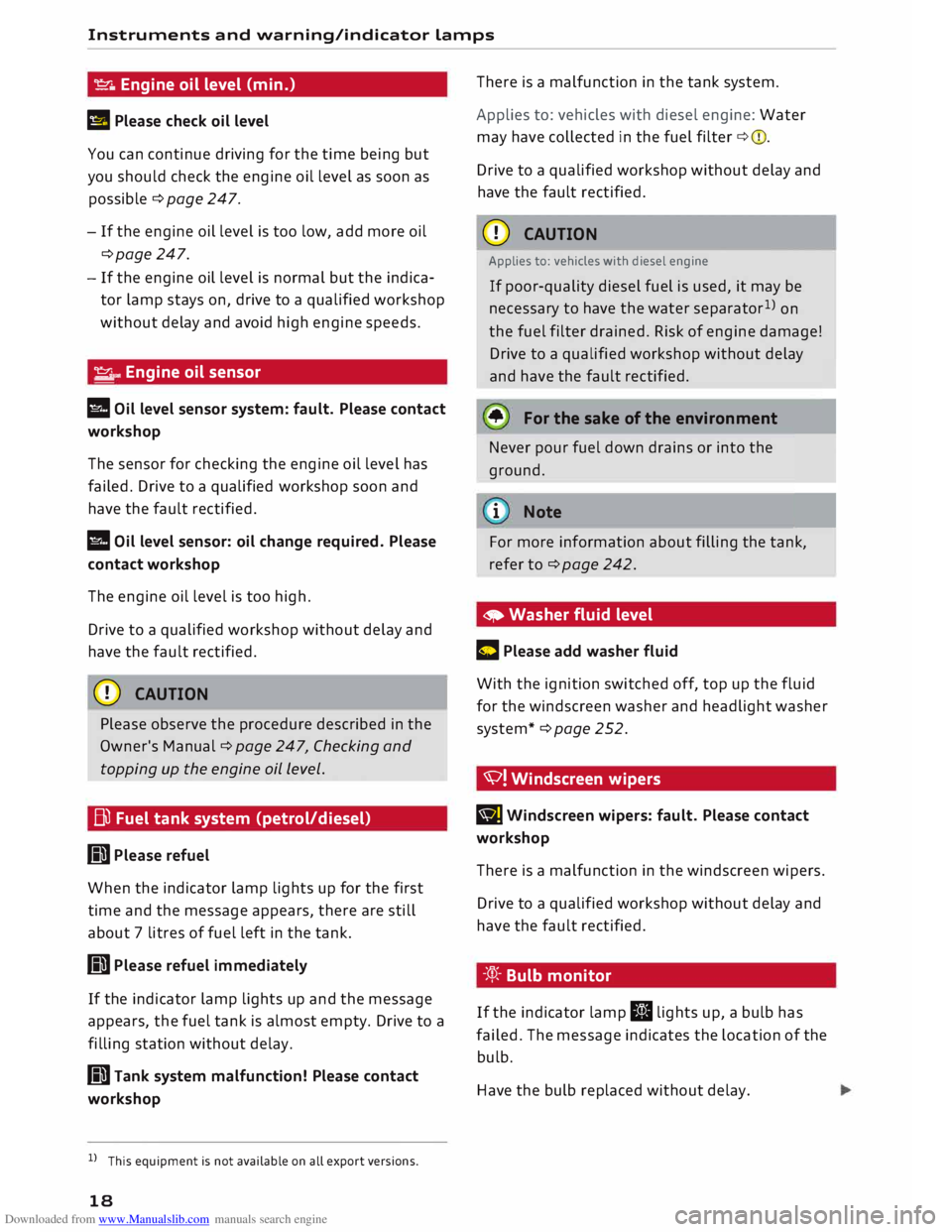

� Engine oil level (min.)
II Please check oil level
You can continue driving for the time being but
you should check the engine oil level as soon as
possible ¢ page 247.
- If the engine oil level is too low, add more oil
¢page 247.
- If the engine oil level is normal but the indica­
tor lamp stays on, drive to a qualified workshop
without delay and avoid high engine speeds.
� ..
Engine oil sensor
l!I Oil level sensor system: fault. Please contact
workshop
The sensor for checking the engine oil level has
failed. Drive to a qualified workshop soon and
have the fault rectified.
l!I Oil level sensor: oil change required. Please
contact workshop
The engine oil level is too high.
Drive to a qualified workshop without delay and
have the fault rectified.
CD CAUTION
Please observe the procedure described in the
Owner's Manual¢ page 247, Checking and
topping up the engine oil Level.
Bi) Fuel tank system (petrol/diesel)
GD Please refuel
When the indicator lamp lights up for the first
time and the message appears, there are still
about 7 litres of fuel left in the tank.
GD Please refuel immediately
If the indicator lamp lights up and the message
appears, the fuel tank is almost empty. Drive to a
filling station without delay.
GD Tank system malfunction! Please contact
workshop
l l
This equipment is not available on all export versions.
18 There
is a malfunction in the tank system.
Applies to: vehicles with diesel engine: Water
may have collected in the fuel filter ¢(D.
Drive to a qualified workshop without delay and
have the fault rectified.
CD CAUTION
Applies to: vehicles with diesel engine
If poor-quality diesel fuel is used, it may be
necessary to have the water separator 1
)
on
the fuel filter drained. Risk of engine damage!
Drive to a qualified workshop without delay
and have the fault rectified.
• For the sake of the environment
Never pour fuel down drains or into the
ground.
.
1 Note
For more information about filling the tank,
refer to ¢page 242.
• Washer fluid level
C Please add washer fluid
With the ignition switched off, top up the fluid
for the windscreen washer and headlight washer
system* ¢page 252.
'V! Windscreen wipers
BJ Windscreen
wipers: fault. Please contact
workshop
There is a malfunction in the windscreen wipers.
Drive to a qualified workshop without delay and
have the fault rectified.
-'.q):- Bulb monitor
If the indicator lamp II lights up, a bulb has
failed. The message indicates the location of the
bulb.
Have the bulb replaced without delay.

Downloaded from www.Manualslib.com manuals search engine 0
0
N
,.....
N
....
0
,.....
Vl
CX) Instruments
and warning/indicator lamps

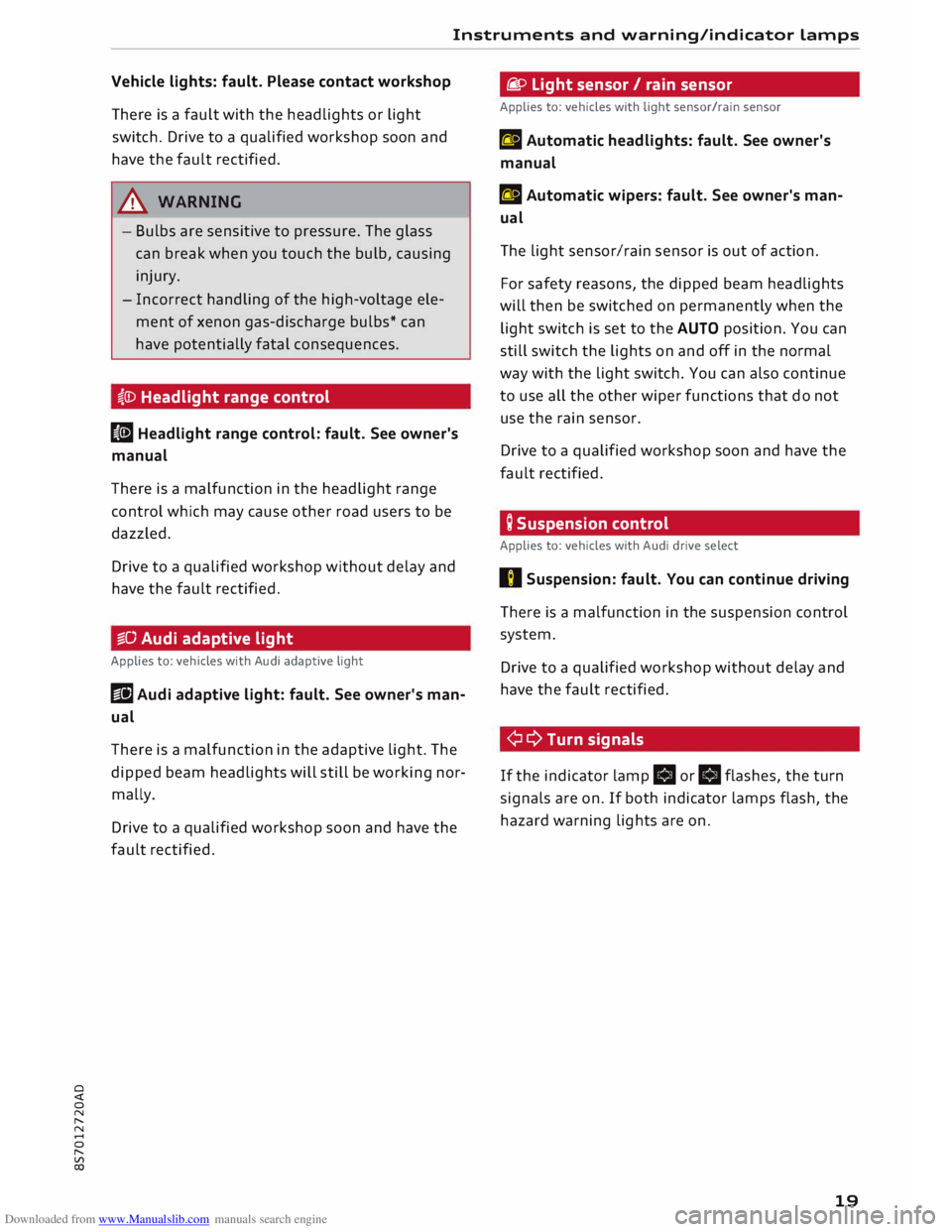

Vehicle lights: fault. Please contact workshop
There is a fault with the headlights or light
switch. Drive to a qualified workshop soon and
have the fault rectified.
A WARNING
- Bulbs are sensitive to pressure. The glass
can break when you touch the bulb, causing
injury.
- Incorrect handling of the high-voltage ele­
ment of xenon gas-discharge bulbs* can
have potentially fatal consequences.
�CD Headlight range control
II Headlight range control: fault. See owner's
manual
There is a malfunction in the headlight range
control which may cause other road users to be
dazzled.
Drive to a qualified workshop without delay and
have the fault rectified.
iSD Audi adaptive light
Applies to: vehicles with Audi adaptive light
Ill Audi adaptive light: fault. See owner's man­
ual
There is a malfunction in the adaptive light. The
dipped beam headlights will still be working nor­
mally.
Drive to a qualified workshop soon and have the
fault rectified. fi.D
Light sensor/ rain sensor
Applies to: vehicles with light sensor/rain sensor
fal Automatic headlights: fault. See owner's
manual
fal Automatic wipers: fault. See owner's man­
ual
The light sensor/rain sensor is out of action.
For safety reasons, the dipped beam headlights
will then be switched on permanently when the
light switch is set to the AUTO position. You can
still switch the lights on and off in the normal
way with the light switch. You can also continue
to use all the other wiper functions that do not
use the rain sensor.
Drive to a qualified workshop soon and have the
fault rectified.
; Suspension control
Applies to: vehicles with Audi drive select
II Suspension: fault. You can continue driving
There is a malfunction in the suspension control
system.
Drive to a qualified workshop without delay and
have the fault rectified.
¢ Q Turn signals
If the indicator lamp.
or.
flashes, the turn
signals are on. If both indicator lamps flash, the
hazard warning lights are on.
19

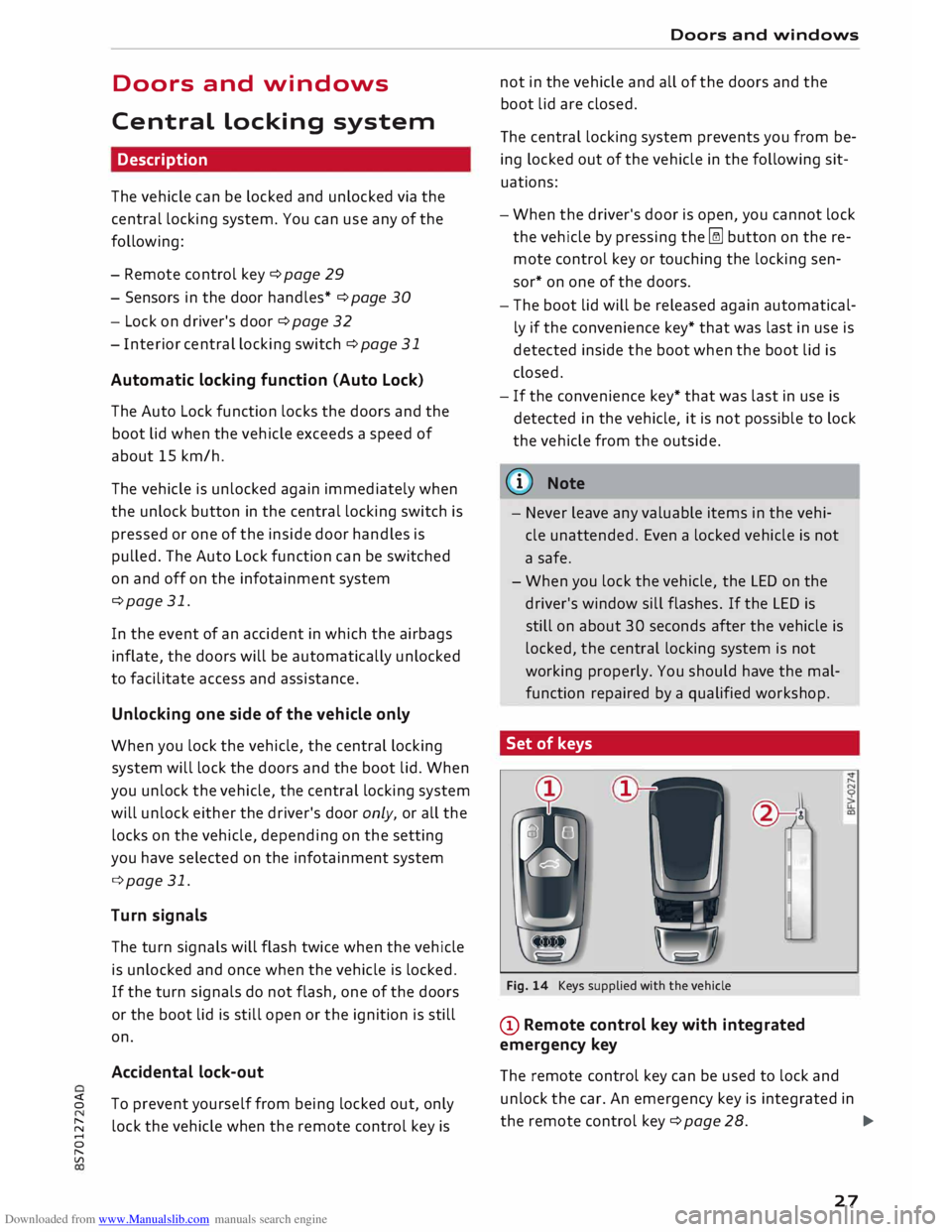

Downloaded from www.Manualslib.com manuals search engine Doors
and windows
Central locking system
Description
The vehicle can be locked and unlocked via the
central locking system. You can use any of the
following:
- Remote control key¢ page 29
- Sensors in the door handles* ¢page 30
- Lock on driver's door¢ page 32
- Interior central locking switch ¢page 31
Automatic locking function (Auto Lock)
The Auto Lock function locks the doors and the
boot lid when the vehicle exceeds a speed of
about 15 km/h.
The vehicle is unlocked again immediately when
the unlock button in the central locking switch is
pressed or one of the inside door handles is
pulled. The Auto Lock function can be switched
on and off on the infotainment system
¢page 31.
In the event of an accident in which the airbags
inflate, the doors will be automatically unlocked
to facilitate access and assistance.
Unlocking one side of the vehicle only
When you lock the vehicle, the central locking
system will lock the doors and the boot lid. When
you unlock the vehicle, the central locking system
will unlock either the driver's door only, or all the
locks on the vehicle, depending on the setting
you have selected on the infotainment system
¢page 31.
Turn signals
The turn signals will flash twice when the vehicle
is unlocked and once when the vehicle is locked.
If the turn signals do not flash, one of the doors
or the boot lid is still open or the ignition is still
on.
Accidental lock-out
� To prevent yourself from being locked out, only
� lock
the vehicle when the remote control key is
......
0
"
Vl Doors
and windows
not in the vehicle and all of the doors and the
boot lid are closed.
The central locking system prevents you from be­
ing locked out of the vehicle in the following sit­
uations:
- When the driver's door is open, you cannot lock
the vehicle by pressing the ill! button on the re­
mote control key or touching the locking sen­
sor* on one of the doors.
- The boot lid will be released again automatical­
ly if the convenience key* that was last in use is
detected inside the boot when the boot lid is
closed.
- If the convenience key* that was last in use is
detected in the vehicle, it is not possible to lock
the vehicle from the outside.
(CD) Note
- Never leave any valuable items in the vehi­
cle unattended. Even a locked vehicle is not
a safe.
- When you lock the vehicle, the LED on the
driver's window sill flashes. If the LED is
still on about 30 seconds after the vehicle is
locked, the central locking system is not
working properly. You should have the mal­
function repaired by a qualified workshop.
Set of keys
1
Fig. 14 Keys supplied with the vehicle
(D Remote control key with integrated
emergency key
The remote control key can be used to lock and
unlock the car. An emergency key is integrated in
the remote control key¢ page 28.
.,.
27

Downloaded from www.Manualslib.com manuals search engine Doors
and windows

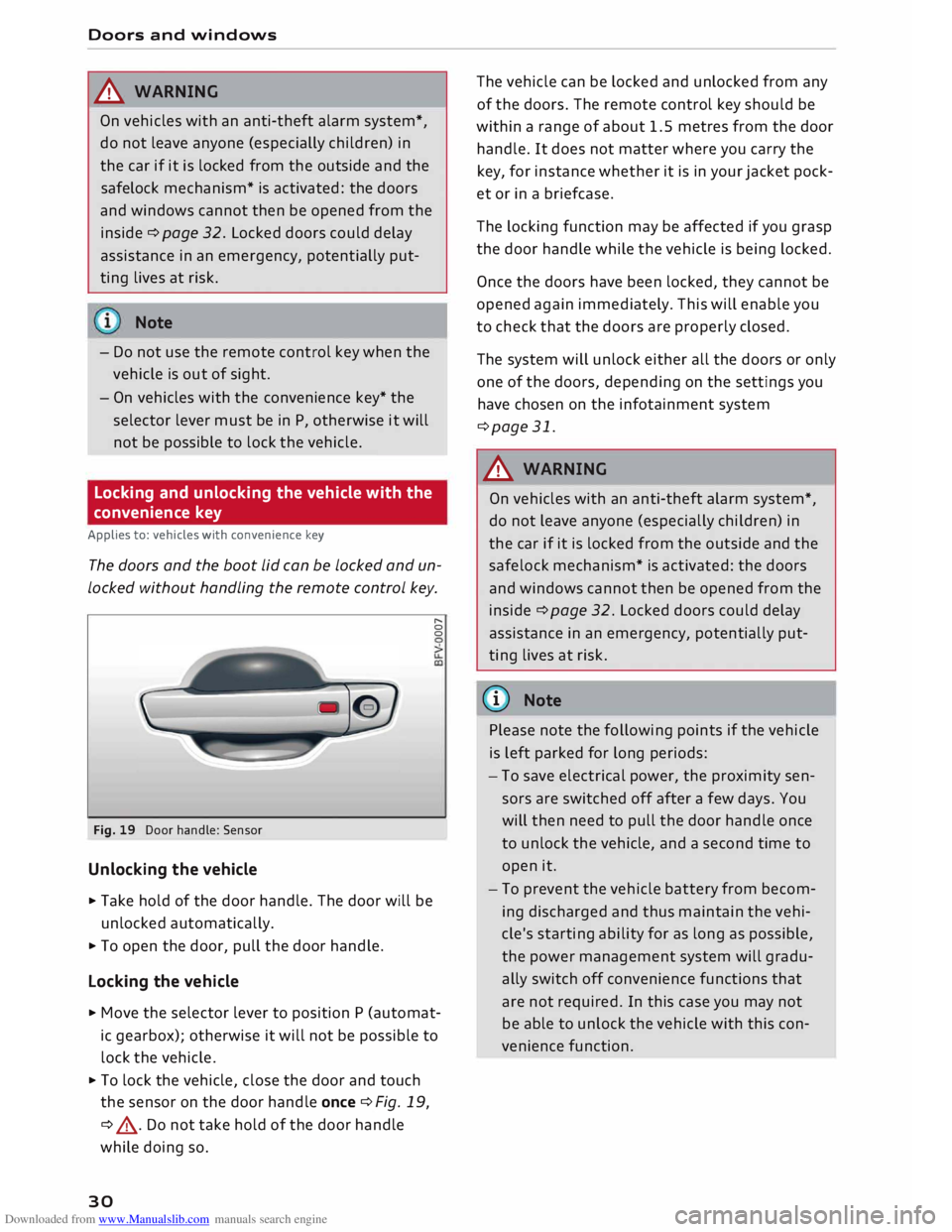

_& WARNING
On vehicles with an anti-theft alarm system*,
do not leave anyone (especially children) in
the car if it is locked from the outside and the
safelock mechanism* is activated: the doors
and windows cannot then be opened from the
inside ¢ page 32. Locked doors could delay
assistance in an emergency, potentially put­
ting lives at risk.
Note
- Do not use the remote control key when the
vehicle is out of sight.
- On vehicles with the convenience key* the
selector lever must be in P, otherwise it will
not be possible to lock the vehicle.
Locking and unlocking the vehicle with the
convenience key
Applies to: vehicles with convenience key
The doors and the boot lid can be locked and un­
locked without handling the remote control key.
Fig. 19 Door handle: Sensor
Unlocking the vehicle
... Take hold of the door handle. The door will be
unlocked automatically.
... To open the door, pull the door handle.
Locking the vehicle r,.
0
0
... Move the selector lever to position P (automat­
ic gearbox); otherwise it will not be possible to
lock the vehicle .
... To lock the vehicle, close the door and touch
the sensor on the door handle once ¢Fig. 19,
¢ .&, . Do not take hold of the door handle
while doing so.
30 The
vehicle can be locked and unlocked from any
of the doors. The remote control key should be
within a range of about 1.5 metres from the door
handle. It does not matter where you carry the
key, for instance whether it is in your jacket pock­
et or in a briefcase.
The locking function may be affected if you grasp
the door handle while the vehicle is being locked.
Once the doors have been locked, they cannot be
opened again immediately. This will enable you
to check that the doors are properly closed.
The system will unlock either all the doors or only
one of the doors, depending on the settings you
have chosen on the infotainment system
¢page 31.
_& WARNING
On vehicles with an anti-theft alarm system*,
do not leave anyone (especially children) in
the car if it is locked from the outside and the
safelock mechanism* is activated: the doors
and windows cannot then be opened from the
inside ¢ page 32. Locked doors could delay
assistance in an emergency, potentially put­
ting lives at risk.
{Q)) Note
Please note the following points if the vehicle
is left parked for long periods:
- To save electrical power, the proximity sen­
sors are switched off after a few days. You
will then need to pull the door handle once
to unlock the vehicle, and a second time to
open it.
- To prevent the vehicle battery from becom­
ing discharged and thus maintain the vehi­
cle's starting ability for as long as possible,
the power management system will gradu­
ally switch off convenience functions that
are not required. In this case you may not
be able to unlock the vehicle with this con­
venience function.

Downloaded from www.Manualslib.com manuals search engine 0
0
N
,.....
N
.....
0
,.....
Vl

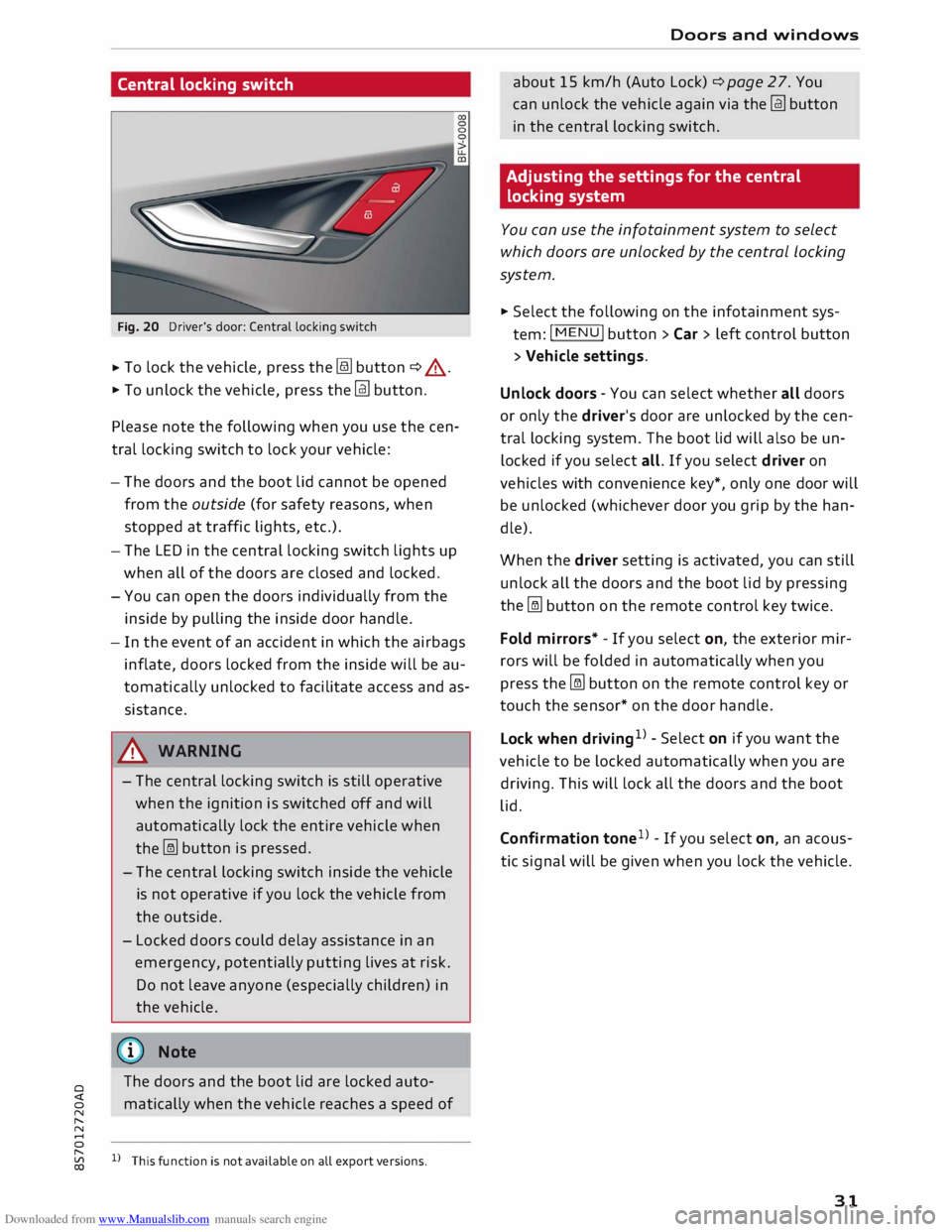

CX) Central
locking switch
Fig. 20 Driver's door: Central locking switch
� To
lock the vehicle, press the[@] button ¢ .&_ .
� To unlock the vehicle, press the�
button.
Please note the following when you use the cen­
tral locking switch to lock your vehicle:
- The doors and the boot lid cannot be opened
from the outside (for safety reasons, when
stopped at traffic lights, etc.).
- The LED in the central locking switch lights up
when all of the doors are closed and locked.
- You can open the doors individually from the
inside by pulling the inside door handle.
- In the event of an accident in which the airbags
inflate, doors locked from the inside will be au­
tomatically unlocked to facilitate access and as­
sistance.
A WARNING
- The central locking switch is still operative
when the ignition is switched off and will
automatically lock the entire vehicle when
the �
button is pressed.
- The central locking switch inside the vehicle
is not operative if you lock the vehicle from
the outside.
- Locked doors could delay assistance in an
emergency, potentially putting lives at risk.
Do not leave anyone (especially children) in
the vehicle.
ij} Note
The doors and the boot lid are locked auto­
matically when the vehicle reaches a speed of
1} This function is not available on all export versions. Doors
and windows
about 15 km/h (Auto Lock) ¢page 27. You
can unlock the vehicle again via the �
button
in the central locking switch.
Adjusting the settings for the central
locking system
You can use the infotainment system to select
which doors are unlocked by the central Locking
system.
� Select the following on the infotainment sys­
tem: I MENU
I button >Car> left control button
> Vehicle settings.
Unlock doors -You can select whether all doors
or only the driver's door are unlocked by the cen­
tral locking system. The boot lid will also be un­
locked if you select all. If you select driver on
vehicles with convenience key*, only one door will
be unlocked (whichever door you grip by the han­
dle).
When the driver setting is activated, you can still
unlock all the doors and the boot lid by pressing
the �
button on the remote control key twice.
Fold mirrors* -If you select on, the exterior mir­
rors will be folded in automatically when you
press the�
button on the remote control key or
touch the sensor* on the door handle.
Lock when driving 1
)
-Select on if you want the
vehicle to be locked automatically when you are
driving. This will lock all the doors and the boot
lid.
Confirmation tone1
)
-If you select on, an acous­
tic signal will be given when you lock the vehicle.
31

Downloaded from www.Manualslib.com manuals search engine 0
0
N
,.....

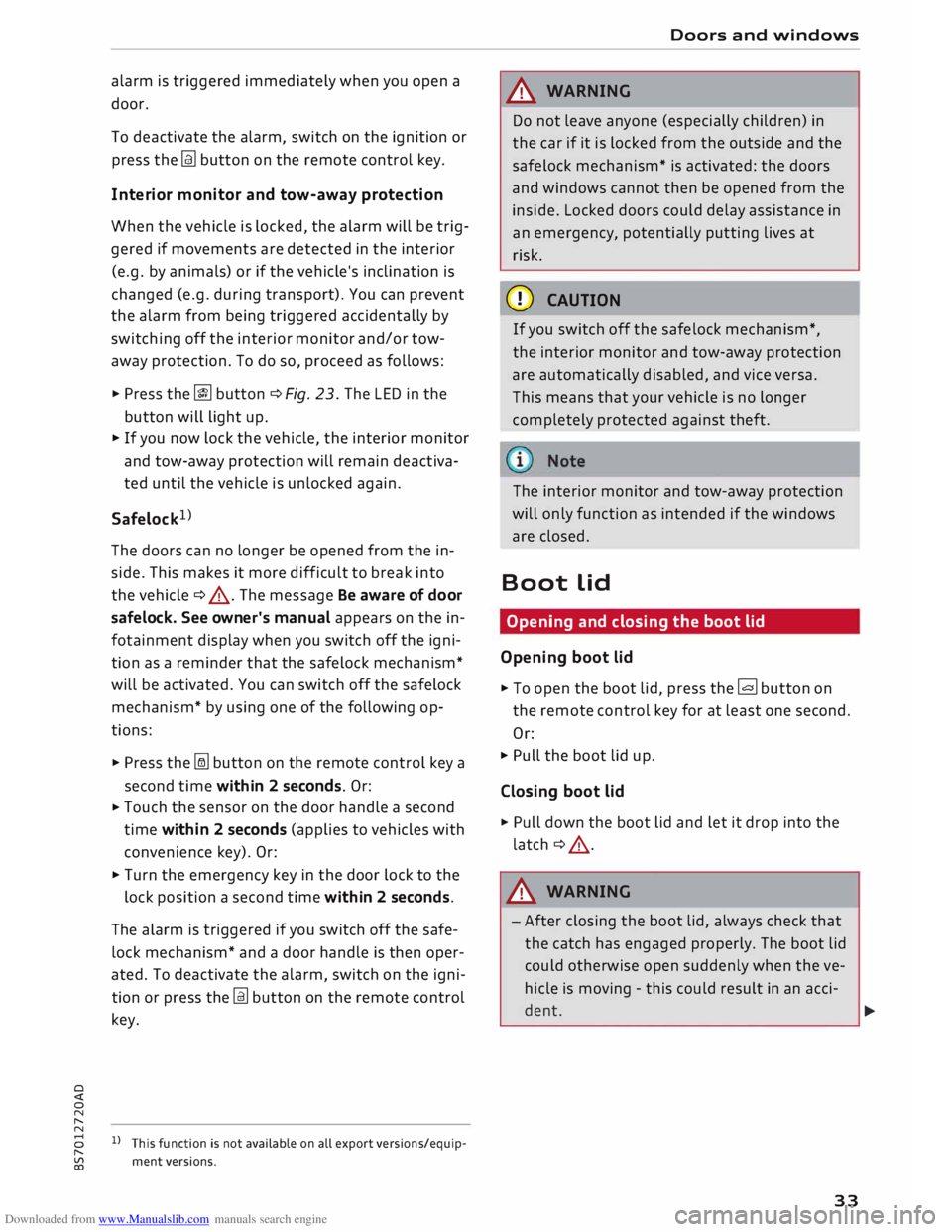

N alarm
is triggered immediately when you open a
door.
To deactivate the alarm, switch on the ignition or
press the[@] button on the remote control key.
Int erior monitor and tow-away prot ection
When the vehicle is locked, the alarm will be trig­
gered if movements are detected in the interior
(e.g. by animals) or if the vehicle's inclination is
changed (e.g. during transport). You can prevent
the alarm from being triggered accidentally by
switching off the interior monitor and/or tow­
away protection. To do so, proceed as follows:
� Press the� button¢ Fig. 23. The LED in the
button will light up.
� If you now lock the vehicle, the interior monitor
and tow-away protection will remain deactiva­
ted until the vehicle is unlocked again.
Safelo ck1
)
The doors can no longer be opened from the in­
side. This makes it more difficult to break into
the vehicle ¢ A . The message Be aware of door
sa felock. See owner's manual appears on the in­
fotainment display when you switch off the igni­
tion as a reminder that the safelock mechanism*
will be activated. You can switch off the safelock
mechanism* by using one of the following op­
tions:
� Press the� button on the remote control key a
second time within 2 seconds. Or:
� Touch
the sensor on the door handle a second
time within 2 seconds (applies to vehicles with
convenience key). Or:
� Turn the emergency key in the door lock to the
lock position a second time within 2 seconds.
The alarm is triggered if you switch off the safe­
lock mechanism* and a door handle is then oper­
ated. To deactivate the alarm, switch on the igni­
tion or press the� button on the remote control
key.
8 1}This function is not available on all export versions/equip­
,.....
� ment
versions. Doors
and windows
A WARNING
Do not leave anyone (especially children) in
the car if it is locked from the outside and the
safelock mechanism* is activated: the doors
and windows cannot then be opened from the
inside. Locked doors could delay assistance in
an emergency, potentially putting lives at
risk.
CD CAUTION
If you switch off the safe lock mechanism*,
the interior monitor and tow-away protection
are automatically disabled, and vice versa.
This means that your vehicle is no longer
completely protected against theft.
The interior monitor and tow-away protection
will only function as intended if the windows
are closed.
Boot lid
Opening and closing the boot lid
Opening boot lid
� To open the boot lid, press the� button on
the remote control key for at least one second.
Or:
� Pull the boot lid up.
Closing boot lid
� Pull down the boot lid and let it drop into the
latch ¢ A .
A WARNING
- After closing the boot lid, always check that
the catch has engaged properly. The boot lid
could otherwise open suddenly when the ve­
hicle is moving -this could result in an acci-
dent. ..,.
33

Downloaded from www.Manualslib.com manuals search engine 0
0
N
,.....
N
....
0
,.....
Vl

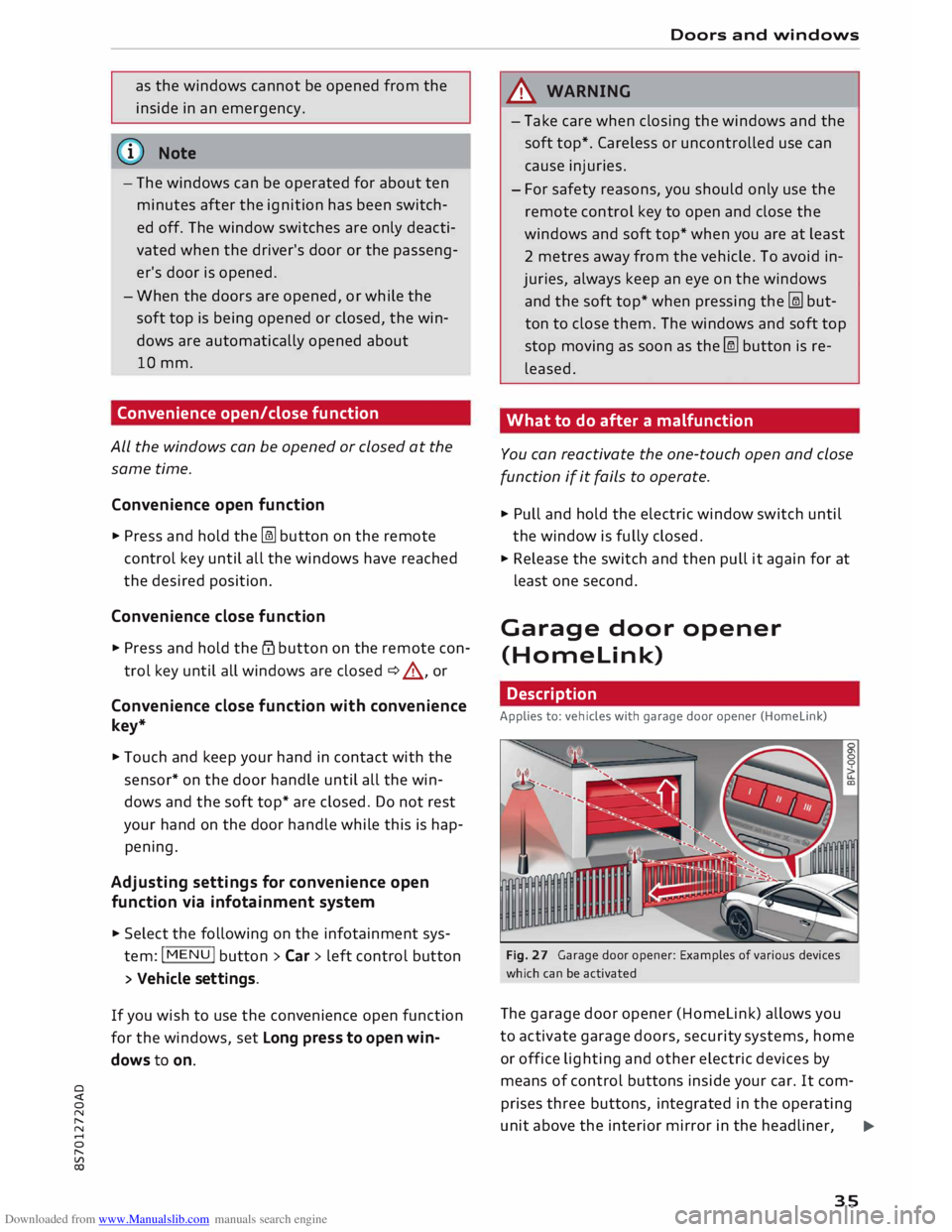

CX) as
the windows cannot be opened from the
inside in an emergency.
(©) Note
- The windows can be operated for about ten
minutes after the ignition has been switch­
ed off. The window switches are only deacti­
vated when the driver's door or the passeng­
er's door is opened.
- When the doors are opened, or while the
soft top is being opened or closed, the win­
dows are automatically opened about
10mm.
Convenience open/close function
All the windows can be opened or closed at the
same time.
Convenience open function
"" Press and hold the� button on the remote
control key until all the windows have reached
the desired position.
Convenience close function
"" Press and hold the� button on the remote con-
trol key until all windows are closed ¢ ,& , or
Convenience close function with convenience
key*
"" Touch and keep your hand in contact with the
sensor* on the door handle until all the win­
dows and the soft top* are closed. Do not rest
your hand on the door handle while this is hap­
pening.
Adjusting settings for convenience open
function via infotainment system
"" Select the following on the infotainment sys­
tem: I MENU
I button
>Car> left control button
> Vehicle settings.
If you wish to use the convenience open function
for the windows, set Long press to open win­
dows to on. Doors
and windows
A WARNING
- Take care when closing the windows and the
soft top*. Careless or uncontrolled use can
cause injuries.
- For safety reasons, you should only use the
remote control key to open and close the
windows and soft top* when you are at least
2 metres away from the vehicle. To avoid in­
juries, always keep an eye on the windows
and the soft top* when pressing the I:@ but­
ton to close them. The windows and soft top
stop moving as soon as the I:@ button is re­
leased.
What to do after a malfunction
You can reactivate the one-touch open and close
function if it fails to operate.
"" Pull and hold the electric window switch until
the window is fully closed.
"" Release the switch and then pull it again for at
least one second.
Garage door opener
(Homelink)
Description
Applies to: vehicles with garage door opener (Homelink)
Fig. 27 Garage door opener: Examples of various devices
which can be activated
The garage door opener (Homelink) allows you
to activate garage doors, security systems, home
or office lighting and other electric devices by
means of control buttons inside your car. It com­
prises three buttons, integrated in the operating
unit above the interior mirror in the headliner, �
35

Downloaded from www.Manualslib.com manuals search engine 0
0
N
,.....
N
....
0
,.....
Vl
CX) -

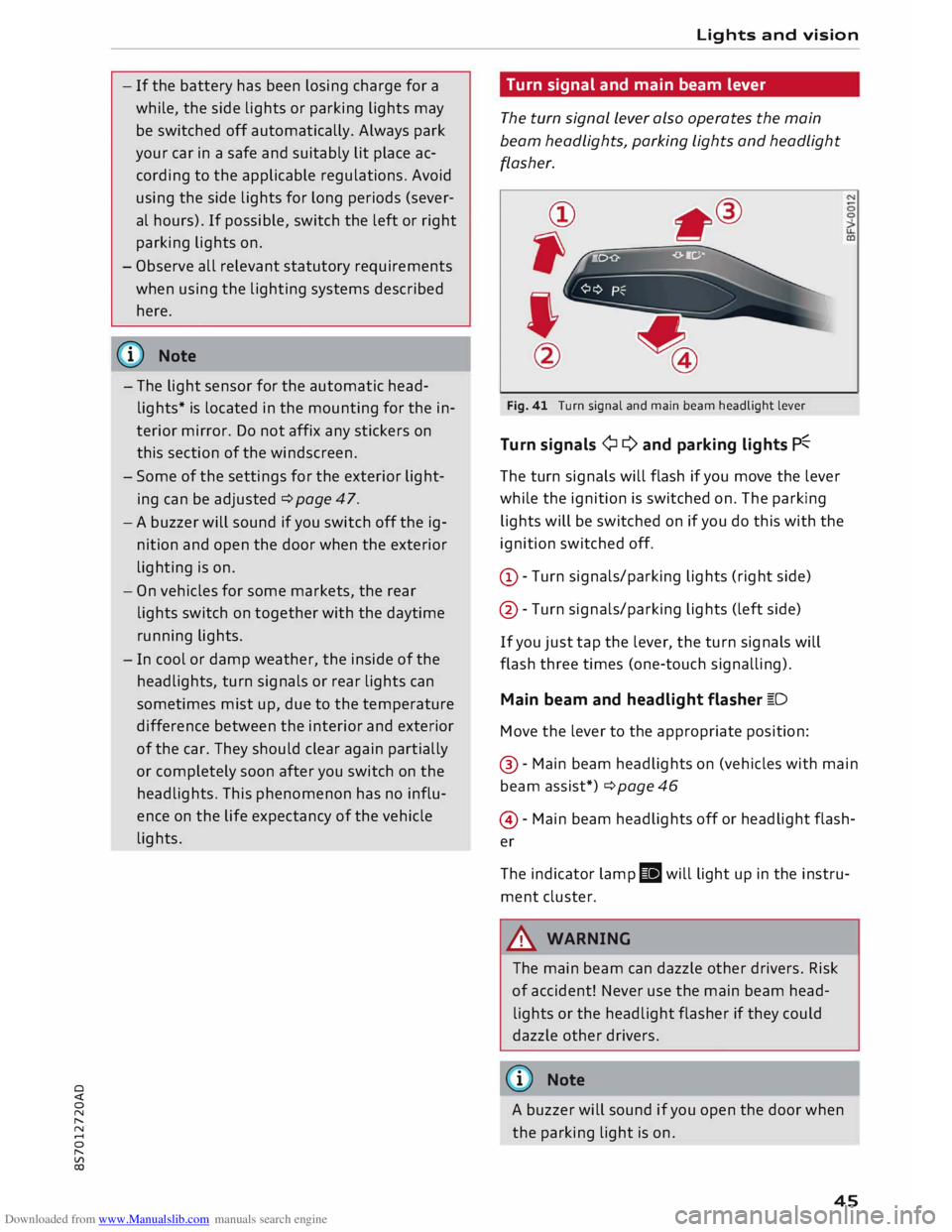

If the battery has been losing charge for a
while, the side lights or parking lights may
be switched off automatically. Always park
your car in a safe and suitably lit place ac­
cording to the applicable regulations. Avoid
using the side lights for long periods (sever­
al hours). If possible, switch the left or right
parking lights on.
- Observe all relevant statutory requirements
when using the lighting systems described
here.
(D} Note
- The light sensor for the automatic head­
lights* is located in the mounting for the in­
terior mirror. Do not affix any stickers on
this section of the windscreen.
- Some of the settings for the exterior light­
ing can be adjusted ¢ page 47.
-A buzzer will sound if you switch off the ig­
nition and open the door when the exterior
lighting is on.
- On vehicles for some markets, the rear
lights switch on together with the daytime
running lights.
- In cool or damp weather, the inside of the
headlights, turn signals or rear lights can
sometimes mist up, due to the temperature
difference between the interior and exterior
of the car. They should clear again partially
or completely soon after you switch on the
headlights. This phenomenon has no influ­
ence on the life expectancy of the vehicle
lights. Lights
and vision
Turn signal and main beam lever
The turn signal Lever also operates the main
beam headlights, parking Lights and headlight
flasher.
Fig. 41 Turn signal and main beam headlight lever
Turn signals ¢ Q and parking lights P�
The turn signals will flash if you move the lever
while the ignition is switched on. The parking
lights will be switched on if you do this with the
ignition switched off.
(D -Turn signals/parking lights (right side)
@ -Turn signals/parking lights (left side)
If you just tap the lever, the turn signals will
flash three times (one-touch signalling).
Main beam and headlight flasher �D
Move the lever to the appropriate position:
@ -Main beam headlights on (vehicles with main
beam assist*) ¢ page 46
@ -Main beam headlights off or headlight flash­
er
The indicator lamp II will light up in the instru­
ment cluster.
A WARNING
The main beam can dazzle other drivers. Risk
of accident! Never use the main beam head­
lights or the headlight flasher if they could
dazzle other drivers.
(© Note
A buzzer will sound if you open the door when
the parking light is on .
45
