Cylinder Head and valvetrain1

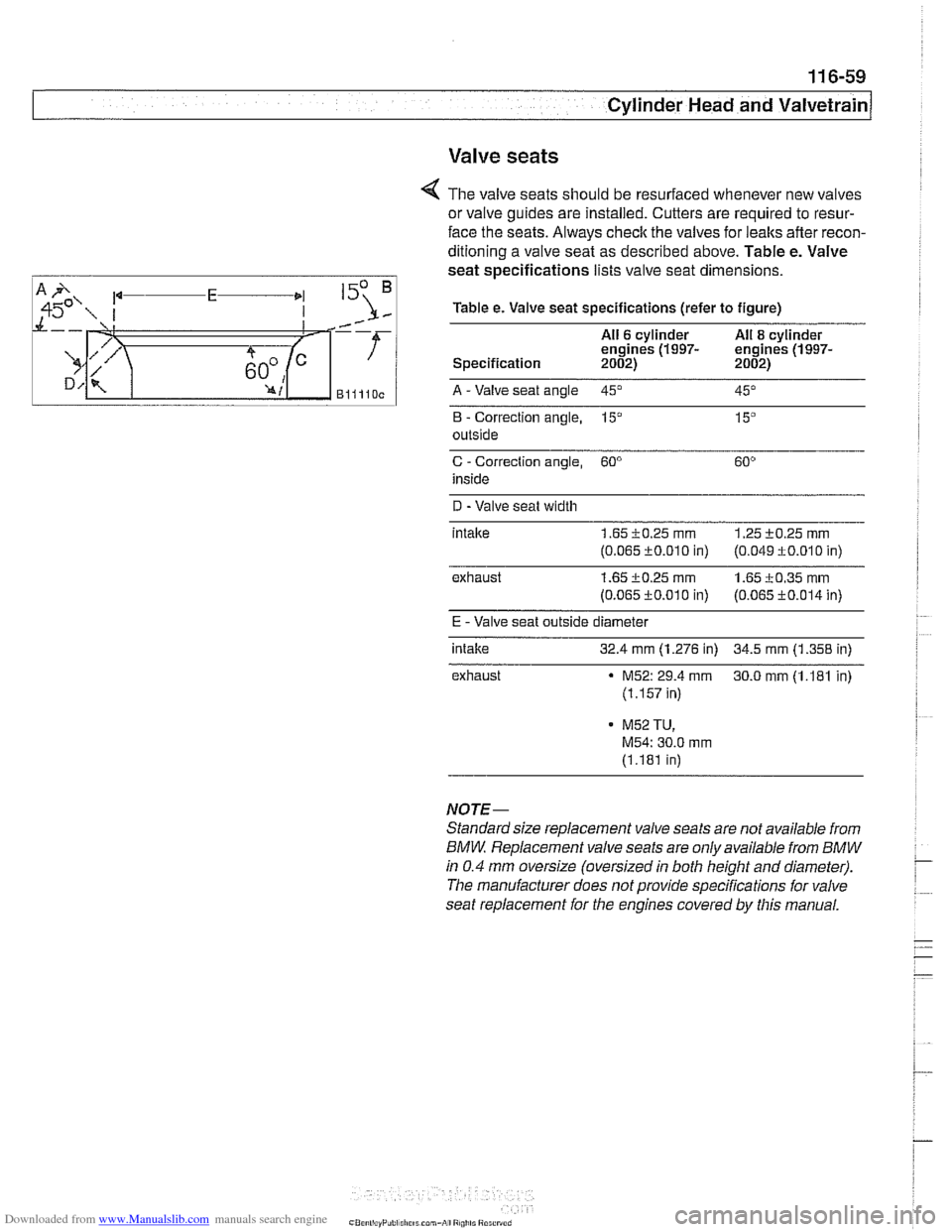

Valve seats
< The valve seats should be resurfaced whenever new valves
or valve guides are installed. Cutters are required to resur-
face the seats. Always check the valves for leaks after recon-
ditioning a valve seat as described above. Table e. Valve
seat specifications lists valve seat dimensions.
Table e. Valve seat specifications (refer to figure)
All
6 cylinder All 8 cylinder
engines (1997- engines (1997- Specification 2002) 2002)
Blllloc A -Valve seat angle 45" --. -- 45"
B - Correction angle, 15" 15"
outside
C - Correction angle, 60"
inside
D -Valve seat width
intalte
1.65 i0.25 rnrn 1.25 +0.25 rnm
(0.065 c0.010 in) (0.049 f 0.010 in)
exhaust
1.65 c0.25 rnm 1.65 i0.35 rnm
(0.065 fO.O1O in) (0.065 c0.014 in)
E - Valve seat outside diameter
intake
32.4 mm (1.276 in) 34.5 mm (1.358 in)
exhaust
M52: 29.4 rnm 30.0 rnm (1.181 in)
(1.157 in)
- M52 TU,
M54: 30.0 mrn
(1.181 in)
NOTE-
Standard size replacement valve seats are not available from
BMW Replacement valve seats are only available from BMW
in 0.4 mm oversize (oversized in both height and diameter).
The manufacturer does not provide specifications for valve
seat replacement for the engines covered by this manual.

Downloaded from www.Manualslib.com manuals search engine
11 6-60
Cylinder Head and Valvetrain

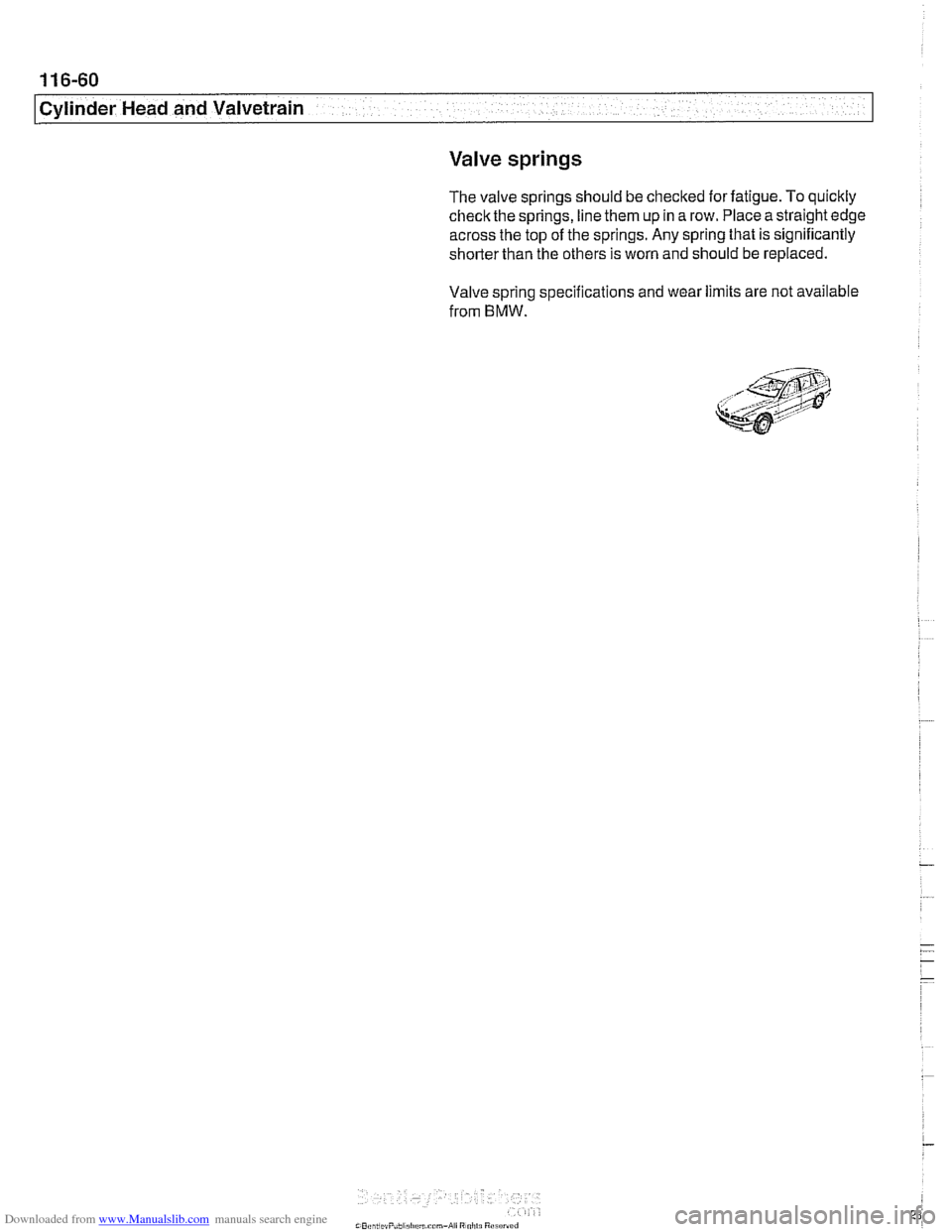

Valve springs
The valve springs should be checked for fatigue. To quickly
check the springs, line them up in a row. Place astraight edge
across the top of the springs. Any spring that is significantly
shorter than the others is worn and should be replaced.
Valve spring specifications and wear limits are not available
from
BMW.

Downloaded from www.Manualslib.com manuals search engine

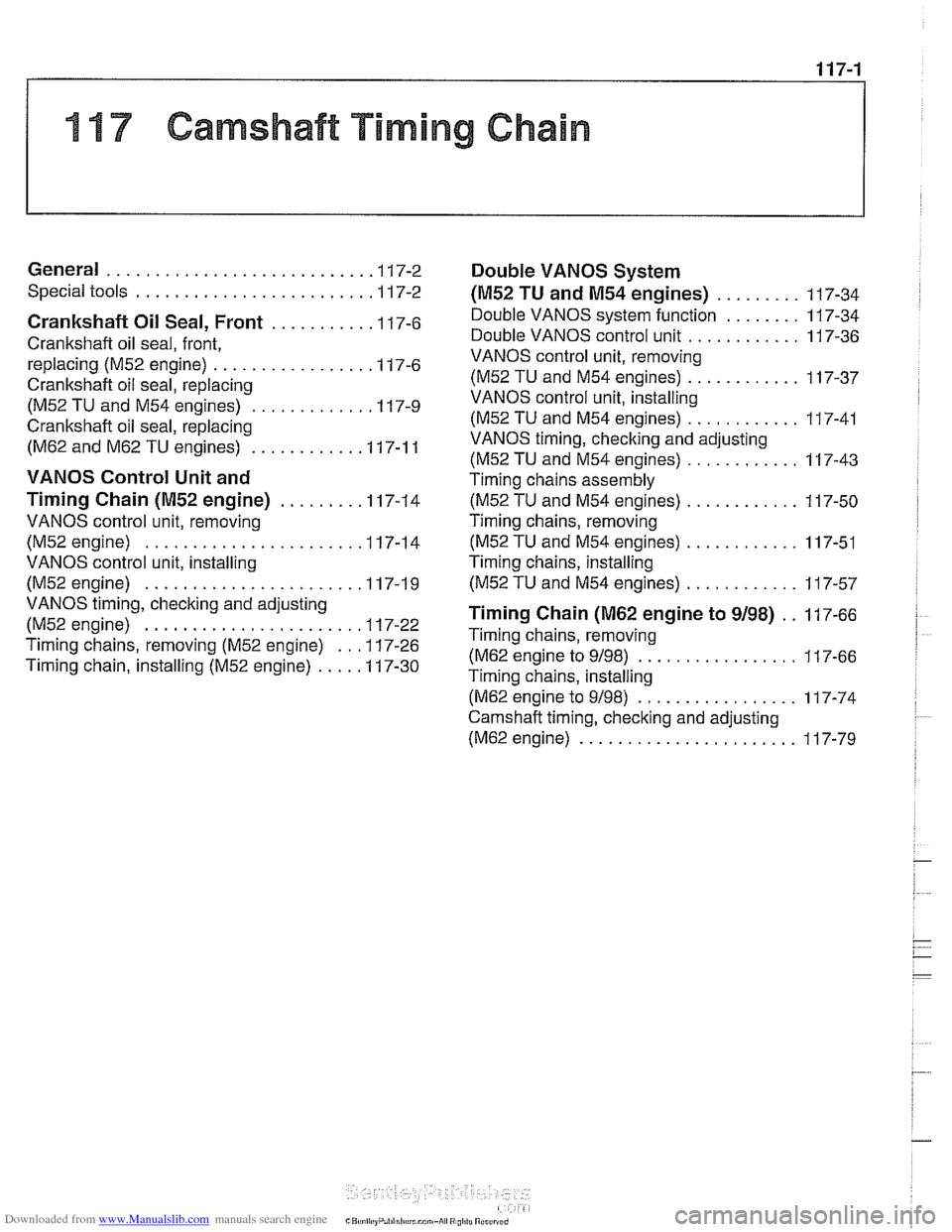

11 7 Camshaft Timing Chain
General ........................... .I I 7-2 Double VANOS System
Special tools ........................ .I 17-2 (M52 TU and M54 engines) ......... 11 7-34
Crankshaft Oil Seal, Front ........... I 17-6
Crankshaft oil seal, front,
replacing
(M52 engine) ................ .I1 7-6
Crankshaft oil seal, replacing
(M52 TU and M54 engines) ............ .I 17-9
Crankshaft oil seal, replacing
(M62 and M62 TU engines) ........... .I1 7-1 1
VANOS Control Unit and
Timing Chain
(M52 engine) ........ ,117-14
VANOS control unit, removing
(M52 engine) ...................... ,117-1 4
VANOS control unit, installing
(M52engine) ....................... 117-19
VANOS timing, checking and adjusting
(M52 engine) ...................... .I1 7-22
Timing chains, removing (M52 engine) . . ,117-26
Timing chain, installing (M52 engine) .... ,117-30
bouble VANOS system Tunctidn ........ 11 7-34
Double VANOS control unit ............ 117-36
VANOS control unit, removing
(M52 TU and M54 engines) ............ 11 7-37
VANOS control unit, installing
(M52 TU and M54 engines) ............ 1 17-41
VANOS timing, checking and adjusting
(M52 TU and M54 engines) ............ 1 17-43
Timing chains assembly
(M52 TU and M54 engines) ............ 1 17-50
Timing chains, removing
(M52 TU and M54 engines) ............ 11 7-51
Timing chains, installing
(M52 TU and M54 engines) ............ 11 7-57
Timing Chain (M62 engine to 9/98) . . 117-66
Timing chains, removing
(M62 engine to 9/98) ................. 11 7-66
Timing chains, installing
(M62 engine to 9/98) ................. 1 17-74
Camshaft timing, checking and adjusting
(M62engine) ....................... 117-79

Downloaded from www.Manualslib.com manuals search engine
Camshaft Timing Chain

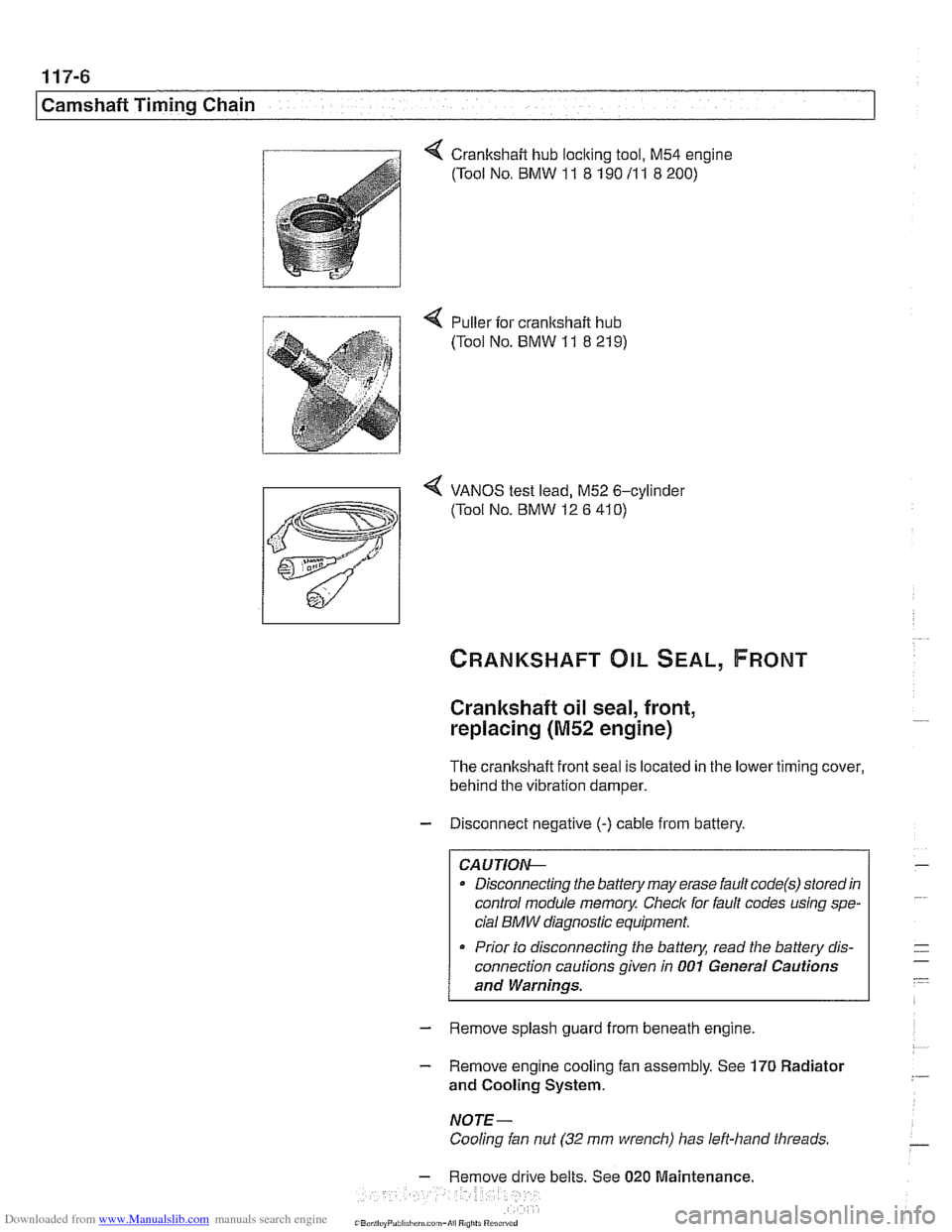

4 Crankshaft hub loclting tool. M54 engine
(Tool No.
BMW 11 8 190 11 1 8 200)
4 VANOS test lead, M52 6-cylinder
(Tool No.
BMW 12 6 410)
Crankshaft oil seal, front,
replacing
(M52 engine)
The crankshaft front seal is located in the lower timing cover,
behind the vibration damper.
- Disconnect negative (-) cable from battery.
CAUTIOIG
a Disconnecting the battery may erase fault code(s) stored in
control module memory Check
for fault codes using spe-
cial
BMW diagnostic equipment.
Prior to disconnecting the battery, read
the battery dis-
connection cautions given in
001 General Cautions
and
Warninqs.
- Remove splash guard from beneath engine.
- Remove engine cooling fan assembly. See 170 Radiator
and Cooling System.
NOTE-
Cooling ian nut (32 mm wrench) has left-hand threads.
- Remove drive belts. See 020 Maintenance.
,~R,~",,,~"P,,,,!,.,,,.,"?,,m-A,, P,",,,s

Downloaded from www.Manualslib.com manuals search engine
Camshaft Timing chain]

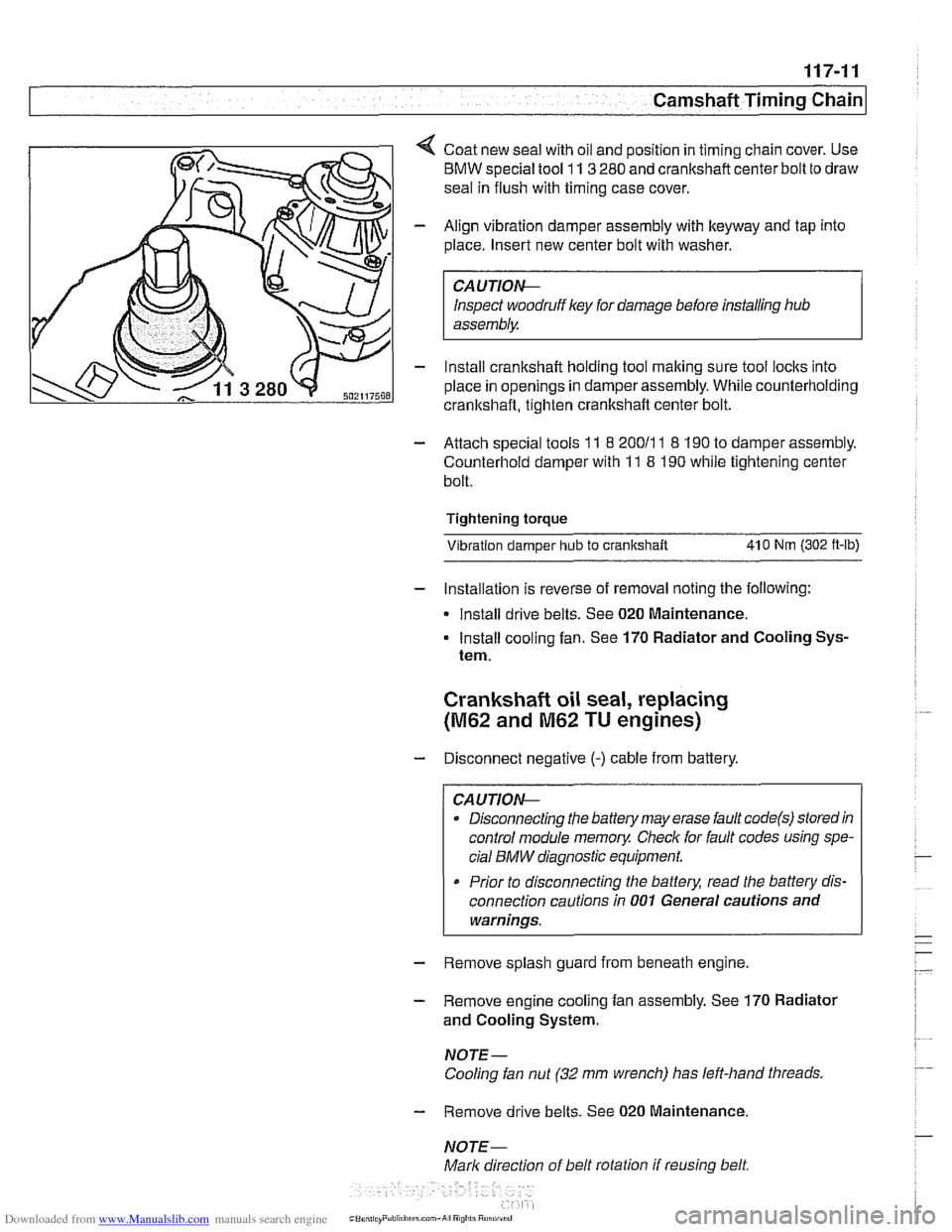

4 Coat new seal with oil and position in timing chain cover. Use
BMW special tool 11
3 280 and crankshaft center bolt to draw
seal in flush with timing case cover.
- Align vibration damper assembly with keyway and tap into
place. Insert new center bolt with washer.
CA
UTIOG
Inspect woodruff key for damage before installing hub
assembly.
- Install crankshaft holding tool malting sure tool locks into
place in openings in damper assembly. While counterholding
cranltshaft, tighten crankshaft center bolt.
- Attach special tools 11 8 20011 1 8 190 to damper assembly.
Counterhold damper with 11 8 190 while tightening center
bolt.
Tightening
torque
Vibration damper hub to crankshaft 410 Nm (302 it-ib)
- Installation is reverse of removal noting the following:
Install drive belts. See 020 Maintenance.
Install cooling fan. See 170 Radiator and Cooling Sys-
tem.
Crankshaft oil seal, replacing
(M62 and M62 TU engines)
- Disconnect negative (-) cable from battery
CAUTIOG
Disconnecting the battery may erase fault code(s) storedin
control module memory. Check for fault codes using spe-
cial BMW diagnostic equipment.
* Prior to disconnecting the battery, read the battery dis-
connection cautions in
001 General cautions and
warnings.
- Remove splash guard from beneath engine
- Remove engine cooling fan assembly. See 170 Radiator
and Cooling System.
NOTE
-
Cooling fan nut (32 mm wrench) has left-hand threads.
- Remove drive belts. See 020 Maintenance.
NOTE-
Marlc direction of belt rotation if reusing belt.

Downloaded from www.Manualslib.com manuals search engine
I Camshaft Timing Chain

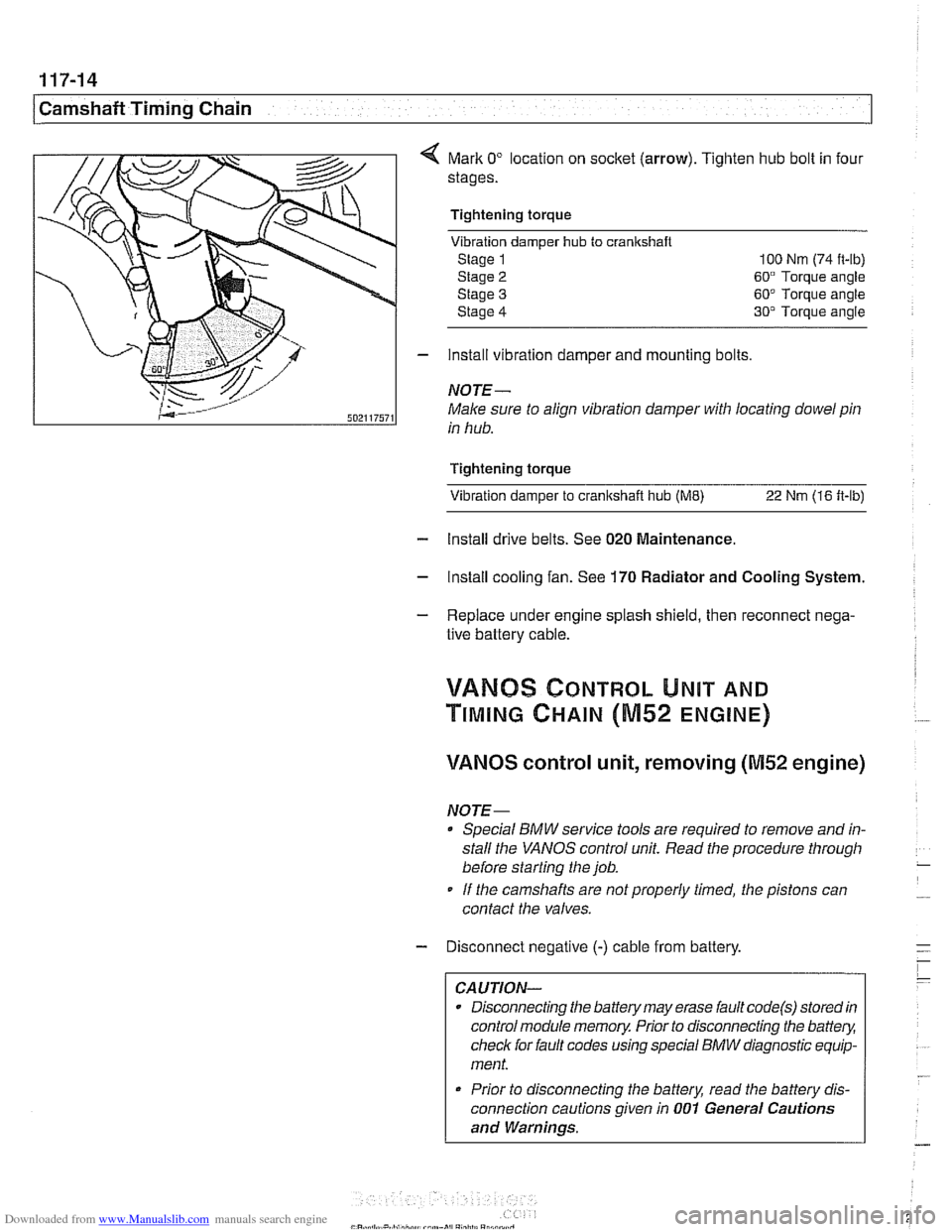

Mark 0" location on socket (arrow). Tighten hub bolt in four
stages.
Tightening torque Vibration damper
hub to cranlrshaft
Stage 1 100 Nm (74 it-lb)
Stage
2 60" Torque angle
Stage
3 60" Torque angle
Stage
4 30" Torque angle
- install vibration damper and mounting bolts
NOTE-
Male sure to align vibration damper with locating dowel pin
in hub.
Tightening torque Vibration damper to
cranltshait hub (ME) 22 Nm (16 ft-lb)
- Install drive belts. See 020 Maintenance.
- Install cooling fan. See 170 Radiator and Cooling System.
- Replace under engine splash shield, then reconnect nega-
tive battery cable.
!/ANBS CONTROL UNIT AND
TIMING CHAIN (M52 ENGINE)
VANOS control unit, removing (M52 engine)
NOTE-
Special BMW service tools are required to remove and in-
stall the
VANOS control unit. Read the procedure through
before starting the job.
If the camshafts are notproperly timed, the pistons can
contact the valves.
- Disconnect negative (-) cable from battery.
CAUTION-
Disconnecting the battery may erase fault code(s) stored in
control module memory. Prior to disconnecting the
battev,
check for fault codes using special BMW diagnostic equip-
ment.
* Prior to disconnecting the battery, read the battery dis-
connection cautions given in
001 General Cautions
and Warnings.

Downloaded from www.Manualslib.com manuals search engine
Camshaft Timing Chain/ - - - - - - . - - . - .
Tighten exhaust camshaft sprocket mounting bolts (arrows)
alternately in two stages.
Tightening torques
Secondary timing chain sprocltets to camshafts
Stage
1
Stage 2
5 Nm (44 in-lb)
22 Nm (17 ft-lb)
- Remove crankshaft locking tool and camshaft locking tool
set.
- install camshaft gear bolt access plugs using new sealing
washers and tighten.
- Remove timing chain tensioning tool from side of cylinder
head. Install primary chain tensioner with new sealing wash-
er and tighten.
Tightening torques
Access plugs to VANOS control unit 50 Nm (37 ft-lb)
Primary timing chain tensioner
plug to 70 Nm (52 ft-lb)
tensioner sleeve
- Check adjustment VANOS system, see VANOS timing,
checking and adjusting
(M52 engine).

Downloaded from www.Manualslib.com manuals search engine
Camshaft Timing Chain

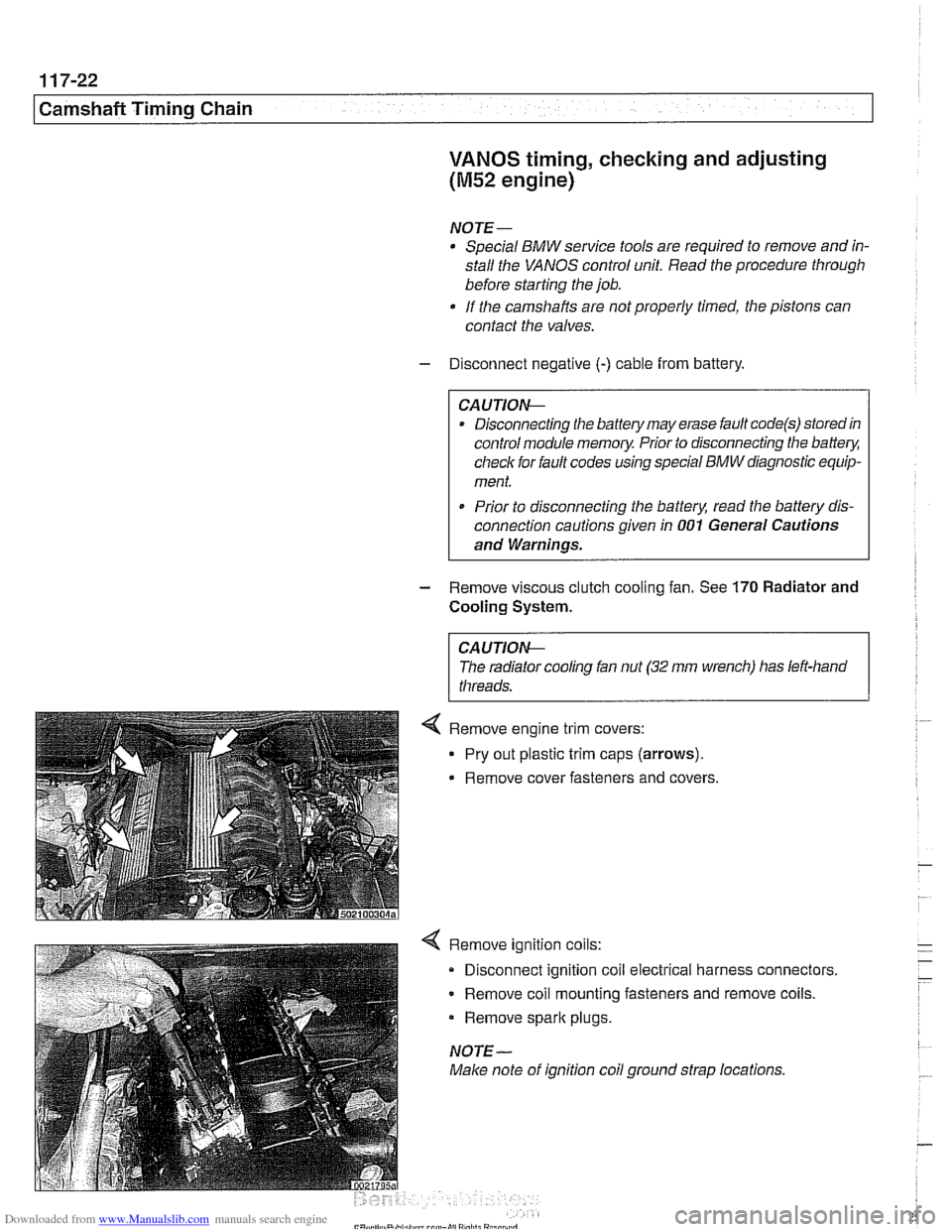

VANOS timing, checking and adjusting
(M52 engine)
NOTE-
* Special BMW service tools are required to remove and in-
stall the VANOS control unit. Read the procedure through
before starting the job.
If the camshafts are not properly timed, the pistons can
contact the valves.
- Disconnect negative (-) cable from battery.
CAUTIOG Disconnecting the battery may erase
faultcode(s) storedin
control module memory. Prior to disconnecting the battery,
checlc for fault codes using special BMW diagnostic equip-
ment.
Prior to disconnecting the battery, read the battery dis-
connection cautions given in
001 General Cautions
and Warnings.
- Remove viscous clutch cooling fan. See 170 Radiator and
Cooling
System.
CAUTIOG The radiator cooling fan nut
(32 mm wrench) has left-hand
threads.
4 Remove ignition coils:
Disconnect ignition coil electrical harness connectors.
Remove coil mounting fasteners and remove coils.
Remove
spark plugs.
NOTE-
Make note of ignition coil ground strap locations.

Downloaded from www.Manualslib.com manuals search engine
Camshaft Timing chain1
Tap locating dowels into cover until they protrude 2 to 3 mm
from sealing surface.
- Using new gaskets, install lower timing chain cover:
Tap cover into position to engage dowels.
Install timing chain cover fasteners and tighten to
5 Nm (44
in-lb).
Drive dowels in flush to front of cover.
. Tighten cover mounting bolts alternately and in stages.
Install cylinder head to timing chain cover fasteners and
tighten.
Tightening torques Lower timing chain cover to block
M7 15 Nm (1 1 ft-lb)
ME 20 Nm (15 it-lb)
- Replace front crankshaft radial seal. See Crankshaft oil
seal, front, replacing
(M52 engine).
Install engine oil pan using
a new gasket. See 119 Lubrica-
tion System.
Mount primary timing chain sprocket to primary
cha~n so that
arrow on sprocket faces up. Mount sprocket to camshafl so
that tapped holes in camshaft are on left side of elongated
holes in sprocket.
4 Install adjustable timing chain tensioner (BMW special tool
11 4 220). Thread tool in finger tight until slack is removed
from chain.
NOTE-
BMW special tool 11 4 220 is an adjustable timing chain ten-
sioner that simulates the function of the hydraulic tensioner.
- Check that elongated holes in primary sprocket are centered
to bolt holes in camshafl and chain is free of slack.
- Install secondary timing chain guide and secondary chain
tensioner. Tighten mounting bolts (tensioner remains
locited
down).
F81.,,l,ryT-iib.l>nii,:oni-Aii Ri"ilti R

Downloaded from www.Manualslib.com manuals search engine
-- Camshaft Timing Chain -- -
Tightening torque
Vibration damper hub to crankshaft
410 Nm (300 ft-lb)
4 Install cranltshaft hub and vibration damper while aligning
locating hole (arrow) in damper with dowel pin in hub.
Tightening torque
Vibration damper and
pulley to
cranltshaft hub
22 Nm (17 ft-lb)
- Turn engine over by hand in direction of rotation at least two
full rotations. Reinstall camshaft and crankshaft locking
toois
to recheck engine timing. Remove locking tools if no faults
are found.
- Remove BMW special tool 11 3 390 (dummy tensioner) from
side of cyiinder head.
- Install primary chain tensionerso that cutout in tensioner pis-
ton engages chain rail.
Tightening torque
Timing chain tensioner to tensioner sleeve
70 Nm (52 ft-ib)
- Install cylinder head cover mounting studs, camshaft cover,
and cylinder head cover.
Tightening torque Cylinder head cover to cyiinder head
M6 nut 10 Nm (89 in-lb)
MB bolt 22 Nm (17 ft-lb)
- installation of remaining parts is reverse of removal, noting
the following:
When installing thermostat, make sure arrow or vent hole
faces up, if applicable.
Refill cooling system as described in
170 Radiator and
Cooling System.
Fill engine with oil and install new
oil filter as described in
020 Maintenance.
Tightening torque Upper timing chain cover to cylinder head
M6 nut 10 Nm (89 in-lb)
MB bolt 22 Nm (17 ft-lb)
VANOS oil supply pipe to VANOS control
unit banjo bolt
32 Nm (24 ft-ib)
