BMW MOTORRAD K 1200 GT 2002 Rider's Manual (in English)

9
General information and controls
1

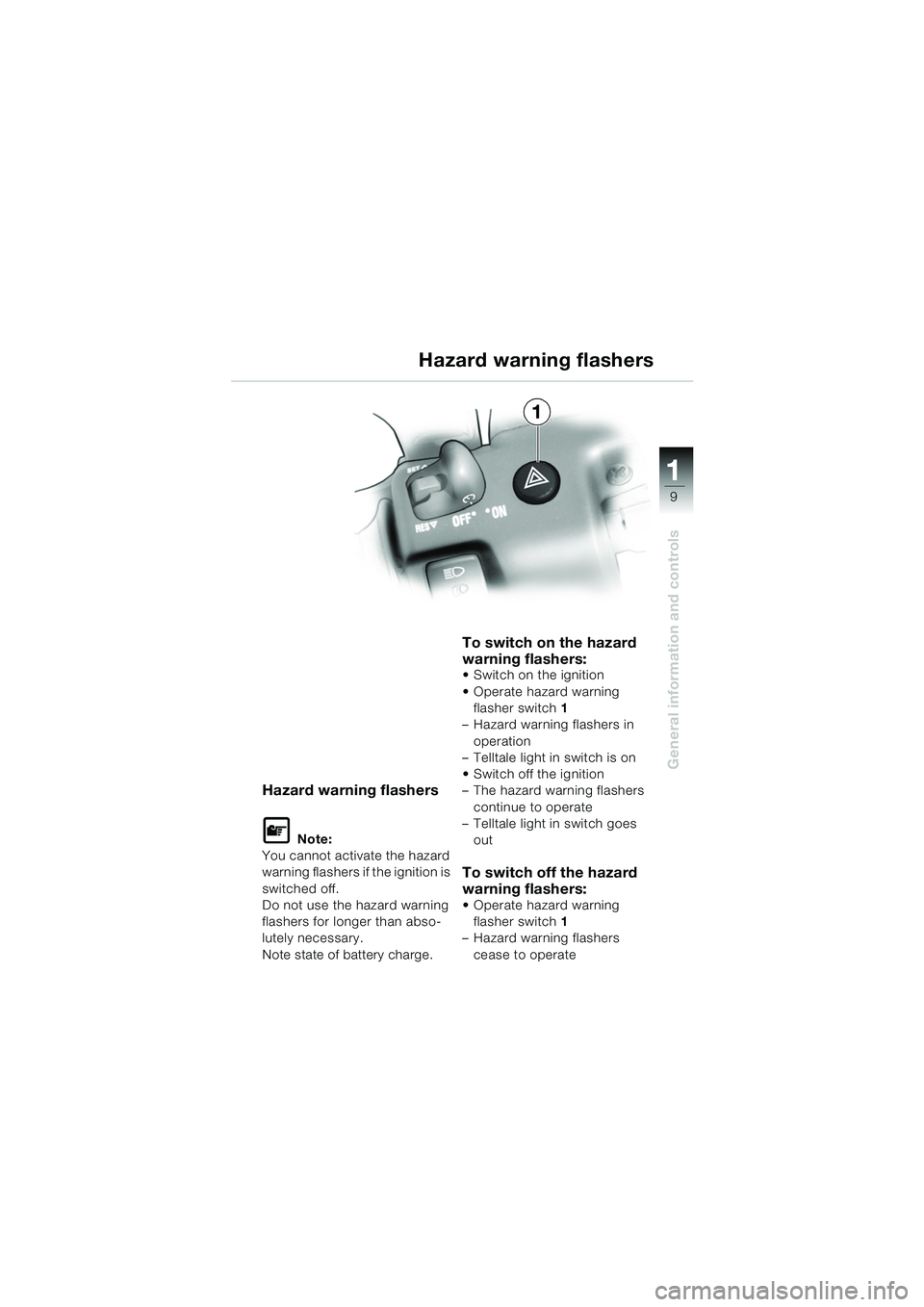

Hazard warning flashers
L Note:
You cannot activate the hazard
warning flashers if the ignition is
switched off.
Do not use the hazard warning
flashers for longer than abso-
lutely necessary.
Note state of battery charge.
To switch on the hazard
warning flashers:
 Switch on the ignition
 Operate hazard warning flasher switch 1
– Hazard warning flashers in operation
– Telltale light in switch is on
 Switch off the ignition
– The hazard warning flashers
continue to operate
– Telltale light in switch goes out
To switch off the hazard
warning flashers:
 Operate hazard warning
flasher switch 1
– Hazard warning flashers
cease to operate
1
Hazard warning flashers
10k41bkg2.book Seite 9 Donnerstag, 24. Juli 2003 9:17 09

10
General information and controls
1

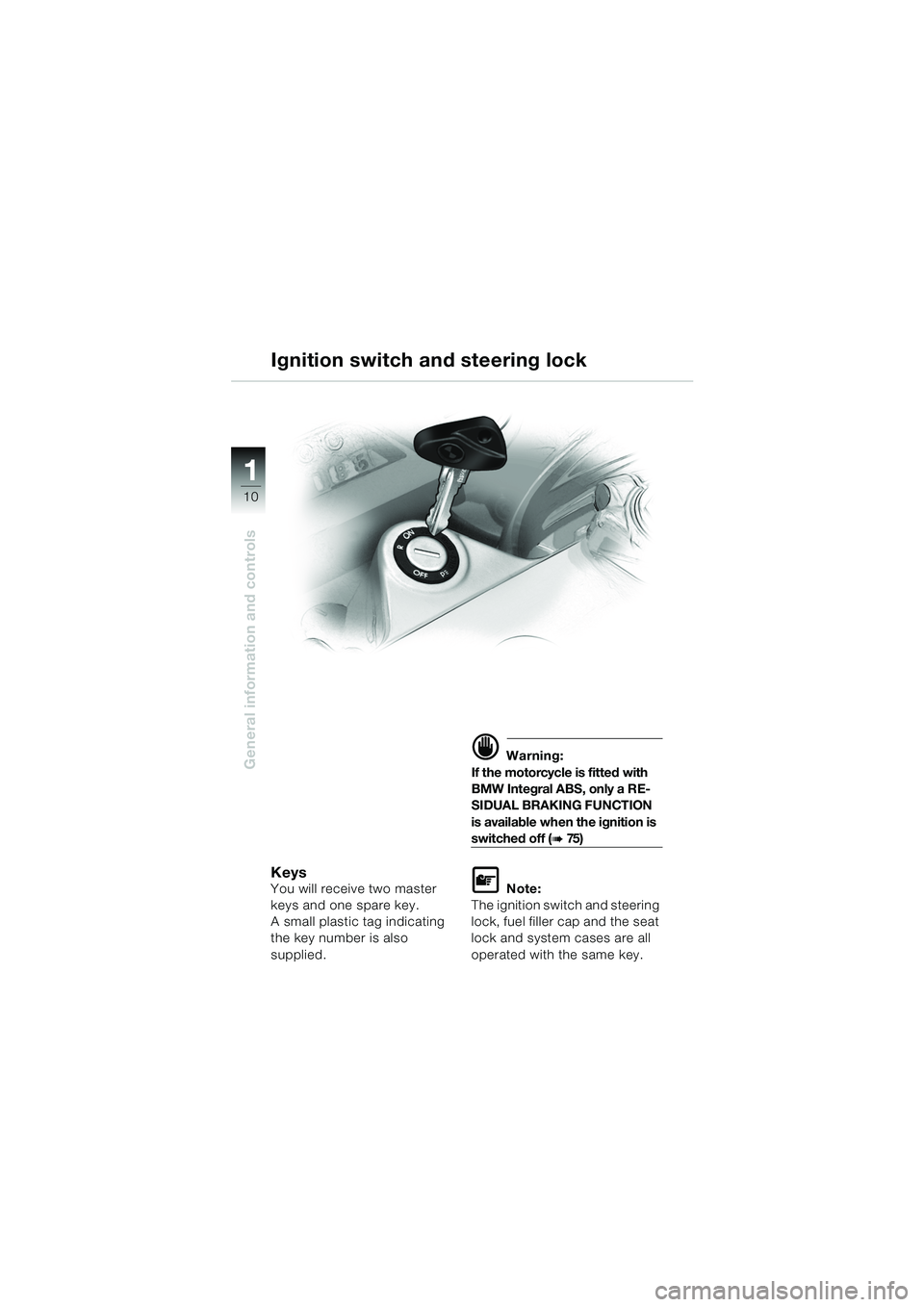

KeysYou will receive two master
keys and one spare key.
A small plastic tag indicating
the key number is also
supplied.
d Warning:
If the motorcycle is fitted with
BMW Integral ABS, only a RE-
SIDUAL BRAKING FUNCTION
is available when the ignition is
switched off (b 75 )
L Note:
The ignition switch and steering
lock, fuel filler cap and the seat
lock and system cases are all
operated with the same key.
Ignition switch and steering lock
10k41bkg2.book Seite 10 Donnerstag, 24. Juli 2003 9:17 09

11
General information and controls
1

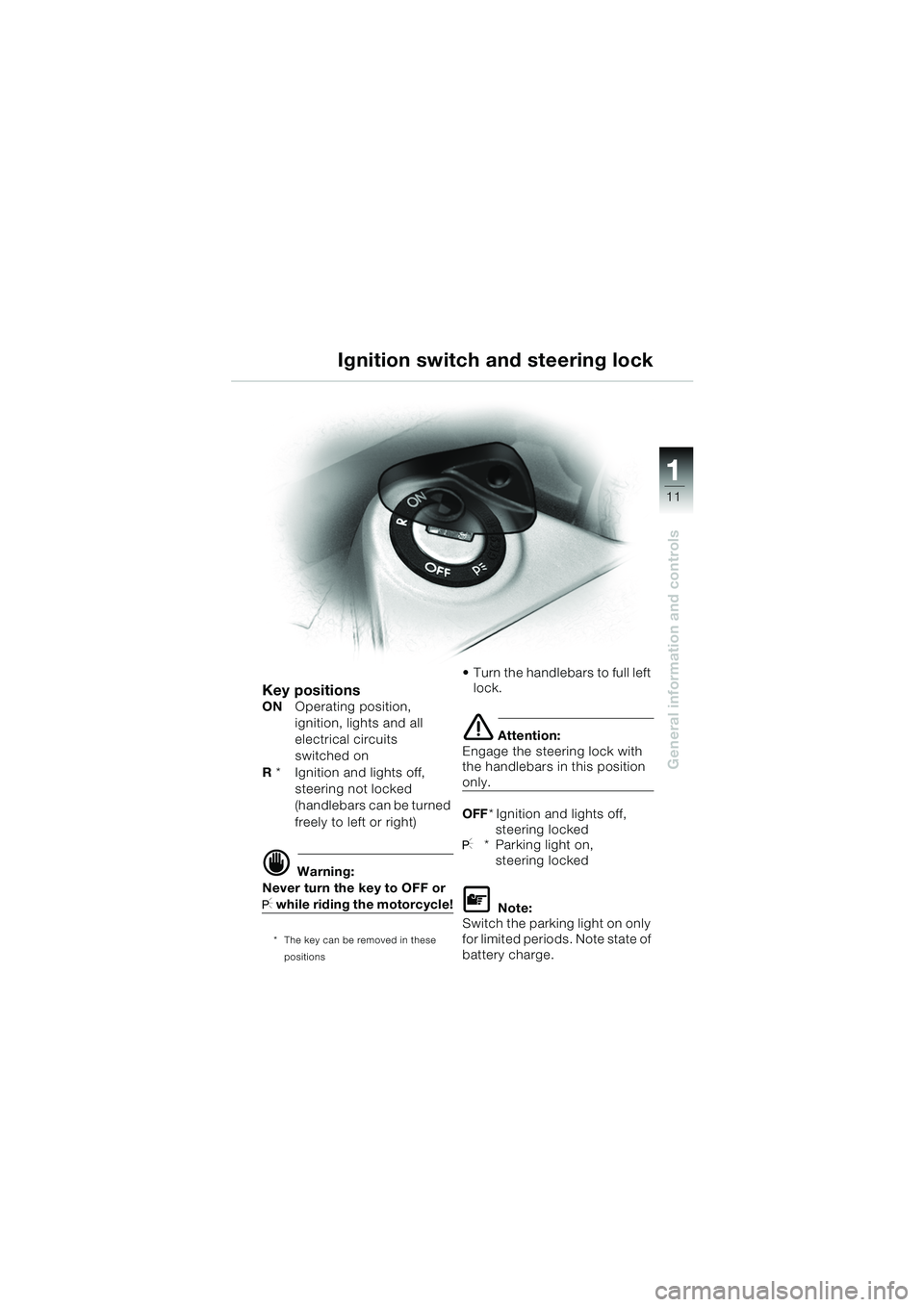

Ignition switch and steering lock
Key positionsONOperating position,
ignition, lights and all
electrical circuits
switched on
R * Ignition and lights off,
steering not locked
(handlebars can be turned
freely to left or right)
d Warning:
Never turn the key to OFF or
I while riding the motorcycle!
* The key can be removed in these
positions
 Turn the handlebars to full left lock.
e Attention:
Engage the steering lock with
the handlebars in this position
only.
OFF * Ignition and lights off,
steering locked
I * Parking light on,
steering locked
L Note:
Switch the parking light on only
for limited periods. Note state of
battery charge.
10k41bkg2.book Seite 11 Donnerstag, 24. Juli 2003 9:17 09

12
General information and controls
1

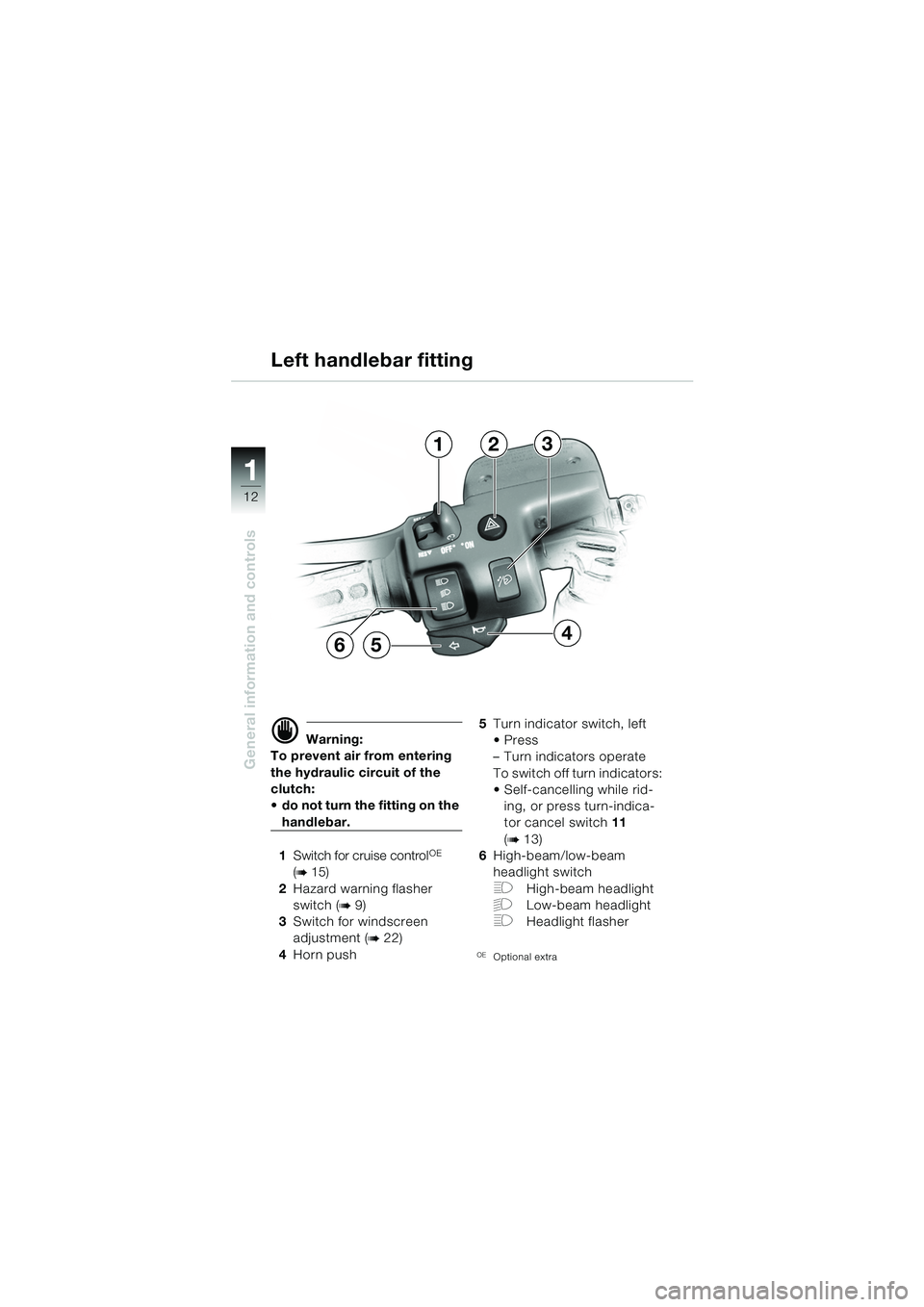

d Warning:
To prevent air from entering
the hydraulic circuit of the
clutch:
 do not turn the fitting on the
handlebar.
1 Switch for cruise control
OE
(b 15)
2 Hazard warning flasher
switch (
b 9)
3 Switch for windscreen
adjustment (
b 22)
4 Horn push 5
Turn indicator switch, left
Press
– Turn indicators operate
To switch off turn indicators:
 Self-cancelling while rid-
ing, or press turn-indica-
tor cancel switch 11
(
b 13)
6 High-beam/low-beam
headlight switch
FHigh-beam headlight
GLow-beam headlight
FHeadlight flasher
OEOptional extra
Left handlebar fitting
123
654
10k41bkg2.book Seite 12 Donnerstag, 24. Juli 2003 9:17 09

13
General information and controls
1

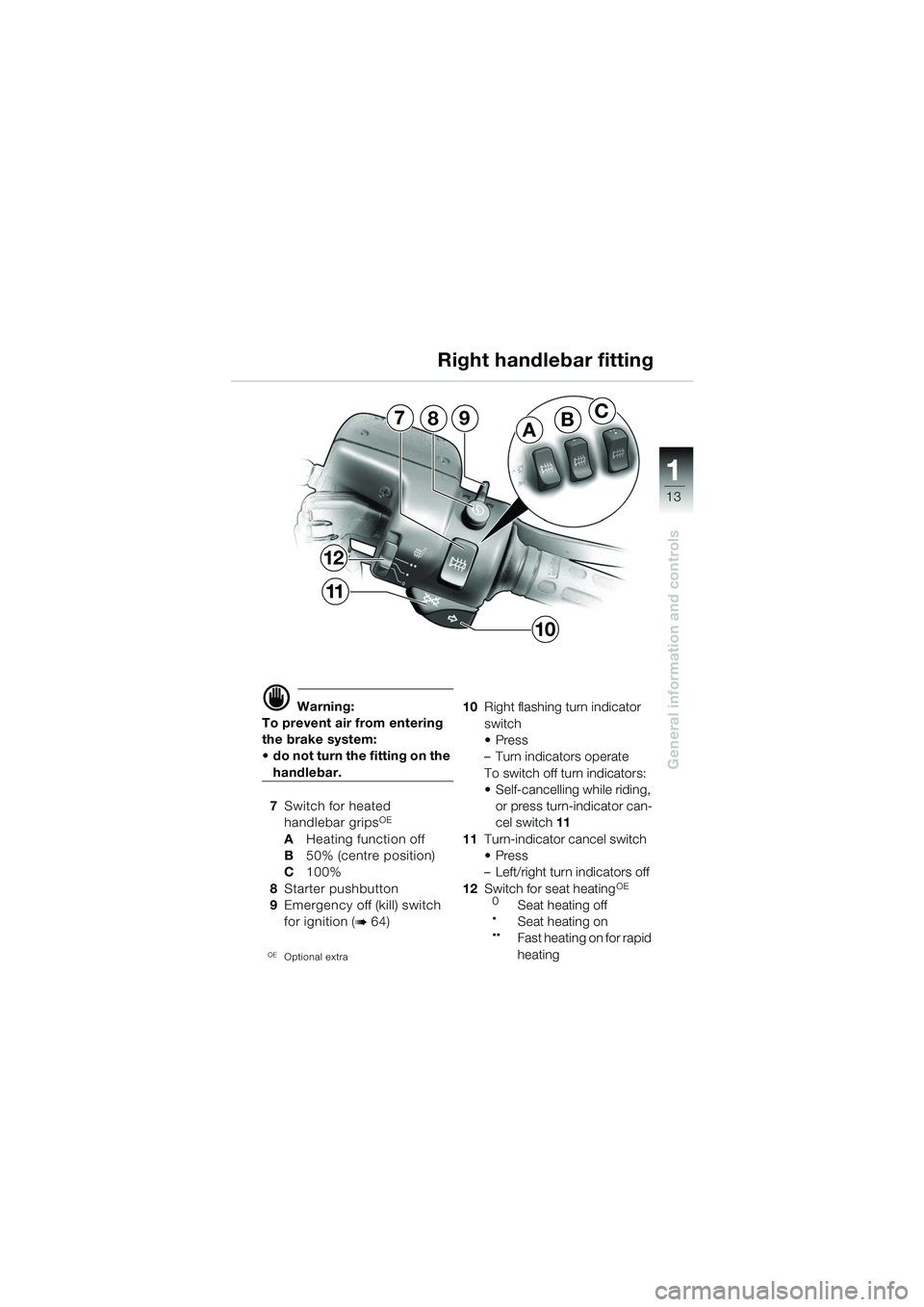

d Warning:
To prevent air from entering
the brake system:
 do not turn the fitting on the
handlebar.
7 Switch for heated
handlebar grips
OE
A Heating function off
B 50% (centre position)
C 100%
8 Starter pushbutton
9 Emergency off (kill) switch
for ignition (
b 64)
OEOptional extra
10 Right flashing turn indicator
switch
Press
– Turn indicators operate
To switch off turn indicators:
 Self-cancelling while riding,
or press turn-indicator can-
cel switch 11
11 Turn-indicator cancel switch
Press
– Left/right turn indicators off
12 Switch for seat heating
OE
0Seat heating off
.Seat heating on
..Fast heating on for rapid
heating
Right handlebar fitting
ABC7
12
11
89
10
10k41bkg2.book Seite 13 Donnerstag, 24. Juli 2003 9:17 09

14
General information and controls
1

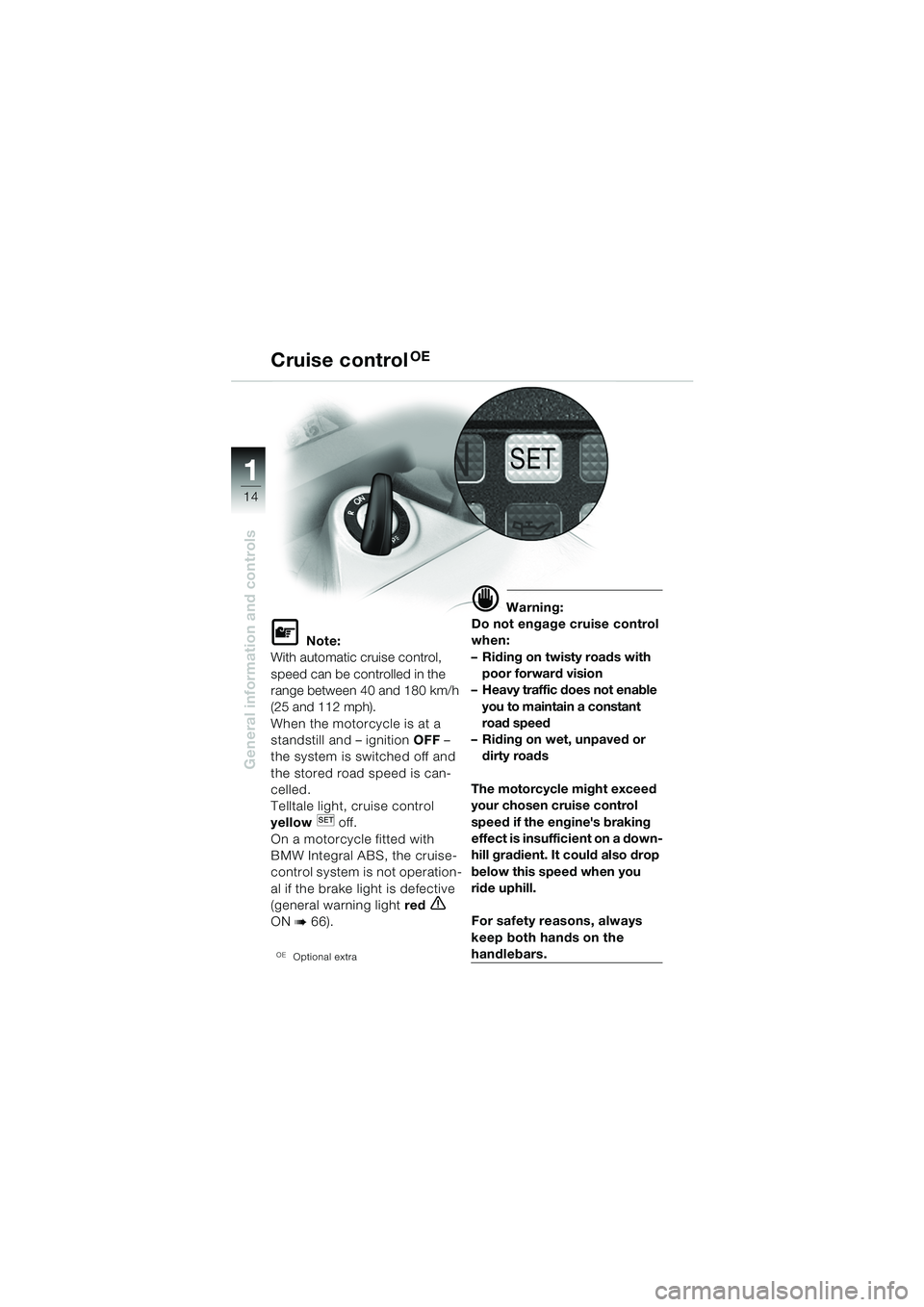

Cruise controlOE
L Note:
With automatic cruise control,
speed can be controlled in the
range between 40 and 180 km/h
(25 and 112 mph).
When the motorcycle is at a
standstill and – ignition OFF –
the system is switched off and
the stored road speed is can-
celled.
Telltale light, cruise control
yellow off.
On a motorcycle fitted with
BMW Integral ABS, the cruise-
control system is not operation-
al if the brake light is defective
(general warning light red
e
ON b 66).
OEOptional extra
d Warning:
Do not engage cruise control
when:
– Riding on twisty roads with poor forward vision
– Heavy traffic does not enable
you to maintain a constant
road speed
– Riding on wet, unpaved or dirty roads
The motorcycle might exceed
your chosen cruise control
speed if the engine's braking
effect is insufficient on a down-
hill gradient. It could also drop
below this speed when you
ride uphill.
For safety reasons, always
keep both hands on the
handlebars.
10k4101g2.fm Seite 14 Montag, 4. August 2003 2:31 14

15
General information and controls
1

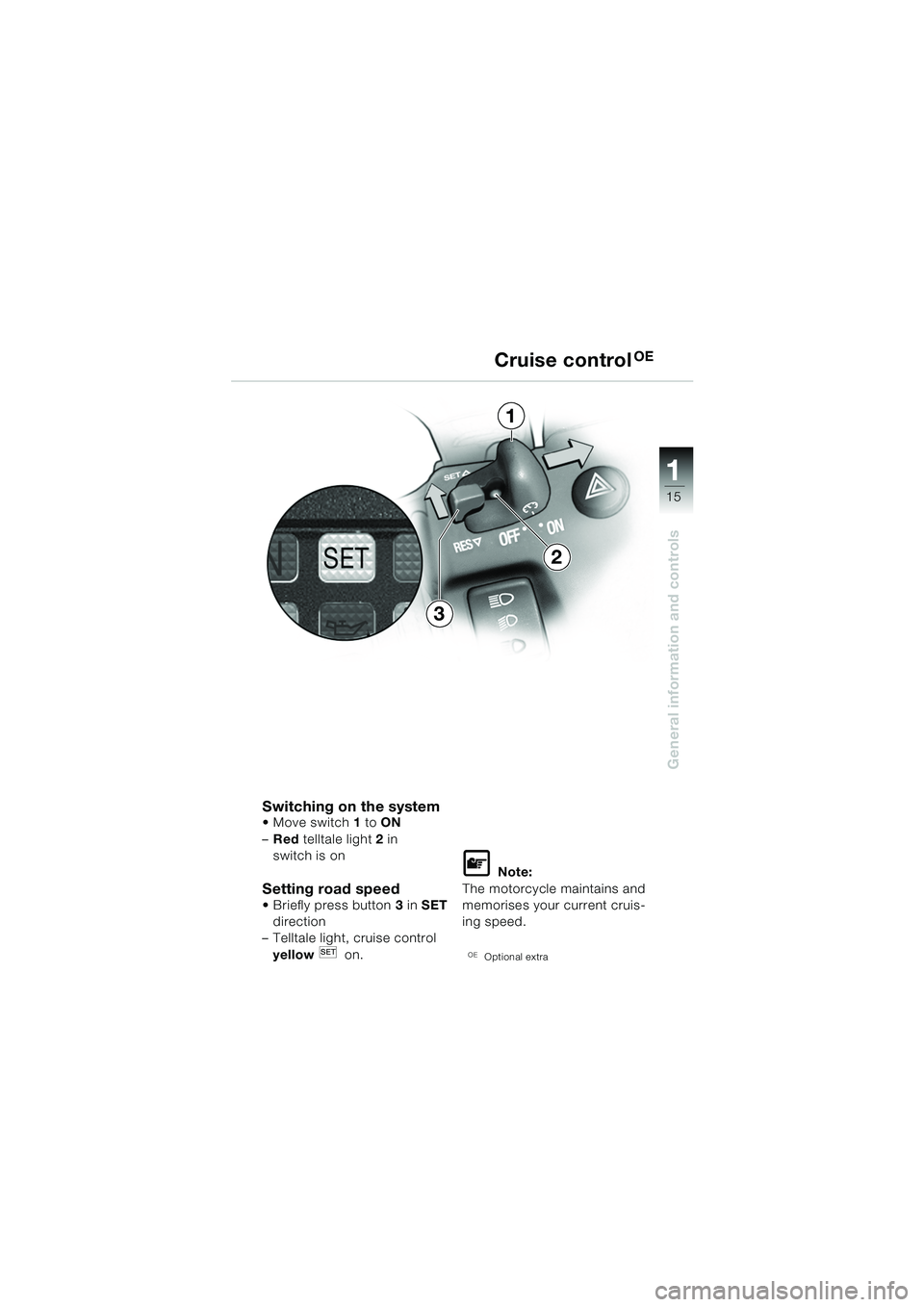

Switching on the system Move switch1 to ON
– Red telltale light 2 in
switch is on
Setting road speed  Briefly press button 3 in SET
direction
– Telltale light, cruise control
yellow on.
L Note:
The motorcycle maintains and
memorises your current cruis-
ing speed.
OEOptional extra
Cruise controlOE
1
3
2
10k41bkg2.book Seite 15 Donnerstag, 24. Juli 2003 9:17 09

16
General information and controls
1

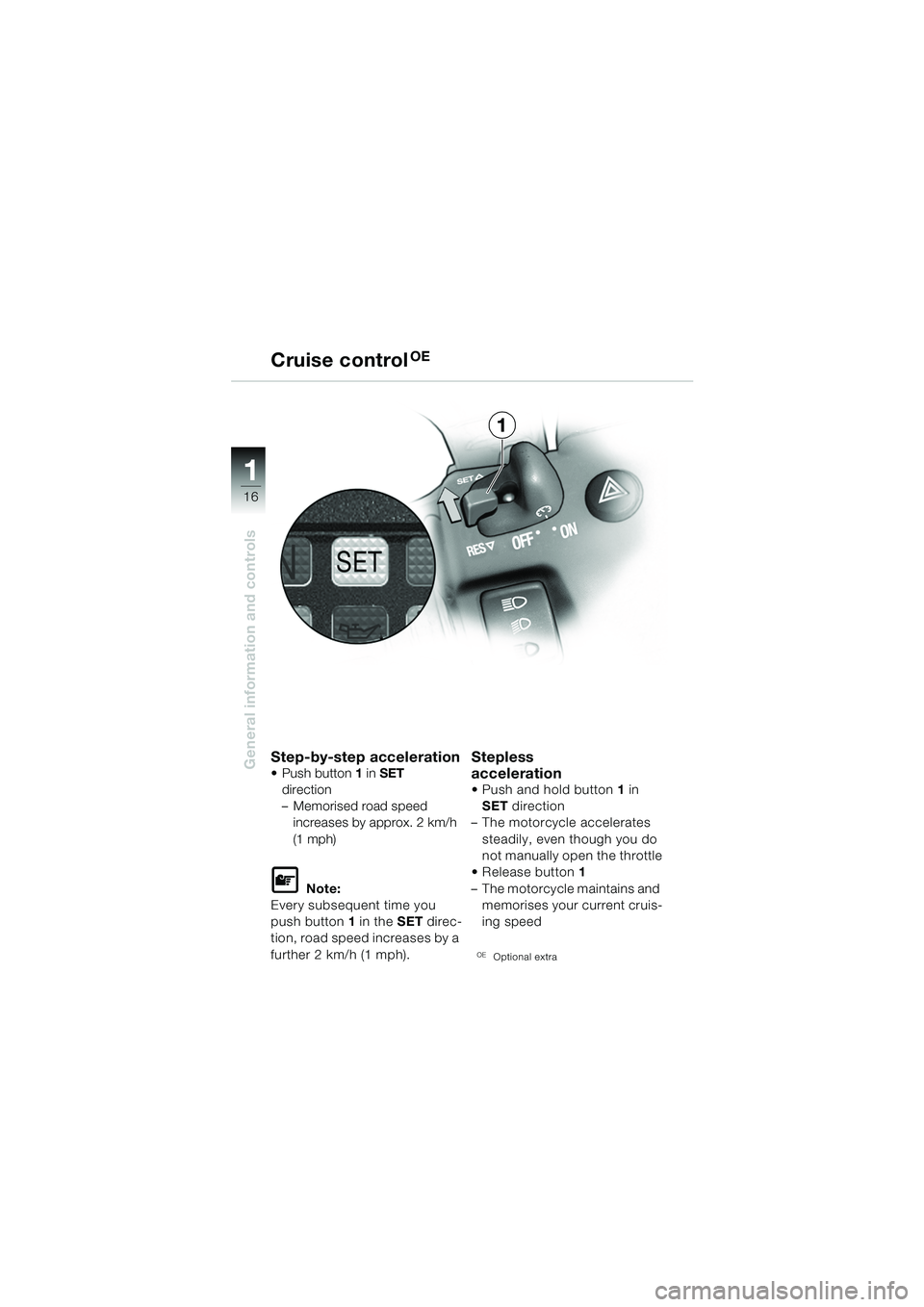

Step-by-step acceleration Push button1 in SET
direction
– Memorised road speed increases by approx. 2 km/h
(1 mph)
L Note:
Every subsequent time you
push button 1 in the SET direc-
tion, road speed increases by a
further 2 km/h (1 mph).
Stepless
acceleration
 Push and hold button 1 in
SET direction
– The motorcycle accelerates
steadily, even though you do
not manually open the throttle
 Release button 1
– The motorcycle maintains and memorises your current cruis-
ing speed
OEOptional extra
Cruise controlOE
1
10k41bkg2.book Seite 16 Donnerstag, 24. Juli 2003 9:17 09

17
General information and controls
1
Decelerating Push and hold button1 in RES
direction
– The motorcycle decelerates steadily, even though you do
not manually close the throttle
L Note:
Every subsequent time you push
the button in the RES direction,
road speed decreases by a
further 2 km/h (1 mph).
Switching off the system Move switch 3 to OFF
– The cruise control system switches off immediately
– Red indicator light 2 and the
yellow cruise control light
are off 6 Temporary override
When you actuate the:
–brakes
–clutch
– throttle twistgrip (close the throttle)
the cruise control system is
briefly switched off
– Indicator light, cruise control yellow off
– Red indicator light 2 on
 Push button 1 in the RES
direction
– The motorcycle returns to and maintains the cruising speed
stored in memory
– Indicator light, cruise control
yellow on.
OEOptional extra
Cruise controlOE
1
3
2
10k41bkg2.book Seite 17 Donnerstag, 24. Juli 2003 9:17 09

18
General information and controls
1
Adjusting footrest plate
d Warning:
If a footrest is repositioned,
the footrest on the other side
of the motorcycle must be
moved to the same height.
Adjust the gearshift lever to
suit the new footrest position.
e Attention:
For a sporting riding style, both
footrest plates should be in the
upper position.
d Warning:
Make sure that lines and cables
are correctly routed.
Do not damage electric wiring.
Always tighten socket-head
screws 1 and 2 to the specified
torque.
If you do not have a suitable
torque wrench, have the foot-
rest plates and gearshift lever
adjusted by a specialist work-
shop, preferably an authorised
BMW motorcycle dealer.
