19
General information and controls
1

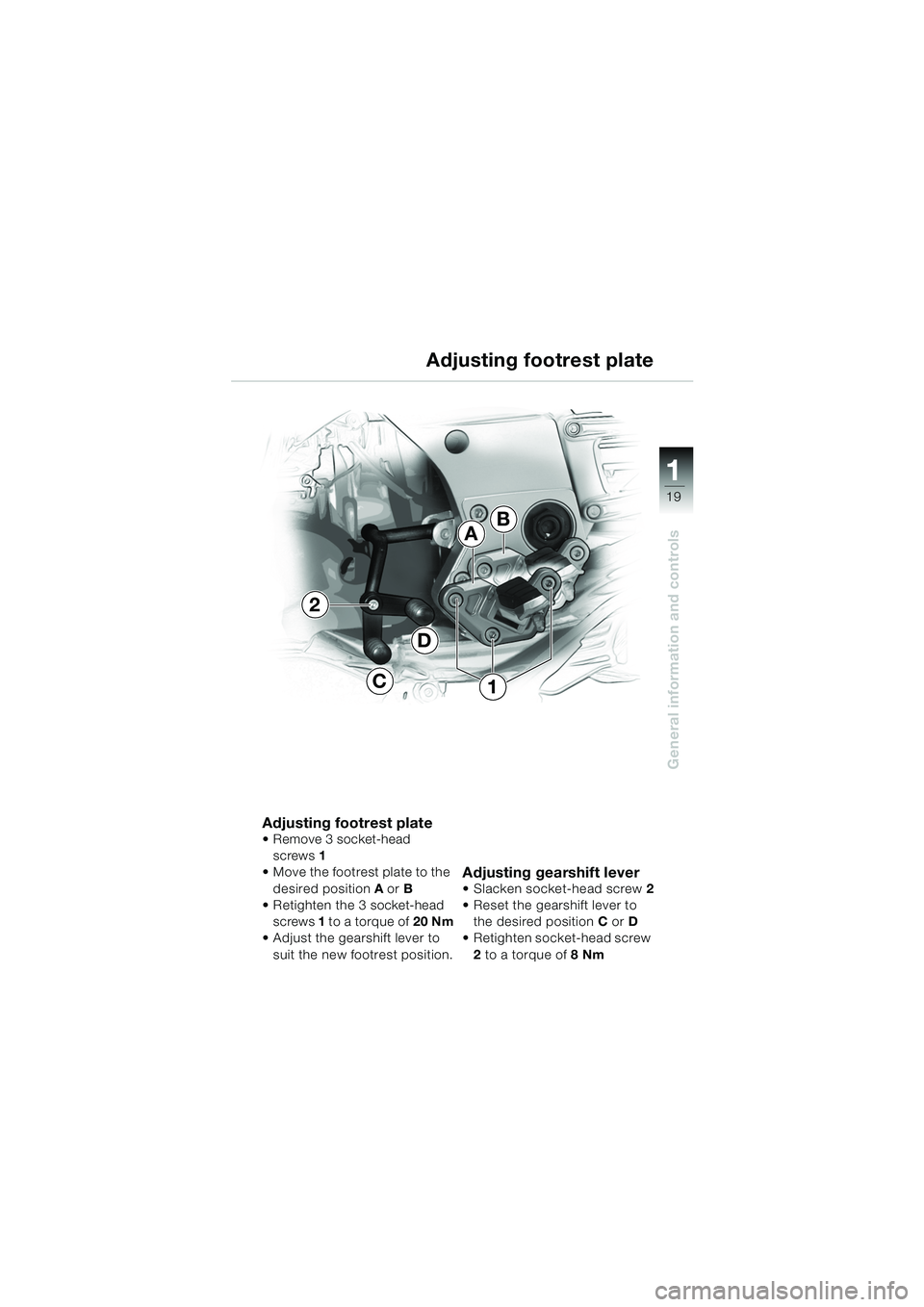

Adjusting footrest plate Remove 3 socket-head screws 1
 Move the footrest plate to the
desired position A or B
 Retighten the 3 socket-head
screws 1 t o a tor qu e of 20 Nm
 Adjust the gearshift lever to
suit the new footrest position.
Adjusting gearshift lever Slacken socket-head screw 2
 Reset the gearshift lever to
the desired position C or D
 Retighten socket-head screw
2 to a torque of 8Nm
Adjusting footrest plate
2
AB
D
C1
10k41bkg2.book Seite 19 Donnerstag, 24. Juli 2003 9:17 09

20
General information and controls
1

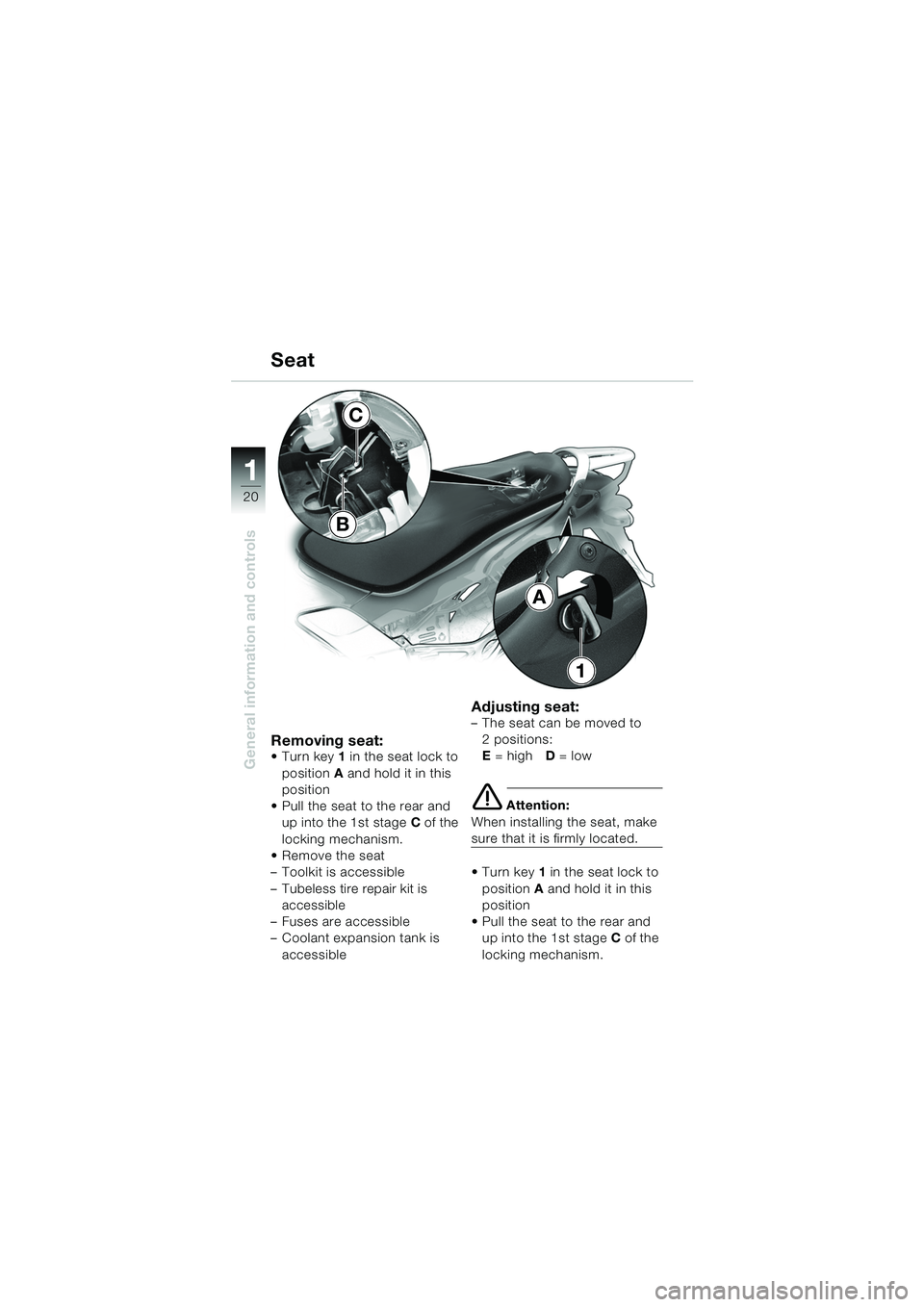

Removing seat:Turn key1 in the seat lock to
position A and hold it in this
position
 Pull the seat to the rear and up into the 1st stage C of the
locking mechanism.
 Remove the seat
– Toolkit is accessible
–Tubeless tire repair kit is accessible
– Fuses are accessible
– Coolant expansion tank is accessible
Adjusting seat:– The seat can be moved to 2 positions:
E = high D = low
e Attention:
When installing the seat, make
sure that it is firmly located.
Turn key 1 in the seat lock to
position A and hold it in this
position
 Pull the seat to the rear and up into the 1st stage C of the
locking mechanism.
Seat
A
1
B
C
10k41bkg2.book Seite 20 Donnerstag, 24. Juli 2003 9:17 09

21
General information and controls
1

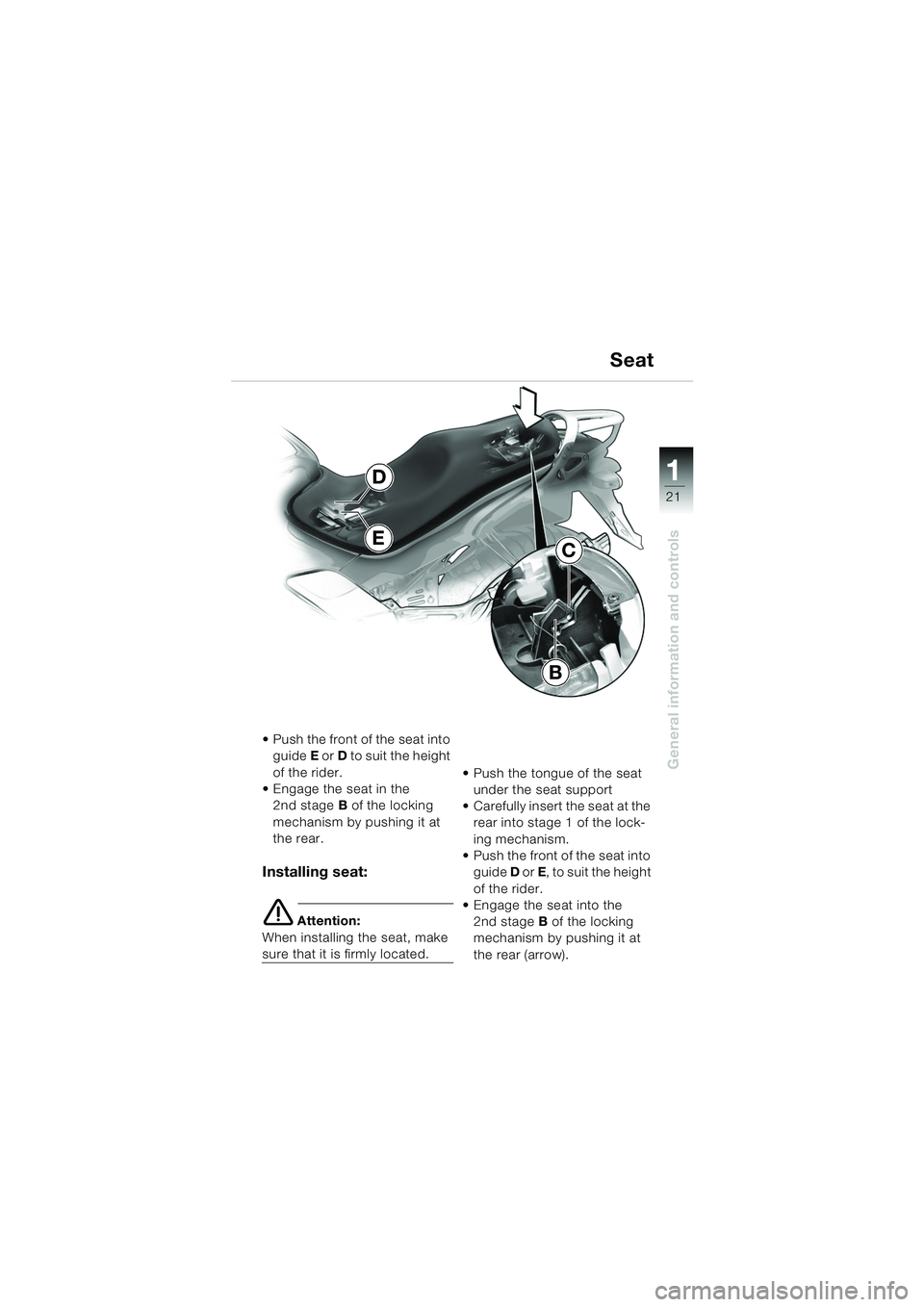

Seat
 Push the front of the seat into guide E or D to suit the height
of the rider.
 Engage the seat in the 2nd stage B of the locking
mechanism by pushing it at
the rear.
Installing seat:
e Attention:
When installing the seat, make
sure that it is firmly located.  Push the tongue of the seat
under the seat support
 Carefully insert the seat at the rear into stage 1 of the lock-
ing mechanism.
 Push the front of the seat into guide D or E, to suit the height
of the rider.
 Engage the seat into the
2nd stage B of the locking
mechanism by pushing it at
the rear (arrow).
E
D
B
C
10k41bkg2.book Seite 21 Donnerstag, 24. Juli 2003 9:17 09

22
General information and controls
1
e Attention:

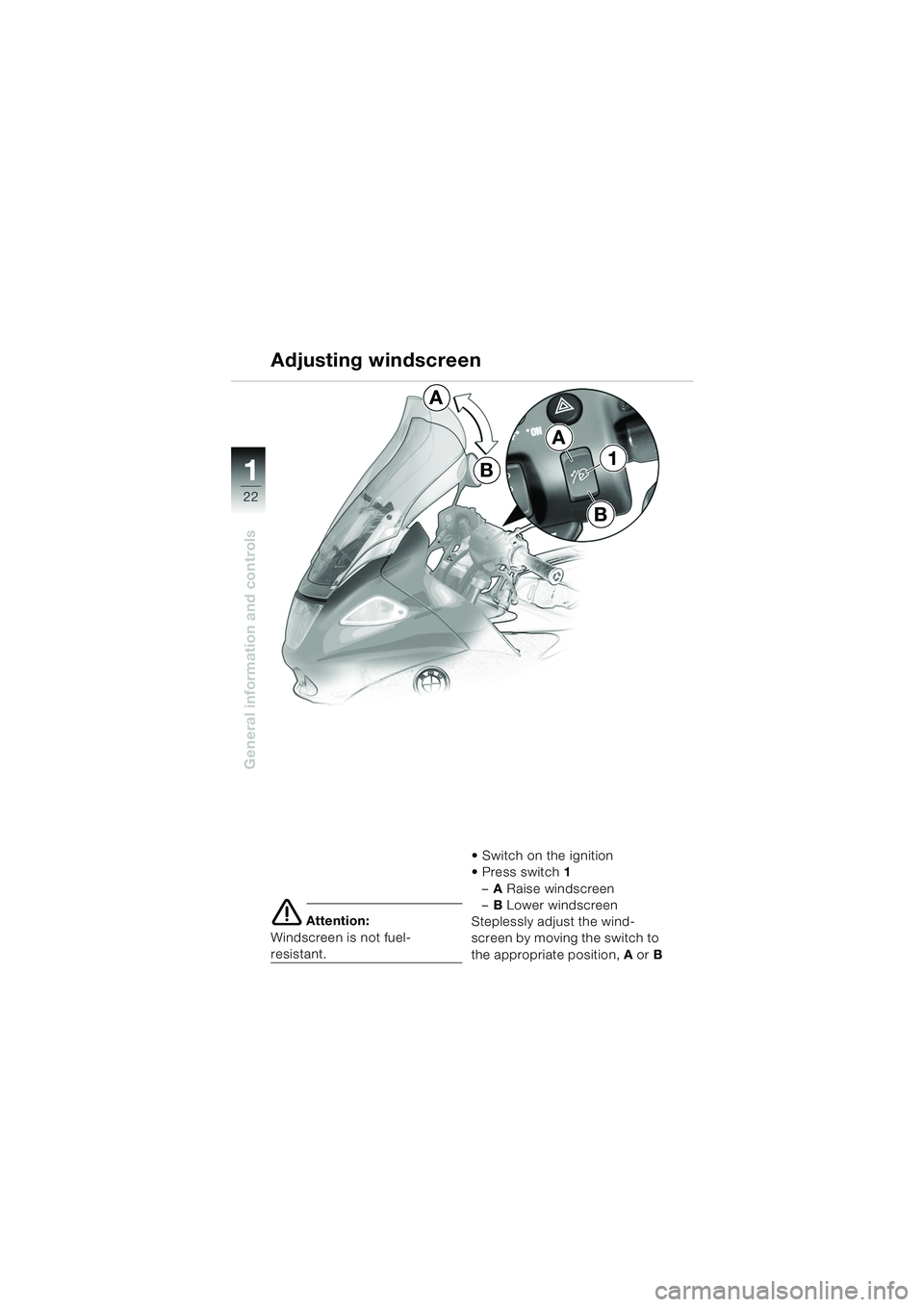

Windscreen is not fuel-
resistant.  Switch on the ignition
 Press switch
1
– A Raise windscreen
– B Lower windscreen
Steplessly adjust the wind-
screen by moving the switch to
the appropriate position, A or B
A
B
1
Adjusting windscreen
A
B
10k41bkg2.book Seite 22 Donnerstag, 24. Juli 2003 9:17 09

23
General information and controls
1

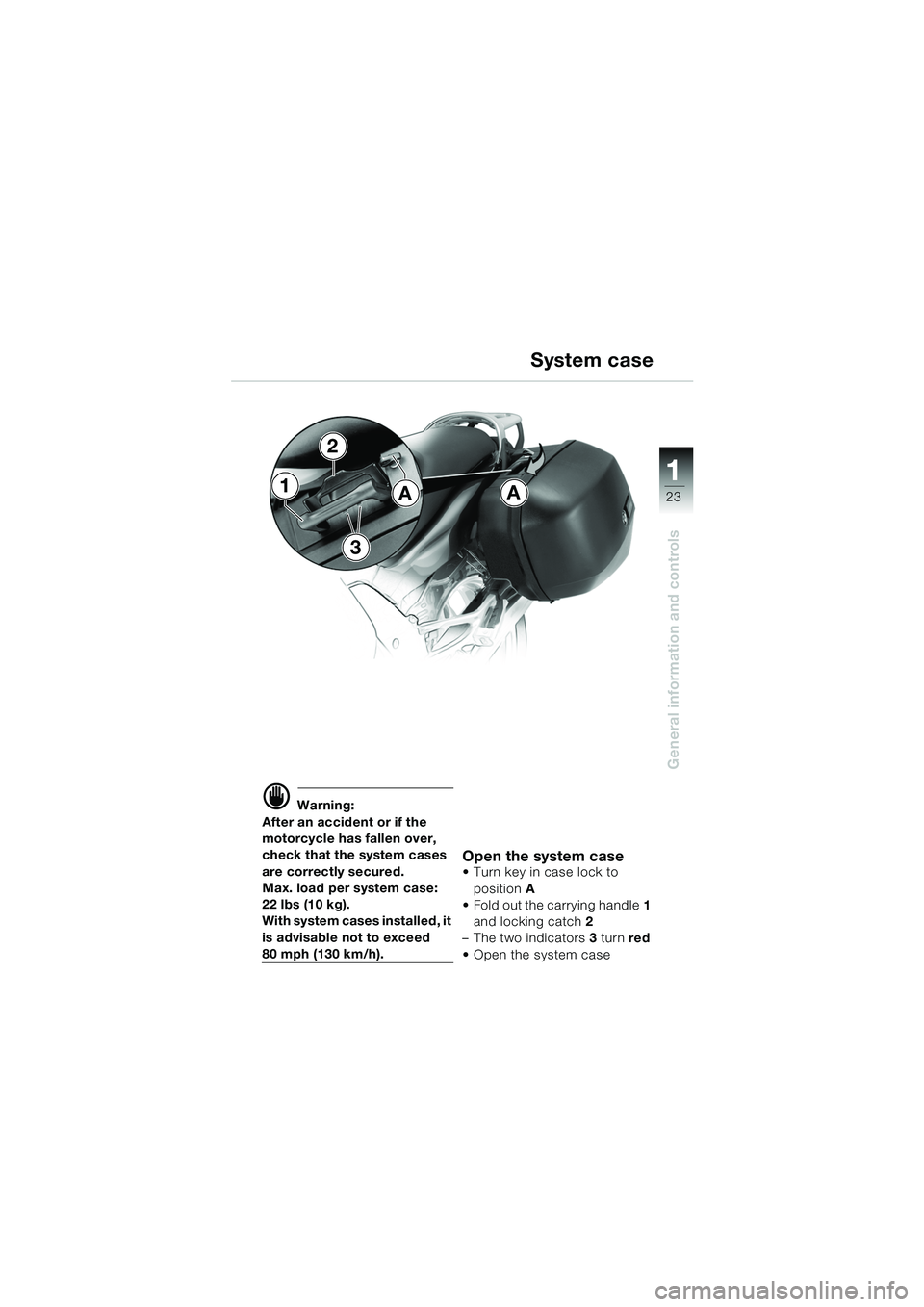

d Warning:
After an accident or if the
motorcycle has fallen over,
check that the system cases
are correctly secured.
Max. load per system case:
22 lbs (10 kg).
With system cases installed, it
is advisable not to exceed
80 mph (130 km/h).
Open the system case Turn key in case lock to position A
 Fold out the carrying handle 1
and locking catch 2
– The two indicators 3 turn red
 Open the system case
A System case1
2
3
A
10k41bkg2.book Seite 23 Donnerstag, 24. Juli 2003 9:17 09

24
General information and controls
1

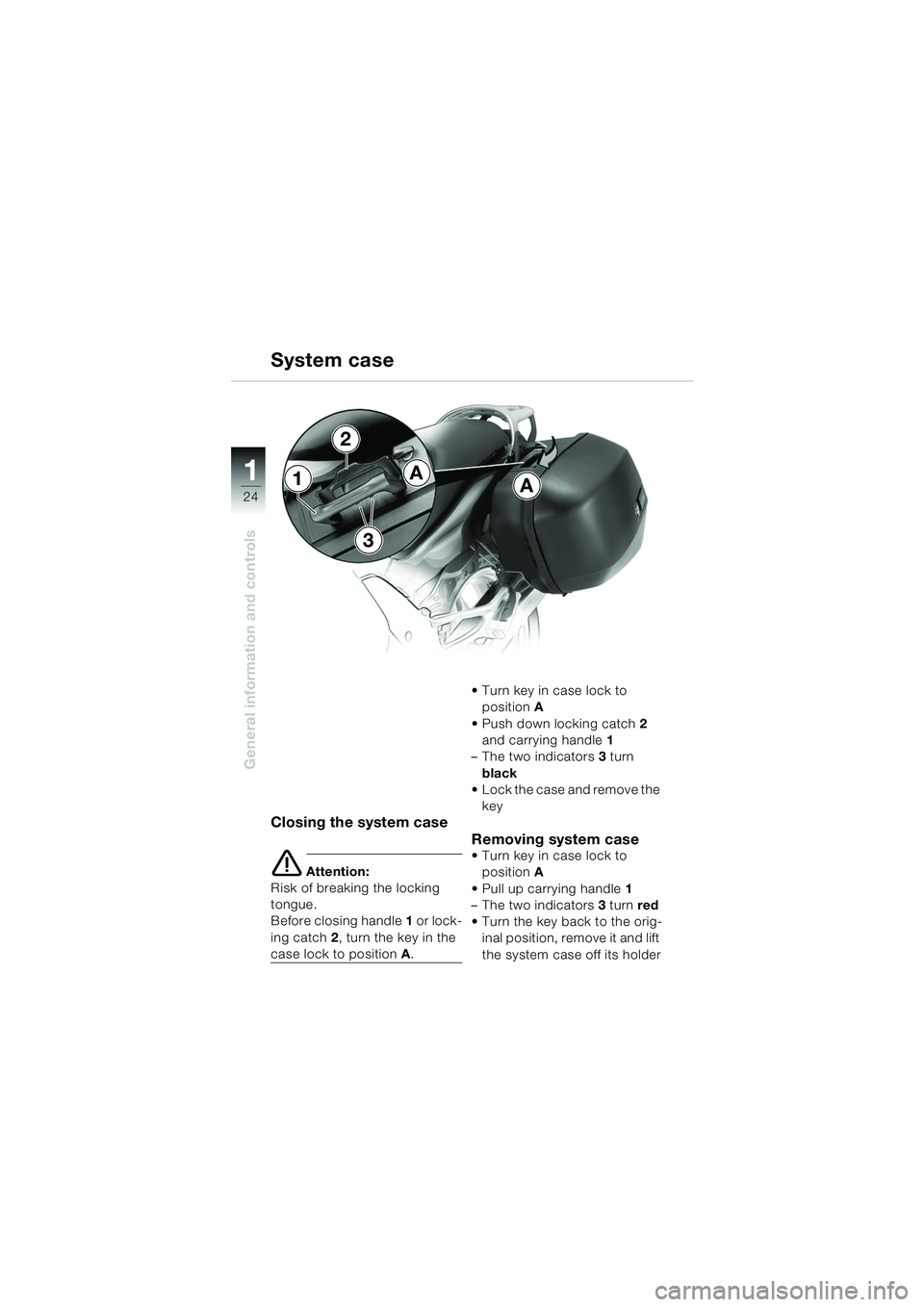

Closing the system case
e Attention:
Risk of breaking the locking
tongue.
Before closing handle 1 or lock-
ing catch 2, turn the key in the
case lock to position A. Turn key in case lock to
position A
 Push down locking catch 2
and carrying handle 1
– The two indicators 3 turn
black
Lock the case and remove the
key
Removing system case
 Turn key in case lock to position A
 Pull up carrying handle 1
– The two indicators 3 turn red
 Turn the key back to the orig- inal position, remove it and lift
the system case off its holder
AA1
2
3
System case
10k41bkg2.book Seite 24 Donnerstag, 24. Juli 2003 9:17 09

25
General information and controls
1

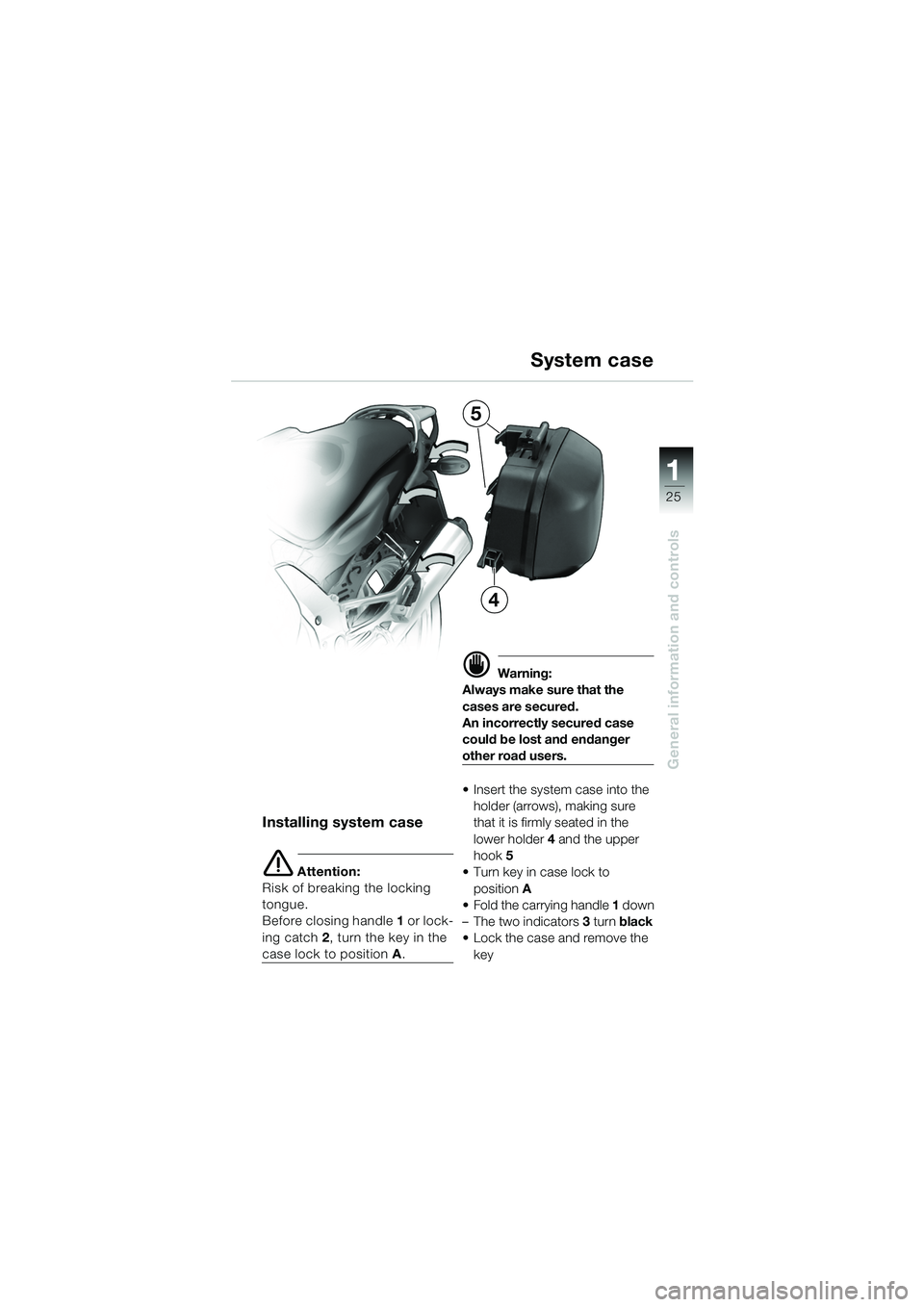

System case
Installing system case
e Attention:
Risk of breaking the locking
tongue.
Before closing handle 1 or lock-
ing catch 2, turn the key in the
case lock to position A.
d Warning:
Always make sure that the
cases are secured.
An incorrectly secured case
could be lost and endanger
other road users.
 Insert the system case into the
holder (arrows), making sure
that it is firmly seated in the
lower holder 4 and the upper
hook 5
 Turn key in case lock to
position A
 Fold the carrying handle 1 down
– The two indicators 3 turn black
 Lock the case and remove the
key
5
4
10k41bkg2.book Seite 25 Donnerstag, 24. Juli 2003 9:17 09

26
Safety check
2

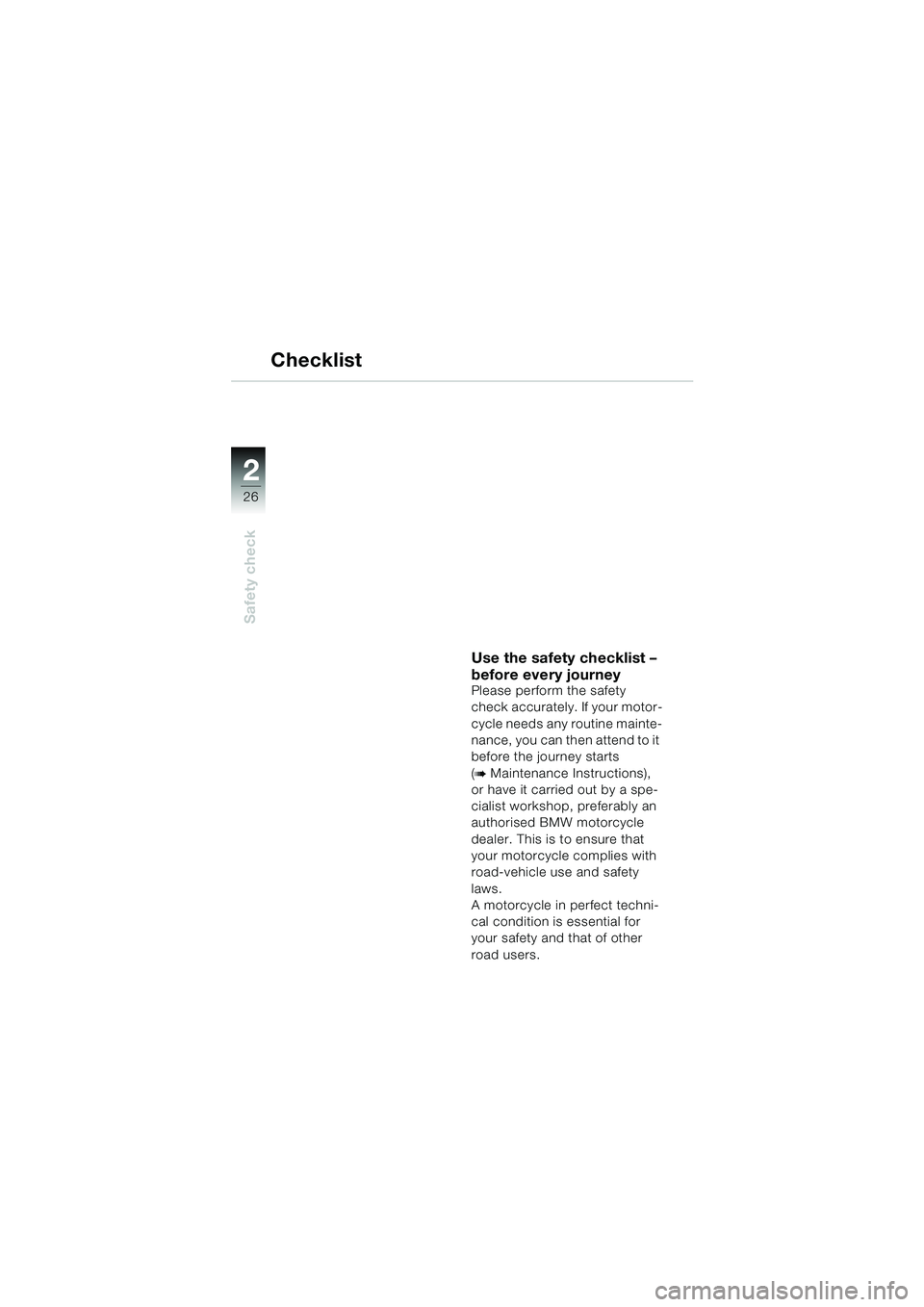

Checklist
Use the safety checklist –
before every journey
Please perform the safety
check accurately. If your motor-
cycle needs any routine mainte-
nance, you can then attend to it
before the journey starts
(
b Maintenance Instructions),
or have it carried out by a spe-
cialist workshop, preferably an
authorised BMW motorcycle
dealer. This is to ensure that
your motorcycle complies with
road-vehicle use and safety
laws.
A motorcycle in perfect techni-
cal condition is essential for
your safety and that of other
road users.
10k41bkg2.book Seite 26 Donnerstag, 24. Juli 2003 9:17 09

22
27
Safety check
2

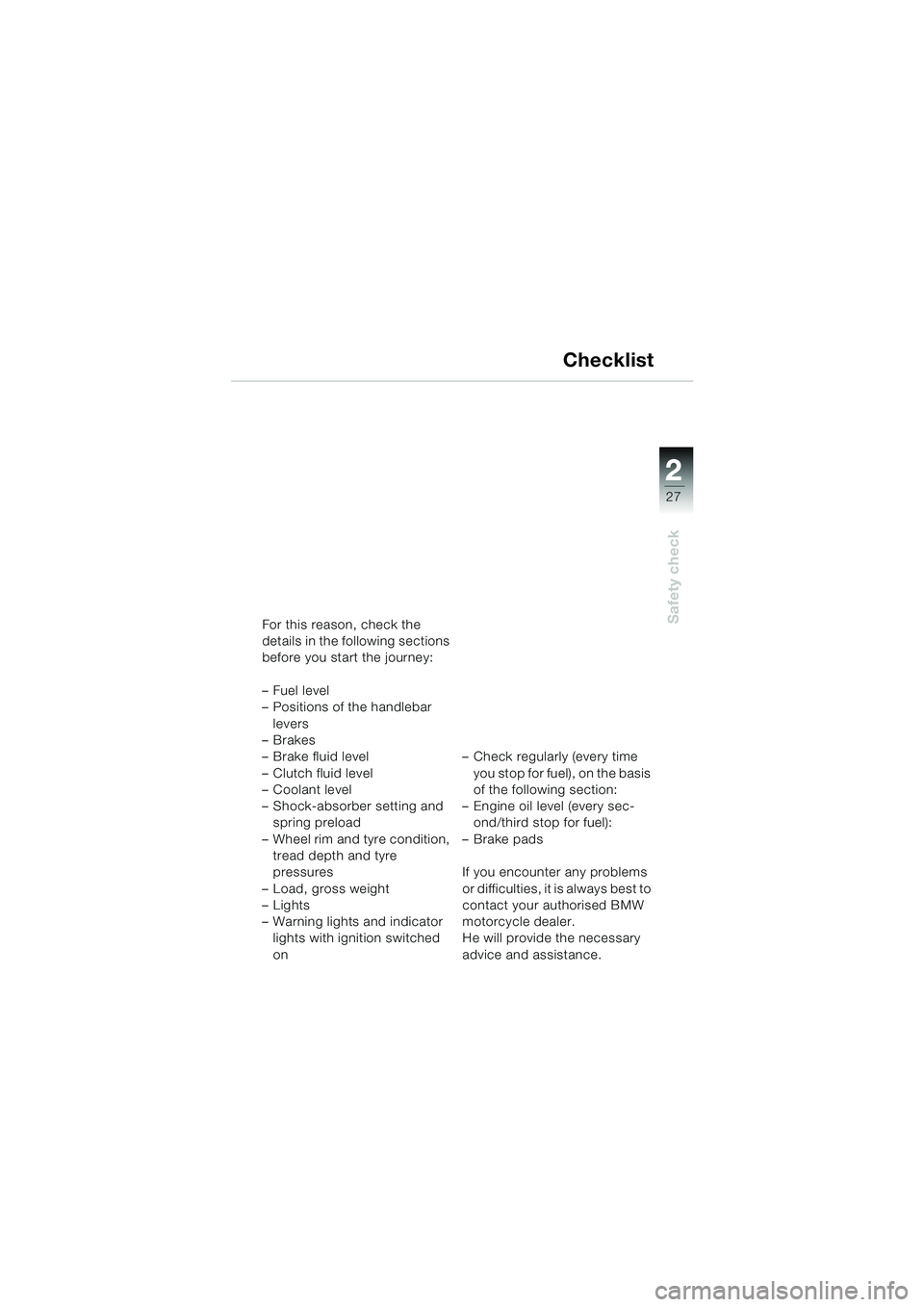

For this reason, check the
details in the following sections
before you start the journey:
– Fuel level
– Positions of the handlebar levers
–Brakes
–Brake fluid level
– Clutch fluid level
– Coolant level
– Shock-absorber setting and spring preload
– Wheel rim and tyre condition, tread depth and tyre
pressures
– Load, gross weight
–Lights
– Warning lights and indicator lights with ignition switched
on – Check regularly (every time
you stop for fuel), on the basis
of the following section:
– Engine oil level (every sec- ond/third stop for fuel):
– Brake pads
If you encounter any problems
or difficulties, it is always best to
contact your authorised BMW
motorcycle dealer.
He will provide the necessary
advice and assistance.
Checklist
10k41bkg2.book Seite 27 Donnerstag, 24. Juli 2003 9:17 09

28
Safety check
2

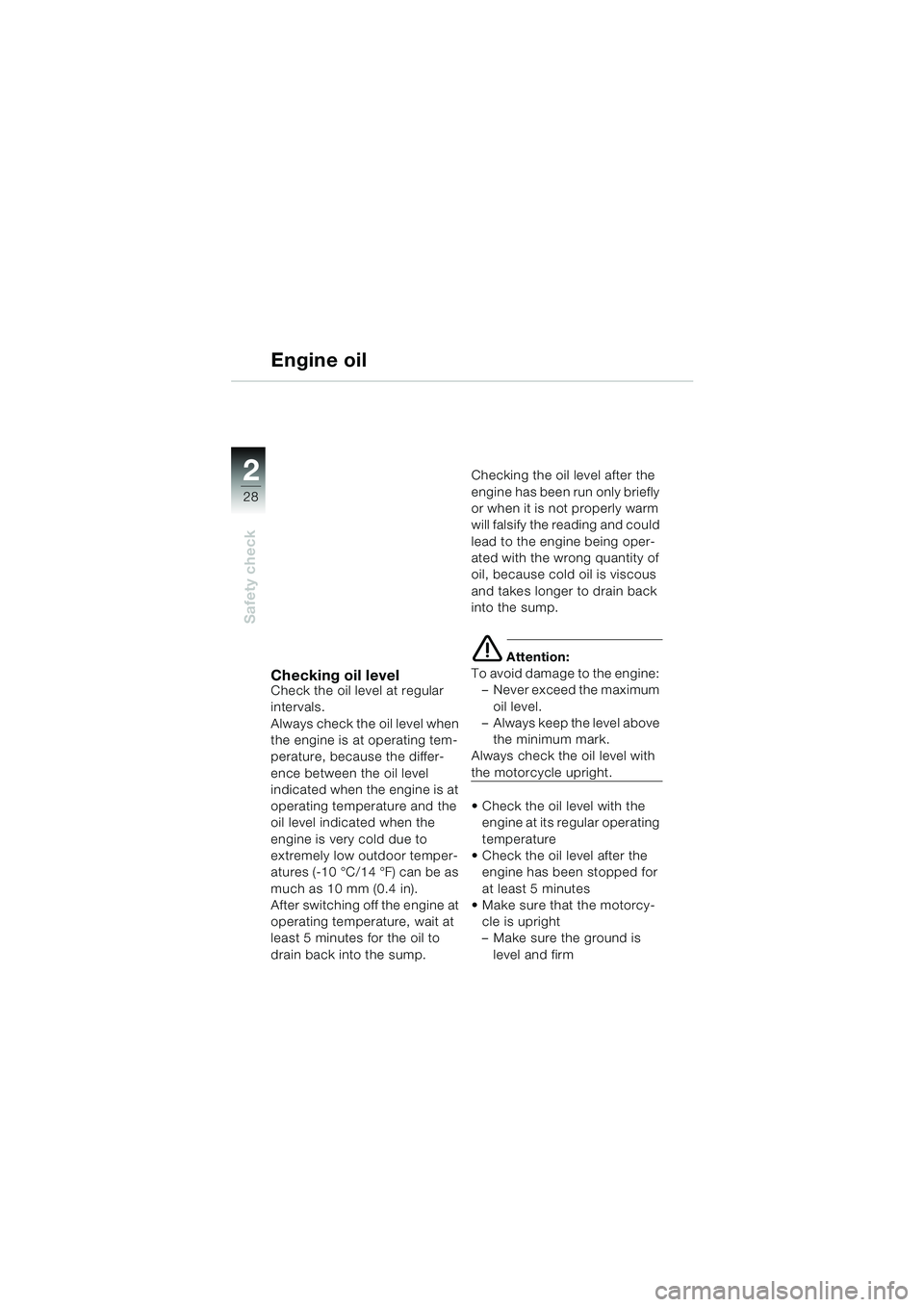

Engine oil
Checking oil levelCheck the oil level at regular
intervals.
Always check the oil level when
the engine is at operating tem-
perature, because the differ-
ence between the oil level
indicated when the engine is at
operating temperature and the
oil level indicated when the
engine is very cold due to
extremely low outdoor temper-
atures (-10 °C/14 °F) can be as
much as 10 mm (0.4 in).
After switching off the engine at
operating temperature, wait at
least 5 minutes for the oil to
drain back into the sump.Checking the oil level after the
engine has been run only briefly
or when it is not properly warm
will falsify the reading and could
lead to the engine being oper-
ated with the wrong quantity of
oil, because cold oil is viscous
and takes longer to drain back
into the sump.
e
Attention:
To avoid damage to the engine: – Never exceed the maximum
oil level.
– Always keep the level above
the minimum mark.
Always check the oil level with
the motorcycle upright.
 Check the oil level with the engine at its regular operating
temperature
 Check the oil level after the engine has been stopped for
at least 5 minutes
 Make sure that the motorcy-
cle is upright
– Make sure the ground is level and firm
10k41bkg2.book Seite 28 Donnerstag, 24. Juli 2003 9:17 09
